Proteins from the small multidrug resistance (SMR) family are frequently associated with horizontally transferred multidrug resistance gene arrays found in bacteria from wastewater and the human-adjacent biosphere. Recent studies suggest that a subset of SMR transporters might participate in the metabolism of the common pharmaceutical metformin by bacterial consortia. Here, we show that both genomic and plasmid-associated transporters of the SMRGdx functional subtype export byproducts of microbial metformin metabolism, with particularly high export efficiency for guanylurea. We use solid-supported membrane electrophysiology to evaluate the transport kinetics for guanylurea and native substrate guanidinium by four representative SMRGdx homologs. Using an internal reference to normalize independent electrophysiology experiments, we show that transport rates are comparable for genomic and plasmid-associated SMRGdx homologs, and using a proteoliposome-based transport assay, we show that 2 proton:1 substrate transport stoichiometry is maintained. Additional characterization of guanidinium and guanylurea export properties focuses on the structurally characterized homolog, Gdx-Clo, for which we examined the pH dependence and thermodynamics of substrate binding and solved an x-ray crystal structure with guanylurea bound. Together, these experiments contribute in two main ways. By providing the first detailed kinetic examination of the structurally characterized SMRGdx homolog Gdx-Clo, they provide a functional framework that will inform future mechanistic studies of this model transport protein. Second, this study casts light on a potential role for SMRGdx transporters in microbial handling of metformin and its microbial metabolic byproducts, providing insight into how native transport physiologies are co-opted to contend with new selective pressures.

Membrane transporters are essential for microbial survival in dynamic environments. They bridge the interior of the cell with the external environment and permit the translocation of nutrients, metabolic byproducts, and toxins across the membrane barrier. In particular, efflux pumps are a first line of defense against a variety of xenobiotics, including anthropogenic chemicals (Kim et al., 2021; Paulsen, 2003). One reflection of the fitness advantage provided by these exporters is their frequent association with horizontal gene transfer (HGT) elements such as integron/integrase sequences and plasmids, which permit useful genes to be shared among bacterial populations. HGT-associated genes encoding drug exporters are especially common among isolates from hospitals, wastewater, agriculture, and other human-adjacent contexts (Pal et al., 2015).

Representatives of the small multidrug resistance (SMR) family of proton-coupled antiporters are among the most common HGT-associated exporters (Pal et al., 2015). These ∼100 residue proteins possess four transmembrane helices per monomer and assemble as antiparallel dimers (Fleishman et al., 2006; Kermani et al., 2020, 2022). Structures of representative SMRs show a deep aqueous substrate binding pocket with a critical pair of glutamate residues at the bottom (Kermani et al., 2020, 2022). Substrate and protons compete for the binding of these glutamates, ensuring the alternating occupancy inherent to antiport mechanisms (Muth and Schuldiner, 2000). Two SMR subtypes with distinct substrate specificities are commonly associated with HGT (Burata et al., 2022; Kermani et al., 2018; Slipski et al., 2020). These are termed SMRGdx (guanidinium export) and SMRQac (quaternary ammonium cation). The SMRQac proteins are promiscuous exporters of polyaromatic and quaternary ammonium antimicrobials, including common household and hospital antiseptics such as benzalkonium (Saleh et al., 2018; Yerushalmi et al., 1995). Quaternary ammonium antiseptics are one of the original modern antimicrobials, commonly used since the 1930s. The SMRQacs are perhaps the first, and remain among the most common, HGT-associated efflux pumps (Gillings et al., 2008; Zhu et al., 2017). In contrast, the rationale for the widespread association between HGT elements and the SMRGdx is not as obvious. In their major physiological context, SMRGdx export the nitrogenous waste product guanidinium (Gdm+; Kermani et al., 2018; Nelson et al., 2017), a compound that is widespread in microbial metabolism (Breaker et al., 2017; Funck et al., 2022; Schneider et al., 2020; Sinn et al., 2021; Wang et al., 2021). The SMRGdx do not provide robust resistance to classical antimicrobials or antiseptics (Chung and Saier, 2002; Kermani et al., 2018). However, an emerging body of literature suggests that even pharmaceuticals that are not used explicitly as antimicrobials also shape bacterial communities in the human microbiome and other human-associated environments (Maier et al., 2018).

One such pharmaceutical is the biguanide antidiabetic metformin. The most frequently prescribed drug worldwide, over 150 million patients are prescribed metformin annually to manage type II diabetes (Lunger et al., 2017). Metformin is typically dosed in gram quantities daily and is excreted in an unaltered form (Gong et al., 2012; Corcoran and Jacobs, 2022). Metformin and its associated degradation product guanylurea are the most prevalent anthropogenic chemicals in wastewater globally. Concentrations have been measured up to the low μM range in sampled waste and surface waters, and these compounds are not removed through typical wastewater treatment protocols (Briones et al., 2016; Golovko et al., 2021). As a result, these compounds have accumulated to levels of environmental concern in surface water worldwide (Balakrishnan et al., 2022; Briones et al., 2016; Elizalde-Velazquez and Gomez-Olivan, 2020; Scheurer et al., 2012). Metformin is also associated with changes in the composition of microbial communities including the gut microbiome (Vich Vila et al., 2020; Wu et al., 2017) and in wastewater treatment plants (Briones et al., 2016). In some cases, metformin may act as a co-selective agent, enhancing the survival of antibiotic-resistant bacteria in the presence of antibiotics (Wei et al., 2022). However, other recent studies have isolated bacteria that utilize metformin as a nitrogen and/or carbon source (Chaignaud et al., 2022; Li et al., 2023; Martinez-Vaz et al., 2022), suggesting that biodegradation of metformin and guanylurea may be a viable strategy for remediation of these compounds.

Studies on metformin degradation by microbial communities suggest that SMR transporters might have an emerging role in metformin biodegradation. For example, two identical, adjacent open reading frames encoding an SMRGdx protein were identified on the same plasmid as other genes that contribute to metformin degradation by a wastewater treatment plant isolate (Martinez-Vaz et al., 2022). We previously showed that this protein possesses guanylurea transport activity (Martinez-Vaz et al., 2022). In an independent study, a transcriptional analysis of a metformin-degrading Aminobacter strain showed a 30-fold increase in gene expression of an SMRGdx transporter in metformin-grown cells (Li et al., 2023). On the basis of these studies, pathways for the full breakdown of metformin by bacterial consortia have been proposed. In such pathways, SMRGdx transporters would provide a key step in the process, export of the intermediate guanylurea (Fig. 1 A).

In this paper, we investigate whether several genomic- and plasmid-associated SMRs (Fig. 1 B and Table S1) transport metformin or other byproducts of microbial metformin metabolism. For our initial screen, we examined four SMRGdx homologs and two SMRQac homologs. The SMRGdx homologs we examined include (1) the structurally characterized genomic protein from Clostridales oral taxon 876, Gdx-Clo (Kermani et al., 2020); (2) the genomic Escherichia coli homolog Gdx-Eco (Kermani et al., 2018); (3) a common plasmid-borne variant isolated from multiple species of γ-proteobacteria, Gdx-pPro (Slipski et al., 2020), which shares 81% sequence identity with Gdx-Eco; and (4) a plasmid-borne variant isolated from Aminobacter sp. MET, which uses metformin as a sole nitrogen source, Gdx-pAmi (Martinez-Vaz et al., 2022). We also selected two representatives of the SMRQac subtype; exemplar EmrE from E. coli and QacE, the most common integron- and plasmid-associated sequence (Burata et al., 2022). We show that efficient guanylurea transport is a general property of the SMRGdx subtype, but not of SMRQac, and that other metformin degradation products are also transported by SMRGdx. We characterize the transport kinetics and proton-coupling stoichiometry of a representative plasmid-borne and genomic SMRGdx and determine the structure of a representative SMRGdx with guanylurea bound. This work provides a case study into bacterial co-option of existing metabolic transporters to deal with novel xenobiotics. Furthermore, this study provides the foundational biochemical characterization of the SMRGdx subtype, which will support future efforts to understand detailed molecular mechanisms of substrate transport by this family of proteins.

Phylogeny preparation

SMR sequences from representative genomes and from Integrall (Moura et al., 2009), a database of integron-associated genes, were aligned using MUSCLE (Edgar, 2004). A phylogeny was constructed using PhyMl3.0 (Guindon et al., 2010) and visualized using FigTree (http://tree.bio.ed.ac.uk/software/figtree).

Transporter expression, purification, and reconstitution

Gdx-Clo (Kermani et al., 2018), Gdx-Eco (Kermani et al., 2018), EmrE (Kermani et al., 2022), and Gdx-pAmi (Martinez-Vaz et al., 2022) construct design and purification have been described previously. For QacE and Gdx-pPro, synthetic geneblocks (Integrated DNA Technologies) were cloned into a pET21b vector with an N-terminal hexahistidine tag and LysC and thrombin recognition sequences. Proteins were overexpressed in C41(DE3). Expression was induced by the addition of 0.2 mM IPTG for 3 h. Cells were lysed and extracted with 2% n-decyl-β-D-maltoside (DM) for 2 h. After pelleting insoluble cell debris, proteins were purified using cobalt affinity resin. Wash buffer contained 25 mM Tris, pH 8.5, 150 mM NaCl, and 5 mM DM. For Gdx-pAmi, NaCl concentration was increased to 500 mM NaCl. The affinity column was washed with wash buffer, then wash buffer with 10 mM imidazole, prior to elution with wash buffer with 400 mM imidazole. For Gdx-Clo and Gdx-Eco, histidine tags were cleaved with LysC (200 ng/mg of protein; 2 h at room temperature; New England Biolabs), and for all others, histidine tags were cleaved with thrombin (1 U/mg of protein, overnight at room temperature; MilliporeSigma). Proteins were further purified using a gel filtration Superdex200 column (Cytiva) equilibrated with 100 mM NaCl, 10 mM N-2-hydroxyethylpiperazine-N′-2-ethanesulfonic acid (HEPES), pH 7.5, and 5 mM DM. Purified proteins were stored at 4°C for up to 5 days before detergent binding assays. To prepare proteoliposomes for electrophysiology assays, purified protein was mixed with E. coli polar lipid extract (10 mg/ml; Avanti Polar Lipids) solubilized with 35 mM 3-[(3-cholamidopropyl)dimethylammonio]-1-propanesulfonate (CHAPS) at a protein to lipid ratio of 40 μg SMR transporter: mg lipid (1:370 protein:lipid molar ratio) prior to detergent removal by dialysis. For preparations that included Fluc-Bpe, liposomes were reconstituted with a molar ratio of 0.3 Fluc-Bpe:1 SMRGdx: 5920 lipid (1 μg Fluc-Bpe and ∼2.5 μg SMRGdx per mg lipid). For liposome transport assays, proteoliposomes were prepared similarly, except that a 2:1 mixture of 1-palmitoyl, 2-oleoylphosphatidylethanolamine (POPE) and 1-palmitoyl, 2-oleoylphosphatidylglycerol (POPG) (10 mg/ml; Avanti Polar Lipids) was used with 0.2 μg protein/mg lipid. Proteoliposomes were stored at −80°C until use.

Solid-supported membrane (SSM) electrophysiology

SSM experiments were performed using SURFE2R N1 instrument (Nanion Technologies). Sensors were prepared with a 1,2-diphytanoyl-sn-glycero-3-phosphocholine (DPhPC) lipid monolayer according to published protocols (Bazzone et al., 2017). Each sensor’s capacitance and conductance were verified before use (<80 nF capacitance, <50 nS conductance) using Nanion software protocols. Proteoliposome stock was diluted 1:25 in assay buffer (100 mM KCl, 100 mM KPO4, pH 7.5) prior to adsorption to the DPhPC monolayer. For substrate screening experiments, reference substrate samples (Gdm+ for SMRGdx, and TPA+ for SMRQac) were checked periodically to test for the stability of the sensor; if the current amplitude of the reference compound differed by >10% on one sensor, it indicated the desorption of liposomes, and the sensor was not used for further experiments. For every SSM electrophysiology experiment, we used the same general solution exchange protocol: after 2 s perfusion with a non-activating solution, we perfused substrate-containing buffer for 2 s and then returned to the equilibrium condition with a 4 s perfusion of non-activating buffer. An example of a full experiment is shown in Fig. S1. For experiments with the S104C/A70C crosslinked variant, reducing conditions were established by the addition of 2.5 mM tris(2-carboxyethyl)phosphine (TCEP) to the activating and non-activating buffers.

Radioactive Gdm+ exchange assay

This assay was performed exactly as described previously (Kermani et al., 2018). Briefly, proteoliposomes were prepared with 10 mM internal Gdm+. 20 μM external 14C-labeled guanidinium (American Radiolabelled Chemicals, Inc.) was added to initiate the exchange reaction and quenched at timepoints by passing the sample over a cation exchange column. Internalized radiolabeled Gdm+ was measured by scintillation counting. Reducing conditions were established by the inclusion of 2.5 mM tris(2-carboxyethyl)phosphine (TCEP) in the buffers.

Quantitative Western blot

For experiments to assess coreconstitution efficiency, Fluc proteins bore an MPER epitope tag, which does not alter channel function or biochemistry (McIlwain et al., 2021a), and the SMRGdx homolog bore a histidine tag. To detect MPER epitope tags, we used the primary antibody VRC42 (Krebs et al., 2019), and to detect the histidine tags, the primary antibody was from Genscript. Quantification was performed using ImageJ (Schneider et al., 2012).

Pyranine stoichiometry assay

Proteoliposomes were reconstituted with an internal buffer of 25 mM HEPES, pH 7.53, 100 mM NaCl, 100 mM KCl, and preloaded with 0.4 mM substrate (Gdm+ or guanylurea) and 1 mM pyranine (trisodium 8-hydroxypyrene-1, 3, 6-trisulfonate; Sigma-Aldrich) using three freeze/thaw cycles. Unilamellar liposomes were formed by extrusion through a 400-nm membrane filter and the external pyranine was removed by passing liposomes through a Sephadex G-50 column spin column equilibrated in an internal buffer with substrate. The external assay buffers contained 25 mM HEPES, pH 7.53, 0.4 mM substrate, and varying KCl concentration (3–46 mM) to establish the membrane potential, with NaCl to bring the total salt concentration to 200 mM. Proteoliposomes were diluted 200-fold into the external buffer, and after ∼30 s to establish a baseline, valinomycin (final concentration 0.2 ng/ml) was added together with the substrate (final concentration 4 mM). Fluorescence spectra were monitored (λex = 455 nm; λem = 515 nm) for ∼300 s. The membrane potential was calculated using the Nernst potential for K+:
ψcalc=RTFln[K+]out[K+]in.
(1)
Fluorescence emission time courses were corrected for baseline drift measured prior to substrate and valinomycin addition. The stoichiometry was determined from the voltage at which electrochemical equilibrium occurred (no change in fluorescence over time) using the following equation:
Erev=(nmn*RTFln[substrate+]in[substrate+]out),
(2)
where n and m represent the stoichiometric coefficients of substrate and protons, respectively.

Tryptophan fluorescence

Fluorescence emission spectra (λex = 280 nm, λex = 300–400 nm) were collected for 1 µM purified protein in assay buffer containing 200 mM NaCl, 10 mM HEPES, 10 mM bicine, 10 mM NaPO4, and 5 mM DM, with pH adjusted from 6.5 to 9.0. Substrate was added from a stock solution prepared in assay buffer. For Gdm+ titrations, the change in fluorescence, F, as a function of substrate fit to a single site binding isotherm,
F=(Fmax[S]Kd+[S]).
(3)
For guanylurea titration, binding data fit to a single site binding isotherm with correction for a linear, non-specific binding component, c:
F=(Fmax[S]Kd+[S])+c[S].
(4)
To derive the Ka values and Kd values from the apparent Kd measured as a function of pH, we used the following equation, which uses the approximation that the protonatable E13 sidechains have equal Ka values:
Kd,app=(Kd)*(1+([H+]Ka))*(1+([H+]Ka)).
(5)

Isothermal titration calorimetry (ITC)

ITC experiments were conducted using a low-volume Nano ITC instrument (TA Instruments). Freshly purified protein (650 µM) in 10 mM 4-(2-hydroxyethyl)-1-piperazinepropanesulfonic acid (EPPS), pH 8.53, 100 mM NaCl, and 4 mM DM was titrated with 20 mM Gdm+ or 10 mM guanylurea prepared in the same buffer. For each experiment, 300 µl of 700 µM Gdx-Clo was loaded in the sample chamber maintained at 25°C with 350 rpm stirring speed. The injection syringe contained 500 µl of buffer-matched substrate (20 mM Gdm+ or 10 mM guanylurea). The sample was titrated (0.75 µl injections) at 100-s increments. Once an acceptable baseline slope was achieved (0.30 µW/h and 0.03 µW standard deviation), a 200 s baseline (∼112 µW) was taken prior to beginning titrations. Data were analyzed using NanoAnalyze software.

Structure of Gdx-Clo in complex with guanylurea

The crystallization chaperone monobody L10 was prepared as described previously (Kermani et al., 2020, 2022). Freshly purified Gdx-Clo (10 mg/ml) and L10 monobody (10 mg/ml, supplemented with 4 mM DM) were mixed at a 1:1 ratio. Guanylurea and lauryldimethylamine-N-oxide (LDAO; Anatrace) were added to a final concentration of 10 and 6.6 mM, respectively, and combined in a 1:1 ratio with crystallization solution. Crystals formed at room temperature after ∼7 days in 0.1 M HEPES, pH 7.0, 0.1 M calcium acetate, and 31% PEG600. Data were collected at the Life Sciences Collaborative Access Team at the Advanced Photon Source, Argonne National Laboratory. Data were processed using DIALS (Winter et al., 2018) software and subjected to anisotropic truncation using Staraniso (Tickle et al., 2018). Phaser (McCoy et al., 2007) was used for molecular replacement with Gdx-Clo and L10 monobodies (PDB ID 6WK9) as search models. Coot (Emsley et al., 2010) and Phenix (Liebschner et al., 2019) were used for iterative rounds of model building and refinement.

Online supplemental material

Fig. S1 shows the solution exchange protocol and example trace for SSM electrophysiology experiments described in this manuscript. Fig. S2 shows size exclusion chromatograms for six proteins in this study. Fig. S3 shows representative current traces for substrates and transporter data summarized in Fig. 1, and no-protein controls. Fig. S4 shows representative current traces for Gdm+ and guanylurea titrations of protein-free liposomes. Fig. S5 shows representative current traces for guanylurea perfusion of Fluc-Bpe and fluoride perfusions of Gdx-Eco, Gdx-pPro, and Gdx-pAmi. Fig. S6 shows tryptophan fluorescence spectra and fits to binding isotherms for all data reported in Fig. 6 and Table 2. Table S1 shows coding sequences for transporters examined in this study. Table S2 shows reconstitution efficiencies of SMRGdx homologs assessed by quantitative Western blot.

Guanylurea transport is general among SMRGdx homologs

We first sought to determine whether transport of guanylurea is widespread among SMR homologs, and whether other metformin metabolites might also be exported by transporters from this family. We selected several SMRs that could be purified with monodispersed size exclusion chromatograms (Fig. S2), including both genomic- and plasmid-associated SMRQac and SMRGdx representatives (see Fig. 1). We screened a series of metformin metabolites for transport using SSM electrophysiology (Fig. 2, A and B). For these experiments, purified proteins are reconstituted into proteoliposomes, which are then capacitively coupled to an electrode to monitor charge movement across the liposome membrane (Bazzone et al., 2017). Because of their antiparallel topology, homodimeric SMR transporters possess twofold symmetry with identical inward- and outward-facing structures (Morrison et al., 2011); thus, in contrast to most transporters, orienting the proteins in the reconstituted liposome system is not necessary. All compounds were tested for transport at 2 mM, and for each substrate, we confirmed that protein-free liposomes did not exhibit pronounced currents (Fig. S3). Since the efficiency of proteoliposome adsorption to the sensors’ monolayer is variable, we included a positive control compound to benchmark the currents for test substrates evaluated on the same sensor: Gdm+ for SMRGdx proteins, and tetrapropylammonium (TPA+) for SMRQac proteins.

For all SMRGdx homologs, we observed negative capacitive currents for both Gdm+ and guanylurea, consistent with electrogenic proton-coupled substrate antiport (Fig. S3). The best characterized SMRGdx homolog, Gdx-Clo, transported only Gdm+ and guanylurea. However, the other three SMRGdx homologs tested also transported singly substituted biguanides, including the metformin degradation product methylbiguanide and the related antidiabetic drug buformin. Metformin, a doubly substituted biguanide, exhibited currents barely above the detectable limit by SMRGdx proteins. These observations are congruent with prior observations that guanidinium ions with single hydrophobic substitutions are transported by SMRGdx, but that doubly substituted guanidiniums are not (Kermani et al., 2020). The SMRQacs examined, EmrE and integron-associated QacE, did not exhibit transport currents for this series of compounds.

For all SSM electrophysiology experiments, the shapes of the substrate-induced currents are characteristic of transport, rather than electrogenic presteady binding events. However, we sought to confirm this interpretation for at least one transporter/substrate pair. Using the structure of Gdx-Clo (Kermani et al., 2020), we introduced a pair of cysteines, A70C and S104C, that are within the crosslinking distance (∼6 Å) on the open side of the transporter, but that increase in distance when the transporter changes conformation. We expected that the formation of a crosslink would lock the transporter in one open conformation, impairing transport, with little effect on substrate binding (Fig. 2 C). Indeed, under oxidizing conditions, the Kd for Gdm+ binding is within a factor of two of WT (Nelson et al., 2017), but radioactive Gdm+ exchange is greatly reduced to near-background levels (Fig. 2, D and E). Substrate exchange is restored in reducing conditions. SSM electrophysiology recapitulates this observation: under oxidizing conditions, the SSM electrophysiology traces of Gdx-Clo A70C/S104C are indistinguishable from those of protein-free liposomes, but the inclusion of a reducing agent elicits characteristic transport currents (Fig. 2 F). Thus, although we have evidence that Gdx-Clo A70C/S104C binds substrate normally when locked, we do not see any evidence of pre-steady state binding currents.

Kinetics and proton coupling for Gdm+ and guanylurea transport

To compare the kinetic properties for the transport of guanylurea and the physiological substrate Gdm+, we measured peak amplitudes of the capacitive currents for the four SMRGdx homologs as a function of substrate concentration. Assuming that currents reflect steady-state transport and not pre-steady-state binding events (as confirmed for Gdx-Clo/Gdm+ in Fig. 2 F), the current amplitudes reflect the initial rate of transport (Bazzone et al., 2017, 2022, 2023), and their concentration dependence follows Michaelis–Menten kinetics (Fig. 3 and Table 1). For all four homologs, the Km value for guanylurea was approximately twofold lower than that of Gdm+. However, the absolute Km values varied over a factor of ∼50 among these proteins. The genomic Gdx-Clo exhibited the lowest Km values (500 μM for Gdm+ and 220 μM for guanylurea), and the plasmid-associated Gdx-pAmi exhibited the highest Km values (16 mM for Gdm+ and 5 mM for guanylurea). We confirmed that protein-free liposomes do not exhibit negative capacitive currents characteristic of transport; at the highest substrate concentrations, we observe small positive currents, indicative of interactions with the membrane (Fig. S4).

Our experiments thus far do not allow a comparison of transport rates among SMR homologs. The adsorption of proteoliposomes to the sensor is subject to considerable variability from experiment to experiment, so the current measurements from different sensors cannot be quantitatively compared (Barthmes et al., 2016). Adsorption efficiency can vary from day to day, by experimenter or by sensor batch. To normalize maximal currents obtained on different sensors and thus evaluate differences in transport rate among different proteins (or different mutants of the same protein), we co-reconstituted each SMRGdx homolog with an internal reference, the fluoride channel Fluc-Bpe (Stockbridge et al., 2013, 2015), so that both the test protein and the reference protein would be absorbed to the sensor in a prescribed molar ratio (Fig. 4 A). We selected Fluc-Bpe as an internal reference because of its extremely high selectivity for fluoride (McIlwain et al., 2021b) prevents crossreactivity with other substrates or common buffer components. Moreover, its fast fluoride permeation rate and channel mechanism (McIlwain et al., 2021c) yield high sensitivity with small amounts of protein and low concentrations of fluoride. Control experiments with individually reconstituted Fluc-Bpe and SMRGdx confirm that the SMRGdx substrates guanidinium and guanylurea do not elicit a response from Fluc-Bpe, and that the SMRGdx is similarly insensitive to fluoride perfusion (Fig. 4 B and Fig. S5). Between each substrate perfusion, we perfused with non-activating (substrate-free buffer) so that we could isolate the contribution of the Fluc or SMRGdx to the current. By normalizing with respect to the peak fluoride current amplitudes, we obtain good sensor-to-sensor reproducibility (Fig. 4 C). At high protein concentrations or ion fluxes, the maximal currents can be limited by a number of factors such as internal volume, membrane potential, or membrane crowding. However, at the low protein concentrations used in these experiments (2.5 μg Gdx-Clo and 1 μg Fluc-Bpe per mg lipid), the normalized current amplitudes are reasonably linear with respect to the SMRGdx concentration (Fig. 4 D), indicating that in the concentration regime of these experiments, using Fluc-Bpe as a reference provides a linear readout of transport velocity (Fig. 4 D).

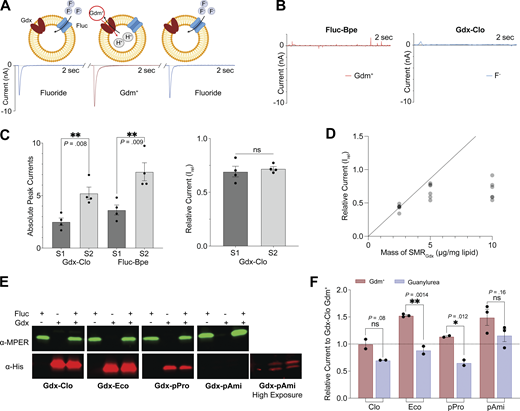

To assess the relative maximal transport velocities of the four SMRGdx homologs, we evaluated the maximal (initial rate) capacitive currents upon perfusion with the substrate at a concentration fivefold higher than the Km values reported in Fig. 3. For each homolog, we independently assessed the reconstitution efficiency using quantitative Western blot analysis of liposomes (Fig. 4 E). Reconstitution efficiencies were similar for Gdx-Clo, Gdx-Eco, and Gdx-pPro (Table S2). For Gdx-pAmi, the reconstitution efficiency was ∼10-fold lower. Co-reconstitution with Fluc-Bpe did not significantly change the reconstitution efficiency of any of the SMRGdx homologs (assessed in triplicate, two-tailed t test: P = 0.22 for Gdx-Clo; P = 0.65 for Gdx-Eco; P = 0.93 for Gdx-pAmi; P = 0.74 for Gdx-pPro). Using peak fluoride current amplitudes as an internal reference, and adjusting for the measured reconstitution efficiency, these experiments show that the transport rates are comparable (within a factor of two) among the four SMRGdx. For Gdx-Clo, Gdx-Eco, and Gdx-pPro, the maximal velocity for Gdm+ is approximately twofold higher than for guanylurea, whereas, for Gdx-pAmi, the turnover rates of guanylurea and Gdm+ are comparable (Fig. 4 F).

The negative capacitive currents observed in the SSM electrophysiology experiments presented thus far are in accord with electrogenic transport of >1 H+ per substrate. Prior studies have shown that Gdx-Eco possesses a well-coupled 2 H+: 1 Gdm+ stoichiometry (Kermani et al., 2018; Thomas et al., 2021). However, for SMRQac EmrE, it has been reported that the transport stoichiometry differs among some transported substrates (Robinson et al., 2017). We therefore employed a proteoliposome assay to experimentally assess the coupling stoichiometry of Gdx-Clo and plasmid-associated Gdx-pAmi. In these experiments, a 10-fold Gdm+ or guanylurea concentration gradient is applied, and the direction of substrate movement is monitored as a function of membrane potential (Fitzgerald et al., 2017; Kermani et al., 2018). When no voltage is applied, the substrate is transported down its chemical gradient, coupled to proton efflux. Application of increasingly negative membrane potentials thermodynamically pushes back against the 10-fold substrate gradient; the electrochemical equilibrium point at which no substrate movement occurs is the reversal potential, from which the transport stoichiometry can be calculated using Eq. 2.

In our setup, the membrane potential is established using a potassium gradient and the potassium ionophore valinomycin, and substrate-coupled proton movement is monitored using pyranine, a pH-sensitive fluorescent dye, encapsulated inside the liposomes. With a 10-fold higher external solute, the electrochemical equilibrium is expected to occur at −60 mV for coupled 2 H+: 1 solute transport. (Note that this value has the inverse sign—and is thus far from—the Nernstian reversal potential for solute of +60 mV that would be expected for uncoupled solute flux). For a coupling ratio of 3 H+:1 solute, Erev would be equal to −30 mV, and for a leaky transporter with a reduced coupling ratio of 1.7 H+:1 solute, Erev would be −90 mV. We examined proton flux at all three potentials for Gdx-Clo (Gdm+ and guanylurea) and Gdx-pAmi (guanylurea only). For all three transporter and solute pairs examined, proton influx (decreased fluorescence) occurs at −90 mV and proton efflux (increased fluorescence) occurs at −30 mV. In contrast, at −60 mV, the fluorescence remains steady over the timecourse of the experiment, in agreement with a 2 H+: 1 solute coupling stoichiometries (Fig. 5, A and B).

Gdm+ and guanylurea binding in Gdx-Clo

To further characterize the pH dependence and thermodynamic properties of Gdm+ and guanylurea binding by SMRGdx, we selected the homolog with the best biochemical stability, Gdx-Clo. Although we initially sought to examine substrate binding by Gdx-pAmi as well, the protein requires high salt concentrations for purification and, in detergent, was prone to aggregate over long titrations or at more physiological salt concentrations.

We first exploited intrinsic changes in tryptophan fluorescence to monitor substrate binding at pH values between pH 6 and pH 9 (Fig. 6 A). Gdm+ titration induces an increase in tryptophan fluorescence that can be fit with a single site binding isotherm described by Eq. 3 (Fig. S6); separate control experiments showed that the binding reaction achieved equilibrium prior to measurement. As expected for a model where protons and Gdm+ compete for binding to the central glutamates, the apparent binding affinity increases with pH as the central glutamates become increasingly deprotonated (Table 2 and Fig. 6 B). Although careful NMR experiments with SMR homolog EmrE have shown that the pKa values of the two central glutamates differ (Li et al., 2021; Morrison et al., 2015), the current binding assays do not have the resolution to distinguish independent Ka values and report on the averaged behavior of the binding site residues. Using the approximation that the glutamates have equal Ka values, the relationship between apparent Kd and pH can be fit using Eq. 5, yielding an average pKa for the glutamates of 6.7 and a Kd for Gdm+ of 600 μM. This value is in the same approximate range as the pKa values of the central glutamates in other SMR homologs (Li et al., 2021; Morrison et al., 2015; Muth and Schuldiner, 2000).

Analogous binding experiments were also performed for guanylurea (Fig. 6, lower panels). In contrast to the tryptophan fluorescence trend observed for Gdm+ binding, titration with guanylurea quenched the tryptophan fluorescence signal. Binding data also suggested there was also a low affinity, non-specific component to substrate binding, which became more apparent at high guanylurea concentrations. Fitting the data to a binding model with a linear non-specific component (Eq. 4) yields apparent Kd values of the same order as the Km value determined previously. A fit to Eq. 5 indicates that the pKa value of the glutamates is 6.9, in reassuring agreement with the pKa determined in the Gdm+ binding experiment, and yields a guanylurea Kd of 70 μM. For both substrates, the Kd values are similar to the transport Km values, suggesting that the kinetics of substrate binding are fast relative to the conformational change during substrate transport.

Because tryptophan fluorescence is an indirect measurement of binding (made additionally mysterious by the opposite effects of Gdm+ and guanylurea on the fluorescence intensity), we also sought to reproduce our binding measurements using ITC. At pH 8.5, where proton binding to the glutamates is minimized, we observed an exothermic binding reaction for both Gdm+ and guanylurea with the expected stoichiometry of ∼1 substrate per protein dimer (Fig. 7 and Table 3). For both substrates, the Kd value measured using ITC was in good agreement with the Kd value obtained using tryptophan fluorescence, validating the tryptophan fluorescence approach to monitor substrate binding. The approximately threefold increase in affinity for guanylurea relative to Gdm+ was due to a more favorable enthalpy of the binding reaction. Thermodynamic parameters derived from the ITC data are reported in Table 3.

Finally, to determine whether guanylurea occupies the same binding pocket as guanidinium in Gdx-Clo, we solved a crystal structure of Gdx-Clo in the presence of 10 mM guanylurea (Fig. 8 and Table 4). Crystals were prepared as in previous studies (Kermani et al., 2020, 2022) and diffracted to 2.1 Å. Two transporters are present in the unit cell, and the maps showed clearly resolved guanylurea density nestled in the binding pocket of one of these transporters (Fig. 8 A). The guanidinium group is poised between the central glutamates, within hydrogen bonding distance, in the same binding mode as observed for phenylguanidinium (Kermani et al., 2020). The carbonyl of guanylurea faces the cleft between helices 2A and 2B (termed the hydrophobic portal [Kermani et al., 2020]), but is just small enough to fit in the binding pocket without requiring a rearrangement of the sidechains lining the portal, in contrast to the slightly larger phenylguanidinium (Kermani et al., 2020). The carbonyl of the guanylurea is twisted slightly out of plane with respect to the guanidinyl group and is positioned ∼3 Å from the electropositive ring edge of portal sidechain F43. There are no other residues within the coordination distance of guanylurea, recapitulating the undercoordination of the native substrate Gdm+. Other key binding pocket residues (W16, S42, Y59, and W62) contribute to an H-bond network that stabilizes the central E13 residues in the same orientation as seen in other structures (Fig. 8 B; Kermani et al., 2020, 2022).

Microbes are constantly evolving to contend with new environmental pressures, including the recent introduction of anthropogenic chemicals. Major routes for the acquisition of new traits by a microbial population include the gain of new genes via HGT transfer events and the co-option of native proteins’ cryptic functions (functions not under natural selection) to fulfill novel functional roles. Here, we examine a family of transporters, the SMRs, that are associated with both evolutionary processes. In particular, we focus on the SMRGdx, which undergoes frequent HGT, despite playing little role in bacterial resistance to classical antimicrobials or antiseptics (Kermani et al., 2020; Slipski et al., 2020). Based on genetic evidence (Li et al., 2023; Martinez-Vaz et al., 2022), we hypothesized a role for the SMRGdx in the transport of metformin metabolites, which structurally resemble the native substrate Gdm+, and have accumulated to high levels in waste and surface waters. Our previous work provided preliminary support for this possibility (Martinez-Vaz et al., 2022).

In this study, we investigate whether the export of guanylurea or other metformin metabolites is a general property of SMRGdx, and we functionally characterize this activity across multiple plasmid-associated and genomic transporters. We show robust transport of guanylurea, with the same transport stoichiometry, and transport kinetics in the same order as that of the physiological substrate Gdm+. Structures of the guanylurea-bound transporter Gdx-Clo show how guanylurea binding exploits the protein’s under coordination of the native substrate, Gdm+ (Kermani et al., 2020), fulfilling all of the hydrogen bonds seen for the native substrate without interference from the substrate’s urea group.

It was surprising on its face that the homolog with the most explicit connection to metformin degradation, Gdx-pAmi, had the lowest affinity for guanylurea (5 mM). But for bacteria actively metabolizing metformin as a nitrogen source, very high concentrations of guanylurea are likely to be produced. A prior study measured metformin degradation by an Aminobacter culture at a rate of ∼0.7 mM/h (Li et al., 2023). Considering the culture density and approximating a ∼femtoliter volume for each cell, each bacterium will produce nearly 16 mM internal guanylurea per minute. This back-of-the-envelope calculation illustrates the need for an efflux pathway and also suggests that bacteria that occupy this niche might be adapted to handle high steady-state guanylurea concentrations. It is a truism that an enzyme only needs to be good enough, and apparently, high substrate affinity is not essential for Gdx-pAmi to contribute a selective advantage in the context of metformin degradation.

In summary, this work has functionally characterized an emerging physiological role of the SMRGdx transporters for the export of metformin metabolites. Such a function rationalizes their genetic occurrence with wastewater-associated plasmids and may also have implications for species distribution or horizontal gene transfer in the gut microbiome of patients treated with metformin. Moreover, understanding how bacteria co-opt native physiologies to contend with novel xenobiotics yields insights into microbial adaptation to an increasingly human-impacted biosphere. Our current study highlights a role for active transport in the full microbial degradation pathway for a chemical pollutant and may inform effective multispecies bioremediation strategies for metformin and other pharmaceuticals in the environment.

Atomic coordinates for Gdx-Clo bound to guanylurea have been deposited in the Protein Data Bank under accession numbers 8TGY. Source data for figures is available from the corresponding author upon request.

Joseph A. Mindell served as editor.

The authors thank Chia-Yu Kang for assisting with MPER-tagged Fluc-Bpe.

This work was supported by National Institutes of Health grant R35-GM128768 to R.B. Stockbridge and resources of the Advanced Photon Source, a U.S. Department of Energy (DOE) Office of Science User Facility operated for the DOE Office of Science by Argonne National Laboratory under contract no. DE-AC02-06CH11357. Use of the LS-CAT Sector 21 was supported by the Michigan Economic Development Corporation and the Michigan Technology Tri-Corridor (grant 085P1000817).

Author contributions: R.M. Lucero: Conceptualization, investigation, writing—original draft, visualization; K. Demirer: Conceptualization, investigation, validation, writing—original draft, visualization; T.J. Yeh: Conceptualization, investigation, methodology, writing—review and editing, visualization; R.B. Stockbridge: Conceptualization, investigation, writing—original draft, writing—review and editing, funding acquisition, project administration. R.M. Lucero and K. Demirer characterized all SMRGdx and SMRQac homologs. T.J. Yeh developed and analyzed the Gdx-Clo A70C/S104C crosslink and developed the sensor normalization approach using Fluc-Bpe.
