The versatile regulation of K_2P channels by polyanionic lipids of the phosphoinositide and fatty acid metabolism

Members of the large family of two-pore domain potassium (K_2P) channels are critically involved in many cellular functions ranging from renal ion homeostasis, cell development, hormone secretion, and immune functions as well as cardiac and neuronal excitability (Enyedi and Czirják, 2010). Accordingly, dysregulation of K_2P channels is seen in many disease states, such as cardiac disorders (i.e., atrial fibrillation, ventricular tachycardia; Liang et al., 2014; Decher et al., 2017b), hyperaldosteronism (Davies et al., 2008; Bandulik et al., 2015), and pulmonary arterial hypertension (Olschewski et al., 2006; Ma et al., 2013; Antigny et al., 2016), as well as in pain perception disorders, such as migraine and depression (Alloui et al., 2006; Heurteaux et al., 2006; Lafrenière et al., 2010; Andres-Enguix et al., 2012; Royal et al., 2019). Initially thought to mediate passive background conductance in excitable cells, increasing evidence shows that K_2P channels are highly regulated by sensing a broad range of diverse physiological stimuli and endogenous ligands. However, not all K_2P channels respond to the same set of stimuli; rather, their sensitivity profile corresponds to their affiliation with one of the known six subfamilies (TREK, TASK, TALK, THIK, TWIK, and TRESK). Members of the TREK subfamily (TREK-1, TREK-2, and TRAAK) display the most diverse (and, e.g., regarding TREK-1, the best investigated) regulation, with relevant stimuli including temperature (Maingret et al., 2000a), mechanical force (Maingret et al., 1999; Chemin et al., 2005), membrane voltage (Maingret et al., 2002; Schewe et al., 2016), extracellular/intracellular pH (Maingret et al., 1999; Honoré et al., 2002), partner proteins (Plant et al., 2005; Sandoz et al., 2006), and various lipids (Maingret et al, 2000b; Chemin et al, 2005, 2007). Members of the TALK subfamily (TASK-2, TALK-1, and TALK-2) are activated by high extracellular pH (Morton et al., 2003; Duprat et al., 2005; Niemeyer et al., 2010). TASK-1, TASK-3, and TASK-5 make up the TASK subfamily, and members are inhibited by extracellular acidification (Rajan et al., 2000; Bayliss et al., 2001; Morton et al., 2003) but also respond to membrane lipids such as diacylglycerol (DAG; Wilke et al., 2014). Members of the TWIK subfamily (TWIK-1, TWIK-2, and TWIK-3) are rather stimuli insensitive, but their cellular activity is controlled by regulated protein trafficking (Feliciangeli et al., 2007; Feliciangeli et al., 2010) as well as possibly SUMOylation (Rajan et al., 2005; Plant et al., 2010) and unique features of the selectivity filter (SF) gate (Nematian-Ardestani et al., 2020). The TRESK subfamily has just one member (i.e., TRESK) and is regulated in particular by changes in intracellular Ca²⁺ levels mediated by the calmodulin-dependent phosphatase calcineurin (Czirják et al., 2004). For the THIK subfamily (THIK-1 and THIK-2), no physiological gating stimulus has been reported so far.

Work of the last three decades revealed that many ion channels are regulated by phosphoinositides and in particular by the most abundant phosphoinositide, phosphoinositol-4,5-bisphosphate (PI(4,5)P₂; PIP₂). PIP₂-sensitive channels include all members of the inward-rectifying potassium (K_ir) channels (Suh and Hille, 2005; Logothetis et al., 2007; Suh and Hille, 2008) but also members of the voltage-gated potassium (K_v) channels (Oliver et al., 2004; Rodriguez et al., 2010; Kruse et al., 2012; Zaydman and Cui, 2014; Taylor and Sanders, 2017), transient receptor potential (TRP) cation channels (Qin, 2007; Suh and Hille, 2008), Ca²⁺-activated BK-type channels (Vaithianathan et al., 2008), hyperpolarization-activated and cyclic nucleotide–gated channels (Pian et al., 2006; Zolles et al., 2006; Ying et al., 2011), and a number of ion transporters (i.e., NCX, NCE, PMCA; Hilgemann et al., 2001; Gamper and Shapiro, 2007). Many physiologically important processes, such as insulin secretion in pancreatic β-cells (Rorsman and Ashcroft, 2018) or mechanical transduction and adaptation in hair cells (Hirono et al., 2004; Effertz et al., 2017), involve the regulation of ion channels by phosphoinositides. The mechanisms of regulation in some of these channels have been resolved to the atomic level (Hansen et al., 2011; Niu et al., 2020; Sun and MacKinnon, 2020).

The first report on the regulation of a K_2P channel by phosphoinositides dates to 2005 and still represents an important reference on this topic (Chemin et al., 2005). Chemin and colleagues reported the strong activation of TREK-1 channels by several phospholipids, including phosphatidylethanolamine, phosphatidylinositol, phosphatidylserine, phosphatidic acid (PA), and PIP₂ (with PA being the most potent lipid), and identified a cluster of basic residues in the proximal C-terminus directly extending from TM4 as a potential PIP₂ binding region (Chemin et al., 2005). Accordingly, it was proposed that negatively charged lipids (e.g., PIP₂) electrostatically interact with these clustered basic residues and thereby cause channel activation (Chemin et al., 2005). Later the same authors reported that PIP₂ application can also produce TREK-1 inhibition (Chemin et al, 2007). More recently, an additional potential PIP₂ interaction region in the more distal C-terminus of TREK-1 channels has been suggested (Soussia et al., 2018). The direct binding of anionic lipids such as PA, phosphatidylglycerol (PG), and PIP₂ to purified TREK-1 channels was demonstrated via a fluorescence binding assay (Cabanos et al., 2017) and to purified TRAAK channels by means of mass spectrometry (Schrecke et al., 2021). Furthermore, TREK-1 was shown to bind phospholipase D2 (PLD2) via its C-terminus and the local production of PA by PLD2 to produce channel activation. Interestingly, Cabanos and colleagues reported that PIP₂ can displace PA and PG in TREK-1 to produce channel inhibition as measured in a liposome K⁺ flux assay (Cabanos et al., 2017).

Aside from the TREK subfamily, the effects of PIP₂ have also been studied in TASK-1, TASK-2, TASK-3, and TRESK channels. Initially, the inhibition of TASK-1 and TASK-3 by phospholipase C (PLC) activation was thought to result from PIP₂ breakdown (Lopes et al., 2005), as PIP₂ appeared to cause activation; however, later it became clear that DAG (released by PLC) likely inhibits TASK-1 and TASK-3 channels directly (Wilke et al., 2014). In TASK-2 channels and human (but not rodent) TRESK channels, application of PIP₂ to excised patches has been reported to cause activation (Lopes et al., 2005; Niemeyer et al., 2017; Giblin et al., 2019).

Another class of polyanionic lipids known to regulate ion channels are long-chain fatty acid coenzyme A (LC-CoA) esters. These obligate metabolites of cellular fatty acids affect many K_ir channels, producing activation in K_ATP (K_ir6.2/SUR) channels (Bränström et al., 1998; Schulze et al., 2003) but inhibition in most other K_ir channels (Rapedius et al., 2005; Shumilina et al., 2006; Tucker and Baukrowitz, 2008; Cheng et al., 2011). Aside from the K_ir channel family, little is known about the effects of LC-CoA on other ion channels. However, TRPV1 channels have been reported to be activated by LC-CoA (Yu et al., 2014). In both, K_ir channels and TRPV1, LC-CoA appears to interact with the same sites that also bind PIP₂, likely via the negative phosphate groups present in both types of lipids (Schulze et al., 2003; Yu et al., 2014).

Aside from the aforementioned exception of TREK/TRAAK, TASK-1/-2/-3, and TRESK channels, effects of phosphoinositides on other members of the K_2P channel family have not been investigated yet, and K_2P channel regulation by LC-CoA is so far unexplored. Therefore, we systematically studied the effect of PIP₂ and LC-CoA on K_2P channels by testing all functionally expressing channels (12 out of 15) under identical conditions and quantified their respective sensitivities. We uncovered that all K_2P channel members strongly respond to at least one of the two polyanionic lipid species and that the six K_2P channel subfamilies can be classified as either polyanionic lipid-activated or lipid-inhibited subfamilies. Furthermore, we investigated the physicochemical prerequisites for lipid activation in TALK-2 channels and the structural regulation mechanism of lipid regulation in the TASK subfamily. We finally discuss the potential physiological relevance of our findings that, however, warrant further investigation in more native preparations.

For this study, we used the coding sequences of hTWIK-1 (GenBank accession no. NM_002245.3), hTREK-1 (NM_172042.2), rTREK-1 (NM_172041.2), hTREK-2 (NM_138318.2), hTRAAK (AF_247042.1), hTALK-1 (NM_032115.4), hTALK-2 (EU978944.1), hTASK-2 (NM_003740.3), hTASK-1 (NM_002246.2), hTASK-3 (XM_011517102.1), hTHIK-1 (NM_022054), hTHIK-2 (NM_022055.1), and hTRESK (NM_181840.1). To increase surface expression and macroscopic currents, measurements of TWIK-1 and THIK-2 channels were performed using channels with mutated retention motifs and a known activating mutation hTHIK-2, respectively (TWIK-1 I293A/I294A [TWIK-1*] and THIK-2 R11A/R12A/R14A/R15A/R16A/A155P [THIK-2*]). All mutant channels were obtained by site-directed mutagenesis with custom oligonucleotides. All constructs were subcloned into the pFAW dual-purpose vector suitable for in vitro transcription/oocyte expression and transfection of cultured cells and verified by sequencing. cRNA was synthetized using AmpliCap-Max T7 or SP6 High Yield Message Maker Kits (CELLSCRIPT) and stored at −20°C (for frequent use) and −80°C (for long-term storage). Xenopus laevis oocytes were surgically removed from adult female frogs and treated with type II collagenase before manual defolliculation. Oocytes were injected with ∼50 nl of channel-specific cRNA (0.5–1 µg µl⁻¹) and incubated at 17°C for 1–14 d before experimental use.

HEK293 cells were cultured in DMEM, supplemented with 10% FCS and 10 U ml⁻¹ penicillin and 10 mg ml⁻¹ streptomycin in a 5% CO₂ atmosphere at 37°C. The cells were transiently transfected with Lipofectamine 2000 (Invitrogen) in 24-well plates. For electrophysiological recordings, the transfected cells were trypsinized at least 4 h before electrophysiological measurements and seeded onto sterile 10-mm coverslips in 35-mm culture dishes in antibiotic-free DMEM.

Currents were recorded from inside-out membrane patches excised from cRNA-injected Xenopus oocytes or from transiently transfected HEK293 cells at room temperature (21–23°C). For oocyte measurements, pipettes were made from thick-walled borosilicate glass capillaries and had resistances of 0.3–0.8 MΩ. Pipettes were filled with a standard pipette solution (in mM): 120 KCl, 10 HEPES, and 3.6 CaCl₂, pH 7.4, adjusted with KOH/HCl. Currents were recorded using an EPC9 or EPC10 amplifier (HEKA Elektronik), sampled at 10 kHz, and filtered with 3 kHz (−3 dB). The recording program was PATCHMASTER (HEKA Elektronik; version v2×73.5). The used pulse protocols were either ramps ranging from −80 to +40 or +80 mV with a duration of 1 s and intervals of 4 or 9 s, or measurements were performed using a continuous pulse at +40 mV. Solutions were applied to the cytoplasmic side of excised membrane patches via a gravity flow multibarrel application system. Standard intracellular (bath) solutions were composed of (in mM): 120 KCl, 10 HEPES, 2 EGTA, and 1 pyrophosphate; pH was adjusted to pH 7.4 with KOH/HCl. 5 mg ml⁻¹ BSA was added to obtain washout solution. Where indicated in experimental results, 120 mM KCl was replaced by 120 mM RbCl.

HEK293 cell measurements were performed in the whole-cell configuration of the patch-clamp technique using an EPC10 amplifier (HEKA Elektronik) and PATCHMASTER software (HEKA Elektronik; version v2×73.5) with a sampling rate and filter as above. The cells were stimulated by a ramp protocol from −100 to +60 mV with 1-s duration and a 5-s interpulse duration. Pipette resistances ranged from 1 to 3 MΩ, and pipettes were filled with intracellular solution (in mM): 140 KCl, 2 MgCl₂, 1 CaCl₂, 2.5 EGTA, and 10 HEPES, pH 7.3, adjusted with KOH/HCl. The bath contained (in mM): 135 NaCl, 5 KCl, 2 MgCl₂, 2 CaCl₂, 10 glucose, and 10 HEPES, pH 7.3, adjusted with NaOH/HCl. All modifying reagents were added directly to the bath to obtain the particular end concentrations. Lipids and other substances were stored as stock solutions (1–100 mM) at −20°C and diluted in the bath solution to the final concentration before measurements.

LC-CoA (14:0, 16:0, 18:0, 18:1, 18:2, 18:3, 22:0) were purchased from Avanti Polar Lipids (Alabaster), and stock solutions were prepared in DMSO (1–5 mM). The PLC activator m-3m3FBS, tetrapentylammonium chloride, and L-α-PI(4,5)P₂ ammonium salt (brain PI(4,5)P₂, PIP₂) were purchased from Sigma-Aldrich/Merck, and stock solutions were prepared in DMSO (1–100 mM).

The performed investigation conforms to the Guide for the Care and Use of Laboratory Animals (National Institutes of Health Publication No. 85-23). For this study, we used female Xenopus animals (n = 25) that were accommodated at the animal breeding facility of the Christian Albrecht University of Kiel to isolate oocytes. Experiments using Xenopus toads were approved by the local ethics commission.

Data analysis was performed using FITMASTER (HEKA Elektronik; version v2×73.5), Microsoft Excel, and Igor Pro (version 6.3.7.2; Wavemetrics Inc.).

Recorded currents were analyzed from stable membrane patches at a voltage of +40 mV unless stated otherwise.

Data are represented throughout the article as mean ± SEM. Significance of a respective dataset was probed with an unpaired Student’s t test. P values are provided in the respective figures.

Image processing and figure design were performed using the open source vector graphic program Inkscape (GNU General Public License; Free Software Foundation, version 1.0.1; 3bc2e813f5, 2020–09-07; https://inkscape.org).

Fig. S1 shows the effect (activation/inhibition) of PIP₂ applied to the intracellular side of excised patches of Xenopus oocytes expressing K_2P WT and mutant channels as well as the effect of PLC-mediated PIP₂ depletion on TREK-1 channels expressed in HEK293 cells. Fig. S2 shows the effect (activation/inhibition) of oleoyl-CoA applied to inside-out patches of Xenopus oocytes expressing K_2P WT and mutant channels. Fig. S3 shows the concentration-dependent activation of TALK-2 K_2P channels by oleoyl-CoA in inside-out patches. Table S1, Table S2, Table S3, and Table S4 contain the numerical data points depicted graphically in Fig. 1 A, Fig. 2 A, Fig. 3 D, and Fig. 4 C, respectively.

We studied the direct effect of the most abundant phosphoinositide, PI(4,5)P₂ (PIP₂), on all known functionally expressing K_2P channels (12 in total) by applying 10 µM PIP₂ to the cytoplasmatic site of the respective channels in inside-out patches excised from Xenopus oocytes. The type of response (activation or inhibition) varied depending on the K_2P channel subfamily, and the efficacy of activation or inhibition depended on the particular subfamily member (Fig. 1 A and Table S1).

Robust PIP₂ activation was observed within the TREK subfamily with 17 ± 3-fold, 11 ± 4-fold, and 114 ± 24-fold activation for TREK-1, TREK-2, and TRAAK, respectively (Fig. 1 A). The PIP₂-activated currents displayed mildly outward-rectifying I-V relationships between −80 mV and +40 mV (Fig. S1, A–C).

Members of the THIK subfamily were also activated by PIP₂ with strong activation (19 ± twofold) for THIK-1 and weaker activation (4 ± onefold) for THIK-2*, and the activated currents showed approximately linear I-V relationships (Fig. 1, A and B; Fig. S1 H). To increase surface expression, measurements of THIK-2 channels were performed using mutated channels with a removed retention motif and a point mutation in TM2 (R11A/R12A/R14A/R15A/R16A/A155P; THIK-2*; Bichet et al., 2015).

In the TALK subfamily PIP₂ caused a 4 ± 1-fold activation of TALK-2 and a weaker activation (1.7 ± 0.2-fold) of TALK-1 currents (Fig. 1 A; Fig. S1, D and E). The effect on TASK-2 was more complex and depended on the experimental history. In many excised patches, TASK-2 currents showed strong current rundown, and the application of 10 µM PIP₂ produced initially a 2.4 ± 0.3-fold activation. However, this activation ceased with time, and channel activity finally dropped below the starting level, resulting in an effective PIP₂ inhibition of 83 ± 3% (Fig. 1, A and D, left panel). In membrane patches lacking current rundown, PIP₂ application (10 µM) caused inhibition without the initial activation (Fig. 1 D, middle panel). Furthermore, lower PIP₂ concentrations (e.g., 0.1 µM) prevented current rundown (Fig. 1 D, middle panel) and activated rundown currents without producing subsequent inhibition (Fig. 1 D, right panel). These findings might indicate two distinct regulatory sites in TASK-2, with lower PIP₂ levels supporting basal channel activity via an activatory site and higher PIP₂ levels causing inhibition, possibly via a distinct inhibitory site.

In the TWIK subfamily, only TWIK-1* was expressed functionally but lacked a PIP₂ response (Fig. 1 A and Fig. S1 F). To increase surface expression, measurements of TWIK-1 were performed using channels with a mutated retention motif (TWIK-1 I293A/I294A; TWIK-1*; Bichet et al., 2015).

Likewise, no significant PIP₂ response was observed in TRESK channels (the only member of this K_2P channel subfamily; Fig. 1 A and Fig. S1 I), in contrast to a previous report (Giblin et al., 2019).

Finally, in the TASK subfamily, only TASK-1 and TASK-3 were expressed functionally (TASK-5 is nonfunctional; Ashmole et al., 2001), and both channels showed marked inhibition (82 ± 2% and 61 ± 4%) upon PIP₂ application (Fig. 1, A and C; Fig. S1 G).

In summary, the application of PIP₂ had effects on 10 of the 12 K_2P channels investigated, with only TWIK-1* and TRESK lacking any observable effect upon the addition of PIP₂. Members of the TREK, THIK, and TALK subfamilies were activated by PIP₂ (TASK-2 only initially), whereas members of the TASK subfamily were inhibited.

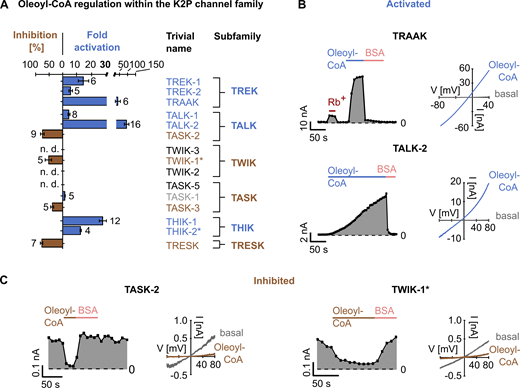

We further explored the K_2P channel lipid sensitivity by testing the polyanionic lipid oleoyl-CoA, which represents a common cellular long-chain fatty acid metabolite. It is known to regulate ion channels (Rapedius et al., 2005; Ventura et al., 2005; Shumilina et al., 2006); however, it has not been investigated in K_2P channels so far. Upon application of 10 µM oleoyl-CoA, strong activation of TREK-1 (15 ± threefold) and weaker activation of TREK-2 (6 ± onefold) were observed (Fig. 2 A; Fig. S2, A and B; and Table S2). Notably, as seen with PIP₂ (Fig. 1 A; Fig. S1 C), TRAAK showed the highest lipid sensitivity within its subgroup, with oleoyl-CoA causing a 40 ± 16–fold current increase (Fig. 2, A and B). Furthermore, these activations were readily reversed upon extraction of oleoyl-CoA via the fatty acid binding protein BSA (Fig. 2 B; Fig. S2, A and B).

Similar to the PIP₂ responses, THIK-1 channels were strongly activated by oleoyl-CoA (29 ± 2-fold), whereas activation in THIK-2* was weaker (13.0 ± 0.4-fold; Fig. 2 A; Fig. S2, F and G).

In the TALK subfamily, TALK-2 stood out as oleoyl-CoA produced massive activation (94 ± 14-fold), while TALK-1 was only moderately activated (5 ± 1-fold; Fig. 2, A and B; Fig. S2 C). In contrast, TASK-2 channels were inhibited by oleoyl-CoA (70 ± 7%; Fig. 2, A and C), again similar to the PIP₂ effects.

In the TASK subfamily, TASK-3 channels were inhibited by oleoyl-CoA (39 ± 5%) in contrast to TASK-1 channels that were rather slightly activated (Fig. 2 A; Fig. S2, D and E).

In the TWIK and TRESK subfamilies, both expressing members (i.e., TWIK-1* and TRESK) were markedly (∼50 to ∼75%) inhibited by oleoyl-CoA (Fig. 2, A and C; Fig. S2 H). As seen with all oleoyl-CoA effects reported here, application of BSA reversed the action of oleoyl-CoA.

In summary, with the exception of TASK-1, oleoyl-CoA application modulated the activity of all K_2P channels tested. Furthermore, the subfamily-specific response (i.e., activation versus inhibition) resembled the effects observed with PIP₂ in most cases. Exceptions to this rule were seen (1) for TASK-1, which was inhibited by PIP₂ but not by oleoyl-CoA, and (2) for TWIK-1* and TRESK, which were inhibited by oleoyl-CoA but lacked PIP₂ sensitivity.

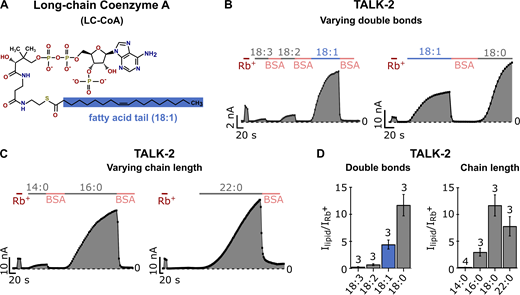

Given the particularly high sensitivity of TALK-2 to oleoyl-CoA (Fig. 3 A), we chose this channel to explore the LC-CoA properties required for activation in more detail. Throughout the following measurements, we used Rb⁺ activation in the beginning of each experiment for better quantification of the TALK-2–specific currents and BSA in the bath solution to accelerate the washout of oleoyl-CoA. We measured oleoyl-CoA activation for different concentrations ranging from 0.1 to 30 µM (Fig. S3, A and B), suggesting a half-maximal effect at a concentration of ∼10 µM (Fig. S3 B). Notably, even concentrations as low as 100 nM already produced robust (>3-fold) TALK-2 channel activation (Fig. S3 A), consistent with the high maximal effect (i.e., >90-fold activation) at saturating concentrations (Fig. S3 B). Furthermore, the potency to activate TALK-2 channels negatively correlated with the number of LC-CoA double bonds present in fatty acids of 18–carbon atom chain length, with the saturated stearic acid being the most potent LC-CoA (Fig. 3, B and D). Moreover, for saturated fatty acids, the strongest activation was observed for stearyl-CoA, with shorter palmityl-CoA and longer docosanoyl-CoA being less potent (Fig. 3, C and D; and Table S3). These results (except the activity drop for docosanoyl-CoA) are qualitatively consistent with the notion that increasing acyl-chain length or reducing the number of double bonds is expected to promote LC-CoA membrane incorporation and thus would result in higher effective concentrations in the membrane from whence channel interactions are likely to occur. The drop of potency for docosanoyl-CoA (compared with stearyl-CoA) apparently conflicts with this simple concept, suggesting that possibly specific interactions of the fatty acid chain with the TALK-2 channel or changes in bilayer properties might also be important.

Here, we report the inhibition of TASK-2, TASK-1, TASK-3, TWIK-1*, and TRESK by the polyanionic lipids PIP₂ and oleoyl-CoA. This raises the question of the nature of the inhibition gate. Interestingly, TASK-1 and TASK-3 have previously been shown to be inhibited by DAG, and a region named the halothane response element in the distal TM4 segment was identified to be critical (Talley and Bayliss, 2002; Wilke et al., 2014). Moreover, in TASK-1, a gate at the halothane response element has recently been crystallographically identified and named the “X-gate” (Rödström et al., 2020). This X-gate forms a permeation-blocking pore constriction at the contact points of the TM4 helices, located halfway between the SF gate and the cytoplasmic pore entrance. Mutations within the lower X-gate (e.g., L244A and R245A; Fig. 4 D) have been shown to disturb channel closure, resulting in channels with a higher relative open probability (Rödström et al., 2020). Notably, we found that the mutations L244A and R245A completely abolished PIP₂ inhibition in TASK-1 and TASK-3 channels (Fig. 4, A–C; and Table S4), suggesting that PIP₂ induces closure of the X-gate similarly to DAG.

In the pH-sensitive TASK-2 channel, a lower gate at a location similar to the X-gate in TASK-1 has been identified recently in cryo-EM structures obtained at different pH (Li et al., 2020). This work identified a lysine residue (i.e., K245) within the lower gate as a pH-sensing residue and also as a critical component of the lower gate itself. However, mutation of this lysine to alanine (K245A) had no obvious effect on PIP₂ inhibition in TASK-2 (Fig. 4, C and D; Fig. S2 J). This suggests either that PIP₂ inhibition is mediated via a different gate (e.g., the SF) or that K245 is not critical for mediating PIP₂ inhibition via the lower gate in contrast to pH inhibition.

Our comprehensive screen established K_2P channels as a family of K⁺ channels highly sensitive to polyanionic membrane lipids such as PIP₂ and oleoyl-CoA. Furthermore, depending on the particular K_2P subfamily, polyanionic lipids either produced activation (TREK, TALK, and THIK subfamilies) or inhibition (TASK, TWIK, and TRESK subfamilies). The responses evoked in a particular subfamily produced by PIP₂ and oleoyl-CoA were similar, with three exceptions: (1) TWIK-1* and (2) TRESK were PIP₂ insensitive but were inhibited by oleoyl-CoA, and (3) TASK-1 was inhibited by PIP₂ but was oleoyl-CoA insensitive (Fig. 5 B).

In the K_ir channel family, most if not all members are thought to require PIP₂ as a mandatory ligand to be functional (Huang et al., 1998; Logothetis et al., 2007; Fürst et al., 2014). For K_2P channels, not all members are activated by PIP₂, and thus PIP₂ can be considered a modulatory agent rather than a mandatory ligand. Accordingly, G protein–coupled receptor (GPCR; i.e., P₂Y₂) activation of PLC produced strong inhibition of TREK-1 activity (i.e., activity is no longer detectable) in HEK293 cells; however, subsequent activating stimuli (e.g., temperature increase) still produced robust activation (Fig. S1 K), indicating that PIP₂ is not strictly required for channel activity.

Activation of TREK-1 channels by PIP₂ has been reported previously (Chemin et al, 2005, 2007; Soussia et al, 2018) as well as split responses with PIP₂ causing activation and inhibition (Chemin et al, 2007). Furthermore, in liposomes, PIP₂ caused inhibition of TREK-1 K⁺ flux in the presence of PG, suggesting that PIP₂ might cause inhibition by competitive displacement of the strongly activatory lipids such as PG or PA (Cabanos et al., 2017). However, in our hands, inhibition of TREK-1/-2 channels was never observed in the Xenopus oocyte expression system. Resolving these discrepancies is difficult; however, possibly TREK-1/-2 might be liganded by strongly activatory lipids such as PA or PG to various degrees in cells, and then their competitive displacement by PIP₂ might result in channel inhibition (assuming PIP₂ is a less potent activator than the displaced lipid). Thus, the variable outcomes might be related to the actual lipid microenvironment or to the lipid ligandation situation at which PIP₂ is added to the TREK-1 channel. Also, the interaction of TREK-1 with PLD2 (producing PA) might differ in cells. Notably, TRAAK channels do not interact with PLD2 (Comoglio et al., 2014), and PIP₂ inhibition has not been reported. Here, we report that TRAAK channels exhibited the strongest PIP₂ response of all K_2P channels, with a >110-fold increase in channel activity. The physiological relevance of this PIP₂ regulation is currently unexplored but warrants further investigation in native preparations such as neurons that strongly express TRAAK channels (Brohawn et al., 2019; Kanda et al., 2019).

A notable finding of this work is the strong activation of THIK-1 channels by PIP₂ (Fig. 1, A and B). Despite its expression in many regions of the central nervous system, the specific role of THIK-1 channels is currently unknown, with the exception of microglial cells, where THIK-1 activation was shown to be involved in microglial immune surveillance and inflammatory cytokine release (Madry et al., 2018). Interestingly, PIP₂ production in microglia has been reported to play a key role in immune response signaling (Nguyen et al., 2017; Desale and Chinnathambi, 2021) and thus possibly involves PIP₂ activation of THIK-1.

We report here the inhibition of TASK-1 and TASK-3 channels by PIP₂. The involvement of the PIP₂ metabolism in the regulation of TASK-1 and TASK-3 has been intensively studied before, and it is currently assumed that GPCR-mediated release of DAG directly inhibits these channels, while the breakdown of PIP₂ appears not to be critical (Bista et al., 2015). Thus, the activation of TASK-1 and TASK-3 via membrane PIP₂ depletion (i.e., release of PIP₂ inhibition by, e.g., PLC activation) may not be of physiological relevance. However, inhibition of TASK-1 or TASK-3 via a local or global production of PIP₂ still could be a regulatory mechanism.

TASK-2 channels have previously been reported to be activated by the short-chain PIP₂ derivative dioctanoyl-PIP₂ (Niemeyer et al., 2017) which apparently contradicts the here reported inhibition of TASK-2 by application of the native (i.e., long-chain) PI(4,5)P₂. However, we found that the PIP₂ effect is clearly concentration dependent, with lower PIP₂ concentrations supporting TASK-2 activity consistent with the reactivation of rundown of TASK-2 channel currents. Longer PIP₂ applications as well as application on patches lacking current rundown produced robust and reliable inhibition. These findings might indicate that distinct regulatory PIP₂ sites exist in TASK-2 channels (i.e., a “higher” affinity activatory PIP₂ site and a “lower” affinity inhibitory PIP₂ site). Accordingly, at higher PIP₂ concentration, the inhibitory site dominates, causing inhibition in TASK-2 (as seen with TASK-1 and TASK-3), whereas lower PIP₂ concentration supports TASK-2 activity via the higher-affinity activatory site. However, these are rather speculative assumptions that clearly need further investigation.

It should also be pointed out that we provide only qualitative information on the effects of PIP₂ on the various channels and have not demonstrated direct channel PIP₂ interaction. Accordingly, we cannot rule out the possibility that PIP₂ might have affected the investigated K_2P channels also via indirect mechanisms such as (1) changes in bilayer properties, (2) binding to accessory proteins, or (3) lipid metabolites (e.g., PA, DAG, arachidonic acid [AA]) produced by enzymes contained in an excised patch and initiated by the addition of PIP₂. For instance, PIP₂ is known to activate PLD2 (Bowling et al., 2020), which would indirectly activate TREK-1 through PA or PG production.

LC-CoA represents ubiquitous cellular products of the fatty acid metabolism as fatty acids bound to CoA before they can be taken up by mitochondria for β-oxidation. Our study revealed the regulation of many K_2P channels by oleoyl-CoA. LC-CoA has previously been reported to modulate several members of the K_ir channel family (Larsson et al., 1996; Rohács et al., 2003; Rapedius et al., 2005; Shumilina et al., 2006; Tucker and Baukrowitz, 2008). K_ATP channels are thereby strongly activated, while most other K_ir channels are inhibited, likely because LC-CoA competes with PIP₂ for binding but lacks its activatory effect (competitive antagonism; Shumilina et al., 2006). Such competitive antagonism, however, is unlikely to cause the here reported inhibition in TASK-2, TASK-1, TASK-3, TWIK, and TRESK channels because these channels were not activated by PIP₂. However, in the PIP₂-activated channels (e.g., TREK-1), oleoyl-CoA likely interacts with the same sites as PIP₂ because the degree of oleoyl-CoA and PIP₂ activation is correlated in most K_2P channels.

The role of LC-CoA activation of K_ATP channels has been implicated in the mechanism of insulin secretion in pancreatic β cells, in fatty acid sensing in hypothalamic neurons, and in protection of cardiac myocytes under ischemic condition (Corkey et al., 2000; Liu et al., 2001; Tarasov et al., 2004; Le Foll et al., 2009; Rorsman and Ashcroft, 2018). These situations have in common that they cause an accumulation of LC-CoA in the cytoplasm, which potentially could also modulate the activity of the K_2P channels present in the respective tissues.

TALK-2 and TREK-1 channels are expressed in atrial as well as ventricular myocytes in the heart (Decher et al., 2001; Tan et al., 2004; Decher et al., 2017a). These channels are highly sensitive to LC-CoA as oleoyl-CoA caused a >15-fold activation (Fig. 2, A and B; Fig. S1, A and E). Therefore, activation of TALK-2 and TREK-1 channels under ischemic conditions may have cardioprotective effects in ventricular myocytes by shortening of action potential and concomitant reduction in Ca²⁺ loading (similar to K_ATP channels). However, this ischemic activation of TALK-2 and TREK-1 in the atrium causing action potential shortening could also potentially be arrhythmogenic.

It is noteworthy that TALK-2 (together with TALK-1) is expressed in pancreatic β-cells, but its physiological role is currently unknown (Duprat et al., 2005; Rorsman and Ashcroft, 2018; Graff et al., 2021). Thus, the accumulation of LC-CoA under conditions of hyperlipidemia and hyperglycemia could contribute to the known insulin secretion defects under these conditions because K⁺ channel activation is expected to antagonize insulin secretion. Notably, the sensitivity of TALK-2 to oleoyl-CoA is higher than that of K_ATP channels because 10 nM oleoyl-CoA produced only little activation in K_ATP channels, whereas we report here robust activation for TALK-2 with this concentration (Larsson et al., 1996). Currently, rather little is known about the free concentrations of LC-CoA in cells, but calculations suggest a concentration in the range of 0.1 to 200 nM (Knudsen et al., 2000). Thus, our screening concentration of oleoyl-CoA (10 µM) is certainly very high, and more work is required to demonstrate the physiological relevance of the LC-CoA regulation in K_2P channels.

Based on crystallographic and functional data, it has been proposed that K_2P channels are regulated primarily via a highly dynamic SF gate located at the extracellular pore entrance (Bagriantsev et al., 2011; Piechotta et al., 2011; Bagriantsev et al., 2012; Schewe et al., 2016; Schewe et al., 2019) or via lipid binding below the SF blocking ion permeation (Brohawn et al., 2014). However, more recent structural studies revealed constriction sites in the ion permeation pathway below the SF in TASK-2 and TASK-1 channels (Li et al., 2020; Rödström et al., 2020). This raises the question of which of the two possible gating structures is relevant in the context of the here reported polyanionic lipid regulation in these channels (Fig. 5 A). In the TREK subfamily, the PIP₂/LC-CoA activation gate is likely the SF because lipid activation causes the transition of the voltage-dependent ion flux gating mode of the SF into the leak mode displaying a linear I-V (Fig. 2 B; Fig. 5 A; Fig. S1, A–C; Fig. S2, A and B; Schewe et al., 2016). However, THIK-1 channels display comparably little voltage gating, and thus the principal role of the SF gate is unresolved, and further experiments are required to determine the location of the PIP₂/LC-CoA activation gate. Likewise, the structural mechanism of TRESK channel inhibition by LC-CoA requires further investigation.

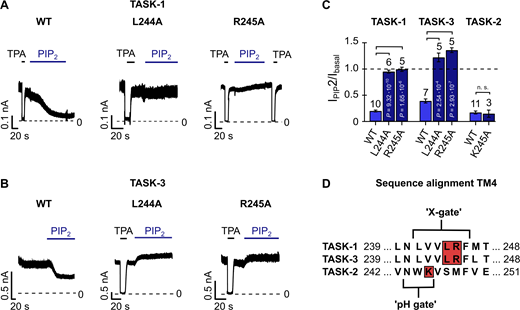

For TASK-1 and TASK-3 channels, our experiments suggest that inhibition by PIP₂ and LC-CoA involves the lower X-gate crystallographically identified in TASK-1 channels (and assumed for TASK-3 channels), as the published mutations within this region also abolished PIP₂ inhibition in both channels. However, the location of the PIP₂/LC-CoA binding sites, as well as the possible overlap with the still unknown inhibitory DAG binding site, will require further investigation. In TASK-2 channels, a lower gate mediating pH inhibition was recently identified in cryo-EM structures at a location similar to the X-gate in TASK-1 (Li et al., 2020). Although its involvement in PIP₂/LC-CoA inhibition seems reasonable, mutation of a critical residue at the intracellular pH gate did not affect PIP₂ inhibition (Fig. 4 C and Fig. S1 J). Thus, additional studies are required to clarify the structural mechanisms of polyanionic lipid inhibition in TASK-2.

This work establishes common polyanionic cellular lipids such as PIP₂ and LC-CoA as regulators of channel activity for all 12 functionally expressing mammalian K_2P channels. We provide first insights into the location of the PIP₂/LC-CoA inhibition gate in TASK-1 and TASK-3, but substantially more work is required to disclose the lipid binding sites in the various K_2P channels as well as the structural mechanism underlying the polyanionic lipid regulation. Finally, investigation of the relevant signal transduction pathways in native preparations is required to demonstrate the physiological relevance of linking K_2P channel activity to the complex metabolisms of phosphoinositides and fatty acids in the various tissues and cell types expressing K_2P channels.

The data supporting the findings of this study are available from the corresponding authors upon reasonable request.

Crina M. Nimigean served as editor.

We thank members of our laboratory for helpful comments on the manuscript and technical support of the project.

These studies were supported by funding from the Deutsche Forschungsgemeinschaft to M. Schewe and T. Baukrowitz as part of the Research Unit FOR2518, DynIon.

The authors declare no competing financial interest.

Author contributions: M. Schewe and T. Baukrowitz conceived and supervised the project; E.B. Riel, B.C. Jürs, S. Cordeiro, and M. Schewe performed all patch-clamp experiments and analyzed the data; M. Musinszki created and supervised the generation of mutant channels; E.B. Riel prepared all figures; E.B. Riel, M. Schewe, and T. Baukrowitz wrote the original manuscript draft and reviewed/edited the draft; M. Schewe and T. Baukrowitz obtained funding.
