Acid-sensing ion channels (ASICs) are sensitized to activation by inflammatory mediators such as the polyunsaturated fatty acid (PUFA) arachidonic acid (AA). Previous work has shown that AA can potentiate ASIC currents at subsaturating proton concentrations, but the structural mechanisms of this change in gating are not understood. Here we show that PUFAs cause multiple gating changes in ASIC3, including shifting the pH dependence of activation, slowing the rate of desensitization, and increasing the current even at a saturating pH. The impact on gating depends on the nature of both the head and tail of the lipid, with the head group structure primarily determining the magnitude of the effect on the channel. An N-acyl amino acid (NAAA), arachidonyl glycine (AG), is such a strong regulator that it can act as a ligand at neutral pH. Mutation of an arginine in the outer segment of TM1 (R64) eliminated the effect of docosahexaenoic acid (DHA) even at high concentrations, suggesting a potential interaction site for the lipid on the channel. Our results suggest a model in which PUFAs bind to ASICs via both their tail group and an electrostatic interaction between the negatively charged PUFA head group and the positively charged arginine side chain. These data provide the first look at the structural features of lipids that are important for modulating ASICs and suggest a potential binding site for PUFAs on the channel.

Acid-sensing ion channels (ASICs) are voltage-insensitive, pH-activated members of the Deg/ENaC family of ion channels (Boscardin et al., 2016). ASICs are widely expressed throughout the body, including in neurons in both the central and peripheral nervous systems (CNS and PNS; Boscardin et al., 2016). They have been demonstrated to impact the sensing of pain and inflammation in the PNS as well as fear conditioning, ischemic cell death, and synaptic plasticity in the CNS (Boscardin et al., 2016). The physiological activation mechanisms of ASICs are not well understood. In pathophysiological conditions such as stroke, neurons are exposed to prolonged acidosis (Dibas et al., 2019). During normal synaptic transmission, it is hypothesized that the synapse becomes transiently acidic after vesicular release of neurotransmitter because the vesicles have a pH ∼5 (Du et al., 2014). However, this transient, and usually modest, acidification is unlikely to activate many channels in most synapses. There is a growing body of literature suggesting that several endogenous molecules including serotonin, lactate, and nitric oxide act to sensitize ASICs to protons, making them more active at less acidic pH (Wang et al., 2013; Yu et al., 2010; Immke and McCleskey, 2001; Cadiou et al., 2007).

The lipid composition of the membrane can significantly impact the function of ion channels. KCNQ1 and GIRK channels require phosphatidylinositol 4,5-bisphosphate to function, while cholesterol can alter the function of nAChR and TRPV1 channels (Huang et al., 1998; Loussouarn et al., 2003; Levitan et al., 2014). Polyunsaturated fatty acids (PUFAs) have been shown to modulate the large-conductance Ca2+ and voltage-gated K+ (Slo1 BK) channel with a half-maximal activation concentration (EC50) in the hundreds of nanomolar (Tian et al., 2016; Hoshi et al., 2013b; Hoshi et al., 2013a). In addition, the voltage-gated K+ channel, KV7.1, can be either potentiated or inhibited by PUFAs and PUFA derivatives depending on the structure of the fatty acid (Bohannon et al., 2020a; Liin et al., 2015; Liin et al., 2018; Bohannon et al., 2020b; Larsson et al., 2018; Bohannon et al., 2019; Liin et al., 2016).

Overall, little is known about the role lipids play in ASIC function. A recent structure of full-length ASIC1 from chicken extracted from membranes using SMA copolymer, solved at 2.8-Å resolution, revealed multiple ordered elongated densities consistent with lipids interacting along the transmembrane domains of the channel (Yoder and Gouaux, 2020). Previous structures in detergent micelles adopted substantially different conformations, suggesting that lipids are vital to ASIC structure and function (Yoder et al., 2018; Baconguis et al., 2014; Jasti et al., 2007). A small number of papers have looked at regulation of ASICs by the PUFA arachidonic acid (AA; Allen and Attwell, 2002; Smith et al., 2007; Deval et al., 2008; Marra et al., 2016). These studies have shown that AA potentiates ASIC1a and ASIC3 currents likely by shifting the pH dependence of channel activation through a direct action on the channel (Smith et al., 2007; Allen and Attwell, 2002). This effect leads to increased pH-activated currents in dorsal root ganglia neurons as well as increased action potential firing in response to modest acidification of the extracellular space around the neuron (Smith et al., 2007; Deval et al., 2008). In addition, exudates, containing lysophophatidylcholine (LPC) and AA, from human patients with inflamed joints could activate ASICs without any change in pH (Marra et al., 2016). These early studies suggest that lipids may act as critical sensitizing compounds for this class of channel. However, the structural requirements for lipid action on the channel and a mechanistic hypothesis for how these lipids cause changes in channel function is lacking.

Docosahexaenoic acid (DHA) and AA are particularly abundant in the brain and other neuronal tissues (O’Brien and Sampson, 1965). Unesterified PUFAs can result from either synthesis of dietary precursors like linoleic acid, or through liberation from glycerophospholipids via enzymes like phospholipase A2 (Wiktorowska-Owczarek et al., 2015). PUFAs are nutraceuticals with potential to become lead compounds for rational drug design for targeting ion channels and membrane receptors. For instance, PUFAs are being designed as a potential treatment for patients with long QT syndrome type 1 (Bohannon et al., 2020a; Bohannon et al., 2020b, Bohannon et al., 2019; Liin et al., 2016). ASICs may present interesting targets for the inhibition of pain and the inhibition of cell death in both ischemia and neurodegenerative disorders (Diochot et al., 2012; Dibas et al., 2019; Xiong et al., 2004).

Here, we examine the structural mechanisms of ASIC regulation by PUFAs and PUFA derivatives. We show that AA potentiates ASIC3 currents by impacting several biophysical properties of the channel. In addition, by looking at >30 different PUFAs and PUFA derivatives we clearly demonstrate that the ability of PUFAs to act on the channel depends on both the head and tail group of the lipid. The properties of the tail group, including length and double bond number, can alter the magnitude of the effect of the PUFA on ASIC3. However, our data show that the head group is likely the critical determinant of lipid efficacy. A head group more prone to harboring a negative charge is more likely to act as a strong potentiator of ASIC3 currents. Replacing the carboxyl head group of PUFAs with a more negatively charged head group leads to significantly larger effects on the channel, with some lipids capable of acting as a ligand, activating the channel at neutral pH. Finally, we identified a putative interaction site for the PUFA head group on the first transmembrane segment of ASICs near the outer leaflet of the membrane. Taken together, these experiments provide a first look at the role that lipid structure plays in altering ASIC function as well as hypothesize a potential site on the channel for regulation of function by lipids.

PUFA nomenclature

For common PUFAs (AA, oleic acid [OA], DHA, etc.) abbreviations are used after being defined in the text. All abbreviated PUFAs can be found in Table S2. Other PUFAs are named using their tail properties in the format of (length[position of double bonds]). All acyl tail doubles bonds are in the cis configuration for PUFAs and PUFA derivatives used in this study. Unless otherwise specified, all PUFAs used in this study contain a carboxyl head group. A full list of the PUFAs used in this study with their head groups, tail lengths, and position of double bonds is given in Table 1.

Materials and mutagenesis

PUFAs used in this study were purchased through Cayman Chemical. Plasmids for ASIC1a and ASIC3 each from rat were gifts from David Julius (University of California, San Francisco, San Francisco, CA) and subcloned into pcDNA3.1. To visualize cell expression, WT, and mutant ASICs, a short proline rich linker was used to join mCerulean3 to the C-terminus of the channel, previously reported to have minimal effects on channel gating (Klipp et al., 2020). The mutants used in this study were made using site-directed mutagenesis either in house or through Biozilla services.

Cell culture and transfection

CHO-K1 cells (ATCC) were cultured in Ham’s F12 medium with 10% FBS at 37°C in 5% CO2. Cells at ∼70% confluency were transfected with indicated ASIC plasmid DNA. Transfection was achieved either via electroporation with a Lonza 4D Nucleofector unit or through chemical means using Mirus TransIT-Transfection Reagent (Mirus) following the manufacturer’s protocols. Following transfection, cells were plated on 12-mm glass coverslips coated in poly-L-lysine.

Electrophysiological recordings

All experiments were performed in the whole-cell patch-clamp configuration 16–48 h after transfection. Borosilicate glass pipettes (Harvard Apparatus) were pulled to a resistance of 2–6 MΩ (P-1000; Sutter Instrument) and filled with an internal solution containing (in mM) 20 EGTA, 10 HEPES, 50 CsCl, 10 NaCl, and 60 CsF, pH 7.2. Extracellular solution contained (in mM) 110 NaCl, 5 KCl, 40 NMDG, 10 MES, 10 HEPES, 5 glucose, 10 Trizma base, 2 CaCl2, and 1 MgCl2, and pH was adjusted as desired with HCl or NaOH. An Axopatch 200B amplifier and pCLAMP 10.6 (Axon Instruments) were used to record whole-cell currents. Recordings were performed at a holding potential of −80 mV with a 5-kHz low-pass filter and sampling at 10 kHz. Solution changes were performed through rapid perfusion using a SF-77B Fast-Step perfusion system (Warner Instruments). Fluorescence was visualized on an Olympus IX73 microscope with a CoolLED pE-4000 illumination system.

Preparation and application of lipids

Experiments in the presence of PUFAs were performed under identical conditions as control experiments except solutions contained the indicated concentration of PUFAs. PUFA stock solutions were made up in ethanol added to aqueous solution following the manufacturer’s recommendations. Ethanol solvent in final solution was typically 0.01% and never exceeded 0.1%. Solution pH was measured prior to and after addition of PUFAs to solution to ensure no pH change occurred. Experiments in the presence of PUFAs were all performed with a ≥10-min preincubation with PUFA to ensure equilibrium was reached. The one exception was for experiments in which ASIC currents were monitored on the same cell ± PUFAs, when a shorter 2-min incubation with PUFAs was used. Our time course data suggests that this time should be sufficient to reach equilibrium.

To determine the pH dependence of activation, we measured a series of sweeps from a holding pH of 8 for 7 s, followed by a 3-s activation pulses at indicated pH. Each activation pH was normalized to the maximally activating pH measured at pH 5.5. For pH dependence using rASIC1a, the same protocol was used except the length of the holding pulse was 50 s and the activation pulse was 700 ms to minimize the contribution of tachyphylaxis. Each experiment was measured for three sweeps and then averaged.

For pH dependence of desensitization, each sweep was performed using a holding pH of 8 for 5 s followed by a 22-s application of the desensitization solution at the indicated pH. The amount of desensitization was determined at the end of each sweep by measuring the current elicited by a 1.5-s pulse of pH 6.0 solution. Each current measured at pH 6.0 was then normalized to the maximal current produced by pH 6.0 determined from a desensitization pH of 8. Each experiment was measured for three sweeps and then averaged.

For paired concentration dependences measured at a single pH, controls were measured using a holding pH of 8.0 applied for 90 s, followed by 1.5-s application of pH 5.5, followed again by 90 s at pH 8.0, and finally 3-s application of pH 6.6. After the control recording, an identical protocol was followed for increasing concentrations of PUFA on the same cell. Currents in the presence of PUFA were divided by the pH 6.6 current for their respective controls before averages were calculated.

To measure the Imax increases, cells in the absence of PUFAs were exposed to a holding pH of 8 followed by a 1.5-s application of pH 5.5. This was followed by incubation with 10 µM PUFA, achieved by perfusing 10 µM PUFA in pH 8 solution for 2 min. The activation protocol was then repeated with 10 µM PUFA in both pH 8 and pH 5.5 solutions. Following this, incubation and activation with 50 µM PUFA were performed in an identical manner as 10 µM. The pH 5.5 current peaks in the presence of PUFAs were divided by the pH 5.5 currents in the absence of PUFAs to determine the percentage of Imax. Each experiment was measured for three sweeps and then averaged.

To measure desensitization rates, cells were exposed to a holding pH of 8 followed by 3-s application of pH 5.5 with or without 10 or 50 µM PUFA present. For measurement of the AS desensitization rates, pH 5.5 was applied for 6 s. Rates were determined by taking the time point at which 1/e (63%) of the peak of the pH 5.5 current was reached. Each experiment was measured for three sweeps and then averaged.

Data and statistical analysis

PUFA structures and pKa determinations for the various PUFA head group derivatives were made using MarvinSketch chemical editing software (ChemAxon). Calculations of pKa PUFA molecule (head and tail) were made in the absence of a bilayer at room temperature. Whole-cell patch clamp current recordings were analyzed using Clampfit 10.6 (Axon Instruments). All data are given as mean ± SEM.

For pH dependence, reported pH0.5 values represent the mean of the pH0.5 values for each individual experiment as determined by fitting to a Hill-type equation in SigmaPlot 10.0:
I=11+10pH0.5pHxn,
(1)
where n is the Hill number and pH0.5 equals half-maximal activating pH;
ΔpH0.5=ΔpH0.5max1+EC50Cn,
(2)
where n is the Hill number and ΔpH0.5 is the shift in pH0.5.
For wash-on kinetics, data were normalized by setting the control to 0 and the maximum current response obtained during wash-on to 1. Reported means for the time to reach 1/e (63%) of the maximal response represent the average value for each individual experiment as determined by fitting to an exponential rise to max in SigmaPlot 10.0:
I=1eλt,
(3)
where I is the fraction of maximal current, λ is the rate constant, and t is time.
For wash-off kinetics, data were normalized on the same scale as wash-on. Therefore, nonzero minimum values reported for wash-off represent the fraction of control before wash-on. Reported means for the time to wash-off 1/e (63%) of the maximal response at time 0 s represent the average value for each individual experiment as determined by fitting to an exponential decay in SigmaPlot 10.0:
I=I0+eλt,
(4)
where I is the fraction of maximal current, I0 is the minimal current response, λ is the rate constant, and t is time.

Statistical testing was performed using the program package R. For statistical testing, P values are reported in tables as calculated except for P values <0.001, where they are reported as such. Figure legends indicate which statistical test was used for each data set. For figures, statistical significance is indicated by the following scale: *, P < 0.05; **, P <0.01; and ***, P < 0.001. All P values reported account for multiple comparisons using appropriate tests (see below).

For all statistical testing requiring multiple comparisons, a one-way ANOVA was run followed by post hoc testing. P values reported in Table 1 represent a Dunnett’s post hoc test performed on all pH0.5 data sets in the table compared with the control ASIC3 pH0.5 dataset. Statistical testing of PUFA effects on desensitization rates and Imax were performed in a similar manner, comparing control ASIC3 datasets to all other datasets using a post hoc Dunnett’s test. A post hoc Tukey’s test was also used where indicated to compare between-group means of all data sets. Paired or unpaired Student’s t tests were performed where indicated for statistical testing between two sets of data (e.g., Table S1). All t tests were two-tailed, and unpaired t tests assumed unequal variance.

Online supplemental material

Table S1 lists activation pH0.5 values for ASIC3 and ASIC1a mutants. Table S2 lists abbreviations used throughout the manuscript and calculated pKa values for AA head group derivatives.

PUFAs stabilize the open state of ASICs

AA is a highly abundant PUFA with a 20-carbon tail and 4 cis double bonds. To indicate the length of the tail and the position of the double bonds for the lipids in this article, we use the nomenclature [20(5,8,11,14)], which indicates a 20-carbon tail with 4 cis double bonds at positions 5, 8, 11, and 14. Previous work has shown that ASIC1a and ASIC3 currents elicited by steps to pH 6.9 are increased upon application of 5 µM AA to cells expressing these channels (Smith et al., 2007). This increase has been shown to be, at least in part, due to an alkaline shift in the pH dependence of activation. We confirmed this initial observation by applying 10 µM AA to Chinese hamster ovary (CHO) cells expressing ASIC3 with a C-terminal cerulean tag and measured the pH0.5 of activation using the whole-cell patch-clamp configuration. Coverslips with cells expressing ASIC3 were incubated in 10 µM AA for ≥10 min, and then the currents were elicited via successive steps to more and more acidic pH (Fig. 1 A). We found that 10 µM AA shifted the pH0.5 of activation by 0.11 pH units yet had no effect on the pH0.5 of desensitization, in agreement with previous results (Fig. 1 B; Deval et al., 2008).

To extend these prior observations, we measured the concentration dependence of the shift in the pH0.5 of activation. Plotting the shift as a function of AA concentration and fitting to a Hill-type equation (see Materials and methods) yielded an EC50 of 11 ± 2 µM (Fig. 1, C and D). This has not been previously measured for ASICs but compares reasonably to values obtained for several other channels that show EC50 values can range from 400 nm to 100 µM (Tian et al., 2016; Basak et al., 2017; Bohannon et al., 2020b). The maximum shift in the pH0.5 of activation measured at any concentration of AA was 0.23 ± 0.02 pH units.

In addition to the shift in activation pH, we observed two previously unreported changes to ASIC3 gating upon AA application. First, there was an increase in the current magnitude upon addition of AA at saturating proton concentrations (saturating proton concentrations determined from pH0.5 curve; Fig. 1, B and C). The amplitude of this current, which we term Imax, was increased ∼1.2-fold upon addition of 10 µM AA (Fig. 1 E). Surprisingly, there was no additional Imax increase at 50 µM AA despite the increased shift in activation pH0.5. Second, at a maximally activating pH of 5.5, a concentration-dependent slowing of the rate of desensitization was observed upon addition of AA (Fig. 1 F). To quantify this result, we measured the time it takes for the current to decrease 1/e of its original value and found that 50 µM AA slowed this time from 427 ± 17 to 739 ± 120 ms (Fig. 1 F). Taken together, these data suggest that AA binding favors the open state of the channel.

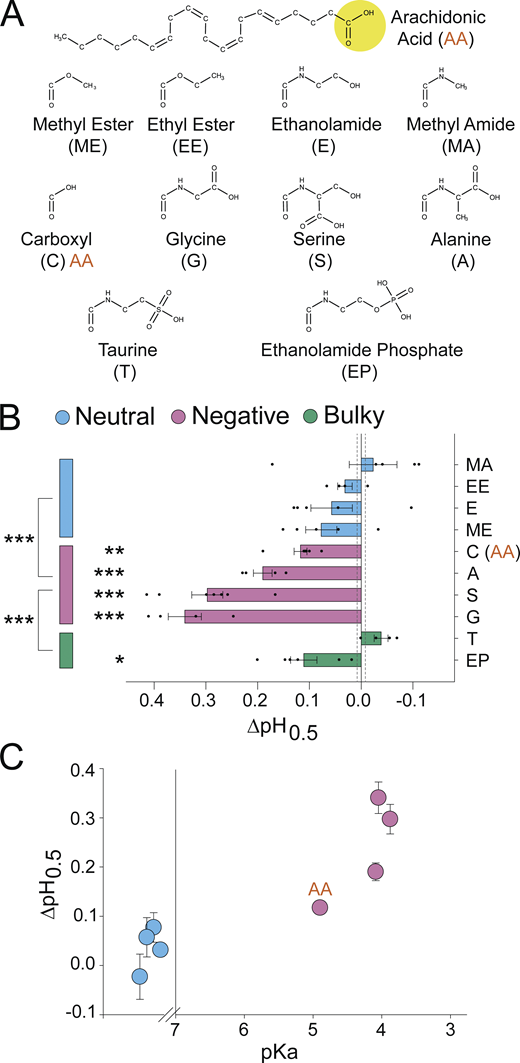

Head groups with lower pKa are stronger potentiators of ASIC3 currents

Structurally, PUFAs contain a negatively charged carboxylic acid head group and a long nonpolar acyl tail that can have one to six double bonds in varying positions along the tail. Studies in other ion channels have demonstrated that the tail length, number, and position of double bonds, as well as the charge and size of the head group, can all contribute to ion channel potentiation (Liin et al., 2016; Tian et al., 2016; Liin et al., 2015; Börjesson et al., 2008). We therefore sought to determine the important structural elements in PUFA modulation of ASICs.

There are AA-derivatives that vary in their head groups that allowed us to first probe the contribution of the head group in ASIC modulation. We compared AA to eight AA derivatives with differing head groups and identical tails [20(5,8,11,14)] (Fig. 2 A and Table 1). These head groups vary in size, atomic composition, and propensity to ionize with some that readily ionize (e.g., glycine) and others that do not (e.g., methyl ester).

To compare potentiation among these AA derivatives, we again measured the pH dependence of activation in the presence of 10 µM lipid (Table 1). Lipids with carboxyl, glycine, serine, or alanine head groups caused significant alkaline shifts in the pH0.5 (Fig. 2 B). Methyl ester, ethanolamide, methyl amide, and ethyl ester head groups had no significant effect on the pH dependence of activation (Fig. 2 B).

In several voltage-gated ion channels, a negatively charged head has been crucial for potentiation (Börjesson et al., 2008; Liin et al., 2015; Tian et al., 2016). Fig. 2 C shows the shifts in the activation pH0.5 from Fig. 2 B plotted as a function of the calculated pKa of the AA derivatives (calculated values in Table S2). The neutral head groups are shown to the left of the scale break on the x axis at pKa = 7, representing either their lack of ionizable atoms (ethyl ester and methyl ester) or a pKa well outside the range of pH values used in our experiments (ethanolamide and methyl amide). In general, head groups with a lower pKa tended to have a larger potentiation of ASIC3 currents. The reported pKa values were calculated using MarvinSketch and reflect the pKa of the head group connected to the acyl tail in solution, not in a bilayer. Certainly, the local environment of the lipid will have a large impact on the charge of the lipid in a real cell. Regardless, these data suggest that head groups more likely to harbor a negative charge are more effective at potentiating ASIC3.

The two bulkier head groups showed differing effects. Ethanolamide phosphate, which does have a site likely to have a negative charge over the range of pH used here, shifted the pH0.5 to a similar degree as the carboxyl head, while the taurine head group, despite its low pKa, had no effect on channel activation (Fig. 2 B). This reduced efficacy may stem from steric clashes between these bulkier head groups and the binding site on the channel. Taken together, these data indicate that the charge of the head group can have a profound impact on the ability of the lipid to potentiate ASIC3 currents.

A longer acyl tail is important for PUFA potentiation of ASIC3

Next, we sought to determine how the structure of the tail impacts regulation of ASICs. PUFA tails are often broken down into four properties: length, number of double bonds, position of the double bonds, and ω-number. To understand how each of these contribute to PUFA modulation of ASICs, we examined a total of 24 PUFAs with identical carboxyl head groups (Table 1). We again measured changes in the pH dependence of activation in response to 10 µM PUFA. Fig. 3 A shows PUFAs with varying tail properties and their respective shifts in the activation pH0.5, which ranged from a 0.32-pH-unit alkaline shift all the way to a 0.07 acidic shift. These data indicate that the nature of the tail can have a considerable impact on the modulation of the channel.

In determining the tail properties important in PUFA potentiation, we first examined tail length. All PUFAs with an 18-carbon acyl tail had small (<0.1 pH unit), nonsignificant effects, whereas many of the 20- and 22-carbon tail PUFAs shifted ASIC3 activation pH0.5 to a greater extent, with several shifting by >0.26 pH units (Fig. 3 A). This can also be seen in the heatmap in Fig. 3 B. Each column of the map represents an individual tail characteristic of the adjacent PUFA in Fig. 3 A. The magnitude of the shift in activation at 10 µM is illustrated by the color scale ranging from dark red (strong alkaline shift) to dark green (small acidic shift). Although a longer tail length appeared necessary to confer stronger regulation, it was not sufficient. Several PUFAs with 20- and 22-length acyl tails failed to potentiate ASIC3, indicating that other tail properties are important to PUFA potentiation.

PUFAs with a longer acyl tail require more double bonds to potentiate ASIC3

Our data suggest that a minimum of three double bonds in the PUFA tail were necessary for strong potentiation (Fig. 3, A and B). No PUFAs with either one or two double bonds potentiated ASIC3 currents. Each tail length appears to have an optimal window of required double bonds to effectively potentiate ASIC3. We observed that as the acyl tail got longer, the range of optimal double bonds also increased. For PUFAs with a 20-length tail, strong potentiators all had three to four double bonds. For PUFAs with 22-carbon tails, four to six double bonds were necessary for strong potentiation of ASIC3 (Fig. 3, A and B).

To look at this more carefully, we measured the shift in activation pH0.5 caused by docosapentaenoic acid (DPA) and nonadecapentaenoic acid (NPA), which have identical number and position of double bonds but differ in tail length ([22(4,7,10,13,16)] and [19(4,7,10,13,16)], respectively; Fig. 3 C). At 10 µM, the 22-carbon-tail DPA strongly potentiated ASIC3 (∆pH0.5 = 0.27), whereas the 19-carbon NPA had no effect on the channel (∆pH0.5 = 0.01; Fig. 3 D). These data are consistent with our observations. First, tails of ≥20 carbons are necessary but not sufficient for strong potentiation. Second, having five double bonds in a longer acyl (22-carbon) tail is compatible with strong modulation, but having the same five double bonds does not result in a good potentiator for shorter tails.

To ensure that the differences observed for NPA and other PUFAs that did not alter the activation pH0.5 were not simply from an increase in EC50 values, we compared the concentration-dependent effects for both weak and strong ASIC3 potentiators. To do this, we measured ASIC3 currents elicited by brief (1-s) pulses to the ∼pH0.5 (6.6) and applied increasing concentrations of PUFA to the same cell (Fig. 3 E). The black trace in Fig. 3 E shows fully activated ASIC3 current at pH 5.5. The overlaid traces to the right show currents elicited with a pulse from pH 8 to 6.6 at increasing concentrations of DPA. These data show that with increasing concentrations of DPA, the channel can be maximally activated even at pH 6.6. In contrast, NPA, OA [18(9)] and dihomo-γ-linolenic acid [20(8,11,14)], which all failed to significantly shift the activation pH in Fig. 3 A, also showed no further potentiation of pH 6.6 currents at higher concentrations (Fig. 3 F).

A double bond near the head group is important for 22-length PUFAs

For PUFAs with 18- or 20-length tails, there was no specific double bond position that appeared necessary for potentiation. However, for the 22-length PUFAs, a double bond at position four was present in every strongly potentiating PUFAs (Fig. 3, A and B). DPA [22(7,10,13,16,19)] did not significantly affect ASIC3, while DPA [22(4,7,10,13,16)], with a double bond at position four, had a large alkaline shift (∆pH0.5 = 0.27 pH units) in the activation pH, despite sharing four of five double-bond positions. Likewise, docosatetraenoic acid [22(7,10,13,16)] failed to alter ASIC3 currents despite having all the same double bonds as DPA [22(4,7,10,13,16)] except for the four position.

Finally, we examined the relationship between ω-number and the functional effect of the lipid. The ω-number refers to the number of carbons away from the methyl end of the tail that the last double bond appears. Previous work has shown that the ω-number correlates with some effects that PUFAs have on other classes of ion channels (Bohannon et al., 2019). However, there was no relationship between ω-number and the shift in the pH dependence of activation of ASIC3 by PUFAs (Fig. 3 B).

Amino acid head groups have larger-magnitude effects on ASIC3 currents

Our data to this point showed that the structure of the head and tail groups impacts the magnitude of the effect that the lipid has on ASIC3 function. In principle, this impact can stem from a change in the binding or a change in the ability of the lipid to alter ASIC3 function. Thus, we set out to examine how the different structural features of the lipids impacted the magnitude of the effect as well as the binding to ASIC3.

First, we compared the EC50 of the shift in the pH dependence of activation for AA, DHA, and AG (Fig. 4 A). AG and DHA showed modestly lower EC50 values of 5.40 ± 1.12 µM and 4.9 ± 0.66 µM, respectively, compared with 11.62 ± 2.08 µM for AA. However, DHA and AA, both with carboxyl head groups, had comparable maximum shifts, while AG had a larger maximum shift in pH0.5 (Fig. 4 A). Again, while all three of these lipids caused strong shifts in the activation pH, there was little shift in the pH dependence of desensitization (Fig. 4 B).

In addition, the more negatively charged head groups also had a larger impact on the desensitization rate of ASIC3 (Fig. 4 C). All potentiating lipids tested also slowed the rate of desensitization in a concentration-dependent manner (Fig. 4 C). OA, which had no effect on the pH0.5, also had no effect on the rate of desensitization. Again, the N-acyl amino acids (NAAAs) had the largest impact on the rate of desensitization at either 10 or 50 µM. In fact, AS was significantly stronger at slowing desensitization compared with all other lipids tested, including AG.

A more complicated result was seen looking at the changes in Imax that these lipids elicited. These currents were measured by switching between pH 8 and pH 5.5 for 1.5 s and then repeating this measure after 120-s exposure to the lipid (Fig. 4 D). Again, at both 10 and 50 µM, application of OA had no effect on Imax, while all potentiating lipids significantly increased the current at pH 5.5. Surprisingly, unlike the observed effects on the rate of desensitization and the pH0.5, the increase in Imax was the same for all potentiating lipids (∼1.2-fold) apart from AS, which was significantly greater than all other lipids, producing an ∼2-fold increase in Imax (Fig. 4 D). Also interesting was that each lipid’s effect on Imax was not significantly different at 10 and 50 µM, whereas both the slowing of desensitization and shift in activation pH0.5 increased from 10 to 50 µM.

Whereas the NAAAs were stronger potentiators, lipids with neutral head groups had minimal effects on ASIC3 currents even at high concentrations. To show this, we compared the concentration-dependent effects of AA to two weakly potentiating AA derivatives, methyl ester and ethanolamide, following the same protocol illustrated in Fig. 3 E, where we pulse to a single pH (6.6) and add increasing concentrations of PUFA. AA showed a clear concentration-dependent increase in pH 6.6–evoked ASIC3 currents, while the neutral ethanolamide and methyl ester head groups produced lipids that were weak potentiators of ASIC3 currents even at increasing concentrations of lipid (Fig. 4 E).

Given this ability of the head group to substantially impact the magnitude of the effect the lipid has on ASIC3 currents, we wondered whether we could convert a poor potentiator into a strong one by only changing the head group to one with a lower pKa, or conversely reduce the effect of a strong potentiator by replacing the head group with a neutral one. To do this, we first compared docosatetraenoic acid [22(4,10,13,16)] with a carboxyl head group to a methyl ester head group derivative with the same tail and found that the potentiating effect was significantly reduced with the methyl ester (Fig. 4 H). Conversely, both linoleic acid [18(9,12)] and OA [18(9)], which had no statistically significant effect on ASIC3 currents, could both be converted into stronger potentiators upon replacement of their carboxyl head groups with glycine (Fig. 4 F). Although the glycine head group enhanced potentiation of all PUFAs tested, addition of glycine alone (no tail) showed no potentiation, even up to 100 µM, illustrating that an acyl tail is required (Fig. 4 F). These data show that the head group can convert a lipid from a bad potentiator to a good one or vice versa, suggesting that the head group is likely the critical determinant of the strength of potentiation.

Arachidonoyl glycine can act as a ligand for ASIC3 even at neutral pH

In addition to the effects on ASIC3 currents we have reported so far, AG created a non-desensitizing ASIC3 current at modest acidifications. Fig. 5 A shows representative currents elicited from 20-s pulses to pH 7.1 from cells in control conditions and incubated with 10 µM AG. The presence of AG results in a current that is ∼1.4% of the peak current and shows no signs of desensitizing even at 20 s. This current likely arises from a “window current” mechanism. The term window current refers to a range of pH values at which the channel may activate but not desensitize. The alkaline shift in the activation pH0.5 without a concomitant impact on the desensitization pH0.5 opens a window of pH over which we would predict a non-desensitizing current might arise from application of lipids like AG. This window current idea predicts that the magnitude of the non-desensitizing current should show a biphasic dependence on pH, increasing and then decreasing with progressive acidification. This is exactly what we see for DHA and AG. Fig. 5 B shows the magnitude of the non-desensitizing current as a function of pH. Both lipids increase the size of the non-desensitizing current, with the stronger potentiator, AG, having a larger effect.

This mechanism may allow these stronger lipids to act as a ligand even at neutral pH. To look at this, we held our cells expressing ASIC3 at pH 7.4 with constant perfusion of control solution and made a rapid switch to solution containing various concentrations of AG. This resulted in a lipid-evoked current in ASIC3 that increased with increasing concentration of AG (Fig. 5 C). Application of AG to cells not expressing ASIC3 showed no current (Fig. 5 C, black).

Head group structure impacts wash-on/-off of the lipid

Despite having nearly identical EC50 values, the wash-on and -off kinetics of DHA and AG differed substantially. To test the wash-on rate, we pulsed to pH 6.6 for 1 s with 3-s (for AG) or 5-s (for all other lipids) returns to pH 8 to allow for recovery from desensitization. After three pulses in control solutions, the cell was continuously exposed to lipid for the duration of the wash-on experiment (Fig. 6 A). Solutions were then switched back to control (no lipid), and wash-off was measured using the same protocol. The time course of wash-on, as determined by the amount of time to reach 1/e of the maximum effect (see Materials and methods), for AG was 6 ± 1 s, approximately six times faster than either AA or DHA at 31 ± 5 and 29 ± 5 s, respectively (Fig.6, B and D). The time to reach 63% wash-off for AG, 15 ± 1 s, was two times faster than AA or DHA at 30 ± 3 and 31 ± 1 s, respectively (Fig. 6, C and D). However, unlike AA and DHA, AG showed complete wash-off, while DHA and AA plateaued at values ∼20% greater than control pH 6.6 values. While none of these results are direct measures of a change in affinity, they are consistent with the idea that the structure of the lipid may alter the binding to the channel, which is an expected result.

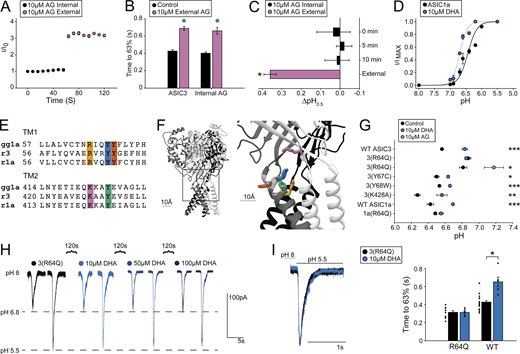

An arginine at the top of TM1 of ASICs is critical for PUFA potentiation

Given that the charge of the headgroup impacted the strength of lipid potentiation of ASIC3, we hypothesized that there may be residues on the channel near the membrane boundary that are able to make interactions with the charged head groups of the lipid. This has been demonstrated for other channels where interactions occur with Y, R, or K residues (Hoshi et al., 2013b; Liin et al., 2015; Liin et al., 2016; Börjesson and Elinder, 2011; Basak et al., 2017). We therefore sought to test whether PUFAs modulate ASICs through similar interactions.

We attempted to narrow down the region on the protein important for regulation before making more targeted mutations. First, we examined the sidedness of the PUFA regulation. To do this, we added 10 µM AG to the patch pipette and saw no change in current over 1 min, nor was there any change in the rate of desensitization compared with control values (Fig. 7, A and B). Addition of 10 µM AG to the extracellular side of the same cell resulted in a rapid increase in the current as well as a slowing of desensitization (Fig. 7, A and B). In addition, inclusion of 10 µM AG in the patch pipette did not affect the activation pH0.5, even after 10 min of recording, despite steady state being reached within 10 s for external application (Fig. 7 C; for wash-on rates, see Figs. 6 D and 7 A). We next showed that 10 µM DHA resulted in an alkaline shift in the pH dependence of activation of ASIC1a (Fig. 7 D). Together, these data suggest that PUFAs act on the extracellular leaflet of the plasma membrane and likely require residues conserved between ASIC1a and ASIC3. We found five candidate residues as possible interaction sites (Fig. 7, E and F). We made 11 channel mutants that would neutralize the potential interaction with the side chain. Not all the mutations produced functional channels (Table S1).

We tested the effect of DHA on these mutants because of its stronger potentiation of ASIC3, rationalizing that we would more easily be able to see reductions in PUFA effects. We found functional mutations in four of the five positions and measured whether 10 µM DHA altered the pH dependence of activation in these mutants. A single position, R64Q, eliminated the shift in the activation pH0.5 produced by DHA (Fig. 7 G). For the Y67C and Y68W mutants, DHA still potentiated the currents, but the effect was reduced compared with WT potentiation. Looking at the structure of ASIC1 from chicken, R64, Y67, and Y431 (R65, Y68, and Y425 in the chicken) are all within 10 Å of one another (Fig. 7 F). Mutation of the more distal K428, which resides in the β12 strand, to an alanine yielded functional channels that were still fully potentiated by DHA (Fig. 7 G).

To further confirm that this region of the channel is important for PUFA potentiation of ASICs, we also mutated R64 in ASIC1a. As with ASIC3, 10 µM DHA did not significantly affect the pH dependence of activation of ASIC1a with the R64Q mutation (Fig. 7 G). To further confirm the importance of R64, we looked at the ability of higher concentrations of DHA to potentiate ASIC3 R64Q currents. To do this, we again held our cells at pH 8 and pulsed to pH 6.8 (∼pH0.5 of the mutant channel) and then to pH 5.5. Even at 100 µM DHA, we saw no effect on the current at pH 6.8 or pH 5.5, suggesting that the mutation eliminated both the shift in pH0.5 and the change in Imax measured in WT channels (Fig. 7 H). In addition, the ASIC3(R64Q) mutation eliminated DHA’s slowing of desensitization (Fig. 7 I). Interestingly, AG was still able to shift the pH dependence of R64Q channels to the same extent as WT channels (Fig. 7 G, pink circle). This suggests the possibility that R64 is part of the binding site but interacts with the head group in a part of the head group where the structures differ.

The results of our study provide the first mechanistic insight into lipid regulation of ASICs. Previous studies have shown that AA can potentiate ASIC currents via a shift in the pH dependence of activation as well as sensitize neurons to pH-dependent action potential firing (Marra et al., 2016; Deval et al., 2008; Smith et al., 2007; Allen and Attwell, 2002). However, this work is the first to show that this potentiation can result from the binding of a number of different lipids beyond AA. In fact, several endogenous PUFAs and lipids have a stronger potentiating effect on the channel. In addition, we show that these lipids can act to stabilize the open state of the channel, which manifests as a slowing of the rate of desensitization and an increase in the current even at saturating pH.

A previous study examined AA along with four other related lipids and concluded that the head group had minimal impact on potentiation and that increasing the number of double bonds leads to an increased effect on ASICs (Smith et al., 2007). Here we tested 24 PUFAs with the carboxyl head group and differing tails. Our data do not support the hypothesis that increasing numbers of double bonds are the main determinant of potentiation. First, we found that shorter 18-length tails showed weak to no potentiation, and longer 20- or 22-length tails were necessary, but not sufficient, to confer strong potentiation. Our data suggest that longer tails required more double bonds to potentiate ASIC3 currents but that too many double bonds could also reduce efficacy (see 20[5,8,11,14,17] in Fig. 3). For 22-length PUFAs, a double bond at position four also seemed to be important for strong potentiation of the channel. The double bonds change the shape and flexibility of the tail, so it is easy to imagine that the more effective PUFAs have tails whose structure more effectively sit in its binding site on the channel, but more work is needed to understand how the precise structure of the tail impacts PUFA action (Sherratt and Mason, 2018; Feller et al., 2002).

Again, in contrast to previous findings, we show here that head groups with lower pKa such as the NAAAs arachidonoyl glycine and arachidonoyl serine had the largest effects ASIC3 (Smith et al., 2007). Perhaps most strikingly, we were able to convert weakly potentiating PUFAs such as linoleic acid [18(9,12)] and OA [18(9)] into significantly stronger potentiators by replacing the carboxyl head group with a glycine. Conversely, we could significantly decrease the ability of docosatetraenoic acid [22(4,10,13,16)] to potentiate ASIC3 current by substituting a methyl ester head group for the normal carboxyl. We believe that these data suggest that the head group of these lipids is the major determinant of the strength of the lipid modulation of the channel and that the structure of the head group can toggle the strength of the potentiation across a multitude of tail structures.

Consistent with the idea that the head group is critical for modulating ASIC currents, mutating R64 eliminated DHA-dependent potentiation of ASIC3 currents. Similarly, mutation of neighboring residues showed a reduction of DHA potentiation, while a more distal mutation at K428 had no effect. This suggests the possibility that these residues around R64 create a binding surface for the lipid head group on the channel. It is difficult to distinguish between the possibility that R64 is important for binding versus important for coupling the binding of lipid to the gate of the channel. However, we believe that several pieces of evidence argue for R64 being important for PUFA binding to the channel.

First, we were able to show that these lipids act on the outer leaflet of the plasma membrane where R64 resides. Second, R64 is conserved in ASIC1a, which is also potentiated by PUFAs. Third, DHA failed to act on R64Q even at concentrations as high as 100 µM DHA. Finally, mutation of R64 eliminated the effect of DHA but did not impact the potentiation by AG. Assuming these two lipids occupy approximately the same binding site and act via a conserved mechanism, if R64 was involved in the coupling of the lipid to channel opening, one would predict a comparable effect of the mutation on the potentiation by each lipid. Since the mutation has a strikingly different effect on the two lipids, it is likely that R64 is in the binding site and interacts with the head group in a position where the head group structure differs between the lipids. This argument has been made previously for understanding the binding site for cGMP on CNG channels (Varnum et al., 1995).

Interestingly, two recent structures of ASIC1a from both chicken and human show endogenous lipid present between TM1 and TM2 of the same subunit immediately adjacent to our putative binding site (Yoder and Gouaux, 2020; Wu et al., 2021). Complicating our hypothesis, R64 points into the pore of the channel in the solved structures (Jasti et al., 2007; Baconguis et al., 2014; Yoder et al., 2018). However, MD simulation of this site suggests that the R64 position undergoes significant rearrangements during gating, and there is considerable evidence that lipid head groups can interact with residues even on the inside of the pore (Bai et al., 2015; Chen et al., 2021; Whitlock and Hartzell, 2016).

Furthermore, there is precedent in other channels for this sort of interaction between a negatively charged head group and a positively charged side chain. KV7.1 regulation by PUFAs is strengthened by head groups with lower pKa (Bohannon et al., 2020a; Liin et al., 2015; Larsson et al., 2018; Liin et al., 2016). Recent work has suggested that the negatively charged head group interacts with an arginine and a lysine residue on the extracellular side of the voltage sensor and pore domain of KV7.1 (Yazdi et al., 2021). In addition, DHA binds to and speeds the desensitization of the pH-gated GLIC channel (Basak et al., 2017). A crystal structure of the channel in the presence of DHA, solved at pH 4, showed the carboxyl head group forming a salt bridge with the guanidinium group of an arginine residue near the extracellular side of a transmembrane helix (Basak et al., 2017).

However, we cannot conclusively say that R64 is in the binding site for the lipid head group on ASICs. An alternative hypothesis would be needed if AG and PUFAs acted via different structural mechanisms. Future work using molecular dynamics or solved structures in the presence of these lipids will be needed to confirm our hypothesis.

How binding to this putative interaction site alters channel function will be important to examine in future studies. There are a number of potential mechanisms. First, mutation of this arginine alters gating of ASIC1a, suggesting that the lipids could simply be altering the conformational dynamics of this region (Chen et al., 2021). Second, work in KV1.4 channels has suggested that PUFA head groups can change the pKa of nearby protonatable residues by altering the electrostatic potential near the lipid binding site (Farag et al., 2016). Two nearby histidine residues have been suggested as candidate sites for pH sensing in ASIC1a, and their ability to be protonated may be altered by lipid binding (Paukert et al., 2008). Finally, Ca2+ binding to ASIC3 is thought to inhibit the channel, and several studies have proposed the idea that the proton dependence of the channel stems from protons competing off Ca2+ ions to unblock the channel as opposed to protons causing a conformational change that opens a gate (Babini et al., 2002; Immke and McCleskey, 2003). R64Q is located very close to these putative Ca2+ binding residues, E425 and D432, and may even form a salt bridge with E425 (Yoder et al., 2018; Paukert et al., 2004). It is possible that the lipids we examined here may be altering the putative Ca2+ binding site and thus the gating of the channel.

Perhaps most relevant to the physiological function of ASICs, the strongly potentiating NAAAs, such as AG, were able to act as a ligand for the channel at neutral pH, activating a small but non-desensitizing ASIC3 current. The ability of these NAAAs to act as a ligand likely owes to their ability to create a window current. This window current mechanism also means that there can be significant non-desensitizing ASIC currents at modest acidifications (pH 7.1). It is still a matter of debate what pH ASICs are likely to experience at synapses. Work in retinal bipolar cells has shown that the synapse may acidify by 0.2–0.6 pH units (Palmer et al., 2003). In our experiments, a pH of ∼6.6 is required to activate half of the ASIC3 current, and a pH of 6.9 would activate almost no ASIC3 currents. However, in the presence of some of the lipids studied here, modest acidification would result in small but non-desensitizing ASIC3 currents, suggesting that lipids may be able to activate a small, persistent ASIC current in neurons. These persistent currents could have significant impacts on neuronal excitability. A previous study showed that AA increased the pH-dependent excitability of skin dorsal root ganglia neurons (Smith et al., 2007). Our data would predict that lipids such as DHA, AG, and AS would have potentially even larger effects on neuronal excitability.

The physiologically relevant concentration of these lipids in the extracellular space or plasma membrane of cells is not well known; however, the concentration of unesterified PUFAs in plasma has been suggested to be in the 10–50-µM range (Fraser et al., 2003; Elinder and Liin, 2017; Siddiqui et al., 2008). This concentration can increase to as high as 400 µM depending on diet and can also increase in many pathological conditions including inflammation, ischemia, and epilepsy (Fraser et al., 2003; Siddiqui et al., 2008; Kuriki et al., 2002; Hammarström et al., 1975). Reports have shown that DHA may represent 8–18% of the fatty acids in the adult brain and make up an astounding 50–70% of the fatty acids found in the rod outer segment in the retina (Skinner et al., 1993; Anderson, 1970). NAAAs such as AG have been demonstrated to be important bioactive lipids that regulate ion channels (Barbara et al., 2009).

In summary, we have shown that PUFAs and many of their derivatives can increase ASIC3 currents by shifting the pH dependence of activation and stabilizing the open state of the channel. Lipids with head groups with a low pKa, like the NAAAs, are potent activators of ASIC3. These head groups can convert a poorly potentiating lipid into a strongly potentiating one. In addition, the NAAAs can activate the channel even at neutral pH. Our data are consistent with a model in which the acyl tail interacts with the core of the transmembrane (TM) region of ASIC3, while the head group interacts in a binding site near the outer portion of the TM segments. While more work is needed to confirm this idea, we hypothesize that an arginine (R64) near the outer leaflet of TM1 is in the binding site for the head group and interacts with the carboxyl head group of PUFAs but fails to interact with the NAAA head groups. This idea impacts the mechanism of lipid regulation of ASICs more broadly. LPC was shown to activate ASICs at neutral pH as well (Marra et al., 2016). The lipids are structurally quite distinct, as the effective LPCs are LPC(16:0) and LPC(18:1), which have short acyl tails and either zero or one double bond. However, the head group is zwitterionic and contains a negatively charged phosphate group. It will be interesting to find out if these lipids act through the same binding site or if there are multiple potential sites for modulating channel function. In addition, PUFAs are potential lead compounds for the modulation of ASIC function. Our work identified two potential inhibitors, eicosenoic acid [20(14)] and eicosadienoic acid [20(11,14)], that will require future investigation. We have thus identified the basic principles for modulation of ASIC3 by PUFAs and PUFA derivatives, which can form the basis for the design of new compounds to alter ASIC function in neurons by targeting the site where this modulation occurs.

Nestor Saiz served as editor.

This work was supported by the National Eye Institute R00 EY024267 (to J.R. Bankston) and the National Institute of General Medical Sciences R35 GM137912 (to J.R. Bankston) as well as funding from National Heart, Lung, and Blood Institute T32 HL007822 (to R.C. Klipp).

The authors declare no competing financial interests.

Author contributions: J.R. Bankston and R.C. Klipp designed the experiments. R.C. Klipp performed the experiments. J.R. Bankston and R.C. Klipp analyzed the data. J.R. Bankston and R.C. Klipp wrote the manuscript.
