The sympathetic nervous system fight-or-flight response is characterized by a rapid increase in heart rate, which is mediated by an increase in the spontaneous action potential (AP) firing rate of pacemaker cells in the sinoatrial node. Sympathetic neurons stimulate sinoatrial myocytes (SAMs) by activating β adrenergic receptors (βARs) and increasing cAMP. The funny current (If) is among the cAMP-sensitive currents in SAMs. If is critical for pacemaker activity, however, its role in the fight-or-flight response remains controversial. In this study, we used AP waveform analysis, machine learning, and dynamic clamp experiments in acutely isolated SAMs from mice to quantitatively define the AP waveform changes and role of If in the fight-or-flight increase in AP firing rate. We found that while βAR stimulation significantly altered nearly all AP waveform parameters, the increase in firing rate was only correlated with changes in a subset of parameters (diastolic duration, late AP duration, and diastolic depolarization rate). Dynamic clamp injection of the βAR-sensitive component of If showed that it accounts for ∼41% of the fight-or-flight increase in AP firing rate and 60% of the decrease in the interval between APs. Thus, If is an essential contributor to the fight-or-flight increase in heart rate.
The sympathetic nervous system fight-or-flight response is characterized by a rapid increase in heart rate that is mediated by pacemaker cells in the sinoatrial node. Sinoatrial node myocytes (SAMs) trigger each beat of the heart by firing spontaneous action potentials (APs) that propagate through the cardiac conduction system to initiate contraction (Keith and Flack, 1907). The sympathetic nervous system increases heart rate by accelerating this spontaneous AP firing rate. Within SAMs, the faster AP firing rate is caused by an increase in cytosolic cAMP following sympathetic activation of β adrenergic receptors (βARs) on the cell membrane. While a host of processes in SAMs are regulated directly and indirectly by the βAR-mediated increase in cAMP, the relative contributions of these processes to the fight-or-flight increase in AP firing rate remain unresolved.
APs in sinoatrial myocytes have a characteristic shape, which is determined by the unique complement of ion channels and transporters on the cell membrane. The changes to the sinoatrial AP waveform that occur with βAR stimulation could, in theory, serve as “fingerprints” to identify the ionic currents that mediate the increase in AP firing rate. However, the changes to the sinoatrial AP that occur with βAR stimulation have yet to be systematically defined, owing in part to (1) differences in experimental conditions and a lack of standard AP waveform definitions, which restrict comparisons between studies; (2) a focus on the diastolic depolarization rate (DDR) as the primary determinant of firing rate to the exclusion of other AP waveform parameters; and (3) the limited resolution of most studies owing to the heterogeneity of sinoatrial APs and difficulty of recording from large numbers of isolated SAMs.
The role of the hyperpolarization-activated funny current, If, in the fight-or-flight increase in AP firing rate in SAMs is the subject of longstanding debate (Lakatta and DiFrancesco, 2009; Bucchi et al., 2012; Hennis et al., 2021). If is a hallmark of SAMs and is critical for the generation of spontaneous APs (Bucchi et al., 2007; DiFrancesco, 2010; Baruscotti et al., 2011). If is produced by hyperpolarization-activated cyclic nucleotide-sensitive (HCN) channels, particularly HCN4, which is the predominant isoform in the sinoatrial node (Moosmang et al., 1999). Reduction in If through pharmacological blockers or mutations in HCN4 slows AP firing rate in SAMs and heart rate in human patients and animal models (Bucchi et al., 2007; Swedberg et al., 2010; Baruscotti et al., 2011; Milano et al., 2014). Although βAR stimulation potentiates If, consistent with a role in increasing AP firing rate in SAMs (Brown et al., 1979), it has been argued that the contribution of If is negligible, owing in part to its low fractional activation at physiological potentials in SAMs and a residual βAR response in animal models with reduced expression or mutation of HCN4 (Lakatta and DiFrancesco, 2009; Alig et al., 2009; Mesirca et al., 2014; Hennis et al., 2021).
Although If is activated by membrane hyperpolarization, we recently showed that If is persistently active throughout the entire AP cycle in SAMs, owing to its very slow rates of activation and deactivation (Peters et al., 2021). The persistent activation of If allows it to conduct >50% of the net inward charge movement during diastole, despite its low fractional activation (Peters et al., 2021). Importantly, we also showed that the fraction of the net inward charge movement conducted by If increases to 93% of the total during βAR stimulation (Peters et al., 2021). The latter result strongly suggests that If contributes substantially to the fight-or-flight increase in heart rate.
In this study, we sought to quantitatively evaluate the role of If in the fight-or-flight increase in AP firing rate in SAMs. We began by analyzing a large data set of sinoatrial APs with automated AP waveform analysis, correlation analysis, and machine learning to identify the subset of AP waveform parameters that account for the majority of the βAR-mediated increase in AP firing rate. We then used dynamic clamp experiments to demonstrate that βAR-stimulation of If alone accounts for ∼41% of the chronotropic response to βAR stimulation in SAMs, mainly through effects during diastole. These results clearly establish that If contributes to the fight-or-flight increase in heart rate as part of a multifaceted cardiac pacemaking mechanism.
Materials and methods
Animal care and euthanasia
This study was carried out in accordance with the US Animal Welfare Act and the National Research Council’s Guide for the Care and Use of Laboratory Animals and was conducted according to a protocol that was approved by the University of Colorado-Anschutz Medical Campus Institutional Animal Care and Use Committee. 6–8-wk old male C57BL/6J mice were obtained from Jackson Laboratories. Animals were anesthetized by isofluorane inhalation and euthanized under anesthesia by cervical dislocation and bilateral thoracotomy.
Acute isolation of murine sinoatrial myocytes
Sinoatrial myocytes were isolated as we have previously described (Sharpe et al., 2016; Larson et al., 2013). The heart was excised and the sinoatrial node dissected in Tyrode’s solution (in mM: 140 NaCl, 5.4 KCl, 5.6 glucose, 5 HEPES, 1.8 CaCl2, 1.2 KH2PO4, and 1 MgCl2; pH adjusted to 7.4 with NaOH) containing 10 USP U/ml heparin (Sagent Pharmaceuticals) at 36°C. Strips of sinoatrial node tissue were subsequently rinsed in a low Ca2+ modified Tyrode’s solution (in mM: 140 NaCl, 50 taurine, 5.4 mM KCl, 18.5 glucose, 5 HEPES, 1.2 KH2PO4, 0.066 CaCl2, and 1 mg/ml BSA; pH adjusted to 6.9 with NaOH) at 36°C. The tissue was then digested for 25–30 min at 36°C in either 2 ml of the low Ca2+ Tyrode’s containing 1.79 units protease type XIV (Sigma-Aldrich) and 0.54 units collagenase B (Sigma-Aldrich) or 5 ml of the low Ca2+ Tyrode’s containing 1,064 units type II collagenase (Worthington), 9 units elastase (Worthington), and 652 µg type XIV protease (Sigma-Aldrich). After enzymatic digestion, the tissue was extensively rinsed in a modified Kraft-Brühe (KB) solution (in mM: 100 K-glutamate, 25 KCl, 20 glucose, 20 taurine, 10 K-aspartate, 10 KH2PO4, 5 creatine, 5 HEPES, 2 MgSO4, 0.5 EGTA, and 1 mg/ml BSA; pH adjusted to 7.2 with KOH) at 36°C to prevent further enzymatic digestion. Individual sinoatrial myocytes were obtained by mechanical trituration of the digested tissue with a fire-polished glass pipette for 2–5 min in 2.5 ml of the KB solution. The calcium concentration of the cell suspension was gradually increased to a final concentration of 1.8 mM during a total adaptation time of 30 min. Cells were stored at room temperature for up to 6 h before recordings.
Aliquots of cells (∼100 μl) were transferred to a recording chamber on the stage of an inverted microscope, and cells were continuously perfused at 1–2 ml/min with Tyrode’s solution with or without the βAR agonist, isoproterenol (Iso; 1 nM–10 µM). Bath and perfusing solutions were maintained at 35° ± 2°C with a feedback-controlled dual-channel temperature controller (TC-344B; Warner Instruments).
Spontaneously beating sinoatrial myocytes were patch-clamped in the Amphotericin B perforated patch configuration as previously described (Sharpe et al., 2017). Recording pipettes were pulled from borosilicate glass using a Sutter Instruments P-97 horizontal puller. Pipette resistances ranged from 1.5 to 3.3 MΩ with an average of 2.6 MΩ.
The patch pipette base solution contained (in mM) 135 KCl, 0.1 CaCl2, 1 MgCl2, 5 NaCl, 10 EGTA, 4 MgATP, and 10 HEPES; adjusted to pH 7.2 with KOH. A perforation stock solution was prepared by solubilizing 50 mg/ml Pluronic F-127 in DMSO (both from Sigma-Aldrich) and adding 20 mg/ml Amphotericin-B (Apexbio Technology LLC). 5–15 μl of the perforation stock solution was added to 500 μl of the pipette solution and solubilized by sonication for a final Amphotericin-B concentration of 0.2–0.6 mg/ml. This final perforation solution was prepared fresh each hour and kept on ice. Pipettes were tip-filled with the perforation solution by immersing them for ∼20 s. The pipette shafts were then back-filled with the amphotericin-free pipette base solution.
Cells were patch-clamped using an Axopatch 200B amplifier, Digidata 1440a A/D converter, and ClampEx software (Molecular Devices). Data were acquired at 50 kHz and low-pass filtered at 10 kHz. After establishing a high-resistance seal (>1 GΩ), the perforation progress was confirmed by a reduction in access resistance in voltage-clamp mode and by a visible minimization of maximum diastolic potential (MDP) to a stable value in fast current-clamp mode. After roughly 30 s of perforation time, the MDP regularly stabilized around −69 mV (Table S1), while the average membrane and access resistances were 457 ± 53 and 12.6 ± 0.6 MΩ (n = 61), respectively.
Spontaneous APs were recorded in the “I-Clamp Fast” current clamp mode using the initial extracellular perfusing solution until both MDP and FR were stable for at least 1 min, which usually occurred within 1–3 min after establishing a high-resistance seal. The perfusing solution was then changed to a different Iso concentration (e.g., from 1 nM Iso to 1 µM Iso). In general, firing rate stabilized at new levels within 30 s after the solution change and the recording was then continued for at least another 1 min to document the Iso-sensitive changes of AP waveform parameters. APs were recorded without compensation for series resistance because the voltage-offset is zero during recordings of spontaneous APs without an injected current and is negligible (<1 mV) with the small currents injected in the dynamic clamp experiments (see below).
We verified by two methods that the I-Clamp fast current-clamp circuit in the Molecular Devices Axopatch 200B amplifier faithfully reports sinoatrial AP waveforms. First, average sinoatrial APs recorded in 1 nM or 1 μM Iso were uploaded to a DG822 waveform generator (Rigol Technologies). These AP waveforms were input to the headstage of the Axopatch 200B amplifier through a circuit mimicking the access resistance (10 MΩ) and stray capacitance of (4.7 pF) the recording pipette and the signal was then recorded in I-Clamp fast mode (Fig. S1 A). As shown in Fig. S1, B and C, the recorded signals closely matched the input signals. Indeed, comparison of the input and measured signals using ParamAP software showed that the amplifier introduced negligible errors in sinoatrial AP waveform parameters (Table S4).
As an independent approach, we measured the response of the Axopatch 200B amplifier in the frequency range of the sinoatrial AP. The frequency content of sinoatrial APs was determined by fast Fourier transform analysis. As illustrated in Fig. S1 D, 99% of the information content of sinoatrial APs lies below 100 Hz. The frequency response of the amplifier in fast current clamp mode was then evaluated using a series of 100 mV peak-to-peak sine waves ranging in frequency from 0.1 Hz to 20 kHz. As shown in Fig. S1, E and F, there were minimal distortions in amplitude or phase in the frequency range corresponding to the sinoatrial AP.
Dynamic clamp experiments
For dynamic clamp experiments, we modified an Arduino-based system (Desai et al, 2017) to better match the system’s digital output range with the current command input range of the Axopatch 200B patch clamp amplifier. Control and feedback from the system were measured using the custom open-source “pyClamp” (Rickert and Proenza, 2019a) user client and “dyClamp” (Rickert and Proenza, 2019b) host controller software sketches.
Dynamic current-clamp recordings from SAMs were performed in the perforated-patch clamp configuration as described above. SAMs were continuously perfused with Tyrode’s solution containing either 1 nM or 1 µM Iso and baseline APs were recorded without current injection until both FR and MDP were stable (∼1 min). The membrane potential measured from the cells was used to calculate simulated If currents in a 10 µs feedback loop from previously described Hodgkin–Huxley models of If (Peters et al., 2021; Fig. S2 A). Two If models were used, one describing If in 1 nM Iso and the other describing If in 1 µM Iso. The models were originally parameterized to match If recorded from SAMs in response to families of hyperpolarizing voltage steps; they were subsequently validated against If measured in AP clamp experiments across a range of AP firing rates (200–400 bpm in 1 nM Iso, and 250–470 bpm in 1 µM Iso; Peters et al., 2021).
In the dynamic clamp experiments in the present study, both models of If were simulated in response to the recorded membrane voltage and the Iso-sensitive component of If (If-Iso) was calculated as the difference between the simulated 1 nM and 1 µM currents (If,µM–If,nM) at each time step. If-Iso was then added as an injected current-clamp current to cells perfused with 1 nM Iso to simulate the effects on the AP waveform and firing rate of βAR stimulation of If. Similarly, If-Iso was subtracted from cells perfused with 1 µM Iso to simulate the effects of removing βAR stimulation of If. This approach is illustrated schematically in Fig. S2 B.
In initial experiments (shown in Fig. 4), If-Iso was injected in a series of steps of increasing maximum conductance from 5 to 40 nS, which corresponded to current injections of approximately 1–25 pA. The open-probability and driving force of the models were updated from the measured voltage at each time step to obtain the “instantaneous” If conductance and current; however, because open probability changes little over the course of the AP (Peters et al., 2021), time-dependent changes in the injected current at different potentials primarily reflect changes in driving force. Dynamic current injections were monitored with both the current command input to the amplifier and the 10-kHz-filtered head stage signal returned from the amplifier. For each conductance level, currents were injected for ∼1 min to allow both MDP and/or FR to stabilize. The stable APs recorded during the latter part of the current injection time were then analyzed.
Action potential waveform analysis with ParamAP
AP waveforms were parameterized using ParamAP software (Rickert and Proenza, 2017; Rickert and Proenza, 2021). Segments of stable APs were extracted from the recordings and saved in Axon’s text file (ATF) format before being analyzed with ParamAP. Variable length analysis windows were used to capture APs with stable features and membrane parameters and to avoid noise artifacts. In addition to previously described parameters, ParamAP was updated to include the late-action potential duration (LAPD), which measures the time in diastole preceding the maximum diastolic potential. All parameter definitions are listed in Table 1. As a validation for sufficient parameterization, the measured waveform parameters captured by ParamAP from individual cells can be used to recapitulate sinoatrial APs with linear segments defined by said parameters (Fig. S3 B).
We used machine learning to predict the changes in SAM firing rate given measured changes in AP waveform parameters (Table 1). We constructed 100 random forest models, each populated with 1,000 trees, using the scikit-learn Python module (Pedregosa et al., 2011). Models between 50 and 5,000 trees were tested, and similar results obtained for each model, with 1,000 and 5,000 tree models showing less variability between any given forest. Each of the random forests was generated with a pseudo-random starting point to generate a range of feature importance measures. Models were trained on the dataset of 50 cells recorded in 1 nM and 1 µM Iso to predict the fractional change in firing rate with βAR stimulation. The predicting variables were chosen to measure all relevant periods, membrane potentials, and rates, while excluding redundant variables reporting on subsets of the AP waveform already included within another predictor. For example, APD50 was not included as that region of the AP-waveform is a subset of the data included in the APD90 variable. Models were tested against the effects of βAR stimulation in the independent dataset of cells used for dynamic clamp analysis and were capable of predicting the change in firing rate with an average error of 12.2% (approximately the standard error of the mean for the firing rate change in the training and targets datasets, which were 13.4 and 11.0%, respectively). Predictor importance was measured by evaluating the contribution of each parameter to reducing node impurity within the training data set using the default function within the scikit-learn module. Thus, importance is both a measure of the frequency with which a predictor appears within the forest and its ability to split data into less variable subgroups.
All statistical analysis was performed in JMP 15 (SAS Institute). Comparisons of unmatched 0 nM, 1 nM, 1 µM, and 10 µM Iso were performed using a one-way ANOVA. Pairwise comparisons were performed using a Tukey post-hoc test. Comparisons of matched 1 nM and 1 µM Iso datasets were performed using paired t tests. Comparisons in dynamic clamp experiments were performed using paired t tests with a Bonferroni correction of 2 used for multiple pairwise comparisons (1 nM Iso versus dynamic and 1 µM-1 nM Iso versus dynamic-1 nM Iso). Correlations between parameters were calculated using a Pearson correlation coefficient. Statistical significance was set at P < 0.05.
Online supplemental material
Fig. S1 shows Axon Axopatch 200B validation. Fig. S2 shows dynamic clamp approach. Fig. S3 shows ParamAP automates determination of sinoatrial node AP waveform parameters and fully parameterizes the AP. Table S1 shows Pearson correlation coefficients between firing rate and waveform parameters in 1 nM and 1 µM Iso. Table S2 shows dynamic clamp changes in AP firing rate and AP waveform. Table S3 shows DDR in cells binned by firing rate. Table S4 shows errors in sinoatrial AP waveform parameters introduced by the Axopatch 200B amplifier.
Most sinoatrial AP waveform parameters change in response to βAR stimulation
To define the effects of βAR stimulation on the sinoatrial AP waveform, we recorded spontaneous APs in the amphotericin perforated-patch configuration in 50 sinoatrial myocytes from 24 mice. In each cell, APs were first recorded in a control extracellular solution containing 1 nM of the βAR agonist Iso and then upon wash-on of 1 μM Iso. 1 nM Iso was used in the control solution as in previous studies (Larson et al., 2013; Peters et al., 2021) because it mimics the resting catecholamine levels in mice (Pichavaram et al., 2018; Lucot et al., 2005) and humans (Messan et al., 2017). We confirmed that 1 nM Iso did not increase AP firing rate compared to a solution lacking Iso (304 ± 15 bpm in 1 nM, n = 50 vs. 313 ± 31 bpm in 0 nM, n = 19; P = 0.9879). 1 µM Iso was used as the stimulated condition as previously (Larson et al., 2013; Fenske et al., 2020; Peters et al., 2021) and we confirmed 1 μM Iso to be a saturating concentration, as 10 μM Iso did not produce a further increase in AP firing rate (400 ± 12 bpm in 1 µM, n = 50 vs. 400 ± 33 bpm in 10 µM, n = 9; P = 1.0000).
AP firing rate and AP waveform parameters in the control and Iso-stimulated conditions were determined by automated analysis with ParamAP software (Rickert and Proenza, 2017; Rickert and Proenza, 2021). ParamAP defines 15 AP waveform parameters, including time intervals, membrane potentials, and rates of change of membrane potential, which together provide a full description of sinoatrial APs (Table 1 and Fig. S3). Although AP waveforms recorded in individual cells exhibited considerable heterogeneity (Fig. 1, A and B), characteristic features of sinoatrial APs were apparent in the recordings, including a spontaneous diastolic depolarization, depolarized MDP, slow maximum upstroke velocity (MUV), and small AP amplitude (APA; Table 2).

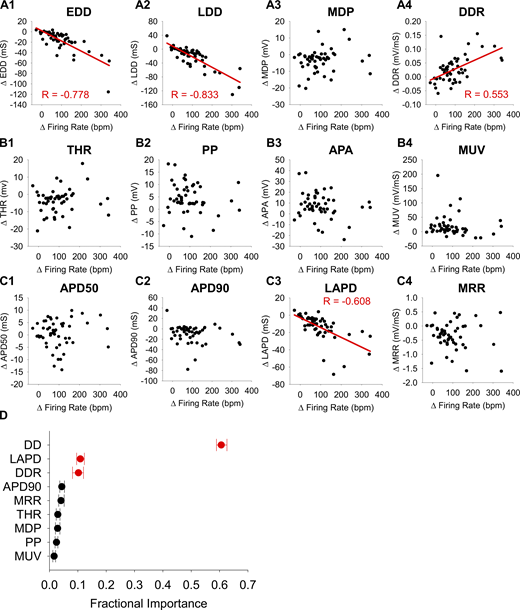

We performed correlation analysis to identify the AP waveform parameters that are significantly associated with AP firing rate (Fig. 1, C–E; and Table S1). We found that firing rate was significantly correlated with the duration of both early and late phases of the diastolic depolarization (EDD and LDD), with all measures of AP duration (APD), and with the DDR in both 1 nM and 1 µM Iso, while the maximum repolarization rate (MRR) was correlated with firing rate only in 1 µM Iso. Interestingly, firing rate was not significantly correlated with MDP or any other parameter reporting membrane voltage or with the upstroke velocity.
We next examined the changes in the AP waveform that occur in response to βAR stimulation. As expected, the AP firing rate was significantly greater in 1 µM Iso than in 1 nM Iso (Table 2 and Fig. 2 B). This increase in firing rate was accompanied by significant changes in every AP waveform parameter except APD50 (Table 2 and Fig. 2, B–E). βAR stimulation shortened time intervals in the AP including the EDD, LDD, APD90, and LAPD. It also changed membrane potentials by hyperpolarizing the MDP and threshold (THR), depolarizing the peak potential (PP) and increasing the APA. Finally, βAR stimulation sped rates of change of membrane potential, increasing the DDR, MUV, and MRR.
Overall, these data are consistent with a coordinated response of many Iso-sensitive currents during βAR stimulation. However, they do not provide information about the relative importance of different AP parameters in determining the increase in firing rate with βAR stimulation.
DDR and LAPD are the primary predictors of the βAR increase in firing rate
We used two independent approaches to identify the AP waveform parameters that are the most important determinants of the Iso-dependent increase in AP firing rate. First, we calculated Pearson correlation coefficients to assess how Iso-induced changes in each AP waveform parameter relate to the increase in firing rate (Table S1 and Fig. 3, A–C). Unsurprisingly, the increase in firing rate in response to 1 µM Iso was significantly correlated with decreases in the time intervals that make up the total cycle length, including the diastolic duration (DD) and the total APD. Within the diastolic duration, decreases in both EDD and LDD were significantly associated with the increase in firing rate (Fig. 3, A1 and A2). However, of the parameters comprising the total APD, only a decrease in LAPD was significantly correlated with increased firing rate (Fig. 3, C1–C3). The DDR was the only non-interval parameter that was significantly correlated with the increase in firing rate (Fig. 3 A4).
We next used a machine-learning approach as an independent means to identify the waveform parameters that are the most important predictors of the βAR-stimulated increase in firing rate. We used 100 random forests, each containing 1,000 decision trees (Breiman, 2001), to evaluate the importance of a subset of non-redundant AP waveform parameters (marked by asterisks in Table 1). Consistent with the results of the correlation analysis, machine-learning identified changes to DD, LAPD, and DDR as significantly associated with the βAR-induced increase in AP firing rate (Fig. 3 D). Taken together, these results indicate that the interval between APs, including the LAPD, is the most important predictor of the increase in AP firing rate. It follows that the ionic currents that are active at sub-threshold membrane potentials are the primary drivers of the βAR-driven increase in sinoatrial node firing rate.
Iso stimulation of If accounts for 41% of the βAR firing rate increase
Although many Iso-sensitive currents are active at subthreshold potentials, our previous study showed that Iso stimulation increases If from ∼50 to >90% of the net inward current during each AP (Peters et al., 2021). Therefore, we sought to determine the degree to which this increase in If accounts for the increase in AP firing rate in SAMs, independent of the contribution of other Iso-sensitive currents. To this end, we employed the dynamic clamp approach using custom dynamic clamp hardware (Desai et al, 2017) and software (Rickert and Proenza, 2019a; Rickert and Proenza, 2019b). As shown schematically in Fig. S2 A dynamic clamp is a hybrid experimental-computational method, in the membrane voltage measured from a patch-clamped cell is used to calculate simulated currents from mathematical models which are then injected back into the same cell in a fast (10 µs) feedback loop.
In these experiments, we used our previously published Hodgkin-Huxley type models of If in 1 µM and 1 nM Iso (Peters et al., 2021). In current-clamp experiments, If-Iso was dynamically calculated from voltages measured at ~10 μs intervals from spontaneously firing SAMs patch-clamped in the amphotericin perforated patch configuration. The open probability and driving force in the 1 µM and 1 nM Iso models of If were updated from the measured voltage to obtain the predicted current. The Iso-sensitive component of If (If-Iso) was defined as the difference between the 1 µM and 1 nM models. If-Iso was then either added to cells perfused with 1 nM Iso or subtracted from cells perfused with 1 µM Iso to determine the effects on the AP of βAR-stimulation of If. The resulting changes in the AP firing rate and AP waveform parameters were then compared to those recorded in the same cell before the current injection. The overall approach is illustrated schematically in Fig. S2.
As an initial proof of concept, spontaneously firing cells perfused with 1 nM Iso were dynamically injected with If-Iso of increasing maximal conductance ranging from 5 to 40 nS (Fig. 4 A). We found that an average maximal If conductance of 10 nS was sufficient to significantly increase the AP firing rate and larger injections of If caused larger increases in firing rate (Fig. 4, C and D). In accordance, when the reverse experiment was performed and If-Iso was subtracted from SAMs perfused with 1 µM Iso, a 10 nS maximal If conductance was sufficient to significantly reduce the AP firing rate (Fig. 4, B and D). Given our prior report showing an average maximum conductance of If of 11.79 ± 1.39 nS in SAMs (Peters et al., 2021), these results indicate that βAR stimulation of If contributes to the fight-or-flight increase in AP firing rate in SAMs.
In the next set of experiments, we scaled the conductance of the injected current to the endogenous If measured in each cell. In this dynamic clamp protocol, the conductance of the injected βAR-stimulated If was progressively increased in 2 nS steps (Fig. 5 A) and the appropriate conductance for each cell was determined post hoc by measuring the endogenous If during hyperpolarizing pulses following the dynamic clamp recordings (Fig. 5 B). The endogenous current was measured after the dynamic clamp recordings to allow the use of the inward-rectifier blocker Ba2+ in the isolation of If, as in many previous reports (Larson et al., 2013; DiFrancesco et al., 1986; Giles and Imaizumi, 1988; Liao et al., 2010; Sharpe et al., 2017). Finally, the firing rate and waveform parameters from the scaled dynamic clamp recording were compared to those of APs recorded in 1 nM and 1 µM Iso in the same cell in the absence of current injection (Fig. 5 C).
On average the cell-scaled peak If-Iso inward current injected during the diastolic depolarization was −9.3 ± 1.1 pA (n = 13; Fig. 6 A, bottom), remarkably similar to the 9 pA difference measured between the peak inward If currents in AP clamp experiments in 1 nM and µM Iso (Peters et al., 2021). Injection of cell-scaled βAR-stimulated If significantly increased the firing rate by 59 ± 9 AP/min (+22.2% compared to 1 nM Iso; Table S2 and Fig. 6). This increase in firing rate due to βAR stimulation of If accounted for 41% of the increase in FR seen in response to perfusion of 1 µM Iso (143 ± 24 AP/min; +62.0% compared to 1 nM Iso; Table S2 and Fig. 6). These data conclusively establish that βAR stimulation of If contributes significantly to the fight-or-flight increase in AP firing rate in individual SAMs. Importantly, the data clearly indicate that If does not account for the full firing rate increase, which must include contributions from other currents.

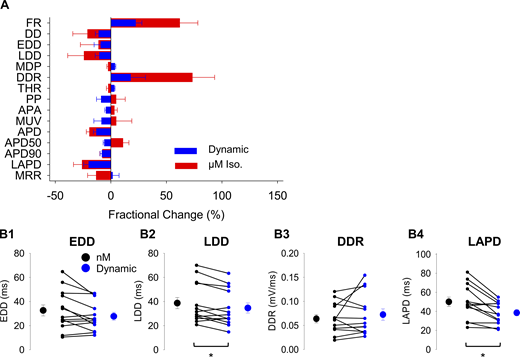

We next analyzed the effects of dynamic injection of If-Iso on the AP waveform parameters identified by correlation analysis and machine learning as the primary drivers of the firing rate increase with βAR stimulation, namely, EDD, LDD, DDR, and LAPD. We found that If-Iso accounted for 80% of the decrease in LAPD, 50% of the decrease in DD, and 40% of the decrease in LDD seen with perfusion of 1 µM Iso (Table S2 and Fig. 7, A and B). While dynamic injection of If-Iso elicited trends toward faster DDR and shorter EDD, these effects were not statistically significant and the effects in individual cells were variable. Ultimately, these data suggest that βAR stimulation of If contributes to the fight-or-flight heart rate increase through shortening of the diastolic depolarization and late repolarization phases of the sinoatrial AP resulting in a 60% reduction in the time between APs.
The sympathetic nervous system fight-or-flight increase in heart rate is among the most fundamental of physiological responses in mammals. Yet despite decades of research, the mechanisms underlying the increase in spontaneous AP firing rate in SAMs remain unresolved (Lakatta and DiFrancesco, 2009; Bucchi et al., 2012; Hennis et al., 2021). In this study, we first show that while virtually all aspects of the sinoatrial AP are changed by βAR stimulation, the magnitude of the fight-or-flight increase in firing rate is mediated by changes in only a subset of AP waveform parameters. Importantly, this subset of parameters constrains the list of βAR sensitive processes that primarily contribute to the fight-or-flight response in SAMs to those that are active at subthreshold voltages. We then quantitatively establish that If accounts for about 41% of the increase in AP firing rate, countering previous claims that If does not play a role in this process.
βAR stimulation increases firing rate through a subset of AP waveform parameters
Numerous studies have suggested that βAR stimulation increases AP firing rate in SAMs at least in part by increasing the DDR (Zhang and Vassalle, 2003; Bucchi et al., 2007; Verkerk et al., 2012; Larson et al., 2013; Protze et al., 2017). However, more definitive determination of the sinoatrial AP waveform changes that mediate the fight-or-flight increase in firing rate have been hampered by inconsistent parameter definitions and small datasets. Our use of automated AP waveform analysis of a large dataset provides the necessary resolution to conclusively show that βAR stimulation significantly alters almost all AP waveform parameters—consistent with the host of βAR-sensitive processes in SAMs.
Importantly, however, our results (Fig. 3) also constrain the list of βAR-sensitive processes involved in the fight-or-flight response in SAMs by showing that a subset of sub-threshold parameters—namely EDD, LDD, DDR, and LAPD—are the key determinants of AP firing rate and the βAR-mediated increase in firing rate. This finding quantitatively confirms prior suggestions that shortening of the interval between APs and currents active during this phase are the main drivers of autonomic regulation of heart rate (Bucchi et al., 2007; DiFrancesco, 2010), although the beating rate of the intact sinoatrial node is also clearly influenced by other factors such as connectivity between sinoatrial cells (Boyett et al., 2000; Maltsev et al., 2022). In contrast, changes in systolic parameters such as shortening of the APD90 only account for 10–20% of the total change in cycle length and differ little between cells with small and large βAR-stimulated firing rate increases (Fig. 3 C2).
Evaluation the role of If in the fight-or-flight response is complicated by reduced resting rates
Whether and to what degree If is responsible for cardiac pacemaking and autonomic regulation of heart rate has long been debated (Lakatta and DiFrancesco, 2009; Hennis et al., 2021). On one hand, the slow rate of activation and hyperpolarized voltage-dependence of If seemingly preclude appreciable activation of If during the sinoatrial AP, even when βARs are stimulated (Lakatta and DiFrancesco, 2009). On the other hand, an essential role for If in cardiac pacemaking is clearly indicated by slower heart rates and sinus arrhythmias in response to If blockers and HCN4 mutations (Stieber et al., 2003; Herrmann et al., 2007; Hoesl et al., 2008; Harzheim et al., 2008; Alig et al., 2009; Baruscotti et al., 2011; Bucchi et al., 2012; Mesirca et al., 2014; Fenske et al., 2020). Our recent work using the AP-clamp technique helps to resolve this paradox by showing that If is constitutively active throughout the duration of the sinoatrial AP. This persistent activation allows If to conduct >50% of the net inward charge movement during the AP under control conditions, despite its low fractional open probability (Peters et al., 2021).
Importantly, our previous study also demonstrated that βAR stimulation increases the fraction of net inward charge movement conducted by If to 93% of the total (Peters et al., 2021), strongly suggesting that If contributes substantively to the fight-or-flight response in SAMs. A role for If in the βAR-mediated increase in sinoatrial AP firing rate has been postulated since the earliest description of If showed that adrenaline potentiates the current (Brown et al., 1979). Yet little direct data exist to support a role for If in the increase in AP firing rate, owing in part to the difficulty of isolating the effects of a single current in a complex interrelated system.
A number of studies through the years have used If blockers and mice bearing mutations in HCN4 to probe the role of If in the fight-or-flight response. Interpretation of such results is problematic for a number of reasons. In the case of blockers such as Cs+ or ivabradine, incomplete or voltage-dependent block of If at commonly used concentrations (DiFrancesco, 1982; Bucchi et al., 2002; Peters et al., 2021) and off-target block of other currents (Lees-Miller et al., 2003; Haechl et al., 2019; Peters et al., 2021) can confound estimates of the contribution of If (Leitch et al., 1993; Cai et al., 1995; Du et al., 2004; Sosunov and Anyukhovsky, 2012).
In the case of mice with global or conditional knockout of HCN4 or with mutations that prevent cAMP from binding to the channels, interpretation is challenging because while these manipulations consistently cause lower or irregular resting and maximal heart rates in animals and spontaneous AP firing rates in isolated SAMs, they do not prevent a βAR-mediated increase in pacemaker activity from the slower baseline rates (Stieber et al., 2003; Herrmann et al., 2007; Hoesl et al., 2008; Harzheim et al., 2008; Baruscotti et al., 2011; Alig et al., 2009; Mesirca et al., 2014; Fenske et al., 2020).
It has been suggested that βAR-mediated increases in heart rate or firing rate from lower baseline levels exclude a role for If in the fight-or-flight response in SAMs (Zhang and Vassalle, 2003; Lakatta and DiFrancesco, 2009; Alig et al., 2009; Mesirca et al., 2014; Fenske et al., 2020; Hennis et al., 2021). However, this argument assumes that firing rate acceleration in a cell firing 200 AP/min and a cell firing 400 AP/min require a similar amount of depolarizing current. This is clearly not the case: the shorter diastolic interval in faster cells requires a larger depolarizing current to affect the same change in membrane potential to reach threshold. Thus, in slower cells—such as when If is reduced by blockers or mutations—βAR stimulation may have sufficient time to produce a “normal” increase in firing rate via additional pathways, whereas in faster cells the same incomplete stimulation would produce a smaller increase in firing rate. Indeed, analysis of all the APs recorded in the present study show that a larger βAR-mediated increase in AP firing rate is correlated with a larger increase in DDR (Fig. 3 A4). Moreover, analysis of cells binned by firing rate reveals that a 118 AP/min increase in mean firing rate in faster cells (from 338 to 456 AP/min, n = 54) requires that the DDR increase by 0.044 mV/ms, which is about three times the DDR increase associated with a similar magnitude firing rate increase (121 AP/min) in slower cells (217 to 338 AP/min, n = 54; corresponding to a DDR increase of 0.015 mV/ms; Table S3).
Taken together, previous studies all consistently demonstrate a residual fight-or-flight increase in pacemaking in the absence of If, clearly indicating that If alone is insufficient to produce the full response. However, these results do not preclude a contribution of If to the response given the reduction in basal rates.
βAR stimulation of If alone accounts for >40% of the increase in AP firing rate
To quantitatively determine the role that βAR stimulation of If plays in firing rate acceleration in SAMs, we used the dynamic clamp technique with models parameterized to If recorded from SAMs under identical conditions and validated by AP-clamp experiments (Peters et al., 2021). The dynamic clamp currents in our experiments were scaled to the endogenous If directly measured in each cell (Fig. S2). While a prior study used dynamic clamp in rabbit SAMs to investigate the role of βAR stimulation of If in that system, the If conductance was scaled indirectly, through a calibration curve constructed by relating If amplitude to firing rate in a mathematical model of the sinoatrial AP (Severi et al., 2012; Ravagli et al., 2016). Unfortunately, this scaling paradigm is recursive, as it assumes that differences in firing rate are exclusively due to changes in the If amplitude. Moreover, the If models used in the prior study only accounted for βAR-stimulated shifts in the voltage-dependence If but not the changes in kinetics, despite the fact that βAR speeding of activation and slowing of deactivation of If are fundamental to its role in pacemaking (Peters et al., 2021). Despite these differences in approach and system, the results of the two dynamic clamp studies are comparable, with our data showing that βAR-stimulated If drives 41% of the increase in AP firing rate in mouse SAMs (Fig. 6) similar to the ∼38% fraction in rabbit SAMs (Ravagli et al., 2016).
Our study further leveraged automated AP waveform analysis to additionally demonstrate that βAR modulation of If accounts for 60% of the shortening between APs, including 50% of the DD shortening and 80% of the LAPD shortening that occur with βAR stimulation (Fig. 7). Since these parameters are primary determinants of the βAR increase in AP firing rate determined by correlation analysis and machine learning (Fig. 3), they further highlight the importance of If in the fight-or-flight response in SAMs. We are not aware of any prior studies that quantified the duration of the LAPD—defined as the time from when the threshold potential is reached during the repolarization until the subsequent maximum diastolic potential (Table 1 and Fig. S3)—despite the fact that it accounts for nearly 25% of the total cycle length and a third of the time spent in diastole. The prominent role for If during this phase of the AP is consistent with our recent finding that If remains active throughout the AP (Peters et al., 2021) and the βAR-stimulated increase in If is uniquely well suited to act on LAPD when other depolarizing currents are not predicted to be active.
Other currents must contribute to the fight-or-flight response in SAMs
Not only does If not account for the total increase in AP firing rate upon βAR stimulation in SAMs, but it also does not account for the changes in the AP waveform. Equally informative as the AP parameters that change upon If injection are those that do not change. Compared to Iso stimulation, injection of βAR-stimulated component of If alone produces opposite effects on the MDP, THR, PP, APA, MUV, APD50, and MRR (Fig. 7 A). The opposite effects of Iso and If-Iso on the MDP indicate that sympathetic stimulation must also increase an outward current that is active during the diastolic depolarization, possibly a voltage-gated or calcium-sensitive potassium channel (Torrente et al., 2017; Lai et al., 2014). Similarly, Iso must stimulate an inward current—such as Nav1.1 or Cav1.2 (Hagiwara et al., 1988; Lei et al., 2004)—during the AP upstroke to depolarize the APA and the MUV. Furthermore, it is clear that inward current through NCX also contributes to the fight-or-flight response in SAMs and further shortening of DD (Lakatta et al., 2010; Gao et al., 2013).
While our direct measurements provide a uniquely quantitative resolution of the contribution of If to βAR-mediated increases in AP firing rate in SAMs, they also clearly indicate that other currents are required. Given the fundamental importance of the fight-or-flight increase in heart rate in mammals, it is reassuring to know that redundant mechanisms are involved. As noted by Lipsius and Bers nearly two decades ago, “it is … prudent to adopt a more balanced integrative view of the cardiac pacemaker, and acknowledge the real interplay of many factors” (Lipsius and Bers, 2003). The challenge for future studies is to resolve the coordinated and interrelated responses of multiple molecular processes.
