Essential role of the Pax5 C-terminal domain in controlling B cell commitment and development

The transcription factor Pax5 is a major regulator of B lymphopoiesis and midbrain patterning. Within the hematopoietic system, Pax5 is specifically expressed only in the B-lymphoid lineage where it controls different aspects of B cell development and immunity. At the onset of B lymphopoiesis, Pax5 is essential for the commitment of lymphoid progenitors to the B cell lineage (Nutt et al., 1999). In pro-B cells, Pax5 promotes chromatin loop extrusion across the entire immunoglobulin heavy-chain (Igh) locus to facilitate the participation of all V_H genes in V_H-DJ_H recombination, which generates a broad B cell antigen receptor (BCR) repertoire (Fuxa et al., 2004; Hill et al., 2020). Pax5 is furthermore required for the generation of all mature B cell types and thus for all B cell immune responses in part by controlling BCR signaling (Calderón et al., 2021; Horcher et al., 2001). Human PAX5 also plays a key role in B cell acute lymphoblastic leukemia (B-ALL) as a haploinsufficient tumor suppressor gene (Gu et al., 2019; Mullighan et al., 2007) as well as a partner gene of different oncogenic PAX5 translocations (Coyaud et al., 2010; Nebral et al., 2009). Recently, PAX5 mutations have also been shown to cause autism spectrum disorder by affecting cerebellar morphogenesis and midbrain neurogenesis (Kaiser et al., 2022).

Pax5 acts both as a transcriptional repressor to suppress B-lineage-inappropriate genes (Delogu et al., 2006) as well as an activator to induce gene expression required for B cell development and function (Schebesta et al., 2007). Moreover, Pax5 is known to regulate distinct transcriptional programs in early and late B lymphopoiesis (Revilla-i-Domingo et al., 2012). It furthermore functions as an epigenetic regulator by recruiting histone-modifying complexes to its target genes, which can either induce accessible, active chromatin at Pax5-activated genes or eliminate open chromatin at Pax5-repressed genes (McManus et al., 2011; Revilla-i-Domingo et al., 2012).

The Pax5 protein consists of several evolutionarily conserved domains (Bouchard et al., 2008). The DNA-binding function of Pax5 is encoded by the N-terminal paired domain (Czerny et al., 1993; Garvie et al., 2001). The conserved octapeptide motif (OP) of Pax5 is present in the central region of all vertebrate Pax proteins except in Pax4 and Pax6 (Bouchard et al., 2008) and is known to bind corepressors of the Groucho (Grg/Tle) protein family (Eberhard et al., 2000). While Pax3, Pax4, Pax6, and Pax7 contain a homeodomain with three α-helices as a second DNA-binding region in addition to the paired domain (Wilson et al., 1995), the subfamily of Pax2, Pax5, and Pax8 is characterized by the presence of a partial homeodomain (HD) sequence consisting of only the first α-helix (Bouchard et al., 2008). The HD of Pax5 is known to interact with the TATA-binding protein of the transcription initiation complex TFIID (Eberhard and Busslinger, 1999). The machine learning method AlphaFold (Jumper et al., 2021) correctly identifies the known structure of the Pax5 paired domain (Garvie et al., 2001) but also newly predicts α-helical structures for the OP and HD of Pax5 (Fig. 1). Interestingly, however, the C-terminal sequences of Pax5, which are highly conserved also in Pax2 and Pax8 (Dörfler and Busslinger, 1996), are predicted to be intrinsically disordered (Fig. 1). Our previous characterization of the C-terminal sequences of Pax5 by mutagenesis and transient transfection assay in established B cell lines identified a potent transactivation domain (TAD) and an adjacent inhibitory domain (ID; Dörfler and Busslinger, 1996). In contrast to these C-terminal sequences, the OP and HD of Pax5 have not yet been analyzed with regard to their gene-regulatory function. Moreover, although we have identified Pax5-activated and Pax5-repressed genes in early pro-B cells and mature follicular (FO) B cells (Revilla-i-Domingo et al., 2012), we still know little about how Pax5 regulates these genes in vivo. Here, we have studied the function of the different Pax5 domains in vivo by deletion in the endogenous Pax5 gene, which provided novel mechanistic insight into the role of these domains in regulating gene expression and B cell development.

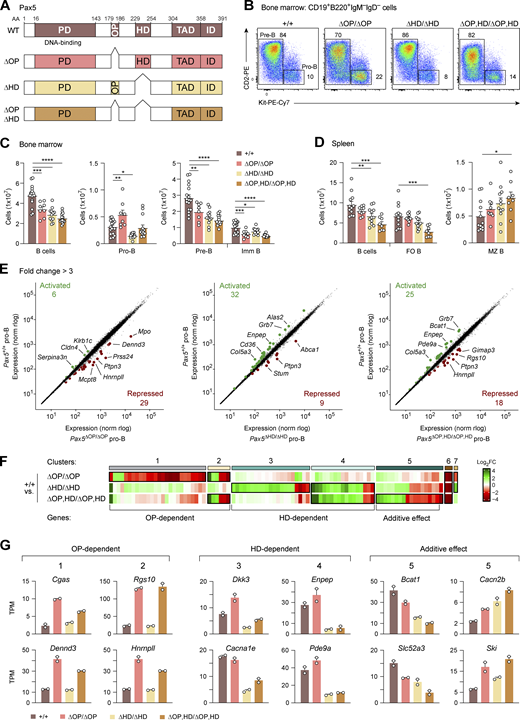

To study the function of the conserved OP and HD of Pax5, we deleted these two sequence motifs individually or in combination in the endogenous Pax5 locus by embryonic stem (ES) cell targeting (∆OP) or CRISPR/Cas9-mediated mutagenesis (∆HD and ∆OP,HD) in mouse zygotes (Yang et al., 2013; Fig. 2 A; and Fig. S1, A and B). Flow-cytometric analyses revealed that pre-B, immature B, and total B cells were moderately reduced in the bone marrow of Pax5^∆OP/∆OP mice compared with control Pax5^+/+ mice (Fig. 2, B and C; and Fig. S1 C). In contrast, the Pax5^∆OP/∆OP pro-B cells were 1.7-fold increased relative to Pax5^+/+ pro-B cells (Fig. 2, B and C), indicating that loss of the OP resulted in a partial arrest of B cell development at the pro-B to pre-B cell transition (Fig. 2, B and C). The pro-B cells of Pax5^∆HD/∆HD mice were, however, 2.1-fold decreased compared with Pax5^+/+ pro-B cells, leading to reduced numbers of pre-B, immature B, and total B cells in the bone marrow of Pax5^∆HD/∆HD mice compared with Pax5^+/+ mice (Fig. 2, B and C; and Fig. S1 C). Interestingly, simultaneous deletion of the OP and HD revealed an additive effect of these mutations on the generation of each B cell type in the bone marrow (Fig. 2 C). This effect is best shown for pro-B cells as the increase observed for Pax5^∆OP/∆OP pro-B cells was equalized by the decrease seen for Pax5^∆HD/∆HD pro-B cells, thus resulting in similar numbers of pro-B cells in Pax5^{∆OP,HD/∆OP,HD} as in Pax5^+/+ mice (Fig. 2 C and Fig. S1 C). An additive effect was also observed for splenic B cells as there was a gradual reduction of total and FO B cells from Pax5^∆OP/∆OP mice to Pax5^∆HD/∆HD mice, resulting in a 2.4-fold loss of these B cells in Pax5^{∆OP,HD/∆OP,HD} mice (Fig. 2 D and Fig. S1 D). In contrast, a gradual increase of marginal zone (MZ) B cells was observed for both mutations, leading to a 1.7-fold increase of MZ B cells in the spleen of Pax5^{∆OP,HD/∆OP,HD} mice relative to Pax5^+/+ mice (Fig. 2 D and Fig. S1 D). Deletion of the two central domains did not, however, affect expression of the Pax5 protein, as shown by flow-cytometric analysis of intracellular Pax5 staining in pro-B cells (Fig. S1 C). Hence, these data indicate that the OP and HD of Pax5 are essential for optimal B cell development.

We next investigated the effect of loss of the central Pax5 domains on gene expression by performing RNA sequencing (RNA-seq) with ex vivo sorted Pax5^+/+, Pax5^∆OP/∆OP, Pax5^∆HD/∆HD, and Pax5^{∆OP,HD/∆OP,HD} pro-B cells. For the analysis of pairwise comparisons, we defined differentially expressed genes as significantly increased or decreased in the Pax5 mutant pro-B cells relative to Pax5^+/+ pro-B cells, if they exhibited an expression difference of greater than threefold, an adjusted P value of <0.05 and a mean expression value of >5 transcripts per million (TPM) in one pro-B cell type (Table S1). The gene expression differences are displayed as a scatter plot in Fig. 2 E, while the overlap between the differentially expressed genes is shown as a heatmap, resulting in seven distinct clusters (Fig. 2 F and Fig. S2 A). A similar number of differentially expressed genes were identified by comparing Pax5^+/+ and Pax5^∆OP/∆OP pro-B cells (35), Pax5^+/+, and Pax5^∆HD/∆HD pro-B cells (41) as well as Pax5^+/+ and Pax5^{∆OP,HD/∆OP,HD} pro-B cells (43; Fig. 2 E and Fig. S2 A; and Table S1). Notably, the majority (83%) of the 35 deregulated genes in Pax5^∆OP/∆OP pro-B cells were upregulated, indicating that the OP primarily mediates gene repression (Fig. 2, E–G; and Fig. S2 A). In contrast, the expression of most (78%) of the 41 deregulated genes was decreased in Pax5^∆HD/∆HD pro-B cells, demonstrating that the HD predominantly contributes to gene activation (Fig. 2, E–G; and Fig. S2, A–D). Hence, the OP and HD of Pax5 have different functions in transcriptional regulation, which was further corroborated by the fact that only two genes (Orm2 and Ptpn3; cluster 6) were similarly regulated in both Pax5^∆OP/∆OP and Pax5^∆HD/∆HD pro-B cells (Fig. S2 A). Consistent with independent functions of the two central domains, the numbers of activated (58%) and repressed (42%) genes were more balanced in the double-mutant Pax5^{∆OP,HD/∆OP,HD} pro-B cells (Fig. 2 E and Fig. S2 A). Notably, 6 (cluster 2) of the 32 OP-dependent genes in Pax5^∆OP/∆OP pro-B cells and 17 (cluster 4) of the 38 HD-dependent genes in Pax5^∆HD/∆HD pro-B cells were similarly regulated in the double-mutant Pax5^{∆OP,HD/∆OP,HD} pro-B cells (Fig. 2, F and G; and Fig. S2 A). Moreover, 18 genes (cluster 5) reached a statistically significant difference of gene expression only in Pax5^{∆OP,HD/∆OP,HD} pro-B cells as a result of additive regulatory effects of the OP and HD (Fig. 2, F and G; and Fig. S2 A). In summary, our molecular data identified a critical role of the OP and HD of Pax5 in gene repression and activation, respectively.

The C-terminal sequences of Pax5, which are highly conserved in the mouse Pax2, Pax8, and zebrafish Pax5 proteins, consist of the TAD and ID that we previously identified by transient transfection experiments in established B cell lines (Dörfler and Busslinger, 1996; Fig. 3 A). For our in vivo study in the mouse, we divided the C-terminal sequences into a C-terminal regulatory domain 1 (CRD1), corresponding to Pax5 exons 8 and 9 encoding the TAD with a small C-terminal extension, and a C-terminal regulatory domain 2 (CRD2), consisting of an N-terminally shortened version of the ID encoded by exon 10 (Fig. 3, A and B). We used CRISPR/Cas9-mediated mutagenesis in mouse zygotes to generate the Pax5^∆CRD1, Pax5^∆CRD2, and double-mutant Pax5^∆CRD1,2 alleles (Fig. 3 B and Fig. S3 A). Immunoblot analysis of Pax5^{∆CRD2/∆CRD2}, Pax5^{∆CRD1/∆CRD1}, Pax5^{∆CRD1,2/∆CRD1,2}, and Pax5^+/+ pro-B cells revealed that mutant Pax5 proteins of the correct size were expressed in the corresponding pro-B cells (Fig. S3 B), indicating that the mRNA splicing to the respective exons (Fig. S3 A) was not affected by the genetic manipulations. Flow-cytometric analyses of the bone marrow and spleen of Pax5^{∆CRD2/∆CRD2}, Pax5^{∆CRD1/∆CRD1}, and Pax5^{∆CRD1,2/∆CRD1,2} mice revealed the following B cell developmental phenotypes (Fig. 3, C–E; and Fig. S3 C). First, deletion of CRD2 minimally affected B cell development in Pax5^{∆CRD2/∆CRD2} mice compared with Pax5^+/+ mice (Fig. 3, C–E). The pro-B cells were 1.5-fold increased, while the pre-B and immature B cells were moderately decreased in the bone marrow of Pax5^{∆CRD2/∆CRD2} mice relative to Pax5^+/+ mice, thus indicating a minor block of B cell development at the pro-B to pre-B cell transition (Fig. 3 D). Notably, deletion of CRD2 resulted in a 2.8-fold increase of splenic MZ B cells but did not affect the generation of FO B cells in Pax5^{∆CRD2/∆CRD2} mice (Fig. 3 E and Fig. S3 C). Second, elimination of CRD1 strongly interfered with B lymphopoiesis, as only pro-B cells were 1.6-fold increased, whereas all other B cell types were decreased in number in the bone marrow and spleen of Pax5^{∆CRD1/∆CRD1} mice compared with Pax5^+/+ mice (Fig. 3, C–E; and Fig. S3 C). Third, elimination of both CRD1 and CRD2 was only compatible with the generation of reduced numbers of pro-B cells as pre-B cells and all subsequent B cell developmental stages were absent in Pax5^{∆CRD1,2/∆CRD1,2} mice (Fig. 3, C and D). We conclude therefore that normal B cell development strictly depends on the C-terminal regulatory sequences of Pax5.

We next analyzed the expression of the C-terminally mutated Pax5 proteins in pro-B cells from Pax5^{∆CRD2/∆CRD2}, Pax5^{∆CRD1/∆CRD1}, and Pax5^{∆CRD1,2/∆CRD1,2} mice by intracellular Pax5 staining. Interestingly, Pax5 protein expression was gradually upregulated with increasing deletion of the C-terminal sequences from Pax5-∆CRD2 (1.2-fold) to Pax5-∆CRD1 (1.9-fold) and Pax5-∆CRD1,2 (3.3-fold) relative to the full-length Pax5 protein (Fig. 4, A and B). Pax5 mRNA expression was also increased in pro-B cells of Pax5^{∆CRD2/∆CRD2}, Pax5^{∆CRD1/∆CRD1}, and Pax5^{∆CRD1,2/∆CRD1,2} mice (Fig. S3 D), suggesting that the C-terminal domains of Pax5 may be involved in moderate auto-repression of the Pax5 gene. Based on these data, it is conceivable that, in addition to the absence of the C-terminal regulatory sequences, the increased expression of the mutant Pax5 proteins may also contribute to the observed phenotype of the Pax5^{∆CRD2/∆CRD2}, Pax5^{∆CRD1/∆CRD1}, and Pax5^{∆CRD1,2/∆CRD1,2} mice. To test this hypothesis, we replaced one mutant Pax5 allele with the Pax5 null allele (Urbánek et al., 1994) to lower the expression of the C-terminally truncated Pax5 proteins. As shown by intracellular staining, the Pax5 expression levels were reduced and thus more normalized in Pax5^∆CRD2/−, Pax5^∆CRD1/−, and Pax5^{∆CRD1,2/−} pro-B cells (Fig. 4 B). This in turn increased the severity of the respective B cell phenotype. The few pre-B and immature B cells that were still generated in the bone marrow of Pax5^{∆CRD1/∆CRD1} mice (Fig. 3, C and D) were lost in Pax5^∆CRD1/− mice (Fig. 4, C and D). Moreover, the pro-B cells were further decreased in Pax5^{∆CRD1,2/−} mice (Fig. 4, C and D) compared with Pax5^{∆CRD1,2/∆CRD1,2} mice (Fig. 3, C and D). Interestingly, the pro-B cells of Pax5^{∆CRD1,2/∆CRD1,2} and Pax5^{∆CRD1,2/−} mice strongly expressed CD25 (Fig. 4 C), which is encoded by the repressed Pax5 target gene Il2ra (Revilla-i-Domingo et al., 2012; Table S2), thus suggesting that the pro-B cells of these two genotypes may resemble Pax5-deficient progenitors in this regard. By defining the pro-B cells of Pax5^{∆CRD1,2/∆CRD1,2} and Pax5^{∆CRD1,2/−} mice in a CD19-independent manner as Lin⁻Ly6D⁺B220⁺Kit^hi cells, we realized that these cells were heterogeneous as they consisted of a larger CD19⁻Pax5⁺ and smaller CD19⁺Pax5⁺ cell population (Fig. S3 E). However, the CD19⁻ and CD19⁺ cell fractions of the Pax5^{∆CRD1,2/∆CRD1,2} pro-B cells clustered closely together and were clearly separated from Pax5^∆/∆ (Vav-Cre Pax5^fl/fl) progenitors by principal component analysis (Fig. S2 E), which was based on open chromatin data generated by the assay for transposase-accessible chromatin (ATAC) coupled with deep sequencing (ATAC-seq; Buenrostro et al., 2013; see below). We conclude therefore that Pax5^{∆CRD1,2/∆CRD1,2} pro-B cells are arrested at a different developmental stage compared with Pax5^∆/∆ progenitors.

To gain insight into the gene-regulatory function of the C-terminal domains of Pax5, we performed RNA-seq experiments with ex vivo sorted Pax5^∆CRD1/−, Pax5^∆CRD2/−, and Pax5^{∆CRD1,2/−} pro-B cells as well as with control Pax5^+/+ pro-B cells and Pax5^∆/∆ progenitors (Fig. 5 A and Table S2). To this end, we isolated pro-B cells from Pax5^+/+, Pax5^∆CRD1/−, and Pax5^∆CRD2/− mice as B220⁺CD19⁺Kit⁺CD2⁻IgM⁻IgD⁻ cells by flow-cytometric sorting, while the CD19^low/− pro-B cells from Pax5^{∆CRD1,2/−} mice and CD19⁻ progenitors from Pax5^∆/∆ mice were sorted as Lin⁻Ly6D⁺Kit^hiB220⁺ cells (Fig. S3 F). For pairwise analysis of the RNA-seq data, we used the same cutoffs (greater than threefold deregulation) as described above for the analysis of Pax5^∆OP/∆OP and Pax5^∆HD/∆HD pro-B cells. Importantly, these gene expression analyses demonstrated that the CRD1 and CRD2 domains mediate both gene activation and repression (Fig. 5 A). As expected, these analyses also revealed that the phenotypic severity of the different Pax5 mutant pro-B cells (Fig. 3, C–E; and Fig. 4 C) correlated with the number of differentially expressed genes, as only 36 genes were deregulated in the Pax5^∆CRD2/− pro-B with the weakest B cell phenotype compared with 548 genes in the Pax5^{∆CRD1,2/−} pro-B cells with the strongest phenotype (Fig. 5 A). An even greater number (972) of genes was deregulated in Pax5^∆/∆ progenitors compared with Pax5^+/+ pro-B cells (Fig. 5 A). This additional large increase of differentially expressed genes in Pax5^∆/∆ progenitors could be caused by the arrest of these cells at an earlier developmental stage or by the complete absence of the Pax5 protein.

We next compared the expression of the differentially regulated genes among the Pax5^∆CRD2/−, Pax5^∆CRD1/−, Pax5^{∆CRD1,2/−} pro-B cells and Pax5^∆/∆ progenitors relative to Pax5^+/+ pro-B cells. This analysis resulted in seven distinct gene clusters (A–G), as shown by the heatmap in Fig. 5 B (see also Table S2). Regulation of the genes present in the small clusters E, F, and G is unusual for the following reasons. While genes in these three clusters depended for their activation or repression on CRD1 (F) or both CRD1 and CRD2 (E and G), they exhibited the same common trait as they were expressed at similar levels in Pax5^∆/∆ progenitors and Pax5^+/+ pro-B cells (Fig. 5 B and Fig. S4, A and B). Moreover, genes of cluster F were deregulated predominantly upon deletion of CRD1 in Pax5^∆CRD1/− pro-B cells but not upon deletion of both CRD1 and CRD2 in Pax5^{∆CRD1,2/−} pro-B cells (Fig. 5 B and Fig. S4, A and B). As these two features are difficult to explain, we did not further analyze genes belonging to clusters E, F, and G.

Genes in the clusters B, C, and D showed varying dependencies on CRD1 and CRD2 for their activation or repression in pro-B cells. The activation of genes in cluster B was only minimally affected by deletion of CRD2 in Pax5^∆CRD2/− pro-B cells and was further reduced upon deletion of CRD1 in Pax5^∆CRD1/− pro-B cells but was largely lost only upon elimination of both C-terminal regulatory domains in Pax5^{∆CRD1,2/−} pro-B cells, as exemplified by the genes Cd19, Slamf7, Nedd9, Bcl2l1 (Bcl-X_L), Asb2, Arntl1 (Bmal1), Tcf3 (E2A), and Lef1 (Fig. 5 C, Fig. 6 D, and Fig. S4 C). Activation of the genes in cluster C totally depended on CRD1 in Pax5^∆CRD1/− pro-B cells with minimal contribution of CRD2 in Pax5^∆CRD2/− pro-B cells, as illustrated by the genes Fcrla, Cacna1e, Dkk3, Tmprss3, Lcp2 (Slp76), Bfsp2, Mgst1, Plxdc1, and Heyl (Fig. 5 C, Fig. 6 I, and Fig. S4 C). Finally, CRD1 and CRD2 were both similarly important for the activation of genes in cluster D because their expression was lost in Pax5^∆CRD1/− and Pax5^∆CRD2/− pro-B cells, as exemplified by the genes Enpep (BP-1), Tmem132e, Slc52a3, Cldn4, and Grb7 (Fig. 5 C and Fig. S4 C).

Upregulation of the repressed genes in cluster B was almost exclusively observed upon deletion of both CRD1 and CRD2 in Pax5^{∆CRD1,2/−} pro-B cells with little or no contribution of CRD1 or CRD2 deletion in Pax5^∆CRD1/− and Pax5^∆CRD2/− pro-B cells, respectively, as exemplified by the genes Slc9a2, Il18rap, Ifitm1, Lat2, Grap2, Ahnak, Fut7, Sulf2, and Lsr (Fig. 5 D, Fig. 6 J, Fig. 8 G, and Fig. S4 D). Notably, derepression of these genes in Pax5^{∆CRD1,2/−} pro-B cells often did not reach the level of expression observed in Pax5^∆/∆ progenitors (Fig. 5 D, Fig. 6 J, Fig. 8 G, and Fig. S4 D). Repression of the genes in cluster C was almost exclusively dependent on CRD1 as these genes were derepressed in Pax5^∆CRD1/− and Pax5^{∆CRD1,2/−} pro-B cells, as manifested by the genes Ly6a (Sca1), Sell (CD62L), Trem1, Sema3g, Gimap4, Mylk, Pnp2, and Car3 (Fig. 5 D, Fig. 6 E, and Fig. S4 D). Lastly, CRD1 and CRD2 were both equally important for repression of the few genes in cluster D, which were derepressed in both Pax5^∆CRD1/− and Pax5^∆CRD2/− pro-B cells, as illustrated by the genes Cgas, Eef1akmt1, Hnrnpll, and Ell3 (Fig. 5 D and Fig. S4 D).

Interestingly, repression of the three genes Cgas, Eef1akmt1, and Hnrnpll in cluster D depended not only on both CRD1 and CRD2 domains but also on the OP, as they were equally derepressed in Pax5^∆CRD1/−, Pax5^∆CRD2/−, and Pax5^∆OP/∆OP pro-B cells (Figs. 2 G and 5 D; and Figs. S2, A and C; and S4 D). Notably, 11 activated genes in cluster C required not only the CRD1 domain but also the HD for their expression, which was strongly reduced in Pax5^∆CRD1/− and Pax5^∆HD/∆HD pro-B cells (Fig. 2 G; and Figs. S2, A and B; and S4 C). Furthermore, 10 genes in cluster D required CRD1, CRD2, as well as the HD for their activation as their expression was greatly decreased or lost in Pax5^∆CRD1/−, Pax5^∆CRD2/−, and Pax5^∆HD/∆HD pro-B cells (Figs. 2 G and 5 C; and Figs. S2, A and B; and S4 C). Together, these data indicate that a large part (21 [66%]) of the 31 genes, which are activated in an HD-dependent manner, additionally require one or both CRD elements for their expression.

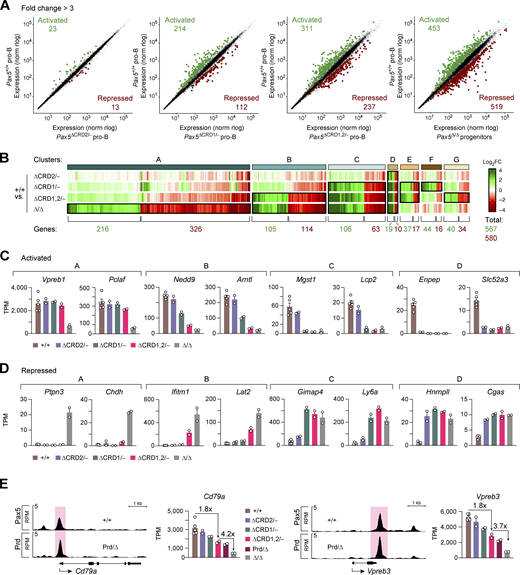

The largest cluster A of the heatmap contains 216 (38%) of all 567 activated genes and 326 (56%) of all 580 repressed genes (Fig. 5 B), whose differential expression reached significance only in the comparison between Pax5^∆/∆ progenitors and Pax5^+/+ pro-B cells. Hence, deletion of CRD1, CRD2, or both domains minimally affected the activation of genes in cluster A in Pax5^∆CRD1/−, Pax5^∆CRD2/−, or Pax5^{∆CRD1,2/−} pro-B cells, as exemplified by the genes Vpreb1, Vpreb3, Cd79a (Igα), Scn4a, Sit1, Pclaf, Ndc80, and Kif11 (Fig. 5, C and E; and Fig. S4 C). Likewise, genes that were expressed in Pax5^∆/∆ progenitors were not derepressed upon deletion of CRD1, CRD2, or both domains in the respective pro-B cells, as manifested by the genes Itgax, Cd7, Cd27, Fyb, Htra3, Ptpn3, Orm2, Chdh, and Nrgn (Fig. 5 D and Fig. S4 D). At face value, these data could indicate that most genes in cluster A are not at all or only minimally regulated by Pax5 in pro-B cells. While this statement may be true for many genes in cluster A, there are some notable exceptions. For instance, the genes Ptpn3, Orm2, and Chdh are derepressed in Pax5^∆OP/∆OP pro-B cells, indicating that the OP of Pax5 mediates the repression of these three genes in pro-B cells instead of the C-terminal domains (Fig. S2, A and D). Moreover, Pax5 was previously implicated in the activation of the Cd79a gene by recruiting members of the Ets transcription factor family via its paired domain to the Cd79a promoter (Fitzsimmons et al., 1996; Garvie et al., 2001; Nutt et al., 1998). We therefore next investigated whether the paired domain (Prd) plays a similar role in the activation of other cluster A genes in addition to Cd79a by taking advantage of the Pax5^Prd allele expressing only Prd from the Pax5 locus (Smeenk et al., 2017). B cell development was stringently arrested at a similar CD19⁻B220⁺Kit⁺ progenitor cell stage in Pax5^Prd/∆ (Vav-Cre Pax5^Prd/fl) and Pax5^∆/∆ mice (Fig. S5 A). By RNA-seq analysis, we identified a relatively small number of genes that was differentially expressed between Pax5^Prd/∆ and Pax5^∆/∆ progenitors (Table S3). By additionally considering Prd binding based on chromatin immunoprecipitation (ChIP) coupled with deep sequencing (ChIP-seq) analysis of Pax5^Prd/∆ progenitors, we identified only two cluster A genes, the previously known Cd79a and the newly found Vpreb3, that were both activated and bound by the Pax5 paired domain in Pax5^Prd/∆ progenitors (Fig. 5 E). In summary, these data do not support a role of the five analyzed Pax5 domains in the regulation of most cluster A genes, although Pax5 binding was observed at 84% of the activated cluster A genes and 53% of the repressed cluster A genes in Pax5^+/+ pro-B cells (Table S2).

We next investigated whether the C-terminal regulatory domains are involved in the control of open chromatin or Pax5 binding at Pax5-regulated genes. For this purpose, we performed ChIP-seq analysis with an anti-Pax5 paired domain antibody (Adams et al., 1992) to determine Pax5-binding in Pax5^+/+, Pax5^{∆CRD1/∆CRD1}, and Pax5^{∆CRD1,2/∆CRD1,2} pro-B cells. Moreover, we mapped open chromatin in Pax5^+/+, Pax5^{∆CRD1/∆CRD1}, Pax5^{∆CRD1,2/∆CRD1,2} pro-B cells, and Pax5^∆/∆ progenitors by ATAC-seq analysis (Buenrostro et al., 2013). We then selected genes that were greater than eightfold deregulated in Pax5^{∆CRD1,2/−} pro-B cells and Pax5^∆/∆ progenitors relative to Pax5^+/+ pro-B cells and that additionally exhibited Pax5 binding and/or open chromatin at their promoters (Fig. 6 A) or intragenic enhancers (Fig. 6 F) in one of the three pro-B cell types. Furthermore, 70 randomly selected, non-regulated genes were used as control to demonstrate that Pax5 binding and open chromatin did not change significantly at their promoters or intragenic enhancers in the different pro-B cell types (Fig. 6, B, C, G, and H). In contrast, Pax5 binding and open chromatin at the promoter region or intragenic enhancers of activated genes was gradually decreased from Pax5^+/+ pro-B cells to Pax5^{∆CRD1/∆CRD1} and Pax5^{∆CRD1,2/∆CRD1,2} pro-B cells (Fig. 6, B, C, G, and H), as exemplified for the promoter regions of Fxyd6 and Cd19 (Fig. 6 D) and intragenic enhancers of Id3 and Plxdc1 (Fig. 6 I). An inverse picture was observed for gene repression by the C-terminal domains. Pax5 binding and open chromatin at the promoters or intragenic enhancers of repressed genes was progressively increased from Pax5^+/+ pro-B cells to Pax5^{∆CRD1/∆CRD1} and Pax5^{∆CRD1,2/∆CRD1,2} pro-B cells (Fig. 6, B, C, G, and H), which is highlighted for the promoter regions of Ehd3 and Trem1 (Fig. 6 E) and intragenic enhancers of Flt3 and Lsr (Fig. 6 J). In summary, these data demonstrate that the C-terminal regulatory domains of Pax5 contribute to the control of open chromatin as well as Pax5 binding at regulated genes.

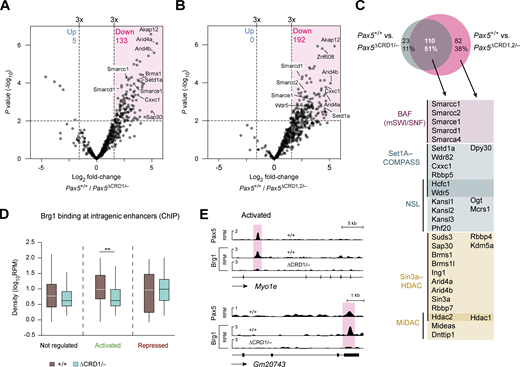

We next performed co-immunoprecipitation (Co-IP) experiments combined with mass spectrometric analysis (MS) to identify coactivator or corepressor complexes that bind to the C-terminal region of Pax5. To this end, we cultured Pax5^∆CRD1/−, Pax5^{∆CRD1,2/−}, and Pax5^+/+ pro-B cells prior to nuclear extract preparation and Co-IP with an anti-Pax5 paired domain antibody (Adams et al., 1992). We performed two experiments each with Pax5^∆CRD1/− and Pax5^+/+ pro-B cells (Fig. 7 A) as well as with Pax5^{∆CRD1,2/−} and Pax5^+/+ pro-B cells (Fig. 7 B). Proteins were identified as specifically associated with a CRD domain if they exhibited a difference in abundance of greater than threefold with a P value of <0.01 in the Co-IP–MS experiments of wild-type versus mutant pro-B cells (Table S4). The comparison between Pax5^∆CRD1/− and Pax5^+/+ pro-B cells or Pax5^{∆CRD1,2/−} and Pax5^+/+ pro-B cells identified 133 or 192 proteins, respectively, that were associated at a significantly reduced frequency with Pax5-∆CRD1 or Pax5-∆CRD1,2 compared with full-length Pax5 protein (Fig. 7, A and B; and Table S4). The overlap of both analyses resulted in 110 proteins that significantly interact with the CRD1 domain of Pax5 (Fig. 7 C). These shared proteins contain five members of the chromatin-remodeling BAF (mSWI/SNF) complex (Hodges et al., 2016), six components of the H3K4-methylating Set1A-COMPASS complex (Cenik and Shilatifard, 2021), six members of the H4K16-acetylating NSL complex (Sheikh et al., 2019), ten components of the Sin3-HDAC corepressor complex (Bansal et al., 2016), and three proteins of the MiDAC histone deacetylase complex (Turnbull et al., 2020; Fig. 7 C). Moreover, few additional components of these complexes were identified with stringent cutoffs only in the Co-IP–MS comparison between Pax5^{∆CRD1,2/−} and Pax5^+/+ pro-B cells (Fig. 7 C). Together, these data suggest that the CRD1 domain of Pax5 can promote transcriptional activation by associating with the BAF, Set1A-COMPASS, or NLS complexes, while transcriptional repression may be mediated by its interaction with the Sin3-HDAC or MiDAC complexes.

To investigate whether the CRD1 domain is able to recruit these coactivator or corepressor complexes to Pax5-binding sites of regulated genes, we investigated binding of the BAF complex in Pax5^+/+ and Pax5^∆CRD1/− pro-B cells by ChIP-seq analysis with an antibody directed against the BAF ATPase Brg1 (Smarca4; Wang et al., 2020). While genome-wide binding of Brg1 was similar in both pro-B cell types (Fig. S5 B), the analysis of intragenic enhancers of genes with a greater than eightfold regulation by Pax5 (Fig. 6 F) revealed a significant reduction of Brg1 binding at enhancers of activated genes in Pax5^∆CRD1/− pro-B cells compared with Pax5^+/+ pro-B cells (Fig. 7, D and E). In contrast, Brg1 binding was similar at intragenic enhancers of repressed or non-regulated genes (Fig. 7 D). We conclude therefore that the CRD1 domain is responsible for recruiting the chromatin-remodeling BAF complex to Pax5-binding sites at intragenic enhancers of activated Pax5 target genes.

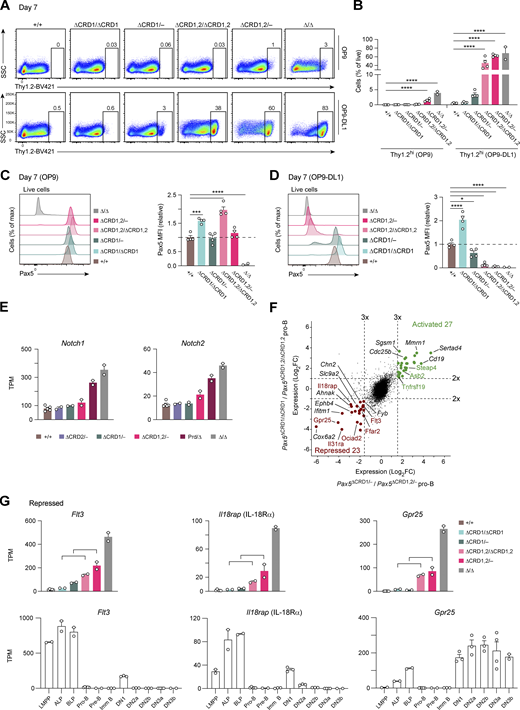

We next investigated a potential role of the C-terminal domains of Pax5 in the control of B-lineage commitment. For this purpose, we used an in vitro differentiation system, which is based on the induction of Notch signaling in lymphoid progenitors that are cultured on OP9-Delta-like 1 (OP9-DL1) feeder cells expressing the Delta-like Notch ligand 1 (Schmitt and Zúñiga-Pflücker, 2002). Using this differentiation system, we have previously shown that uncommitted Pax5^−/− progenitors efficiently differentiate to Thy1.2^hi T-lymphoid precursor cells within 7 d of co-culture on OP9-DL1 cells (Höflinger et al., 2004). To investigate the differentiation potential, we short-term cultured ex vivo sorted pro-B cells from Pax5^+/+, Pax5^{∆CRD1/∆CRD1}, Pax5^∆CRD1/−, Pax5^{∆CRD1,2/∆CRD1,2}, Pax5^{∆CRD1,2/−}, and control Pax5^∆/∆ mice on OP9 cells in IL-7–containing medium prior to seeding half of the pro-B cells on OP9 cells (plus IL-7) and the other half of the pro-B cells on OP9-DL1 cells (plus IL-7 and Flt3L). After 7 d in culture, the cells of the different genotypes maintained their pro-B cells phenotype on OP9 cells, as shown by their Pax5 expression except for the Pax5^∆/∆ progenitors (Fig. 8, A–C). While the Pax5^+/+, Pax5^{∆CRD1/∆CRD1}, and Pax5^∆CRD1/− pro-B cells maintained their committed B cell phenotype upon co-culture on OP9-DL1 cells, as shown by their continued expression of Pax5 (Fig. 8 D), the Pax5^{∆CRD1,2/∆CRD1,2} and Pax5^{∆CRD1,2/−} pro-B cells as well as Pax5^∆/∆ progenitors differentiated on OP9-DL1 cells into Thy1.2^hi cells (Fig. 8, A and B) that lost Pax5 expression (Fig. 8 D) and gained Gata3 expression (Fig. S5, C and D). Upon further analysis, the Pax5^{∆CRD1,2/−} Thy1.2^hi cells could be divided into a larger (64%) fraction I of CD44⁺CD25^hiKit^hi cells and a smaller (32%) fraction II of CD44⁻CD25^hiKit^int cells, which could correspond to DN2-like cells (Thy1.2^hiGata3⁺CD44⁺CD25^hiKit^hi) or DN3-like cells (Thy1.2^hiGata3⁺CD44⁻CD25^hiKit^int), respectively (Yui et al., 2010 ;Fig. S5 C). In the absence of further characterization, it is also possible that the fraction I and II cells may be ILC2 or ILC3 cells. Irrespective of what cell type has been generated, this differentiation experiment demonstrated that only the Pax5^{∆CRD1,2/∆CRD1,2} and Pax5^{∆CRD1,2/−} pro-B cells could undergo differentiation along another lineage. We conclude therefore that the CRD1 and CRD2 domains together determine the B-lineage commitment function of Pax5.

We next attempted to identify Pax5-regulated genes that may be involved in B-lineage commitment. As Pax5 has been implicated in the fivefold repression of the T cell fate specification gene Notch1 (Radtke et al., 1999) in committed pro-B cells (Souabni et al., 2002), we first analyzed the expression of Notch1 in Pax5^+/+, Pax5^∆CRD2/−, Pax5^∆CRD1/−, and Pax5^{∆CRD1,2/−} pro-B cells as well as in Pax5^Prd/∆ and Pax5^∆/∆ progenitor cells (Fig. 8 E). Surprisingly, Notch1 and Notch2 did not depend on the CRD1 and CRD2 domains of Pax5 for their repression in pro-B cells, while both genes were also not repressed upon expression of the Pax5 paired domain in Pax5^Prd/∆ progenitors (Fig. 8 E). As the two Notch genes were also not derepressed upon loss of the OP or HD in Pax5^∆OP/∆OP or Pax5^∆HD/∆HD pro-B cells, respectively (Table S1), we conclude that none of the Pax5 domains is involved in Notch gene repression. These data strongly suggest that the cluster A genes Notch1 and Notch2 are also repressed in a Pax5-independent manner during the transition from uncommitted progenitors to committed pro-B cells.

To systematically search for Pax5-dependent genes that may contribute to B-lineage commitment, we first analyzed ex vivo sorted Pax5^{∆CRD1/∆CRD1} and Pax5^{∆CRD1,2/∆CRD1,2} pro-B cells by RNA-seq and then identified genes that were differentially expressed between committed Pax5^{∆CRD1/∆CRD1} and uncommitted Pax5^{∆CRD1,2/∆CRD1,2} pro-B cells or between committed Pax5^∆CRD1/− and uncommitted Pax5^{∆CRD1,2/−} pro-B cells (Table S5). By overlapping the two datasets, we identified 23 Pax5-repressed and 27 Pax5-activated genes that exhibited a significant difference in expression between the committed and uncommitted pro-B cells (Fig. 8 F). The expression patterns of six Pax5-repressed genes (Flt3, Il18rap, Gpr25, Il31ra, Ffar2, and Ociad2) and three Pax5-activated genes (Asb2, Tnfrsf19, and Steap4) are shown for wild-type and Pax5 mutant pro-B cells as well as for uncommitted lymphoid progenitors (lymphoid-primed multipotent progenitors [LMPP], all-lymphoid progenitors [ALP], and B cell–biased lymphoid progenitors [BLP]) and early B cell types (pro-B, pre-B, and immature B cells) in the bone marrow and for early T-lymphoid precursor cells (early T cell progenitors [ETP]/DN1, DN2a, DN2b, DN3a, and DN3B cells) in the thymus (Fig. 8 G and Fig. S5, E and F). While the three Pax5-activated genes were exclusively expressed in early B cell development, the six Pax5-repressed genes were expressed in lymphoid progenitors and thymic T-lymphoid precursor cells but not in early B cells, consistent with a possible function of some of these Pax5-repressed genes in early lymphopoiesis and/or early T cell development. Five of the Pax5-repressed genes code for cell surface proteins (Flt3, Il18rap [IL-18Rβ], Il31ra [IL-31Rα], Gpr25, and Ffar2). Notably, the Il18r1 gene encoding the IL-18Rα chain is also a Pax5-repressed gene and exhibited a similar expression pattern as Il18rap (IL-18Rβ; Table S2), which points to the presence of a functional IL-18R on early lymphoid progenitors and the earliest DN1 progenitor cells. As the repression of Flt3 was previously shown to be crucial for B-lineage commitment (Holmes et al., 2006), it is conceivable that the downregulated expression of some of the other 22 Pax5-repressed genes may also contribute to the generation of committed pro-B cells.

Pax5 is a key regulator of B cell immunity that controls B-lineage commitment (Nutt et al., 1999), V_H-DJ_H recombination of the Igh locus (Hill et al., 2020), and the development of all mature B cell types (Calderón et al., 2021). PAX5 also plays an important role as a tumor suppressor gene in B-ALL development (Gu et al., 2019; Mullighan et al., 2007). The Pax5 protein consists of the N-terminal paired domain, a conserved OP, HD, and C-terminal sequences (Bouchard et al., 2008). These conserved domains are differently affected by PAX5 mutations in human B-ALL as missense mutations cluster in the paired domain and frameshift mutations are prevalent in the C-terminal domain (Gu et al., 2019). Moreover, the germline mutation G183S in the OP confers inherited susceptibility to B-ALL development (Auer et al., 2014; Shah et al., 2013), while the HD is largely devoid of gene mutations in B-ALL (Gu et al., 2019). Here, we determined the in vivo function of the OP, HD, and C-terminal sequences by deletion in the Pax5 gene. We previously analyzed the function of the Pax5 C-terminal domain by mutagenesis and expression in established B cell lines. These transient transfection experiments, which were performed with artificial reporter genes containing three copies of a high-affinity Pax5-binding site, identified a potent TAD and an adjacent ID (Dörfler and Busslinger, 1996). Here, we have shown by RNA-seq analysis of pro-B cells lacking the CRD1 or CRD2 domain that CRD1, encompassing the TAD, and CRD2, containing two-thirds of the ID sequences, each contribute to both activation and repression of Pax5-regulated gene. Hence, the previously identified separable transactivation and inhibitory functions of the C-terminal sequences are likely a consequence of the artificial design of the transient transfection experiments (Dörfler and Busslinger, 1996).

Deletion of the Pax5 OP or HD had minor effects on B lymphopoiesis, although both sequences together were required for optimal B cell development. Interestingly, the two sequence motifs have opposing transcriptional functions, as the OP is primarily involved in gene repression, while the HD largely contributes to gene activation. The repression function of the OP is consistent with our previous finding that members of the Groucho (Grg/Tle) corepressor family can specifically interact with the OP sequence of Pax5 (Eberhard et al., 2000). This previous analysis also revealed that the central SP and N-terminal Q domains of Grg4 (Tle4) interact with Pax5 by binding to the OP and the TAD (CRD1), respectively (Eberhard et al., 2000). This two-pronged mode of binding could explain why the three genes Cgas, Eef1akmt1, and Hnrnpll require both the OP and CRD1 domain for their repression.

Consistent with the activation function of the HD, we previously demonstrated by biochemical analysis that the TATA-binding protein of the transcription initiation complex TFIID can specifically interact with the HD of Pax5 (Eberhard and Busslinger, 1999). Moreover, pulldown experiments with in vivo biotinylated Pax5 protein combined with MS analysis previously identified several components of the TFIID complex including TATA-binding protein, which demonstrated that the full-length Pax5 protein can interact with the basal transcription machinery in pro-B cells (McManus et al., 2011). Our current Co-IP–MS analyses did not, however, identify binding of any TFIID components to the CRD1 and CRD2 domains of Pax5, thus supporting the previous finding that TFIID interacts with the HD. Interestingly however, 66% (21) of the 32 HD-dependent genes also require the CRD1 domain for their activation, suggesting that the activation of these genes may depend on the cooperative interaction between TFIID, bound to the HD, and a coactivator complex (BAF, Set1A-COMPASS, or NSL), bound to CRD1 of Pax5.

Whereas deletion of CRD2 of Pax5 has only a minor effect on B cell development, elimination of CRD1 arrests B lymphopoiesis at the pro-B cell stage. Consistent with this finding, CRD1 and CRD2 are responsible for the activation or repression of most Pax5-regulated genes, which can be further distinguished according to their differential dependency on CRD1 and CRD2. Pax5 is known to function as an epigenetic regulator by inducing or eliminating open chromatin and active histone marks at Pax5-binding sites of activated or repressed Pax5 target genes, respectively (McManus et al., 2011; Revilla-i-Domingo et al., 2012). Here, we have shown that this epigenetic regulation is largely mediated by the CRD1 and CRD2 domains of Pax5, as open chromatin was progressively lost or gained at Pax5-binding sites in promoters and enhancers of activated or repressed genes from Pax5^+/+ pro-B cells to Pax5^{∆CRD1/∆CRD1} and Pax5^{∆CRD1,2/∆CRD1,2} pro-B cells, respectively. Notably, the level of Pax5 binding paralleled that of open chromatin at activated and repressed genes, which can be explained in the following way. While binding of the full-length Pax5 protein in Pax5^+/+ pro-B cells likely induces active chromatin by recruiting coactivator complexes to activated genes, Pax5 proteins lacking CRD1 and/or CRD2 are unable to interact with these coactivator complexes and thus cannot generate open chromatin, which interferes with binding of Pax5 to its sites at activated genes in Pax5^{∆CRD1/∆CRD1} and Pax5^{∆CRD1,2/∆CRD1,2} pro-B cells. Conversely, Pax5 binding at repressed genes was low in Pax5^+/+ pro-B cells, as binding of the full-length Pax5 protein at the onset of pro-B cell differentiation initiates the shutdown of open chromatin, which, upon loss of accessible chromatin, prevents further Pax5 binding. Consistent with this interpretation, Pax5 proteins lacking CRD1 and/or CRD2 can no longer recruit corepressor complexes, are unable to suppress open chromatin, and therefore continue to interact with their binding sites in promoters and enhancers of repressed genes.

Early B cell development depends on the BAF chromatin-remodeling complex (Bossen et al., 2015; Choi et al., 2012), which induces DNA accessibility by locally disrupting nucleosomes (Cenik and Shilatifard, 2021; Hodges et al., 2016) and has previously been shown to be recruited to Pax5 target genes through its interaction with full-length Pax5 protein (McManus et al., 2011). Here, we have demonstrated that the CRD1 domain of Pax5 specifically interacts with the BAF complex and that the loss of CRD1 prevents recruitment of the BAF complex to intragenic enhancers of activated Pax5 target genes, thus leading to loss of open chromatin at these genes in Pax5^{∆CRD1/∆CRD1} pro-B cells. CRD1 also interacts with the H3K4-methylating Set1A-COMPASS (Cenik and Shilatifard, 2021), H4K16-acetylating NSL (Sheikh et al., 2019), Sin3-HDAC (Bansal et al., 2016), and MiDAC (Turnbull et al., 2020) complexes. Upon Pax5-dependent recruitment, the Set1A-COMPASS and NSL complexes likely promote an active chromatin state at activated Pax5 target genes, while the Sin3-HDAC and MiDAC corepressor complexes recruit histone deacetylases to Pax5 target genes to induce gene silencing by eliminating the active histone acetylation marks. An interesting but unresolved question is what determines that the CRD1 domain of Pax5 is able to recruit coactivator complexes to activated Pax5 target genes and corepressor complexes to repressed Pax5 target genes. It is possible that Pax5 may require another transcription factor for co-recruitment of the same coactivator or corepressor complex to its target gene. Interestingly, however, the multisubunit coactivator and corepressor complexes often also contain a protein with a histone modification reader or methyl-CpG binding function (Cenik and Shilatifard, 2021; Hodges et al., 2016; Sheikh et al., 2019). It is therefore conceivable that Pax5-mediated recruitment together with sensing of the active or repressive chromatin environment by the cofactor complex may lead to efficient recruitment of cofactors to activated or repressed Pax5 target genes.

We previously identified Pax5-regulated genes by comparing the gene expression pattern between Pax5-deficient progenitors and wild-type pro-B cells (Delogu et al., 2006; Revilla-i-Domingo et al., 2012; Schebesta et al., 2007). As the Pax5-deficient progenitors are arrested in development before the pro-B cell stage, we used Pax5 binding as a further criterion to define activated or repressed Pax5 target genes, although a significant fraction of these genes may still be differentially expressed due to the distinct regulatory environments of the two cell types instead of the presence or absence of Pax5. By analyzing the role of the different Pax5 domains in gene regulation, we now realized that almost half of all Pax5-regulated genes (present in cluster A) are not at all or only minimally deregulated in the absence of both C-terminal domains in contrast to their strong deregulation in Pax5-deficient progenitors. Some of these cluster A genes could be regulated by other Pax5 domains or by the Pax5 sequences present in the interdomain regions that we did not analyze in this study. Notably, the OP of Pax5 mediates the repression of the three cluster A genes Ptpn3, Orm2, and Chdh instead of the C-terminal domains. Moreover, the Pax5 paired domain alone is already sufficient to induce Cd79a and Vpreb3 expression, which is consistent with a previously reported role of the paired domain in the activation of Cd79a by recruiting members of the Ets transcription factor family to the Cd79a promoter (Fitzsimmons et al., 1996; Garvie et al., 2001; Nutt et al., 1998). Our current data therefore indicate that Pax5 may not at all or only minimally be involved in the regulation of most cluster A genes. Instead, the lack of expression of “activated” genes or the expression of “repressed” genes in Pax5-deficient progenitors may be caused by the distinct regulatory environment of these progenitors due to their early developmental arrest prior to the committed pro-B cell stage (Nutt et al., 1997).

Pax5 is essential for the commitment of lymphoid progenitors to the B cell pathway by repressing B lineage–inappropriate genes and activating B cell–specific genes at the onset of B cell development (Delogu et al., 2006; Nutt et al., 1999; Schebesta et al., 2007). Here, we have shown that the B-lineage commitment function of Pax5 critically depends on both the CRD1 and CRD2 domains. While Pax5 has been implicated in the repression of the T cell fate specification gene Notch1 in committed pro-B cells (Souabni et al., 2002), we now demonstrate that Notch1 repression is likely independent of Pax5 in pro-B cells, as it does not involve any of the five Pax5 protein domains analyzed. Systematic screening for genes with differential expression between committed Pax5^{∆CRD1/∆CRD1} and Pax5^∆CRD1/− pro-B cells and uncommitted Pax5^{∆CRD1,2/∆CRD1,2} and Pax5^{∆CRD1,2/−} pro-B cells identified 23 Pax5-repressed and 27 Pax5-activated genes, some of which may contribute to B-lineage commitment. One of the Pax5-repressed genes codes for the cytokine receptor Flt3 which is essential for the physiological expansion of lymphoid progenitors in the bone marrow (Mackarehtschian et al., 1995) and for the maintenance of early T cell development in the thymus (Kenins et al., 2010). Pax5-mediated repression of Flt3 was previously shown to be important for B-lineage commitment, as ectopic expression of Flt3 in hematopoietic progenitors interferes with early B cell development (Holmes et al., 2006). Similar experiments will be required to further investigate whether other genes among the 23 identified Pax5-repressed genes may also need to be downregulated, like Flt3, to facilitate B-lineage commitment.

The following mice were maintained on the C57BL/6 genetic background: Pax5^+/− mouse (Urbánek et al., 1994), Pax5^fl/fl mouse (Horcher et al., 2001), Pax5^Prd/+ mouse (Smeenk et al., 2017), Meox2^Cre/+ mouse (Tallquist and Soriano, 2000), and the transgenic Vav-Cre mouse (de Boer et al., 2003), which induces Cre-mediated deletion in hematopoietic stem cells and all hematopoietic lineages. All mouse experiments were performed with littermates and were carried out according to valid project licenses, which were approved and regularly controlled by the Austrian Veterinary Authorities.

The Pax5^∆OP allele was generated by ES cell targeting (Fig. S1, A and B). To this end, the OP was deleted by PCR amplification, and the corresponding PCR fragment was cloned between the SacII and XhoI sites into the targeting vector containing 1.8- and 4.5-kb-long homology regions and a loxP-flanked HSV thymidine kinase promoter-driven neomycin resistance gene. Following blastocyst injection of correctly targeted ES cells and subsequent germline transmission, the loxP-flanked neomycin resistance cassette was deleted by Cre recombinase in the germline of Pax5^∆OP-Neo/+Meox2^Cre/+ mice.

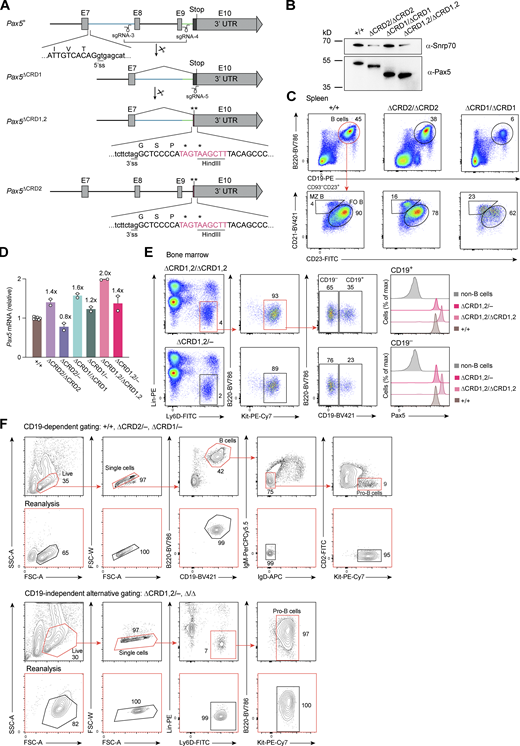

The Pax5^∆HD, Pax5^∆OP,HD, Pax5^∆CRD1, Pax5^∆CRD2, and Pax5^∆CRD1,2 alleles were generated by CRISPR/Cas9-mediated genome editing in mouse zygotes (Yang et al., 2013; Figs. S1 A and S3 A). For this, mouse zygotes (C57BL/6 × CBA) were injected with Cas9 mRNA, a single-guide (sg) RNA targeting the sequence to be mutated (linked to the scaffold tracrRNA), and a single-stranded DNA repair template of 200 nucleotides (Table S6). The Pax5^∆HD allele was generated by cleavage with sgRNA-1 and sgRNA-2 and homologous recombination of the respective exon 6 repair template (Table S6). The Pax5^∆OP,HD allele was created by sgRNA-mediated deletion of the HD in Pax5^∆OP/∆OP zygotes as described above. The Pax5^∆CRD1 allele was generated by deletion of genomic sequences from Pax5 exon 8 to exon 9 by CRISPR/Cas9-mediated DNA cleavage with sgRNA-3 and sgRNA-4 targeting intronic sequences located upstream of exon 8 and downstream of exon 9, respectively (Fig. S3 A and Table S6). The Pax5^∆CRD2 and Pax5^∆CRD1,2 alleles were created by deletion of the coding sequences at the 5′ end of exon 10 (Fig. 3 A) in the Pax5⁺ or Pax5^∆CRD1 allele, respectively, by using sgRNA-5 and the respective exon 10 repair template (Table S6). Mice carrying the different Pax5 mutant allele were genotyped by PCR amplification with the primers shown in Table S6. The PCR product amplified from Pax5^∆CRD2/+ mice was digested with HindIII (Fig. S3 A), resulting in smaller cleaved DNA fragments indicative of the Pax5^∆CRD2 allele. All introduced Pax5 mutations were verified by DNA sequencing of the respective PCR fragment (Table S6). The mutant Pax5 alleles were backcrossed to the C57BL/6 background for 10 generations prior to analysis.

The following monoclonal antibodies were used for flow-cytometric analysis of mouse lymphoid organs from 3–12-wk-old mice: B220/CD45R (RA3-6B2), CD2 (RM2-5), CD3 (17A2), CD4 (GK1.5), CD5 (53-7.3), CD8a (53-67), CD11b/Mac1 (M1/70), CD19 (6D5) or CD19 (1D3), CD21/CD35 (7G6), CD23 (B3B4), CD25 (PC61.5), CD44 (IM7), CD49b (HMa2), CD93 (AA4.1), CD117/Kit (ACK2), Gata3 (TWAJ), Gr1 (RB6-8C5), IgD (11-26C), IgM (II/41) or IgM (eb121-15F9), Ly6C (HK1.4), Ly6D (49H4), NK1.1 (PK136), TCRβ (H57-597), Ter119 (Ter-119), and Thy1.2 (53-2.1) antibodies. The anti-Pax5 antibody (1H9; BD Bioscience), which is directed against the amino acids 154–284, was used for intracellular staining of the C-terminal Pax5 mutants, and the anti-Pax5 antibody (D19F8; Cell Signaling), which is directed against the human amino acids surrounding Gln350, was used for intracellular staining of the central Pax5 domain mutants. The polyclonal anti-Pax5 antibody, which is directed against amino acids 17–145 (Adams et al., 1992), was used for ChIP and Co-IP experiments. The anti-Brg1 antibody (ab110641; Abcam) was used for Brg1 ChIP analysis.

The different hematopoietic cell types of the mouse were identified by flow cytometry as follows: LMPP (CD19⁻Lin⁻CD135⁺Kit⁺Sca1⁺CD127⁻), ALP (Lin⁻CD135⁺CD127⁺Ly6D⁻), BLP (Lin⁻CD135⁺CD127⁺Ly6D⁺), Pax5-deficient B cell progenitors (Lin⁻Ly6D⁺Kit^hiB220⁺), pro-B (B220⁺CD19⁺Kit⁺CD2⁻IgM⁻IgD⁻) or (B220⁺CD19⁺Kit⁺CD25⁻IgM⁻IgD⁻), pre-B (B220⁺CD19⁺Kit⁻CD2⁺IgM⁻IgD⁻) or (B220⁺CD19⁺Kit⁻CD25⁺IgM⁻IgD⁻), immature B (B220⁺CD19⁺IgM^hiIgD⁻), recirculating B (B220⁺CD19⁺IgM⁺IgD^hi), MZ B (B220⁺CD19⁺CD93⁻CD21^hiCD23^lo/−), FO B (B220⁺CD19⁺CD93⁻CD21^intCD23^hi), total B cells (B220⁺CD19⁺), ETP/DN1 (CD19⁻Lin⁻CD25⁻CD44⁺Kit^hi), DN2a (CD19⁻Lin⁻CD25⁺CD44⁺Kit^hi), DN2b (CD19⁻Lin⁻CD25⁺CD44⁺Kit^int), DN3a (Lin⁻Thy1.2⁺CD25^hiCD44⁻CD28⁻CD71⁻), and DN3b (Lin⁻Thy1.2⁺CD25^hiCD44⁻CD28⁺CD71⁺). LMPP, ALP, BLP, and the Pax5-deficient B cell progenitors were defined by gating away Lin⁺ cells with a cocktail of anti-CD3, CD4, CD8a, CD11b, CD49b, Gr1, Ly6C, NK1.1, TCRβ, and Ter-119 antibodies. A second antibody cocktail (Lin⁺) consisting of anti-CD4, CD8a, CD11b, TCRβ, TCRγδ, CD11c, NK1.1, Gr1, and Ter-119 antibodies was used for flow-cytometric sorting of the T cell precursors DN1, DN2a, DN2b, DN3a, and DN3b. Flow-cytometric analysis and sorting were performed on LSRFortessa (BD Biosciences) and FACSAria III (BD Biosciences) machines, respectively. FlowJo Software (Treestar) was used for data analysis.

Intracellular Pax5 staining of pro-B cells (Fig. 4, A and B; and Fig. S1 C; and Fig. 8, C and D) was performed after fixation–permeabilization with the Foxp3 Staining Buffer Set (eBioscience) by staining with the anti-Pax5 antibody (1H9; BD Bioscience) or anti-Pax5 antibody (D19F8; Cell Signaling).

The experiment was performed as described (Höflinger et al., 2004). In short, ex vivo sorted pro-B cells were cultured on OP9 cells in IL-7–containing Iscove’s modified Dulbecco’s medium (IMDM; Nutt et al., 1997) for 4 d. Half of the pro-B cells were then transferred to OP9-DL1 cells (Schmitt and Zúñiga-Pflücker, 2002) in α-MEM medium containing 10% FCS, 50 μM β-mercaptoethanol, 2 mM glutamine, 1 mM sodium pyruvate, IL-7, and Flt3L (Höflinger et al., 2004). On day 7 after transfer onto OP9-DL1, the lymphoid cells on the OP9-DL1 and OP9 feeder cells were harvested and analyzed by flow cytometry.

Pro-B cells were short-term cultured on OP9 cells in IL-7–containing IMDM (Nutt et al., 1997) followed by crosslinking with 1% formaldehyde (Sigma-Aldrich) for 10 min. Nuclei were prepared and lysed in the presence of 0.25% SDS, followed by sonication of the chromatin with the Bioruptor Standard (Diagenode). IP was performed with an anti-Pax5 paired domain antibody (Adams et al., 1992), and the precipitated DNA (1–2 ng) was used for library preparation and subsequent Illumina deep sequencing (Table S7). For Brg1 ChIP analysis, in vitro cultured pro-B cells were sequentially crosslinked at room temperature with 1.5 mM ethylene glycol bis(succinimidylsuccinate) for 15 min and then with 1% formaldehyde for 10 min, followed by ChIP analysis with an anti-Brg1 antibody (ab110641; Abcam), as described (Wang et al., 2020).

RNA from ex vivo sorted pro-B cells was isolated with a RNeasy Plus Mini kit (Qiagen), and mRNA was obtained by poly(A) selection with a Dynabeads mRNA purification kit (Invitrogen) followed by cDNA synthesis as described (Calderón et al., 2021).

About 1–5 ng of cDNA or ChIP-precipitated DNA were used for generating sequencing libraries with the NEBNext Ultra Ligation Module and NEBNext End Repair/dA-tailing module, as described (Calderón et al., 2021). Cluster generation and sequencing were carried out by using the Illumina HiSeq 2000 system with a read length of 50 nucleotides (Table S7).

The nuclear extracts were prepared from in vitro cultured pro-B cells (1–2 × 10⁸) as described (McManus et al., 2011). IP was performed with an anti-Pax5 paired domain antibody (Adams et al., 1992). For this, 10 ml Protein A Mag Sepahrose Xtra beads (GE Healthcare) per 1 mg nuclear extract were precleared by incubation with PBS containing 1 mg/ml bovine serum albumin for 2 h at 4°C. Subsequently, the nuclear extract was incubated with the beads for 2 h at 4°C with rotation, followed by washing five times with ice-cold wash buffer containing detergents (20 mM Tris, pH 8.0, 1.5 mM MgCl₂, 10% glycerol, 250 mM NaCl, 0.15% NP-40) and seven times with ice-cold wash buffer without detergents (20 mM Tris-HCl, pH 7.5, 150 mM NaCl). Pelleted beads were stored at −20°C until further processing for MS.

Proteins were digested off the beads using Lys-C followed by reduction, alkylation, and a subsequent digestion with trypsin as described (de Almeida et al., 2021). A similar aliquot of each sample (10%) was analyzed by nanoLC-MS/MS using an UltiMate 3000 RSLC nano system operating a PepMap trap and analytical column and being coupled to an Exploris 480 mass spectrometer equipped with a Nanospray Flex ion source (all parts from Thermo Fisher Scientific). HPLC and MS were operated as described (de Almeida et al., 2021). For peptide identification, the RAW files were searched using MS Amanda version 2.0.0.16129 (Dorfer et al., 2014) in the framework of Proteome Discoverer (version 2.5.0.400; Thermo Fisher Scientific) against the UniProt mouse reference database (21,961 sequences; 11,726,931 residues), supplemented with common contaminants and the sequence of Pax5, using the following search parameters: peptide and fragment mass tolerance ±10 parts per million, number of missed tryptic cleavages ≤2, Cys b-methylthiolation as a fixed modification, as well as Met oxidation and other common posttranslational modifications as variable modifications. Identifications were filtered to 1% false discovery rate on protein and posttranslational modification level using the Percolator algorithm integrated into Proteome Discoverer, and on top, an MSAmanda score cutoff of ≥150 was applied.

Peptides were subjected to label-free quantification using IMP-apQuant (Doblmann et al., 2019). Proteins were quantified by summing unique and razor peptides and applying intensity-based absolute quantification (Schwanhäusser et al., 2011). Proteins were filtered to be identified by a minimum of three quantified peptides. Protein abundance was normalized to equal amounts of the bait (Pax5) per condition. The statistical significance of differentially abundant proteins was determined using limma (Smyth, 2004). Mitochondrial proteins were considered as contaminants and excluded from further analysis.

All sequence reads of the different samples that passed the Illumina quality filtering were considered for adapter trimming and subsequent alignment to the mouse genome assembly version of December 2011 (GRCm38/mm10) using STAR 2.4.2a (Dobin et al., 2013) in the transcriptome-guided alignment mode. All reads were trimmed to 50 base pairs to obtain comparable alignments. Read counts per gene were obtained with Rsubread 2.8.0 (Liao et al., 2014). The datasets were grouped according to the genotype and were analyzed using R 4.1.2 9 (https://www.r-project.org), Bioconductor 3.14 (Huber et al., 2015), and the R package DESeq2 version 1.34 (Love et al., 2014). Genes with low expression (counts per million < 1 in all samples) were removed from the analysis. Batch effects were corrected with limma 3.50.0 (Ritchie et al., 2015). The normalizations and dispersion estimations of the samples were conducted using the default DESeq2 settings. Variance-stabilizing transformations were computed with the blind option set to “False.” Variance-stabilized counts were transformed from the log₂ to the log₁₀ scale for generating scatterplots. The default DESeq2 pairwise setup (model design formula ∼genotype; Wald test) was used for comparisons between different conditions. If not stated otherwise in the text, genes with an adjusted P value of <0.05, an absolute fold-change of >3, and a mean TPM value (averaged within conditions) of >5 in one of the conditions (genotypes) were called as significantly differentially expressed. Immunoglobulin and histone genes were filtered from the final list of significantly differentially expressed genes. Genes were manually annotated based on the literature and Ingenuity pathway analysis (Krämer et al., 2014). All heatmaps were drawn with ComplexHeatmap 2.10 (Gu et al., 2016). Sequence reads obtained by RNA-seq analysis of LMPP, DN1, DN2a, DN2b, DN3a, and DN3b cells were aligned with TopHat 1.4.1 (Trapnell et al., 2009). TPMs were calculated as described (Wagner et al., 2012). The database generation of the RefSeq-annotated genes was performed as previously described (Wöhner et al., 2016), based on a RefSeq data download from December 6, 2018.

All sequence reads of the different samples that passed the Illumina quality filtering were considered for adapter trimming and subsequent alignment to the mouse genome assembly version of December 2011 (GRCm38/mm10) using bowtie 1.0.0 (Langmead et al., 2009). Replicates were concatenated and peaks were called using MACS 2.2.5 (Zhang et al., 2008), considering a Rag2^−/− pro-B cell input sample (GSM1145867, GSM1296537) as a control in case of the Pax5 ChIP-seq analysis and the merged input replicates (231740, 231741, 231742) as a control in case of the Brg1 ChIP-seq analysis. Peaks were subsequently filtered for P value of <10⁻¹⁰ and submitted to irreproducible discovery rate (IDR) thresholding by applying Idr 2.0.4 (Li et al., 2011) in oracle mode. To obtain a comprehensive list of all interesting ChIP-seq and/or ATAC-seq peaks, the summits of ChIP-seq and ATAC-seq peaks were grouped into clusters and subsequently filtered by overlapping them with IDR-filtered regions to obtain only relevant clusters using MULTOVL 1.2 (Aszódi, 2012). To increase the resolution within peaks, clusters with summits that were present at a distance of >150 bp apart were separately analyzed. Reads over the resulting subpeaks were counted using deepTools 3.3.1 multiBamSummary (Ramírez et al., 2014) by extending the reads to 200 bp (ChIP-seq) or considering the entire paired-end-sequenced DNA fragments (ATAC-seq) and were transformed to reads per millions (RPM). All sites were assigned to genes as described (Revilla-i-Domingo et al., 2012), based on the RefSeq database that was processed as described below. In particular, peaks overlapping with the promoter region (−2.5 to +1 kb relative to the transcription start site [TSS]) were termed “TSS” peaks and peaks present in the gene body (+1 kb from the TSS to the transcription end site) were referred to as intragenic enhancer peaks. We next assumed that the peak with the greatest ChIP and/or ATAC signal change between pro-B cells of the different genotypes analyzed is the most interesting peak with regard to gene regulation. As for each gene, several peaks can be assigned to the promoter region or gene body, the peak with the maximum RPM difference in the mutant versus wild-type condition was finally selected and plotted per gene. Read coverages were calculated with the BEDTool program version 2.27.1 (Quinlan and Hall, 2010) and were normalized to RPM using the SAMTools version 1.9 (Li et al., 2009) as well as the KentTools version 20190507 (Kuhn et al., 2013). Displayed read coverage tracks are based on UCSC genome browser screenshots (Kent et al., 2002). We used DESeq2 version 1.34 (Love et al., 2014) to normalize the ATAC-seq data and to calculate the data of the principal component analysis.

Statistical analysis was performed with the GraphPad Prism 7 software. Two-tailed unpaired Student’s t test analysis was used to assess the statistical significance of one observed parameter between two experimental groups. One-way ANOVA was used when more than two experimental groups were compared followed by Dunnett’s multiple comparison test.

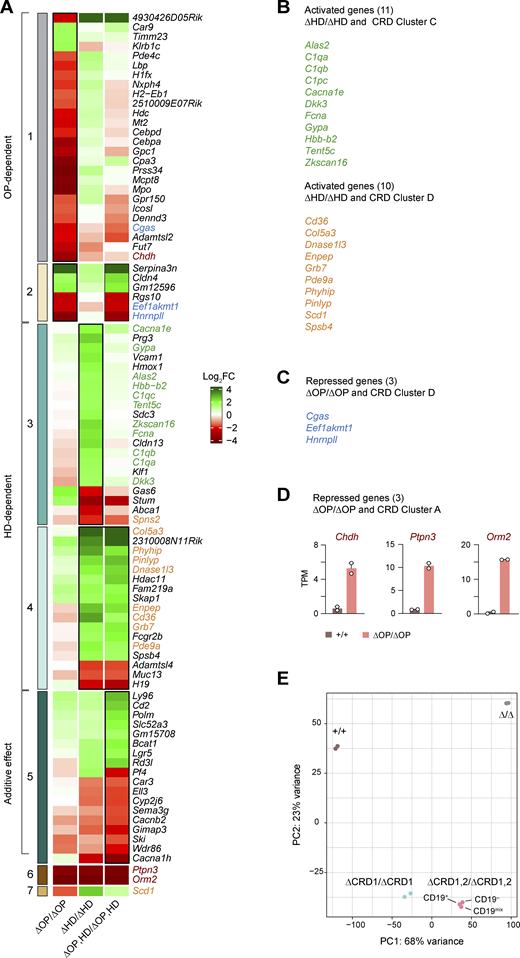

Fig. S1 describes the generation and characterization of the Pax5^∆OP, Pax5^∆HD, and Pax5^∆OP,HD alleles. Fig. S2 displays the heatmap of differentially expressed genes in Pax5^∆OP/∆OP, Pax5^∆HD/∆HD, or Pax5^{∆OP,HD/∆OP,HD} pro-B cells compared with Pax5^+/+ pro-B cells. Fig. S3 describes the generation and characterization of the Pax5^∆CRD1, Pax5^∆CRD2, and Pax5^∆CRD1,2 alleles. Fig. S4 shows the differential dependency of Pax5-regulated genes on the function of the C-terminal domains. Fig. S5 displays the expression profiles of Pax5-regulated genes with a potential role in B-lineage commitment. Table S1 contains the mRNA-seq data of all Pax5-regulated genes that depend on the central domains. Table S2 contains the mRNA-seq data of all Pax5-regulated genes that require the C-terminal domains for their expression. Table S3 contains the mRNA-seq data of the genes that are differentially expressed between Pax5^Prd/∆ and Pax5^∆/∆ progenitors. Table S4 contains the MS data used for the identification of proteins that interact with the C-terminal domains of Pax5. Table S5 contains the mRNA-seq data used for the identification of Pax5-regulated genes that are potentially involved in B-lineage commitment (Fig. 8 F). Table S6 contains the oligonucleotide sequences used for PCR analysis or CRISPR-Cas9 mutagenesis. Table S7 describes all Illumina sequencing experiments generated for this study.

The RNA-seq, ChIP-seq, and ATAC-seq data reported in this study (Table S7) are available at the Gene Expression Omnibus repository under the accession number GSE224793. The Co-IP–MS data are available at the ProteomeXchange Consortium PRIDE repository under the accession number PXD040424.

We thank Anja Ebert (Research Institute of Molecular Pathology [IMP], Vienna, Austria) for creating the Pax5^∆OP allele, Taras Kreslavsky (IMP) for advice and help with the sorting of double-negative thymocytes, Christian Theussl and Jacek R. Wojciechowski (IMP) for generating the Pax5 mutant mice, Karin Aumayr’s team (IMP) for flow-cytometric sorting, Karl Mechtler’s team (IMP) for mass-spectrometric analyses, and Andreas Sommer’s team at the Vienna BioCenter Core Facilities for Illumina sequencing.

This research was supported by Boehringer Ingelheim and the Austrian Research Promotion Agency (Early Stage Grant “Molecular Control” FFG-878286). Open Access funding provided by the Research Institute of Molecular Pathology.

Author contributions: S. Gruenbacher carried out most experiments; M. Jaritz performed the bioinformatic analysis of the RNA-seq, ChIP-seq, and ATAC-seq data; L. Hill generated the Pax5^∆HD allele; M. Schäfer performed the sorting and RNA-seq analysis of early T-lymphoid precursor cells; S. Gruenbacher and M. Busslinger planned the project, designed the experiments, and wrote the manuscript.
