Single-molecule lipid biosensors mitigate inhibition of endogenous effector proteins

Genetically encoded lipid biosensors are a transformative tool for studying the role of specific lipids in cellular physiology (Yang et al., 2018; Wills et al., 2018). They are uniquely able to report both the organellar location of cytosolic leaflet-localized lipids as well as their dynamic changes in intact, living cells. Although a mainstay of experimental techniques for interrogating lipid function, these biosensors, like all experimental tools, have specific drawbacks and limitations. One of the most prominent is the fact that lipid engagement by a biosensor occludes the lipid’s headgroup, blocking its interaction with proteins that mediate biological function. It follows that large fractions of lipid may be effectively outcompeted by the biosensor, inhibiting the associated physiology. We have argued that, in most cases, this is unlikely because the total number of lipid molecules outnumbers expressed biosensors by one to two orders of magnitude (Wills et al., 2018). However, for less abundant lipids, total molecule copy numbers may be in the order of tens to hundreds of thousands, making competition by biosensors a real possibility.

One of the most famous second messenger lipids is phosphatidylinositol 3,4,5-trisphosphate (PIP₃). Generated by class I phosphoinositide 3-OH kinases (PI3Ks), PIP₃ activates numerous effector proteins involved with stimulating cell metabolism, migration, growth, and survival, along with activation of the immune system (Fruman et al., 2017; Vanhaesebroeck et al., 2021; Madsen and Toker, 2023). Its best-known effector is the serine-threonine kinase, AKT (also known as PKB). This protein is recruited to the membrane and allosterically activated by PIP₃ binding to its pleckstrin homology (PH) domain, facilitating phosphorylation of the enzyme at threonine 308 and serine 473 (Truebestein et al., 2021; Bae et al., 2022). The selectivity and affinity of the PIP₃ interaction with PH domains of proteins like AKT led to their development as some of the first biosensors for lipid signaling (Venkateswarlu et al., 1998; Watton and Downward, 1999; Várnai et al., 1999; GRAY et al., 1999).

PIP₃ is synthesized by 3-OH phosphorylation of the substrate lipid, PI(4,5)P₂, of which cells contain ∼10 million in their plasma membranes (PMs) (Wills and Hammond, 2022). Yet only 3–5% of PI(4,5)P₂ is converted to PIP₃ (Stephens et al., 1993), resulting in no more than about 500,000 molecules per cell. PH domain–containing PIP₃ effector proteins can be predicted based on sequence comparison to known PIP₃ effectors versus non-effectors using a recursive functional classification matrix for each amino acid (Park et al., 2008). Inspecting OpenCell proteome data for the number of these binding proteins predicts ∼442,000 PIP₃ effector protein copies in a HEK293 cell (Cho et al., 2022). Therefore, PIP₃ production is well matched to engage this particular cell type’s effector proteins. Translating these numbers into cellular concentrations (assuming 13 pl for a 15-µm spherical HEK293 cell) gives ∼500 nM concentration, which is again well matched by the 100–500 nM dissociation constant of these effector proteins (Wills et al., 2018). However, now consider that an overexpressed PH domain–based biosensor has been measured at up to 10,000 nM (Xu et al., 2003): these domains could easily dominate binding to PIP₃ and thus outcompete endogenous effector proteins, blocking physiological signaling. Indeed, there have been prior reports of overexpressed PIP₃ biosensors inhibiting PI3K signaling (Várnai et al., 2005). However, in this case it was unclear how much this was due to sequestration of the lipid versus competition for protein-binding partners of the PH domains in a lipid-dependent manner. Furthermore, it remains possible that cells may respond to biosensor PIP₃ competition by increasing PIP₃ production by yet-to-be–defined feedback mechanisms. Such feedback has been reported in the case of PI(4,5)P₂ biosensors (Traynor-Kaplan et al., 2017).

In this manuscript, we have addressed the question of whether overexpressed biosensors compete for PIP₃ binding enough to inhibit effector protein translocation. To this end, we generated gene-edited cell lines incorporating a neonGreen fusion protein driven from a native AKT1 allele in HEK293A cells. We show that a variety of PIP₃ effector proteins very efficiently block AKT1 translocation and inhibit signaling, despite robust PIP₃ production. This competition can be eliminated by reducing biosensor concentrations (through reduced transfection times and/or using weaker promoters) to reach approximate concentrations of the endogenous effectors, though this requires single-molecule sensitivity. As well as alleviating inhibition of PI3K signaling, biosensors expressed at these low levels show improved dynamic range and report more accurate kinetics than their overexpressed counterparts.

PIP₃ mediated activation of AKT1 occurs via the initiation of both allosteric and localization-based mechanisms (Truebestein et al., 2021; Bae et al., 2022). Firstly, PIP₃ binding to the AKT PH domain disrupts an autoinhibitory interaction with the kinase activation loop. Secondly, the enzyme is localized to the membrane, where it is concentrated with upstream activating kinases PDK1 and TORC2, which phosphorylate and activate the enzyme at residues T308 and S473, respectively (Fig. 1 A). Both mechanisms critically depend on PIP₃, so we reasoned that high concentrations of PIP₃ biosensor might disrupt AKT1 activation by titrating out the lipid.

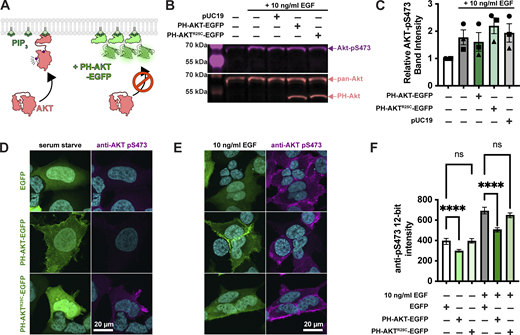

To test for such an effect, we overexpressed the most commonly utilized PIP₃ biosensor, the isolated PH domain of AKT1. As a control, we used the non-PIP₃–binding mutant R25C (Watton and Downward, 1999). The most commonly employed method to assay AKT activation is by immunoblotting for the activated phosphorylated species. Therefore, we transiently transfected HEK293A cells with EGFP control, PH-AKT1-EGFP, or the R25C mutant, then stimulated them for 5 min with a moderate experimental dose of EGF (10 ng/ml). Blotting for pS473 revealed no drastic inhibition of pS473 levels by PH-AKT1 expression (Fig. 1, B and C). However, since transient transfection produces expression in a subset of cells, with those cells displaying a wide distribution of expression levels, we reasoned that analysis of the whole cell population might be misleading, since this includes untransfected cells or cells with low expression of the biosensor that would not be selected for imaging. We therefore took a single-cell approach, immunostaining the cells for pS473 after stimulation and quantifying the staining intensity in EGFP-positive cells. As shown in high-resolution confocal images in Fig. 1 D, serum-starved cells expressing any EGFP-fusion protein were largely devoid of AKT-pS473 staining. Stimulation of these cells with 10 ng/ml EGF led to the appearance of pS473 staining around the PM (Fig. 1 E). However, cells positive for PH-AKT1-EGFP showed a block in pS473, despite a clear increase in membrane localization of PH-AKT1-EGFP itself (Fig. 1 E). In the non-PIP₃–binding PH-AKT1^R25C-EGFP–positive cells, we still observed an increase in pS473 intensity. In parallel, we imaged cells with a low-resolution 0.75-NA air objective to capture fluorescence from the cells’ entire volume, then quantified these images using an automatically determined threshold for GFP-positive cells (see Materials and methods). This analysis showed that the R25C mutant had no substantial effect on pS473 levels, whereas wild-type PH-AKT greatly inhibited pS473 staining in EGF-stimulated cells as well as reducing basal levels in serum-starved cells (Fig. 1 F). Together, these experiments showed that at the population level, PH-AKT1 overexpression has little impact, but at the level of individual cells expressing visible PH-AKT1 (that would be used for imaging experiments), inhibition of AKT activation was profound.

Whilst inhibition of AKT1 S473 phosphorylation by PH-AKT1 overexpression is consistent with sequestration of that target lipid, it is not a direct demonstration of the phenomenon. We therefore wanted to devise an experiment where we could quantify competition for PIP₃ between the biosensor and endogenous AKT1. To that end, we used gene editing to incorporate a bright, photostable neonGreen fluorescent protein to the C terminus of AKT1 via gene editing using a split fluorescent protein approach (Kamiyama et al., 2016). Here, CRISPR/Cas9 is used to cut the 3′ end of the AKT1 open reading frame. Homology-directed repair incorporates the 11th strand of the neonGreen2 protein. This is performed in cells stably expressing the other neonGreen2-1–10 fragment, leading to complementation and fluorescence (Fig. 2 A). Western blotting with AKT1-specific antibodies revealed the presence of the neonGreen2 fusion in edited cells but not parental controls (Fig. 2 B).

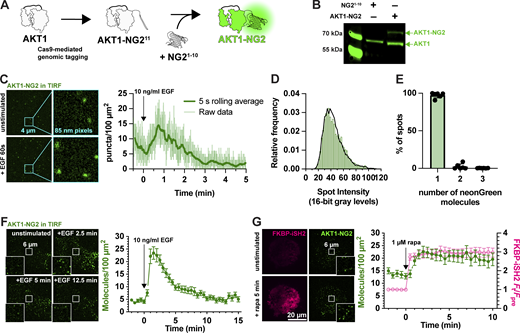

Imaging these AKT1-NG2 cells by total internal reflection fluorescence microscopy (TIRFM) revealed diffraction-limited spots at the cell surface, which increased in number with EGF stimulation (Fig. 2 C). We analyzed the intensity of these spots and compared them to intensity distributions from a known monomeric protein localized to the PM and expressed at single-molecule levels, namely a myristoylated and palmitoylated neonGreen protein (produced by fusion to the N terminus of Lyn kinase). Fitting a basis histogram to this known distribution allows the AKT1 data to be fit to a function that will differentiate between single, dimeric, trimeric, or higher fluorescent molecule intensities in the sample (Mutch et al., 2007), as shown in Fig. 2 D. This revealed that 98.1% (95% confidence interval from six cells = 95.6–100.5%) of the AKT1-NG2 spots were single molecules (Fig. 2 E).

Although we could resolve single molecules of AKT1, video-rate imaging caused significant photobleaching (note the decline in molecule numbers prior to stimulus addition in Fig. 2 C). To circumvent this, we dropped our imaging rate from an image every 50 ms to one every 30 s. Stimulation with 10 ng/ml EGF then revealed a roughly fivefold increase in AKT1 localization at the PM within about 90 s, which then declines with first-order kinetics over the subsequent 10 min of the experiment (Fig. 2 F). This is consistent with the typical evolution of AKT activation in response to growth factor stimulation. Accumulation of AKT-NG2 was ∼25 molecules per 100 µm², which assuming a surface area of ∼1,500 µm² per cell, corresponds to ∼375 molecules total. It should be noted that tagging likely only occurred at a single allele in each cell, and the population still exhibited expression of non-edited AKT1 (Fig. 2 B). Given that HEK293 are known to be pseudotriploid (Bylund et al., 2004), the true number of AKT1 molecules would be at least 1,125. However, given an estimated total copy number of 23,000 AKT1 in these cells (Cho et al., 2022), this is still only about 5%. However, we do not interpret these raw numbers due to uncertainties in the efficiency of NG2 complementation under these conditions, as well as potential for reduced expression from the edited allele.

As a further test of PI3K activation, we stimulated PI3K using chemically induced dimerization to recruit the isolated inter-SH2 domain of the PI3K regulatory subunit to the PM. This in turn recruits endogenous, constitutively active p110 catalytic subunits of PI3K, stimulating PIP₃ synthesis (Suh et al., 2006). iSH2 generated a robust and sustained recruitment of AKT1-NG2 molecules to the PM after recruitment of iSH2 (Fig. 2 G). Notably, baseline AKT-NG2 localization increased from ∼5 to ∼15 per 100 µm² in iSH2 cells, perhaps because the iSH2 construct does not contain the inhibitory SH2 domains of p85 regulatory subunits, producing higher basal PI3K activity.

Having developed the ability to visualize native AKT1 translocation to the PM in response to PI3K activation, we next designed experiments to test for competition of PIP₃ binding by overexpressed PH-AKT1-mCherry biosensor (Fig. 3 A). We transfected AKT1-NG2 cells for 24 h in 35-mm dishes with three different masses of plasmid (all adjusted to 1 µg total plasmid DNA by the addition of inert pUC19 plasmid carrier). When imaged at the single-cell level in TIRFM, this led to a somewhat weak correlation of transfected plasmid mass with single-cell mCherry fluorescence intensity (Fig. 3 B). Nonetheless, when these cells were stimulated with EGF, cells transfected with any dose of PH-AKT1 showed robust recruitment of the biosensor to the PM (Fig. 3, C and D). However, at all three doses, we observed complete ablation of endogenous AKT1-NG2 translocation to the PM (Fig. 3, C and E). Thus, the presence of the biosensor seemed to prevent engagement of endogenous AKT1 with PIP₃. To observe the concentration dependence of AKT1-PH-mCherry inhibition, we pooled the single-cell data from these experiments and split transfected cells into cohorts based on raw expression level (excitation and gain were consistent between experiments, allowing direct comparison). This analysis showed profound inhibition of AKT1-NG2 recruitment at all expression levels, with a slightly reduced effect only visible in the lowest expressing cohort (Fig. 3 F).

Prior studies have reported inhibition of AKT signaling by the AKT1 PH domain, though this was attributed to secondary interactions of the PH domain with undefined effectors; it was not observed with other PIP₃ biosensors (Várnai et al., 2005). We therefore tested additional PIP₃ biosensors (Fig. 4 A). We examined the commonly used BTK PH domain (Várnai et al., 1999), along with the 2G splice variant of the ARNO PH domain (Venkateswarlu et al., 1998), carrying an I303E point mutation to disrupt interactions with Arl-family GTPases (Goulden et al., 2019). This latter construct was expressed as a high-avidity tandem dimer (aPHx2) or else as a low-copy monomer (aPHx1) expressed from a truncated CMV promoter (Morita et al., 2012). Both PH-BTK and aPHx2 completely blocked AKT1-NG2 translocation, whereas the lower affinity aPHx1 construct reduced AKT1-NG2 translocation by around 50% (Fig. 4 B), which was highly significant (Fig. 4 C). Therefore, sequestration of PIP₃ occurred with a variety of PIP₃ biosensors.

Although PIP₃ is the principle activator of AKT, the enzyme can also be activated by the PIP₃ degradation product, PI(3,4)P₂ (Frech et al., 1997; Ebner et al., 2017). We therefore tested whether PI(3,4)P₂ biosensors could disrupt AKT1-NG2 translocation (Fig. 4 D). A high-avidity tandem trimer of the TAPP1 PH domain, cPHx3, is a sensitive reporter for PI(3,4)P₂ production (Goulden et al., 2019), and this construct produced a notable inhibition (but not ablation) of AKT1-NG2 recruitment (Fig. 4 D). On the other hand, a single PH domain version of the same sensor, cPHx1, expressed from a truncated CMV promoter was without significant effect (Fig. 4, E and F). Therefore, PIP₃ biosensors produced a more profound inhibition than PI(3,4)P₂ biosensors. This is not surprising, since complete PI(3,4)P₂ sequestration would not affect the ability of AKT1-NG2 to engage PIP₃, whereas PIP₃ biosensors might also reduce the ability of 5-OH phosphatases to convert PIP₃ to PI(3,4)P₂ (Trésaugues et al., 2014).

The sequestration of native PIP₃ by overexpressed biosensors is not surprising when comparing the fluorescence intensity of endogenously labelled AKT1 with the biosensors. AKT1-NG2 expressed from a native allele produces fluorescence that is resolved as single molecules (Fig. 2, D and E) and achieves densities of 25–35 molecules per 100 µm². On the other hand, PH-AKT1-mCherry produces an intense, even labelling of the PM when viewed in TIRFM (e.g., Fig. 3 C). This profile is produced by the high densities of biosensor molecules, which cannot be resolved at the diffraction limit and instead convolve their fluorescence into a monolithic haze. Given an estimated Airy disc of an mCherry molecule of 210-nm diameter, or 0.035 µm² through our 1.45 NA optics, a minimum density to achieve such convolution would be around 3,000 molecules per 100 µm². Therefore, the biosensor molecules clearly outnumber the endogenous effectors by at least two orders of magnitude. We then reasoned that if we dropped biosensor expression levels to be comparable with native AKT1, sequestration of PIP₃ might be prevented (Fig. 5 A).

To accomplish this goal, we expressed aPHx1 and cPHx1 PIP₃ and PI(3,4)P₂ biosensors tagged with iRFP670 from truncated CMV promoters (Morita et al., 2012) with <4 h between transfection and imaging. Under these conditions, we selected cells with small numbers of individual fluorescent puncta with intensities consistent with single molecules (Fig. 5 B). Typically, these cells exhibited 5–20 molecules per 100 µm² of PM prior to stimulation. Crucially, in AKT1-NG2 cells expressing these biosensors, we saw no inhibition of AKT1 translocation after EGF stimulation (Fig. 5 C). In these experiments, both aPHx1 and cPHx1 showed robust translocation to the membrane, similar to AKT1-NG2 (Fig. 5 D). Normalizing the data to the maximum response revealed a rapid onset of the signal followed by a decay over about 10 min (Fig. 5 E). The recruitment also revealed the lagging kinetics of the PI(3,4)P₂ reporter, owing to the synthesis of this lipid from PIP₃ (Hawkins et al., 1992).

The fact that PIP₃ and PI(3,4)P₂ biosensors expressed at single-molecule levels do not inhibit PI3K signaling justifies a use case for this approach. However, comparing performance with their overexpressed counterparts revealed additional benefits. Normalizing the aPHx1 PIP₃ sensor count to fold increase over baseline allows comparison with the strongly expressed aPHx1 data (from the experiments introduced in Fig. 4): this showed that when expressed at single-molecule levels, the biosensor has substantially better dynamic range, with a fold increase over baseline of nearly 100%, compared with 60% for the same probe overexpressed (Fig. 5 F). Normalizing data from both expression modes to their maximum response (Fig. 5 G) and fitting kinetic profiles for cooperative synthesis and degradation reactions revealed the rate of synthesis is remarkably similar: 1.09 min⁻¹ (95% C.I. 1.02–1.17) for single-molecule expression versus 1.02 min⁻¹ (95% C.I. 0.98–1.06) for overexpression. On the other hand, degradation slowed with over expression from 0.34 min⁻¹ (95% C.I. 0.24–0.58) to 0.13 min⁻¹ (95% C.I. 0.12–0.15). This is expected, since synthesis of PIP₃ molecules would not be prevented by biosensor. On the other hand, PIP₃ degradation could be slowed by the overexpressed biosensor competing with PTEN and 5-OH phosphatases that degrade PIP₃. An even more exaggerated result is achieved with the cPHx1 PI(3,4)P₂ biosensor; this shows an increase in fold change over baseline of 600% for single-molecule expression levels compared with only 100% in overexpressed cells (Fig. 5 H). Again, the degradation rate of the signal is substantially slowed by the overexpressed sensor, reducing from 0.27 min⁻¹ (95% C.I. 0.22–0.39) to 0.16 min⁻¹ (95% C.I. 0.14–0.19), whereas synthesis remains only minorly impacted, changing from 0.61 min⁻¹ (95% C.I. 0.57–0.64) to 0.54 min⁻¹ (95% C.I. 0.52–0.56) with overexpression (Fig. 5 I). Collectively, these data show that single molecule–based PI3K biosensors show improved dynamic range and kinetic fidelity compared with the same sensors overexpressed.

Inhibition of lipid effector protein function by lipid biosensors is one of the most commonly raised concerns with these probes (Balla et al., 2000; Maekawa and Fairn, 2014; Wills et al., 2018). Indeed, overexpression of lipid-binding domains has been shown to inhibit lipid functions of PI3P, PI(4,5)P₂, and PIP₃ (Simonsen et al., 1998; Balla and Várnai, 2002; Várnai et al., 2005). What is not clear is whether this is due to sequestration of the lipid itself. An alternative is competitive binding of a tertiary co-interactor by the lipid:biosensor complex, as for example observed between cytohesin family PH domains, PIP₃, and Arf family small GTPases (Cohen et al., 2007; Li et al., 2007; Hofmann et al., 2007). Notably, competitive binding of a co-interactor would not necessarily prevent lipid-dependent localization of an endogenous lipid effector protein, whereas sequestration of the lipid itself would. Here, we unambiguously demonstrate direct competitive binding of PIP₃ by lipid biosensors, preventing membrane localization of a key effector protein, AKT1 (Figs. 3 and 4), and leading to inhibition of AKT activation in cells (Fig. 1). Notably, we observed PIP₃ sequestration by three different PIP₃-binding modules, again arguing against co-interactors being critical for the inhibition.

How general a problem is lipid sequestration by biosensors likely to be? As we have argued here and elsewhere (Wills et al., 2018), this will depend on the bulk levels of the lipids and their effector proteins. In support of this, we observed that dropping biosensor expression to low levels matching that of AKT1 produced no inhibition of AKT1 recruitment Fig. 5). Therefore, standard techniques of transient transfection for strong expression of biosensors are likely only an issue for molecules present at exceptionally low levels, i.e., transiently generated signaling molecules such as PIP₃, and perhaps other scarce phosphoinositides such as PI5P and PI(3,5)P₂.

Intriguingly, we report a counterintuitive finding that weaker expression of the PI3K lipid biosensors actually produces increased sensitivity of the probes (Fig. 5). This is almost certainly due to the failure of the lipids to become saturated by biosensor molecules (which causes endogenous effectors to be outcompeted). We also observed enhanced kinetic fidelity, perhaps because overexpressed biosensors prevent access of PIP₃-degrading phosphatases or effectors that stimulate negative feedback. Either way, this single-molecule approach will permit precise and quantitative analysis of PI3K pathway activation in living cells with greater accuracy.

HEK293A cells (R70507; Thermo Fisher Scientific) were cultured in low glucose DMEM (10567022; Thermo Fisher Scientific) supplemented with 10% heat-inactivated fetal bovine serum (10438-034; Thermo Fisher Scientific), 100 µg/ml streptomycin + 100 U/ml penicillin (15140122; Thermo Fisher Scientific), and 0.1% (vol/vol) chemically defined lipid supplement (11905031; Thermo Fisher Scientific) at 37°C and 10% atmospheric CO₂ in humidified incubators. Passaging was performed 1:5 by rinsing with PBS and dissociating the cells in TrpLE (12604039; Thermo Fisher Scientific) and diluting 1:5 in fresh media.

Gene editing was performed following previously published protocols (Kamiyama et al., 2016; Zewe et al., 2018). We used the strategy to combine CRISPR/Cas9–mediated targeting of an allele with homology-directed repair to tag AKT1 at the C terminus with a split neonGreen variant (NG2-11) in an HEK293A cell line stably overexpressing the remainder of the neonGreen protein (NG2-1-10), as described by the OpenCell project (Cho et al., 2022). The guide RNA protospacer sequence was 5′-AGC​GGC​ACG​GCC​TGA​GGC​GG-3′ (ordered as ThermoFisher custom gRNA) and the homology-directed repair template synthesized as a single-stranded “ultramer” primer sequence (IDT) 5′-CAG​CGA​GCG​CAG​GCC​CCA​CTT​CCC​CCA​GTT​CTC​CTA​CTC​GGC​CAG​CGG​CAC​GGC​CGG​TGG​CGG​ATT​GGA​AGT​TTT​GTT​TCA​AGG​TCC​AGG​AAG​TGG​TAC​CGA​GCT​CAA​CTT​CAA​GGA​GTG​GCA​AAA​GGC​CTT​TAC​CGA​TAT​GAT​GTG​AGG​CGG​CGG​TGG​ACT​GCG​CTG​GAC​GAT​AGC​TTG​GAG​GGA​TGG​AGA​GGC​GGC​CT-3′. A Neon electroporation system (Thermo Fisher Scientific) was used to introduce the components according to the manufacturer’s instructions. Essentially, 10 pmol of gRNA was preincubated with 10 pmol TruCUT Cas9 protein V2 in 5 μl buffer R for 20 min before adding 100 pmol of the homology-directed repair template. The mixture was then added to 200,000 cells in 5 μl buffer R and electroporated with a single 20-ms, 1,500-V pulse. Cells were seeded in complete antibiotic-free media in 6-well plates and left to recover for 48 h before screening for fluorescence by confocal microscopy. After estimating the fraction of edited cells at ∼1%, the positive cells were sorted by FACS and expanded, resulting in a polyclonal population.

HEK293A cells were seeded in either 6-well plates for immunofluorescence and western blotting experiments or 35-mm dishes containing 20-mm #1.5 optical glass bottoms (CellVis D35-20-1.5-N) for live-cell imaging. Dishes were pre-coated with 10 µg ECL cell attachment matrix (08-110; Sigma-Aldrich) for 60 min. Transfection used Lipofectamine 2000 (11668019; Thermo Fisher Scientific) according to the manufacturer’s instructions. Briefly, 1 µg total DNA was precomplexed with 3 µg Lipofectamine 2000 in 0.2 ml Opti-MEM (51985091; Thermo Fisher Scientific) for ≥5 min before adding to the cells in 2 ml media. Plasmids used for transfection are listed in Table 1. After 4 h, media was replaced to remove the transfection reagent. 24 h prior to stimulation with EGF, cells were serum starved in Fluorobrite (A1896702; Thermo Fisher Scientific) supplemented with 0.1% chemically defined lipid supplement (11905031; Thermo Fisher Scientific) and 0.1% BSA.

Cells in 6-well plates were treated as described in figure legends before lysis in 150 μl ice-cold RIPA buffer, including protease (539131-1VL; Sigma Millipore) and phosphatase (524627; Sigma Millipore) inhibitor cocktails. After scraping and clearing at 10,000 g, 40 μl lysates were boiled for 5 min in Bolt LDS Sample Buffer (B0008; Thermo Fisher Scientific) before running on 12% Bis-Tris gels at 165 V, then transferred to nitrocellulose membrane (LC2000; Novex) at 10 V. After transfer, the membrane was blocked in Tris-buffered saline (50 mM Tris with 150 mM NaCl) with 0.05% Tween-20 containing 1% nonfat dry milk (9999S; Cell Signaling Technology) for 1 h. Blots were stained with primary antibodies pan AKT clone 40D4 (2920; Cell Signaling Technology), Phospho-AKT (Ser473) monoclonal antibody (4060; Cell Signaling Technology ), Akt1 (2938; Cell Signaling Technology), or DM1A (62204; Thermo Fisher Scientific) and secondary antibodies Alexa647 goat anti-rabbit (A-21245; Thermo Fisher Scientific), Alexa555 goat anti-mouse IgG1 secondary antibody (A-21127; Thermo Fisher Scientific), or Alexa800 goat anti-mouse IgG (A32730; Thermo Fisher Scientific).

4 h after transfection, cells were dissociated and reseeded at 25% confluence in 40 μl onto 8-well multi-test slides (Electron Microscopy Sciences Hydrophobic PTFE Printed Microscope Slide 8 Round Wells 6 mm, 6342206) pre-coated with 0.8 µg ECL and returned to the incubator for 24 h. Cells were serum starved 1.5 h before stimulation with Fluorobrite supplemented with 0.1% chemically defined lipid supplement and 0.1% BSA, before stimulating where indicated with 10 ng/ml EGF (354052; Corning). After 5 min of stimulation, cells were fixed by the addition of formaldehyde (Electron Microscopy Sciences 16% Paraformaldehyde Aqueous Solution, EM Grade, Ampoule 10 ML 15710) in PBS to 4% final concentration for 15 min at room temperature. Cells were rinsed three times in 50 mM NH₄Cl in PBS before blocking and permeabilization in blocking solution (5% normal goat serum and 0.2% Triton X-100 in PBS) for 30 min. Cells were then stained in anti-PhosphoAKT (Ser473), followed by Alexa647 goat anti-rabbit secondary, GFP-booster-Atto488 (Chromotek gba-488), DAPI, and HCS CellMask Orange (H32713; Thermo Fisher Scientific). Cells were rinsed with PBS then Millipore water, then mounted in ProLong Diamond (P36961; Thermo Fisher Scientific) before imaging on a Nikon A1R confocal microscope attached to a Nikon TiE inverted stand. Imaging used a 20× plan apochromatic 0.75 NA air immersion objective with the confocal pinhole fully open for quantification. For some experiments, we also captured high-resolution confocal images (pinhole set to 1 Airy unit) using a 100× 1.45 NA oil-immersion objective. Excitation was with 405, 488, 561, or 647 nm on a fiber-coupled 4-line excitation LU-NV laser combiner for DAPI, Atto488/EGFP, CellMask, and Alexa647, respectively. Emission was collected using 425–475-nm (DAPI), 500–550-nm (EGFP), or 663–737-nm (Alexa 647) band passes for each channel on separate line scans. Identical laser excitation power, scan speeds, and photomultiplier gains were used across experiments to enable direct comparison.

Imaging was performed on a Nikon TiE inverted microscope stand with motorized TIRF illuminator (Nikon) fiber-coupled to a four line Oxxius laser launch equipped with 405-, 488-, 561-, and 638-nm laser lines. A 100× 1.45 NA plan apochromatic oil-immersion objective was used, combined with a 1.5× magnifier. Images were collected on a Hamamatsu Fusion-BT sCMOS camera in ultra-low noise mode with 2× pixel binning. mCherry (561-nm excitation) fluorescence was collected through a dual pass 420–480- and 570–620-nm filter (Chroma), neonGreen and EGFP (488-nm excitation) used a 500–550-nm bandpass filter (Chroma), and iRFP680 (638-nm excitation) used a dual pass 505–550- and 650–850-nm filter (Chroma).

All image analysis was performed using the open access ImageJ implementation, Fiji (Schindelin et al., 2012). For immunofluorescence, we identified individual cells by auto thresholding the DAPI channel using the “Huang” method, followed by the Watershed function to segment bunched cells that appeared to touch. We then used the Voronoi function to generate boundary lines for the segmentation of the cells. To identify cytoplasm, auto thresholding of the CellMask channel using the “Huang” function was employed, with the cells segmented by adding the nuclear Voronoi boundaries. The “analyze particles” function was then used to identify individual cellular ROIs that were >10 µm² and were not touching the image periphery. These ROIs were used to measure the raw 12-bit intensity of the EGFP and AKT-pS473 channels. A cutoff of EGFP >100 was used to define EGFP-positive cells, since this value was greater than the mean ± 3 standard deviations of the non-transfected cells’ EGFP intensity. Background intensity of AKT-pS473 was estimated from control cells subject to immunofluorescence in the absence of AKT-pS473 antibody; this value was subtracted from the measured values of all other conditions.

For analysis of overexpressed biosensor intensity, background intensity was subtracted, defined using the modal pixel intensity that corresponded to the pixel intensity of the camera sensor outside of cells. Manually drawn ROI were then used to measure the raw fluorescence intensity over time, which was normalized to the pre-stimulation fluorescence intensity value. For counting single fluorescent molecules, we employed a macro that took a manually defined 100 µm² ROI for each cell footprint and employed the Fiji plugin ThunderSTORM (Ovesný et al., 2014) to count single-molecule localizations. After entering the pixel and camera calibrations into this plugin, we used the default molecule detection parameters. Data were plotted in GraphPad Prism 9 or later.

Multimer population proportions were calculated by reduced chi-squared fitting of randomly generated intensity distributions derived from basis histograms to experimental intensity distributions.

Data S1 shows source data for Figs. 1, C and F; 2, C–F; 3, B and D–F; 4, B, C, E, and F; and 5, C–H. Also available at https://doi.org/10.5281/zenodo.14617411.

Source data for Fig. 1, B, C, and F; Fig. 2, B–F; Fig. 3, B–F; Fig. 4, B, C, E, and F; and Fig. 5, C–H are available at https://doi.org/10.5281/zenodo.14617411.

We are grateful to Dr. Tamas Balla (National Institutes of Health, Bethesda, MD, USA) for the kind gift of PH-AKT1-EGFP, PH-AKT1^R25C-EGFP, and PH-BTK-EGFP plasmids. We thank two anonymous peer reviewers and André Nadler for their extremely helpful comments on the manuscript.

This work was supported by the National Institute of General Medical Sciences award number 2R35GM119412.

Author contributions: V.L. Holmes: investigation and writing—review and editing. M.M.C. Ricci: conceptualization, data curation, formal analysis, investigation, methodology, visualization, and writing—original draft, review, and editing. C.C. Weckerly: investigation, methodology, resources, and writing—review and editing. M. Worcester: formal analysis and software. G.R.V. Hammond: conceptualization, data curation, formal analysis, funding acquisition, project administration, resources, software, supervision, and writing—original draft, review, and editing.
