Exosomes are nanovesicles released by virtually all cells, which act as intercellular messengers by transfer of protein, lipid, and RNA cargo. Their quantitative efficiency, routes of cell uptake, and subcellular fate within recipient cells remain elusive. We quantitatively characterize exosome cell uptake, which saturates with dose and time and reaches near 100% transduction efficiency at picomolar concentrations. Highly reminiscent of pathogenic bacteria and viruses, exosomes are recruited as single vesicles to the cell body by surfing on filopodia as well as filopodia grabbing and pulling motions to reach endocytic hot spots at the filopodial base. After internalization, exosomes shuttle within endocytic vesicles to scan the endoplasmic reticulum before being sorted into the lysosome as their final intracellular destination. Our data quantify and explain the efficiency of exosome internalization by recipient cells, establish a new parallel between exosome and virus host cell interaction, and suggest unanticipated routes of subcellular cargo delivery.
Introduction
Exosomes are extracellular vesicles that mediate cell-to-cell communication (Colombo et al., 2014), sometimes at a distance (Hood et al., 2011) and even between organisms (Twu et al., 2013; Corrigan et al., 2014). They modulate recipient cell gene expression and physiology by induction of cell signaling as well as intercellular transfer of protein, lipid, and RNA cargo (Ratajczak et al., 2006; Valadi et al., 2007). They also have clinical significance because of their potential use as biomarkers (Properzi et al., 2013) or next generation therapeutics (Alvarez-Erviti et al., 2011; Kordelas et al., 2014). Hence there is need for a better understanding of how these vesicles target and enter recipient cells. The current model postulates exosome uptake via energy-dependent, receptor-mediated endocytosis (Svensson et al., 2013; Tian et al., 2013) or macropinocytosis (Fitzner et al., 2011; Tian et al., 2014). Opposing models propose direct fusion with the plasma membrane (del Conde et al., 2005; Parolini et al., 2009) or phagocytosis (Feng et al., 2010). Thus, different entry routes might reflect cell specialization or conditions, and multiple entry routes might even coexist in the same cell. Further, the subcellular fate of exosomes within recipient cells and in particular their mechanisms of cargo release remains largely enigmatic. Here we report by single-vesicle dye tracing in live cells that exosomes enter cells as intact vesicles primarily via filopodia to sort into endocytic vesicle circuits that are targeted to scan the ER before being directed to the lysosome.
Results and discussion
Exosomes are efficiently taken up as single vesicles

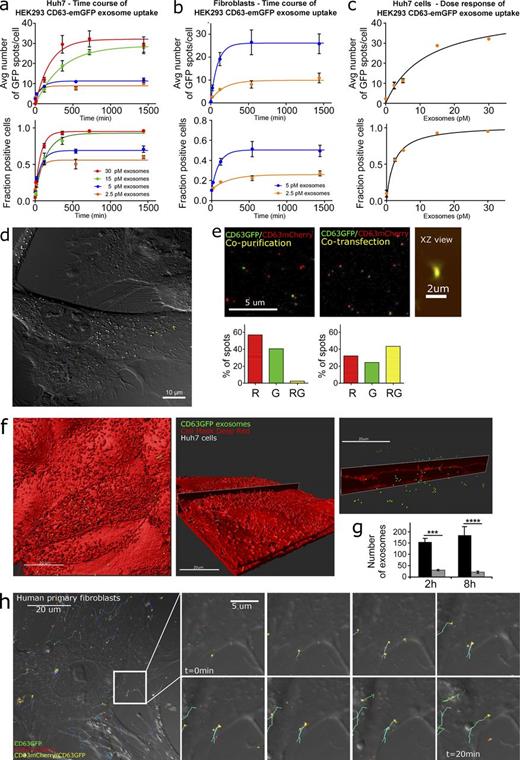

Exosomes were labeled by transient transfection of HEK293 cells with CD63–emerald GFP (emGFP) and/or CD63-mCherry, isolated by successive ultrafiltration and gel filtration, and concentrations were determined by fluorescence correlation spectroscopy (FCS) to enable quantification at the single vesicle level (Nordin et al., 2015). To quantify exosome cell uptake over a statistically significant number of cells, we set up a high content screening assay on a plate scanning microscope with automated image analysis. To avoid any major cell line bias, we selected cells based on a systematic profiling of parent–recipient cell pairing preferences (unpublished data) and focused on uptake of HEK293 exosomes primarily in human primary fibroblasts as well as Huh7- and HEK293-recipient cells for selected experiments. Exosome uptake levels were similar for different cell densities but declined above ∼60% confluency (Fig. S1 a). Uptake was time and dose dependent, with up to 95% of Huh7 cells being targeted at 30 pM exosomes within >6 h (Fig. 1, a and c; and Fig. S1 b). The saturating characteristics indicate that a steady state between uptake and turnover is being reached and/or that the number of new vesicles entering the cell declines over time. Similar data were obtained for human primary fibroblasts (Fig. 1 b, illustrated in Fig. 1 d). We next studied exosome uptake dynamics at the single-cell level using confocal live cell imaging. Because exosomes have similar size and lipid composition as liposomal delivery vehicles, we compared the uptake dynamics of CD63-emGFP exosomes with a representative cationic lipid nanoparticle (LNP) formulation with encapsulated Cy3-siRNA. Similar vesicle concentrations were independently applied to Huh7 cells, and time-lapse confocal microscopy movies were recorded at different confocal planes. Liposomes accumulated into islands at the cell surface, which became larger over time, with only a minor fraction being endocytosed after a few hours (Fig. S1 c and Videos 1 and 2). In contrast, exosomes appeared to enter cells as single vesicles within minutes of addition without accumulation at the cell surface (Figs. 1 f and S1 d). 3D high-resolution live cell imaging with cell membrane staining confirmed that a large fraction of exosomes were indeed within the cell interior (∼80% at 2 h and ∼90% at 8 h) with a small fraction (∼20% or 10% at 2 and 8 h, respectively) in process of binding to or crossing the plasma membrane (Fig. 1, f and g). Monitoring uptake dynamics of CD63-emGFP/CD63-mCherry double-labeled ultrafiltration and gel filtration isolated vesicles (Fig. 1 e) using single particle tracking (SPT) further corroborated that exosomes entered cells as single vesicles in virtually all recorded cell entry events (Fig. 1 h). SPT of 1,600 internalized exosomes showed that the observation time of double-labeled vesicles was statistically not shorter than that for single-labeled vesicles (Fig. S1 e), demonstrating that no separation of the two labels occurred, at least within the time that we were able to trace single particles (maximum of 20 min) and detected with the speed resolution of our system. These data would be consistent with exosomes remaining intact during and after cell entry, or their components remaining associated with the same intracellular microdomains.
Exosome uptake is clustered into filopodia active regions
Cumulative SPT visualization of exosome trajectories showed that their residency was not randomly distributed across the cell but clustered into hotspot areas near the tips of cortical actin bundles (Fig. 2 a, left) and coincided with filopodia and lamellipodia active regions (Fig. 2 a, right; Videos 3 and 4; and Fig. S1, f–j). This was not a consequence of intracellular segregation because cell entry events also clustered into the same regions (Fig. 2 a). To uncouple the localization of filopodia from the lamellipodium, we used a line substrate, resulting in highly polarized cells persistently migrating in one direction (Martin et al., 2014) with a defined lamellipodium at the front end, filopodia distributed across the lateral regions, and retraction fibers at the back end (Fig. 2 b). Using total internal reflection fluorescence (TIRF) microscopy to focus at the bottom 200 nm where these structures are typically localized revealed that exosome cell entry trajectories were uncoupled in space and time from the lamellipodium but largely redistributed, together with filopodia, to the lateral regions (Fig. 2, c and d). This pointed to a possible direct involvement of filopodia in exosome uptake.
Exosome recruitment and cell entry is facilitated by filopodia surfing, grabbing, and pulling
Filopodia are cellular protrusions formed by actin filaments that constantly scan the environment (Mattila and Lappalainen, 2008; Bornschlögl, 2013). Their highly dynamic movement increases the effective surface area of a cell and facilitates interaction with extracellular ligands. Moreover, the filopodial base is an area of active actin remodeling and thus a hotspot for endocytosis (Lehmann et al., 2005; Mattila and Lappalainen, 2008). The possibility of exosomes entering cells via filopodia is thus plausible. In fact, previous studies revealed that filopodia facilitate efficient cell entry of certain pathogens, including enveloped viruses (Lehmann et al., 2005; Zamudio-Meza et al., 2009). Indeed, we observed a prominent occurrence of direct contact of exosomes with filopodia (Fig. 3 a). Combining confocal fluorescence with differential interference contrast (DIC) live cell imaging allowed to monitor dynamics of exosomes simultaneously with filopodia, which are light diffracting, fine structures. This revealed different types of filopodia-facilitated exosome recruitment. Exosomes moved along filopodia and retraction fibers toward the cell body (Fig. 3 b and Videos 5 and 6), in striking analogy to a process previously introduced as filopodia surfing preceding viral uptake (Lehmann et al., 2005). Individual exosomes surfed on filopodia with relatively constant speed in the range of 0.1–0.3 µm/s. This is almost identical to velocities reported for other filopodia-surfing ligands, such as EGF-coated beads (Lidke et al., 2005) or murine leukemia virus particles (Lehmann et al., 2005), and suggests a movement with F-actin retrograde flow (Forscher and Smith, 1988; Mitchison and Kirschner, 1988; Sheetz et al., 1989; Bornschlögl, 2013). Although we also observed examples of exosomes moving back and forth along tunneling nanotubes connecting two cells (Fig. S2, a and b), in at least 90% of >100 filopodia-surfing trajectories the exosomes moved toward the cell body immediately after contact (Fig. S2 d). In rare cases we documented an initial short movement in the opposite direction, followed by a transient stalling and redirection toward the cell body (Fig. S2 c), another parallel to viral particles (Lehmann et al., 2005). Once redirected toward the cell, exosomes again moved with relatively constant speed matching that of F-actin retrograde flow. Together these characteristics indicate that after exosome attachment, additional molecular interactions or receptor recruitment might be required to trigger an eventual coupling into F-actin retrograde flow, rather than directly hitchhiking onto a running conveyor belt. By analogy, systematic retrograde transport of EGF receptors in filopodia was shown to be triggered upon activation of the receptor tyrosine kinase (Lidke et al., 2005). Extensive studies of filopodia surfing with artificial beads have identified receptors of the integrin and cell adhesion molecule protein receptor families to couple with the filopodial actin filament. Intriguingly, both receptors had previously been implicated in exosome uptake (Morelli et al., 2004; Rana and Zöller, 2011).
In addition to surfing, two further modes of filopodia-mediated exosome recruitment were observed: contractile filopodia bound exosomes at their tips and pulled them actively to the cell surface (Fig. 3 c and Video 7), and laterally moving filopodia fished exosomes from the medium and actively hinged them to the cell body (Fig. 3 d and Video 8). To quantify the overall contribution to exosome internalization, 399 individual exosome cell entry trajectories were classified based on filopodia and nonfilopodia-mediated uptake. Strikingly, >98% of all exosome entry events occurred at the base of filopodia and retraction fibers (Figs. 4 a and S2 e). In approximately one-third of these cases we indeed documented filopodia-mediated recruitment before cell entry (Fig. 4 b), likely underestimated because of the technical limitation of visualizing these small, highly dynamic structures over a sufficiently long time frame. The predominant mode of documented exosome filopodia interaction was surfing (∼25% of cell entry trajectories). Filopodia pulling and grabbing were only documented in ∼3% and 1% of all cases, respectively. However, because of the rapid dynamics in 3D space of laterally moving and contractile filopodia, numbers of pulling and grabbing events might be underrepresented.
Filopodia-mediated uptake implies that actin polymerization is required already for exosome recruitment and upstream of endocytosis. Consistently, Cytochalasin D treatment of recipient cells resulted in no major loss of exosome cell binding but an inhibition of directed and rapid movement as well as uptake (Fig. S2 f). To manipulate filopodia architecture more directly we used a small molecule (SMIFH2) which perturbs Formin-dependent actin polymerization at the barbed end, but not Arp2/3-dependent actin cytoskeleton (Rizvi et al., 2009). In line with previous studies (Barry et al., 2015; Isogai et al., 2015), short treatment with SMIFH2 (60 min) resulted in branching and eventual loss of filopodia with little to no recovery over several hours (Fig. 4 c). SMIFH2-pretreated fibroblasts showed dramatically reduced exosome uptake (Fig. 4, d and e) similar to the inhibitory effect of Heparin [in line with Christianson et al. (2013)], supporting that exosome uptake requires intact filopodia architecture and function.
Exosomes shuttle with endosomes to undergo a stop-and-go movement along the ER and are sorted to the lysosome
At the base of filopodia, exosomes were encapsulated into larger, CellMask Deep Red–labeled endocytic vesicles and were shuttled onward after cell entry (Fig. 4, f–h; Fig. S2 g; and Video 9). Consistent with live cell imaging, transmission EM (TEM) of exosomes tagged with Apex2 fused to the N terminus of CD63 with DAB detection showed internalized exosomes predominantly as intact, ∼80–100-nm-sized vesicles within larger vesicles (Fig. 4 i). This does not completely rule out that exosomes might eventually use mechanisms for endosomal escape, however would imply a massive dilution of exosomal cargo into the cytoplasmic volume. In fact even for liposomal vehicles (Sahay et al., 2013), the concept of endosomal escape as a productive route for siRNA delivery has been challenged (Gilleron et al., 2013). It is likewise not excluded that also for exosomes, the bulk uptake does not reflect the productive population of vesicles. However, a recent study quantified that on average at least 100 exosomes need to be sampled to cover one copy of a given miRNA (Chevillet et al., 2014). Even if RNA silencing requires only a small number of RNA-induced silencing complex (RISC)–loaded siRNA or miRNA molecules per cell (Stalder et al., 2013), the above numbers imply that all or most of the cargo molecules would have to be delivered in a functional manner to reach effective concentrations. Thus the bulk uptake likely reflects a functional population. We therefore hypothesized that exosomes might sort into specific circuits to effectively reach their sites of action and set out to characterize intracellular trafficking by SPT of 312 internalized exosomes. A speed analysis (Fig. S3, a and c) revealed a stop-and-go movement for the large majority of exosomes, with peak velocities reaching up to ∼8 µm/s and pronounced pauses. This was confirmed by spinning disk microscopy to rule out a bias caused by the limited time resolution by confocal laser scanning microscopy (CLSM; Fig. S3, d and e). Intracellular exosome trajectories largely followed filamentous and mesh-like structures, which were identified as ER based on labeling with ER-Tracker (Fig. 5, a and b). The stalling of exosomes typically occurred in close proximity to or at the ER, whereas the vesicles showed fast movement between different ER regions (Fig. 5 d and Videos 8 and 10). A guided movement by the ER mesh is further in line with the lack of highly straight paths apparent in the trajectory statistics (Fig. S3 b). For ∼90% of the observed vesicles, we detected at least one close association with the ER (Fig. 5 c), with the most frequent interaction modes illustrated in Fig. 5 e and quantified in Fig. 5 f. In at least 92 out of 148 analyzed contact events, exosomes were detected within larger vesicles by DIC (Fig. 4 a). Exosome-containing endosomes showed close association with ER filaments, tips, branches, and cavities (Fig. 5 f), highly reminiscent of the recently revealed interaction between Rab5- and Rab7-positive endosomal vesicles and the ER (Friedman et al., 2013). Thus we assessed an eventual sorting of exosomes to compartments of the late endosome by quantifying the colocalization of exosomes with Lysosomes (LysoTracker green) and mutivesicular bodies (MVBs; N-rhodamine–labeled phosphatidylethanolamine [NRhPE]) based on Bolte and Cordelières (2006) (Fig. S3, f and g). Consistent with a lack of detection of MVB localization of Apex2-tagged exosomes by TEM, Pearson coefficients demonstrated only minimal colocalization of internalized exosomes with NRhPE. However, exosomes did increasingly colocalize with lysosomes over time and reaching up to ∼50–60% after 48 h in fibroblasts.
Our data demonstrate that exosomes (a) enter cells as individual vesicles within minutes upon addition, (b) show no accumulation at the cell surface but rather a seemingly “barrierless” cell penetration with (c) most detectable cell contact events leading to internalization, resulting in (d) >95% of cells being targeted within only a few hours and (e) reaching saturation at low picomolar concentrations. We therefore conclude that exosome cell uptake is highly efficient. Because these characteristics are reminiscent of effective pathogen infection rather than synthetic delivery vehicles, we propose to use the term “transduction” rather than “transfection” for exosome recipient cell targeting. We describe a new physiologic function of filopodia as highways for cell entry of exosomes, likely only hijacked by viruses and other pathogens. Of note, some filopodia-surfing viruses can promote an increased filopodia formation in their host cells through Phosphoinositide-3-kinase activation, thereby reinforcing viral invasion (Smith et al., 2008; Nobile et al., 2010). It is thus conceivable that exosomes might use similar mechanisms for feedback control of their own uptake, as exemplified by the ability of exosomes to increase tunneling nanotubes (Thayanithy et al., 2014).
At the base of filopodia, exosomes sort into endosomal trafficking circuits that are targeted to scan the ER as a possible site of cargo release (Fig. S3 h). We and others have recently revealed that siRNA as well as miRNA loading into RNA-induced silencing complex, RISC binding to target mRNA, and mRNA slicing/silencing are nucleated at the rough ER membrane (Li et al., 2013; Stalder et al., 2013). Consistently, the ER is now recognized as a nucleation site for translation in general, rather than only for secreted proteins as had long been assumed (Jagannathan et al., 2014; Reid et al., 2014; Reid and Nicchitta, 2015). A directed transport of exosomes to the ER membrane would therefore allow for an efficient entry of exosomal miRNA and mRNA cargo into the RNAi and translation machineries. Live cell movies showed a transiently coordinated movement of exosomes and ER (Videos 8 and 10), with contact events ranging from a few seconds up to 20 min (Fig. 5 e). This suggests a true interaction of ER and exosome containing vesicles rather than random crossing of their paths. In line with the live cell data, TEM imaging showed internalized CD63-Apex2 tagged exosomes predominantly as vesicles within larger vesicles in proximity to the rough ER and/or cytoskeleton (Fig. 5 g). Whether and how exosomal cargo may be released, or functionally displayed at the ER across the endosomal (and exosomal) double-lipid membranes, as well as what factors may license vesicles for this specific cell entry route will be important questions for future studies. By adding another layer to the previously noted convergence with viral pathways (Wurdinger et al., 2012), we anticipate that our data open up new links for translating viral mechanisms to advance exosome biology.
Materials and methods
Parent cells
Human embryonic kidney cells (HEK293; ATCC) were cultured in complete media comprised of DMEM (Life Technologies), supplemented with 10% FBS (Cellgro) and penicillin/streptomycin (5 mg/ml; Cellgro) at 37°C with 5% CO2. For fluorescent exosome labeling, the full-length coding sequence of human CD63 isoform A (available from GenBank under accession no. NM_001257390.1) was TOPO cloned into the pcDNA 6.2 N-emGFP vector (Promega) to result in an N-terminal fusion of emGFP to CD63. pcDNA 6.2 N-mCherry-CD63 and N-mCherry-emGFP-CD63 vectors were then subcloned by replacing the emGFP coding sequence (CDS) in between the Ava I sites by gene synthesized inserts (Solvias) comprising the CDS of either mCherry or an emGFP-mCherry fusion. For tagging of exosomes for TEM, the Apex2 CDS (Lam et al., 2015) was additionally cloned in frame upstream of emGFP with additional insertion of a Flag peptide at the N terminus to result in an N-FLAG-Apex2-emGFP-CD63 expression construct. For exosome isolation, 5–8 × 106 HEK293 cells were seeded in a 15-cm culture dish with complete media and transfected with CD63 expression constructs the next day. Cell transfection was done in complete medium using Lipofectamine2000 (Life Technologies; 1 mg DNA/2.2 ml LF2000) following the manufacturer’s instructions. After 4 h, cells were washed, and medium was replaced by OptiMEM. Conditioned media were collected after 48 h for exosome isolation. Typically, 100–200 ml of conditioned medium (pooled from multiple dishes) was used in most experiments.
Recipient cells
Human primary fibroblasts from a healthy donor (C-013-5C; Life Technologies) were grown in MEM (Life Technologies) supplemented with 15% FBS and penicillin/streptomycin (5 μg/ml) in 0.1% gelatin (Sigma-Aldrich) coated T150 flasks. For exosome uptake experiments, cells were either plated in eight-well slides (ibidi) at a density of 40–60% (confocal and DIC live cell imaging experiments) or 96-well plates (iBiTreat; ibidi) at a density of 60% (exosome uptake high content screening assay). Transient expression of Adeno-Lifeact-mCherry in human fibroblast cells was obtained by adenoviral transduction, and cells were seeded onto line substrates or 2D substrates (Fibronectin-coated coverslips) at least 6 h before TIRF live cell imaging. Line substrate microfabrication was performed as described in detail elsewhere (Martin et al., 2014). In brief, surface glass coverslips coated with poly-l-Lysine/poly-ethylene-glycol and polydimethylsiloxane ridge stamps were used as a template to produce the line substrate (20-µm-wide ridge structures separated by 100-µm-wide gaps) by plasma etching followed by fibronectin coating.
Huh7 cells (HSRRB) and HEK293 cells were cultivated in DMEM supplemented with 10% FBS and 1× l-Glutamine 200 mM (Life Technologies) and penicillin/streptomycin and plated in 96-well plates at a cell density of 40–60% confluency 1 d before exosome addition.
Exosome isolation
Exosome isolation via UF/GF was essentially performed as described elsewhere (Nordin et al., 2015). In brief, conditioned medium was precleared of cell debris and larger particles by consecutive centrifugation at 300 g for 5 min followed by 3,000 g for 10 min, as well as filtration over a 0.22-µm filter. Typically, 100–200 ml of the precleared conditioned medium was then concentrated to a volume of 0.5–1 ml on an AMICON ultrafiltration device using a 100-kD molecular mass cutoff membrane (EMD Millipore). Enriched medium was then loaded onto a Superdex200 column (GE Healthcare) connected to an ÄKTA prime FPLC instrument (GE Healthcare) equipped with a UV flow cell. Gel filtration was performed at 4°C using sterile filtered 50 mM Tris buffer (flow rate 0.5 ml/min). 96 individual fractions of 200 ml each were collected. Nanoparticle tracking analysis (NTA) and FCS were performed directly in all fractions. Vesicle containing fractions were pooled and further characterized by Western blotting and mass spectrometry proteomics.
FCS
Exosome quantification and characterization via FCS were essentially performed as described elsewhere (Nordin et al., 2015). In brief, samples were measured on a Clarina II Reader (Evotec Technologies) with 488-nm argon ion laser excitation, a 40× water immersion 1.15 NA objective (UAPO Olympus), 50-µm pinhole, and SPCM-AQR-13FC avalanche photodiode (Perkin-Elmer Optoelectronics). The confocal volume was calculated in approximation as a cylinder of radius ω1 and height ω2, using the measured diffusional correlation time tdiff of free dye (Alexa Fluor 488; Life Technologies), the known translational diffusion coefficient of Alexa Fluor 488 (Molecular Probes; D = 280 µm2/s), and the axis ratio AR fitted from calibration measurements to derive ω1 = 4 × D × tdiff and ω2 = ω1 × AR. The concentration of fluorescing molecules was obtained as c = N/(NA × ω1 2π × 2ω2), where NA is the Avogadro number and N is the number of particles in the confocal volume detected by FCS. For each sample, several dilutions were made and measured in a 96-well glass bottom plate (Whatman) with 30 repetitive measurements of 10 s each. NP-40S at 1% vol/vol (Biosciences) was used to induce vesicle disruption for determination of detergent sensitivity and quantification of CD63-emGFP molecules per exosome.
Single vesicle imaging
Exosomes from CD63-emGFP/CD63-mCherry double-transfected HEK293 cells were imaged by confocal fluorescence microscopy after spotting onto coverslips. Additionally, conditioned medium from either CD63-emGFP or CD63-mCherry transfected HEK293 cells was mixed and copurified by ultrafiltration and gel filtration, and exosomes were imaged under the same conditions. Colocalization was quantified based on overlap of the point spread functions in the two fluorescent channels to derive the number of GFP (G), mCherry (R), and GFP/mCherry (RG) double-positive vesicles.
Scanning EM
Cells were grown on Thermanox coverslips (Nunc; Thermo Fisher Scientific). After a quick wash (<10 s) in fresh culture medium without protein, cells were fixed with 2% paraformaldehyde (Electron Microscopy Science) and 2.5% glutaraldehyde (Electron Microscopy Science) in 0.1 M cacodylate buffer (Sigma-Aldrich), pH 7.4. Cells were rinsed in 0.1 M cacodylate buffer (3 × 5 min). Dehydration was performed in a graded ethanol series (30, 50, 70, 90, 95, and 100% ethanol, 3 × 2 min each step). After dehydration, specimens were rinsed with hexamethyldisilizane (Sigma-Aldrich) and dried in an oven (60°C for 2 h). Samples were mounted on aluminum stubs by fixing the coverslip with double-sided carbon tape and sputter coated (SC7620; Quorum) with gold/palladium (5–8 nm). Cells were examined with a scanning electron microscope (Versa 3D; FEI) using the ETD detector.
TEM of CD63-Apex2–tagged exosomes
Apex2 staining was done afterward (Lam et al., 2015). Cells were grown in plastic six-well plates, incubated with 30 pM Flag-Apex2-emGFP-CD63 exosomes for 4 h and then fixed for 1 h on ice with 2% glutaraldehyde and 2% paraformaldehyde in 0.1 M cacodylate buffer with 2 mM CaCl2, pH 7.4. Cells were rinsed and treated for 5 min in 20 mM glycine on ice before the addition of 1.4 mM DAB and 0.03% H2O2 in cold buffer for 5–20 min. Cells were rinsed to stop DAB reaction and postfixed with 1% osmium tetroxide (Electron Microscopy Sciences) for 30 min in cold cacodylate buffer. Cells were rinsed, stained overnight at 4°C in 1% uranyl acetate in ddH2O, dehydrated in a graded ethanol series, and flat-embedded in Embed-812 resin (Electron Microscopy Science). After polymerization at 60°C overnight, 50-nm sections were cut and poststained with lead citrate and uranyl acetate. Sections were imaged on an 80-kV Philips CM10 transmission electron microscope equipped with a Veleta camera (EMSIS).
NTA
Label-free particle size and concentration determination was performed on an LM NTA instrument (NanoSight). With a camera gain of 500, full detection range, and 90-s recordings, the camera settings as well as analyses parameters (detection threshold of 2, minimum expected particle size of 50 nm, and fixed minimal track length of 4) were kept constant throughout all measurements. For quantitative analysis of particle size distribution and concentration, a dilution row of samples between 1:100 and 1:10,000 was analyzed to hit the dynamic range of the instrument (1 – 4 × 108 particles/ml).
Automated high content screening assay for exosome uptake
Cells were seeded into a 96-well plate and incubated with exosomes as indicated in each experiment. Cells were fixed for 20 min at RT with PenFix (Thermo Fisher Scientific) in presence of 1 mg/ml Hoechst (Life Technologies) and 0.02% (vol/vol) CellMask Deep Red (Life Technologies). After extensive washing with PBS, wells were imaged on an automated confocal plate scanning instrument (Operetta; Perkin Elmer) at 40× magnification (NA 0.95). Image analysis was done using the Harmony software (PerkinElmer), by first identifying the nuclei (Hoechst), defining the cell boundaries (CellMask Deep Red), and finally quantifying the number of GFP spots per cell. At least 5,000 cells were analyzed by condition. Data are shown from one representative experiment from at least three independent experiments and represent averages with error bars indicating SDs from three independent samples.
CLSM/DIC live cell microscopy
For combined confocal fluorescence and DIC live cell imaging, cells were seeded into an eight-well m-slide and prestained before exosome addition as indicated in each experiment; Cell membrane: CellMask Deep Red (dilution 1:1,000 for at least 2 min); MVB: NRhPE (2.5 µm, for at least 60 min; Avanti Polar Lipids); ER: ER Tracker Red (500 nM, for at least 15 min, Life Technologies); and Lysosomes: LysoTracker green (dilution 1:1,000, for at least 60 min, Life Technologies). Actin was labeled by transfection with CellLight Actin–red fluorescent protein (RFP; Life Technologies) 24 h before imaging. Images were acquired on a confocal LSM710 microscope with a Big-detector (ZEISS) and 100× or 63× oil 1.4 NA PlanApochromat DIC objectives with temperature (37°C), gas, and humidity (5% CO2, >95% relative humidity) control (Life Imaging Services) in cell medium. DIC was set up using the transmission of the excitation laser as a light source and the thiopurine methyltransferase as the detector. The microscope was controlled by the Zen Black software (ZEISS), and images were visualized by Imaris software (Bitplane). To make sure we did not miss fast events or out of confocal plane events, we did additional exosome tracing with subsecond time resolution and pinhole settings to cover 8-µm optical sections per image (with parallel DIC TPMT channel at the LSM710). For colocalization studies, a Leica Sp5 (60× oil, NA 1.4 PlanApoChromat, including two HyD detectors) and an LSM800 (63× oil, NA 1.4 PlanApoChromat, including two gasp detectors) was used with multichannel/track and two-color sequential line scanning to avoid bleach-through, cross talk, and movement-dependent signal correlation. An oversampling with 130-nm z-sectioning and 40-nm xy distance was chosen for deconvolution and colocalization analysis.
TIRF live cell microscopy
For live cell TIRF imaging, human fibroblasts were transiently transduced with Adeno-Lifeact-mCherry and seeded onto line substrates or 2D substrates prepared as described in Martin et al. (2014) 4 h before acquisition. TIRF microscopy (Roper Scientific) was performed with a TI Eclipse (Nikon) inverted stand equipped with a PlanApo 60× TIRF Objective 1.49 NA, a Evolve EMCCD camera (Photometrics), 491- and 561-nm solid-state laser diodes and was controlled using MetaMorph imaging software (Molecular Devices). Fluorescent exosomes were quantified and characterized by FCS and typically added 5–10 min before image acquisition unless specified otherwise.
Confocal spinning disk fluorescence live cell microscopy
Rapid time-lapse imaging was performed using 3I spinning disk confocal microscope (Axio Observer, 63× 1.4 N.A and Yokogawa SD unit; ZEISS) with a stage-top incubation system creating a 37°C with 5% CO2 environment. Z-stacks of 8–12 sections with two-channel detection were acquired every 1–3 s using an Evolve 512, backilluminated EMCCD camera (Photometrics). For live cell experiments, human primary fibroblasts or Huh7 cells were treated with 30 pM CD63-emGFP HEK293 exosomes. Cells were stained with CellMask Deep Red (dilution 1:1,000) for at least 5 min before exosome treatment. Cells were imaged for up to 5 min (30–300 z-stacks). The imaging microscope was controlled by Slidebook 6 (Intelligent Imaging), and time-lapse stacks were analyzed with Imaris 8 64×.
Filopodia manipulation with SMIFH2
Human primary fibroblasts were seeded in eight-well plates and treated with 40 μM SMIFH2 (Sigma-Aldrich) or 0.5% DMSO for 60 min. Cells were washed, and 30 pM CD63-emGFP HEK293 exosomes were added in MEM/15% FBS. Exosome dynamics was monitored by CLSM/DIC live cell imaging and analyzed by SPT as described. For quantification of exosome uptake inhibition, human primary fibroblasts were seeded in 96-well plates and treated with 40 μM SMIFH2 or DMSO at 0.5% for 60 min, and 30 pM CD63-emGFP exosomes were added in fresh medium. For Heparin treatment, exosomes were added in presence of 0.4% Heparin. After 2 h of incubation, cells were fixed with PenFix and stained with CellMask Deep Red, and uptake was quantified by the high content screening assay described above.
Image analysis
Confocal image stack time series, confocal image plane time series, and TIRF time-lapse data were imaged with frame rates and duration as indicated. Particle tracking and trajectory analysis was performed with the Imaris ×64 Particle Tracking Analysis module. Unless specified otherwise, SPT trajectories are shown as dragontail visualization with a maximum of 20 frames. Speeds were derived from relative exosome displacement between two frames. For colocalization studies, z-stacks recorded with oversampling were deconvolved with Huygens remote manager (automatic threshold) and then analyzed with the JACoP plugin (Bolte and Cordelières, 2006) for Fiji. For evaluation of the ratio of internalized versus membrane bound exosomes, high-resolution confocal 3D image stacks of CellMask Deep Red membrane-labeled recipient cells (exosome incubation time as indicated) were deconvolved (Huygens) and subsequently analyzed by Imaris. The cell membrane was rendered in 3D, and exosomes were detected by spot detection. The light diffraction-limited fluorescent vesicles were represented as oversized 2-µm green spheres to visualize them at the rendered cell surface. All vesicles which were visible on top or within the membrane were counted as membrane bound, and vesicles within the membrane enclosed surface were counted as internalized vesicles.
LNP formulations
Lipid Nanoparticle siRNA formulations were provided by J. Baryza and K. Bowman (Novartis Institutes for Biomedical Research, Cambridge, MA). 5′-Cy3 labeled siRNA targeting SSB (guide: 5′-UUACAUUAAAGUCUGUUGUUU-3′; passenger: 5′-Cy3ACAACAGACUUUAAUGUAAUU-3′) was mixed in a 1:5 ratio with unlabeled siRNA and formulated as described previously in detail (Baryza et al., 2014). In brief, the LNPs were formed by mixing equal volumes of lipid solution dissolved in ethanol with siRNA dissolved in a citrate buffer by an impinging jet process. The lipid solution contained a cationic lipid (Baryza et al., 2014), a helper lipid (cholesterol), and a polyethylene glycol lipid in a ratio of 50:46:4 at a siRNA concentration of 1 mg/ml. The LNP solution was then diafiltered with a molecular mass cutoff 100-kD membrane, sterile filtered, and stored at 4°C. The vesicles typically had a diameter of ∼150 nm.
Online supplemental material
Fig. S1 shows supplemental data to quantification of CD63-emGFP uptake. Fig. S2 shows supplemental data to exosome filopodia interaction and cell entry. Fig. S3 shows supplemental data to intracellular trafficking of internalized exosomes. Video 1 shows LNP formulations accumulate at the cell surface (cell surface confocal plane). Video 2 shows LNP formulations accumulate at the cell surface (cell interior confocal plane). Video 3 shows exosome uptake in human primary fibroblasts is clustered into filopodia active regions. Video 4 shows exosomes are endocytosed in human primary fibroblasts at filopodia active regions. Video 5 shows exosome surf on filopodia of human primary fibroblasts, monitored by DIC/CLSM live cell imaging. Video 6 shows exosome surf on filopodia of human primary fibroblasts, monitored by TIRF live cell imaging. Video 7 shows fibroblast pulls exosome to cell surface. Videos 8 shows exosomes scan along the ER. Video 9 shows exosome uptake in human primary fibroblast recipient cells stained with CellMask Deep Red. Video 10 shows intracellular exosome movement.
Acknowledgments
We thank Jeremy Baryza and Keith Bowman for providing LNP encapsulated siRNA,Rene Hemming for guidance in setting up the gel filtration, and the Imaging Core Facility of the Biocenter/Basel for access to spinning disk, Leica SP5, and Zeiss LSM800 microscopy instruments. We further thank Nancy Hynes, Helge Grosshans, and Urs Greber for inspiring discussions.
S.E.L. Andaloussi is supported by the Vetenskapsrådet (VR-Med and EuroNanoMedII) and the Swedish Society for Medical Research.
The authors declare no competing financial interests.
