ANO1, Ca_V1.2, and IP₃R form a localized unit of EC-coupling in mouse pulmonary arterial smooth muscle

Pulmonary arterial cells constrict in response to agonists coupled to G_q-protein receptor signaling. This process is enhanced in animal models of pulmonary hypertension (PH) and human pulmonary arterial hypertension, where pulmonary arterial smooth muscle cells are more depolarized and display higher intracellular calcium concentrations (Yuan et al., 1998a, 1998b; Lin et al., 2004; Yu et al., 2004; Dai et al., 2005; Hirenallur et al., 2008; Archer et al., 2010). Several ion channels are important for the normal contraction of pulmonary smooth muscle cells and contribute to the development of PH (Mandegar et al., 2002; Mandegar and Yuan, 2002; Yu et al., 2004; Moudgil et al., 2006; Zhang et al., 2007; Archer et al., 2010; Liu et al., 2012; Yamamura et al., 2012; Yang et al., 2012; Xia et al., 2014; Mu et al., 2018). One key protein postulated to play an important excitatory role in agonist-mediated vascular smooth muscle tone is the Ca²⁺-activated Cl⁻ channel (CaCC) encoded by the Tmem16a or Anoctamin-1 (ANO1) gene, which has also been implicated to play a major role in PH (Forrest et al., 2012; Sun et al., 2012; Leblanc et al., 2015; Papp et al., 2019). The dogmatic view about the role of ANO1 in electromechanical coupling has been the following (Large and Wang, 1996; Kitamura and Yamazaki, 2001; Leblanc et al., 2005, 2015; Bulley and Jaggar, 2014): (1) stimulation of a G_q protein-coupled receptor (G_qPCR) by a specific agonist leads to the production of inositol-trisphosphate (IP₃) and diacylglycerol resulting from the breakdown of the plasma membrane (PM) phospholipid phosphatidyl-inositol-bisphosphate (PIP₂) catalyzed by the enzyme phospholipase C; (2) IP₃ then binds to one or more of the three IP₃ receptor subtypes expressed in vascular myocytes producing a robust global Ca²⁺ transient originating from the sarcoplasmic reticulum (SR), which in turn activates ANO1; (3) stimulation of ANO1 then causes membrane depolarization due to an equilibrium potential for Cl⁻ that is ∼25–30 mV more positive than the resting potential of the cells (approximately −50 mV; Aickin and Brading, 1982; Chipperfield and Harper, 2000; Sun et al., 2021); and (4) the depolarization triggered by ANO1 stimulates Ca²⁺ entry through voltage-gated Ca²⁺ channels encoded by Ca_V1.2, which in turn triggers actin–myosin interaction and contraction by stimulation of myosin light chain kinase.

Although several aspects of the working model described above are correct, the model is too simplistic to explain the complex patterns of Ca²⁺ dynamics observed in smooth muscle cells of intact arteries and veins from the pulmonary circulation. While the membrane depolarization and contraction of pulmonary vascular smooth muscle cells evoked by G_qPCR activation involving agonists such as phenylephrine, serotonin, ATP, angiotensin II, or endothelin-1 are sustained (Yuan, 1997; Forrest et al., 2012; Sun et al., 2012), the underlying Ca²⁺ events are asynchronous, highly localized, and poorly propagating intracellular Ca²⁺ oscillations or waves (Guibert et al., 1996a, 1996b; Hamada et al., 1997; Hyvelin et al., 1998; Smani et al., 2001; Perez and Sanderson, 2005; Perez-Zoghbi and Sanderson, 2007; Henriquez et al., 2018). The disconnect between sustained depolarization and transient, oscillating Ca²⁺ signals suggests that our understanding of pulmonary arterial smooth muscle contraction is incomplete. Since it is well established that the frequency of Ca²⁺ oscillations dictates the strength of contraction, it is important to understand how these Ca²⁺ events are initiated and propagated, as well as the relationship between the ion channels involved.

As mentioned above, ANO1, Ca_V1.2, and IP₃ receptors have all been shown to play important roles in pulmonary arterial smooth muscle cell contraction, although the specific contribution and relationship between these channels to create Ca²⁺ oscillations and sustained contractions is not fully understood. Here, we propose that these proteins are localized within microdomains where they form a subcellular signaling complex that supports the Ca²⁺ oscillations and corresponding contraction. This is not without precedence, as recent reports demonstrated the presence of signaling complexes that include ANO1 and IP₃R in dorsal root ganglion neurons (Takayama et al., 2015; Shah et al., 2020). It was demonstrated that ANO1 is not activated by calcium entry through either Ca_V1.2 or TRPV1 but rather requires Ca²⁺ release from IP₃R. In cerebral arteries, ANO1 is coupled to TRPC6 to support vasoconstriction (Wang et al., 2016). Here, we sought to investigate whether similar signaling microdomains exist in pulmonary arterial smooth muscle cells.

An additional purpose of this study was to solidify the involvement of ANO1 in agonist-mediated vasoconstriction. Evidence supporting a role for ANO1 in the vasoconstriction mediated by agonists has largely stemmed from studies reporting a significant attenuation by both classical and newer generations of CaCC/ANO1 blockers. Several of the newer generation of inhibitors (De La Fuente et al., 2008; Namkung et al., 2011; Huang et al., 2012; Oh et al., 2013) have been suggested to produce non-specific effects as reported by Boedtkjer et al. (2015), who showed that T16A_Inh-A01, CaCC_Inh-A01, and MONNA all produced a vasorelaxation of precontracted arteries in the “absence” of a transmembrane Cl⁻ gradient. T16A_Inh-A01 also directly blocked macroscopic L-type Ca²⁺ current recorded in A7r5 smooth muscle cells and high KCl-induced contractions in intact arteries, while MONNA hyperpolarized non-stimulated resting vascular smooth muscle through an unknown mechanism (Boedtkjer et al., 2015). Thus, there is a question of whether the participation of ANO1 in electromechanical coupling and the development of arterial smooth muscle tone has been overestimated.

In this study, we used conditional smooth muscle–specific and inducible ANO1 knockout mice to define the role of ANO1 in determining the contractile and intracellular Ca²⁺ signaling properties of endothelium-denuded mouse pulmonary arterial smooth muscle exposed to the agonist serotonin (5-HT) and test the effectiveness and specificity of CaCC_Inh-A01. Our data show that suppressing ANO1, Ca_V1.2, or Ca²⁺ release from IP₃R-sensitive Ca²⁺ stores in the SR similarly reduced the contraction to 5-HT by ∼50–60%. Asynchronous Ca²⁺ oscillations evoked by 5-HT were potently inhibited by similar approaches. Since our data demonstrate that ANO1, Ca_V1.2, and IP₃R all functionally contribute to smooth muscle contraction, we investigated whether they are localized to microdomains. A specific ANO1 antibody was able to pulldown both Ca_V1.2 and IP₃R in total protein lysates from pulmonary arteries, and advanced microscopy techniques revealed that Ca_V1.2 and IP₃R colocalize with ANO1, especially near the PM. These experiments suggest that the stable 5-HT-induced pulmonary arterial contraction results from the integration of stochastic and localized Ca²⁺ events supported by a molecular architecture comprising ANO1, Ca_V1.2, and IP₃R, which coordinates fundamental signaling optimized for excitation–contraction (EC) coupling.

All procedures pertaining to housing conditions and animal handling were approved by the University of Nevada Institutional Animal Care and Use Committee (protocol #20-06-1016-1) in accordance with the Update of the Guide for the Care and Use of Laboratory Animals by the National Research Council of the National Academies (8^th edition, 2011). Five mouse strains were used in this study: (1) C57/BL6; (2) B6;129S-Gt(ROSA)26Sor^{tm38(CAG-GCaMP3)Hze}/J/SmMHC-CreERT2 (SMC-GCaMP3); (3) B6J.Cg-Gt(ROSA)26Sor^{tm95.1(CAG-GCaMP6f)Hze}/MwarJ/SmMHC-CreERT2 (SMC-GCaMP6f); (4) 129S-Gt(ROSA)26Sor^{tm38(CAG-GCaMP3)Hze}/J/SmMHC-CreERT2/ANO1fl/fl-ΔExons 5–6 (SMC-ANO1-kO-^ΔEx5-6-GCaMP3); and (5) B6;129S-Gt(ROSA)26Sor^{tm38(CAG-GCaMP3)Hze}/J/SmMHC-CreERT2/ANO1fl/fl-ΔExon 12 (SMC-ANO-kO-^ΔEx12/GCaMP3). For the four transgenic mouse models used, the induction of Cre recombinase expression was elicited by three consecutive daily IP injections with tamoxifen (TMX; MilliporeSigma; 80 mg/kg dissolved in safflower seed oil), and experiments were carried out between 50 and 60 d following the last TMX injection.

Upon removal, the heart and lungs were immediately immersed in cold (4°C) well-oxygenated Krebs solution of the following composition (in mM): 120 NaCl, 25 NaHCO₃, 4.2 KCl, 1.2 KH₂PO₄, 1.2 MgSO₄, 1.8 CaCl₂, and 5.5 glucose (pH stabilized to 7.4 when bubbled with 95% O₂–5% CO₂). The main pulmonary artery was carefully dissected away from the heart and lungs and cleaned of any fat and connective tissue. For all contraction and Ca²⁺ imaging experiments, the endothelium was removed by passing a continuous stream of air bubbles through the lumen of the blood vessel via a syringe. This procedure abolished the endothelium-dependent relaxation caused by 1 μM acetylcholine in pulmonary arteries precontracted with 1 μM serotonin.

Pulmonary arterial (PA) rings of ∼250 μm in length and <100 μm in diameter were mounted on a Four-Channel WPI Myobath II System to record isometric force. Each PA ring was mounted on a fixed stainless-steel pin at one end and to a stainless-steel triangular hook at the other end, itself hooked to a force transducer attached to a holder equipped with fine micropositioning to stretch the artery to a desired basal tension. Once mounted, the ring was immersed in a heated water-jacketed chamber filled with 30 ml of Krebs solution (composition identical to that described in the previous section) bubbled with 95% O₂–5% CO₂ (pH 7.4) and maintained at 37°C. The analog signal from the force transducer was recorded and measured using an A/D data acquisition system (by means of one of two WPI TBM4 amplifiers, and one MP100 or MP100A-CE A/D system from BIOPAC Systems, Inc.) and Acknowledge (v.3.9; BIOPAC Systems) software running on a Windows 10-based PC. Each PA ring was equilibrated in normal Krebs solution for at least 30 min. During this period, basal tension was set to 1 g. After equilibration, the ring was submitted to two consecutive 10-min incubation challenges with high K⁺–Krebs solution to elicit smooth muscle contraction by membrane depolarization and assess the viability of the preparation; the two challenges were interspersed by a 20-min wash in normal Krebs. Preparations were rejected when peak contraction was more than two standard deviations away from the mean. The high K⁺–Krebs solution was prepared by replacing 80 mM NaCl with 80 mM KCl, yielding a final K⁺ concentration = 85.4 mM. Following the second high K⁺–Krebs solution challenge, the solution was switched to normal Krebs solution for 10 min before the experiment was begun. Experiments were initiated by incubating each PA ring for 10 min with vehicle (0.1% DMSO) or one of four pharmacological agents: 1 μM nifedipine (MilliporeSigma), 10 μM cyclopiazonic acid (CPA; MilliporeSigma), 1 μM xestospongin C (Abcam), or 10 μM CaCC_Inh-A01 (MilliporeSigma). This was followed by a protocol designed to generate a cumulative dose–response curve to the agonist 5-HT, which was directly added to the bath as a concentrated stock solution (final concentrations were 0.01, 0.03, 0.1, 0.3, 1, 10, and 30 μM). Incubation with each 5-HT concentration usually lasted ∼5–10 min. In separate experiments, we tested the effects of agents on the high K⁺ Krebs-mediated contraction. Once a plateau was reached during the second high K⁺–Krebs solution challenge, the preparation was then exposed to vehicle (0.1% DMSO), 1 μM nifedipine, or to four concentrations of CaCC_Inh-A01 added in sequence (1, 3, 10, and 30 μM), all directly added to the chamber as concentrated stock solutions dissolved in DMSO (0.1%). For each preparation, peak contraction measured in a specific condition (5-HT ± drug, or high K⁺–Krebs solution + drug) was normalized to the peak contraction evoked by the second high K⁺–Krebs solution challenge. Finally, for experiments designed to determine the total amount of Ca²⁺ stored in the SR, after the second challenge with high K⁺–Krebs solution, the solution was either changed to normal Krebs for 20 min (control) or for 10 min followed by a 10-min incubation with normal Krebs solution containing either 1 μM nifedipine or 10 μM CaCC_Inh-A01. For each of these conditions, the solution was then switched to Ca²⁺-free Krebs solution containing 100 μM EGTA and 10 μM CPA to block the SR Ca²⁺-ATPase, with or without 1 μM nifedipine or 10 μM CaCC_Inh-A01. The latter solution elicited a transient contraction produced by the transient release of Ca²⁺ from the SR. The transient contraction was integrated and normalized to the amplitude of the second challenge with a high K⁺–Krebs solution; this ratio was used as an indirect index of the total amount of Ca²⁺ stored in the SR.

Single smooth muscle cells were freshly isolated from the main trunk and secondary branches of mouse pulmonary arteries using a technique adapted from the acute method described by Pritchard et al. (2014) for rat PASMCs. In brief, dissected pulmonary arteries were first incubated for 1 h at 4°C in a dissociation medium (DM; description below) containing the enzyme papain (1.5 mg/ml; Sigma-Aldrich). The composition of the DM was the following (in mM): 110 NaCl, 5 KCl, 0.5 KH₂PO₄, 0.5 NaH₂PO₄, 10 NaHCO₃, 0.16 CaCl₂ (free [Ca²⁺] = 7.6 μM), 2 MgCl₂, 0.5 EDTA, 10 D-glucose, 10 taurine, and 10 Hepes-NaOH (pH 7.4). The partially digested tissue was then incubated for 6 min at 37°C with DM containing papain (1.5 mg/ml; MilliporeSigma) and the reducing agent dithiothreitol or DTT (1 mg/ml; MilliporeSigma). This was followed by a final enzymatic step during which the pulmonary arteries were incubated for 5–10 min in DM containing collagenase type IA (1.0–1.5 mg/ml; MilliporeSigma) and protease type XIV (1 mg/ml; MilliporeSigma). The remaining tissue was subsequently rinsed twice in enzyme-free DM. Cells were then dispersed by gentle trituration of the remaining digested tissue for ∼2 min using a small-bore Pasteur pipette. The remaining supernatant containing PASMCs was stored for 2–6 h at 4°C until use for imaging or electrophysiological experiments.

Ca²⁺-activated Cl⁻ currents (I_ClCa) were recorded from freshly isolated mouse pulmonary artery smooth muscle cells (PASMC) using the conventional whole-cell configuration of the patch clamp technique using an Axopatch 200B amplifier (Molecular Devices), Digidata 1320A acquisition system (Molecular Devices) and pCLAMP 9 software (Molecular Devices). To reduce contamination of I_ClCa from other types of currents in our recordings, CsCl and tetraethylammonium chloride (TEA) were added to the pipette solution and TEA was added to the K⁺-free external solution. The external solution used in all patch-clamp experiments had the following composition (in mM): 126 NaCl, 10 Hepes (pH adjusted to 7.35 with NaOH), 8.4 TEA, 20 glucose, 1.2 MgCl₂, and 1.8 CaCl₂. The intracellular pipette was set to 1 μM free [Ca²⁺] by the addition of 10 mM BAPTA and 8.27 mM CaCl₂, which was calculated using the calcium Chelator program MaxChelator (v. 2.51; Patton, 2010). The internal pipette solution contained the following (in mM): 20 TEA, 106 CsCl, 10 Hepes (pH adjusted to 7.2 with CsOH), 10 BAPTA, 8.27 CaCl₂, 5 ATP.Mg, 0.55 MgCl₂ (1 mM free [Mg²⁺]), and 0.2 guanosine-5′-triphosphate. Series resistance compensation was performed in all experiments. Cells were continuously superfused with the external solution at a flow rate of ∼1 ml/min. All electrophysiological experiments were performed at room temperature.

I_ClCa was evoked immediately upon rupture of the cell membrane and its voltage-dependent properties were monitored every 10 s by stepping from a holding potential (HP) of −50 to +90 mV for 1 s, followed by repolarization to −80 mV for 1 s. Current–voltage (I–V) relationships were constructed after ∼2 min of cell dialysis by stepping in 10 mV increments from HP to test potentials between −100 and +140 mV for 1 s, each step followed by a 1 s repolarizing step to −80 mV. For I–V relationships, I_ClCa was expressed as current density (pA/pF) by dividing the current amplitude measured at the end of each voltage clamp step by the cell membrane capacitance (C_m in pF), which was calculated by integrating the average of five consecutive capacitive current (I_C) transients elicited by steps to −60 mV from HP = −50 mV and using the following equation: $Cm=∫IC.dt/ΔV$⁠, where dt is time (in ms) and ΔV corresponds to the 10 mV hyperpolarizing steps.

A freshly dissected endothelium-denuded pulmonary artery from a mouse expressing either GCaMP3 or GCaMP6f conditionally in smooth muscle cells was cut open and pinned down with its lumen facing up on a 35-mm Petri dish layered with Sylgard. The Petri dish was then moved to the stage of an upright Olympus BX50WI epifluorescence microscope where constant flow superfusion (∼1 ml/min) with a normal physiological salt solution (PSS; see composition below) was initiated using a Gilson Minipulse 3 peristaltic pump with solutions maintained at 37°C by means of a temperature-controlled water-jacketed glass coil circulated by a Cole Palmer Polystat Controller pump. The composition of the PSS was as follows (in mM): 135 NaCl, 10 NaHCO₃, 4.2 KCl, 1.2 KH₂PO₄, 1.2 MgCl₂, 1.8 CaCl₂, 5.5 glucose, and 10 Hepes-NaOH (pH 7.35). The preparation was allowed to equilibrate for a minimum of 30 min before fluorescence imaging was started. Imaging of GCaMP3/GCaMP6f-expressing smooth muscle cells was performed from the luminal side of the artery by means of one of three water immersion objectives (LUMPlan FNL 60×/0.9 NA, 40×/0.75 NA, or 20×/0.5 NA). GCaMP3 or GCaMP6f was excited at a wavelength of 488 nm by a Lumencor IIluminator Spectra X solid-state light source transmitted to the microscope via an optical fiber. 500–1,000 images (512 × 512 pixels) were acquired at 31 frames/s by an Andor iXon EMCCD camera (Andor Technology) controlled by Andor SOLIS software (Andor Technology) running under a Windows 7 PC platform. Movie stack TIFF files were analyzed using public domain ImageJ (Schneider et al., 2012). Each stack was first submitted to background subtraction (30–50 roll ball radius) followed by two rounds of smoothing. Three spatio-temporal (ST) maps were then generated per movie by reslicing three areas of the image using the line function of ImageJ at a width of 3 pixels and using a 90° rotation and avoiding interpolation. The three lines used to create ST maps across the entire image were drawn perpendicularly to the long axis of the smooth muscle cells and in a few pilot studies along the cell axis. The latter strategy was used to assess potential intercellular propagation of Ca²⁺ transients. The fluorescence intensity of all cells was measured from ST maps using the line function of ImageJ at a width of 3 pixels. The fluorescence intensity profile was then plotted as a function of time and the data were transferred to Excel and OriginPro (v. 2021b; OriginLab) for data analysis. GCaMP3 or GCaMP6f fluorescence (F) was reported as F/F₀, where F₀ is baseline fluorescence. When photobleaching was apparent, traces were corrected by subtracting a straight line from the baseline and then adding a value of one to each data point. Time-dependent fluorescence intensity profiles were analyzed using the Gadgets Quick Peaks module of OriginPro. This feature allowed for automated detection and analysis of Ca²⁺ transients. The module was generally set for detection of peaks by height at the 20% default value, which was sometimes raised when Ca²⁺ transients were small and noisy. Peak height, integrated area under the curve, and full-width duration at half-maximum (FWHM) were calculated by OriginPro. The frequency in Hertz was calculated in Excel by dividing the number of Ca²⁺ transients detected by the total duration of the movie in seconds (16.13 or 32.26 s).

Pulmonary artery smooth muscle cells were freshly isolated as described above and plated onto no. 1.5H microscope cover glass (Deckgläser). Cells were fixed with 3.2% formaldehyde/0.1% glutaraldehyde in a DM for 10 min at room temperature, rinsed three times with PBS, then blocked and permeabilized using a solution containing 0.1% Triton-X 100, 1% BSA, and 20% SEA block (Thermo Fisher Scientific) in PBS for 1 h at RT. Cells were incubated overnight at 4°C with primary antibodies: rabbit antibody to ANO1 (PA2290, 1:50; Boster Biological), mouse antibody to Ca_V1.2 (N263/31, 1:100; NeuroMab), or mouse antibody to IP₃R (sc-377518, 1:100; Santa Cruz). Samples were washed with PBS three times and incubated with Alexa Fluor 647-conjugated goat anti-rabbit or Alexa Fluor 488-conjugated goat anti-mouse secondary antibodies (1:1,000; Invitrogen) at room temperature for 1 h, then washed three to five times with PBS. Slides were imaged using an Olympus FluoView FV 1000 laser scanning confocal microscope with an Olympus 100× UPlanApo100XO 1.40 NA oil immersion objective or a Leica Stellaris 8 confocal microscope equipped with a 100× objective.

Sample preparation was performed as described above for immunolabeling with the addition of extra 15-min wash steps with PBS. Samples were mounted on glass depression slides with the wells filled with a Glox-MEA Imaging Buffer as outlined in Dixon et al. (2017) and the edges of the coverslip were sealed with Twinsil (Picodent). Images were acquired on a GSDIM imaging system (Leica) built around an inverted microscope (DMI6000B; Leica) using a 160× HCX Plan-Apochromat (1.47 NA) oil-immersion lens and an EMCCD camera (iXon3 897; Andor Technology). Lateral chromatic aberrations and astigmatism corrections are integrated into the Leica GSDIM systems in parallel to the objective, tube lens, and c-mount. Optimal image results were obtained through the interplay of these corrections. Images were acquired in both TIRF and epifluorescence modes. The incidence angle for the TIRF mode was 150 nm. 25,000–60,000 frames were acquired for each color. Dual color images were acquired sequentially, with the Alexa Fluor 647-conjugated signal (ANO1) acquired first followed by the Alexa Fluor 488-conjugated signal (either IP₃R or Ca_V1.2).

Image reconstruction was performed using the ImageJ plugin ThunderSTORM (Ovesný et al., 2014) using the default settings. Colocalization and nearest-neighbor analyses were determined using the ThunderSTORM coordinate-based colocalization (CBC) algorithm. Clusters were analyzed using SR-Tesseler (Levet et al., 2015). The program segments the single-molecule localizations and identifies regions of higher density. Clusters were defined as regions with localizations 2.5 times greater than surrounding areas.

Total RNA was extracted using Trizol (Life Technologies) according to the manufacturer’s instructions. cDNA was prepared using a high-capacity cDNA Reverse Transcription Kit (Applied Biosystems). Quantitative analysis of mRNA expression was performed on a QuantStudio3 system (Thermo Fisher Scientific). 20 μl reactions (1 μl cDNA, 200 nM [ANO1] or 500 nM [β-actin] of each forward and reverse primer, and SYBR Green PCR master mix, Applied Biosystems) were run in triplicate. The normalized mRNA expression was calculated according to the (2^ΔΔCt) method.

For each experiment, ice-cold radioimmunoprecipitation buffer (RIPA) with a protease inhibitor cocktail was used to harvest lysate from pulmonary arteries pooled from five to six C57/BL6 mice. co-IP was performed using Pierce Protein A/G Agarose. Briefly, the pulmonary arterial lysate was incubated with rabbit anti-ANO1 polyclonal antibody (ab53212; Abcam) at 4°C overnight. 20 μl Protein A/G Agarose resin was added and incubated for another 2 h at room temperature to capture the antibody–antigen complex. Antibody bound resin was then centrifuged and washed with RIPA buffer and bound proteins were eluted using denaturing buffer. The boiled eluate was run on an SDS-polyacrylamide gel and protein samples were analyzed by Western blotting.

Pulmonary artery from five to six C57/BL6 mice were homogenized and lysed in RIPA lysis buffer containing a cocktail of protease inhibitors. Proteins were separated in 4–12% NuPAGE (Thermo Fisher Scientific) and transferred into nitrocellulose membranes (0.45 µm; cat. no. 162-0215; Bio-Rad). The membranes were blocked with LI-COR Odyssey blocking buffer (part no. 92740000) in PBS (1:1) for 1 h at room temperature and incubated overnight at 4°C with the following primary antibodies (all diluted at 1:250 in LI-COR Odyssey blocking buffer in PBS [1:1] with 0.01% Tween-20): rabbit polyclonal ANO1 (ab53212; Abcam), rabbit monoclonal IP₃R (D53A5; Cell Signaling Technology), mouse monoclonal polyclonal Ca_V1.2 (MAB13170; MilliporeSigma), and goat polyclonal actin (sc-1616; Santa Cruz Biotechnology). The membranes were incubated with Alexa Fluor 680 or 800 conjugated goat anti-rabbit IgG or donkey anti-goat (diluted 1:25,000 in LI-COR Odyssey blocking buffer in PBS [1:1] with 0.01% Tween-20) for 1 h at room temperature. Signals were detected using Odyssey Infrared Imaging System (LI-COR) near infrared wavelengths using the 700 and 800 nm channels. All experiments were performed in triplicate.

All pooled data are expressed as means with error bars representing the SEM. Raw data were imported into Excel and the means exported to OriginPro 2021b software (OriginLab Corp.) for plotting and testing of statistical significance between groups. Statistical significance between means was determined using paired or unpaired Student’s t test when two groups were compared, or one-way or two-way ANOVA for multiple group comparisons, and the Tukey’s post hoc test to determine which groups are statistically significant from each other. P < 0.05 was considered to be statistically significant. All graphs, images, and ionic current traces were uploaded to CorelDRAW 2021 for Mac for final processing of the figures.

Video 1 depicts the lack of spontaneous activity in an intact pulmonary artery from a conditional SMC-GCaMP3 mouse exposed to a normal external solution. Video 2 shows that a 5-min exposure to 1 μM 5-HT triggered asynchronous Ca²⁺ oscillations in the same pulmonary artery from a conditional SMC-GCaMP3 mouse as shown in Video 1. Video 3 is a Surface Plot video illustrating the initiation and propagation of Ca²⁺ waves in a single PASMC from an intact pulmonary artery from a conditional SMC-GCaMP3 mouse. Video 4 shows that a 10-min exposure to 10 μM CaCC_Inh-A01 in the presence of 5-HT had a profound inhibitory effect on Ca²⁺ oscillations in the same pulmonary artery from a conditional SMC-GCaMP3 mouse as shown in Videos 1 and 2.

We first evaluated the contribution of ANO1, voltage-gated Ca²⁺ channels (VGCC), and Ca²⁺ release from the SR in the contraction elicited by the agonist 5-HT of endothelium-denuded wild-type C57/BL6 mouse pulmonary arteries using wire myography. Fig. 1 A shows two typical experiments in which a cumulative dose-response curve to 5-HT was generated in the absence (Fig. 1 A; Control) or presence of the ANO1 inhibitor CaCC_Inh-A01 (Fig. 1 A, right). For all experiments, only a single concentration–response relationship to 5-HT was generated in each preparation since pilot experiments revealed a significant attenuation of the response to a second 5-HT challenge, presumably due to receptor desensitization. The threshold concentration of 5-HT eliciting a measurable contraction in control condition was 30 nM (Fig. 1 A). CaCC_Inh-A01 (10 μM) significantly decreased peak contraction at all 5-HT concentrations tested and shifted the threshold concentration evoking a contraction to ∼300 nM (Fig. 1 A, right). The concentration of CaCC_Inh-A01 was chosen on the basis that it was previously shown to block ∼90% of expressed mouse ANO1 current in a voltage-independent manner (IC₅₀ = 1.7 μM; Bradley et al., 2014), and caused no significant effect on the contraction to high K⁺ solution (85.4 mM; Fig. 2, A and B). The latter observation is important as it indicates that the compound exerted no direct effect on the contractile machinery, or VGCC, which contrasts with the potent inhibitory effect of the Ca²⁺ channel blocker nifedipine on this contraction (1 μM; Fig. 2, C and D). In the control condition, the concentration–response curve to 5-HT was biphasic (Fig. 1 B), an observation possibly attributable to the presence of 5-HT_1B/1D and 5-HT_2A receptor subtypes as identified in pulmonary arteries from several mammalian species including human, mouse, and rat (Uma et al., 1987; Cortijo et al., 1997; Shaw et al., 2000; Liu and Folz, 2004; Perez and Sanderson, 2005; Rodat-Despoix et al., 2009). The biphasic nature of the concentration–response relationship to 5-HT was still apparent following the block of ANO1 by CaCC_Inh-A01 (Fig. 1 B). Blocking VGCC with nifedipine, emptying SR Ca²⁺ stores with CPA (Seidler et al., 1989), or blocking the IP₃R with xestospongin C (Gafni et al., 1997) produced very similar effects to those caused by the ANO1 inhibitor (Fig. 1 B), even though the curve obtained with nifedipine was slightly elevated relative to those of CaCC_Inh-A01, CPA, and xestospongin C, likely attributable to an incomplete block of VGCC with 1 μM nifedipine (Fig. 2, C and D). Remarkably, the concentration–response curve to 5-HT in the presence of CPA was also similar to preparations exposed to Ca²⁺-free solution or Ca²⁺-free in the presence of CPA (Fig. 2 E). These results suggest that activation of store-operated Ca²⁺ entry (SOCE) by CPA-induced store depletion in the presence of normal extracellular Ca²⁺ did not produce a significant contractile effect in our conditions. We least-square fitted individual dose-response relationships to 5-HT to a monophasic logistic function for all conditions. Only the initial component of the biphasic response was analyzed by restricting the fitting range from 0.01 to 1–3 μΜ 5-ΗT. This is because a maximum effect for the second component at higher concentrations of 5-HT was not clearly discernable. Table 1 summarizes mean data obtained for the estimated EC₅₀, maximum contraction amplitude, and slope factor p, and provides a mean R² for each condition. While there were no significant differences between each group and the control group for the EC₅₀ and slope factor p, all treatments produced a significant inhibition of the maximum contraction amplitude, in accord with our two-way ANOVA analyses of these curves.

We repeated similar experiments in PA from two conditional smooth muscle-specific and inducible ANO1 KO mice, both driven by TMX-sensitive Cre expression under the control of the smooth muscle myosin heavy chain promoter located on the Y chromosome (My11). ANO1 knockdown induced by TMX is mediated by the deletion of loxP sequences flanking exons 5 and 6, or exon 12. Both animal models also conditionally express the Ca²⁺ biosensor protein GCaMP3 under the control of the same Cre-lox system (SMC-ANO1-kO-^ΔEx5-6-GCaMP3 and SMC-ANO1-kO-^ΔEx12-GCaMP3). The cumulative concentration-response curve to 5-HT of PA from SMC-ANO1-kO-^ΔEx12-GCaMP3 animals injected with vehicle (oil; Fig. 1 C) was nearly superimposable to that obtained from wild-type mice (Fig. 1 B), displaying a similar threshold around 30 nM, a biphasic relationship and a similar peak contraction at the highest concentration of 5-HT. ANO1 knockdown resulted in a significantly reduced concentration–response curve to 5-HT that mimicked that obtained in PA from wild-type mice exposed to CaCC_Inh-A01, nifedipine, CPA, or xestospongin C (Fig. 1 B). A very similar profile was registered in PA from SMC-ANO1-kO-^ΔEx5,6-GCaMP3 mice (Fig. 1 C). We also fitted these relationships using the same approach as that described in Table 1. As for the effects of various inhibitory conditions on PA from wild-type mice, a decrease in maximal contraction amplitude was the only parameter that was significantly affected and reduced by ANO1 knockdown (Table 2). Notably and importantly, the EC₅₀ and maximum contraction amplitude estimated for wild-type and oil-injected SMC-ANO1-kO-^ΔEx12-GCaMP3 mice were remarkably similar with an EC₅₀ of ∼210 nM and maximum contraction amplitude of ∼0.8 (normalized to KCl).

Real-time quantitative PCR experiments revealed a marked reduction in the expression of ANO1 mRNA in the aorta of both animal models (>75%), but not in the colon (Fig. 1 D). This is consistent with ANO1 in the colon being expressed almost exclusively in c-Kit⁺ interstitial cells of Cajal where they play a major role in driving pacemaker activity and initiating slow waves, but not in smooth muscle cells in this tissue (Huang et al., 2009; Hwang et al., 2009; Zhu et al., 2009; Berg et al., 2012; Sanders et al., 2012). Consistent with a reduced expression of ANO1 protein, Ca²⁺-activated Cl⁻ currents in PASMCs from SMC-ANO1-kO-^ΔEx12-GCaMP3 mice treated with TMX were abolished (Fig. 1 E). Finally, CaCC_Inh-A01 exerted no additional effects on the PA contraction of SMC-ANO1-kO-^ΔEx12-GCaMP3 (Fig. 1 C). These results indicate that a high level of knockdown of ANO1 protein was achieved in PASMCs in both transgenic mouse models injected with TMX. They also suggest that the inhibitory effects of CaCC_Inh-A01 in PA from wild-type mice specifically targeted ANO1.

We used fluorescence imaging to explore the mechanisms involved in the effects of 5-HT on changes in intracellular Ca²⁺ concentration in intact endothelium-denuded PA from transgenic mice conditionally expressing the Ca²⁺ reporter GCaMP3, specifically in smooth muscle cells. Spontaneous Ca²⁺ transients were detected in some preparations in the absence of 5-HT, but these were extremely rare events and were therefore not analyzed (Fig. 3 A and Video 1). Exposure to 1 μM 5-HT elicited asynchronous Ca²⁺ oscillations at a frequency of ∼1.5 Hz (Fig. 3 B and Video 2). Ca²⁺ transients analyzed by creating ST maps along the longitudinal axis of the smooth muscle cells revealed that Ca²⁺ transients propagated as waves within the cell but did not spread from cell to cell (Fig. 4 A). Lack of or poor cell-to-cell propagation of these Ca²⁺ transients was also evident when analyzed orthogonally from the long axis of the cells (Fig. 4 A). These results are in agreement with the concept that each cell generates its own Ca²⁺ oscillations producing sustained force integrated over time by the frequency and amplitude of Ca²⁺ transients (Perez-Zoghbi and Sanderson, 2007). Although not analyzed in detail, Ca²⁺ transients were generally initiated from a few regions or “hot spots” in the cell. An example is shown in Fig. 4 B, where Ca²⁺ waves were randomly triggered from either end of the cell and propagated unidirectionally, or an area near the nucleus that propagated bidirectionally toward the cell ends. Video 3 highlights these properties. 5-HT-induced Ca²⁺ transients were nearly abolished by CaCC_Inh-A01 in PA from SMC-GCaMP3 mice (Fig. 3 C and Video 4) and potently inhibited by genetic knockdown of ANO1 (SMC-ANO1-kO-^ΔEx12-GCaMP3; Fig. 5). We systematically analyzed several parameters of Ca²⁺ transients recorded in different conditions and preparations. Fig. 6 shows that blocking ANO1 with CaCC_Inh-A01 or blocking VGCC with nifedipine in PA from SMC-GCaMP3 mice (Control; light blue bars) led to a quantitatively similar reduction in frequency (Fig. 6 A), peak Ca²⁺ transient amplitude (Fig. 6 B), and integrated area under the curve (Fig. 6 C); the duration of Ca²⁺ transients measured at half-amplitude was significantly reduced by CaCC_Inh-A01, but not by nifedipine (Fig. 6 D). Depleting Ca²⁺ stores with CPA abolished Ca²⁺ oscillations (Fig. 6 A). Importantly, genetic deletion of ANO1 in SMC-ANO1-kO-^ΔEx12-GCaMP3 mice (light gray bars) produced a reduction in the frequency and duration of Ca²⁺ transients (Fig. 6, A and D) relative to control, but did not significantly alter peak amplitude and integrated area under the curve (Fig. 6, B and C). Taken together, these results suggest that the Ca²⁺ oscillations evoked by 5-HT are supported by the coordinated stimulation of ANO1, Ca²⁺ entry through VGCC (Ca_V1.2), and Ca²⁺ release from the SR, most likely from IP₃R.

The results presented so far suggest that Ca²⁺ release from IP₃R is the predominant Ca²⁺ source generating Ca²⁺ oscillations and contractility in response to 5-HT, and the feedback loop between ANO1 and Ca_V1.2 may be key for reloading SR Ca²⁺ stores. We tested this hypothesis by examining the effects of blocking ANO1 or Ca_V1.2 on the amount of Ca²⁺ stored in the SR. This was indirectly assessed by measuring the transient contraction produced by blocking the SR Ca²⁺-ATPase with 10 μM CPA in the absence of external Ca²⁺. Fig. 7 A shows an isometric force recording illustrating the impact of switching the external solution from normal Krebs containing 1.8 mM Ca²⁺ to the Ca²⁺-free/CPA solution. As highlighted by the red area under the trace, the latter solution produced a robust transient contraction that was evoked by Ca²⁺ mobilization from the SR. In contrast, a 10-min exposure to 1 μM nifedipine or 10 μM CaCC_Inh-A01 to block Ca_V1.2 (Fig. 7 B) or ANO1 (Fig. 7 C), respectively, markedly inhibited this contraction. We quantified the effects of the two inhibitors by integrating the area under the curve for the transient contraction (highlighted in red in A–C) and normalizing it to the amplitude of contraction caused by the high K⁺–Krebs solution that preceded the 0 Ca²⁺/CPA protocol (contraction to high KCl shown on the left side of A–C). Fig. 7 D indicates that CaCC_Inh-A01 and nifedipine produced a strong inhibition of the contraction elicited by 0 Ca²⁺/CPA; there was no significant difference between the two drug treatments. These experiments support the concept that the main function of ANO1 and Ca_V1.2 is to refill Ca²⁺ stores in the SR to support cyclical Ca²⁺ release through IP₃R.

The combination of the functional observations described above with the very low number of detectable sites in each cell found to initiate Ca²⁺ waves led us to hypothesize that ANO1 and Ca_V1.2 in the PM and IP₃R in closely juxtaposed SR contact areas may be clustered in a limited number of specialized microdomains along the cell length to form a specialized unit optimized for EC coupling of PASMCs. To test this hypothesis, we performed co-IP assays complemented by colocalization studies by confocal and superresolution nanomicroscopy.

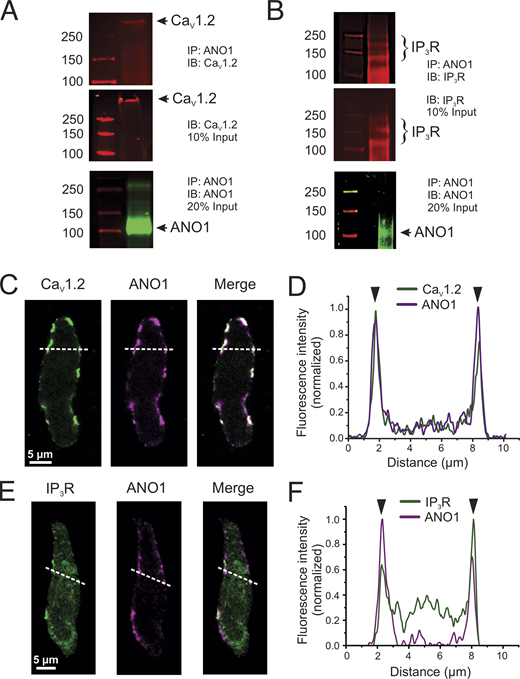

Immunoprecipitation of ANO1 from freshly prepared total lysates of mouse PA followed by probing with Ca_V1.2 and IP₃R antibodies, respectively, detected a high molecular weight band consistent with Ca_V1.2 (>250 kD) and several bands ≥100 kD for IP₃R (∼240, 180, and 120 kD) in the immunoprecipitated macromolecular complex (Fig. 8, A and B). Of the three IP₃ bands, the higher one appears the most likely candidate for IP₃R as all three isoforms have a molecular weight >200 kD (Monkawa et al., 1995). Input from total PA lysate (10%) detected the same immunoreactive bands for Ca_V1.2 and IP₃R. A band near the size predicted (∼110 kD) for ANO1 monomeric protein was also detected from the immunoprecipitated complex, which could not be achieved when total lysates were directly probed by Western blot with the same ANO1 antibody, most likely attributable to the low abundance of ANO1 protein in PA tissue (data not shown). These results support the notion that cortical IP₃R and Ca_V1.2 reside in the same membrane fraction as ANO1.

Laser scanning confocal fluorescence microscopy was first used to visualize mouse PASMCs dually immunolabeled for ANO1 and Ca_V1.2, or ANO1 and IP₃R. Both protein pairs demonstrated a preferential colocalization near the PM of PASMCs although significant immunolabeling of IP₃R was also apparent in the cytosol as expected for a protein expressed in the SR (Fig. 8, C and E). Line plots of normalized fluorescence intensity of regions indicated by the dashed white lines in Fig. 8, D and F, show an excellent correlation of fluorescence intensity near the PM between ANO1 and Ca_V1.2 (Fig. 8 D), and between ANO1 and IP₃R (Fig. 8 F), albeit significant labeling for IP₃R was apparent intracellularly as expected.

We further investigated the colocalization of ANO1 with Ca_V1.2 and IP₃R protein clusters at nanoscale resolution (<40 nm) using GSDIM (ground-state depletion followed by individual molecule return)superresolution microscopy. Mouse PASMCs were dually immunolabeled in pairs either with ANO1 versus Ca_V1.2 or ANO1 versus IP₃R and imaged in either epifluorescence illumination mode or TIRF mode using GSDIM. Superresolution images were created using the ImageJ plugin ThunderSTORM. In the epifluorescence mode of acquisition, molecules could be visualized close to the periphery (Fig. 9, A and B), especially for the ANO1-Ca_V1.2 pairing. We used the ThunderSTORM coordinate-based colocalization (CBC) algorithm to quantify the spatial correlation of the proteins where the single-molecule localizations (SML) for each protein pair are given a value of −1 to 1, where −1 is anticorrelated, 0 suggests a random distribution with respect to each other, and 1 is highly correlated. We found that the highest percentage of localizations for ANO1-Ca_V1.2 in epifluorescence mode were within the range of 0.9–1, demonstrating a high degree of correlation (Fig. 9 C). The CBC value for IP₃R was not as high albeit significant due to the presence of intracellular IP₃R proteins (Fig. 9 D), which would be expected for a protein localized to the SR. We next imaged the protein pairs using TIRF mode, allowing us to determine the distance between the protein pairs at the periphery of the cell with high resolution. We determined the nearest neighbor distance for each protein pair based on the single-molecule distributions of localizations for each protein. Here, we found that both Ca_V1.2 and IP₃R are located closer to ANO1 than randomly localized particles (Fig. 9 G).

Using the program SR-Tesseler approach (Levet et al., 2015), we investigated the clustering of the molecules on or near the PM. The localization data from the TIRF-based SMLs were subdivided using Voronoï tessellation (or segmentation), which creates polygonal regions around each point that is equidistant from surrounding localizations, as demonstrated in Fig. 9 H, top panel. Parameters such as area, density, and mean distance to the surrounding polygons are used to determine areas of higher molecular densities. Using this method, we measured the size of clusters that had a density 2.5 times greater than the average molecule density. Examples of identified clusters are shown in Fig. 9 H, bottom panel, with the polygons that were included in the cluster identified in yellow, and the shape of the identified clusters are shown by the red line. All three protein cluster sizes similarly ranged from <50 to >5,000 nm², with the majority of clusters ranging from 100 to 500 nm² (Fig. 9 I). Taken together, these results indicate that ANO1 and Ca_V1.2, and ANO1 and IP₃R, colocalize in microdomains of similar sizes in specific areas near the PM of PASMCs, which may be optimally organized for effective agonist-mediated Ca²⁺ signaling.

The results presented above suggest that unique coupling sites at the PM of PASMCs are important for G_q-protein receptor-mediated EC coupling. We hypothesized that these structural microdomains may be intimately associated with lipid rafts, and perhaps with caveolae, a subset of lipid rafts, which are known to be involved in sequestering membrane receptors and ion channels for optimal compartmentalized signal transduction (Patel et al., 2008; Thomas and Smart, 2008; Guéguinou et al., 2015). This is also based on previous reports showing that both ANO1 and Ca_V1.2 are localized in caveolae (Jorgensen et al., 1989; Darby et al., 2000; Löhn et al., 2000; Sones et al., 2010). Fig. 10, A–D shows the effect of incubating wild-type PASMCs for 30 min with 3 mg/ml methyl-β-cyclodextrin (MβCD) on the cellular distribution of ANO1 and Ca_V1.2. MβCD causes membrane cholesterol depletion, which disrupts lipid rafts and caveolae (Rodal et al., 1999; Zidovetzki and Levitan, 2007; Patel et al., 2008). The PASMCs shown in Fig. 10, A and C, were isolated from the same animal. Similar to the results presented in Fig. 6, ANO1 and Ca_V1.2 displayed strong PM colocalization (Fig. 10, A and B) as probed by confocal microscopy. As anticipated, exposure to MβCD resulted in the disappearance of the ANO1/Ca_V1.2 superclusters and caused significant internalization of both proteins (Fig. 10, C and D). We quantified in PASMCs from three mice the redistribution of ANO1 and Ca_V1.2 by measuring the ratio of the membrane to total cell fluorescence. MβCD caused a 31.5% and 31.0% reduction in this parameter for ANO1 (Fig. 10 E) and Ca_V1.2 (Fig. 10 F), respectively, indicating that membrane cholesterol depletion produced a quantitatively similar effect on both proteins.

We next examined the functional significance of disrupting lipid rafts on 5-HT receptor-mediated signaling in intact PA. Exposing arteries to MβCD caused a similar decrease in the contraction to 5-HT as that produced by either CaCC_Inh-A01 or CPA (both datasets reproduced from Fig. 1 A). In contrast, the contraction amplitude triggered by high K⁺ (85.4 mM) was not significantly different between control and MβCD-treated arteries (data not shown; Control: 0.25 ± 0.04 g, n = 10; MβCD: 0.27 ± 0.03 g, n = 5; P > 0.05). These results indicate that the reduction of the 5-HT-induced contraction caused by MβCD was not due to an inability of intact PA to contract to a depolarizing stimulus. We next investigated how the same treatment would influence Ca²⁺ signaling evoked by 5-HT in intact PA from SMC-GCaMP6f mice. Consistent with the contraction data, MβCD (3 mg/ml for 30 min) significantly reduced the frequency (Fig. 11 B), amplitude (Fig. 11 C), the area under the curve (Fig. 11 D), and duration (Fig. 11 E) of GCaMP6f Ca²⁺ transients. These results indicate that the destruction of ANO1 and Ca_V1.2 coupling sites on the PM by MβCD had a major disrupting impact on the ability of 5-HT to trigger Ca²⁺ oscillations and force production.

We have demonstrated that the contribution of ANO1 to agonist-mediated signaling in mouse PASMCs is more complex than that predicted from the simple working model of a widespread and uniform positive feedback loop between Ca²⁺ entry through VGCC and the sustained membrane depolarization caused by Ca²⁺ activation of ANO1 (Fig. 12 A). Instead, we conclude that the fraction of the contraction to 5-HT that is membrane potential-dependent requires the coordinated interaction of ANO1, Ca_V1.2, and IP₃R colocalized in a finite number of superclusters spread across the cell length (Fig. 12 B). This interaction is responsible for evoking and sustaining intracellular Ca²⁺ oscillations that propagate along the main axis of the cell, with little evidence for cell-to-cell transmission. Our data are consistent with previous reports showing that 5-HT or endothelin-1 triggered asynchronous Ca²⁺ oscillations in small arteries and arterioles of mouse lung slices (Perez and Sanderson, 2005; Perez-Zoghbi and Sanderson, 2007). Simultaneous measurements of Ca²⁺ transients and changes in luminal size, as an index of constriction, showed that the force of arteriolar contraction to agonists mainly depends on the frequency of Ca²⁺ oscillations. The observation that the constriction produced by agonists is sustained and non-oscillatory is hypothesized to be caused by the summation in space and time of force produced by individual myocytes and the fact that muscle relaxation is much slower than the Ca²⁺ transients triggering force production (Perez and Sanderson, 2005).

A remarkable observation of the present study was the similar inhibitory effectiveness of suppressing ANO1, VGCC, or Ca²⁺ release from the SR on the contraction to 5-HT. These results suggest that the contraction requires all three elements to maintain force production. This is supported by Ca²⁺ imaging experiments showing that similar treatments strongly inhibited or abolished Ca²⁺ oscillations in myocytes from intact pulmonary arteries of mice conditionally expressing the Ca²⁺ biosensor protein GCaMP3 in smooth muscle cells. We hypothesize that cyclical Ca²⁺ release from IP₃R triggers self-regenerative Ca²⁺ waves that propagate along the long axis of the cell through Ca²⁺-induced Ca²⁺ release. Whether this process also involves ryanodine (RyR) receptor-sensitive SR Ca²⁺ pools is unclear. Some studies found no role for RyR in response to agonists (Hamada et al., 1997; Hyvelin et al., 1998; Zheng et al., 2005; Henriquez et al., 2018), while a few others revealed a significant contribution of RyR and crosstalk between RyR- and IP₃R-sensitive Ca²⁺ pools (Yang et al., 2005; Clark et al., 2010).

Although ANO1, Ca_V1.2, and IP₃R are required for maintaining a stable contraction, propagated SR Ca²⁺ release through IP₃R is probably the main factor involved in this process because (1) SR Ca²⁺ depletion obliterated Ca²⁺ oscillations, whereas inhibition of Ca_V1.2 or ANO1 reduced but did not abolish Ca²⁺ transients; and (2) blocking SR Ca²⁺ release by SR Ca²⁺ depletion or blocking specifically IP₃R with xestospongin C reduced the amount of force to the same extent, if not more, than inhibiting Ca²⁺ entry through Ca_V1.2 or preventing the depolarization driven by ANO1. There is a possibility that SOCE might have been involved in the remaining contraction to 5-HT following SR Ca²⁺ depletion or inhibition of Ca_V1.2 or ANO1, but this Ca²⁺ entry pathway was likely a minor contributor in our conditions using healthy untreated mice (Ng et al., 2007; Liu et al., 2012), as opposed to its significant enhancement in preparations from animals with PH (Lin et al., 2004; Liu et al., 2012; Xia et al., 2014). Consistent with this idea were the observations that removing extracellular Ca²⁺ in the presence or absence of CPA produced similar results.

Since the membrane phospholipid PIP₂ is the precursor of IP₃ during the activation of 5-HT receptors and G_q-protein, the ensuing depletion of PIP₂ is likely to affect the contractile and Ca²⁺ signaling responses described in the PIP₂ study. PIP₂ is required to maintain the activity of voltage-gated Ca²⁺ channels (Wu et al., 2002; Gamper et al., 2004; Suh et al., 2012). For reasons that are unclear, PIP₂ was shown to inhibit ANO1-encoded native CaCCs in vascular smooth muscle cells in one study (Pritchard et al., 2014), while several more recent studies revealed that it either upregulated or was required to support the activity of cloned ANO1 expressed in mammalian cell lines (Ta et al., 2017; Le et al., 2019, 2021; Tembo et al., 2019; Jia and Chen, 2021; Ko and Suh, 2021). The overall impact of the regulation of Ca_V1.2 and ANO1 by PIP₂ on EC coupling in PASMCs thus remains unclear but will be important to consider in future investigations.

If Ca²⁺ release from IP₃R-sensitive SR pools is the main driver of Ca²⁺ oscillations and contraction, then what is the role of ANO1 and Ca_V1.2 in this pathway? It is possible that their interaction causes a small but significant elevation in resting [Ca²⁺]_i that would produce two effects of functional significance: (1) it would increase the probability of triggering an intracellular Ca²⁺ wave, especially at supercluster sites (see discussion below), by lowering the threshold for IP₃ to open IP₃Rs (Berridge et al., 2000; Berridge, 2009; Woll and Van Petegem, 2022); and (2) it would promote the refilling of Ca²⁺ stores via enhanced SERCA activity (Berridge et al., 2000; Berridge, 2009; Woll and Van Petegem, 2022), which would increase the activity of Ca²⁺ release channels through their dependence on luminal Ca²⁺ levels (Györke and Györke, 1998; Berridge et al., 2000; Berridge, 2009; Woll and Van Petegem, 2022). This hypothesis is consistent with the observation that Ca²⁺ oscillations were shown to persist for a short time period in the absence of extracellular Ca²⁺ but they eventually subsided due to depletion of Ca²⁺ stores (Perez and Sanderson, 2005; Perez-Zoghbi and Sanderson, 2007). In our study, blocking either Ca_V1.2 or ANO1 after a loading period with high K⁺ solution produced a similar depletion of SR Ca²⁺ stores as indirectly assessed by measuring the transient contraction elicited by blocking SERCA in the absence of external Ca²⁺. This observation supports the hypothesis that the main function of ANO1 and Ca_V1.2 mouse pulmonary arteries stimulated by 5-HT is to refill SR Ca²⁺ stores.

The close functional relationship between ANO1, Ca_V1.2, and IP₃R prompted us to examine whether these ion transporters display physical coupling bearing significance to agonist-induced EC coupling. Both Ca_V1.2 and IP₃R coimmunoprecipitated with ANO1 in pulldown assays. Confocal imaging experiments supported the notion of colocalization of the ANO1-Ca_V1.2 and ANO1-IP₃R protein pairs at or near the PM. Superresolution fluorescence nanomicroscopy (d-STORM) experiments in both epifluorescence and TIRF modes confirmed that some areas of the PM exhibit a high degree of correlation between ANO1 and Ca_V1.2 with many clusters showing the nearest neighbor distribution within a few tens of nanometers. This was also observed for ANO1-IP₃R protein pairs albeit to a lesser degree than for ANO1 and Ca_V1.2, which is to be expected considering that IP₃R are intracellular proteins located in the SR, but with some segments of this organelle making close contacts (∼50 nm or less) with certain areas of the PM, i.e., SR/PM junctions, to fulfill highly localized functions (e.g., amplified or attenuated signal transduction, superficial buffer barrier function, SOCE; Chen et al., 1992; van Breemen et al., 1995; Janssen et al., 1999; Jaggar et al., 2000; Liao et al., 2008, 2009; McElroy et al., 2008; Lee et al., 2010; Madl et al., 2010; Wang et al., 2017). An analysis of randomized distributions of the same fluorescent particles led to a doubling or more of the distance between the nearest neighbor pairs. Finally, cluster size distributions of the protein pairs, i.e., ANO1/Ca_V1.2 and ANO1/IP₃R were also remarkably similar, suggesting that the three proteins were colocalized in the same super clusters and overlapped. Triple labeling would have been ideal but could not be performed because the antibodies used to immunolabel Ca_V1.2 and IP₃R were both from a mouse, which would have required the choice and validation of another antibody for one of the two species. Nevertheless, these results suggest that the molecular assembly of the ANO1 PM/SR nanodomain is a coordinated process leading to a unique physical association between the three ion channel proteins that are designed to amplify local Ca²⁺ signaling for optimal development of force.

A tight physical coupling between ANO1, IP₃R, and G-protein coupled receptors (GPCR; type 2 bradykinin and protease-activated receptor-2 receptors) was shown to play a key role in driving Ca²⁺ signaling of small nociceptive neurons of dorsal root ganglia (Jin et al., 2013). Unlike PASMCs, Ca²⁺ entry through VGCC was unable to activate ANO1 in this system. In contrast, ANO1 was robustly stimulated by Ca²⁺ transients triggered by GPCR-mediated Ca²⁺ mobilization through IP₃R in portions of the endoplasmic reticulum making close contacts with caveolae within the PM indicating highly compartmentalized signaling. Evidence for a physical interaction between ANO1 and members of the canonical (TRPC) and vallinoid (TRPV) subfamilies of the transient receptor potential superfamily of cation channels was also reported in different cell types. Noxious stimuli such as capsaicin trigger repetitive action potential firing in sensory neurons through a specific interaction between localized Ca²⁺ entry through TRPV1 and ANO1-induced membrane depolarization (Takayama et al., 2015; Shah et al., 2020), a process amplified by ER Ca²⁺ release (Shah et al., 2020). Proximity ligation assays and superresolution microscopy established that ANO1, TRPV1, and type 1 IP₃R were closely associated with each other. In the apical membrane of choroid plexus epithelial cells, ANO1 physically and functionally interacts with TRPV4 to promote water efflux and maintain fluid drainage and cerebral spinal fluid movement in the brain. A similar scenario was proposed for saliva and tear production by exocrine acinar cells of the salivary and lacrimal glands (Derouiche et al., 2018). A physical association between ANO1 and TRPC6 was suggested to amplify the vasoconstriction produced by the specific TRPC6 agonist, Hyp9, in cerebral artery myocytes (Wang et al., 2016).

These examples highlight how specific ion channels are assembled in membrane nanodomains devised to produce optimal localized Ca²⁺ signaling that is unique to each cell’s specific function. In the case of PASMCs, the molecular arrangement of ANO1, Ca_V1.2, and IP₃R appears to be geared toward supporting the generation and maintenance of intracellular Ca²⁺ waves initiated by Ca²⁺ release through IP₃R and propagated along the cell length by Ca²⁺-induced Ca²⁺ release or CICR (Berridge et al., 2000; Berridge, 2009). Although our data suggest that only a few “triggering” sites appear to exist in each cell involving a few superclusters of ANO1-Ca_V1.2-IP₃R protein partners, a hypothesis supported by both our Ca²⁺ signaling and structural data, this hypothesis will require further testing with live-cell imaging experiments performed at higher temporal and spatial resolution. In an effort to partially address this question, PASMCs and tissues were exposed to MβCD to disrupt lipid rafts and caveolae, in particular (Rodal et al., 1999; Zidovetzki and Levitan, 2007; Patel et al., 2008). This protocol eradicated the superclusters and promoted an internalization of ANO1 and Ca_V1.2 that led to a similar decrease in force and Ca²⁺ signaling in response to 5-HT to that produced by blocking ANO1 or Ca_V1.2 pharmacologically or genetically. In contrast, the contraction mediated by high external K⁺ was unaffected, which indicated that the MβCD treatment did not diminish the ability of the muscle to contract to a depolarizing stimulus leading to activation of Ca_V1.2, which is similar to that reported by Schach et al. (2008) in rat PA stimulated with phenylephrine. Moreover, membrane cholesterol depletion with MβCD enhanced ANO1 current in murine portal vein myocytes (Sones et al., 2010) and ANO1 expressed in HEK-293 cells (De Jesús-Pérez et al., 2018). Despite significant internalization of the two proteins following MβCD treatment, they are still present in sufficient amounts in the PM to support voltage-gated Ca²⁺ entry through Ca_V1.2 and ANO1 channel activity. Taken together, these observations suggest that the reduced EC coupling seen with MβCD was likely not linked to a reduction in PM ion channel activity but rather a destruction of their compartmentalized organization. However, we have to remain cautious when interpreting these results because membrane cholesterol depletion will have many more significant effects on other important signaling molecules such as the 5-HT receptors, G-proteins, and scaffolding proteins that may have coincidently led to the effects observed. Therefore, identifying the unique structural proteins involved in tethering ANO1-Ca_V1.2 in specific areas of the PM making close contact with IP₃R within superficial elements of the SR (e.g., junctophilin-2 [Pritchard et al., 2019], stromal interaction molecules 1 and 2 [STIM1/2; Sallinger et al., 2023]), and how they influence localized Ca²⁺ signaling will be key to support this hypothesis. It is fair to conclude from our results that the global working model of a simple uniformly distributed positive feedback loop between Ca²⁺ entry through Ca_V1.2- and ANO1-mediated membrane depolarization (Fig. 12 A) is too simplistic. It needs to be replaced by a compartmentalized model of agonist-mediated EC coupling that involves discrete membrane domains favoring amplification of Ca²⁺ signals originating primarily from IP₃R in the SR, likely with the aid of closely juxtaposed ANO1 and Ca_V1.2 (Fig. 12 B), whose specific function(s) will require further investigation.

Another major goal of the present study was to determine the true contribution of CaCC and ANO1 to the 5-HT-induced contraction using a genetic approach and use this strategy to validate the activity of one of the newer generations of ANO1 blockers. Two distinct smooth muscle-specific and inducible ANO1 knockout mice produced similar effects on the 5-HT-mediated contraction (∼50–60% inhibition at higher 5-HT concentrations), which quantitatively mirrored those produced by the ANO1 blocker CaCC_Inh-A01 in pulmonary arteries from wild-type mice. These results are similar to the reported inhibition by niflumic acid and nifedipine (both produced 35% inhibition) of the contraction to endothelin-1 of rat pulmonary arteries (Hyvelin et al., 1998). The concentration–response relationships to 5-HT in PA from wild-type mice and SMC-ANO1-KO-^ΔEx12 mice injected with vehicle (Control) were also quantitatively similar. In both transgenic mouse models used in the present study, induction of Cre recombinase for a minimum of 50 d after TMX injections led to a robust reduction in mRNA levels (>75%). The level of ANO1 knockdown detected by qRT-PCR in vascular smooth muscle from SMC-ANO1-KO-^ΔEx5/6 mice was similar to that reported for mouse collecting lymphatic vessels (Zawieja et al., 2019) and hindlimb arteries (Leo et al., 2021). Although we were unable to detect ANO1 protein by Western blot in total lysates from mouse pulmonary arteries, a band corresponding to the expected monomeric form of ANO1 (∼110 kD) was successfully identified by Western blot after amplification through immunoprecipitation with the same ANO1 antibody used in Western blot assays from total protein lysates; this suggests that the protein is expressed in low abundance in this tissue under physiological conditions. The suppression of CaCC in PASMCs from SMC-ANO1-KO-^ΔEx12 mice confirmed that protein levels were potently downregulated following TMX induction of Cre recombinase. This is comparable to that reported in aortic smooth muscle cells from another TMX-inducible and smooth muscle-specific ANO1 knockout mouse model of which loxP sites flanked exon 21 (Heinze et al., 2014). Knockdown of ANO1 in this model lowered the blood pressure and attenuated the hypertensive effect of angiotensin II infusion, but not that produced by a high-salt diet. In our study, the tight correlation between the effects of CaCC_Inh-A01 in wild-type mice and genetic deletion of ANO1 in SMC-ANO1-KO mice, combined with a lack of effect of the compound in PA from the latter animals, support the notion that CaCC_Inh-A01 specifically targeted ANO1 and probably led to membrane hyperpolarization as was previously shown for the classical CaCC blocker niflumic acid in rat pulmonary arterial smooth muscle (Yuan, 1997). The conclusion is also supported by evidence showing that the compound exerted no influence on the contraction associated with high K⁺-mediated membrane depolarization and Ca²⁺ entry through VGCC, which contrasted with the potent inhibitory effects of the Ca_V1.2 inhibitor nifedipine. It is important to mention that a recent study showed that CaCC_Inh-A01 inhibited Ca²⁺ release from internal stores in various cell types, presumably by blocking IP₃Rs (Genovese et al., 2023). Although such an effect was seen at a higher concentration than that used in this study, we cannot rule out that a component of the inhibition exerted by CaCCInh-A01 on the contraction and Ca²⁺ oscillations triggered by 5-HT might be attributable to the block of IP₃Rs, and more experiments are required to clarify this potential caveat. Our results are also at odds with those of Boedtkjer et al. (2015) who reported that CaCC_Inh-A01 concentration dependently inhibited the contraction of mouse mesenteric arteries to norepinephrine or U46619 in a manner that was independent of the Cl⁻ gradient across the membrane, therefore questioning the role of CaCC and ANO1 in agonist-mediated contractions. Similar conclusions were drawn by the same group for T16A_Inh-A01 and MONNA, two other newer generation CaCC inhibitors, but not supported by a more recent study in rat coronary artery smooth muscle (Askew Page et al., 2019). It is unclear if differences in experimental conditions or the use of different preparations were responsible for these apparent discrepancies, but additional experiments are necessary to reconcile these findings. Albeit smaller, a significant fraction of the contraction to 5-HT remained when either one of ANO1, Ca_V1.2, or SR Ca²⁺ release was inhibited. This contraction component may be attributed to one or more signaling pathways including receptor- (ROCE; Lin et al., 2004; Remillard and Yuan, 2006; Yamamura et al., 2011; Xia et al., 2014; Leblanc et al., 2015) or store-operated (SOCE; Lin et al., 2004; Remillard and Yuan, 2006; Ogawa et al., 2009; Forrest et al., 2010; Song et al., 2011; Yamamura et al., 2011; Liu et al., 2012; Ogawa et al., 2012; Leblanc et al., 2015; Wang et al., 2017) Ca²⁺ entry, or enhanced Ca²⁺ sensitivity of the contractile machinery due to engagement of the small RhoA/Rho kinases (Jernigan et al., 2004; Nagaoka et al., 2004; Broughton et al., 2008; Guilluy et al., 2009). This contraction component was not investigated in this study.

In conclusion, we provide novel functional and structural information unraveling a key role for ANO1 in determining a large component of the contraction of mouse PASMCs to the agonist serotonin. Although the detailed molecular mechanism still remains to be determined, our data support the hypothesis postulating that ANO1 works in concert with Ca_V1.2 in the PM to promote the initiation and maintenance of Ca²⁺ waves originating from Ca²⁺ mobilization from IP₃-dependent SR Ca²⁺ stores that cyclically spread along the main cell axis orientation to maintain force production. Consistent with this hypothesis was the demonstration of a close physical association of ANO1 with both Ca_V1.2 and IP₃R. This molecular microenvironment favors localized Ca²⁺ entry through Ca_V1.2 that stimulates membrane depolarization by neighboring ANO1, which may potentially serve an important role in repleting Ca²⁺ stores and lowering the threshold for stimulation of IP₃R by IP₃ and cytoplasmic Ca²⁺. These results establish a mechanistic foundation that will assist in delineating in the future how increased ANO1 expression and function in PH (Forrest et al., 2012; Sun et al., 2012; Papp et al., 2019) leads to enhanced vasoconstriction and perhaps remodeling of smooth muscle cells in this disease.
