Biosynthesis of macromolecules requires precursors such as sugars or amino acids, originating from exogenous/dietary sources, reutilization/salvage of degraded molecules, or de novo synthesis. Since these sources are assumed to contribute to one homogenous pool, their individual contributions are often overlooked. Protein glycosylation uses monosaccharides from all the above sources to produce nucleotide sugars required to assemble hundreds of distinct glycans. Here, we demonstrate that cells identify the origin/heritage of the monosaccharide, fucose, for glycosylation. We measured the contribution of GDP-fucose from each of these sources for glycan synthesis and found that different fucosyltransferases, individual glycoproteins, and linkage-specific fucose residues identify and select different GDP-fucose pools dependent on their heritage. This supports the hypothesis that GDP-fucose exists in multiple, distinct pools, not as a single homogenous pool. The selection is tightly regulated since the overall pool size remains constant. We present novel perspectives on monosaccharide metabolism, which may have a general applicability.
Biosynthesis of macromolecules requires precursors such as sugars or amino acids, which are derived alternatively from the diet (exogenous precursors) via reutilization (salvage) of degraded molecules or by de novo synthesis. Often, salvaged and exogenous precursors are thought to intermingle and are treated as homogenous sources, but it is important to emphasize that these two pathways must be considered separately. Exogenous molecules originate from the diet and enter the cell via specific transporter(s) as single molecules, while salvaged precursors are recycled from macromolecules following their lysosomal or proteasomal degradation. The common assumption is that the heritage of these precursors is of little importance since they contribute to a common, homogenous pool intended for different cellular processes.
Monosaccharides are used by cells to produce energy and for the synthesis of macromolecules. Glycosylation is the process by which carbohydrates are covalently attached to a target macromolecule utilizing monosaccharides from varying sources to produce nucleotide sugars, substrates that are further used to assemble distinct glycans (Varki et al., 2015). Under physiological concentrations, a detailed analysis of mannose metabolism in human fibroblasts demonstrated that neither gluconeogenesis, glycogen, nor mannose salvaged from glycoprotein degradation contributed to mannose found in N-glycans. In contrast, cells efficiently use exogenous mannose for N-glycan biosynthesis (Ichikawa et al., 2014). How cells determine which portion of a monosaccharide pool is directly incorporated into glycans and which fraction is utilized for other cellular processes, i.e., as an energy source, remains unknown. Although efforts have been made to study how these different pathways contribute to nucleotide sugar biosynthesis, they were never investigated simultaneously. Does glycosylation recognize the heritage of the monosaccharide? If yes, how is this regulated? We believe these questions are significant because dietary monosaccharide supplements are successful therapies for some disorders of glycosylation (Verheijen et al., 2020) and even for cancer (Gonzalez et al., 2018).
In humans, fucose is incorporated into glycans using GDP-fucose as a nucleotide sugar donor (Schneider et al., 2017). It can be synthesized directly from exogenous fucose (fucoseEx) or from fucose salvaged from glycoprotein degradation (fucoseSal; Coffey et al., 1964; Kaufman and Ginsburg, 1968). Both require subsequent actions of fucokinase (FCSK) and fucose-1-phosphate guanylytransferase (FPGT) to “activate” fucose (Ishihara et al., 1968). Alternatively, GDP-fucose can be produced de novo from either mannose (fucoseMan) or glucose (fucoseGlc). In this process, GDP-mannose is converted to GDP-fucose in a three-step reaction catalyzed by two enzymes—GDP-mannose 4,6-dehydratase (GMDS) and GDP-fucose synthetase (GFUS; Ginsburg, 1960; Fig. 1 A). In 1975, isotope-dilution studies using 3H-fucose at a single concentration of 0.3 μM demonstrated that only ∼10% of GDP-fucose in HeLa cells originated from fucoseEx, while ∼90% was assumed to be synthesized de novo (Yurchenco and Atkinson, 1975; Yurchenco and Atkinson, 1977). This method assumed that the radiolabeled component is a metabolic tracer, making little contribution to the overall products. The contribution of fucoseSal (or other monosaccharides) was never addressed.
GDP-fucose incorporation into glycoconjugates requires its delivery into the Golgi apparatus and ER. This process is mediated by two nucleotide sugar transporters, one of them is the major provider of the Golgi GDP-fucose, while the other delivers this nucleotide sugar to the ER (Lu et al., 2010; Lühn et al., 2001). In humans, there are 13 known fucosyltransferases (FUTs), which mostly localize to the Golgi, where they are engaged in fucosylation of N- and O-glycans, as well as glycolipids (Schneider et al., 2017). Although many of them have overlapping substrate specificities, there is only one enzyme, FUT8, that adds α1-6 fucose to the N-glycan chitobiose core (Yang and Wang, 2016). There are two known FUTs localized to the ER, and they add O-fucose directly to Ser/Thr residues of distinct glycoproteins (Schneider et al., 2017).
Using fucose as a model monosaccharide, we evaluated the simultaneous contributions of exogenous, salvaged, and de novo–produced fucose to glycosylation. At physiological levels of exogenous monosaccharides, our results show that cells can tightly regulate multiple pools of GDP-fucose and can recognize their heritage for glycan synthesis.
Cells selectively utilize fucose from different sources
We measured the relative contribution of fucoseEx and fucose from the de novo pathway by incubating cells with differentially labeled 13C-monosaccharides. N-glycan-associated fucose synthesized from exogenous glucose (5 mM), mannose (50 μM), and directly from fucose (0–50 μM) was determined following acid hydrolysis and analysis by GC-MS (Fig. S1, A–C). Their contributions are assumed to reflect their abundance in the GDP-fucose pool since it is the only known source for glycan synthesis. Using this GC-MS method, we repeated the HeLa cell experiments (Yurchenco and Atkinson, 1975; Yurchenco and Atkinson, 1977) and confirmed the dominant role of the de novo pathway at very low fucose concentration ≤2.5 μM. In the absence of fucoseEx ∼five times more N-glycan-associated fucose originates from 13C-glucose than from 13C-mannose (Fig. 1, B and C; and Fig. S1 D). Since the physiological concentration of mannose (50 μM) is ∼100 times less than glucose (5 mM), mannose is utilized more efficiently for fucosylation compared to glucose, as previously seen for mannose in N-glycans (Ichikawa et al., 2014). However, GDP-fucose produced by the de novo pathway is completely suppressed by fucoseEx, which becomes the major source of N-glycan-associated fucose, when it is added to ∼30–50 μM (Fig. 1, B and C). The same pattern was seen in nine different cell lines of varying tissue origin (Fig. 1, B and C; and Fig. S1 D). To eliminate possible kinetic isotope effects, we exchanged the number and location of 13C carbons between glucose, mannose, and fucose, but the results remained unchanged (Fig. 1 B and Fig. S1 F). Labeling time (12 and 48 h) did not affect our results either (Fig. 1 B and Fig. S1 H).
The preference for fucoseEx might be explained by an increase in the total GDP-fucose pool. Therefore, we isolated nucleotide sugars from HepG2, Huh7, and CHO cells grown in the absence or presence of 50 μM fucose and demonstrated that the treatment does not increase the total cytosolic concentration of GDP-fucose (Fig. 1 D and Fig. S2). Therefore, it appears that GDP-fucose originating from fucoseEx suppresses de novo GDP-fucose synthesis. The most likely explanation is the known feedback inhibition of the de novo pathway enzyme GMDS (Fig. 1 A) by GDP-fucose as previously shown for Escherichia coli and human enzymes (Kornfeld and Ginsburg, 1966; Sullivan et al., 1998).
The ratio of glucose to mannose contributions to N-glycan-associated mannose varies from 5:1 to 3:1 between different cell lines (Ichikawa et al., 2014). This ratio does not change upon fucoseEx titration (Fig. S3). Therefore, we expected that this would also be true for their contribution to N-glycan-associated fucose. However, the contribution of fucoseGlc preferentially decreases compared to that of fucoseMan. Between 0 and 30 μM fucoseEx, the ratio changes from ∼6:1 to 3:1 in HepG2 cells (Fig. 1 E; and Fig. S1, E, G, and I). This is not compatible with a single homogenous GDP–mannose pool serving as a substrate for GMDS. Therefore, we believe there are at least two GDP–mannose pools.
Exogenous fucose has little impact on the use of salvaged fucose
To measure fucose salvage from degraded glycans, we focused on newly synthesized, secreted, and fucosylated N-glycoproteins. This approach allowed us to simultaneously study all four sources of N-glycan-associated fucose: fucoseMan, fucoseGlc, fucoseEx, and fucoseSal. To distinguish fucoseSal from fucoseEx, we first pre-labeled cells for 11 d with 13C-UL-Fucose (M+6), which replaced over 90% of 12C-fucose, before labeling with exogenous 13C-6-fucose (M+1).
To ensure that the secreted material predominantly contains newly synthesized proteins rather than those released by surface proteolysis, we pulse-labeled HepG2 cells for 2 h with S35 Met to assess total proteins and fucosylated glycoproteins (Fig. S4, A and B). To prove that secreted radioactivity comes from newly synthesized proteins and not from the material detaching from the cells, we used brefeldin A (BFA), an inhibitor of vesicle membrane trafficking (Helms and Rothman, 1992). Treatment with BFA almost completely prevented the secretion of fucosylated proteins, confirming applicability of the designed approach (Fig. S4 B). In addition, we demonstrated that after ∼2 h, all the labeled material is secreted (Fig. S4 B). This was further confirmed by analyzing the secretion of glycoproteins containing 3H-fucose after 2 h pulse labeling of HepG2 cells, where all the label material is secreted within ∼90 min (Fig. S4 C).
We used HepG2, Huh7, and CHO cells pre-labeled with 13C-UL-Fucose to measure the contributions of each source of fucose to secreted, fucosylated N-glycans. For both HepG2 and Huh7, the contributions of salvage and de novo pathways are comparable in the absence of fucoseEx. In contrast, CHO cells rely more heavily on the salvage pathway. As previously observed, fucoseEx quickly suppresses the de novo pathway. However, utilization of fucoseSal is much less sensitive to fucoseEx (Fig. 2, A and B).
We found that fucoseMan is, once again, less sensitive to fucoseEx than fucoseGlc. FucoseSal is treated differently; its contribution changes very little, i.e., decreases only by 10–40% when exposed to fucoseEx (Fig. 2 C). This confirms that cells can distinguish and preferentially incorporate GDP-fucose of one heritage over another. This is compatible with the existence of separate GDP-fucose pools in the cytoplasm.
Fucose linkage drives the selectivity between different GDP-fucose pools
We investigated the utilization of different GDP-fucose sources in N-glycosylation by first analyzing the contribution of fucoseEx to N-glycans with one and two fucose residues. In N-glycans with a single fucose, this monosaccharide is predominantly attached to the chitobiose core as α1-6 fucose and is referred to as core fucosylation. Only one fucose residue can be attached to the chitobiose core; all others must reside on N-glycan antennae, which is linked to N-acetylglucosamine via α1-3 or α1-4 linkage or to galactose via α1-2 linkage.
First, we compared the incorporation efficiency of exogenous 13C-UL-fucose to 12C-fucose that originated from endogenous sources i.e., salvage or de novo pathway (fucoseEndo) using NanoHPLC Chip-Q-TOF MS (Park et al., 2017; Song et al., 2015; Wong et al., 2020). We investigated the labeling pattern of a series of 9–45 different bifucosylated N-glycans (the number varied depending on the cell line). Since each of these N-glycans must have two fucose residues it can either incorporate two residues of 12C-fucose (M+0), two residues of 13C-UL-fucose (M+12), or one of each (M+6). We expected an increase in label incorporation that is proportional to fucoseEx concentration.
We labeled seven different cell lines with increasing concentrations of exogenous 13C-UL-Fucose for 24 h and analyzed the N-glycans produced by these cells. As expected, we observed a dose-dependent incorporation of 13C-UL-Fucose into N-glycans with a single fucose residue until we reached a plateau and then maximized the incorporation of fucoseEx by 24 h (Fig. 3 A and Fig. S4 D). Unexpectedly, for those N-glycans with two fucoses, the first fucose, which we believe is predominantly the core fucose, requires less fucoseEx to become labeled than the second one. At low fucoseEx concentration (0–10 μM), the first fucose residue originates from fucoseEx, while the second uses fucoseEndo. Replacing both 12C-fucoses with 13C-UL-Fucose requires more accessible fucoseEx (Fig. 3 A and Fig. S4 D). This suggests fucose in different linkages and added by various fucosyltransferases, localized in different Golgi compartments, relies on distinct GDP-fucose pools. These results are incompatible with a single, homogenous GDP-fucose pool in the cytoplasm, further confirming our hypothesis.
Next, we used lectins that specifically recognize fucose in different linkages: LCA recognizes α1-6 fucose (core), LTL recognizes α1-3 and α1-4 fucose, UEAI recognizes α1-2 fucose, and AAL recognizes all these linkages with variable efficiencies. We analyzed the incorporation of fucoseEx into different positions in glycans using cells with chemically or genetically inactivated de novo pathways (see Materials and methods). We chose the cell lines HepG2, CaCo2, HCT116, HEK293, and the CHO mutant Lec30 as they exhibited high binding to LTL and/or UEAI. Once again, we found that α1-6 fucose (chitobiose core) requires less fucoseEx to become maximally labeled than α1-2, α1-3, and α1-4 fucose (antennae; Fig. 3, B and C), confirming the results of the above 13C-UL-Fucose labeling experiments.
A limitation of the lectin-based approach is that it requires inhibition of the de novo pathway and only focuses on fucoseEx utilization. Therefore, we searched for alternative methods to assess the incorporation of fucoseEx into different positions of N-glycans by using cells with a functional de novo pathway. First, we used GC-MS to compare the incorporation of 13C-UL-fucoseEx into N-glycans produced by CHO and CHO-Lec30 cells as well as Huh7 and Huh7 FUT8 knock-out cells. FUT8 is the only fucosyltransferase capable of adding fucose to the chitobiose core of N-glycans (Yang and Wang, 2016) and is the only fucosyltransferase adding fucose to N-glycans, which is expressed in wild-type CHO cells. CHO-Lec30 is a gain-of-function mutant cell line that additionally expresses FUT4 and FUT9 that fucosylates N-glycan antennae (North et al., 2010; Patnaik and Stanley, 2006). If all fucosyltransferases had similar access to different GDP-fucose sources, CHO-Lec30 and Huh7 FUT8 knock-out cells would incorporate comparable amounts of fucoseEx to wild-type CHO and Huh7 cells, respectively. However, we found that both CHO-Lec30 and Huh7 FUT8 knock-out cells rely on fucoseEndo much more than wild-type CHO and Huh7 respectively, which incorporated significantly higher amounts of fucoseEx into their N-glycans (Fig. 3, D and E). This supports our hypothesis on distinct preferences between different GDP-fucose sources among various fucosyltransferases. It also shows that the efficient incorporation of fucoseEx into the N-glycan chitobiose core is not due to FUT8 having better access to GDP-fucose than other fucosyltransferases that modify the N-glycan antennae.
To confirm linkage specificity, we used an LC-MS approach to analyze N-glycans released from HepG2-secreted proteins labeled with exogenous 13C-UL-Fucose (Fig. S5). Among all applied approaches, this is the only method that allowed us to directly investigate fucose linkage. Analysis of the three most abundant secreted N-glycans with a single α1-6 fucose showed a similar trend in fucoseEx incorporation compared to cell-associated material analyzed with NanoHPLC Chip-Q-TOF MS (Fig. 4 A and Fig. 3 A). The same was true when we assessed the incorporation of fucoseEx into the two most abundant N-glycans with two fucoses, where the first fucose requires less fucoseEx to become labeled compared to the second one (Fig. 4 A). To investigate which fucose residue is preferentially labeled with fucoseEx, we performed the MS/MS analysis of bifucosylated N-glycans, which only incorporated a single molecule of fucoseEx (Fig. S5). This allowed us to compare the positions where 13C-fucoseEx and 12C-fucoseEndo are incorporated in N-glycans, determining if there is any preference toward the incorporation of either of them into N-glycan chitobiose core vs. antennae. If there was an equal preference for incorporating fucoseEx to N-glycan core and antennae, there would be a similar distribution of 13C-labeled between both fragments of N-glycan. However, we found that fucoseEx is more efficiently incorporated into the chitobiose core, while fucoseEndo is preferentially incorporated into the antennae (Fig. 4, B and C). Altogether, this again confirms preferential utilization of GDP-fucose originating from the fucoseEx by FUT8, while fucoseEndo is used by fucosyltransferases located in the trans-Golgi to modify N-glycan antennae.
Different glycoprotein acceptors rely on distinct GDP-fucose sources

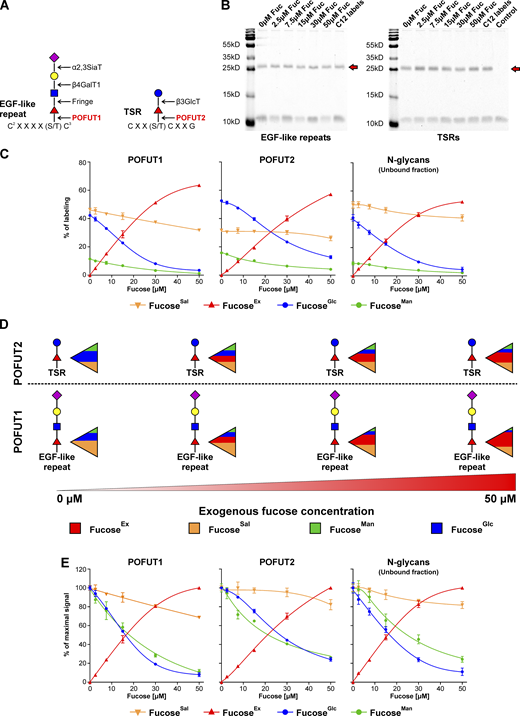

Next, we characterized the contribution of different GDP-fucose sources into O-fucosylation of epidermal growth factor (EGF)-like repeats and ThromboSpondin type 1 Repeats (TSRs), which occur in the ER and are performed by GDP-fucose protein O-fucosyltransferases (POFUTs). The former reaction is catalyzed by POFUT1, while the latter by POFUT2 (Fig. 5 A). Both enzymes catalyze chemically identical reactions and only differ in recognized acceptors/glycoproteins. Over 100 proteins, including Notch, contain the EGF-like repeat consensus sequence required for POFUT1 O-fucosylation, and ∼50 proteins contain a TSRs consensus sequence for POFUT2 O-fucosylation (Schneider et al., 2017).
We used Huh7 cells pre-labeled with 13C-6-fucose overexpressing recombinant proteins containing either NOTCH1 EGF-like repeats 1–5, where repeats 2, 3, and 5 have a single O-fucose modification, or a recombinant protein containing thrombospondin 1 TSRs 1–3, where all three TSRs carry an O-fucose modification. These proteins were purified using affinity cobalt resin, and their purity was confirmed by SDS-PAGE (Fig. 5 B). If both POFUTs had the same access to various GDP-fucose pools, they would rely on them to a comparable extent. However, we found that POFUT1 relies more on GDP-fucose originating from a fucoseEx as well as fucoseSal, compared to POFUT2, which has a stronger preference for GDP-fucose from the de novo pathway (Fig. 5, C and D). In addition, we did not observe any difference in the sensitivity of fucoseMan and fucoseGlc to fucoseEx, in contrast to N-glycoproteins, which are fucosylated in the Golgi. For POFUT1 and POFUT2, these sources are treated comparably (Fig. 5 E). When analyzing secreted material that did not bind to the affinity cobalt resin, we found that overexpression of EGF-like repeats or TSRs does not alter the normal fucosylation of N-glycans (Fig. 5, C and E). This experiment also demonstrated that N-glycan-linked fucose relies on various GDP-fucose pools to a different extent compared to O-linked fucose. Altogether, the data show that different fucosyltransferases and various glycoproteins utilize distinct GDP-fucose sources and confirms our hypothesis on the presence of separate, non-homogenous GDP-fucose pools in the cytoplasm.
The results presented here support our hypothesis that the metabolic origin of fucose determines its use for glycosylation and suggests that GDP-fucose resides in multiple, distinct pools. We can simultaneously distinguish the contributions of exogenous, salvaged, and de novo sources to global N-glycosylation and that of individual glycoproteins. It is broadly accepted that these sources contribute to a single, homogenous pool, and little is known about the interplay between these pathways. There are multiple reports on the biosynthesis of nucleotides and lipids that compare the contribution of the de novo biosynthesis to exogenous precursors, but they never simultaneously address all biosynthetic routes (Moitra et al., 2021; Nieto et al., 2008; Wu et al., 2020; Zhang et al., 2019). In contrast, for nucleotide sugars, there is only a limited number of studies addressing this problem. In addition to the studies from the 1970s on the contributions of glucose, mannose, and exogenous fucose into GDP-fucose (Yurchenco and Atkinson, 1975; Yurchenco and Atkinson, 1977), it has been demonstrated that exogenous mannose and exogenous galactose can overcome de novo–produced GDP-mannose and UDP-galactose, respectively, when provided in sufficient concentration (Ichikawa et al., 2014; Radenkovic et al., 2019).
The pioneering studies performed in HeLa cells concluded that 90% of GDP-fucose is derived from the de novo pathway used only a single fucoseEx concentration, 0.3 μM (Yurchenco and Atkinson, 1975; Yurchenco and Atkinson, 1977). In dose-response experiments, we showed that fucoseEx is the preferential source of N-glycan-associated fucose, gradually suppressing the de novo pathway without increasing the total cytoplasmic concentration of GDP-fucose. It agrees with previous experiments in HepB3 cells showing that 100 μM fucoseEx does not increase GDP-fucose (Moriwaki et al., 2007). Suppression of the de novo pathway is likely due to feedback inhibition of GMDS with GDP-fucose, previously shown for E. coli and human enzymes (Kornfeld and Ginsburg, 1966; Sullivan et al., 1998). We also looked at the contribution of fucoseMan and fucoseGlc in N-glycan-associated fucose. Since increasing concentrations of fucoseEx do not affect glucose and mannose contribution in N-glycan-associated mannose, we would expect that fucoseEx affects them equally. However, that is not the case, and we observe that fucoseMan is less sensitive to fucoseEx than fucoseGlc. It indicates that different, non-homogenous pools of both GDP-fucose and GDP-mannose may exist in the cytoplasm. Since the overall size of the GDP-fucose pool remains constant, the (presumably) separate pools must be in communication. While this may be driven by changes in subcellular distribution of the biosynthetic enzymes, clearly, feedback inhibition of GMDS by GDP-fucose must be the mechanism.
Little is known about monosaccharides salvage since most studies equate it with an exogenous substrate. Analysis of N-acetylneuraminic acid (Neu5Ac) recycling using cells from individuals with Salla disease (Aula et al., 2000), which characterize it with dysfunctional SLC17A5 lysosomal transporter and are unable to recycle Neu5Ac (Ghosaini et al., 1988), demonstrated the importance of this process in sialylation (Chigorno et al., 1996). A single study using a lysosomal inhibitor NH4Cl acidifying lysosomal lumen and causing a dysfunction of glycosydases demonstrated that N-acetylglucosamine (GlcNAc) and N-acetylgalactosamine (GalNAc) are also efficiently reutilized from glycoconjugates (Rome and Hill, 1986). We investigated the contribution of fucoseSal into fucosylation, while simultaneously analyzing its interplay with other GDP-fucose sources. In the absence of fucoseEx, ∼50% of N-glycan-associated fucose originated from fucoseSal and another ∼50% came from the de novo pathway. In contrast to the de novo pathway, salvage is almost completely insensitive to fucoseEx, and its contribution is hardly changed by increasing fucoseEx concentrations. Since the total cytoplasmic concentration of GDP-fucose does not change much upon the exposition to fucoseEx, there has to be a mechanism regulating the contribution of fucoseSal. However, further studies are needed to understand how fucoseEx selectively inhibits the salvage pathway as both sources of GDP-fucose utilize the same biosynthetic machinery. To our knowledge, our study is the first to define and quantify the contributions of exogenous vs. salvaged monosaccharides, so there are no reliable precedents. Huh7 and HepG2 are professional secretory cells, sending a substantial portion of newly synthesized glycoproteins into the plasma. By comparison, CHO cells secrete much less glycoprotein and are likely engineered to preferentially recycle fucose.
Fucosylation of N-glycan chitobiose core is catalyzed by FUT8 and occurs in the early medial-Golgi (Stanley, 2011), while antenna fucosylation happens in the trans-Golgi as well as trans-Golgi network (Brito et al., 2008; Buffone et al., 2013; Sousa et al., 2004). FucoseEx is more efficiently incorporated into the N-glycans chitobiose core than into antenna. Since the addition of fucoseEx does not change the size of GDP-fucose pools, this observation cannot be explained by differences in a Km between distinct fucosyltransferases. Analysis of FUT8 knock-out cells disproves that the preference of fucoseEx by FUT8 is simply due to its utilization of the GDP-fucose pool before it becomes accessible to other fucosyltransferases (i.e., FUT4, FUT9). If that were true, elimination of FUT8 would make the GDP-fucose originating from fucoseEx more accessible to other fucosyltransferases. Instead, it decreases the overall utilization of fucoseEx. We believe that separate Golgi compartments have different access to various GDP-fucose pools.
In the ER, POFUT1 and POFUT2 add a single O-fucose residue to EGF-like repeats and TSRs, respectively (Schneider et al., 2017). O-fucosylation of a disintegrin and metalloproteinase with thrombospondin motifs (ADAMTS) proteins performed by POFUT2 is required for their secretion as it was shown for ADAMTS9, ADAMTS13, and ADAMTS20 (Benz et al., 2016; Holdener et al., 2019; Ricketts et al., 2007). O-fucosylation of Notch, conducted by POFUT1, is required for the activation of Notch by its ligand (Shi and Stanley, 2003). This shows the importance of O-fucosylation in a variety of biological processes. We looked at the utilization of various GDP-fucose pools by POFUT1 and POFUT2, demonstrating that POFUT1 exhibits a significantly higher preference toward the exogenous and salvaged substrate and POFUT2 more efficiently utilizes de novo–produced GDP-fucose. It indicates that fucosyltransferases for O-glycans are located outside the Golgi, and modifying distinct glycoproteins also relies on separate GDP-fucose pools. The only possible explanation for this observation is the existence of separate, non-homogenous GDP-fucose pools in the cytoplasm. It is highly probable that the ER and Golgi have differential access to the GDP-fucose originating from various sources. This would also be true in the case of distinct Golgi stacks as we observe that FUT8, located in the early medial Golgi, has a stronger preference toward fucoseEx compared to the fucosyltransferases occupying trans Golgi stacks. Altogether, it suggests that different GDP-fucose pools are accessible to the ER, medial Golgi, and trans Golgi. How separate pools would be generated and maintained in the cells remains unclear. We do not believe that they are separated from each other through their allocation inside a membrane-delimited structure. Our hypothesis is that monosaccharides have distinct ways of cell entry and handling within the cell, contributing to the GDP-fucose pool segregation. Furthermore, each pathway utilizes various enzymes for GDP-fucose biosynthesis that could support nucleotide sugar segregation. In this scenario, each pool exists due to an increase in local GDP-fucose concentration and is variably accessible to a limited number of fucosyltransferases and protein acceptors. We suggest that GDP-fucose biosynthetic enzymes form functional complexes, and their association, as well as their subcellular distribution is influenced by fucoseEx concentration. However, it is unclear how it could regulate this process and it is important to point out that non-homogeneous GDP-fucose pools remain hypothetical.
Directly visualizing multiple intracellular GDP-fucose pools in living cells that show real-time responses to metabolic perturbations would certainly strengthen our claims. We have considered various indirect approaches, such as designing highly specific GDP-fucose sensors similar to that described for UDP-GlcNAc (Li et al., 2021) that show spatial responses to alterations of exogenous or salvaged fucose. Similar metabolic perturbations might also affect the distribution/association of their biosynthetic enzymes visualized by Förster resonance energy transfer (FRET) or proximity ligation analysis. This may indicate whether spatial and/or kinetic factors predominate.
A study on exogenous N-azidoacetylglucosamine (GlcNAz) incorporation into N-glycans showed that this GlcNAc analog is efficiently added into the antennae, but not into the chitobiose core (Shajahan et al., 2020). The former process occurs in the Golgi and the latter in the ER membrane. It may suggest that there is a preference for one source of UDP-GlcNAc over the other during different stages of N-glycan biosynthesis. The other possible explanation is that different GlcNAc transferases may have various preferences toward UDP-GlcNAc and UDP-GlcNAz. Recent studies on glycogen metabolism in the brain demonstrated that it serves as a reservoir for multiple glycoconjugates. Disruption of its metabolism causes a global decrease in free pools of UDP-GlcNAc and N-glycosylation (Sun et al., 2021). These studies are consistent with our proposed model of distinct pools of the same nucleotide sugar existing in the cytosol, where one pool is preferred over another by different glycosyltransferases.
To summarize, we presented a novel concept of selective utilization of different monosaccharide sources using fucose as a model sugar. Our research can only be explained by separate, non-homogenous pools of nucleotide sugars in the cytoplasm, and each makes a specific contribution to glycosylation processes. Various glycoproteins and distinct glycosyltransferases rely on different nucleotide sugar pools, and this selectivity is regulated by the access of exogenous/dietary monosaccharides. However, further efforts are required to explain how such pools are formed and sustained. We think that it is worthwhile to expand this concept beyond glycosylation and verify it for other metabolic precursors.
Materials and methods
HepG2, Huh7, HEK293, HeLa, HCT116, CaCo2, and A549 (ATCC) cells were grown in complete 1 g/l (5.5 mM) glucose containing Dulbecco’s modified Eagle’s medium (Corning) supplemented with 10% heat-inactivated fetal bovine serum (Sigma-Aldrich), 100 U/ml penicillin and 10 mg/ml streptomycin (GIBCO), and 2 mM L-glutamine. CHO, CHO-Lec13, and CHO-Lec30 were grown in complete Ham’s F-12K (Kaighan’s) medium with 7 mM glucose (Corning) supplemented with 10% heat-inactivated fetal bovine serum, 100 U/ml penicillin and 10 mg/ml streptomycin, and 2 mM L-glutamine. For metabolic labeling purposes, cells were grown in glucose-free Dulbecco’s modified Eagle’s medium (Gibco) supplemented with 5 mM glucose, 50 μM mannose, and 0–50 μM fucose, 10% heat-inactivated fetal bovine serum, 100 U/ml penicillin and 10 mg/ml streptomycin, and 2 mM L-glutamine. Glucose, mannose, and fucose were variously replaced with equimolar 13C substrates as noted in the next section. In the case of CHO, CHO-Lec13, and CHO-Lec30 labeling medium was additionally supplemented with 0.6 mM L-proline as these cell lines are auxotrophic for proline. Studies on secreted N-glycans or glycoproteins were performed using cells growning in a serum-free medium.
To analyze the contribution of different monosaccharides to glycosylation, cells were grown in different combinations of 13C-glucose, 13C-mannose, and 13C-fucose. In each experiment, the number of heavy carbons varied between glucose, mannose, and fucose substrates. The following sugars were used in this study: 13C-5-glucose (M+1), 13C-1,2-glucose (M+2), 13C-UL-glucose (M+6), 13C-4-mannose (M+1), 13C-3,4-mannose (M+2), 13C-1,2,3-mannose (M+3), 13C-UL-mannose (M+6), 13C-6-fucose (M+1), and 13C-UL-fucose (M+6). To analyze fucose salvage, cells were pre-labeled with either 13C-6-fucose (M+1) or 13C-UL-fucose (M+6) by growing them for 11 d in a complete medium containing 50 μM 13C-fucose. This allowed for the substitution of 90–95% of N-glycan-associated fucose with 13C-fucose. To distinguish between salvaged and exogenous fucose, fucoseSal carried a different number of heavy carbons compared to fucoseEx. All 13C-labeled monosaccharides were purchased from Omicron Biochemicals.
GC-MS analysis and sample preparation
Cells were labeled with 13C-sugars for 12 h, washed twice with DPBS, scraped, and centrifuged for 3 min at 1,600 rpm. Cell pellets were sonicated in 50 mM sodium phosphate buffer, pH 7.5, containing 40 mM DTT, incubated at 100°C, cooled down, and sonicated again. PNGase F was added to the resulting cell lysate and samples were incubated overnight at 37°C. For analysis of secreted N-glycans, HepG2 cells were labeled for 6 h before collecting the medium, while Huh7 and CHO were labeled for 12 h. Serum-free medium was concentrated using 3 kD cut-off filters (Sigma-Aldrich). Next, the buffer was changed to 50 mM sodium phosphate buffer, pH 7.5, using the same filters. The concentrated medium was collected from the filters and, after addition of PNGase F, samples were incubated overnight at 37°C.
Released N-glycans were purified with TopTip 10–200 μl carbon columns (PolyLC, Inc.). All columns were prewashed using 1 × 200 μl 80% acetonitrile solution with 0.1% TFA, 1 × 200 μl 50% acetonitrile solution with 0.05% TFA, and 1 × 200 μl 3% acetonitrile solution with 0.05% TFA, followed by equilibration using 2 × 200 μl water. Each time the solution was removed from the columns by centrifuging for 5 min at 5,000 rpm. Cell samples were centrifuged for 20 min at 14,000 rpm and the resulting supernatant was loaded onto the columns. Medium samples were directly loaded onto the columns. After loading the samples, the columns were subsequently washed twice with 200 μl of water and twice with 200 μl of 3% acetonitrile solution with 0.05% TFA. Glycans were eluted with 3 × 200 μl 50% acetonitrile solution with 0.05% TFA and dried in a SpeedVac.
Dried N-glycans were hydrolyzed in 2 N TFA (Sigma Aldrich) at 100°C for 2 h to release monosaccharides, and the cooled samples were again dried in a SpeedVac. If both fucose and mannose were analyzed, the hydrolyzed sample was equally divided. Samples were stored in −20°C and derivatized immediately before GC-MS analysis.
To analyze the contribution of glucose and mannose into N-glycan-associated mannose, hydrolyzed samples were dissolved in 10 μl water and 50 μl of 50 mg/ml hydroxylamine hydrochloride (Sigma-Aldrich) in 1-methyl-imidazole (Sigma-Aldrich) was added. Samples were incubated at 80°C for 10 min. After cooling for 10 min, 100 μl of acetic anhydride (Sigma-Aldrich) was added to the samples, followed by 100 μl of chloroform (Honeywell) and subsequent addition of 200 μl of water. Samples were vigorously vortexed for 10–15 s and centrifuged for 10 min at 14,000 rpm. Next, the top layer (aqueous) was discarded and 200 μl of water was added to the organic phase. Samples were again mixed, centrifuged, and the aqueous layer was discarded. The organic layer was dried in a SpeedVac, resuspended in pyridine (Chem-Impex Int’l, Inc.), and analyzed with GC-MS. GC-MS analysis was done using a 15 m × 0.25 mm × 0.25–μm Rxi-5ms column (Restek) on a QP2010 Plus GC-MS. Detector sensitivity and m/z range were optimized for each sample set separately. Electron impact was used for MS ion fragmentation. GC-MS ion fragment intensities were quantified using GC-MS Solution version 2.5o SU3 from Shimadzu Corp. Each fragment was corrected for the natural abundance of each element using matrix-based probabilistic methods as described (Nanchen et al., 2007; van Winden et al., 2002). The contribution of glucose and mannose to mannose was calculated from the fragment m/z 314 (Ichikawa et al., 2014).
To analyze the contribution of glucose, mannose, and fucose to N-glycan-associated fucose, hydrolyzed samples were derivatized initially in 20 mg/ml pyridine solution of O-(2,3,4,5,6-Pentafluorobenzyl) hydroxylamine hydrochloride (PFBO; Alfa Aesar) and incubated for 20 min at 80°C. After cooling, an equal volume of N,O-Bis(trimethylsilyl)trifluoroacetamide (BSTFA; Sigma-Aldrich) was added, and the samples were incubated for an additional 60 min at 80°C. Derivatized samples were analyzed by GC-MS using the instrument and column described above, but with negative chemical ionization using methane as the reagent gas. The GC-MS was programmed with an injection temperature of 250°C, 2 μl injection volume, and a split ratio of 1/10. The GC oven temperature was initially 160°C for 4 min, rising to 230°C at 6°C/min, then to 280°C at 60°C/min with a final hold at this temperature for 2 min. GC flow rate with helium carrier gas was 50 cm/s. The GC-MS interface temperature was 300°C and (NCI) ion source temperature was 200°C. Detector sensitivity and m/z range were optimized for each sample set separately. The contribution of glucose, mannose, and fucose to fucose was calculated from the fragments with m/z 376 and 466 (respectively, C15H34O4NSi3—loss of pentafluorobenzene plus trimethylsilyl-OH, and C18H44O5NSi4—loss of pentafluorobenzene; Fig. S1, A–C). Same as for mannose, GC-MS ion fragment intensities were quantified using GC-MS Solution version 2.5o SU3 from Shimadzu Corp, and each fragment was corrected for the natural abundance of each element using matrix-based probabilistic methods as described (Nanchen et al., 2007; van Winden et al., 2002). To ensure the accuracy of the data analysis process, we always performed control experiments with cells growing in 5 mM 12C-glucose and 50 μM 12C-mannose and compared the isotopic distribution on M+0 to M+6 positions between 12C- and 13C-labled samples. In addition, we used HCT116 and CHO-Lec13 cells, which are GMDS null mutants that do not produce GDP-fucose de novo, and therefore do not utilize glucose or mannose for fucosylation. We did not see a significant contribution of glucose metabolism products to fucosylation.
S35 methionine/cysteine labeling
HepG2 cells seeded on 6-cm plates and at 70% confluency were washed twice with DPBS. Next, labeling complete Dulbecco’s modified Eagle’s medium without methionine (Corning) supplemented with 0.2 mCi S35 Met/ml (1,000 Ci/mmol; 3:1 mix of Met and Cys; cat #ARS 0110A; American Radiolabeled Chemicals, Inc.) was added. After 2 h of labeling, the cells were washed five times with DPBS, and the medium was replaced with serum-free medium containing 10-fold excess of cold Met (300 mg/l). The medium was collected after 0, 15, 30 min, 1, 1.5, 2, 3 or 6 h of incubation. To analyze label incorporation into proteins, 100 μl of the medium was mixed with 200 μg of bovine serum albumin. An equal volume of 20% TCA was added to each sample and incubated on ice for 20 min then centrifuged at 14,000 rpm for 15 min at 4°C. Precipitated proteins were washed twice with 1 ml of ice-cold acetone and centrifuged at 14,000 rpm for 15 min at 4°C after each wash. Excess acetone was evaporated by incubating the samples for 1 h at room temperature under an ambient atmosphere. To reconstitute proteins, 100 μl of 2% SDS was added, and samples were sonicated and incubated for 15 min in 100°C. Then 10% of the resulting solution was counted in a scintillation counter.
[5, 6-3H]-fucose labeling
HepG2 cells were seeded on six-well plates and at 70% confluency. They were washed twice with DPBS and after that, 0.5 ml of labeling complete Dulbecco’s modified Eagle’s medium was added to each well. Labeling medium contained 5 μM cold fucose and 15 μCi of L-[5,6-3H]-fucose (40–60 Ci/mmol; 1 mCi/ml; cat #ART0106A; American Radiolabeled Chemicals, Inc.). After 2 h, the cells were washed five times with DPBS, and the medium was replaced with serum-free medium containing 5 μM cold fucose. Medium and the cells were collected after 0, 15, 30, 60, 120, or 180 min of incubation. Before collecting cells, they were washed five times with DPBS, scraped, and lysed in 2% SDS. Then 50% of the collected material was counted using a scintillation counter.
LCA pull down
LCA agarose beads (Vector Laboratories) were equilibrated by washing five times with 10 mM HEPES buffer, pH 7.5, with 0.15 M NaCl, 0.1 mM CaCl2, and 1 mM MnCl2. Next, 100 μl of medium sample was diluted with 900 μl of equilibration buffer and incubated with 30 μl of beads overnight with rotation at 4°C. Subsequently, the beads were washed five times with the equilibration buffer. Between each step, samples were centrifuged for 5 min, 1,000 × g, 4°C, and the fractions were saved for further analysis. To elute fucosylated N-glycans, 200 μl of 2%. SDS was added to the beads and the samples were heated at 100°C for 10 min. The solution was then centrifuged for 15 min at 14,000 rpm and transferred to a fresh tube. Then 10% of each fraction was counted in a scintillation counter.
FUT8 knock-out in Huh7 cells
The guide RNA sequence 5′-CAGAATTGGCGCTATGCTAC-3′ targeting exon 7 of FUT8 was cloned into px458 pSpCas9(BB)-2A-GFP (Addgene). The resulting plasmid was transfected into Huh7 cells using ViaFect (Promega) transfection reagent following the manufacturer’s instructions. After 48 h of transfection, GFP-positive cells were FACS-sorted using a FACS ARIA IIu instrument (BD Biosciences) into 96-well plates to generate isogenic clones, which were expanded and screened by Sanger sequencing with a forward primer 5′-GCTGGTGTGTAATATCAACA-3′ and reverse primer 5′-GTATGTTCCATGAAGGTCTAC-3′. Two isogenic clones were identified carrying different homozygous mutations in FUT8 (NM_178155.2). Clone 3 harbored a c.732_762del [p.E244Dfs*9] and clone 20 a c.753dupT [p.T252Yfs*9]. FUT8 deficiency was confirmed in Western blot using a Fut8-specific antibody (cat #66118-1-1g; Proteintech). The glycosylation defect was confirmed with LCA and AAL lectins (Vector Laboratories). Clone 3 was used in further analysis.
Isolation and quantitative HPLC analysis of nucleotide sugars
To measure the amount of GDP-fucose in cells, cytoplasmic nucleotide sugars were isolated using a modified protocol described by Nakajima et al. (2010). A total of 500 pmol of UDP-arabinose, an internal standard, was added before workup. We chose UDP-arabinose since it does not occur in mammalian cells and has a unique retention time in the elution gradient (Fig. S2 A). Linear response of authentic GDP-fucose was confirmed between 40 and 500 pmol (Fig. S2 B).
Briefly, cells were grown on 10-cm plates to 70–80% confluency. For the last 6 h (HepG2) or 12 h (Huh7 and CHO), they were grown in the presence or absence of 50 μM fucose. Cells were scraped in DPBS and centrifuged for 3 min at 1,500 rpm. The resulting cell pellet was washed twice with cold DPBS. Next, 1 ml of 70% ice-cold ethanol containing 500 pmol of UDP-arabinose was added to the cell pellet. Cells were sonicated and centrifuged at 16,000 × g for 10 min at 4°C to remove insoluble material. The supernatant was lyophilized and the pellet was used to determine protein concentration using BCA Protein Assay Kit (Pierce). Dried supernatant was dissolved in 1 ml of 5 mM ammonium bicarbonate and purified on a 3-ml porous graphitic carbon column (EnviCarb; Sigma Aldrich—Supelco) equilibrated with 2 ml of 80% acetonitrile solution with 0.1% TFA and 2 ml of water. After loading the sample, the column was sequentially washed: 2 ml of water, 2 ml of 25% acetonitrile solution, 2 ml of water, 2 ml of 50 mM triethylammonium acetate buffer, pH 7.0, and 2 ml of water. Nucleotide sugars were eluted with 2 ml of 25% acetonitrile solution in 50 mM triethylammonium acetate buffer, pH 7.0, and lyophilized. Samples were stored at −80°C and analyzed within 12–48 h after the isolation.
Nucleotide sugars were separated using Inertsil ODS-4 250 × 4.6 mm column with a particle size of 3 μm (GL Science) and Vanquish Flex HPLC system (Thermo Fisher Scientific), with 100 mM potassium phosphate buffer, pH 6.4, containing 8 mM tetrabutylammonium hydrogen sulfate as buffer A and 70% solution of buffer A in 30% acetonitrile as buffer B. The separation method was as follows: buffer A for 13 min, linear gradient of 100–33% buffer A for 22 min, linear gradient of 33–0% buffer A for 1 min, 100% B for 14 min, and linear gradient of 0–100% A for 1 min. The flow rate was 0.8 ml/min and the separation temperature was 23°C. Nucleotide sugars were detected using a UV detector and absorption λ254.
NanoHPLC Chip-Q-TOF MS analysis
HepG2, CHO, CHO-Lec30, CaCo2, HeLa, HEK293, A549, and HCT116 cells were labeled for 24 h with increasing concentrations of 13C-UL-Fucose, washed three times with DPBS, scraped, and centrifuged for 3 min at 1,600 rpm. The resulting cell pellets were stored at −80°C. N-glycans were isolated and analyzed as described by Wong et al. (2020). Cell pellets were sonicated in 20 mM HEPES buffer, pH 7.5, containing 0.25 M sucrose and 1:100 protease inhibitor cocktail set V (Calbiochem) and centrifuged at 2,000 × g for 10 min to pellet nuclear fraction. Next, lysates were centrifuged in an ultracentrifuge at 200,000 × g for 45 min. The resulting pellets were dissolved in 100 μl of 100 mM phosphate buffer, pH 7.0, containing 5 mM DTT and incubated in 100°C for 1 min to denature the proteins. To release N-glycans 2 μl of PNGase F (New England Biolabs) was added and the samples were incubated for 18 h at 37°C. After that, they were ultracentrifuged at 200,000 × g for 45 min and supernatants containing free N-glycans were purified on porous graphitized carbon columns and dried in SpeedVac.
Agilent 6520 Accurate Mass Q-TOF LC/MS system with a microfluid porous graphitized carbon chip (Agilent) was used to analyze N-glycans composition. The binary gradient consisted of 0.1% of formic acid with 3% acetonitrile in water as buffer A and 1% formic acid with 89% acetonitrile in water was used to separate samples. The separation method was as followed: 100% of A for 2.5 min, linear gradient of 0–16% B for 17.5 min, and linear gradient of 16–58% B for 15 min, at a constant flow rate of 0.3 μl/min. For data acquisition, the Q-TOF MS was set to acquire only MS1 in positive ionization mode with a cycle time of 1.5 s. To assist with compound identification, control samples were also run with collision-induced dissociation using nitrogen gas. Four MS2 spectra were obtained for every MS1 through data-dependent acquisition, with a total cycle time of 5.25 s. The mass range was set at 600–2,000 m/z. The instrument was calibrated with the ESI tuning mix commercially available from Agilent.
To analyze the data, we first identified peaks with Agilent MassHunter B.07 software using the existing library described by Wong et al. (2020). From the exported data, we created a new library containing the chemical formula and retention times of identified N-glycans for targeted isotope extraction. We used the Batch Isotopologue Analysis function of Agilent Profinder B.08 software to extract quantitative isotopolog data for each fucosylated N-glycan we identified. The program averages the MS signals across a chosen peak in an extracted ion chromatogram to form the MS spectra from which the isotopolog signals are extracted. It also corrects for the natural distribution of 13C and returns the relative abundance of each isotopolog. Mass tolerance was set at ± (10 ppm + 2 mDa) to screen out background noise or signals from other co-eluting compounds. For each glycan, the percent abundance of each isotopolog signal from M + 0 to M + 6 or M +12 was exported for further analysis.
High throughput fucosylation analysis with lectins
Before the experiment, HepG2, CaCo2, HEK293, and CHO-Lec30 cells were grown for 48 h in the presence of 20 μM Fucostatin II (Amgen), which is a small molecule inhibitor of GMDS (Fig. 1 A) and blocks the de novo production of GDP-fucose (Allen et al., 2016). Preincubated cells were seeded on 96-well black flat bottom plates (Falcon) in the presence of 20 μM Fucostatin II. After 32 h, the medium was replaced with a fresh medium containing increasing concentrations of fucose and 20 μM Fucostatin II. Cells were incubated with fucose for another 16 h and analyzed by immunofluorescence staining as described in the next paragraph. The experimental procedure was identical for HCT116 cells, except Fucostatin II was not added since these cells are GMDS-deficient and lack a functional de novo pathway.
Cells were washed twice with DPBS, incubated for 15 min with 4% paraformaldehyde, washed three times with DPBS, and blocked with Carbo Free Blocking Solution (Vector Laboratories) in DPBS. After 1 h of blocking, biotinylated lectins (Vector Laboratories) were diluted in a blocking solution containing 1 mM MgCl2, 1 mM CaCl2, and 1 mM MnCl2 and added for 1 h. LCA and AAL were diluted at 1:500, while LTL and UEAI were diluted at 1:100. Cells were washed three times with DPBS and incubated for 1 h with Cy3-labeled streptavidin (Vector Laboratories) diluted 1:100 (LTL and UEAI) or 1:500 (LCA and AAL) in blocking solution. DAPI (Thermo Fisher Scientific) was then added directly to the solution at a final dilution 1:1,000. After 20 min, cells were washed three times in DPBS and 100 μl of DPBS was added to each well, and the plates were sealed with adhesive plate tape (Thermo Fisher Scientific).
Cells were analyzed immediately using IC200 microscope (Vala Sciences) and an air 20× objective. For each well, data were collected from four to six different focal areas. For data analysis, Acapella software (PerkinElmer) was used. The data were expressed as an average ratio of Cy3 fluorescence intensity to DAPI fluorescence intensity for at least 500 cells/well.
MALDI-TOF-MS and LC-MS/MS analysis
HepG2 cells were washed six times with DPBS and grown for 6 h in serum-free medium with increasing concentrations of UL-13C-fucose. The medium was collected and concentrated using 3 kD cut-off filters and repeatedly exchanged with 50 mM sodium phosphate buffer, pH 7.5, using the same filters. The concentrated medium was collected from the filters and 3 μl of PNGase F (New England Biolabs) was added to each sample and then incubated at 37°C for 24 h. Following incubation, samples were cooled to room temperature and passed through 10-kD Amicon Ultra centrifuge filters at 16,000 × g for 15 min. A total of 450 μl of 50 mM ammonium bicarbonate was added to the filters and samples were again centrifuged. Flow-through was collected and passed through a C18 SPE cartridge (Resprep). N-glycans were eluted with 3 ml of 5% acetic acid and lyophilized.
Per-O-methylation was performed using a dimethylsulfoxide (DMSO)/sodium hydroxide (NaOH) base. The base was made by combining 100 μl 50% NaOH and 200 μl methanol in a glass tube. Then 4 ml of anhydrous DMSO was added to the solution and mixed vigorously. The solution was then centrifuged at 3,000 × g for 5 min. White precipitated solid formed on the top of the solution as well as all remaining DMSO was removed. This process was repeated until the white precipitate no longer formed. The resulting base gel material at the bottom of the tube was then mixed with 1 ml of DMSO. Samples were reconstituted in 200 μl DMSO and then 300 μl of base solution was added. To this, 100 μl iodomethane was added and samples were mixed using a shaker for 15 min. A total of 2 ml LC-MS grade water was then added to quench the reaction, followed by 2 ml dichloromethane. The solution was mixed vigorously for 30 s and then centrifuged at 3,000 × g for 2 min. The upper water layer was removed and another 2 ml of water was added. This process was repeated four times. The lower layer was then transferred to a clean glass tube and dried under N2 stream. Dried samples were reconstituted in 20 μl methanol for MALDI-TOF-MS and LC-MS/MS analysis.
For MALDI analysis, 2 μl of the per-O-methylated N-glycans was mixed with 2 μl of DHB matrix (15 mg/ml in 70/30/0.1 acetonitrile/water/formic acid). The sample was then spotted on a MALDI plate and allowed to dry. Samples were analyzed using an AB Sciex TOF/TOF 5800 mass spectrometer in reflector mode. MALDI-TOF-MS data was analyzed using Data Explorer software and GlycoWorkBench.
Per-O-methylated N-glycans were mixed in 50/50 MeOH/H2O for LC-MS/MS analysis. Samples were analyzed on a Thermo Fisher Scientific Orbitrap Fusion Tribrid mass spectrometer equipped with a nanospray ion source and connected to a Dionex binary solvent system (Waltham). Prepacked nano-LC columns of 15 cm in length with 75 µm internal diameter filled with 3 µm C18 material (reverse phase) were used for chromatographic separation of the glycans. LC-MS/MS runs were conducted for 72 min using a sodiated buffer system (Buffer A: 1 mM NaOAc in H2O, Buffer B: 80% ACN, 0.1% formic acid, 1 mM NaOAc). Precursor ion scan was acquired at 120,000 resolution in the Orbitrap analyzer, and the precursors at a time frame of 3 s were selected for subsequent MS/MS fragmentation in the Orbitrap analyzer at 15,000 resolution. MS/MS fragmentation was conducted with fixed CID (Collision Energy 40%) using a data-dependent scan (DDS) program, which performs an MS/MS acquisition for the most abundant ions in the MS1 spectrum. MS3 experiments were performed using a targeted approach, where an MS3 event was triggered when specific fragment ions (m/z 1,084, 1,209, 1,614, 1,802) were noted in the MS/MS spectrum. Precursors with an unknown charge state or charge state of + 1 were excluded, and dynamic exclusion was enabled (30 s duration). LC-MS/MS data were analyzed using Thermo Fisher FreeStyle and GlycoWorkBench.
Overexpression and purification of POFUT1 and POFUT2 substrates
Huh7 cells were seeded on 10-cm plates and grown to 70% confluency. They were transfected with either mN1 EGF1-5 myc His × 6 in pSecTag2 that encodes EGF-like repeats or hTSP1 TSR1-3 myc His × 6 in pSecTag2 that encodes TSR using ViaFect transfection reagent following the manufacturer’s instructions. To transfect each plate, we used 10 μg of DNA and 20 μl of the transfection reagent.
Within 24 h after the transfection, cells were washed four times with DPBS, and the medium was replaced with 5 ml of serum-free labeling medium. After 12 h, medium was collected and recombinant proteins were purified on TALON metal affinity resin (Takara). 200 μl of the resin was loaded onto 1 ml column (Bio-Rad) and washed three times with 1 ml of 100 mM TBS buffer, pH 8.5, with 0.5 M NaCl and 5 mM imidazole. Next, the medium was diluted with an equal volume of 2 × equilibration buffer and loaded on the column. The resin was washed three times with 1 ml of equilibration buffer. Unbound material and all the washes were collected to the 15 ml tube and concentrated on 3 kD cut-off filters as described for medium samples in the section GC-MS analysis and sample preparation. Proteins were eluted using 1 ml 100 mM TBS buffer, pH 8.5, with 0.5 M NaCl and 0.3 M imidazole and concentrated on 3 kD cut-off filters. To remove imidazole and exchange buffers, 450 μl of 10 mM Hepes, pH 7.0, was run through the filter for five times. After the sample was collected from the filter, 10% was loaded on the 15% SDS-PAGE gel. To visualize purified proteins, gels were stained with 0.5% Coomassie Brilliant Blue G250 solution in 50% methanol and 10% acetic acid, which were washed out with 10% acetic acid. The remaining 90% of the sample was lyophilized and hydrolyzed with 2 N TFA. After drying, the samples were stored at −20°C until GC-MS analysis. Acid hydrolysis, derivatization, and GC-MS analysis were performed as described in the previous section.
For data statistical analysis, a two-tailed t test was employed. All analyses were performed with GraphPad Prism (GraphPad Software, La Jolla, CA). Statistical significance was assigned as indicated in the figure legends.
Online supplemental material
Fig. S1 shows additional information on mannose, glucose, and fucose incorporation into N-glycan-associated fucose. Fig. S2 shows the HPLC analysis of GDP-fucose pool size. Fig. S3 provides additional information on mannose and glucose incorporation into N-glycan-associated mannose. Fig. S4 shows how newly synthesized proteins are secreted and how exogenous fucose is incorporated into different positions of N-glycan. Fig. S5 provides additional information on MALDI-TOF-MS and LC-MS/MS analysis of N-glycans secreted by HepG2 cells.
