Vision rescue via unconstrained in vivo prime editing in degenerating neural retinas

Retinitis pigmentosa (RP) is characterized by progressing retinal degeneration and represents one of the major causes of blindness throughout the world, with an estimated incidence of one in 4,000 human births (Hartong et al., 2006; Verbakel et al., 2018). To date, a variety of mutations in more than 100 genes such as phosphodiesterase 6b (PDE6b) have been found to be associated with this devastating inherited retinal disorder (IRD; Daiger et al., 2013; Gagliardi et al., 2019; https://sph.uth.edu/retnet/). The degeneration in diseased retinas begins with the initial dysfunction of dim light-sensing rod photoreceptors distributed throughout the retina, followed by the onset of secondary death of cone photoreceptors present with the highest density at the center of macula and accounting mainly for the color vision, and leads to severe and irreversible deterioration of vision and eventual blindness.

In addition to conventional gene replacement (Jacobson et al., 2015; Russell et al., 2017), the gene editing approaches based on the programmable CRISPR-Cas system have been recently documented to enable targeted genome engineering in gene therapy for the IRDs (Anzalone et al., 2020; Jang et al., 2021; Jo et al., 2019; Maeder et al., 2019; Raguram et al., 2022; Suh et al., 2021; Yu et al., 2017). Adenine base editor (ABE) has been shown to correct a nonsense point mutation at Rpe65 locus in the retinal pigment epithelium (RPE) of rd12 mice, a well-known disease model for Leber congenital amaurosis (LCA) in human retinas (Choi et al., 2022; Suh et al., 2021). Considering base editors (BEs) are only capable of targeted conversion of a single base pair (Anzalone et al., 2020; Davis et al., 2022; Gaudelli et al., 2017; Koblan et al., 2021; Komor et al., 2016; Neugebauer et al., 2022; Song et al., 2020), the prime editors (PEs), as the versatile tools able to precisely introduce not only all types of transitions and transversions but also small insertions or deletions (Anzalone et al., 2022; Anzalone et al., 2019), overcome the limitations of BEs and thus provide an alternative solution for in vivo genome editing. In rd12 mice, PEs are demonstrated to efficiently correct the point mutation in Rpe65 gene with undetectable off-target effects or indels (Jang et al., 2021), though the versatility of PEs in genome editing has not been fully exploited in this case. It is worth noting that all of the above-mentioned applications target RPE cells while the RP is mainly caused by mutations in genes related to retinal photoreceptors (Daiger et al., 2013; Gagliardi et al., 2019). However, the direct utility of genome editing in the degenerating neural retinas, such as in unhealthy or dying photoreceptors, to rescue vision instead remains limited, although recent reports regarding the introduction of BEs or PEs into wild-type retinas may contribute to our understanding of the applicability of these tools (Chen et al., 2020; Zhi et al., 2022). Unlike the wild-type contexts, in which we could choose the optimal protospacer adjacent motif (PAM) for the genome-editing tools tested, the specific locus harboring the mutation in the retinas with inherited diseases does not guarantee an appropriate PAM for Cas proteins and therefore may restrict the targetable scope in the genome (Hille et al., 2018; Jang et al., 2021; Levy et al., 2020; Suh et al., 2021; Zhi et al., 2022). Substantial efforts thus have been made to expand the targeting scope (Anzalone et al., 2019; Cebrian-Serrano and Davies, 2017; Chatterjee et al., 2020a; Chatterjee et al., 2020b; Gao et al., 2017; Hirano et al., 2016; Hu et al., 2018; Kim et al., 2020; Kleinstiver et al., 2016; Kleinstiver et al., 2015; Kleinstiver et al., 2019; Miller et al., 2020; Nishimasu et al., 2018; Walton et al., 2020), and in particular, a near PAM-less SpCas9 variant (SpRY) by using structure-guided engineering has been recently reported (Walton et al., 2020), which comes with an attractive scenario regarding in vivo genome-editing therapies without concerning PAM restriction.

In this study, we developed a genome-editing tool that is characterized by the combination of the versatility of PEs and unconstrained PAM requirement of SpRY, referred to as PE^SpRY. This construct, together with its paired gRNAs, was delivered into the neural retinas of Pde6b^rd10 mouse, a well-known RP mouse model, via a split Npu intein–based dual-AAV (adeno-associated virus) system. Liberated from the restrictions caused by the PAM availability and editing types, the PE^SpRY system is herein demonstrated to efficiently correct the mutation with a non-NGG PAM (GTG) and with two types of edits (Pde6b^{T to C} and Pde6b^AGA). Regardless of a complete loss of sight occurring in the age-matched control, the PE^SpRY system–elicited genome editing facilitates the apparent preservation of photoreceptors as well as the restoration of compromised PDE6 phosphodiesterase activity, leading to the evident rescue of visual function in Pde6b^rd10 mice, which is substantiated by a detailed electroretinogram (ERG) and behavioral assessments.

The retinal degeneration in Pde6b^rd10 mice is attributed to a change in amino acid composition from arginine residue to cysteine residue at site 560 (R560C) of the protein as a result of an inherited missense mutation from C to T naturally occurring in Pde6b gene on the exon 13 (Fig. 1 A; Chang et al., 2007). Pde6b encodes a key β subunit of phosphodiesterase (PDE) and exerts a determinant role in initiating rod phototransduction. In Pde6b^rd10 mice, degeneration in outer nuclear layer (ONL) herein started from around postnatal day 16 (P16) with rod dying progressively at the initial phase, followed by the secondary cone death, and leaving only a single row of cell bodies in ONL as early as P60 in comparison with the situations in age-matched wild-type and P14 degenerative contexts (Fig. 1 B; Chang et al., 2007).

Instead of using conventional genome-editing tools with restricted targetable loci due to PAM preferences or with limited editing types able to be installed, we took advantage of an engineered Moloney murine leukemia virus (M-MLV) reverse transcriptase (RT) fused to a near PAM-less variant of Streptococcus pyogenes Cas9 (SpRY) with H840A mutation introduced, hereafter referred to as PE^SpRY (PE with SpRY nickase), for prime editing with unconstrained PAM availability (Anzalone et al., 2019; Walton et al., 2020). We first in vitro tested the strategy in an engineered mouse Neuro2a cell line carrying the Pde6b^rd10 mutation (referred to as Neuro2a^rd10), where the native base C is substituted by T to achieve the same sequence compositions as those in Pde6b^rd10 mice (Fig. 1 A). Based on the previous report (Anzalone et al., 2019), we systematically constructed multiple prime editing guide RNAs (pegRNAs) with single-base resolution around this locus (p1–p14), utilizing recommended lengths of the primer binding site (PBS) and RT template (13–14-nt PBS and 13–15-nt RT templates) in combination with a variety of non-edited strand nicks 51–108-bp away from the target T∙A base pair (n1–n7; Fig. 1, C and D; and Tables S1 and S2). Three regular types of targeted edits at or around the locus from the most common single point edit to the combination edits, including a single nucleotide substitution (T to C, namely an edit back to wild-type, herein referred to as Pde6b^{T to C}), a silent mutation with double substitutions (TGC to AGA, no change in amino acid composition relative to wild-type, named as Pde6b^AGA), as well as combination edits with a small insertion and substitution (AC insertion and T to C, named as Pde6b^{ACins, TtoC}; Fig. S1 A), were assayed and the percentage of correct edits and indels were quantified by high-throughput deep sequencing.

We first tested the single nucleotide substitution (Pde6b^{T to C}), which is also the major type of gene correction performed in vivo later. The quantification of the percentage of edited versus total DNA for each pair of pegRNA and ngRNA (nicking gRNA) indicated that PE^SpRY efficiently edited the targeted locus with a broad targeting scope acquired due to the nearly completely relaxed PAM requirement and that the highest editing efficiency was up to 35.02 ± 0.91% for pair of p5 and n3 (designated as p5n3; Fig. 1 E). Four of the pairs with relatively higher efficiencies, namely p5n2 (31.22 ± 1.87%), p5n3, p4n4 (27.12 ± 0.87%), and p9n6 (24.77 ± 0.49%), were selected for the further pegRNA optimization of RT template and PBS lengths (Fig. 1, F and G; Fig. S1, B–G; and Table S3). As a consequence, the editing efficiencies were considerably enhanced when the RT templates were 12 nt (Fig. 1 F) and PBS lengths were 14 nt, respectively (Fig. 1 G), and further rose to 63.76 ± 0.94% when tested for p5n3 with the optimized 12-nt RT template and 14-nt PBS (Fig. 1 H). In particular, the selected pair of pegRNA and ngRNA (p5n3), along with the optimized RT templates (12 nt) and PBS (14 nt), was also amenable to efficiently installing diverse mutation types including Pde6b^AGA (55.24 ± 1.14%) and Pde6b^{ACins, TtoC} (55.46 ± 1.30%) despite the slight alteration in base composition of RT templates (Fig. 1 H, Fig. S1, H–J; and Table S4). Of note, the indels observed were lower than 0.2% in the samples tested, suggesting the applicability of PE^SpRY system in installing the desired edits (Fig. 1, E–H; and Fig. S1, B–G). To highlight the applicability of this strategy, we sought to assess whether the conventional prime editor, namely PE^SpCas9 (PE with SpCas9 nickase), was capable of introducing the desired edits at this locus (Fig. S1, K and L). Unfortunately, we did not detect any edited DNA even if all of the available canonical PAMs neighboring the targeted locus were selected for the test (only high-throughput sequencing result for PE^SpCas9 p1 was shown; Fig. S1, K and L). We speculated that such a low efficiency was likely due to, at least in part, the sparsely and somewhat distantly distributed NGG PAMs required for PE^SpCas9, which results in long RT templates (such as PAM3–7) or the incompatibility between available protospacers/PAMs and their Cas9 counterpart even if the PAMs are adjacent to the targeted T∙A pair (PAM1 and 2; Fig. S1 K and Table S5). Of particular interest, one of the protospacers tested, PE^SpCas9 p1, was not found to efficiently edit the target locus even if it did with a relatively low efficiency when used for PE^SpRY (p7 pegRNA), suggesting extended compatibility between the PE^SpRY and its pegRNAs at this specific locus. Collectively, PE^SpRY system demonstrated its seemingly sophisticated potential for in vitro installation of desired edits at Pde6b locus without constraints from PAMs and editing types.

Having demonstrated the potential that desired combination edits could be installed into the genome through PE^SpRY system without stringent PAM restriction, we were motivated to further evaluate whether the strategy could be amenable to the in vivo mutation correction in Pde6b^rd10 mice. Since p5n3 with optimized RT template (12 nt) and PBS (14 nt) has shown the best performance in installing desired edits in Neuro2a^rd10 cells, we would mainly utilize this setup for two types of targeted correction in Pde6b^rd10 mice. One is regular single nucleotide substitution (from T in Pde6b^rd10 to C in wild-type, hereafter referred to as Pde6b^{T to C}) and the other one is a silent edit (relative to wild-type context) from TGC in Pde6b^rd10 to AGA (uniformly referred to as Pde6b^AGA), which still encodes Arg residue as wild-type locus (Fig. S2 A). As for the delivery, we exploited a split Npu intein–based dual-AAV system widely used for packaging large size of genome editors (Chen et al., 2020; Chew et al., 2016; Levy et al., 2020; Zhi et al., 2022), and the splitting site at 713–714 of SpRY protein would guarantee the accommodation of PE^SpRY in AAV vectors (Fig. S2 A).

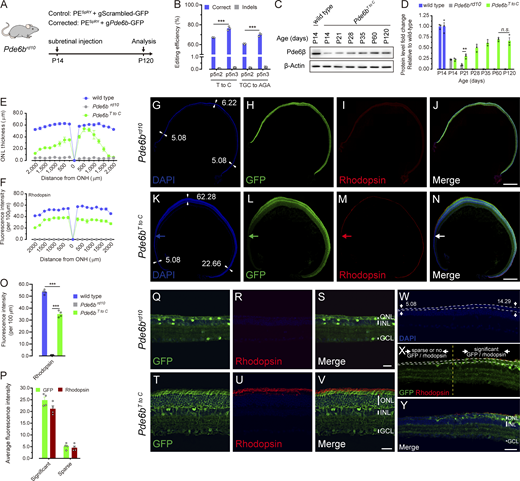

Pde6b^rd10 mice were subretinally injected at P14, a time point right before the onset of rod degeneration, with AAV vectors packaging split PE^SpRY and gPde6b-GFP (hereafter referred to as PE^SpRY and gPde6b) or with those packaging split PE^SpRY and gScrambled-GFP (hereafter referred to as PE^SpRY and gScrambled) as a control (Fig. 2 A and Fig. S2 A). The immunoblotting assay of retinas 3 wk after injection indicated that PE^SpRY was clearly expressed and spliced in the retinas transduced with AAV vectors packaging the transgenes (Fig. S2 B). The retinas were then harvested and assayed at P120 when photoreceptor death is nearly completed (Fig. 2 A). Since GFP was coexpressed with PE^SpRY system, the transduction efficiency would be conveniently visualized by GFP. Compared with the undetectable fluorescence in the untransduced retinas (Fig. S2, E and F), the abundant expression of GFP in the transduced retinas further suggested the reliability and high efficiency of the delivery strategy (Fig. S2, C and D). The percentage of GFP⁺ cells was quantified by flow cytometry and up to averaging 54.05 ± 0.82 and 45.95 ± 0.66% at P35 and P120, respectively (Fig. S2 G). The editing frequencies were up to averaging 76.34 ± 1.10 and 40.86 ± 0.89% with indels of 0.14 ± 0.02% (Data S1 A) and 0.04 ± 0.01% in the sorted GFP⁺ and total cells of retinas transduced with vectors installing the edit from T to C, namely Pde6b^{T to C} (Fig. 2 B and Fig. S2 H). The editing activities for p5n3 appeared more efficient in comparison with an editing frequency of 67.06 ± 0.16% and an indel of 0.07 ± 0.01% for p5n2 (Fig. 2 B), and those receiving vectors installing Pde6b^AGA demonstrated editing activities reaching an average of 69.92 ± 0.9 and 60.59 ± 0.4% with the indels of 0.19 ± 0.02% (Data S1 B) and 0.12 ± 0.02% for p5n3 and p5n2, respectively (Fig. 2 B; Fig. S2, I and J; and Table S6). By contrast, the control vectors did not elicit any editing at the target locus (Fig. S2 K). In the meantime, the editing activities exhibited higher frequencies in retinas harvested at P120 than those in retinas harvested at P35 (Fig. 2 B and Fig. S2 L) likely because most of photoreceptors left at P120 have been subjected to editing. Notably, no apparent editing activities were found at the sites of ngRNA (Data S1, C and D). As a consequence of the correction, the expression of PDE6β was restored significantly since P21 and rose to around 75% level of wild-type at P60 (Fig. 2, C and D), in striking contrast to the PE^SpRY and gScrambled-treated Pde6b^rd10 control where PDE6β level decreased to rarely detectable level since P28 (Fig. 2 D and Fig. S2 M). The immunoblotting of Rhodopsin, a rod-specific marker, further validated rod cell preservation in the gene-corrected retinas (Fig. S2 N). As for off-target editing, an unbiased circularization for in vitro reporting of cleavage effects by sequencing (CIRCLE-seq) assay indicated that no significant off-target activities were detectable for treated retinas harvested at 1 or 4 mo after injection (Fig. S2, O and P).

The quantitative assay on the retinal sections indicated that the ONL was up to averaging 53.80 ± 4.8 μm at the thickest position in the Pde6b^{T to C} mice (Fig. 2 E). This thickness was close to that in wild-type mice (averaging 62.70 ± 1.8 μm) while in striking contrast to the situation in the PE^SpRY and gScrambled-treated Pde6b^rd10 control where the ONL thickness dropped to averaging <6 μm (Fig. 2 E and Fig. S3, A–C). At most peripheral regions, the ONL thickness in the Pde6b^{T to C} mice was over 20 μm, approximately half of the thickness in wild-type mice, irrespective of the single row of photoreceptor cell bodies left in the Pde6b^rd10 control (Fig. 2, E, G, and K). To assess whether the photoreceptors were preserved upon mutation correction, we assayed the retinas with Rhodopsin antibody on the retinal sections (Fig. S3 D). Compared with the complete loss of rod photoreceptors and significantly compromised retinal morphology occurring in the Pde6b^rd10 control mice treated with PE^SpRY and gScrambled (Fig. 2, F, G–J, O, and Q–S), rod photoreceptors instead remained preserved and the defined stratums of ONL were relatively well maintained in the Pde6b^{T to C} retinas (Fig. 2, F, K–O, and T–V) with a Rhodopsin immunofluorescence intensity of nearly 70% of those in wild-type retinas (Fig. 2, F and O). Of note, no Rhodopsin signals were found in the absence of GFP signals in the Pde6b^{T to C} mice (Fig. 2, K–N), suggesting a close correlation between the rescue of photoreceptors and PE^SpRY system–elicited genome editing visualized via GFP signals. This speculation was further supported by a closer examination of the region where Rhodopsin and GFP signals tapered down steadily and concomitantly indeed (Fig. 2, P and W–Y). The prevention of photoreceptor degeneration by PE^SpRY-elicited genome editing was examined further through immunohistochemistry on retinal sections with antibodies against Pde6β, Gnat1 (rod marker), Recoverin (rod marker), Synaptophysin (photoreceptor presynaptic marker), as well as PKCα (rod bipolar marker). Compared with fairly weak or nearly undetectable signals of Pde6β, Gnat1, and Recoverin in Pde6b^rd10 control treated with PE^SpRY and gScrambled (Fig. 3, A, C, E, F, and J), the localizations of these rod-phototransduction relevant proteins were well sustained in the preserved photoreceptors from the Pde6b^{T to C} retinas (Fig. 3, B, D, and G), which was essentially in line with the profiles in wild-type (Fig. S3, E, G, H, J, and K), and their levels were around or over half levels of those in wild-type mice (Fig. 3, E and J). The pattern of Synaptophysin and PKCα demonstrated the dynamic changes of synapses between photoreceptors and bipolar cells. In the Pde6b^rd10 control treated with PE^SpRY and gScrambled, the photoreceptor axons and rod bipolar dendrites have been significantly degenerating with Synaptophysin sparsely distributed in photoreceptor axon terminals (Fig. 3, K and M) and with negligible rod bipolar dendritic terminals indicated by PKCα (Fig. 3, H and J). By contrast, both of them in the Pde6b^{T to C} context (Fig. 3, I, J, L, and M) appeared essentially similar to those in wild-type and reached ∼50% levels of those in wild-type mice (Fig. S3, F, H, I, and K) with the exception of additional PKCα staining across the OPL (Fig. 3 I), which is likely to represent a compensatory mechanism for the degenerating photoreceptor axons before the corrected Pde6β is expressed.

Since rod death is followed by secondary cone death in the Pde6b^rd10 mice, we further evaluated whether cone photoreceptors were preserved by PE^SpRY-elicited genome editing. Cone photoreceptors herein were visualized with peanut agglutinin (PNA), a well-known marker for all cone photoreceptor subtypes, through immunohistochemistry. Irrespective of the barely detectable staining in the Pde6b^rd10 control mice treated with PE^SpRY and gScrambled (Fig. 4, A–D and I), the PNA levels exhibited over half of those in wild-type mice in the Pde6b^{T to C} context, and the profile, similar to Rhodopsin, indicated a close correlation with GFP signals (Fig. 4, E–I). A closer examination further evidenced that PNA only presented sparsely and was undetectable in most regions in the Pde6b^rd10 control mice treated with PE^SpRY and gScrambled (Fig. 4, J–L and P), whereas PNA appeared bushy and erect in the Pde6b^{T to C} mice (Fig. 4, M–P). The concomitant decline of PNA and GFP signal intensities further supported that the cone preservation was a consequence of PE^SpRY-elicited genome editing (Fig. 4, Q–T).

In the meantime, we compared the preservative effects in the Pde6b^{T to C} context treated at P14 and P21. Despite the much faster degeneration process in the Pde6b^rd10 mice compared with humans, the editing efficiency and rescue effect were significant in Pde6b^{T to C} retinas treated at P21 with an editing frequency averaging 41.91 ± 1.29% (Fig. S3, L and M) and a Rhodopsin fluorescence intensity of less than half of those in the retinas treated at P14 (Fig. S3, N–U), suggesting the effective prevention from photoreceptor degeneration elicited by PE^SpRY-mediated genome editing in the Pde6b^rd10 mice.

The membrane-associated PDE6 plays an indispensable role in initiating rod phototransduction triggered by light stimulation. The catalytic core of functional PDE6 holoenzyme, PDE6β, along with PDE6α facilitates the hydrolysis of cyclic guanosine monophosphate (cGMP) into GMP, leading to the closure of cGMP-gated cation channels, which causes hyperpolarization and hierarchical signal transmission to the neurons housing in the inner nuclear layer. To assess whether the compromised function of PDE6β was restored in the Pde6b^rd10 mice through PE^SpRY-elicited genome editing, we measured the PDE activities. In retinal samples from wild-type mice, the PDE activity reached 2.06 ± 0.10 μU/mg at P14 and rose mildly to 2.29 ± 0.03 μU/mg at P120 compared with Pde6b^rd10 control mice treated with PE^SpRY and gScrambled, in which PDE activities were as low as 0.24 ± 0.01 and 0.11 ± 0.01 μU/mg at P14 and P120, respectively. Instead, PDE activities in samples from Pde6b^{T to C} mice at P14 were the same as those in Pde6b^rd10 mice, yet rose to 1.81 ± 0.04 μU/mg, suggesting the restoration of PDE activity to a significant extent after genome editing (Fig. 5 A). To examine the genuine involvement of functional PDE6 holoenzyme in hydrolyzing cGMP, we measured the levels of endogenous cGMP in retinas. The samples from wild-type retinas presented a cGMP level as low as 6.51 ± 0.3 nM at P14 and 6.94 ± 0.4 nM at P120, respectively, whereas it reached 10.94 ± 0.3 nM in the Pde6b^{T to C} context at P14. However, the level apparently dropped to 7.20 ± 0.1 nM at P120, providing convincing evidence that the function of PDE6β was substantially restored with the implementation of genome editing by the PE^SpRY system in the retinas of Pde6b^rd10 mice (Fig. 5 B).

We then sought to assess whether PE^SpRY-elicited mutation correction leads to visual improvement via ERG recordings. Scotopic ERGs were recorded in dark-adapted mice with the light intensities increasing from −3.6 to 2.15 log cd s m⁻². The rod-dominated responses from wild-type mice showed a steady increase in amplitudes of both a- and b-waves (Fig. 5, C and D). As for the situation in Pde6b^rd10 control contexts treated with PE^SpRY and gScrambled, no responses were detected at P120 when nearly all of photoreceptors have lost in ONL. Actually, both scotopic and photopic ERG responses in the Pde6b^rd10 control mice have attenuated to a negligible level since P49 (Fig. S4, A–D). In the age-matched gene-corrected mice, however, the average a- and b-wave amplitudes were 74.6 ± 4.0 and 369.8 ± 8.9 μV for Pde6b^{T to C}, and 55.3 ± 7.3 and 285.0 ± 15.1 μV for Pde6b^AGA mice (Fig. 5, E and F; and Fig. S4, E, G, and H), respectively, as the light intensity achieved 2.15 log cd s m⁻², indicating a lesser extent of increase compared to those in wild-type mice. For the photopic ERGs, the light-adapted a-wave in wild-type mice was not evident until the light intensity rose to 0.6 log cd s m⁻² and reached 68.0 ± 5.4 μV in amplitudes at 2.15 log cd s m⁻², while the b-wave had an increase up to 391.6 ± 32.1 μV in amplitudes (Fig. 5, G and H). In line with the situation under the dark adaption, the photopic response was hardly recorded in the PE^SpRY and gScrambled-treated Pde6b^rd10 control mice at P120, whereas it was apparently detectable from the eyes subjected to genome editing, with a b-wave amplitude maximally reaching around 191.4 ± 4.8 μV, though only a very minor a-wave was presented (30.8 ± 1.2 μV; Fig. 5, G and H). In addition, the ERG responses were also improved in the Pde6b^AGA mice (averaging 19.7 ± 2.4 and 154.9 ± 7.3 μV for a- and b-wave, respectively; Fig. S4, F, I, and J), strongly suggesting the apparent ERG responses in the Pde6b^{T to C} and Pde6b^AGA mice at P120 were indeed a consequence of PE^SpRY-elicited mutation correction. For Pde6b^{T to C} mice treated at P21, a significant, though minor, b-wave remained under both scotopic (averaging 50.9 ± 6.5 μV; Fig. S4, K and M) and photopic (averaging 29.1 ± 2.5 μV; Fig. S4, N and P) conditions at 2.15 log cd s m⁻² despite the insignificantly increased a-wave amplitudes (Fig. S4, K, L, N, and O).

To provide substantial evidence that the visual function was indeed improved in the Pde6b^rd10 mice subjected to PE^SpRY system–elicited gene correction, we first carried out behavioral assessments for the passive avoidance via the light–dark transition test. With the luminance increasing from 300 to 900 lux, the Pde6b^{T to C} mice demonstrated an apparent preference for staying at the dark chamber over 80% of time (Fig. 6 A), around 70% of distance traveled (Fig. 6 B), and up to 84% of rearing time (Fig. 6 C) in dark, which were a little inferior to those in wild-type mice (averaging 88.8 ± 2.3%, 86.0 ± 2.1%, and 91.3 ± 2.1%, respectively), whereas much better than those in the Pde6b^rd10 mice treated with PE^SpRY and gScrambled (averaging 53.6 ± 2.0%, 58.8 ± 1.7%, and 49.5 ± 5.1%, respectively). Meanwhile, the minimal duration in dark significantly kept rising (averaging 3.3 ± 0.5–8.5 ± 2.2 s; Fig. 6 D) whereas the velocity in the dark declined (averaging 74.4 ± 9.4–33.0 ± 3.5 mm/s; Fig. 6 E) with the luminance increasing, which was further confirmed by the reduced transition times from dark to light (averaging 10.2 ± 1.3–2.8 ± 0.4; Fig. 6 F). These performances were very close to those in the wild-type (averaging 11.5 ± 2.5 s, 24.9 ± 4.6 mm/s, and 3.2 ± 0.6 at the luminance of 900 lux) in comparison with the hardly detectable passive avoidance in the Pde6b^rd10 mice treated with PE^SpRY and gScrambled (averaging 2.6 ± 0.4 s, 86.2 ± 6.8 mm/s, and 9.4 ± 0.7 at the luminance of 900 lux). The preferred movements in dark were more intuitively presented in traveling trajectories (Fig. 6 G) and the heat maps recording time spent at distinct regions of the light–dark box (Fig. 6 H). On the contrary, the Pde6b^rd10 control mice treated with PE^SpRY and gScrambled did not exhibit any apparent preference for the dark chamber, not to mention the comparison with the performance of wild-type mice (Fig. 6, A–H).

In addition, we further examined the active avoidance of these mice via the shuttle box learning test, during which the mice would become much more sensitive to conditioned light due to an electrical shock when they failed to escape (Fig. 6 I). In the 5-d training session, the Pde6b^{T to C} mice showed a stepwise improved active avoidance acquisition with a percentage increase from averaging 15.8 ± 4.9% on the first day to 64.5 ± 7.6% at the end of the training (the fifth day; Fig. 6 J), corresponding to a decline of passive avoidance from averaging 66.0 ± 10.6 to 16.7 ± 2.8% (Fig. 6 L), which was nearly to keep up with their age-matched wild-type mouse performance. By contrast, the Pde6b^rd10 control mice treated with PE^SpRY and gScrambled exhibited rather poor active avoidance performance with an average level of no more than 40% (35.2 ± 8.7%; Fig. 6 J) and up to 45.1 ± 7.4% passive avoidance (Fig. 6 L) and appeared unresponsive in the remaining around 20% of trials, suggesting the difficulty in acquiring correlation between the light and the electrical shock in these mice due to their poor vision. As for the latency, the time to the first active avoidance decreased steadily from around 1,000 to 15.1 ± 7.7 s on the fifth day for the Pde6b^{T to C} mice, which was close to the performance of wild-type ones (3.6 ± 0.6 s; Fig. 6 N), suggesting they have good knowledge of the setup, despite a relatively mild change in the Pde6b^rd10 control treated with PE^SpRY and gScrambled. As expected, the time traveled during the training decreased steadily and significantly both in the Pde6b^{T to C} and in the wild-type mice, irrespective of the struggling and somewhat irregular change in the Pde6b^rd10 control treated with PE^SpRY and gScrambled (Fig. 6 P). We then moved forward to test the animal responses 1 and 2 wk after the end of training (d12 and d19), and the performance in the Pde6b^{T to C} mice and in the wild-type ones remained relatively stable or became even better than that in the training session while no substantial changes were detected in the Pde6b^rd10 control treated with PE^SpRY and gScrambled (Fig. 6, K, M, O, and Q).

It is generally conceivable that mice would appear responsive to different spatial frequencies and contrasts once the vision is functionally restored to a certain degree. To quantitatively determine how much the vision was improved in PE^SpRY system–treated mice, we sought to evaluate the visual function by an automated system with optomotor responses accurately and objectively recorded through video tracking algorithms (Fig. 7, A and B; Kretschmer et al., 2015). Both left and right eyes of wild-type mice exhibited approximately equal contributions to the total optomotor responses elicited by a panel of stimulus at defined spatial frequencies (0.02, 0.1, 0.15, 0.2, 0.3, and 0.4 cycles/°) or contrasts (100, 50, 25, 12.5, 10, and 5%; Fig. 7, C and D), suggesting a reliable and unbiased detection by the system.

To globally assess the visually driven optomotor responses, the ratios of response time between the head movements in the correct and incorrect directions, namely OMR (optomotor reflex), were assayed in terms of a wide range of velocity thresholds at defined spatial frequency or contrast levels (Fig. 7, E and F). It is anticipated that the overall OMR values in wild-type context appeared relatively higher at a spatial frequency of 0.02 cycles/°, culminating at 0.2 cycles/° as OMR exhibited equal to or higher than 2.0 (presented in red) in most velocity thresholds (Fig. 7 E), followed by a decline afterward and drop to a nearly undetectable level at 0.4 cycles/°. By contrast, visual stimuli–driven responses in the Pde6b^rd10 degenerative context treated with PE^SpRY and gScrambled sustained a barely detectable level at all spatial frequencies tested as OMR values were no higher than 1.2 within most thresholds (in blue). Regardless of a relatively lower OMR at the beginning, the visual stimuli–driven response exhibited an obvious increase at a spatial frequency of 0.2 cycles/° in the Pde6b^{T to C} mice and then declined steadily to an inappreciable level, essentially in line with the trend in wild-type context. As for the contrasts, the visual stimuli–driven response in the Pde6b^{T to C} mice started with the highest level at 100% contrast and tapered down gradually from 50 to 5%, showing a parallel change with the situation in the wild-type mice (Fig. 7 F).

The head movement unrelated to visual stimuli is likely to be minimized when the ideal velocity threshold criteria are set and the range between 2 and 14°/s is regularly recommended based on previous observation (Kretschmer et al., 2015). We thus carried out an investigation on the comparison of visual stimuli–driven responses under these optimal velocity conditions (the boxed ranges colored in magenta and green; Fig. 7, G and H; and Fig. S5, A–D). For an intuitive and uniform evaluation of data acquired at different conditions, the response time in either direction (correct or incorrect) at each velocity interval (1°/s in each interval) was normalized to the maximal response time (designated as 1) under each spatial frequency or contrast tested. Compared with those in the opposite direction (negative value, light magenta window), the occurrence of visually driven optomotor responses at 0.2 cycles/° in the Pde6b^{T to C} mice was apparently more frequent and lasted longer (blue bars) in the stimulus direction (positive value, light green window), and the OMR value at 0.2 cycles/° was therefore up to 2.15. Accordingly, OMR values at 0.02, 0.3, and 0.4 cycles/° were 1.66, 1.45, and 1.08, respectively (Fig. 7 G). For the contrasts tested, OMR values appeared maximal at 100% contrast and were equal to 2.09, with a steady decline when the contrast levels were decreasing (Fig. 7 H). Combined with the observations at different spatial frequencies, the trends of OMR values were essentially consistent with the profiles of the heat maps presented in Fig. 7, E and F, with a particular emphasis on the parallel changes of visual responses between Pde6b^{T to C} and wild-type (Fig. S5, A and B) rather than Pde6b^rd10 degenerative control mice treated with PE^SpRY and gScrambled (Fig. S5, C and D).

Since the difference between T_correct (total time animal head moved in the stimulus direction) and T_incorrect (total time animal head moved in the opposite direction) in totally blind mice were theoretically close or equal to 0, we, therefore, assessed the visual function with T_correct − T_incorrect, hereafter named as ΔT, for a much more obviously intuitive method to measure the visual stimuli–driven responses. As expected, in the Pde6b^rd10 degenerative context treated with PE^SpRY and gScrambled, the optomotor responses were barely detectable at a panel of spatial frequencies and contrast tested (Fig. 7, I and J). By contrast, the responses showed parallel changes in the Pde6b^{T to C} mice with those in the wild-type context, with a maximal response at a spatial frequency of 0.2 cycles/° and 100% contrast, respectively. Together, the enhanced optomotor responses suggested an improved visual function in the PE^SpRY system–treated mice.

The optomotor responses demonstrated above were essentially contributed by both eyes of each mouse; the conclusion, however, would be generally more convincing if a comparison between paired contralateral eyes yet treated with different vectors is performed. With the aim to address this issue, we only treated one eye with PE^SpRY and gPde6b^{T to C}, leaving the contralateral one treated with control vectors, and evaluated the optomotor response levels at the optimal condition with 0.2 cycles/° spatial frequency and 100% contrast. The global OMR profiles appeared comparable in both the left and right eye of the wild-type mouse (Fig. 8 A, top panel). It is intriguing, however, that the visual stimuli–driven responses in the clockwise direction appeared much more evident than those in the counterclockwise direction when the left eye was treated with PE^SpRY and gPde6b^{T to C}, whereas the right one with PE^SpRY and gScrambled, and vice versa (Fig. 8 A, middle and bottom panels). As for the test under the optimized velocity threshold (2–14°/s), the OMR values for the left and right eyes from wild-type context were 2.81 and 2.76, respectively, suggesting the comparable and evident visual function for both eyes. In the degenerative context, the left eye treated with PE^SpRY and gPde6b^{T to C} had an OMR value equal to 2.06 versus 1.07, a clear “blindness” indicator, in the right one treated with PE^SpRY and gScrambled, which was the case when the visual improvement was occurring exclusively in the right eye (Fig. 8 B). The evaluation of visual stimuli–driven responses based on the ΔT was becoming more conclusive with a value of as low as 0 for internal control eyes compared with the obvious visual activities recorded from their contralateral eyes (Fig. 8 C). These observations were substantially evidenced by the immunohistochemical assays, in which the rod photoreceptors were only preserved in retinas transduced with PE^SpRY and gPde6b^{T to C} vectors, in striking contrast to the situation in those transduced with control vectors (Fig. 8 D). In addition, we sought to evaluate whether the visual function could be well sustained in the aged mice after PE^SpRY system treatment. Compared with the complete loss of visually driven optomotor responses in age-matched Pde6b^rd10 control mice treated with PE^SpRY and gScrambled, the visual function in the Pde6b^{T to C} mice remained relatively stable throughout the ages tested (from P150 to P240; Fig. 8 E), with average ΔT values of no less than 5 s at the 0.2 cycles/° spatial frequency and 100% contrast (Fig. 8 F), further suggesting the efficiency and persistence of photoreceptor rescue via PE^SpRY system–elicited in vivo genome editing.

Finally, we assessed visual capabilities using the discrimination task, a visually guided water-maze test, which requires cognitive processing of visual information to associate a grating with a submerged hidden platform allowing them to escape from the water in a trapezoidal-shaped tank (Fig. 9 A; Prusky et al., 2000). During the 4-d (D1–D4) training period with four sessions (S1–S4) per day (Fig. 9, B–D), the Pde6b^rd10 control mice treated with PE^SpRY and gScrambled were rarely able to correctly complete the task in at least 70% of trials (Fig. 9 C) compared with wild-type mice, who performed better than 70% of chance since the second day and responded correctly in up to averaging 97.5 ± 2.5% of trials at the last session of D4 (D4S4; Fig. 9 B). In contrast to their aging-matched counterparts, Pde6b^{T to C} mice gave rise to a much better performance with a correct choice steadily rising to 70% (72.5 ± 2.5%) at S1 of D2 and reaching ∼90% (87.5 ± 2.5%) by the end of training (Fig. 9 D). Their traveling trajectories during training sessions were correspondingly presented in an orderly manner (Fig. 9 F), which was close to those of wild-type mice (Fig. S5 E), as further evidenced in the heat maps indicating the group-average time traveled at defined positions (Fig. S5, F and H). In comparison, the Pde6b^rd10 control mice treated with PE^SpRY and gScrambled appeared to struggle to localize the platform throughout the training (Fig. 9 E and Fig. S5 G).

When tested for the visual acuity and contrast sensitivity, both Pde6b^{T to C} and wild-type mice performed best at 0.2 cycles/° spatial frequency or at 100% contrast and demonstrated a clear and visually guided response with the change of conditions tested. In particular, the Pde6b^{T to C} mice were capable of solving the cognitive task when the spatial frequency was as high as around 0.4 cycles/°, which was comparable to the visual acuity shown in wild-type mice (Fig. 9 G). This was also the case when the mice were tested at steadily declined contrasts (Fig. 9 H). The Pde6b^{T to C} mice were able to pass the test once the contrast was over 25%, which was only a little inferior to the contrast sensitivity indicated in the wild-type mice, not to mention the failure in completing the task at all spatial frequencies and contrast levels tested in the Pde6b^rd10 control mice. The performance of Pde6b^{T to C} and wild-type mice was confirmed by their minimal latency time and distance traveled at 0.2 cycles/° spatial frequency (Fig. 9 J and Fig. S5 I) and 100% contrast (Fig. 9 L and Fig. S5 J), respectively. In contrast, the Pde6b^rd10 control mice treated with PE^SpRY and gScrambled performed so poorly that their latency time spent in finding the platform was much longer than that of Pde6b^{T to C} and wild-type mice and exhibited irregular profiles as far as both the time and distance traveled were concerned (Fig. 9, I and K). These observations were consistent with the contexts of the heat maps reflecting the group-average time traveled at defined positions as well (Fig. 9 M and Fig. S5 K). For each of the mice tested in the water maze, both Pde6b^{T to C} and wild-type groups completed the task with a correct rate over 70% compared with the complete failure of all Pde6b^rd10 control mice treated with PE^SpRY and gScrambled (Fig. 9 N). In addition, the test in the Pde6b^AGA mice further supported the efficient genome editing elicited by the PE^SpRY system (Fig. S5, L–P).

To date, the applicability and effectiveness of CRISPR-based genome-editing tools have been increased and optimized progressively, driving major advances in nearly every aspect related to gene therapy. As the representatives for this technology, BEs and PEs hold great promise for both basic research and therapeutic applications. The IRDs, for example, have been widely considered an ideal target for CRISPR-based gene therapy (Anzalone et al., 2020; Choi et al., 2022; Jang et al., 2021; Jo et al., 2019; Maeder et al., 2019; Suh et al., 2021; Yu et al., 2017). However, it is worth further consideration for the limitations of utilizing BEs and PEs to implement in vivo genome editing for vision rescue in those studies.

The target cells where genome editing is carried out in those reports are mainly restricted to RPE cells which are non-neuronal cells (Choi et al., 2022; Jang et al., 2021; Suh et al., 2021), and the Rpe65 gene encodes an isomerase in the visual cycle that regenerates the active visual chromophore 11-cis-retinal in RPE cells (Redmond et al., 1998). Most of the mutations causing RP and other IRDs are instead associated with neural photoreceptor functions and survival (Daiger et al., 2013; Gagliardi et al., 2019). Thus, given the complexity of neural architecture, the direct utility of genome editing in the neural retinal cells, in particular for unhealthy or dying photoreceptors, would provide much more convincing evidence for the potential applications of these tools in RP treatment. Some studies reported the successful introduction of BEs or PEs into the wild-type retinas for targeted genome editing (Chen et al., 2020; Zhi et al., 2022), which raises further concerns about the effectiveness of genome editing in the retina under the pathological condition. For example, photoreceptor cell death starts as early as P16 in Pde6b^rd10 mice, and only a single row of cell bodies is left in most regions of ONL at no later than P60. Whether the correction via genome editing enables photoreceptor preservation before all of them die or whether the photoreceptors preserved via genome editing are sustained well enough for the rescue of visual function would be totally different from the issue addressed under normal physiological conditions. Our results clearly indicate that PE^SpRY-elicited Pde6b gene correction is capable of promoting substantial photoreceptor survival in Pde6b^rd10 mice and the visual function preserved exhibits comparable or a little inferior to that in wild-type mice. To our knowledge, the present study is the first report systematically exploiting PE-based strategy to implement gene therapy in the RP disease model. In particular, the visual function is found to be sustained well in the treated Pde6b^rd10 mice as old as P240, which further supports PE^SpRY as a reliable genome-editing tool in treating RP.

Another point drawing our attention is the limitation of BEs used for the treatment of inherited retinal diseases. As we know, BEs only enable the installation of point mutations in the genome (Gaudelli et al., 2017; Koblan et al., 2021; Komor et al., 2016), and the bystander edits caused by the presence of the multiple C or A within the editing window have to be carefully considered. As expected, the ABE results in limited precision and unintended bystander edits when used in the correction of point mutation at the Rpe65 locus (Suh et al., 2021). To address this issue, PEs are used in the same LCA mouse model and produce an efficient single nucleotide substitution without any detectable indels and bystander effects (Jang et al., 2021). Based on these results, however, two critical issues are worth further consideration. One is whether PEs are able to appear versatile enough for in vivo genome editing when the combination edits are desired or when the inherited disorders are caused by mutations in two or more base pairs or in an even more complicated way. In other words, we expect that PEs exhibit versatility as they are doing in the cell lines (Anzalone et al., 2019) and that they are not restricted by editing types when used for the treatment of retinal diseases resulting from multiple mutations. The other is that all editors used in the above-mentioned studies are SpCas9-based proteins. The stringent PAM requirement would generate significant target sequence restrictions, presumably leading to the low efficiency of genome editing and the limited use of this tool. As demonstrated in the present study, the PE^SpCas9 is incapable of installing desired edits at Pde6b locus likely due to its PAM preferences, as the selected canonical PAMs and corresponding protospacers either exhibit lower editing efficiency based on the prediction and experimental tests or are far away from the targeted position, resulting in incompatible long-distance RT templates. To provide a solution for these questions, we use PE^SpRY, combining the advantages of PEs and the PAM-less SpRY variant, to successfully and efficiently introduce combination edits such as Pde6b^AGA into the diseased retinas of Pde6b^rd10 mice and facilitate substantial rescues of both photoreceptors and visual function as well. Of particular importance, all of the 14 PAMs and their protospacers tested appear active, though with differential compatibility, for PE^SpRY. Among these PAMs, only one (TGG, corresponding to protospacer p7) displays canonical NGG sequence, but the editing efficiencies with other non-NGG PAMs such as GTG, TGC, and CAG (corresponding to protospacer p5, p4, and p9, respectively) appear much higher, suggesting the relaxed or unconstrained PAM requirement for PE^SpRY. In particular, PE^SpRY system with GTG as its PAM makes in vivo genome editing for RP mouse model become a reality, which would offer an opportunity for this genome-editing tool for more extensive applications in treating diverse IRDs.

The next point we should pay attention to is the appropriate assessment of the visual function after the correction of mutation causing eye diseases. As generally accepted, whether vision is improved after genome editing or any type of gene therapy relies on detailed behavioral tests. In comparison with previous reports, in which the behaviors were relatively roughly demonstrated after the correction of point mutation via ABEs or PEs in Rpe65-associated LCA mouse model (Jang et al., 2021; Suh et al., 2021), we herein carry out a careful behavioral characterization via a light–dark transition test for passive avoidance, shuttle box learning test for active avoidance, and visually guided optomotor response test, as well as water-maze visual discrimination tasks in Pde6b^rd10 mice subjected to PE^SpRY-elicited genome editing. The fully automated recordings and assays for each detail of mouse movements guarantee accurate quantitative assessments for the improved visual function, therefore providing solid evidence for the effects of PE^SpRY system on the treatment in Pde6b-associated RP mouse model. Despite the more objective evaluation of human vision through well-developed instruments such as Goldmann perimetry, microperimetry, and pupillometry, the introduction of multiluminance mobility testing in the phase 3 trial of Luxturna for the treatment of RPE65-associated LCA (Russell et al., 2017), suggesting the indispensability of intuitively evaluating the visual preservation and restoration via behavioral performance. Thus, the demonstration of functional rescue of vision via genome editing in the Pde6b^rd10 mice in these real-world simulations provides more conclusive information regarding the preservation of the vision-mediated direction, localization, and motion, and even cognition compared with the histological assay and ERG test.

It is worth noting that non-viral vectors including virus-like particles and lipid nanoparticles are currently emerging as an alternative approach to deliver cargos into the tissues and have demonstrated great potential in treating diseases (Banskota et al., 2022; Raguram et al., 2022). One of the limitations, however, is the size of the non-viral vectors. Typically, the size of AAV is around 20–30 nm whereas those of non-viral vectors generally exceed 100 nm, which precludes the delivery of cargos (DNAs, RNAs, or proteins) into the photoreceptors due to the physical barriers in the eye (such as the outer limiting membranes and the inter-photoreceptor matrix; Trapani et al., 2014). Thus, the non-viral vectors remain to be optimized for their efficiency in transducing neural retinas.

Taken together, we exploited a versatile and unconstrained genome-editing tool, PE^SpRY, integrating the advantages of prime editors and SpRY to successfully install desired edits into diseased Pde6b^rd10 mouse retinas. In addition to the significant preservation of both rod and cone photoreceptors and restoration of compromised PDE6 phosphodiesterase activity, the treated mice showed the apparent responses elicited in the ERG test and good performance in a variety of behavioral assessments including passive and active avoidance, optomotor test, as well as water-maze task. By PE^SpRY-elicited in vivo correction of mutation at Pde6b locus, we ultimately rescued the vision in the Pde6b-associated RP mouse model. We provide substantial evidence for the in vivo applicability of this new genome-editing strategy and would further facilitate the realization of its full potential in diverse research and therapeutic contexts, in particular for IRDs.

C57BL/6J and Pde6b^rd10 mice were originally purchased from The Jackson Laboratory and bred under controlled ambient illumination on a 12-h/12-h light–dark cycle. All animal procedures were approved by the Wuhan University of Science and Technology ethics committee and performed according to the Institutional Animal Care and Use Committee standards and National Institutes of Health guidelines for the Care and Use of Laboratory Animals.

The constructs of pAAV-EF1α-NpuC-SpRY(H840A)^714-1368-M-MLV and pAAV-EF1α-GFP-P2A-SpRY(H840A)^1-713-NpuN were originally generated from pCMV-PE2 (plasmid 132775; Addgene) and pAAV-EF1α-GFP. In brief, the site mutations (A61R, L111R, D1135L, S1136W, G1218K, E1219Q, N1317R, A1322R, R1333P, R1335Q, and T1337R) were sequentially introduced into the SpCas9 (H840A)-M-MLV (that is, PE^SpCas9) through PCR to obtain pCMV-PE^SpRY. The three fragments, P2A, SpRY(H840A)^1-713 amplified from pCMV-PE^SpRY, and NpuN, were then inserted downstream of GFP to obtain pAAV-EF1α-GFP-P2A-SpRY(H840A)^1-713-NpuN. NpuC and SpRY(H840A)^714-1368-M-MLV from pCMV-PE2 (SpRY) were subcloned to replace GFP to obtain pAAV-EF1α-NpuC-SpRY(H840A)^714-1368-M-MLV. All pegRNA and ngRNA constructs were generated by ligation of annealed oligos into pU6 expression plasmids and cloned into the modified pAAV-EF1α-GFP-P2A-SpRY(H840A)^1-713-NpuN with KpnI and NheI restriction sites for the insertions of U6-pegRNA and U6-ngRNA cassettes (see supplemental sequences and notes in Data S2).

Engineered mouse Neuro2a cell line carrying the Pde6b^rd10 mutation (referred to as Neuro2a^rd10) was commercially established (InteRevo) and propagated in DMEM supplemented with 10% FBS (Gibco), 1% L-glutamine (Gibco), 100 mg/ml streptomycin, and 100 U/ml penicillin (Hyclone) at 37°C in a humidified condition with 5% CO₂. Cells were seeded on 24-well plates (Corning) for 18–24 h of growth at ∼60% confluency. The plasmids (1 μg/well) were transfected with Lipofectamine 3000 (Life Technologies) according to the manufacturer’s protocol. Cells were cultured for 3 d, followed by harvesting for genomic DNA extraction.

The genomic DNA from cells or retinas was extracted using the DNeasy Blood & Tissue kit (Qiagen) according to the manufacturer’s protocol. All DNA samples were measured for concentration using Nanodrop (Thermo Fisher Scientific) and then subjected to PCR for restriction assays or targeted deep sequencing.

CIRCLE-seq was carried out to identify potential off-target sites experimentally. CIRCLE-seq library preparation was performed using genomic DNA extracted from untreated Pde6b^rd10 mouse retina. In brief, genomic DNA was extracted using the TIANamp Genomic DNA Kit (TIANGEN) and fragmented to an average size of 300 bp using a Covaris E200 instrument. HTP Library Preparation Kit (KAPA Biosystems) was used for end repairs, A tailing, and stem-loop adaptor ligation. Adaptor-ligated DNA with a free 5′ phosphate was degraded away by treatment with Lambda Exonuclease and Escherichia coli Exonuclease (NEB). The genomic DNA was intramolecularly circularized using T4 DNA ligase (NEB), and any leftover linear double-stranded DNA was digested using Plasmid-Safe ATP-dependent DNase (Biosearch Technologies). Circularized DNA was subsequently treated with recombinant SpRY nuclease complexing with p5 and n3 gRNAs in a 50 μl volume for in vitro cleavage operations. After adapter ligation (NEB), the digested products were amplified by PCR using barcoded universal primers (NEBNext Multiplex Oligos for Illumina) and Kapa HiFi Polymerase (KAPA Biosystems). Libraries were quantified by quantitative PCR (Bio-Rad) and diluted to a final concentration of 15 pM for sequencing with 150-bp paired-end reads (Illumina). Data were processed using open-source CIRCLE-seq analysis pipeline (https://github.com/tsailabSJ/circleseq, version 1.1) with default parameters. The five top-ranking off-target loci discovered by CIRCLE-seq analysis were selected for PCR amplification and high-throughput sequencing.

Genomic sites of interest were amplified from the extracted genomic DNA using the primers listed in Table S8. The amplicons were purified using QIAquick Gel Extraction Kit (Qiagen), and DNA concentration was measured using Nanodrop (Thermo Fisher Scientific). The pooled amplicons were sequenced with 150-bp paired-end reads on an Illumina Novaseq 6000 platform by Annoroad according to the manufacturer’s protocols. Raw reads were filtered and analyzed using CRISPResso2 software package (Clement et al., 2019). To quantify the insertion–deletions frequencies of intentional and unpremeditated edits, paired-end sequencing files were aligned to a reference sequence using web-based tool Cas-analyzer (http://www.rgenome.net). Deep sequencing data are available from the NCBI Sequence Read Archive under accession number PRJNA784338.

AAV vectors (InteRevo) were produced as previously described (Yao et al., 2018). Briefly, HEK293T cells (ATCC, authenticated by AAV production and tested for mycoplasma contamination by PCR) were cotransfected with plasmids for Rep/Cap (2/8) and genes of interest along with Helper plasmid. Cells were harvested 48 h after transfection and lysed with lysis buffer. After treatment with Benzonase (Sigma-Aldrich), the supernatants were ultracentrifuged in iodixanol gradient for purification. Purified AAVs were then concentrated with Amicon Ultra-15 Filter Units (Millipore) to a final titer of 4.0–6.0 × 10¹³ vg ml⁻¹ (Table S7).

Mice were anesthetized and subjected to subretinal injections under a surgical microscope. An incision was made through the cornea at the nasal side using a sterile and beveled 30-gauge needle. Subretinal injection was carried out through a microsyringe equipped with a 32-gauge blunt-end needle (Hamilton), which was passed through the retina while avoiding the lens. Each eye received 0.7 μl of AAVs (approximately equal to 10¹³–10¹⁴ vg kg⁻¹ body weight) with Fastgreen (0.1%; Sigma-Aldrich) included in the suspension for visualization. Unless otherwise stated, the retinas of Pde6b^rd10 mice treated with AAV vectors packaging split PE^SpRY and gScrambled/GFP were referred to as Pde6b^rd10 control and those with packaging split PE^SpRY and gPde6b/GFP were referred to as Pde6b^{T to C} or Pde6b^AGA.

Retinas were dissected out and incubated at 37°C for 20 min in the thermomixer with the activated Papain mix composed of 40 μl Papain (500 U/ml; Worthington), 40 μl Cysteine/EDTA mix (25 mM cysteine + 5 mM EDTA [pH 7.0]), and 320 μl HBSS/Hepes (normal HBSS + 10 mM Hepes). The cell pellet was collected and treated with benzonase at 37°C for 8 min. After the removal of supernatant, dissociated cells were resuspended in an appropriate volume of DPBS (Gibco). GFP⁺ cells were sorted using a FACSAria cell sorter (BD Biosciences) and collected for genomic extraction.

Retinas were separated from the enucleated eyes and subjected to fixation in 4% paraformaldehyde for 30 min. After dehydration with a series of increasing ethanol concentrations (70, 95, and 100%) and incubation in xylene, retinas were embedded in paraffin and sectioned at 5 μm thickness with Leica microtome. Following the deparaffinization and rehydration, the slides with retinal sections were stained with H&E and mounted with Canada balsam (Sigma-Aldrich). Images were captured with an Olympus IX83 microscope.

Mice were anesthetized for perfusion with 4% paraformaldehyde, and eyes were enucleated. Retinas were then dissected carefully with forceps and postfixed in 4% paraformaldehyde for 30 min. After removal of the lens, the retinas were immersed in 30% sucrose and OCT (Leica). The embedded retinas were then cryo-sectioned at 20 μm thickness by Leica CM1950. Slides with retinal sections were washed with PBS and incubated with a blocking buffer containing 5% normal donkey serum (Jackson ImmunoResearch), 0.1% Triton X-100, and 0.1% NaN₃ in PBS for 1 h at room temperature. After overnight incubation with primary antibodies at 4°C, sections were washed PBS three times and then incubated with secondary antibodies in the humidified dark box for 2 h at room temperature. The nuclei were counterstained with DAPI (Sigma-Aldrich) and sections were mounted with Fluoromount G (SouthernBiotech). All antibodies used in this study are shown in Table S9.

Confocal images were acquired with Olympus FV3000 microscope. All images were taken under non-saturated conditions, and images to be compared were acquired with the same settings. The quantitative analysis of fluorescence intensity at each region of interest across the images was carried out by using ImageJ. The mean fluorescence intensities were calculated using the integrated “Analyze–Measure” tool of ImageJ, and statistical analysis was performed using Prism 8 (GraphPad).

Retinal flatmounts were prepared as previously described (Yao et al., 2016). In brief, anesthetized mice were perfused with 4% paraformaldehyde, and eyes were enucleated. Retinas were then dissected carefully with forceps and postfixed in 4% paraformaldehyde for 30 min. After removal of the lens, the retinas were washed with PBS three times and flat-mounted in Fluoromount G (SouthernBiotech), with photoreceptor layers facing up or subjected to further immunostaining prior to mounting.

Retinas were isolated from the light-adapted mice and homogenized with ice-cold PDE Assay Buffer (BioVision) supplemented with Halt Protease Inhibitor Cocktail (Thermo Fisher Scientific). The PDE activity was measured with Total Phosphodiesterase Activity Assay Kit (BioVision) according to the manufacturer’s instructions. The fluorescence from the cleaved PDE substrates was recorded at Ex/Em 370/450 nm on a kinetic mode using SpectraMax iD5 (Molecular Devices), and the PDE activities were expressed as microunits per milligram retinal proteins.

Retinas were isolated under infrared illumination or normal room light and homogenized in 100 μl lysis buffer (Cell Signaling Technology). Total cGMP amount was assayed in triplicate with cGMP XP Assay Kit (Cell Signaling Technology) according to the manufacturer’s protocols. The absorbance at 450 nm was read using SpectraMax iD5 (Molecular Devices) and the cGMP levels were expressed as nmols cGMP per microgram total retinal proteins.

Cells or retinas were lysed and homogenized in radioimmunoprecipitation assay buffer (Yeasen) supplemented with Halt Protease Inhibitor Cocktail (Thermo Fisher Scientific). Samples were then centrifuged for 10 min at 4°C and the supernatants were collected and stored at −80°C for further assays. Protein concentrations were determined with BCA Protein Assay Kit (BioVision) using SpectraMax iD5 (Molecular Devices). Western blotting was performed essentially according to our previous report (Yao et al., 2014). In brief, samples were stacked and separated in 4 and 10% SDS gels, respectively, in running buffer (25 mM Tris base, 0.2 M glycine, 0.1% [wt/vol] SDS) with Mini-PROTEAN Tetra Cell system (Bio-Rad), followed by blotting on a PVDF membrane (Millipore). After blocking with 5% milk in TBST (200 mM Tris base, 1.36 M NaCl, pH 7.6, 0.1% [wt/vol] Tween 20) at room temperature for 1 h, the membrane was incubated with primary antibody at 4°C overnight. The membrane was then incubated with HRP-conjugated secondary antibody at room temperature for 1 h after washing, followed by immunodetection with SuperSignal West Femto (Thermo Fisher Scientific) on ChemiDoc Imaging System (Bio-Rad). All antibodies used in this study are shown in Table S9.

Mice were anesthetized and pupils were dilated with 1% Tropicamide and 1% Atropine. ERGs (RetiMINER-C, IRC) were recorded from the corneal surface using a pair of platinum loop electrodes, along with a ground electrode placed in the tail and a reference electrode in the anterior scalp between the eyes. A drop of Genteal Gel (Alcon) was placed on the cornea to keep it moistened. For scotopic ERG, mice were dark-adapted overnight and stimulated with flashes of steadily increasing light intensity (−3.6, −2.6, −1.6, −0.6, 0.4, 1.4, and 2.15 log cds/m²). For photopic ERG, mice were light-adapted for 10 min and stimulated with flashes (−0.6, 0, 0.6, 1, 1.4, and 2.15 log cds/m²) while white background light (30 cds/m²) was presented concomitantly. The band-pass filter was set between 0.3 and 300 Hz, and responses were averaged from 10 single flashes. All data were analyzed via RetiMINER4.0.

The apparatus used for the light–dark transition test consisted of a box divided into a small (one-third) dark compartment and a large (two-thirds) illuminated compartment with varying luminance (300, 600, or 900 lux) connected by a small opening. Mice were initially released into the light compartment, facing away from the opening, and they moved freely between the two compartments for 5 min. The behavioral parameters including the time spent, distance traveled, rearing time, maximal or minimal visit time spent, total number of transitions, as well as mean velocity in light and dark compartments were automatically analyzed (SuperMaze, XINRUN) based on the behavior recorded by the camera of Light-Dark Box System XR-XB120 (XINRUN). After each trial, the compartments were cleaned with 70% ethanol and water to remove the olfactory cues.

Shuttle box test was carried out essentially as previously described (Masu et al., 1995). In brief, the apparatus consisted of a box divided into two equal compartments connected by a small opening. Each trial started with a light (20 cd/m²) switched on selectively in the two compartments as a conditioned stimulus. The mouse could avoid foot shock (0.3 mA) applied continuously to the grid floor within 10 s after light exposure, which was regarded as active avoidance. If failed, the mouse could escape into the safe compartment once shocked, which was passive avoidance. The foot shock would last 3 s in the case of unsuccessful escape. Mice were subjected to daily training sessions of 100 trials for 5 d with the aim of avoidance learning acquisition, then followed by the tests at 1, 2, and 3 wk as well. The behavior of each mouse was recorded by the camera and automatically analyzed (SuperAPAS, XINRUN) with Shuttle Box System XR-XC404 (XINRUN) for a panel of parameters including the number and average response time of active or passive avoidance, the latency for the first active or passive avoidance, distance traveled, time spent, as well as shuttle times.

The optomotor reflex was assessed by an automated head-tracking system modified from a version previously published (Kretschmer et al., 2015). Mice were placed and freely moving on a central, elevated platform and presented with vertical sinusoidal grating stimuli rotating (12°/s) horizontally in either a clockwise or counterclockwise direction randomly generated by a virtual cylinder projected onto the four surrounding LCD monitors. The visual stimuli were presented either at maximum contrast (100%) with six different spatial frequencies (0.02, 0.1, 0.15, 0.2, 0.3, and 0.4 cycles/°) or at optimal spatial frequency (0.2 cycles/°) with six different contrasts (100, 50, 25, 12.5, 10, and 5%). Stimulus at each spatial frequency or contrast level lasted 50 s and presented in a randomized order and direction. Each mouse was tested for at least 12 trials and the performances were averaged for analysis.

The visual stimuli–elicited head movements were recorded by a camera placed above the animal and analyzed by an algorithm automatically tracking the position of the mouse head (OptoTrack XR-OT101 system, OptoTrack Version 4, XINRUN). The angles of the head in relation to the moving grating stimulus were therefore able to be automatically calculated for the measurements objectively obtained, which excluded any subjective input from a human observer. The optomotor response was determined and quantified by calculating the ratio of the total amount of time (converted to the sum of frames in the algorithms) the animal head moved in the stimulus and in the opposite direction (T_correct/T_incorrect, thereafter named OMR) as conventionally used. In addition, based on the observation that in totally blind mice the differences between the head moving time in two directions were close or equal to 0, we, therefore, calculated T_correct – T_incorrect, referred to hereafter as ΔT, as a more intuitive way to measure the visual function.

Visual function was assessed through a computer-based, two-alternative, forced-choice visual water-maze task as previously described (Prusky et al., 2000). The apparatus consisted of a trapezoidal-shaped pool with a release chute centered at the narrow end and a midline divider extending from the wide end into the pool. Positioned side by side at the wide end, two identical computer monitors faced into the pool and were calibrated for equal screen brightness. A vertical sinusoidal grating visual stimulus was presented on either monitor with the other displaying uniform gray. In terms of the test procedure, mice were shaped steadily through training under the optimal condition (100% contrast and 0.2 cycles/° spatial frequency) to swim from the release chute to the monitors and to associate the sinusoidal grating on the monitor with a submerged hidden platform that allowed them to escape from the water. Following a four-session daily training for four consecutive days (D1S1–D4S4), mice were afterward detected for visual function either at maximum contrast (100%) with a panel of spatial frequencies (0.05, 0.1, 0.2, 0.3, 0.4, and 0.5 cycles/°) or at optimal spatial frequency (0.2 cycles/°) with defined contrast levels (100, 50, 25, 10, 5, and 2%). Each visual test session consisted of 10 trials with the gratings presented in a pseudorandom pattern, LRLLRLRRLR (L or R, grafting displayed on left or right monitor), and a correct trial was scored when a mouse reached the platform without entry into the gray-displaying monitor side. The number of correct trials was expressed as percentage, and mice were considered to have learned the task when they achieved >70% correct choices. All trials were recorded by a camera and analyzed with Visu Water Task System (XR-OF801, XINRUN) for a panel of parameters including the latency time and distance traveled to find the platform.

Statistical differences between different experimental groups were typically analyzed by a Student’s t test, one-way ANOVA, or two-way ANOVA tests with Tukey’s multiple comparisons. Data are presented as mean ± SEM and a value of P < 0.05 was considered significant. All experiments were independently performed at least three times to ensure repeatable results.

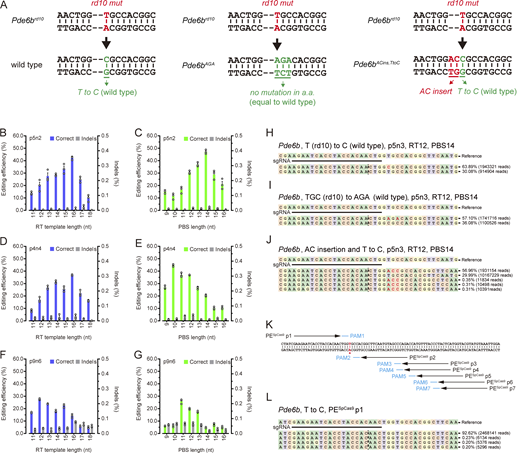

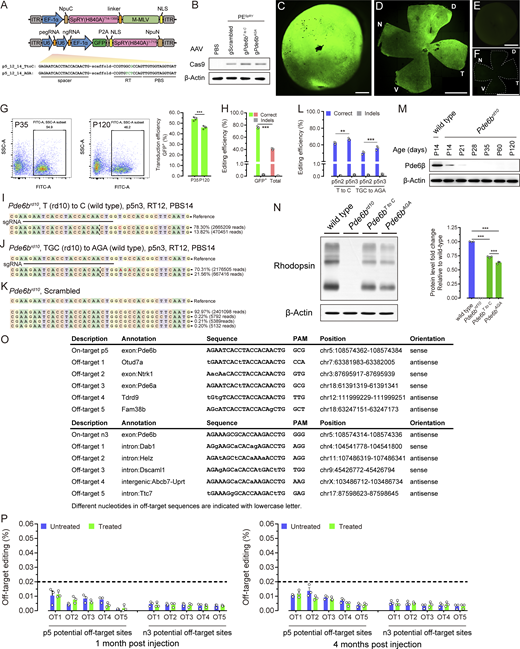

Fig. S1 shows diverse in vitro genome editing implemented by PE^SpRY system. Fig. S2 shows that PE^SpRY system elicits in vivo targeted genome editing at Pde6b locus. Fig. S3 shows immunohistochemistry in wild-type retinas and the preservative effects in the Pde6b^rd10 mice treated at P21 with PE^SpRY system and gPde6b. Fig. S4 shows ERG responses in Pde6b^rd10 control mice at different ages, in Pde6b^AGA mice, and in the Pde6b^rd10 mice treated at P21 with PE^SpRY system and gPde6b. Fig. S5 shows the visual stimuli–driven optomotor responses in wild-type and Pde6b^rd10 control mice and mouse performance in water task. Table S1 shows sequences of p1–p14 gRNAs. Table S2 shows sequences of ngRNA n1–n7 and the distance from the target T∙A base pair. Table S3 shows sequences of pegRNAs for optimization of RT templates and PBS lengths. Table S4 shows sequences of pegRNAs for diverse editings with optimized RT templates and PBS. Table S5 shows sequences of pegRNAs and ngRNAs for PE^SpCas9 genome editing. Table S6 shows sequences of pegRNAs for in vivo genome editing in Pde6b^rd10 mice. Table S7 shows viral constructs, Rep/Cap, and virus titers. Table S8 shows primers used in the study. Table S9 shows antibodies used for immunohistochemistry and Western blotting. Data S1 show the sequences of indels for the pegRNA or ngRNA in the treated retinas. Data S2 show the sequences of constructs used in this study. Supplemental notes in Data S2 show the cloning protocol of the constructs.
