Selective regulation of kinesin-5 function by β-tubulin carboxy-terminal tails

The microtubule cytoskeleton performs various cellular functions, from trafficking to migration to cell division, yet we lack an understanding of how cells generate and interpret molecular differences in microtubule networks to accomplish these functions. The tubulin code hypothesis proposes two means to generate these molecular differences: multiple tubulin isotypes and tubulin posttranslational modifications (PTMs) (Janke and Magiera, 2020; Roll-Mecak, 2020). These two facets of the tubulin code intersect at the carboxy-terminal tails (CTTs) of tubulin, which are intrinsically disordered regions that are highly divergent between tubulin isotypes and are hotspots for PTMs. One generally conserved feature of CTTs is their negative charge as a result of enrichment for glutamate and/or aspartate residues. In many eukaryotes, the negative charge of these residues can be further increased by polyglutamylation, a modification where variable chains of glutamate residues are posttranslationally ligated to the genetically encoded glutamates in the CTTs. Polyglutamylation is enriched in specific microtubule structures, axons, mitotic spindles, and axonemes, and is thought to create functionally distinct subpopulations of microtubules (Bodakuntla et al., 2020; Lacroix et al., 2010; Redeker et al., 1992; Suryavanshi et al., 2010).

A corollary of the tubulin code hypothesis is that microtubule-associated proteins (MAPs) and motors have divergent sensitivities to tubulin CTTs. Consistent with this notion, microtubule motors do not respond uniformly to changes in CTTs: motors exhibit differential effects on velocity and processivity when measured on microtubules with engineered isotype CTT sequences and modification state (Sirajuddin et al., 2014). Furthermore, kinesin-3 landing rate and motility differ depending on the source of the mammalian tubulin, potentially as a result of differences in isotype composition or polyglutamylation state, and kinesin-1 processivity is affected by polyglutamylation state (Genova et al., 2023; Lessard et al., 2019). However, determining what motors are sensitive to the CTTs and the molecular basis of these interactions remains a major question.

The mitotic spindle presents a compelling case to study these interactions due to the division of labor between the subsets of kinetochore, interpolar, and astral microtubules (Winey et al., 1995; Winey and Bloom, 2012). Among these, the interpolar microtubules elongate the mitotic spindle during anaphase to spatially resolve the genome and ensure accurate chromosome inheritance (Cimini et al., 2004; Hoyt et al., 1992; Severin et al., 2001). The budding yeast Saccharomyces cerevisiae, like many eukaryotic organisms, accomplishes spindle elongation by generating forces from within the spindle midzone, which is the region of interdigitating, antiparallel microtubules that extend from opposite spindle poles. How these cells generate timely and efficient force generation at a specific region on a subpopulation of microtubules is a fundamental question. Budding yeast have no known modifications to the tubulin CTTs and a relatively simple repertoire of MAPs and motors that generate force within the midzone. The primary anaphase force-generating components of the budding yeast spindle are Kip3 (kinesin-8), Kar3 (kinesin-14), Cin8 and Kip1 (kinesin-5), and Ase1 (MAP65/PRC1). The primary outward force contributing to spindle elongation is generated by the tetrameric kinesin-5 motors that can simultaneously walk on two microtubules, and loss of both Cin8 and Kip1 results in inviable cells (Hoyt et al., 1992; Kapitein et al., 2005; Roof et al., 1992; Saunders and Hoyt, 1992). Although Cin8 and Kip1 have partially redundant roles in spindle elongation, careful examination of null mutants in either gene suggests unique roles: Cin8 plays a more important role in bipolar spindle assembly and is necessary for the initial, fast phase of anaphase spindle elongation while Kip1 supports the later, slower phase of spindle elongation and stabilizes the late anaphase spindle (Fridman et al., 2013; Leary et al., 2019; Straight et al., 1998). Both Cin8 and Kip1 are also capable of bidirectional motility, adding an extra dimension to the regulation of their motility (Fridman et al., 2013; Gerson-Gurwitz et al., 2011; Roostalu et al., 2011). As such, the budding yeast mitotic spindle provides a system for delineating how different motors use a single CTT state to generate complex functions.

Our past work identified distinct roles for the α- or β-CTTs in the budding yeast microtubule network, with the β-CTT specifically promoting spindle assembly and anaphase spindle elongation (Aiken et al., 2014). In addition, we identified a requirement for β-CTT for the localization of Cin8 to the spindle (Aiken et al., 2014). In this study, we first asked which force-generating motors and MAPs in the mitotic spindle are sensitive to the β-CTT. Using in vivo fluorescence microscopy, we showed that the two kinesin-5 motors Cin8 and Kip1 have differential responses to the loss of the β-CTT. We assign this response to a patch of acidic amino acids within the β-CTT that directly promotes Cin8 function. Using in vivo timelapse microscopy and a reconstituted in vitro system with Cin8 on yeast microtubules with genetically edited CTTs, we demonstrated that the β-CTT promotes the plus-end motility of Cin8. Finally, we determined that this interaction is mediated by a basic amino-terminal region extending from the Cin8 motor domain, a feature that may represent an important point of regulation across kinesin motors. These results have implications for kinesin-5 function in more complex systems with multiple β-tubulin isotypes and posttranslational modifications such as polyglutamylation and broadly advance our understanding of how the tubulin-CTTs selectively regulate kinesin function.

Based on our past work that identified the β-CTT, but not the α-CTT, as important for spindle elongation in budding yeast (Aiken et al., 2014), we hypothesized that the β-CTT must regulate force-generating spindle motors and MAPs. We genetically deleted the β-CTT by removing the last 27 codons from chromosomal β-tubulin/TUB2, creating tub2-Δ430, and predicted that motors and MAPs sensitive to the loss of the β-CTT would have spindle localization levels in these cells that differ from that of wild-type cells. We fluorescently tagged each of the force-generating motors and MAPs in the budding yeast spindle (Kar3, Ase1, Kip3, Cin8, and Kip1) at the endogenous loci and individually quantified the levels of each protein in the pre-anaphase spindle, normalized to the levels in the wild-type TUB2 cells technical replicates (Fig. 1 A). Our previous cryo-electron tomography results indicated an increase in spindle microtubules in tub2-Δ430 cells, although most of these were very short microtubules (Fees et al., 2016). As a control for microtubule number, we measured the amount of the plus-end binding Bik1/CLIP170, which did not display a significant difference in localization to the spindle (TUB2 = 1.01 ± 0.07, tub2-Δ430 = 1.10 ± 0.16, P = 0.23; Fig. S1). Kar3/kinesin-14 (mean ± 95% confidence interval [CI], TUB2 = 1.03 ± 0.08, tub2-Δ430 = 1.07 ± 0.24, P = 0.67) and Ase1/MAP65 (TUB2 = 1.04 ± 0.12, tub2-Δ430 = 0.95 ± 0.30, P = 0.48) exhibit similar levels in wild-type and tub2-430∆ pre-anaphase spindles, suggesting that Kar3 and Ase1 are not sensitive to the loss of the β-CTT (Fig. 1, B and C). The kinesin-8 Kip3 does display a slight decrease in spindle localization in the absence of the β-CTT (TUB2 = 1.01 ± 0.10, tub2-Δ430 = 0.80 ± 0.14, P = 0.01; Fig. 1 D), although we also observed an increase of Kip3 on astral microtubules in the cytoplasm (Fig. S1 B). These results suggest that β-CTT does not promote the localization of Kar3 and Ase1 to the spindle but may enhance the localization of Kip3.

We observed the greatest effects of β-CTT on the kinesin-5 motors Cin8 and Kip1 (Fig. 1, E and F). Cin8 spindle localization decreased by ∼50% in the absence of β-CTT (TUB2 = 0.97 ± 0.08, tub2-Δ430 = 0.54 ± 0.14; P < 0.0001), while Kip1 increased by ∼50% (TUB2 = 1.03 ± 0.06, tub2-Δ430 = 1.61 ± 0.41; P = 0.0049). To test if changes in kinesin-5 expression level could account for altered spindle localization, we quantified the whole-cell fluorescence intensity. In the absence of the β-CTT, total Cin8 expression did not change (TUB2 = 1.01 ± 0.04, tub2-Δ430 = 0.98 ± 0.11), but an ∼25% increase in total Kip1 levels (TUB2 = 0.99 ± 0.07, tub2-Δ430 = 1.27 ± 0.14; P = 0.001) could partially explain the increased Kip1 spindle localization (Fig. S1). While the decrease in Cin8 spindle localization is consistent with our past results (Aiken et al., 2014), the increase in Kip1 localization was unexpected since the two motors are from the same kinesin-5 family. Overall, these results suggest that the β-CTT predominantly regulates the kinesin-5 motors Cin8 and Kip1 to promote spindle elongation.

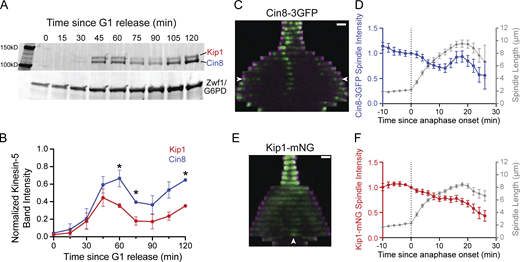

Because β-CTT appears to have opposite effects on Cin8 and Kip1, we next wanted to determine whether this could be attributed to differences in expression during the cell cycle or localization to distinct sub-regions of the spindle. Previous studies have established that Cin8 plays an important role during spindle assembly and the fast phase of anaphase spindle elongation, while Kip1 plays an important role later in anaphase to stabilize the spindle (Fridman et al., 2013; Leary et al., 2019; Straight et al., 1998). These data suggest that Cin8 may localize to the spindle earlier than Kip1, so we predicted that Cin8 may be expressed earlier in the cell cycle. To test this prediction, we added carboxy-terminal 3HA tags to native Cin8 and Kip1, arrested cells in G1, then synchronously released cells, and collected samples every 15 min for western blot analysis. Cin8 and Kip1 exhibit similar patterns of expression after G1 release—increasing at ∼30 min, peaking between 45 and 60 min, and decreasing between 75 and 90 min (Fig. 2, A and B). This represents an increase during the S-phase, a peak during G2/M, and a decrease during mitotic exit. Although the cell-cycle timing of Cin8 and Kip1 expression is similar, our results show that cells contain ∼2X more Cin8 than Kip1 during mitosis (Fig. 2, A and B).

To quantify changes in kinesin-5 localization during the cell cycle, we released G1 arrested cells and every 2 min imaged spindle poles labeled with Spc110-tdTomato along with either Cin8-3GFP or Kip1-mNeonGreen, all tagged at the native loci (Fig. 2, C–F; Fig. S2; and Videos 1, 2, 3, and 4). We quantified kinesin-5 signal in the spindle and normalized it to the level at anaphase onset, as determined by the change in spindle length over time. Spindle localization for both Cin8 and Kip1 peaks prior to anaphase onset and then decreases as cells enter anaphase (Fig. 2, C–F). This decrease at anaphase onset was not due to photobleaching; we found examples of cells entering anaphase up to 16 min apart with similar levels of Cin8 or Kip1 signal on the spindle prior to anaphase onset. There are, however, modest localization differences during late anaphase. Cin8 spindle levels slightly increase during late anaphase, which may be explained by an increase in Cin8 close to the spindle poles at longer spindle lengths (see arrowheads in Fig. 2 C; Fig. S2; and Videos 1 and 2). Kip1 spindle levels remain consistent during late anaphase (Fig. 2 F), and levels close to the spindle poles only increase after the pole–pole distance decreases during inferred spindle disassembly (Fig. S2). Furthermore, we sometimes observed enrichment of Kip1 in the middle of late anaphase spindles (arrowhead Fig. 2 E; Fig. S2; and Videos 3 and 4), which agrees with past results suggesting Kip1 helps stabilize the late-anaphase spindle (Fridman et al., 2013). Overall, these results indicate that the timing of Cin8 and Kip1 expression and localization to the spindle is similar, but Cin8 is more abundant than Kip1 and exhibits subtle differences in localization during late anaphase.

We hypothesized three non-mutually exclusive models to explain the decrease in Cin8 and increase in Kip1 spindle localization in the absence of the β-CTT (Fig. 3 A). (1) Cin8 and Kip1 compete for access to binding sites on the mitotic spindle, which could cause an inverse relationship in their spindle localization. (2) A direct interaction between the β-CTT and the kinesin-5 motors with the β-CTT promoting Cin8 localization and/or inhibiting Kip1 localization. (3) The β-CTT promotes mitotic progression, which has an indirect effect on Cin8 and Kip1 levels. To test the first model, we predicted that knocking out one kinesin-5 would allow increased localization of the other to the spindle. To test this possibility, we imaged asynchronous kip1Δ cells expressing Cin8-3GFP or cin8Δ cells expressing Kip1-mNeonGreen. Cin8 spindle localization slightly increases in kip1Δ cells compared to wild type (mean ± 95% confidence interval, KIP1 = 1.01 ± 0.15, kip1Δ = 1.18 ± 0.10, P = 0.03; Fig. 3 B), while Kip1 levels show a stronger increase in cin8Δ cells compared with wild type (CIN8 = 0.97 ± 0.15, cin8Δ = 1.57 ± 0.35, P = 0.002; Fig. 3 C). The level of increase for Kip1 in cin8Δ cells was reminiscent of the increased Kip1 localization in the absence of the β-CTT (Fig. 1 F). These results suggest that Cin8 and Kip1 may compete for limited binding sites within the spindle.

Our past work demonstrated that mutant cells lacking β-CTT experience mitotic delay and depend on the spindle assembly checkpoint for successful mitosis (Aiken et al., 2014; Fees et al., 2016). Because of these data, we hypothesized that cells lacking one of the two kinesin-5 motors may experience a mitotic delay. First, we measured the doubling time of tub2-Δ430 or kinesin-5 knock-out cells. In agreement with our past results, cells lacking the β-CTT exhibited a slower doubling time, indicating a growth delay (wild type: 140.5 ± 4.3 min, mean ± 95% confidence interval, tub2-Δ430: 200.3 ± 2.8 min, P < 0.0001; Fig. 3 D). Interestingly, kip1Δ cells did not display an increase in doubling time (142.9 ± 3.3 min), but cin8Δ cells did have a delay (165.7 ± 7.3 min, P = 0.0001 compared with wild type). These results are consistent with the idea that Cin8 promotes efficient mitotic progression (Hoyt et al., 1992; Saunders and Hoyt, 1992; Straight et al., 1998) and suggest that a cell cycle delay in cin8Δ cells may also contribute to an increase in Kip1 spindle localization. To further test the mitotic timing model, we next asked if delaying mitotic progression would affect the spindle localization of Cin8 and Kip1. We predicted an increase in Kip1 spindle localization in arrested cells because Kip1 spindle localization increased in tub2-Δ430 cells and cin8Δ cells, which both exhibit an increased doubling time. We treated asynchronous log-phase cells with hydroxyurea for 2 h to arrest the cells in the S phase with short bipolar spindles and quantified the spindle localization of either Cin8 or Kip1. In arrested wild-type cells, spindle localization of Cin8 and Kip1 increased relative to asynchronous wild-type cells (Cin8 levels: asynchronous mean = 1.01 ± 0.04, arrested = 1.49 ± 0.34, P = 0.02; Kip1 levels: asynchronous = 1.03 ± 0.18, arrested = 2.30 ± 0.47, P = 0.0005; Fig. 3, E and F). However, arrested cells that lack the β-CTT still exhibit a reduced amount of Cin8 localizing to the spindle (0.74 ± 0.25, P = 0.04 compared to asynchronous TUB2 cells; Fig. 3 E). This result suggests that despite the increased Cin8 spindle localization in arrested wild-type cells, arrested cells still require the β-CTT to promote Cin8 spindle localization. Contrastingly, Kip1 levels in arrested tub2-Δ430 cells were increased relative to asynchronous wild-type TUB2 cells but not statistically different from arrested wild-type cells (2.57 ± 0.80, P = 0.004 compared to asynchronous TUB2 cells, P = 0.48 compared to arrested tub2-Δ430 cells; Fig. 3 F). The fact that Kip1 levels are similarly increased in TUB2 and tub2-Δ430 cells indicates arresting cells with a bipolar spindle is sufficient to increase Kip1 spindle localization independent of the β-CTT, arguing against the β-CTT directly regulating Kip1. We propose the β-CTT directly promotes Cin8 function, which in turn promotes efficient mitotic progression and attenuates levels of Kip1 on the spindle (Fig. 3 G).

We next sought to identify the features of the β-CTT that regulate Cin8. A common characteristic of the tubulin CTTs is their negative charge, owing to the enrichment of glutamate and aspartate residues. The charge from these side chains is thought to mediate interactions with MAPs. The budding yeast β-CTT includes a patch of acidic amino acids (residues 431–438; Fig. 4 A) that represents more than half of the acidic residues within the β-CTT. We predicted that if the negative charge of the β-CTT is sufficient to promote Cin8 function, returning the acidic patch (tub2-Δ438) would restore wild-type Cin8 spindle levels compared with a neutrally charged patch (tub2-Δ438Q; Fig. 4 A). To test this prediction, we quantified the pre-anaphase spindle localization of Cin8 in asynchronous cells expressing these β-CTT alleles (Fig. 4, B and C). The β-CTT acidic patch is sufficient to support wild-type levels of Cin8 localization to the spindle (TUB2 = 1.03 ± 0.08, tub2-Δ438 = 1.00 ± 0.14, P = 0.66). In contrast, the neutral patch allele tub2-Δ438Q exhibits an intermediate level between that of wild-type TUB2 and the β-CTT deletion (tub2-Δ438Q = 0.86 ± 0.09, P = 0.005 compared with TUB2; P < 0.001 compared with tub2-Δ430; Fig. 4, B and C). This result suggests that the presence of a neutral β-CTT partially restores Cin8 pre-anaphase spindle localization, and the negative charge of the acidic patch enables the remaining localization to restore full wild-type levels.

Kip1 exhibits similar localization in wild-type and tub2-∆438 cells (TUB2 = 1.02 ± 0.09, tub2-Δ438 = 1.05 ± 0.42, P = 0.87), and similarly increased localization in both the neutral patch mutant in the absence of the β-CTT (tub2-Δ430 = 1.56 ± 0.38, tub2-Δ438Q = 1.76 ± 0.50, P = 0.01 and P = 0.01, respectively compared with TUB2; Fig. S3). These results suggest that the β-CTT acidic patch is sufficient for Cin8 spindle localization, and again support a model in which Kip1 levels are elevated as a secondary consequence of Cin8 disruption.

We next asked whether the β-CTT is important for Cin8 localization to the spindle during anaphase. Cin8 forms bright puncta along anaphase spindles in wild-type cells compared with weaker and diffuse spindle localization in tub2-Δ430 cells (Fig. 4 D). We also observed increased background GFP fluorescence around the spindle poles in tub2-Δ430 cells, presumably representing an unbound signal in the nucleoplasm (Fig. 4 D). Both tub2-Δ438 and tub2-Δ438Q cells exhibit puncta of Cin8 along the spindle, although tub2-Δ438Q cells show reduced Cin8 signal at the middle of the spindle (Fig. 4 D). To quantify these differences, we measured Cin8-3GFP signal intensity along a 3-pixel-wide (∼160 nm) segmented line connecting the spindle pole in the mother to the spindle pole in the bud (Fig. 4 E). For this analysis, we only included anaphase cells with a spindle length between 2.5 and 6 µm and with at least some co-linear Cin8 signal to suggest an intact anaphase spindle. The total Cin8 anaphase spindle localization (i.e., the sum of values along the linescan) mirrored the trends of pre-anaphase spindles with Cin8 levels reduced in cells lacking the β-CTT acidic patch (TUB2 = 0.99 ± 0.20; tub2-Δ430 = 0.38 ± 0.10, P < 0.0001; tub2-Δ438 = 1.13 ± 0.32, P = 0.39; tub2-Δ438Q = 0.77 ± 0.14, P = 0.04; statistics compared with TUB2; Fig. 4 F).

Because Cin8 appears to be depleted from the middle of the spindle in tub2-Δ438Q cells, we measured relative enrichment at the spindle midzone. We defined the midzone as the middle 20% of the anaphase spindle, which roughly corresponds to the region where Ase1 localizes (Fig. 4 E) (Thomas et al., 2020). In wild-type anaphase cells, 38.9 ± 6.6% of total Cin8 is located at the midzone, which is nearly double the amount that would be expected from an even distribution across quintiles in our analysis (Fig. 4 G and Fig. S3). In contrast, tub2-Δ430 anaphase cells exhibit 14.6 ± 5.3% of total Cin8 in the midzone (P < 0.0001 compared with TUB2; Fig. 4 G). Returning the acidic patch with the tub2-∆438 allele restored Cin8 recruitment to the midzone (32.1 ± 7.8%, P = 0.12 compared with TUB2; Fig. 4 G), but the neutral patch failed to enrich Cin8 at the midzone (12.7 ± 7.7%, P < 0.0001 compared with TUB2; Fig. 4 G). It is important to note that these values represent the fraction of total Cin8 on the spindle per cell, so decreased total spindle levels alone would not explain these reductions in recruitment to the middle of the spindle. Instead, these results suggest that the β-CTT acidic patch promotes Cin8 localization to the spindle and recruitment to the midzone of the anaphase spindle.

Based on our results from anaphase spindles, we hypothesized that the β-CTT may promote the motility of Cin8 toward microtubule plus ends. A prediction of this hypothesis would be more frequent, faster, or longer plus-end-directed Cin8 motility events. To test these predictions, we used time-lapse microscopy of anaphase spindles in living cells and imaged labeled Cin8 and spindle poles every 5 s. We then generated kymographs by aligning these image series at the geometric center of the spindle, as determined by spindle pole fluorescence. For this analysis, we compared wild-type cells with mutant cells expressing tub2-Δ438Q since tub2-Δ430 cells display a weak Cin8 signal that is not amenable to time-lapse imaging. In wild-type cells, most of the Cin8 is enriched at the midzone during anaphase spindle elongation. In contrast, cells expressing tub2-Δ438Q display less Cin8 at the midzone and more enrichment closer to the spindle poles (Fig. 4 G and Fig. 5 A). In both cases, we observed motility events in which Cin8 traveled toward the middle of the spindle (Fig. 5 A arrowheads). The velocity of these midzone-directed events in wild-type cells is 19.40 ± 2.57 nm/s, which is similar to past reported values (Fig. 5 B) (Gerson-Gurwitz et al., 2011). In contrast, Cin8 exhibits slower midzone-directed velocity in tub2-Δ438Q cells (13.8 ± 2.85 nm/s, P = 0.0046; Fig. 5, A and B). We did not observe any clear minus-end-directed events, but our imaging conditions may be unable to capture the rapid minus-end-directed velocity that has been previously described (Gerson-Gurwitz et al., 2011). These results indicate that the β-CTT promotes the movement of Cin8 towards the midzone during anaphase. However, a caveat of this experiment is that the spindle contains parallel and antiparallel microtubules, making the plus- or minus-end directionality of movement difficult to determine.

To clearly determine how the β-CTT impacts directional Cin8 movement on microtubules, we shifted to an in vitro system. We developed an experiment using yeast cell lysate to examine Cin8 motility on native, homogenous microtubules, instead of tubulin sourced from bovine or porcine brains that is highly heterogenous. Prior studies using yeast cell extracts failed to observe motile Cin8 on native yeast microtubules (Torvi et al., 2022). We speculated this might be because those studies used high concentrations of cell lysates, which could create immotile Cin8 aggregates (Bell et al., 2017; Pandey et al., 2021). First, using the same yeast strains from our in vivo imaging experiments, we made a high-concentration lysate mixture (final protein concentration of ∼1.5 mg/ml) to assemble unlabeled yeast microtubules from rhodamine-labeled guanosine-5′-[(α,β)-methyleno]triphosphate (GMPCPP) porcine brain seeds that were adhered to the coverslip (Fig. 5 C). The assembled microtubules were stabilized with 2 μM epothilone A. Second, we washed with high ionic strength buffer (750 mM KCl) to remove bound MAPs from the microtubules. Third, we flowed in a lower concentration mixture of the same yeast lysate (final protein concentration of ∼50 µg/ml) to return labeled Cin8 to the preassembled microtubules. With this method, we were able to observe processive bidirectional motility of Cin8 foci, as previously reported for Cin8 on brain tubulin (Gerson-Gurwitz et al., 2011; Roostalu et al., 2011). Microtubules were maintained throughout this process as determined by interference reflection microscopy and separate experiments using lysate from GFP-Tub1 expressing cells (Fig. S4).

Using this system, we tested the prediction that disrupting the charge of the β-CTT would reduce Cin8 plus-end motility. Cin8 plus-end-directed velocity on microtubules polymerized from wild-type TUB2 cell lysate averaged 32.5 ± 7.3 nm/s (mean ± 95% confidence interval, Fig. 5 D). Cin8 velocity is similar on microtubules from tub2-Δ438 cell lysate (33.8 ± 6.3 nm/s, P = 0.67), but slower on microtubules from tub2-Δ438Q cell lysate (20.7 ± 5.0 nm/s, P = 0.0056; Fig. 5 D). We also quantified the run length and duration for all plus-end-directed motility events for which we observed the beginning and end of motility. This analysis shows a significant reduction in the run length of Cin8 on tub2-Δ438Q microtubules (TUB2 = 845 ± 330 nm; tub2-Δ438Q = 560 ± 114 nm, P = 0.0411; tub2-Δ438 = 877 ± 260 nm, P = 0.81 compared with wild type; Fig. 5 E), but not in the run duration (TUB2 = 25 ± 5.5 s, tub2-Δ438Q = 26.5 ± 7.5 s, tub2-Δ438 = 25.8 ± 7.9 s; Fig. 5 F). To determine the effects of the β-CTT on Cin8 affinity for microtubules, we quantified the number of Cin8 foci on microtubules (Fig. 5 G and Fig. S4). In agreement with our in vivo data, the number of Cin8 foci was comparable on microtubules from TUB2 and tub2-Δ438 cell lysates (TUB2 = 0.47 ± 0.09 foci per µm, tub2-Δ438 = 0.45 ± 0.10 foci per µm) but was decreased on microtubules from tub2-Δ438Q cell lysates (0.36 ± 0.07 foci per µm, P = 0.023 compared with wild type).

Finally, we assessed minus-end-directed motility events in our imaging data. The velocities of these events were more variable than plus-end-directed motility events, making them difficult to compare across genotypes. Our data suggest that Cin8 minus-end-directed velocity may be reduced on microtubules grown from tub2-Δ438Q cell lysate, but these differences are not significant (TUB2 = 59.1 ± 29.1 nm/s; tub2-Δ438Q = 35.3 ± 11.4 nm/s, P = 0.0512; tub2-Δ438 = 39.5 ± 21.4 nm/s, P = 0.1346 compared with wild type; Fig. S4). We did not observe any change in Cin8 directional switching (Fig. S4). Overall, these results indicate that the β-CTT acidic patch promotes midzone-directed Cin8 velocity in vivo and plus-end-directed velocity in vitro.

Because the negative charge of the β-CTT promotes Cin8 localization and motility, we predicted that a positively charged region within Cin8 may mediate this interaction. To objectively identify regions of interest we grouped the kinesin motor domains by secondary structure and sequence alignment from the amino-terminal start through the neck linker at the carboxy-terminal end. We then computationally calculated the isoelectric point for these different regions (Fig. 6 A). We compared Cin8 and Kip1 to the human kinesin-5 KIF11/EG5 and the ubiquitous kinesin-1 KIF5B. We identified three positively charged regions of interest for Cin8: the amino-terminal extension, loop 8, and the neck linker. The region containing loop 8 also includes β5 because loop 8 interrupts the two β5 sheets. We chose to focus on the N-terminal extension and loop 8 because both these regions have been previously indicated to play a role in kinesin-5 motility (Britto et al., 2016; Gerson-Gurwitz et al., 2011; Goulet et al., 2014; Pandey et al., 2021; Singh et al., 2024). Furthermore, both regions have key differences between Cin8 and Kip1, potentially explaining their divergent behaviors: the N-terminus of Cin8 lacks two potential Cdk1 phosphorylation sites found in Kip1 and the loop 8 of Cin8 contains a large 99-residue insertion (Chee and Haase, 2010; Hoyt et al., 1992).

To determine if these regions could possibly interact with the β-CTT, we determined the protein surface electrostatic potential using the adaptive Poisson–Boltzmann solver (Fig. 6, B and C) (Jurrus et al., 2018; Unni et al., 2011). Because these kinesin regions and the β-CTT are intrinsically disordered, we created a potential snapshot of dynamics by using AlphaFold Multimer and then further refinement using “Model loops” in ChimeraX (Cianfrocco et al., 2017; Evans et al., 2022, Preprint; Meng et al., 2023; Šali and Blundell, 1993). The large loop 8 insertion of Cin8 could feasibly interact with the β-CTT, but what stands out from these models is the close proximity of the negative β-CTT to the kinesin-5 N-termini, particularly for Cin8 (Fig. 6, B and C; and Videos 5, 6, 7, and 8. The positive charge of the kinesin-5 N-terminus is conserved across species but is not conserved in other kinesins, for example, kinesin-1/KIF5B (Fig. 6 C and Fig. S5). These results suggest the β-CTT may interact with the kinesin-5 N-terminal regions through a charge–charge interaction.

Finally, to test if differences in the N-terminal or loop 8 regions explain the selective regulation of Cin8 by the β-CTT, we replaced the Cin8 N-terminus (cin8^K1NT) or loop 8 (cin8^K1L8) with the corresponding region of Kip1 and quantified the pre-anaphase spindle localization of the fluorescently tagged mutants (Fig. 6, D and E). Normalized to wild-type CIN8 cells, cin8 ^K1NT, exhibited an ∼50% decrease in spindle localization (mean = 0.43 ± 0.17, P < 0.001), similar to the decrease observed when deleting the β-CTT. Surprisingly, swapping the loop 8 of Kip1 into Cin8 increased spindle localization (cin8 ^K1L8 mean = 1.91 ± 0.623, P = 0.037). If the Cin8 N-terminus interacts with the β-CTT, we predicted that disrupting both the Cin8 N-terminus and the β-CTT would not have an additive effect on disrupting Cin8 spindle localization. In agreement with this prediction, double mutant cin8^K1NTtub2-Δ438Q cells (mean = 0.63 ± 0.52, P = 0.039 relative to wild type; Fig. 6 F) did not further disrupt localization relative to cin8^K1NT alone (P = 0.29), and if anything, it might slightly increase cin8 ^K1NT localization from additional mitotic delay. These results, together with the computational model, suggest that the positive Cin8 N-terminus interacts with the negative β-CTT to promote spindle localization.

In this study, we showed that the two budding yeast kinesin-5 motors Cin8 and Kip1 exhibit selective sensitivity to the β-CTT. Our study uses genetic manipulation of the β-CTT to maintain native protein levels and determine the in vivo consequences of altering CTT-kinesin interactions and an in vitro system to quantify these effects on Cin8 by its native yeast tubulin substrate. Together, our results provide molecular insights into how the β-CTT regulates Cin8, how this affects kinesin-5 function, and suggest a general mechanism for how tubulin code may be functionally read and used to modulate the activity of different kinesins.

A key prediction of the tubulin code hypothesis is that MAPs and motors should exhibit differing sensitivities to the tubulin CTTs. We identified components that were both insensitive (Kar3 and Ase1) and sensitive (Kip3, Cin8, and Kip1) to the loss of the β-CTT (Fig. 1). Most strikingly, the two kinesin-5 motors exhibit opposite responses to the loss of the β-CTT, with Cin8 spindle localization decreasing and Kip1 increasing. We attribute this result to the β-CTT directly promoting Cin8 function, which in turn promotes efficient mitotic progression and prevents the accumulation of Kip1 (Fig. 3 G). Several observations further support our proposed model. First, the Kip1 increase observed in tub2-Δ430 cells (61%, Fig. 1 F) is similar to the increase in cin8Δ cells (57%, Fig. 3 C), suggesting loss of Cin8 function is sufficient to increase Kip1 spindle localization. Second, when wild-type cells are arrested for 2 h with hydroxyurea, spindles have simultaneously elevated levels of Cin8 and Kip1 (Fig. 3, E and F), which would not agree with a purely competition-based model. Finally, even when Cin8 spindle localization is decreased to different extents in tub2-Δ430 and tub2-Δ438Q (respectively, 41% and 14% decreases; Fig. 4 C), either disruption of Cin8 localization results in a similar extent of Kip1 enrichment (respectively 56% and 76% increases; Fig. S3). Altogether, these data support a model in which the β-CTT acidic patch directly promotes the localization of Cin8 to the spindle. Kip1 does not appear to be directly regulated by β-CTT during pre-anaphase but is indirectly affected by the loss of Cin8 and consequential delay in mitotic progression. This exemplifies an underappreciated aspect of the tubulin code hypothesis: tubulin CTTs may balance motor and MAP activity through direct and indirect mechanisms. This is an important and cautionary point for future investigations of the tubulin code.

Our results support a model in which electrostatic interactions between the β-CTT acidic patch and the Cin8 basic N-terminus promote Cin8 recruitment to the spindle and plus-end-directed motility toward the midzone (Fig. 7, A and B). Cin8 spindle levels peak prior to anaphase onset, and this localization is supported by the acidic patch of the β-CTT (Fig. 2 D and Fig. 4 B). Replacing the Cin8 N-terminus with that of Kip1 results in an ∼50% reduction in spindle localization (Fig. 6 E), phenocopying the genetic deletion of the β-CTT. This interaction between the β-CTT and Cin8 N-terminus is supported by their opposite charges and close proximity (Fig. 6, B and C), and recent structural work from other labs (Singh et al., 2024). Our computational isoelectric point calculations might suggest that the Cin8 and Kip1 N-termini should behave similarly (Fig. 6 A and Fig. S5). However, it is important to note that phosphorylation of unique sites in the Kip1 N-terminus may explain the divergent behavior and provide a possible point of Kip1 regulation (Chee and Haase, 2010). Resolving these possibilities and the regulation of the two budding yeast kinesin-5 motors will require further study.

The interaction between the β-CTT and Cin8 N-terminus is also important for specifically localizing Cin8 to the spindle midzone, which we attribute to increased plus-end-directed motility. We found that the acidic patch of the β-CTT is sufficient to increase Cin8 plus-end velocity, both in vivo and in vitro (Fig. 5). Using an in vitro system we developed to study Cin8 motility on genetically modified yeast tubulin, we quantified an increase in Cin8 plus-end-directed run length with the β-CTT acidic patch, but no change in run duration. How might these effects be related to the mechanochemical cycle of Cin8? We proposed two steps in the mechanochemical cycle that could be promoted by an interaction between the Cin8 N-terminus and β-CTT: (1) the leading motor domain finding the next binding site along the microtubule (Fig. 7 C) or (2) the release of the trailing motor domain to enable the next forward step (Fig. 7 D). Past biochemical work with X. laevis KIF11 suggested that finding the next binding site is one of the fastest steps in the kinesin-5 mechanochemical cycle, while the release of the trailing motor domain is the rate-limiting step (Chen et al., 2016). These experiments with KIF11 were conducted with brain-derived tubulin, which is enriched for glutamylation of the tubulin CTTs; therefore, the fast rate of binding to the next site may be in part because of enhanced electrostatic interactions between the KIF11 N-terminus and β-CTT. Regarding the release of the trailing head, cryo-electron microscopy structures of human KIF11 identified a partial density for the N-terminus that underwent conformational changes coupled with the mechanochemical cycle of kinesin-5 (Goulet et al., 2014). Release of the N-terminal cover strand interaction with the neck linker allowed for the undocking of the neck linker from the kinesin motor domain to reset for the next step (Goulet et al., 2014). A similar density was recently observed for a structure of adenylyl imidodiphosphate (AMP-PNP)-bound Cin8, and the N-terminus of Cin8 was necessary for Cin8 plus-end motility (Singh et al., 2024). Interactions between the β-CTT and the kinesin-5 N-terminus could support these transitions during the mechanochemical cycle to promote kinesin-5 motility.

It is important to note that our in vitro experiments measured Cin8 motility on single microtubules and did not examine the antiparallel microtubule context that is key to kinesin-5 tetramer function in the mitotic spindle. Research with both human KIF11 and D. melanogaster KLP61F demonstrated that in the tetramer, kinesin-5 carboxy-tail domains of one pair of motor domains interact with the other pair of motor domains to alter the mechanochemical cycle and sustain the sliding of antiparallel microtubules (Bodrug et al., 2020). These interactions occur through an α0-helix connected to the N-terminal region and could thus influence the kinesin-5 N-terminus (Bodrug et al., 2020). Our in vivo results suggest the β-CTT is important for maintaining Cin8 at the spindle midzone (Fig. 4). As Cin8 slides apart antiparallel microtubules while experiencing resistive loads, the interaction between Cin8 and the β-CTT to promote motility maybe even more important to contribute to spindle elongation.

We proposed that the interaction between the N-terminus and the β-CTT is a conserved mechanism of kinesin-5 motors that may enable selective regulation of motor activity within the spindle. This model is supported by our electrostatic surface analysis and the broad conservation of the positive charge of kinesin-5 N-termini (Fig. 6 and Fig. S5). Moreover, the N-terminal regions of S. pombe Cut7 and human KIF11 have both been demonstrated to be important for their motility (Britto et al., 2016; Goulet et al., 2014). However, the N-terminal regions of S. cerevisiae and S. pombe kinesin-5 motors are much longer than those of metazoan kinesin-5. One possible explanation for this observation could be the longer N-terminal regions support the unique bidirectional motility these fungal kinesin-5 motors possess (Singh et al., 2024). A second possibility addresses an attractive feature of our model: kinesin-5 regulation could be bilateral in some organisms, acting through kinesin or β-CTT or both. As such, metazoans may have bypassed the need for a longer N-terminal region by shifting the regulation toward the β-CTT. For budding yeast, there is only a single β-tubulin isotype and no known tubulin PTMs, so regulation is unilateral and occurs via the different kinesin-5 motors or via kinesin phosphorylation, such as in the N-terminus of Kip1 (Chee and Haase, 2010). In metazoans, the microtubule PTM polyglutamylation is enriched on the mitotic spindle and could further increase the length and negative charge of the CTTs (Bobinnec et al., 1998). Thus, tunable microtubule polyglutamylation could provide the means to spatially and temporally control kinesin-5 motility throughout the spindle. How modifications of kinesin-5 N-termini and tubulin CTTs converge to control mitotic spindle function, and whether similar regulation extends to other kinesins will be important topics for future studies.

Chemicals and reagents were purchased from Thermo Fisher Scientific and Sigma-Aldrich, unless stated otherwise. General yeast manipulation, media, and transformation were standard protocols. Fluorescent tag fusion to Ase1, Kar3, Kip1, Kip3, and Spc110 are integrated at the corresponding native loci. 3HA affinity tag fusion to Cin8 and Kip1 are at their corresponding native loci. Bik1-3GFP integrating plasmid was a gift from Dr. David Pellman (Harvard University, Cambridge, MA, USA) and was integrated at the endogenous locus. The Cin8-3GFP integrating plasmid targets to the endogenous CIN8 locus and the same integrated allele was used for all experiments. The mNeonGreen plasmid DNA was provided by Allele Biotechnology and Pharmaceuticals (Shaner et al., 2013). Mutant alleles of tub2 and cin8 were generated at the endogenous loci. All mutations were confirmed by Sanger sequencing of the genomic loci and were confirmed as the only mutations present in the coding sequence. Yeast strains are listed in Table S1.

Cells were grown overnight in rich media (2% glucose, 2% peptone, and 1% yeast extract) at 30°C, diluted in fresh rich media and grown to log phase at 30°C, and then washed and imaged in synthetic media (2% glucose, #1001; complete synthetic media [CSM] from Sunrise Science Products). Cells were adhered to slide chambers coated with concanavalin A and sealed with VALAP (Vaseline, lanolin, and paraffin at 1:1:1) (Fees et al., 2017). Images were collected on a Nikon Ti-E microscope equipped with a 1.45 NA 100× CFI Plan Apo objective, piezoelectric stage (Physik Instrumente), spinning disk confocal scanner unit (CSU10; Yokogawa), 488- and 561-nm lasers (Agilent Technologies), and an EMCCD camera (iXon Ultra 897; Andor Technology) using NIS Elements software (Nikon). All live cell imaging conditions were as follows unless otherwise noted: samples were maintained at 30°C using an ASI 400 Air Stream Incubator (NEVTEK). Each image was a z-stack consisting of 13 images separated by 450 nm. Images were analyzed in Fiji.

Pre-anaphase cells were identified and imaged from an asynchronous log phase population by only observing Spc110-tdTomato signal. The z-stack consisting of 13 images separated by 450 nm was then sum-projected for analysis and pre-anaphase cells were considered to have a spindle length <2 µm. The spindle ends were defined as the Spc110-tdTomato signal, and a line with a width of 5 pixels (∼300 nm) was drawn around this region to determine the fluorescence intensity on the spindle. Background subtraction was performed by drawing a 13-by-13 pixel box (0.481 µm²) in the cytoplasm to determine the average cellular background fluorescence and then normalized to the spindle area and subtracted from the spindle intensity. Values were normalized to the median value of the two wild-type biological replicates for each of the three technical replicates.

Log-phase cells were arrested with alpha factor for 3 h and then released and grown at 30°C and imaged starting 60 min after release. Each z-stack image was taken every 2 min. Z-stacks were sum projected, and the spindle endpoints were defined by Spc110-tdTomato signal with a 5-pixel-wide segmented line drawn between these two endpoints along the spindle estimated by kinesin-5 fluorescence. Background subtraction was performed by drawing a 13-by-13-pixel box in the cytoplasm to determine the average cellular background fluorescence and then normalized to the spindle area and subtracted from the spindle intensity. Values were normalized to the start of anaphase onset as determined by the time point immediately preceding a rapid change in spindle length. To determine the proportion of kinesin-5 close to the spindle poles at each time point, the sum of the fluorescence intensity of 10 pixels (∼530 nm) inward from both poles was divided by the intensity along the entire spindle.

Anaphase cells were identified and imaged from an asynchronous log phase population by only observing Spc110-tdTomato signal. Anaphase cells for analysis were considered to have a spindle length between 2.5 and 6 µm. The imaged z-stack was sum-projected for analysis and the spindle endpoints were defined by Spc110-tdTomato signal with a three-pixel wide segmented line drawn between these two endpoints along the spindle estimated by Cin8-3GFP fluorescence. The average intensity of the three pixels at each point of the line was used to determine the fluorescence intensity at that point along the spindle. Background subtraction was performed by drawing a 13-by-13-pixel box in the cytoplasm to determine the average cellular background fluorescence per pixel and this average value was subtracted from each point along the spindle. The total anaphase Cin8-3GFP fluorescence was the total background-subtracted intensity values along the spindle line. The spindle length was then divided into five equal parts and the sum fluorescence intensity along that fifth of the spindle length was divided by the total anaphase fluorescence to determine the proportion of signal in that region of the spindle. Total anaphase intensity values were normalized to the median value of the two wild-type biological replicates for each of the three technical replicates.

Early to mid-anaphase cells were identified and imaged from an asynchronous log phase population by observing Spc110-tdTomato signal. Each z-stack was then taken every 5 s. Kymographs were generated in Fiji by drawing a 10-pixel wide segmented line along the spindle, and then the “Straighten” function was used to generate a centered image stack from which the kymographs were made. Motility events were objectively identified using KymoButler with default settings (threshold 0.20, minimum size: 3, minimum frames: 3) (Jakobs et al., 2019), and the first and last points were used to calculate the average velocity.

1-liter cultures of yeast were grown to log phase in rich media, pelleted by centrifuging at 4,000 g at 4°C, and then washed twice with water. Enough 10X BRB80 (80 mM PIPES, 1 mM MgCl₂, 1 mM EGTA) with 150 mM KCl was added to pipette the pellet (∼500 μl per 5 ml of yeast pellet), and the yeast slurry was snap-frozen by pipetting single drops into liquid nitrogen and stored at −80°C. The cells were lysed by grinding in a 50-ml grinding jar chilled in liquid nitrogen in a Mixer Mill MM 400 (Retsch). Two cycles of 30 Hz for 110 s were used, allowing the jars to chill in liquid nitrogen after each run. The powdered lysate was then collected in a chilled 50 ml conical and stored at −80°C.

Reaction chambers were assembled with a plasma cleaned and hexamethyldisilazane (HMDS) silanized (Wedler et al., 2022) 22-by-22-mm coverslip and an 18-by-18-mm coverslip between which were melted single-ply strips of parafilm to create two chambers on a custom-made stage insert. Anti-rhodamine antibody (A-6397; Thermo Fisher Scientific) was diluted 1:100 in cold BRB80 and flowed into a chamber to incubate for 5 min at room temperature and then the chamber was then washed with 100 μl of BRB80. 50 μl of 1% pluornic-F127 in BRB80 was flowed into the chamber to incubate for 5 min at room temperature and then washed with 100 μl of BRB80. Rhodamine-labeled GMPCPP-stabilized porcine brain microtubule seeds were then flowed into the chamber for 30 s before washing out with 200 μl of BRB80 and were then ready for use.

This protocol was based on a protocol from the Barnes lab (Bergman et al., 2018; Torvi et al., 2022). The yeast lysate powder was prepared as follows: two polypropylene ultracentrifuge tubes were chilled on ice and a small amount (<100 mg) of prepared yeast lysate powder was added to each tube directly from the −80°C freezer. Each individual tube was weighed before and after the addition of the powdered lysate to determine the specific amount. One tube was used to make a “high concentration” clarified lysate using a ratio of 0.1 μl of 10X BRB80 plus 150 mM KCl per mg of powdered lysate, and the other tube was used to make a “low concentration” of clarified lysate using a ratio of 2 μl of 10X BRB80 plus 150 mM KCl per mg of powdered lysate. Additionally, 1 μl of yeast protease inhibitor cocktail (P8215; Sigma-Aldrich) was added to each preparation. The tubes were then briefly vortexed and spun down in a desktop centrifuge to gather everything at the bottom of each tube and the lysate was fully thawed on ice for 10 min. The powdered lysate was then clarified by centrifugation at 100,000 g for 30 min at 4°C and the supernatant was transferred to a chilled microcentrifuge tube for use in the reactions. The high concentration clarified lysate had ∼7.5 mg/ml protein and the low concentration had ∼4 mg/ml, as measured by Pierce 660 nm protein assay reagent.

To first polymerize microtubules, a 50-μl reaction consisting of 10 μl of the high concentration clarified yeast lysate (final protein concentration of ∼1.5 mg/ml) in BRB80 containing 1 mM MgCl₂, 8 mM ADP, 1 mM GTP, and 2 µM epothilone A was flowed into a prepared chamber. Yeast microtubules were polymerized for 10 min at 30°C. To remove immotile Cin8-3GFP clusters and other proteins from the microtubules, the chamber was then washed twice with 50 μl of 750 mM KCl, 100 µM epothilone A in BRB80 for 3 min each, and then once for 3 min with 100 μl of BRB80, all maintained at 30°C. A 50-μl reaction was then prepared with 0.5 μl of the low-concentration clarified lysate (final protein concentration of ∼40 μg/ml) in BRB80 containing 1 mM MgCl₂, 2 mM ATP, 1 mM GTP, and 100 µM of epothilone A and flowed into the chamber and sealed with VALAP for imaging at 30°C.

Images were collected on a Nikon Ti-E microscope equipped with a 1.49 NA 100× CFI160 Apochromat objective, total internal reflection fluorescence illuminator, OBIS 488-nm and Sapphire 561-nm lasers (Coherent), W-View GEMINI image splitting optics (Hamamatsu Photonics), and an ORCA-Flash 4.0 LT sCMOS camera (Hammamatsu Photonics). The stage was heated to 30°C using an ASI 400 Air Stream Incubator (NEVTEK). Microtubules were verified by interference reflection microscopy. Images were collected by total internal reflection fluorescence imaging at 2-s intervals. Cin8 remained motile through 90 total minutes of imaging. Kymographs were generated in Fiji by drawing a 10-pixel-wide segmented line along a microtubule and then the “Straighten” function was used to generate a left-aligned image stack from which the kymographs were made. Kymographs were analyzed by identifying the first and last points of the motility event and calculating the displacement and duration between these two points. KymoButler with default settings (threshold 0.20, minimum size: 3, minimum frames: 3) was used to objectively call unclear events (Jakobs et al., 2019). To quantify foci per microtubule length, a 3-pixel-wide line was drawn along microtubules and values were recorded for the first frame. Each foci was objectively determined using the “findpeaks” function in MATLAB (MathWorks).

Cells were arrested with alpha factor for 3 h and then released, and samples were collected every 15 min. Cells were pelleted and resuspended in 2 M lithium acetate and incubated for 3 min at room temperature. Cells were pelleted again and resuspended in cold 0.4 M NaOH for 3 min on ice. Cells were pelleted and resuspended in 2.5X Laemmli buffer and boiled for 5 min. Samples were run on 4–15% Mini-PROTEAN TGX precast protein gels (Bio-Rad Laboratories) in running buffer (250 mM Tris, 1.9 M glycine, 1% SDS at pH 8.3) for 100 V for 10 min and then 130 V for 1 h. Gels were transferred to polyvinylidene fluoride (PVDF; IPFL85R; Millipore) in transfer buffer (250 mM Tris, 1.9 M glycine, 10% methanol) at 20 V for 13 h at 4°C. Membranes were blocked for 1 h at room temperature in PBS blocking buffer (927-70001; LI-COR). Membranes were probed in PBS blocking buffer with mouse-anti-HA antibody (SC-7392; Santa Cruz) at 1:500 and rabbit-anti-Zwf1 (A9521; Sigma-Aldrich) at 1:10,000 for 3 h at room temperature and then washed three times in PBS at room temperature. Membranes were probed with secondary antibodies goat-anti-mouse-680 (926-68070; LI-COR) and goat-anti-raabbit-800 (9226-32211; LI-COR) both at 1:15,000 in PBS blocking buffer for 1 h at room temperature. After incubation, membranes were washed three times in PBS with 0.1% Tween-20, three times in PBS, and then imaged on an Odyssey Imager (2471; LI-COR). Images were analyzed in Fiji using the Analyze > Gels function.

Cells were grown to saturation in rich liquid media at 30°C and then diluted 50× into fresh rich media. The diluted cultures were then aliquoted into a 96-well plate and incubated at 30°C with single orbital shaking in a Cytation3 plate reader (BioTek). The OD₆₀₀ was measured every 5 min for 24 h, and the doubling time was calculated by fitting an exponential growth curve to the data.

Kinesin motor domain alignment was run on Clustal Omega multiple sequence alignment (Madeira et al., 2022), and then secondary structure was determined by a comparison between EG5 PDB: 6TA4 and KIF5B PDB: 6OJQ. Secondary structures were grouped for cases in which they could not be clearly distinguished, such as the case of loop 8 interrupting the two sheets of β5. The isoelectric point was then computationally calculated with Isoelectric Point Calculator 2.0 (Kozlowski, 2021).

To determine surface electrostatic potentials, we first created representative snapshot models of the intrinsically disordered kinesin and tubulin regions using AlphaFold Multimer and further refinement using the “Model loops” MODELLER function in Chimera X (Cianfrocco et al., 2017; Evans et al., 2022, Preprint; Meng et al., 2023; Šali and Blundell, 1993). Models were picked that had minimal normalized Discrete Optimized Protein Energy scores and reduced steric clashes. For Cin8 and Kip1 models, Tub1 and Tub2 were used for α- and β-tubulin, respectively. For KIF11 and KIF5B models, TUBA1A and TUBB5 were used for α- and β-tubulin, respectively. Surface electrostatic potential was then calculated by using the PDB2PQR webserver to prepare the PDB file (default settings: PROPKA to assign protonation states at pH 7.0 and PARSE forcefield) and then the Adaptive Poisson-Boltzmann Solver webserver (default settings: “mg-auto”) to calculate the electrostatic surface continuum (Jurrus et al., 2018; Unni et al., 2011). The surface color for electrostatic potential was then applied in ChimeraX (Meng et al., 2023).

Prism (GraphPad Software) was used for all graphs and statistical analysis. Whenever possible, statistics were performed on the technical and biological replicate medians of the super plot values. For all multiple comparisons, an ANOVA test was first performed, and subsequent analysis was performed if P < 0.05. Student’s t test was used for all homoscedastic, parametric data. Student’s t test with Welch’s correction was used for heteroscedastic and parametric data. All t tests were two-sided. Data distribution was assumed to be normal but this was not formally tested.

Fig. S1 shows includes quantification of Bik1 on spindles without the β-CTT and whole-cell fluorescence intensity for Cin8 and Kip1. Fig. S2 shows additional example images of Cin8 and Kip1 localization throughout mitosis, as well as an analysis of the proportion close to the spindle poles. Fig. S3 shows pre-anaphase localization of Kip1 on tub2 mutant cells and additional quantification of Cin8 localization during anaphase. Fig. S4 shows controls for in vitro experiments with whole-cell lysate and quantification of minus-end-directed motility. Fig. S5 shows sequence alignments and isoelectric point calculations for kinesin-5 N-terminal regions across multiple species. Videos 1, 2, 3, and 4 show the cells used for example still images in Fig. 2 and Fig. S2 of Cin8 or Kip1 localization throughout mitosis. Videos 5, 6, 7, and 8 show the electrostatic surface potential of the kinesin motor domains used for still images in Fig. 6. Table S1 describes the yeast strains used in this study.
