Live imaging of transcription sites using an elongating RNA polymerase II–specific probe

In eukaryotic nuclei, RNA polymerase II (RNAP2) transcribes most genes, and the regulation of RNAP2-mediated transcription is a key to determining the cell phenotype (Cramer, 2019; Reines, 2020; Vos, 2021). Human RNAP2 is a complex of 12 subunits, and the catalytic largest subunit (RPB1) contains 52 heptapeptide repeats (typically Tyr1-Ser2-Pro3-Thr4-Ser5-Pro6-Ser7, with variations) at the C-terminal domain (CTD). The site-specific Ser phosphorylation at the CTD is associated with the state of RNAP2 (Eick and Geyer, 2013; Schüller et al., 2016; Zaborowska et al., 2016; Harlen and Churchman, 2017). Unphosphorylated forms of RNAP2 are assembled into preinitiation complexes at the gene promoters, and during the initiation of transcription, Ser5 at the CTD becomes phosphorylated by the cyclin-dependent kinase 7 (CDK7) in the transcription factor IIH complex. RNAP2 Ser5 phosphorylation (Ser5ph) is enriched at the transcription start sites (Komarnitsky et al., 2000) and remains during elongation to facilitate cotranscriptional splicing in mammalian cells (Nojima et al., 2018). After synthesizing a short stretch of RNA, RNAP2 is paused by negative elongation factor and 5,6-dichloro-1-β-d-ribofuranosylbenzimidazole sensitivity-inducing factor (Yamaguchi et al., 1999; Cramer, 2019; Reines, 2020). RNAP2 then undergoes elongation in association with Ser2 phosphorylation (Ser2ph) by positive transcription elongation factor b (P-TEFb), which is a protein complex of CDK9 and cyclin T (Price, 2000). During elongation, Ser2ph is likely to be maintained by other CDKs, such as CDK12 and CDK13, each complexed with cyclin K, to facilitate transcription processivity (Fan et al., 2020; Tellier et al., 2020). RNAP2 Ser2ph can mediate the interaction with proteins involved in RNA processing, such as splicing and polyadenylation, as well as epigenetic regulation (Li et al., 2002; Hsin and Manley, 2012; Gu et al., 2013; Venkat Ramani et al., 2021). RNAP2 becomes dephosphorylated when transcription is terminated. On short genes, such as small nuclear RNAs and histones, Ser2 is not phosphorylated (Medlin et al., 2005). Transcription elongation is regulated by many proteins, including the polymerase-associated factor 1 (Paf1) complex that was initially identified as a protein complex interacting with RNAP2 in yeast, the depletion of which causes aberrant polyadenylation in mammalian cells (Hou et al., 2019; Francette et al., 2021).

The localization of RNAP2 and its phosphorylated forms in the cell nucleus has been analyzed by light and electron microscopy. RNAP2 Ser2ph is closely associated with nascent RNA labeled with bromo-UTP, which is consistent with this modification being a mark of elongating form (Iborra et al., 1996; Pombo et al., 1999). From the number of RNAP2 transcription sites (∼8,000) and actively transcribing molecules (∼65,000) in a HeLa cell, it was estimated that one transcription site with ∼80-nm diameter contains eight RNAP2 molecules, on average, to form transcription “factories” (Jackson et al., 1998; Cook, 1999). In other nontransformed cell types, a smaller number of factories with a larger diameter have been observed (Osborne et al., 2004; Eskiw and Fraser, 2011). In mouse fetal liver erythroblasts, for example, the average diameter of transcription sites is ∼130 nm (Eskiw and Fraser, 2011). The presence of such “factories” can increase the local concentration of the factors involved in transcription, and genes regulated under the same set of transcription factors often share the same factories (Osborne et al., 2004; Xu and Cook, 2008; Schoenfelder et al., 2010; Eskiw and Fraser, 2011; Papantonis et al., 2012).

The dynamic behavior of RNAP2 in living cells has been analyzed using fluorescent protein (FP)–tagged RNAP2 molecules. As >100,000 RNAP2 molecules are present in a cell (Kimura et al., 1999; Stasevich et al., 2014), it has been difficult to resolve the small foci by standard confocal microscopy (Sugaya et al., 2000; Imada et al., 2021), but recent confocal and 3D stimulated emission depletion microscopy has enabled detection of single elongating RNAP2 foci in living cells (Li et al., 2019). On a transcriptionally activated gene array harboring >100 copies of transcription units, the accumulation of FP-tagged RNAP2 can be readily detected (Becker et al., 2002; Janicki et al., 2004). Fluorescence recovery after photobleaching (FRAP) revealed the kinetics of different RNAP2 fractions and the elongation periods (Becker et al., 2002; Kimura et al., 2002; Darzacq et al., 2007; Steurer et al., 2018). High-resolution single-molecule analyses using photoconvertible or photoactivatable RNAP2 have indicated the transient clustering of RNAP2 during initiation (Cisse et al., 2013; Cho et al., 2016; Boehning et al., 2018) in association with mediator condensates (Cho et al., 2018). CTD phosphorylation can promote a condensate preference switch from the mediator to splicing factor condensates (Guo et al., 2019). The dynamics of elongating RNAP2 have not been well documented, except RNAP2 foci on some specific genes, including Nanog in mouse embryonic stem cells (Li et al., 2019).

To detect the specifically modified forms of RNAP2 and histones in living cells, fluorescently labeled antigen-binding fragments have been used (Hayashi-Takanaka et al., 2011; Stasevich et al., 2014). Using a cell line that harbors a reporter gene array containing glucocorticoid response elements and that expresses glucocorticoid receptor tagged with GFP, the accumulation kinetics of RNAP2 Ser5ph and Ser2ph on the array upon glucocorticoid stimulation have been revealed (Stasevich et al., 2014). In this system, the target gene array was identifiable by glucocorticoid receptor–GFP accumulation in a large focus, but Ser5ph and Ser2ph on other single copy genes were not detected. Recently, more detailed kinetic analysis of RNAP2 Ser5 phosphorylation on a single copy gene has been performed, which has also enabled the visualization of the spatiotemporal organization of RNAP2 phosphorylation and mRNA synthesis (Forero-Quintero et al., 2021).

To visualize and track RNAP2 Ser2ph conveniently without protein loading, we developed a genetically encoded live-cell probe, which is a modification-specific intracellular antibody, or mintbody, that consists of the single-chain variable fragment (scFv) of the specific antibody and superfolder GFP (sfGFP; Sato et al., 2013, 2016; Tjalsma et al., 2021). Using high-resolution microscopy, we analyzed the relative localization of RNAP2 Ser2ph-mintbody with proteins involved in RNAP2 phosphorylation, elongation, and transcription activation, such as CDK9, CDK12, a Paf1 complex component LEO1, serine/arginine-rich splicing factor 1 (SRSF1; also known as SF2/ASF), bromodomain containing protein 4 (BRD4; Dey et al., 2003), and p300 histone acetyltransferase (Heintzman et al., 2009; Visel et al., 2009). RNAP2 Ser2ph showed more colocalization with CDK12 and LEO1 than CDK9, which facilitates elongation near the transcription start site (Price, 2000), and enhancer-associated proteins that can also facilitate elongation, such as BRD4 and p300 (Zhang et al., 2012; Li et al., 2019; Hsu et al., 2021). These proteins were more mobile in RNAP2 Ser2ph-enriched regions than elsewhere. RNAP2 Ser2ph foci as such were also more mobile than both euchromatic and heterochromatic DNA replication foci and p300-enriched foci. These results suggest that elongating RNAP2 foci are quite mobile compared with typical euchromatin and heterochromatin domains.

To generate a mintbody specific for RNAP2 Ser2ph (Fig. 1 A), we cloned the coding sequence of antibody heavy and light chains from 18 different hybridoma cells that produce Ser2ph-specific antibodies and transfected scFvs tagged with sfGFP into HeLa cells. Confocal microscopy revealed that a clone, 42B3, was most concentrated in the nucleus among the scFvs, and the others showed weak or little nuclear enrichment (Fig. S1 A). As the scFv-sfGFP does not harbor an NLS, this suggested that 42B3 scFv was functionally folded and bound to RNAP2 Ser2ph in the nucleus, whereas the other scFvs had a much lower antigen-binding affinity or failed to properly fold in the cytoplasm (Wörn and Plückthun, 2001; Sato et al., 2013, 2016; Zhao et al., 2019). In contrast to the sfGFP-tagged version, 42B3 scFv tagged with mCherry (42B3-mCherry) expressed in HeLa cells often exhibited cytoplasmic aggregations, and its nuclear enrichment was not as high as that of 42B3-sfGFP (Fig. 1 B, top; and Fig. S1 A). Because the folding of scFv is affected by the fusion partner protein or short peptide (Kabayama et al., 2020), 42B3 scFv folding can be assisted by sfGFP and/or be disturbed by mCherry, which could cause cytoplasmic aggregations of fusion proteins (Landgraf et al., 2012). Thus, 42B3 scFv did not appear to have a particularly stable framework, unlike another mintbody specific for histone H4 Lys20 monomethylation (H4K20me1), which is functional even when fused with mCherry and whose framework has been used to generate a stable chimeric scFv by implanting the complementary determining regions from a different antibody (Sato et al., 2016; Zhao et al., 2019; Liu et al., 2021).

To improve the folding and/or stability of 42B3 scFv, we introduced amino acid substitutions to the framework region by comparing with the H4K20me1-mintbody (Sato et al., 2016; Fig. 1 C). Five amino acids in 42B3 were replaced with those in the H4K20me1-mintbody individually and in combinations (Fig. S1 B), and the mutant 42B3-mCherry proteins were stably expressed in HeLa cells. By evaluating the nuclear accumulation (i.e., the nucleus/cytoplasmic intensity [N/C] ratio) and the formation of cytoplasmic aggregations, we found that 42B3(R78K/A80T/M95I)-mCherry was the most improved, showing the highest N/C ratio with few cytoplasmic aggregates (Figs. 1 C and S1 C). Structural modeling showed that the R78K/A80T and M95I mutations likely contribute to intramolecular ionic and hydrophobic interactions, respectively (Fig. S1 D). As the hydrophobic cores of scFv are critical for folding and/or stability (Sato et al., 2016; Tjalsma et al., 2021), we examined another M95 mutant with Val substitution, and this 42B3(R78K/A80T/M95V)-mCherry exhibited the highest N/C ratio (Fig. 1, B and C). Therefore, we used this scFv for subsequent analyses. As described below, 42B3(R78K/A80T/M95V)-sfGFP specifically bound to RNAP2 Ser2ph, so we called this probe “RNAP2 Ser2ph-mintbody.”

We established HeLa cells that stably express RNAP2 Ser2ph-mintbody and observed its distribution using a high-resolution spinning-disk confocal microscope (Fig. 1 D). RNAP2 Ser2ph-mintbody was concentrated in numerous foci over a diffuse background in the nucleus, suggesting that this probe highlights transcription elongation sites where RNAP2 Ser2ph is present. As one CTD harbors 52 repeats and more than half of Ser2 in the repeats can be phosphorylated (Schüller et al., 2016), a focus may be derived from a single RNAP2 molecule that is bound with multiple RNAP2 Ser2ph-mintbodies. However, it is also possible that a focus may contain multiple polymerases (Iborra et al., 1996). The size of the foci was estimated to be ∼200 nm (Fig. 1 E), which is the diffraction limit of confocal microscopy, suggesting that the actual focus size is <200 nm. The number of foci in a HeLa cell was estimated to be ∼500–5,000 (Fig. 1 F), depending on the mintbody brightness. The higher the mintbody fluorescence, the more foci were detected, because the signal-to-background ratio was low in weakly fluorescent cells. The number of foci, however, appeared to reach a plateau at ∼4,000–5,000, which is close to the number of factories in HeLa cells (Jackson et al., 1998; Pombo et al., 1999).

Most RNAP2 transcription is repressed during mitosis in mammalian cells by the release of the elongation complex (Prescott and Bender, 1962; Parsons and Spencer, 1997; Liang et al., 2015), although a subset of genes can remain to be transcribed (Palozola et al., 2017). By using HeLa cells that express both RNAP2 Ser2ph-mintbody and HaloTag-tagged histone H2B (H2B-Halo), which was labeled with HaloTag tetramethylrhodamine (TMR) ligand to visualize chromatin, we tracked the distribution of RNAP2 Ser2ph-mintbody during mitosis (Fig. 2; Videos 1 and 2). In cells that started chromosome condensation at the onset of prophase, RNAP2 Ser2ph-mintbody foci were observed around the edge or outside the condensing chromosomes (Fig. 2 A, 0 and 1 min; magnified views and line scan profiles), which is consistent with the results of a previous study using RNA in situ hybridization to detect nascent transcripts (Liang et al., 2015). The number of foci decreased as the prophase progressed (Fig. 2 A, 2 and 3 min) and almost disappeared in the late prophase (Fig. 2 A, 4 min; Video 1). After the nuclear membrane broke down, the RNAP2 Ser2ph-mintbody diffused throughout the cytoplasm (Fig. 2 A, 5 min). During prometaphase to metaphase, the mintbody appeared to be largely excluded from condensed chromosomes (Fig. 2 B). During the telophase to G₁ phase after cytokinesis, RNAP2 Ser2ph-mintbody became concentrated in foci, and the number of foci gradually increased in early G₁ (Fig. 2 C; Video 2). These mitotic behaviors of RNAP2 Ser2ph-mintbody are consistent with previous observations using fixed cells (Parsons and Spencer, 1997; Liang et al., 2015).

To investigate whether RNAP2 Ser2ph-mintbody foci in nuclei depend on RNAP2 and its Ser2ph, cells were treated with triptolide, which inhibits transcription factor IIH ATPase activity (Titov et al., 2011) and also induces RNAP2 degradation (Wang et al., 2011; Forero-Quintero et al., 2021), and flavopiridol, which inhibits the RNAP2 Ser2 kinase P-TEFb (Chao and Price, 2001). As a control, we also treated cells with the vehicle DMSO. Time-lapse images were collected using a confocal microscope, and the numbers of the RNAP2 Ser2ph-mintbody foci in single sections were measured (Fig. 3, A and B). The number of RNAP2 Ser2ph-mintbody foci was not decreased in cells treated with DMSO for 2 h. In contrast, the inhibition of the transcription initiation and depletion of RNAP2 with 5 µM triptolide (Forero-Quintero et al., 2021) resulted in the rapid diminishment of nuclear foci. Flavopiridol also induced the diminishment of nuclear foci, but more mildly because only the productive elongation of newly initiated RNAP2 is inhibited, leaving elongating RNAP2 complexes until their termination (Jonkers et al., 2014); RNAP2 Ser2ph in elongating complexes has also been shown to remain in 5,6-dichloro-l-β-D-ribofuranosyl benzimidazole treatment, which also inhibits P-TEFb (Lavigne et al., 2017).

We also used FRAP to examine the kinetics of RNAP2 Ser2ph-mintbody in cells untreated or treated with triptolide and flavopiridol for 2–4 h (Fig. 3 C). After bleaching a 2-µm spot in the nucleoplasm, RNAP2 Ser2ph-mintbody signals recovered rapidly to >80% within 2 s in cells without inhibitors, indicating that this probe binds only transiently to Ser2ph, as do the other mintbodies and antigen-binding fragment fluorescent probes that have been used for tracking post-translational modifications in living cells without affecting cell division and animal development (Hayashi-Takanaka et al., 2009, 2011; Sato et al., 2013; Stasevich et al., 2014; Sato et al., 2016). In triptolide- and flavopiridol-treated cells, the recovery of RNAP2 Ser2ph-mintbody was faster, reaching >80% within 1 s after bleaching, which was consistent with the decreased level of the target RNAP2 Ser2ph. Thus, kinetic analysis supported the view that RNAP2 Ser2ph-mintbody repeatedly binds and unbinds to RNAP2 Ser2ph in living cells.

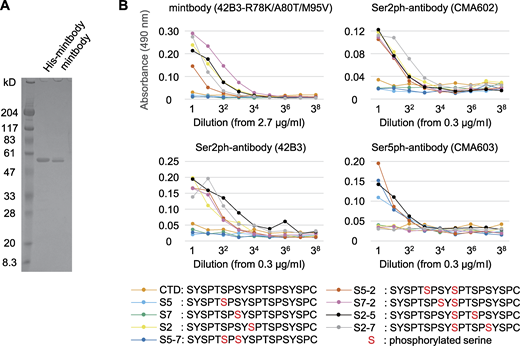

To biochemically characterize the specificity of RNAP2 Ser2ph-mintbody, we performed an in vitro ELISA using the purified protein. His-tagged RNAP2 Ser2ph-mintbody was expressed in Escherichia coli and purified using Ni²⁺ beads. After removal of the His-tag by enterokinase, tag-free RNAP2 Ser2ph-mintbody was further purified (Fig. 4 A). ELISA plates were coated with RNAP2 CTD peptides that harbor phosphorylation at different Ser residues and incubated with RNAP2 Ser2ph-mintbody and control IgG antibodies, including the parental 42B3 and previously published Ser2ph (CMA602)- and Ser5ph (CMA603)-specific antibodies (Stasevich et al., 2014; Fig. 4 B). RNAP2 Ser2ph-mintbody bound to peptides harboring Ser2ph, but not those harboring only Ser5ph and Ser7ph, as did the parental 42B3 IgG and CMA602. Ser5ph-containing peptides were reacted with CMA603, assuring that the Ser5ph peptides that were not reacted with RNAP2 Ser2ph-mintbody were properly coated on the plates. These results indicate that RNAP2 Ser2ph-mintbody selectively recognizes Ser2ph at RNAP2 CTD without being particularly affected by Ser5ph and Ser7ph on the same repeat unit. Taken together with cell-based analyses, we concluded that RNAP2 Ser2ph-mintbody can be used as a probe to track RNAP2 Ser2ph in living cells.

We compared the localization between RNAP2 Ser2ph-mintbody and proteins that are involved in transcription activation and elongation. An RNAP2 subunit, RPB3, histone H2B, and proliferating cell nuclear antigen (PCNA) were used as positive and negative controls. PCNA represents DNA replication foci, exhibiting various patterns depending on the cell cycle stages (Leonhardt et al., 2000; Fig. S2). HaloTag-tagged RPB3 (RPB3-Halo) labeled with TMR showed substantial overlap with RNAP2 Ser2ph-mintbody (Fig. 5, first column, merged image and line profile). To quantitatively evaluate the colocalization, we employed a cross-correlation function (CCF) analysis, which measures Pearson’s correlations by shifting the image of one fluorescence channel to the x-direction (van Steensel et al., 1996; Fig. 5, bottom row). When foci in two fluorescence images overlap, a peak appears in the middle without shift. The steepness of the peak can also be an indication of a colocalized area. If the distribution of the two images is mutually exclusive, a dip in the middle is expected, and if the distribution is not correlated, either a peak or a dip would not be observed. In the case of RNAP2 Ser2ph-mintbody and RPB3-Halo, a narrow peak in CCF was observed (Fig. 5, first column, bottom), which was consistent with the presence of Ser2ph on the RNAP2 complex that contains RPB3-Halo. The brightest foci of RPB3-Halo without RNAP2 Ser2ph-mintbody (Fig. 5, first column, top, arrowheads) probably represented large RNAP2 condensates, which are often associated with Cajal and histone locus bodies lacking Ser2ph (Xie and Pombo, 2006; Imada et al., 2021). By contrast, H2B-Halo exhibited a complementary pattern to RNAP2 Ser2ph-mintbody (Fig. 5, second column) showing a dip in CCF (Fig. 5, second column, bottom), which agrees with the decondensation of chromatin at transcribed regions. Halo-PCNA foci during the middle to late S phase when heterochromatin was replicated also showed anticorrelation with RNAP2 Ser2ph-mintbody (Fig. 5, third column). Thus, CCF analysis using live imaging data could indicate a relationship between a protein and RNAP2 Ser2ph-enriched transcription foci.

Several kinase complexes phosphorylate RNAP2 Ser2. CDK9 facilitates processive transcription by phosphorylating RNAP2 paused near the transcription start sites (Price, 2000), while CDK12 and CDK13 interact with RNAP2 during elongation (Fan et al., 2020; Tellier et al., 2020). RNAP2 Ser2ph-mintbody foci appeared to be only weakly associated with CDK9-Halo, with a small peak in CCF (Fig. 5, fourth column). A previous study has also shown infrequent overlapping between CDK9-mCherry and RNAP2 Ser2ph by immunofluorescence (Ghamari et al., 2013). RNAP2 Ser2ph-mintbody foci were rather associated with CDK12-Halo, although the distribution of CDK12-Halo was fuzzier than that of the mintbody, which resulted in a broad CCF peak (Fig. 5, fifth column). CDK12 was also concentrated in splicing factor speckle-like structures (Fig. 5, fifth column, top). A Paf1/RNAP2 complex component, LEO1, showed some overlapping with RNAP2 Ser2ph-mintbody with a CCF peak (Fig. 6, first column). These results suggested that CDK12 and the Paf1 complex are associated, but not always, with RNAP2 Ser2ph. A splicing factor, SRSF1, is recruited to the nascent RNA synthesis sites through the association with RNAP2 CTD phosphorylation (Misteli and Spector, 1999; Gu et al., 2013). RNAP2 Ser2ph-mintbody was often observed at the edge of SRSF1-enriched splicing speckles, which resulted in a broad peak in CCF (Fig. 6, second column).

Histone H3 acetylation is involved in transcription activation through chromatin decondensation and recruiting the coactivators and bromodomain proteins (Dhalluin et al., 1999; Tóth et al., 2004; Stasevich et al., 2014). We compared RNAP2 Ser2ph-mintbody localization with an acetyl reader protein, BRD4 (Fig. 6, third column), and an acetyltransferase, p300 (Fig. 6, fourth column; Fig. S3), which are associated with enhancers and promoters that harbor H3 Lys27 acetylation (Heintzman et al., 2009; Visel et al., 2009; Zhang et al., 2012; Kanno et al., 2014). Although the foci between RNAP2 Ser2ph-mintbody and BRD4 or p300 were sometimes closely associated, their overlapping was rare, and the correlations were low. Halo-p300 exhibited a number of small foci with a few bright condensates, as seen when monomeric enhanced GFP was knocked into the p300 locus (Ma et al., 2021). Although p300 could form larger condensates when highly expressed (McManus and Hendzel, 2003; Fig. S3 B), we only analyzed cells in which Halo-p300 was expressed at much lower levels than those with large condensates (Fig. S3 A). In these cells with low to moderate expression, CCF profiles of Halo-p300 with respect to RNAP Ser2ph-mintbody did not depend on the expression levels (Fig. S3 A). These observations for BRD4 and p300 were in good agreement with recent high-resolution analyses showing a separation of BRD4 and enhancers from nascent transcripts (Li et al., 2019, 2020).

We next analyzed the mobility of single-protein molecules that were highly and lowly associated with RNAP2 Ser2ph-mintbody–enriched regions by labeling HaloTag-tagged proteins with a low concentration of the HaloTag TMR ligand using a highly inclined and laminated optical sheet (HILO) microscope (Tokunaga et al., 2008; Lim et al., 2018). As the individual RNAP2 Ser2ph-mintbody molecules bound to the target in less than a few seconds, we did not perform single-molecule analysis of the mintbody. Instead, we used the fluorescence intensity in the mintbody images to define RNAP2 Ser2ph-enriched regions using a much lower laser power than that used in the single-molecule analysis. Under the conditions used, individual RNAP2-mintbody foci were difficult to resolve. Thus, mintbody-enriched regions were defined by areas with locally high intensity after high-pass filtration (Fig. 7, A and B).

Single HaloTag-tagged proteins were simultaneously imaged with RNAP2 Ser2ph-mintbody fluorescence at 33.33 ms per frame for 16.67 s (Fig. 7, A and B). The diffusion coefficients (D) of the individual molecules were determined by linear fitting to the first six steps (∼200 ms) of mean squared displacement (MSD; Fig. 7 C). The histograms of D represent the bimodal distribution of slow and fast fractions (Fig. 7 D). As most H2B-Halo molecules were classified into slow fractions by setting a threshold of D_thr = 0.065 µm²/s (Fig. 7 D), this fraction represented the molecules bound to chromatin and/or other large structures. We called this the “bound fraction.” Relatively large proportions of BRD4 and p300 were also found in the bound fraction compared with RPB3 and CDK9 (Figs. 7 D and S4 A). This probably reflects the small fraction of total cellular RNAP2 that is elongating at any given time (Kimura et al., 2002) and the transient interactions of CDK9 with RNAP2.

We then analyzed the mobility of bound molecules that were highly and lowly associated with RNAP2 Ser2ph-mintbody–enriched regions. As an example, shown in Fig. 7 C, the molecule tracked in (i) was located most (88%) of the time in an area of the nucleus that was enriched with RNAP2 Ser2ph-mintbody (Fig. 7 E, top). By contrast, the molecule tracked in (ii) was located exclusively in an area of the nucleus that was not enriched with RNAP2 Ser2ph-mintbody (Fig. 7 E, bottom). Molecules that went in and out of RNAP2 Ser2ph-mintbody–enriched regions were also observed (Fig. 7 F). After plotting D and the underlying RNAP2 Ser2ph-mintbody intensity from each tracked molecule (Fig. 7 G, top; and Fig. S4 A), the bound fraction as determined above (Fig. 7 D) was subjected to further analyses (Fig. 7 G, bottom). Based on the RNAP2 Ser2ph-mintbody intensity, the top 25% and bottom 25% were classified as fractions that were highly and lowly associated with RNAP2 Ser2ph-mintbody–enriched regions (Fig. 7 G, bottom; and Fig. S4 A). Molecules in the top 25% and bottom 25% stayed in local RNAP2 Ser2ph-mintbody–enriched regions for, on average, 88% and 5% of the trajectory durations, respectively (Fig. 7 H). When we compared the D values in the top (magenta) and bottom (green) fractions of bound molecules, all proteins except PCNA had higher D values in the top 25% highly associated fraction with RNAP2 Ser2ph-mintbody–enriched regions compared with D values in the bottom 25% fraction (Fig. 8 A). Consistent with the higher D values, molecules in the top 25% showed larger areas of confinement and lower effective spring coefficients than the bottom 25% (Figs. 8 B and S4 B). Significant differences between median D values of the top and bottom fractions were robustly observed over a wide range of definitions for the top and bottom fractions based on RNAP2 Ser2ph-mintbody intensity (from 5% to 45%) and also when different values of D_thr were used to define the bound fraction (from 0.045 to 0.169 µm²/s; Fig. S5). These data suggest that the bound molecules that are highly associated with RNAP2 Ser2ph-enriched regions are more mobile than lowly associated molecules.

To further investigate the dynamics of the transcription elongation sites over several seconds, we analyzed the mobility of RNAP2 Ser2ph-mintbody foci by tracking their center of mass in each focus with 551-ms imaging intervals using a confocal microscope. The mobility of RNAP2 Ser2ph-mintbody foci was first compared with replication foci marked by Halo-PCNA (Fig. 9, A–C). PCNA foci appear throughout euchromatin in early S phase and later redistribute to heterochromatin at the nuclear periphery and in late S phase (Leonhardt et al., 2000; Fig. S2). RNAP2 Ser2ph-mintbody foci exhibited modestly constrained diffusional motion, with a D of 0.0029 µm²/s and an anomalous exponent (α) of 0.69 (such that the MSD = 4Dt^α). This mobility (α < 1 and D ∼10⁻³ μm²/s) is consistent with other measurements of chromatin motion in mammalian cells (D ∼10⁻⁴–10⁻² μm²/s depending on the gene locus and methods; Levi et al., 2005; Chen et al., 2013; Lucas et al., 2014; Germier et al., 2017; Gu et al., 2018; Ma et al., 2019). The anomalous exponents appeared constant during the observation period (Fig. 9 C, bottom). Compared with RNAP2 Ser2ph-mintbody foci, both euchromatic and heterochromatic PCNA foci were less mobile (D = 0.0023 µm²/s, α = 0.69; and D = 0.0009 µm²/s, α = 0.64, respectively; Fig. 9, A–C). This result suggests that over a period of several seconds, transcription elongation foci are more mobile than replication foci in which many replication forks in the same chromatin domains are clustered (Jackson and Pombo, 1998).

To compare the mobility of RNAP2 Ser2ph-mintbody foci with chromatin domains that share the same replication timing, we labeled replication domains by DNA replication–mediated cyanine 3 (Cy3)-dUTP incorporation (Manders et al., 1999; Nozaki et al., 2017). The Cy3-labeled replication domains have been shown to behave similarly to individual nucleosomes in the same domains (Nozaki et al., 2017). HeLa cells expressing RNAP2 Ser2ph-mintbody were loaded with Cy3-dUTP to pulse-label replicated chromatin and were further grown for 2 d. As a limited amount of Cy3-dUTP was loaded into cells, DNA regions that were replicated just after the loading were labeled, and then Cy3 signals exhibited characteristic DNA replication foci depending on the stage in S phase (Manders et al., 1999). Once incorporated, Cy3 on DNA persisted after cell divisions, so the replication domains could be tracked in living cells. We classified Cy3-DNA patterns into the early and late replication domains based on the number and intranuclear distribution of Cy3-DNA foci, similar to what we did for Halo-PCNA (Fig. 5, second column; and Fig. 9, A and B). If there were many foci in nuclear interior regions, then we classified them as early, euchromatic domains (Fig. 9 D). If there were fewer foci at the nuclear periphery and around nucleoli, then we classified them as late, heterochromatic domains (Fig. 9 E). Consistent with Halo-PCNA and nucleosome mobility (Nozaki et al., 2017; Shaban et al., 2020), euchromatic domains were more mobile than heterochromatic domains, and RNAP2 Ser2ph-mintbody foci were further mobile than euchromatic domains (Fig. 9 F).

Finally, we measured the mobility of Halo-p300–enriched foci, which are likely to be associated with enhancers (Heintzman et al., 2009; Visel et al., 2009), together with RNAP2 Ser2ph-mintbody foci. Again, RNAP2 Ser2ph-mintbody foci were more mobile than p300-enriched foci, whose mobility was lower than typical euchromatic replication foci, or chromatin domains (Fig. 10). Taken together with the single-molecule tracking data (Figs. 7 and 8), these results suggest that the elongating RNAP2 complexes and molecules therein can move together with DNA templates that are more mobile than chromatin replication domains and p300-enriched foci.

In this study, we developed a genetically encoded probe for visualizing Ser2ph RNAP2 in living cells based on the specific antibody. The expression of functional scFv depends on the folding and stability of the framework regions (Cattaneo and Biocca, 1999; Ewert et al., 2004; Sato et al., 2016; Tjalsma et al., 2021). The original 42B3 clone showed a moderate level of nuclear enrichment, an indication of the functionality of scFv that targets a nuclear protein or its modification. Introducing several amino acid substitutions improved the nuclear enrichment. Although no universal framework is currently available (Kabayama et al., 2020), some framework sequences are more stable than others, and a substitution of the Met residue in a hydrophobic core with a more hydrophobic amino acid, such as Leu and Ile, often increases scFv stability (Tjalsma et al., 2021). In 42B3, Met95 substitution to Val or Ile also improved the nuclear accumulation, implying that such substitutions are a good option to improve the folding and stability of scFv in general. Amino acid substitutions that could affect hydrophilic interactions also improved the 42B3 scFv, but less effectively than the Met substitution in the hydrophobic core. These amino acid substitution results are beneficial for the future development of intracellular antibodies for research and therapeutic purposes (Stocks, 2005; Messer and Butler, 2020).

The resulting RNAP2 Ser2ph-mintbody was concentrated in numerous foci in the nucleus depending on RNAP2 Ser2ph, making it possible to detect and track RNAP2 transcription elongation sites in living cells. Even though the binding residence time of the mintbody was less than a few seconds, keeping the expression level low is important so as not to disturb the turnover of phosphorylation. Therefore, we selected cells that expressed relatively low levels of the mintbody and confirmed the sensitivity to flavopiridol.

Ser2ph is a hallmark of an elongating form of RNAP2 (Eick and Geyer, 2013; Zaborowska et al., 2016; Harlen and Churchman, 2017). Lines of evidence support the view that RNAP2 Ser2ph-mintbody foci in living cells represent the sites of RNA-engaged Ser2ph RNAP2. First, the mintbody foci disappeared and reappeared during the prophase to prometaphase and during the telophase to G₁, respectively, which is consistent with the substantial repression of RNAP2 transcription during mitosis (Parsons and Spencer, 1997; Liang et al., 2015). Second, the mintbody foci were observed depending on RNAP2 and Ser2ph, demonstrated by inhibitor treatments. The photobleaching assay confirmed the increased mobility of the mintbody due to a loss of the binding target by inhibitors. Third, the binding specificity was validated by an in vitro ELISA using purified protein. Thus, the location of RNAP2 Ser2ph is likely to be detected by the specific mintbody.

As the brightness of single mintbody foci was not at the single-molecule level, multiple mintbody molecules were concentrated in a space less than the ∼200-nm diffraction limit. As Ser2 in the CTD repeat can be highly phosphorylated (Schüller et al., 2016), a single RNAP2 could have ∼50 mintbody binding targets, although it is not known whether the variations at the distal C-terminal repeats, such as Tyr1-Ser2-Pro3-Thr4-Ser5-Pro6-Lys7 and Tyr1-Ser2-Pro3-Thr4-Ser5-Pro6-Thr7, are still recognized. However, it is unlikely that 50 mintbody molecules are housed on a single RNAP2 because of steric hinderance. In addition, if all Ser2ph is occupied by mintbodies, the binding of endogenous proteins can be blocked, and dephosphorylation may be inhibited. Although it is still possible to have tens of mintbodies per RNAP2 exhibit a fluorescence focus, the number of foci in a HeLa cell does not correspond to the number of total active RNAP2 molecules, which is estimated to be tens of thousands (Jackson et al., 1998; Kimura et al., 1999). The maximum number of foci detected (∼5,000) was rather similar to several thousands of transcription sites containing multiple transcription units, suggesting that the mintbody foci likely correspond to transcription factories (Iborra et al., 1996; Pombo et al., 1999; Cook, 1999).

We observed that protein molecules associated with RNAP2 Ser2ph-rich regions were more mobile than those outside the foci. Similarly, RNAP2 Ser2ph foci were more mobile than replication foci and chromatin domains. This observation is consistent with the results of studies that showed the higher mobility of transcribed loci (Gu et al., 2018) and decreased RNAP2 mobility with a CDK9 inhibitor (Shaban et al., 2020) but not with those of other studies that showed that RNAP2 transcription constrains chromatin motion (Ochiai et al., 2015; Germier et al., 2017; Nagashima et al., 2019). Single-molecule analyses have also revealed that transcription constrains chromatin motion (Nagashima et al., 2019; Shaban et al., 2020). The lower mobility of chromatin is still observed in cells treated with CDK9 inhibitors (Germier et al., 2017), implying that transcription-dependent chromatin constraint is mediated through transcription initiation rather than elongation (Babokhov et al., 2020). As only a small fraction of RNAP2 Ser2ph foci was associated with CDK9 (also demonstrated by Ghamari et al., 2013), most mintbody foci corresponded to RNAP2 Ser2ph that were already elongating on the gene body but not at the transcription start sites. In addition, BRD4 foci were even farther apart from RNAP2 Ser2ph or transcripts (Li et al., 2020). From the distinct localization and dynamics of the factors involved in transcription initiation from RNAP2 Ser2ph, it is possible that initiating and elongating RNAP2 complexes are organized differently in space. We anticipate that RNAP2 Ser2ph-mintbody will help address the question whether new initiation events occur at or distal to preexisting elongation RNAP2 foci.

Typical reporter genes that are short and highly transcribed (Ochiai et al., 2015; Germier et al., 2017; Forero-Quintero et al., 2021) are likely dominated by the initiating form of RNAP2, even though elongating RNAP2 is also present, which may result in confined chromatin motion. The endogenous genes are often periodically transcribed by bursting (Suter et al., 2011, Fukaya et al., 2016; Larsson et al., 2019; Ochiai et al., 2020), and the elongating RNAP2 can be separated from the transcription start sites and enhancers (Li et al., 2020). In this case, the elongating Ser2-phosphorylated RNAP2 clusters on a single gene by transcription bursting, or different genes become free of the confined initiating complexes and exhibit more diffuse motion. The chromatin structure needs to be extensively loosened during ongoing transcription, and the elongating complex on such loosened chromatin fibers can become less constrained. The higher mobility at the single-molecule level may also be associated with the dynamic structure of RNAP2 clusters. It is thus tempting to speculate that clustered RNAP2 molecules that transcribe different genes are pulled by chromatin motions from different angles at different time points, resulting in more dynamic mobility than euchromatin domains.

HeLa cells were grown in DMEM high-glucose medium (Nacalai Tesque) containing 10% FBS (Gibco) and 1% L-glutamine–penicillin–streptomycin solution (GPS; Sigma-Aldrich) at 37°C in a 5% CO₂ atmosphere. For transfection, FuGENE HD (Promega) was used according to the manufacturer’s instructions. Briefly, 2 µg DNA was mixed with 6 µl of FuGENE HD in 100 µl of Opti-MEM (Thermo Fisher Scientific) and incubated at RT for 30 min before being added to HeLa cells grown in 35-mm glass-bottomed dishes (AGC Technology Solutions) to 40–70% confluence. To establish stable cell lines, 1.6 µg PB533- or PB510-based PiggyBac plasmid and 0.4 µg transposase expression vector (System Biosciences) were used, and cells were selected in 1 mg/ml G418 (Nacalai Tesque) for RNAP2 Ser2ph-mintbody and H2B-Halo or 1 µg/ml puromycin (InvivoGen) for mCherry-PCNA. Cells expressing RNAP2 Ser2ph-mintbody at low levels were collected using a cell sorter (SH800; Sony). Before live-cell imaging, the medium was replaced with FluoroBrite (Thermo Fisher Scientific) containing 10% FBS and 1% GPS.

Mouse hybridoma cell lines expressing antibodies specific to RNAP2 Ser2ph were generated and screened by Mab Institute Inc. (Nagano, Japan), as previously described (Kimura et al., 2008). Clone 42B3 was originally generated against a peptide, Ser-Tyr-Ser-Pro-Thr-Ser-Pro-phosphoSer-Tyr-phosphoSer-Pro-Thr-Ser-Pro-Ser-Tyr-Ser-Pro-Cys, harboring Ser7ph and Ser2ph at the CTD sequence, but it was reacted with peptides containing Ser2ph, regardless of phosphorylation state of Ser7 (Fig. 3). RNA was extracted from the hybridoma cells using TRIzol (Thermo Fisher Scientific) and subjected to RNA sequencing to determine the DNA sequence encoding the IgG heavy and light chains, as described previously (Kuniyoshi et al., 2016). The variable regions of heavy (V_H) and light (V_L) chains of 42B3 were amplified and connected (Sato et al., 2018; Tjalsma et al., 2021) using sets of primers specific for V_H (V_H_s, V_H_as), V_L (V_L_s, V_L_as), and the linker (LINK primer1 and LINK primer2), which are listed in Table S1. The resulting scFv fragments were further amplified using the 5′ and 3′ primers (scFv primer_s and scFv primer_as) and cloned into the sfGFP-N1 vector (Addgene 54737, deposited by Michael Davidson and Geoffrey Waldo; Pédelacq et al., 2006) to generate a 42B3-sfGFP expression vector.

Point mutation primers were designed (Table S1) for PCR using 42B3-scFv as a template with PrimeSTAR (Takara Bio). KOD One PCR Master Mix Blue (Toyobo) was used for the M95V mutation. After PCRs, the amplified products were treated with DpnI (0.4 U/µl; 1 h) to digest the template before mixing with competent cells. The nucleotide sequence of the resulting plasmids was verified by Sanger sequencing. 42B3 scFv mutants were then subcloned into a PB533-based vector (System Biosciences) by restriction enzyme digestion (EcoRI and NotI) and ligation.

To screen mintbodies and mutants, a point-scan confocal microscope (FluoView FV1000; Olympus) operated by the built-in software FluoView version 4.2, featuring a heated stage (Tokai Hit; 37°C, 5% CO₂), was used with a UPlanApoN 60× OSC oil immersion lens (NA 1.4) using the following settings: 512 × 512 pixels, pixel dwell time 4.0 µs, pinhole 100 µm, zoom ×3.0, line averaging ×3, with a 543-nm (50%) laser line (Fig. 1 B; for HeLa cells that stably express mCherry-tagged mintbodies), or zoom ×5.0, line averaging was ×4, with a 488-nm (3%) laser line (Fig. S1; for HeLa cells that transiently express sfGFP-tagged mintbodies).

To determine the N/C ratio of scFv-mCherry (Fig. 1 C), the whole-cell, nucleus, and cell-free background regions were selected manually, and the intensities and areas were measured using ImageJ Fiji 1.52d software (https://imagej.net/Fiji). Net intensities of the whole cell and nucleus were obtained by subtracting background intensity, and the cytoplasmic intensity was calculated by dividing the total cytoplasmic intensity ([whole cell intensity] × [whole cell area] − [nuclear intensity] × [nuclear area]) by the cytoplasmic area ([whole cell area] − [nuclear area]). The N/C ratio was obtained by dividing the cytoplasmic intensity by the nuclear intensity. Box plots were created using BoxPlotR (http://shiny.chemgrid.org/boxplotr/).

The RNAP2 Ser2ph-mintbody sequence was inserted into pTrcHis-C (Thermo Fisher Scientific) to harbor the His-tag at the N-terminus. E. coli BL21 (DE3) harboring the expression plasmid was grown in 100 ml of YTG (1% tryptone, 0.5% yeast extract, 0.5% NaCl, and 0.2% glucose) for 20 h at 18°C to reach the early stationary phase, diluted to a final volume of 2 liters of YTG, and further grown for 8 h at 15°C. IPTG (Nacalai Tesque) was added at a final concentration of 1 mM, and E. coli culture was further incubated for 12 h at 15°C before collecting cells by centrifugation at 4,000 × g for 10 min at 4°C. After the supernatant was discarded, the pellet was frozen at −80°C. The pellet was thawed on ice and then suspended in 20 ml of Buffer L (50 mM Tris-HCl, pH 8.0, 300 mM NaCl, 5% glycerol) containing 1 mg/ml lysozyme (Nacalai Tesque) and 1% proteinase inhibitor cocktail (Nacalai Tesque). Cells were lysed in icy water by sonication using a Sonifier 250 (Branson; duty cycle 30%, output 1.2; 60 s; 30 times with 60-s intervals). The supernatant was collected after centrifugation at 15,000 ×g for 15 min at 4°C and applied to a 20-ml open column (Poly-Prep Chromatography Columns; Bio-Rad Laboratories) containing 500 µl of Ni-nitrilotriacetic acid agarose (Qiagen) preequilibrated with Buffer L at 4°C. After the column was washed twice with 10 ml of Buffer L, bound proteins were eluted three times with 1 ml of elution buffer (Buffer L containing 150 mM imidazole, pH 8.0) and then dialyzed overnight in 1 liter of starting buffer (10 mM Tris-HCl, pH 7.0, 50 mM NaCl). After replacing with new buffer, dialysis was continued for a further 20 h. The dialyzed sample was filtered and applied to a HiTrap Q column (GE Healthcare) and fractionated by linear gradient with end buffer (10 mM Tris-HCl, 1 M NaCl) using an AKTAprime plus system (GE Healthcare) at 4°C. Proteins in each fraction were analyzed by 10–20% SDS-PAGE, and fractions exclusively containing a protein with the expected size of His-RNAP2 Ser2ph-mintbody were pooled. His-tag was removed using an Enterokinase Cleavage Capture kit (Novagen), according to the manufacturer’s instructions. Diluted recombinant enterokinase (10 µl) and 2 µl of 1 M CaCl₂ were added to 1 ml of purified protein sample. After overnight incubation at RT, enterokinase was removed with Ekapture Agarose. The concentration of the purified RNAP2 Ser2ph-mintbody was determined using a Bradford protein assay (Bio-Rad Laboratories) with BSA as the standard.

Microtiter ELISA plates (Greiner Bio-One) were coated with 1 µg/ml BSA conjugated with RNAP2 CTD repeat peptides containing phosphorylated amino acids (Mab Institute Inc.; Fig. 4 B) overnight at 4°C, and they were washed three times with PBS. Each well was incubated with 100 µl of Blocking One-P (Nacalai Tesque) for 20 min at RT, washed with PBS, and then incubated with 50 µl of a 1:3 dilution series of purified RNAP2 Ser2ph-mintbody and IgG antibodies specific for Ser2ph (CMA602 and 42B3) and Ser5ph (CMA603) in PBS overnight. RNAP2 Ser2ph-mintbody and antibodies were diluted from 2.7 µg/ml and 300 ng/ml, respectively. Microtiter plates were washed three times with PBS and incubated with HRP-conjugated anti-GFP (MBL; 1:2,000) and HRP-conjugated antimouse IgG (Jackson ImmunoResearch; 1:10,000) for RNAP2 Ser2ph-mintbody and IgG, respectively, for 90 min at RT. After washing four times with PBS, 100 µl of o-phenylenediamine solution (freshly prepared by dissolving one tablet containing 13 mg o-phenylenediamine-2HCl into 50 ml of 0.1 M sodium citrate buffer, pH 5.0, and 15 µl 30% hydrogen peroxide) was added. After incubating at RT until a yellow color was observed, the absorbance was measured at 490 nm, with a reference at 600 nm, using a Varioskan (Thermo Fisher Scientific).

Live-cell imaging of HeLa cells expressing RNAP2 Ser2ph-mintbody was performed using a high-resolution spinning-disk confocal microscope featuring microlens-associated pinholes and a 3.2× tube lens to theoretically improve the optical resolution 1.4-fold (Ixplore SpinSR; Olympus) equipped with a UplanApo 60× OHR (NA 1.5) and a UplanApoN 60× OSC2 (NA 1.4) objective lens for single-color and multicolor fluorescence imaging, respectively, using a 488-nm laser (OBIS 488 LS, 100 mW; Coherent), a 561-nm laser (OBIS 561 LS, 100 mW; Coherent), a scientific complementary metal oxide semiconductor camera (ORCA Flash 4; Hamamatsu Photonics), and a heated stage (Tokai Hit; 37°C, 5% CO₂), under the operation of cellSens Dimension 3.1 software (Olympus).

To measure the number and size of RNAP2 Ser2ph-mintbody foci (Fig. 1, D–F), z-stack images were acquired using a 488-nm laser (100% transmission; 300 ms) at 0.2-µm intervals. Using ImageJ Fiji 1.52d software, line profiles of single foci were drawn and fit using a Gaussian distribution, Y = a + b*exp(−[x − c]²/[2d²]), to calculate the full width at half maximum. To measure the number of foci per nucleus, foci were detected using NIS Elements (Nikon) with the spot detection function (binary > spot detection > bright spots with a typical diameter of 7 pixels) in all z-sections. The contrast in the spot detection function was adjusted to maximally detect nuclear spots without cytoplasmic spots. As one focus can be detected in three consecutive sections at the maximum, the total number of detected foci in the whole nucleus was divided by 3.

For live-cell imaging of HeLa cells that stably expressed both RNAP2 Ser2ph-minbody and H2B-Halo during mitosis (Fig. 2), cells were incubated in 50 nM HaloTag TMR ligand (Promega) for 30 min, and the medium was replaced with FluoroBrite (Thermo Fisher Scientific) with supplements. Images were collected sequentially with a 488-nm laser (100% transmission; 300 ms) and a 561-nm laser (1% transmission; 300 ms) every 1 min. To demonstrate the relative localization of condensed chromosomes and RNAP2 Ser2ph-mintbody, the relative intensity profiles of 3-pixel-thick 2-µm lines were drawn using Fiji 1.52d. The intensities were normalized by setting the maximum and minimum line-pixel intensities to 1 and 0, respectively.

For inhibitor treatments, after 10 images were acquired using a 488-nm laser (10% transmission; 200 ms) without intervals, flavopiridol (at a final concentration of 1 µM; Sigma-Aldrich), triptolide (at a final concentration of 5 µM; Tocris), or the vehicle (DMSO; 1:10,000 dilution) was added, and 10 images without intervals were acquired every 30 min for 2.5 h. The number of foci was counted using NIS Elements (Nikon) as describe above.

HeLa cells stably expressing RNAP2 Ser2ph-mintbody were grown on a 35-mm dish, and FRAP was performed in inhibitors that were added 2–4 h before the experiment. A dish was set on a heated stage (Tokai Hit) at 37°C under 5% CO₂ (Tokken) on a point-scan confocal microscope (FV1000; Olympus) with a Uplan Apo 60× OSC (NA 1.4) lens under the operation of built-in ASW version 4.2 software (Olympus). Overall, 250 confocal images were collected every 47.8 ms (24 × 128 pixels; 2-µs pixel dwell time; zoom ×8.0; pinhole 800 µm; 0.2% transmission for a 488-nm line from a 20-mW multi-Ar⁺ ion laser), a 2-µm diameter circle was bleached using a 488-nm laser line with 100% transmission for 55 ms, and a further 50 images were collected using the original settings. The intensity of the bleached, nuclear reference, and background areas was measured using ASW version 4.2 (Olympus). After subtracting the background from the bleached and nuclear reference areas, the relative fluorescence in the bleached area was obtained by two-step normalization. The intensity in the bleached area at each time point was obtained by dividing by that in the nuclear reference area, and the resulting relative intensity was then normalized using the average before bleaching.

To construct expression vectors for HaloTag-tagged proteins (CDK9, CDK12, and LEO1), total RNA was prepared from HeLa cells using TRIzol (Thermo Fisher Scientific) according to the manufacturer’s instructions, and cDNA was synthesized using the SuperScript III First-Strand Synthesis System for RT-PCR (Thermo Fisher Scientific). To the total RNA (2.3 µg in 1 µl), 7 µl of nuclease-free water, 1 µl of 50 µM oligo(dT)₂₀, and 4 µl of 2.5 mM deoxynucleotide triphosphate were added, and the mixture was incubated at 65°C for 5 min and chilled on ice for 1 min. After 4 µl of 5× First-Strand buffer, 1 µl of 0.1 M DTT, 1 µl of Rnase OUT recombinant Rnase inhibitor, and 1 µl of SuperScript III RT were added, the mixture was incubated for 60 min at 50°C and then for 15 min at 70°C before the addition of 1 µl of Rnase H (2 U/µl) and incubation for 15 min at 37°C. cDNA was purified using a PCR purification kit (Qiagen), and the concentration was measured using NanoDrop (Thermo Fisher Scientific). To amplify specific protein sequences, PCR was performed in a reaction mixture containing 5 µl of 5× Q5 buffer, 2 µl of 2.5 mM deoxynucleotide triphosphates, 0.6 µl each of forward and reverse primers (Table S1), 1 µl of cDNA, 15.55 µl of water, and 0.25 µl of Q5 DNA Polymerase (New England Biolabs), with the following PCR cycle: 1 min at 98°C, 35 cycles of 10 s at 98°C, 5 s at 72°C, 30 s at 72°C, and 2 min at 72°C. The PCR products were cloned into the HaloTag vector based on PB533 using an infusion system (Takara Bio). The expression vectors of H2B-Halo and Halo-PCNA were constructed by inserting their coding sequence (Kanda et al., 1998; Leonhardt et al., 2000) into the same HaloTag PB533 vector (Sato and Kimura, 2021). The expression vectors of Halo-BRD4 and Halo-p300 were Kazusa clones (Promega). The expression vector of SF2(SRSF1/ASF)-mRFP has been described previously (Yomoda et al., 2008).

HeLa cells stably expressing both RNAP2 Ser2ph-mintbody and mCherry-PCNA and cells expressing RNAP2 Ser2ph-mintbody were established by transfection of mCherry-PCNA expression vector based on PB510 (System Biosciences; Imada et al., 2021). After selecting in 1 µg/ml puromycin (InvivoGen), mCherry-positive cells were collected using a cell sorter (SH800; Sony). Fluorescence images of RNAP2 Ser2ph-mintbody and mCherry-PCNA were sequentially acquired using an Ixplore SpinSR (Olympus) with a 488-nm laser (30% transmission; 300 ms) and a 561-nm laser (30% transmission; 200 ms) every 30 min for 36 h.

HeLa cells stably expressing RNAP2 Ser2ph-mintbody were grown on glass-bottomed dishes, transfected with the expression vectors of HaloTag-tagged proteins, and, the next day, cells were incubated in 50 nM HaloTag TMR Ligand (Promega) for 30 min before washing with FluoroBrite (Thermo Fisher Scientific) containing supplements. To evaluate the effect of Halo-p300 expression levels on the localization, HeLa cells were cotransfected with the expression vectors for RNAP2 Ser2ph-mintbody and Halo-p300 and left for 2 d before labeling with HaloTag TMR Ligand and imaging. Fluorescence images of sfGFP and TMR or mRFP1 were sequentially acquired using an Ixplore SpinSR (Olympus) with a 488-nm laser (50% transmission; 300 ms) and a 561-nm laser (50% transmission for RPB3, BRD4, p300, SRSF1, PCNA, and H2B; 100% for CDK9, CDK12, and LEO1; 200 ms).

ImageJ Fiji software was used for colocalization analyses (Figs. 5 and 6). To draw a line profile, a 4-pixel-thick line was drawn and expressed as the relative intensity to the average nuclear intensity after subtracting cytoplasmic intensity. CCF was calculated using Just Another Colocalisation Plugin for ImageJ software. The Gaussian filter (radius 2.0 pixels) was applied to diminish the pseudocorrelation caused by pixel-to-pixel sensitivity variation, and the average fluorescence intensity of the nucleoplasm was subtracted from the image for thresholding. The CCF was measured with the x-shift set to 100 pixels (3.3 µm) without rotation and with rotation by 90°, 180°, and 270°, and the resulting four graphs were averaged and plotted in the range of −50 ≤ x ≤ 50 pixels. Pearson’s correlation of the nucleus was obtained using NIS Elements (Nikon). Graphs were created using Excel 2019 (Microsoft).

HeLa cells stably expressing RNAP2 Ser2ph-mintbody were transfected with expression vectors for HaloTag-tagged proteins (RPB3, BRD4, CDK9, p300, H2B, and PCNA) and were stained with 24 pM HaloTag TMR ligand for 30 min just before live-cell imaging. Highly expressing cells, which were brightly labeled even with the low ligand concentration, were not used for the analysis. The medium was then replaced with FluoroBrite-containing supplements. Single-molecule imaging was performed on a custom-build inverted microscope (IX83; Olympus) equipped with a 488-nm laser (OBIS 488 LS, 100 mW; Coherent), a 561-nm laser (OBIS 561 LS, 100 mW; Coherent), a 100× objective lens (PlanApo NA 1.45 total internal reflection fluorescence microscope; Olympus), and an intermediate magnification lens (2×; Olympus; Tokunaga et al., 2008; Lim et al., 2018). HILO illuminations of both laser lines were achieved using a CellTIRF system (Olympus). Images were recorded at 33.33 ms per frame for 500 frames using two EM charge-coupled device cameras (C9100-13; Hamamatsu Photonics) and AQUACOSMOS software (Hamamatsu Photonics). The spatial shift between the two camera images was corrected using the images of a 10-µm square lattice with ImageConverter software (Olympus). Cells were maintained at 37°C during observation using a stagetop incubator and objective heater (Tokai Hit). Then, 15 cells were observed for each sample, and two independent experiments were performed.

Single-molecule tracking was performed using modified u-track MATLAB code (Jaqaman et al., 2008). Briefly, single-molecule positions were detected using the detectSubResFeatures2D function in u-track and were precisely determined by 2D Gaussian fitting. The localizations were linked using the trackCloseGapsKalmanSparse function with a maximum step length of 720 nm. Neither gap closing nor Kalman filtering in the u-track were used. The trajectories that lasted at least six steps (200 ms) were used to calculate MSD (Ito et al., 2017). The first six steps of MSD were fit with MSD = 4Dt to determine the D of an individual trajectory; as the period of analysis was very short (200 ms), the simple diffusion model was used. The maximum threshold of the diffusion coefficient D_thr for bound molecules was determined from the distribution of log₁₀(D). A stacked histogram from all samples was fitted to a double Gaussian function, and the mean − 2 SD of the fast fraction was used as D_thr. Similar values for D_thr (0.065 and 0.063 µm²/s) were obtained from two independent replicate experiments.

The relative intensity of RNAP2 Ser2ph-mintbody was obtained from a 500-frame (16.67 s) averaged image that was recorded simultaneously with single-molecule imaging. Nonuniform lighting of the average image was minimized by a 2-µm high-pass image filter. The range of the intensity from −2 to +2 SD from the mean was normalized to that from 0 to 1. The normalized intensity of the mintbody at each pixel point on the trajectory of HaloTag-tagged protein was calculated. The pixel number ratio at the intensity >0.5 was determined as the frequency of I_>0.5. Since each trajectory traverses various mintbody intensity regions, the average of the top two intensities of the points on each trajectory was used as the relative RNAP2 Ser2ph-mintbody intensity (I_{rel_Ser2ph}) of the trajectory. The difference between the D values of bound molecules (≤ D_thr) that were highly associated (the top I_{rel_Ser2ph}) and lowly associated (the bottom I_{rel_Ser2ph}) with RNAP2 Ser2ph-mintbody–enriched regions was analyzed using the Mann-Whitney U test. The confinement area of each trajectory was calculated by drawing a confidence ellipse that contains 95% of trajectory points (Germier et al., 2017). The effective spring coefficient was calculated using linear regression of the centripetal displacement on the distance from the center of mass (Shukron et al., 2019).

HeLa cells or those stably expressing RNAP2 Ser2ph-mintbody were transfected with expression vectors for Halo-PCNA and Halo-p300, and, 2 d later, cells were labeled with HaloTag TMR Ligand (Promega) and prepared for live imaging as described above. For tracking chromatin domains, HeLa cells expressing RNAP2 Ser2ph-mintbody were bead loaded with 0.1 mM Cy3-dUTP (PerkinElmer; Manders et al., 1999; Sato et al., 2018) and cultured for 2 d. On the day of imaging, the medium was replaced with FluoroBrite (Thermo Fisher Scientific) containing supplements. Fluorescence images of sfGFP and TMR, or Cy3, were sequentially acquired at 551 ms/frame using an Ixplore SpinSR (Olympus) with a 488-nm laser (50% transmission; 300 ms) and a 561-nm laser (50% and 10% transmission for TMR and Cy3, respectively; 200 ms).

For tracking foci, RNAP2 Ser2ph-mintbody, Halo-PCNA, Halo-p300, and Cy3 foci were detected with NIS Elements (Nikon) using binary > spot detection > bright spots with the following parameters: typical diameter pixels 10 (RNAP2 Ser2-mintbody, PCNA, and p300) and 12 (Cy3); contrast 4.94 (RNAP2 Ser2ph) or values adjusted to maximally detect nuclear spots without (PCNA and p300) or with little (Cy3) cytoplasmic spots; SD multiplication factor 2 SD; maximum object speed 200 µm/s; maximum gap size 3; and delete tracks <30 frames. In the case where cytoplasmic spots were detected (Cy3), they were removed manually. MSDs up to 20 steps (11 s) were used for fitting using MSD = 4Dt^α, where D is the diffusion coefficient; t is the elapsed time; and α is the anomalous exponent (0 < α < 2). MATLAB codes are available at GitHub (https://github.com/Kimura-Lab/Uchino-et-al.-2021).

Fig. S1 shows the initial screening data of various RNAP2-specific scFvs, the amino acid sequence of 42B3 scFv, microscopic images of 42B3 scFv mutants expressed in HeLa cells, and the structural models of RNAP2 Ser2ph-mintbody, related to Fig. 1. Fig. S2 shows the dynamic redistribution of Halo-PCNA in HeLa cells expressing RNAP2 Ser2ph-mintbody during the cell cycle, related to Figs. 5 and 9. Fig. S3 shows the effect of expression levels of p300 on the focus formation and the CCF with RNAP2 Ser2ph-mintbody, related to Fig. 6. Fig. S4 and Fig. S5 show supporting data for single-molecule tracking analyses, related to Figs. 7 and 8. Fig. S4 shows D values and effective spring coefficients of HaloTag-tagged proteins associated with different RNAP2 Ser2ph-mintbody intensities, related to Figs. 7 and 8. Fig. S5 validates the significance of the difference between the median D values in bound molecules that are highly and lowly associated with RNAP Ser2ph-mintbody–enriched regions, related to Fig. 7. Video 1 and Video 2 present the dynamics of RNAP2 Ser2ph-mintbody foci with respect to condensing and decondensing chromosomes during the entry into and exit from mitosis, respectively, related to Fig. 2. Table S1 lists reagents and resources used in the study.

The nucleotide sequence data of 42B3(R78K/A80T/M95V)-scFv are available in several public databases (DNA Data Bank of Japan/EMBL/GenBank) under accession number LC628457.
