Viruses co-opt host proteins to carry out their lifecycle. Repurposed host proteins may thus become functionally compromised; a situation analogous to a loss-of-function mutation. We term such host proteins as viral-induced hypomorphs. Cells bearing cancer driver loss-of-function mutations have successfully been targeted with drugs perturbing proteins encoded by the synthetic lethal (SL) partners of cancer-specific mutations. Similarly, SL interactions of viral-induced hypomorphs can potentially be targeted as host-based antiviral therapeutics. Here, we use GBF1, which supports the infection of many RNA viruses, as a proof-of-concept. GBF1 becomes a hypomorph upon interaction with the poliovirus protein 3A. Screening for SL partners of GBF1 revealed ARF1 as the top hit, disruption of which selectively killed cells that synthesize 3A alone or in the context of a poliovirus replicon. Thus, viral protein interactions can induce hypomorphs that render host cells selectively vulnerable to perturbations that leave uninfected cells otherwise unscathed. Exploiting viral-induced vulnerabilities could lead to broad-spectrum antivirals for many viruses, including SARS-CoV-2.
The principle of synthetic lethality offers an opportunity for selectively targeting virus-infected cells by drugging synthetic lethal (SL) interactors of virus-targeted multifunctional protein hubs (Mast et al., 2020). Synthetic lethality occurs between two genes when a loss-of-function mutation in either gene has little impact on cell viability, but becomes detrimental when paired together resulting in cell death (Dobzhansky, 1946; Hartwell et al., 1997). Such lethal genetic combinations, known as “SL pairs” (Nijman, 2011), are one of many forms of genetic interactions that can occur within cells (Boone et al., 2007; Dixon et al., 2009; Drees et al., 2005; Horlbeck et al., 2018). The existence of synthetic lethality reveals important aspects of the genetic architecture of cells, demonstrating the presence of genetic buffering in organisms due to functional redundancy (Horlbeck et al., 2018; McManus et al., 2009). Synthetic lethality–inspired anticancer therapy provides avenues for improved drug specificity and efficacy at lower doses, thereby limiting side effects (Beijersbergen et al., 2017). Here, we extend the application of this synthetic lethality principle to host-derived antiviral targets.
Virus infection perturbs host protein–protein interactions (PPIs), usurping normal protein functions and rewiring normal host PPI networks. Host proteins are considered proviral if loss-of-function renders the host cell resistant to infection and antiviral if loss-of-function improves cell permissibility to infection (Mast et al., 2020). Infected cells exhibit altered metabolic requirements (Thaker et al., 2019), signaling pathways (Gaur et al., 2011), and intracellular transport pathways (Belov et al., 2007), as well as other morphological and molecular characteristics (Mirabelli et al., 2021) relative to the uninfected cells. In such situations, infected cells may depend on a different complement of proteins than their uninfected counterparts (Mast et al., 2020). This state-specific vulnerability may be a target for host-based therapeutics based on the well-established principle of synthetic lethality. For example, if two host cell proteins have an SL relationship and the function of one protein is hijacked by a viral protein, then cells may become dependent on the function of the second protein. In contrast, cells that are not altered by the virus, i.e., those that are uninfected, will be unimpacted by disrupting the second protein, since the elimination of a single half of the SL pair does not result in a phenotype. Rational targeting of SL protein pairs in which the function of one partner is reduced specifically in the infected cell, a situation analogous to a mutant gene in cancer, is a novel framework for taking advantage of the intrinsic differences of infected cells to achieve selective targeting.
We hypothesize that viral-host PPIs generate protein-based, viral-induced (vi)-hypomorphs of host factors in infected cells, thereby specifically sensitizing infected cells to targeting genetically interacting (SL/synthetic sick) partners of these vi-hypomorphs. To test this hypothesis, we selected the Golgi-specific brefeldin A-resistance guanine nucleotide exchange factor (GBF1; Claude et al., 1999) as a potential prototypical vi-hypomorph because it is a critical proviral host factor for the replication of several families of RNA viruses, including Picornaviridae, Coronaviridae, Flaviviridae, Herpesviridae, Filoviridae, and Rioviridae (Belov et al., 2008; Carpp et al., 2014; Farhat et al., 2018; Goueslain et al., 2010; Lanke et al., 2009; Martínez et al., 2019; Verheije et al., 2008; Yamayoshi et al., 2010).
Many RNA viruses encode proteins that bind GBF1 directly, including the nonstructural proteins 3A of poliovirus (Belov et al., 2008; Teterina et al., 2011) and coxsackievirus (Wessels et al., 2006a; Wessels et al., 2006b), and nonstructural protein 5 of dengue virus (Carpp et al., 2014). Recently, two SARS-CoV-2 proteins, membrane (M) and orf6, were also identified to directly bind or reside in close proximity to GBF1, respectively (Laurent et al., 2020,Preprint; Stukalov et al., 2021). In the case of poliovirus infection, 3A redistributes GBF1 to viral replication complexes during early stages of replication and subverts its guanine nucleotide exchange factor (GEF) function in infected cells (Belov et al., 2007, 2008; Richards et al., 2014), suggesting that poliovirus protein 3A may attenuate GBF1’s normal function creating a vi-hypomorph, rendering cells susceptible to disruption of proteins synthetically lethal with GBF1. Here, we provide proof of concept that SL partners of vi-hypomorphs can be targeted to selectively eliminate infected cells while sparing uninfected cells. We do this by performing a genome-wide chemogenomic CRISPR screen to identify SL partners of GBF1, validating the top candidates, and demonstrating that shRNA-mediated silencing of the GBF1 SL interacting partner, ARF1, selectively kills cells expressing poliovirus protein 3A.
Results and discussion
To identify putative SL partners of GBF1, we screened a high-complexity extended-knockout CRISPR library of 278K single guide RNAs (sgRNAs) that target 19,084 RefSeq genes, 20,852 alternatively spliced genes, and 3,872 predicted genes, among additional controls, in NALM-6 human B-cell precursor leukemia cells (Fig. 1 A; Bertomeu et al., 2018). These cells harbor a genomic doxycycline-inducible Cas9 that enables regulatable, uniform, and robust gene silencing across the pooled library (Wang et al., 2014). Relative changes in sgRNA frequencies were obtained from sequencing populations of the CRISPR libraries cultured in the presence or absence of Golgicide A (GCA), a potent and specific inhibitor of the GEF activity of GBF1 (Fig. 1 A; Sáenz et al., 2009). sgRNA frequencies were determined by sequencing, and relative fold changes in sgRNA abundances between GCA- and mock-treated samples are reported (Table S1 and Fig. 1 B).
Our CRISPR screen identified 53 underrepresented genes and 17 overrepresented genes in the GCA-treated samples relative to controls (Fig. 1 B; white and black filled circles; FDR = 0.05). Underrepresented genes reflect cells depleted from the population and define putative SL partners of GBF1. Putative SL interactors of GBF1 are likely functionally redundant with GBF1, an attribute of the genetic interactions between SLs that offers buffering in the event of a loss of function of one of the SL genes (Hartman et al., 2001; Mast et al., 2020). Overrepresented genes reflect cells enriched in the population. These overrepresented genes may counter the harmful effects of GBF1 inhibition and are termed “GBF1 suppressors” (Van Leeuwen et al., 2016). Functional enrichment analysis of the 53 putative SLs of GBF1 identified 29 genes involved in the misfolded protein-triggered ER stress response and 19 genes in the early secretory pathway, reflecting well-characterized GBF1 biology (Fig. 1, C and D; Beller et al., 2008; Citterio et al., 2008; Donaldson and Jackson, 2011; Guo et al., 2008; Manolea et al., 2008; Sáenz et al., 2009; Soni et al., 2009). As evident by the PPI network, the 53 GBF1-SL partners and the 17 GBF1 suppressors are functionally related and can be grouped into a few distinct functional clusters (Fig. 1 D). For example, one cluster of GBF1-SL pairs is enriched in ER stress, unfolded protein response, and ER-associated protein degradation pathways, while 8 out of the 17 GBF1 suppressors contribute to ER-Golgi vesicular transport (Fig. 1 D). GBF1-SL pairs also include a cluster of RNA-binding proteins, and members of the KICSTOR (Wolfson et al., 2017) and DEPTOR (Peterson et al., 2009) complexes that negatively regulate mTOR signaling (Fig. 1 D). Several genes from both lists possess GTPase activity, e.g., the GBF1-SL partners: ARF1, TMED10, DRG2, RAB5C, YIP5, RAB3GAP2, and the GBF1 suppressors: ARF1GAP1, SAR1A1, ARF4, and ARF5 (Fig. 1 D). Just over half of the GBF1-SL partners and suppressors identified in our screen are directly targeted by viral proteins (Fig. 1 D; circles with red boundaries).
The top SL candidate ADP-ribosylation factor 1 (ARF1), a small GTPase that regulates the recruitment and assembly of COP I on Golgi and ERGIC membranes (Liang and Kornfeld, 1997), is activated by GBF1 which facilitates GDP to GTP exchange on ARF1. GBF1-activated ARF1 has broad cellular activities, including recruitment of coat proteins and lipid-modifying enzymes to facilitate secretory cargo transport (Claude et al., 1999; Donaldson and Jackson, 2011; Kawamoto et al., 2002). Consistent with our observations, a negative genetic interaction exists between ARF1 and the yeast GBF1-ortholog, guanine nucleotide exchange on ARF1 (GEA1; Surma et al., 2013), and GEA1 overexpression rescues an arf1∆ growth defect (Chantalat et al., 2003).
ARF4, a class II ARF implicated in endosomal morphology and retrograde transport to the Golgi (Nakai et al., 2013), was the top overrepresented gene (Fig. 1 B). Consistent with our observation of a protective role for ARF4 against GCA toxicity, ARF4 was found to be protective against the Golgi disrupting agent Brefeldin A (BFA; Reiling et al., 2013) which targets the ARF GEFs GBF1, BIG1 (Morinaga et al., 1997; Morinaga et al., 1996), and BIG2 (Togawa et al., 1999). ARF4 depletion stimulates poliovirus replicon replication and suppresses deleterious effects on the poliovirus replicon by BFA-mediated GBF1 inhibition (Moghimi et al., 2020). ARF4 knockdown (KD) protects against infection by other human pathogens including Chlamydia trachomatis and Shigella flexneri (Reiling et al., 2013), consistent with an important role for ARFGEFs, such as GBF1, for these intracellular pathogens.
To validate putative GBF1-SL pairs in HeLa cells, we performed KDs in the presence of GCA. We prioritized potential druggable candidates (black filled circles; Fig. 1 B) using the Drug Gene Interaction Database (http://dgidb.org/search_categories; Cotto et al., 2018). In addition to ARF1, we selected: heat-shock protein 90 (HSP90), a protein chaperone with ATPase activity (Rowlands et al., 2010); C-terminal Src kinase (CSK) which negatively regulates Src family kinases and has roles in cell growth, differentiation, migration and immune responses (Okada, 2012); and protein kinase, AMP-activated, alpha 1 (PRKAA1), the catalytic subunit of the 5′-prime-AMP-activated protein kinase (AMPK) with roles in regulating cell stress and metabolism (Fig. 2 A; Sanli et al., 2014). We also included methylsterol monooxygenase 1 (MSMO1) as a control because it did not show depletion or enrichment in sgRNA abundance (triangle; Fig. 1 B), and the top overrepresented GBF1 suppressor, ARF4 (Fig. 1 A and Table S1). SL effects of combining GCA with shRNA-mediated depletion were observed in ARF1 KD cells with only 40% (at 4 µM) or 50% (at 1.5 µM) viability as compared to the DMSO alone–treated cells (Fig. 2 A). When viability (normalized to the matched DMSO alone–treated cells) of each KD cell line was compared to that of the MSMO1 KD control, the decrease in viability was statistically significant for ARF1 KD at both concentrations (ANOVA P value <0.01 and 0.0001 at 1.5 and 4 µM, respectively), consistent with the results of the chemogenomic screen (Fig. 1). A GCA dose-response assay monitoring cell growth inhibition as a function of GCA concentration showed a nearly twofold reduction in IC50 value for ARF1 KD cells as compared to the control (Fig. 2 B), further validating the SL interaction between GBF1 and ARF1.
The premise of SL-specific antivirals is that a viral infection disrupts normal protein functions consequently generating vi-hypomorphs in infected cells. As a result, the infected cells may become selectively vulnerable to perturbations that target SL partners of the vi-hypomorphs. We tested this hypothesis in the context of cells expressing poliovirus 3A. Poliovirus 3A interacts with GBF1 and recruits it to sites of replication during poliovirus infection (Belov et al., 2007; Belov et al., 2008; Richards et al., 2014). We expressed 3A alone to avoid the confounding effects of the multitude of changes induced by viral infection, and to test the formation of a GBF1 vi-hypomorph in a simpler yet relevant model system. The dynamics of GBF1-3A interactions observed during viral infection, including GBF1-mediated ARF1 activation and translocation, are retained in cells ectopically expressing the viral protein alone (Belov et al., 2005; Belov et al., 2007; Richards et al., 2014; Wessels et al., 2006a). N-terminal, FLAG*-tagged 3A (Teterina et al., 2011), and associated proteins were affinity purified from HeLa cells and analyzed by Western blotting (Fig. 3 A). A band of ∼10 kDa was detected in the eluate corresponding to the 3A-FLAG* protein and a slower migrating, high molecular weight band of ∼200 kDa, corresponding to GBF1, was detected in the eluate of GBF1 affinity purified from cells expressing 3A-FLAG*, but not from control cells (Fig. 3 A). This observation confirmed that the ectopically produced 3A-FLAG* protein retained its ability to physically interact with GBF1, as reported previously (Teterina et al., 2011).

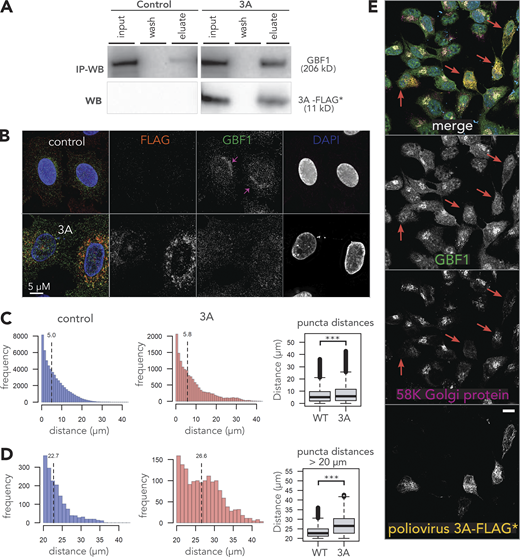

We tested if the physical interaction between 3A and GBF1 had consequences for GBF1 function or localization, which would suggest the generation of a GBF1 hypomorph. HeLa cells expressing 3A-FLAG* were fixed and immunostained with α-FLAG-647 (red) and α-GBF1-488 (green), antibodies (Fig. 3 B). In control cells, GBF1 was visualized as puncta enriched in a juxtanuclear position consistent with its Golgi localization (Fig. 3 B; red arrows), whereas GBF1 puncta were redistributed throughout the cytoplasm in 3A expressing cells (Fig. 3, B–D). Coxsackievirus 3A, a closely related homolog of poliovirus 3A, also induces similar changes in GBF1 localization (Wessels et al., 2006b). This re-distribution of GBF1 coincided with Golgi fragmentation as detected by the Golgi membrane marker 58K Golgi protein and as previously observed for disruption of GBF1 function (Fig. 3 E; Chan et al., 2019; Citterio et al., 2008; Doedens and Kirkegaard, 1995; Sáenz et al., 2009). We interpret these results to reflect the formation of a 3A-induced GBF1 hypomorph and consequential disruption of the Golgi apparatus.
We asked if the 3A-induced hypomorph of GBF1 was sufficient to sensitize cells to ARF1 depletion and expose the SL interaction between GBF1 and ARF1. HeLa cells were first treated with shRNA to ARF1, or, as a control, shRNA to MSMO1 (Fig. 4 A). The depletion of ARF1 was evaluated by Western blotting (Fig. S2), 3A-FLAG* was detected by flow cytometry, and cell viability was measured using the CellTiter Blue assay as before (Fig. 4, A and B). The viability of the ARF1 KD cells was significantly decreased by 3A-FLAG* expression as compared to controls (MSMO1 KD; Fig. 4 C). Importantly, this decrease in cell viability, 30% ± 3.5, (Fig. 4 C) was comparable to the percent of ARF1 KD cells expressing 3A-FLAG*, 37% ± 3.0 (Fig. 4 B). This supports our hypothesis that 3A expression induces a GBF1 hypomorph, exposing the GBF1-ARF1 SL relationship, which allowed selective killing of 3A expressing cells by KD of ARF1 (Fig. 4, B and C). Consistent with this hypothesis, combining 3A expression with sublethal amounts of GCA further exacerbated the GBF1-ARF1 SL effect (Fig. 4 C).
We asked if the 3A-induced hypomorph of GBF1 was sufficient to sensitize cells to SL killing in the context of a viral infection. For these experiments, we used a poliovirus replicon encoding 3A-FLAG* and other poliovirus genes, except with gene encoding Renilla luciferase in the place of capsid (Belov et al., 2007; Teterina et al., 2011). Cells were treated with siRNA against ARF1 or a nontargeting control and KD was evaluated by Western blotting (Fig. S2). The poliovirus replicon was transfected into ARF1 KD and nontargeting control cells, and the number of cells counted after 8, 16, or 24 h (Fig. 4 D). As replication of the poliovirus replicon progressed, ARF1 KD cells were selectively depleted at 8 and 16 h compared to the nontargeting control (Fig. 4, E and F). However, by 24 h cell depletion in the nontargeting control was comparable to ARF1 KD (Fig. 4 E), consistent with previously reported cytotoxicity of this poliovirus construct on cells (Belov et al., 2008; Suk Oh et al., 2009). A recent study by Moghimi et al. (2020) revealed that replication of the poliovirus replicon was also significantly reduced in ARF1 KD cells when treated with BFA. In the light of our study, we interpret their results to reflect the impact of both GBF1 inhibition by BFA and the formation of a GBF1 hypomorph, exposing the GBF1-ARF1 synthetic lethality. Our results demonstrate that SL relationships can be exploited to kill virus-infected cells early in infection and well before virus-mediated cell death.
Synthetic lethality is conventionally described as a type of genetic interaction between two nonessential genes that participate in a parallel or redundant process to carry out an essential function, where mutations in either gene alone does not affect cell viability, but mutations in both genes result in cell or organismal death (Fig. 5; Nijman, 2011). This SL concept has been exploited in anti-cancer drug development and treatment (Fig. 5 B; Farmer et al., 2005; Kaelin, 2005; Mendes-Pereira et al., 2009; Turner et al., 2008; Wiltshire et al., 2010). For example, loss-of-function mutations in the DNA repair genes encoded by breast cancer type 1 and 2, BRCA1 and BRCA2, cause breast and ovarian cancer but exhibit enhanced sensitivity to inhibitors of poly ADP-ribose polymerase (PARP), another DNA repair enzyme (Farmer et al., 2005). PARP inhibitors selectively killed cancerous cells carrying the loss-of-function BRCA mutation while sparing noncancerous cells (Bryant et al., 2005) and in a clinical trial, PARP anticancer drugs showed a significantly longer progression-free period in patients with breast cancer (Litton et al., 2018).
Here, we extend the idea of exploiting synthetic lethality to host–pathogen interactions specifically involving virus-induced hypomorphs (Fig. 5 C) and their SL partners. In poliovirus, the viral replication complex protein 3A physically interacts with GBF1 (Fig. 2; Belov et al., 2008; Teterina et al., 2011) and re-localizes it to poliovirus replication complexes (Richards et al., 2014), rendering it a hypomorph (Fig. 3). We show here that this infection-induced hypomorphic state sensitizes cells to disruption of the GBF1-SL partner, ARF1 (Fig. 4). Thus, cells depleted of ARF1 are selectively killed when infected with the poliovirus replicon. In principle, SL partners of any number of vi-hypomorphs could be targeted with drugs in a similar manner to selectively disrupt infected host cells, shutting down the viral factory, while leaving uninfected cells relatively unscathed (Fig. 5 C).
We focused this proof-of-concept on a hypomorph generated by a viral protein interacting with a host cell protein. If a viral-host protein interaction causes a hypomorph, there are expected to be many potential SL targets. An average gene participates in ∼100 negative (SL/sick) interactions (Costanzo et al., 2016), and ideal candidates among this group would not have adverse effects when disrupted (so uninfected cells are not affected by treatment); be specifically druggable; proviral (to realize a potentially synergistic effect); and lack redundant isoforms. ARF1 does not meet all these criteria. It has several isoforms, making it a challenging drug target and it is much more abundant than GBF1 (>100-fold; Wiśniewski et al., 2014), so functional depletion to meet a SL threshold can be difficult. Nonetheless, as GBF1 is a common target of many viruses, and it is required early in infection, it is tempting to speculate that other SL interactors of GBF1, might be candidates as broad-spectrum host-based antivirals.
Exploiting the SL concept is not limited to hypomorphs resulting from viral-host protein interactions. Many processes are disrupted during an infection cycle generating a new “infected cell state,” which could also be targeted (Mast et al., 2020). Ideally, the early stages of infection should be targeted, to ensure disruption of the host cell disrupts viral replication and viral spread. Indeed, many viruses target the ability of host cells to “commit suicide,” presumably ensuring the maintenance of the viral factory.
In the future, it would be possible to predict and prioritize potential SL antivirals using CRISPR screens and systems-level modeling approaches utilizing the existing and emerging databases of virus-host PPIs, quantitative proteomics, and human SL interactions. Our strategy to target SL interactions of the vi-hypomorph has potential to change the current paradigm for host-based therapeutics that can lead to broad-spectrum antivirals and can be applied to other intracellular pathogens.
Materials and methods
Cell culture and plasmids
HeLa cells (ATCC CCL-2) and HEK293-FT (Thermo Fisher Scientific) were cultured at 37°C in 5% CO2 in medium composed of high glucose Dulbecco’s modified eagle medium (DMEM; Gibco) supplemented with 10% (v/v) heat-inactivated fetal bovine serum (VWR), 1× penicillin/streptomycin (Thermo Fisher Scientific), 20 mM L-glutamine (Gibco), 1× nonessential amino acids (Gibco), 1× sodium pyruvate (Gibco), and 10 mM HEPES buffer (Gibco; complete media).
Cell line authentication was provided by the American Type Culture Collection and Thermo Fisher Scientific. In general, cells were passaged 5–10 times and periodically tested for contamination using MycoAlert Mycoplasma Detection (Lonza) kit.
A doxycycline-inducible Cas9 clonal cell line of NALM-6 cells was cultured at 37°C in 5% CO2 in RPMI-1640 medium supplemented with 10% (v/v) heat-inactivated fetal bovine serum, as described (Bertomeu et al., 2018).
Agarose stabs of E. coli (DH10B) harboring custom-made mammalian expression vector pD2109-EF1 were purchased from ATUM. pD2109-EF1 encodes poliovirus protein 3A with a modified FLAG tag (DYKDDDYK) inserted at the N-terminus. The modified FLAG tag (referred here as FLAG*), contains a tyrosine (Y) residue at position 7 instead of aspartic acid residue (D) found in a typical FLAG tag sequence (Teterina et al., 2011). pXpA-Ren-3A-FLAG-Y is a replicon encoding cDNA of poliovirus type I Mahoney under control of a T7 RNA polymerase promoter with a 939 nucleotide sequence encoding Renilla luciferase cloned in place of sequence encoding virus capsid, and a 24 nucleotide sequence encoding FLAG* appended to the 3′ end of 3A (Teterina et al., 2011; Viktorova et al., 2018). A complete sequence of the 3A-FLAG*protein with the inserted FLAG* tag is as follows: GPLQYKDYKDDDYKDLKIDIKTSPPPECINDLLQAVDSQEVRDYCEKKGWIVNITSQVQTERNINRAMTILQAVTTFAAVAGVVYVMYKLFAGHQ.
Plasmid DNA was purified from the agarose stabs using NucleoBond Xtra Midiprep kit (Macherey Nagel) by following the manufacturer’s protocol. 3A-FLAG* protein was expressed in HeLa cells by plasmid DNA transfection. We used an empty plasmid pLKO1.puro with comparable size to pD2109-EF1 as a control for transfections.
Bacterial glycerol stocks of MISSION shRNAs were purchased from Sigma Aldrich for: ARF1 (clone ID: TRCN0000039874, TRCN0000039875), ARF4 (TRCN0000298174, TRCN0000047940), MSMO1 (TRCN0000230198, TRCN0000046245), CSK (TRCN0000-199500, TRCN0000000804), HSP90 (TRCN0000008747, TRCN00-00315415), and PRKAA1 (TRCN0000000861, TRCN0000000859). shRNA plasmid DNA was purified using NucleoBond Xtra Midiprep kit by following the manufacturer’s protocol.
Chemogenomic screening and data analysis
Genome-wide custom extended-knockout (EKO) pooled library was created in a B-cell lymphoma line using a published protocol (Bertomeu et al., 2018). Briefly, a clone of the NALM-6 cells expressing Cas9 under a doxycycline-inducible promoter was transduced with the 278K sgRNAs followed by selection over Blasticidin, and induction of knockdown of genes with 2 µg/ml doxycycline over a 7-d period. At that time (day 0), the EKO library was split into separate flasks, one containing 4 µM GCA, three containing media alone and two containing 0.1% DMSO, and each library flask was grown for eight more days. 4 µM GCA was empirically determined prior to the screen to maximize both enrichment, i.e., positive selection for the rescue of compound toxicity, and depletion, i.e., negative selection for SL interactions (Fig. S1). During this period, cell counts were made every 2 d and population doublings were monitored. After each cell count, cells were diluted down to 28 million cells per flask and fresh media was added. Whereas all other samples were grown in T-75 flasks from days 0 to 8 of the screen, one of the untreated control samples was grown in a T-175 flask and was diluted down to 70 million cells every 2 d instead of 28 million. sgRNA sequences were recovered by PCR of genomic DNA, reamplified with Illumina adapters, and sequenced on an Illumina HiSeq 2000 instrument. The GCA-treated sample DNA was later re-sequenced on an Illumina Next-Seq 500 instrument to increase coverage. Illumina sequencing reads were aligned to the theoretical EKO library using Bowtie 2.2.5, with the -norc (no reverse complement) option and otherwise default parameters. sgRNA read counts were tabulated from all successfully aligned reads. Having found no significant differences between untreated and 0.1% DMSO-treated controls, we opted to add together the sgRNA read counts from all control samples to generate a more robust estimate of the expected sgRNA frequency distribution. We used RANKS (Robust Analytics and Normalization for Knockout Screens; Bertomeu et al., 2018) with default parameters to generate gene scores P value and FDR values, comparing the sgRNA read counts of the GCA-treated sample to those of the controls (Table S1). We also calculated gene-level log2 fold-changes in sgRNA representation by first summing across each sample the reads of all (usually 10) sgRNAs targeting the gene to calculate a single ratio normalized to the ratio of total aligned read counts per sample (Table S1). This approach effectively downweighs less well-represented guides in contrast to the traditional approach of taking the average of the individual sgRNA fold-changes. Reported gene essentiality and essentiality rank in Table S1 are from a previous screen (Bertomeu et al., 2018).
Ontology biological process enrichment analysis was performed on the putative GBF1-SL genes (FDR < 0.05) using ClusterProfiler (Yu et al., 2012) where the list was analyzed against the entire KO genes from the CRISPR library to functionally classify the SL genes.
The list of 70 genes (53 GBF1- SL partners and 17 GBF1 suppressors) passing the FDR cut off (<0.05) was submitted to the STRING database (Szklarczyk et al., 2019) to map evidence-based PPIs with the active interaction sources: textmining, experiments, databases, co-expression, neighborhood, gene-fusion, and co-occurrence. The resulting PPI network was visualized using Cytoscape (3.8.2; Shannon et al., 2003) in a radial layout, with proteins denoted as circles and interactions as edges. The 70 genes were also searched against a virus-host PPI database, VirHostNet (v2.0; Navratil et al., 2009), to identify known interactors of virus proteins.
10× Lentivirus stock preparation
Glycerol stocks of the validated MISSION shRNA vectors for ARF1, PRKAA1, HSP90, CSK, MSMO1 and ARF4 were obtained from Sigma-Aldrich. 10× stocks of non-replicating lentiviral stocks were generated by transfection of HEK293-FT cells as follows: 4 × 106 HEK293-FT cells were plated on poly-L-lysine-coated 10-cm dishes to achieve 70–80% confluency at time of transfection. The following day, transfection mixtures were prepared by mixing 20 µl Polyethylenimine MAX (Polysciences, Inc.) prepared at 1 mg/ml, together with 4.75 µg of transgene shRNA constructs, 1.5 µg of viral envelope plasmid (pCMV-VSV-G), and 3.75 µg of viral packaging plasmid (psPax2). After incubating for 10 min at room temperature in DMEM, transfection complexes were added dropwise to cells. After overnight incubation, cells were washed to remove the transfection mixture and replaced with 10 ml of pre-warmed media. Lentivirus-containing supernatant was harvested 48 h later, centrifuged for 5 min at 900 g to remove cell debris, passed through 0.45-µm syringe filters, and collected by centrifugation for 4 h at 78,900 g. Supernatants were decanted and pelleted lentiviruses were re-suspended in 0.1 ml Opti-MEM (Gibco) to obtain 10× lentivirus concentrates and stored at −80°C until use. A similar protocol was used to prepare 10× lentivirus stocks of 3A-FLAG*.
shRNA-mediated gene knockdowns
To induce knockdown of the top putative GBF1 SL genes, 3 × 105 HeLa cells were transduced with lentiviral supernatants in 6-well plates. At time of plating, 10× lentivirus concentrates were diluted in 1 ml of Opti-MEM containing 8 × 10−3 µg/ml of polybrene (Sigma-Aldrich) and incubated overnight at 37°C. The following day, the transfection mix was replaced with 2 ml of pre-warmed complete media and incubated for 24 h. To select for cells with stable integration of shRNA transgenes, overnight media was replaced with complete media containing 1.5 µg/ml puromycin. Cells were selected for at least 3 d prior to experiments. Stably silenced knockdown cell lines (ARF1 KD, HSP90 KD, CSK KD, PRKAA1 KD, MSMO1 KD, and ARF4 KD) were harvested by trypsinization in 0.25% trypsin-EDTA, washed in pre-warmed PBS, cells were counted, and a small aliquot of cells was saved for Western blot analysis to verify protein level knockdown efficiencies for each gene (Fig. S2 A).
siRNA-mediated transient knockdowns for selective killing assay
Dicer-substrate siRNAs targeting ARF1 (design id: hs.Ri.ARF1.13) and a nontargeting control (TriFECTa RNAi Kit) were ordered from Integrated DNA Technologies. 12.5 µl of the 2 µM of DsiRNAs were mixed with 7.5 µl Lipofectamine 3000 reagent (Thermo Fisher Scientific) and 250 µl of Opti-MEM. Dicer-substrate siRNA transfection complexes were allowed to form for 15 min and 2 ml of HeLa cells at (2 × 105 cells/ml) were directly added to the transfection mix and plated in a 6-well plate. 48 h post-transfection, KD cells were harvested, counted, and a small aliquot of cells per KD was saved for Western blot analysis to verify protein level knockdown efficiencies (Fig. S2 B).
Western blot analysis
Cell pellets of the KD cell lines were resuspended in a chilled IP lysis buffer (20 mM HEPES-KOH, pH 7.5, 1% [w/v] Triton X-100, 0.5% [w/v] sodium deoxycholate, 110 mM potassium acetate, 2 mM MgCl2, 25 mM NaCl, and 1× cOmplete protease inhibitor cocktail [Roche]) and lysed by sonicating for 1 min using a probe sonicator (QSonica) operated at an amplitude of 10 with 10 s on-off cycles. Lysates were centrifuged at ∼100,000 g for 5 min and supernatants were transferred into a fresh tube. Protein concentrations were determined by bicinchoninic acid assay (Thermo Fisher Scientific) and working solutions of lysates at concentrations of 15–30 µg total proteins per 30 µl were prepared with 1× lithium dodecyl sulfate (LDS) sample buffer with reducing reagent (NuPAGE, ThermoFisher Scientific) followed by heating at 70°C for 20 min on a Thermomixer (Eppendorf). 30 µl of the reduced lysate was loaded per well on 4–12% or 12%, for ARF1 KD and ARF4 KD, Bis-Tris gels (NuPAGE, Thermo Fisher Scientific) and protein bands were resolved at a constant voltage of 170 V for 1 h. Protein bands were transferred on PVDF membranes using Xcell2 blot module (Thermo Fisher Scientific) for 2 h at a constant voltage of 37 V and membranes were blocked in 5% (w/v) milk in TBST for 1 h at room temperature. After blocking, membranes were incubated with primary antibodies (Abcam and GeneTex) against proteins of interests: ARF1 (ab58578 at 1:1,000 dilution), ARF4 (ab190000 at 1:1,000 dilution), HSP90 (GTX101448 at 1:1,000 dilution), CSK (GTX107916 at 1:500 dilution), CSNK2A (13–453 at 1:500 dilution), PRKAA1 (ab32047 at 1:1,000 dilution), and MSMO1 (ab116650 at 1:500 dilution) and washed thrice in TBST buffer before incubating with appropriate HRP-conjugated secondary antibodies (goat α-mouse or α-rabbit; 1:2,500 dilution). Following incubation, membranes were washed and developed using chemiluminescent substrates (Advansta WesterBright). Images were acquired using a FluorChem imager (Protein Simple), and membranes were stripped using a stripping buffer (Thermo Fisher Scientific), blocked, incubated with HRP-α-β-actin (ab49900; 1:25,000) and imaged as before. Relative protein depletion (% knockdown efficiency) was quantitated by dividing the protein band intensity with the protein band intensity of the actin control, using ImageJ software. Images were cropped, adjusted for brightness and contrast, and labeled using Adobe Photoshop and InDesign.
FLAG*-tagged 3A lentivirus direct plasmid transfection
FLAG*-tagged 3A plasmid DNA was directly transfected into HeLa cells for performing immunofluorescent imaging and co-immunoaffinity purification assays using TransIT transfection reagent (Mirus) by following the manufacturer’s recommended protocol. Briefly, transfection mix was prepared in a serum free Opti-MEM media by adding 3A-FLAG* DNA and TransIT reagent in a ratio of 1:3 (wt/v) and the mixture was incubated for 30 min at room temperature. After incubation, the transfection mix volume equivalent to 1 and 15 µg total DNA was added to 6 × 105 HeLa cells for immunofluorescence imaging and 3 × 106 cells for co-immunoaffinity purification assays, respectively.
HeLa cells transduced with FLAG*-tagged 3A plasmid were trypsinized post 24 h using 0.05% (w/v) trypsin-EDTA and transferred into a U-bottom 96-well plate. Cells were washed twice in PBS supplemented with 10% (v/v) FBS and incubated with Live/Dead Fixable stain (excitation/emission: 416/451; Thermo Fisher Scientific) for 15 min on ice. Excess stain was removed by washing twice and cells were fixed using 4% (w/v) formaldehyde (Sigma-Aldrich) for 30 min, washed and incubated in PBS with 0.1% (w/v) Triton X-100 for 15 min to permeabilize the cells. After cell permeabilization, the cells were blocked for 1 h in PBS containing 2% (w/v) BSA and 1% (w/v) Triton X-100. Cells were then stained with R-phycoerythrin (PE)-conjugated α-FLAG (637310, 1:1,000 dilution; Biolegends) for 1 h on ice. After staining, cells were washed thrice in the blocking buffer and analyzed on a LSRII flow cytometer (BD Biosciences). The percentage of cells expressing 3A-FLAG* were determined by analyzing the flow cytometry data using FlowJo software (Tree Star, Inc.). Cell populations were filtered using the forward and side scatter to remove cell debris and cell doublets. The remaining single cell subpopulation was then divided using the intracellular PE staining into 3A-FLAG* positive and negative populations and percentages of positive and negative cells of the total single cells were reported. Experiments were performed in triplicate.
Assessment of GBF1 vi-hypomorph formation by immunofluorescence microscopy
HeLa cells were plated in 12-well plates containing 12-mm no.1.5 circular glass coverslips (Fisherbrand) at a cell density of 6 × 104 per well and two wells were transfected with FLAG*-3A or an empty plasmid control. Cells were fixed 24-h post-transfection with 2% (w/v) formaldehyde (Sigma-Aldrich) for 30 min, permeabilized with 0.1% (w/v) Triton X-100, and blocked with 2% (w/v) BSA, 0.1% (w/v) Triton X-100 in PBS (blocking buffer). After blocking, cells were incubated with rabbit α-GBF1 (ab86071, 1:1,000 dilution; Abcam) and mouse α-FLAG (F1804; 1:200 dilution; Sigma-Aldrich) for 1 h followed by 1 h staining with secondary antibodies goat α-rabbit AlexaFluor-488, and goat α-mouse AlexaFluor-594 (Invitrogen), used at a 1/1,000 dilution. The coverslips were mounted on Superfrost microscope slides (Fisherbrand), nuclei were stained with DAPI, and the cells were cleared with Prolong Glass (Invitrogen). Images were acquired with a 100× NA 1.4 objective (Olympus) on a DeltaVision Elite High-Resolution Microscope (GE Healthcare Life Sciences). Fluorescence excitation was driven by an Insight SSI solid state light engine (Cytiva), and fluorescence emission was collected by a CoolSnap HQ2 CCD camera (Photometrics). The sides of each CCD pixel are 6.45 µm. Image z stacks were acquired with 0.2 µm steps and 25–27 images per stack. Images were deconvolved with a classic maximum likelihood estimation algorithm using Huygens software (Scientific Volume Imaging) and experimentally determined point spread functions captured by imaging PS-Speck beads (Invitrogen) under experimental conditions, as done previously (Mast et al., 2018; Vijayan et al., 2019).
Quantification of GBF1 vi-hypomorph formation
Images were processed using Imaris software (Bitplane) to quantify the number of GBF1 puncta per cell. Initial cell segmentation was performed by summing the fluorescence intensities from all channels and using the “Surface” command to threshold the images. This segmentation was refined using the “Cell” command. Cell nuclei were defined using the DAPI channel and cell boundaries defined using a watershed algorithm seeded by the “one nucleus per cell” function to split touching cells. Next, the GBF1-488 channel was selected for detecting GBF1 puncta using the “detect vesicle” function. Statistical values for “vesicle intensity sum” and “vesicle distance to closest nucleus” for each GBF1 puncta per cell were exported for 42 cells from control samples, and from 13 cells of 3A-FLAG* transfected cells. Distances of GBF1 puncta from the nearest nucleus in 3A-FLAG* cells were compared to distances from control cells using Wilcoxon rank-sum tests. Comparisons were made using all observed puncta and, separately, using only puncta more than 20 mm from the closest nucleus.
HeLa cells were transfected with 1 µg DNA encoding FLAG*-3A or an empty control plasmid. At 24 h post-transfection, cells were lysed using mild sonication in IP lysis buffer (20 mM HEPES, 1% [w/v] Triton X-100, 2 mM magnesium chloride, 25 mM sodium chloride, 110 mM potassium acetate, and 0.2% [v/v] antifoam B), and clarified by centrifugation at 100,000 g for 3 min. Total protein concentrations were measured using a BCA assay (Pierce) and 100 µg of lysate from each sample was used in the affinty purification. 8 µg of α-FLAG (F3165; Sigma Aldrich) were conjugated to 10 mg epoxy-coated M-270 magnetic beads (Thermo Fisher Scientific; Cristea and Chait, 2011). The α-FLAG-conjugated beads were washed and re-suspended in IP lysis buffer, and 3-mg bead aliquots were added to the clarified lysates. Lysates were incubated with magnetic beads overnight at 4°C. After three washes with IP lysis buffer, bound proteins were eluted with 50 μl 1 × LDS sample buffer. 90% of the eluate was loaded on a 4–20% Bis-Tris NuPAGE gel and the remaining 10% loaded on a 3–8% Tris-Tricine gel to resolve GBF1 and 3A-FLAG, respectively. 1% of the input lysate and last wash was also run on each gel. Proteins were transferred to PVDF membranes and immunoblotted with α-GBF1 (ab86071, at 1:1,000 dilution; Abcam) and HRP conjugated α-FLAG (A8592; 1:2,000 dilution; Millipore Sigma). The experiment was performed in triplicate.
Cell viability assay
Cell viability assays were performed in 96-well plates using the CellTiter Blue reagent (Promega). Golgicide A was purchased from Cayman Chemicals (product # 18430). Working concentrations of GCA were prepared by diluting a 10 mM DMSO-solubilized stock in complete media. Equimolar solutions lacking the drug were prepared by diluting neat DMSO. Cells were incubated in 100 µl of GCA or DMSO alone working solutions for 48 h before 20 µl of the CellTiter Blue reagent was added, and fluorescence was measured 4-h post-addition using a Synergy HTX Multi-mode plate reader (BioTek). The metabolically active cells convert the blue redox reagent into its fluorescent product with the number of live cells directly proportional to the intensity of the fluorescent product. Fluorescence measurements from the drug-treated samples were normalized using the signal from matched DMSO alone-treated samples to normalize for any cell-line specific effects of the DMSO solvent on cell viability.
For the viability assay validating GBF1-SL candidates, 2 × 104 cells of each gene KD cell line (ARF1 KD, HSP90AB KD, CSK KD, PRKAA1 KD, ARF4 KD, MSMO1 KD) were seeded per well in 200 µl media. The next day, the media was replaced with 100 µl of GCA or DMSO at 1.5 and 4 µM, incubated for 48 h, and cell viability was measured as described above. Normalized cell viabilities of the KD cells were compared to that of the MSMO1 KD controls.
For generating GCA dose response curves we used an automated high throughput liquid handling system (PipetteMax, Gilson) for co-plating cells with the drug. Stock solutions of GCA or DMSO were prepared in complete media at a concentration of 200 µM, and serially diluted in cell-containing media of ARF1 KD and MSMO1 KD (4 × 105 cells/ml) to obtain 0–100 µM of GCA/DMSO with 2 × 104 cells/well, plated in triplicate. Cell viabilities were measured 48 h post-incubation as described above. GCA dose–response curves were plotted with synergy (Mast et al., 2021; Wooten and Albert, 2021).
For the proof-of-concept SL viability experiments, 6 × 104 cells of ARF1 KD and MSMO1 KD were seeded in a 6-well plate and transfected the following day with 3A-FLAG* or an empty plasmid control. After 24 h post-transfection, cells were harvested, counted, and plated in 96-well plate at a density of 5,000 cells per well. The remaining cells were processed for flow cytometry analysis to measure transfection efficiencies. Cell viabilities were measured 48 h post-transfection using CellTiter Blue reagent, as described above. Absolute cell viabilities of ARF1 KD and MSMO1 KD cells were compared using a multiple T test, i.e., the two-stage step-up method of Benjamini et al. (2006), in GraphPad Prism 8. The experiment was performed in triplicate.
Selective killing assay
Selective killing assays were performed using immunofluorescence microscopy. ARF1 KD and nontargeting control HeLa cells were seeded at a 30,000 cells/0.1 ml in three poly-L-lysine-coated #1.5-glass-bottomed 96-well plates (Corning) using an automated high-throughput liquid handling system for uniform cell plating. Cells were transfected with 25 ng of poliovirus replicon using Lipofectamine RNAiMAX (Thermo Fisher Scientific), following the manufacturer’s protocol. Briefly, 25 ng of poliovirus replicon mRNA and the transfection reagents were mixed in Opti-MEM and incubated for 5 min, and the complex mixture was directly added per well and plates were incubated for 8, 16, and 24 h. Time-matched cells transfected with RNAiMAx alone were used as controls. At each time point, media containing the replicon was removed and cells were washed with PBS and fixed in 0.1 ml 4% (w/v) formaldehyde (Sigma-Aldrich) for 10 min at room temperature. Fixed cells were washed with PBS and permeabilized using 0.5% (v/v) Triton X-100 for 10 min at room temperature, following 1 h blocking on ice in 0.5% (v/v) Triton X-100 with 2% (w/v) BSA in PBS (blocking buffer). After blocking, cells were incubated with mouse α-FLAG (F1804; 1:200 dilution; Sigma-Aldrich) overnight followed by 1 h incubation with secondary goat α-mouse AlexaFluor-594 (Invitrogen; 1:500 dilution), Phalloidin-iFluor 488 (ab176753; 1:2,000; Abcam). After staining, cells were washed in blocking buffer, mounted in an aqueous mounting media with DAPI (ab104139; Abcam), and plates were stored at 4°C until analysis. Images were acquired with a 20× NA 0.75 objective (Keyence) on a BZ-X800 widefield fluorescence microscope (Keyence). Fluorescence excitation was driven by a 40-W LED light source and fluorescence emission was collected by a Peltier cooled CCD camera (Keyence). The sides of each CCD pixel are 7.55 µm. DAPI fluorescence was excited with a 360/40-nm excitation filter and collected with a 460/50-nm emission filter with a 400-nm dichroic mirror. AlexaFluor-488 fluorescence was excited with a 470/40-nm excitation filter and collected with a 525/50-nm emission filter with a 494-nm dichroic mirror. AlexaFluor-594 fluorescence was excited with a 560/40 nm excitation filter and collected with a 630/75-nm emission filter with a 585-nm dichroic mirror. Image tiles (7 × 9) were acquired with 30% overlap between tiles and stitched together using Keyence software.
Quantification of selective killing
Images were processed using Imaris software (Bitplane) to quantify the number of cells per stitched image. Cell nuclei were defined using the DAPI channel and cell boundaries defined using a watershed algorithm seed by the “one nucleus per cell” function to split touching cells.
In each instance where a parametric statistical test was used, data distribution was assumed to be normal but this was not formally tested.
Online supplemental material

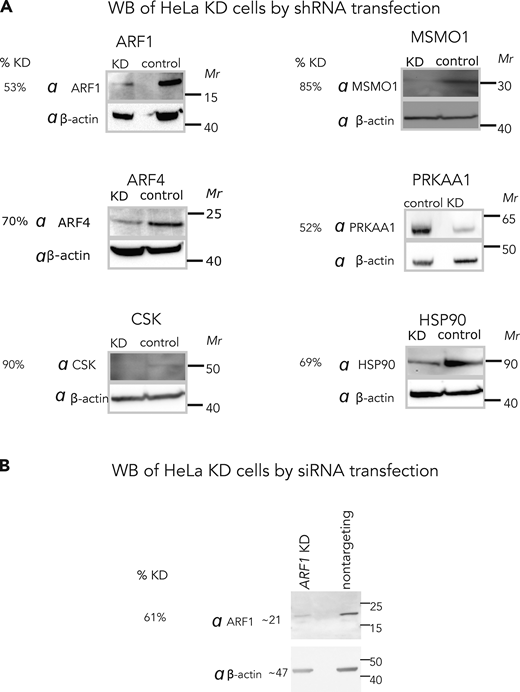

Fig. S1 contains the results from a GCA dose-response assay used to determine the concentration of GCA in the CRISPR screen reported in Fig. 2. Fig. S2 contains supporting immunoblots that show the efficiency of the shRNA-mediated protein depletion for the ARF1, MSMO1, ARF4, PRKAA1, CSK, and HSP90 KD cell lines. Table S1 contains supporting data reporting the GCA CRISPR screen results for the 19,029 Refseq genes. For each gene, we report the RANKS (Robust Analytics and Normalization for Knockout Screens) score, associated P values, the FDR, the number sgRNA considered for the analysis, and the gene-level log2 fold changes.
