Dynein is a motor protein that moves on microtubules (MTs) using the energy of adenosine triphosphate (ATP) hydrolysis. To understand its motility mechanism, it is crucial to know how the signal of MT binding is transmitted to the ATPase domain to enhance ATP hydrolysis. However, the molecular basis of signal transmission at the dynein–MT interface remains unclear. Scanning mutagenesis of tubulin identified two residues in α-tubulin, R403 and E416, that are critical for ATPase activation and directional movement of dynein. Electron cryomicroscopy and biochemical analyses revealed that these residues form salt bridges with the residues in the dynein MT-binding domain (MTBD) that work in concert to induce registry change in the stalk coiled coil and activate the ATPase. The R403-E3390 salt bridge functions as a switch for this mechanism because of its reversed charge relative to other residues at the interface. This study unveils the structural basis for coupling between MT binding and ATPase activation and implicates the MTBD in the control of directional movement.
Dynein is a large protein complex that moves along microtubules (MTs) toward their minus ends by using the energy of ATP hydrolysis (Roberts et al., 2013). The motility of dynein is essential for various cellular functions including axonal transport, chromosome segregation, and beating of cilia and flagella (Gibbons, 1981; Höök and Vallee, 2006). The cytoplasmic form of dynein (hereafter referred as dynein) is composed of two ∼500-kD heavy chains and can move processively along MTs through multiple cycles of ATP hydrolysis. Compared with other processive motors such as kinesin-1 and myosin V, little is known regarding the molecular mechanism of dynein motility.
Dynein is a unique motor protein because its main site of ATP hydrolysis is located in the AAA1 module in the head, whereas its MT-binding domain (MTBD) is located at the tip of the stalk coiled coil, more than 20 nm from the AAA1 ATPase site (Fig. 1 A). For dynein to move along an MT, the cycles of nucleotide hydrolysis in the AAA1 module should be coupled with the MTBD binding to and releasing from the MT, in spite of this large separation.
As a structural basis for this long-distance communication, biochemical studies have implied that changes in registration between the two helices of the stalk coiled coil may mediate the coupling between ATPase and MT-binding activities (Gibbons et al., 2005; Kon et al., 2009a). Moreover, x-ray crystallographic analysis has revealed that junctional structures of the dynein molecule called the strut (or a buttress) and C-sequence are essential for the coupling mechanism (Carter et al., 2011; Kon et al., 2012). Thus, the structural communication between the MTBD and AAA1 module is thought to have one end starting at the MTBD; connect to the stalk coiled coil, strut, and C-sequence; and then reach the other end of AAA1 (Fig. 1 A).
For a complete understanding of the coupling mechanism, however, it is necessary to determine the molecular basis for signal transmission at the MTBD–MT interface. Which residues of tubulin provide a signal to the MTBD critical for ATPase activation? How does it induce a registry change in the stalk coiled coil? Earlier work using charged-to-alanine mutational analyses of dynein implied that 15 amino acid residues located in α helices H1, H3, and H6 of the MTBD are involved in the interaction with the MT (Koonce and Tikhonenko, 2000), but, little is known regarding the binding partners of these residues within the MT. Recently, a structural model for the MTBD–MT complex in the strong binding state was presented by using electron cryomicroscopy (cryoEM) and image analyses (Redwine et al., 2012), and the model depicted an MT-dependent conformational change of the MTBD. However, these questions remained unresolved. They predicted several salt bridges possibly involved in the complex formation by molecular dymanics simulation based on a cryoEM structure, but without a functional analysis of tubulin it was impossible to identify the tubulin residues responsible for ATPase activation.
We addressed these issues by applying mutational analysis of tubulin combined with a single-molecule motility assay and biochemical analyses. The preparation of recombinant tubulin has long been hampered by the technical difficulties of tubulin expression, but the recently developed yeast Saccharomyces cerevisiae expression system has opened the way for mutational analysis of tubulin in vitro (Davis et al., 1993; Gupta et al., 2003; Uchimura et al., 2006). Using this system, we found that two highly conserved residues of α-tubulin, R403 and E416, are critical for dynein motility and ATPase activation. The structure of the MTBD–MT complex obtained by cryoEM image analysis revealed that E3390 in α helix H1 of MTBD was the binding partner for α-R403 and that R3469 and/or K3472 in H6 of MTBD were the binding partners for α-E416 in the strong binding state. These two salt bridges are located at the points connecting the MTBD and the stalk coiled coil and thus may function in concert to induce the registry change of the coiled-coil helix, leading to ATPase activation. Notably, a comparison of this result with the results of a previous mutagenesis analysis of the kinesin–MT interface revealed that dynein and kinesin use the same loop of α-tubulin (415EEGE) to activate their ATPase (Uchimura et al., 2010), indicating that a specific part of the MT plays an essential role in their motility mechanism.
Tubulin residues critical for dynein motility
CryoEM studies have shown that dynein binds in a groove at the interface between α- and β-tubulin, anchored by the ridge of a protofilament (pf) composed of H11-H12 of both α- and β-tubulin (Mizuno et al., 2004; Carter et al., 2008; Redwine et al., 2012). Thus, to identify the critical residues, we used a set of charged-to-alanine point mutations in the tubulin sequence coding for H11-H12 in α- and β-tubulin in yeast S. cerevisiae, which were generated in previous analyses of kinesin–MT interaction (Fig. 1 B; Uchimura et al., 2010). The sequence in this region was highly conserved among species. Among the 36 mutants expressed in yeast cells, eight mutants appeared to be haploid lethal and four were slow in growth. Earlier studies reported that dynein gene disruption resulted in an abnormal distribution of dividing nuclei between mother and daughter cells, but not lethality or growth inhibition (Eshel et al., 1993; Li et al., 1993). Thus, to screen the 36 tubulin mutants and identify the sites critical for dynein function, we divided them into two groups (those showing normal growth and those with a lethal or slow-growth phenotype) and examined each group separately, as follows.
For the first group, showing normal growth (24 mutants), we analyzed nuclear segregation during cell division. We found that segregation was normal in all strains (Fig. S1), indicating that none of them affected dynein function. In the second group, showing lethality or growth inhibition, their phenotypes might have arisen from the perturbation of MT interaction with kinesin, MAPs, or other MT-interacting proteins (Pellman et al., 1995; Saunders et al., 1995; Wang and Huffaker, 1997). Because nuclear segregation cannot be used for screening mutants belonging to this group, we purified tubulin from each mutant, polymerized it into MTs, and tested its ability to support dynein motility in a single-molecule motility assay using two-headed, cytoplasmic dynein GST380, derived from cellular slime mold Dictyostelium discoideum (Numata et al., 2011). The result showed that dynein moved along most of these mutant MTs at velocities comparable to that of the wild type, except for two α-tubulin mutants, α-R403A and α-E416A (Fig. 1 C). In these mutants, even brief binding of the dynein molecule to an MT was scarcely observed. In other mutants, namely, α-E415A, β-D417A, and β-E421A, dynein moved along the MTs, but the run lengths were reduced to approximately half of that of the wild type.
In the MT structure, α-R403 and α-E416 are located in the α-tubulin H11-H11′ loop and H12, respectively, and are likely to form a salt bridge that stabilizes the C-terminal hairpin structure of α-tubulin (Löwe et al., 2001). Therefore, the impaired motility in the α-R403A and α-E416A mutants may mean either that these residues directly mediate the interaction of dynein with the MTs or that the intramolecular salt bridge within α-tubulin is critical for structural integrity of MT. To examine which of the aforementioned interpretations is correct, we tested the motility in an α-R403E/α-E416R double mutant. In this mutant, the salt bridge between the pair should be maintained, and thus the structure of the MT is likely to be intact. The result showed that dynein could not move on this double mutant MT, indicating that the impaired motility by either α-R403A or α-E416A was a result of the loss of a dynein-interacting residue in the MT.
In summary, the screening of 36 mutants led to the identification of two residues in α-tubulin critical for dynein motility and three additional residues in α- and β-tubulin that moderately affect motility.
α-R403 and α-E416 are critical for coupling MT binding and ATPase activation
The lack of motility of single dynein molecules along α-R403A and α-E416A MTs does not mean that these mutations inhibit dynein–MT interactions under all conditions. In the case of kinesin, charged-to-alanine mutations in tubulin resulted in impaired motility of single kinesin but did not impair the gliding movement of MT on multiple kinesin molecules (Uchimura et al., 2010).

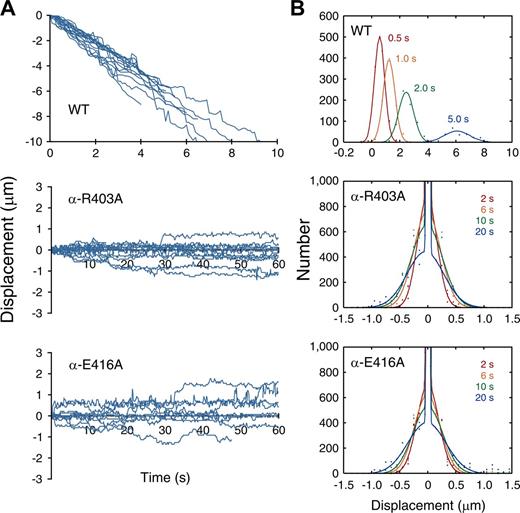

To test if α-R403A and α-E416A MTs can move on multiple dynein molecules, the surface of the chamber for the motility assay was coated with monomeric dynein MD380 and interactions with either α-R403A or α-E416A MTs were examined in the presence of ATP. Whereas wild-type MTs showed minus end–directed movement at a velocity of 1.21 ± 0.02 µm/s, the mutant MTs showed stochastic back-and-forth movements along the long axes of the MTs (Fig. 2 A and Video 1). The distributions of MT displacement were fitted well by Gaussian functions whose variance increased linearly with time, indicating that the movement was caused by Brownian motion (Fig. 2 B and Fig. S2). The mean displacement was virtually zero, indicating that the Brownian motion was not biased in any direction.
This observation indicates that dynein can bind to α-R403 and α-E416 MTs at least in some states in the ATPase cycle, but it cannot enter a state critical for directional movement. Therefore, to examine which state of the ATPase cycle is affected by the mutation, binding of MD380 to either α-R403A or α-E416A MTs was measured by a cosedimentation assay in various nucleotide conditions (Fig. 3 A and Table 1). In all nucleotide conditions (no nucleotide, AMP-PNP, ADP-Vi, and ADP), MT affinity was reduced by the mutations. In both mutants, the reduction was most significant in the strong binding state, where the dissociation constants increased by three- to fourfold compared with the wild type.
Despite the partial binding of MD380, the mutant MTs utterly lacked the ability to activate dynein ATPase (Fig. 3 B). Whereas wild-type MT increased the basal ATPase activity (3.7 ± 0.6 s−1) by >10-fold to generate kcat and K0.5MT values of 60.6 ± 4.0 s−1 and 27.2 ± 4.0 µM, respectively, activation by α-R403A or α-E416A MTs was so limited that we could not estimate the kcat and K0.5MT. This result contrasts with those obtained for the α-E415A, β-D417A, and β-E421A mutants showing a reduced run length of dynein in the single-molecule motility assay (Fig. 1 C). These mutant MTs activated ATPase, though their affinity for MTs (K0.5MT) was reduced two- to fourfold relative to the wild type (Table 2). In summary, our results demonstrate that the residues α-R403 and α-E416 are critical for coupling MT binding and ATPase activation.
Binding partners of α-R403 and α-E416
To elucidate how the MTBD–MT interactions mediated by α-R403 and α-E416 lead to ATPase activation, we solved the structure of the MTBD–MT complex in the strong binding state by cryoEM image analysis. The distal part of slime mold dynein stalk (V3350-K3514) was fused to an artificial coiled coil with its registry fixed to a so-called α registry, high-affinity configuration for MTs (Fig. S3 A; Gibbons et al., 2005; Kon et al., 2009a). To obtain a high-resolution structure, the purified MTBD was bound to an MT with 15 pf polymerized from Caenorhabditis elegans nematode tubulin (MEC-12 and MEC-7; Chalfie, 1982). The 15-pf MT is ideal for image reconstruction because of its perfect helical symmetry (Chrétien and Wade, 1991). It was confirmed that the residue substitutions α-R403A and α-E416A reduced the binding affinity of the MTBD for an MT (Fig. S3, A and B) and that the substitution of the corresponding residue in 15-pf nematode MTs disrupted the motility of single dynein molecules (Fig. S3, C and D). The 3D image of the MTBD–MT complex was reconstructed by helical image analysis at a resolution of 8.2 Å (Fig. 4, A–C; and Fig. S4).

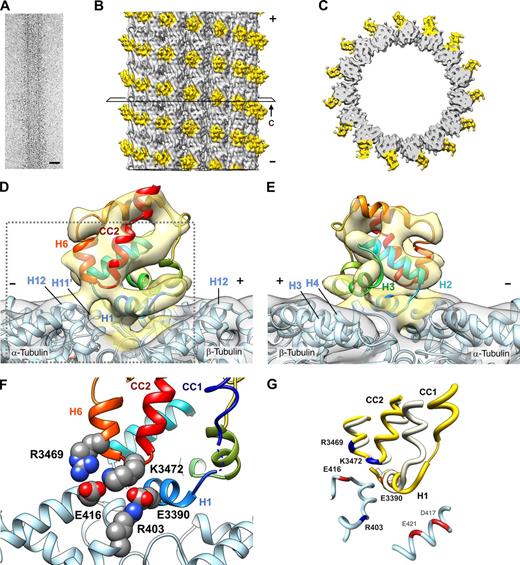

The cryoEM density map of the complex showed that the density corresponding to the MTBD was wedged at the intra-dimer interface of α- and β-tubulin, with a spacing of 8 nm along the MT axis. The stalk coiled coil was not visible in our map, probably because the coiled-coil structure proximal to the MTBD is intrinsically unstable in slime mold dynein (Kon et al., 2009a, 2012; Nishikawa et al., 2014).
To build a structural model for the MTBD–MT complex, the MTBD crystal structure derived from slime mold dynein in the ADP bound state (PDB ID: 3VKH; Kon et al., 2012) was initially fitted as a rigid body into the map. Although most MTBD α helices can be roughly fitted into the map, a tubular density aligned parallel to α helix H12 of β-tubulin remained unfilled by the structure (Fig. S5). The map was best fit when H1 and its N-terminal chain in MTBD were shifted to fill the empty space of the tubular density by flexible fitting (see Fig. S5 and Video 2 for details of model building; Topf et al., 2008; Wang and Schröder, 2012). In the final model, H1, H3, and H6 of the MTBD appeared to be the major structural elements at the interface for the MT, which is consistent with the previous results of the cryoEM and mutational analyses (Koonce and Tikhonenko, 2000; Carter et al., 2008; Redwine et al., 2012).
From a side view (Fig. 4 D), H1 and the chain spanning H6 and coiled coil 2 (CC2) of the MTBD are located in the vicinity of H12 of β-tubulin and H11′ and H12 of α-tubulin, respectively. On the opposite side (Fig. 4 E), H3 of the MTBD is in the vicinity of H3, H4, and H5 of β-tubulin. The tubulin residue α-E416 is in close proximity to R3469 in H6 and K3472 in the H6-CC2 loop of the MTBD, and the tubulin residue α-R403 is close to E3390 in H1 of the MTBD (Fig. 4 F). Considering the results of mutational analysis (Koonce and Tikhonenko, 2000; this study), it is highly likely that these pairs of charged residues form salt bridges across the MTBD–MT interface. Particularly, the interaction between α-R403 and E3390 is convincing because E3390 is the only negatively charged residue in the MTBD identified to be involved in the dynein–MT interaction. This contrasts with a previous model of the MTBD–MT complex (Redwine et al., 2012). In that model, neither R403 nor E3390 was identified as the residue at the MTBD–MT interface, probably because it was led by molecular dynamics simulation based on a cryoEM structure of limited resolution, counting only the result of the mutational analysis of MTBD.
Both E3390 and R3469 are highly conserved among species (Koonce and Tikhonenko, 2000; Carter et al., 2008). R3469 and K3472 are in the loop connecting H6 and CC2, and E3390 is in H1 immediately adjacent to CC1 (Fig. 4 F). Both are located in ideal positions to transmit the signal of MT binding to the dynein stalk coiled coil. Therefore, the present structure strongly indicates that the two pairs of charged residues, R403-E3390 and E416-R3469/K3472, across the MTBD–MT interface are critical for coupling MT binding and ATPase activation.
α-Tubulin R403 and E416 function as a structural signal for ATPase activation
Using alanine-scanning mutagenesis, we identified R403 and E416 in α-tubulin to be critical for dynein motility and ATPase activation. Alanine substitution in either of these residues resulted in complete loss of single-molecule motility and MT-activated ATPase activity (Figs. 1 C and 3 B). This is the first time that coupling between binding at specific tubulin residues and ATPase activation has been demonstrated.
In these mutants, despite the complete loss of MT-activated ATPase, dynein was able to interact with MTs in a cosedimentation assay (Fig. 3 A). In the MT-gliding assay, the mutant MTs showed stochastic back-and-forth movements on a dynein-coated glass surface, whereas wild-type MTs showed directional movement (Fig. 2). These results collectively indicate that α-R403 and α-E416 are critical for dynein to switch from a weak to a strong binding state, which is coupled to the acceleration of the rate-limiting step in the ATPase cycle. Because the state transition was blocked in the α-R403A and α-E416A mutants, dynein runs off from the normal mechanochemical cycle, remaining in the weak binding state. Consequently, the mutant MTs exhibited unbiased Brownian motion with the cycle of ATP hydrolysis uncoupled from MT binding.
In the MT structure, α-R403 and α-E416 are located in the C-terminal region of α-tubulin and are likely to form an intramolecular salt bridge that stabilizes the hairpin structure of the C terminus (Löwe et al., 2001). Interestingly, a cluster of negatively charged residues including α-E416 (415EEGE) is also critical for ATPase activation of the other motor protein, kinesin (Uchimura et al., 2010). Charged-to-alanine mutations in α-E416 and α-E415 in this loop drastically reduce kcat for dynein and kinesin ATPase, respectively. Considering that dynein and kinesin belong to different enzyme classes and show distinct enzyme kinetics (Mallik and Gross, 2004), it is surprising that these two motors use the same short loop/helix of α-tubulin composed of only four peptides to accelerate their ATPase. The two motors may have independently evolved to use this site (Mizuno et al., 2004), probably because the loop plays an essential role in the motility mechanism.
H1 serves as an MT sensor to transmit the activation signal
Earlier studies have shown that long-distance communication between the MTBD and the AAA1 ATPase site is mediated by a change in the registration between the two helices of the stalk coiled coil (Gibbons et al., 2005; Kon et al., 2009a). According to those results, the relative position of the two helices is inherently flexible and fluctuates among multiple registries termed −β, α, and +β registries, but MT binding shifts this structural equilibrium toward the α registry, leading to the acceleration of the rate limiting step in the ATPase cycle. Thus, to transmit a signal required for ATPase activation, the MTBD–MT interaction via α-R403 and α-E416 may somehow induce or stabilize the α registry in the helices of the stalk coiled coil.
To clarify the coupling mechanism, we analyzed the structure of the MTBD–MT complex by cryoEM imaging wherein the alignment of helices was artificially fixed in the α registry (Fig. S3). The results revealed that H1 of MTBD was rotated from its original position and orientation in the crystal structure (PDB ID: 3VKH) and became parallel to β-tubulin H12 (Fig. 4, D–F; Fig. S5; and Video 2). As the MTBD crystal structure presumably represents a configuration in the low-affinity, weak binding state (Carter et al., 2008; Kon et al., 2012; Redwine et al., 2012), we interpret the repositioning of H1 to be a consequence of MT binding.
A comparison of the structures before and after MT binding allows us to propose that H1 functions as an MT sensor that detects α-R403 (in tubulin) and transmits the binding signal to CC1 (Fig. 4 G). The close location of the acidic residue E3390 in H1 to the basic residue R403 of α-tubulin in the MTBD–MT complex suggests that the salt bridge between these residues may serve as the pivot point for the H1 rotation, leading to the sliding of CC1 relative to CC2 in the stalk. In contrast, the acidic residue E416 of α-tubulin is located in the vicinity of R3469 and/or K3472 in H6 of the MTBD. Thus, these pairs of charged residues may link the N-terminal end of CC2 to the MT by forming salt bridges across the protein interfaces. Therefore, these two (or three) salt bridges are expected to function in concert to induce the α registry. Whereas the R403-E3390 salt bridge triggers a rotation of H1 and causes sliding of CC1, the E416-R3469/K3472 salt bridge fixes CC2 firmly on the MT.
As implied in a previous study (Redwine et al., 2012) and by our model (Fig. 4 G), the rotated H1 will be further stabilized by ionic interactions between H1 of MTBD and the acidic patch in H12 of β-tubulin (β-D417 and β-E421). Our ATPase measurement showed that the interaction via D417 and E421 contributes to the affinity of dynein to the MT (K0.5MT), but not to the rate of ATP hydrolysis (kcat; Table 2). This is again similar to the case of kinesin, where the interaction via H12 of β-tubulin regulates the affinity of the motor with the MT (K0.5MT; Uchimura et al., 2010).
ATPase activation coupled with a transition of the MT-binding state
The involvement of the basic residue α-R403 in dynein motility is unconventional; the tubulin residues thus far implicated in kinesin and dynein motility were all acidic (Uchimura et al., 2010; Redwine et al., 2012). In fact, when we mapped the charged residues possibly involved in the electrostatic interaction across MTBD–MT based on our model, the residues on the MT surface were dominated by negative charges, whereas residues on the MTBD were dominated by positive charges (Fig. 5 A). The basic tubulin residue R403 and the acidic dynein residue E3390 are the very few exceptions. Reflecting such charge distributions, the surface potentials of the two molecular surfaces exhibit unique electrostatic complementarity, with their polarity locally reversed in the vicinity of the salt bridge R403-E3390 (Fig. 5 B, circled).
These potential landscapes may underlie the weak-to-strong state transition in the MTBD–MT interaction. In the weak binding state, when dynein exhibits diffusional motion along the negative potential field of MT, the flipped charge on the MT may provide a spatial cue to the MTBD (Fig. 5, B–D). This hypothesis is consistent with the results of a previous mutagenesis analysis showing that E3390 is the only acidic residue among more than a dozen MT-interacting residues on the MTBD (Koonce and Tikhonenko, 2000). Thus, considering the electrostatic properties, we present a model that correlates the weak-to-strong transition of the binding mode with ATPase activation in dynein (Fig. 6).
In the weak binding state, the MTBD diffuses along the MT, orienting its electropositive surface containing H2 and H3 toward the electronegative surface of MT (Figs. 5 E and 6 A; Vale et al., 1989; Wang and Sheetz, 2000; Minoura et al., 2010). During this diffusional search, the stalk coiled coil of the dynein molecule undergoes conformational changes among multiple registries, with the +β registry comprising a major fraction (Kon et al., 2009a). On the MT side, residues R403 and E416 of α-tubulin form an intra-tubulin salt bridge.
Navigated by the flipped charge (Fig. 5 B, circled), the MTBD and the MT face each other at a specific position of the MT to form the R403-E3390 salt bridge (Figs. 5 C and 6 B, and Video 3). Because α-R403 is a counterpart of the intra-tubulin R403-E416 salt bridge, formation of the R403-E3390 salt bridge inevitably forces another salt bridge to form between E416 and R3469/K3472, and, thus, the MTBD and the MT are interlocked with each other in a specific orientation through this pair of salt bridges. This cooperative rearrangement of salt bridges simultaneously shifts the structural equilibrium of stalk coiled-coil helices toward the α registry, transmitting a structural signal required for acceleration of the rate-limiting step in the ATPase cycle at the AAA1 ATPase site (Fig. 6 B, inset).
Because the α-R403A and α-E416A MTs could not produce directional movement (Fig. 2), this switching mechanism must be somehow linked to the directional movement of dynein. One possibility is that the stationary binding of the MTBD on MTs triggers the swing of dynein’s linker domain, leading to the displacement of the N terminus of the linker toward the minus end (Burgess et al., 2003; Kon et al., 2005). Alternatively, a molecular switch from diffusional to stationary binding is a strain sensor by itself, and thus a transition to stationary binding depends on the direction of the load. Recent analyses of dynein stepping showed that coordination of dynein’s two heads emerges as the distance between motor domains increases, indicating the possibility that the MTBD binds stationary to MTs when an internal load is imposed against the direction of movement (DeWitt et al., 2012; Qiu et al., 2012). Such asymmetry in MT binding, if it indeed happens, may facilitate or drive the directional movement of dynein.
Whatever mechanism controls the directionality, the R403-E3390 salt bridge plays a central role in our model because of its flipped charge as compared with the surrounding residues (Fig. 6). Indeed, the importance of residue R403 is supported by the in vivo observation that the mutation R402H of the human TUBA3 protein (R403 in yeast α-tubulin) causes the neurodevelopmental disorder lissencephaly (Keays et al., 2007). The symptoms of patients carrying the α-R402H mutation closely resemble those caused by mutations in LIS1, an adaptor protein that controls the binding mode of dynein with the MT (Vallee et al., 2001). The mutation R402H might have prevented dynein from switching from diffusional motion to strong binding, thereby impairing dynein motility and causing brain malformation.
The present study demonstrates the importance of studying the role of the MT in motility. Because coupling of ATP hydrolysis and motor binding/release is achieved through a dynamic interplay between dynein and MTs, it is only possible to clarify the mechanism by studying a complete system composed of both elements and not just motor protein alone. Our finding that the negatively charged short loop of α-tubulin (415EEGE) is critical for ATPase activation of both kinesin and dynein indicates that the MT may play an essential role in the motility mechanism of motor proteins.
