Mutations in human CEP290 cause cilia-related disorders that range in severity from isolated blindness to perinatal lethality. Here, we describe a Chlamydomonas reinhardtii mutant in which most of the CEP290 gene is deleted. Immunoelectron microscopy indicated that CEP290 is located in the flagellar transition zone in close association with the prominent microtubule–membrane links there. Ultrastructural analysis revealed defects in these microtubule–membrane connectors, resulting in loss of attachment of the flagellar membrane to the transition zone microtubules. Biochemical analysis of isolated flagella revealed that the mutant flagella have abnormal protein content, including abnormal levels of intraflagellar transport proteins and proteins associated with ciliopathies. Experiments with dikaryons showed that CEP290 at the transition zone is dynamic and undergoes rapid turnover. The results indicate that CEP290 is required to form microtubule–membrane linkers that tether the flagellar membrane to the transition zone microtubules, and is essential for controlling flagellar protein composition.
Mutations that disrupt the assembly, structure, and/or function of cilia or flagella result in cilia-related disorders termed ciliopathies (Badano et al., 2006; Fliegauf et al., 2007). Mutations in CEP290 cause ciliopathies that exhibit a range of severity (Helou et al., 2007). CEP290 mutations are a common cause of Leber congenital amaurosis (LCA; den Hollander et al., 2006; Sundaresan et al., 2009), in which blindness results from degeneration of the retina but other organ systems are often unaffected. Other CEP290 mutations cause Meckel syndrome (Baala et al., 2007; Frank et al., 2008), a perinatal-lethal disease in which essentially all tissues with cilia are affected. Of intermediate severity is Joubert syndrome, in which brain development is affected and which often also presents with ocular and renal manifestations (Sayer et al., 2006; Valente et al., 2006; Brancati et al., 2007).
The described subcellular localization of CEP290 (also known as nephrocystin-6/NPHP6) is consistent with a role for CEP290 in cilia. In mammalian cells, CEP290 has been localized to centrosomes/basal bodies (Andersen et al., 2003; Chang et al., 2006; Sayer et al., 2006; Valente et al., 2006; Tsang et al., 2008), pericentriolar satellites (Kim et al., 2008), the connecting cilium of photoreceptors (Chang et al., 2006; Sayer et al., 2006), and the dendritic knobs of olfactory sensory neurons (McEwen et al., 2007), and CEP290 was immunoprecipitated with centrosomal components (Chang et al., 2006; McEwen et al., 2007; Tsang et al., 2008). CEP290 has a nuclear localization signal and, in addition to its cytoplasmic localization, has been observed in the nucleus (Guo et al., 2004; Sayer et al., 2006).
The exact role of CEP290 is unclear, but all available evidence suggests that CEP290 is somehow involved in ciliary function. Morpholino knockdown of CEP290 in zebrafish resulted in retinal, renal, and cerebellar phenotypes that are indicative of defects in cilia and are commonly seen in humans with Joubert syndrome (Sayer et al., 2006). Defects in the localization of several ciliary proteins were found in photoreceptors and olfactory sensory neurons of the rd16 mouse, which harbors a hypomorphic in-frame deletion in Cep290 and displays early-onset retinal degeneration and anosmia (Chang et al., 2006; McEwen et al., 2007). In addition, RNAi knockdown of CEP290 in cultured mammalian cells decreased the percentage of cells displaying primary cilia (Graser et al., 2007; Tsang et al., 2008). CEP290 binds to and activates the transcription factor ATF4, a protein implicated in renal cyst formation (Sayer et al., 2006). Collectively, the data suggest that CEP290 is involved in ciliary assembly and the expression, targeting, or transport of ciliary proteins, but why CEP290 deficiency causes defects in cilia is unknown.
To elucidate the molecular role of CEP290, we used Chlamydomonas reinhardtii, which has numerous characteristics that make it an ideal model organism for studying the function of ciliary and basal body components. Human and C. reinhardtii CEP290 are highly conserved (Basic Local Alignment Search Tool [BLAST] E = 5 e−27); Keller et al. (2005) previously identified the C. reinhardtii CEP290 orthologue by proteomic analysis of isolated centrioles. Our results show that C. reinhardtii CEP290 is localized to the transition zone between the flagellar basal body and axoneme, where it is required for the assembly of the microtubule–membrane linkers characteristic of this poorly understood region. Loss of the protein results in defects in flagellar composition, including alteration of the normal balance of intraflagellar transport (IFT) complexes A and B and abnormal levels of the membrane-associated proteins BBS4 and PKD2, the human homologues of which are involved in ciliopathies. The results also show that CEP290 is highly dynamic at the transition zone, which suggests that it may be involved in signaling between the cilium and cell body, and which has clinical implications for CEP290 gene therapy in the retina to treat LCA due to defects in CEP290. We propose that CEP290 is part of a complex that links the membrane to the microtubules in the transition zone and regulates entry of proteins into the ciliary compartment.
Identification of a C. reinhardtii cep290 mutant
To understand how CEP290 deficiency affects flagellar function, a library of C. reinhardtii insertional mutants was screened using PCR with primers complementary to sequences in the 5′ and 3′ regions of the C. reinhardtii CEP290 homologue (previously designated POC3; Keller et al., 2005). In one strain (Y168), primers directed toward the 3′ end of CEP290 failed to amplify a product, which indicated that this region is deleted (Fig. 1 A). Further analysis by PCR revealed an ∼18.5-kb deletion encompassing all but the first 2–4 exons (out of a total of 37 exons) of CEP290. The mutant cells were mostly palmelloid (i.e., failed to hatch from the mother cell wall after mitosis; Fig. 1 B). Release from the mother cell wall by treatment with autolysin enzyme (Harris, 2009) demonstrated that the cells have very short/stumpy flagella, some of which begin to elongate over time (Fig. 1 C). Occasionally, bulges were present in the short or stumpy mutant flagella (Fig. 1 D).
The Y168 mutant was backcrossed twice to wild-type cells (the F2 progeny with the deletion is henceforth referred to as cep290), and each time the mutant phenotype cosegregated with the deletion. The mutant phenotype was rescued by transformation with genomic DNA encoding either untagged or HA-tagged CEP290 and no other gene (Fig. 1, A and B; and Videos 1–4), which confirmed that the mutant phenotype is caused by the deletion of CEP290. Antibodies generated against a peptide consisting of the last 14 amino acids in the C terminus of C. reinhardtii CEP290 recognized a single band of the predicted molecular mass (275 kD) that was present in Western blots of whole-cell lysates of wild-type and rescued cells, but absent in cep290 cells, which confirmed that the antibody is specific and that CEP290 is absent in the mutant (Fig. 1 E).
CEP290 is located in the transition zone

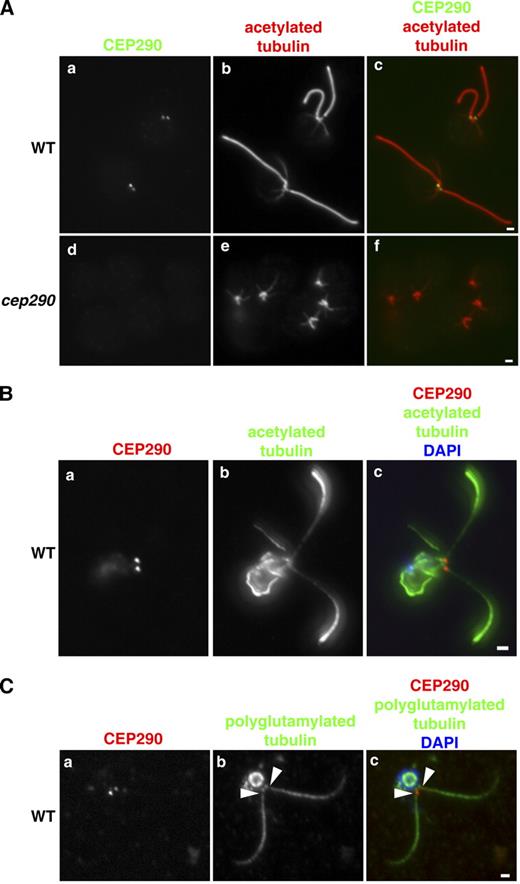

Immunofluorescence microscopy using the antibody directed against CEP290 showed CEP290 immunoreactivity at the base of each flagellum of wild-type cells (Fig. 2 A, a–c; and Fig. 2 B); the label was missing from cep290 mutant cells (Fig. 2 A, d–f), indicating that the labeling was specific. This localization pattern was confirmed by using the CEP290-HA rescued strain and antibodies to HA (see Fig. 6). Co-labeling with antibodies to polyglutamylated tubulin, which label basal bodies and flagellar axonemes but fail to label the transition zone of flagella (Lechtreck and Geimer, 2000), revealed that the CEP290 signal was located in the region that lacked polyglutamylated tubulin labeling, indicating that CEP290 is located in the transition zone (Fig. 2 C). CEP290 remained associated with the transition zone after deflagellation (Fig. S1), a finding that is consistent with its presence in the C. reinhardtii centriole proteome (which included the transition zone; Keller et al., 2005) and its absence in the C. reinhardtii flagellar proteome (which lacked the transition zone; Pazour et al., 2005). CEP290 was undetectable in Western blots of isolated flagella (Fig. S2), which confirmed that CEP290 does not enter the flagellar compartment distal to the transition zone.
cep290 mutant cells have defects in the structures that bridge the transition zone microtubules and membrane
To determine if loss of CEP290 resulted in ultrastructural defects, we examined cep290 mutant cells by EM. We observed no defects in basal bodies. In longitudinal sections through the transition zone, the wedge-shaped structures that extend between the doublet microtubules and membrane in wild-type cells (Ringo, 1967) were missing or collapsed onto the doublets in the mutant cells (Fig. 3, A and B). In cross sections through transition zones, the Y-shaped connectors that extend from the transition zone doublet microtubules to the flagellar membrane were often absent in the mutant cells (Fig. 3, C and D). Image averaging (Fig. 3, C and D, insets) revealed remnants of Y connectors on the mutant doublets, including a small electron density possibly corresponding to the base of the Y connector. In short flagella, we occasionally observed bulges in the flagellar membrane filled with electron-dense material (Fig. 3, E–G). In rare instances, we observed defects in axonemal microtubules (Fig. 3 F); however, the vast majority of sections through axonemes revealed normal outer doublets, radial spokes, dynein arms, and central pair microtubules.
To determine if the disruption of the transition zone structures altered the normal relationship between the transition zone microtubules and membrane, we measured the distance between the transition zone cylinder and the membrane in wild-type and mutant cells. In cep290 mutant cells, the distance was greater and more variable (Fig. 3 H). To determine if this reflects a functional detachment of the membrane from the microtubules, we examined the association of the transition zone membrane with the underlying microtubules in detergent-extracted cytoskeletons. In wild-type cells, the transition zone membrane remains intact and associated with the transition zone microtubules after detergent extraction (Fig. 3 I; Kamiya and Witman, 1984). In contrast, in the mutant, the transition zone membrane was lost after detergent extraction (Fig. 3 J). The data indicate that loss of CEP290 causes defects in the microtubule–membrane connections in the transition zone, which results in loss of attachment of the flagellar membrane to the transition zone.
CEP290 localizes to the transition zone microtubule–membrane connectors
Single- and double-label immunogold EM was used to localize CEP290 more precisely within the transition zone. Using the antibody that recognizes the C-terminal 14 amino acids of CEP290, gold particles exclusively labeled the transition zone of detergent-extracted cytoskeletons of wild-type cells, with most labeling between the doublet microtubules and the membrane (Fig. 4, A–C; Fig. S3, and Fig. S4). In longitudinal sections, gold particles were distributed throughout the length of the transition zone, with the highest concentration in the proximal part of the transition zone. In cross sections, most gold particles were located in the space between the Y-shaped connectors, with a few over the connectors. No labeling was observed with cytoskeletons of cep290 mutant cells treated in an identical manner (Fig. S3, A–D). Using antibodies to the HA epitope, which is located near the middle of CEP290-HA (Fig. 4 D), and cells that were rescued with the tagged protein, we again observed a concentration of gold particles between the transition zone doublet microtubules and membrane. In this case, they were centered longitudinally in the transition zone, close to or over the wedge-shaped structures (Figs. 4 B and S4). In cross sections, the gold particles labeled the Y connectors and the area immediately surrounding the Y connectors (Figs. 4 C and S4). These experiments confirm that CEP290 is located in the transition zone, and suggest that the middle of CEP290 is closely associated with the microtubule–membrane connectors in the center of that region, whereas the C terminus of the protein is slightly more dispersed. These results are consistent with our ultrastructural findings that these connectors are missing or altered in the mutant.
cep290 mutant flagella have an abnormal protein composition
An important advantage of C. reinhardtii is that the flagella can be isolated, so that the effect of loss of CEP290 on flagellar protein content can be assessed biochemically. Flagella were isolated from wild-type and cep290 mutant cells, and their proteins were compared in Western blots and silver-stained gels. The mutant flagella had increased amounts of IFT complex B proteins and BBS4 relative to wild-type flagella, and decreased amounts of the IFT complex A protein IFT139 and polycystin-2 (Fig. 5 A). Comparison of wild-type and mutant flagella in silver-stained gels, followed by mass spectrometry to identify selected bands, revealed that some proteins, including EF-3 and EF1-α, were abnormally increased, whereas other proteins, including flagellar adenylate kinase, FAP5 (conserved uncharacterized flagellar associated protein; Pazour et al., 2005), and FAP12 (triacylglycerol lipase), were missing or reduced in the mutant flagella (Fig. 5 B). Therefore, loss of CEP290 affects the flagellar levels of a large number of proteins, including membrane proteins and proteins associated with IFT.
As noted above, some cep290 mutant flagella have bulges; such bulges in cilia and flagella are usually caused by an accumulation of IFT proteins and defects in retrograde IFT (Pazour et al., 1998, 1999; Piperno et al., 1998; Porter et al., 1999; Iomini et al., 2001, 2009; Hou et al., 2004; Tran et al., 2008). To determine if this is the case in the cep290 mutant, we localized IFT complex A and B proteins in the mutant cells by immunofluorescence microscopy, and indeed found a concentration of IFT proteins in the flagellar bulges (Fig. 5 C). However, using high-contrast differential interference (DIC) microscopy to observe IFT in live cells, we found that cep290 mutant cells had normal anterograde IFT, and only a slight decrease in the velocity and frequency of retrograde IFT (Fig. 5, D and E; and Videos 5 and 6). Moreover, our biochemical analysis indicated that the flagellar level of the IFT motor subunit D1bLIC was normal (Fig. 5 A). Therefore, loss of CEP290 has little effect on IFT motility per se.
CEP290 can incorporate into preassembled wild-type or mutant transition zones
Currently, the only successful approach for treating LCA is somatic gene therapy to replace the defective gene (Bainbridge et al., 2008; Cideciyan et al., 2008; Hauswirth et al., 2008; Maguire et al., 2008). Because the target in the case of CEP290 would be photoreceptor cells, which are not renewed during the life of the organism, this approach would require that CEP290 expressed by a gene therapy vector be incorporated into preassembled ciliary cytoskeletons that lack endogenous CEP290 or have copies of the mutant protein. Although no information is available on whether transition zone components undergo turnover, this can be tested in C. reinhardtii using dikaryon rescue. During mating of C. reinhardtii, two gametic cells of opposite mating types come into contact and fuse, resulting in a single quadriflagellated, binucleated cell or dikaryon (Harris, 2009). When a wild-type cell is mated to a null mutant, the protein missing in the mutant may be supplied by the wild-type cell, and its ability to be incorporated into the mutant flagellar cytoskeleton then observed. Similarly, when a cell expressing a tagged protein is mated to a wild-type cell, the ability of the tagged protein to displace the endogenous protein in the flagellar cytoskeleton of the untagged partner can be tracked.
We used this technique first to address whether wild-type CEP290 can incorporate into preassembled cep290 mutant transition zones; i.e., transition zones lacking CEP290. Wild-type and cep290 mutant gametes were mated, fixed at various time points, and processed for immunofluorescence using antibodies to acetylated tubulin and CEP290. After 20 min, most of the quadriflagellates displayed CEP290 signal on a single pair of transition zones, which must have derived from the wild-type cell; however some of the quadriflagellates at this time point displayed a pair of transition zones with a stronger CEP290 signal and a pair with a weaker signal (presumably the mutant transition zones; Fig. 6 A, a–h). Over the next 40 min, the relative strength of the CEP290 signal on the dimmer pair increased, whereas that on the brighter pair decreased, so that by 60 min all four transition zones had similar signal intensities (Fig. 6 A, i–p). This indicates that wild-type CEP290 can assemble onto previously formed CEP290-deficient transition zones. Moreover, the fact that the brightness of the labeled and unlabeled transition zones equilibrated with time suggested that CEP290 in the transition zone undergoes relatively rapid exchange with CEP290 in the cytoplasm.
Next, to determine if new CEP290 can replace CEP290 previously assembled into wild-type transition zones, we mated wild-type gametes to cep290::CEP290-HA gametes, which express only HA-tagged CEP290. The resulting dikaryons were then processed at various times for immunofluorescence microscopy using antibodies to the HA tag and acetylated tubulin (Fig. 6 B). Initially, HA-tagged CEP290 was present only on the two transition zones derived from the HA-tagged parent. After 20 min, CEP290-HA could be observed on all four transition zones, with one pair brighter than the other. Equilibration of the HA signal on all four transition zones occurred by 60 min. Therefore, newly supplied CEP290 can replace CEP290 previously assembled into transition zones. These results confirm that CEP290 is a dynamic component of the transition zone and rapidly equilibrates with cytoplasmic CEP290.
CEP290 is a component of the microtubule–membrane linkages within the transition zone
The transition zone is a structurally complex and highly conserved structure that lies between the basal body and the flagellar axoneme. The ultrastructure of the C. reinhardtii basal body and transition zone has been well characterized (Ringo, 1967; Johnson and Porter, 1968; Cavalier-Smith, 1974; Weiss et al., 1977; Gaffal, 1988; O’Toole et al., 2003; Geimer and Melkonian, 2004). At the distal end of the basal body, the triplet microtubules of the basal body transition into doublets, marking the beginning of the transition zone. Prominent features of the transition zone are structures that bridge the doublet microtubules to the flagellar membrane. In cross sections, these appear as thin Y-shaped connectors (Fig. 3 C); in longitudinal sections, wedge-shaped electron densities are observed to slant proximally and distally from the doublet microtubules to the membrane (Fig. 3 A; Ringo, 1967; Gilula and Satir, 1972; Dentler, 2009a). The central pair microtubules begin at the distal end of the transition zone, marking the beginning of the axoneme.
Although the structure of the transition zone has been described in detail, very little is known regarding the function of this short and unique region of the flagellum (Dutcher, 2009). In addition to its role (along with the basal body) in templating the axoneme, evidence suggests that the transition zone is the site for docking of the IFT particles (Deane et al., 2001). The structure and location of the transition zone make it well poised to act as a flagellar “pore,” regulating the import and export of proteins into and out of the flagellum (Rosenbaum and Witman, 2002). The transition zone also has been proposed to be a site for enrichment of Ca2+ channels and pumps (Tamm, 1988). Related to this, Ca2+-dependent flagellar abscission in C. reinhardtii occurs immediately distal to the transition zone (Quarmby, 2009).
Both immunofluorescence microscopy and immuno-EM indicated that CEP290 is located at the transition zone; the immuno-EM showed that the protein is located near the periphery of the transition zone, between the outer doublets and the transition zone membrane. Comparison of the labeling patterns obtained for epitopes at the C terminus versus the central portion of CEP290 indicated that the middle of the protein is closely associated with the wedge-shaped structures seen in longitudinal sections and the Y-shaped connectors seen in cross sections, whereas the C terminus is more dispersed. CEP290 is certainly large enough to account for this distribution of gold particles. In silico analysis of the CEP290 amino acid sequence predicts a high density of coiled-coiled domains throughout the length of the protein. If CEP290 forms a large coiled-coiled structure, it could be as long as ∼380 nm (Fraser and MacRae, 1973) and potentially span the length of the transition zone.
Consistent with the localization of CEP290, the cep290 mutant cells have striking defects in the structures located between the transition zone doublet microtubules and the flagellar membrane. Specifically, most of the Y connectors seen in cross section were missing, and the wedge-shaped structures seen in longitudinal section were missing or collapsed back onto the doublets. It is not yet clear if the Y connector and wedges are one and the same structure viewed from two different angles, but their locations and the fact that both are severely affected in the cep290 mutant suggest a close relationship. CEP290 is likely to be an essential component of the wedges, because immuno-gold EM showed that the central part of CEP290 is localized to this structure, and the structure is missing when CEP290 is missing. CEP290 antibodies also labeled the Y connectors; however, CEP290 is unlikely to be the only component that comprises them, because Y connectors are seen, albeit rarely, in the null mutant.
Loss of CEP290 and concomitant loss of the transition zone connectors results in loss of attachment of the membrane to the microtubules in the transition zone. Although C. reinhardtii mutants with pleiotropic defects in basal bodies and transition zones have been described previously (Goodenough and St. Clair, 1975; Huang et al., 1982; Jarvik and Suhan, 1991; Dutcher and Trabuco, 1998; Piasecki et al., 2008; Piasecki and Silflow, 2009), this is the first study of a mutation that specifically compromises the integrity of the transition zone microtubule–membrane connectors. The results demonstrate that the connectors physically tether the transition zone membrane to the underlying microtubules, a function likely to be important for controlling entry of proteins into the flagellum.
CEP290 is important for flagellar assembly and protein content
The cep290 mutant cells are palmelloid, which is a phenotype commonly seen in C. reinhardtii mutants with defects in flagellar assembly (Harris, 2009). Indeed, when cep290 cells are released by digesting the mother cell wall with autolysin, the freshly released cells display very short, stumpy flagella. For reasons not yet understood, the flagella of many cep290 cells then slowly elongate to various lengths. In mammalian cell culture models, CEP290 siRNA decreases the percentage of cells displaying primary cilia (Graser et al., 2007; Tsang et al., 2008). Collectively, these data indicate a conserved requirement for CEP290 in ciliogenesis.
SDS-PAGE revealed numerous differences in the flagellar proteins of wild type versus the cep290 mutant; some of these were identified by mass spectrometry. Notably, cep290 flagella have reduced amounts of flagellar adenylate kinase; of FAP12, which is predicted to be a triacylglycerol lipase; and of FAP5, which is a conserved flagellar-associated protein of unknown function (Pazour et al., 2005). Loss of flagellar adenylate kinase could affect ATP production in the flagellum, whereas loss of triacylglycerol lipase could affect flagellar membrane lipid composition. Thus, either of these deficiencies could affect flagellar assembly. EF-3 and EF-1α were elevated in cep290 flagella; the functions of these proteins in flagella are unknown.
The flagella of cep290 mutant cells occasionally have bulges filled with a finely divided material that includes IFT proteins, and Western blot analysis of isolated flagella revealed that the mutant flagella accumulate IFT complex B proteins and have decreased levels of the IFT complex A component IFT139. When cep290 cells were compared with wild-type cells, there was no significant difference in anterograde IFT, but retrograde IFT was slightly reduced both in velocity and frequency. The decrease in retrograde IFT velocity may be related to the decrease in IFT complex A and/or the accumulation of complex B in the mutant flagella, as similar decreases in retrograde IFT velocities have been observed in complex A mutants, which also have increased complex B and decreased complex A in their flagella (Piperno et al., 1998; Iomini et al., 2001, 2009). In any case, it seems unlikely that a defect in IFT motility per se is the cause of the abnormal balance of IFT complexes A and B in the cep290 flagella. It should be noted that other C. reinhardtii mutants accumulate IFT proteins in bulges at the flagellar tip yet display normal velocities and frequencies of IFT (Tam et al., 2003; Dentler, 2005).
We propose that the abnormal balance of IFT particles and the abnormal protein composition of cep290 mutant flagella result from loss of the microtubule–membrane connectors, with concomitant defects in the remodeling, cargo loading/unloading, or “quality control” of IFT particles as they pass through the transition zone. CEP290 and the membrane connectors within the transition zone could provide a platform for IFT particles as they are loaded and unloaded at the base of the flagellum, a checkpoint that admits only proteins with flagellar targeting sequences, or a “gate” through which only properly assembled IFT particles can pass. Loss of the gate may allow an excess of IFT complex B proteins to enter the flagellum, where they accumulate without the proper complement of IFT complex A, which may be necessary to couple them to the retrograde IFT motor for export from the flagellum (Hao and Scholey, 2009). Alternatively, the membrane connectors and/or CEP290 might be required for the efficient entry of IFT complex A into the flagellum; defects in complex A trafficking could also result in the accumulation of IFT complex B, as is seen in C. reinhardtii strains with mutations in IFT complex A components (Piperno et al., 1998; Iomini et al., 2001, 2009). Because IFT is necessary for flagellar assembly and maintenance, such defects could in turn lead to the many other abnormalities in flagellar protein content that we observed. Previous studies reported mislocalization of some ciliary components in mice harboring a hypomorphic mutation in Cep290 (Chang et al., 2006; McEwen et al., 2007). Here, we demonstrate that loss of CEP290 affects the normal levels of IFT particles in the flagellum, which could provide mechanistic insight into why defects in CEP290 affect ciliary assembly and the localization of other ciliary proteins.
Loss of CEP290 results in abnormal flagellar levels of ciliary disease proteins
Among the abnormalities in cep290 mutant flagella is a decreased level of polycystin-2, an important observation given the prevalence of cystic kidneys in patients with CEP290 mutations. Polycystin-2 is a six-pass transmembrane protein that localizes to cilia and forms a cation-permeable channel; mutations in the human gene (PKD2) are the cause of autosomal dominant polycystic kidney disease type 2 (OMIM no. 613095). Our results demonstrate that CEP290 is required for normal levels of polycystin-2 in flagella, and suggest that cystic kidney disease in patients with CEP290 mutations could result from defects in the ciliary levels of polycystin-2.
Many of the disease symptoms caused by CEP290 mutations are also present in patients with Bardet-Biedl syndrome (BBS; OMIM no. 209900), and a homozygous mutation in CEP290 (E1903X) was found in a BBS patient that also carried a complex heterozygous mutation in MKS3 (Leitch et al., 2008). Flagella of the cep290 mutant have increased levels of BBS4, which is a component of the BBSome (Nachury et al., 2007) and is trafficked in the flagellum by a subset of IFT particles (Lechtreck et al., 2009). This raises the possibility that the amount of BBSomes in the flagellum is determined by the same factors that control the amount of complex B, which is also increased in cep290 flagella. In any case, the BBSome is required for the removal of specific signaling proteins (e.g., phospholipase D) from flagella (Lechtreck et al., 2009), and the phenotypic overlap between BBS and CEP290-associated ciliopathies could be explained, at least in part, by the accumulation of BBS4 in cep290 mutant cilia. It is unknown if CEP290 interacts directly with the BBSome, but both CEP290 and BBS4 interact with the pericentriolar protein PCM-1 (Kim et al., 2004; Kim et al., 2008), and CEP290 depletion by siRNA shifted the sedimentation profile of BBS4 in sucrose gradients (Kim et al., 2008).
Finally, given our finding that CEP290 is a component of the transition zone, it is relevant that the connecting cilia of mammalian photoreceptor cells are thought to be greatly elongated transition zones (Besharse and Horst, 1990) and contain microtubule–membrane Y connectors analogous to those seen in the C. reinhardtii transition zone. Mutations in human CEP290 almost always are associated with blindness, regardless of whether or not other organs are affected, so CEP290 may be especially important in the function of the connecting cilium, through which huge amounts of precisely sorted IFT-dependent cargo must pass each day to maintain the photoreceptor outer segment.
CEP290 is dynamically associated with the transition zone
LCA caused by mutations in RPE65 has been treated by gene therapy, with some individuals experiencing improvement in visual acuity (Bainbridge et al., 2008; Cideciyan et al., 2008; Hauswirth et al., 2008; Maguire et al., 2008). It has been estimated that ∼20% of LCA cases are caused by mutations in CEP290 (den Hollander et al., 2006), making CEP290 an important target for gene therapy in these patients. We demonstrated that CEP290 is dynamic and can incorporate into preassembled CEP290-deficient and wild-type transition zones, a property that will be essential for successful CEP290 gene therapy in the retina.
Our results indicate that CEP290 shuttles between the transition zone and the cytoplasm. In mammalian cells, CEP290 redistributes to the cytosol during mitosis (Sayer et al., 2006), a time in the cell cycle when cilia are not present. In addition, CEP290 contains a putative nuclear localization signal (Chang et al., 2006; Sayer et al., 2006) that is conserved in C. reinhardtii, CEP290 has been detected in the nucleus (Guo et al., 2004; Sayer et al., 2006), and CEP290 has been shown to activate the transcription factor ATF4 in a luciferase reporter assay (Sayer et al., 2006). Thus, CEP290 may also be involved in signal transduction. The location of CEP290 at the transition zone and its dynamic properties would make it ideally suited for monitoring flagellar status and relaying information about the flagellum back to the cell body or nucleus.
In summary, our results show that CEP290 is a transition zone protein localized to and required for the assembly of the unique microtubule–membrane connectors in this region. Loss of CEP290 and these structures results in an imbalance of IFT complexes in the flagellum, and leads to numerous other abnormalities in the composition of flagella, including abnormal levels of flagellar membrane proteins and proteins associated with ciliopathies. Similar changes in ciliary protein composition are almost certain to be the underlying cause of the human pathologies resulting from CEP290 mutation.
Materials and methods
Strains and cell culture
Strains were grown in liquid M medium I (Sager and Granick, 1953), with 2.2 mM KH2PO4 and 1.71 mM K2HPO4, aeration by 5% CO2, and a light/dark cycle of 14/10 h (Witman, 1986). For some experiments, cells were cultured without aeration or treated with autolysin in order to induce flagellation. The following C. reinhardtii strains were used: 137c (CC-125; nit1, nit2, mt+), g1 (nit1, agg1, mt+), CC-124 (nit1, nit2, agg1, mt−), Y168 (nit1::NIT1, agg1, cep290, mt+), F1P4 (nit1::NIT1, agg1, cep290, mt−), cep290 (nit1::NIT1, agg1, cep290, mt+), cep290::CEP290 (nit1::NIT1, agg1, cep290::CEP290, mt−), and cep290::CEP290-HA (nit1::NIT1, agg1, cep290::CEP290-HA, mt+).
A synthetic peptide consisting of the last 14 amino acids of C. reinhardtii CEP290 with cysteine added to the N terminus for conjugation to KLH (C-ADGAGPSGQRRGGR) was used to generate rabbit polyclonal antibodies (GenScript). The resulting antiserum was affinity purified on an agarose support (Thermo Fisher Scientific) according to the manufacturer’s instructions. Additional antibodies used in this study were: rat high-affinity anti-HA (Roche), anti-acetylated tubulin (Sigma-Aldrich), anti–α-tubulin (Sigma-Aldrich), anti-polyglutamylated tubulin (Wolff et al., 1992), anti–β-F1-ATPase (Agrisera), anti-BBS4 (Lechtreck et al., 2009), anti-IC2 (King et al., 1985), anti-FMG1 (provided by R. Bloodgood, University of Virginia, Charlottesville, VA; Bloodgood et al., 1986), anti-PKD2 “loop” (provided by K. Huang, Yale University, New Haven, CT; Huang et al., 2007), anti-D1bLIC (Hou et al., 2004), anti-IFT20 (Hou et al., 2007), anti-IFT46 (provided by H. Qin, Texas A&M University, College Station, TX; Hou et al., 2007), and anti-IFT81 and anti-IFT139 (provided by D. Cole, University of Idaho, Moscow, ID; Cole et al., 1998).
RT-PCR screen and backcrossing
A library of insertional mutants was screened by real-time PCR using the QuantiTect SYBR Green PCR kit (QIAGEN) and primer pairs (see Table S1) specific for the 5′ and 3′ ends of C. reinhardtii CEP290. Additional primer pairs were used to map the deletion in strain Y168. Y168 was backcrossed to wild type (CC-124) and the Y168 mutant phenotype cosegregated with the deletion. A mutant progeny (F1P4) from this cross was then backcrossed to the Y168 parent strain (g1 [Pazour et al., 1995], used as the wild-type control strain for this study) and the mutant phenotype again cosegregated with the deletion. A mutant progeny from the second backcross, strain cep290, was used for the remainder of the study.
Cloning the CEP290 gene and rescue of the cep290 mutant
First, a cassette conferring phleomycin resistance (Stevens et al., 1996; Lumbreras et al., 1998) was cloned into the HindIII site in pNEB193 (New England Biolabs, Inc.) to make pBC1. Second, a bacterial artificial chromosome (BAC) containing C. reinhardtii CEP290 (BAC 29K10, Clemson University Genomics Institute) was digested with AscI and StuI to obtain a 9.3-kb fragment that was cloned into pBC1 cut with AscI and PmeI, yielding pBC2. Third, the BAC was digested with ApoI and AscI, and a 6-kb fragment was purified and cloned into pBC2 also cut with ApoI and AscI, yielding pBC3. To introduce a triple HA tag, p3×HA (Silflow et al., 2001) was digested with SmaI and NaeI, and the resulting fragment containing the 3×HA sequence was cloned into pBC3 by partially digesting pBC3 with ScaI, yielding pBC4. All constructs were verified by sequencing. 5 µg of pBC3 or pBC4 plasmid linearized with SspI were used to transform the F1P4 CEP290 mutant strain or the cep290 strain, respectively, using glass bead agitation (Kindle, 1990). Rescued transformants were identified visually by screening for wild-type motility, and the presence of the rescuing construct was confirmed by PCR and Western blotting.
Live cell imaging and videos
Cells were cultured as described above, placed into an 8-well slide, and sealed with Vaseline and a coverslip. The cells were visualized by dark-field phase contrast using a microscope (Axioskop II plus; Carl Zeiss, Inc.) equipped with a 10× Plan-Neofluar objective lens. Images were captured at 30 frames/second with a UNIQ UP-610 digital charge-coupled device camera, and image sequences were output as AVI files and processed using ImageJ software, then converted into MOV files using QuickTime Pro (Apple). To document motility (Fig. 1 B), the WalkingAverage function in ImageJ was used to average 30 frames. For DIC imaging of IFT (summarized in Dentler et al., 2009b), live cells were immobilized in 1% agarose, sealed in an eight-well slide as described above, and observed using an inverted microscope (Ti U; Nikon) equipped with a 60× 1.49 NA objective lens, a 1.4 NA oil condenser, a 1.5× relay lens, and DIC optics. Illumination was provided by a Lumen 200 (Prior Scientific) light source, and light was filtered through UV, green band pass, and heat-absorbing filters. Images were captured at 24 frames per second with a Clara Interline camera (Andor) and NIS-Elements software (Nikon). Image sequences were cropped, image brightness and contrast was adjusted in ImageJ, and the resulting image stacks were exported as AVI files using ImageJ, then converted into MOV files using QuickTime Pro. Kymographs were generated in ImageJ by drawing a line that included the entire width of the flagellum (width 11) and the MultipleKymograph ImageJ plugin with a line width of 1. IFT velocities and frequencies were calculated by measuring the slope and number of the particle tracks in the kymographs, respectively.
Cells were cultured as described above and harvested by centrifugation. In some experiments, cells were treated with autolysin for 1–2 h before processing for immunofluorescence to induce the growth of flagella. For immunofluorescence of whole cells, cells were allowed to adhere for 5 min to polyethylenimine-coated coverslips, excess cells were wicked off, and the coverslips were submerged in −20°C methanol for 20 min. The slips were then air-dried, rehydrated, and blocked for 30 min at RT with blocking solution (6% fish skin gelatin, 1% BSA, and 0.05% Tween-20 in PBS, pH 7.0), incubated with primary antibodies (either 30–60 min at RT or 4°C overnight), washed 3× with blocking solution, incubated with secondary antibodies (Alexa Fluor–conjugated IgG; Invitrogen) for 30 min at RT, washed 3× with PBS, then mounted with ProLong Antifade Gold (Invitrogen). For immunofluorescence of isolated cytoskeletons, cells were harvested by centrifugation, resuspended in autolysin for 1–2 h, washed once with HMDEK (30 mM Hepes, pH 7.4, 5 mM MgSO4, 1 mM DTT, 0.5 mM EGTA, and 25 mM KCl), resuspended in HMDEK, and chilled on ice. Then, an equal volume of ice-cold HMDEK + 2% NP-40 Alternative (EMD) + 2× Complete Protease Inhibitor (Roche) was added. The cells were lysed on ice for 15 min then added to an equal volume of RT HMDEK + 4% paraformaldehyde, and the detergent-extracted cytoskeletons were adhered onto poly-L-lysine–coated coverslips for 15 min. The slips were rinsed twice with PBS, then air-dried. The slips were then blocked, incubated with antibody, and mounted as described above. Samples were imaged using a microscope (Axioskop II plus) with a 100× Plan-Apochromat 1.4 NA objective equipped with a DIC prism. Images were captured with a digital charge-coupled device camera (MrM) and Axiovision software (both from Carl Zeiss, Inc.). When applicable, Photoshop (Adobe) was used to make equal brightness and/or contrast adjustments for samples under comparison.
For ultrastructural analysis, cells were harvested by centrifugation, gently resuspended in conditioned medium, and then fixed by addition of an equal volume of 2% glutaraldehyde in conditioned medium. After 15 min at RT, the cells were pelleted, the primary fixative was removed, and the cells were gently resuspended in secondary fixative (1% glutaraldehyde and 100 mM sodium cacodylate, pH 7.2) and incubated for 2 h at RT. The cells were then pelleted and washed three times for 15 min each with 100 mM sodium cacodylate, pH 7.2. After the final wash, 50 µl of cell pellet was removed and added to a microcentrifuge tube containing 50 µl of 2% agarose dissolved in 100 mM sodium cacodylate, pH 7.2. The cell/agarose suspension was solidified on ice, and the solidified cell/agarose block was removed by cutting off the bottom of the microcentrifuge tube. The cell/agarose block was then cut into ∼1 mm2 pieces, postfixed for 1 h on ice with 1% OsO4 in 50 mM sodium cacodylate, washed three times with ice-cold water, and stained overnight at 4°C in freshly prepared 1% uranyl acetate in water. The samples were then dehydrated, embedded in epon, and thin-sectioned. Sections were stained with lead citrate and imaged on an electron microscope (CM10; Philips). Images were acquired using a digital camera (Gatan). For image averages, 30 wild-type or mutant cross-sections were aligned and superimposed over each other with 10% transparency using Photoshop (Adobe). For analysis of detergent-resistant membranes (Kamiya and Witman, 1984), cytoskeletons were prepared as described above (Immunofluorescence microscopy) then fixed and processed for EM as described.
For immuno-EM, cytoskeletons were prepared as above (Immunofluorescence microscopy) and fixed with 3% paraformaldehyde in MT buffer (30 mM Hepes, 5 mM EGTA, 15 mM KCl, and 5 mM MgSO4, pH 7.2) on ice for 20 min. After blocking in 2% BSA with 0.1% cold fish skin gelatin and 0.05% Tween-20 in PBS for 1 h, the samples were labeled with primary antibody (1:25 rabbit anti-CEP290 and 1:50 rat anti-HA monoclonal 3F10) and gold-conjugated secondary antibody (1:20 goat anti–rabbit 12-nm gold conjugant and 1:20 goat anti–rat 6-nm gold conjugant) for 90 min each, then postfixed with 2.5% glutaraldehyde with 0.1% tannic acid for 1 h, followed by 1% OsO4 at 4°C for 1 h. Sections were stained with 2% uranyl acetate in methanol for 10 min.
Flagella isolation, SDS-PAGE, Western blotting, and mass spectrometry
To induce cep290 cells to hatch and assemble flagella, cells were cultured in minimal medium in the absence of aeration. For comparisons, control wild-type cells were cultured under identical conditions. Flagella were harvested using dibucaine (Witman et al., 1972; Witman, 1986) and resuspended in HMDEK supplemented with Complete Protease Inhibitor Cocktail (Roche). Protein concentration of isolated flagella was determined using the RC-DC Protein Assay (BioRad Laboratories). Equal amounts of wild-type and mutant flagellar protein were analyzed by SDS-PAGE and silver staining (BioRad Laboratories) or Western blotting. Silver-stained bands of interest were excised and identified by mass spectrometry as described previously (Lechtreck et al., 2009). For Western blots of whole-cell lysates, mid-log phase cells were harvested by centrifugation, resuspended in 5× denaturing sample buffer (50 mM Tris, pH 8.0, 160 mM DTT, 5 mM EDTA, pH 8.0, 50% sucrose, and 5% SDS), heated at 75°C for 5 min, then passed through a 26-gauge needle three times.
Gamete generation and mating, crude autolysin production, and dikaryon formation
To generate gametes, 137c (mt+) and CC124 (mt−) cells were plated onto TAP medium plates with 1.5% agar (Harris, 2009), grown for 5–7 d in cycled light, then placed in dim cycled light for 2–4 wk. The cells were then scraped into 10 ml of nitrogen-free medium (M-N) and agitated on an orbital shaker overnight with continuous light in a 125-ml flask. The next morning, the cells were gently collected by centrifugation, resuspended in 10 ml of M-N diluted 1:5 with water + 10 mM Hepes, pH 7.4, and subjected to ∼4 h of orbital rotation under constant light. For production of crude autolysin, gametes of the two cell types were mixed for 5 min and centrifuged, and the supernatant was filtered through a 0.8/0.2-µm syringe filter. Autolysin was either used immediately or flash-frozen with liquid nitrogen and stored at −80°C. To mate cells for backcrossing, gametic cells were treated for 1–2 h with autolysin to hatch cep290 gametes, and then mixed for 1–2 h. The zygotes were then plated onto M medium plates with 4% agar and cultured for 24 h under constant light. Progeny from tetrads were isolated as described previously (Pazour et al., 1999; Hou et al., 2004), and real-time PCR was used to identify the progeny harboring the deletion in CEP290. For experiments involving dikaryons, gametes of opposite mating types were mixed for various time points. The cells were then detergent-extracted and processed for immunofluorescence as described above (Immunofluorescence microscopy).
Mid-log phase cells were concentrated twofold and the pH was quickly lowered to 4.5 by the addition of 0.5 N acetic acid. After 45 s, the pH was neutralized to 7.0 by the addition of 0.5 N KOH. The cells were then fixed and processed for immunofluorescence microscopy at various time points.
Online supplemental material
Fig. S1 shows that CEP290 remains at the transition zone after flagellar abscission and during flagellar regeneration. Fig. S2 shows that CEP290 is not present in isolated flagella. Fig. S3 shows a representative selection of EMs that were used to generate Fig. 4 A. Fig. S4 shows a representative selection of EMs used to generate Fig. 4 (B and C). Videos 1–4 show the motility of wild-type, the cep290 mutant, the cep290 mutant following rescue with untagged CEP290, and the cep290 mutant following rescue with HA-tagged CEP290, respectively. Videos 5 and 6 show the movement of IFT particles in wild-type and cep290 mutant flagella, respectively.
