Ki67 deficiency impedes chromatin accessibility and BCR gene rearrangement

Ki67 is a nuclear protein used extensively as a marker of cell proliferation (Gerdes et al., 1983). It is expressed throughout the cell cycle and is highly conserved in vertebrates and only downregulated when cells exit the cell cycle and enter G0 phase (quiescence) (Miller et al., 2018; Sobecki et al., 2017). Despite its widespread use, only recently have the functions of Ki67 started to be revealed. In cultured human cell lines, Ki67 remains in close contact with chromatin and chromosomes during the cell cycle, functioning as a “surfactant” to maintain proper mitotic chromosome morphology and promote chromosome clustering in cells exiting mitosis (Cuylen et al., 2016; Cuylen-Haering et al., 2020; Garwain et al., 2021). Importantly, Ki67 binds the heterochromatin protein 1 family (Scholzen et al., 2002) and is necessary also for normal heterochromatin organization during interphase (Sobecki et al., 2016). These properties indicate that Ki67 may be essential for biological processes requiring tight control of the cell cycle. Somewhat remarkably, the gross development of whole animals with partial knockdown of Ki67 is normal (Sobecki et al., 2016). However, it remains unclear whether Ki67 plays a vital role in vivo, as no detailed characterization of complete Ki67-knockout animals has been reported.

Lymphopoiesis is one of the developmental processes that depend on rigid regulation of the cell cycle (Mandal et al., 2009; von Freeden-Jeffry et al., 1997). During lymphocyte development, stages of gene rearrangement are interspersed by bursts of precursor cell proliferation and differentiation, driven by a combination of productive antigen–receptor rearrangement mediated by the recombination-activating gene (RAG) 1 and 2 complex and cytokines (Melchers, 2015). Early B cell development in bone marrow (BM) comprises sequential stages separated by checkpoints that assess variable (V), diversity (D), and/or joining (J) gene segment rearrangement status at the immunoglobulin (Ig) heavy then light chain loci (Hardy and Hayakawa, 2001). A parallel process occurs in T cells, resulting in the formation of a population with diverse T cell receptors at the CD4⁺CD8⁺ double positive (DP) thymocyte stage of development (Germain, 2002). Failure, or even inefficiency, in any of the specific stages of antigen–receptor rearrangement has profound effects on lymphocyte development ranging from complete block through to restrictions in lymphocyte number and repertoire (Csomos et al., 2022; Ng et al., 2020; Nutt et al., 1997).

To investigate physiological roles for Ki67 in vivo, we generated a germline Ki67-knockout (Mki67^−/−) mouse strain. Although animal development was largely normal in the absence of Ki67, we identified that early lymphocyte development was significantly impaired, resulting in a specific reduction in mature lymphocytes in peripheral lymphoid organs. Ki67 was required for maintaining global chromatin accessibility in B cell precursors, particularly at stages where antigen–receptor gene rearrangements occur. Importantly, we found that Ki67 deficiency impaired V(D)J gene rearrangement, and this developmental defect could be rectified by the provision of transgenes encoding pre-rearranged heavy (H) and light (L) chains. Collectively, this study reveals a distinct and previously unknown requirement for Ki67 in normal lymphocyte development.

To investigate the cellular function of Ki67 in vivo, mice with germline deficiency in Ki67 were generated via deletion of exon 4 of the Mki67 gene (Mki67^−/−) (Fig. S1, A–C) creating a frame-shift that disrupted the translation of the chromatin-binding domains of the Ki67 protein (Cuylen et al., 2016; MacCallum and Hall, 2000) (Fig. S1 D). Successful deletion of exon 4 was confirmed by quantitative PCR (qPCR) from tissue biopsies of Mki67^−/− mice (Fig. S1 E), while the absence of Ki67 protein was confirmed by western blot and flow cytometry (Fig. S1, F and G). In agreement with previous studies that showed normal animal development when Ki67 was diminished (Sobecki et al., 2016), Mki67^−/− mice had normal gross organ development (Fig. 1 A) and litter sizes (Fig. 1 B). No significant alterations in tissue morphology were found in histological examination of sections from skin, lung, liver, small intestine, BM, thymus, and spleen of Mki67^−/− mice (Fig. S1 H). A small but significant decrease in body weight of Mki67^−/− mice compared with WT mice was observed throughout life (Fig. 1 C), although lifespan itself was unaffected (Fig. 1 D). Thus, whole organism Ki67 deficiency has minimal effect on survival, reproduction, and organ development under specific pathogen–free conditions, confirming and extending previous results (Sobecki et al., 2016).

We next examined immune cell composition in the spleen of Mki67^−/− mice, which revealed an average 2.5-fold decrease in total splenocyte number compared to WT (Fig. 1 E). This in turn was due to a specific and significant impairment in the accumulation of B and T cell populations, as the representation of other white blood cell lineages assessed here (natural killer cells, dendritic cells, eosinophils, neutrophils, and monocytes) was unaffected (Fig. 1, F and G). The reduction in lymphocytes was not due to the impaired proliferation potential of mature Mki67^−/− cells (Fig. 1, H and I), which was in line with previous studies showing cell proliferation to be largely unaffected by Ki67 deficiency (Cuylen et al., 2016; Mrouj et al., 2021; Sobecki et al., 2016). Thus, from both direct measurements here and inferred by the largely normal development in Ki67-deficient animals from our data and observed previously (Sobecki et al., 2016), Ki67 is not required for cell proliferation. However, intriguingly, Ki67 deficiency selectively reduces peripheral B and T lymphocyte representation.

To determine the basis of the reduced number of mature lymphocytes in the spleen when Ki67 was absent, we analyzed early B and T cell development in the BM and thymus, respectively. The total number of total BM cells, Lineage⁻Sca-1⁻Kit⁺ (LK) cells, and Lineage⁻Sca-1⁺Kit⁺ (LSK) stem cells was not altered by the absence of Ki67 (Fig. 2, A–C); however, B220⁺ B lineage cells in the BM were significantly decreased (Fig. 2, B and C). Resolving the early stages of B cell development (Fig. 2 D) revealed that the number of large pre-B, small pre-B, and immature B cells was decreased approximately two-, nine-, and seven-fold, respectively, in the absence of Ki67 (Fig. 2 E). Using a differentiation index to measure progress across each developmental step revealed that impaired representation first occurred at the pre-pro-B to pro-B stage (Fig. 2 F). Similarly, the total number of thymocytes was decreased in the absence of Ki67 (Fig. S2 A) with the deficits in T cell development occurring predominantly at the CD4⁻CD8⁻ double negative (DN) 3 to DN4 and DN4 to CD4⁺CD8⁺ DP stages (Fig. S2, B–D).

To determine whether impaired lymphocyte development in the absence of Ki67 was intrinsic to lymphocyte progenitors, we reconstituted lethally irradiated CD45.1 recipients with a mixture of BM containing either 90% CD45.2 WT and 10% CD45.1 WT BM cells or 90% CD45.2 Mki67^−/− and 10% CD45.1 WT BM cells (Fig. S2 E). 6 wk after reconstitution, the cellular composition of the BM and thymi of the recipients was analyzed. In line with the findings in intact Mki67^−/− mice, significant impairments in early B (Fig. S2, F and G) and T cell development (Fig. S2, H and I) were observed among cells derived from CD45.2 Mki67^−/− BM cells in the chimeras. Together, these data show that Ki67 deficiency intrinsically and specifically impairs the development of B and T lymphocytes at early stages.

The partial blockages in early lymphocyte development in the absence of Ki67 coinciding with stages where antigen–receptor gene rearrangement occurred led us to hypothesize that Ki67 was required for this lymphocyte-specific process. As Ki67 is known to be an important contributor to chromatin organization (Sobecki et al., 2016; van Schaik et al., 2022) and that chromatin configuration directly regulates the process of antigen–receptor gene rearrangement (Cherry and Baltimore, 1999; Lion et al., 2020; Stanhope-Baker et al., 1996), we first assessed whether Ki67 deficiency affected chromatin accessibility states, focusing on B cell progenitors. We performed an assay for transposase-accessible chromatin sequencing (ATAC-seq) on sorted pre-pro-B, pro-B, and small pre-B cells, representing the developmental stages preceding V(D)J rearrangement, where Ig heavy chain rearrangement occurs, and where Ig light chain rearrangement occurs, respectively.

All the accessible regions present in Mki67^−/− and WT cells were analyzed and principal component analysis (PCA) was performed for all populations from both genotypes. We found that the samples clustered according to their cell types with the first two components (PC1 = 53.59% and PC2 = 20.23%; Fig. 3 A), reflecting cell type–specific chromatin states of the B cell progenitors as previously shown (Boya et al., 2017). When the dynamics of chromatin states were followed from pre-pro-B to pro-B and from pro-B to small pre-B stage, about 85% and 70% of the total peaks identified, respectively, followed the same trend when comparing the WT and Mki67^−/− conditions (Fig. 3 B), indicating a partial impact of Ki67 deficiency on the dynamics of chromatin configuration during B cell development. When PC3 was examined, we found that pro-B and small pre-B cells were well separated by their genotype (PC3 = 3.09%), whereas samples of pre-pro-B cells were not (Fig. 3 C). Indeed, substantial differences in chromatin accessibility were identified in pro-B and small pre-B cells depending on Ki67 sufficiency whereas minimal changes were observed in Mki67^−/− versus WT pre-pro-B cells (Fig. 3 D). The systemic nature of the changes to chromatin accessibility due to the absence of Ki67 in pro-B and small pre-B cells was reflected by alterations being distributed along the lengths of all chromosomes (Fig. 3 E).

To investigate whether the altered chromatin configuration in Mki67^−/− cells affected genes important for lymphocyte development, we performed gene ontology (GO) analysis on the differentially accessible regions (DARs) that were consistently less accessible in Mki67^−/− pro-B and small pre-B cells. There were 8,436 less accessible regions in the Mki67^−/− pro-B cells that corresponded to 6,330 uniquely assigned genes and 2,289 less accessible regions in the Mki67^−/− small pre-B cells that corresponded to 1,727 uniquely assigned genes (Fig. 3 F). Among the uniquely assigned genes, 1,184 were in common to both cell types (Fig. 3 F), of which 1,008 were annotated using the GO term tool PANTHER (Thomas et al., 2022) (Fig. 3 G). GO term GO:0030154 (cell differentiation) was among the top 10 enriched GO terms (Fig. 3 G and Table S1). Collectively, these data demonstrate that Ki67 deficiency results in genome-wide chromatin accessibility changes at stages of B cell development where V(D)J rearrangement occurs.

Although chromatin accessibility at the Igh and Igκ loci was largely unchanged in the absence of Ki67 (Fig. S3, A and B), we identified significantly decreased accessibility at a region of the Rag locus in Mki67^−/− pro-B and small pre-B cells annotated as a putative enhancer by the Immunological Genome Project (ImmGen) database (Yoshida et al., 2019) (Fig. 4, A and B). An accessibility peak of this region at the Rag locus was also detected in DN3 thymocytes according to the ImmGen database but largely absent in cells where Rag1/2 were not expressed, such as long-term hematopoietic stem cells (LT-HSC) and pre-pro-B cells (Fig. S3 C), consistent with a RAG-related function. We reasoned that if the reduced chromatin accessibility of the putative enhancer for the Rag locus was reflected in its activity in Mki67^−/− pro-B and small pre-B cells, there would be an impact on expression of Rag1 and/or Rag2. This possibility was assessed by RT-qPCR for both Rag1 and Rag2 and revealed that indeed Rag1 mRNA expression in Mki67^−/− pro-B and small pre-B cells was decreased approximately twofold in comparison with WT; the expression of Rag2 was unaltered (Fig. 4 C). In contrast, the mRNA expression of the B cell lineage specification factor, Pax5, was not different between strains (Fig. S3 D), despite reduced accessibility at this gene locus in Mki67^−/− B cell progenitors. Hence, Ki67 deficiency significantly alters chromatin accessibility at the Rag locus, and Rag1 expression is selectively reduced in B cell progenitors.

Having determined reduced Rag1 mRNA expression in Ki67-deficient B cell precursors, we assessed if there was an effect on Ig gene rearrangement. Ig gene rearrangement is tightly regulated during development with rearranged D_H to J_H at both Igh alleles in pro-B cells and V_H to DJ_H rearrangements leading to one productive Igh allele per cell in large pre-B cells (Fig. 4 D) (Mostoslavsky et al., 2004). We used qPCR to assess the loss of DNA that follows the joining of D_H to J_H segment clusters or of V_H to D_H elements. Pro-B and large pre-B cells were sorted from Mki67^−/− and WT BM (as per Fig. 2), and genomic DNA was extracted. Sorted large pre-B cells were confirmed as such by expression of intracellular μ chain (Fig. S3, E and F), reflecting successful V_HD_HJ_H rearrangement at one Igh allele and confirming the coordination of gene rearrangement and this B cell developmental stage. After normalizing for cell input, we determined that in Mki67^−/− pro-B cells, the DNA between the D_H and J_H clusters was overrepresented compared with WT cells, meaning reduced D_HJ_H rearrangements compared with WT cells (Fig. 4 E). Similarly, Mki67^−/− large pre-B cells retained a comparative excess of germline DNA positioned between the V_H and D_H segment clusters, indicative of an underrepresentation of V_HD_HJ_H rearrangements (Fig. 4 F). We also noted a significant reduction in the relative frequencies of V(D)J rearrangement between all the J_H segments and the distal V_HJ558 (V_H1) cluster in Mki67^−/− pre-B cells (Fig. S3 G), consistent with abnormalities in receptor gene rearrangement. While there may be pathways compensating for the loss of Ki67 in in vivo cell proliferation, possibly explaining why other hematopoietic lineages are unaffected, that no such compensation is possible in V(D)J rearrangement emphasizes the sensitivity of developing lymphocytes to abnormalities in this unique process. Collectively, these data demonstrate that Ki67 deficiency reduces V(D)J gene rearrangement during B cell development, and this is correlated with altered chromatin and reduced expression at the Rag locus.

We reasoned that if impaired gene rearrangement contributed to impeding B cell development in the absence of Ki67, this would be reversed by pre-rearranged Ig chains. Accordingly, we separately crossed the Mki67^−/− alleles onto the Rag1^−/−SW_HEL-HC^Ki/Ki background, homozygous for pre-rearranged Igh alleles, and onto the Rag1^−/−SW_HEL-HC^Ki/KiLC^Tg/+ background bearing pre-rearranged alleles at both Igh and Igκ loci (Phan et al., 2003). In Mki67-sufficient, Rag1-deficient mice, B cell development in the presence of a pre-rearranged Igh allele comprised pre-pro-B and large and small pre-B, with the pro-B cell stage being absent (Fig. 5, A and B). When pre-rearranged Igh and Igκ alleles were both present, B cell development comprised pre-pro-B and immature B with pro-B and pre-B stages absent (Fig. 5, C and D). Importantly, in Mki67^−/−Rag1^−/−SW_HEL-HC^Ki/Ki mice, the pre-rearranged H chain restored the number of large pre-B cells to that in Mki67-sufficient controls (Fig. 5, A and B), while small pre-B cell numbers recovered from a nine-fold deficit as seen in Mki67^−/− mice without the pre-rearranged H chain (Fig. 2 E) to a three-fold deficit (Fig. 5, A and B), indicating a possible role for Ki67 in this compartment outside gene rearrangement. While this remains undefined, we noted an increase in apoptosis in small pre-B cells in the absence of Ki67 (Fig. S3, H and I), which is in line with the moderate increase of active Caspase-3 in Mki67^−/− mouse tumors (Mrouj et al., 2021). The presence of pre-rearranged Igh and Igκ alleles fully reversed the deficit of immature B cells in BM of Mki67-deficient mice (Fig. 5, C and D). Interestingly, B cell representation was also equal in the spleens of Mki67-sufficient and -deficient Rag1^−/−SW_HEL-HC^Ki/KiLC^Tg/+ mice (Fig. 5 E). Hence, our results identify a novel role for Ki67 in facilitating gene rearrangement at the antigen–receptor loci, thereby permitting normal B lymphocyte development.

Despite correctly configured lymphocytes being fundamental to immunity, our understanding of their development and the factors regulating it remains incomplete as exemplified by our finding Ki67 to be an important component. Using a novel, germline knockout mouse strain, we comprehensively characterized the lymphoid compartment in Mki67^−/− mice, observing for what we believe is the first time that Ki67 is required for normal V(D)J rearrangement. While the requirement is not absolute in that both mature T and B cells are present in the periphery, the efficiency of development is impeded dramatically in both lineages. That B cell development in Mki67^−/− mice is completely restored by the provision of pre-rearranged genes encoding H and L chains strongly indicates that the nature of the defect is gene rearrangement itself, which is further implicated by our finding of altered chromatin accessibility at the Rag locus and reduced mRNA expression of Rag1.

V(D)J rearrangement is a multistep process requiring chromatin remodeling for accessibility and large-scale changes in 3D genome architecture such as antigen receptor locus compartmentalization and contraction (Bossen et al., 2012; Johanson et al., 2019). Here, we show that Ki67 deficiency disrupts chromatin accessibility in B cell progenitors, especially at the stages representing developmental checkpoints associated with V(D)J rearrangement. Although chromatin accessibility to the antigen–receptor loci in the developing B cells is unaltered in the absence of Ki67, accessibility to regions corresponding to critical genes involved in lymphocyte differentiation is partially decreased in Mki67^−/− pro-B and small pre-B cells, including at a putative enhancer for Rag1/2. This in turn is associated with disrupted mRNA expression of one of these essential factors, Rag1, and with impaired V(D)J rearrangement. Interestingly, partial RAG deficiency in humans results in impaired B cell development and restricted B cell receptor (BCR) repertoire (Csomos et al., 2022). This is in line with our data showing that decreased mRNA expression of Rag1 in Mki67^−/− pro-B and small pre-B cells is associated with both altered efficiency in the extent of gene rearrangement at the Igh locus and dysregulated usage of V_H segments in completed V(D)J rearrangements, indicative of an altered BCR repertoire in those cells. While our proposed mechanism is based on experimental evidence, a limitation is that it has not been formally demonstrated that a partial decrease of Rag1 expression (approximately two-fold) as seen in Mki67^−/− pro-B and small pre-B cells fully accounts for the defects in B cell development in Mki67^−/− mice. Equally, it has yet to be proven that the same mechanism will explain the deficit in Mki67^−/− thymocytes. It is also important to note that first, development itself largely was intact in Mki67^−/− B cell precursors since all large pre-B cells were positive for intracellular Ig μ H chain, and second, there were few impediments to Mki67^−/− B cell development outside of Ig gene rearrangement since it progressed to completion following provision of pre-rearranged H and L chains. However, it remains to be determined whether those Mki67^−/− cells that successfully complete gene rearrangements then function normally in the periphery.

While changes in 3D genome architecture are required for gene rearrangement (Johanson et al., 2019), previous Hi-C data from Ki67-depleted cancer cell lines did not reveal detectable effects on 3D genome interactions (van Schaik et al., 2022). Of course, this does not exclude cell type–specific genome architectures being maintained by Ki67 but rather that any contribution of Ki67 in maintaining 3D genome organization in different cell types and/or in specific biological processes remains to be resolved. It is worth noting here our finding that a pre-rearranged Igh allele restored large but not small pre-B numbers in Mki67^−/− mice. While we observed increased apoptosis in this exact cell stage of Mki67^−/− B cells, which possibly accounts for the continued deficit, it indicates that there are non-rearrangement functions for Ki67. Curiously, this attribute was only apparent in small pre-B stage as a normal number of immature B cells was generated in the absence of Ki67 when both transgenic H and L chains were present. That is, this non-rearrangement activity of Ki67 is apparently quite limited in stage as well as in scale.

Taken together, our discovery of a distinct role for Ki67 in sustaining proper V(D)J rearrangement during lymphocyte development expands the knowledge of the physiological function of Ki67 and reinforces the importance of this fundamental biological process for a complete immune system.

Mice were bred and maintained in specific pathogen–free facilities of the Monash University Animal Research Platform, Melbourne, Australia. Mki67^−/−, Rag1^−/−SW_HEL-HC^Ki/Ki, Rag1^−/−SW_HEL-HC^Ki/KiLC^Tg/+, B6.SJL-^Ptprca/^Ptprca (CD45.1), and C57BL/J6 (CD45.2) mice were used in the study. Animal housing and all experiments were conducted in accordance with ethics protocols approved by the Alfred Research Alliance Animal Ethics Committee or Ozgene Animal Ethics Committee. Both female and male mice were used, sex- and age-matched across experiments.

The targeted embryonic stem cells were microinjected into goGermline (Koentgen et al., 2016) (Ozgene) blastocysts and transferred into pseudopregnant recipients. Each injection session consisted of transfers to two recipients, with each receiving ∼12 blasts in the transfer. The resultant offspring were assessed for chimerism. Male chimeras were crossed directly to a ubiquitous Cre strain (C57BL/6J-(ROSA)^{26Sortm1(Ubic-CRE)Ozg/Ozg}) at 6 wk of age. The crossing generated the first heterozygous knockout mice (Mki67^+/−), which were then intercrossed to produce the homozygous knockout line (Mki67^−/−). The H&E histology of the various tissues (Fig. S1 H) was performed and scored by Cerberus Sciences.

For BM reconstitution, recipient mice received 2 × 4.25 Gy doses of x-ray radiation 3 h apart and were then intravenously injected with 2 × 10⁶ total BM cells from gender-matched donor mice. Mice received 1.622 mg/ml neomycin trisulfate salt hydrate (Sigma-Aldrich) in sterile water ad libitum for 2 wk after reconstitution.

Spleens and BM were dissected and processed as described (Robinson et al., 2023). Briefly, splenocyte suspensions were treated with red blood cell lysing buffer (156 mM NH₄Cl, 11.9 mM NaHCO₃, and 97 μM EDTA; pH = 7.3), washed in flow buffer (0.5% bovine serum albumin and 2 mM EDTA [Sigma-Aldrich] in PBS), and filtered through a 50-μm nylon mesh. BM cells were eluted from femurs by flushing with flow buffer and filtered through nylon mesh. BM samples were used without red blood cell lysis.

Cells were lysed and RNA extracted following the manufacturing instructions of the Qiagen RNeasy Plus Micro Kit. First-strand cDNA synthesis was performed as described (Robinson et al., 2019). cDNA samples were diluted as 1:2 with TE buffer (10 mM Tris and 0.1 mM EDTA) for use in qPCR. Reactions were set up per standard assay protocols from Integrated DNA Technologies (1× gene expression mastermix, probes at 250 nM, primers at 500 nM for both target and housekeeping assays) in a total volume of 20 μl, and cycling parameters were set as 95°C for 3 min followed by 45 cycles of 5 s at 95°C and 30 s at 62°C. Data were generated and analyzed by Thermo Fisher Scientific QuantStudio6 Real-Time PCR system utilizing the ΔΔCT (cycle threshold) method where ΔCT values were first calculated as CT_target − CT_Housekeeping and then further normalized against CT values of one of the WT pro-B cells samples. All data points were finally normalized by fold change against the mean of the 2^−ΔΔCT values of the WT pro-B cells samples in each experiment. Probes and primers used were as below. The probe for the housekeeping gene was conjugated with Cy5 and probes for Rag1 and Rag2 were conjugated with fluorescein amidite (FAM) (all from Integrated DNA Technologies).

• Primer (reverse) 5′-GTC​GCA​GCT​CTT​AAT​ACC​CAT-3′

• Primer (forward) 5′-GAT​CAC​CAT​CCA​CTT​ACC​ATC​C-3′

• Probe 5′-CCG​TCA​CTG​CAC​AGA​AGT​ACC​GTT-3′

• Primer (reverse) 5′-GAA​TTT​CAT​CGG​GTG​CAG​AA-3′

• Primer (forward) 5′-AAC​CAA​GCT​GCA​GAC​ATT​C-3′

• Probe 5′-TTG​CCG​TCT​ACC​CTG​AGC​TTC​AG-3′

• Primer (reverse) 5′-ACA​AGT​TAG​CAG​GGC​GTA​TAT​T-3′

• Primer (forward) 5′-CTT​CAG​GAT​GGG​CTG​TCT​TT-3′

• Probe 5′-TTT​GGG​AGG​ACA​CTC​ACT​TGC​CA-3′

• Primer (reverse) 5′-ATT​CGG​CAC​TGG​AGA​CTC-3′

• Primer (forward) 5′-CTC​ATA​CTC​CAT​CAG​TGG​CAT​C-3′

• Probe 5′-ACA​CCA​ACA​AAC​GCA​AGA​GGG​ATG-3′

Cells were first lysed in 50 μl lysis buffer (1 mM EDTA, 10 mM Tris-HCl, pH 8.0, 40 mM NaCl, 0.1% SDS, and 90 µg/ml Proteinase K) at 56°C shaking at 225 rpm for 30 min and then heat-inactivated for 10 min at 95°C. Samples were diluted as 1:2 with TE buffer for use in qPCR. Reactions and cycling parameters were set up per standard assay protocols from Integrated DNA Technologies as described above. As a control, a sequence downstream from the Igh locus, not targeted by V(D)J recombination, was used as described (Braikia et al., 2014). Data were generated and analyzed by Thermo Fisher Scientific QuantStudio6 Real-Time PCR system utilizing the ΔΔCT method where ΔCT values were first calculated as CT_target − CT_Housekeeping and then further normalized against CT values of one of the WT samples. The probes and primers used were as below. The probe for the housekeeping sequence was conjugated with hexachlorofluorescein, and the probes for target sequences were conjugated with FAM (all from Integrated DNA Technologies).

• Primer (reverse) 5′-GGG​CCC​ATC​CAG​TTG​AAT​TA-3′

• Primer (forward) 5′-ACC​AAA​CCC​ATC​CCA​AAG​T-3′

• Probe 5′-AGT​GGC​ATC​CAA​GCC​TCA​GAA​ACT-3′

• Primer (reverse) 5′-AAA​TGA​ATG​TGG​TGA​TTG​GCC-3′

• Primer (forward) 5′-GGG​GAG​ATC​CAT​GAA​GAG​AAG-3′

• Probe 5′-CGA​GTA​GGT​GAG​CTA​GAG​TAG​CCT-3′

• Primer (reverse) 5′-CCTGGGRCTTCAGTGAA-3′

• Primer (forward) 5′-CAG​AAT​GGA​ATG​TGC​AGA​AAG​A-3′

• Probe 5′-AAA​GCC​AGC​TTA​CCT​GAG​GAG​ACG-3′

• Primer (reverse) 5′-CCTGGGRCTTCAGTGAA-3′

• Primer (forward) 5′-GAA​GAG​AGA​GGT​TGT​AAG​ACT​C-3′

• Probe 5′-ACC​TGA​GGA​GAC​TGT​GAG​AGT​GGT-3′

• Primer (reverse) 5′-CCTGGGRCTTCAGTGAA-3′

• Primer (forward) 5′-GAA​TGG​GAG​AAG​TTA​GGA​CTC​A-3′

• Probe 5′-CCT​GCA​GAG​ACA​GTG​ACC​AGA​GTC-3′

• Primer (reverse) 5′-CCTGGGRCTTCAGTGAA-3′

• Primer (forward) 5′-AGA​CCT​GGA​GAG​GCC​ATT-3′

• Probe 5′-AGG​AGA​CGG​TGA​CTG​AGG​TTC​C-3′

• Primer (reverse) 5′-GGC​TCC​AAA​GAA​TGC​AAG​AAC-3′

• Primer (forward) 5′-TGA​CTA​GGT​TCG​CAG​GAG​A-3′

• Probe 5′-ACG​GAG​TCT​CAC​CAG​CAC​ACA​C-3′

DNA samples were digested with XbaI overnight and separated on a 1% agarose gel. DNA was transferred onto 0.45-µm Biodyne B Nylon Membrane (Thermo Fisher Scientific) and hybridized with 40 ng p32-dATP labeled probe overnight at 42°C under stringent conditions (10% dextran sulfate, 50 mM Tris-HCl, pH 7.5, 1 M NaCl, 1% SDS, 50% formamide, 2% polyvinylpyrrolidone, 0.2 mg/ml sheared salmon sperm, 2% Ficoll, 1% trisodium phosphate dodecahydrate). Membranes were washed with low stringency wash solution at 42°C (0.1% saline sodium citrate and 0.1% SDS) followed by a high stringency wash (0.1% saline sodium citrate and 0.5% SDS) at 60°C. Membranes were exposed to an imaging screen-K (BioRad) for 48 h, and data were acquired with a Typhoon FLA (GE). Hybridization probes were generated as synthetic DNA gblocks (Integrated DNA Technologies) per the sequences below and radiolabeled with P32 using the Ambion DECAprime II kit (AM-1456, Applied Biosystems) and P32-dATP (Perkin Elmer).

5′ Probe:

5′-TCT​CCT​AAA​CTG​ACA​GAA​AGT​TCT​CTT​TTA​TTT​GTG​TCT​TGT​AAT​TAT​AAC​TAC​TTA​CAT​GAA​AAG​TAA​TTG​TGT​GTG​CTA​GTA​TTT​TCT​AAT​ATA​ATT​ATT​CTG​AAG​TAC​TAG​AAG​TCT​CCA​TCT​TTT​ATG​GTT​TCA​TAG​GCA​GTA​CTT​GTG​AAC​ATT​GCC​CTG​CCC​CTC​ATA​TCT​TGT​CAG​TCC​TTG​TGT​CGT​TAC​ACT​TAT​AAT​ATA​AAC​ATA​CTA​GTC​AAA​TTC​TGC​TAA​TAT​TTT​GAA​AAC​TTG​AGG​GTT​TCT​TTT​TTT​TTG​TTG​CAT​ACC​CTC​ATA​AAT​CCC​TT-3′.

3′ Probe:

5′-TCA​TCT​ACA​TTG​TTT​TGC​ATG​GGG​AAT​GAG​ATA​ATG​TAA​GCC​ATG​TTT​CCA​ATG​TTT​TCC​TTT​ATC​AGG​ACT​AAC​TGA​AAT​GTT​CAA​GAC​TCC​AGT​GAA​GGA​GAA​GCA​GCA​GCA​GAT​GAG​TGA​TAC​AGG​CTC​CGT​ACT​TTC​CAA​TTC​AGC​GAA​TTT​GTC​TGA​AAG​ACA​ATT​GCA​AGT​AAC​TAA​TTC​AGG​AGA​CAT​ACC​TGA​GCC​CAT​CAC​CAC​AGA​GAT​TTT​GGG​TTG​GTT​TAT​TTG​TCT​TTT​CCA​ATG​TTA​AAC​TTT​GGA​ATG​GAG​ACT​TGA​AGA​CTG​CCT​TTT​CTT​TAT​AGA​CAA​TAC​TGG​GTT​CCT​TCT​CTA​CAA​TAG​CTT​TTC​CTG​GTG​AAA​TGC​CGT​TTC​CAC​TTT​CTC​TGT​TCT​GTT-3′.

Cells were lysed in 2× Laemmli buffer (Cat#1610737; BioRad Laboratories) and the proteins separated on an Any kD Mini-PROTEAN TGX precast protein gel (Cat#4569036; BioRad Laboratories). Samples were transferred onto a Trans-Blot Turbo RTA Mini Nitrocellulose membrane (Cat#1704270; BioRad Laboratories), blocked with Blotto (5% skim milk powder, 0.1% Tween-20 in PBS), and incubated at 4°C overnight with primary antibodies (Table S2). Membranes were washed with 0.1% Tween-20 in PBS (PBST) and incubated with secondary antibodies (Table S2) for 1 h at room temperature and washed again with PBST. Immobilon Forte Western HRP substrate (Cat#WBLUF0100; Merck Millipore) was added for visualization, and images were acquired using a ChemiDoc imaging system (BioRad Laboratories).

Cell samples were first incubated with purified anti-FcγRII/III (clone 2.4G2) antibody and normal rat sera in 5 ml polystyrene tubes before stained with fluorescently labeled antibodies and molecules (Table S3). In some experiments, cells were subsequently fixed and permeabilized for cytoplasmic staining with the Cytofix/Cytoperm reagents (BD Biosciences). Singlets were identified according to forward and side scatter properties. Live cells were identified by exclusion with Fixable Viability dye efluor780 (Life Technologies). The data were analyzed using FlowJo software (Treestar, Inc.). For cell sorting by flow cytometry, samples were stained using fluorescently labeled antibodies and molecules (Table S3) and 10,000–50,000 pre-pro-B, pro-B, large pre-B, or small pre-B were sorted.

B cells were purified with the B cell negative isolation kit (Cat#130-090-862; Miltenyi Biotec) and labeled with 5 μM Cell Trace Violet (CTV, Cat#C34557; Life Technologies Australia Pty Limited). Cells were incubated at 37°C in 5% CO₂ for 3.5 days in 200 μl/well B cell medium under anti-CD40 antibody and IL-4 stimulation (Robinson et al., 2020).

Sorted pre-pro-B, pro-B, and small pre-B cells were pelleted, and a one-step permeabilization and tagmentation method was used as described (Di Pietro et al., 2022). Libraries were indexed and sequenced by a NovaSeq 6000 platform (Illumina). ATAC-seq data were processed with Nextflow pipeline (https://github.com/alexyfyf/atac_nf) (Yan et al., 2020). FASTQ files were quality-checked with FastQC (0.11.8) (Andrews, 2010) and trimmed with trimmomatic (0.39) (Bolger et al., 2014) to remove low-quality reads and bases, and adapter sequences. Trimmed FASTQ files were aligned to mouse genome (mm10) with bwa-mem (0.7.17-r1188), and low-quality (<Q30), duplicated and unmapped reads were removed (Li and Durbin, 2009). Filtered BAM files were shifted to account for the 9-bp gap of Tn5 binding and peak calling was performed using MACS2 (2.2.7.1) with the following parameters: −q 0.01 --nomodel --shift −75 --extsize 150 --call-summits --keep-dup all (Zhang et al., 2008). BAM files were converted to bigwig files for visualization using deepTools (3.5.0) with reads per genomic content normalization (Ramirez et al., 2016). Consensus peak set was obtained by merging peaks in at least two samples and binding signal matrix was obtained by counting and normalizing reads in the consensus peaks. DARs were obtained under DESeq2 framework in DiffBind (2.12.0) (false discovery rate < 0.05) (Stark and Brown, 2011). PCA plots were performed using normalized read counts in 123,596 consensus peaks. GO enrichment analysis was performed using PANTHER (Thomas et al., 2022). Public ATAC-seq data for LT-HSC and DN3 thymocytes and the annotations of putative enhancers at the Rag locus were obtained from the ImmGen database (Heng et al., 2008).

Flow cytometry plots were generated with FlowJo software, data were exported into Excel (Microsoft) and then into Prism (GraphPad Software) for graphing and statistical analysis. Inset numbers in flow plots are percent of the parent gate. P < 0.05 was considered significant throughout. Data on linear axes are shown as mean + standard deviation (SD), and data on log axes are shown as geometric mean with error bars indicating the geometric SD factor. Statistical tests applied are stated in figure legends. Figures were compiled using Adobe Illustrator.

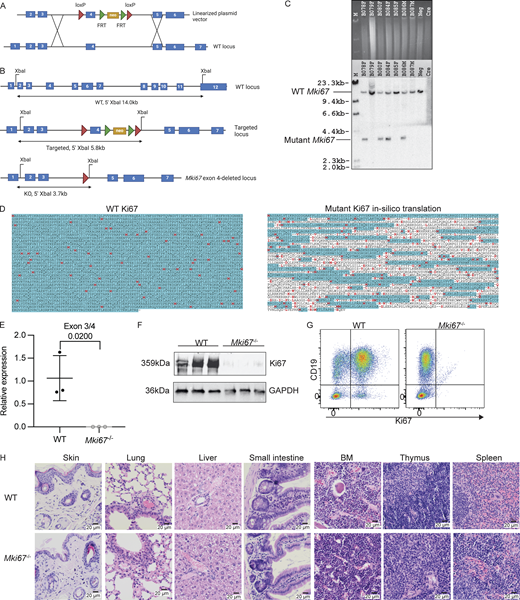

Fig. S1 shows the generation and validation of Mki67^−/− mice. Fig. S2 characterizes the defects in early B and T cell development in the absence of Ki67. Fig. S3 shows chromatin accessibility at the Igh and Igκ loci in WT and Mki67^−/− pro-B and small pre-B cells, chromatin accessibility at the Rag locus in LT-HSC, DN3, and WT and Mki67^−/− pre-pro-B cells from either ImmGen database or our own data. Fig. S3 also shows the mRNA expression of Pax5, an abundance of rearranged V_HJ558 with all J_H segments, intracellular μ chain expression, and apoptosis in WT and Mki67^−/− B cell progenitors. Table S1 shows annotated genes enriched in the GO term cell differentiation GO:0030154. Table S2 shows antibodies used in western blot and flow cytometry. Table S3 shows the antibody panel used in flow cytometry.

Raw ATAC-seq data underlying Figs. 3 and 4 are available on Gene Expression Omnibus with accession number GSE246986. All data are available in the article itself and its supplementary materials and are also available upon request from the corresponding authors.
