uPA-mediated remodeling of CCL21 gradients regulates lymphatic migration of dendritic cells

The migration of antigen-presenting dendritic cells (DCs) from peripheral tissues to draining LNs (dLNs) is important for the induction of adaptive immunity and for the maintenance of tolerance (Bauer et al., 2022; Permanyer et al., 2018). Although DCs continuously migrate to dLNs in steady-state, their migration is strikingly enhanced during inflammation or infection (Ohl et al., 2004; Vigl et al., 2011). Research over the past two decades has revealed that DC migration via afferent lymphatic vessels (LVs) occurs in distinct steps, which all highly depend on the chemokine C–C motif ligand 21 (CCL21) and its DC-expressed receptor C–C chemokine receptor type 7 (CCR7) (Arasa et al., 2021a; Förster et al., 1999; Permanyer et al., 2018) (Fig. 1 A). In peripheral tissues, CCL21 is exclusively produced by the lymphatic endothelial cells (LECs) and accumulates in vesicles of the trans-Golgi network from where it is secreted into the surrounding tissue (Weber et al., 2013). Upon secretion, CCL21’s highly positively charged C terminus immobilizes the chemokine on the negatively charged LEC glycocalyx or in the surrounding extracellular matrix (Bao et al., 2010; Vaahtomeri et al., 2017). This immobilization establishes a perilymphatic CCL21 gradient, which radiates up to 50 µm into the tissue. In skin explants, this gradient was shown to guide haptotactic migration of CCR7-expressing DCs toward the lymphatic vasculature (Weber et al., 2013). Besides attracting DCs toward lymphatics, CCL21 supports several other steps of lymphatic migration (Fig. 1 A), such as the docking of DCs to LECs of lymphatic capillaries (Tal et al., 2011) and guidance to LEC junctions (Liaqat et al., 2024), thereby initiating their transmigration into the capillary lumen (Lämmermann et al., 2008; Pflicke and Sixt, 2009).

Once within lymphatic capillaries, DCs need to actively crawl and migrate, as the flow in this compartment is too weak to sustain passive transport (Fig. 1 A). Intralymphatic DC crawling occurs in a semi-directed manner, following a flow-deposited, downstream-oriented intralymphatic CCL21 gradient that guides DCs into the direction of the collecting vessel segments (Russo et al., 2016). Here, flow increases due to LV contractions, allowing for DC de-adhesion and rapid, flow-mediated transport to the dLNs. Upon arrival in the LN subcapsular sinus (SCS) (Fig. 1 A), DCs sense yet another CCL21 gradient that guides them from the SCS into the CCL21-rich LN parenchyma (Ulvmar et al., 2014). The latter is established by the atypical chemokine receptor 4 (ACKR4), which is expressed in the LECs forming the ceiling of the SCS and scavenges CCL21 for internalization and degradation (Ulvmar et al., 2014).

In addition to full-length CCL21 forming these well-described immobilized gradients, emerging findings have revealed that CCL21 also exists in a cleaved form called CCL21 with truncated C terminus (CCL21-ΔC). The cleaved form lacks the 32–amino acid positively charged C terminus of full-length CCL21, is more soluble compared with full-length CCL21, and displays enhanced DC chemotactic activity at lower chemokine concentrations (Lorenz et al., 2016; Moussouras et al., 2020; Schumann et al., 2010). Originally, an in vitro study reported that DCs themselves can generate CCL21-ΔC, as demonstrated with recombinant full-length CCL21 or endogenous CCL21 present in LN tissue slices (Schumann et al., 2010). Only recently, the existence of CCL21-ΔC was also reported in vivo in the skin and in several other peripheral murine tissues (Bastow et al., 2021). Both endogenous full-length CCL21 and CCL21-ΔC were found to be scavenged by ACKR4, which in the skin is expressed in some fibroblasts, LECs, as well as in keratinocytes (Bastow et al., 2021). In ACKR4-deficient mice, CCL21-ΔC levels were increased in various peripheral tissues. Moreover, the immobilized perilymphatic CCL21 gradient was saturated, resulting in less directed migration and reduced DC entry into dermal lymphatics (Bastow et al., 2021). However, how CCL21-ΔC is generated in vivo and whether both variants work together in supporting DC migration in vivo is presently not known. Although the original report on CCL21 cleavage by DCs had indicated the contribution of a DC-expressed serine protease in this process, its precise identity remained unknown (Schumann et al., 2010). Other in vitro studies subsequently reported that human plasmin could cleave human CCL21 to CCL21-ΔC (Loef et al., 2022; Lorenz et al., 2016). The serine protease plasmin is well-known for its vital role in fibrinolysis and is generated in vivo from plasminogen through proteolytic cleavage mediated by either the tissue or the urokinase plasminogen activator (tPA and uPA). The latter serine proteases are expressed by numerous stromal and hematopoietic cells (Ismail et al., 2021; Urano et al., 2018). Conversely, plasminogen is exclusively produced in the liver and is present at high levels in blood (Deryugina and Quigley, 2012).

This study was sparked by our unexpected finding that the immobilized dermal CCL21 gradient was markedly reduced during skin inflammation, while migration of adoptively transferred DCs from inflamed skin to dLNs was significantly enhanced. We show that this paradox is explained by CCL21 cleavage, which continuously occurs in steady-state skin and is strikingly increased under inflammatory conditions. We further demonstrate that CCL21 cleavage is plasmin/uPA/uPA receptor (uPAR) dependent and that the resulting soluble and immobilized CCL21 gradients jointly fine-tune DC migration.

The role of the immobilized perilymphatic CCL21 gradient in guiding DC migration toward lymphatics has mainly been studied using so-called crawl-in assays, where lipopolysaccharide (LPS)-matured, CCR7^hi bone marrow–derived DCs are applied in vitro to the dermal aspects of steady-state murine ear skin, leading to their migration along the immobilized CCL21 gradient into dermal lymphatics (Arasa et al., 2021b; Bastow et al., 2021; Holtkamp et al., 2021; Pflicke and Sixt, 2009; Weber et al., 2013). In contrast to this assay, CCR7^hi DCs in vivo primarily migrate in the context of tissue inflammation/infection, when DCs are matured by pathogen- or danger-associated molecular patterns (Bauer et al., 2022; Permanyer et al., 2018). To better reflect this physiological context, we performed crawl-in assays in murine ear skin that had been inflamed by inducing a contact hypersensitivity (CHS) response. CHS is a T cell–mediated inflammatory reaction triggered by sensitizing mice to a hapten (e.g., oxazolone) on the belly and paws, followed by challenge on the ear skin 5 days later, to elicit local T cell–mediated inflammation (Honda et al., 2013). Surprisingly, in the crawl-in assay, migration of fluorescent WT DCs into LVs was profoundly reduced when applied to CHS-inflamed skin compared with steady-state control (CTR) ear skin (Fig. 1, B and C). As expected, fluorescent CCR7^−/− DCs, which were simultaneously added, failed to migrate under either condition (Fig. 1, B and C). Since DC migration to dLNs is well established to increase under inflammatory conditions (MartIn-Fontecha et al., 2003; Ohl et al., 2004; Vigl et al., 2011), we wanted to exclude the possibility that the reduced lymphatic entry observed in inflamed skin was due to compromised DC quality. To this end, we performed a competitive adoptive transfer by injecting equal numbers of LPS-matured, fluorescently labelled WT and CCR7^−/− bone marrow–derived DCs into CTR or CHS-inflamed footpads and analyzed their numbers in popliteal dLNs 24 h later. LN weight and cellularity were increased in LNs draining CHS-inflamed footpads (Fig. 1, D and E). Consistent with the literature, WT DC migration to popliteal dLNs was significantly enhanced under inflammatory conditions (Fig. 1, F–G), confirming the functional quality of our DCs. However, in contrast to the crawl-in results (Fig. 1, B and C), in vivo DC migration was even more CCR7-dependent under CHS than CTR conditions (Fig. 1 H). Moreover, performing intravital microscopy in CTR or CHS-inflamed ear skin, we consistently detected more endogenous DCs inside of or colocalizing with inflamed dermal lymphatics than in CTR conditions (Videos 1 and 2). Thus, the enhanced DC migration observed in CHS-inflamed skin in vivo (Fig. 1 G) was not faithfully mimicked when performing the in vitro crawl-in assay in CHS-inflamed skin explants (Fig. 1, B and C).

Since DC migration toward lymphatics highly depends on CCL21, we investigated the immobilized extracellular perilymphatic CCL21 gradient by performing whole-mount immunofluorescence in fresh, non-permeabilized CTR and CHS-inflamed ear skin (Fig. 2, A–E). To quantify the CCL21 signal dependent on the distance from the LV, we generated vessel masks based on staining for the lymphatic marker LV endothelial hyaluronan receptor 1 (LYVE-1) (Fig. 2 B). This analysis revealed that immobilized perilymphatic CCL21 levels were markedly diminished in CHS-inflamed skin compared with CTR skin (Fig. 2 C). This decrease in CCL21 signal was particularly pronounced in immediate proximity of the lymphatics (Fig. 2 D), whereas no significant differences were observed at distances >30 μm from the LV (Fig. 2 E). It was previously reported that treatment of cultured LECs or skin explants with the proinflammatory cytokine TNF-α (Johnson and Jackson, 2010), or cellular contact between LECs and DCs (Vaahtomeri et al., 2017), enhances the secretion of CCL21 from intracellular stores in the trans-Golgi network. When PFA fixing and permeabilizing the tissue—a method that primarily visualize the large and intensively stained intracellular CCL21 deposits present in LECs (Fig. 2 F)—we found that both the number and the staining intensity of intracellular CCL21 deposits were significantly reduced in lymphatics present in CHS-inflamed compared with CTR skin (Fig. 2, G and H), indicating increased CCL21 secretion under inflammatory conditions.

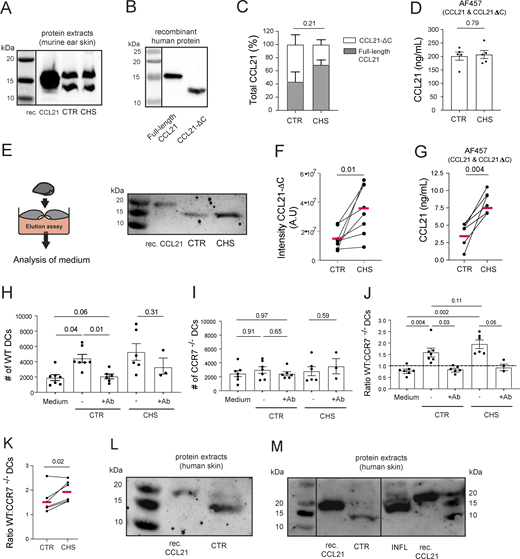

Our results indicated that more CCL21 was released from intracellular stores during inflammation (Fig. 2, F–H), while at the same time, the immobilized perilymphatic CCL21 levels were diminished (Fig. 2, A–E). To resolve this apparent discrepancy, we performed western blot analysis of tissue protein extracts of CTR and CHS-inflamed ear skin, which revealed two bands of CCL21 of approximately ∼15 and ∼11 kDa, respectively (Fig. 3 A). While the higher molecular weight band matched the size of recombinant murine and human CCL21 in western blot (Fig. 3 A), the lower molecular weight band was similar in size to that of recombinant human CCL21-ΔC (Fig. 3 B). The band ratio did not differ significantly between CTR and CHS-inflamed skin (Fig. 3 C). Moreover, ELISA with an antibody (AF457) recognizing both full-length and cleaved CCL21 (Bastow et al., 2021) revealed similar total CCL21 protein levels in both conditions (Fig. 3 D). In line with the notion that CCL21-ΔC is more soluble than full-length CCL21 (Bastow et al., 2021; Schumann et al., 2010), the lower CCL21 band could be eluted from the ear skin after 24 h of incubation in serum-free medium (Fig. 3 E). Western blot–based quantification of the band intensity indicated an increase of the truncated CCL21 proteoform upon tissue inflammation (Fig. 3, E and F). This finding was confirmed by ELISA performed on the elution medium (Fig. 3 G).

Whereas CCL21-ΔC retains its chemotactic activity (Hauser et al., 2016; Lorenz et al., 2016; Schumann et al., 2010), N-terminal truncation of CCL21 in the range of 32 amino acids reportedly diminishes CCL21-CCR7 binding (Love et al., 2012). In chemotaxis assays (Fig. 3, H–J), we observed that WT, but not CCR7^−/−, DCs migrated toward the supernatant of the ear skin elution assay, which could be abrogated by antibody-mediated blockade of CCL21 (Fig. 3, H–J). Although the migratory response toward the elution media was rather weak, a consistently higher ratio of WT:CCR7^−/− DC migration was observed toward elution media from CHS-inflamed as compared with CTR ear skin (Fig. 3 K). Taken together, these data confirmed that the cleaved CCL21 proteoform represented CCL21-ΔC and that its levels were increased in CHS-inflamed skin, i.e., under conditions in which in vivo DC migration was enhanced.

To assess the potential relevance of CCL21 cleavage in the human setting, we performed western blot analysis of tissue protein extracts from punch biopsies of healthy human skin. These findings demonstrated that also in human skin two variants of CCL21 exist in a steady state as well as in inflamed skin obtained from psoriasis patients (Fig. 3, L and M).

The fact that the decrease in perilymphatic CCL21 staining in CHS-inflamed skin was most pronounced immediately at the level of the lymphatics (Fig. 2, C–E) suggested that LECs might not only be the sites of CCL21 production but also of CCL21 cleavage. Since plasmin has previously been shown to cleave human CCL21 in vitro (Loef et al., 2022; Lorenz et al., 2016), we set out to investigate whether this protease might contribute to the generation of CCL21-ΔC in the skin. In vitro assays performed with human or murine recombinant plasmin confirmed plasmin’s ability to cleave human and murine recombinant CCL21 (Fig. S1, A and B). The reaction could be inhibited by the addition of the broad-spectrum serine protease inhibitor cocktail (PIC) or of the plasmin-selective cyclic peptide inhibitor “Compound 3” (C3) (Swedberg et al., 2019) (Fig. S1, C and D). By ELISA, we detected increased levels of plasminogen in protein extracts generated from CHS-inflamed skin as compared with CTR ear skin of PBS-perfused mice (Fig. 4 A). Moreover, a colorimetric assay showed that plasmin activity was increased in inflamed as compared with CTR skin protein extracts (Fig. 4, B and C). Overall, this suggested that in inflammation, more plasminogen extravasated into the tissue and was converted to plasmin in situ, possibly leading to plasmin-induced CCL21 cleavage.

Plasmin is generated through activation of its zymogen plasminogen by either tPA or uPA. Plasminogen-cleavage by tPA is strongly enhanced upon tPA binding to fibrin (Urano et al., 2018), whereas plasminogen cleavage by uPA is fibrin independent but strongly enhanced upon uPA binding to its cell surface–expressed receptor uPAR (Connolly et al., 2010; Ellis et al., 1991). Flow cytometric analysis confirmed presence of uPA, uPAR, and plasminogen on the surface of murine dermal LECs and other dermal cell types and revealed that their combined expression/presence was most consistently upregulated on LECs during CHS-induced inflammation (Fig. S2). Considering that LECs are also the source of CCL21 in the skin, we hypothesized that uPAR- and uPA-expressing LECs might be particularly relevant for uPA-mediated activation of extravasated plasminogen to plasmin, which in turn leads to CCL21 cleavage (Fig. 4 D). To test this hypothesis, we established an in vitro assay with immortalized LECs (Vigl et al., 2011), in which the cleavage of CCL21 was investigated in dependency of LEC-induced plasmin activation (Fig. 4 E). Like LECs in the skin, cultured immortalized LECs expressed uPA and uPAR (Fig. S3, A and B). Assays were performed with LEC monolayers cultured for 24 h in the presence of recombinant CCL21 and plasminogen (Fig. 4 E). Western blot analysis after 24 h revealed a conversion of CCL21 to CCL21-ΔC (Fig. 4, F and G). Notably, CCL21 cleavage did not occur when LECs were cultured in absence of plasminogen or upon incubating plasminogen with CCL21 in absence of LECs (Fig. S3 C). Addition of the broad-spectrum serine PIC completely abrogated CCL21 cleavage (Fig. 4, F and G), whereas addition of the plasmin-selective inhibitor C3 (Swedberg et al., 2019) or of the uPA-blocking antibody murine urokinase-neutralizing antibody (mU1) (Lund et al., 2008) resulted in delayed cleavage (Fig. 4, F and G). Overall, we concluded that LECs can activate plasmin, thereby inducing C-terminal cleavage of CCL21. Notably, the ability to cleave CCL21 was not restricted to LECs, as also bone marrow–derived DCs (Schumann et al., 2010) and keratinocytes avidly initiated cleavage of CCL21 upon addition of plasminogen (Fig. S3, D and E).

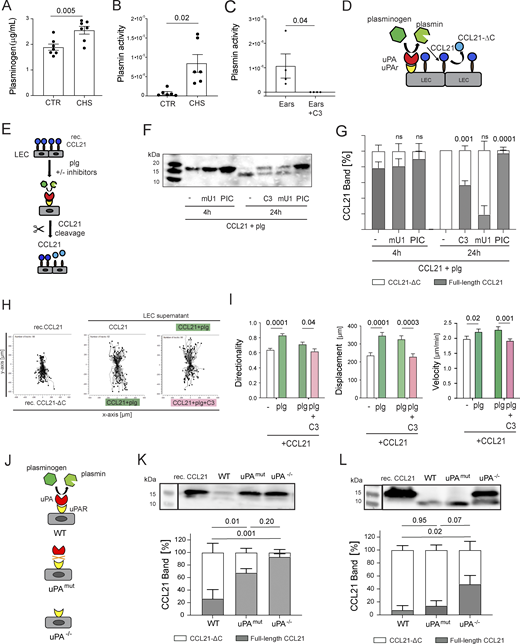

Since CCL21-ΔC was shown to induce stronger chemotactic responses in DCs than full-length CCL21 (Lorenz et al., 2016; Schumann et al., 2010), we next investigated the chemotactic activity of the CCL21 cleavage product generated by in vitro–cultured LECs (Fig. 4 E) in a 3D collagen migration assay (Purvanov et al., 2018). For this, LPS-matured bone marrow–derived DCs were fluorescently labelled and embedded in a collagen matrix between chemokine-containing media reservoirs on each side of the collagen-filled channel, allowing cells to migrate in response to the dominant attractant (Video 3). In agreement with previous reports (Lorenz et al., 2016; Schumann et al., 2010), DCs displayed higher chemotactic activity toward recombinant CCL21-ΔC than toward full-length CCL21 (Fig. 4 H). In the same setup, the supernatant of LECs incubated with “CCL21 + plasminogen” triggered more vigorous DC migration, migratory directionality, and velocity as compared with supernatant of LECs incubated with “CCL21” only, i.e., in absence of plasminogen (Fig. 4, H and I). Addition of C3 abrogated the enhanced migration toward CCL21 + plasminogen supernatant (Fig. 4, H and I). Overall, this indicated that LECs can activate extravasated plasminogen to plasmin, which in turn cleaves CCL21 into the variant CCL21-ΔC, which elicits stronger chemotactic responses (Fig. 4 D).

Plasmin exerts a variety of effects that could potentially influence DC migration independently of its role in CCL21 cleavage, as previously suggested (Ferrero et al., 2000; Li et al., 2010; Borg et al., 2015). To directly test this, we performed further in vitro assays examining the impact of plasmin on the migration of LPS-matured, bone marrow–derived DCs under conditions in which CCL21 cleavage was not relevant. Specifically, we assessed how plasminogen or plasmin affected DC chemotaxis and transmigration across LEC monolayers toward either CCL21-ΔC or CXCL12 presented in the bottom chamber of the Transwell plates. As expected, CCL21-ΔC induced more efficient chemotaxis and slightly enhanced transmigration compared with full-length CCL21 in these assays (Fig. S4, A and B). However, neither plasminogen nor plasmin significantly influenced DC chemotaxis (Fig. S4, C and D) or transmigration (Fig. S4, E and F) toward CCL21-ΔC or CXCL12. Similarly, the presence of plasminogen or plasmin did not affect active DC crawling on LEC monolayers, as determined by time-lapse imaging (Fig. S4, G and H; and Video 4). Importantly, the primary LECs used in these assays expressed virtually no residual endogenous CCL21, as this chemokine is rapidly downregulated in culture (Fig. S4 I). Taken together, these results indicated that in vitro, plasmin does not affect DC migration in a CCL21 cleavage-independent manner.

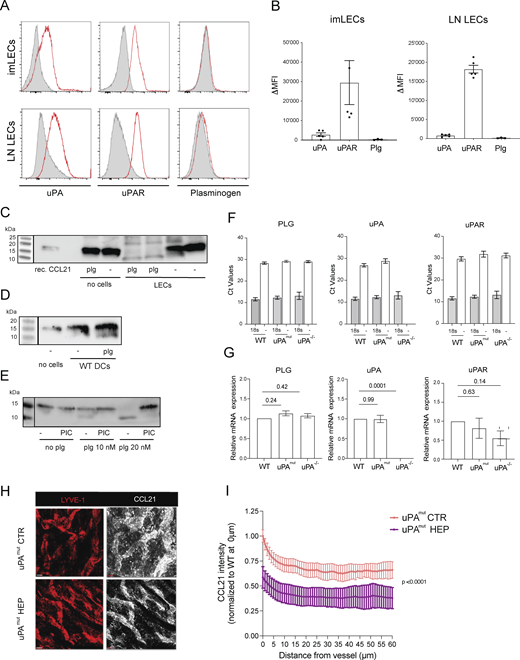

To further investigate the potential involvement of the uPA/uPAR pathway in LEC-mediated plasminogen activation and CCL21 cleavage, we next isolated primary LECs from LNs of either uPA knockout mice (uPA^−/−) (Carmeliet et al., 1994) or mice expressing a mutated uPA with a 400-fold decreased affinity for murine uPAR (uPA mutant [uPA^mut]) (Connolly et al., 2010) (Fig. 4 J and further characterization in Fig. S3, F and G). In uPA^mut mice, uPA-mediated cleavage of plasminogen to plasmin is severely compromised, whereas other biologic functions of uPA in tissue homeostasis and repair that occur independently of uPAR binding are normal (Connolly et al., 2010). In line with our experiments performed with immortalized LECs (Fig. 4 E), WT, uPA^−/−, and uPA^mut LN LECs were cultured in presence of recombinant CCL21 and plasminogen. Western blot analysis of culture supernatants revealed significantly reduced CCL21 cleavage at 4 h in assays using uPA^mut or uPA^−/− LN LECs compared with WT LN LECs (Fig. 4 K). At 24 h, the vast majority of CCL21 was cleaved in presence of WT and uPA^mut LN LECs, whereas cleavage remained significantly reduced in assays with uPA^−/− LN LECs (Fig. 4 L), confirming the contribution of LEC-expressed uPA to CCL21 cleavage (Fig. 4 D).

Similar findings as in the CHS model (Fig. 2) suggesting the contribution of LECs to the plasmin-mediated conversion of CCL21-ΔC were also made in an alternative murine inflammation model, namely, upon inducing skin inflammation by topical application of the irritant 12-O-tetradecanoylphorbol-13-acetate (TPA), a potent protein kinase C activator (Friess et al., 2022; Nakadate, 1989). Also in this inflammatory model, the levels of immobilized, perilymphatic CCL21 were most profoundly reduced in the immediate vicinity of LVs (Fig. 5, A–D). At the same time, the amount of CCL21-ΔC recovered from the medium after a 24-h elution assay was significantly increased (Fig. 5 E), indicating enhanced conversion of CCL21 to CCL21-ΔC. Furthermore, as in the CHS model (Fig. 4, A and B), TPA-induced inflammation resulted in elevated tissue plasminogen levels (Fig. 5 F), likely reflecting increased vascular permeability, and was accompanied by enhanced plasmin activity (Fig. 5 G).

To investigate whether loss of uPA or of its ability to bind to uPAR would affect the immobilized perilymphatic CCL21 gradient, we performed whole-mount immunofluorescence in the steady-state ear skin of uPA^−/− and uPA^mut mice. Notably, in the skin of CCR7^−/− mice, in which DC migration is profoundly reduced (Förster et al., 1999), the CCL21 gradient was identical to that observed for WT mice, indicating no contribution of migratory leukocytes to CCL21 cleavage in steady state (Fig. 6, A and B). In line with the gradient analyses reported by Bastow et al. (2021), the immobilized perilymphatic CCL21 gradient in ACKR4^−/− mouse skin was markedly elevated and saturated, consistent with impaired scavenging of dermal extracellular CCL21 in the absence of ACKR4 (Fig. 6, A and B). Gradient alterations were also observed in the ear skin of uPA^−/− and uPA^mut mice, where CCL21 signals were significantly higher than in WT mice, both immediately at the level of the LV and at 30 μm distance from the LV (Fig. 6, A–D). However, unlike the uniformly elevated and saturated gradient observed in ACKR4^−/− skin, the gradients in uPA^−/− and uPA^mut mice retained a more pronounced decline, resembling the profile seen in WT skin (Fig. 6 B). Specifically, the ratio of the CCL21 signal measured at 60 vs. 0 μm from the vessel was not significantly different between WT and uPA^−/− and uPA^mut mice but was but significantly higher in ACKR4^−/− mice (Fig. 6 E). This is likely explained by the continued activity of ACKR4 in dermal keratinocytes and fibroblasts, which contributes to CCL21 scavenging and gradient formation (Bastow et al., 2021), Notably, treatment of uPA^mut ear skin explants with heparitinase lead to a partial reduction of the CCL21 signal (Fig. S3, H and I), suggesting that full-length CCL21 continued to be immobilized via heparan sulfates, as previously described (Weber et al., 2013). Moreover, elution assays revealed significantly lower levels of CCL21-ΔC in culture supernatants from uPA^mut compared with WT ear skin, indicating reduced CCL21-ΔC tissue levels (Fig. 6 F). Also, treatment of WT mice for 24 h with the plasmin-selective inhibitor C3 and the uPA-blocking antibody mU1 resulted in a similar elevation of the CCL21 gradient (Fig. 6, G–J), revealing the plasticity of the CCL21 gradients in vivo. Thus, manipulation of uPA or of its cell surface localization resulted in accumulation of full-length CCL21 around lymphatics, while reducing dermal CCL21-ΔC levels.

The literature and our experimental data so far suggest that the presence of soluble CCL21-ΔC, forming a far-reaching gradient into the tissue, may be critical for recruiting DCs from more distant sites toward and into LVs. We therefore sought to investigate whether a shift in the CCL21 balance—from soluble CCL21-ΔC to more immobilized CCL21, as observed in uPA^mut mice (Fig. 6, A–F)—would negatively affect DC migration into dermal lymphatics. Since traditional in vitro crawl-in assays using bone marrow–derived DCs and ear skin explants (Fig. 1, B and C) capture only the effects of the immobilized, full-length CCL21, and since soluble CCL21-ΔC is not retained in the tissue upon exposing the dermal aspect, we instead examined the positioning of endogenous DCs (CD45⁺CD11c⁺) around lymphatics in intact skin by whole-mount immunofluorescence (Fig. 7 A). Specifically, we performed blinded image analysis to distinguish DCs in the interstitium, adhering to the outside of lymphatics or DCs within the LV lumen (Fig. 7, A and B). Quantification revealed a significantly lower percentage of DCs colocalized with lymphatics in uPA^−/− and uPA^mut compared with WT ear skin (Fig. 7 C). Similarly, the percentage of DCs found within the LV lumen was decreased in uPA^−/− and uPA^mut ear skin (Fig. 7 D). Overall, these findings indicated that the soluble and immobilized CCL21 gradients are continuously shaped by uPA-mediated CCL21 cleavage and that soluble CCL21-ΔC levels are critical for DC migration toward and into afferent lymphatics.

Besides DC chemotaxis and entry into afferent lymphatics, CCL21 gradients also guide intralymphatic crawling of DCs from capillaries toward lymphatic collectors (Russo et al., 2016) as well as DC egress from the SCS and migration into the CCL21-rich T cell zone (Braun et al., 2011; Ulvmar et al., 2014) (Fig. 1 A). Since DC entry into dermal lymphatic capillaries was compromised in uPA^−/− and uPA^mut mice (Fig. 7), it seemed likely that also the subsequent CCR7-dependent steps, such as egress from the SCS, might be altered upon impairment of CCL21 cleavage. We therefore next investigated CCL21 proteoforms in skin dLNs. In contrast to the skin, CCL21 was primarily present in its full-length form in protein extracts of LNs draining steady-state skin (Fig. 8, A and B). On the other hand, upon placing intact LNs in medium overnight (Fig. 8 C), only CCL21-ΔC eluted into the supernatant, indicating that mainly CCL21-ΔC was present in the SCS and connecting lymphatics. In agreement with this hypothesis, only CCL21-ΔC was detected by western blot in murine serum (Fig. 8 C). These results were also confirmed by performing ELISA with antibodies detecting either only full-length CCL21 or both CCL21 proteoforms (MAB457 and AF457, respectively [Bastow et al., 2021]) (Fig. 8 D). Overnight elution assays performed on intact LNs revealed significantly lower levels of CCL21-ΔC in the culture medium of uPA^mut LNs compared with WT (Fig. 8 E). We next investigated plasminogen levels and plasmin activity in LNs of WT and uPA^mut mice. Whereas plasminogen levels were similar in LNs from both genotypes (Fig. 8 F), plasmin activity was profoundly decreased in LNs from uPA^mut mice (Fig. 8 G), suggesting that uPA/uPAR/plasmin might similarly contribute to CCL21 cleavage in LNs. Surprisingly, when analyzing the immobilized, extracellular CCL21 levels in fresh LN sections prepared from WT and uPA^mut mice, no difference was observed in CCL21 intensities (Fig. 8, H and I). Overall, the reduced levels of CCL21-ΔC observed in LN eluates (Fig. 8 E) indicated that in steady state less CCL21-ΔC is present in the SCS in uPA^mut LNs, potentially facilitating CCR7-dependent DC exit across the SCS (Ulvmar et al., 2014).

To investigate how impairment of plasmin/uPA/uPAR-mediated CCL21 cleavage would affect overall DC migration to dLNs (Fig. 1 A), we performed FITC painting experiments in the ear skin of WT and uPA^mut mice. In this assay, the fluorescent dye FITC is applied to the skin and is taken up by dermal DCs, enabling the tracking of their migration to skin-dLNs. 24 h after FITC application, ear skin and ear-draining auricular LNs were harvested and enzymatically digested to quantitatively release DCs from both the LN parenchyma and SCS (Fig. S5 A) (Sokol et al., 2018). Flow cytometry–based quantification revealed no difference in absolute DC numbers in the digested ear skin of WT and uPA^mut mice (Fig. S5, B and C). Similarly, the percentage and number of total migratory DCs and of FITC⁺ migratory DCs in LNs were comparable between genotypes (Fig. 9, A–D, gating in Fig. S5 D), suggesting that the defect in DC entry into dermal lymphatics (Fig. 7) had been compensated during subsequent migratory steps (Fig. 1 A). However, immunofluorescence analysis of auricular LNs revealed that a higher proportion of FITC⁺ DCs were retained within the SCS in WT mice compared with uPA^mut mice (Fig. 9, E–G). To confirm that DCs in uPA^mut mice more efficiently entered the LN parenchyma from the SCS, we conducted additional FITC painting experiments, this time generating LN single-cell suspensions from mechanically dissociated, non-digested LNs. This approach has been shown to preferentially recover DCs from the LN parenchyma, but not from the SCS. Accordingly, comparing results from undigested with those from digested LNs provides a means to detect differences in SCS egress (Sokol et al., 2018). As expected, the total cell yield from non-digested LNs was significantly reduced compared with enzymatically digested samples (Fig. 9 H). In agreement with our microscopy-based analysis (Fig. 9, E–G), both the number and frequency of FITC⁺ DCs recovered from uPA^mut LNs were significantly higher than in WT LNs using this method (Fig. 9, I–L, gating in Fig. S5 E). Together, these findings showed that impairment of CCL21 cleavage enhanced DC exit from the SCS into the LN parenchyma, revealing that uPA/uPA/plasmin-mediated CCL21 cleavage regulates yet another CCR7-dependent steps important for DC migration (summarized in Fig. 10).

The chemokine CCL21 and its receptor CCR7 are considered the most important drivers of DC migration (Förster et al., 1999; Ohl et al., 2004; Permanyer et al., 2018). Although the contribution of full-length CCL21 to this process is well established, it was thus far unknown how CCL21-ΔC impacts in vivo migration and how this more soluble CCL21 variant, making it more effective at supporting chemotaxis, is generated in tissues. In this study, we demonstrate that uPA/uPAR/plasmin-mediated CCL21 cleavage is responsible for the generation of CCL21-ΔC in murine skin and that the balance between the two proteoforms regulates at least two CCR7-dependent steps in DC migration.

Our experiments suggest that tissue-immobilized and soluble CCL21 gradients act in concert in directing DC migration toward and into dermal lymphatics. The important contribution of CCL21-ΔC to this process explains why migration of adoptively transferred DCs from CHS-inflamed skin to dLNs was enhanced despite a strongly diminished immobilized perilymphatic CCL21 gradient. Conversely, perilymphatic accumulation of immobilized, full-length CCL21 combined with reduced CCL21-ΔC tissue levels in uPA^mut mice resulted in reduced DC migration into dermal afferent lymphatics. Together with our in vitro 3D-collagen chemotaxis assays, demonstrating efficient attraction of DCs by LEC-generated CCL21-ΔC, these findings support our conclusion that partial conversion of the immobilized full-length CCL21 to CCL21-ΔC supports steady-state DC migration toward lymphatics by forming an additional, far-reaching, and largely soluble gradient. Our findings provide in vivo support and expand a previous in vitro study showing that immobilized and soluble CCL21 cooperate for optimal DC migration (Schumann et al., 2010).

Tissue fluids are constantly transported from the interstitial space into draining lymphatics (Bazigou et al., 2014; Wiig and Swartz, 2012). Considering this, it might appear puzzling that CCL21-ΔC had any positive impact on DC migration and was able to establish a far-reaching perilymphatic gradient in the opposite direction of the interstitial fluid flow. In the case of full-length CCL21, the establishment of the perilymphatic gradient is thought to depend on CCL21’s strong cell surface and extracellular matrix-binding capacity, which is mainly attributed to its positively charged C terminus (Hjorto et al., 2016; Moore and Bertram, 2018). However, although the stickiness of CCL21-ΔC is strongly diminished, it is not completely abolished (Artinger et al., 2022; Artinger et al., 2023; Hjorto et al., 2016), suggesting that CCL21-ΔC still retains residual, transient tissue-binding activity that supports the formation of a soluble perilymphatic gradient. In line with this hypothesis, we found CCL21-ΔC levels to be significantly enhanced in CHS-inflamed tissues and reduced in uPA^mut mice (Fig. 10, A–C), indicating that also the more soluble chemokine is not immediately cleared from the tissue via lymphatic drainage.

Plasmin was previously shown to cleave CCL21 in vitro (Lorenz et al., 2016), and tPA on activated T cells has been implicated in this cleavage process (Loef et al., 2022). Here, we found that plasmin indeed cleaved CCL21 in vivo and identified a role for the second plasminogen activator, i.e., uPA, in plasmin activation leading to CCL21 cleavage in the skin. Although we detected uPA and uPAR on various cell types in the murine ear skin, we observed that their combined expression was most consistently upregulated in LECs under inflammatory conditions. The fact that LECs are at the same time the source of CCL21 makes them the most obvious major cell type responsible for CCL21 cleavage and likely explains the profound loss of CCL21 staining intensity observed right at the level of the lymphatics in CHS- or TPA-inflamed skin. Conversely, reduction of plasmin-mediated CCL21 cleavage in uPA^mut and uPA^−/− mice resulted in a pronounced accumulation of immobilized CCL21 around lymphatics (Fig. 10, A–C). Importantly, the same phenotype could be pharmacologically recapitulated by interfering with plasmin activation/activity for 24 h, revealing the dynamic nature of CCL21 cleavage and gradient regulation.

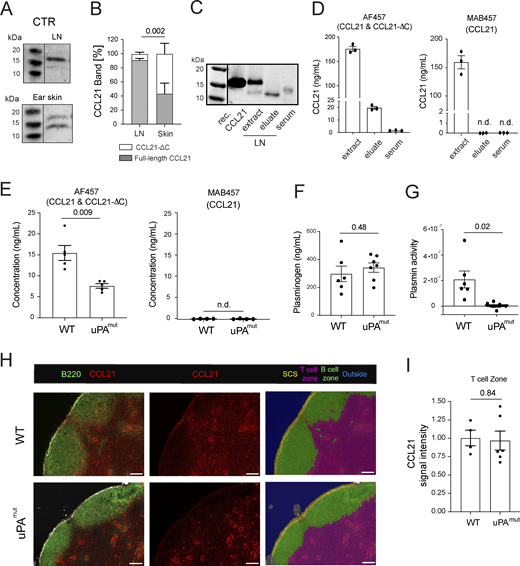

Our skin and LN elution experiments predominantly detected CCL21-ΔC, indicating that this is the principal CCL21 proteoform present in tissue fluids, such as in lymphatics, as well as in the SCS compartment. In line with this observation, it was recently found that skin-derived CCL21-ΔC accumulates in the SCS of the dLN (Bastow et al., 2021). In contrast to skin tissue, which was composed of both full-length CCL21 and CCL21-ΔC, only a minute fraction of CCL21 in steady-state LNs was present as CCL21-ΔC. We therefore suspect that CCL21 cleavage in dLNs occurs at a lower rate compared with the skin. This interpretation is supported by our immunofluorescence analyses, as we did not detect an accumulation of immobilized CCL21 in steady-state LNs of uPA^mut mice. Notably, the immobilized CCL21 signal in WT LNs was already very high, though, raising the possibility that the assay approached saturation and might therefore have masked subtle genotype-dependent differences. In contrast, we did observe a reduction in immobilized CCL21 levels in LNs draining CHS-inflamed skin, accompanied by increased plasminogen levels and plasmin activity (Fig.S5, F–I). Interestingly, two previous studies reported that during infection, CCL21 levels are profoundly downregulated in the spleen (Mueller et al., 2007) and in LNs (Chen et al., 2025), both at the protein and at the mRNA level. This indicates that regulation of CCL21 expression and availability in secondary lymphoid organs, where fibroblastic reticular cells are the main CCL21 producers (Li et al., 2021; Link et al., 2007), might be different from that in dermal afferent LVs.

Our experiments in uPA^mut mice demonstrate that continuous CCL21 cleavage around dermal lymphatics—and the resulting shift in the balance between immobilized full-length CCL21 and CCL21-ΔC—affects not only DC chemotaxis toward lymphatics but also subsequent migratory steps (summarized in Fig. 10). While DC entry into dermal lymphatic capillaries was reduced, the total number of DCs recovered from digested dLNs was comparable between uPA^mut and WT mice, suggesting that diminished CCL21 cleavage may have facilitated intralymphatic DC crawling sufficiently to compensate for reduced vessel entry. This effect could result from the lower abundance of CCL21-ΔC in lymphatic capillaries of uPA^mut mice, thereby improving haptotactic DC crawling along the flow-deposited immobilized CCL21 gradient (Russo et al., 2016), enabling DCs to reach collecting vessels more rapidly and be transported to the SCS with greater efficiency (Fig. 10, A and B). In the SCS, lower levels of skin-derived CCL21-ΔC in uPA^mut mice likely facilitate DC egress into the LN parenchyma by reducing soluble chemokine levels that would otherwise obscure the detection of parenchymal immobilized CCL21. This interpretation is further supported by findings from a recent study showing that in ACKR4^−/− mice, excess CCL21-ΔC from upstream tissues impairs DC emigration from the SCS into the LN parenchyma (Bastow et al., 2021).

Although our data identify plasmin as a regulator of in vivo DC migration through its ability to shift the balance between full-length, immobilized CCL21 and cleaved, soluble CCL21, it is important to note that plasmin exerts additional effects relevant to tissue dynamics. Beyond CCL21 processing, plasmin can degrade extracellular matrix proteins, activate latent matrix metalloproteinases, and modulate the activity of growth factors and cytokines, all of which could directly or indirectly influence DC migration within tissues (Heissig et al., 2020; Keragala and Medcalf, 2021). Our in vitro assays, examining DC crawling on LEC monolayers as well as DC chemotaxis and trans-endothelial migration toward CXCL21 or CCL21-ΔC, did not reveal further plasmin- or plasminogen-dependent effects on DC motility. Nevertheless, given the broad impact of plasmin on tissue homeostasis, we cannot exclude the possibility that additional plasmin-dependent pathways contribute to DC migration in the more complex in vivo environment.

Overall, our data reveal the highly dynamic nature of immobilized and soluble CCL21 gradients and how shifting their balance fine-tunes DC migration. But what could be the immunological benefit of such continuous gradient adjustments? Based on our findings, we suspect that under inflammatory conditions, where DC migration is enhanced, plasmin-mediated CCL21 cleavage rapidly shifts the balance toward more CCL21-ΔC, resulting in enhanced DC migration into lymphatics (Fig. 10). Conversely, once within capillaries, the presence of high levels of CCL21-ΔC would be expected to confound intralymphatic DC migration by obscuring haptotactic migration along the flow-deposited CCL21 gradient. Likewise, similarly as in ACKR4^−/− mice (Bastow et al., 2021; Ulvmar et al., 2014), DC exit from the SCS into the LN node should be compromised due to increased CCL21-ΔC levels in the SCS combined with reduced levels of immobilized CCL21 in the LN parenchyma. Considering that we found in vivo DC migration from skin to dLNs to be even more CCR7 dependent in CHS than under steady-state conditions (Fig. 1 and [Vigl et al., 2011]), a shift in the overall balance from full-length CCL21 to CCL21-ΔC during inflammation could serve to ensure in infection-induced settings that preferentially fully activated DCs—which would be expected to be CCR7^hi following direct pathogen-driven maturation and to present foreign antigen—reach the dLNs. In contrast, bystander-activated DCs, which might preferentially present self-antigens and express lower CCR7 levels due to a lack of direct contact with pathogenic constituents, would be expected to be at a migratory disadvantage. Although purely speculative at this point, this type of CCL21 gradient regulation could contribute to the maintenance of tolerance.

WT C57BL/6J mice were purchased from Janvier. CCR7^−/− (Förster et al., 1999), CD11c-YFP (Lindquist et al., 2004), Prox-1-mOrange (Hägerling et al., 2011), uPA^mut (Connolly et al., 2010), and uPA^−/− (Carmeliet et al., 1994) mice were bred in our facility. Prox-1-mOrange × CD11c-YFP were generated by intercrossing the parental mouse strains. All mice were housed in specific pathogen-free conditions at the facilities RCHCI and EPIC of ETH Zurich. Male and female mice ranging from 6–12 wk were used for experiments. All experiments were approved by the Cantonal Veterinary Office Zurich and performed under experimental licenses ZH 237/16, ZH 239/19, and ZH 053/2023.

The clone, catalogue number, concentration, and manufacturer of all primary and secondary antibodies used for flow cytometry, immunostaining, western blot, and ELISA are provided in Table S1.

Bone marrow–derived DCs were generated and cultured as previously described (Lutz et al., 1999). In brief, BM was isolated from femurs and tibia of WT or CCR7^−/− mice and cultured for 6–9 days on bacterial dishes in DC medium (Roswell Park Memorial Institute Medium [RPMI] 1640, 10% FBS, 15 nM HEPES, 1 mM sodium pyruvate, penicillin (100 U/ml), streptomycin (100 μg/ml), 2 nM L-glutamine, and 50 μM β-mercaptoethanol; purchased either from Gibco or from Sigma-Aldrich) in a humidified incubator at 37°C and 5% CO₂. The medium was further supplemented with granulocyte-macrophage colony-stimulating factor (GM-CSF) derived from the supernatant of myeloma cells (X63 Ag8.653) transfected with murine GM-CSF complementary DNA (cDNA) (Zal et al., 1994). The medium was exchanged on day 3 and on day 6. After 7–9 days, cells were transferred to TPP cell culture–treated plates (Thermo Fisher Scientific) to deplete the culture of macrophages, which adhere to the culture plate, and were treated overnight with 200 ng/ml LPS from Salmonella abortus equi S-form (Enzo Life Sciences) to induce DC maturation.

LN LECs were isolated from WT, uPA^mut, or uPA^−/− mice as previously described (Arasa et al., 2021b). In brief, pooled cervical, auricular, branchial, inguinal, and popliteal LNs from 2–4 adult mice were digested with 0.25 mg/ml Liberase DH (Roche) and 200 U/ml DNase I (Sigma-Aldrich) in RPMI medium (Gibco) for 1 h at 37°C while being mechanically disrupted by pipetting every 15 min. LN cell suspensions were filtered and plated in LN LEC medium (MEM alpha medium, 10% FBS, penicillin (100 U/ml), and streptomycin (100 µg/ml), all from Gibco) on TPP cell culture plates coated with collagen (10 μg/ml; Advanced BioMatrix) and fibronectin (10 μg/ml; Millipore). Cells were grown until confluency in a humidified incubator at 37°C and 5% CO₂, with regular media exchange to remove nonadherent cells. Subsequently, cells were detached with Accutase (Gibco), and endothelial cells were selected by CD31⁺ microbead selection, following the manufacturer’s protocol (Miltenyi Biotec). The identity of LN LECs was confirmed by flow cytometry–based analysis of CD31 and podoplanin expression using the rat-anti-mouse CD31 APC (clone MEC 13.3; BioLegend) and the Syrian hamster anti-mouse Podoplanin PE/Cy7 (clone 8.1.1, BioLegend) antibodies. LECs were cultured and used for in vitro assays up to passage four.

Immortalized LECs expressing a heat-labile version of the large T antigen (Vigl et al., 2011) were cultured in a humidified incubator at 33°C and 5% CO₂ on TPP cell culture plates coated with collagen (10 μg/ml; Advanced BioMatrix) and fibronectin (10 μg/ml; Millipore) in DMEM/F-12 GlutaMAX media, supplemented with 20% FBS (both from Gibco), 56 μg/ml heparin (Sigma-Aldrich), 10 μg/ml endothelial cell mitogen (AbD Serotec), antibiotic antimycotic solution (1×; FLUKA), and L-glutamine (2 nM; FLUKA). Additionally, murine IFN-γ(1 U/ml, PeproTech) was added to induce large T-antigen expression. For experimental assays, immortalized LECs were seeded on collagen- and fibronectin-coated dishes without IFN-γ and cultured in a humidified incubator at 37°C and 5% CO₂ for at least 24 h prior to starting the assays.

Isolated keratinocytes from mouse skin (kind gift of Marco Sesartic [ETH Zurich]) were cultured in keratinocyte media, consisting of three parts: a defined keratinocytes serum-free medium (Invitrogen) containing 1% penicillin/streptomycin (Invitrogen), 1 nM cholera toxin (Sigma-Aldrich), and 1 part of KGF media (MEM Eagle [Spinner modification, Sigma-Aldrich], 5 μg/ml insulin [Sigma-Aldrich], 10 μg/ml transferrin [Sigma-Aldrich], 1.4 μg/ml phosphoetanolamine [Sigma-Aldrich], 10 mM ethanolamine [Sigma-Aldrich], and 0.36 μg/ml hydrocortisone [Calbiochem]). 1% L-glutamine (Invitrogen), 1% penicillin/streptomycin (Invitrogen), 8% chelated FCS (Bio-Rad), 6.6 μg/ml CaCl₂ (Merck), and 1:1,000 epidermal growth factor (EGF). For coating, a solution containing human placenta collagen (1:40 in PBS) was used.

Surgical scissors were used to make incisions in the diaphragm and chest to completely expose the heart. A small incision was made on the right atrium, and a perfusion needle was inserted in the left ventricle; thereafter, PBS perfusion was started at a constant speed of ∼1 ml/10 s by manual push of the syringe. A total volume of 30 ml PBS was used for the perfusion of each mouse.

Blood was isolated from mice by cardiac puncture. After a 20-min incubation at RT, blood samples were centrifuged at 20.800 rcf for 15 min. Serum was separated from blood samples and thereafter stored at −80°C.

For most experiments, mice were euthanized, and the ears were shaved to remove hair. Harvested mouse ears were split along the cartilage and cut into small pieces with surgical scissors within 2-ml round bottom Eppendorf tubes. LNs were harvested and placed directly into tubes containing 300 μl tissue extraction buffer (150 mM sodium chloride [NaCl], 50 mM Tris-hydrochloride [Tris-HCl], 1× PIC [Roche]), and one metal bead (Qiagen, 5 mm). The tissues were mechanically disrupted for five times 1 min at 30 Hz on a tissue lyser (Qiagen), centrifuged at 16.900 rcf for 15 min at 4°C, and identical volumes of the supernatant were collected for further analysis. In some cases, specifically for plasminogen expression analysis by ELISA and western blot, as well as in plasmin activity assay, a transcardiac perfusion was performed immediately after euthanasia prior to tissue collection.

Mice were euthanized, and ears were shaved to remove hair. Ears were harvested and split along the cartilage before placing them with the dorsal side facing down into a 24-well plate containing 300 μl PBS. In the case of subsequent transwell chemotaxis assays, ear skin was placed into a 12-well plate containing 0.9 ml of AIM-V medium and incubated at 4°C on a shaker. After 16–24 h, the supernatant was collected for further analysis.

CHS-induced inflammation was elicited in two steps as previously described (Arasa et al., 2021b; Vigl et al., 2011). First, mice were anesthetized by inhalation of 2.5% isoflurane and sensitized with 2% oxazolone (Sigma-Aldrich) in acetone:olive oil (4:1) on the shaved abdominal skin (50 μl) and footpads (5 μl). Five to six days later, mice were anesthetized by inhalation of 2.5% isoflurane and challenged with 1% oxazolone in acetone:olive oil (4:1), 10 μl on each side of the ear and/or 10 μl on the footpad of the hind legs. Inflamed tissues or tissue-dLNs were analyzed 24 h later or used for further experiments.

Acute skin inflammation was induced by application of 2 μg of TPA (Sigma-Aldrich) dissolved in 10 μl acetone on the ventral and 10 μl on the dorsal side of the shaved murine ear skin. Inflamed tissues or tissue dLNs were analyzed 24 h later or used for further experiments.

To inhibit plasmin activation and plasmin activity, mice were treated with a combination of 6 mg/kg mU1 uPA-neutralizing antibody (Lund et al., 2008) and 4 mg/kg plasmin inhibitor C3 (Swedberg et al., 2019). Both compounds were co-administered in 50 μl PBS by intraperitoneal (i.p.) injections at 0 and 12 h of the experiment. CTR groups received PBS only. Mice were euthanized after 24 h.

For competitive adoptive transfer studies, LPS-matured WT and CCR7^−/− bone marrow–derived DCs were generated as described above and labelled with CSFE (final concentration 5 μM; Invitrogen) or DeepRed dye (final concentration 1 μM; Thermo Fischer Scientific), respectively. Labelling was interchanged in between experiments. Cells were mixed in a 1:1 ratio, and 0.75–1.5 × 10⁶ cells were injected s.c. in 5 μl PBS into the steady-state or CHS-inflamed footpads of WT mice. Footpad-draining popliteal LNs were harvested 18–24 h later, weighed, and passed through a 40-μm cell strainer to generate single-cell suspension. Single-cell suspensions were transferred into 15-ml Falcon tubes, and the volume of the single-cell suspensions was measured. After counting the cellularity (LUNA-FLTM Automated Fluorescence Cell Counter, Logos Biosystems), samples were centrifuged and distributed to 96-well U-bottom plates and incubated with anti-CD16/32 Fc-receptor blocking antibody (clone 93; BioLegend). Staining was performed with the following antibodies: anti-CD11c PE/Cy7 (clone N418), anti-I-A/I-E BV421 (clone M5/114.15.2), anti-CD45 APC/Cy7 (clone 30-F11), and zombie Aqua (all BioLegend). Samples were acquired on a Cytoflex S apparatus (Beckman Coulter) using CytExpert software and analyzed with FlowJo software 10.4.0 (TreeStar).

Mice were anesthetized by inhalation of 2.5% isoflurane and 20 μl of FITC (Sigma-Aldrich), dissolved at 5 mg/ml in acetone, and dibutyl phthalate (1:1; Sigma-Aldrich) was applied to each side of the ears. 18 h later, the ear-draining auricular LNs were harvested, passed through a 40-μm cell strainer, and the cells were counted. In experiments where further LN digestion was required, auricular LNs were enzymatically digested using DNAseI (100 µg/ml, Sigma-Aldrich), Collagenase P (200 µg/ml, Sigma-Aldrich), Dispase II (800 µg/ml, Sigma-Aldrich) in 50 ml RPMI (Gibco) supplemented with 1% FBS at 37°C for 60–75 min, as previously described (Sokol et al., 2018). Every 10 min, 1 ml of the supernatant was removed and added to cold “quenching buffer” consisting of 2 mM EDTA in RPMI (Gibco) supplemented with 1% FBS. The removed supernatant was replaced with the same volume of fresh enzyme mix. The process was repeated until no tissue fragments remained. LN cell suspensions were stained with PE/Cy7-labelled Armenian hamster anti-mouse CD11c, BV421-labelled rat anti-mouse MHC-II, and APC-labelled rat anti-mouse CD45 (all from BioLegend). Samples were acquired on a Cytoflex S, and the percentage and number of FITC⁺ and FITC⁻ migratory cells were analyzed in FlowJo software 10.4.0 (TreeStar).

Steady-state or CHS-inflamed ears of WT mice were split along the cartilage and cut into small pieces. The tissue pieces were digested in 4 mg/ml collagenase IV (Thermo Fisher Scientific) in PBS at 37°C for 45 min, passed through a 40-µm cell strainer, and washed with FACS buffer (PBS containing 1% FBS). Single-cell suspensions were stained on ice in FACS buffer according to the following four-step protocol (for 20 min each step, all antibodies from BioLegend unless indicated otherwise): (1) anti-mouse CD16/32 (Fc Block) (clone 93); (2) goat anti-mouse uPAR (polyclonal, AF534; R&D Systems), rat anti-mouse uPA (Clone 901420; R&D Systems), and goat anti-mouse kringle-5 plasminogen (polyclonal, AF742; R&D Systems); (3) donkey anti-rabbit/goat/rat Alexa 488/594/647 (all Invitrogen). (4) Rat anti-mouse CD31 BV421 (clone MEC 13.3; BD Pharmingen), rat anti-mouse CD45 APC/Cy7 (clone 30-F11; BioLegend), Syrian hamster anti-mouse Podoplanin PE/Cy7 (clone 8.1.1; BioLegend), and Zombie Aqua. Samples were acquired on a Cytoflex S apparatus (Beckman Coulter) using CytExpert software and analyzed with FlowJo software 10.4.0 (TreeStar).

For the analysis of LN LECs or immortalized LECs, cells were grown to confluency, washed thoroughly with PBS, lifted from cell culture plates with Accutase (Gibco), and resuspended in FACS buffer. The same, above-mentioned, staining protocol was followed but omitting step (IV) of the protocol.

Mice were sacrificed; the ears were shaved and depilated, harvested, and split into the ventral and dorsal sheets along the cartilage. Next, residual cartilage was removed, and ear halves were placed dermal side down into 24-well TPP plates.

Dorsal ear sheets were fixed at RT for 2 h in 4% PFA/PBS and washed twice for 30 min with 0.3% Triton X-100/PBS, followed by a 2-h incubation with “immuno-mix” (0.3% Triton X-100/PBS supplemented with 5% donkey serum [Sigma-Aldrich] and 5% BSA [Sigma-Aldrich]). The following primary antibodies were diluted in immuno-mix and added overnight at 4°C: rabbit-anti-mouse LYVE-1 (polyclonal, AngioBio), rat-anti-mouse CD31 (clone MEC 13.3; BD Pharmingen), and goat-anti-mouse CCL21 (polyclonal, R&D Systems). After washing four times with 0.3% Triton X-100/PBS for a total of 2 h, ears were incubated with donkey anti-rabbit IgG-BV421 (BioLegend), donkey anti-rat IgG-AF594, and donkey anti-goat IgG-AF647 (both from Invitrogen) at 4°C for 4 h. Samples were washed again for 2 h with 0.3% Triton X-100/PBS before mounting in Mowiol (Mowiol 4-88; Calbiochem).

Fresh dorsal ear sheets were incubated for 2 h in 1 ml 0.1% BSA in PBS before adding the following primary antibodies in 0.5 ml 0.1% BSA in PBS overnight at 4°C: rabbit-anti-mouse LYVE-1 (polyclonal, AngioBio), rat-anti-mouse CD31 (clone MEC 13.3; BD Pharmingen), and goat-anti-mouse CCL21 (polyclonal, R&D Systems). After washing four times with 1 ml PBS for a total of 2 h, ears were incubated with the following secondary antibodies in 0.5 ml 0.1% BSA in PBS at 4°C for 4 h: donkey anti-rabbit IgG-BV421 (BioLegend), donkey anti-rat IgG-AF594, and donkey anti-goat IgG-AF647 (both Invitrogen). Samples were washed again four times for a total of 2 h with 1 ml PBS before mounting in Mowiol (Mowiol 4-88; Calbiochem).

Imaging of whole-mount preparations was performed on a Zeiss LSM 880 inverted confocal microscope, equipped with the following objectives: 10× 0.3 NA, enhanced contrast (EC) Plan-Neofluar and 20× 0.8 NA Plan-Apochromat, or Zeiss LSM 780 upright confocal microscope, equipped with the following objectives: 10× 0.3 NA EC Plan-Neofluar Ph1 M27 and 20× 0.8 NA Plan-Apochromat M27 (all Carl Zeiss Microscopy). Images were acquired using ZEN 2012 software, and staining intensities were quantified with FIJI (ImageJ, 1.52p, [Schindelin et al., 2012]) in a blinded manner.

Intensities of interstitial CCL21 signals were quantified on maximum intensity projections ranging between 20 and 40 µm z-stacks with a z-step size of 1 µm. Distance gradients were computed using custom-written scripts in MATLAB, similar to as described previously (Holtkamp et al., 2021). In brief, first, capillaries of lymphatics were manually outlined by an experimenter blinded to the experimental condition. The results were converted into binary masks from which a Euclidean distance transform was computed to result in a distance gradient map, containing the shortest Euclidean distance of each non-masked pixel to the closest LV in pixel units, respectively. Using the pixel resolution of the acquired microscopy images, distance values were transformed into metric space in µm. The Euclidean distance transform masks were first rounded to integers in µm and then applied to the microscope images. Next, fluorescence intensities of pixels with the same integer distance were averaged to result in one distance gradient vector per image, containing the average fluorescence intensity per Euclidean distance from lymphatics in µm, and finally averaged across biological replicates per condition. Five images were taken from different locations within one mouse ear and averaged as one biological replicate. Samples were normalized to the CCL21 intensity at the WT vessel (0 µm) (or the uPA^mut vessel (0 µm) in the case of the heparitinase treatment performed—see below. Isotype stainings were taken as negative CTRs.

UPA^mut mice were sacrificed; the ears were shaved and depilated, harvested, and split into the ventral and dorsal sheets along the cartilage, and cartilage debris was removed. Next, ear halves were placed dermal side down into 24-well TPP plates containing 50 U/ml of heparitinase II (Sigma-Aldrich) in 1 ml RPMI (Gibco) and incubated for 2 h at 37°C. Subsequent blocking and staining were performed as described above.

Dorsal ear sheets were fixed at RT for 2 h in 4% PFA/PBS and washed twice for 30 min with PBS. The following directly coupled antibodies were diluted in PBS and added for 1 h: Armenian hamster anti-mouse CD11c PE (clone N418; BioLegend), rat anti-mouse LYVE-1 AF488 (clone ALY7; eBioscience), rat anti-mouse CD45 AF700 (clone 30-F11; BioLegend), and rat anti-mouse CD31 BV421 (clone MEC13.3; BD Pharmingen). Samples were washed again twice for 30 min with PBS before mounting with Mowiol (Mowiol 4-88; Calbiochem). Imaging of whole-mount preparations was performed on a Leica TCS SP8 inverted confocal microscope, equipped with the following objectives: 10× 0.3 NA PH1 HC PL FLUOTAR, 20× 0.7 NA PH2 HC PLAN APO, 20× 0.7 NA Oil/W/Glyc HC PLAN APO, 25× 0.95 NA L Water HCX IRAPO, 40× 1.1 NA Water HC PL IRAPO CORR, and 63× 1.4 NA Oil CS2 HC PL APO (all Leica Microsystems). 4–7 images were analyzed per ear. Images were acquired blindly using Leica LASX SP8 software. Localization and quantification of CD11c⁺CD45⁺ cells were performed with the Imaris software (Bit Plane) in a blinded manner.

Auricular LNs from adult WT and uPA^mut mice were harvested following FITC painting and embedded in OCT compound (Sakura Finetek). Freshly cut 10-µm cryosections were fixed for 10 min in 4% PFA, washed with TBS-T (0.3% Tween-20), and blocked for 1 h at RT in 3% BSA/0.1% Triton X-100 in PBS. Sections were incubated overnight at 4°C with rabbit anti-Lyve-1 (polyclonal, AngioBio) and Armenian hamster anti-CD11c (clone N418; Thermo Fisher Scientific) diluted in blocking buffer. The next day, slides were washed three times with PBS, blocked with 5% goat serum/0.1% Triton X-100 in PBS for 30 min at RT, and then incubated with secondary antibodies (goat anti-rabbit Alexa Fluor 594; goat anti-Armenian hamster Alexa Fluor 647; Invitrogen) and DAPI nuclear stain in 2% goat serum/0.1% Triton X-100 in PBS for 1–3 h at RT in a dark humidified chamber. Finally, slides were washed three times with PBS, mounted with Mowiol 4-88 (Sigma-Aldrich), and imaged on a Vectra Polaris slide scanner (Akoya Biosciences) using a 20× objective and a Hamamatsu C11440-50 Series camera. Multispectral images were acquired using PhenoImager HT software and unmixed and exported using INFORM software (v3.2.2, Akoya Biosciences). For each mouse LN, 3–6 representative images were acquired from different tissue depths, yielding a total of 61 images from 13 mice. Spectrally unmixed images were then analyzed using QuPath software (v0.5.1).

The cell segmentation procedure was adapted from a previously described protocol (Franken et al., 2024). Regions of interest were defined for each image, and tissue compartments were classified in QuPath (v0.5.1) using the built-in trainable pixel classifier to distinguish SCS, LN parenchyma, and background, with Lyve-1 staining used to differentiate SCS from parenchyma. Cell segmentation was performed using “StarDist” (Schmidt et al., 2018), a deep learning–based nucleus detection algorithm, applied to the DAPI channel. Segmented cells were subsequently assigned to their corresponding tissue compartments using the trained object classifier. Single-cell data (cell counts, densities, and spatial coordinates, as well as per-cell marker intensities) were exported from QuPath as .csv files. Data were processed in RStudio (v2024.12.1). Using the flowCore package (Bioconductor) the .csv files were imported, converted into flow cytometry standard (.fcs) format. The obtained FCS files were imported into FlowJo (v5, BD Biosciences) for gating and visualization. The gating strategy included: (1) all cells (based on DAPI positivity and cell area), (2) CD11c⁺ cells (CD11c–Alexa Fluor 647 with DAPI), and (3) FITC⁺ cells (FITC–Alexa Fluor 488 with DAPI). Gates were defined using cells from marker-negative areas to establish fluorescence thresholds (Fig. S5 J). Statistical analyses were performed as described below.

Inguinal LNs of adult (6–10 wk) WT and uPA^mut mice were embedded in OCT. Unfixed, freshly cut 10-μm sections were blocked with 5% donkey serum (D9663; Sigma-Aldrich) in PBS and stained immediately with goat anti-mouse CCL21 (AF457; R&D Systems, 13 μg/ml), rabbit anti-mouse LYVE-1 (polyclonal, AngioBio), and rat anti-mouse B220/CD45R (BD Pharmingen) in blocking solution for 1 h at RT, as previously described (Ulvmar et al., 2014). After a 10 min PBS wash, sections were incubated with secondary antibodies donkey anti-goat IgG-AF549, donkey anti-rabbit IgG-AF647, donkey anti-rat IgG-AF488, and Hoechst (all from Invitrogen) in blocking solution for 1 h at RT. After further PBS washing, sections were mounted with Mowiol (Mowiol 4-88; Calbiochem) and imaged on a slide scanner Akoya Vectra Polaris (Akoya Biosciences) with a 20× magnification and a Hamamatsu C11440-50 Series camera.

Multispectral images were acquired using PhenoImager HT software and analyzed using INFORM 2.6.0 (Akoya Biosciences), a machine learning–based trainable tissue segmentation tool. All stained slides were incorporated into the same INFORM project. Here, three different tissue categories were defined, based on the LYVE-1 and B220 staining, and trained on: “SCS” (i.e., tissue space between the LN border the LYVE-1⁺ SCS floor), “B cell follicle” (defined as B220⁺ area), and “T cell area” defined as nodal tissue not belonging to the SCS or B cell follicle. The CCL21 signal intensity data was combined with the tissue segmentation to allow downstream normalization of signal intensity to the area of each tissue category, i.e., SCS and T cell area. Exported data were analyzed using RStudio (Version 2023, Posit).

Western blot analysis of in vivo– and in vitro–derived protein samples was performed on Vertical Electrophoresis system (Bio-Rad, GenScript) with Stain-Free Precast Gels with a polyacrylamide gradient of 4–20% (BioRad, GenScript). In brief, samples were denatured by addition of 4× reducing Laemmli Sample Buffer (Bio-Rad) to a final concentration of 1×, prior to heating at 95°C for 5 min. Samples and protein ladder (Precision Plus Protein Dual Color, Bio-Rad) were loaded on gels, and electrophoresis was conducted for up to 2:45 h at 60 V. Protein transfer to a nitrocellulose membrane (0.2 μm, Bio-Rad) was performed as described by the manufacturers’ guidelines for 20–40 min at 19 V on a Bio-Rad Trans-Blot SD Semi-Dry Transfer Cell.

Membranes were incubated in 5% milk powder in PBS to block unsaturated protein-binding sites. The following primary antibodies were added in 5% milk powder in PBS: rabbit anti-mouse CCL21 (polyclonal, PeproTech), rabbit anti-human CCL21 (polyclonal, PeproTech), or goat anti-mouse kringle 5 plasminogen (AF742-SP; R&D Systems, polyclonal). Membranes were washed four times for 3 min each with 0.1% Tween20/PBS before adding secondary antibodies in 5% milk powder in PBS: donkey anti-rabbit IgG-HRP (Invitrogen) or rabbit anti-goat IgG-HRP (Invitrogen). Membranes were washed once again four times for 3 min each and afterward incubated for 5 min with Clarity Western ECL Substrate (BioRad) before imaging with a ChemiDoc MP Imaging System (BioRad). Western blot band intensities were quantified with the Image Lab software (V 6.0.1, Bio-Rad).

Murine recombinant CCL21 (#250-13; PeproTech) and recombinant murine plasmin (Molecular Innovations) at molar ratios of CCL21 to plasmin of 1:0.02–1:0.16 (starting with 100 nM CCL21 and 2 nM plasmin) were incubated in PBS or serum-free ProCHO medium (Lonza) for 4 h at 37°C. Reactions were stopped by addition of 4× reducing Laemmli Buffer (Bio-Rad). Samples were heated to 95°C for 2 min, followed by western blot analysis. Alternatively, a fixed molar ratio of CCL21:plasmin = 100 nM:8 nM was incubated for 0, 5, 10, 15, 30, 60, 120, 180, and 240 min at 37°C prior to addition of 4× reducing Laemmli Buffer, followed by heating to 95°C for 2 min and subsequent western blot analysis. In some cases, reactions were stopped by addition of the plasmin inhibitor “C3” at the indicated concentrations. The same experimental setup, with identical ratios and starting concentrations, was applied for recombinant human CCL21 (#300-35A; PeproTech) and recombinant human plasmin (Molecular Innovations).

For cloning of human CCL21-ΔC, corresponding to the amino acids 1–79 of mature CCL21, the previously published His6-SMT3-CCL21trunc (amino acids 1–74; [Hauser et al., 2016]) was amplified using the following primers: forward 5′-GGG AAT TGT GAG CGG ATA ACA ATT CCC CTC TAG AAA TAA TTT TG-3′ and reverse 5′-GGT GCT CGA GTC AGC CCT GGG CTG GTT TCT GTG GGG ATG GTG TCT TG-3′ inserting the missing five amino acids at the C terminus. Furthermore, XhoI and XbaI restriction enzymes were used to ligate His6-SMT3-CCL21-ΔC into the corresponding cutting sites of pSUMO. Subsequently, CCL21-ΔC was expressed and purified as previously described (Artinger et al., 2021). In brief, pSUMO His6-SUMO-hCCL21-ΔC was transformed and expressed in Escherichia coli BL21(DE3) RIPL at 37°C for 5 h after induction with 1 mM IPTG. Subsequently, bacterial cell pellets were dissolved and lysed in AFC lysis buffer (50 mM sodium phosphate, 300 mM NaCl, 10 mM imidazole, 2 mM tris(2-carboxyethyl)phosphine, and 1 mM PMSF, pH 8.0) before dissolving inclusion bodies in lysis buffer containing six guanidine HCl. Human chemokines were then separated from bacterial protein contaminants via immobilized metal ion chromatography and eluted by pH reduction before infinite dilution in refolding buffer (50 mM Tris, 150 mM NaCl, 10 mM L-cysteine, 0.5 mM L-cystine, 1 mM EDTA, 1 mM PMSF, and 10% glycerol, pH 8.5). Furthermore, native chemokine N termini were retrieved by Ulp1 protease cleavage of the His6-Sumo purification tag and additional cation ion exchange chromatography (CIEX) in CIEX buffer (100 mM Tris, pH 8.0). Ultimately, correctly folded and biologically active chemokines were polished via C18 reverse phase HPLC, lyophilized, and stored at −20°C.

The use of human samples for research purposes was approved by the local ethics commission Maasstad Hospital, Rotterdam, The Netherlands (study protocol number 55149.101.15.). Informed consent was obtained from all subjects involved in the study. Fat was removed from skin biopsies. Biopsies were cut into small fragments using surgical scissors and placed in tubes containing 300 μl tissue extraction buffer (150 mM NaCl, 50 mM Tris-HCl, 1× PIC [Roche]), and one metal bead (Qiagen, 5 mm). The tissues were mechanically digested for five times 1 min at 30 Hz on a tissue lyser (Qiagen), centrifuged at 16.900 rcf for 15 min at 4°C, and identical volumes of the supernatant were collected for further analysis. Gel electrophoresis and western blot were performed as described previously. For the detection of human CCL21, rabbit anti-human CCL21 (polyclonal, PeproTech) primary antibody and donkey anti-rabbit IgG-HRP (Invitrogen) secondary antibody were used.

The Mouse Plasminogen Total ELISA Kit (ab198511; Abcam) was used according to the manufacturer’s instructions. Briefly, protein extracts from ears and dLNs of CHS-inflamed and non-inflamed mice were diluted 1:50 in blocking buffer and added in 96-well flat-bottom wells. The plate was shaken at 300 rpm for 30 min and then washed three times with 1× wash buffer. Next, the plasminogen primary antibody was added to the wells, and the plate was shaken at 300 rpm for 30 min. The wells were washed three times with 1× wash buffer, and HRP secondary antibody was added, and the plate was shaken at 300 rpm for 30 min. The wells were washed three times with 1× wash buffer, tetramethylbenzidine (TMB) substrate was added to the wells for 1–5 min, and the reaction was quenched by the addition of 1 N sulfuric acid (H₂SO₄). The intensity of the signal at 450 nm was determined with an Infinite M200 PRO plate reader (Tecan). Plasminogen concentration in each sample was determined from the standard curve using GraphPad Prism software.

For the quantification of plasmin activity in CTR or CHS-inflamed tissue protein extracts, the plasmin activity kit (ab273301; Abcam) was used according to the manufacturer’s instructions. In brief, protein extracts from ears and dLNs of CHS-inflamed and non-inflamed mice were mixed with the assay buffer in 96-well flat-bottom wells, with a see-through bottom, and the substrate was added just prior to starting the assay. The absorbance was recorded at 405 nm in a kinetic mode at 37°C every 30 s for a total of 30 min using an Infinite M200 PRO plate reader (Tecan). Unit definition: One unit of plasmin activity is the amount of enzyme that releases 1.0 μmol of para-nitroaniline per min at pH 8.4 at 37°C. Data are shown as absolute plasmin activity per analyte.

For the evaluation of the inhibitory effect of C3 on plasmin activity, the plasmin activity kit (MAK 244-1KT; Sigma-Aldrich) was used according to the manufacturer’s instructions. In brief, recombinant plasmin (12 μM, Molecular Innovations) with or without the addition of inhibitors PIC (1×, Roche) or C3 (200 or 500 nM) were mixed with the assay buffer in 96-well flat-bottom wells with a see-through bottom, and the substrate was added just prior to starting the assay. The increase in fluorescence was recorded in a kinetic mode at 37°C every 30 s for a total of 30 min using an Infinite M200 PRO plate reader, and the signal intensity was normalized to time point zero (t0).

For LEC-based cleavage assays, LN LECs or immortalized LECs were seeded at 25,000 cells/well and keratinocytes at 50,000 cells/well into pre-coated 48-well TPP cell culture plates and grown to confluency in each cell type´s optimal growth medium overnight. Cells were washed three times with pre-warmed PBS and incubated for 2 h in Pro-Cho serum free medium (for analysis of LEC-induced cleavage) or AIM-V medium (if supernatant was used for 3D collagen migration assays). Importantly, serum-free medium was used since serum contains endogenous plasmin inhibitors. Cells were washed again three times with pre-warmed PBS, and treatment conditions were added in 150 μl Pro-Cho or AIM-V medium. For assays involving mU1-Urokinase neutralizing antibody, the cells were pre-blocked in 100 μl Pro-Cho medium/AIM-V medium containing the indicated concentrations of mU1, and further treatments were added in 50 μl medium directly to the pre-blocked wells (total volume of 150 μl). Cells were further treated with 100 nM recombinant murine CCL21 (PeproTech) and 20 nM recombinant murine plasminogen (Molecular Innovations). Keratinocytes were treated with 10 nM or 20 nM recombinant murine plasminogen. Inhibition of CCL21 cleavage was induced by addition of mU1 uPA-neutralizing antibody (20 µg/ml) or the plasmin inhibitor C3 (500 nM) or a 1× solution of the PIC (Roche). For investigation of CCL21 cleavage, cells were incubated for 4 h at 37°C. For investigation of plasminogen to plasmin conversion, cells were incubated for a total of 72 h, and samples were taken at 4, 24, 48, and 72 h. At the indicated time points, the supernatant was collected, and 4× reducing Laemmli Buffer (Bio-Rad) was added, followed by heating to 95°C for 2 min and subsequent western blot analysis.

For DC-based cleavage assays, bone marrow–derived DCs were seeded at 60,000 cells/well in a 48-well plate with serum-free DC medium containing 100 nM recombinant murine CCL21 (PeproTech) and 20 nM recombinant murine plasminogen (Molecular Innovations) and incubated for a total of 10 h at 37°C. Samples were taken at 24 h, and 4× reducing Laemmli Buffer (Bio-Rad) was added, followed by heating to 95°C for 2 min and subsequent western blot analysis.

For keratinocyte-based cleavage assays, keratinocytes were seeded at 40,000–75,000 cells/well in a 48-well plate with serum-free keratinocyte medium containing 100 nM recombinant murine CCL21 (PeproTech) and 20 nM recombinant murine plasminogen (Molecular Innovations) and incubated for a total of 4 h at 37°C. Samples were taken at 24 h and 4× reducing Laemmli Buffer (BioRad) was added, followed by heating to 95°C for 2 min and subsequent western blot analysis.

A scaled-up version of the LEC-based CCL21 cleavage assays was performed in 12-well TPP plates, seeding an initial number of 100,000 immortalized LECs and scaling up all reagents according to the increased cell culture volume of 450 μl. After 4 h, the supernatants were supplemented with 10% FBS and 500 nM C3 to inhibit further CCL21 cleavage, snap frozen, and stored at −20°C until further use. 3D collagen chemotactic cell migration assays were performed in Ibidi µ-slide chambers (Cat. No: 80326), in accordance with the manufacturer’s instructions (Ibidi) and as previously described (Purvanov et al., 2018). In brief, 20 μl 10× DMEM, 10 μl 7.5% NaHCO₃, 2 μl 10 N NaOH, and 150 μl of a 3% PureCol collagen I solution (Advanced BioMatrix) were premixed, then 90 μl cell suspension (1 × 10⁷ LPS-matured BMDCs/ml stained with cell tracker Green CMFDA, Invitrogen) were added, mixed carefully, and placed into the middle channel of the chemotaxis slide. After polymerization for 30–45 min in a humidified 37°C, 5% CO₂ incubator, the source and the sink tanks of the chamber were filled according to the manufacturer’s instructions. Chemotactic stimuli comprised recombinant human proteins or supernatant of in vitro microenvironment assays, which had been supplemented with 10% FCS and 500 nM C3 to inhibit additional CCL21 cleavage. Migration of the cells was imaged live using the time-lapse microscope Zeiss Axiovert 200M equipped with an AxioCam MRm camera and an automated stage and a temperature- and humidity-controlled stage-top Tokai Hit INU incubator (Shizuoka Japan) for 4 h with intervals of 5 min. Motile cells at the center of the migration chamber that displaced an accumulated distance of >50 μm during the recording (∼20–40 cells per field of view) were manually tracked using ImageJ (Fiji). Directionality (total track length over track displacement length), yFMI (directionality along the y axis = direct axis between the two stimuli), and Euclidian distance (distance from origin to endpoint) were calculated for each cell using the “Chemotaxis and Migration Tool” plugin (Ibidi).

Clear flat-bottom Immuno non-sterile 96-well plates (Thermo Fisher Scientific) were coated with capture antibody (polyclonal goat anti-mouse CCL21 AF457; R&D Systems), diluted at 2 μg/ml in PBS, and incubated at 4°C overnight. Plates were washed three times with PBS/Tween (0.1%), blocked with 2% Milk/PBS for 2 h at RT, and washed three times with PBS/Tween (0.1%) before chemokine standards (100–0.0975 ng/ml), and samples diluted 1:2 (serum, LN and ear eluates and extracts) were added and incubated for 1 h at RT. The detection antibody (for full-length and cleaved CCL21: biotinylated goat anti-mouse CCL21 BAF457 with a detection limit of 122 pg/ml; R&D Systems, for full-length CCL21 only: rat anti-mouse CCL21 MAB457 with a detection limit of 900 pg/ml; R&D Systems) was diluted at 1 µg/ml in 2% milk/PBS, incubated for 1 h at RT, and washed five times with PBS/Tween (0.1%). Streptavidin-HRP (BioLegend) or donkey anti-rat IgG-HRP (Thermo Fisher Scientific) was diluted to 1 µg/ml in 2% Milk/PBS and added to each well. The plates were incubated for 1 h at RT and washed five times with PBS/Tween (0.1%), followed by five times with PBS. The reaction was developed by the addition of TMB substrate (BioLegend), prepared as per manufacturer’s instructions. It was developed for up to 10 min in the dark until stopped by the addition of 1 M H₂SO₄. The intensity of the signal at 450 nm was determined with an Infinite M200 PRO plate reader (Tecan). CCL21 concentration in each sample was determined from the standard curve using GraphPad Prism software.

Total RNA was isolated using 1 ml TRIzol (Ambion) per 10-cm cell culture plate of 80% confluent LN LECs, according to manufacturer’s protocol. cDNA was synthesized from isolated RNA using the RQ1 RNase-Free DNase (Promega) and the High-Capacity cDNA Reverse Transcription Kit (Thermo Fisher Scientific) according to manufacturer’s instructions. Quantitative PCR (qPCR) was performed with PowerUp SYBR Green Master Mix (Thermo Fisher Scientific). Relative expression was calculated with the 1/2^ΔCT method, where delta cycle threshold (ΔCT) = Ct_Target−Ct_18s, and with the 2^−ΔΔCT method, where delta–delta cycle threshold (ΔΔCT) = ΔCt_uPAmut/KO−ΔCt_WT. The following primers were used (all from Microsynth): 18 s forward: 5′-AGG​AAT​TCC​CAG​TAA​GTG​CG-3′ and reverse: 5′-GCC​TCA​CTA​AAC​CAT​CCA​A-3′; PLGRKT forward: 5′-CGG​AAC​TCT​CCT​ACA​GAG​AAT​GA-3′ and reverse: 5′-TTG​GCA​GCT​CCA​GCT​TCG​TC-3′; PLAU forward: 5′-GCG​CCT​TGG​TGG​TGA​AAA​AC-3′ and reverse: 5′-TTG​TAG​GAC​ACG​CAT​ACA​CCT-3′; PLAUR forward: 5′-GGC​TTA​GAT​GTG​CTG​GGA​AA-3′ and reverse: 5′-CAA​TGA​GGC​TGA​GTT​GAG​CA-3′; CCL19 forward: 5′-TCG​TGA​AAG​CCT​TCC​GCT​ACC​T-3′ and reverse: 5′-CAG​TCT​TCG​GAT​GAT​GCG​ATC​C-3′; CCL21 forward: 5′-GGG​TCA​GGA​CTG​CTG​CCT​TAA​G-3′ and reverse: 5′-AGC​TCA​GGC​TTA​GAG​TGC​TTC​C-3′.

LPS-matured bone marrow–derived DCs were prepared as described above. For competitive Transwell studies, WT and CCR7^−/− DCs were harvested and labelled for 10 min in PBS with CSFE (final concentration 5 µM) (Invitrogen) or DeepRed dye (final concentration 1 µM) (Thermo Fischer Scientific), respectively. Labelling colors were interchanged in between experiments. Cells were left to rest in a humidified incubator at 37°C and 5% CO₂ for 30 min in medium after labelling. Subsequently, dead cells were removed by centrifugation over a FBS gradient and mixed in a 1:1 ratio in AIM-V medium supplemented with 2% FCS, and 100,000 cells were added in the top well of a 5-µm pore-size transwell insert (Jet Biofil) and left to migrate toward the bottom well at 37°C for 2 h. Chemotactic stimuli in the lower well consisted of 100 ng/ml murine CCL21 (PeproTech) or medium from ex vivo elution assays of mouse ear skin, which had been supplemented with 2% FCS. In some experiments, DCs were added in the top well together with 20 nM murine plasminogen (Molecular Innovations) or with 8 nM murine plasmin (Molecular Innovations) chemotactic stimuli consisting of 100 ng/ml human CCL21 (PeproTech), 100 ng/ml human CCL21-ΔC (generated as described above), 100 ng/ml murine CXCL12 (PeproTech), 100 ng/ml murine CXCL12 and 20 nM murine plasminogen (Molecular Innovations), 100 ng/ml murine CXCL12, and 8 nM murine plasmin (Molecular Innovations). In some cases, 1 µg/ml of CCL21 blocking antibody (polyclonal, AF457; R&D Systems) was added to the lower wells. After 2 h, transmigrated DCs were stained with Armenian hamster anti-mouse CD11c PE/Cy7 (clone N418) and rat anti-mouse MHC-II BV421 (clone M5/114.15.2; both BioLegend), quantified by flow cytometry on a Cytoflex S apparatus (Beckman Coulter) using CytExpert software, and analyzed with FlowJo software 10.4.0 (Treestar).

Transwells (5 µm pore size, Jet Biofil) were coated with collagen (10 μg/ml; Advanced BioMatrix) and fibronectin (10 μg/ml; Millipore), and 50,000 purified LN LECs were added into the top well of each insert in 100 μl of LN LEC medium. The lower well of each insert was filled with 700 μl LN LEC medium, and cells were incubated for 2 days at 37°C and 5% CO₂. Transmigration assays were performed by adding 10,000 LPS-matured YFP⁺ WT DCs, generated from the bone marrow of CD11c-YFP mice (Lindquist et al., 2004), to the top well in 100 μl AIM-V medium supplemented with 2% FBS in presence or absence of either 20 nM murine plasminogen (Molecular Innovations) or of 8 nM murine plasmin (Molecular Innovations). DCs were left to migrate toward the bottom well at 37°C for 4 h. Chemotactic stimuli in the lower well consisted of 100 ng/ml murine CCL21 (PeproTech), 100 ng/ml human CCL21 (PeproTech), 100 ng/ml human CCL21-ΔC (generated as described above), 100 ng/ml murine CXCL12 (PeproTech), 100 ng/ml murine CXCL12 and 20 nM murine plasminogen (Molecular Innovations), 100 ng/ml murine CXCL12 and 8 nM murine plasmin (Molecular Innovations), or AIM-V medium alone. Please note that concentrations of CCL21 and plasminogen were identical to the ones used in the in vitro LEC cleavage assay of CCL21. Each condition was performed in four technical replicates. After 4 h, transmigrated GFP⁺ DCs were quantified by flow cytometry on a Cytoflex S apparatus (Beckman Coulter) using CytExpert software and analyzed with FlowJo software 10.4.0 (Treestar).

Channelled chamber slides (μ-Slide VI0.4, IBIDI) were coated with collagen (10 μg/ml; Advanced BioMatrix) and fibronectin (10 μg/ml; Millipore), and cultured LN LECs (60,000 cells in LN LEC medium) were seeded into the channel and left to adhere and from monolayers for 4 days. On the day of the assay, 30,000 LPS-matured YFP⁺ WT DCs, generated from the bone marrow of CD11c-YFP mice (Lindquist et al., 2004), were added on top of the monolayers in LN LEC media in presence or absence of either 20 nM murine plasminogen (Molecular Innovations) or of 8 nM murine plasmin (Molecular Innovations). As a positive CTR, monolayers were pre-blocked with 5 μg/ml ROCK-inhibitor Y27632 (Nitschke et al., 2012) in 30 μl LN LEC media for 30 min followed by the addition of 30,000 LPS-matured YFP⁺ WT DCs, together with 5 μg/ml ROCK-inhibitor in 30 μl LN LEC starvation media (without FBS). After 20 min, chambers were rinsed twice with starvation media to remove nonadherent DCs. After a further 10 min equilibration at 37°C, time-lapse imaging was performed on a fluorescent microscope (Nikon Eclipse Ti-E) equipped with a Hamamatsu ORCA-Flash4.0 CCD camera (Hamamatsu, Japan) and a 20× objective (NA: 0.75, Nikon). Phase contrast and fluorescence images in the FITC channel were captured every 30 s for 30 min using NIS-Elements software. Movies were analyzed using IMARIS software (Bit Plane), as previously described (Teijeira et al., 2017). For semiautomated cell tracking, tracks were generated by an automatic algorithm and verified manually. Only tracks of cells recorded for >10 min and with a total path length of >60 μm were included in the analysis. Analysis criteria were calculated as follows: speed = total track length/track duration; chemotactic index = displacement/length.

Results are presented as mean ± SEM. Statistical analysis was performed, and graphs were created with Prism 8 software (GraphPad Software Inc.). For all data sets, data distribution was assumed to be normal, but this was not formally tested. The Null-hypothesis was rejected when P < 0.05. Parametric two-tailed unpaired Student’s t test was used to compare two groups of samples, and parametric two-tailed paired Student’s t test was applied if samples originated from the same animal or experiments from different dates were compared. For multiple comparisons, the data sets were analyzed using non-paired ordinary one-way ANOVA, followed by Tukey correction with single pooled variance. Whole-mount analysis and crawl-in data comparing effects on different days over two treatment groups were analyzed by two-way ANOVA using multiple comparisons, followed by a Tukey correction. Microscopy images were quantified in a blinded manner.

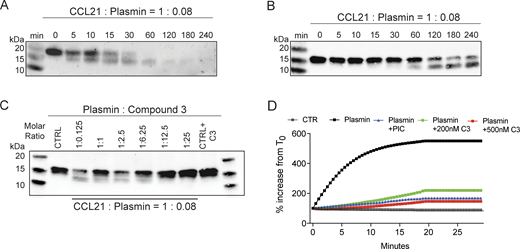

Fig. S1 shows the in vitro CCL21 cleavage activity of human and murine plasmin. Fig. S2 shows the flow cytometry–based analysis of uPAR, uPA, and plasminogen expression on leukocytes and stromal cells in murine skin. Fig. S3 provides further information on the expression of uPA/uPAR/plasminogen in primary LN LECs as well as the CCL21 cleavage ability of DCs and keratinocytes. Fig. S4 shows in vitro assays performed to assess the CCL21 cleavage-independent effects of plasminogen and plasmin on DC migration. Fig. S5 comprises additional data from FITC painting experiments and shows the impact of CHS on immobilized CCL21 levels in dLNs. Table S1 summarizes the technical specifications of all primary and secondary antibodies used in this study. Videos 1 and 2 shows intravital time-lapse imaging performed in the ear skin of Prox-1 mOrange2 xCD11cYFP mice to visualize DC presence and movement in the dermis and within lymphatics under CTR (Video) and CHS-inflamed (Video 2) conditions. Video 3 shows fluorescently labelled DCs crawling a 3D collagen migration assay (see Fig. S4, H and I). Video 4 shows CD11cYFP DCs crawling over an LEC monolayer (see Fig. S4, G and H).

Raw data will be made available on the ETH research collection (public repository) after acceptance of the manuscript. URL: https://doi.org/10.3929/ethz-c-000787623.
