STIM1/2 maintain signaling competence at ER-PM contact sites during neutrophil spreading

Neutrophils are circulating white blood cells that defend our body against bacterial and fungal infections (Liew and Kubes, 2019). In response to chemotactic cues, neutrophils migrate into tissues via the synergistic activation of chemokine receptors and the engagement of selectins and β2 integrins that mediate neutrophils capture and rolling along the endothelium, followed by their adhesion, polarization, and trans-endothelial migration (Ley et al., 2007; Zarbock and Ley, 2009). The combined activation of G-protein–coupled receptors by chemokines, which signal through PLCβ, and of the tyrosine kinase Syk coupled to phospholipase C (PLC) gamma by selectins generates inositol 1,4,5-trisphosphate (IP₃), which opens its cognate receptors (IP₃R) on the ER to promote the release of Ca²⁺ from intracellular stores (Hogg et al., 2011; Huang et al., 2017; Mueller et al., 2010). The resulting cytosolic Ca²⁺ elevations enhance the affinity of integrins for adhesion molecules on endothelial cells (Ginsberg, 2014; Kubes, 2002; Ley et al., 2007), which further activate the Syk–PLC gamma signaling pathway to boost Ca²⁺ elevations (Immler et al., 2018; Jakus et al., 2009; Mócsai et al., 2006), strengthening neutrophil adhesion by promoting the formation of integrin clusters on the endothelium (Dixit and Simon, 2012; Ginsberg, 2014; Obergfell et al., 2002; Pardi et al., 1989; Wehrle-Haller, 2006).

Pioneering studies reported both local and global Ca²⁺ elevations associated with the dynamic remodeling of the actin cytoskeleton as neutrophils spread and migrate on substrates in vitro (Jaconi et al., 1991; Kruskal et al., 1986; Petersen et al., 1993). Actin polymerization is initiated at sites of integrin engagement (Sarantos et al., 2008), the polymerized F-actin at pseudopods pulling toward the chemotactic gradient (Filippi, 2019). Local increases in Ca²⁺ at adhesion sites influence the micro-clustering of the integrin LFA-1 (CD11a/CD18; α_Lβ₂), strengthening adhesion and F-actin recruitment (Dixit et al., 2011; Lum et al., 2002). In contrast, Ca²⁺ elevations restricted to the uropod facilitate actin depolymerization by releasing integrin/actin complexes (Bengtsson et al., 1993; Downey et al., 1990), enabling selectins and integrins to sling over the cell to form new nascent adhesion points as cells roll (Lum et al., 2002; Sundd et al., 2012). The coordination of local and global Ca²⁺ elevations sustain directed migration and enable neutrophils to search for optimal points to cross the endothelium (Dixit and Simon, 2012). Localized Ca²⁺ elevations also control the formation of phagocytic vacuoles and their fusion with lysosomes by orchestrating the dynamic remodeling of the actin cytoskeleton at phagocytic cups and around vacuoles (Bengtsson et al., 1993; Nunes et al., 2012).

The maintenance of Ca²⁺ signals generated by IP₃R-mediated Ca²⁺ release require the influx of Ca²⁺ ions into cells to complement the limited amounts of ions stored in intracellular sources. Neutrophils have limited amounts of ER, the major Ca²⁺ store of eukaryotic cells, and might therefore be particularly reliant on Ca²⁺ influx. The main Ca²⁺ entry pathway of immune cells is store-operated Ca²⁺ entry (SOCE) mediated by interactions between stromal interaction molecule (STIM) proteins on the ER and plasma membrane (PM) Ca²⁺-permeable channels of the Orai family (Feske et al., 2005; Liou et al., 2005; Roos et al., 2005; Vig et al., 2006; Zhang et al., 2005). STIM1 and its related isoform STIM2 sense the Ca²⁺ depletion of the ER and translocate to the PM, where they trap and gate Orai channels, triggering the entry of Ca²⁺ into cells to fuel Ca²⁺-dependent effector functions (Park et al., 2009). STIM1-ORAI1 coupling is required for the proliferation of T cells, and patients bearing loss-of-function mutations in STIM1 or ORAI1 suffer from severe combined immunodeficiencies (Picard et al., 2009; Vaeth et al., 2020).

The reliance of neutrophil effector functions on STIM-ORAI signaling has been explored in human cell lines and mouse neutrophils using genetic approaches. In neutrophil-like HL-60 cells, STIM1 and ORAI1, but not STIM2, sustain the production of reactive oxygen species (ROS) by the neutrophil NADPH oxidase (Bréchard et al., 2009; Steinckwich et al., 2015). In mouse neutrophils, Stim1 sustains NADPH oxidase activity (Zhang et al., 2014) and enhances phagocytosis by promoting Ca²⁺ microdomains around phagosomes (Nunes et al., 2012), while Stim2 is dispensable for ROS production and phagocytosis but required for cytokine production (Clemens et al., 2017). At odds with these findings, preserved Ca²⁺ fluxes and effector functions were observed in neutrophils from two patients with loss-of-function mutations in STIM1 and ORAI1 genes (Elling et al., 2016), possibly reflecting differences in human and mouse neutrophils (Nauseef, 2023). Evidence for a role of STIM proteins in driving neutrophil migration is mixed. STIM1 silencing reduced N-formylmethionyl-leucyl-phenylalanine (fMLP)-induced polarization in HL-60 cells (Bréchard et al., 2009) and myeloid-specific Stim1 ablation reduced neutrophil migration in vitro and in a psoriasis model of skin infection in mice (Steinckwich et al., 2015). Subsequent studies reported that neutrophils from Stim1^−/− chimeric mice adhered and migrated normally in vitro and were efficiently recruited to sites of sterile inflammation in vivo (Sogkas et al., 2015; Zhang et al., 2014). Normal migration was also reported in Stim2 and Stim1/2-deficient mouse neutrophils (Clemens et al., 2017). In contrast, chemotaxis was impaired in neutrophils from Orai1^−/− chimeric mice exposed to C5a in vitro and in LPS-induced peritonitis (Sogkas et al., 2015), and Orai1 haplo-deficiency impaired neutrophil migration under flow by preventing the transition of LFA-1 integrins to the high-affinity conformation required for neutrophil arrest and polarization (Dixit et al., 2011; Schaff et al., 2010). These studies suggest that neutrophil migration rely more on Orai1 than on Stim1 or Stim2, despite the fact that, in mouse neutrophils, Stim1 ablation consistently decreases SOCE and aborts Ca²⁺ elevations evoked by multiple physiological ligands except C5a (Nunes et al., 2012; Sogkas et al., 2015; Zhang et al., 2014), while Orai1 ablation has a minor effect on SOCE (Dixit et al., 2011; Schaff et al., 2010; Sogkas et al., 2015).

To clarify the role of Stim proteins in neutrophil signaling and migration, we generated mice lacking both Stim isoforms and expressing the high-affinity Ca²⁺ indicator Salsa6f in myeloid cells and quantified the Ca²⁺ signals, actin dynamics, and morphological changes as neutrophils spread on solid substrates.

To record Ca²⁺ signals in primary mouse neutrophils, we crossed Salsa6f transgenic reporter mice (Dong et al., 2017) with mice expressing Cre recombinase under the control of the myeloid-specific promoter CEBPa. Salsa6f comprises a GCamP6f moiety that responds to Ca²⁺ fluctuations and a tandem dimer red fluorescent moiety (tdT) that serves as reference for ratio Ca²⁺ imaging (Fig. S1 A, sketch). A robust tdT fluorescence signal was detected in cells flushed from the bone marrow (BM) of CEBPa-driven Salsa6f mice, enabling identification of myeloid cells by flow cytometry and microscopy (Fig. 1 A and Fig. S1 A). Approximately 50% of fluorescent cells expressed the granulocyte marker Ly6G (Fig. 1 A) and 87% of tdT/Ly6G⁺ cells were mature neutrophils lacking monocytes and eosinophils markers, a proportion comparable with neutrophils isolated by negative selection (Fig. 1 B). Similar amounts of neutrophils were recovered from mice expressing or not the CRE recombinase (Fig. S1 B), indicating that myeloid expression of Salsa6f does not affect neutrophil development. Post hoc Ly6G staining of Salsa6f-positive cells thus rapidly and efficiently identifies primary neutrophils from BM, increasing 10-fold the amounts of neutrophils that can be recovered by the isolation kit (from 1 to 10 million neutrophils per mouse, with equivalent purity). Salsa6f neutrophils express an endogenous Ca²⁺ reporter and can be immediately used for Ca²⁺ recording modalities, avoiding purification and dye loading procedures that can prime these sensitive cells.

In the absence of chemoattractants, we detected repetitive Ca²⁺ elevations as neutrophils spread and crawled on weakly adhesive poly-L-lysine (PLL) coating (Fig. 1 C and Video 1). Over a 3-min observation period, 74% of tdT/Ly6G⁺ neutrophils exhibited multiple Ca²⁺ transients lasting for 24 ± 3 s at a rate of 1.3 ± 0.1 peaks/min (Fig. 1 D). To compare these Ca²⁺ signals with those previously reported in adherent neutrophils, we loaded neutrophils purified from non-transgenic mice with Fura-2. Fura-2 reported slower and delayed Ca²⁺ elevations whose frequency and amplitude was half those reported by Salsa6f (Fig. 1 E, green versus pink symbols). Fura-2 loading of tdT/Ly6G⁺ neutrophils reduced the amplitude and prolonged the Ca²⁺ transients recorded by Salsa6f (Fig. 1 E, blue symbols), indicating that dye loading buffers Ca²⁺ responses. The Salsa6f fluorescence outlined neutrophils polylobed nuclei, while a bright Fura-2 signal was observed in neutrophil nuclei (Fig. 1 F), indicating that only the genetic probe was confined in the cytosol. In situ calibration yielded a K_D of 160 nM for Salsa6f with a high cooperativity (Hill coefficient 3.3 versus 1.7 for Fura-2, Fig. 1 G and Fig. S1 C), similar to values reported in T cells (Dong et al., 2017). Using total internal reflection fluorescence (TIRF) imaging, we detected Ca²⁺ waves traveling at a speed of ∼30 µm/s in the TIRF plane with Salsa6f (Fig. S1 D and Video 1), Video 2 confirming the presence of actively propagating Ca²⁺ signals near adhesion sites in mouse neutrophils. The high Ca²⁺ sensitivity, low buffering, and cytosolic confinement of the genetic probe thus outperforms the EGTA-based dye Fura-2 and uncovers a high degree of spontaneous Ca²⁺ activity in neutrophils adhered to weakly adhesive coating.

To clarify the molecular basis of neutrophil spreading-associated Ca²⁺ signals, we generated mice lacking both Stim1 and Stim2 isoforms in myeloid cells (Stim1/2^KO), which we then bred with Salsa6f mice. The Ca²⁺ responses evoked by Ca²⁺ readmission to cells treated with the SERCA inhibitor thapsigargin (Tg), measured with Fluo-8 or Salsa6f, were reduced by ∼70% in suspended neutrophils purified from Stim1/2^KO mice (Fig. S1, E and F), validating the loss of functional SOCE in both animal models, while the ROS production evoked by the PKC activation with PMA, which is Ca²⁺ independent, was preserved (Fig. S1 G). A similar ∼70% reduction in the Ca²⁺ elevations evoked by Tg and by the chemotactic peptide N-formyl-Met-Ile-Val-Ile-Leu was observed in suspended Stim1/2^KO neutrophils (Fig. 2 A), the reduction increasing to ∼80% in adherent Stim1/2^KO neutrophils when measured with Salsa6f (Fig. 2 B). Stim1/2 ablation thus severely blunts Ca²⁺ responses evoked by store depletion and chemoattractants in neutrophils. We then compared the Ca²⁺ signals occurring in the absence of external stimuli in neutrophils adhered to weakly adhesive coating. The Ca²⁺ transients associated with neutrophil adhesion and spreading were severely impacted by Stim1/2 ablation, the percentage of active cells, and the integrated response decreasing by 80% in Stim1/2^KO cells (Fig. 2 C and Video 3 and Video 4). These data show that Stim1/2 proteins sustain Ca²⁺ signals associated with neutrophil spreading.

To explore the signaling pathways underlying the Stim-dependent Ca²⁺ activity, we compared the effect of pharmacological inhibitors to the effect of solvent. DMSO did not alter the frequency of Ca²⁺ transients or the Ca²⁺ response integrated over a 3-min period (Fig. 3 A). Gadolinium, a potent Ca²⁺ channel blocker, did not alter the frequency but slightly reduced the integrated response (Fig. S2 A), while GSK-7975a and CM4620, more specific Orai inhibitors, had no effect on these two parameters (Fig. 3 A and Fig. S2 A). Nonetheless, GSK-7975a decreased the Ca²⁺ response evoked by Tg as efficiently as EGTA (Fig. S2, B and C), and GSK-7975a and CM4620 reduced the response evoked by Ca²⁺ readmission to Tg-treated cells by 43 and 65%, respectively (Fig. S2 D), indicating that the Orai inhibitors effectively inhibited SOCE. In contrast, the PLC inhibitor U73122 immediately stopped the Ca²⁺ transients (Fig. 3, A and B; and Video 5). Among the 26 other compounds tested, only the PKC activator PMA significantly decreased the Ca²⁺ activity with a delay of 40 sec that precluded statistical evaluation over the 3-min recording period (Fig. S2 A and Table S1). U73122 also abrogated the N-formyl-Met-Ile-Val-Ile-Leu–evoked response (Fig. S2 B), validating the inhibition of PLC. Several agonists that induced Ca²⁺ responses accelerated the frequency of spontaneous transients, further linking this activity to PLC-coupled signaling (Table S1). These data indicate that the Ca²⁺ activity of adherent neutrophils is PLC dependent and requires Stim1/2 proteins but not Ca²⁺ entry, suggesting an Orai-independent function of Stim proteins.

To relate the Ca²⁺activity to adhesion-dependent cellular events, we quantified morphological changes occurring during the Ca²⁺ recordings (Video 3 and Video 4), using the stable tdTomato fluorescence of WT and Stim1/2^KO neutrophils to outline cells. Stim1/2^KO neutrophils had a ∼15% smaller fluorescence area and a significantly higher circularity than WT neutrophils, whose fluorescence area increased and centroid drifted during the recordings, while the area of Stim1/2^KO neutrophils remained constant and their centroid stationary (Fig. 4 A and Fig. S3 A). To better resolve the underlying morphological changes, we use differential interferential contrast (DIC) microscopy. Thin lamellipodia promptly appeared on the ventral side of WT neutrophils that touched the substrate, while Stim1/2^KO neutrophils often exhibited pseudopods that bulged and retracted (Fig. 4 B and Video 6 and Video 7). Quantitative analysis of the DIC images showed that the fraction of spread neutrophils was significantly reduced by Stim1/2 ablation in cells adhered for ∼20 min at 37°C (Fig. 4 B, graphs). Neutrophils treated with U73122 failed to spread regardless of their genotype (Fig. S3 B). We then used TIRF microscopy to quantify the formation of lamellipodia in neutrophils labeled with a PM dye. Fluorescent footprints appeared immediately in the TIRF plane as WT neutrophils landed on PLL-coated glass, reaching maximal size within 5 min, while footprints of Stim1/2^KO neutrophils had a reduced area 12 min after plating (Fig. 4 C and Video 8 and Video 9). Footprints forming in WT neutrophils treated with U73122 had a similarly reduced area (Fig. S3 C), indicating that Stim1/2 ablation partially phenocopied PLC inhibition. These data indicate that Stim1/2 ablation reduces the PLC-dependent spreading of neutrophils.

STIM proteins are reversible tethers that recruit and elongate cortical ER (cER) sheets as they interact with PM lipids and with Orai channels at ER-PM membrane contact sites (MCS) (Henry et al., 2022; Orci et al., 2009). Expecting that Stim1/2 ablation would impact MCS formation, thereby altering Ca²⁺ signals, we quantified the abundance, length, and PM proximity of cER structures by electron microscopy. Neutrophils purified by magnetic separation were fixed by PFA either in suspension or after adhesion to PLL, and all cER structures located <35 nm from the PM were identified visually on electron micrographs (Fig. 5 A). Outlining cellular sections indicated that WT and Stim1/2-deficient cells had comparable sizes and that adherent Stim1/2-deficient neutrophils were rounder than WT cells, in line with their spreading defect (Fig. S4 A). Contrary to our expectations, a similar proportion of cER was detected in WT versus Stim1/2-deficient neutrophils before or after adhesion, without noticeable differences in the lengths and ER-PM gap distances of individual cER structures (Fig. 5 B, compare gray and red symbols). Interestingly, adhesion significantly decreased the cER abundance (% cER) and lateral dimension (cER length) in WT but not Stim1/2-deficient neutrophils, which instead had shorter gap distances once adhered (Fig. 5 B, compare “Susp” and “Adh” conditions). Inspection of the electron micrographs indicated that WT neutrophils had adhesive membranes covered by a thick cytoskeleton that was largely devoid of contact sites (Fig. 5 A). Accordingly, a significantly lower number of MCS was detected on the adhesive membrane of WT cells compared with Stim1/2-deficient neutrophils, while a comparable amount was counted on the nonadhesive membranes in the two genotypes (Fig. S4 B). Morphometric analysis yielded a significantly higher proportion of cER structures of identical lengths and gap distances on adhesive membranes of Stim1/2-deficient neutrophils (Fig. 5 C and Fig. S4 C). We then examined the ultrastructure of adherent neutrophils treated with Tg. In this condition, WT neutrophils were larger than Stim1/2-deficient neutrophils, had a reduced proportion of MCS that were shorter, in closer proximity to the PM, and depleted from adhesive membranes (Fig. S4 D). These data indicate that contact sites are dynamically excluded from adhesive membranes of spreading neutrophils. Unexpectedly, Stim1/2 ablation increased the abundance of contact sites specifically at adhesive membranes but did not alter their overall proportion or morphology.

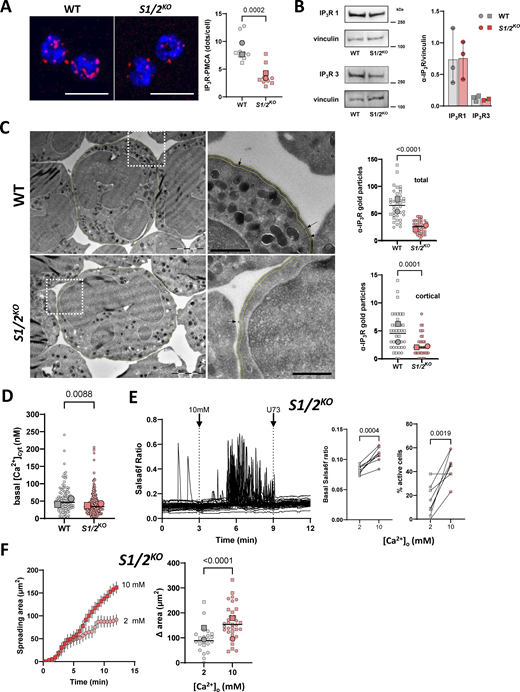

Since contact sites were morphologically preserved in Stim1/2-deficient neutrophils, we compared their molecular composition by proximity ligation assays (PLAs). Cells were adhered to PLL-coated substrates, fixed, permeabilized, and stained with antibodies targeting endogenous ER and PM components. A stronger proximity signal was detected between STIM1 and Orai1 and between STIM1 and IP₃Rs in WT than in Stim1/2-deficient neutrophils (Fig. S5 A), validating the assay. We then assayed the proximity between the ER Ca²⁺ release channel IP₃R3 and the PM Ca²⁺ pump plasma membrane Ca²⁺ ATPase (PMCA). The PLA signal detected between IP₃Rs and PMCA in WT cells was significantly reduced in Stim1/2-deficient neutrophils (Fig. 6 A). Histochemical analysis revealed that PMCA levels were not altered by Stim1/2 ablation and that IP₃R immunoreactivity was reduced (Fig. S5 B). Similar amounts of IP₃R1 and IP₃R3 were detected by western blot in WT and Stim1/2-deficient neutrophils (Fig. 6 B), ruling out a global decrease in IP₃R levels and prompting us to quantify their intracellular distribution by immunogold. A reduced total IP₃R1 immunoreactivity was detected in Stim1/2-deficient neutrophils by immunogold, the total number of gold particles, and those located <50 nm from the PM decreasing by 62% and 56%, respectively (Fig. 6 C). The mRNA levels of all three IP3Rs isoforms were comparable in the two genotypes, while mRNA levels of two membrane tethering proteins, junctate, and E-Syt2, were significantly increased in Stim1/2-deficient neutrophils (Fig. S6 A). These data indicate that Stim1/2 ablation posttranslationally modifies IP₃R1 conformation to a less immunoreactive form and that other tethering proteins compensate the lack of Stim1/2. Altered functionality of IP₃Rs may further reduce the amplitude of Ca²⁺ elevations and limit signal propagation. Since the Ca²⁺ release activity of IP₃R requires a permissive cytosolic Ca²⁺ concentration (Bezprozvanny et al., 1991), we then compared the resting cytosolic Ca²⁺ levels ([Ca²⁺]_cyt) of WT and Stim1/2-deficient neutrophils. Inactive cells were selected on Salsa6f recordings and their basal levels compared head-to-head on two different microscopy setups (Fig. 6 D and Fig. S5 C). Applying the Salsa6f calibration curves (Fig. 1 G) yielded a resting [Ca²⁺]_cyt of 54 nM in WT neutrophils and a significantly lower value of 42 nM in Stim1/2-deficient neutrophils (Fig. 6 D). These data indicate that Stim1/2 ablation decreases the resting [Ca²⁺]_cyt in mouse neutrophils.

To test the reliance of Stim1/2-dependent functions on Ca²⁺ entry, we increased the external Ca²⁺ concentration to supraphysiological levels from 2 to 10 mM. Remarkably, the proportion of cells exhibiting Ca²⁺ transients increased threefold within minutes after switching from physiological to Ca²⁺-rich solution, and basal Ca²⁺ levels were significantly increased at this point (Fig. 6 E). The Ca²⁺ activity regained by Stim1/2-deficient cells placed in a Ca²⁺-rich solution was fully inhibited by U73122, confirming its PLC dependency (Fig. 6 E). We then quantified the impact of Ca²⁺ supplementation on spreading efficiency by TIRF microscopy. Stim1/2-deficient neutrophils developed significantly larger footprints when adhered in 10 mM Ca²⁺ than in standard 2 mM saline (Fig. 6 F), while the Ca²⁺ activity and spreading capacity of WT neutrophils were comparable in 2 and 10 mM [Ca²⁺]_ext (Fig. S5 D). Ca²⁺ supplementation thus restores signaling and spreading competence in Stim1/2-deficient neutrophils.

Neutrophil spreading is an actin-driven amoeboid process and Ca²⁺ elevations regulate the remodeling of the actin cytoskeleton in human neutrophils (Jaconi et al., 1991). To assess the impact of Stim1/2 deficiency on actin remodeling, we delineated in electron micrographs of adherent neutrophils all cytosolic regions lacking electron-dense structures above adhesive membranes. The basal pads overlaid on adhesive membranes were significantly smaller and thinner in Stim1/2^KO neutrophils (Fig. 7 A and Fig. S6 B). We then used the live F-actin probe SiR-actin to dynamically record the formation of actin filaments during neutrophils spreading. Transient localized increases in SiR-actin fluorescence were observed during spreading of WT neutrophils to PLL whose intensity and duration were significantly reduced in Stim1/2^KO cells (Fig. 7 B, Fig. S6 C, Video 10, and Video 11). A reduced phalloidin staining was also detected by confocal microscopy in Stim1/2^KO neutrophils on adhesive membranes (Fig. S6 C). These data indicate that actin dynamic is impaired in Stim1/2-deficient neutrophils.

To assess the physiological role of Stim1/2 during the acute inflammatory response in vivo, we analyzed extravasation of Stim1/2^KO neutrophils in inflamed murine cremaster muscles. Male mice were injected i.p. with 500 ng of TNF for 2 h, euthanized, and their cremaster muscles were harvested and stained using anti-CD31 and anti–GR-1 antibodies to label blood vessels and granulocytes, respectively. Interestingly, our results revealed a significant increase in extravasation of Stim1/2^KO neutrophils into the inflamed tissue compared with WT animals (Fig. 8). Together, these data suggest that Stim 1/2 are crucial in regulating neutrophil migration from blood into the tissue under acute inflammatory conditions in vivo.

Our study identifies Stim proteins as critical regulators of neutrophil spreading. Stim1/2-deficient murine neutrophils lacked PLC-dependent Ca²⁺ elevations during adhesion and poorly formed lamellipodia when plated on solid substrates. Stim1/2 ablation aborted SOCE and decreased Ca²⁺ elevations evoked by chemokines or bacterial peptides, consistent with earlier reports in mouse neutrophils (Nunes et al., 2012; Sogkas et al., 2015; Zhang et al., 2014). Using myeloid-targeted Salsa6f, we show that Stim1/2 deficiency also reduces basal Ca²⁺ levels and prevents cytosolic Ca²⁺ elevations in adherent mouse neutrophils. The reduced buffering and clean cytosolic confinement of the genetic probe facilitated the quantification of basal levels and the detection of low-amplitude cytosolic Ca²⁺ elevations. Surprisingly, the Ca²⁺ flickers were insensitive to Orai1 inhibition, indicating that Stim1/2 sustain Ca²⁺ elevations independently of Orai1 during the engagement of adhesion receptors. This is congruent with earlier reports showing that Orai1 deficiencies do not phenocopy Stim1 or Stim1/2 deficiencies in mouse neutrophils (Clemens et al., 2017; Dixit et al., 2011; Schaff et al., 2010; Sogkas et al., 2015; Zhang et al., 2014).

STIM2 was identified in a siRNA screen as a regulator of basal cytosolic and ER Ca²⁺ levels (Brandman et al., 2007) and Stim2 deficiency might cause the reduced basal Ca²⁺ levels of Stim1/2-deficient neutrophils. The reduced [Ca²⁺]_cyt, in turn, might account for the loss of PLC-dependent Ca²⁺ flickers, as the activity of IP₃Rs requires a permissive cytosolic Ca²⁺ concentration (Arige et al., 2022). The rapid recovery of Ca²⁺ flickers in Stim1/2-deficient neutrophils exposed to Ca²⁺-rich (10 mM) solutions strongly support this hypothesis and indicate that Stim1/2 deficiency restricts Ca²⁺ influx via GSK-7975a and CM4620 (zegocractin)-insensitive Ca²⁺ channels.

STIMs are multifunction proteins acting as ER sensors via their luminal helix–loop–helix (EF-hand) motif, as ER-PM tethering proteins via their lipid-binding domains, and as intracellular ligands for Ca²⁺ channels via their channel activating and polybasic domains. The predominant and best studied function of STIMs is to generate Ca²⁺ fluxes by interacting with PM channels, but their ER-PM tethering function is equally important to allow the fluxes of ions and the exchange of lipids between membranes. This motivated us to assess how Stim1/2 deficiency impacts ER-PM tethering by performing an ultrastructural analysis of adherent and nonadherent neutrophils. We made several unexpected observations by electron microscopy. First, the cER abundance, shape, and proximity were not impacted by Stim1/2 ablation, despite a near complete loss of SOCE. In cell lines, Stim1 ablation reduces the proportion of cER threefold, while STIM1 overexpression has the opposite effect, and store depletion both increases the amount of cER and elongates cER sheets (Henry et al., 2022; Orci et al., 2009; Saüc et al., 2015). We were therefore expecting to find a reduced cER proportion and shorter sheets in Stim1/2-deficient neutrophils. Instead, a similar amount of morphologically indistinguishable cER sheets was quantified in both genotypes, regardless of the adhesion state of neutrophils. The higher mRNA levels of junctate and E-Syt2 in Stim1/2-deficient cells suggest that these other tethering proteins are compensating for the loss of Stim1/2 in neutrophils. Second, cER structures were virtually absent from membranes interacting with the substrate in WT neutrophils (adhesive membranes) but persisted in adhesive membranes of Stim1/2-deficient neutrophils, which had a thinner actin cytoskeleton and impaired actin dynamics during spreading.

We offer two non-mutually exclusive mechanistic explanations for these differences. (1) The absence of Ca²⁺ signals at contact sites forming in Stim1/2-deficient neutrophils might prevent efficient actin remodeling, as Ca²⁺ elevations control both actin polymerization and depolymerization by driving the activity of Ca²⁺-dependent proteins such as calpain and gelsolin (Larson et al., 2005; Lokuta et al., 2003). Stim1/2-deficient neutrophils regained spreading competence in Ca²⁺-rich solutions, supporting this Ca²⁺-centric hypothesis. (2) The Stim1/2-deficient contact sites might be too tightly attached to the PM, hindering the formation of the actin cytoskeleton during neutrophil adhesion. The binding of STIM proteins to the PM is reversible and controlled by changes in ER and cytosolic (Ca²⁺) and in PM phosphoinositides. No other tethering protein has such a regulation, ideally suited to promote the rapid formation and subsequent detachment of contact sites during PLC-mediated signaling. Junctate is an ER Ca²⁺-sensing protein that is co-recruited with STIM1 to ER-PM contact sites upon store depletion (Srikanth et al., 2012), while E-Syt2 interacts with E-Syt1, which mediates Ca²⁺-dependent ER-PM tethering and gap shortening (Fernández-Busnadiego et al., 2015; Giordano et al., 2013). Junctate recruits ER Ca²⁺ stores to phagosomes in Stim1/2-deficient mouse fibroblasts (Guido et al., 2015), and complementation by junctate and E-Syt2 likely accounts for the persistence of contact sites in Stim1/2-deficient cells and for their reduced gap distance in conditions promoting Ca²⁺ elevations.

The altered functionality of IP₃Rs at ER-PM contact sites has important functional consequences for Ca²⁺ signaling. IP₃Rs on PM-bound cER sheets are in a prime location to respond to PLC-coupled agonists, as the ER-PM cleft restricts the diffusion of IP₃ molecules generated by the local hydrolysis of PI(4,5)P₂ and lipid exchange at ER-PM contact sites mitigates phosphoinositide consumption by PLC (Chang and Liou, 2015; Kim et al., 2016). Previous studies indicated that only receptors located at the rim of ER-PM contact sites are in a “licensed” state able to release Ca²⁺ (Thillaiappan et al., 2017). These licensed receptors might further enable Ca²⁺ signal propagation by facilitated diffusion within the ER lumen to rapidly reach distant effector targets, a Ca²⁺ signaling modality termed “Ca²⁺ tunneling” (Courjaret et al., 2018, 2025; Courjaret and Machaca, 2014). In this model, Ca²⁺, entering via SOCE or other channels at ER-PM contact sites, is rapidly pumped into the ER lumen by adjacent SERCAs and released via IP₃R at distal sites following diffusion in the ER lumen. The ability of Stim proteins to act as labile tethers and to maintain IP₃Rs functionality as neutrophils adhere and spread therefore influence their signaling competence in multiple ways.

While the Stim1/2-deficient neutrophils spread poorly in vitro, they emigrated better into tissue than control cells in an in vivo mouse model of acute inflammation. This is at odds with previous studies reporting either normal or reduced recruitment of Stim1 or Stim1/2-deficient neutrophils to sites of inflammation. Normal recruitment was observed in models of established peritoneal and subcutaneous inflammation (Clemens et al., 2017; Zhang et al., 2014) and reduced recruitment in acute lung infection (Yang et al., 2023) and imiquimod-induced psoriasis (Steinckwich et al., 2015). These discrepancies were attributed to differences between acute versus established models of inflammation and to paracrine amplification of neutrophil recruitment (Yang et al., 2023). Our findings indicate that differences in the extracellular Ca²⁺ concentration could also contribute to the variability of Stim1/2-dependent phenotypes in vivo. The extracellular Ca²⁺ concentration in the blood and interstitial fluid is around 1.2 mM but decreases to 0.2–0.4 mM in the mammalian epidermis (Elias et al., 2002). These low external Ca²⁺ concentrations might exacerbate the reliance of neutrophils motility on Stim1/2, accounting for the reduced recruitment of Stim1/2-deficient neutrophils in the inflamed skin.

We can only speculate as to how the reduced spreading of Stim1/2-deficient neutrophils might enhance their extravasation. Our adhesion and spreading assays were performed under static conditions, while neutrophils trans-endothelial migration is a multistep process occurring under flow conditions (Ley et al., 2007; Zarbock and Ley, 2009). STIM proteins may act differently on specific β2 integrins, in particular LFA-1 and Mac-1, sequentially engaged during trans-endothelial migration. LFA-1 plays a crucial role in the initiation of firm adhesion while Mac-1 is important for the subsequent process of intraluminal crawling under flow. In this scenario, the adhesion defect of Stim1/2-deficient neutrophils observed in vitro could be primarily due to impaired LFA-1 function. The increased extravasation in vivo, on the other hand, could be a consequence of increased Mac-1–dependent crawling, which could enhance trans-endothelial migration by allowing neutrophils to find optimal emigration sites more efficiently. This hypothesis is consistent with the findings of (Phillipson et al., 2006) and could be experimentally tested by measuring the impact of Stim1/2 deficiency on the kinetics of β2-integrin–mediated processes during each step of neutrophil extravasation.

In summary, we show that Stim1/2 ablation does not prevent the formation of ER-PM MCSs but deprives cER sheets from functional IP₃Rs and reduces basal Ca²⁺ levels, impairing adhesion-driven Ca²⁺ signals, actin dynamics, and neutrophil spreading. The tethering proteins that compensate for the lack of Stim1/2 generate persistent IP₃Rs-deficient MCSs that impede actin remodeling during neutrophil spreading. Stim proteins thus maintain signaling competence in spreading neutrophils by controlling basal Ca²⁺ levels and the dynamic delivery and retrieval of IP₃Rs-containing cER sheets at sites of receptor engagement.

The following reagents were used in this manuscript; Thapsigargin (67526-95-8; Sigma-Aldrich), Fura-2-AM (FP-42776A; Interchim), Deep Red CellMask (C10046; Thermo Fisher Scientific), and Fluo-8-AM (21080; AAT Bioquest). Mouse anti-IP₃R3 (610313; Biosciences; Monoclonal [2/IP3R-3]), rabbit anti-IP₃R1 (ab5804; abcam; polyclonal), rabbit anti-Stim1 (S6072; Sigma-Aldrich; polyclonal), mouse anti-Orai1 (ab175040; Abcam; 266.1), mouse anti-PMCA (ab2825; Abcam; 5F10), and mouse anti-vinculin (66305-1; Proteintech). Goat anti-mouse Alexa Fluor 488 (A-11029; Thermo Fisher Scientific) and goat anti-rabbit Alexa Fluor 555 (A-21428; Thermo Fisher Scientific) or goat anti-mouse and anti-rabbit coupled to horseradish peroxidase (Bio-Rad) were used as secondary antibodies. Ca²⁺ recordings and live imaging experiments were conducted in physiological buffer containing 140 mM NaCl, 5 mM KCl, 1 nM MgCl₂, 2 mM CaCl2, 20 mM Hepes, and 10 mM glucose, pH 7.4, with NaOH.

Mice deficient for Stim1 and Stim2 in the myeloid lineage were generated by crossing Stim1^fl/flStim2^fl/fl animals in the C57BL/6 background (Oh-Hora et al., 2008) with mice expressing Cre recombinase under the endogenous Cebpa promoter (Cebpa^cre/+ mice) (Wölfler et al., 2010). Mice expressing the Ca²⁺ reporter Salsa6f in the myeloid lineage were generated by crossing Cebpa^cre/+ mice with mice bearing two LSL-Salsa6f alleles inserted in the Rosa26 locus (Dong et al., 2017). Mice were bred in specific opportunist pathogen-free conditions at Charles River Laboratories and housed in the specific pathogen–free facility at the University of Geneva, Geneva, Switzerland. All animal manipulations were performed in accordance to the guidelines approved by the animal research committee at the University of Geneva. Genotyping was performed from ear biopsies as described in Nunes et al. (2012).

BM cells were obtained from mouse femurs and tibias as previously described (Nunes et al., 2012). Flushed BM cells were kept on ice and used on the same day for imaging with post hoc neutrophil identification or for isolation of neutrophils by negative selection with a purification kit (130-097-658; Miltenyi Biotec).

1 × 10⁵ BM or isolated neutrophils were labeled with antibodies against surface markers in a 96-well U-plate for 30–60 min at 4°C. Viability was assessed by co-incubation with LIVE/DEAD Fixable Yellow Dead Cell Stain at a final concentration of 1 μl/1 × 10⁶. Cells were washed and pelleted at 1,200 rpm for 5 min and fixed with 2% PFA. Cells were analyzed with CytExpert. For Ca²⁺ recordings, cells were used directly (for Salsa6f) or loaded with Fluo-8 (2 µM for 30 min, RT). Flux was adjusted to 1 μl/s and 2,000 cells/s on a BDFSR Fortessa. 5 × 10⁵ cells in 510 μl of Ca²⁺-free solution (1 mM EGTA) were sequentially exposed to Tg (10 µM) and CaCl₂ (final concentration 2.5 mM), and the average median fluorescence was recorded every 10 s with Flowjo.

Ca²⁺ imaging was performed as described previously (Henry et al., 2022). 20–100 × 10³ BM or purified neutrophils were plated on a small drop in the center of a 0.001% PLL-coated 25-mm glass coverslip in microscope chambers and left to adhere for 3 min before filling the chamber with physiological buffer. Cells were imaged at 40× magnification on a Nikon Eclipse Ti microscope (Nikon Instruments) equipped with a Lambda DG4 illumination system (Sutter Instrument) and a 16-bit CMOS camera (pco.Edge sCMOS; VisitronSystems). Ca²⁺ activity was recorded with Salsa6f at 490/525 nm_ex/em and 572/630nm_ex/em and concomitantly or separately at 340/510 nm_ex/em and 380/510 nm_ex/em. In cells loaded with 2 μM Fura-2-AM for 20 min, using filter sets from Chroma Technology. Ca²⁺ transients were identified as peaks exceeding 40% of the baseline R/R₀ value. In situ calibration was performed as in (Dong et al., 2017), using Fura-2–loaded isolated Salsa6f⁺ neutrophils treated with 2 µM ionomycin in Ca²⁺-free solutions and equilibrated with increasing Ca²⁺ concentrations. Post hoc identification of neutrophils in BM cells was done by surface staining with eFluor 450–tagged anti-Ly6G monoclonal antibody (1A8; eBioscience) imaged at 402/460 nm_ex/em. Ca²⁺ recordings of isolated neutrophils in suspension were performed on a Hamamatsu FDSS μCELL. Cells were loaded with 4 μM Fluo-8-AM for 40 min, washed, and kept in 20 mM Hepes-supplemented HBSS. 20–30 × 10³ cells were dispensed in 384-well plates and 5 μl of the indicated compounds added after 30 s of recordings at 490/525 nm_ex/em at a rate of 0.5 s for 15 min.

Isolated mouse neutrophils were lysed with RipA buffer, and the collected proteins quantified with Bradford reagent (Sigma-Aldrich). 20 µg (for IP₃R1) or 40 µg (for IP₃R3) proteins were loaded into 3–8% Tris-acetate polyacrylamide gels, separated by SDS-PAGE, transferred to polyvinylidene difluoride membranes, and revealed with primary rabbit and mouse antibodies and goat secondary antibodies coupled to horseradish peroxidase. Chemiluminescence was measured on a Fusion FX imaging device (Vilber), and data expressed as ratio of IP₃R over vinculin immunoreactivity.

For immunostaining, 60 × 10³ purified cells were adhered for 10 min on PLL, fixed in 4% paraformaldehyde, permeabilized with 0.1% NP40, and blocked in 0.5% BSA/3.5% FCS. Cells were stained overnight at 4°C with primary antibodies and 1 h at RT with secondary antibodies diluted in 0.5% BSA before washing and mounting in SlowFade/10 µg/ml Hoeschst. Confocal images of the bottom and middle planes of cells were acquired with LSM800 Airyscan at 60× magnification. For PLA, the Duolink In Situ Red Starter Kit Mouse/Rabbit (DUO92101; Sigma-Aldrich) was used to reveal proximity between targets after overnight incubation with primary antibody pairs. Cells were incubated with anti-mouse MINUS and anti-rabbit PLUS probes for 1 h at 37°C before ligation for 1 h at 37°C and amplification for 100 min at 37°C. Fluorescence of nuclei and of proximity pairs were measured using the LSM800 Airyscan at 40× magnification using Hoechst 33342 (405/461 nm_ex/em) and Texas Red (594/624 nm_ex/em) channels. Confocal z-stacks of 0.5 µm were acquired and a maximal intensity Z-projection generated. A script was written to count nuclei and fluorescent dots based on particle size and threshold. The number of dots per cell was assessed by particle analysis with Fiji for nuclei (800-infinity pixel display) and duolink dots (2–15 pixel display). Only the dots in the vicinity of nuclei were counted.

The tdTomato signal was used for morphometric analysis and tracking of neutrophils identified by post hoc Ly6G staining on Salsa6f recordings using scrips available on GitHub. For DIC microscopy, 60 × 10³ cells were adhered for 3 min and random fields acquired at fixed time points to evaluate the spreading of neutrophils identified by post hoc Ly6G staining. DIC images were acquired every 2 sec on a Zeiss Axio Observer Z1 microscope at 63× magnification. Spreading kinetics was measured on a Nikon TIRF microscope at a magnification of 100×. 10⁵ BM cells were incubated for 15 min at 37°C with 1:10,000 CellMASK Deep Red (C10046; Thermo Fisher Scientific) in GlutaMAX RPMI 1640 medium (61870036; Thermo Fisher Scientific), washed, resuspended in 2 mM Ca²⁺, and added to PLL-coated coverslips inserted in a chamber inside the TIRF microscope. A few cells were plated to find the TIRF plane using the CellMASK 640 signal. After 1 min, the bulk of the cell suspension was added, and lamellipodia appearing in the TIRF plane were imaged. Images were acquired every 30 s for 12 min. Neutrophils were identified by post hoc Ly6G staining. Changes in spreading area were analyzed using Image J/Fijy.

150 × 10³ cells were either adhered on PLL-coated 12-mm glass coverslips and treated or not with Tg (1 µM for 15 min) or left in suspension before pelleting in Eppendorf and processed as in Henry et al. (2022). Briefly, cells were fixed with 2.5% glutaraldehyde, following a staining with uranyl acetate, and then postfixed with osmium tetroxide. Samples were embedded in Epon resin and then sectioned at 30 nm. Samples were imaged on a Technai 20 transmission electron microscope (FEI) at 92,000 times magnification. For each cell identified on the grid every ER structure located within 30 nm of the PM was imaged. The cell periphery was outlined to calculate the proportion of PM coverage. The cER length and the ER-PM gap distance were determined on EM images using ImageJ/Fiji.

Primary mouse neutrophils were loaded for 30 min at 37°C with 1 µM SiR-actin (SC001 Spirochrome) in presence of 10 µM verapamil to block efflux pumps according to the manufacturer’s instructions. Actin dynamics were then imaged using a Nikon ECLIPSE Ti2-E inverted widefield fluorescence microscope equipped with a Lumencor Spectra III LED light engine at 60× magnification. Cells were gently dropped on a PLL-coated coverslip in an imaging chamber already containing 500 μl of physiological buffer. Images were acquired every 0.2 s at λ_ex/em 652/674 nm, and changes in SiR-actin fluorescence were measured for 15 min as cells touched the coverslip.

To induce inflammation, male mice were injected i.p. with recombinant murine TNFα (500 ng in 200 μl PBS per mouse, # 300-01A; PeproTech). 2 h after injection, the cremaster muscles were surgically removed. For whole mount immunostaining, extracted muscles were then fixed in formalin for 20 min, blocked, and permeabilized in PBS supplemented with 20% normal goat serum and 0.5 % Triton X-100 for 2 h. For immunostaining of blood vessels and neutrophils, muscles were incubated with fluorescently labeled primary antibodies rat anti-mouse CD31-AF647 (clone MEC13.3; Biolegend) and rat anti-mouse GR1-FITC (clone RB6-8C5; Biolegend) at RT overnight. Animal studies were performed according to the protocol GE-154 approved by the University of Geneva animal research committee.

Images were acquired using an Axio Examiner Z1 spinning disk confocal microscope (Zeiss) equipped with 488- and 640-nm laser sources and a 20× objective using Slidebook 6.0.12 software (Intelligent Imaging Innovations). Multiple 3D fields of view (z-stacks) were captured using the software’s automatic scanning mode. Using maximum projected z-stacks, the quantification of neutrophil extravasation was performed by counting all interstitial GR1⁺ cells within a distance of 75 µm from postcapillary venules with an average diameter >30 µm. Extravasation was then calculated as extravascular cell counts per area analyzed using ImageJ (version 1.54f; FIJI).

Fig. S1 shows the gating strategy used to isolate neutrophils from BM, Salsa6f calibration, Ca²⁺ waves reported by Salsa6f, and the functional validation of Stim1/2 ablation, related to Fig. 1 and Fig. 2. Fig. S2 shows the effects of pharmacological inhibitors on neutrophil Ca²⁺ responses, related to Fig. 3. Fig. S3 shows the effect of Stim1/2 ablation and PLC inhibition on neutrophil spreading, related to Fig. 4. Fig. S4 shows the effect of Stim1/2 ablation on ultrastructural parameters of mouse neutrophils, related to Fig. 5. Fig. S5 shows the effect of Stim1/2 ablation on the distribution of PMCA and IP₃R and the effect of Ca²⁺ supplementation on the basal Ca²⁺ levels of mouse neutrophils, related to Fig. 6. Fig. S6 shows the effect of Stim1/2 ablation on IP₃R mRNA levels and on neutrophil actin dynamics, related to Fig. 6 and Fig. 7. Table S1 shows the effects of soluble molecules and substrates on Ca²⁺ signals during neutrophils spreading. Video 1 shows the time-lapse DIC and Salsa6f recordings in adherent mouse neutrophils, related to Fig. 1 C. Video 2 shows the time-lapse TIRF recordings of GCaMP6f fluorescence in an adherent mouse neutrophil, related to Fig. S1 D. Video 3 and Video 4 show the Salsa6f-based Ca²⁺ recordings of adherent WT and Stim1/2-deficient neutrophils, related to Fig. 2 C. Video 5 shows the effect of PLC inhibition on Ca²⁺ transients of adherent mouse neutrophils, related to Fig. 3 B. Video 6 and Video 7 show the time-lapse DIC recordings of WT and Stim1/2-deficient neutrophils plated to PLL, related to Fig. 4 B. Video 8 and Video 9 show the TIRF recordings of CellMask-labeled WT and Stim1/2-deficient neutrophils plated to PLL, related to Fig. 4 C. Video 10 and Video 11 show the time-lapse DIC and SiR-actin recordings of WT and Stim1/2-deficient neutrophils plated to PLL, related to Fig. 7 B.

The data that support the findings of this study are presented in the main and supplementary figures, with number of experiments and statistical tests applied. Primary data are available from the corresponding author upon reasonable request.
