Reticulons promote formation of ER-derived double-membrane vesicles that facilitate SARS-CoV-2 replication

Severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) is responsible for the global COVID-19 pandemic (Dong et al., 2020; Lu et al., 2020; Zhou et al., 2020; Zhu et al., 2020, Coronaviridae Study Group of the International Committee on Taxonomy of Viruses, 2020). To cause infection, SARS-CoV-2 undergoes endocytosis to reach the endosome where the viral and endosomal membranes fuse, delivering the viral genomic RNA (gRNA) into the cytosol (Hoffmann et al., 2020; Walls et al., 2020). ORF1a and ORF1b of the incoming viral gRNA are translated into two polypeptides, pp1a and pp1ab, via a programmed-1 ribosomal frameshift (Chen et al., 2020a; Pohl et al., 2022; Sawicki et al., 2007). Cotranslational and posttranslational cleavage of pp1a and pp1ab gives rise to 16 non-structural proteins (NSPs). NSP2–16 make up the viral replication and transcription complex (RTC) enabling genome replication by performing various functions including RNA synthesis, proofreading, processing, and innate immune evasion.

Importantly, a subset of the RTC NSPs is necessary for the formation of ER-derived replication organelles (ROs) that function as sites for viral genome replication (Knoops et al., 2008; Oudshoorn et al., 2017; Snijder et al., 2020; Speckhart et al., 2021; Ulasli et al., 2010). The major RO for coronaviruses is the double-membrane vesicles (DMVs), although other membranous structures have also been proposed as sites of genome amplification and translation (Froshauer et al., 1988; Shang et al., 2022; Singh et al., 2020; Snijder et al., 2020). The DMVs support the transcription of viral gRNA and subgenomic RNAs (sgRNAs) via a process called discontinuous transcription, a hallmark of coronaviruses. Further rounds of translation and polyprotein cleavage leading to the formation of more RTCs are iterative processes that result in the amplification of DMVs, replicated viral gRNAs, and sgRNAs. The sgRNAs encode four viral structural proteins S, E, M, and N, along with 11 accessory proteins (Kim et al., 2020; Sawicki and Sawicki, 1995). The gRNAs and different sgRNAs are then exported from inside the DMVs into the cytosol (Wolff et al., 2020b) via a putative pore in the DMV containing NSP3 (Wolff et al., 2020a). Those sgRNAs encoding S, E, and M are targeted to the ER where translation generates the S, E, and M membrane proteins, while the sgRNAs encoding the N protein are translated in the cytosol. The N protein associates with the gRNA, and the resulting complex is targeted to the ER–Golgi intermediate compartment (ERGIC) where it assembles with the S, E, and M proteins. In the final step, the assembled viral particles exit the host cell via a secretory pathway (Chen et al., 2020a; Klaus et al., 2013; Klumperman et al., 1994; McBride et al., 2007; Stertz et al., 2007; V’Kovski et al., 2021).

Despite this level of understanding of the SARS-CoV-2 life cycle, major gaps remain including how the virus induces the formation of the DMVs that support viral replication. For SARS-CoV-2 and the related SARS-CoV, and the Middle East Respiratory Syndrome-related coronavirus (MERS-CoV), the viral non-structural membrane proteins NSP3, NSP4, and NSP6 are crucial for ER membrane remodeling, leading to the formation and maintenance of the DMVs (Angelini et al., 2013; Knoops et al., 2008; Oudshoorn et al., 2017; Snijder et al., 2020; Wolff et al., 2020a; Wolff et al., 2020b). NSP6 was shown to organize DMVs through induced ER membrane “zippering” and to restrict access of the ER luminal machinery to the DMVs (Ricciardi et al., 2022). However, how NSP3, NSP4, and NSP6 act in concert with host factors to generate these viral replication structures is largely unknown.

Here, using infectious SARS-CoV-2, we show that the ER membrane-shaping proteins reticulon-3 (RTN3) and RTN4 are necessary for the efficient formation of DMVs, enabling viral replication, which results in productive infection (Moreira et al., 1999; Schulte and Healy, 1987; van de Velde et al., 1994). The RTNs, including RTN1–4, reside on the outer leaflet of the ER membrane on ER tubules via a conserved reticulon homology domain (RHD; Oertle et al., 2003). The RHD consists of two hydrophobic membrane-embedded hairpins connected by a hydrophilic loop (Di Scala et al., 2005); this domain forms short hairpins that insert into the outer ER leaflet to induce membrane curvature (Shibata et al., 2010; Voeltz et al., 2006). The RHD, located near the C-termini of RTNs, shares ∼70% identity across the RTN family, while the N-termini of the RTNs and their myriad of isoforms lend specificity to each RTN due to alternative splicing (GrandPré et al., 2000). RTN4 is the most well-characterized of the RTNs due to its importance as a neural outgrowth inhibitor in the central nervous system, yet the RTNs are expressed widely across various tissues in mammals (Di Scala et al., 2005; Geisler et al., 1998; Oertle et al., 2003). Our results further demonstrate that multiple SARS-CoV-2 variants, including the delta variant, hijack the RTN-mediated pathway during infection. Structure–function analysis in the context of an overexpression system reveals that the RHD of RTN3 and RTN4—a motif known to induce ER membrane curvature (Chen et al., 2020b; Shibata et al., 2010; Voeltz et al., 2006; Yang and Strittmatter, 2007; Zurek et al., 2011)—is sufficient to promote viral replication. Finally, we found that the RTNs physically bind to NSP3 and NSP4, two viral non-structural proteins that are necessary to induce DMV formation. Together, our data identify RTN3 and RTN4 as host factors that play a critical role during the biogenesis of SARS-CoV-2-induced DMV structures.

Formation of CoV-induced DMVs requires reshaping of the ER membrane. Based on the known role of RTNs in ER membrane curvature, we tested whether RTN3 and RTN4 (key RTN family members), along with FAM134B (which also harbors an RHD but is localized to ER sheets), play any role during SARS-CoV-2 infection using the siRNA knockdown (KD) approach (Mirabelli et al., 2021; Ou et al., 2020; Zhou et al., 2020; Zhu et al., 2020).

To monitor infection, we incubated human Huh7 cells with the SARS-CoV-2 USA-WA1/2020 variant for 48 h and used the 50% tissue culture infective dose (TCID₅₀) assay to measure infectious virus titer secreted from the cells (see Fig. S1 A for a schematic of assays). Importantly, when these RHD-containing proteins are individually knocked down using specific siRNAs for 48 h (Fig. 1 A), depletion of either full-length RTN3 (RTN3A) or full-length RTN4 (RTN4A) and its shorter isoform RTN4B (harboring a slightly truncated cytosolic region), but not FAM134B, reduced virus infection when compared with control (scrambled siRNA-treated) cells (Fig. 1 B; see also Fig. S1 B). We note that although the RTN3 siRNA also reduced the FAM134B level as previously reported (Cunningham et al., 2019), the block in SARS-CoV-2 infection using this siRNA is unlikely due to a lowered FAM134B level because virus infection was unaffected by the FAM134B siRNA, which reduced the FAM134B (but not RTN3A) level. Using a similar approach, we depleted RTN3C (a naturally occurring shorter isoform of RTN3A, see below) and RTN4A/RTN4B in the simian Vero E6 cells (Fig. S1 C); only RTN3C, but not RTN3A, was detected in the Vero E6 cells, similar to simian CV-1 cells as we previously reported (Chen et al., 2020b). These cells were subsequently infected with the SARS-CoV-2 USA-WA1/2020 variant for 48 h followed by the TCID₅₀ assay. Importantly, viral infection in these cells was markedly reduced under RTN3 or RTN4 KD (Fig. 1 C; see also Fig. S1 B). RTN3 KD in Huh7 cells also impaired infection by the alpha (B.1.1.7), beta (B1.351), and delta (B1.617.2) SARS-CoV-2 variants (Fig. 1 D; see also Fig. S1 B). As a control, we used the MTS cell viability assay to examine cellular integrity and found that neither depletion of RTN3 nor RTN4 compromised cellular viability at either 48 h or 96 h posttransfection of the siRNAs relative to control cells (Fig. S1 D). Furthermore, using the PCR-based XBP1 splicing assay (Yoshida et al., 2001), no ER stress induction was observed under the KD conditions (Fig. S1 E), consistent with our previous report (Chen et al., 2020b). Moreover, by confocal imaging, we observed that depletion of RTN3 or RTN4 did not dramatically alter global ER morphology (Fig. S1 F). Together, these results demonstrate that RTN3 and RTN4 support SARS-CoV-2 infection across different viral variants.

The finding that RTN3 and RTN4 play a functional role in SARS-CoV-2 infection prompted us to ask if replication of the viral genome might be disrupted when these RTN proteins are depleted. Replication of the SARS-CoV-2 genome is thought to occur in the virus-induced DMV (Klein et al., 2020; Snijder et al., 2020). In this replication organelle, dsRNA intermediates are formed during genome replication. Indeed, dsRNA intermediate formation is a hallmark of active CoV replication. To determine if RTN3 and RTN4 play a role in the formation of the dsRNA intermediate, Huh7 cells were transfected with the indicated siRNAs for 48 h and subsequently infected with the virus for 48 h and stained with an antibody that selectively detects dsRNA. Our results revealed that RTN3 or RTN4 (but not FAM134B) KD robustly decreased dsRNA formation (Fig. 2 A; quantified in Fig. 2 B). Similarly, depletion of RTN3 or RTN4 in Vero E6 cells also decreased the formation of dsRNA (Fig. 2 C; quantified in Fig. 2 D). We then used quantitative RT-PCR (qRT-PCR) to assess the replicated gRNA level in Huh7 cells infected with the virus for 48 h and found that the gRNA level markedly decreased under RTN3 or RTN4 KD (Fig. 2 E), consistent with the dsRNA staining findings (Fig. 2, A–D). Taken together, these findings indicate that the RTN host proteins play a crucial role during SARS-CoV-2 genome replication. We then examined if early events of SARS-CoV-2 infection were affected under RTN3 or RTN4 KD by assessing the level of the viral gRNA (by qRT-PCR) at 4 hpi. At this time point, we found that the viral gRNA level was unaffected by the depletion of RTN3 or RTN4 (Fig. 2 F), suggesting that early events supporting virus genome replication do not require RTN3 and RTN4 (see below).

What structural features of RTN3 and RTN4 assist in SARS-CoV-2 replication? In addition to the RHD that inserts into the ER membrane, RTN3 contains a cytosolic N-terminal domain (NTD) harboring many LC3-interacting regions (LIRs), which participate in an ER-dependent protein quality control process called ER-coupled autophagy (ER-phagy; Chen et al., 2021; Cunningham et al., 2019; Grumati et al., 2017). While full-length RTN3A contains both the RHD and NTD, RTN3C contains only the RHD (Fig. 2 G). In the case of RTN4, full-length RTN4A contains its own cytosolic N-terminal extension followed by the RHD, while an engineered truncated mutant of RTN4 (RTN4HD) contains only its RHD (Fig. 2 G).

Importantly, using a KD-rescue approach, we found that the block in dsRNA formation in RTN3 KD cells can be fully restored by overexpressing either (FLAG- and/or GFP-tagged) RTN3A, RTN3C, RTN4A, or RTN4HD (Fig. 2 H). These findings not only demonstrate that the impaired dsRNA formation observed with RTN3 KD is due to loss of RTN3 (and not to unintended off-target effects) but they also indicate that the RHD domain of RTN3 or RTN4 is sufficient to support SARS-CoV-2 replication. Using a similar approach, we also found that the block in dsRNA formation in RTN4 KD cells can be rescued by overexpressing RTN4A, RTN4HD, or importantly, RTN3C (Fig. 2 H). The observation that overexpressing RTN4HD can rescue the defect in RTN3 KD cells (and vice versa, overexpressing RTN3C can rescue the impairment in RTN4 KD cells) clearly indicates that the presence of the RHD is an important feature in supporting viral replication.

Our data thus far suggest that RTN3 and RTN4 support virus replication. As these RTN proteins function to shape the ER membrane, a process that likely plays a key role in DMV formation, we asked if DMV formation itself requires RTN3 or RTN4. To test this, we infected control, RTN3, and RTN4 KD cells with WA1 SARS-CoV-2 for 12 h (or 24 h) and subjected the samples to transmission electron microscopy (TEM). In control cells (infected for 12 h), clusters of double membrane structures proximal to the nucleus and measuring ∼200–300 nm in diameter were readily identified (Fig. 3 A). These physical features are in complete agreement with previously published SARS-CoV-2-induced DMV structures (Klein et al., 2020); additional examples of the virus-induced DMVs are found in Fig. S2 A. Quantification revealed that 17 of the 53 infected cells (32%) that were evaluated contained the DMV clusters (Fig. 3 D). Kinetic analysis found that these DMV structures were not observed at 8 hpi and rarely observed at 10 hpi (<1%) in the control cells (data not shown). By contrast, when 34 RTN3 KD cells (infected for 12 h) were analyzed, none of them displayed the perinuclear DMV clusters (Fig. 3 B, left; quantified in Fig. 3 D; see Fig. S2 B for additional examples). Moreover, only one of the 39 RTN3 KD cells (2.6%) infected for 24 h harbored the DMV clusters (Fig. 3 B, right; quantified in Fig. 3 D). When RTN4 KD cells were evaluated, none of them contained the DMV clusters regardless of the time points (Fig. 3 C; quantified in Fig. 3 D; see Fig. S2 C for additional examples). By TEM, the general ER morphology in the control and RTN-depleted cells were largely indistinguishable (Fig. S3, where the ER is highlighted in red), consistent with the confocal imaging data (Fig. S1 E). This suggests that the level of depletion of the RTN proteins resulting from siRNA-mediated KD does not globally alter the ER morphology in these cells.

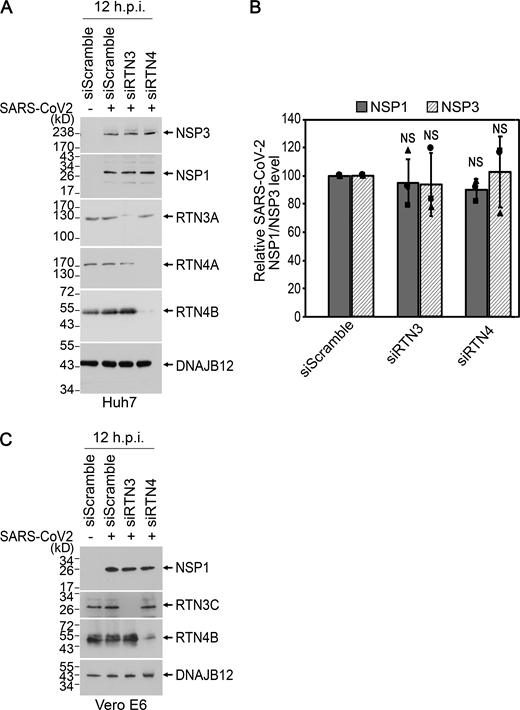

Intriguingly, although the DMV structures at 12 hpi were absent under RTN3 or RTN4 KD, the levels of NSP3 (critical for DMV formation) and NSP1 were not affected under the KD conditions at this same time point in the Huh7 cells (Fig. S4 A; quantified in Fig. S4 B); a similar result was found in the Vero E6 cells (Fig. S4 C). As the NSPs observed at 12 hpi likely result from the translation of the replicated virus genome, these findings indicate that at least some degree of genome amplification and translation during early events of SARS-CoV-2 infection (i.e., up to 12 hpi) must occur outside of the RTN3/4-dependent DMVs (see Discussion), as suggested by findings in Fig. 2 F.

As the ectopic expression of the CoV non-structural proteins NSP3 and NSP4 can induce the formation of DMVs (Angelini et al., 2013), we asked whether these two viral proteins might bind to RTN3 and RTN4. Cells expressing FLAG-tagged RTN3A (FLAG-RTN3A), FLAG and GFP-tagged RTN3C (FLAG-GFP-RTN3C), or the control ER membrane protein Hrd1 (FLAG-Hrd1) were cotransfected with Strep-tagged NSP3 (2xStrep-NSP3) and NSP4 (NSP4-2xStrep), or with either 2xStrep-NSP3 or NSP4-2xStrep alone. In cells expressing 2xStrep-NSP3 and NSP4-2xStrep, we found that immunoprecipitation of either FLAG-RTN3A or FLAG-GFP-RTN3C (but not FLAG-Hrd1) pulled down both 2xStrep-NSP3 and NSP4-2xStrep (Fig. 4 A, top panel, compare lanes 2 and 3 to 1). These findings indicated that RTN3 can bind to NSP3 and NSP4, and suggest that this interaction is mediated by the RHD of RTN3. These results are consistent with the observation that RTN3C (harboring only the RHD) is sufficient to promote dsRNA formation (Fig. 2 H). We also found that in cells expressing FLAG-RTN3A and cotransfected with either 2xStrep-NSP3 or NSP4-2xStrep, precipitation of FLAG-RTN3A can pull down NSP3 and NSP4 (Fig. 4 A, top panel, lanes 4 and 5), demonstrating that RTN3 can individually engage the non-structural proteins.

To study the interaction between RTN4 and NSP3/4, cells expressing 2xStrep-NSP3, NSP4-2xStrep, and another viral non-structural protein FLAG-NSP2, which is not involved in DMV formation, were co-transfected with either the control HA-GFP or HA-RTN4B; as indicated, RTN4B bears a shorter cytosolic domain than RTN4A (Fig. 2 G). We found 2xStrep-NSP3 and NSP4-2xStrep (but not FLAG-NSP2) coprecipitated with HA-RTN4B but not HA-GFP (Fig. 4 B), indicating that RTN4 binds to NSP3 and NSP4; the observation that NSP2 does not bind to RTN4 suggests that the RTN3/4-NSP3/4 interaction is specific. As NSP3 and NSP4 are sufficient to trigger coronavirus DMV biogenesis (Angelini et al., 2013), our physical interaction data further links RTN3 and RTN4 to the DMV formation process.

Coimmunoprecipitation between the RTN proteins and NSP3/NSP4 does not necessarily indicate that these interactions are direct. To evaluate if the RTN-NSP interaction is direct, we isolated FLAG-RTN3A, FLAG-GFP-RTN4A, 2xStrep-NSP3, NSP4-2xStrep, and the control FLAG-GFP from transfected HEK293T cells (Fig. 4 C). We then performed in vitro pull-down studies using these highly-enriched proteins. When 2xStrep-NSP3 was incubated with FLAG-GFP, FLAG-RTN3A, or FLAG-GFP-RTN4A, precipitation of 2xStrep-NSP3 pulled down only the RTN proteins and not GFP (Fig. 4 D, lanes 1–3). Similarly, when NSP4-2xStrep was incubated with FLAG-GFP, FLAG-RTN3A, or FLAG-GFP-RTN4A, precipitation of NSP4-2xStrep pulled down RTN3A, RTN4A, but not GFP (Fig. 4 D, lanes 4–6). These findings strongly suggest that the RTN–NSP interaction is direct.

In this manuscript, we identified RTN3 and RTN4 as ER membrane proteins that promote the formation of ER-derived DMV structures, which facilitate SARS-CoV-2 replication (Fig. 4 E). As DMV formation almost certainly involves curvature of the ER membrane, it is not surprising that RTN3 and RTN4, morphogenic proteins that remodel the ER membrane, mediate DMV formation. For the flavivirus HCV, which also induces DMVs to support its genome replication (Paul et al., 2013), RTN3 was shown to have both pro- and anti-replicative functions (Diaz and Ahlquist, 2012; Wu et al., 2014). Interestingly, RTN3 was observed in close proximity to SARS-CoV-2 DMVs in the perinuclear region by costaining for dsRNA and RTN3 using confocal microscopy (Cortese et al., 2020). Likewise, using a proximity-labeling approach, RTN4 was found to be proximal to the RTC of the murine coronavirus MHV (V’Kovski et al., 2019). Thus, while evidence indicated that RTNs are proximal to coronavirus RTCs, whether these morphogenic factors play an active role in SARS-COV-2 infection was not entirely clear until now.

Using a siRNA-mediated KD strategy, we found that depletion of RTN3 or RTN4 reduced SARS-CoV-2 infection, dsRNA intermediate formation, replication of the viral genome, and appearance of perinuclear DMV clusters, without impairing early events of viral infection and overall cellular integrity. Along with these loss-of-function data, the physical interaction studies—conducted in an overexpression context—revealed that the RTNs directly engage NSP3 and NSP4, viral non-structural proteins capable of triggering coronavirus DMV formation (Angelini et al., 2013). Although it is unclear if the RTNs are present on the DMVs, our observation that RTNs bind to NSP3 and NSP4 raises this possibility. Together, the functional and biochemical findings strongly suggest that RTN3 and RTN4 help to promote the formation of DMVs during SARS-CoV-2 infection. As DMV formation represents a general process that supports genome replication of the coronavirus family, our identification of two critical host factors required for DMV biogenesis is likely to have a broad impact on our understanding of the infection mechanism of existing (and future) SARS-CoV-2 variants.

Interestingly, our results showed that during early events of virus replication (up to 12 hpi), depletion of the RTN proteins did not affect the NSP levels but decreased the level of the DMVs. If we assume the observed NSPs at this time point are due to translation of the replicated virus genome, these findings raise the possibility that at least some degree of genome amplification and translation during early events of SARS-CoV-2 infection must occur outside of the RTN3/4-dependent DMVs. This possibility is consistent with the idea that genome replication for coronaviruses (and other RNA viruses) can take place in other replication structures, including convoluted membranes, small spherule invaginations, zippered ER compartments, and double membrane spherules, some of which may even be associated with endosomes, lysosomes, and mitochondria (Froshauer et al., 1988; Shang et al., 2022; Singh et al., 2020; Snijder et al., 2020). Moreover, it has also been shown that the number and size of DMVs may not correlate with virus replication (Al-Mulla et al., 2014).

Mechanistically, we then used a KD-rescue approach to identify crucial features in the RTNs that support viral replication and found that the membrane-embedded RHD (consisting of two hairpin loops) is sufficient to support viral replication. As the RHD is inserted into the outer leaflet of the ER membrane, it imposes positive membrane curvature at the site of recruitment. We postulate that this membrane-bending activity shapes the ER membrane leading to DMV formation.

Whether RTN3 and RTN4 execute the exact same function during DMV formation is not entirely clear. However, the observation that RTN4 overexpression can rescue a defect caused by RTN3 KD (and that RTN3 overexpression can restore the impairment due to RTN4 KD) suggests that these two ER membrane proteins may display some degree of overlapping function. If this is true, why are both proteins essential during DMV formation, given that depletion of each individual protein is sufficient to cause a severe phenotype? One possibility is that an overall “threshold” density of the RTNs in the ER membrane is required to efficiently generate DMVs, such that depleting the level of either protein creates a subthreshold condition that prevents the proper formation of these replicative structures. It is important to note that not all RHD-containing proteins promote the formation of SARS-CoV-2 DMVs since depletion of FAM134B (which harbors an RHD) did not block virus infection. One explanation is that other RHD-containing ER proteins are not recruited to the site of developing DMVs and therefore exert little or no effect on DMV formation. This is supported by the observation that FAM134B is enriched in ER sheets to facilitate selective autophagy of this subcellular region, while RTN3 and RTN4 are enriched in ER tubules (Khaminets et al., 2015) to help shape and expand the tubules themselves.

A critical unanswered question is how RTNs coordinate with NSP3 and NSP4 to create DMVs. The exact mechanism of DMV formation from the ER remains unknown and has been proposed to involve membrane budding, tubule elongation, and membrane closure (Klein et al., 2020; Klumperman et al., 1994; Knoops et al., 2008; Miller and Krijnse-Locker, 2008). Thus, it is conceivable that one or more of these membrane remodeling steps require the curvature-inducing activity of RTN3 and RTN4, along with their localization to ER tubules. In one scenario, the NSP3–NSP4 protein complex may bind to and recruit the RTNs to a select region in the ER to initiate DMV formation. Thus, NSP3 and NSP4 simply act as a scaffold to recruit the ER morphogenic factors. Alternatively, given that NSP3 and NSP4 have also been reported to harbor membrane-shaping activities (Hagemeijer et al., 2014; Oudshoorn et al., 2017), the combined actions of the RTNs and these viral non-structural proteins may be necessary to complete the complex reactions leading to DMV formation. This complexity is further underscored by the recent discovery that two ER membrane factors—VMP1 and TMEM41B, which participate in the autophagy process (Ji et al., 2022)—play a role in the biogenesis of coronavirus DMVs. Clearly understanding how the RTNs coordinate with these autophagy factors to help drive DMV formation deserves future investigation.

HEK 293T (CRL-3216) and Vero E6 cells (CRL-1586) were obtained from ATCC. The Huh7 cells are from Sekisui Xenotech (JCRB0403)—the US distributor for the Japanese Collection of Research Bioresources (JCRB) Cell Bank—which is supported by the Japanese National Institute of Biomedical Innovation. All cells were cultured at 37°C under 5% CO₂ in complete DMEM containing 10% FBS or 2% FBS during viral infection, 10 μ/ml penicillin, and 10 μg/ml streptomycin (GIBCO). DMEM, Opti-MEM, and 0.25% trypsin-EDTA were purchased from Thermo Fisher Scientific. FBS was purchased from R&D Systems.

Deoxy Big CHAP (DBC), 2-mercaptoethanol (BME), phenylmethylsulphonyl fluoride (PMSF), Triton X-100, and anti-FLAG M2 antibody-conjugated agarose beads (A2220) were purchased from Sigma-Aldrich. 16% w/v paraformaldehyde (PFA), Tween 20, glutaraldehyde (2.5%) in sodium cacodylate buffer, and anti-HA magnetic beads (88836) were purchased from Thermo Fisher Scientific. The antibodies used were as follows: FLAG (F1365; Millipore Sigma-Aldrich), RTN4 (sc-271878; Santa Cruz Biotechnology), RTN3 (A302-860A; Bethyl Laboratories), B12 (16780–1-AP; Proteintech Group), Hsp90 (sc7947; Santa Cruz Biotechnology), dsRNA (J2; Jena Biosciences; 10010200), NSP1 (GTX135612; Genetex), Streptavidin (LS-C203628; LifeSpan BioSciences), HA (11867423001; Roche), FAM134B (21537-1-AP; Proteintech Group), BAP31 (MA3-002; Invitrogen), DNAJB12 (16780-1-AP; Proteintech Group), anti-Mouse IgG Alexa Fluor 488 (A-11029; Invitrogen), anti-Rabbit IgG (A4914; Sigma-Aldrich), anti-Mouse IgG (A4416; Sigma-Aldrich), anti-Rat IgG (A5795; Sigma-Aldrich), and ProLong Diamond Antifade Mountant with DAPI (P36962; Invitrogen).

All Star Negative (Qiagen) was used as a scrambled control siRNA. The following siRNAs were purchased from Millipore Sigma-Aldrich: siRTN3, 5′-UCAGUGUCAUCAGUGUGGUUUCUUADTDT-3′; siRTN4, 5′-GUUCAGAAGUACAGUAAUUDTDT-3′; siFAM134B, 5′-CAAAGATGACAGTGAATTADTDT-3′.

2xStrep-NSP3 and NSP4-2xStrep were gifts from Dr. Elizabeth R. Fischer (National Institutes of Health, Hamilton, MT [Hackstadt et al., 2021]). FLAG-NSP2 was a gift from Dr. Lars Plate (Vanderbilt University, Nashville, TN [Davies et al., 2020]). The pcDNA3.1-GFP-Sec61β, pAc-GFP-RTN3C, HA-RTN4B, and GFP-RTN4HD were gifts from Dr. Tom Rapoport (Harvard University, Cambridge, MA [Shibata et al., 2010; Voeltz et al., 2006]). The pcDNA3.1-FLAG-RTN3A was a kind gift from Dr. Ivan Dikic (Goethe University, Frankfurt, Germany [Grumati et al., 2017]). FLAG-HRD1, FLAG-GFP-RTN3C, and FLAG-GFP-RTN4A were described previously (Chen et al., 2021; Chen et al., 2020b).

For siRNA transfection, Huh7 cells were reverse transfected with 50 nM of the indicated siRNA using Lipofectamine RNAiMAX (Thermo Fisher Scientific). Infections and biochemical assays were performed 48 h after transfection. For DNA plasmid transfection, Huh7 and HEK293T cells were transfected with 1 µg of the indicated DNA plasmids using polyethylenimine (PEI; Polysciences). Infections and biochemical assays were performed 24 h after transfection.

2 × 10⁵ Huh7 or Vero E6 cells were plated on 12-well plates prior to infection. DMEM containing 10% FBS was replaced with DMEM containing 2% FBS to prevent cell proliferation. Cells were brought into the University of Michigan Biosafety Level-3 laboratory prior to infection. Cells were infected at 2 (or 5) MOI with one of the following SARS-CoV-2 strains: USA-WA1/2020 (NR-52281; Washington); hCoV-19/England/204820464/2020 (alpha; B.1.1.7); hCoV-19/South Africa/KRISP-K005325/2020 (beta; B.1.351); and hCoV-19/USA/PHC658/2021 (delta, B.1.617.2). Infected cells were incubated for 4 h, 12 h, 24 h, or 48 h before virus inactivation. SARS-CoV-2 in infected media was inactivated using bleach. SARS-Cov-2 in infected cells were inactivated by either 4% PFA for 30 min, 1.25% glutaraldehyde for 30 min, 1X Laemmli sample buffer at 95°C for 10 min, or by bleaching. For Fig. 2 F, cells were incubated at 4°C for 1 h prior to virus addition. SARS-CoV-2 WA1 was then added at MOI 5 and the cells were again immediately incubated at 4°C to synchronize infection. The cells were then transferred to 37°C for 4 h as indicated.

For immunoblotting, cells were lysed in 100 μl RIPA buffer supplemented with 10 mM NEM and 1 mM PMSF, incubated on ice for 10 min, and centrifuged. The extract was subjected to SDS-PAGE and transferred to either nitrocellulose or PVDF membrane. Membranes were incubated with primary antibodies in TBST with 3% milk or BSA overnight, washed, and incubated with secondary antibodies for 30–60 min prior to exposure using ECL. For immunoblotting samples infected with SARS-CoV-2, after lysis, the resulting lysate was precipitated with 10% TCA. The resulting pellet was resolved in 1× Laemmli buffer and then incubated at 95°C for 10 min before being subjected to SDS-PAGE and immunoblotting as described above. Images were acquired via autoradiography film (NC9556985; Thermo Fisher Scientific), scanned, and quantified using FIJI distribution of ImageJ.

After 48 h of infection, media from infected Huh7 or Vero E6 cells containing the secreted virus was harvested and cleared of cell debris via centrifugation. Vero E6 cells were plated on a 96-well plate at 2 × 10⁴ with complete DMEM containing 2% FBS. The cleared media from infected Huh7 or Vero E6 cells was then diluted 10-fold into the first column of uninfected Vero E6 containing 96-well plate and then 10-fold serial dilutions of the infected media were added to each subsequent column of wells down to the eighth column. As a control, a column of wells was left uninfected. The 96-well plate was then incubated for 48 h and then scored for the cytopathic effect (CPE). After scoring wells for CPE, the TCID₅₀/ml was calculated using the Shi-Hsia Hwa TCID₅₀/ml calculator (licensed by Creative Commons Attribution-ShareAlike 4.0 International), which determines the TCID₅₀/ml using the Reed-Muench method.

Huh7 or Vero E6 cells were grown on no.1 glass coverslips, infected with SARS-CoV-2 WA1 for 48 h, and then chemically fixed with 4% PFA for 30 min. Cells were then permeabilized in PBS with 0.2% Triton X-100 for 5 min and blocked with 5% milk containing 0.05% Tween-20. Primary antibodies were incubated in milk overnight at 4°C. Coverslips were then washed four times in milk and incubated with Alexa Fluor secondary antibodies (Invitrogen) for 30 min at room temperature. Coverslips were again washed and mounted using ProLong Gold with DAPI (Invitrogen). Images were taken using a 40× objective on a Nikon Eclipse TE2000-E inverted epifluorescence microscope at room temperature. Images were acquired using NIS Elements imaging software (Nikon version 4.60). FIJI software was used for image processing and analysis. Briefly, cells displaying the anti-dsRNA signal were counted and divided by the total number of cells in each field indicated by DAPI staining.

After PFA fixation, RNA from infected Huh7 cells was extracted using TRIzol Reagent (15596018; Thermo Fisher Scientific) according to the manufacturer’s protocol. The concentrations of the extracted RNA were determined using a NanoDrop 2000 spectrophotometer (ND2000CLAPTOP; Thermo Fisher Scientific). RNA conversion to DNA was achieved by using iScript Reverse Transcription Supermix for RT-qPCR (1708841; Bio-Rad) using 0.5 μg of RNA following the manufacturer’s protocol. qPCR was subsequently performed using the SsoAdvanced Universal SYBR Green Supermix (1725271; Bio-Rad) on a CFX Connect Real-Time PCR Detection System (Bio-Rad, 1855201) along with Bio-Rad CFX Maestro Software according to the manufacturer’s protocol. Briefly, 100 ng of template DNA was mixed with the SYBR Supermix along with 5 μM each forward and reverse primers. qPCR was performed at 95°C for 10 s, 60°C for 40 s, for 50 cycles, followed by melt curve analysis at 65°C for 5 s then 95°C for 5 s. Primers used were: SARS-CoV-2_Orf1a_Forward, 5′-GTG​CTC​ATG​GAT​GGC​TCT​ATT​A-3′; SARS-CoV-2_Orf1a_Reverse, 5′-CGT​GCC​TAC​AGT​ACT​CAG​AAT​C-3′; GAPDH_Forward, 5′-CCC​TTC​ATT​GAC​CTC​AAC​TAC​A-3′; GAPDH_Reverse, 5′-ATG​ACA​AGC​TTC​CCG​TTC​TC-3′. qPCR of each sample was done using three technical replicates with SARS-CoV-2 Orf1a primers as well as three technical replicates using primers against GAPDH. Average cycle threshold (Ct) values were calculated followed by delta–delta Ct values for each sample as described (Livak and Schmittgen, 2001).

For TEM, 2 × 10⁵ Huh7 cells were plated on 35-mm MatTek glass bottom dishes (MatTek Co., P35G-1.5-10-C). After siRNA transfection, the cells were infected for 12 h or 24 h. Warm 2.5% glutaraldehyde in 0.1 M sodium cacodylate buffer at 37°C was added to the cell media to optimally dilute the fixative. The cells were initially fixed for 30 min at room temperature and then additionally fixed overnight at 4°C. Following the pre-fixation, cells were washed with 0.1 M sodium cacodylate buffer (11654; Electron Microscopy Sciences) to remove residual aldehyde. For lipid fixation, the cells were postfixed with a mixture of ice-cold 1% osmium tetroxide (4% OsO4, 19140; Electron Microscopy Sciences) and 1% potassium ferrocyanide (10% K4FeCN6, 25154-10; Electron Microscopy Sciences) in 0.1 M sodium cacodylate buffer for 15 min on ice. Cells were then washed with 0.1 M sodium cacodylate buffer. To enhance the contrast of cell membrane and subcellular membrane, the cells were treated with 4X diluted uranyl acetate replacement stain (22405; Electron Microscopy Sciences) for 15 min at room temperature and Walton’s lead aspirate for 5 min at 60°C. The cells were washed with distilled water and then dehydrated with ascending ethanol series (10, 30, 50, 70, 80, 90, 95, and 100%). The cells were gradually infiltrated with Spurr’s resin (14300; Electron Microscopy Sciences) and polymerized for 24 h at 70°C. 70-nm ultrathin sections from polymerized resin blocks were sectioned using an ultramicrotome (Leica EM UC7; Leica Microsystems Inc.), transferred on bare Cu 300 mesh grids, and evaporated with carbon using a high vacuum coater (Leica EM ACE600; Leica Microsystems Inc.). The sections were observed under a Jeol JEM-1400 Plus LaB6 transmission electron microscope (Jeol Inc.) at 60 keV and imaged under a 12-megapixel CMOS TEM camera (Advanced Microscopy Techniques, NanoSprint12). Pseudo-coloring of the ER in red was done using Adobe Photoshop.

For IP of FLAG-tagged proteins, HEK 293T cells transfected with FLAG-Hrd1, FLAG-RTN3A, or FLAG-GFP-RTN3C were seeded in 15-cm plates. The cells were lysed in 1% DBC in a physiological buffer at 4°C for 10 min and centrifuged at 13,000 × g at 4°C for 10 min. The supernatant was collected and rotated at 4°C for 2 h with M2 FLAG-conjugated beads. The beads were washed three times and the bound material was eluted by 3xFLAG peptide and subjected to SDS-PAGE, followed by immunoblotting using the indicated antibodies. For IP of HA-tagged proteins, HEK 293T cells were transfected with HA-GFP or HA-RTN4B. Cells were lysed as above, and the supernatant was collected and rotated at 4°C overnight with anti-HA magnetic beads. The beads were washed three times in a lysis buffer. The beads were then treated with 1× Laemmli sample buffer and subjected to SDS-PAGE and immunoblotting using the indicated antibodies.

HEK 293T cells transiently expressing FLAG-GFP, FLAG-RTN3A, or FLAG-GFP-RTN4A were lysed in a buffer containing 150 mM NaCl, 50 mM HEPES, and 1% deoxy Big CHAP with 1 mM PMSF. Samples were pelleted at high speed to remove unbroken cells and debris, and the supernatant was subject to FLAG immunopurification using anti-FLAG affinity gel (Cat#12657; Millipore Sigma) for 2 h at 4°C. The samples were then washed five times with lysis buffer, and FLAG-GFP, FLAG-RTN3A, or FLAG-GFP-RTN4A was eluted using excess 3xFLAG peptide.

HEK 293T cells transiently expressing 2xStrep-NSP3 or NSP4-2xStrep were lysed in a buffer containing 150 mM NaCl, 50 mM HEPES, and 1% deoxy Big CHAP with 1 mM PMSF. Samples were pelleted at high speed to remove unbroken cells and debris, and the supernatant was subject to strep immunopurification using MagStrep “type3” XT beads (Cat#126572-4090-002; IBA Lifesciences) overnight at 4°C. The samples were then washed five times with lysis buffer, and 2xStrep-NSP3 and NSP4-2xStrep were eluted using Buffer E (0.1 M Tris-Cl, 150 mM NaCl, 1 mM EDTA, 2.5 mM desthiobiotin).

250 ng of 2xStrep-NSP3 or NSP4-2xStrep was incubated with either 0.25 ug of FLAG-GFP, FLAG-RTN3A, or FLAG-GFP-RTN4A in a lysis buffer for 30 min at 37°C and immunoprecipitated using MagStrep “type3” XT beads for 15 min at 4°C. Samples were washed five times in a lysis buffer and eluted with sample buffer. Samples were subjected to SDS-PAGE and immunoblotting using the indicated antibodies.

Huh7 cells were plated on 96-well plates at a density of 2 × 10⁴ cells per well and transfected with the indicated siRNAs for either 48 h or 96 h. The cells were treated with the MTS reagent (ab197010; MTS Assay Kit, Abcam) according to the manufacturer's protocol and incubated at 37°C under 5% CO₂ for 1 h. The plate was briefly vortexed and absorbance (OD = 490 nm) was read using a BioTek Synergy H1 Multimode Reader (Agilent). The data were analyzed using BioTek Gen5 software.

Huh7 cells were transfected with either scrambled, RTN3, or RTN4 siRNA. As a positive control, one sample was treated for 2 h with 1 mM DTT to induce XBP1 splicing. In brief, cells were collected and total RNA was extracted using the RNeasy Mini Kit (74104; Qiagen). cDNA was generated from the extracted RNA using the iScript Reverse Transcription kit (1708841; BioRad). XBP1 fragments were then amplified using the following primers: 5′-CGC​GGA​TCC​GAA​TGT​GAG​GCC​AGT​GG-3′ and 5′-GGG​GCT​TGG​TAT​ATA​TGT​GG-3′. The amplified fragments were separated on an acrylamide gel, and images were acquired with a UVP BioDoc-It Imaging system.

Huh7 cells were grown on number 1 glass coverslips and chemically fixed with 4% PFA for 15 min. Cells were then permeabilized in PBS with 0.2% Triton X-100 for 10 min and blocked with 5% milk containing 0.02% Tween-20. Anti-DNAJB12 and DAPI were incubated in milk overnight at 4°C. Coverslips were then washed four times in milk and incubated with Alexa Fluor secondary (Invitrogen) for 1 h at room temperature. Coverslips were again washed and mounted using ProLong Gold (Invitrogen) and imaged using the Zeiss LSM 780 confocal microscope using a 63× objective at room temperature. Images were acquired using ZEN Microscopy software (Zeiss). FIJI software was used for image processing and analysis.

All data obtained from at least three independent experiments (biological replicates) were combined for statistical analyses. Results were analyzed using Student's two-tailed t test. Data are represented as the mean values, and the error bar represents SD, where indicated. The P values are indicated by *P < 0.05, **P < 0.01, and ***P < 0.001. P < 0.05 was considered to be significant.

Fig. S1 contains a schematic outlining the time points for key experiments, validation of other siRNAs in Vero E6 cells, graphs from Fig. 1 using logarithmic scaling, and various assays demonstrating the siRNAs do not globally disrupt cell integrity. Fig. S2 contains additional representative images related to Fig. 3, and Fig. S3 shows TEM images from Fig. 3 with the ER pseudo-colored showing a lack of change in ER morphology using the indicated siRNAs. Fig. S4 shows the NSP levels via immunoblotting at 12 h.p.i. using the indicated siRNAs. All data are available in the article itself and its supplementary materials.
