Cellulose Synthase-Like D (CSLD) proteins, important for tip growth and cell division, are known to generate β-1,4-glucan. However, whether they are propelled in the membrane as the glucan chains they produce assemble into microfibrils is unknown. To address this, we endogenously tagged all eight CSLDs in Physcomitrium patens and discovered that they all localize to the apex of tip-growing cells and to the cell plate during cytokinesis. Actin is required to target CSLD to cell tips concomitant with cell expansion, but not to cell plates, which depend on actin and CSLD for structural support. Like Cellulose Synthase (CESA), CSLD requires catalytic activity to move in the plasma membrane. We discovered that CSLD moves significantly faster, with shorter duration and less linear trajectories than CESA. In contrast to CESA, CSLD movement was insensitive to the cellulose synthesis inhibitor isoxaben, suggesting that CSLD and CESA function within different complexes possibly producing structurally distinct cellulose microfibrils.

Cellulose, the major component of plant cell walls, plays essential biological roles for plants and serves important practical roles for people. In plants, cellulose is critical for morphogenesis (Bidhendi and Geitmann, 2016). For people, cellulose is a source of traditional and emerging bio-based materials (Wilson et al., 2021). Unique among land plant cell wall components, cellulose is synthesized as microfibrils, which consist of β-1,4-glucan chains joined laterally through hydrogen bonding. The mechanical properties of cellulose microfibrils depend on their cross-sectional dimensions and number of glucan chains, which in turn depend on the structure of Cellulose Synthase Complexes (CSCs) responsible for both glucan polymerization and microfibril assembly (Brown, 1996; Tsekos, 1999). The rosette-type CSCs of land plants are composed of six particles, each containing three Cellulose Synthase (CESA) catalytic subunits (Kimura et al., 1999; Mueller and Brown, 1980; Nixon et al., 2016; Pear et al., 1996; Purushotham et al., 2020; Vandavasi et al., 2016), and produce microfibrils consisting of 18 glucan chains (Jarvis, 2018; Kubicki et al., 2018; Oehme et al., 2015).

The CSC was first conceptualized in the “ordered granule hypothesis” (Preston, 1964) and posited to move in the plasma membrane (Brown et al., 1976) propelled by the force of cellulose crystallization (Diotallevi and Mulder, 2007; Herth, 1980; Roberts et al., 1982). Live-cell imaging of a YFP-CESA6 translational fusion was a critical advance that provided direct evidence of CSC movement (Paredez et al., 2006) and enabled visualization and quantification of CSC behavior (Gu and Rasmussen, 2022). While cellulose biosynthesis by CESAs has been well studied, recent evidence suggests that related Cellulose Synthase-Like D (CSLD) proteins also synthesize cellulose-like β-1,4-glucan (Hu et al., 2019; Park et al., 2011; Yang et al., 2020). Like CESAs, functional CSLDs reside in the plasma membrane (Park et al., 2011) and they synthesize β-1,4-glucan and form multimeric complexes in vitro (Yang et al., 2020). However, it is not known whether the in vivo product of CSLDs is microfibrillar.

In Arabidopsis and other plants, specific CSLDs are required for the development of pollen tubes (Bernal et al., 2008; Doblin et al., 2001) and root hairs (Bernal et al., 2008; Favery et al., 2001; Galway et al., 2011; Kim et al., 2007; Li et al., 2016; Park et al., 2011; Wang et al., 2001). These tubular cells direct secretion of flexible cell wall materials to their tips, allowing for a process of localized cell expansion known as polarized tip growth (Gu and Nielsen, 2013; Rounds and Bezanilla, 2013). AtCSLD5 and its orthologs are required for normal growth of stems and leaves (Bernal et al., 2007; Hu et al., 2010; Hunter et al., 2012; Li et al., 2009; Luan et al., 2011; Wu et al., 2010; Yang et al., 2016; Yoshikawa et al., 2013). Recently, it was discovered that atcsld5 mutants have primary defects in cytokinesis (Gu et al., 2016; Hunter et al., 2012; Yang et al., 2016) and that the gene is regulated by the cell cycle (Gu et al., 2016; Yoshikawa et al., 2013). In root hairs of Arabidopsis, CSLDs are tip localized, whereas CESAs localize to subapical regions (Park et al., 2011). In cytokinesis, AtCSLD5 accumulates earlier in cell plate development than CESAs (Gu et al., 2016). These CSLD-mediated processes are also distinct in their responses to cellulose biosynthesis inhibitors (CBIs) with different modes of action (Larson and McFarlane, 2021). For example, root hair tip growth and AtCSLD3 localization are not affected by isoxaben (Park et al., 2011), which specifically targets CESA proteins (Scheible et al., 2001). In contrast, root hair tips rupture in the presence of the CBIs 2,6-dichlorobenzonitrile (DCB; Favery et al., 2001; Park et al., 2011) and CGA 325′615 (Park et al., 2011), which alter the behavior of plasma membrane localized CESAs and CSLDs (Park et al., 2011). Together these data indicate that CSLDs synthesize cellulose or a cellulose-like polymer required to maintain the integrity of growing root hairs and pollen tubes (Park et al., 2011) and contribute to the development of cell plates (Gu et al., 2016) through a process that is distinct from CESA-mediated cellulose biosynthesis.

Physcomitrium (formerly Physcomitrella) patens is typical of many mosses with a dominant haploid phase consisting of tip-growing protonemal filaments and leafy gametophores whose leaf-like structures known as phyllids are composed of cells that expand by diffuse growth (Schumaker and Dietrich, 1998). Although CESA activity is required for gametophore development (Goss et al., 2012; Scavuzzo-Duggan et al., 2015), protonemal tip growth is insensitive to the CESA-specific CBI isoxaben, but sensitive to DCB (Tran et al., 2018), which affects both CESA and CSLD proteins (Park et al., 2011). Thus, cellulose detected at the tips of growing protonemal filaments (Berry et al., 2016) may not be synthesized by CESAs. Advantages of P. patens as an experimental organism include CRISPR-Cas9-based methods for rapid in-locus tagging of proteins (Lopez-Obando et al., 2016; Mallett et al., 2019) and the ability to capture the continuous development of protonemata and gametophores at exquisite temporal and spatial resolution by live-cell imaging (Bascom et al., 2018; Bascom et al., 2016; Wu and Bezanilla, 2018).

It is not known whether CSLDs produce microfibrillar cellulose. However, by analogy with CESAs, this would require that CSLDs associate to form CSCs and that they move in the plasma membrane as the glucan chains produced by their enzymatic activity assemble to form microfibrils. Here, we demonstrate the roles of P. patens CSLDs in cytokinesis and protonemal tip growth. Using endogenous tagging, we show that the eight CSLDs localize to the apical plasma membrane in tip growing cells and to developing cell plates. We show that CSLD6 moves in linear trajectories along the plasma membrane and that this movement requires enzymatic activity, suggesting that CSLD forms complexes and synthesizes microfibrillar cellulose. Differences between CSLD6 and CESA10 in the rate, duration, and CBI sensitivity of these linear movements indicate that CSLD6 and CESA10 function within distinct structures.

Moss CSLDs diversified independently from seed plants and have distinct expression patterns

A phylogenetic tree was constructed to examine the diversification of CSLDs in P. patens (Roberts and Bushoven, 2007); selected non-flowering plant species with sequenced genomes including the lycophyte Selaginella moellendorffii (Harholt et al., 2012), the liverwort Marchantia polymorpha (CSLD sequences identified by BLAST) and the conifer Picea abies (Yin et al., 2014); and angiosperms in which CSLDs have been functionally characterized including Arabidopsis (Richmond and Somerville, 2000), cotton (Li et al., 2017), Populus species, rice, and maize (Yin et al., 2014). The tree was rooted with CSLD sequences from the charophyte green alga Coleochaete orbicularis (Mikkelsen et al., 2014). The tree (Fig. 1) reveals that the CLSD family diversified independently in mosses, lycophytes, liverworts, and seed plants. As shown previously (Hunter et al., 2012; Pancaldi et al., 2022), seed plant CSLDs cluster in three clades that correspond to distinct mutant phenotypes related to pollen tube development (Bernal et al., 2008; Doblin et al., 2001; Moon et al., 2018; Wang et al., 2011), root hair development (Bernal et al., 2008; Favery et al., 2001; Galway et al., 2011; Hu et al., 2018; Kim et al., 2007; Li et al., 2016; Park et al., 2011; Peng et al., 2019; Penning et al., 2009; Qi et al., 2013; Wang et al., 2001; Yoo et al., 2012), and general growth effects, in some cases attributed to defects in cytokinesis (Bernal et al., 2007; Gu et al., 2016; Hu et al., 2010; Hunter et al., 2012; Luan et al., 2011; Samuga and Joshi, 2004; Wu et al., 2010; Yang et al., 2016; Yoshikawa et al., 2013; Zhu et al., 2010). The divergence of P. patens CSLDs into two clades, one containing CSLD2 and CSLD6 and the other containing the six remaining P. patens CSLDs (Fig. 1), is supported by synteny analysis (Fig. S1 A). Analysis of P. patens microarray data available in PEATmoss (Fernandez-Pozo et al., 2020) shows distinct expression patterns for members of these clades with CSLD2 and CSLD6 enriched in leafy gametophores and the others enriched in filamentous protonemata (Fig. S1 B). Overall, mRNA expression was somewhat higher for CSLD2 than for CSLD6. A separate analysis of RNAseq data in PEATmoss confirmed gametophore enrichment for CSLD2, but CSLD6 transcripts were not detected.

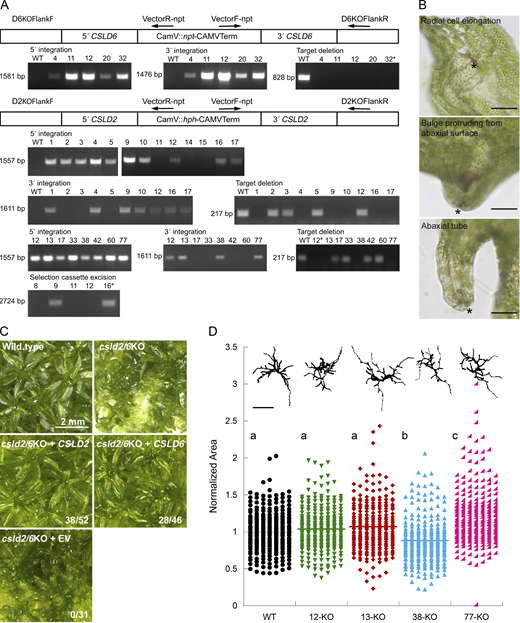

CSLD2 and CSLD6 are redundantly required for gametophore cellular patterning

To investigate functional specialization within the P. patens CSLD family, we used homologous recombination (Fig. S2 A) to knock out CSLD2 (Pp3c25_12650V1.1) and CSLD6 (Pp3c6_4060V1.1), close paralogs that are more highly expressed in gametophores. Multiple independent csld2KO and csld6KO lines (Table S1) produced protonemal colonies and gametophores with normal morphologies (Fig. 2, A–F). In contrast, the gametophores of double csld2/6KO lines (Table S1) had aberrant phyllids that were smaller than wild type with multiple defects related to cell expansion and cell adhesion (Fig. 2, G, and H). The mildest of these defects consists of small cell separations surrounded by cells that are elongated radially (Fig. 2, H and J), instead of parallel to the phyllid axis (Fig. 2 I). These structures were also observed occasionally in csdl6KO phyllids that were otherwise normal in appearance (Fig. 2 F). More severe defects observed only in csld2/6KOs, including bulges and tubular protrusions that appeared to form from continued expansion and division of the radially elongated cells surrounding small cell separations (Fig. 2, H and K; and Fig. S2 B), larger cell separations (Fig. 2 L), truncated midribs (Fig. 2 M), and formation of protonema-like filaments along the phyllid margins (Fig. 2 N). Normal leaf morphology was restored when a csld2/6KO line was transformed with a vector driving expression of either CSLD2 or CSLD6 with the native promoter (Fig. S2 C).

We also examined protonemal growth in csld2/6KOs by morphometric analysis of colonies grown from protoplasts (Li et al., 2019; Vidali et al., 2007). In two independent experiments, we found no significant differences in plant area between wild type and any of the four csld2/6KO lines tested (Fig. S2 D).

CSLDs localize to cytoplasmic punctae, the apical plasma membrane of protonemal tips, and developing cell plates

To observe CSLD localization and behavior in living cells, we tagged each CSLD locus by inserting sequences coding for fluorescent proteins immediately upstream of the start codon (Fig. S3 A). We generated lines with the rapidly maturing form of mScarlet, mScarlet-I (Bindels et al., 2017), in a variety of strain backgrounds (Table S1). We observed fluorescent signals from all endogenously tagged CSLD lines, with all mScarlet-CSLDs localizing to cytosolic punctae. The size of the punctae appeared to correlate with the strength of the signal with CSLD3, 4, and 8, which had the strongest signal, containing the largest cytoplasmic punctae (Fig. 3 A). Accumulation at the apical plasma membrane was most evident in rapidly growing cells as shown for CSLD1, 3, 6, 7, and 8 (Fig. 3 A). Nevertheless, all eight CSLDs were observed on the plasma membrane in apical protonemal cells (Fig. 3 A). We also found that CSLDs accumulate on the developing cell plate (Fig. 3 B). Of the two CSLDs with predominant mRNA expression in gametophores, mScarlet-CSLD6 fluorescence was significantly stronger than mScarlet-CSLD2 (Fig. 3), suggesting that CSLD2 and CSLD6 may have differential protein stability.

To test whether N-terminal fusions impair protein function, we specifically tested mScarlet-CSLD6 functionality, because CSLD6 and CSLD2 are redundantly required for gametophore patterning and the mScarlet-CSLD6 signal was easily detectable. Since nonfunctional mScarlet-CSLD6 would disrupt gametophore patterning in the csld2KO background, we used CRISPR-Cas9 to disable CSLD2 in the mScarlet-CSLD6/mEGFP-tubulin line. We found that gametophore morphology was indistinguishable from control plants for the csld2KO alleles we recovered in mScarlet-CSLD6 (Fig. S3 C and Table S1), demonstrating that N-terminal tagging does not disrupt CSLD6 function.

Given that all CSLDs localized similarly and that mScarlet-CSLD6 expressed robustly in both gametophores and protonemata, we studied mScarlet-CSLD6 localization and dynamics. mScarlet-CSLD6 localized to cytosolic punctae and to cell plates in gametophores (Fig. 4 A and Video 1), consistent with apparent cell division defects in csld2/6KO. During interphase, mScarlet-CSLD6 was relatively evenly distributed in the cytosol. However, the cytosolic punctae diminished in number and intensity as mScarlet-CSLD6 accumulated at the cell plate during cell division (Fig. 4 A, insets; Video 1). In protonemal tip cells, mScarlet-CSLD6 punctae were more concentrated toward the cell apex. However, the level of CSLD6 increased in subapical cells and it accumulated in emerging branches (Fig. 4 B and Video 2). Actin, which is essential for polarized growth, accumulates along with secretory vesicles at the apex of tip growing cells, just below the plasma membrane (Bibeau et al., 2020; Vidali et al., 2009a). Imaging of actin, labeled with lifeact-mEGFP, and mScarlet-CSLD6 revealed that CSLD6 punctae accumulate with actin at the cell tip. A sub-population of mScarlet-CSLD6 did not correlate with actin and was found to concentrate on the apical plasma membrane (Fig. 4 B, inset; Video 2). However, this membrane population disappeared when cells were treated with latrunculin B (LatB), a drug that depolymerizes the actin cytoskeleton (Fig. 4 C). These data suggest that actin is required for proper delivery of CSLD to the plasma membrane.

Branch initiation is an excellent model to study the molecular requirements for establishing a new site of polarized growth. Using time-lapse confocal imaging, we found that lifeact-mEGFP localizes to the presumptive branch 2 h before there is any evidence of cell expansion at that site (Fig. 4, D, and E; and Video 3), similar to previous observations that actin localizes to new polarized sites hours before expansion occurs (Wu and Bezanilla, 2018). Notably, mScarlet-CSLD6 was recruited to the same site after actin but shortly before emergence of the branch (Fig. 4, D and E; and Video 3), suggesting that CSLD activity alters cell wall properties in a way that enables expansion. In contrast to CSLD6 localization at the apical plasma membrane, we discovered that during cytokinesis mScarlet-CSLD6 accumulates in the phragmoplast midzone before actin (Fig. 4 F and Video 4), suggesting that CSLD utilizes differential delivery mechanisms during tip growth versus cytokinesis.

CSLD6 movement along linear trajectories in the plasma membrane depends on enzymatic activity and is sensitive to DCB

We used variable angle epifluorescence microscopy (VAEM) to image CSLD6 behavior at the plasma membrane. VAEM imaging uses oblique illumination to image the cell cortex below the thick cell wall, providing substantially improved signal to noise, similar to imaging animal cells with total internal reflection fluorescence microscopy. For VAEM, we tagged CSLD6 with mEGFP (Vidali et al., 2009b; Table S1; and Fig. S3 B), which resulted in the same localization pattern as mScarlet-CSLD6 (Fig. S3 D). This allowed direct comparison to mEGFP-CESA10 (Pp3c9_2670V1.1), a CESA that is well expressed in protonemata (Tran and Roberts, 2016) and was tagged in the locus by inserting mEGFP immediately upstream of the start codon (Fig. S4, A and B). Similar to CESA5 and CESA8 (Tran et al., 2018), mEGFP-CESA10 localized to discrete dots on the plasma membrane that moved in linear trajectories (Fig. 5 A and Video 5). We found that mEGFP-CSLD6 also localized to discrete dots on the plasma membrane (Fig. 5 A and Video 5). However, in contrast to CESA10, CSLD6 had a higher density at the plasma membrane and its movements were significantly faster and shorter in duration (Fig. 5, A–C and Video 5). Quantitative analysis of CSLD6 and CESA10 particle motility by particle tracking revealed that, on average, CSLD6 particles had a wider distribution of velocities and moved significantly faster than CESA10 particles (Fig. 5 B). Notably, particle tracking speed measurements were statistically indistinguishable from kymograph measurements (Fig. 5 C). Using the particle tracking data, we quantified the confinement ratio, which is a ratio of the straight-line distance between the start and end point of the trajectory divided by the actual trajectory distance. The closer the ratio is to 1, the straighter the trajectory. We found that CSLD6 trajectories were significantly more circuitous than CESA10 (Fig. 5 E).

CESA trajectories at the plasma membrane result when the glucan chains generated by CESA enzymatic activity assemble to form microfibrils within the cell wall (reviewed in Pedersen et al., 2023). To test whether CSLD6 trajectories depend on enzymatic activity, we modified the mEGFP-CSLD6 locus with CRISPR and engineered a point mutation in a residue (D867N; CSLD6-TEN; Fig. S1 C and Fig. S4 C) that deprotonates the acceptor hydroxyl group and is essential for catalysis (Purushotham et al., 2016; Yang et al., 2020). VAEM imaging revealed that mEGFP-CSLD6-TEN localizes to the plasma membrane but does not move along the membrane (Fig. 5 A and Video 5), demonstrating that linear movement is dependent on enzymatic activity. Notably, the CSLD6-TEN allele exhibits gametophore patterning defects similar to the csld2/6KO plants (Fig. 5 D), demonstrating that CSLD6-TEN acts as a dominant negative likely resulting from lack of catalytic function.

Cellulose biosynthesis inhibitors have been used to inhibit CESAs in planta (Larson and McFarlane, 2021; Tateno et al., 2016), and in both Arabidopsis (DeBolt et al., 2007) and P. patens (Tran et al., 2018), treatment with DCB or isoxaben reduced CESA linear movements. To test whether CSLD6 movements are also sensitive to DCB and isoxaben, we used VAEM imaging and discovered that DCB treatment inhibited mEGFP-CSLD6 linear trajectories, but isoxaben treatment had no effect (Fig. 5, A, E, and F; and Video 5). In addition to not affecting the speed of CSLD6 particles, isoxaben also did not alter the confinement ratio (Fig. 5 E). This differential sensitivity to DCB and isoxaben provides a tool for distinguishing the effects of CSLD and CESA inhibition. In tip growing cells of Arabidopsis and P. patens, CSLD accumulates at the apical plasma membrane (Fig. 5 G; Park et al., 2011) and tip rupture is induced by DCB, but not by isoxaben (Fig. 5 H; Favery et al., 2001; Park et al., 2011; Tran et al., 2018). Imaging cells immediately after exposure to DCB revealed that cells accumulated CSLD6 at the apical plasma membrane before rupture (Fig. 5 H and Video 6). In contrast, isoxaben treatment did not affect CSLD6 accumulation at the tip (Fig. 5 H and Video 6) and did not affect growth or lead to cell rupture, indicating that CSLDs, but not CESAs are required for cell wall integrity at the cell apex.

To investigate whether CSLD trajectories align along cortical microtubules, we used VAEM to image mScarlet-CSLD6/mEGFP-tubulin. We found that the majority of cortical mScarlet-CSLD6 did not localize to microtubules (Fig. 6 A and Video 7). Kymograph analysis demonstrates that mScarlet-CSLD6 linear trajectories occur in the absence of microtubules (Fig. 6, B and C), suggesting CSLD trajectories are independent of microtubules.

Taken together, these data indicate important facets of CSLD6 activity. First, the dependence of CSLD6 movement on enzymatic activity suggests that CSLD synthesizes a fibrillar polymer at the plasma membrane. Second, the differences in speed, duration, pathway, CBI sensitivity, and microtubule dependence of CESA10 and CSLD6 trajectories suggest that these proteins do not co-assemble, and that CSLDs synthesize fibrils at a faster rate and in a less constrained pattern compared to CESAs. Thus, CSLDs and CESAs function in distinct complexes, or CSCs, with different developmental functions.

CSLDs strengthen the developing cell plate

To probe CSLD function during cytokinesis, we used cells that express mScarlet-CSLD6 along with a microtubule marker (mEGFP-tubulin), and we stained for callose (using aniline blue) as a cell plate marker. We imaged cytokinesis in protonemata to take advantage of superior temporal and spatial resolution that can be achieved in these cells and used DCB treatment to examine the effects of acute inhibition of CSLD activity during cell division. Given that all CSLDs localize to the developing cell plate in protonemata, DCB was used to effectively inhibit cytokinesis by reducing all CSLD activity. During cell division, CSLD6 began accumulating in the midzone of early phragmoplasts. Fully expanded phragmoplasts exhibited maximal CSLD6 signal (Fig. 7 A, 20:00). As the aniline blue signal increased, we observed a concomitant decrease in CSLD6 (Fig. 7 A, 30:00), showing that it functions in early stages of cytokinesis before callose accumulates (Fig. 7 A and Video 8). Although DCB had no effect on the timing of mScarlet-CSLD6 accumulation during phragmoplast expansion, we observed that fully expanded phragmoplasts were deformed, often bending in the middle (Fig. 7 B, 18:00 to 25:00), but subsequently flattening out as callose accumulated (Fig. 7 B, 35:00 and Video 8). Like inhibition of CSLD movement (Fig. 5 A) and tip rupture (Fig. 5 H; Tran et al., 2018), phragmoplast bending was observed only with DCB treatment and not with isoxaben treatment (Fig. S5 A), which inhibits CESAs, and not CSLD. Together, these results suggest that CSLD activity contributes to the structural integrity of the nascent cell plate during phragmoplast expansion. Eventually, the DCB-treated cell plates straighten (Fig. 7 B and Video 8) indicating stabilization by other cell wall components.

Both microtubules and actin filaments have been hypothesized to direct vesicle trafficking as well as influencing cell plate positioning and structural stabilization (Smertenko et al., 2017). This proposed role in reinforcing the nascent cell plate prompted us to test whether actin contributed to straightening the bent cell plates in DCB-treated cells. Depolymerizing actin with LatB had no effect on the timing of CSLD6 accumulation at the cell plate (Fig. 7 C and Video 9). These data are consistent with the dynamics of CSLD6 and actin accumulation at the phragmoplast (Fig. 4 F), and demonstrate that CSLD6 recruitment to the nascent cell plate does not depend on actin. Division proceeded relatively normally in LatB-treated apical cells (Fig. 7 C and Video 9). While difficult to represent in still images, we did notice that the CSLD6 signal appeared wavier during cell plate maturation in LatB-treated cells (Video 9), suggesting that the nascent cell plate might be slightly less able to maintain structural integrity without actin.

Notably, treatment with both LatB and DCB caused more substantial cell plate destabilization than either LatB or DCB treatment alone (Fig. 7, B–D; and Videos 8, 9, and Video 10). LatB did not affect the timing of DCB-induced deformation of cell plates labeled with mScarlet-CSLD6, which still began when the phragmoplast microtubules reached the cell cortex (Fig. 7 D, 5:00). However, without actin, the cell plates did not flatten out and continued to buckle and twist, ultimately appearing to partially fragment (Fig. 7 D 10:00–25:00, Video 10). Depolymerization of phragmoplast microtubules was delayed (Fig. 7 D 35:00–45:00, Video 10). Callose staining occurred later than in controls and was uneven (Fig. 7 D, 80:00, Video 10). In contrast to DCB, isoxaben did not enhance LatB destabilization of cell plates (Fig. S5 B), further supporting that CESA activity does not contribute to strengthening the nascent cell plate. Dramatic defects in cell plate formation induced by acutely inhibiting CSLD and actin suggest that CSLD and actin redundantly function to stabilize the nascent cell plate during cell plate expansion.

CSLD movement in the plasma membrane is consistent with complex formation and microfibril synthesis

Earlier suggestions that CSLDs form complexes and synthesize microfibrillar cellulose were based on several types of indirect evidence and in vitro studies. Cellulose is required to maintain tip integrity in root hairs, and growing evidence indicates that this cellulose is synthesized by CSLDs (Galway et al., 2011; Gu and Nielsen, 2013; Park et al., 2011; Yang et al., 2020). Cellulose deposited at the tips of root hairs is fibrillar (Mulder et al., 2004) and root hair tip growth was disrupted when assembly of these microfibrils was inhibited by recombinant cellulose binding domains (Shpigel et al., 1998). Mutating one of the two CSLDs required for root hair tip integrity resulted in a patchy distribution of cellulose suggestive of disruption of microfibril assembly (Galway et al., 2011), possibly because CSLD complex formation was blocked. More recently, particles resembling the lobes of rosette CSCs were detected in CSLD reaction mixtures demonstrating that CSLDs form complexes in vitro, although fibrils were not detected (Yang et al., 2020). CSLD complex formation is also suggested by intragenic complementation of the csld1 mutant phenotype in Lotus japonicus (Karas et al., 2021). The possibility that CSLDs move in the plasma membrane was suggested based on the premise that DCB-induced expansion of the tip-localized AtCSLD3 zone in root hairs is attributable to inhibition of tip-directed CSLD movement (Park et al., 2011). VAEM imaging of GFP-CSLD6 in P. patens protonemata (Fig. 5; Videos 4 and 5) provides direct evidence that CSLDs move in linear trajectories along the plasma membrane. Further, mutation of a conserved residue required for catalysis (Purushotham et al., 2016; Yang et al., 2020) inhibits CSLD movement, demonstrating its dependence on enzymatic activity. By analogy with CESAs (Diotallevi and Mulder, 2007), we postulate that this movement results from the production of microfibrils that upon incorporation into the cell wall, propel the CSLD6 in the plane of the membrane. A structurally distinct CSC formed by CSLDs instead of CESAs could synthesize microfibrillar cellulose with distinct properties that facilitate tip growth and cytokinesis.

CESA and CSLD function independently

Chimeric proteins consisting of AtCSLD3 with its catalytic domain replaced by the AtCESA6 catalytic domain can rescue the atcsld3 root hair growth phenotype (Park et al., 2011). Conversely, a chimera of AtCESA6 with the catalytic domain of AtCSLD3 can rescue the atcesa6 null phenotype and moved in the plasma membrane as part of a complex that also contained AtCESA3. These data indicate that regions outside the catalytic domain of these proteins are responsible for their distinct functions, including complex formation, fibrillar structure of the product, and subcellular targeting (Yang et al., 2020), but they do not rule out the possibility that CESAs and CSLDs associate with one another to form mixed CSCs. We show that CSLD6 movements are faster and shorter in duration as compared to CESA10 and are not inhibited by isoxaben (Fig. 5; and Videos 4 and 5). These distinct patterns of movement are consistent with the hypothesis that CSLD6 and CESA10 function within distinct CSCs and produce microfibrillar cellulose at different rates. This is consistent with previous observations that CESA and CSLD function is separated in time and space. In root hairs, eGFP-AtCESA6 localization is subapical (Park et al., 2011) and CESAs have been assigned a role in deposition of the helicoidal cell wall that is deposited in the non-growing shank (Emons, 1994; Lindeboom et al., 2008). In contrast, CSLDs are localized to the tips of both P. patens protonemata (Figs. 3, 4, and 5) and Arabidopsis root hairs (Park et al., 2011). GFP-AtCESAs are more abundant in the late stages of cell plate maturation (Fujita and Wasteneys, 2014; Gu et al., 2016; Miart et al., 2014), whereas CSLDs are present in the early cell plates in P. patens (Figs. 3, 4, and 7) and Arabidopsis (Gu et al., 2016).

CESA/CSLD diversification

Phylogenetic analysis confirms that the CSLD families of mosses and seed plants diversified independently from a single ancestral gene (Fig. 1; Pancaldi et al., 2022). CSLD families from both lineages include members that function in tip growth and cytokinesis, suggesting that both functions are ancestral. In the seed plant lineage, CSLD orthologs from Arabidopsis and rice have similar expression patterns in pollen (Bernal et al., 2008; Moon et al., 2018; Wang et al., 2011), root hairs (Bernal et al., 2008; Kim et al., 2007), or in dividing cells (Gu et al., 2016; Yang et al., 2016; Yoshikawa et al., 2013) indicating that subfunctionalization (i.e., evolution of differential expression patterns resulting from promoter modification) preceded the divergence of monocots and eudicots. In P. patens, the two CSLD clades are distinguished by preferential expression in gametophores or protonemata (Figs. S2 and S3) indicating that subfunctionalization preceded the first whole-genome duplication. In Arabidopsis, single csld mutations have distinctive phenotypes, consistent with limited redundancy (Hunter et al., 2012), although analysis of double and triple mutants showed some overlapping function (Yang et al., 2016; Yin et al., 2011).

Role of CSLD in tip growth, cell division, and cell expansion

Here, we show that P. patens CSLDs are associated with both tip growth and cytokinesis. First, all CSLDs localize to protonemal cell tips and to cell plates (Fig. 3). Second, inhibiting CSLD function with DCB-induced tip rupture (Fig. 5; and Videos 4, 5 and 6), and destabilized developing cell plates (Fig. 7; and Videos 7, 8, 9 and 10). Similar to catalytic inactivation of CSLD6, DCB inhibited mEGFP-CLSD6 movement in the plasma membrane, demonstrating that DCB inhibits CSLD function. Notably, CSLD stabilization of the nascent cell plate is synergistic with actin. Acute inhibition of either CSLD or actin did not dramatically alter cytokinesis (Fig. 7). However, acute inhibition of both CSLD and actin resulted in cytokinesis failure (Fig. 7), suggesting that CSLD helps maintain the structural integrity of the cell plate, while actin helps to anchor the membranous network containing the developing cell plate to the plasma membrane. Although catalytic inactivation of CSLD6 did not result in loss of protonemal tip integrity, we did observe a dominant negative phenotype in mEGFP-CSLD6-TEN gametophores that resembles the csld2/6KO phenotype. This confirms that mEGFP-CSLD6-TEN is inactive and is also consistent with low expression of CSLD6 in protonemata relative to other CSLDs. Isoxaben, which specifically targets CESAs (Scheible et al., 2001), had no effect on any of these processes, suggesting that the effects of DCB are attributable to CLSD inhibition. Collectively, these data support the hypothesis that the product of CSLD activity stabilizes nascent cell walls formed during tip growth and cytokinesis in P. patens.

Mutation analysis revealed that the gametophore-enriched CSLDs, CSLD2, and CSLD6, function redundantly to maintain normal phyllid development. Although csld2KOs and csld6KOs have little or no obvious phenotype, double csld2/6KOs produce aberrant phyllids with defects in cell adhesion and patterning. Many of the cell patterning defects appear to result from changes in the direction of expansion of cells directly adjacent to cell separations (Fig. 2). The separations almost certainly alter the stress-strain relationships between adjacent cells, and it is known that plant cells alter their direction of cell expansion in response to mechanical signals (Hamant and Haswell, 2017). Thus, the patterning defects observed in phyllids may be an indirect consequence of cell separation, resulting from altered tissue mechanical forces and consequent changes in the polarity of cell expansion.

Mutations that affect AtCSLD5 or its orthologs in other seed plants also alter cell patterning (Gu et al., 2016; Hunter et al., 2012; Yang et al., 2016; Yoshikawa et al., 2013). Effects include epidermal bulges on maize leaves that superficially resemble the bulges we observed on moss phyllids (Hunter et al., 2012) and enlarged and misshapen bulliform, bundle sheath, and stomatal lineage cells in rice (Yoshikawa et al., 2013). These data suggest that CSLD impairment may impact cell expansion. Interestingly, Yang et al. (2016) reported linkage composition changes for all polysaccharide classes in the meristems of Arabidopsiscsld mutants. Compensatory alteration of cell wall composition is a common response to chemical or genetic inhibition of cellulose synthesis that is thought to be mediated by a cell wall integrity sensing system (Anderson and Kieber, 2020). This response may underly the varied developmental defects that result from csld mutations in P. patens and other plant species.

Localization of all CSLDs to protonemal cell tips and cell plates suggests that CSLDs function redundantly in protonemata. Live-cell imaging experiments employing lines expressing lifeact-mEGFP along with mScarlet-CSLD6, as a representative CSLD, showed that actin accumulates 1–2 h before CSLD at new tip growth sites. Notably, cell expansion was not detected until CSLD6 was recruited to the growth site, suggesting that CSLD6 activity is in part required to produce extensible cell walls. Furthermore, actin depolymerization with LatB demonstrated that actin maintains CSLD6 accumulation at cell tips during growth, similar to previous observations in Arabidopsis root hairs (Park et al., 2011). In contrast during cell division, CSLD6 accumulates in the phragmoplast before actin and in the presence of LatB, suggesting that actin-independent trafficking recruits CSLD6 to the developing cell plate. During cell division, actin instead helps to strengthen the cell plate during expansion. Our data demonstrate that the same protein is trafficked via actin-dependent and -independent pathways to distinct subcellular sites, the cell tip, and the phragmoplast. Ultimately, CSLD activity contributes to the balance of cell wall flexibility and strength facilitating expansion of the cell tip and, together with actin, the nascent cell plate.

Division of labor of CESA and CSLDs

Localization of both CESAs and CSLDs in cell plates and root hairs (Fujita and Wasteneys, 2014; Gu et al., 2016; Miart et al., 2014) suggests that these β-1,4-glucan synthases both contribute to cytokinesis and tip growth. Functional differentiation between CESAs and CSLDs could include differences in the properties of the cellulose fibrils produced and CSC guidance mechanism. Movement in the plasma membrane (Fig. 5) along with the formation of oligomers in vitro (Yang et al., 2020) indicate that CSLDs function in complexes, but the nature of the CSLD complexes and the microfibrils they produce is unknown. Growing tips and cell plates may have special biophysical requirements that are met by CSLDs synthesizing fibrils that differ from CESA-produced fibrils in their mechanical properties. Microfibrils have been imaged in cell plates (Fujita and Wasteneys, 2014) and in root hair tips (Mulder et al., 2004). In both cases, the microfibrils were similar in dimensions, but less ordered than microfibrils in mature cell walls. This may mean that CESAs and CSLDs synthesize similar microfibrils. Alternatively, the microfibrils could be synthesized by CESAs present during the later stages of cell plate formation (Miart et al., 2014) and by widely spaced CESAs in root hair tips (Mulder et al., 2004). CESA movement is known to track along microtubules (Paredez et al., 2006). In contrast, we have shown that CSLD trajectories are independent of microtubule orientation in P. patens protonemata (Fig. 6), providing a plausible explanation for the deposition of disordered microfibrils in cell plates and the apical regions of tip growing cells if they are synthesized by CSLDs. In vivo characterization of CSLD complexes and the microfibrils they synthesize will be required to distinguish among these alternatives.

Vector construction

All primer pairs are shown in Table S2, along with annealing temperatures used for PCR. Amplification with Taq Polymerase (New England Biolabs) included a 3-min denaturation at 94°C; 35 cycles of 15 s at 94°C, 30 s at the annealing temperature, and 1 min/kbp at 72°C. Amplification with Phusion Polymerase (New England Biolabs) included a 30-s denaturation at 98°C; 35 cycles of 7 s at 98°C, 7 s at the annealing temperature, and 30 s/kbp at 72°C.

The CSLD2KO and CSLD6KO vectors were constructed using Gateway Multisite Pro cloning (Invitrogen) as described previously (Roberts et al., 2011). Flanking sequences 5′ and-3′ of the coding regions were amplified with appropriate primer pairs (Table S2) using Phusion DNA polymerase (New England Biolabs) and cloned into pDONR 221 P1-P4 and pDONR 221 P3-P2, respectively, using BP Clonase II (Invitrogen). The hph selection cassette was amplified from BHNSR (gift of Didier Schaefer, University of Neuchâtel, Neuchâtel, Switzerland) and cloned into pDONR 221 P3r-P4r. All entry clones were sequence verified. Entry clones with CSLD2 and CSLD6 flanking sequences in pDONR 221 P1-P4 and pDONR 221 P3-P2 were linked with the entry clone containing the hph selection cassette or an nph selection cassette (Norris et al., 2017), respectively, and inserted into pGEM-gate (Vidali et al., 2009b) using LR Clonase II Plus (Invitrogen). The resulting plasmids were cut with BsrGI for transformation into P. patens.

Expression vectors for HA-tagged PpCSLDs under control of their native promoters were constructed using Gateway Multisite Pro cloning (Invitrogen). The CSLD2 and CSLD6 coding sequences were amplified from cDNA clones pdp04669 and pdp21814 (RIKEN BioResource Center), respectively, using Phusion DNA polymerase (New England Biolabs) with forward primers containing a single hemagglutinin (HA) tag and appropriate reverse primers (Table S2), and cloned into pDONR 221 P5-P2 using BP Clonase II (Invitrogen). Similarly, the CSLD2 and CSLD6 promoters (∼2 Kb upstream of the start codons) were amplified from P. patens genomic DNA and cloned into pDONR 221 P1-P5r. All entry clones were sequence verified. Promoter entry clones were linked to entry clones containing their respective HA-PpCSLD coding sequences and inserted into pSi3(TH)GW (Tran and Roberts, 2016) using LR Clonase II Plus (Invitrogen). These vectors target the expression cassettes to the intergenic 108 locus, which can be disrupted with no effect on phenotype (Schaefer and Zrÿd, 1997). Rescue vectors were cut with SwaI for transformation into a P. patens csld2/6KO lines from which the hph resistance cassette had been removed (see below).

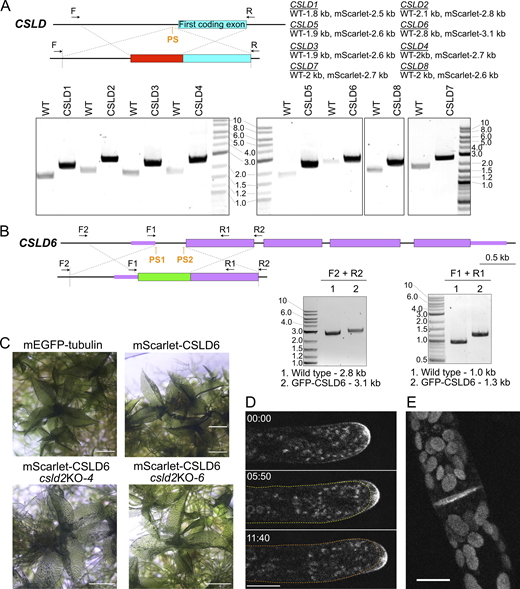

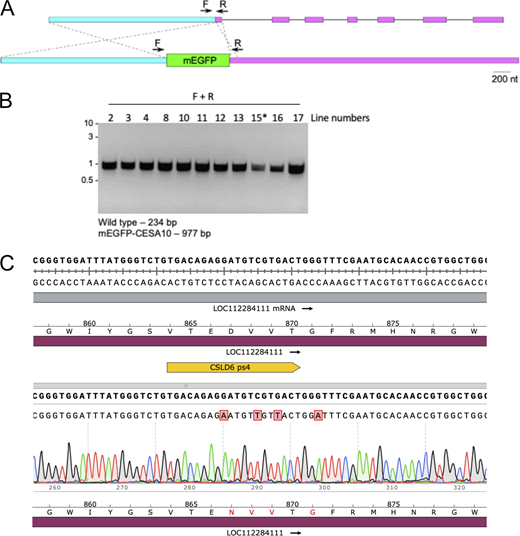

CRISPR-mediated homology directed repair was used to insert sequences encoding fluorescent proteins in frame with each CSLD gene and to generate the TEN mutant in CSLD6. To clone the protospacer(s) near the ATG (Figure S3, A and B), we generated a modified version of pMH-Cas9-gate (Mallett et al., 2019). In this modified vector, the Gateway cassette was replaced with the PpU6 promoter followed by two unique restriction sites (PmeI and SnaBI) and the S. pyogenes scaffold RNA sequence from pENTR-PpU6p-sgRNA-L1L2 (Mallett et al., 2019), generating pMH-Cas9. For CSLD6, two single-stranded oligos (Table S2) containing the protospacer sequences and sequences that overlap with pMH-Cas9 were assembled into pMH-Cas9 using Hi-Fi DNA Assembly Mastermix (NEB). For all other CSLD genes, a single protospacer (Table S2) was used. The Hi-Fi reaction was transformed into E. coli and used directly to inoculate a 50 ml culture. For CSLD6, a midi prep isolated a mix of pMH-Cas9-PS1 and pMH-Cas9-PS2 plasmids, and this mixture was used to transform moss. For all other CSLDs, a midi prep for each CRISPR plasmid was isolated individually and then transformed into moss. The homology plasmids were assembled using Hi-Fi DNA Assembly Mastermix (NEB) with four PCR-generated DNA fragments (see Table S2 for primers): ∼800 bp flanking sequences 5′ and-3′ of the start codon, sequences of mEGFP or mScarlet-I, and the pGEM vector. To generate the TEN mutant, double stranded oligos (Table S2) were used as a homology template. To insert mEGFP in-frame with the CESA10 gene, the CRISPR-Cas9 vector was constructed as described previously (Mallett et al., 2019). A protospacer targeting a site near the CESA10 start codon (Table S2) was annealed as described previously (Mallett et al., 2019) and ligated into the pENTR-Ppu6p-sgRNA-L1L2 entry vector using Golden Gate assembly (New England Biolabs) in a 10 μl reaction containing 19 fmoles of entry vector and 55 fmoles of annealed protospacer incubated at 37°C for 1 h and 60°C for 5 min. The entry vector was cloned into pMK-Cas9-gate conferring G-418 resistance using LR Clonase II Plus according to the manufacturer’s instructions (Invitrogen). All plasmids were sequence verified. We used a homology repair plasmid originally designed for homologous recombination. An entry clone encoding an mEGFP-CESA10 translational fusion in pDONR 221 P5-P2 was constructed by PCR fusion of the mEGFP coding sequence amplified from an expression clone containing a pDONR 221 P1-P5r mEGFP entry clone and the CESA10 coding sequence amplified from expression clone 3XHA-CESA10 in xt18 using the appropriate primers (Table S2) as described previously (Scavuzzo-Duggan et al., 2015). The entry clone was inserted into pSi3(TH)GW along with the pDONR 221 P1-P5r entry clone containing the PpCESA10 promoter (Tran and Roberts, 2016).

Culture and transformation of P. patens

Wild-type P. patens lines (haploid) derived from the sequenced Gransden strain (Rensing et al., 2008) by selfing and propagation from a single spore in 2011 (GD11) was a gift of Pierre-Francois Perroud, Marburg University. Wild-type and transformed P. patens lines were cultured on basal medium supplemented with ammonium tartrate (BCDAT) as described previously (Roberts et al., 2011). Protoplasts were prepared and transformed as described previously (Roberts et al., 2011). Stable transformants were selected with 50 μg ml−1 G418 (CSLD6KO; vector) or 15 μg ml−1 hygromycin (CSLD2KO and complementation vectors). The hph selection cassette was removed from csld2/6KO as described previously (Norris et al., 2017). CRISPR-Cas9 transformation and selection methods were described previously (Mallett et al., 2019). Tagging was performed by co-transforming the CRISPR plasmid(s) containing the protospacer sequence and the homology plasmid.

Analysis of knockout lines

For PCR analysis of target integration, target-gene disruption, and selection cassette excision, DNA was extracted as described previously (Roberts et al., 2011) and amplified using primers listed in Table S2. Sanger sequencing was employed to sequence PCR products. Plant area was analyzed as described previously (Bibeau and Vidali, 2014; Li et al., 2019; Vidali et al., 2007).

Laser scanning confocal and variable angle epifluorescence microscopy

To image mEGFP/mScarlet-CSLD6 localization and dynamics, we employed two sample preparation methods. For long-term imaging (>2 h), we used microfluidic imaging chambers (Bascom et al., 2016). Ground protonemal tissue was gently pipetted into the central part of the device followed by an infusion of Hoagland’s medium. Then the chamber was submerged in Hoagland’s medium (4 mM KNO3, 2 mM KH2PO4, 1 mM Ca(NO3)2, 89 µM Fe citrate, 300 µM MgSO4, 9.93 µM H3BO3, 220 nM CuSO4, 1.966 µM MnCl2, 231 nM CoCl2, 191 nM ZnSO4, 169 nM KI, 103 nM Na2MoO4), and placed under constant 85 µmol photons m−2s light−1. For short-term imaging (<2 h), 5- to 8-d-old plants regenerated from protoplasts were placed onto an agar pad in Hoagland’s medium, covered by a glass coverslip and sealed with VALAP (1:1:1 parts of Vaseline, lanoline, and paraffin). For inhibitors, the desired concentration of each inhibitor was added to the Hoagland’s solution that was directly applied onto agar pad. For untreated control samples, Hoagland’s solution without any inhibitor was used. Inhibitor concentrations used in this paper: Latrunculin B; 5 mM stock solution in DMSO and 25 µM in Hoagland’s solution in agar pad. DCB; 40 mM stock solution in EtOH and 10 µM in Hoagland’s solution in agar pad. Isoxaben; 40 mM stock solution in EtOH and 10 µM in Hoagland’s solution in agar pad. For aniline blue staining, aniline blue stock solution (0.1% in 0.01 M K2HPO4pH12) was diluted to 0.025% in Hoagland’s solution and added to the agar pad before imaging.

For confocal microscopy, images were acquired on a Nikon A1R confocal microscope system with either a 0.75. NA 20X air objective (Nikon; gametophore images) or a 1.49 NA 60X oil immersion objective (Nikon; protonemata images) at room temperature. Image acquisition was controlled by NIS-Element AR 4.1 software (Nikon). Laser illumination at 405 nm was used to excite aniline blue (laser power, 1–1.5%; Gain, 40–60; PMT offset, 28–33); 488 nm for mEGFP (laser power, 0.5–1%; Gain, 40–60; PMT offset, 28–33); 561 nm for mScarlet (laser power, 0.5–1%; Gain, 40–60; PMT offset, 28–33). Emission filters were 525/50 nm for aniline blue and mEGFP; 595/50 nm for mScarlet. Both channels were equipped with GaAsP PMTs. Sequential acquisition was used whenever imaging aniline blue and mEGFP.

For VAEM, images were acquired with a Nikon Ti-E inverted microscope equipped with a TI-TIRF-PAU illuminator, using a Nikon 1.49 NA 100× oil immersion TIRF objective. The 1.5× optivar was used for all images to increase magnification. mEGFP and mCherry were illuminated with 488 and 561 nm laser, respectively. The laser illumination angle was adjusted individually for each sample to achieve the maximum signal-to-noise ratio. Signals for each channel were captured simultaneously with a dual-view adaptor (Photometrics) and an Andor 897 EMCCD camera. Emission filters were 525/50 nm for GFP and 595/50 for mCherry. Image acquisition was controlled by Nikon NIS-Elements software. All data were processed with enhanced contrast (0.1% pixel saturation), subtract background (rolling ball radius 20–30), and smoothing in Fiji.

Particle tracking

mEGFP-CesA10 and mEGFP-CSLD6 particles were imaged with VAEM every 2 s for 10–20 min. Images were processed before tracking using subtract background and enhance contrast in Fiji. Particle tracking was performed with the Fiji plugin TrackMate (Tinevez et al., 2017). For CesA10, stacks were reduced by 15, resulting in 30 s time intervals between frames. For CSLD6, stacks were reduced by 6, resulting in 12 s time intervals between frames. LoG detector (estimate blob diameter 0.3 µm) and LAP tracker (frame to frame linking max distance 0.5 µm; Penalties: Quality = 1; no gap closing allowed) were selected. The filters on tracks were set as follows: duration >60 s; track displacement >0.5 µm. For CesA10, tracks with track mean speed > 0.012 were excluded. Mean speed and the confinement ratio of tracks were obtained and plotted in Fig. 5. The confinement ratio is a ratio of the straight-line distance between the start and end point of the trajectory divided by the actual trajectory distance. The closer the confinement ratio value is to one, the more linear the trajectory.

Phylogenetic analysis

For phylogenetic analysis, we included P. patens CSLD sequences identified previously (Roberts and Bushoven, 2007) along with sequences identified previously in the conifer Picea abies (Yin et al., 2014), the lycophyte Selaginella moellendorffii (Harholt et al., 2012), and the charophyte green alga Coleochaete orbicularis (Mikkelsen et al., 2014) and identified by BLAST in the genome of the liverwort Marchantia polymorpha (Bowman et al., 2017). We included CSLDs from angiosperm species in which CSLD function has been investigated, including Arabidopsis thaliana (Richmond and Somerville, 2000), Gossypium raimondii (Li et al., 2017), Populus trichocarpa, Zea mays, and Oryza sativa (Yin et al., 2014). Sequences were aligned using Clustal/W with BLOSUM cost matrix, gap open cost of 10, and gap extension cost of 0.1. The alignments were edited to remove gaps and adjacent poorly aligned segments (Baldauf, 2003) and rapid bootstrapping (1,000 replicates) and search for the best-scoring maximum likelihood tree was carried out using RAxML 7.2.8, GAMMA BLOSUM62 protein model. The tree was exported from Geneious 8.1 and edited with Inkscape (https://inkscape.org/en/).

Accession numbers

P. patens CSLD names and sequence IDs are summarized in Table S3. Other sequence data from this article can be found in the GenBank/Phytozome data libraries under accession numbers included in Fig. 1.

Statistical analysis

Statistical analyses were performed with Kaleidagraph Version 5.0 (Synergy Software). The Kruskal–Wallis non-parametric test was used for pairwise comparisons in Fig. 5, C and E. ANOVA for multiple comparisons using the Tukey HSD post hoc tests was used in Fig. S2 D.

Online supplemental material

Fig. S1 shows synteny and expression analysis of P. patens CSLD genes. An alignment of CSLD6 and CESA10 protein sequences is shown to indicate key sequence features. Fig. S2 shows molecular and phenotypic characterization of knock out lines. Fig. S3 shows molecular characterization of tagged CSLD loci, complementation of mScarlet-CSLD6, and localization of the mEGFP-CSLD6. Fig. S4 shows molecular characterization of the tagged CESA10 locus and the TEN CSLD6 mutant. Fig. S5 shows that treatment of protonemal cells with isoxaben and isoxaben + LatB does not affect cell plate formation. Table S1 lists the lines generated in this study, which are available upon request. Table S2 lists the primer sequences used to generate constructs, mutant lines, and for genotyping. Table S3 lists the accession numbers for the CSLD genes. Video 1 shows mScarlet-CSLD6 localization in gametophores. Video 2 shows mScarlet-CSLD6 and lifeact-mEGFP localization in a protonemal filament. Video 3 shows mScarlet-CSLD6 and lifeact-mEGFP localization in an emerging and dividing branching protonemal cell. Video 4 shows mScarlet-CSLD6 and lifeact-mEGFP localization in a dividing apical protonemal cell. Video 5 shows VAEM imaging of GFP-CesA10, mEGFP-CLSD6, and mEGFP-CSLD6-TEN under control conditions, as well as mEGFP-CSLD6 treated with isoxaben or DCB. Video 6 shows mScarlet-CSLD6 in apical protonemal cells under control conditions and treated with 20 µM isoxaben or 10 µM DCB. Video 7 shows simultaneous VAEM imaging of mScarlet-CSLD6 and GFP-tubulin in a protonemal cell. Video 8 shows mScarlet-CSLD6 behavior during cell division in an apical protonemal cell under control conditions and treated with 10 µM DCB. Video 9 shows mScarlet-CSLD6 behavior during cell division in an apical protonemal cell treated with 25 µM LatB. Video 10 shows mScarlet-CSLD6 behavior during cell division in an apical protonemal cell treated with 10 µM DCB and 25 µM LatB.

Tracking data underlying Fig. 5 is available on the Dryad data repository (https://doi.org/10.5061/dryad.kwh70rz8m). All other data are available in the article.
