Bro1 stimulates Vps4 to promote intralumenal vesicle formation during multivesicular body biogenesis

The endosomal sorting complexes required for transport (ESCRTs) have been implicated in a number of cellular membrane remodeling processes, including intralumenal vesicle (ILV) generation during the conversion of endosomes into multivesicular bodies (MVBs; relevant to both lysosomal degradation and exosome biogenesis), abscission during cytokinesis, viral budding, nuclear pore surveillance, autophagy, and membrane repair (Baietti et al., 2012; Lee et al., 2007a; Webster et al., 2014; Skowyra et al., 2018; Takahashi et al., 2018; reviewed by Hanson and Cashikar, 2012; Vietri et al., 2020; Votteler and Sundquist, 2013). These studies have highlighted a conserved role for ESCRT-III and associated factors in membrane deformation. ESCRT-III–dependent membrane remodeling is coordinated with upstream events, such as cargo recognition during MVB sorting (reviewed by Piper and Lehner, 2011; Williams and Urbé, 2007). Ubiquitylated cargos destined for lysosomal destruction are actively recognized by a host of ubiquitin (Ub)–binding domains within ESCRT-0, -I, and -II, as well as in the Bro1 domain family proteins, and sequestration of these ubiquitylated cargos forms microdomains at which ESCRT-II activates ESCRT-III polymerization to drive ILV formation (reviewed by Schmidt and Teis, 2012; Williams and Urbé, 2007). Depletion of Ub from the site of MVB sorting precludes cargo sorting as well as ILV formation itself, indicating a level of coordination between cargo recognition and ESCRT-III–mediated ILV generation (MacDonald et al., 2012a; Stringer and Piper, 2011). ESCRT-III assembly, remodeling, and disassembly drive ILV formation in vivo, although how this cycle is regulated to ensure cargo transfer into ILVs remains unresolved.

ESCRT-III subunits are monomeric in the cytosol and undergo an ordered polymerization on membranes into filamentous spirals responsible for membrane remodeling (reviewed by Schmidt and Teis, 2012). ESCRT-III function is intimately connected to the AAA-ATPase Vps4, which supports both dynamic exchange of subunits during ESCRT-III polymerization and ESCRT-III disassembly at the completion of the reaction (Adell and Teis, 2011; Adell et al., 2017; Babst et al., 1997; Babst et al., 1998; Davies et al., 2010; Mierzwa et al., 2017; Pfitzner et al., 2020). A cohort of regulators, including ESCRT-III itself, the Vps4 cofactor Vta1/LIP5, and Bro1, serve to coordinate the activities of ESCRT-III and Vps4 to optimize ESCRT function during MVB sorting (Azmi et al., 2006; Azmi et al., 2008; Merrill and Hanson, 2010; Shim et al., 2008; Wemmer et al., 2011). These studies have highlighted the importance of Vps4 regulation during MVB sorting but have not resolved how these factors act in concert to enable MVB biogenesis.

The Bro1 domain family members, including the aforementioned yeast Bro1 as well as mammalian ALIX/PDCD6IP and HD-PTP/PTPN23, make multiple contributions to ESCRT-mediated events through a conserved three-domain architecture: the N-terminal Bro1 domain (BOD) binds the ESCRT-III subunit CHMP4/Snf7; the V domain, a V-shaped structure formed by two helix bundle arms, interacts with both Ub and YPX_nL motifs found within Gag, Syntenin, and Rfu1; and the C-terminal proline-rich region (PRR) facilitates associations with ESCRT-I and other factors (e.g., Ub isopeptidase Doa4; Baietti et al., 2012; Buysse et al., 2020; Carlton et al., 2008; Johnson et al., 2017; Kimura et al., 2014; Lee et al., 2016; Luhtala and Odorizzi, 2004; McCullough et al., 2008; Nikko and André, 2007; Richter et al., 2013; Wemmer et al., 2011; Zhai et al., 2011). Bro1 domain family members contribute to (1) Ub-dependent and Ub-independent cargo recognition in concert with or in parallel to the early ESCRTs and (2) regulating ESCRT-III dynamics by facilitating CHMP4/Snf7 activation and inhibiting Vps4 disassembly of ESCRT-III. These diverse contributions suggest Bro1 domain family members may serve roles coordinating cargo entry into budding ILVs during MVB sorting.

Here, we find that Bro1 V domain supports ESCRT-dependent MVB biogenesis in vivo by facilitating ILV formation. The V domain interacts with Vps4’s MIT domain and stimulates Vps4 ATPase activity, and this stimulation is further enhanced by the V domain binding to Ub. This mode of Vps4 stimulation is critical for Bro1 function, since V domain mutations that preserve Vps4 and Ub binding but specifically perturb the ability to stimulate Vps4 ATPase activity showed defects in MVB cargo sorting and ILV formation in vivo. These results indicate that ESCRT-driven ILV formation is separable from cargo sorting and suggest that Bro1 domain family members coordinate ubiquitylated cargo sorting into ILVs while promoting ILV formation via the Vps4–ESCRT-III axis.

The Bro1 BOD interacts with the ESCRT-III subunit Snf7 (Kim et al., 2005) to promote ESCRT-III polymerization through both facilitating Snf7 activation (Tang et al., 2016) and inhibiting Vps4-mediated disassembly of ESCRT-III (Wemmer et al., 2011). Disruption of Bro1–Snf7 association abrogates MVB cargo sorting, but some degree of ILV formation is retained (Wemmer et al., 2011). To better understand this unexpected phenomenon, we examined the phenotype of cells expressing Bro1 lacking its N-terminal BOD (bro1^ΔBOD, aa 370–844) as the sole allele of BRO1. Cells expressing Bro1^ΔBOD displayed spherical endosomal structures containing ILVs (Fig. 1 A and Video 1). In contrast, cells lacking Bro1 altogether (bro1Δ) were deficient in ILVs and displayed multilamellar endosomal stacks characteristic of “class E vps” endosomal compartments (Luhtala and Odorizzi, 2004; Fig. 1 A and Video 2; a rare bro1Δ cell with ILVs is shown in Fig. S1 A). Compared with WT cells, bro1^ΔBOD cells showed reductions in ILVs per MVB, budding profile (BP) frequency and BP surface area (Fig. 1, B and C; and Video 3), however the sizes of ILVs were equivalent to those in WT cells (Fig. 1 C). While aspects of the bro1^ΔBOD MVBs differed from those in WT cells, the striking result was their presence in bro1^ΔBOD cells in contrast to their absence in bro1Δ cells (Fig. 1 B). This result indicates that Bro1 BOD is not required to support ILV formation, consistent with the previous analysis of Snf7 defective for Bro1 binding (Wemmer et al., 2011).

To determine whether Bro1^ΔBOD could mediate MVB cargo sorting in addition to ILV formation, we examined the localization of MVB cargos delivered from endocytic (Ste2 and Mup1) and biosynthetic pathways (Cps1, Ub-Cps1, Cos5, and Sna3) as well as a vacuolar limiting membrane protein (DPAP-B/Dap2) typically excluded from MVB sorting. Though bro1^ΔBOD cells made MVBs, MVB cargo proteins failed to efficiently sort into MVBs and instead were localized to the limiting membrane of the vacuole and perivacuolar endosomal compartments (Fig. 2 A). To complement this microscopy analysis, immunoblot analyses of four GFP-tagged MVB cargos (Sna3, Cos5, Mup1, and Mup1-Ub) were performed (Fig. 2, B and C; and Fig. S2, A and B). Delivery to the vacuolar lumen results in liberation of an ∼24-kD fragment of GFP, permitting assessment of MVB sorting through quantifying GFP liberation. While both bro1Δ and bro1^ΔBOD cells exhibited reduced GFP liberation compared with WT for all MVB cargos examined, bro1^ΔBOD cells permitted more MVB sorting than bro1Δ cells. GFP liberation was dependent on Vps4 and Snf7, validating the analysis. These sorting defects in bro1^ΔBOD cells did not appear to be related to perturbed cargo ubiquitylation, since (1) immunoblotting showed substantial Ub modification (Fig. 2, B and C), (2) fusion of Ub to MVB cargo did not impact sorting (Ub-Cps1 in Fig. 2 A; Mup1-GFP-Ub in Fig. S2 A), and (3) loss of Ub isopeptidase Doa4 did not compromise GFP liberation from Mup1-GFP or Mup1-GFP-Ub in bro1^ΔBOD cells (Fig. S2 A). The increase in MVB sorting in bro1^ΔBOD cells compared with bro1Δ cells does not appear to be related to nonspecific entry of endosomal cargos in ILVs, as GFP liberation from Dap2 is not increased in bro1^ΔBOD cells (Fig. S2 C) and GFP-Dap2 sorting is not apparent in the microscopy analysis (Fig. 2 A). The small increase in MVB cargo GFP liberation in bro1^ΔBOD cells compared with bro1Δ cells is consistent with the increased presence of MVBs in bro1^ΔBOD cells; however, the more striking result is the reduced MVB sorting in bro1^ΔBOD and bro1Δ cells compared with WT evident in both immunoblot and microscopy analyses. Together, these results indicate that Bro1^ΔBOD cannot support efficient MVB cargo sorting despite its ability to facilitate MVB biogenesis.

To investigate whether Bro1^ΔBOD-mediated ILV formation was dependent upon other ESCRTs, we analyzed MVB sorting of NBD-phosphatidylcholine (NBD-PC), a fluorescent lipid that partitions into ILVs in an ESCRT-dependent manner (Bilodeau et al., 2002; Hanson et al., 2002; Shields et al., 2009; Fig. 3, A–C; and Fig. S1). 98% of WT cells displayed lumenal NBD-PC sorting, and overexpression of full-length Bro1 from the TEF1 promoter had a slight dominant negative effect (85%). Deletion of VPS4 or BRO1 eliminated or dramatically reduced the percentage of cells with lumenal NBD-PC signal, consistent with ESCRT dependence (Figs. 3 C and S3 A). Expression of Bro1^ΔBOD enhanced NBD-PC MVB sorting (77% of bro1^ΔBOD cells displayed lumenal NBD-PC signal), and this sorting was dependent upon ESCRT-0, ESCRT-I, ESCRT-II, ESCRT-III, and Vps4 (Figs. 3 C and S3 B). These data reveal that Bro1^ΔBOD uses the canonical ESCRT-dependent pathway for ILV formation. Bro1^ΔBOD expressed from the BRO1 promoter also enhanced NBD-PC MVB sorting compared with bro1Δ cells (Fig. S3, C and D), albeit to a lesser extent than Bro1^ΔBOD expressed from the TEF1 promoter. These results indicate that overexpression is not required for Bro1^ΔBOD-mediated ILV formation as well as a dose–response relationship for this activity.

Bro1^ΔBOD contains both the V domain as well as a C-terminal PRR that mediates interaction with the Ub isopeptidase Doa4 (Luhtala and Odorizzi, 2004). We found that Bro1^ΔBOD-mediated NBD-PC sorting was not dependent on Doa4 and that the Bro1 V domain alone (bro1^V) supports NBD-PC sorting into the vacuole lumen (Fig. 3 C), demonstrating that PRR and its associations are not required for this activity. This finding was supported by EM tomography analysis wherein bro1^V was able to support ILV formation (Fig. 3 D and Video 4), albeit at levels less than WT or bro1^ΔBOD cells (Fig. 3 E). However, the sizes of the ILVs in bro1^V cells were indistinguishable from those in WT or bro1^ΔBOD cells (Fig. S3 E). While bro1^V cells exhibited ILV formation, Bro1 V domain was unable to support MVB cargo sorting (Figs. 3 F and S3 F), as observed with bro1^ΔBOD cells. In total, these results implicate the V domain in promoting Bro1–Vps4–ESCRT-III–driven ILV formation.

The ability of the Bro1 V domain to support Vps4–ESCRT-III–driven ILV formation along with the reported interaction between Bro1 and Vps4 (Vajjhala et al., 2007) suggested that the V domain might activate Vps4. Binding studies using a series of recombinant GST-tagged Bro1 protein fragments and His₆-tagged Vps4 protein fragments showed that the Bro1 V domain binds the N-terminal Vps4 MIT domain (Fig. 4, A and B). Two distinct surfaces of the MIT domain mediate interactions with MIM1 and MIM2 elements in ESCRT-III subunits (Kieffer et al., 2008; Obita et al., 2007; Stuchell-Brereton et al., 2007); however, mutations (I18D, MIM2; L64D, MIM1) disrupting these modes of association did not impair MIT–V domain association. These results suggest that the Bro1 V domain binds the Vps4 MIT domain in a manner distinct from MIM1 and MIM2.

The possibility that the Bro1 V domain modulates Vps4 activity was assessed using ATPase assays with purified recombinant proteins (Azmi et al., 2006; Babst et al., 1997). Vps4 exhibits concentration-dependent increases in specific activity due to Vps4 oligomer formation, with maximal activity observed at 1.5 µM Vps4 (Azmi et al., 2006; Babst et al., 1998; Davies et al., 2010). Titration of the Bro1 V domain (Bro1V) into ATPase assays with a submaximal concentration of Vps4 (0.5 µM) showed a concentration-dependent stimulation of activity, with a maximum of 2.6-fold over basal activity (Fig. 4 C).

Stimulation of Vps4 did not surpass the inherent maximal Vps4-specific activity, suggesting Bro1V stimulates Vps4 oligomerization without further enhancing activity of the Vps4 oligomer. To examine this directly, Vps4 titration was performed in the presence of 4 µM Bro1V. Bro1V addition reduced the Vps4 apparent Michaelis constant (K_m) but did not enhance maximal specific activity (Fig. 4 D), supporting enhanced oligomerization as the mechanism by which Bro1V stimulates Vps4. Furthermore, V domains from Saccharomyces castellii Bro1 (residues 370–709) and human HD-PTP (residues 364–695) stimulated Saccharomyces cerevisiae Vps4 ATPase activity similarly in a dose-dependent manner (Fig. 4 E). Together, these results reveal that the Bro1 V domain enhances Vps4 ATPase activity directly and suggest this stimulatory activity is conserved among homologues.

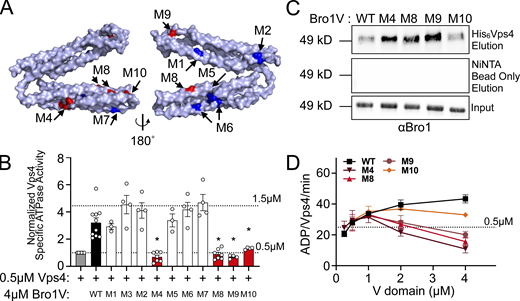

Mutagenesis of the V domain was undertaken with the goals of dissecting the mode of stimulation (i.e., whether binding was sufficient or additional biochemical processes were at play) as well as determining its biological significance. Residues conserved between yeast Bro1 and HD-PTP were targeted, with the goal of generating Bro1 mutants specifically altered in in their ability to stimulate Vps4 activity while retaining their ability to bind Vps4 (Figs. 5 and S4 A). Vps4 stimulation was measured using ATPase reactions containing WT or mutant forms of Bro1V. Six of the Bro1V mutants tested stimulated Vps4 activity like WT Bro1V, whereas four mutants—Bro1V^M4: V505A, H508A, I512A; Bro1V^M8: E686A, L691D; Bro1V^M9: T587D; and Bro1V^M10: K481D—did not stimulate Vps4 ATPase activity (Fig. 5 B) but retained their ability to bind Vps4 (Figs. 5 C and S4 A). The ability of these mutants to associate with Vps4 (in some cases better than WT) led us to perform titration experiments to assess the impact on Vps4 ATPase activity. Bro1V mutants were unable to stimulate Vps4 at higher concentrations (>1 µM), yet these mutants could stimulate Vps4 ATPase activity at lower concentrations (≤1 µM; Fig. 5 D). This profile contrasted with the behavior of WT Bro1V that continued to stimulate Vps4 ATPase activity even at the highest concentrations tested. Together, these analyses suggest that Bro1V stimulation of Vps4 relies on determinants beyond mere binding and provided tools to determine whether Bro1V-stimulated Vps4 activity was important in vivo for MVB sorting and biogenesis.

MVB sorting was examined in bro1Δ cells expressing full-length alleles of BRO1 containing mutations in the V domain that altered Vps4 stimulation (Fig. 6 A). Three distinct model MVB cargos were used for this analysis: GFP-Cps1 for its dependence upon Ub modification for proper sorting, the chimera Ub-GFP-Cps1 for its lack of dependence upon exogenous Ub modification, and Sna3-GFP as a cargo that has been shown to access the MVB pathway both directly and via association with other ubiquitylated cargos (Katzmann et al., 2001; Katzmann et al., 2004; MacDonald et al., 2012b; Odorizzi et al., 1998; Oestreich et al., 2007; Reggiori and Pelham, 2001). Although all Bro1 mutants were expressed at levels similar to WT Bro1, none of the mutant strains (bro1^M4, bro1^M8, bro1^M9, or bro1^M10) mediated MVB sorting of any cargo (Figs. 6 and S4 B). In contrast, BRO1^M1 and BRO1^M7 displayed WT sorting of GFP-Cps1 (Fig. S4 C), correlating with Vps4 stimulation equivalent to WT (Fig. 5 B). The correlation between MVB cargo sorting in vivo and Vps4 stimulation observed with these mutants in vitro support the conclusion that Bro1 V domain stimulation of Vps4 is required for ESCRT-driven MVB cargo sorting in vivo.

The impact of V domain stimulation on ILV formation was addressed in cells expressing bro1^M8 (Fig. 7 A). ILVs in mutant bro1^M8 cells were the same size as those in WT cells. However, bro1^M8 cells had roughly twice as many ILV budding intermediates per MVB compared with WT cells, as well as reduction in the surface area of the BPs (Fig. 7 B and Video 5). These observations suggest that proper stimulation of Vps4 by Bro1 V domain contributes to ILV formation at the level of bud expansion.

Previous studies have documented the accumulation of ESCRT-III on endosomal membranes when Vps4 activation is defective (Babst et al., 2002; Wemmer et al., 2011). Whether Bro1 stimulation of Vps4 affected the steady-state membrane association of ESCRT-III was addressed using subcellular fractionation of bro1^M4 and bro1^M8 cells. This analysis revealed indistinguishable levels of the ESCRT-III subunit Snf7 on membranes in WT, bro1^M4, and bro1^M8 cells (Fig. 8). In contrast, bro1Δ cells showed more soluble Snf7, while vps4Δ cells displayed near-complete Snf7 membrane association. These findings suggest that ESCRT-III polymerization and disassembly/recycling were normal in bro1^M4 and bro1^M8 cells, implying that Bro1 V domain–mediated Vps4 stimulation exerts its function at a biochemical step distinct from Vps4-mediated ESCRT-III disassembly.

Bro1 binds Ub via a conserved motif at the N-terminal portion of the V domain (Pashkova et al., 2013; Fig. S5, A and B). Therefore, the impact of Ub on V domain stimulation of Vps4 was addressed (Fig. 9 A). While Ub does not directly stimulate Vps4 in vitro, addition of Ub increased Bro1V stimulation of Vps4 activity using Bro1V from both S. cerevisiae and the related yeast S. castellii, for which the crystal structure is known (Pashkova et al., 2013). In contrast, addition of Ub to mutant Bro1V^ΔUBD (I377R) in which Ub binding was ablated (Pashkova et al., 2013; Fig. S5 C) had no effect on Vps4 stimulation. These results indicate a conserved mode of Ub-dependent regulation of the V domain’s impact on Vps4.

How Ub impacts the stimulation of Vps4 by Bro1V was assessed using titration experiments in the presence or absence of Ub (Fig. 9 B). Ub increased the potency of Bro1V, wherein the Bro1V concentration yielding half-maximal stimulation of Vps4 was reduced from 1.0 µM to 0.4 µM. We also examined the impact of Ub-bound Bro1V on Vps4 oligomer assembly and/or activity of the assembled Vps4 oligomer. Whereas both WT Bro1V and Bro1V^ΔUBD (L386R) similarly reduced the apparent K_m of Vps4, addition of Ub to WT Bro1V further reduced the Vps4 apparent K_m (Fig. 9, C and D; and Fig. S5 D); however, a similar reduction was not observed with Bro1V^ΔUBD. These results suggest that Ub binding alters V domain conformation to enhance its association with Vps4 and promote Vps4 oligomerization without impacting activity of the assembled Vps4 oligomer.

Lastly, we explored whether the Ub enhancement of V domain Vps4 stimulation was dependent on the mutants identified through mutagenesis studies. Bro1V mutants impacting Vps4 stimulation are not confined to a single surface nor do they disrupt association with Vps4, suggesting that these mutations alter the conformation or dynamics of the V domain to impact Vps4 stimulation. While mutants M4, M8, and M10 are not located on the V domain arm that binds Ub (Fig. S5 B), binding studies were performed to examine whether these mutants indirectly impact Ub binding. Whereas Bro1V^ΔUBD (I377R) failed to bind Ub, Bro1V^M4, Bro1V^M8, and Bro1V^M10 retained Ub-binding activity (Fig. S5 C), indicating these mutants were suitable for examining Ub-modulated Vps4 stimulation. However, Ub did not impact Bro1V^M4, Bro1V^M8, or Bro1V^M10 regulation of Vps4 in contrast to Ub enhancement of WT Bro1V stimulation (Fig. 9 E). Together, these results demonstrate that the mechanism by which the V domain stimulates Vps4 transduces the additional stimulation observed when the V domain binds Ub.

Bro1 has been proposed to work early in the MVB sorting process as a receptor for Ub cargo (Pashkova et al., 2013). Because this function is upstream of the Vps4–ESCRT-III ILV formation axis, it was not clear whether Ub binding to Bro1 V domain might play a role in downstream events as well. Ub contribution to ILV formation was assessed using Bro1^ΔBOD and NBD-PC sorting, since Bro1^ΔBOD drives ILV formation disconnected from efficient cargo sorting. Cells expressing Bro1^ΔBOD defective for Ub binding (ΔUBD: I377R, L386R) showed reduced levels of NBD-PC sorting in comparison with WT, supporting the interpretation that Ub plays a role in ILV formation itself (Fig. 9 F); similar results were observed with truncation of the Ub-binding residues (aa 388–844; Fig. S2 B). In addition, mutant Bro1^ΔBOD,M8, which contains a V domain unable to properly stimulate Vps4, showed a further reduction in NBD-PC sorting comparable to sorting observed in bro1Δ cells. These degrees of NBD-PC sorting with Bro1^ΔBOD,ΔUBD and Bro1^ΔBOD,M8 correlate with Bro1V^ΔUBD exhibiting basal, but not Ub-enhanced, stimulation of Vps4 in vitro (Fig. 9 A). These results indicate that (1) V domain stimulation of Vps4 contributes to Bro1^ΔBOD ILV formation, and (2) Bro1 Ub binding enhances ILV formation via the Bro1–Vps4–ESCRT-III axis.

Here, we reveal a new function of Bro1 in MVB biogenesis that is mediated by its V domain binding to and stimulating Vps4. This stimulation is further enhanced by Ub binding, suggesting that Bro1 interaction with Ub-cargo enhances Vps4 activity during ILV formation. Moreover, this mode of Vps4 regulation is important for the coordination of cargo sorting into ILVs. These data suggest Bro1 plays a role in “licensing” ESCRT-III and Vps4 to drive membrane remodeling in concert with cargo transfer into the ILV. The idea that Bro1 couples cargo sorting with ILV formation is underscored by the observations here and elsewhere that disconnecting Bro1 from some of its interactions separates the process of ILV formation with the process of efficiently sorting cargos into those ILVs. We propose that the central Bro1 activity of the V domain stimulating Vps4/ESCRT-III–driven ILV formation is coordinated with BOD and PRR activities to properly time ILV budding to enable normal MVB biogenesis.

Bro1 is one of several proteins that regulate Vps4 activity. ESCRT-III subunits and Vta1 also stimulate Vps4 activity (Azmi et al., 2006; Azmi et al., 2008; Merrill and Hanson, 2010; Shim et al., 2008). We found that the Bro1 V domain binds to the Vps4 MIT domain and increases Vps4 specific activity by facilitating Vps4 oligomerization. The Vps4 MIT domain also binds ESCRT-III subunits along two distinct surfaces that mediate association with MIM1 and MIM2 motifs found in Vps2 or Vps24 and Vps20 or Snf7, respectively (Kieffer et al., 2008; Obita et al., 2007; Stuchell-Brereton et al., 2007). Our data indicate that Bro1 V domain binds by a distinct mode, but it remains to be determined if V domain binding diminishes or enhances the ability of Vps4 to bind to MIM1- or MIM2-containing ESCRT-III subunits. Vps4 recruitment to the site of MVB sorting occurs in two phases: an early, minimal recruitment of Vps4 associated with stable ESCRT-III membrane association followed by a later recruitment of additional Vps4 implicated in ILV formation and eventual ESCRT-III disassembly (Adell et al., 2017). Our in vitro activity analyses indicate that Bro1 facilitates Vps4 oligomerization, yet exactly how V domain regulation of Vps4 activity impacts the dynamics and function of ESCRT-III remains to be determined. Overall, the level of polymerized membrane-associated ESCRT-III remains unperturbed in cells where Bro1 is unable to properly stimulate Vps4 ATPase activity. Moreover, the size of the ILVs themselves, an indicator of the fidelity of ESCRT-III–mediated scission, is unaltered as well. Together, these data suggest this role of Bro1 regulating Vps4 is transient, precise, and distinct from Vta1–ESCRT-III stimulation of Vps4 implicated in ILV scission and ESCRT-III disassembly. Bro1 mutant with altered Vps4 regulation exhibited reduced BP size, suggesting Bro1 stimulation of Vps4 contributes to ILV bud expansion. Bud expansion controlled by Vps4 should be coordinated with entry of cargo as well as deubiquitination of cargo just before its entry into ILVs, and the biochemical activities now described for Bro1 position it well for such a role. While future studies are required to expand our understanding of Bro1’s role in the Vps4–ESCRT-III ILV formation axis, this study unequivocally demonstrates Bro1 stimulation of Vps4 makes unique contributions to MVB biogenesis.

Analyses in vitro and in vivo indicate that V domain mutations (M4, M8, M9, and M10) retain partial Vps4 stimulation activity. These mutants retain interaction with Vps4 and Ub and stimulation of Vps4 ATPase activity at lower concentrations; however, these mutants are defective for MVB cargo sorting in vivo and stimulation of Vps4 ATPase activity at higher concentrations in vitro. We conclude Bro1V stimulation of Vps4 observed in vitro under high concentrations is the activity relevant for Bro1 function in MVB sorting in vivo. These mutations map to both arms of the V domain, suggesting they impart subtle conformational changes in the V domain that maintain association with Vps4 but disrupt stimulation. Further structural studies are needed to elucidate this mechanism.

Our results indicate that Vps4 responds to Ub through Bro1. Previous studies demonstrated a role for Ub in MVB sorting at the level of cargo recognition (Bilodeau et al., 2002; Katzmann et al., 2001; Reggiori and Pelham, 2001) as well as the dependence of ILV formation on the presence of ubiquitylated cargo (MacDonald et al., 2012a; Stringer and Piper, 2011). However, upstream effects on cargo recognition and early ESCRT membrane recruitment precluded examination of the role of Ub in ILV formation itself. The present studies indicate that Ub binding also contributes to ILV formation, as disruption of Ub binding through point mutation (Fig. 9 F) or deletion (Fig. S2 B) reduced Bro1^ΔBOD NBD-PC MVB sorting, consistent with Ub-enhanced Bro1V stimulation of Vps4 in vitro. The source of Ub in vivo remains to be determined, but likely candidates would be Ub cargo, Ub-Cos proteins or tetraspanins, or ubiquitylated ESCRT machinery (Hicke et al., 2005; MacDonald et al., 2015; Piper and Katzmann, 2007). Another possibility is free Ub generated by Bro1 recruiting Ub isopeptidase Doa4; however, neither bro1^ΔBOD MVB cargo sorting nor NBD-PC sorting was compromised by loss of Doa4, arguing against this possibility (Figs. 3 C and S2 A). Irrespective of the source of Ub, our results implicate a role for Bro1 Ub binding in modulating Vps4 activity during ILV formation in addition to Ub’s previously appreciated role as a cargo sorting determinant.

We suggest that Bro1 serves to “license” ILV formation (Fig. 10), typically coordinated with cargo entry, to enable efficient MVB sorting. This licensing concept is supported by our observation that highly expressed Bro1^ΔBOD promoted more ILV formation, as assessed by NBD-PC sorting, than Bro1^ΔBOD expressed at lower levels. Human HD-PTP V domain also stimulates Vps4 activity, indicating evolutionary conservation of this newly discovered biochemical activity. Bro1 domain family members have important yet unclear roles in myriad ESCRT-mediated processes. ALIX binds viral structural proteins, such as Gag, to facilitate retroviral budding as well as other factors (e.g., Syntenin and CEP55) to facilitate ESCRT-driven exosome biogenesis and cytokinesis (Baietti et al., 2012; Carlton and Martin-Serrano, 2007; Fisher et al., 2007; Larios et al., 2020; Lee et al., 2007b). Increased ALIX activity through overexpression or activating truncation enhances the release of human immunodeficiency virus particles as well as small extracellular vesicles (Fisher et al., 2007; Larios et al., 2020), consistent with ALIX serving as a licensing factor for these ESCRT-mediated events as well. Mutations in HD-PTP are linked to a congenital neurodevelopment disorder characterized by seizures and spasticity (Bend et al., 2020; Sowada et al., 2017). Moreover, HD-PTP homozygous mouse knockouts are embryonic lethal, and HD-PTP heterozygosity is linked to increased tumorigenesis (Gingras et al., 2009; Manteghi et al., 2016). In yeast, loss of Bro1 disrupts MVB sorting and ILV formation, leading to disrupted endosomal morphology (i.e., class E vps phenotype). Thus, understanding the biochemical mechanism that Bro1 uses to control Vps4 has wide-ranging ramifications and is likely to describe a shared function for other Bro1 domain family proteins.

For a complete list of plasmids used in this study, see Table S1. All restriction enzymes were obtained from New England Biolabs. All PCR reactions were performed using Platinum SuperFi II PCR Master Mix (Thermo Fisher Scientific). S. cerevisiae Vps4 MIT domain was amplified from SEY6210 genomic DNA and subsequently cloned into NdeI and SalI sites of pET28a to generate pET28-MIT. Similarly, MIT domain was amplified from pVPS4(I18D) and pVSP4(L64D) and subsequently cloned into pET28a to generate pET28b-MIT I18D and pET28b-MIT L64D. The sequence encoding the V domain of Bro1 (Bro1V; aa 370–709) was amplified from pGO216 (Wemmer et al., 2011) and cloned into the BamH1 and SalI sites of pGST-parallel1 (Sheffield et al., 1999) to generate pSD1. BRO1 was amplified from pGO187 (Odorizzi et al., 2003) and cloned into the SpeI and SalI site of pRS414 (Simons et al., 1987) to generate pSD12. Mutagenesis of Bro1V or BRO1 encoding constructs (pSD2-9, pSD13-14, pCT2, pCT4-8, pCT10, pCT13-16, pCT18, pCT20-24, pCT26, and pCT29-33 was performed using the GeneTailor Site-Direct Mutagenesis System (Life Technologies). The veracity of plasmids was confirmed by sequencing. The sequence encoding Bro1ΔPRR (aa 1–709) was amplified from pGO216 and cloned into BamH1 and SalI sites of pET28b (Novagen) and pGST-parallel1 for use generating and purifying the anti-Bro1 sera, respectively (see “Antibody generation”).

Two silent mutations (D133D and D153D) were introduced into the HIS3 cassette of pRS413 to remove undesired BglII sites by site-directed mutagenesis; the resulting plasmid was named pCT34. The sequence encoding the HIS3 cassette was amplified from pCT34 by PCR to introduce BamHI and PacI sites and cloned into the BglII and PacI sites of pFA6a-HisMX6; the resulting plasmid was named pCT35. The sequence encoding Bro1V (aa 370–709) was amplified from SEY6210 genomic DNA and cloned into NcoI and EcoRI sites of pCT35; the resulting plasmid was named pCT36. Subsequently, 500 bp BRO1 3′ UTR was amplified from SEY6210 genomic DNA and cloned into the EcoRI and SacI sites of pCT35; the resulting plasmid was named pCT37. BRO1 promoter was amplified from genomic DNA of SEY6210 and cloned into the SalI and EcoRI sites of pRS414; the resulting plasmid was named pCT38. pCT38 generated by deleting BOD (aa 1–369) in pSD12 using GeneTailor Site-Direct Mutagenesis System. Subsequently, ΔUBD mutations (I377R and L386R) were introduced by site-directed mutagenesis; the resulting plasmid was named pCT39. The fragment containing M8 mutation was cloned into the ClaI and NdeI sites of pCT38 from pSD14; the resulting plasmid was named pCT40. TEF1p-Bro1ΔBOD (aa 370–844) was amplified from CTY2 and cloned into the SalI and BamHI sites in pRS414; the resulting plasmid was named pCT41. Mutations (ΔUBD and M8) were amplified from pCT39 and pCT40 and cloned into NcoI–BamHI–digested pCT41 by NEBuilder HiFi DNA Assembly (New England Biolabs). DPAP-B-GFP was cloned from pGO89 (Odorizzi et al., 1998) into the NotI and SalI sites of pRS425; the resulting plasmid was DPAP-B-GFP. For a list of primers used to generate pCT34-43, please see Table S2.

For a complete list of strains used in this study, see Table S3. CTY1, CTY2, and CTY3 were generated by transforming PCR product from pCT34 into SEY6210.1, while CTY4 was generated by transforming PCR product from pCT36; for a list of primers used, please see Table S2. Transformants were plated on histidine drop-out synthetic plates and screened by immunoblotting. The altered bro1 allele was amplified and sequenced. CTY5, CTY11-13, CTY518, CTY21-22, CTY24, CTY27, CTY29-30, and JPY403 were generated using standard yeast genetics.

Protein expression was performed in the BL21-DE3 bacterial strain using 0.5 mM IPTG at 16°C for 18–22 h. GST-Bro1V fusion protein and mutants thereof were purified using Glutathione Sepharose 4B (GE Healthcare), treated with AcTEV protease (Thermo Fisher Scientific) overnight at room temperature to remove the GST tag, incubated with ATP to dissociate chaperones, and subjected to size-exclusion chromatography (Superdex200 HiLoad 16/60) in 25 mM Hepes and 150 mM KCl. Purified proteins were tested for purity using SDS-PAGE and Coomassie staining and were analyzed to exclude contaminating ATPase activity. All Bro1V mutants examined in this study exhibited equivalent expression levels in bacteria, and mutants expressed in yeast were at levels similar to WT (Fig. 6 B). GST-Vps4 was expressed and purified as previously described for use in the ATPase assays (Babst et al., 1997). His₆-Vps4 was purified as previously described (Davies et al., 2014), except the His₆ fusion tag was not cleaved in order to use His₆-Vps4 in the in vitro binding assays. His-Bro1ΔPRR was purified from BL21-DE3 using Ni²⁺-affinity chromatography (5 ml HiTrap Chelating FF column; GE Healthcare). GST-Bro1V(370–709) was purified using Glutathione Sepharose 4B (GE Healthcare) and eluted with reduced Glutathione (Thermo Fisher Scientific). V domains of S. castellii Bro1 and human HD-PTP were produced in Escherichia coli BL21 (DE3) were purified by TALON-Co²⁺ and size-exclusion chromatography and cleaved from their 6xHis tag with AcTEV protease (Pashkova et al., 2013). Mono-Ub was expressed in E. coli BL21 (DE3) from pPL5293. The protein was purified from bacterial cell lysate by precipitation with 5% perchloric acid and carboxymethyl cellulose cation exchange chromatography in 0.05 M ammonium acetate buffer, pH 4.5, followed by elution with 0.1 M ammonium acetate buffer, pH 5.5 (Sundd et al., 2002).

Anti-Snf7 antiserum was generated against GST-Snf7. Antiserum was generated in a New Zealand rabbit (Covance). Bleeds were evaluated for detection of Snf7 (SEY6210 and snf7Δ). The Snf7 antibody was used at 1:5,000. Anti-Bro1 antiserum was generated against His₆-Bro1ΔPRR. Antiserum was generated in a New Zealand rabbit (Covance). Antibodies were purified using GST-Bro1ΔPRR immobilized on an AminoLink column (Thermo Fisher Scientific) and verified for sensitivity and specificity using yeast extracts (SEY6210 and bro1Δ) and recombinant Bro1V. The purified Bro1 antisera was used at 1:1,000.

Ni-NTA agarose beads (Qiagen) with or without His₆-Vps4 (10 µg) were incubated for 1 h at 4°C in NiA buffer (25 mM NaH₂PO₄ and 300 mM NaCl, pH 7.5), washed with NiA buffer, and equilibrated with ATPase buffer (see “ATPase assays”). Binding reactions were performed in Handee Spin Columns (Pierce) with 6 µg Bro1V or mutants in ATPase buffer plus 0.02% Tween20 incubated for 1 h at 30°C. Reactions were washed four times with NiA buffer with 10 mM imidazole (Sigma-Aldrich), and the bound material was eluted with NiA buffer with 200 mM imidazole. Instant-Bands protein stain (EZBiolab) was used to visualize input and eluted material on a Typhoon FLA 7000 (GE Healthcare). Samples were resolved via SDS-PAGE and detected using immunoblotting against Bro1. Bro1V input and His₆-Vps4 were detected via SDS-PAGE followed by Coomassie staining.

Glutathione Sepharose 4B GST-tagged protein purification resin (Cytiva Life Sciences) with or without lysate from E. coli BL21 (DE3) expressing GST-tagged Bro1 fragments were incubated for 1 hr at 4°C in PBS, washed with PBS and equilibrated with ATPase buffer. Binding reactions were performed in Handee Spin Columns with His₆-Vps4 in ATPase buffer plus 0.02% Tween20 incubated for 1 h at 30°C. Reactions were washed six times with PBS plus 0.02% Tween20, and the bound material was eluted with GST elution buffer (10 mM reduced glutathione and 50 mM Tris-HCl, pH 8.0). Instant-Bands protein stain was used to visualize input and eluted material on a Typhoon FLA 7000. Samples were resolved via SDS-PAGE, and His₆-Vps4 was detected using penta-His antibody (Qiagen) per the manufacturer’s instruction.

Three or more independent experiments were performed, with each experiment performed in replicates within the experiment, and representatives are shown. Signal was visualized with goat anti-rabbit IgG 680LT (product number [P/N]: 925–68021; Li-Cor Biosciences) or goat anti-mouse IgG 800CW (P/N: 925–32210; Li-Cor Biosciences) and detected using the Odyssey Infrared Imager with ImageStudio software (Li-Cor Biosciences). Signal was analyzed using ImageQuantTL (GE Healthcare) and Prism 9 (GraphPad).

Measurement of Vps4 ATPase activity was performed in ATPase buffer (20 mM Hepes, 100 mM KOAc, and 5 mM MgOAc, pH 7.5) as previously described (Azmi et al., 2008; Babst et al., 1998; Davies et al., 2010; Davies et al., 2014; Norgan et al., 2013; Tan et al., 2015). All reactions were incubated at 30°C for 30 min before initiation by ATP addition (4 mM final concentration). Images were captured using a Typhoon FLA 7000 (GE Healthcare). Vps4 titration data represent ATPase activities from a minimum of three independent experiments, with each experiment performed in duplicate. Data represent ATPase activities from a minimum of three independent experiments, with each experiment performed in replicates within the experiment. Data were graphed, and statistical significance was assessed by t tests using Prism 9 (GraphPad). The Vps4 concentration used was 0.5 µM, because this concentration of Vps4 exhibits submaximal specific activity. ATPase assays in the presence of Ub were performed with the minimal concentration (50 µM) yielding maximal enhancement.

For live-cell imaging, cells expressing GFP-tagged cargos were grown in minimal media at 30°C to mid-log phase (0.5 OD₆₀₀) for live-cell fluorescence microscopy. Mup1-GFP induction was accomplished by adding 50 µM copper sulfate/chloride, as previously described (MacDonald et al., 2015). Colabeling with FM4-64 and C6-NBD-PC (1-palmitoyl-2-(6-((7-nitro-2-1,3-benzoxadiazol-4-yl)amino)hexanoyl)-sn-glycero-3-phosphocholine; Avanti Polar Lipids) was performed by growing cells in YPD or Synthetic Media containing 1 µM C6-NBD-PC and 250 nM FM4-64 for 30 min at 30°C. Cells were then harvested at mid-log phase and imaged in YPD or Synthetic Media. Images were captured at room temperature (25°C) using an Olympus IX70-S1F2 fluorescence microscope equipped with an Olympus UPIanApo 100× numerical aperture 1.35 oil objective with the complementing immersion oil (n = 1.516; Applied Precision), Standard DeltaVision filters, FITC and rhodamine, and a Photometrics CoolSNAP HQ charge-coupled device monochrome camera (Teledyne Photometrics). Image was acquired using Delta Vision softWoRx (version 3.5.1; Applied Precision) and subsequently processed by Fiji (version: 2.1.0/1.53c, National Institutes of Health; Schindelin et al., 2012). Captured images were exported under the standard DeltaVision file format and converted into 16-bit TIFF images using Bio-Formats Importer (available within Fiji). The contrast and brightness of images were subsequently adjusted within Fiji as well. Images were captured on three different days using two different sets of transformations. Verification of Bro1 and mutant Bro1 expression in these cells was confirmed by immunoblotting. Cells with WT cargo sorting signal (as indicated by predominant lumenal fluorescence and an absence of appreciable limiting membrane accumulation; see Fig. S1 B for an NBD-PC example) were scored manually. Data represent quantification from a minimum of three independent labeling experiments, with each experiment quantifying at least 100 cells. Statistical significance was assessed by t tests using Prism 9 (GraphPad).

Cells expressing GFP-tagged cargos grown in minimal media at 30°C to mid-log phase (0.5 OD₆₀₀) were harvested and treated with 0.2 M sodium hydroxide for 5 min. Mup1-GFP and Mup1-GFP-Ub induction was accomplished by adding 50 µM copper sulfate/chloride, as previously described (MacDonald et al., 2015). Subsequently, cells were resuspended in urea buffer (40 mM Tris-HCl, pH 6.8, 8 M urea, 15% SDS wt/vol, 0.1 mM EDTA, 1% β-mercaptoethanol vol/vol, and 0.01% bromophenol blue wt/vol) and lysed with glass beads for 5 min (Katzmann et al., 1999). Sample were resolved via SDS-PAGE and immunoblotted for GFP (1:1,000; Roche) and Pgk1 (1:10,000; Life Technologies). Signal was visualized with goat anti-mouse IgG 800CW (P/N: 925–32210; Li-Cor Biosciences) and detected using the Odyssey Infrared Imager with ImageStudio software (Li-Cor Biosciences). Signal was analyzed using ImageQuantTL (GE Healthcare) and Prism 9 (GraphPad).

Subcellular fractionations were performed by osmotic lysis as previously described (Dimaano et al., 2008), except the cell extracts were centrifuged at 13,000 ×g for 10 min at 4°C to separate the soluble and pellet fractions (Tan et al., 2015). Samples (0.1 or 0.2 OD₆₀₀ equivalents) were resolved via SDS-PAGE and immunoblotted for Snf7 (this study; 1:5,000), Vps4 (Babst et al., 1997; 1:1,000), and Bro1 (this study, 1:1,000). Pgk1 (1:10,000; Life Technologies) and Pep12 (1:1,000; Life Technologies). Immunoblots were developed using HRP-conjugated Goat anti-Rabbit (1:30,000; Life Technologies) or Goat anti-Mouse (1:1,000; Life Technologies), SuperSignal West Pico and SuperSignal West Femto substrates (Thermo Fisher Scientific), and the UVP Autochemi System. Signal was quantified using ImageQuant software (GE Healthcare). Signal linearity was confirmed via image histograms. Data represent three or more independent experiments (representative immunoblots are shown) and are graphed as mean with SEM. Statistical significance was assessed by t tests using Prism 9 (GraphPad).

Statistical significance was assessed by parametric unpaired two-tailed Student’s t tests using Prism 9 (GraphPad).

Molecular graphics and analyses of the S. castellii Bro1 V domain (Protein Data Bank accession no. 4JIO, chain A) were performed with the UCSF Chimera package and PyMOL (Pettersen et al., 2004; The PyMOL Molecular Graphics System). Chimera was developed by the Resource for Biocomputing, Visualization, and Informatics at the University of California, San Francisco (supported by National Institute of General Medical Sciences [NIGMS] grant P41-GM103311).

Yeast cells were high-pressure frozen and freeze substituted as previously described (Buysse et al., 2020; Johnson et al., 2017). Liquid cultures were harvested during log phase and filtered with 4.5-μm Millipore paper, collected into 0.5-mm aluminum hats, high-pressure frozen with a Wohlwend high-pressure freezer, and transferred to freeze-substituted media kept at liquid-nitrogen temperature until cryofixation. Cells were then freeze substituted in an automated freeze-substitution machine (Leica) at −90°C in cryomedia made from 0.1% uranyl acetate and 0.25% glutaraldehyde in anhydrous acetone, washed in pure acetone, and embedded at −60°C in Lowicryl HM20 (Polysciences). Samples were polymerized at −60°C and warmed slowly over 4 d. Plastic blocks were trimmed, and sections were cut in 80-nm thin sections and 250-nm thick sections with a Leica UC6 ultramicrotome and placed on rhodium-plated copper slot grids (Electron Microscopy Sciences) for thin-section transmission EM (TEM) and thick-section electron tomography (ET). TEM of hundreds of cells per strain is used to quality control freezing, embedding, and staining for tomography (Richter et al., 2013). Tomographic samples are en bloc stained with 0.1% uranyl acetate and 0.25% glutaraldehyde only, with no additional post-staining as before (Giddings, 2003). 100 cells were surveyed before at least 10 representative cells were selected to gather the tomography.

Thick sections were labeled with 15-nm fiducial gold on both sides and mapped on a Phillips CM10 (TEM) at 80 kV and tilt imaged with a Tecnai 30 (300 kV; FEI) with dual–tilt series images collected from +60° to −60° with 1° increments using a Gatan US4000 4k × 4k charge-coupled device camera. Tilt series were shot at 19,000× magnification with a 0.6534-nm working pixel (binning 2) and repeated at a 90° rotation for dual-axis tomography. Tomograms and models were constructed using IMOD software package (Kremer et al., 1996).

MVB membrane models from dual-axis electron tomograms are manually assigned from the inner leaflet every 4 nm and calculated using Imodmesh (3DMOD). We designated BPs by their negative curvature, since the majority of endosome limiting membrane curvature is positive or spherical in shape. BP models are drawn from the 0° rim at the outer leaflet, measured, and sorted by surface area using only BPs that have more than 750 nm² or approximately half of the mean ILV surface (Wemmer et al., 2011). ILVs are spherical and measured using sphere-fitting models from the vesicle’s outer leaflet (the inner leaflet of the MVB limiting membrane) and ILV diameters are measured using these sphere models. Videos were made using IMOD and QuickTime (Apple). Data were analyzed and graphed using Prism 9 (GraphPad).

Fig. S1 shows endosomes reconstructed from an EM tomogram of bro1Δ yeast, an NBD-PC scoring guide, and representative images of bro1^ΔBOD and bro1^ΔBOD vps4Δ yeast labeled with NBD-PC and FM4-64. Fig. S2 shows that free GFPs liberated from bro1^ΔBOD and bro1^ΔBOD Δdoa4 expressing Mup1-GFP or Mup1-GFP-Ub are equivalent; GFP liberation from Cos5-GFP and GFP-Dap2 are also presented. Fig. S3 expands characterization of Bro1^ΔBOD NBD-PC sorting ESCRT dependence; bro1^V does not support MVB cargo sorting. Fig. S4 shows that Bro1V mutations do not disrupt its interaction between His₆-Vps4 as well as levels of protein expression when introduced into BRO1; mutants M1 and M7 support GFP-Cps1 sorting when expressed in bro1Δ cells. Fig. S5 shows Bro1V mutants retain their ability to bind Ub. Video 1 shows the EM tomogram of bro1^ΔBOD and computer reconstruction used in Fig. 1 A. Video 2 shows the EM tomogram of bro1Δ and computer reconstruction used in Fig. 1 A. Video 3 shows the EM tomogram of WT yeast and computer reconstruction used in Fig. 7 A. Video 4 shows the EM tomogram of bro1^V and computer reconstruction used in Fig. 3 D. Video 5 shows the EM tomogram of bro1^M8 and computer reconstruction used in Fig. 7 A. Table S1 lists plasmids used in this study. Table S2 lists primers used in this study. Table S3 lists yeast strains used in this study. Table S4 lists mutations analyzed in this study.

We acknowledge Drs. Gina Razidlo and Jason Tan (Mayo Clinic, Rochester, MN) for their inquiries and thoughtful discussions.

S. Dean and C.-C. Tseng contributed to these studies as members of the Biochemistry and Molecular Biology Graduate Program and received financial support from the Mayo Clinic Graduate School of Biomedical Sciences. J. Staffenhagen contributed to these studies as a member of the Mayo Clinic Summer Undergraduate Research Program and received financial support from the Mayo Clinic Graduate School of Biomedical Sciences. This research was supported, in whole or in part, by National Institutes of Health grants R01 GM116826 (D.J. Katzmann), R01 GM065505 (G. Odorizzi), and R01 GM58202 (R.C. Piper) and a Fraternal Order of Eagles postdoctoral fellowship (B.A. Davies). S. Dean was supported by the National Science Foundation graduate research fellowship under grant DGE-NSF-01-02. C.-C. Tseng was supported by a Mayo Clinic Sydney Luckman Family predoctoral fellowship. J. Staffenhagen was supported by the Mayo Clinic summer undergraduate research fellowship. The content is solely the responsibility of the authors and does not necessarily represent the official views of the National Institutes of Health. Any opinion, findings, and conclusions or recommendations expressed in this material are those of the authors and do not necessarily reflect the views of the National Science Foundation.

The authors declare no competing financial interests.

Author contributions: B.A. Davies, I.F. Azmi, and D.J. Katzmann conceived of the study. C.-C. Tseng, S. Dean, B.A. Davies, and D.J. Katzmann designed and conducted the experiments along with J.A. Payne, J. Staffenhagen, N. Pashkova, R.C. Piper, M. West, and G. Odorizzi. D.J. Katzmann, R.C. Piper, C.-C. Tseng, and B.A. Davies wrote the manuscript. All authors reviewed the results and approved the final version of the manuscript.
