Introduction

During meiotic prophase I, prominent meiosis-specific chromosomal structures called synaptonemal complexes (SCs) play a critical role in successful chromosome segregation at meiosis I (Zickler and Kleckner, 1999; Lake and Hawley, 2012). SCs keep pairs of homologous chromosomes tightly aligned along their lengths. The SC is highly conserved among most eukaryotes and consists of very similar substructures. Chromatin loops of each chromosome are bound to rigid chromosomal axes called the axial elements, which later form the lateral elements of the SCs. The aligned axes are closely juxtaposed through the central region of the SC, where oligomeric arrays of transverse filaments (TFs) lie perpendicular to the lateral elements, serving as a proteinaceous connection between homologs. In the middle of this central region runs an electron-dense linear substructure called the central element.

Budding yeast has one TF protein called Zip1 (Roeder, 1997). Zip1 possesses a long α-helical coiled-coil region flanked by N- and C-terminal regions (Sym et al., 1993; Lake and Hawley, 2012). The N-terminal domain of Zip1 lies in the middle of the central region of the SC, whereas the C-terminal domain localizes with the lateral elements, leading to the proposal that the N-terminal domains of Zip1 are bound head-to-head at the center of the SC and the C-terminal domains are anchored to the lateral elements (Dong and Roeder, 2000; Voelkel-Meiman et al., 2013). Thus, controlling chromosomal recruitment and polymerization of Zip1 is crucial for controlling SC assembly. Chromosomal assembly of Zip1 is initiated by the synapsis initiation complex (Zip2, 3, 4, and Spo16; Chua and Roeder, 1998; Agarwal and Roeder, 2000; Perry et al., 2005; Tsubouchi et al., 2006; Shinohara et al., 2008). SUMO ligase Zip3 and the prolyl-isomerase Fpr3 are known to render SC assembly dependent on DSBs (Macqueen and Roeder, 2009).

Small ubiquitin-like modifier (SUMO) has emerged as an important regulator of SC formation (Cheng et al., 2006; de Carvalho and Colaiácovo, 2006; Hooker and Roeder, 2006). Many lateral element proteins, including Red1, Pdr5, and Top2, are SUMOylated (Stead et al., 2003; Cheng et al., 2006; Takahashi et al., 2006; Eichinger and Jentsch, 2010). Zip3 has been shown to possess SUMO E3 ligase activity, whereas both Zip1 and Red1 have SUMO chain–binding activities (Cheng et al., 2006; Lin et al., 2010). SUMOylation of the SUMO E2 ligase (Ubc9) is also proposed to regulate SC assembly by controlling the formation of oligomeric SUMO chains (Klug et al., 2013).

In budding yeast, Ecm11 and Gmc2 are emerging as key regulators for TF assembly (Brar et al., 2012; Humphryes et al., 2013). Ecm11 undergoes prominent SUMOylation that is Gmc2 dependent and is essential for efficient SC assembly. SUMOylated Ecm11 is localized to the central element of the SC (Voelkel-Meiman et al., 2013). These observations raise the possibility that TF assembly is controlled through SUMOylation of Ecm11.

In this study, we found that the extent of Ecm11 SUMOylation closely correlates with the efficiency of TF oligomerization. We further show that Ecm11 SUMOylation and Zip1 assembly reciprocally activate each other, leading to the proposal that mutual activation of Ecm11 SUMOylation and TF oligomerization establishes a positive feedback mechanism that promotes SC assembly.

Results and discussion

Ecm11–SUMO conjugates are the prominent SUMOylated species during early meiosis

Previous work implied that oligomeric SUMO chains accumulate during prophase I (Cheng et al., 2006). We considered the possibility that these polySUMO species could in fact be polySUMOylated Ecm11 and not free SUMO chains. To test this possibility, we used two kinds of ECM11 alleles: wild type and ECM11-13myc, which has an extra 21 kD attached to Ecm11. Also used were the zip3 and ndt80 mutations, which cause hyperSUMOylation of Ecm11 and late prophase I arrest, respectively (Xu et al., 1995; Agarwal and Roeder, 2000; Humphryes et al., 2013). Ecm11-13myc showed a ladder-like migration pattern caused by the attachment of multiple SUMO molecules, which was more prominent by the zip3 mutation as shown previously (Fig. 1 A, left; Humphryes et al., 2013). The anti-myc immunoprecipitation products reacted with anti-Smt3 antibodies (Smt3 is the only SUMO in budding yeast) and showed a migration pattern identical to the ladder-like bands of Ecm11-13myc (Fig. 1 A, right).

We then tested if the prominent ladder-like SUMO signals are related to Ecm11. We reasoned that, if such polySUMO chains are conjugated with Ecm11, the ladder-like bands should change their migration speed as a group when the molecular size of Ecm11 is increased, which was achieved by attaching myc epitopes. Consistent with Cheng et al. (2006), SUMO antibodies identified a meiosis-specific ladder of bands in wild type, which was enhanced by the zip3 mutation (Fig. 1 B). Upon addition of 13myc to Ecm11, the ladder collectively increased in molecular mass, yielding a pattern that matches that of the SUMO-conjugated Ecm11 ladder. The majority, if not all, of the prominent SUMO ladder disappeared in the ecm11-null mutant, or in a mutant in which the Ecm11 SUMO targeting sites are mutated (ecm11-2KR; i.e., K5R K101R ; Fig. 1 B, right).

Similar observations were obtained in a second strain background (Fig. 1, C and D). Furthermore, when Ecm11 was attached to different tags that add smaller masses (3, 7, and 12 kD), the SUMO ladder shifted upward accordingly (Fig. S1 A).

Collectively, our results indicate that the entities previously inferred to be free polySUMO chains are actually polySUMOylated Ecm11 species. The observation that Ecm11 SUMOylation becomes further pronounced in the absence of Zip3 rules out the possibility that Zip3 functions as the SUMO E3 ligase responsible for Ecm11 SUMOylation.

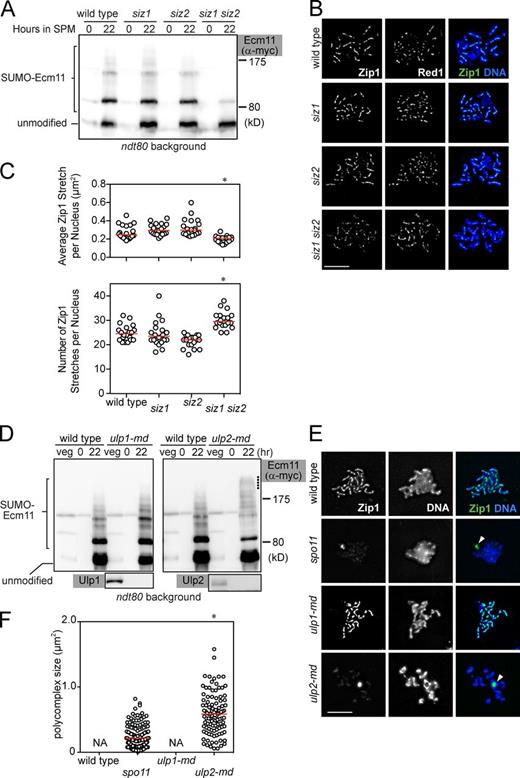

E3 SUMO ligases Siz1 and Siz2 facilitate polySUMOylation of Ecm11 and SC assembly

We next examined the involvement of two SUMO E3 ligases, Siz1 and Siz2, in Ecm11 SUMOylation (Johnson and Gupta, 2001; Takahashi et al., 2001). SUMOylation of Ecm11 was substantially reduced only when both SIZ1 and SIZ2 were deleted (Fig. 2 A and Fig. S1 B). We also examined chromosomal assembly of Zip1 in the absence of Siz1, Siz2, or both (Fig. S1 C and Materials and methods). In brief, we measured the size and number of Zip1 stretches; a Zip1 stretch is defined as one continuous immunostaining Zip1 structure, which is typically a long line in wild type. If SC assembly is defective, Zip1 staining tends to become discontinuous, which is reflected as a decrease in the size of individual Zip1 stretches and an increase in the number of stretches per nucleus. The siz1 siz2 double mutant exhibited a substantial reduction in Zip1 linearity (Fig. 2, B and C; and Fig. S1 D).

To further examine the effect of the siz1 siz2 mutations on extrachromosomal assemblies of Zip1 (i.e., polycomplexes [PCs]), we used two mutant backgrounds in which PCs are frequently formed: spo11 and zip3. In both mutants, the siz1 siz2 mutations reduced both the size of the PCs and the fraction of nuclei carrying a PC (Fig. S1 E).

From these results, we conclude that Siz1 and Siz2 are important for promoting efficient Ecm11 SUMOylation, as well as chromosomal and extrachromosomal assemblies of Zip1.

SUMO protease Ulp2 prevents hyperSUMOylation of Ecm11 and extrachromosomal assembly of TF

Ulp1 and Ulp2 are SUMO-specific proteases involved in deSUMOylation (Li and Hochstrasser, 1999, 2000; Schwienhorst et al., 2000). We found that meiosis-specific depletion (md; see Yeast strains) of Ulp2 caused hyperSUMOylated Ecm11 to accumulate (Fig. 2 D, right, marked with dots), whereas Ulp1 depletion had little impact (Fig. 2 D, left). Furthermore, Ulp2 depletion, but not Ulp1 depletion, caused frequent PC formation: 1.8% (2/110) in wild type; 63% (80/127) in spo11; 1.0% (1/105) in ulp1-md; and 88% (88/100) in ulp2-md. The size of the PCs was substantially bigger in Ulp2-depleted cells than in the spo11 mutant (Fig. 2, E and F), in which double-strand breaks (DSBs) are not induced and chromosomal assembly of Zip1 is defective. Thus, Ulp2 is important for controlling the extent of Ecm11 SUMOylation; hyperSUMOylated Ecm11 and extrachromosomal Zip1 assembly are concurrent in the absence of Ulp2.

Extent of Ecm11 SUMOylation correlates with efficiency of Zip1 assembly

To further investigate the relationship between the levels of Ecm11 SUMOylation and the efficiency of Zip1 assembly, we constructed a series of mutant strains showing various levels of Ecm11 SUMOylation. Mutating one of two canonical SUMO targeting sites, K5 and K101, leads to a partial reduction in Ecm11 SUMOylation, with the K5R mutation causing a bigger reduction than K101R; mutating both sites (2KR; i.e., K5R K101R) leads to a near-complete loss of SUMOylation (Zavec et al., 2008; Humphryes et al., 2013). These mutations and the null mutation were combined with the zip3 mutation, which enhances Ecm11 SUMOylation.

Initially, we used a condition in which meiotic DSB formation is normal (SPO11+; Fig. S2). Overall, the size of PCs closely correlated with the level of Ecm11 SUMOylation (Fig. S2, A and B), although this interpretation was complicated by two considerations. First, in some strains such as wild type and K101R, the majority of Zip1 assembles between chromosomes as normal SCs, whereas in zip3, Zip1 assembles as both PCs and SCs (Fig. S2, C and D). Second, the absence of Zip3 compromises chromosomal localization of Zip1, likely because Zip3 is also involved in synapsis initiation (Fig. S2 D). Thus, we introduced a mutation that prevents meiotic DSB formation (spo11-Y135F) so that Zip1 assembly now occurs exclusively as PCs (Bergerat et al., 1997; Chua and Roeder, 1998; Diaz et al., 2002). This analysis uses PC formation as a surrogate for Zip1 oligomerization, thus allowing us to uniformly assess Zip1 assembly in all the strains used. We note that the configuration of Zip1 polymers in a PC, although formed in a pathological condition, is similar to that found in SCs (Dong and Roeder, 2000).

Ecm11 was conjugated with various levels of polySUMO chains depending on the combination of mutations used (Fig. 3 A). The frequency and size of PCs showed a strong correlation with the degree of Ecm11 SUMOylation. For example, in the ECM11 zip3 strain, nearly all the spread nuclei contained a large PC (e.g., Fig. 3 D, 0.70 µm2); in the ECM11 ZIP3 strain, ∼60% of nuclei contained a medium-sized PC (e.g., Fig. 3 D, 0.37 µm2); and in K5R ZIP3, only ∼20% of spread nuclei had a PC, which was also much smaller (e.g., Fig. 3 D, 0.14 µm2).

These observations, along with the phenotypes of the siz1 siz2 double mutant (Fig. 2, A–C) and the ulp2-mn mutant (Fig. 2, D–F), suggest that efficient Zip1 assembly necessitates Ecm11 and is controlled by the efficiency of Ecm11 SUMOylation and perhaps the length of polySUMO chains. Thus, we propose that Ecm11 SUMOylation serves as a molecular throttle that controls the efficiency of SC assembly. The degree of Ecm11 polySUMOylation is likely to be maintained by the balance between SUMO ligases and SUMO proteases. These two classes of enzymes might communicate with the chromosomal environment to control SUMOylation of Ecm11. In this context, Zip3 is likely involved, directly or indirectly, in shortening the SUMO chain. It is currently unclear whether overall efficiency of Ecm11 SUMOylation or the length of SUMO chain is more relevant for promoting Zip1 assembly.

PolySUMOylation of Ecm11 requires the N terminus of Zip1

In the zip3 mutant, oversized PCs are frequently formed. To test if hyperSUMOylation of Ecm11 requires Zip1, zip3 was combined with the zip1-null mutation and Ecm11 SUMOylation was examined (Fig. 4 A). The combination of zip1 and zip3 led to a substantial reduction in SUMOylation, the level of which was comparable to that of the zip1 single mutant. Thus, hyperSUMOylation of Ecm11 requires Zip1.

The N terminus head-to-head association of Zip1 molecules is central to the adhesion of homologous chromosomes. Thus, a collection of zip1 mutant alleles used in previous studies were tested for their effect on Ecm11 SUMOylation (Fig. 4 B; Tung and Roeder, 1998). Both Zip1-NM2 and Zip1-M1 are defective in closing the zipper structure of the SC. In contrast, Zip1-C1 does not interact with axial elements, resulting in failure to associate with chromosomes and frequent PC formation. Ecm11 SUMOylation was barely affected in the zip1-C1 mutant, whereas the level dropped to that of the zip1-null mutant in zip1-NM2 and -M1 cells (Fig. 4 B). Thus, the N terminus of Zip1 is necessary for promoting Ecm11 SUMOylation.

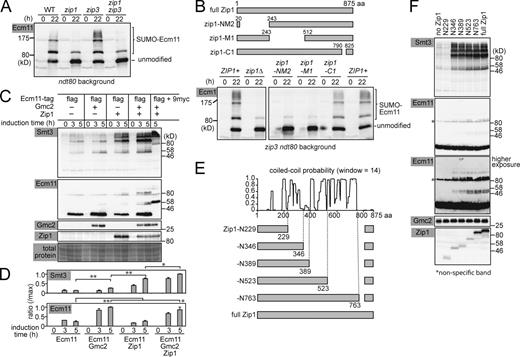

Zip1 N terminus and Gmc2 are sufficient for polySUMOylation of Ecm11

To further understand the mechanisms of SC assembly, we set out to identify the minimal conditions that support efficient Ecm11 SUMOylation and Zip1 assembly in vegetative cells in which other meiosis-specific proteins do not exist. The Ecm11, Gmc2, and Zip1 proteins were conditionally produced by using the galactose-inducible promoter. When Ecm11 was produced along with Gmc2, more Ecm11 was detected, possibly suggesting a role for Gmc2 in stabilizing Ecm11 (Fig. 4, C and D). When Zip1 was produced along with Ecm11, a substantial increase in Ecm11 SUMOylation was detected. Ecm11 SUMOylation reached the maximum level when Ecm11 was produced with both Gmc2 and Zip1. The robust SUMO signal derives from Ecm11, because these signals collectively shifted upward when Ecm11 was fused to a tag (9myc; Fig. 4 C, rightmost lane).

We further set out to determine the minimum region of Zip1 that can support the activation of Ecm11 SUMOylation. A truncation series of ZIP1 alleles was created so that each construct encodes various lengths of N-terminal Zip1 (Fig. 4 E). The C-terminal end of each truncation construct was fixed and corresponded to an interruption in the predicted coiled-coil regions of Zip1 (Lupas et al., 1991). A small C terminus region, consisting of 825–875 aa, was found to be essential (most likely for nuclear transport; see Materials and methods) and thus was attached to every construct. Each truncated Zip1 was produced in vegetative cells, along with Ecm11 and Gmc2 (Fig. 4 F and Fig. S3). Although robust Ecm11 SUMOylation was seen with full-length Zip1, a comparable level of SUMOylation was detected with the truncation carrying 1–346 aa (Zip1-N346) but not in the 1–229 aa construct (Zip1-N229). Thus, the N-terminal 346 aa is sufficient for activating Ecm11 SUMOylation.

We then set out to examine how Ecm11 SUMOylation affects Zip1 assembly in vegetative cells. Nuclei were spread and Zip1 localization was examined cytologically in vegetative cells producing Zip1 alone, Zip1 and Ecm11, or Zip1, Ecm11, and Gmc2 (Fig. 5, A and C). 1 h after the start of protein induction, a nuclear body similar to a PC was seen in the majority of cells. The overall size of the PCs became progressively larger when Zip1 was coproduced with Ecm11 (1.6-fold at 4 h; Fig. 5 D), although they remained similar or slightly smaller than PCs in the cells producing only Zip1 at earlier time points. However, when both Ecm11 and Gmc2 were produced with Zip1, the size of PCs became even larger (4.4-fold at 4 h; Fig. 5 D), indicating that both Ecm11 SUMOylation and Gmc2 contribute to efficient development of Zip1 structures. We confirmed that the mitotic induction of these meiosis-specific proteins barely affected the cell cycle (Fig. S3, B and C), implying that the results presented in Fig. 5 A are not associated with cell-cycle abnormality.

We then applied this minimal assembly system to examine two truncated Zip1 proteins, Zip1-N346 and -N389 (Fig. 5, B and C). Zip1-N389 developed Zip1 PCs of similar sizes to those of full-length Zip1 (0.94-fold at 4 h; Fig. 5 D), although the kinetics of assembly was slightly delayed. In Zip1-N346, the size of the Zip1 bodies was substantially smaller than those of both full-length Zip1 and Zip1-N389 (0.20-fold at 4 h; Fig. 5, B and D). These observations suggest two things. First, the N-terminal 389 aa of Zip1 is sufficient for activating Ecm11 SUMOylation and promoting self-assembly. Second, Zip1-N346 is sufficient for activating Ecm11-SUMOylation but incapable of promoting self-assembly, thus suggesting that the domain necessary for activating Ecm11 SUMOylation is separable from that for promoting Zip1 self-assembly.

The discovery that the N terminus of Zip1 serves as an activator of Ecm11 SUMOylation provides insights into how TF assembly progresses (Fig. 5 E). At the beginning, an initiating mechanism recruits Zip1 and central element proteins (Ecm11 and Gmc2) to synapsis initiation sites (Fig. 5 E, step 1). It is interesting to note that Ecm11/Gmc2 can be recruited to synapsis initiation sites independently of Zip1 (Humphryes et al., 2013). Then, initial Zip1 nucleation occurs in association with Ecm11/Gmc2 (Fig. 5 E, step 2), followed by activation of Ecm11 SUMOylation by the Zip1 N terminus (Fig. 5 E, step 3). The ensuing formation of SUMO chains facilitates the recruitment and assembly of more Zip1 molecules (Fig. 5 E, step 4). This causes further recruitment of Ecm11/Gmc2 and SUMOylation of Ecm11 (Fig. 5 E, step 5), establishing a positive feedback loop. Both Zip1 N-termini and Ecm11/Gmc2 are located at the central element. Thus, we propose that the central element acts as the control center for SC assembly by regulating the extent of Ecm11 SUMOylation.
