Dynamic microtubules (MTs) continuously explore the intracellular environment and, through specialized plus end–tracking proteins (+TIPs), engage a variety of targets. However, the nature of cargoes that require +TIP-mediated capture for their movement on MTs remains poorly understood. Using RNA interference and dominant-negative approaches, combined with live cell imaging, we show that herpes simplex virus particles that have entered primary human cells exploit a +TIP complex comprising end-binding protein 1 (EB1), cytoplasmic linker protein 170 (CLIP-170), and dynactin-1 (DCTN1) to initiate retrograde transport. Depletion of these +TIPs completely blocked post-entry long-range transport of virus particles and suppressed infection ∼5,000-fold, whereas transferrin uptake, early endosome organization, and dynein-dependent movement of lysosomes and mitochondria remained unaffected. These findings provide the first insights into the earliest stages of viral engagement of MTs through specific +TIPs, akin to receptors, with therapeutic implications, and identify herpesvirus particles as one of a very limited number of cargoes absolutely dependent on CLIP-170–mediated capture to initiate transport in primary human cells.
Introduction
Intracellular movement of cargoes over long distances requires directed transport by motor proteins along microtubules (MTs). Generally, retrograde transport is mediated by the inward-directed motor dynein, whereas anterograde movement is mediated by kinesins (Kardon and Vale, 2009; Dodding and Way, 2011; Vallee et al., 2012). MTs themselves consist of α/β-tubulin heteropolymers that form polarized filaments whose minus ends nucleate at a MT organizing center, whereas their plus ends radiate outward, forming filaments that dynamically grow and shrink. This dynamic nature enables continuous environmental sensing through a process of “search and capture” (Gundersen, 2002). In response to specific cues, subsets of MTs can become stabilized, often through capture of dynamic MT plus ends at specific sites just beneath the plasma membrane (Gundersen, 2002). Stable MTs acquire distinguishing posttranslational modifications, including acetylation and detyrosination of tubulin subunits, and act as specialized tracks for vesicle trafficking (Gundersen, 2002). MT dynamics and stability are controlled by an array of specialized plus end–tracking proteins (+TIPs; Jiang and Akhmanova, 2011). Among these, the end-binding protein EB1 specifically recognizes the growing plus ends of dynamic MTs (Jiang and Akhmanova, 2011). Although EB1 can directly influence MT growth, it also plays a central role in MT regulation by recruiting other +TIPs to MT plus ends. Indeed, although many +TIPs can bind MTs, their specific accumulation at MT plus ends requires EB1 (Honnappa et al., 2009; Jiang and Akhmanova, 2011). +TIPs also function in the interaction of MTs with targets such as the cell cortex, organelles, and cargoes (Gundersen, 2002; Jiang and Akhmanova, 2011). However, as discussed later, the nature of cargoes captured by specific +TIPs to initiate their transport and the underlying mechanisms remain unclear.
As intracellular parasites, viruses represent an intriguing form of pathogenic cargo that are reliant on host transport networks to move to and from their subcellular sites of replication. Many initially exploit short-range actin-mediated transport at the periphery followed by long-range MT-based movement within the infected cell (Radtke et al., 2006; Dodding and Way, 2011). Indeed, many viruses physically associate with MT motors and adapters and have evolved to manipulate MT organization (Radtke et al., 2006; Dodding and Way, 2011). This includes herpes simplex virus type 1 (HSV-1), a widespread human pathogen that establishes life-long infections resulting in recurrent cold sores, corneal blindness, and encephalopathy (Roizman et al., 2007). However, although it has long been established that MT-depolymerizing or -stabilizing agents affect the establishment of infection (Kristensson et al., 1986; Sodeik et al., 1997; Mabit et al., 2002; Radtke et al., 2006; Dodding and Way, 2011), the nature of MT filaments involved and the underlying mechanisms by which viruses initially engage MTs remain unknown. Here, using RNAi and dominant-negative approaches, we uncover how HSV-1 particles that have entered cells exploit a dynamic MT plus end complex comprising EB1, cytoplasmic linker protein 170 (CLIP-170), and dynactin-1 (DCTN1). Furthermore, we illustrate how virus particles, unlike numerous host cargoes, exhibit a near absolute dependence on this specialized capture mechanism to initiate retrograde transport and infection in primary human cells.
Results
HSV-1 exploits dynamic MT filaments during early infection
Although HSV-1 induces and exploits stable MTs to promote egress and spread of new virus particles (Elliott and O’Hare, 1998; Naghavi et al., 2013), the potential role of stable MTs in early infection remains unknown. To establish whether HSV-1 affected MT stability early in infection, primary normal human dermal fibroblasts (NHDFs) were mock infected or infected with HSV-1 at MOI 20. Western blot (WB) analysis of cell lysates revealed that HSV-1 did not detectably alter acetylated tubulin (Ac-tubulin) levels over the first 3 h post infection (hpi), in stark contrast to the robust acetylation induced by 24 hpi (Fig. 1 A). To determine whether HSV-1 might exhibit preferential localization toward existing stable MTs, NHDFs were infected as described above and analyzed by immunofluorescence (IF). HSV-1 particles were stained using a monoclonal antibody against the capsid protein ICP5, whereas anti–Ac-tubulin antibody was used to stain stable MTs (Ac-MTs). Imaging revealed that viral particles were scattered throughout the cytoplasm at 1 hpi but became detectable at the nuclear periphery by 2 hpi (Fig. 1 B). By 3 hpi, nuclei of most cells became heavily stained for ICP5 as viral particles reached the nucleus (Fig. 1 B), in line with kinetics in other cell types (Sodeik et al., 1997). Furthermore, images revealed that Ac-MT levels and organization were not detectably altered by infection, and capsids did not exhibit notable colocalization with Ac-MTs that would suggest their specific use for viral transport (Fig. 1 B and Fig. S1). To test whether virus particles localized to dynamic MTs, infected cells were fixed and stained using antibodies that distinguish stable versus dynamic filaments; stable Ac-MTs were stained using anti–Ac-tubulin antibody, whereas dynamic MTs were visualized using antityrosinated tubulin antibody (Tyr-MTs; Naghavi et al., 2013). Confocal microscopy revealed that virus particles, detected using anti-ICP5 antibody, localized to Tyr-MTs that contained little or no Ac-tubulin and did not localize to filaments staining heavily for Ac-tubulin (Fig. 1 C). Overall, these findings demonstrated that HSV-1 neither induced nor colocalized with stable MTs during early infection and pointed to potential roles for dynamic MTs.
EB1 and CLIP-170 facilitate early post-entry stages of HSV-1 infection
To initially test whether +TIPs that associate with dynamic MTs contributed to HSV-1 infection, the effect of depleting EB1 was examined. NHDFs were treated with control nontargeting or EB1 siRNAs and then infected for 16 h at MOI 5 with HSV-1 expressing a GFP-tagged late protein, Us11 (HSV-1–GFP-Us11). Microscopy revealed that, compared with control siRNA, two independent EB1 siRNAs potently suppressed GFP-Us11 fluorescence signal and HSV-1–induced cytopathic effect in cultures (Fig. 2 A). The morphology of EB1-depleted cells suggested that this was not a result of effects on cell viability (Fig. 2 A), and further evidence for this is presented below. The reduction in GFP-Us11 levels provided functional evidence that dynamic MTs and +TIPs were required for HSV-1 infection. To test this further, the contribution of EB1 or CLIP-170, an EB1-binding +TIP that promotes MT growth and linkage to targets (Galjart, 2005), to production of infectious virus was examined. NHDFs were treated with control, EB1, or CLIP-170 siRNAs and then infected at MOI 5 for 16 h with either HSV-1–GFP-Us11 (Patton strain) or wild-type HSV-1 (strain F). Strikingly, NHDFs depleted of either EB1 or CLIP-170 were found to produce ∼5,000-fold less virus than control cultures for both virus strains tested (Fig. 2 B). WB analysis confirmed target depletion by each siRNA, whereas the levels of cleaved PARP-1, an apoptosis indicator, were found to be unchanged in either EB1- or CLIP-170–depleted infected cells compared with controls (Fig. 2 C), further demonstrating no adverse effects of +TIP depletion on cell viability.
To begin determining the stage of infection being affected, the expression of different kinetic classes of viral gene products was examined. HSV-1 gene expression begins with five immediate early (IE) genes followed by expression of early and then late genes (Roizman et al., 2007). Samples of siRNA-treated NHDFs infected at MOI 5 for 16 h were analyzed by WB for infected cell proteins ICP0, ICP4, and ICP22, representing key IE gene products as well as late viral structural proteins. Results showed that independent siRNAs against EB1 or CLIP-170 not only inhibited production of viral structural proteins, but also potently blocked the accumulation of IE proteins (Fig. 2 C). The degree to which viral protein production was suppressed directly correlated with the degree of EB1 or CLIP-170 depletion achieved with each siRNA tested. As discussed later, although CLIP-170 can bind tubulin, EB1 mediates its specific accumulation and function at MT plus ends in many cell types (Jiang and Akhmanova, 2011). To test this in NHDFs, the localization of these factors was examined in siRNA-treated cultures. In control samples, EB1 and CLIP-170 colocalized in comet-like staining patterns at MT plus ends (Fig. 2 D). CLIP-170 was also observed in what has been described previously as “patches” along the MT lattice (Rickard and Kreis, 1990; Pierre et al., 1992), which did not colocalize with EB1. In CLIP-170–depleted NHDFs, EB1 staining was unaffected (Fig. 2 D). However, in EB1-depleted cultures, CLIP-170 protein levels were unaffected (Fig. 2 C), but comet staining at MT plus ends was lost, whereas patches along the MT lattice remained detectable (Fig. 2 D). This was in line with the current model for EB1-mediated recruitment of CLIP-170 to MT plus ends. These observations, together with the effects of depleting either EB1 or CLIP-170 on HSV-1, suggested that plus end–associated, rather than lattice-bound CLIP-170, was important for early infection. To independently test this, the effect of dominant-negative EB1 was examined. Although C-terminal fluorescent tags do not interfere with EB1’s ability to track growing MT plus ends, these large tags interfere with the recruitment of CLIP-170 through EB1’s C terminus (Komarova et al., 2005; Lomakin et al., 2009; Skube et al., 2010). In line with these studies in other cell types, although dominant-negative EB1-mCherry (EB1-DN) formed tip-tracking comets in NHDFs (Video 1 A), IF analysis revealed that CLIP-170 was specifically displaced from MT plus ends in these cells (Fig. 2 E). Notably, similar to EB1 depletion above, patches of CLIP-170 along the MT lattice continued to be detected (Fig. 2 E). When NHDFs expressing EB1-DN were infected with HSV-1, expression of viral IE protein was potently suppressed compared with control NHDFs (Fig. 2 F). Notably, MT growth persists in EB1-DN–expressing NHDFs (Video 1 A), suggesting its effect on viral infection reflected the failure to recruit CLIP-170 rather than effects on dynamic MTs themselves. These independent approaches demonstrated that early HSV-1 infection was highly dependent on EB1 and CLIP-170 recruitment to dynamic MT plus ends.
To determine whether this block to infection represented effects on HSV-1 fusion and entry, siRNA-treated cultures were infected, fixed, and then stained for the capsid protein ICP5 (stained green) or the envelope glycoprotein gB (stained red). Viruses that have not fused stain for both proteins and appear yellow, glycoprotein that has been shed appears red, and particles that have entered the cytoplasm and lost their envelope appear green. Confocal microscopy and quantification of yellow versus green particles revealed no significant differences in the numbers and ratios of yellow and green particles in +TIP-depleted NHDFs compared with control samples (Fig. 3, A and B). As a positive control for this assay, all virus particles appeared yellow in NHDFs infected at 4°C to block fusion (Fig. 3, A and B). These findings were validated using a second entry assay (Jovasevic et al., 2008). In brief, cells were infected at 4°C to allow virus attachment and then returned to 37°C to allow entry. Unfused surface-bound virus was removed using citric acid buffer and proteinase K treatment, and then amounts of viral DNA in the cell were measured by quantitative real-time PCR (qRT-PCR). In line with IF-based fusion assays, results showed that the levels of viral DNA detected in cells was unaffected by depletion of either EB1 or CLIP-170 compared with control samples (Fig. 3 C). Infected samples maintained at 4°C demonstrated efficient removal of unpenetrated virus (Fig. 3 C). Depletion of EB1 and CLIP-170 in this experimental setup was confirmed by WB (Fig. 3 D). Overall, these findings demonstrated that EB1 and CLIP-170 did not affect viral fusion and entry into the cytosol. Moreover, the fact that the potent block to infection and IE protein production persisted at 16 hpi revealed that these +TIPs functioned in an early post-entry process critical to establishing infection.
HSV-1 requires CLIP-170 and its binding partners, EB1 and DCTN1, to initiate retrograde transport
Although virus particles entered the cytosol in +TIP-depleted cells, to determine whether their translocation to the nucleus was affected, NHDFs were treated with control, EB1, or CLIP-170 siRNAs and then infected with HSV-1 for 4 h. WB analysis confirmed target depletion by siRNAs in each case (Fig. 3 E), whereas fixed samples were stained for viral capsid protein, ICP5, and Tyr-tubulin. IF analysis revealed that in control cultures capsids accumulated at the nucleus (Fig. 3 F). A notable change in MT organization was also observed with clear loss of centrosomal focus of Tyr-MTs similar to previous studies (Avitabile et al., 1995; Naghavi et al., 2013; Pasdeloup et al., 2013). In contrast, in cells depleted of either EB1 or CLIP-170, capsids remained scattered and distant from the nucleus (Fig. 3 F). Furthermore, Tyr-MTs maintained centrosomal focus similar to uninfected cells, with no detectable loss of overall Tyr-MT mass or organization (Fig. 3 F). This established that depletion of EB1 or CLIP-170 did not block infection by causing gross defects in MT organization in NHDFs and suggested direct functions for EB1 and CLIP-170 in the transport of viral particles by dynamic MT filaments.
To verify that MT-based movement was indeed important for HSV-1 infection in these cells, NHDFs were treated with DMSO solvent control or the dynein inhibitor ciliobrevin D (Firestone et al., 2012). Cultures were then infected for 3 h before fixing and staining for Tyr-tubulin and capsid protein, ICP5. Fixed imaging revealed that, compared with DMSO controls, ciliobrevin D prevented virus particles from reaching the nucleus, and this occurred without effects on overall Tyr-MT organization (Fig. 4 A). Moreover, live cell imaging of HSV-1 containing a GFP-tagged capsid protein (K26GFP; Desai and Person, 1998) demonstrated that virus particles exhibited “twitchy” short-range motility as well as short bursts of longer-range transport, yet failed to reach the nucleus (Video 1 B). This was in stark contrast to the motility of virus particles in untreated NHDFs, shown and discussed in more detail later. To determine whether EB1 or CLIP-170 depletion altered dynein distribution, which might explain their effects on infection, siRNA-treated NHDFs were fixed and stained for dynein intermediate chain (DIC) and Tyr-tubulin. Imaging revealed no gross differences in the general distribution of DIC in NHDFs depleted of EB1 or CLIP-170 compared with control cultures (Fig. 4 B). DIC accumulation at the centrosome was also unaffected, in line with observations above that neither EB1 nor CLIP-170 affected overall Tyr-MT mass or anchoring. Similar results were observed for the large subunit of the dynein-activating complex, dynactin-1 (DCTN1/p150Glued; Fig. S2; Kardon and Vale, 2009; Vallee et al., 2012). However, DIC and DCNT1 staining patterns appeared more diffuse in peripheral regions of EB1- or CLIP-170–depleted cells when compared with the flecked patterns more readily observed in control samples. This was in line with previous studies that EB1 and CLIP-170 locally recruit DCTN1 to MT plus ends (Vaughan et al., 1999; Komarova et al., 2002, 2005; Goodson et al., 2003; Lansbergen et al., 2004; Watson and Stephens, 2006; Bjelić et al., 2012). Testing HSV-1’s relative requirement for these proteins, the accumulation of viral IE and structural proteins was found to be potently suppressed in NHDFs treated with EB1, CLIP-170, or either of two independent DCTN1 siRNAs (Fig. 4 C). Moreover, DCTN1 depletion was also found to block the accumulation of viral particles at the nucleus when compared with control samples (Fig. 4 D), similar to the effects of EB1 or CLIP-170 depletion observed earlier (Fig. 3 F). This pointed to a potentially critical role in early HSV-1 infection for CLIP-170’s proposed function in DCTN1 recruitment and cargo capture by dynamic MT plus ends (Vaughan et al., 1999; Watson and Stephens, 2006; Mishima et al., 2007; Slep and Vale, 2007; Bieling et al., 2008; Moughamian et al., 2013).
However, as outlined in more detail in the Discussion, there is considerable debate about the nature of cargoes captured through CLIP-170 for transport, which appear in most cases to be limited to a very small number of highly specialized cargoes or restricted to specific cell types. As studies to date have used transformed cell lines or nonhuman cells, one possibility was that this capture process is widely used in primary human fibroblasts. To test this, potential effects on early endosomes were first examined. NHDFs were treated with EB1 or CLIP-170 siRNAs, and fixed samples were stained for the early endosome marker, EEA1, and Tyr-tubulin. Imaging revealed no detectable differences in the overall distribution of EEA1-positive endosomes in cells depleted of either CLIP-170 or EB1 compared with control siRNA–treated cultures (Fig. 5 A). Quantification of early endosome fluorescence intensity or mean distances from the nucleus also revealed no significant differences between +TIP-depleted and control cultures (Fig. 5 B). To test this further, endocytic uptake of fluorescently labeled transferrin was examined. Imaging of the distribution of transferrin-positive vesicles and the fluorescence intensity of samples revealed that the uptake and localization of transferrin was unaffected by either EB1, CLIP-170, or DCTN1 depletion compared with control cultures (Fig. 5, C and D). In contrast, inhibition of dynein using ciliobrevin D reduced transferrin uptake and blocked the perinuclear accumulation of transferrin in NHDFs compared with DMSO-treated controls (Fig. S3, A and B). Next, potential effects on dynein-mediated transport of mitochondria or acidified vesicles (endosomes/lysosomes) were examined. When siRNA-treated NHDFs were stained with MitoTracker or LysoTracker, live cell imaging revealed no gross differences in the overall distribution or motility of either cargo in +TIP-depleted NHDFs: mitochondria remained filamentous in shape and continued to move rapidly throughout the cell (Fig. 5 E, Video 2, and Video 3), and lysosomes continued to accumulate and exhibit crowded movements around the nucleus while exhibiting long bidirectional runs in less densely occupied areas of the cytoplasm (Fig. 5 E, Video 4, and Video 5). Indeed, continued perinuclear accumulation of these cargoes in +TIP-depleted cells indicated no gross defects in their dynein-mediated transport, in line with previous observations in other cell types (Watson and Stephens, 2006). In stark contrast, dynein inhibition using ciliobrevin D caused gross changes in both cargoes: lysosomes no longer accumulated around the nucleus and exhibited short-range movements at the cell periphery (Fig. 5 F and Video 6), whereas mitochondria lost their filamentous form and dispersed to the cell periphery (Fig. 5 F and Video 7). Although more subtle effects on movement cannot be ruled out, these findings demonstrated that dynein-mediated transport and subcellular localization of these host cargoes had little or no requirement for EB1, CLIP-170, or DCTN1 in primary human fibroblasts.

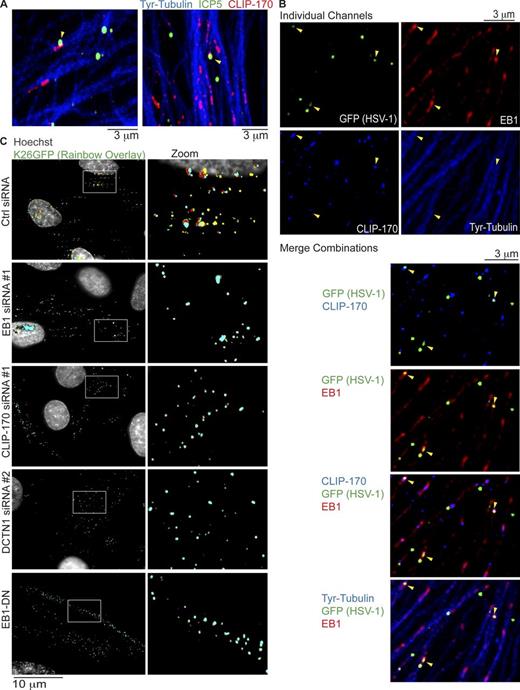

The effects of +TIP depletion thus far suggested that HSV-1 particles were particularly reliant on CLIP-170–mediated capture for their transport. In line with this, virus particles, detected using anti-ICP5 antibody, could be observed colocalizing with CLIP-170 and Tyr-MT filaments in IF images of infected NHDFs (Fig. 6 A). Quantification revealed that ∼16% of virus particles colocalized with CLIP-170 in these samples (Fig. S4 A), as might be expected for a transient, dynamic capture process. Moreover, colocalization between virus particles and CLIP-170 could not be detected in samples depleted of EB1 (Fig. S4 B). To explore this further, HSV-1 localization and movement was examined using virus containing a GFP-tagged capsid protein (K26GFP; Desai and Person, 1998). In this case, virus particles stained with anti-GFP antibody could be observed colocalizing with both EB1 and CLIP-170 on Tyr-MTs (Fig. 6 B). Although this provided additional evidence that HSV-1 might serve as a target for CLIP-170–mediated capture, to functionally test this, the effects of +TIP depletion on virus transport were examined. Earlier IF analysis demonstrated that many nuclei became heavily decorated by viral capsids at 3 hpi (Fig. 1 B). As such, siRNA-treated NHDFs were infected with K26GFP for 3 h to ensure virus particles initiated transport in control samples and to determine the potential effects of +TIP depletion on their movement. Virus particles were then imaged at 1 frame per second (fps), with intermittent capture of Hoechst-stained nuclei. Under these conditions, virus particles were observed at different stages of movement to the nucleus in control siRNA–treated NHDFs. In most cases, nuclei were brightly lit with many locally moving virus particles, reflecting those that had docked and remain on nuclear pores (Roizman et al., 2007). In other cases, virus particles could be seen approaching and docking at the nuclear periphery, exhibiting rapid movements typical of MT-based bidirectional motility (Fig. 6 C and Video 8). Viruses were also observed moving in and out of, and even forming, perinuclear clusters that represent accumulation at the centrosome en route to the nucleus (Video 8). In stark contrast, in NHDFs depleted of EB1, CLIP-170, or DCTN1, capsids failed to initiate long-range retrograde transport toward the nucleus and exhibited short-range movements at the cell periphery, characteristic of actin-based motility (Fig. 6 C, Video 9, and Video 10). In line with this, fixed imaging revealed that in contrast to control cultures where HSV-1 reached the nucleus, virus particles localized to phalloidin-stained actin filaments in NHDFs depleted of EB1, CLIP-170, or DCTN1 (Fig. S5). To independently validate these RNAi-based observations, NHDFs expressing EB1-DN that displaces CLIP-170 (Fig. 2 E) were infected and imaged in the same manner. Similar to +TIP-depleted NHDFs, expression of EB1-DN potently blocked long-range virus movement (Fig. 6 C and Video 10). These effects on virus motility were also noticeably different from the effects of dynein inhibition (Video 1 B), suggesting that these +TIPs functioned together and distinctly from dynein, as discussed below. Overall, these findings established that although several major host cargoes were not reliant on these +TIPs for their uptake, subcellular distribution, or movement in primary normal human fibroblasts, HSV-1 particles were exquisitely dependent on this capture mechanism involving EB1, CLIP-170, and DCTN1 to engage the host MT network and initiate retrograde transport.
Discussion
Findings reported here illustrating the role of CLIP-170 in early HSV-1 infection have important implications for our understanding of several biological processes. This includes the contribution of +TIPs to infection and insights into how viruses engage the host MT system, as well as fundamental mechanisms of selective cargo transport.
Although the importance of MTs to virus infection is well established (Radtke et al., 2006; Dodding and Way, 2011), in many cases the nature of the filaments involved (stable vs. dynamic) and their regulation remain poorly understood. Several viruses stimulate MT dynamics through upstream signal pathways, and this correlates with enhanced infection, but potential downstream effector +TIPs remain unknown (Suomalainen et al., 2001; Mabit et al., 2002; Arakawa et al., 2007; Roohvand et al., 2009). Conversely, Kaposi’s sarcoma-associated herpesvirus, a γ-herpesvirus, stimulates Rho–Dia signaling to stabilize MTs during early infection (Naranatt et al., 2005). Recently, human immunodeficiency virus type 1 (HIV-1) was also found to rapidly stabilize MTs, and this study provided the first evidence of the functional importance of +TIPs EB1 and Kif4 to infection (Sabo et al., 2013). HSV-1 also induces MT stabilization, but to date this has only been examined at later stages of infection (Elliott and O’Hare, 1998; Naghavi et al., 2013). Again, recent work has uncovered functional roles for +TIPs in these events, with HSV-1 stabilizing MTs nucleated from the trans-Golgi network through the action of cytoplasmic linker–associated proteins to promote virus spread (Naghavi et al., 2013). Here, we demonstrate that HSV-1 does not induce MT stabilization at early time points and instead provide strong evidence for the functional importance of dynamic MT subsets in the early stages of infection. Moreover, we identify two different +TIPs, CLIP-170 and EB1, which associate with the growing ends of dynamic MTs, as playing a critical role in these events. As such, HSV-1 represents an elegant example of the extent to which viruses can exploit distinct MT subsets and their regulatory +TIPs to facilitate different stages of their life cycle.
Beyond adding to our understanding of the specific nature of MT subsets and +TIPs involved in infection, our findings also provide the first insights into how viruses actually engage host MTs to initiate transport. HSV-1 is known to interact with both dynein and kinesins and exhibits bidirectional movement in many cell types (Döhner et al., 2002, 2006; Douglas et al., 2004; Smith et al., 2004; Lee et al., 2006; Wolfstein et al., 2006; Apcarian et al., 2010; Radtke et al., 2010; McElwee et al., 2013; Zaichick et al., 2013). Notably, HSV-1 also interacts with dynactin, and dynactin perturbation through dynamitin overexpression results in a postinternalization block to HSV-1 accumulation at the nucleus (Döhner et al., 2002, 2006; Radtke et al., 2010). This was logically assumed to reflect dynactin’s role as a dynein adaptor and stimulator of dynein motor activity (Kardon and Vale, 2009; Vallee et al., 2012; McKenney et al., 2014; Tripathy et al., 2014), which might serve as a means for HSV-1 to engage MTs. However, fixed imaging approaches used in prior studies did not determine the effects of dynamitin expression on virus transport. It is important to note that HSV-1 interacts directly with dynein intermediate and light chains, as well as interacting directly with dynactin independently of dynein (Ye et al., 2000; Döhner et al., 2002; Douglas et al., 2004; Wolfstein et al., 2006; Apcarian et al., 2010; Radtke et al., 2010; Zaichick et al., 2013). As such, the precise function of dynactin binding by HSV-1 particles has remained unclear. Our findings demonstrate that depletion of DCTN1 results in a potent block to HSV-1 transport, phenocopying the effects of removing the dynactin-recruiting complex of EB1 and CLIP-170 from MT plus ends using distinct approaches. Moreover, these effects on virus transport were quite distinct from the effects of dynein inhibition, wherein virus particles frequently made brief, erratic, and seemingly abortive longer-range movements, likely driven by association of particles with both kinesin and dynein. If dynactin simply functioned to stimulate dynein-mediated transport of HSV-1, reduced DCTN1 expression in siRNA-treated cells would be expected to result in similar motility to that observed in ciliobrevin D–treated NHDFs. This demonstrates that DCTN1 functions, at least in part, before dynein-mediated transport of HSV-1. As such, our findings shed new light on some of the very earliest stages of virus infection. Analogous to how viruses exploit specific surface molecules to engage and enter target cells, CLIP-170 on MT plus ends could be seen as a receptor required by dynactin-bound HSV-1 to engage MTs after entry. Another fundamental implication of these observations is that virus particles that enter the cytosol are not free to randomly associate with MT filaments but, instead, rely heavily upon this specialized capture process.
These observations also have important implications for our broader understanding of selective transport mechanisms in normal human cells. Indeed, there is considerable debate and disagreement over the nature of cargoes captured by CLIP-170. This process involves two key domains in CLIP-170; its N-terminal CAP-Gly motifs bind EB1, while its C-terminal zinc knuckle motifs bind dynactin (Pierre et al., 1992; Valetti et al., 1999; Goodson et al., 2003; Lansbergen et al., 2004; Watson and Stephens, 2006; Hayashi et al., 2007; Weisbrich et al., 2007; Gupta et al., 2009; Lee et al., 2010; Moughamian et al., 2013). Although CLIP-170 can bind tubulin and was the first +TIP discovered (Perez et al., 1999), its specific accumulation and function at MT plus ends in numerous mammalian cell lines requires EB1 (Vaughan et al., 1999, 2002; Lansbergen et al., 2004; Komarova et al., 2005; Ligon et al., 2006; Watson and Stephens, 2006; Mishima et al., 2007; Slep and Vale, 2007; Bieling et al., 2008; Moughamian et al., 2013). Our findings support this as a recruitment mechanism that also operates in primary normal human fibroblasts. Although CLIP-170 functions in linking MTs to different targets (Galjart, 2005), clues to its potential role in capturing cargoes destined for transport came from studies showing that CLIP-170 associated with endocytic vesicles (Rickard and Kreis, 1990) and colocalized with dynactin at MT tips (Vaughan et al., 1999). Early studies implicated CLIP-170 together with DCTN1 in kinetochore capture (Dujardin et al., 1998; Tai et al., 2002) as well as early endosome transport (Pierre et al., 1992; Valetti et al., 1999). However, functional aspects of these latter studies were based on effects of dynamitin overexpression, and several more recent studies have reported no effects of EB1, CLIP-170, or DCTN1 depletion, or deletion of the dynactin CAP-Gly domain that interacts with CLIP-170 or EB1, on the transport or distribution of endosomes/lysosomes (Goodson et al., 2003; Lansbergen et al., 2004; Watson and Stephens, 2006; Kim et al., 2007; Dixit et al., 2008). CLIP-170 is also dispensable for endosome transport in fungi (Lenz et al., 2006), although mechanisms of CLIP-170 regulation and recruitment differ significantly in lower organisms compared with mammals (Galjart, 2005). CLIP-170 also affects the surface organization of E-cadherin but does so without affecting E-cadherin transport or levels at the plasma membrane (Stehbens et al., 2006). Moreover, depletion of CLIP-170 or EB1 specifically removes DCTN1 from MT tips but does not affect broader organelle distribution, ER to Golgi transport, endosome and lysosome motility, or transferrin uptake in many cell types (Goodson et al., 2003; Lansbergen et al., 2004; Watson and Stephens, 2006; Kim et al., 2007; Dixit et al., 2008), and here we report similar observations in primary normal human cells.
Recently, however, it has been suggested that CLIP-170 may only be required for high-flux capture events or the capture of specialized cargoes. In line with this latter suggestion, the transport of EGF receptor–containing endosomes requires CLIP-170, but only when cells are stimulated with EGF (Hanafusa et al., 2011; Kedashiro et al., 2015). In Xenopus laevis melanosomes, CLIP-170 mediates the capture and transport of membrane-bounded pigment granules, or melanophores, although in this case it does not involve dynactin and the bridging factor remains unknown (Lomakin et al., 2009). Supporting a high-flux concept, the transport of several cargoes is initiated by EB1 and CLIP-170 at the distal ends of axons from mice, yet neither factor is required for transport in the mid-axon (Moughamian and Holzbaur, 2012; Moughamian et al., 2013). This broader role in cargo transport is not reported in other cell types, potentially reflecting specialized functions for CLIP-170 in neurons. Whether this is also observed in human neurons would be of interest given the significant differences in CLIP-170 function between species (Galjart, 2005). Our findings identify HSV-1 particles as novel, nonhost cargoes that exploit CLIP-170–mediated capture under conditions where this process is dispensable to many host cargoes in primary normal human cells, including transferrin uptake that might be expected to involve high flux and that reflects another cargo taken into the cell. As such, these virus particles join melanophores and EGF receptor–containing endosomes as one of the few specialized cargoes that are highly dependent on capture by CLIP-170, outside of neuronal cells. Although CLIP-170 knockout mice exhibit defects in spermatogenesis, they are viable and appear otherwise normal (Akhmanova et al., 2005), suggesting that specific +TIPs, such as CLIP-170, that are required for infection could serve as potential targets in the development of potent new antivirals.
Materials and methods
Cells, viruses, and chemicals
NHDFs and Vero cells were cultured in DMEM containing 5% FBS, 1% l-glutamine, and 1% penicillin-streptomycin (Walsh and Mohr, 2004; Naghavi et al., 2013). HSV-1 strain F, HSV-1–GFP-Us11 (gifts from I. Mohr, New York University, School of Medicine, New York, NY), and HSV-1 K26GFP (a gift from P. Desai, Johns Hopkins University, Baltimore, MD) were propagated by infecting Vero cells in DMEM containing 1% FBS, 1% l-glutamine, and 1% penicillin-streptomycin (Desai and Person, 1998; Naghavi et al., 2013). Once 90–100% cytopathic effect was observed, infected cells were scraped into culture medium and lysed by three rounds of −80°C freezing and thawing. Cell debris was removed by centrifugation at 3,000 g for 4 min at 4°C. Stock titers were determined by serial dilution and infection of Vero cells, followed by plaque counting 3 d later. Levels of infectious virus in cultures of NHDFs were determined by freeze-thaw lysis of cells scraped into culture media followed by serial dilution and titration on permissive Vero cells (Walsh and Mohr, 2004). Ciliobrevin D was procured from EMD Millipore. Phalloidin CF647 was purchased from VWR International. MitoTracker green and LysoTracker green were purchased from Cell Signaling Technology.
siRNAs, plasmids, and transfections
siRNAs were acquired from Applied Biosystems: control (AM4635 and AM4637), EB1 (3891 and 136501), CLIP-170 (142517 and 12224), and DCTN1 (14262 and 14174). Cells were transfected with 150 pmol/ml siRNA using RNAiMax (Invitrogen). 72 h later, cultures were infected as described in the Results. To generate mCherry-tagged EB1, human EB1 was cloned into pN1-mCherry (Takara Bio Inc.) and then subcloned into the lentiviral vector, pLVX (Takara Bio Inc.; Sabo et al., 2013). Lentivirus was produced by cotransfection of 293T cells with pLVX-EB1-mCherry (a gift from J. Sabo, Columbia University, New York, NY), p8.91 (group-specific antigen polymerase), and p-VSV-G (envelope). Filtered supernatant containing lentivirus was then used to transduce NHDFs, and cultures were selected with hygromycin to generate pools of NHDFs stably expressing EB1-mCherry, which were then routinely maintained and cultured as described for NHDFs.
Antibodies, WB, IF, and imaging
Antibodies used in this study were as follows: EB1 (sc-47704) and CLIP-170 (sc-25613) from Santa Cruz Biotechnology, Inc.; PARP (9542), EEA1 (3288), Ac-tubulin (5335), and GFP (2965) from Cell Signaling Technology; DIC (MAB1618) from EMD Millipore; ICP0 (Ab6513), ICP4 (Ab6514), HSV-1 (Ab200535), and dynactin (Ab11806) from Abcam; and ICP5 (HA018) from Virusys. Anti-poly A–binding protein antibody was a gift from S. Morley (University of Sussex, Sussex, England, UK). Anti–Tyr-tubulin antibody was a gift from G. Gundersen (Columbia University, New York, NY). Anti-ICP22 antibody was a gift from J. Blaho (City College of New York, New York, NY). Anti-gB antibody was a gift from Q. Fan and R. Longnecker (Northwestern University, Chicago, IL). For IF, cultures were rinsed in PBS and fixed in ice-cold methanol for 7 min or 4% paraformaldehyde for 20 min. Samples were then blocked in PBS containing 10% FBS/0.25% saponin and subsequently incubated at 4°C overnight with the appropriate primary antibody diluted in PBS containing 10% FBS/0.025% saponin. The next day, samples were washed in PBS containing 0.025% saponin and then incubated with the appropriate Alexa Fluor–conjugated secondary antibody for 1 h at room temperature. After washing, samples were stained with Hoechst 33342 before washing and mounting in FluorSave reagent (EMD Millipore; Naghavi et al., 2013). Widefield images were acquired using a microscope (DMI6000B; Leica) with a 100× objective (HC PL APO 100×/1.44 NA oil), a camera (FLASH 4.0 cMOS; ORCA), and MetaMorph software (Molecular Devices). Confocal images were acquired using a motorized spinning-disk microscope (CSUX confocal head [Yokogawa]; DMI6000B microscope [Leica]), a 100× objective (HCX PL APO 100×/1.44 NA oil), a camera (X2 Back-Thinned EM charge-coupled device; ImagEM), and MetaMorph software. All analysis of fluorescence intensities, sizes, and distances were performed using MetaMorph analysis software. For live cell imaging, cells were seeded on 35-mm glass-bottom dishes (MatTek Corporation) and transfected or infected as described in the previous section and in the Results section. For imaging of viral particles and nuclei, after infection and immediately before imaging nuclei were stained with Hoechst 33342 and medium was changed to CO2-independent medium (Gibco). Imaging was performed on a microscope (DMI6000B with adaptive focus control [AFC]; Leica) with an environmental chamber (InVivo) at 37°C using an oil objective (HC PL APO 100×/1.44 NA oil). Images were acquired at 1 fps over 6–7 min in the GFP channel, with intermittent capture of DNA staining through the DAPI channel, using a camera (FLASH 4.0 cMOS; ORCA) and MetaMorph software. Mitochondria were visualized by adding 100-nM MitoTracker 15 min before imaging at 0.3 fps. Lysosomes were visualized by adding 50-nM LysoTracker immediately before imaging at 2 fps. Within experiments, all samples were imaged using the same acquisition settings, and all postacquisition processing of contrast or intensity was minimized and applied equally throughout samples using MetaMorph or Photoshop (Adobe) software. To generate rainbow overlays, frames were extracted at equal intervals from videos, and GFP signal, representing virus particles, was assigned a different false color in each frame. Frames were then overlayed in Photoshop. Because of low-level drift (evident in corresponding videos), Hoechst-stained nuclei were used to accurately overlay each frame under each condition.
Viral entry and transferrin uptake assays
For viral entry assays, cells were incubated with HSV-1 at MOI 30 for 1 h at 4°C to allow virus binding. Experimental groups were then transferred to 37°C for 1 h, while a control group was maintained at 4°C. Cultures were then washed with PBS followed by washing with low-pH citrate buffer (40-mM sodium citrate, 10-mM KCl, and 135-mM NaCl, pH 3.0) to inactivate unpenetrated virus and then washed again with PBS. Cultures were then incubated with 2 mg/ml proteinase K (Invitrogen) at 37°C for 1 h to remove surface-attached, inactivated virus that had not entered cells. Cultures were then washed in PBS five times, collected by centrifugation (367 g for 5 min), and resuspended in PBS. DNA was isolated by phenol–chloroform extraction and dissolved in water. Viral DNA was detected by qRT-PCR using primers specific for HSV-1 DNA (forward, 5′-CCCACGGTCAGTCTGGTATC-3′; reverse, 5′-TTTGTGTCCCATGGGGTAGT-3′). The amount of viral DNA in siRNA-treated samples was expressed relative to control siRNA–treated cultures raised to 37°C and arbitrarily set to a value of 1 (Jovasevic et al., 2008). For transferrin uptake assays, medium on siRNA-treated NHDFs was replaced with serum-free medium containing Alexa Fluor 647–transferrin (Invitrogen) for 30 min at 37°C before being placed on ice and washed in low-pH citrate buffer. Cultures were then fixed in 4% paraformaldehyde and then stained with the indicated antibodies and imaged as described above.
Statistical analyses
Statistical analyses were performed using SPSS software (IBM). One-way analysis of variance (ANOVA) was followed by Scheffe’s test for post-hoc comparisons of three or more experimental groups (only when ANOVA was significant). Homogeneity of variance was confirmed with Levene’s test for equality of variances. The p-value for all cases was set to <0.05 for significant differences.
Online supplemental material
Fig. S1 shows grayscale images of Ac-MT staining from Fig. 1. Fig. S2 shows the effects of EB1 or CLIP-170 depletion on DCTN1 localization in NHDFs. Fig. S3 shows the effects of dynein inhibition, using ciliobrevin D, on transferrin uptake (A) and localization (B). Fig. S4 shows quantitation of the number of viral particles colocalized with CLIP-170 (A) and examples of viral particles that do not colocalize with lattice-associated CLIP-170 in EB1-depleted NHDFs (B). Fig. S5 shows the colocalization of viral particles with actin filaments in NHDFs depleted of EB1, CLIP-170, or DCTN1. Video 1 shows movement of EB1-DN (EB1-mCherry; false colored green for contrast) in NHDFs (A) and HSV-1 K26GFP in ciliobrevin D–treated NHDFs (B). Video 2 shows the movement of mitochondria in NHDFs treated with control siRNA or EB1 siRNA. Video 3 shows the movement of mitochondria in NHDFs treated with CLIP-170 siRNA or DCTN1 siRNA. Video 4 shows the movement of lysosomes in NHDFs treated with control siRNA or EB1 siRNA. Video 5 shows the movement of lysosomes in NHDFs treated with CLIP-170 siRNA or DCTN1 siRNA. Video 6 shows the movement of lysosomes in NHDFs treated with DMSO or ciliobrevin D. Video 7 shows the movement of mitochondria in NHDFs treated with DMSO or ciliobrevin D. Video 8 shows the movement of HSV-1 K26GFP in NHDFs treated with control siRNA. Video 9 shows the movement of HSV-1 K26GFP in NHDFs treated with EB1 siRNA or CLIP-170 siRNA. Video 10 shows the movement of HSV-1 K26GFP in NHDFs treated with DCTN1 siRNA or expressing EB1-DN.
