Dynamin is a well-known regulator of synaptic endocytosis. Temperature-sensitive dynamin (shits1) mutations in Drosophila melanogaster or deletion of some of the mammalian Dynamins causes the accumulation of invaginated endocytic pits at synapses, sometimes also on bulk endosomes, indicating impaired membrane scission. However, complete loss of dynamin function has not been studied in neurons in vivo, and whether Dynamin acts in different aspects of synaptic vesicle formation remains enigmatic. We used acute photoinactivation and found that loss of Dynamin function blocked membrane recycling and caused the buildup of huge membrane-connected cisternae, in contrast to the invaginated pits that accumulate in shits1 mutants. Moreover, photoinactivation of Dynamin in shits1 animals converted these pits into bulk cisternae. Bulk membrane retrieval has also been seen upon Clathrin photoinactivation, and superresolution imaging indicated that acute Dynamin photoinactivation blocked Clathrin and α-adaptin relocalization to synaptic membranes upon nerve stimulation. Hence, our data indicate that Dynamin is critically involved in the stabilization of Clathrin- and AP2-dependent endocytic pits.

During intense neuronal activity, synapses need to recycle synaptic vesicles to maintain neuronal communication. The best studied route for vesicle regeneration in neurons is Clathrin-mediated endocytosis (CME) but also bulk membrane uptake participates to recycle membrane (Holt et al., 2003; LoGiudice and Matthews, 2006; Watanabe et al., 2013; Winther et al., 2013). During CME, lipids, adaptors, and accessory proteins initiate vesicle formation (McMahon and Boucrot, 2011). In parallel, Clathrin, polymerized into cages, serves as a “mold” for new synaptic vesicles, preventing excessive membrane uptake and ensuring uniform vesicle size (Heerssen et al., 2008; Kasprowicz et al., 2008). Although numerous proteins have been implicated in CME, the exact molecular mechanisms by which these components coordinate the formation of new vesicles remains incompletely understood.

Dynamin is a large GTPase that is implicated in vesicle endocytosis in neuronal and nonneuronal cells (van der Bliek and Meyerowitz, 1991; Liu et al., 1998, 2011; Damke et al., 2001; Marks et al., 2001; Chen et al., 2002; Narayanan et al., 2005; Macia et al., 2006; Aguet et al., 2013). The protein binds to accessory endocytic proteins and lipids (David et al., 1996; Okamoto et al., 1997; Qualmann et al., 1999; Simpson et al., 1999; Bethoney et al., 2009; Sundborger et al., 2011), and in GTP-bound state, it assembles into rings at the base of deeply invaginated pits (Chen et al., 2002; Macia et al., 2006; Liu et al., 2011). GTP hydrolysis then induces conformational changes (Roux et al., 2006; Bashkirov et al., 2008; Chappie et al., 2010; Ford et al., 2011) that result in the separation of the vesicle and plasma membrane (McNiven et al., 2000); at the synapse, this process generates new vesicles that can participate in a new round of neurotransmitter release (Ferguson and De Camilli, 2012). Consistent with a role in membrane scission in vitro, temperature-sensitive dynamin fly mutants (shits1) that were stimulated at restrictive temperature show a depletion of synaptic vesicles and numerous deeply invaginated pits that are stuck at the plasma membrane (Koenig and Ikeda, 1989; Chen et al., 1991, 2002; van der Bliek and Meyerowitz, 1991). Likewise, in mammalian neurons in which either one or two of the three Dynamin isoforms were deleted, a massive accumulation of invaginated pits is observed (Ferguson et al., 2007; Hayashi et al., 2008; Raimondi et al., 2011; Park et al., 2013). These studies in neurons indicate that a critical role for Dynamin in synaptic vesicle formation is to facilitate membrane fission. However, these genetic conditions in mice and flies may still retain some aspects of Dynamin function, and it is currently unclear whether low levels of the second or third Dynamin isoform in mice or the presence of the temperature-sensitive Dynamin protein (Shits1) in flies at a restrictive temperature is concealing potential additional functions for the protein in synaptic vesicle formation.

In this work, we use acute and specific fluorescein-assisted light inactivation (FALI) of Dynamin to study endocytosis in the absence of Dynamin function. Surprisingly, loss of Dynamin function does not cause the accumulation of deeply invaginated pits, as seen in shits1 mutants; instead, it results in the accumulation of giant bulk cisternae that can fill entire synaptic boutons and do not significantly participate in the synaptic vesicle cycle. Similarly, photoinactivation of Dynamin in shits1 mutants at restrictive temperature does not result in the accumulation of invaginated pits but in the formation of massive membrane-attached bulk cisternae, indicating that shits1 retains the ability to prevent bulk endocytosis. Furthermore, these defects in membrane uptake are very reminiscent of those seen in clathrin mutant synapses with photoinactivated Clathrin, and we therefore used superresolution imaging to localize Clathrin heavy chain (Chc) and the Clathrin adaptor subunit α-adaptin (α-Ada) at stimulated synaptic boutons. In contrast to controls, at neuromuscular junctions (NMJs) in which Dynamin was photoinactivated, Chc and α-Ada both fail to relocalize to and concentrate in the bouton periphery close to the presynaptic plasma membrane. Our data indicate that Dynamin is critical to coordinate Clathrin- and α-Ada–dependent steps during synaptic vesicle budding, and this function is retained in temperature-sensitive shits1 mutants.

Synapses with photoinactivated Dynamin do not maintain neurotransmitter release during intense stimulation

Whereas mammals harbor three dynamin genes, Drosophila melanogaster harbors only one, shi (shibire; Cao et al., 1998). shi-null mutants (shi12-12B) die as embryos (Grant et al., 1998), precluding us from analyzing defects in synaptic function. To circumvent issues with early lethality or development, we resorted to acute FlAsH (4′,5′-bis[1,3,2-dithioarsolan-2-yl] fluorescein)-mediated FALI (FlAsH-FALI; Marek and Davis, 2002), a technology already used to inactivate Synaptotagmin I (Poskanzer et al., 2003), Chc (Kasprowicz et al., 2008), and Clathrin light chain (Clc; Heerssen et al., 2008) at the Drosophila NMJ. Using recombineering in Escherichia coli, we retrieved the shi gene from BACR32K23 into P[acman] (Venken et al., 2006), and we then recombineered a 16–amino acid tetracysteine (4C) tag into the middle domain of Dynamin (Shi-4C; Fig. 1 A; Venken et al., 2008). We tagged the middle domain of Dynamin because FALI at this site would ensure Dynamin as well as Dynamin complex photoinactivation. The middle domain is part of a stalk in the quaternary structure of Dynamin. This stalk is required to form dimers that are used as building units in the formation of Dynamin rings that assemble around the necks of newly forming vesicles (Chappie et al., 2010; Gao et al., 2010; Ford et al., 2011). We find that the shi-4C construct expressed under endogenous promoter control in shi12-12B–null mutants (shi12-12B; shi-4C) localizes at boutons very similarly to endogenous Dynamin (Fig. 1, B–D).

Assessing whether Shi-4C is functional, we find that the presence of Shi-4C fully rescues the lethality associated with shi12-12B–null mutants, and these rescued animals do not show obvious behavioral or developmental defects (Fig. S1, A and B). Moreover, shi12-12B; shi-4C animals show normal synaptic NMJ morphology (Fig. S1, C–E). In addition, excitatory junctional currents (EJCs) and excitatory junctional potentials (EJPs) recorded from shi12-12B; shi-4C animals in different external calcium concentrations (Fig. 1, E–H) elicited at low (1 Hz; Fig. 1, E and F) or high (10 Hz; Fig. 1 H, first 2 min) frequency nerve stimulation are comparable to controls. Finally, also, the amplitude distribution of spontaneous vesicle fusion events in shi12-12B; shi-4C is very similar to controls (Fig. 1 G). Hence, Shi-4C constitutes a functional protein that recapitulates normal Dynamin function.

Next, we tested whether photoinactivation of the 4C-tagged Dynamin affects neurotransmitter release during low and high frequency stimulation. Shi-4C in shi12-12B; shi-4C animals was loaded with FlAsH, and EJCs were measured before and after 2 min of 508-nm light inactivation. As shown in Fig. 1 (E–G), the amplitude of EJCs recorded at low frequency stimulation in 0.5 or 2 mM calcium and miniature EJC amplitude recorded in 0.5 mM calcium before (Fig. 1, E and F, −FALI) and after (Fig. 1, E and F, +FALI) Dynamin photoinactivation are very similar. In contrast, during more intense (10 Hz) stimulation, Dynamin photoinactivation (2 min of 508-nm light) results in a fast drop of the EJP amplitude and most recordings reach 0 in <5 min after photoinactivation (Fig. 1 H), very similar to recordings made from shits1 at the restrictive temperature (Delgado et al., 2000; Verstreken et al., 2002). Under identical conditions, both yw controls or shi12-12B; shi-4C animals, in which Dynamin was loaded with FlAsH but not inactivated by light, maintain neurotransmitter release well (Fig. 1 H, control). Hence, acute photoinactivation of Dynamin results in an inability to maintain neurotransmitter release during intense stimulation, consistent with a block in synaptic vesicle recycling.

Photoinactivation of Dynamin results in bulk membrane uptake

At a restrictive temperature, shits1 causes a block in synaptic membrane uptake during nerve stimulation (Koenig and Ikeda, 1989; Ramaswami et al., 1994; Delgado et al., 2000). To examine the effect of loss of Dynamin function on membrane uptake, we assessed FM 1-43 dye uptake during stimulation. FM 1-43 is a dye that binds to the membrane and becomes internalized into newly formed vesicles during nerve stimulation (Betz et al., 1996). We treated controls and shi12-12B; shi-4C animals with or without FlAsH and with or without illumination for 2 min with 508-nm light and finally stimulated them using KCl in the presence of FM 1-43 (Fig. 2, A–H). In boutons of controls treated with or without FlAsH and with or without illumination, internalized FM 1-43 organizes in a typical doughnut-like pattern, indicating that FlAsH incubation or 508-nm light illumination do not measurably affect synaptic endocytosis (Fig. 2, A–D). Similarly, FM 1-43 dye, internalized in shi12-12B; shi-4C larvae or in segments of such larvae in which Dynamin is not inactivated by FlAsH and light, distributes in a doughnut-like pattern (Fig. 2, E–G). Notably, in the segments in which Dynamin was photoinactivated by FALI, we observe clear membrane uptake (Fig. 2 H). The overall intensity of the internalized FM 1-43 in these areas is not different from controls (Fig. 2 J, black bars), but the dye distributes in large membranous structures (Fig. 2, H and I). This peculiar labeling pattern upon Dynamin inactivation is not the result of the KCl stimulation paradigm that was used, as we observe similar membrane internalization defects in Dynamin photoinactivated boutons that were electrically stimulated for 5 min at 10 Hz (Fig. 2, K and L). Hence, loss of Dynamin function results in uptake of bulk membrane, a phenotype that is very reminiscent of the defects observed upon photoinactivation of Chc or Clc (Heerssen et al., 2008; Kasprowicz et al., 2008) but at odds with the complete block in membrane uptake in shits1 at a restrictive temperature (Ramaswami et al., 1994; Delgado et al., 2000).

Next, to determine whether the defect in membrane uptake upon Dynamin photoinactivation correlates with a deficit to recycle the internalized membrane and release it in a new round of fusion, we first stimulated animals to load FM 1-43 into synaptic boutons in which Dynamin was photoinactivated and then, after a 10-min period of rest, stimulated the boutons a second time in the absence of dye, to assess unloading. In contrast to the efficient unloading of FM 1-43 observed in yw controls (Fig. 2, J, M, and N), in shi12-12B; shi-4C boutons with photoinactivated Dynamin, the dye that was loaded in large membranous structures (Fig. 2, J and O) does not significantly unload (Fig. 2, J and P). Technical limitations preclude us from assessing very slow reformation of vesicles in the time frame of hours. Nonetheless, within the time frame of minutes, these data are in accordance with the acute inability to maintain neurotransmitter release during intense nerve stimulation and suggest that photoinactivation of Dynamin largely blocks synaptic vesicle recycling.

The specificity of Dynamin FlAsH-FALI

Photoactivation of FlAsH results in the production of singlet oxygen radicals that are less reactive than other radicals and specifically target methionines in a radius of 7–40 Å. This technology thus permits more selective inactivation of tagged proteins than some other forms of FALI (Yan et al., 2006). Nonetheless, the possibility remains that Dynamin-binding partners are (partially) inactivated in our study as well, thereby confounding the interpretation of the results. We therefore performed several tests as to assess the specificity of the Dynamin loss-of-function phenotype. First, we panneuronally expressed RNAi to shi in the nervous system (dicer-2/+; shi RNAiv105971/+; nSybGal4/+). This tool results in a significant decrease in Dynamin immunofluorescence at synaptic boutons (Fig. 3, A–C). Expression of shi RNAi causes internalization of FM 1-43 in large membranous structures (Fig. 3, D–H), qualitatively reminiscent of the phenotype seen upon Dynamin photoinactivation. Second, we generated flies that express, at endogenous levels, tetracysteine-tagged EndoA (EndophilinA; Endo-4C; see Materials and methods; Fig. 3 I). EndoA is a Dynamin-binding partner, and the presence of Endo-4C rescues the lethality associated with endoA-null mutants (endo1). Although controls internalize FM 1-43 dye efficiently (Fig. 3, J, K, and M), photoinactivation of EndoA-4C using FlAsH-FALI does not result in the appearance of large FM 1-43–labeled membrane structures, but it causes a significant reduction in dye uptake, similar to observations made in endoA-null mutants (Fig. 3, L and M; Verstreken et al., 2002). These results indicate that the defect in FM 1-43 dye distribution upon Dynamin photoinactivation is associated with loss of Dynamin function and that it is not a nonspecific effect of FlAsH-FALI.

Loss of Dynamin function induces bulk membrane internalization at the ultrastructural level

To further characterize the membrane inclusions formed upon stimulation of boutons during which Dynamin was photoinactivated, we performed transmission EM (TEM). We photoinactivated Dynamin in synaptic boutons of shi12-12B; shi-4C using FALI, stimulated the samples, and imaged synaptic boutons. As a control, we also imaged boutons in which Dynamin was not photoinactivated. Similar to stimulated yw controls or to stimulated shi12-12B; shi-4C without FALI or to shits1 mutants at permissive temperature, synaptic boutons in FlAsH-treated shi12-12B; shi-4C in which Dynamin is not photoinactivated are filled with regular-sized synaptic vesicles (Fig. 4, A, B, I, M, and O). In contrast, stimulated synaptic boutons of shi12-12B; shi-4C animals after photoinactivation of Dynamin show an accumulation of large membranous profiles (Fig. 4, C–H and K). In some images, we observe these profiles to be connected to the presynaptic membrane (Fig. 4, G and H). Additionally, synaptic terminals in which Dynamin was photoinactivated almost completely lack normal-sized synaptic vesicles (Fig. 4, I–K), and in sharp contrast to stimulated shits1 boutons kept at the restrictive temperature (Fig. 4, J–N [asterisks], P, and Q; Estes et al., 1996), they do not display the typical invaginated pits at their presynaptic membrane (Fig. 4, E, F, and L). Although the membrane internalization defects upon photoinactivation of Dynamin are substantial, other synaptic features, including mitochondrial number and active zone density, are not affected. Finally, we also observe similar membrane internalization defects in electron micrographs of boutons from stimulated shi RNAi–expressing animals, indicating that the defect is specific (Fig. S2, A–D). Hence, loss of Dynamin function results in qualitatively very different membrane uptake defects compared with the defects seen in shits1 mutants, and collectively, the data indicate that Dynamin prevents the uptake of large membranous cisternae upon stimulation.

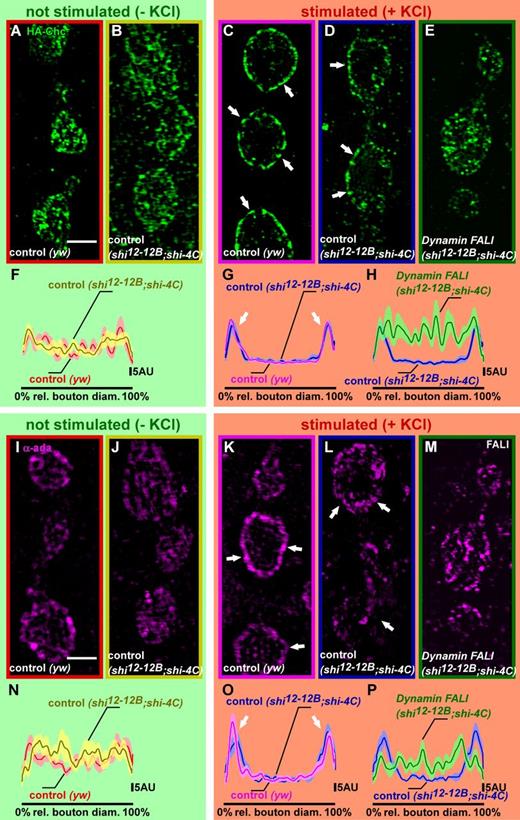

Photoinactivation of Dynamin blocks Clathrin and α-Ada recruitment upon stimulation

Loss of Dynamin function results in the internalization of large membranous structures that appear very similar to those seen upon loss of Chc or Clc function (Heerssen et al., 2008; Kasprowicz et al., 2008). We therefore hypothesized that in neurons, in addition to membrane fission, Dynamin would also be required to coordinate Clathrin-dependent steps in the formation of synaptic vesicles. To address this question, we used superresolution microscopy and assessed Chc and α-Ada localization before and after stimulation of synaptic boutons. Immunohistochemistry using anti-Chc antibodies is difficult in Drosophila larvae, and overexpression of a Clc-GFP fusion causes strong morphological defects at the larval NMJ. We therefore used yeast recombination and phiC-31–mediated genomic integration to express HA-Chc at endogenous levels. The presence of this construct rescues the lethality associated with chc1-null mutants (Bazinet et al., 1993; Kasprowicz et al., 2008). Additionally, anti-HA labeling of larval fillets that express HA-Chc shows clear presynaptic boutonic labeling that is absent in yw controls (presynaptic boutonic anti-HA intensity in yw is 2.8 ± 0.3 arbitrary units [a.u.] and in yw; HA-Chc/+ is 63.2 ± 4.2 a.u.; t test: P < 0.0001), indicating that the tagged protein is expressed and functional.

Next, we assessed boutonic HA-Chc localization before and after neuronal stimulation in controls and in boutons in which Dynamin was photoinactivated. In nonstimulated control boutons or boutons in which Dynamin is not photoinactivated, HA-Chc is widely distributed (Fig. 5, A, B, and F; and Fig. S3, A and B; see also Materials and methods). However after stimulation, the protein relocalizes and concentrates at the bouton periphery at the expense of its localization in the bouton center (Fig. 5, C, D, and G; and Fig. S3, C and D). In contrast, photoinactivation of Dynamin blocks this activity-dependent relocalization of HA-Chc, and despite the neuronal stimulation, the protein remains distributed throughout the bouton (Fig. 5, E and H; and Fig. S3 E). Attesting to the specificity of this phenotype, boutons in which Dynamin was knocked down using RNAi display qualitatively very similar phenotypes (Fig. S4, A–C). Hence, the data suggest that Dynamin is needed to coordinate Clathrin-dependent steps during the formation of synaptic vesicles.

The AP2 complex, which connects the Clathrin lattice to the membrane, acts as a hub during vesicle formation in nonneuronal cells (Puthenveedu and von Zastrow, 2006; Loerke et al., 2009; Mettlen et al., 2009; Aguet et al., 2013). We therefore also examined the localization of α-Ada before and after stimulation in controls and at synapses in which Dynamin was photoinactivated. Similar to HA-chc localization, we found that α-Ada becomes more concentrated in the bouton periphery upon neuronal stimulation of controls, and this effect is lost at NMJs in which Dynamin was photoinactivated (Fig. 5, I–P; and Fig. S3, F–J). Similarly, we observe a comparable phenotype upon RNAi-mediated knockdown of Dynamin (Fig. S4, D–F). Hence, the data suggest that Dynamin coordinates vesicle budding by stabilizing or recruiting α-Ada and Chc at the membrane.

Stimulus-dependent Clathrin and α-Ada recruitment in shits1 mutants

Given that photoinactivation of Dynamin causes massive membrane internalization, whereas shifting shits1 to a restrictive temperature blocks membrane uptake, we wondered whether HA-Chc and α-Ada still relocalize to the bouton periphery in shits1 mutants at a restrictive temperature upon stimulation. We therefore expressed HA-Chc in shits1 and stimulated the larval fillets at permissive (22°C) or at restrictive temperature (33°C). Anti-HA labeling and anti–α-Ada labeling in stimulated shits1 at 33°C show HA-Chc and α-Ada labeling concentrating in the bouton periphery (Fig. 6, A and B). This labeling of HA-Chc and α-Ada in shits1 at 33°C is different from the block in HA-Chc and α-Ada relocalization upon photoinactivation of Dynamin (Fig. 5), but it is less pronounced than the relocalization seen in control animals or in shits1 animals at permissive temperature (Fig. 5 and Fig. 6, A and B). This difference may be caused by the formation of the deeply invaginated pits in shits1 that may result in a “broader rim” of Clathrin and α-Ada at the membrane. Nonetheless, our data indicate that shits1 at restrictive temperature retains, at least in part, the ability to facilitate Clathrin and α-Ada relocalization upon stimulation, a function that is lost upon photoinactivation of Dynamin.

Our data are consistent with a model in which, in shits1 at restrictive temperature, Dynamin is trapped in a metastable, aggregated state, at the neck of nascent vesicles (Chen et al., 2002). In this capacity, Dynamin would still support Clathrin-dependent endocytic functions that prevent bulk membrane uptake while having lost its activity to mediate GTP-dependent membrane fission. To test this model, we photoinactivated Dynamin in shits1 mutants and assessed membrane internalization. We therefore generated shits1 flies that also express Shi-4C (shits1/Y; shi-4C/+). Given that Dynamin forms multimeric complexes and based on quantification of the intensity of boutonic labeling using anti-Dynamin antibodies in shits1/Y (258.7 ± 4.7 a.u.) and in shits1/Y; shi-4C/+ larvae (401.8 ± 46.3 a.u.; t test: P < 0.05), we estimate that for every two Shits1 molecules, about one Shi-4C is expressed in shits1/Y; shi-4C/+ animals (Fig. 6 C). Hence, assuming similar incorporation of these two types of Dynamin in Dynamin multimers, virtually every Dynamin multimeric complex harbors both types of Dynamin (for multimers without Shi-4C, P = 3.01 × 10−5; for multimers without Shits1, P = 3.03 × 10−13; Fig. 6 C). Given that both Shits1 and Shi-4C act dominantly (Fig. S5, A–C; Kitamoto, 2001), such that even when wild-type Dynamin is present they result in strong membrane uptake defects (see following paragraph), Shits1 can first be trapped in a metastable state at restrictive temperature. In a second phase, using FALI, photoinactivation of Shi-4C can then be used to also acutely photoinactivate Shits1–Shi-4C complexes.

We stimulated shits1/Y; shi-4C/+ animals at the restrictive temperature (33°C) without photoinactivating Dynamin and tested for endocytosis defects using FM 1-43. This condition results in a block in membrane uptake (Fig. 6, E and H) as compared with control (shits1/Y; shi-4C/+) at 22°C (Fig. 6 D), indicating Shits1 can indeed inhibit membrane uptake in a dominant fashion. Next, we tested for membrane uptake in stimulated shits1/Y; shi-4C/+ animals in which we photoinactivated Dynamin using FALI at the permissive temperature. Here, we find that FM 1-43 concentrates in large inclusions (Fig. 6 G), indicating that also Shi-4C acts dominantly (Fig. S5). Finally, we kept FlAsH-treated shits1/Y; shi-4C/+ animals at 33°C to trap Shits1 in a metastable state followed by photoinactivation of Shi-4C and then assessed FM 1-43 dye uptake upon stimulation. Despite the fact that Shits1 is kept at a restrictive temperature, illustrated by the undetectable FM 1-43 internalization outside of the illuminated area (Fig. 6 H), boutons within the illuminated area, in which Shi-4C was photoinactivated, now show FM 1-43–labeled membrane inclusions (Fig. 6 I). Hence, our data suggest that Dynamin in shits1 retains the ability to prevent bulk membrane retrieval, but when inactivated, bulk cisternae formation ensues.

Stimulation of shits1 mutant synapses causes the formation of deeply invaginated pits (Fig. 4, L, N, and Q). We therefore investigated the membrane inclusions formed upon photoinactivation of Dynamin in shits1 boutons using TEM on stimulated shits1/Y; shi-4C/+ boutons in different conditions. Boutons of shits1/Y; shi-4C/+ animals stimulated at 22°C are abundantly packed with synaptic vesicles (Fig. 7, A and G), similar to yw controls (Fig. 4 A). Conversely, boutons of stimulated shits1/Y; shi-4C/+ animals at restrictive temperature show numerous deeply invaginated pits, and they are almost devoid of synaptic vesicles (Fig. 7, B, G, and I). Interestingly, when Dynamin is photoinactivated in the same shits1/Y; shi-4C/+ animals kept at restrictive temperature, the boutons do not display an accumulation of invaginated pits upon stimulation (Fig. 7, C, D, and I), instead these boutons harbor massive membrane cisternae that are sometimes intertwined and double invaginated, appearing as double membranes (Fig. 7, C, D, G, and H), similar to shi12-12B; shi-4C with photoinactivated Dynamin (see previous section; Fig. 4, C–H). To further assess whether the presynaptic membrane surface or the membrane surface of these cisternal structures contain invaginated pits, we also performed 3D electron tomography on thick 300-nm sections (Fig. 7, E and F; and Video 1). Inspection of the plasma membrane surface does not reveal invaginated pits (Fig. 7 E), and reconstructions of individual cisternal structures (Fig. 7 F) show that they are connected to the plasma membrane but also do not contain a significant number of invaginated pits (Fig. 7, F and I). Collectively, these data suggest that Shits1 retains specific aspects of Dynamin function involved in coordinating Clathrin-dependent steps that prevent bulk membrane retrieval while blocking membrane fission.

Dynamin is one of the best-studied endocytic proteins, but the effect of acute, complete, or very strong Dynamin inactivation in the absence of developmental effects in neurons has not been reported (Koenig and Ikeda, 1989; Merrifield et al., 2002; Macia et al., 2006; Ferguson et al., 2007; Raimondi et al., 2011). The available data based on biochemistry, genetics, and pharmacology indicate an essential function for Dynamin in the fission of vesicles from the plasma membrane. Here, we provide evidence that during synaptic vesicle formation, Dynamin is critically needed to also coordinate the recruitment of Clathrin and AP2, factors needed for vesicle budding. Previous data already indicated that Clathrin prevents bulk endosome-like structure formation (Heerssen et al., 2008; Kasprowicz et al., 2008), and a role for Clathrin adaptors in preventing bulk cisternae retrieval is also consistent with the observation that mutations in such adaptors increase the incidence of detecting cisternal-like structures in different species (González-Gaitán and Jäckle, 1997; Zhang et al., 1998; Nonet et al., 1999; Gu et al., 2013). Hence, our data suggest that by stabilizing Clathrin- and AP2-dependent events, Dynamin takes on a critical role during synaptic vesicle biogenesis. Recent work in nonneuronal systems links a role for Dynamin in controlling actin polymerization (Ferguson et al., 2009), but it is currently not known whether this function relates to the role for Dynamin in facilitating Clathrin recruitment at synapses. Dynamin (and Clathrin) also appears important for the formation of synaptic vesicles from the membranes that were retrieved by bulk endocytosis. Without excluding slow Dynamin- or Clathrin-independent vesicle formation mechanisms that operate at time frames much longer than the 10 min we tested, we find that the photoinactivation of Dynamin at the NMJ very severely blocks synaptic vesicle recycling as gauged by a block in FM 1-43 unloading, and it also results in an inability to maintain neurotransmitter release during intense stimulation. Hence, efficient synaptic vesicle recycling requires Dynamin.

Our work also leads us to conclude that Dynamin is dispensable for bulk membrane retrieval in neurons. This conclusion contradicts earlier studies that indicated a phosphorylation-dependent role of Dynamin in bulk membrane uptake (Evans and Cousin, 2007; Clayton et al., 2009, 2010; Wu et al., 2009; Smillie and Cousin, 2012). In this model, Calcineurin-dependent dephosphorylation of Dynamin controls the interaction with Syndapin, which was shown to facilitate bulk cisternae formation (Anggono et al., 2006; Clayton et al., 2009). These inconsistencies may be the result of the difference in preparations used. We used a live preparation and different genetic methodologies that were thoroughly tested for specificity, to inactivate Dynamin function, all yielding consistent results. Likewise, also in cultured dynamin mutant nonneuronal mouse cells, the formation of bulk cisternae is apparent (Park et al., 2013). Hence, the data indicate that bulk cisternae form more readily in the absence rather than the presence of Dynamin. Consistent with this conclusion, in stimulated fly dap160 mutants, in which Dynamin mislocalizes, larger vesicles and cisternae are also apparent (Marie et al., 2004; Verstreken et al., 2005; Winther et al., 2013).

A role for Dynamin in preventing bulk membrane retrieval at synapses seems to be at odds with the accumulation of invaginated pits in shits1 mutants or in neurons in which Dynamin was inhibited by pharmacological means (Macia et al., 2006; Newton et al., 2006). However, in all these conditions, some Dynamin function almost certainly remained or Dynamin may have been trapped in a metastable state. First, triple dynamin mouse knockout neurons have not yet been generated, and dynamin-null mutant fruit flies die early during development. In nonneuronal triple knockout fibroblasts, the loss of dynamin does cause bulk membrane retrieval (Park et al., 2013), but it remains to be seen whether the molecular mechanisms of stimulus-dependent bulk membrane uptake in neurons compares with bulk retrieval in fibroblasts. Second, drugs used to inhibit Dynamin function have been reported to be not entirely specific (Park et al., 2013). Off-target effects or incomplete inhibition of all the functions of Dynamin may complicate the interpretation of the data. Finally, the temperature-sensitive Shits1 protein that in a dominant fashion causes the buildup of invaginated pits at restrictive temperature appears to be locked in a metastable state visible by TEM. This mutant Dynamin protein may still harbor some function. Consistent with this idea, we show that when we photoinactivate Dynamin and Dynamin complexes that consist of both Shi-4C and Shits1 at restrictive temperature, invaginated pits are lost, and massive bulk cisternae formation ensues. This phenotype is very reminiscent of that seen upon photoinactivation of Dynamin itself, suggesting that despite blocking membrane recycling, the Shits1 protein retained some functionality in that it prevents bulk membrane retrieval. Hence, strong inhibition of Dynamin function reveals a critical role for the protein in preventing the formation of bulk cisternae. We believe this mechanism may turn out to be evolutionarily conserved because heavily stimulated mouse dynamin1 knockout neurons also show bulk endosome-like structures; however, here, the formation of invaginated pits was not entirely restricted (Hayashi et al., 2008), a feature potentially caused by the presence of the other Dynamin isoforms.

Although Dynamin is essential for membrane fission, our work now suggests that the protein also serves an essential role in stabilizing synaptic endocytic complexes that involve Clathrin and AP2. This notion is consistent with the emerging role for Dynamin in nonneuronal cells during the early steps of Clathrin-coated pit formation (Conner and Schmid, 2003; Loerke et al., 2009; Mettlen et al., 2009). Studies of Dynamin in cell culture, in which GTPase domain mutants were overexpressed, suggested a role for the protein in Clathrin-coated pit formation (Damke et al., 2001). Moreover, in vitro imaging experiments revealed that the level of Dynamin2 at new Clathrin-coated pits negatively correlates with the lifetime of a pit, further suggesting that the maturation of a nascent bud depends on Dynamin2 in these cells (Aguet et al., 2013). In neurons, Dynamin directly interacts with several synaptic endocytic factors that, at least in part, may act during earlier phases of endocytosis as well, including Dap160/Intersectin, Syndapin, and Amphiphysin (David et al., 1996; Okamoto et al., 1997; Qualmann et al., 1999; Simpson et al., 1999; Koh et al., 2004; Ferguson et al., 2009; Winther et al., 2013). Also before fission, another Dynamin-binding partner, EndoA, has been shown to localize to the neck of deeply invaginated pits in a Dynamin-dependent manner, suggesting it aids in the Dynamin-catalyzed fission reaction (Sundborger et al., 2011). Hence, it is tempting to speculate that Dynamin’s involvement at synapses is needed for proper endocytic complex assembly at different stages of vesicle formation. We now find that during the first steps of synaptic vesicle formation, Dynamin would stabilize AP2, culminating in Clathrin polymerization and cage formation, a process that prevents the retrieval of bulk endosomes and facilitates the formation of uniformly sized synaptic vesicles.

Genetics and behavior tests

Fly stocks were maintained on standard maize meal and molasses medium. Mutant and RNAi stocks were obtained from the Bloomington Drosophila Stock Center and from the Vienna Drosophila RNAi Center or were gifts. shi12-12B is a shi-null mutant and was generated by C. Poodry (University of California, Santa Cruz, Santa Cruz, CA) by γ rays, resulting in genomic rearrangements (Grant et al., 1998). shi12-12B flies were given to us by M. Ramaswami (Trinity College, Dublin, Ireland). shits1 harbors a G273D mutation (Chen et al., 2002). The upstream activation sequence–shi RNAi is v105971 obtained from the Vienna Drosophila RNAi Center, endo1 is an endoA-null allele that corresponds to P[EP]927 outcrossed to w1118 for several generations (Verstreken et al., 2002), and chc1 is a chc-null mutant (Bazinet et al., 1993). Transgenes are described in the Molecular biology section of the Materials and methods. To collect third instar larvae for FlAsH-FALI, embryos were raised on black currant plates with fresh yeast paste; for RNAi expression, flies were crossed on standard medium, at RT for 3 d, and then shifted to 25°C. Third instar larvae were directly collected from the vials.

The flight and negative geotaxis assays were performed using batches of five flies. For the flight assay, flies were placed in an empty vial and tapped down. Flies able to fly were scored as 1, whereas those that did not were scored as 0. Negative geotaxis tests were also performed using batches of five flies. Flies were tapped down in an empty vial, and the number of flies that crossed a 4 cm mark within 5 s was counted.

Molecular biology

The shi-4C construct was generated by retrieving the genomic region of the shi gene (CG18102) and the nearby 5′-located gene (CG15916) using E. coli recombination from BACR32K23 with primers listed in Table S1 (Venken et al., 2006, 2008). A FLAG-4C tag (a peptide fusion of FLAG and an optimized FlAsH-binding tetracysteine tag; Martin et al., 2005) was added at the beginning of the middle domain of the shi gene by recombineering-mediated tagging (Venken et al., 2006, 2008). The endo-4C construct was generated using recombination in Saccharomyces cerevisiae. Two overlapping PCR fragments that encompass endoA and incorporate a 4C tag (without FLAG) in between the BAR (Bin1/amphiphysin/Rvs167) and SH3 domain and that harbor homology arms to pFL44sw+AttB (Khuong et al., 2013) were prepared using the primers listed in Table S1. pFL44sw+AttB was cut with BamH1, and the primers and plasmid were combined using yeast recombination (Merhi et al., 2011). To generate HA-chc, the genomic region of the chc gene (CG9012) and the nearby 5′-located gene CG32582 were first retrieved by E. coli recombination from BACR25C18 into the attB-P[acman]-Amp-R vector (Venken et al., 2006), adapted for S. cerevisiae, using two homology arms. Next, this plasmid was cut with BsiWI and BbVcI, and the HA tag was incorporated at the N terminus of the chc gene by yeast recombination of overlapping PCR fragments that contain the HA tag. The primers used to generate the homology arms and the overlapping PCR fragments with the HA tag are listed in Table S1. Recombined constructs were sequenced, and transgenic animals were generated using phiC-31–mediated integration in PBac{yellow[+]-attP-3B}VK00033 for shi-4C and y1 w67c23; P{CaryP}attP40 for Endo-4C and for HA-chc.

Photoinactivation of Shi-4C and Endo-4C and visualization of FlAsH fluorescence

To load the 4C tag with FlAsH (Invitrogen), third instar larvae were dissected in HL-3 (110 mM NaCl, 5 mM KCl, 10 mM NaHCO3, 5 mM Hepes, 30 mM sucrose, 5 mM trehalose, and 10 mM MgCl2, pH 7.2; Stewart et al., 1994) and incubated for 10 min in 1 µM FlAsH in the dark. Subsequently, preparations were washed in Bal (Invitrogen) to remove unbound FlAsH and three times with HL-3. Photoinactivation of Dynamin or EndoA was performed on synapses in segments A3 or A4 by illuminating the NMJs in a hemisegment with epifluorescent 500 ± 12 nm (Intensilight C-HGFI; Nikon) band pass–filtered light (excitation filter, 500/24 nm; dichroic mirror, 520 nm) for 2 min (Dynamin) or 5 min (EndoA) using a 40×, 0.8 NA water immersion objective on a microscope (Eclipse F1 or A1R; Nikon) at RT. For experiments at high temperature (the restrictive temperature for shits1), we preincubated dissected larvae in warm (33°C) HL-3 for 2 min after incubation with FlAsH and washing in Bal and subsequently kept them on a heating plate during the experiment to maintain 33°C. Photoinactivated synapses were analyzed on muscles 12 and 13.

To visualize FlAsH, preparations were treated as in the previous paragraph but without the photoinactivation step. Imaging of FlAsH fluorescence was performed on a confocal microscope (LSM 510 Meta; Carl Zeiss) using a 63×, 1.0 NA water immersion lens (zoom 4) at RT.

Electrophysiology

Two electrode voltage clamp experiments (holding potential at −70 mV) to record EJCs were performed in HL-3 with CaCl2 as indicated (Verstreken et al., 2009; Khuong et al., 2010), and miniatures were recorded in the presence of 0.5 mM CaCl2 and 0.5 µM tetrodotoxin (Sigma-Aldrich). The holding potential was −70 mV, and the input resistance of the muscles was ≥4 MΩ. Current clamp experiments to record EJPs were performed in HL-3 with 2 mM CaCl2 from muscle 6, segment A2 or A3. Motor neurons were stimulated using a suction electrode at ∼2× threshold. EJC and EJP measurements were amplified with an amplifier (Axoclamp 900A; Axon instruments), digitized with a Digidata 1440A (Axon instruments), and stored and processed using Clampex 10.2 (Axon instruments). Data were Bessel filtered at 1 kHz.

Fluorescence imaging and quantification

FM 1-43 labeling was performed by incubating dissected larvae either in HL-3 with 4 µM FM 1-43 (Invitrogen), 1.5 mM CaCl2, and 90 mM KCl for 5 min (1 min for EndoA) or in HL-3 with 1.5 mM CaCl2 and electrically stimulating motor nerves at 10 Hz for 5 min. Subsequently, noninternalized dye was removed by washing with HL-3. For unloading, nerve terminals were stimulated for a second time in HL-3 with 90 mM KCl for 10 min and washed with HL-3 before imaging. For experiments at high temperature (restrictive temperature for shits1), dissected fillets were kept on a heating plate during the experiment to maintain 33°C. Quantifications of the FM 1-43 intensity in unloading experiments were corrected for bleaching by multiplying the intensity value by the bleaching coefficient (calculated from imaging twice the same NMJ of yw controls). Images of FM 1-43 were captured with a confocal microscope (LSM 510 Meta) and 63×, 1.0 NA water immersion lens (zoom 4) or with a confocal microscope (A1R) and a 60×, 1.0 NA water immersion lens (zoom 4) at RT and stored using LSM 510 or NIS elements AR 4.13 software packages (Nikon), respectively. For quantification of intensities, the mean fluorescence levels in individual boutons minus the background fluorescence in muscles was calculated and averaged. To score accumulations of FM 1-43 inside boutons, samples were blinded, and such structures were manually counted and normalized to the bouton surface area (measured in Fiji; National Institutes of Health). Boutons on muscles 12 and 13 were imaged and analyzed.

For immunohistochemistry, larvae were dissected in HL-3 and fixed in 4% formaldehyde for 20 min. Samples were permeabilized in 0.4% Triton X-100 and incubated overnight at 4°C with the following antibodies: mouse anti–disc large (DLG) at 1:50 raised against the second PDZ domain of DLG (Parnas et al., 2001), rabbit anti-HRP at 1:2,000 (Jackson ImmunoResearch Laboratories, Inc.), mouse anti-HA at 1:500 (Eurogentec), mouse anti-Dynamin at 1:50 (BD), and rabbit anti–α-Ada (1:500) raised against the 360 C-terminal amino acid sequence of Drosophila α-Ada (González-Gaitán and Jäckle, 1997). After washes with PBS, Alexa Fluor 488– and 555–conjugated secondary antibodies (Invitrogen) were added at 1:500 for 2 h at RT, washed, and mounted in Vectashield (Vector Laboratories). Images were captured either on a confocal microscope (LSM 510 META) with a 63×, NA 1.4 oil lens or on a confocal microscope (A1R) with a 60×, 1.4 NA oil lens (zoom 1 and 4) and stored using LSM 510 or NIS elements AR 4.13 software packages, respectively. All images were taken at RT. Labeling intensity in single section confocal images was quantified as the mean gray value of boutonic fluorescence corrected for background in the muscle. Furthermore, NMJ length and bouton number were quantified by manually tracing the NMJ branches in Fiji and summing them to calculate the total length and by manually counting the individual boutons, respectively. The bouton surface area was measured by tracing the circumference of images taken from the muscle (Coyle et al., 2004).

Superresolution structural illumination microscopy images were acquired on a microscope (Elyra S.1; Carl Zeiss) using a 63×, NA 1.4 oil lens and three rotations at RT, and images were processed and stored using ZEN 2011 software (Carl Zeiss). To quantify the mean distribution of HA-Chc or α-Ada labeling intensity over several boutons, we selected boutons of similar size but still first needed to rescale the size of each bouton to a standard diameter as to be able to average the HA-Chc or α-Ada labeling intensities per position along the bouton diameters. We therefore resized all the boutons that entered quantification to a width of 500 pixels using the bicubic interpolation tool in Photoshop (Adobe). We then defined the line intensities at the center of each bouton (to avoid artifacts, the mean intensity of the 45 pixels above and below the line) along these 500 pixels as to obtain a line scan view of the intensity profile through the center of a bouton (line width and plot profile tools in Fiji). Finally, to obtain the mean labeling distribution across boutons, we calculated the mean intensity for each point along the 500 pixels.

EM

TEM was performed on dissected larvae in HL-3 with 1.5 mM CaCl2 stimulated with 60 mM KCl for 5 min. Preparations were briefly washed and then fixed for 2 h at RT and then overnight at 4°C in 4% paraformaldehyde and 1% glutaraldehyde in 0.1 M Na-cacodylate buffer with 1 mM MgCl2 at pH 7.2. For samples in which proteins were inactivated by FlAsH-FALI, the relevant segments were trimmed. Samples were washed in 0.1 M Na-cacodylate buffer, osmicated in fresh 1% OsO4 in 0.1 M Na-cacodylate for 2 h on ice, and then washed in cold water. Next, the tissue was stained with aqueous 2% uranyl acetate for 1.5 h, dehydrated in a series of ethanol, and embedded in Agar 100. Ultrathin 70-nm sections were cut with an ultramicrotome (EM UC7; Leica) and visualized at the EM core facility KU Leuven using a transmission electron microscope (JEM-1400; JEOL) operated at 80 kV. Micrographs were acquired using a bottom-mounted camera (Quemesa; 11 megapixels; Olympus) and a side-mounted camera (Veleta; 4 megapixels; Olympus) using iTEM 5.2 software (Olympus). The used magnifications were 10,000 and 20,000× with the Quemesa and 30,000 and 50,000× with the Veleta camera. Quantification of ultrastructural features was performed using Fiji and iTEM 5.2. For experiments that were executed at high temperature photoinactivation, stimulation and washing steps were performed at 33°C (see the section Photoinactivation of Shi-4C and Endo-4C and visualization of FlAsH fluorescence of the Materials and methods). Subsequently, the primary fixation was first performed for 20 min at 33°C.

For electron tomography tilt series, micrographs at 200 kV and 10,000× were obtained from 200–300-nm-thick sections collected on Formvar carbon-coated grids covered with colloidal gold particles (15 nm) using an electron microscope (JEM-2100; JEOL). Micrographs were recorded from −60 to 60° at 2° intervals using Recorder software (JEOL) and a 1,024 × 1,024–pixel bottom-mounted charge-coupled device camera (MultiScan; Gatan). Tomograms were generated with the eTomo module in IMOD, using the gold particles for alignment. 3D models were built by semiautomated surface rendering and computed using 3dmod in IMOD.

Image processing

Individual color channels were merged using Fiji, and images were adjusted for brightness and contrast using Photoshop 7.

Statistical analysis

Statistical analysis was performed using the appropriate statistical test (t test or analysis of variance [ANOVA] with Tukey’s test) for comparisons between groups, as described in the figure legends. The statistical significance of differences was defined with a P < 0.05.

Online supplemental material

Fig. S1 shows that dynamin-null mutants that express the tetracysteine-tagged Dynamin do not show overt behavioral defects and normal third instar larval morphology. Fig. S2 shows TEM micrographs of boutons from animals that express RNAi to down-regulate Dynamin expression in the nervous system. Fig. S3 shows a series of superresolution z stacks of Chc and α-Ada labeling in boutons in which Dynamin was or was not inactivated and that were stimulated or not stimulated using KCl (see also Fig. 5). Fig. S4 shows a series of superresolution z stacks of Chc and α-Ada labeling in boutons in which Dynamin was or was not down-regulated by RNAi and that were stimulated or not stimulated using KCl. Fig. S5 shows that when Shi-4C is expressed in a wild-type background, photoinactivation results in a loss of Dynamin function despite the presence of wild-type Dynamin. Table S1 contains all the primers used to generate the Shi-4C, Endo-4C, and HA-Chc constructs. Video 1 shows digital sections through the tomographic reconstruction shown in Fig. 7.

We thank the Bloomington Drosophila Stock Center, the Vienna Drosophila RNAi center, the Drosophila Genomics Resource Center, and the Developmental Studies Hybridoma Bank; B. André, H. Bellen, M. Cousin, M. González-Gaitán, B. Hassan, E. Lauwers, V. Morais, M. Ramaswami, J. Slabbaert, and D. Schmucker; and members of the Verstreken laboratory for reagents, help, or comments. We thank S. Munck and N. Corthout from the VIB Bio Imaging Core, Light Microscopy and Imaging Network facility, and KU Leuven Cell Imaging Core and P. Baatsen from the KU Leuven EM core facility and VIB Center for the Biology of Disease.

Support to P. Verstreken was provided by a European Research Council Starting Grant (260678), the Research Foundation Flanders (grants G053913, G079013, G095511, and G074709), the Hercules Foundation, the Instituut voor Wetenschap en Technologie, the Interuniversity Attraction Pole program by the Belgian Federal Science Policy Office, the research fund KU Leuven, and VIB.

The authors declare no competing financial interests.
