Arthrogryposis, renal dysfunction, and cholestasis (ARC) syndrome is a fatal recessive disorder caused by mutations in the VPS33B or VPS16B genes. Both encode homologues of the Vps33p and Vps16p subunits of the HOPS complex necessary for fusions of vacuoles in yeast. Here, we describe a mutation in the full-of-bacteria (fob) gene, which encodes Drosophila Vps16B. Flies null for fob are homozygous viable and fertile. They exhibit, however, a defect in their immune defense that renders them hypersensitive to infections with nonpathogenic bacteria. fob hemocytes (fly macrophages) engulf bacteria but fail to digest them. Phagosomes undergo early steps of maturation and transition to a Rab7-positive stage, but do not mature to fully acidified phagolysosomes. This reflects a specific requirement of fob in the fusion of phagosomes with late endosomes/lysosomes. In contrast, cargo of autophagosomes as well as endosomes exhibit normal lysosomal delivery in fob cells. These findings suggest that defects in phagosome maturation may contribute to symptoms of ARC patients including recurring infections.
Phagocytosis is an important element of the defense mechanisms against microbial invaders. Microbes are engulfed into early phagosomes by actin-driven extensions of the plasma membrane. Initial properties of phagosomes are dictated by their origination from the plasma membrane, but fusion with endosomes quickly initiates phagosomal maturation (Flannagan et al., 2009). Continued maturation of phagosomes depends on the fusion with early and late endosomal compartments, and eventually lysosomes (Kinchen and Ravichandran, 2008).
As phagosomes mature, they transition through an early stage marked by the presence of the GTPase Rab5 and its effectors (Kinchen and Ravichandran, 2008). Among them, Mon1/SAND-1 proteins aid in the conversion from Rab5- to Rab7-positive late phagosomes (Kinchen and Ravichandran, 2010), which is equivalent to their role in endosome maturation (Poteryaev et al., 2010). Rab7, subsequently, is required for phagosomes and late endosomes to fuse with lysosomes (Bucci et al., 2000; Harrison et al., 2003).
HOPS (homotypic fusion and vacuole protein sorting) is a multiprotein complex that originally was characterized in yeast for its role in vacuolar fusions (Sato et al., 2000; Seals et al., 2000). The HOPS complex acts as a tethering factor, stimulates Rab nucleotide exchange, and coordinates the interaction of SNAREs during lysosomal fusions (Nickerson et al., 2009; Wickner, 2010). In multicellular organisms, HOPS complex function is necessary for the biogenesis of lysosomes and lysosome-related organelles (Rojo et al., 2001; Sadler et al., 2005; Maldonado et al., 2006). In Drosophila, homologues of the HOPS subunits Vps18p and Vps33p are encoded by deep orange and carnation. Both genes are named for their role in the biogenesis of pigment granules in the fly eye, and, together with Vps16A, they are required for lysosomal delivery of cargo from endosomes and autophagosomes (Sevrioukov et al., 1999; Sriram et al., 2003; Pulipparacharuvil et al., 2005; Lindmo et al., 2006; Akbar et al., 2009). Similarly in mice, the buff mutation, because of a missense mutation in the VPS33A gene, causes abnormal pigmentation (Suzuki et al., 2003) and progressive neurodegeneration, presumably because of a defect in lysosomal delivery (Chintala et al., 2009). Furthermore, an RNAi screen in Caenorhabditis elegans has implicated HOPS subunits in phagosomal maturation (Kinchen et al., 2008).
Metazoan genomes encode two Vps33p homologues (Pevsner et al., 1996). In Drosophila, their functions are distinct, as none of the car/Vps33A phenotypes can be rescued by Vps33B expression (Akbar et al., 2009). A role for Vps33B in the clearance of Mycobacterium tuberculosis bacteria was revealed by the identification of Vps33B as a target of the bacterial virulence factor PtbA, a phosphatase critical for the intracellular persistence of these microbes (Bach et al., 2008). Importantly, mutations in Vps33B cause a fatal recessive disorder named arthrogryposis, renal dysfunction, and cholestasis (ARC) syndrome (Gissen et al., 2004). Cells from ARC patients exhibit diverse defects including mislocalization of a subset of apical proteins (Gissen et al., 2004) and defects in the biogenesis of platelet α-granules (Lo et al., 2005), but the underlying trafficking defects are not well understood. An important aspect of Vps33B function is its binding to Vps16B, an interaction that is conserved from invertebrates to humans (Pulipparacharuvil et al., 2005; Zhu et al., 2009; Cullinane et al., 2010). Relevance of this interaction was confirmed by the discovery of mutations in VPS16B as the second major cause of ARC syndrome (Cullinane et al., 2010).
Here, we describe a mutation in the full-of-bacteria (fob) gene, which encodes Drosophila Vps16B. To our surprise, flies null for fob were homozygous viable and fertile. They exhibit, however, a profound defect in phagosome maturation, and as a consequence are sensitive to infections with normally nonpathogenic microbes. These findings suggest that defects in phagosome maturation may contribute to symptoms of ARC patients, including their recurring infections (Gissen et al., 2006; Hershkovitz et al., 2008; Jang et al., 2009).
Results and discussion
Fob is required for normal immune defense
A fob1 null allele (Fig. 1, A and B) was generated by ends-out homologous recombination (Gong and Golic, 2003). fob1 flies were null for fob expression but had no change in the transcription of neighboring genes (Fig. 1 C). Homozygous fob1 and hemizygote (fob1/Df(3R)BSC547) flies were viable, fertile, and displayed no morphological defects.
ARC patients present with recurrent infections at a high frequency (Gissen et al., 2006; Hershkovitz et al., 2008; Jang et al., 2009), thus we wondered whether microbial infections also threaten fob1 flies. We compared the survival of fob1 and wild-type flies upon injections with bacteria. Interestingly, fob1 mutants were strongly susceptible to infections with Escherichia coli, bacteria that are nonpathogenic to wild-type flies (Fig. 1 D, P < 0.0001 logrank). Survival of fob1 flies was significantly improved by expression of fob cDNA in hemocytes (Srp-Gal4 compared with fob1, P = 0.005 logrank); its ubiquitous expression or a genomic rescue construct further improved survival to wild-type levels (Da-Gal4, P = 0.5; gFob, P = 0.3; both logrank vs. Ore-R). Pathogenic Enterococcus faecalis microbes killed fob1 flies only slightly faster than wild type (Fig. 1 E, P = 0.005 logrank). Survival of flies after microbial infections depends, in part, on the induction of antimicrobial peptides (AMPs) through the activation of the IMD or Toll pathways (Hoffmann, 2003). Therefore, we compared AMP gene expression in infected fob1 and wild-type flies relative to their counterparts injected with PBS only. Quantitative RT-PCR (qRT-PCR) showed that infected fob1 flies induced AMP expression, which indicates that IMD or Toll signaling was not inhibited (Fig. 1 F). Given their ability to mount an AMP response against gram-positive and gram-negative bacteria, fob1 must be lacking in a different aspect of the host defense.
Early steps in phagocytosis do not require Fob
Another facet of host defense is the phagocytosis of invading microbes. After injection with pHrodo-labeled bacteria into their abdomen, wild-type flies displayed a characteristic accumulation of fluorescence in sessile hemocytes in the thorax (Fig. 2 A). This reflects the uptake of bacteria into hemocyte phagosomes and their subsequent acidification (Cuttell et al., 2008). In comparison, fob1 flies exhibited weaker fluorescence, but the number of immobilized bacteria did not seem drastically reduced, which is consistent with the presence of active phagocytic sessile hemocytes. In contrast, in eater flies, the number of bacteria appeared reduced but the signal strength of individual punctae was similar to wild type (Fig. 2 A). The loss of one of several phagocytic receptors in eater flies reduces phagocytic uptake but not phagosome maturation and acidification (Kocks et al., 2005). In contrast, the reduced pHrodo fluorescence in fob1 flies suggested a defect in phagosomes acidification.
To address this issue at higher resolution, we analyzed phagocytosis in primary hemocytes from third instar larvae (Pearson et al., 2003). Compared with wild type, fob1 hemocytes did not exhibit a defect in initial phagocytic uptake of bacteria (Fig. 2, B and C). Subsequently, wild-type cells efficiently digested bacteria (Fig. 2 D), and after a 45-min chase contained only 4.8 ± 3 bacteria (n = 6). In contrast, at this time point, fob1 cells (Fig. 2 E) were still full of bacteria (26 ± 16, n = 6, P < 0.0001). Similarly, elevated levels of bacteria were observed after knockdown of Vps33B or Vps16A (Fig. 2 F). Inability to digest bacteria was also observed in vivo after injection with E. coli. In fob1 flies, the bacterial burden remained elevated (Fig. 1 G), as opposed to the efficient clearance of the majority of bacteria in wild-type flies after just 1 d. Together, these data suggest that the poor survival of fob1 flies after injections with nonpathogenic E. coli reflects a defect in phagosome maturation.
Phagosome maturation requires Fob

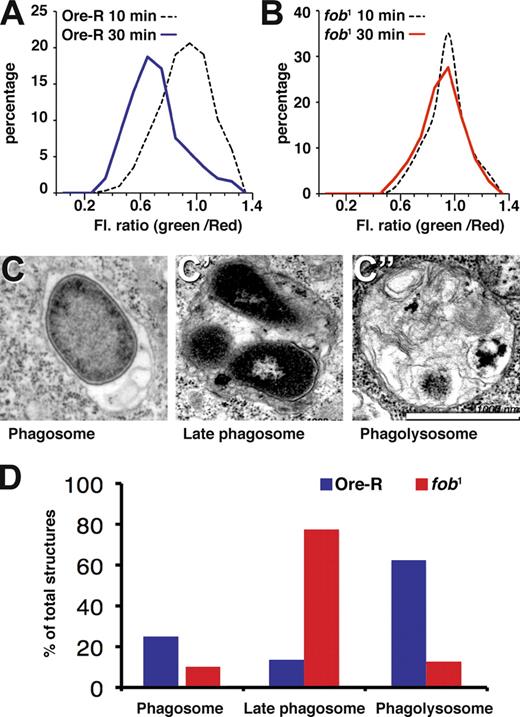

A necessary step in the acquisition of the full degradative potential of phagosomes is their acidification, which can be monitored by imaging the fluorescence ratio of Oregon green/Texas red doubly labeled phagocytosed bacteria. After a 30–45-min chase in wild-type hemocytes, the majority of internalized bacteria appeared degraded as judged by the diffuse appearance of remaining fluorescence, but the few phagosomes that still contained well-defined bacteria had acidified to a mean pH of 5.5 ± 0.15 compared with a mean starting pH of 6.5 ± 0.15 (Fig. 3 A and Fig. S1). In contrast, fob1 phagosomes acidified only minimally, if at all: the starting mean pH of 6.6 ± 0.12 was only lowered to pH 6.3 ± 0.13 after a 30-min chase (Fig. 3 B). In accordance with this finding, electron microscopy of isolated fob1 hemocytes revealed that after a 30-min chase, phagocytosed bacteria were predominantly present in late phagosomes (Fig. 3, C and D) that were characterized by a mix of undigested or mildly degraded bacteria (Fig. 3 C′). In contrast, after a 30-min chase in wild-type hemocytes, the majority of bacteria had reached phagolysosomes (Fig. 3, C′′ and D) characterized by strongly degraded content (Fig. 3 C′′).
Phagosomes mature by interacting with endosomal compartments (Desjardins et al., 1994). Thus, we explored endosomal markers, including Rab GTPases (Smith et al., 2007), as indicators of phagosome maturation. We found that a Rab-5 effector, Rabenosyn-5 (Rbsn-5), was present on fob1 and wild-type phagosomes (Fig. 4, A and F). Rbsn-5 is a FYVE domain protein whose phagosomal localization depends on activation of phosphatidylinositol 3-kinases (PI3K) and Rab5 (Stenmark et al., 1995; Vieira et al., 2003). These data indicated that early steps in phagosome maturation, including the generation of 3-phosphoinositides and subsequent recruitment of Rab5 effectors, are normal in fob1 mutant phagosomes. This conclusion was further supported by the presence of Avalanche (Avl), an early endosomal SNARE (Lu and Bilder, 2005), on Rbsn-5–positive phagosomes in fob1 and wild-type hemocytes (Fig. 4, A and F). This indicates that fob1 mutants have normal early endosome–phagosome fusion.
A subsequent step in phagosome maturation involves the exchange of Rab5 to Rab7, similar to their exchange observed in endosomes (Vieira et al., 2002; Rink et al., 2005). 62 ± 26% of phagosomes in fob1 hemocytes were decorated by Rab7 compared with 36 ± 14% in wild type, which indicates that Rab5-to-Rab7 conversion was not inhibited in fob1 (Fig. 4, B, B′, and F). This significantly increased presence of Rab7 on phagosomes in fob1 cells (P < 0.0001) suggests that phagosomes are stalled at this stage. This is reminiscent of the dramatic increase of Rab7 on late endosomes in car-null cells (Fig. S2 K; Akbar et al., 2009) and is consistent with Rab7 recruitment not being sufficient to induce fusion with lysosomes (Vieira et al., 2003). We explored other markers and found that Hook was present on 31 ± 8% of wild type but only on 6 ± 2% of fob1 phagosomes, without ever decorating entire phagosomes as we observed in wild-type cells (Fig. 4 C). Interestingly, Drosophila Hook has been implicated in the maturation of multivesicular bodies (Sunio et al., 1999), which are involved in phagosome maturation (Philips et al., 2008). Considering the connection between endosomal and phagosomal maturation pathways, our data suggest that fob1 phagosomes failed to acquire late endosomal/lysosomal characteristics due a loss of fusion with those compartments.
Fob mutants exhibit a specific defect in the fusion of lysosomes with phagosomes
Several lines of evidence argue that the fob1 phagosomal maturation defect does not reflect a block in endocytic trafficking. For example, distribution of Boss and Delta ligands, which sensitively respond to loss of Vps16A or Car/Vps33A function (Fig. S2, I and J; Pulipparacharuvil et al., 2005; Akbar et al., 2009), was not altered in eye discs from fob1 larvae, indicating that endocytic trafficking proceeded normally (Fig. S2, C–H). Furthermore, eyes of 2-d-old flies exhibited normal ommatidial organization (Fig. S2, A and B), which indicates that fob1 mutants have no significant defects in Notch or EGF receptor signaling. The recurrent use of these signaling pathways during eye development provides a sensitive read-out for defects in formation of apical polarity, adherens junctions, or changes in endocytosis, lysosomal delivery, or recycling. Furthermore, starvation-induced autophagy, which requires fusion with lysosomes, is also normal in fob1 larvae (Fig. S2, L–O). Together, these data indicate that fob is not essential for endocytic or autophagic routes engaged during developmental signaling or cell remodeling and instead point to a specific requirement of fob for the fusion of phagosomes to lysosomes.
To directly test this hypothesis, we functionally labeled lysosomes by allowing hemocytes to internalize dextrans by fluid phase endocytosis. After a 90-min chase in wild-type cells, 60–80% of dextran had reached lysosomes, as measured by their colocalization with LysoTracker (Fig. 4 D). This was not significantly altered in fob1 or Vps33B knockdown hemocytes, which is consistent with the notion that neither is necessary for endocytic trafficking. In contrast, in Vps16A knockdown hemocytes, dextran failed to reach lysosomes (Fig. 4 F), which suggests that lysosomal dysfunction (Pulipparacharuvil et al., 2005) rather than a defect in phagocytosis may be the primary cause of reduced bacterial clearance in Vps16A knockdown hemocytes (Fig. 2 F). Next, hemocytes containing dextran-prelabeled lysosomes were allowed to phagocytose bacteria. After a 30–45-min chase, 28 ± 7% of bacteria-containing phagosomes in wild-type hemocytes colocalized with pre-endocytosed dextran, which is consistent with their fusion with lysosomes (Fig. 4 E). In contrast, only few 8.6 ± 4% fob1 or 7.6 ± 5% Vps33B-knockdown phagosomes colocalized with dextran, which indicates their failure to fuse with the prelabeled lysosomes. Because the evaluation of late-stage bacterial phagosomes is complicated by the continuous degradation of bacteria, we also tested the phagocytosis of latex beads. Here the loss of phagosome/lysosome fusion was even more evident, as after a 30–45-min chase, 50 ± 13% of latex beads colocalized with dextran in wild type, but only 8 ± 2% colocalized in fob1 hemocytes.
Vps16B proteins in various species tightly interact with the corresponding Vps33B partners (Fig. S3 A; Pulipparacharuvil et al., 2005; Zhu et al., 2009; Cullinane et al., 2010). Consistent with a shared role of this complex in phagocytosis, dVps33B knockdown also rendered flies hypersensitive to E. coli (Fig. S3 C), as we observed in fob1 mutants. Previous analyses of these complexes focused on possible functions in endosomes (Gissen et al., 2004; Matthews et al., 2005; Zhu et al., 2009; Cullinane et al., 2010). Surprisingly, we did not detect any requirement of fob in endocytic trafficking in Drosophila. This is distinct from our findings for its paralogue dVps16A, which together with Carnation and Deep orange is required for lysosomal delivery of endocytic and autophagic cargo and for biogenesis of pigment granules (Fig. 4 F and Fig. S2, I–K; Pulipparacharuvil et al., 2005; Akbar et al., 2009). Instead, we found that fob is specifically required for fusion of phagosomes with late endosomes/lysosomes. This specificity distinguishes fob from other genes, such as rab7 or genes encoding ESCRT subunits, which are required for phagosome maturation but also participate in endocytic delivery to lysosomes (Philips et al., 2008). Together, these data indicate that Vps16A and Vps16B, and their corresponding binding partners Vps33A and Vps33B, have nonredundant functions in these pathways (Suzuki et al., 2003; Lo et al., 2005; Pulipparacharuvil et al., 2005; Akbar et al., 2009).
A possible role of Vps16B and Vps33B proteins in phagocytosis is also consistent with several previous observations. Dephosphorylation of Vps33B is one among several strategies that M. tuberculosis bacteria use to inhibit phagosome maturation and thereby escape their degradation (Bach et al., 2008). The recurrent bacterial sepsis common among patients with ARC syndrome (Gissen et al., 2006) may reflect deficiencies of phagocytic cells in clearing infections. Similarly, macrophage-like coelomocytes are among the cell types strongly affected in mutants for spe-39, which encodes the C. elegans homologue of Vps16B (Zhu et al., 2009), and other HOPS subunits have been implicated in phagosome/lysosome fusion as well (Kinchen and Ravichandran, 2010). Together, these data point to the possibility that phagosome–lysosome fusion may be the ancestral function of Vps16B/Vps33B proteins, and it will be important to identify which aspects of ARC syndrome are caused by defects in phagocytosis.
Materials and methods
Fly genetics and generation of fob1 mutant
Ends-out homologous recombination was used for generating a fob-null allele (Gong and Golic, 2003). Stepwise, left (5,906 bp) and right (5,293 bp) flanking regions of the fob gene were cloned into p[w25.2] vector yielding pw25-16Bko. Primers for amplification of left and right regions were: left, 5′-ATTTGCGGCCGCTGCGTGGTGAGTTTGCAC-3′ and 5′-ATTTGCGGCCGCGCTCAAGTTGTAAAATTGACTTTCT-3′, and right, 5′-TTGGCGCGCCGCACAGACATGGTCGCACTA-3′ and 5′-AACGTACGATCACGGCCAGTTACTCCAC-3′. A transgenic line carrying this donor on the second chromosome was selected for targeting (Gong and Golic, 2003). Candidates for which the mini-white gene of pw25-16Bko mapped to the third chromosome were analyzed by probing Southern blots, first with the entire fob gene and then with dVps33B to control for loading.
For infections and immunohistology, the following lines were used: Oregon-R (wt), fob1, w1118; fob1/Df(3R)BSC547/TM6C, Sb1, eater trans heterozygous [Df(3R)D605/Df(3R)Tl-I], da-Gal4/uas-Vps33B-RNAi, and da-Gal4/Vps16A-RNAi (Pulipparacharuvil et al., 2005). Clones for car-null cells were generated in the eye discs, which were stained as described previously (Akbar et al., 2009). Gal4 drivers and deficiencies were obtained from the Bloomington Stock Center.
For rescue experiments, the fob coding unit was amplified using the primer set 5′-CCGCTCGAGATGGAGGAGCAGAAGCTGAT-3′ and 5′-GGGGTACCTTACAACTTGAGCTTGATGTTGTCC-3′. The unit was then cloned into the pUASt vector using XhoI and Acc65I, and the resulting uas-Myc-Fob transgene was expressed under control of Da-Gal4 or Srp-Gal4 in fob1 background. Alternatively, a genomic fragment containing sequences 1.8 kb upstream and 0.8 kb of downstream of the fob coding region was cloned into a derivative of pCaSp4 for the generation of a transgenic line. For Vps33B-RNAi experiments, a 381-bp inverted repeat (bp 1,180–1,561 of the Vps33B mRNA; available from GenBank/EMBL/DDBJ under accession no. NM_143138.1) was clone into a modified pWIZ vector (Pulipparacharuvil et al., 2005) and expressed in transgenic flies under uas/Gal4 control. Plasmids containing the fob, vps33B, and Car cDNAs templates had been generated by the Berkeley Drosophila Genome Project and were obtained from the Drosophila Genomics Resource Center.
E. coli (DH5α, amp resistance, GFP) and E. faecalis cultures were grown overnight in Luria Bertani (LB) or brain heart infusion medium (BHI) medium at 37°C. Female virgin flies (5 d old) were injected (Schneider et al., 2007) with 80 nl PBS containing a mean of 1,600 E. coli (OD600 = 0.1) or 200 E. faecalis (OD600 = 0.005). Sterile PBS was injected as a control. Injected flies (20 flies per vial) were reared at 25°C, 65% humidity, on yeast-agar-molasses food. Injections were performed with a pico-injector (model PLI-188; Nikon) fitted with glass capillary needles. Injections were performed in triplicate (total of 60 flies) for each group with either of the indicated microbes and PBS control on the same day. All injection experiments were repeated 8–10 times. For each survival curve, flies were counted every 24 h, and bars represent mean values with standard deviation. Data were analyzed using the SAS software (SAS Institute, Inc).
To determine bacterial load, flies were injected with E. coli (DH5α, kanamycin resistant, five flies per data point) and homogenized after the indicated time (Schneider et al., 2007). Serial dilutions were plated and colonies were counted for each time point. Data are plotted as boxes with whiskers. The mean is indicated with a diamond. The boxes indicate 25th and 75th percentiles; the bold line is the 50th percentile, whereas the whiskers show the complete range of the data.
pHrodo-E. coli bioparticles (Invitrogen) were suspended according to manufacturer’s instructions, and 80 nl were injected. After 2 h, flies were mounted and imaged on a microscope with 1.5× magnification (SZX12; Olympus). During imaging, exposure parameters were set such that for Oregon-R the brightest spots were not saturated. FITC-E. coli (catalogue No. F6694; Invitrogen) were used for phagocytosis and immunostaining experiments in hemocytes.
For qRT-PCR experiments, RNA was isolated using TRIzol (Invitrogen) according to the manufacturer’s instructions. For anti-microbial peptide measurements, RNA was isolated from five flies after injection (6 h for E. coli and 12 h for E. faecalis). qRT-PCR was performed using a DNA-free, high-capacity cDNA reverse transcription kit (Fast SYBR Green master mix; Applied Biosystems) and a Fast Real-Time PCR System (7500; Applied Biosystems). Each data point was repeated three times beginning from injection. Values were normalized first with rp49 as an internal control and then expressed as fold change compared with flies injected with PBS as control. The following primer sets were used for amplification: fob left, 5′-TATTGGAACCGATCCTCTCG-3′; fob right, 5′-CACCAGTTTCAATGCCTCCT-3′; Ca left, 5′-CCATATCAGCCGCATTTCTT-3′; Ca right, 5′-AAGCTGGCATCGTTCTGACT-3′; CG7829 left, 5′-CAGGAACCTACTGGGCAAAA-3′; CG7829 right, 5′-AGTAGACTCCCGGCTTGTCC-3′; CG7802 left, 5′-GTCGCGACATCGACACTTC-3′; CG7802 right, 5′-CGTTGGCAGTGAATGTGGT-3′; Attacin A left, 5′-TGCAGAACACAAGCATCCTAA-3′; Attacin A right, 5′-TAAGGAACCTCCGAGCACCT-3′; Cecropin A1 left, 5′-TCTTCGTTTTCGTCGCTCTC-3′; Cecropin A1 right, 5′-ACATTGGCGGCTTGTTGAG-3′; Defensin left, 5′-GATGTGGATCCAATTCCAGA-3′; Defensin right, 5′-CTTTGAACCCCTTGGCAAT-3′; Diptericin left, 5′-ACCGCAGTACCCACTCAATC-3′; Diptericin right, 5′-CCATATGGTCCTCCCAAGT-3′; G Drosocin left, 5′-TTCACCATCGTTTTCCTGCT-3′; Drosocin right, 5′-GGCAGCTTGAGTCAGGTGAT-3′; Drosomycin left, 5′-GTACTTGTTCGCCCTCTTCG-3′; Drosomycin right, 5′-ACTGGAGCGTCCCTCCTC-3′; rp49 left, 5′-ATCGGTTACGGATCGAACAA-3′; and rp49 right, 5′-GACAATCTCCTTGCGCTTCT-3′.
Hemocyte isolation and phagocytosis experiments
Hemocytes were collected from 60–80 wandering third instar larvae in Schneider’s Drosophila medium (10% heat-inactivated FBS) containing glass-bottom culture dishes. Cells were allowed to settle down for 15 min and washed with Schneider’s media followed by incubation with the indicated bacteria or dextran.
After a 15-min incubation at 4°C, unbound bacteria were washed out and phagocytosed bacteria were chased for the various times. (a) 15 min to measure initial uptake, after which extracellular fluorescent bacteria were quenched with Trypan blue. (b) To visualize late stage phagosomes in life cells, we chased for 30 min, after which we collected images for 15 min. We call this a “30–45 min chase.” (c) To capture early or late stage phagosomes by immunofluorescence staining, we fixed after 15–25 min or 30–45 min of chase. (d) We chased for 45 min to analyze bacterial persistence in cells, as at that time most bacteria were digested in wild-type hemocytes. Subsequently, cells were fixed (4% PFA) and counterstained with Phalloidin–Alexa Fluor 546 (Invitrogen). Oregon-R was used as control in all assays. (e) For electron microscopy analysis of phagosome maturation, we chased for 30 min. Cells were fixed with a mixture of 1.5% glutaraldehyde and 2.5% PFA for 2 h, then stained with osmium tetroxide, dehydrated, and embedded in epon. Sections (60–70 nm) were stained with uranyl acetate, dried, and viewed under a transmission electron microscope (120kV; Technai G2 spirit; FEI) with an 11-megapixel Morada camera (Olympus). Data were collected from two independent sets of experiments with equivalent results. Quantification was performed in triplicate, with a representative example shown in Fig. 3 D.
For phagocytosis experiments, n refers to the number of independent experiments that were quantified.
To measure acidity (pH), heat-killed E. coli (DH5α) were colabeled with the pH-sensitive fluorophore Oregon green 488 and the pH-insensitive carboxy-tetramethylrhodamine (Vergne et al., 1998). To calibrate their pH-dependent fluorescence, bacteria were suspended in phosphate-citrate buffer, pH 2.5–7.0, and imaged using a 63×, NA 1.4 lens on a confocal microscope (LSM510; Carl Zeiss, Inc.). Fluorescence ratios were determined for individual bacteria using ImageJ. To measure changes in phagosome pH, fob1 or wild-type hemocytes were incubated with double-labeled bacteria (2–4 × 107 ml−1) at 4°C for 15 min. After a 10-min or 30-min chase, fluorescence ratios were measured from intact bacteria that did not appear degraded as indicated by diffuse fluorescence.
Immunofluorescence and dextran internalization
Hemocytes were incubated with dextran–Alexa Fluor 488 or dextran–Alexa Fluor 594 (10 kD, 1 mg/ml) for 5 min in PBS, pH 7.4, for monitoring fluid phase endocytosis. Free dextran was removed by washing extensively, and cells were chased for 90 min in Schneider’s Drosophila medium with 10% heat-inactivated FBS. After that chase, cells were either incubated with LysoTracker (GFP-certified Lyso-ID red lysosomal detection kit; Enzo Biochem, Inc.) or allowed to phagocytose GFP-tagged E. coli or latex beads to measure fusion of lysosome to phagosome.
For immunofluorescence staining after phagocytosis, hemocytes were fixed with 4% PFA for 45 min, then washed with PBS with 0.3% saponin. Samples were stained with the indicated primary antibodies rabbit anti-Hook (1:250; Sunio et al., 1999), rabbit anti-Avl (1:1,000; Pulipparacharuvil et al., 2005), rabbit anti–Rbsn-5 (1:5,000; a gift from A. Nakamura; Institute of Physical and Chemical Research Center for Developmental Biology, Kobe, Japan; Tanaka and Nakamura, 2008), rabbit anti-Rab7 (1:3,000; a gift of P. Dolph; Dartmouth College, Hanover, NH; Chinchore et al., 2009); and secondary antibodies labelled with Alexa Fluor 568 and Alexa Fluor 647 and mounted in Vectashield (Vector Laboratories).
Fluorescence images were captured with a 63×, NA 1.4 lens on an inverted confocal microscope (LSM510 Meta; Carl Zeiss, Inc.) at room temperature (21°C). All digital images were imported into Photoshop (Adobe) and adjusted for gain, contrast, and gamma settings.
The LIFETEST procedure of SAS 9.2 (SAS Institute Inc.) was used to analyze survival curves by the Kaplan-Meier method. Logrank comparisons were used to assess significance of differences between curves. Student’s t tests (two-tailed) were used to determine the statistical significance of differences between colony-forming unit counts and changes of Avl/Rbsn-5, Rab7, and Hook localization to phagosomes was identified by bacterial content. At least 50 cells with phagosome structures containing bacteria were used for each of the quantifications. Phagosomes in >100 cells were used for the quantification of dextran/LysoTracker or dextran/bacteria.
Online supplemental material
Fig. S1 shows an in vitro calibration curve for the ratiometric signal from Oregon green/Rhodamine-labeled bacteria with different pH values. Fig. S2 shows the lack of changes in endosomal trafficking or autophagosome maturation in fob mutant cells and compares it to the reduced lysosomal delivery after loss of Vps16A or Carnation function. Fig. S3 shows in vivo binding of Fob and Vps33B and the reduced survival of E. coli–injected flies after Vps33b knockdown.
We thank Drs. David Schneider and John Abrams for critical reading of the manuscript and Drs. Akira Nakamura and Patrick Dolph for antibodies. We are grateful to Sanchali Ray for technical assistance. We would like to thank the Bloomington Stock Center for fly stocks, the Berkeley Drosophila Genome Project for producing DNA clones, the Drosophila Genomics Resource Center for their distribution, and the Developmental Studies Hybridoma Bank at the University of Iowa for antibodies. FlyBase provided important information used in this work.
This work was supported by grants from the Canadian Institutes of Health Research (CIHR; MOP-81208) to W.H.A. Kahr, the National Institutes of Health (EY10199) to H. Krämer, and the core grant EY020799.
