Nucleosomal incorporation of specialized histone variants is an important mechanism to generate different functional chromatin states. Here, we describe the identification and characterization of two novel primate-specific histone H3 variants, H3.X and H3.Y. Their messenger RNAs are found in certain human cell lines, in addition to several normal and malignant human tissues. In keeping with their primate specificity, H3.X and H3.Y are detected in different brain regions. Transgenic H3.X and H3.Y proteins are stably incorporated into chromatin in a similar fashion to the known H3 variants. Importantly, we demonstrate biochemically and by mass spectrometry that endogenous H3.Y protein exists in vivo, and that stress stimuli, such as starvation and cellular density, increase the abundance of H3.Y-expressing cells. Global transcriptome analysis revealed that knockdown of H3.Y affects cell growth and leads to changes in the expression of many genes involved in cell cycle control. Thus, H3.Y is a novel histone variant involved in the regulation of cellular responses to outside stimuli.
Chromatin, the storage and regulatory form of genetic information in eukaryotes, consists of nucleosomes that are composed of DNA and octamers of the core histones H2A, H2B, H3, and H4 (van Holde, 1988). To allow changes in chromatin structure, which are necessary to promote different biological functions, several interconnected mechanisms have evolved (for review see Bönisch et al., 2008). Among others, these include the sliding or eviction of nucleosomes by ATP-dependent chromatin remodeling machines (for review see Clapier and Cairns, 2009), posttranslational modifications (PTMs) of histone proteins (Strahl and Allis, 2000), and the exchange of canonical histones with specialized histone variants (for reviews see Pusarla and Bhargava, 2005; Bernstein and Hake, 2006). Histone variants differ in sequence and expression timing from their canonical counterparts and are enriched in chromatin of specific functional states, ranging from DNA repair and centromere determination to the regulation of gene expression. In mammals, variants of the H3, H2A, and H2B families of histones have been identified whose incorporation results in nucleosomes with novel functional and structural properties (Suto et al., 2000; Abbott et al., 2001; Angelov et al., 2003; Bao et al., 2004; Gautier et al., 2004).
To date, five different H3 variants have been found in mammals: H3.1, H3.2, H3.3, H3.1t (tH3), and CENP-A. The centromeric H3 variant CENP-A causes changes to the nucleosomal structure (Black et al., 2004) and is crucial for proper chromosome segregation (for review see Allshire and Karpen, 2008). tH3 is a testis-specific histone variant with a putative function in chromatin reorganization during spermatogenesis (Witt et al., 1996). H3.1 and H3.2 sequences are distinguishable by just one amino acid. Although expression of both is replication dependent (Ahmad and Henikoff, 2002a), they differ in their cell type expression levels as well as their enrichment of PTMs (Hake et al., 2006). Furthermore, H3.1 has been implicated in DNA damage response pathways (Polo et al., 2006) and is deposited into chromatin by the chaperone complex CAF-1 (Tagami et al., 2004), whereas H3.3 is expressed and incorporated into chromatin in a replication-independent manner by HIRA (Tagami et al., 2004). The latter variant is highly decorated with modifications associated with gene transcription (McKittrick et al., 2004; Hake et al., 2006) and is thought to be involved in activating gene expression (Ahmad and Henikoff, 2002a) and epigenetic reprogramming (for review see Santenard and Torres-Padilla, 2009).
Here, we describe the identification of two novel primate-specific histone H3 variants (H3.X and H3.Y) that are transcribed at low levels in some human cell lines and in normal and malignant tissues. Their amino acid sequences are highly similar to each other, but differ in several functionally important residues from other H3 variants, e.g., S10 and S28. Transgenic H3.X and H3.Y proteins localize to the nucleus and are stably incorporated into chromatin. We demonstrate that endogenous H3.Y protein is highly expressed in some osteosarcoma cells. Interestingly, the number of cells expressing H3.Y is increased by particular stress stimuli. Knockdown of H3.Y leads to diminished growth and changes in the expression of many genes controlling cell cycle progression. The observed presence of primate-specific histone H3 variants in specific human brain areas opens up fascinating questions about their roles in human cell determination and differentiation.
Identification of novel H3 variant genes
Using the nucleotide sequence of human histone H3.1f (HIST1H3I; available from GenBank/EMBL/DDBJ under accession no. NM_003533), we searched the public database (National Center for Biotechnology Information) and identified two highly similar genes initially annotated as pseudogenes (Fig. S1 A). These two intron-free genes, which we named H3.X (GenBank/EMBL/DDBJ accession no. LOC340096) and H3.Y (GenBank/EMBL/DDBJ accession no. LOC391769), are located on human chromosome 5 (5p15.1). Further database searches revealed the existence of similar genes in primate genomes (Pan troglodytes H3.X, GenBank/EMBL/DDBJ accession no. LOC471464; and H3.Y, GenBank/EMBL/DDBJ accession no. LOC471473; Macaca mulatta H3.X, GenBank/EMBL/DDBJ accession no. LOC718189; and H3.Y, GenBank/EMBL/DDBJ accession no. LOC718280; Fig. S1 B). Searches for these genes in other mammalian genomes yielded no positive hits, which suggests that they evolved in evolutionarily younger terms and might constitute primate-specific histones. Both human genes contain a sequence matching the translation initiation start site consensus (underline) for vertebrates (GCCGCCACCAUGGCG; Kozak, 1991; Nakagawa et al., 2008), and depending on the search program used (“polyadq” or PolyA_SVM program), H3.X and H3.Y 3′ genomic sequences of human and primate origins were predicted to include a conserved poly-A site (Tabaska and Zhang, 1999; Cheng et al., 2006). Alignment of human and primate H3.X and H3.Y coding sequences with respective human H3 variant sequences revealed a higher similarity to H3.3 than to H3.2 and H3.1 (Fig. S1 C).
H3.X and H3.Y genes are predicted to encode proteins of 146 and 135 amino acids, respectively (Fig. 1 A). Both putative variant proteins are highly similar to each other, with differences of only four amino acids in their overlapping region (89.7% identity). H3.X has an unusual long C-terminal tail with no sequence homology to other proteins (Fig. 1 A). H3.X and H3.Y display interesting changes in amino acids that are known to be posttranslationally modified in H3.1, H3.2, and H3.3: serine 10 and 28, which are phosphorylated during mitosis (Hendzel et al., 1997) and immediate early gene induction (Clayton and Mahadevan, 2003), are altered to alanine and arginine, respectively. Regions surrounding lysine 14, usually acetylated and found in actively transcribed genes (Yan and Boyd, 2006), and lysine 79, methylated in transcriptionally active regions (Im et al., 2003) and upon DNA damage (Huyen et al., 2004), are completely altered (Fig. 1 A). In several instances, single amino acid changes between novel and known H3 variants have occurred, thereby generating or eliminating potential PTM sites. The region surrounding aa 87–90 is important for the chaperone-dependent chromatin incorporation of histone variants (Ahmad and Henikoff, 2002b). CAF-1 deposits H3.1, whereas HIRA catalyzes the incorporation of H3.3 (Tagami et al., 2004). The residues of H3.X and H3.Y in this region are identical to H3.3 (Fig. 1 A), leading to the hypothesis that these putative novel variants might be incorporated by HIRA in a replication-independent manner.
To assess whether both genes are expressed in human cells, we analyzed their RNA expression levels in a variety of cell lines by quantitative PCR (qPCR; Fig. 1 B). Because the nucleotide sequences of H3.X and H3.Y are almost identical (Fig. S1 A), we generated one primer set detecting both H3.X and H3.Y mRNAs and one additional primer set that hybridizes with H3.X-specific 3′ sequences. We demonstrate that both H3.X and H3.Y genes are transcribed at low levels in the human osteosarcoma cell line U2OS, with H3.Y in higher amounts than H3.X, but ∼16-fold lower than the histone variant CENP-A (Fig. S1 D). Minimal expression of H3.Y was detected in human HEK293 cells, whereas no expression was seen in HeLa as well as in mouse cells (negative control; Fig. 1 B). These data suggest that H3.X and H3.Y genes are transcribed in some human cell lines, albeit at low total levels.
Our observation that H3.X and H3.Y mRNAs are expressed in U2OS cells inspired us to examine RNAs from different human tissues by qPCR. Of particular interest were human malignant tissues, as U2OS cells are derived from a moderately differentiated sarcoma of the tibia. We also chose to investigate several regions of the human brain and testis due to the primate-specific appearance of H3.X and H3.Y. Interestingly, we found that some bone, breast, lung, and ovary tumors express low but significant levels of H3.X/Y mRNA (Fig. 1 C). Analyzing RNA from human brain areas and testis, H3.X/Y expression was observed in all samples except for the thalamus. In contrast to all other tissues tested, H3.X mRNA could also be detected in the brain and testis samples (Fig. 1 C).
In conclusion, mRNAs of the novel primate-specific H3 variants H3.X and H3.Y are not only present in human cell lines, but are also detected in primary cells from different human organs.
Tagged H3.X and H3.Y proteins are similar to canonical histone H3 in their nuclear localization, nucleosome structure, and exchange mobility kinetics
The detection of H3.X and H3.Y mRNA in human cells prompted us to investigate their protein products. We amplified their coding sequences from U2OS cDNA and cloned them under the constitutively active cytomegalovirus promoter in frame with an N-terminal HA or GFP tag. These constructs were transfected into HeLa cells and, in the case of HA-tagged variants, at least two independent stable cell populations were selected. In both HA-H3.X– and HA-H3.Y–expressing HeLa cells, nuclear HA signals in interphase and staining of condensed chromatin in mitotic cells were observed by immunofluorescence (IF) microscopy (Fig. 2 A). Signals were also present on metaphase chromosome spreads (Fig. 2 B), which suggests that these novel tagged H3 variants are stably incorporated into chromatin and constitute core nucleosomal components. Next, we asked if the amino acid differences between H3.X, H3.Y, and other H3 variants have any impact on nucleosome structure. Thus, we calculated in silico models of H3.X and H3.Y protein structures, using the published structure of Xenopus laevis H3.2 as a template (Davey et al., 2002). With these, we computationally assembled a nucleosome containing H3.X or H3.Y. Our data show only few differences to the published structure of H3.2, with an exception being the unusual C terminus of H3.X (Fig. 3 A). Surprisingly, this extended C-terminal tail of H3.X is proposed to fold into an additional α-helix that fits into the free space of the nucleosomal core structure (Fig. 3 B, left).

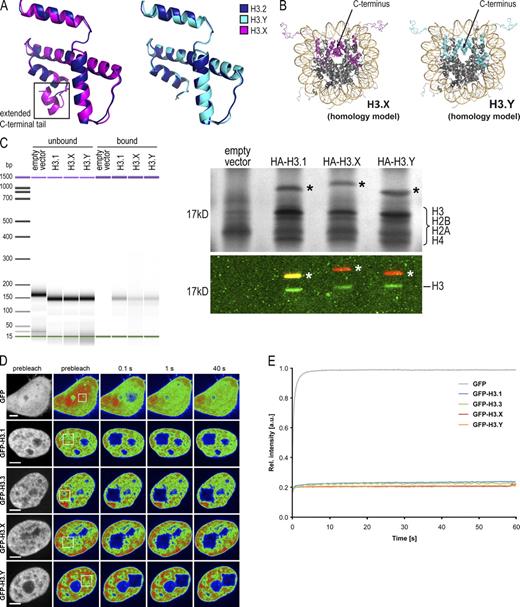

Because our in silico models proposed no dramatic changes in nucleosomal structure for H3.Y, but some differences for H3.X, we asked whether H3.X and/or H3.Y are incorporated into nucleosomes in a cellular context and whether they exhibit a similar stability compared with nucleosomes containing H3.1, H3.2, or H3.3. Immunoprecipitation (IP) of mononucleosomes generated from HeLa cells expressing HA-tagged H3 variants using an α-HA antibody confirmed the incorporation of HA-H3.X and -H3.Y into chromatin (Figs. 3 C and S2 A). Additionally, silver staining and immunoblots revealed that HA-H3.X and -H3.Y are present in nucleosomes containing all four core histones. Interestingly, HA-H3.X and -H3.Y containing mononucleosomes also contained endogenous H3 (Fig. 3 C, right), which suggests that, unlike H3.1 and H3.3 (Tagami et al., 2004), these tagged novel variants form heterotypic nucleosomes with regard to their variant composition. To assess the incorporation stability of these novel variants, we performed FRAP experiments with GFP-tagged H3 variants transiently transfected into HeLa Kyoto cells, which were chosen because of their slow cell motility. These experiments demonstrate similar dissociation kinetics for the novel GFP-tagged H3 variants compared with GFP-H3.1 and -H3.3 (Fig. 3, D and E; and Fig. S2, B–D). GFP fluorescence recovery rates of all H3 variants were very slow (>8 h; Fig. S2, B–D) in comparison to GFP alone (a few seconds; Fig. 3, D and E), which is indicative of stable chromatin-bound immobile populations.
In summary, tagged H3.X and H3.Y protein containing nucleosomes are similar in their predicted structure and indistinguishable from nucleosomes containing H3.1 or H3.3 in their FRAP mobility and chromatin-association behavior.
Endogenous H3.X/Y proteins are expressed in U2OS cells and localize to the nucleus
To characterize endogenous H3.X/Y proteins, we generated a monoclonal antibody against these variants (α-H3.X/Y; see Fig. 1 A, black line, for peptide sequence). α-H3.X/Y specificity was tested in diverse experiments using HeLa cells stably expressing HA-tagged H3 variants. Immunoblot analysis of acid-extracted histones from these cell lines revealed that α-H3.X/Y specifically recognizes HA-H3.X and -H3.Y, but not HA-H3.1, -H3.2, or -H3.3 (Fig. 4 A). In IF microscopy analyses with this antibody, HA-H3.X and -H3.Y showed an exclusive nuclear staining (Fig. S2 E), which could be confirmed to be specific for H3.X/Y by peptide competition assays (Fig. S2 F).
To analyze the expression of endogenous H3.X and H3.Y proteins, we isolated total histones from different cell lines. As a negative control, we used mouse NIH3T3 cells and, as a positive control, HeLa cells expressing HA-H3.X. Immunoblotting of these histones with α-H3.X/Y showed a faint band in the lane containing U2OS histones corresponding to the size of H3, which would be expected for H3.Y (Fig. 4 B). These data are consistent with our previous finding that U2OS cells express mostly H3.Y mRNA (Fig. 1 B). Next, we addressed the subcellular localization of endogenous H3.X and/or H3.Y in U2OS cells by confocal IF microscopy. α-H3.X/Y shows a faint and dotted staining associated with the nuclear rim in all cells, which might be due to cross-reactivity with nuclear pores. Interestingly, we also noticed that few U2OS cells showed a strong nuclear α-H3.X/Y staining, colocalizing with DNA (Fig. 4 C, arrowhead), which was not observed in cell lines of mouse or rat origin (Fig. 4 D). Some few mitotic U2OS cells, as well as metaphase chromosomes, also stained positive with α-H3.X/Y (Fig. 4, E and F, respectively), which suggested that the observed α-H3.X/Y signal marks a stable chromatin component. To shed light on the subnuclear localization of endogenous H3.X/Y in U2OS cells, we performed super-resolution (i.e., below the diffraction limit of conventional optical microscopy) imaging with 3D structured illumination microscopy (3D-SIM; Gustafsson et al., 2008; Schermelleh et al., 2008). As depicted in Fig. 4 G, H3.X/Y is predominantly located outside of DAPI-dense regions, arguing for an association of endogenous H3.X/Y with less condensed, more euchromatic regions.
Nutritional- and growth-associated stress stimuli increase the number of H3.X/Y-expressing cells
Because only ∼0.1% of U2OS cells showed a general nuclear staining with α-H3.X/Y, we wondered what cellular features distinguished these from other cells. We hypothesized that specific stress stimuli induce the nuclear α-H3.X/Y staining. To test this assumption, we induced DNA damage with different treatments (UV, etoposide, and hydroxyurea) but were unable to detect a significant increase in the percentage of cells positive for α-H3.X/Y staining (unpublished data). Next, we addressed the question of whether cell growth and nutrition could have an impact on H3.X/Y expression. Interestingly, induction of starvation and overgrowth (SO) in U2OS cells for 8 d, but not overgrowth alone (for details, see Materials and methods), led to an increase in the percentage of cells with nuclear α-H3.X/Y staining (unpublished data). To evaluate if starvation alone, or in combination with high cell density, caused this increase in α-H3.X/Y–positive cell numbers, we either subjected U2OS cells to starvation or cultivated them under SO conditions. In three independent biological experiments, we quantified (1) the percentage of α-H3.X/Y nuclear-stained cells by IF microscopy, (2) H3.X/Y mRNA levels by qPCR, and (3) H3.X/Y protein levels by immunoblot analyses. Interestingly, we observed an approximately sixfold increase in the number of α-H3.X/Y nuclear-stained cells under SO conditions, whereas starvation alone only showed a minor effect (threefold increase; Fig. 5 A). In addition, we could reproducibly show, by qPCR (Fig. 5 B) and immunoblots (Fig. 5 C), that both H3.X/Y RNA and protein are up-regulated upon SO treatment compared with normally growing cells. We observed a stronger increase of H3.X/Y- than H3.X-specific amplicons (Fig. 5 B), which suggests that H3.Y mRNA expression is specifically affected by this particular stress condition. This was further validated by a “primer-walk” experiment with several different primer pairs that span the entire H3.X or H3.Y coding sequence (Fig. S3, A–C). Additionally, the induced protein band observed in immunoblots corresponds to a protein of the size of recombinant H3.Y but not H3.X (Fig. 5 C). To assess the question of which factors in the growth medium cause the observed effect, we also analyzed α-H3.X/Y nuclear stained cells after serum starvation and amino acid depletion. However, we did not observe any significant difference caused by both treatments (unpublished data).
These data show a direct correlation between α-H3.X/Y antibody staining and the increased mRNA and protein levels due to SO treatment. Furthermore, they suggest that H3.Y expression, in particular, is positively affected by these growth conditions.
Endogenous H3.Y protein is expressed after SO treatment

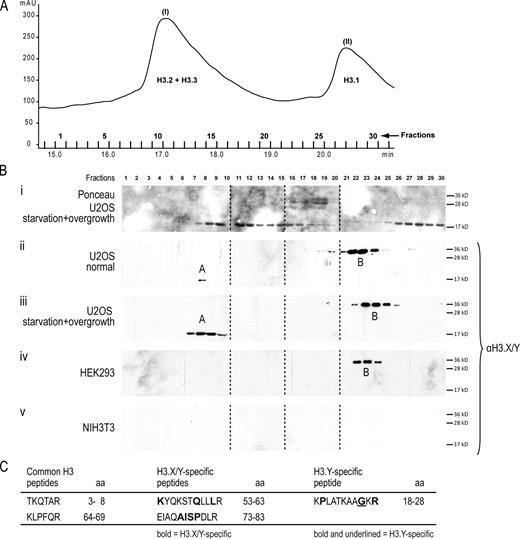

Our experiments indicate that H3.Y expression is mostly, if not exclusively, induced in U2OS cells under SO conditions. To confirm this observation, we purified histones from HEK293, NIH3T3, and SO-treated and normally grown U2OS cells by reversed-phase HPLC (RP-HPLC; Fig. S4 A). Fractions surrounding and including peaks corresponding to H3.2 and H3.3 (peak I) and H3.1 (peak II; Fig. 6 A) were analyzed by immunoblots with α-H3.X/Y. Specific signals were observed in fractions eluting at the beginning of peak I (region A bands) and between peak I and II (region B bands; Fig. 6 B). Interestingly, region A bands correspond to proteins of the molecular weight of histone H3, the predicted size of H3.Y. As expected for H3.Y, these bands are faintly visible in normally grown U2OS cells and strongly enhanced in those cultured under SO conditions. In contrast, no such bands are present in NIH3T3 and HEK293 cells. Region B bands are indicative of proteins of ∼35 kD and are clearly visible without any change in intensity in all human cell lines, but not in mouse NIH3T3 cells. Fractions corresponding to region A and B bands from SO treated cells from two independent experiments and normally grown U2OS cells were analyzed by liquid chromatography tandem mass spectrometry (LC-MS/MS). For region B fractions, no conclusive information about the protein identity could be obtained. Only one single peptide corresponding to H3.X/Y (aa 53–63) could be observed in B-type fractions, rendering the analysis of these particular fractions inconclusive. To eliminate the possibility that region B bands constitute a dimeric aggregate caused by formation of disulfide bonds between cysteines, we treated these fractions with increasing amounts of DTT (Fig. S4 B). In contrast to H3.1, H3.2, and H3.3, we did not observe a change in molecular weight for region B bands, which suggests that these particular proteins are not dimers of H3.X and/or H3.Y.
Interestingly, in region A fractions, we were able to identify two peptides specific for H3.X/Y (aa 53–63 and 73–83), in addition to the expected general H3 peptides (Figs. 6 C and S4, C and D). Furthermore, one peptide exclusively present in H3.Y but not H3.X (aa 18–28) was repeatedly detected (Figs. 6 C and S4 E), leading to a combined sequence coverage of 33% for H3.Y. Interestingly, in conjunction with unmodified H3.Y peptide, we were also able to identify acetylation of lysines 18, 23, and 27 (Fig. S4, F and G). These PTMs are also present in the known H3 variants, indicating that H3.Y was a likely part of a nucleosome and present in chromatin fibers.
In summary, these data show that posttranslationally modified H3.Y protein is expressed in vivo, and that under stress-inducing conditions, more H3.Y-expressing cells are present.
Knockdown of H3.Y affects expression of cell cycle–related genes and cell growth

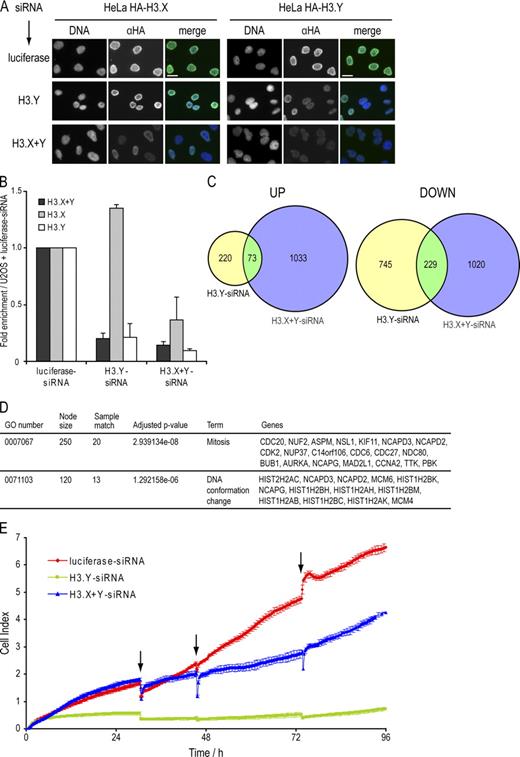

Because we could clearly demonstrate the presence of endogenous H3.Y protein in human cells, we wondered about the biological consequences of its expression. We hypothesized that the natural substitution of amino acids S10, K14, S28, and K79 in H3.Y and its preferential exclusion from DAPI-dense regions (Fig. 4 G) might result in gene expression changes at the sites of chromatin incorporation. Therefore, we used global expression arrays to examine a potential impact on the regulation of gene expression by H3.Y. We used RNAi to significantly reduce H3.Y and H3.X+H3.Y mRNAs and proteins. siRNAs directed against H3.Y, H3.X+Y, and luciferase, as control, were designed and their specificity verified by transfection of HeLa cells expressing HA-tagged H3.X and H3.Y, followed by IF analysis (Fig. 7 A). Next, we sought to quantitatively compare global RNA expression profiles after RNAi in SO-treated U2OS cells using Affymetrix Human Gene 1.0 ST Arrays (performed twice with independent transfections on different days). We verified the proper knockdown of H3.Y (and H3.X) mRNAs by qPCR (Fig. 7 B) and observed a modest but significant deregulation of genes when compared with control luciferase RNAi in global microarray analyses (Fig. 7, C and D; and Tables S1 and S2). Cells transfected with H3.Y-specific siRNAs showed 293 genes up-regulated and 974 genes down-regulated. Cells treated with H3.X+Y-specific siRNAs had 1,106 genes up-regulated and 1,249 genes down-regulated (local false discovery rate cutoff of 0.2). To eliminate off-target and sole H3.X-specific effects and to focus only on H3.Y-specific responses, Venn diagrams of overlapping deregulated genes between H3.Y- and H3.X+Y-specific siRNA changes were used. They revealed up-regulation of 73 and down-regulation of 229 shared genes (Fig. 7 C). Gene ontology (GO) enrichment analysis of the deregulated genes classified shared down-regulated genes to mainly belong to cell cycle-controlling pathways, but also chromatin organization and metabolic pathways, whereas only few GO groups of shared up-regulated genes could be determined (Tables S1 and S2). Because the majority of genes affected by H3.Y RNAi play a role in cell cycle control (mitosis), as shown by a simplified GO enrichment analysis (Fig. 7 D), and we previously noticed a reduction in cell number after H3.Y and H3.X+Y knockdown, we quantitatively determined cell growth of U2OS cells with reduced H3.Y mRNA and protein levels. Therefore, we transfected U2OS cells with different variant-specific siRNAs and quantitatively monitored cell growth for 96 h using the xCELLigence system (Roche). Interestingly, and in accordance with our global transcriptome analyses, knockdown of H3.Y and H3.X+Y, but not of control RNAi (luciferase), resulted in a significant reduction of cell growth (Fig. 7 E).
These results suggest that loss of H3.Y especially affects the expression of genes involved in cell cycle control, leading to diminished cell growth.
Neuronal cell subpopulations in human hippocampus express novel H3 variant proteins
Encouraged by our findings that endogenous H3.Y protein exists in vivo and plays an essential role in cell growth and gene regulation, we wondered if H3.Y and/or H3.X proteins are expressed in human tissue. Based on our qPCR results (Fig. 1 C), and the observation that many primate-specific genes are expressed in the brain and reproductive organs (Tay et al., 2009), we chose to analyze sections of human hippocampus in IF (Fig. 8 A).
Interestingly, some few cells in the region above the dentate gyrus (DG) of the hippocampus stained positive with α-H3.X/Y (Fig. 8 B). We determined their cellular origin by costaining with antibodies against neurons (α neuronal nuclei [α-NeuN] and astrocytes (α glial fibrillary acidic protein [α-GFAP]; Fig. S5). H3.X/Y proteins were identified in a subpopulation of neurons outside of the DG (Fig. 8, B and C). This finding is in accordance with our observation that only few U2OS cells express large amounts of H3.Y. Surprisingly, α-H3.X/Y staining of neurons displayed an enrichment in certain chromatin areas, different from that observed in U2OS cells (Fig. 4, C and G).
In conclusion, H3.X and/or H3.Y proteins are expressed in a subpopulation of neurons in the human hippocampus, highlighting the possibility that these novel histone variants might have cell type–specific functions.
Collectively, our data demonstrate that the novel histone variant H3.Y is expressed in human cells and specialized tissues, is incorporated into chromatin, is posttranslationally modified, and impacts the regulation of many genes implicated in cell cycle progression.
More than 20 yr ago, the mammalian histone H3 variants CENP-A (Palmer et al., 1987) and tH3 (Trostle-Weige et al., 1984) were found. Since then several variants of the mammalian H2A family, such as macroH2A (Pehrson and Fried, 1992) and H2A.Bbd (Chadwick and Willard, 2001), have been described, but it was long thought that all members of the histone H3 family had been identified. To better understand the role of H3 variants in chromatin-related processes, we set out to investigate if there might be even more, yet unknown, H3 variants present in mammals.
H3.X and H3.Y are primate-specific histone genes
Using the DNA sequence of human histone H3.1 in genomic searches, we have now identified two novel intron-free histone H3 variant genes on human chromosome 5, which we named H3.X and H3.Y. Sequences for H3.X and H3.Y genes were, in addition to humans, only found in chimpanzee and macaque primate genomes; sequence information of other primate genomes is unfortunately not yet available. Additional Basic Local Alignment Search Tool (BLAST) searches in mouse, rat, and other genomes did not yield any positive hits, which suggests that H3.X and H3.Y genes are present in primates, but not in other mammals or even lower eukaryotes. Both genes might be duplications from one ancestral gene, as their sequences are highly conserved even in their 5′ and 3′ untranslated regions, with only some differences in their putative promoter sequences. Phylogenetic analyses of H3.X and H3.Y coding and 3′ genomic sequences revealed a higher sequence homology to H3.3 genes than to other H3 variants, leading to the speculation that H3.X and H3.Y might be evolutionary derivatives of H3.3, although they do not contain any introns. To our knowledge, these are the first histone genes that are primate specific outside of testes and likely confer specialized chromatin functions unique to these higher vertebrates.
H3.X and H3.Y genes are both transcribed, but only H3.Y protein can be detected in vivo
So far we have obtained evidence that H3.X and especially H3.Y mRNAs are present at low but significant amounts in some human bone, breast, lung, and ovary tumor tissues, as well as in testis and certain areas of the brain. Therefore, their expression is not only found in transformed cell lines (U2OS) but also in primary human tissues. Surprisingly, we were able to verify only the existence of H3.Y but not H3.X protein in human cell lines thus far. One possibility is that alternative transcription of H3.X may occur. Two previous annotations of the H3.X locus in the NCBI database predicted several introns and different splice sites (Fig. S3 D); however, our primer walk experiment and negative qPCR data using primers specific for these splice forms (unpublished data) provided no evidence that alternative H3.X transcripts exist. Based on our results, H3.X is transcribed only at low levels in U2OS cells, and because no protein could be detected thus far, it is feasible that this particular variant is a pseudogene without any functional consequences. Alternatively and more interestingly, it is also possible that its mRNA, although it is present only at low levels in some cells, may have unknown regulatory functions and may even be influencing H3.Y gene expression. Future studies will hopefully shed more light onto a putative function of H3.X mRNA.
The number of H3.Y-expressing U2OS cells is increased by stress conditions
We showed that H3.Y mRNA and protein is present in some U2OS cells (∼0.1%) and that the number of cells expressing high levels of this novel histone variant can be increased by a stress response that involves nutritional starvation in combination with high cellular density. It is interesting to note that when calculating the amount of endogenous H3.Y mRNA per cell, we observe an ∼40-fold higher expression compared with a cell expressing HA-H3.Y mRNA. This suggests that once a cell receives a specific signal to start transcribing endogenous H3.Y or reaches a certain threshold of an unknown factor, this variant is expressed in extremely high amounts. It will be crucial to identify the physiological trigger of H3.Y expression in future studies to learn more about H3.Y’s cellular function.
Loss of H3.Y expression impacts transcriptional regulation and cell growth
To get a first glimpse on H3.Y’s potential impact on gene regulation, we knocked down H3.Y in U2OS cells using RNAi. Our global microarray data imply that H3.Y influences the transcription of several genes, either directly or indirectly. Interestingly, loss of H3.Y led to more genes being down- rather than up-regulated, which suggests that H3.Y might be involved in transcriptional activation of some genes. This is in accordance with our finding that H3.Y mainly localizes to euchromatic regions (Fig. 4 G). The majority of genes affected by H3.Y reduction are components of cell cycle– and chromatin structure–regulating pathways, leading to a significant impairment of cell growth. It is difficult to unequivocally assign a gene or group of genes as direct targets of H3.Y depletion, which would require the identification of genomic regions containing H3.Y on a global scale by chromatin IP followed by chip hybridization or sequencing. Unfortunately, IP of endogenous H3.Y protein with α-H3.X/Y antibody turned out to be insufficient with standard protocols, and therefore more time and testing will be required to work out a functional ChIP protocol. It was surprising to us that the whole U2OS cell population was equally impaired in its cell growth after H3.Y knockdown although only few cells appeared to strongly express H3.Y protein, as shown by IF quantification (Figs. 4 C and 5 A). It is therefore possible that all U2OS cells express a minimal amount of H3.Y RNA and protein, which is beyond our detection limit, but nevertheless crucial for the cell to traverse through the cell cycle. To our knowledge, only one other histone variant showed a similar effect on the expression of cell cycle–related genes after RNAi depletion: knockdown of the linker histone variant H1.2 altered the expression of ∼2% of genes genome wide (most of them being repressed), including a relevant proportion of cell cycle–related genes (Sancho et al., 2008). It is therefore not completely unlikely that H3.Y plays an important role in the regulation of genes involved in cell cycle control. It is tempting to speculate that the stress-related appearance of more U2OS cells expressing H3.Y is caused by continued cell proliferation or the prevention of cell death. One interesting observation was that knockdown of H3.Y led to stronger cell growth defects than combined H3.X+H3.Y RNAi. Because we repeatedly saw an increase of H3.X mRNA after H3.Y depletion, one speculative idea would be that H3.X and H3.Y are connected by some sort of regulatory feedback mechanism. It will be of great interest in future studies to shed light on the regulatory expression pathways of these novel variants, particularly in the context of cellular stress and their existence in neuronal subpopulations of the human hippocampus.
Materials and methods
Cell culture, cloning of H3.X and H3.Y expression constructs, and transfection
Human HeLa, HeLa Kyoto, HEK293, U2OS, mouse NIH3T3, and rat neuroblastoma cells were grown in DME medium (PAA) supplemented with 10% FCS (Sigma-Aldrich) and 1% penicillin/streptomycin (PAA) at 37°C and 5% CO2. Human Raji cells were cultured in RPMI-1640 medium (Invitrogen) supplemented with 10% FCS (Sigma-Aldrich) and 1% penicillin/streptomycin (PAA) at 37°C and 5% CO2. H3.1, H3.2, H3.3, H3.Y, and H3.X cDNA were cloned into pEGFP-C1 (Takara Bio Inc.) and pIRES-neo vector (Takara Bio Inc.) containing an HA tag (a gift from H. Dormann, Rockefeller University, New York, NY) to generate N-terminally tagged H3 variants after transfection into cell lines. For simplicity, we will refer to the EGFP-tagged constructs as GFP-tagged throughout the text. All constructs were sequenced (MWG-Biotech AG) to verify cloning and amplification accuracy. Transfections were performed with FuGene HD (Roche) according to the manufacturer’s instructions. In brief, cells were incubated with the transfection complex for 1 d, after which selection medium containing 600 µg/ml G-418 sulfate (PAA) was added. Stable cell lines were maintained in medium containing 400 µg/ml G-418 sulfate.
Expression of recombinant H3.X and H3.Y proteins in Escherichia coli
BL21-CodonPlus (DE3)-RIL bacteria (Agilent Technologies) were transformed with pET-21a(+) plasmids (EMD) containing H3.X and H3.Y cDNA. Expression of recombinant proteins was induced by incubation with 0.1% IPTG (Carl Roth) overnight and controlled through SDS-PAGE analysis of boiled bacteria (Coomassie and immunoblot).
RNA expression analysis
Total RNA was isolated using the RNeasy mini kit (QIAGEN) according to the manufacturer’s instructions. Genomic DNA contaminations were removed by performing an on-column DNase I digest (RNase-free DNase; QIAGEN). cDNA was synthesized using the ProtoScript First Strand cDNA Synthesis kit (New England Biolabs, Inc.), priming with random nonamers. qPCR analysis was performed on a LightCycler 480 (Roche) using the LightCycler 480 SYBR green I mastermix (Roche). Data analysis was performed with the advanced relative quantification tool of the LightCycler 480 software; results were normalized to HPRT1 and HMBS levels. H3.X and H3.Y primer sequences (Sigma-Aldrich) are listed in Fig. S3 C. Total RNA from different human tissues was commercially acquired from Applied Biosystems (normal lung, breast and tumor breast, and lung and ovary) and BioChain (tumor lung, breast, thyroid and bone, normal testis, cerebellum, cerebral cortex, hippocampus, thalamus, and total fetal brain).
Histone extraction and mononucleosome IP
Histones were acid extracted as described previously (Shechter et al., 2007). In brief, nuclei were isolated by hypotonic lysis and extracted using 0.4 M sulfuric acid. Soluble histones were precipitated with trichloroacetic acid and resuspended in water.
Mononucleosomes for IP experiments were generated as described previously (Wysocka et al., 2001), with the following changes: For cell lysis, 0.1% NP-40 was used instead of Triton X-100. All centrifugation steps before MNase treatment were performed at 3,200 g. Mononucleosomes were generated by digestion of chromatin with 0.25 U MNase (Sigma-Aldrich) for 15 min in buffer A (10 mM Hepes, pH 7.9, 10 mM KCl, 1.5 mM MgCl2, 0.34 M sucrose, 10% glycerol [vol/vol], 1 mM DTT, and protease inhibitor cocktail [Roche] plus 1 mM CaCl2) and stopped by the addition of EGTA (final concentration of 2 mM). Centrifugation was performed at 20,000 g for 20 min. Supernatants of four MNase digests were combined, and salt concentration was adjusted to 150 mM KCl. Magnetic beads (Invitrogen) were washed four times with buffer C (20 mM Hepes/KOH, pH 7.9, 20% [vol/vol] glycerol, 0.2 mM EDTA, 0.2% [vol/vol] Triton X-100, 300 mM KCl, and protease inhibitor cocktail [Roche]). One part was evaluated for DNA size and quality using DNA 1000 reagents (Agilent Technologies) with the 2100 Bioanalyzer (Agilent Technologies), another part was analyzed by immunoblotting using the Odyssey infrared imaging system (LI-COR Biosciences) and evaluated with Odyssey Software Version 2.1 (LI-COR Biosciences), and the last part was analyzed by silver staining.
To generate an antibody against H3.X and H3.Y (α-H3.X/Y), a peptide spanning amino acids KATAWQAPRKLP of histone H3.X and H3.Y was synthesized (Peptide Specialty Laboratories GmbH) and coupled to BSA and ovalbumin, respectively. Rats were immunized subcutaneously and intraperitoneally with a mixture of 50 µg peptide-ovalbumin, 5 nmol CPG oligonucleotide (TIB MOLBIOL GmbH), 500 µl PBS, and 500 µl of incomplete Freund’s adjuvant. A boost without adjuvant was given 6 wk after the primary injection. Fusion was performed using standard procedures (Köhler and Milstein, 1975). Supernatants were tested by differential ELISA with the histone peptide coupled to BSA and an irrelevant peptide coupled to the same carrier. Monoclonal antibodies that reacted specifically with the peptide were further analyzed in immunoblot and IF studies. α-H3.X/Y clone 8H6-2111 of rat IgG2a subclass was deployed in this study.
The following primary antibodies were used in this study: α-HA (clone 12CA5; Roche), α-H3S10ph (Millipore), α-H3 (C terminus; Abcam), α-NeuN (Millipore), and α-GFAP (Dako).
The following secondary antibodies were used: α-rat HRP and α-rabbit HRP (GE Healthcare); α-mouse–IRDye700DX and α-rabbit–IRDye800DX (Rockland Immunochemicals, Inc.); α-rat–Alexa Fluor 488, α-mouse–Alexa Fluor 488, and streptavidin-Alexa 555 (Invitrogen); and α-rabbit–Rhodamine red X and α-rabbit–Cy5 (Dianova, Inc.); and α-rat–biotin (Vector Laboratories).
Adherent mammalian cells were grown on coverslips, washed, fixed in 1% or 3.7% formaldehyde–PBS solution, permeabilized with 0.1% or 0.5% Triton X-100–PBS solution, and blocked with 1% BSA in 0.1% or 0.5% Triton X-100–PBS solution. After stepwise incubation with primary and then secondary fluorescent antibody, cells were stained with DAPI (Invitrogen) and mounted with a ProLong Antifade kit (Invitrogen). Samples for 3D-SIM were prepared on precision cover glass No. 1.5 (thickness 0.170 ± 0.005 mm; Carl Roth) and embedded in Vectashield mounting medium (Vector Laboratories). Chromosome spreads were generated as described previously (Hake et al., 2005). For confocal microscopy, samples were stained with To-Pro3 (Invitrogen) and mounted with Vectashield mounting medium (Vector Laboratories).
For FRAP experiments, human HeLa Kyoto cells were transiently transfected with GFP-tagged histone H3 constructs. After 24 h, cells were seeded in Lab-Tek chamber slides (Thermo Fisher Scientific) and incubated for several hours or overnight before performing FRAP experiments. FRAP was performed on a spinning disc microscope (UltraVIEW VoX; PerkinElmer) with an integrated FRAP PhotoKinesis accessory (PerkinElmer) assembled to an Axio Observer D1 stand (Carl Zeiss, Inc.). The microscope was equipped with a heated environmental chamber set to 37°C and CO2 perfusion set to 5%. For photobleaching experiments, several square bleach regions with a size of 5 × 5 µm were positioned on selected cell nuclei within the field of view. Photobleaching was performed using two iterations with the acousto-optical tunable filter of the 488-nm and the 514-nm laser line set to 100% transmission. To determine long-term recovery kinetics, 3D image stacks of 8-µm height and a z distance between image planes of 1 µm were recorded with an initial speed of 1 frame/min for the first 10 frames, followed by intervals of 10 min.
Quantitative evaluations were performed with ImageJ (http://rsb.info.nih.gov/ij/). Lateral and rotational movements of the cell nucleus were corrected by image registration using the StackReg plug-in of ImageJ. Mean intensities over time were extracted from the total nuclear area (T). The background ROI outside of the cell was defined manually from the initial field of view. The mean gray values over time were measured, background subtracted, and normalized to the respective means of the last prebleach values. The resulting postbleach B values were then divided by the respective T value to correct for the superimposed gain or loss of total fluorescence during postbleach acquisition, potentially caused by newly synthesized GFP-histones, bleaching-by-acquisition, and flux of residual fluorescence from above and below the recorded optical plane.
α-H3.X/Y antibody was incubated for 4 h at 4°C with the following peptides (1 µg/ml) prior to addition to the fixed cells: biotin-coupled H3.3 unmodified, aa 22–41 (Proteomics Resource Center of the Rockefeller University); and H3.X/Y unmodified, aa 9–20 (Peptide Specialty Laboratories GmbH).
Commercially available frozen sections of human hippocampus (Biochain) were thawed and blocked with 0.5% BSA in 0.5% Triton X-100–PBS solution. After stepwise incubation with primary and then secondary fluorescent antibodies, cells were stained with DAPI (Invitrogen) and mounted with Aqua-Poly/Mount (Polysciences, Inc.). To enhance α-H3.X/Y signals, samples were incubated with a biotin-coupled α-rat antibody (Vector Laboratories), followed by streptavidin coupled to an Alexa 555 fluorophore (Invitrogen).
Unless stated otherwise, samples were kept at room temperature during image acquisition. Stained cells were analyzed on a microscope (Axiovert 200M) with an EC Plan-Neofluar 40×/1.3 NA oil Ph3 (differential interference contrast [DIC] III) objective (both from Carl Zeiss, Inc.). Images were processed with AxioVision software (Carl Zeiss, Inc.). Confocal imaging was performed with a confocal microscope (LSM 510 META; Carl Zeiss, Inc.) equipped with an argon-ion and two helium-ion lasers using a Plan-Apochromat 63×/1.4 NA oil DIC or a Plan-Neofluar 40×/1.3 NA oil DIC objective lens (both from Carl Zeiss, Inc.). Images were processed with LSM 510 META software (Carl Zeiss, Inc.). Images of metaphase chromosome spreads were acquired using a personalDV wide-field epifluorescence microscope (Applied Precision) equipped with a 60×/1.42 NA Plan-Apochromat oil objective lens (Olympus) and a CoolSNAP HQ2 charge-coupled device (CCD) camera (Photometrics). Typically, stacks with a z distance of 200 nm were recorded and then subjected to a constrained iterative deconvolution (enhanced ratio, 10 cycles, medium noise filtering) using the SoftWoRx 3.7 imaging software package (Applied Precision). For a description about the microscopic setup used for FRAP, see the description for in the FRAP section. Imaging with 3D-SIM was performed with an DeltaVision OMX v3 prototype (Applied Precision) equipped with high-power diode lasers with wavelengths of 405, 488 and 592.2 nm; a 100×/1.4 NA Plan-Apochromat oil objective lens (Olympus); and Cascade II:512 EM CCD cameras (Photometrics). Laser light is directed through a movable optical grating to generate a fine-striped illumination pattern on the sample plane. Image stacks with 15 images per plane (five phases, three angles) and a z distance of 125 nm were acquired and subjected to a computational reconstruction to obtain a high-resolution 3D dataset with a twofold enhanced optical resolution in all three special directions compared with conventional light microscopy (Gustafsson et al., 2008; Schermelleh et al., 2008). Immunohistochemistry samples were analyzed using a confocal LSM 710 microscope (Carl Zeiss, Inc.) equipped with three argon, one diode-pumped solid-state, one helium, and one diode laser. Images were acquired using an EC Plan-Neofluar 10×/0.3 NA M27, an LD C-Apochromat 40×/1.1 W Korr M27 (water), or a LCI Plan-Neofluar 63×/1.3-mm Korr Ph3 M27 (water) objective lens (all from Carl Zeiss, Inc.), and Image processing was performed with ZEN 2009 (Carl Zeiss, Inc.) software.
For downstream image processing of all microscope images, Photoshop (Adobe) software packages were used.
In silico modeling
To generate homology models from protein sequences, we used the I-TASSER server (Zhang, 2008). I-TASSER combines threading, assembly, and refinement to generate 3D models. For sequences of both H3.X and H3.Y, the server automatically selected as a template the chain A (histone H3.2), PDB accession no. 1kx5. This structure was obtained using X. laevis histones assembled into nucleosomes with 147 bp of DNA from Homo sapiens (Davey et al., 2002). The model for H3.X had a C score of 0.07, and the model for H3.Y had a C score of 1.50. In both cases, the second-best model had a considerably lower C score. Datasets of the models were downloaded and visualized by means of the Swiss-PdbViewer (Guex and Peitsch, 1997) and PyMOL (DeLano Scientific LLC; http://www.pymol.org).
RP-HPLC and MS/MS
Histones from U2OS, HEK293, and NIH3T3 cells were separated by RP-HPLC on a C4 column (250 × 4.6-mm Jupiter, 10 µm, 300 Å; Phenomenex) using a linear gradient of 35–53% solvent B (solvent A, 0.1% trifluoroacetic acid; solvent B, 99.92% acetonitrile and 0.08% trifluoroacetic acid) over 30 min at 1.0 ml/min on a Biotech Ettan microLC (GE Healthcare). The H3-containing fractions were dried under vacuum and stored at −20°C. For mass spectrometry analysis, RP-HPLC fractions containing histones were resolved in 0.1 M ammonium bicarbonate and digested. Proteolytic digestions were performed overnight at 37°C with sequencing grade trypsin (Promega). In this case, histones were chemically modified beforehand by treatment with propionic anhydride (Merck) to convert free amino groups of lysine residues to propionic amides. After digestion, samples were directly loaded onto a nano electrospray ionization (ESI) LC-MS/MS for protein identification. Each sample was first separated on a C18 reversed phase column via a linear acetonitrile (Sigma-Aldrich) gradient (UltiMate 3000 system [Dionex] and an LC Packings column; 75 µm inner diameter × 15 cm, packed with C18 PepMap, 3 µm, 100 Å) before MS and MS/MS spectra were recorded on an Orbitrap mass spectrometer (Thermo Fisher Scientific). The resulting data were analyzed via the Mascot Software (Matrix Science) using a home-made database that contains the diverse H3 sequences. Fragment spectra were also interpreted manually.
RNAi and growth curve
siRNAs were designed using siDESIGN Center (http://www.dharmacon.com/designcenter/designcenterpage.aspx; Thermo Fisher Scientific) and synthesized (MWG-Biotech AG). siRNAs have been prevalidated to confirm their targeting specificity to H3.Y or H3.X+H3.Y and to reduce the chance of off-target effects by BLAST searches (NCBI). The following double-stranded siRNAs, which had differences of at least three nucleotides from other targets, were used. Luciferase, 5′-CUUACGCUGAGUACUUCGA-3′; H3.Y, 5′-CCGCAGAGAGGGUCCUUAA-3′; H3.X+Y, 5′-GCGGGAAAUCAGAAAGUAC-3′. Cells were transfected twice with siRNAs using oligofectamine (Invitrogen) according to the manufacturer’s instructions. 4 d after transfection, cells were used for various assays. Determination of cell growth after RNAi was performed using xCELLigence system (Roche). Cells were seeded in E plates 1 d after the second siRNA transfection. Cell growth was monitored over the next 4 d. To eliminate side effects caused by the lack of nutrients or the accumulation of waste products, growth medium was exchanged every day.
Total RNA preparations were further purified with the RNeasy MinElute Cleanup kit (QIAGEN). 100 ng of RNA were used as starting material for all target preparations. RNA amplification, labeling, and hybridization to Human Gene 1.0 ST Arrays (Affymetrix) were performed according to the Human Gene 1.0 ST Array kit protocol (Affymetrix). The raw microarray data were processed in R/Bioconductor (http://www.bioconductor.org/) as follows: gene-based expression values were calculated using the robust multichip average (RMA) method provided by the oligo package. Genes that had a log2 expression value of at least 4 in at least one of the treatment conditions were kept for downstream analyses. Differential expression estimation was based on a moderated t statistic (limma package) with subsequent calculation of the local false discovery rate (lfdr; locfdr package). Genes were classified as responders by an lfdr cutoff of 0.2. GO enrichment analysis was performed using a hypergeometric distribution test and subsequent Bonferroni correction as supplied by the GOHyperGALL script (http://faculty.ucr.edu/∼tgirke/Documents/R_BioCond/My_R_Scripts/GOHyperGAll.txt). We reduced term redundancy by applying the GOHyperGAll_Simplify function with a P-value cutoff of 0.001.
Online supplemental material
Fig. S1 shows H3.X and H3.Y alignments, evolutionary origin, and expression level determination. Fig. S2 shows analysis of H3.X- and H3.Y-containing nucleosomes, and α-H3.X/Y antibody specificity determination. Fig. S3 shows evaluation of human H3.X sequences and inducible endogenous H3.X and H3.Y gene expression. Fig. S4 shows purification and mass spectrometrical identification of endogenous H3.Y protein. Fig. S5 shows H3.X/Y expression in the human hippocampus. Table S1 shows a GO list with shared up-regulated genes after H3.Y knockdown. Table S2 shows a GO list with shared down-regulated genes after H3.Y knockdown.
