Cilia and flagella are highly conserved microtubule (MT)-based organelles with motile and sensory functions, and ciliary defects have been linked to several human diseases. The 9 + 2 structure of motile axonemes contains nine MT doublets interconnected by nexin links, which surround a central pair of singlet MTs. Motility is generated by the orchestrated activity of thousands of dynein motors, which drive interdoublet sliding. A key regulator of motor activity is the dynein regulatory complex (DRC), but detailed structural information is lacking. Using cryoelectron tomography of wild-type and mutant axonemes from Chlamydomonas reinhardtii, we visualized the DRC in situ at molecular resolution. We present the three-dimensional structure of the DRC, including a model for its subunit organization and intermolecular connections that establish the DRC as a major regulatory node. We further demonstrate that the DRC is the nexin link, which is thought to be critical for the generation of axonemal bending.
Cilia and flagella are important eukaryotic organelles that perform both motile and sensory functions. Most cell types in the human body assemble cilia, and they perform essential tasks throughout the life cycle, from early embryonic development to reproduction (Fliegauf et al., 2007). Cilia are also critical in the proper functioning of many organs, and thus, ciliary defects are associated with several diseases such as polycystic kidney disease, primary ciliary dyskinesia, Bardet-Biedl syndrome, infertility, and hydrocephalus (Fliegauf et al., 2007).
The core structure of most motile cilia and flagella, the 9 + 2 axoneme, is conserved from single-celled protists to mammals. It contains a central pair (CP) of singlet microtubules (MTs) surrounded by nine outer MT doublets (MTDs; Fig. 1 B). Each doublet contains a sequence of identical building blocks, which repeat longitudinally every 96 nm (Fig. 1 A). Neighboring doublets are interconnected circumferentially by nexin links and are attached to the CP of MTs through radial spokes (RSs; Fig. 1 B). The dynein motors responsible for motility are organized into two rows of outer and inner arms along the length of the doublets (Fig. 1, A and B). The axonemal dyneins are anchored to the A-tubule of each doublet in an ATP-insensitive manner and walk along the B-tubule of the neighboring doublet in an ATP-sensitive fashion, generating a local sliding motion between the doublets. Structures that restrict sliding such as the nexin links transform MT sliding into axonemal bending (Fig. 1, C and D; Satir, 1968; Summers and Gibbons, 1971).
Dyneins are minus end–directed motors (Sale and Satir, 1977), and their unidirectional movement along a B-tubule induces bending in one direction, whereas dyneins located on the opposite side of the axoneme induce bending in the opposite direction (Fig. 1, C and D; Satir, 1985). If all dyneins were active simultaneously, no effective beating and net propulsion would be produced. Therefore, to generate the ciliary and flagellar waveforms, dynein activity must be coordinated both along the length and around the circumference of the organelle (Satir, 1985; Smith and Sale, 1992). Structures important for the coordination of dynein activity include the CP complex, the RSs, the I1 inner arm dynein, and the dynein regulatory complex (DRC; Witman et al., 1978; Smith and Sale, 1992; Piperno et al., 1994; Smith, 2002; Bower et al., 2009). Signals are transmitted from the CP complex through the RSs to the inner dynein arms (IDAs). Both the intermediate chain–light chain (IC–LC) complex of the I1 dynein and the DRC are thought to distribute these signals to the IDAs and through the outer dynein–inner dynein (OID) linkers to the outer dynein arms (ODAs; Fig. 1; Nicastro et al., 2006).
Significant progress has been made on the identification of regulatory components within the CP (Mitchell, 2009) and RSs (Yang et al., 2006). Within the I1 dynein, the phosphorylation state of the intermediate chain IC138 is important for regulating MT sliding (Bower et al., 2009). Dynein activity also changes in response to changes in calcium concentration, perhaps a consequence of the calmodulin-containing complex associated with RSs (Dymek and Smith, 2007). Less is known about the structure and regulatory mechanism of the DRC. DRC4 is the PF2 gene product in Chlamydomonas reinhardtii and the only DRC component identified thus far (Rupp and Porter, 2003). Highly conserved orthologues have been identified in other species, in which they also play critical roles in ciliary and flagellar motility (Yeh et al., 2002; Rupp and Porter, 2003; Ralston and Hill, 2006; Colantonio et al., 2009).
The DRC is proposed to regulate dynein activity because mutations in DRC subunits (Table I) can suppress the paralysis caused by mutations in the RSs or CP (Brokaw et al., 1982; Huang et al., 1982; Piperno et al., 1994). The four drc mutants analyzed in this study exhibit distinct but overlapping defects in the assembly of at least seven axonemal polypeptides that are proposed to function as intermediates in the signaling pathway between the RSs and dynein arms (Table I). The structure of the DRC has previously been studied by EM of chemically fixed wild-type (WT) and drc mutant axonemes (Mastronarde et al., 1992; Gardner et al., 1994). When viewed in longitudinal section, the missing structure corresponded to a crescent-shaped density located between RS 2 and the ODAs (Fig. 1 A); however, specimen preparation limited image resolution (McIntosh et al., 2005). Recent advances in cryoelectron tomography (cryo-ET) now permit examination of the flagellum in its nearly native state (Nicastro et al., 2005, 2006; Bui et al., 2008). The 3D maps generated by cryo-ET have revealed new features such as the OID linkers and the first 3D views of the DRC in WT samples (Nicastro et al., 2006). However, to better understand how the DRC regulates dynein activity and flagellar beating, we need higher resolution images of the DRC and its interactions with other axonemal structures in both WT and mutant axonemes.
The nexin link is important for the transformation of interdoublet sliding into axonemal bending (Summers and Gibbons, 1971; Warner, 1976). It was first discovered in EM images of axoneme cross sections as a structure linking neighboring MTDs (Gibbons, 1963). Later, freeze fracture experiments also visualized a candidate structure with bipartite ending (Bozkurt and Woolley, 1993). However, the identity of the nexin link has been a mystery for ∼50 yr. No mutations or proteins have been unambiguously associated with the structure, and its mechanical properties are the subject of ongoing debate (Minoura et al., 1999; Lindemann et al., 2005). Although cryo-ET studies of the axoneme have provided new information, the precise location of the nexin link within the 96-nm repeat remains controversial (Nicastro et al., 2006; Bui et al., 2008).
Using cryo-ET, we studied the 3D structure of the DRC in WT and mutant axonemes of C. reinhardtii. Our study sheds light onto an old mystery: we demonstrate that the DRC is the nexin link. These results provide new insights into the protein composition of the nexin link and its potential functions. Moreover, we observed new connections between the DRC and other axonemal structures, indicating that the DRC is a central hub in the regulation of cilia and flagella.
Based on their quality, 24 tomograms of intact, frozen-hydrated axonemes from six different strains were selected for tomographic averaging (Table II); selection criteria included good alignment and high signal to noise ratio as well as the absence of significant compression or distortion of the specimen (Fig. S1). For each sample, between 400 and 720 axonemal repeats from all MTDs were aligned and averaged in three dimensions, resulting in averaged volumes of the entire 96-nm repeat, including the MTs, RSs, IDAs, ODAs, and DRC (Fig. 2, A–I). The resolution of the final averages ranged from 3.2 to 4.0 nm, and, because we averaged multiple 96-nm repeats from different doublets around the axoneme, the resolution was relatively isotropic (Fig. S1 M and Table II).
The architecture of the DRC in WT axonemes
Previous work showed that the DRC is located in the distal half of the 96-nm repeat (Mastronarde et al., 1992; Gardner et al., 1994). By comparing the two most severe drc mutants, pf2 and pf3, which together lack at least seven DRC components (Table I), we show in this study that the WT DRC is more complex and extended than previously reported (Fig. 2 and see Fig. 4), with a total length of ∼50 nm (Fig. 2, A, D, G, and J; Fig. 3 C; and Video 1).
Transformation of the pf2 mutant with a GFP-tagged version of the WT PF2 gene rescues the motility defects (Bower, R., personal communication). Averages of WT and the rescued strain, which we denote pseudo-WT (pWT), are almost identical along the 96-nm repeat (Fig. 2, compare A–C, G, and H with D–F and I). However, some structural details such as the dynein stalks and tails are more easily visualized in the pWT averages (Figs. 2 D and 3 B and Fig. S3). Other minor variances between the WT and pWT structures such as differences in the thickness of some connections can be accounted for by differences in resolution. Therefore, we used averaged tomograms from both strains to identify the major domains within the structure of the WT DRC (Figs. 2 and 3 and Fig. S2).
The DRC contains two distinct domains, a base plate that is attached to the A-tubule and a linker that connects to the B-tubule of the neighboring doublet
The DRC can be subdivided into two distinct parts (Fig. 2 and Video 1). The first part is the base plate, which is attached to the underside of the A-tubule that faces the axoneme center (Fig. 2 J). The second part is the linker, which extends away from the A-tubule toward the B-tubule of the neighboring MTD (Fig. 2, G and J; Fig. 3, A–E; and Fig. S2, D–F). The base plate is located distal to RS 2 and extends from the junction of the A- and B-tubules to protofilament 4 of the A-tubule (Fig. 2 J). The base plate appears to be directly connected to the B11 density at the A-tubule–B-tubule junction (Fig. 2, G and J; and Fig. S2, I and J), and it also has one short appendage, the base plate protrusion (Fig. 2, J and K). Just proximal to the base plate connection, a 3–4-nm hole penetrates the MT wall at the B11 density (Fig. 4, P–S; and Fig. S2, G–J). From the volume measured in the tomographic averages, we estimated the molecular mass of the base plate to be ∼300–350 kD (see Materials and methods for details).
The DRC linker begins at protofilament A4 and projects into the gap between neighboring doublets (Figs. 2 J and 3 C). The central region contains at least three different protrusions (L1, L2, and the distal OID linker; Fig. 2, H–J), and its total mass is estimated at ∼1–1.2 MD. The L1 protrusion connects to inner arm dynein IA5 (Fig. 2 J and Fig. S3), and the OID linker connects the DRC to the ODAs (Nicastro et al., 2006). As the DRC linker approaches the neighboring doublet, it branches into two distinct lobes (Fig. 2 K). The proximal lobe is at least twice the size of the distal lobe, but both lobes connect to protofilament B8 of the neighboring B-tubule (Fig. 3, A–E; Fig. S2, D–F; and Fig. S3). Therefore, the DRC forms a continuous connection from the A-tubule to the B-tubule of the neighboring MTD (Fig. 3, C–E; Fig. S2, D–F; and Figs. S3 and S5 N). As the DRC is the only structure besides the dynein arms that connects adjacent outer doublets (Fig. 3, A–C; and Fig. S3 and S5, A–D), we conclude that the DRC is in fact the nexin link (Fig. S5, M–O).
Connections between the DRC and other structures in the 96-nm repeat
The DRC makes 10 connections to structures in the 96-nm repeat (Fig. 3, Fig. S2, and Video 2). Connections 1–3 are mentioned in the previous section (1a and 1b, proximal and distal lobes; 2, connection to the B11 structure; 3, OID linker) and are described in greater detail in Fig. 3 and Fig. S2. Connection 4 is the attachment of the dynein tail of IA4 to the base plate (Fig. 3 F and Fig. S2, C and E), and connection 5 is the connection between the L1 protrusion and IA5 dynein head domain (Figs. 2 J and 3, D and F; and Fig. S2, C and E).
Connections 6–10 are thin and most easily observed in the averages with the best resolution (Fig. 3, D–G; and Fig. S2, B–F). The proximal and distal lobes of the B-tubule linker appear to be interconnected by a thin bridge (6; Fig. 3, F and G; and Fig. S2, C–F), and the distal lobe is also connected to the L1 protrusion (7; Figs. 2 K and 3, D, F, and G; and Fig. S2, D–F). In addition, the base plate appears to connect to the base of RS 2 (8; Fig. S2 J). In pWT and sup-pf-4, we observed a fine connection (9) between the DRC linker and another structure just proximal of the DRC that connects to the IC–LC complex of the I1 inner dynein (Fig. 3, E and F; Fig. S2, A, B, E, and F; and Fig. S3). Finally, the DRC connects on its distal side to an uncharacterized structure (10; Fig. 3, A, B, D, F, and G; and Fig. S2, E and F).
sup-pf-4, the distal lobe and its connection to the neighboring B-tubule are reduced
Cryo-ET of sup-pf-4 axonemes demonstrates the sensitivity of our approach for revealing structural details within the DRC. The sup-pf-4 strain was isolated as a suppressor of RS paralysis, and it is most similar to WT with respect to its motility phenotype (Table II). It only lacks two polypeptides (Table I; Huang et al., 1982), but a previous EM study of sup-pf-4 did not identify any clear differences in the DRC structure (Gardner et al., 1994). However, cryo-ET of sup-pf-4 axonemes has revealed that most of the distal lobe of the linker (Fig. 4, B and L; and Fig. S5, E and F) as well as the entire L2 projection (Fig. 4, G and L) are missing. This significantly reduces the size of distal lobe connection (1b) to the adjacent B-tubule (Fig. 4, B and L; Fig. 5 B; and Fig. S4, C–F). No differences have been observed in any other DRC domains. The estimated mass of missing density in sup-pf-4 is ∼300 kD.
sup-pf-3 and pf2 show significant changes in all parts of the DRC linker
Previous studies have shown that the sup-pf-3 mutation is associated with more significant polypeptide deficiencies and structural defects than sup-pf-4 (Table I; Huang et al., 1982; Gardner et al., 1994). Consistent with these observations, the tomographic average of sup-pf-3 showed large deficiencies in the DRC linker region. Its mass was reduced by ∼1 MD, and missing structures included the L2 projection and both the proximal and distal lobes of the linker (Fig. 4, C, H, and M; and Fig. 5 C). Thus, the entire connection to the neighboring B-tubule was lost, and the total length of the linker was reduced to ∼36 nm (Fig. 4, H and M; Fig. 5 C; Fig. S4, G–J; and Fig. S5, G and H). Relative to WT, both the OID linker and the L1 projection were reduced in density in the tomographic averages (Fig. 4, C, H, and M), as was the density of IA4 (see the smaller size of the IA4 dynein head in Fig. 4 C).
The tomographic average of pf2 axonemes (Fig. 4, D, I, N, and S; Fig. 5 D; and Fig. S4, K–N) displayed larger deficiencies in the DRC structure than those of either sup-pf-4 or sup-pf-3 (compare Fig. 5 [B–D] with Fig. S5 [E–J]), which is consistent with previous studies (Table I; Mastronarde et al., 1992; Gardner et al., 1994). In pf2, the DRC linker was almost completely reduced, and the missing structures included the proximal and distal lobe, all three linker projections (L1, L2, and the OID linker), and a major part of the central DRC linker (Fig. 4, D, I, and N). Only a small density of ∼70 kD was observed at the transition between linker and base plate (Fig. 4, D and I). The pf2 averages also showed that the base plate protrusion was missing (Fig. 4, D, I, and S). We estimate the mass of the DRC remaining in pf2 to be ∼240 kD, or only ∼15% of the WT DRC structure. In addition, the two inner arm dyneins most closely associated with the DRC were mostly (IA4) and slightly (IA5) reduced (Fig. 4 D). These observations are consistent with previous studies of inner arm defects in pf2 (Gardner et al., 1994; Piperno et al., 1994; Bui et al., 2008).
Both the linker and base plate of the DRC are significantly reduced in
The polypeptide defects observed in pf3 axonemes are the most severe reported thus far and also affected a different subset of DRC subunits (Table I). Tomographic averages of pf3 axonemes also showed the largest differences in the structure of the DRC. We estimate the missing density to be ∼1.3 MD. The major difference between pf3 and other drc mutants was the extent of the defect in the base plate, which was completely missing (Fig. 4, E, J, and T; Fig. 5 E; Fig. S4, O–R; and Fig. S5, K and L), including the connection to the B11 density at the A-tubule–B-tubule junction (Fig. 4, J and T). Moreover, the pf3 average was the only one that did not have a hole through the B11 density (Fig. 4, compare T with P–S). The surface of the A-tubule normally occupied by the base plate appeared smooth and indistinguishable from neighboring regions (Fig. 4 T). Defects in the IDA of pf3 were more extensive than those of pf2: IA4 was completely missing, and IA5 was reduced (Fig. 4 E).
The tomograms of pf3 axonemes also showed significant differences in the linker region, although they did retain more of the linker (Fig. 4, E and J; and Fig. 5 E) than either sup-pf-3 or pf2. However, the pf3 average lacked both the proximal and distal lobes that connect to the neighboring B-tubule as well as the L2 projection (Fig. 4, E, J, and O). A small OID projection appeared to be present, but it was not connected to the ODAs (Fig. 4 J).
Cryo-ET reveals that the WT DRC is a large and extended structure
Cryo-ET and volume averaging have been used to characterize the structure of the ODAs and IDAs (Nicastro et al., 2005; Ishikawa et al., 2007; Bui et al., 2008) and have revealed that the DRC is connected to other structures within the 96-nm repeat (Nicastro et al., 2006). However, the results shown in this study represent higher resolution structures (up to 3.2 nm) of intact axonemes (Fig. S1). Previous EM studies showed that the DRC is a large structure at the distal end of the repeat (Fig. 1 A), but the resolution was limited by the methods for structural preservation (Mastronarde et al., 1992; Gardner et al., 1994). Using rapid freezing, we preserved the structure in a close to native state and, with averaging, reconstructed the 96-nm unit with almost isotropic resolution from the RS heads to the ODAs (Fig. S1 M).
The increased resolution allowed us to see new domains within the complex structure of the DRC and to identify changes in the drc mutants not previously detected. The mutant structures were essential for determining the overall extension of the DRC structure. For instance, the presence of the DRC base plate and the extension of the DRC linker all the way to the neighboring B-tubule were both unexpected findings (Figs. 2 and 3 and Figs. S2 and S5). That the base plate is part of the DRC is supported by the observation that it is directly connected to the DRC linker (Fig. 2 and Fig. S3); however, the more crucial observation is that averages of the pf3 mutant lack the entire base plate and both lobes of the DRC linker (Fig. 4, E, J, O, and T). Therefore, the intact DRC stretches from the junction between the A- and B-tubules of one outer doublet across the interdoublet space to the B-tubule of the neighboring doublet, giving it an overall length of ∼50 nm in cross section (Fig. 2 J and Fig. S5, N and O). Features of the DRC structure not seen previously include the hole through the B11 density at the B-tubule junction and the high connectivity to other axonemal structures (Fig. 3 and Fig. S2).
The DRC is the nexin link
The nexin link, originally seen by Gibbons (1963) in cross sections and later called the circumferential link (Fig. S5 M) is thought to be an elastic element involved in the conversion of sliding to bending (Satir, 1968, 1985), but the component proteins are unknown (Lindemann et al., 2005). Our images show that the DRC is the only structure, besides the IDAs and ODAs, that connects from the A-tubule of one doublet to the B-tubule of the neighboring doublet (Fig. 3, A–C; and Figs. S3 and S5) and therefore must be the nexin link. We suggest the term the nexin-DRC (NDRC).
The suggestion that the nexin link is in close proximity to or part of the DRC is not entirely new (Mastronarde et al., 1992; Gardner et al., 1994; Woolley, 1997; Nicastro et al., 2006). However, others have suggested that a density distal of the DRC is the nexin link (Bui et al., 2008). We also identify this distal density in our images (colored light green in Fig. 2, G–I; Fig. 3 C; and Fig. S2, D–F), but it is only ∼17 nm in length, i.e., ∼10 nm shy of connecting to the neighboring B-tubule (Fig. 3 C; Fig. S2, D–F; and Fig. S3). At our resolution, we see no evidence of connections between this distal density and the DRC or between this density and the neighboring B-tubule, which suggests that it is not part of the nexin link.
Location of DRC subunits within the NDRC
The drc mutants were previously characterized by SDS-PAGE, and to date, seven DRC subunits have been described as missing spots or bands in different mutants (Huang et al., 1982; Piperno et al., 1994; Piperno, 1995). By correlating published data with the distribution of missing densities in our images, we can identify the likely locations of the DRC subunits and other polypeptides whose assembly depends on their presence (Fig. 5, F–J; and Video 3). We also observed structures that cannot be easily correlated with any of the known subunits (Fig. 5 G and Table III). We estimate the total mass of the WT DRC to be ∼1.4–1.5 MD. This is nearly three times larger than the sum of all seven DRC subunits (∼550 kD; Piperno et al., 1994). Although there is no information about the stoichiometry of DRC1–7, it seems likely that the DRC contains other, unidentified proteins.

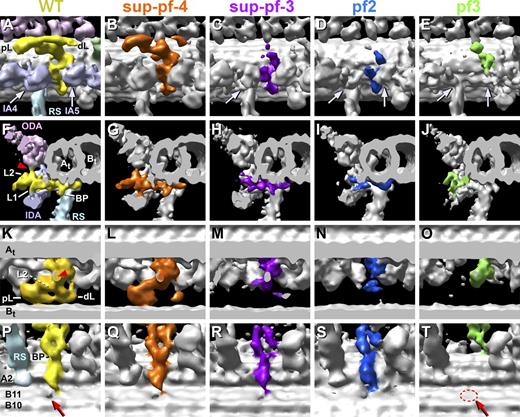

Averages of sup-pf-4 lack most of the distal lobe and portion of the B-tubule connection (1b) and the L2 projection of the DRC linker (Fig. 4, B, G, and L; and Fig. 5 B). These structures are missing in all drc mutants (Fig. 4, L–O; and Fig. 5, B–E). sup-pf-4 axonemes lack two subunits, DRC5 (40 kD) and -6 (29 kD); these are also missing in all other drc mutants (Table I; Huang et al., 1982; Piperno et al., 1994). Thus, DRC5 and -6 must be located within the distal lobe of the B-tubule connector and/or the L2 projection (Fig. 5, F and H–J, yellow). However, the estimated loss of mass in sup-pf-4 of ∼200–300 kD is greater than the combined mass of DRC5 and -6 (70 kD). Thus, either one or both subunits must be present in multiple copies, or there are additional unidentified DRC subunits whose assembly depends on the presence of DRC5 or -6 (Table III). Perhaps because the proximal lobe of the linker and B-tubule connector is unchanged in sup-pf-4 (Fig. 4, B and L), only minor changes in swimming behavior have been observed (Brokaw and Luck, 1985; Gardner et al., 1994).
The structural changes in the other three drc mutants are larger. pf2 axonemes lack at least five DRC subunits (DRC3–7) but retain DRC1 and -2 (Huang et al., 1982; Piperno et al., 1994). These observations suggest that DRC3, -4, and -7 are located in the missing linker, whereas DRC1 and -2 are located in the base plate structure that remains in pf2 and that reaches from the B-tubule junction to protofilament A4 (Fig. 5, F and H–J, blue). Consistent with this hypothesis, the base plate structure is missing in pf3 axonemes, which lack DRC1 and -2 (Table I). However, two features of the base plate are probably not associated with either DRC1 or -2. The first is the ∼80-kD base plate projection, which is missing in pf2 (Fig. 4 I) even though DRC1 and -2 are present (Tables I and III). The second is an ∼60-kD structure located near protofilament A4 that is present in both pf2 and pf3 (Fig. 5, D and E). We refer to the latter density as the docking subunit (Table III) because it appears to be the last contact of the DRC linker with the A-tubule. If one subtracts this subunit from the total estimated mass of the DRC structure in pf2, the remaining ∼190 kD corresponds well with the estimated size of the DRC1–DRC2 complex (Tables I and III). The identity of the docking subunit, which is present in all of the mutants, is unknown.
Comparison of pf2 and sup-pf-3 indicates that DRC4 plays a pivotal role in the assembly of the DRC linker. pf2 mutations are null alleles in the DRC4 gene, whereas sup-pf-3 is an unusual DRC4 mutation that results in the assembly of truncated DRC4 subunits (Rupp and Porter, 2003; Bower, R., personal communication). Loss of DRC4 blocks the assembly of DRC3–7 in pf2 (Piperno et al., 1994). sup-pf-3 also lacks DRC3–6, but studies vary regarding the extent of these defects (Huang et al., 1982; Piperno et al., 1994; Piperno, 1995). The truncated forms of DRC4 in sup-pf-3 appear to be sufficient for the assembly of a larger part of the DRC linker as compared with pf2 (Fig. 4, H vs. I). These results place DRC4 near the base of the linker, close to the unknown ∼60-kD docking subunit (Fig. 5, F and H–J). Consistent with this hypothesis, transformation of pf2 with WT or epitope-tagged versions of DRC4 rescued the pf2 motility defects and restored the missing DRC structures (Fig. 2, D–F and I; Rupp and Porter, 2003)
The pf3 averages show the largest defects; the entire base plate and both linker lobes are missing, and only a small portion of the linker close to the A-tubule remains (Figs. 4 J and 5 E). We estimate the size of the pf3 linker to be ∼130–200 kD, compared with 1.2 MD for the WT linker, which means a loss of >80% of the WT mass. However, the pf3 linker appears too small to contain the remaining DRC subunits (DRC3, -4, and -7 and the docking subunit). One possibility is that the loss of the base plate results in increased flexibility of the remaining DRC structures. Disorganization, structural flexibility, or polypeptides that are present only in a subset of the repeats could reduce the apparent size of the structures in the final average. In addition, the absence of the pf3 gene product appears to destabilize the assembly of several other axonemal polypeptides that may contribute to the assembly of the DRC linker (Table I).
To summarize, we predict that DRC1 and -2 are located within the base plate, DRC5 and -6 (and perhaps additional polypeptides) are located in the distal lobe of the B-tubule connector, and DRC3, -4, and -7 are located within the central region of the linker (Fig. 5, F and H–J). However, this means that the proximal lobe (estimated at ∼350 kD) and a small portion of the distal branch (∼50 kD) cannot be correlated with any known DRC subunits, even though they are missing in sup-pf-3, pf2, and pf3 (Fig. 5 G and Table III). We predict that at least 500 kD, i.e., approximately one third of the total mass of the DRC, is comprised of DRC components that were not previously detected as missing in earlier 1D or 2D PAGE analyses. Efforts to identify these other DRC subunits are underway.
The nexin link as a regulator of dynein activity
The conclusion that the DRC subunits are major components of the nexin link has important implications for nexin function. One surprising observation of our tomograms is that none of the drc mutants display defects in the arrangement of the nine outer MTDs, even though the nexin links no longer connect neighboring doublets (Fig. 4, M–O). These results indicate that other structures such as the dynein arms and/or RSs are sufficient to maintain axoneme integrity in the absence of the nexin links. More importantly, our findings agree well with the hypothesis that the primary functions of the nexin link are signal transduction and local restriction of interdoublet sliding (Lindemann et al., 2005). In the field, the DRC and nexin link were regarded as two distinct structures with different functions, dynein regulation versus limiting doublet sliding, we now realize that both functions are performed by one and the same complex, the NDRC. This conclusion is not only important for future work, but it might require reevaluation of previous studies, as e.g., protease treatment could have not only weakened the nexin linkage but also interfered with dynein regulation.
It is still unclear what happens to the NDRC links during interdoublet sliding. Do the nexin links stretch and extend (Warner, 1976; Olson and Linck, 1977), e.g., by protein unfolding (Lindemann et al., 2005), or do they release and reattach after sliding along the neighboring B-tubule (Bozkurt and Woolley, 1993; Minoura et al., 1999)? One model is that the nexin link has elastic properties that contribute to the passive (i.e., non ATP dependent) recovery of the axoneme after bending. However, Bozkurt and Woolley (1993) found no evidence of stretched nexin links in bull sperm and suggested instead a displacement mechanism. We did not find indications of stretching of the nexin link in bent regions of our axoneme samples. However, this is not conclusive, as our samples were not actively beating and any curvature present was presumably passively imposed during blotting and plunge freezing. Future studies using actively beating axonemes may resolve this important question.
The highly connected NDRC as the central hub of the regulatory system
The NDRC is highly connected with other axonemal structures (Figs. 3 and 5 K and Fig. S2), which is consistent with the proposed role of the DRC as a key intermediate in the signaling pathway between the CP–RS complex and the dynein arms (Brokaw et al., 1982; Huang et al., 1982; Mastronarde et al., 1992; Gardner et al., 1994; Piperno et al., 1994; Rupp and Porter, 2003; Nicastro et al., 2006). The highest resolution tomograms revealed delicate connections to RS 2 (Fig. S2 J) and inner arms IA4 and -5 (Fig. S2, C and E) as well as the previously described OID linker (Fig. 3, D and E; and Fig. S2, B and C; Nicastro et al., 2006). The CP–RS complex is thought to selectively activate dyneins on a subset of outer doublets during axonemal bending (Fig. 1, B–D; for review see Smith and Yang, 2004). In the absence of the CP or RSs, dynein activity and MT sliding is inhibited, resulting in flagellar paralysis (Witman et al., 1978; Huang et al., 1982; for review see Smith and Yang, 2004). Mutations in the DRC can partially suppress the paralysis observed in CP–RS mutants (Huang et al., 1982). These genetic interactions led to a model in which the WT function of the DRC is to inhibit dynein activity in the absence of signals from the RSs (Brokaw et al., 1982). Our experiments agree with this model and suggest that the DRC inhibits dynein activity and MT sliding in the distal half of the 96-nm repeat through the constraints imposed by the nexin link. How signals from the RSs alter the conformation or activities of the NDRC remains a fascinating question, but the NDRC is clearly one of two central hubs for signal transduction and integration that regulate dynein activity and flagellar motility (Fig. 5 K).
Our highest resolution images also provide evidence for a thin connection (9) between the DRC and its counterpart in the proximal half of the 96-nm repeat, the I1 inner arm complex (Fig. S2, A, B, and F). Recent work has demonstrated that the IC–LC complex of the I1 dynein is located above the base of RS 1 and also serves to regulate MT sliding in response to signals from the RSs (Bower et al., 2009; Wirschell et al., 2009a,b). A connection between the DRC and I1 dynein suggests the possibility of feedback or cross talk between these two regulatory modules within the 96-nm repeat.
The realization that the DRC is the nexin link also suggests the possibility of a circumferential signal pathway that could regulate dynein activity around the axoneme. One of our more surprising findings was the connection of the DRC base plate to the B11 density and the associated hole through the B-tubule wall at one end of the DRC (Fig. 4 P and Fig. S2, G–J). This hole suggests the presence of a discontinuity in the B11 protofilament that could potentially contribute to the formation of the 96-nm repeat. The other end of the DRC makes contact with the B8 protofilament of the neighboring outer doublet (Fig. 3, A–E; Fig. S2, D–F; and Figs. S3 and S5 N). One interesting possibility is that the NDRC communicates information about strain or tension around the circumference of the axoneme structure from one doublet to the next during axonemal bending. There are species with motile cilia and flagella such as eel sperm that don't have CP MTs or RSs but retain IDAs and nexin links and beat with a helical waveform (Gibbons et al., 1985; Woolley, 1997). How is dynein activity regulated between the opposite sides of the axoneme in these flagella? Biophysical studies have indicated that sequential activation of dynein arms occurs along the length of the outer doublets, but the complexity of the observed waveforms suggest that additional factors such as the nexin links contribute to the regulation of motility in these and other systems (Woolley, 1998a,b; Woolley and Vernon, 2001; Lindemann et al., 2005). As more information becomes available about the identity of DRC subunits, it will be interesting to determine their distribution in other types of cilia and flagella.
Understanding how proteins interact and are spatially arranged within functional modules in vivo to form a functioning organelle or organism is a great challenge in modern structural biology. The technical approach used in this study allowed us to integrate genetic, biochemical, and structural information to not only present a high resolution 3D structure and subunit map of the NDRC but also provide new insights into the inner workings of the regulatory system in cilia and flagella. More such studies should lead to a comprehensive, molecular blueprint of the axoneme, with a better understanding of protein interactions and regulatory mechanisms, and ultimately reveal the mechanism of this remarkable nanomachine and how it fails in ciliary diseases.
