ClC-K2, a member of the ClC family of Cl− channels and transporters, forms the major basolateral Cl− conductance in distal nephron epithelial cells and therefore plays a central role in renal Cl− absorption. However, its regulation remains largely unknown because of the fact that recombinant ClC-K2 has not yet been studied at the single-channel level. In the present study, we investigate the effects of voltage, pH, Cl−, and Ca2+ on native ClC-K2 in the basolateral membrane of intercalated cells from the mouse connecting tubule. The ∼10-pS channel shows a steep voltage dependence such that channel activity increases with membrane depolarization. Intracellular pH (pHi) and extracellular pH (pHo) differentially modulate the voltage dependence curve: alkaline pHi flattens the curve by causing an increase in activity at negative voltages, whereas alkaline pHo shifts the curve toward negative voltages. In addition, pHi, pHo, and extracellular Ca2+ strongly increase activity, mainly because of an increase in the number of active channels with a comparatively minor effect on channel open probability. Furthermore, voltage alters both the number of active channels and their open probability, whereas intracellular Cl− has little influence. We propose that changes in the number of active channels correspond to them entering or leaving an inactivated state, whereas modulation of open probability corresponds to common gating by these channels. We suggest that pH, through the combined effects of pHi and pHo on ClC-K2, might be a key regulator of NaCl absorption and Cl−/HCO3− exchange in type B intercalated cells.
It is widely acknowledged that ClC-Kb in humans (ClC-K2 in rodents), in association with the regulatory subunit barttin, is the main basolateral chloride channel in the distal nephron and is therefore of prime importance in NaCl absorption, body salt homeostasis, and possibly long-term blood pressure regulation (Jentsch, 2008; Fahlke and Fischer, 2010; Staruschenko, 2012; Eladari et al., 2014; Andrini et al., 2015; Sepúlveda et al., 2015). Bartter’s syndrome type III, a rare salt- and potassium-losing tubulopathy that targets the thick ascending limb (TAL) and the distal convoluted tubule (DCT), is caused by loss-of-function CLCKNB mutations leading to impairment of NaCl balance and hypokalemic metabolic alkalosis (Krämer et al., 2008; Stölting et al., 2014; Andrini et al., 2015). The recent description of a severe Bartter’s syndrome in Clcnk2−/− mice ascertained that ClC-K2 plays a similar role in the mouse (Hennings et al., 2016).
Although the ClC family of chloride channels and transporters to which the ClC-K channels belong has been extensively studied from a biophysical standpoint (Pusch et al., 1999; Pusch, 2004; Chen, 2005), this is not the case for ClC-K channels because their expression in heterologous systems, especially that of ClC-K2 (Kieferle et al., 1994; Waldegger and Jentsch, 2000; Fahlke and Fischer, 2010), remains difficult to achieve (Estévez et al., 2001; Waldegger et al., 2002; Gradogna et al., 2010). ClC-K channels display a feature unique among ClC isoforms in that their activity increases with extracellular Ca2+ and pH (Estévez et al., 2001; Waldegger et al., 2002; Gradogna et al., 2010, 2012; Andrini et al., 2014). In addition, ClC-K channels share the unique double-barreled architecture of ClC channels with two independent ion conduction pores. However, they lack the characteristic glutamate residue involved in the protopore gate mechanism of ClC channels, and their gating is probably dominated by the common gate (Pusch, 2004; Jentsch, 2008; Stölting et al., 2014).
It has not been possible yet to study recombinant ClC-K2 or ClC-Kb at the single-channel level (Fahlke and Fischer, 2010; Stölting et al., 2014). Patch clamp studies on basolateral membranes of mouse renal tubules identified an ∼10-pS Cl− channel in the DCT, in the intercalated cells of the connecting tubule (CNT) and cortical collecting duct (CCD; Lourdel et al., 2003; Nissant et al., 2004, 2006; Teulon et al., 2005) and, more recently, in the TAL (Hennings et al., 2016). The channel was highly sensitive to intracellular pH (pHi) and inhibited by PKC but insensitive to PKA (Lourdel et al., 2003). It required ATP for maintaining its activity in the inside-out configuration and was present at high density in membrane patches (Lourdel et al., 2003; Nissant et al., 2004, 2006). We considered the ∼10-pS Cl− channel as a likely ClC-K2 candidate because it displayed an anionic selectivity sequence and sensitivity to external Ca2+ and pH similar to that of ClC-Kb. In fact, recent patch-clamp analysis revealed the complete absence of the ∼10 pS Cl− channel in Clcnk2−/− mice, giving a direct proof of its molecular identity (Hennings et al., 2016).
The objective of the present study was to examine in detail how classical modulators of ClC and ClC-K channels (Miller and White, 1980; Rychkov et al., 1996; Pusch et al., 1999; Chen and Chen, 2001; Fahlke, 2001), i.e., membrane voltage, pHi and extracellular pH (pHo), extracellular Ca2+, and intracellular Cl− might modulate native ClC-K2 activity. Our results first show that the native ClC-K2 is voltage dependent, a property not yet recognized in recombinant ClC-Kb/K2 channels, and activates upon membrane depolarization via an increase in the number of active channels and to a lesser extent in the open probability. Dependence on voltage is differentially modulated by pHi and pHo in such a way that channel activity synergistically increases with pH around resting membrane voltage. Second, we report that an elevation in pHi, as well as in external calcium and pH, increases ClC-K2 activity mainly via the modulation of the number of active channels. Therefore, we propose that powerful pH-dependent processes modulate the main pathway for basolateral Cl− exit from cells along the distal nephron, and hence renal NaCl transport, by controlling the number of active channels.
MATERIALS AND METHODS
Isolation of renal tubules
The experiments were conducted according to the standards of the Veterinary Department of the French Ministry of Agriculture, and procedures were approved by the Ethics Committee at the Pierre and Marie Curie University (agreement Ce5/2011/040). Tissue preparation was as previously described (Nissant et al., 2006). In brief, 15–20-g male mice (Charles River) were killed by cervical dislocation, and the left kidney was perfused with Leibovitz’s L-15 medium (Sigma-Aldrich) supplemented with 300 U/ml Worthington CLS-2 collagenase (Coger) before removal. Small pieces of cortex were incubated at 37°C for 30–60 min in the collagenase-containing medium, rinsed, and kept at 4°C until use.
Solutions and chemicals
Patch pipettes were filled with a solution containing (mM) 145 NMDG-Cl, 1 MgCl2, and 10 HEPES and adjusted to pH 7.0–7.8 using NMDG. For adjustment to pH 6.6, 10 mM Mes was substituted for HEPES. Pipette solution calcium content was set by adding appropriate amounts of CaCl2. The tubules were initially bathed in physiological saline containing (mM) 140 NaCl, 5 KCl, 1 CaCl2, 1 MgCl2, 10 glucose, and 10 HEPES and adjusted to pH 7.4 with NaOH. NMDG-Cl was substituted for NaCl in the Na+-free solution used for determination of the number of channels in cell-attached patches (see below in Data analysis section). Membrane patches were excised into a solution containing (mM) 145 NMDG-Cl, 1 MgCl2, and 10 glucose and buffered with either 10 HEPES or 10 Trizma base for adjustment to pH 7.0–7.8 or pH 8.2, respectively, using NMDG. When necessary, internal Cl− concentrations ranging from 7 to 147 mM were obtained by using the appropriate amount of NMDG-Cl and by adjusting osmolarity with sucrose. In the inside-out configuration, 2 mM EGTA (no Ca2+ added) and 0.5–1 mM Mg-ATP (Sigma-Aldrich) were added to the perfusion solutions to partially prevent rundown (Lourdel et al., 2003; Nissant et al., 2006). Usually, an important fraction of the channels in the patch membrane underwent rapid rundown after excision from the cell, but the remaining channels could be recorded for long periods of time (5–20 min) provided that ATP was present in the internal solution.
Patch pipettes were pulled from Harvard Apparatus GC150T borosilicate glass (Phymep) by a P-97 puller (Sutter Instrument), coated with SYLGARD, and heat polished. Single-channel currents were amplified with a List LM-EPC7 or a Bio-logic RK 400 patch-clamp amplifier, filtered at 300 or 500 Hz by a LPBF-48DG 8-pole Bessel filter (NPI Electronic), and digitized at a sampling rate of 1–2 kHz using DIGIDATA 1322A or 1440A analogue to digital converters and P-CLAMP software (Axon Instruments) for online monitoring and recording. All experiments were performed at room temperature (22–27°C).
Stretches of data of 30-s to 1-min duration were analyzed for each condition. Channel activity on a patch was determined by the time-averaged Cl− current passing through the patch (<I>), taking the closed channel current level as reference, divided by the unitary current amplitude i. This method assumes that all the chloride channels present in the membrane patch behave in the same homogenous way. The high number of channels per patch and the slow channel kinetics with open and closed times in the second range (Lourdel et al., 2003) often precluded the determination of the closed current level by visual inspection of the recording, and inhibition of channel activity was therefore required. In cell-attached patches, this was obtained by the lowering of pHi under tubule superfusion with a Na+-free solution supplemented with either 0.25 mM N-ethylmaleimide (Sigma-Aldrich; Nissant et al., 2006) or 20 mM sodium acetate (Lourdel et al., 2003). A long delay of 1–5 min in these conditions was usually needed to reach a plateau for the minimum current level. In the inside-out configuration, the closed level was determined under low pH bath solution or at the end of recording when channel activity had sufficiently run down. Routinely, our experimental sequences lasted 20–30 s.
In this study, we suggest that variations in the number of active channels involve very slow gating processes (>20 s), whereas variations in open probability (Po) concern more rapid opening/closing events (still in the second range). In other words, modulation of the number of active channels might be caused by channels entering or leaving an inactivated state, whereas modulation of the open probability might stem from more rapid oscillations between open and closed states. Accordingly, we defined N′ as the number of active channels in a given experimental condition as N′ = N * Po slow, where N is the absolute number of channels on the patch (an unknown parameter) and Po slow represents the open probability caused by kinetic processes >20–30 s (also an unknown parameter). Experimentally, N′ represents the highest number of simultaneously open channels during one experimental sequence. N′ was determined by either visual inspection of patches containing only few levels of currents or by measuring the peak current amplitude, subtracting the closed current level, and dividing by the single channel current amplitude i. Thus, in the following, we use the equation I/i = N′ * Po to calculate Po.
We checked the accuracy of this evaluation by independently estimating Po and N′ using stationary noise analysis (Gray, 1994). Here, the determination of the variance of the current (σ2) in each stretch of data enabled the calculation of Po and N′ according to the equations 1 − Po = σ2/(<I> * i) and N′ = <I>/(i * Po). The relative difference in N′ deduced from the peak (N′peak) and variance (N′σ2) methods ((N′peak − N′σ2)/N′peak) was then plotted versus 1 − Po (Fig. S1). Only recordings yielding ΔN′/N′ values within a 95% agreement interval were included in this analysis (Bland and Altman, 1999). As emphasized by several authors, the number of channels along a stretch of recording can be underestimated; in the meantime, it has the advantage of being a direct measurement (Pácha et al., 1993; Colquhoun and Hawkes, 1995).
N′Po/V data points were fitted by Boltzmann’s function:
where V is a given membrane potential difference, V1/2 is the potential difference yielding a half-maximal response, Ymin and Ymax are the minimum and maximum N′Po values, respectively, and K is the logarithmic sensitivity indicating an e-fold increase in membrane potential difference. OriginLab Corporation ORIGIN software (Ritme Informatique) was used to fit the data points to equations.
P-CLAMP–generated amplitude histograms were fitted by a multiple peak Gaussian function using ORIGIN software, and the area of each component (k) relative to the total area of the n components was used to calculate its open probability, P(k). P(k) values were then compared with the distribution of k simultaneously open independent channels predicted by a binomial distribution, according to the equation
Mathematical model of type B intercalated cells
The mathematical model of the type B intercalated cell is based on steady-state conservation equations for mass and charge, following the approach of Weinstein (2001). These equations yield the intracellular volume, electric potential, and the concentrations of 12 solutes as a function of external conditions. Our CCD model differs from that of Weinstein (2001) in that it accounts for the NaCl transport pathway in type B intercalated cells described by Eladari and colleagues (Leviel et al., 2010; Chambrey et al., 2013). Thus, in contrast with the Weinstein (2001) model, our model considers the presence of apical Na+-dependent Cl−/HCO3− exchangers (NDBCE), and it assumes that basolateral AE4 transporters, the transport properties of which remain controversial, operate as Na+-HCO3− cotransporters (with a Na+/HCO3− stoichiometry of 1:3 as required for a sodium extruder) and that the basolateral permeability to HCO3− is zero. The simulations performed in this study correspond to asymmetrical conditions, that is, with 144 mM Na+, 4 mM K+, and 118 mM Cl− in the peritubular solution, pH 7.4, and 75 mM Na+, 15 mM K+, and 75 mM Cl− in the lumen, pH 7.04.
Results are given as means ± SEM for the indicated number of measurements (n). Statistical significance of difference between means of groups was evaluated by either Student’s t test or by one-way ANOVA, when appropriate, using Systat SIGMASTAT software (Ritme Informatique). P < 0.05 was considered significant.
Online supplemental material
Fig. S1 compares the results from peak current and stationary noise analysis methods for the estimation of the number of active ClC-K2 channels on patches. Fig. S2 illustrates ClC-K2 channel conductive properties and voltage dependence in the cell-attached configuration. Fig. S3 shows ClC-K2 sensitivity to intracellular chloride. Fig. S4 depicts the variations in N′ and Po induced by changes in pHo and Ca2+o. Table S1 summarizes single-channel conductive properties under various pHi, pHo, and [Ca2+]o conditions.
We previously showed that a small-conductance Cl− channel was densely present in the basolateral membranes of the TAL, DCT, and the intercalated cells of the CNT/CCD (Lourdel et al., 2003; Nissant et al., 2004, 2006). As anticipated (Lourdel et al., 2003; Teulon et al., 2005), recent work has demonstrated that this channel is formed by ClC-K2 (Hennings et al., 2016). In the present study on CNT intercalated cells, the channel displayed a unitary conductance of ∼10 pS (Fig. 1 A and Table S1), in agreement with previous results (Nissant et al., 2006). We observed 1–14 channels in the inside-out configuration at pH 7.4 (Fig. 1 B), but the number of channels can be considerably higher at more alkaline pH (see below Fig. 3). Even and odd numbers of equally spaced current (10-pS conductance) levels were observed (Fig. 1 B). If the observed ClC-K2 currents levels reflected the openings of independently gated protopores, an even number of conductance states should have been observed (Fischer et al., 2010; Stölting et al., 2014). A typical current trace of native ClC-K2 in a cell-excised inside-out patch from CNT intercalated cells bathed in symmetrical NMDG-Cl− solutions is shown in Fig. 1 C. Current levels were equidistant (Fig. 1 D) and followed a binomial distribution (Fig. 1 E), again suggesting that protopore gating was not detected in this channel. Half-openings probably representing openings/closings of the protopore (Lourdel et al., 2003) could be detected from time to time but were generally brief, except at the end of long recordings when channels were inactivating (Fig. 1 F). Altogether, the 10-pS conductance most probably reflects oscillations of the ClC-K2 dimeric structure, indicating that channel gating is dominated by the common gate.
Native ClC-K2 channel activity is highly dependent on voltage

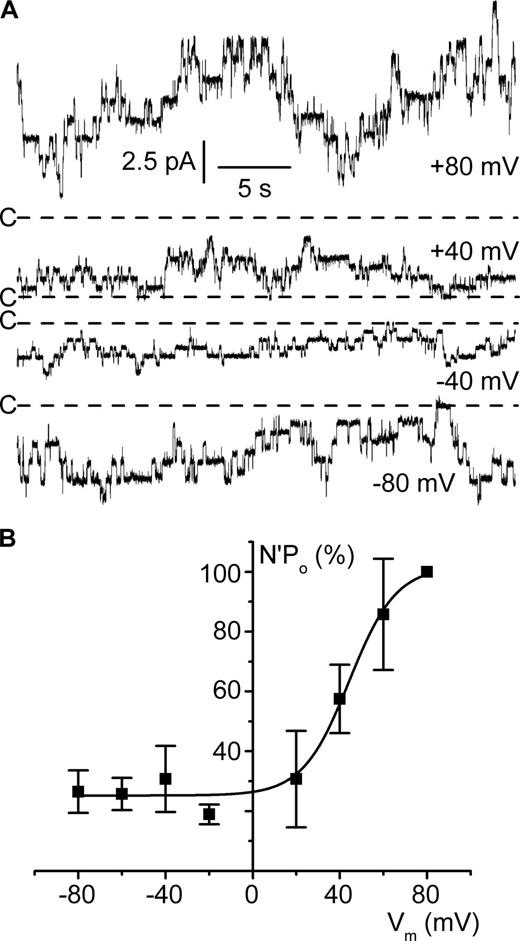

One objective of this study was to investigate whether native ClC-K2 is sensitive to voltage. We first addressed this issue in inside-out patches by systematically quantifying channel activity at various membrane voltages and observed that patch currents dramatically increased at positive membrane voltages (Fig. 2). For instance, for the traces shown in Fig. 2 A, N′Po increased from 2.5 at Vm −80 mV to 7.9 at Vm 80 mV. The data from 10 patches confirm that channel activity is highly dependent on membrane voltage (Fig. 2 B); the Boltzmann fit of mean N′Po data points yielded K and V1/2 values of 11 ± 7.3 mV and 44 ± 3.5 mV, respectively. Note that N′Po stays relatively low over the range of physiological membrane voltages encountered in epithelial cells (between −70 and −30 mV, depending on cell type).
The properties of the channel in the cell-attached configuration are illustrated in Fig. S2. In these conditions, channel conductance was 10.4 ± 0.2 pS (n = 12, Fig. S2 B). The examination of traces in Fig. S2 A shows that the channel voltage dependence is preserved in situ, N′Po increasing in this example from 4.1 at a clamp potential (Vc) of −80 mV to 13.6 at Vc of 80 mV. The results from nine cell-attached patches are quantified in Fig. S2 C.
The variations in voltage occurring in CNT cells are very likely too limited to produce by themselves noticeable alterations in channel activity. Nevertheless, such a regulation could be of importance in the physiological control of channel activity, if any regulatory factor had the power of altering the shape of the voltage dependence curve. In the following measurements, we therefore examined whether pHi, pHo, and calcium concentration ([Ca2+]o), which are known regulators of the native ClC-K2 channel (Lourdel et al., 2003; Nissant et al., 2006), as well as intracellular chloride concentration ([Cl−]i), which influences the activity of ClC-0 and ClC-2 (Pusch et al., 1999; Niemeyer et al., 2003; Yusef et al., 2006), are able to alter ClC-K2 voltage dependence.
Channel activity is relatively independent of [Cl−]i
To date, the possibility that [Cl−]i might regulate recombinant and native ClC-K2 channels and potentially contribute to the cross-talk between apical entry and basolateral exit of chloride in renal cells has not been explored. Thus, we measured ClC-K2 activity in cell-excised inside-out patches clamped at either Vm 80 or Vm −80 mV, while decreasing [Cl−]i from 147 to 7 mM. As illustrated in Fig. S3, N′Po did not change much over the 147–14.5 mM [Cl−]i range at both potentials. Further lowering [Cl−]i down to 7 mM, a value well below the resting [Cl−]i in the renal cells (Greger et al., 1983; Beck et al., 1988; Weinstein, 2005), decreased N′Po to ∼65% and ∼32% of the N′Po at 147 mM at Vm −80 mV (n = 3) and Vm 80 mV (n = 3), respectively (P = 0.05 for each potential, paired Student’s t test). In sum, variations in [Cl−]i within the physiological range have a limited effect on ClC-K2 activity and voltage dependence.
Alkaline pHi flattens the voltage dependence curve by increasing N′Po at negative membrane voltage
We have previously demonstrated that the native ClC-K2 is sensitive to pHi (Lourdel et al., 2003; Nissant et al., 2006). Here, we attempted to establish a dose–response curve over an extended pHi range (Fig. 3). The N′Po values were very low at pHi 6.6 (0.003 ± 0.003, n = 4) and 7.0 (0.15 ± 0.11, n = 4) and increased substantially over the 7.0–7.8 range, and even more steeply when pHi was raised from 7.8 to 8.2. Although we cannot ascertain that the maximal response was reached at pHi 8.2 because patch instability precluded a more complete analysis at higher pHi values, our results strongly indicate that pKa might be well above physiologically relevant pHi values.
We examined whether pHi alters the ClC-K2 voltage dependence by comparing activities in the same patches at negative and positive membrane voltages while pHi was varied over the 7.0–7.8 range. A rise in pHi from 7.0 to 7.8 produced qualitatively similar increases in activity at Vm 80 mV and Vm −80 mV (Fig. 4 A), without altering single-channel conductive properties (Table S1). Nevertheless, variations in pHi at Vm −80 mV elicited a significantly more pronounced effect on N′Po than at Vm 80 mV (Fig. 4 B), revealing a modulation of voltage dependence. Indeed, N′Po/Vm curves established at various pHi values within the 7.0–7.8 range (Fig. 4 C) showed a progressive flattening of the voltage dependence curve with internal alkalinization. Statistical analysis of mean parameters derived from Boltzmann fits of these experimental N′Po/Vm data revealed that internal alkalinization significantly increased N′Po at negative voltage without affecting K and V1/2 values (Table 1).
Alkaline pHo shifts the voltage dependence curve toward negative voltages
The effects of pHo, a known regulator of recombinant and native ClC-K2 channels (Waldegger and Jentsch, 2000; Estévez et al., 2001; Lourdel et al., 2003; Nissant et al., 2006), on voltage dependence were similarly investigated by comparing activities in separate patches when external (pipette) pH was set at either 6.6 or 8.0. Single-channel conductive properties were not affected by pHo (Table S1), but channel activity clearly increased with positive membrane voltage in both pHo conditions (Fig. 5 A). Mean N′Po/Vm curves established at pHo 6.6, 7.4, and 8.0 (Fig. 5 B) show that, in contrast with pHi, increased pHo did not modify the shape of the curve but caused a significant shift toward less depolarizing voltages by decreasing V1/2 (Table 1). A plot of V1/2 values from Table 1 as a function of pHo revealed a ∼12-mV per e-fold change in the external H+ concentration (Fig. 5 C).
Extracellular calcium concentration ([Ca2+]o) has no influence on ClC-K2 voltage dependence
Experiments were then conducted to assess the impact of variations in [Ca2+]o, by comparing recordings obtained from separate inside-out patches with either a nominally calcium-free or 5 mM calcium–containing pipette solution. [Ca2+]o had no influence on single-channel conductive properties (Table S1), and channel activity increased with membrane depolarization under each [Ca2+]o condition (Fig. 6 A). As shown in Fig. 6 B, [Ca2+]o had no influence on channel voltage dependence, the N′Po/Vm relationships obtained under each [Ca2+]o condition being superimposed and Boltzmann fits of experimental N′Po/Vm curves in each condition yielding similar parameters (Table 1).
Altogether, our results show that pHi and pHo, but not [Ca2+]o, modify ClC-K2 channel voltage dependence in such a way that its activity at negative membrane voltages is increased by alkaline pH.
The number of active ClC-K2 channels per patch is critically dependent on pHi, whereas the effect on Po is less important
When examining the traces shown in Figs. 3 and 4, it is clear that alkaline pHi dramatically increases the apparent number of active channels per patch. This suggests a second possible pHi-dependent modulation of channel activity.
To investigate this issue, we analyzed long-lasting current recordings on patches undergoing successive changes in pHi without showing noticeable rundown. Fig. 7 A shows a typical channel recording at Vm 80 mV (i.e., under high activity conditions) where pHi was lowered from 7.4 to 7.0 and then raised back to 7.4. Here, a large reduction in steady-state currents occurred when switching pHi from 7.4 (N′Po = 7.96) to 7.0 (N′Po = 0.96), which was fully reversible when switching back to 7.4 (N′Po = 10.2). A further rise in pHi to 7.8 resulted in a huge increase in N′Po to 28.3. It is also apparent from Fig. 7 A that the changes in activity when switching to different pHi are quite slow, as illustrated by the ∼1-min lag needed to reach a new steady-state after switching pHi from 7.4 to 8. We further explored this observation by examining the time course of N′Po change upon a large and sudden change in pHi at Vm 80 mV (Fig. 7 B). Here, up to ∼21 channels were simultaneously active at pHi 7.8, and decreasing pHi to 6.8 progressively reduced channel activity, reaching a new steady-state with only five active channels within ∼40 s. Based on the mean of four similar experiments, the fit of relaxation current data to a single exponential equation yielded a time constant of 13.6 ± 4.6 s, demonstrating the presence of a slow component in the channel dependence on pHi.
Recordings obtained at Vm 80 mV and over the 7.4–8.2 pHi range with sufficiently high activities enabled us to estimate N′ and Po values from peak activity measurements in good agreement with results from stationary noise analysis (see Materials and methods). As illustrated in Fig. 7 C, the increase in N′Po with pHi was caused by a dramatic increase in N′ over the 7.4–8.2 pHi range, associated (pHi 7.4–7.8) or not (pHi 7.8–8.2) with a moderate increase in Po.
pHo and [Ca2+]o also modulate the number of active ClC-K2 channels per patch
In cell-attached patches from DCT cells, the effects of pHo and of [Ca2+]o on ClC-K2 channels were similarly related to a major modulation in the number of active channels (Lourdel et al., 2003). Fig. S4 shows that modulation by pHo and [Ca2+]o was also seen in cell-excised patches from CNT cells. Here, N′Po was measured during the first 2 min after excision of separate patches under various pHo or [Ca2+]o conditions, at Vm 80 mV. In these conditions, the high N′Po at pHo 8.0, as compared with that on separate patches at pHo 6.6, was caused by a dramatic increase in N′ and by a moderate, yet significant, increase in Po (Fig. S4 A), possibly by the pHo-dependent shift in voltage dependence (see previous section). Similarly, the high N′Po observed under 5 mM external Ca2+ as compared with Ca2+-free conditions could be related to an increase in N′, whereas no significant change in Po was observed (Fig. S4 B).
Voltage affects both the number of active channels and Po, but alkaline pHi blunts the voltage dependence by acting on Po only
We first evaluated the time course of the change in channel activity upon sudden variations in Vm. As illustrated in Fig. 8 A, switching Vm from 80 to −80 mV caused an initial peak in channel activity followed by a progressive decay. The relaxation currents could be fitted to a single exponential equation with time constants of 18.7 ± 4 s after a 80 to −80-mV transition (n = 12) and of 19.6 ± 7.6 s for a −80 to 80-mV transition (n = 6), indicating the involvement of a relatively slow component in the channel dependence on voltage.
We then evaluated N′ and Po at positive and negative membrane voltages. For this purpose, we selected a subset of data compatible with an analysis of N′ and Po as defined in the Materials and methods section, in which recordings were obtained at Vm 80, 40, −40, and −80 mV from the same patch (n = 5). Under these specific conditions, we observed a major increase in N′ with depolarization (P = 0.007, one-way ANOVA), but also a moderate but significant (P = 0.023, one-way ANOVA) increase in Po (Fig. 8 B).
To investigate how pHi modulates the channel voltage dependence illustrated in Fig. 4, we analyzed another subset of data comprising N′Po, N′, and Po measurements at pHi 7.4 and 7.8 and at Vm 80 and −80 mV, in the same patch. As shown in Fig. 8 C, at pH 7.4, the profound decrease in N′Po observed at −80 mV (as compared with N′Po at 80 mV) was related to significant reductions in both N′ (by ∼65%, middle panel) and Po (by ∼35%, right panel). In contrast, at pH 7.8, the less pronounced decrease in N′Po observed at −80 mV was purely caused by a reduction in N′ (by ∼50%) without any variation of Po. We may conclude that the effect of pHi on voltage dependence includes two components, a dominant N′ modulation, which can be detected over a large range of pHi values, and a modest Po modulation, apparent only at pHi ≤ 7.4.
Modeling ion transport in type B intercalated cells
Even though ClC-K2 channels are densely present in the basolateral membrane, only a small fraction of these channels is active under physiological conditions (i.e., at pH 7.4 and negative membrane voltage). Furthermore, pH-dependent processes (acting via external and internal pH) around physiological values powerfully modulate ClC-K2 activity, implying that the basolateral chloride conductance (i.e., gClC-K) can change dramatically under conditions of acidosis or alkalosis (from nearly 0% at pHo 7.0 to 100% around pHo 8.2, changes in pHo are accompanied by parallel changes in pHi). For this reason, we wished to evaluate how gClC-K modulation might affect ion transport in type B intercalated cells. Type B intercalated cells are classically involved in HCO3− secretion (Staruschenko, 2012), but the group of Eladari and Chambrey (Leviel et al., 2010; Chambrey et al., 2013; Eladari et al., 2014) more recently showed that these cells are also able to reabsorb NaCl through an electroneutral process. The net reabsorption of NaCl is energized by basolateral V-ATPase pumps. Na+ enters the cell on the apical side via the Na+-driven Cl−/HCO3− exchanger NDCBE and exits via the Na+-HCO3− transporter AE4 on the basolateral side. The apical uptake of Cl− is mediated by the Cl−/HCO3− exchanger pendrin; a fraction of Cl− is recycled via NDCBE, whereas the remainder exits via the basolateral Cl− channel ClC-K2 (Fig. 9 A).
We modeled ion transport in type B intercalated cells by integrating these main ion transport systems (see Materials and methods) and evaluated Na+, Cl−, and HCO3− transport under asymmetric conditions, i.e., with a low NaCl concentration in the lumen. When the basolateral gClC-K is maximal (a condition possibly corresponding to strong alkalosis), there is a large transepithelial Cl− flux associated with a minimal Na+ flux (Fig. 9 A): in these conditions, the intercalated cells exchange HCO3− for Cl− but do not reabsorb Na+ (Fig. 9 B). Reducing progressively gClC-K switches the intercalated cell to a NaCl-transporting system (Fig. 9 B): when gClC-K is ∼15% of its maximal value (corresponding to resting pH conditions), the transepithelial Cl− flux is only coupled to the Na+ flux. Finally, at very low gClC-K (such as in acidotic conditions), the Cl− flux tends toward zero and Na+ is absorbed with HCO3−. These simulations suggest that the basolateral Cl− conductance is a critical ion transport parameter in the type B intercalated cell, whose modulation allows switching between several modes of transport.
Previous single-channel patch clamp analyses on wild-type and Clcnk2−/− mice have established that the major basolateral Cl− channel along the distal nephron is a ∼10-pS Cl− channel formed by ClC-K2 (Lourdel et al., 2003; Nissant et al., 2004, 2006; Zaika et al., 2015). The present study focused on the regulation of the native renal ClC-K2 by characteristic modulators of ClC channels and describes the key role of external and internal pH synergistically modulating membrane voltage dependence at negative membrane voltages.
We first showed that voltage dependence, a general property of ClC Cl− channels (Uchida and Sasaki, 2005; Jentsch, 2008; Stölting et al., 2014), is also a characteristic of the native renal ClC-K2 channel. Previous studies on the regulation by membrane voltage of recombinant human ClC-Kb provided contradictory information. Two-electrode voltage clamp experiments on ClC-Kb/barttin channels expressed in Xenopus laevis oocytes showed time- and voltage-dependent gating, currents activating upon membrane depolarization and deactivating upon membrane hyperpolarization (Estévez et al., 2001; Waldegger et al., 2002; Picollo et al., 2004; Gradogna et al., 2010). In contrast, whole-cell currents from renal HEK and tsA201-cultured cells transfected with ClC-Kb/barttin showed no relaxation component (Estévez et al., 2001; Scholl et al., 2006; Fahlke and Fischer, 2010). There is no clear explanation for this discrepancy, but the similar voltage dependence in cell-attached and cell-excised inside-out membrane patches in our experiments very likely rules out the loss of an unknown intracellular signal regulating gating upon cell dialysis in ClC-Kb/barttin whole-cell measurements. Interestingly, we observed that the native ClC-K2 channel displays slow kinetics with two open states of 0.3 s and 2.2 s and one very long closed state of 6.5 s (Lourdel et al., 2003), and with a relaxation time constant close to 20 s (this study). Such a slow component in ClC-K2 channel gating may have been missed under the short (<500 ms) pulses used in whole-cell studies of recombinant ClC-K2 channels.
Regulation of channel activity by pH and calcium
Regulation by external H+ and Ca2+ is a typical property of all ClC-K channels (Estévez et al., 2001; Waldegger et al., 2002) that was studied in detail by Pusch and associates (Gradogna et al., 2010, 2012; Imbrici et al., 2014). The effects of external H+ and Ca2+ on recombinant ClC-Kb are independent, acting on separate binding sites located at the outer layer of the protein and therefore not indirectly mediated by some regulatory cell component (Gradogna et al., 2010). This is in agreement with our results on the native mouse ClC-K2. We previously demonstrated that the native ∼10-pS Cl− channel in mouse renal tubules was sensitive to external H+ and Ca2+ in cell-attached patches (Lourdel et al., 2003; Nissant et al., 2006). We show here that this property can still be observed in excised patches, ruling out the hypothesis that the effects of pHo are in fact caused by secondary changes in pHi. In contrast to the well-recognized effects of pHo, pHi effects have never been investigated on recombinant ClC-K channels and may not be a general property of ClC-K channels. Indeed, a ∼45-pS Cl− channel in mouse TAL (Paulais and Teulon, 1990), later identified as ClC-K1 (L’Hoste et al., 2013), the murine orthologue of ClC-Ka in humans, was shown to be hardly sensitive to this parameter. There is presently no clue regarding the mechanism responsible for ClC-K2 pHi sensitivity. Further investigations on recombinant ClC-K2 would be necessary to determine the presence of a specific binding site for intracellular H+. Two facts are worth mentioning: (1) quite puzzlingly, the pKa for pHi effects is very alkaline, as is that for pHo effects in ClC-Kb (Gradogna et al., 2010; Andrini et al., 2015); (2) although pHi affects mainly the number of active channels over a large range of pHi, there is clearly a more rapid component affecting Po at negative membrane voltages that can be detected at pHi ≤ 7.4. This suggests that pHi might be acting via two distinct mechanisms.
ClC complex gating
The ClC channels are functional dimers, whose activity is controlled by two independent processes, the two independent protopore gates and the common gate that simultaneously opens/closes the two protopores (Pusch, 2004; Chen, 2005; Jentsch, 2008). The protopore gating involves the protonation/deprotonation of a glutamate residue at position 166. In contrast, the mechanisms of the common gate have not yet been elucidated; it functions as an inactivation process driven by depolarization in ClC-0 and ClC-2 channels and by hyperpolarization in the ClC-1 channel. It can be very slow (tens of seconds), as in ClC-0, or relatively fast (hundreds of milliseconds), as in ClC-1 (Pusch, 2004; Chen, 2005; Jentsch, 2008). Because the ClC-K channels lack the characteristic glutamate residue involved in the protopore gate mechanism of ClC channels, ClC-K channel gating is presumed to be controlled mainly by the common gate. Accordingly, the protopore conductance is only rarely detected under the form of short-lived, half-openings for the native ClC-K2 (Lourdel et al., 2003) and recombinant mouse ClC-K1 (L’Hoste et al., 2013) channels, whereas it is clearly observed after insertion of a glutamate at position 166 in mouse ClC-K1 (L’Hoste et al., 2013). Likewise, in the present experiments, we did not notice more frequent half-openings under specific conditions of membrane voltage, pH, or Ca2+ concentration. In sum, this suggests that ClC-K2 gating is dominated by the common gate.
Mechanisms involved in ClC-K2 regulation
The effects of [Ca2+]o, pHi and pHo appear to be mainly caused by variations in the apparent number of active ClC-K2 channels. The presence of separate binding sites for Ca2+ and H+ at the outer side of the ClC-Ka protein (Gradogna et al., 2010), a ClC-Kb isoform, makes it unlikely that changes in the total number of channels in cell-attached membrane patches, via channel trafficking to and from the membrane, may have modulated the number of channels after changes in the external environment (i.e., [Ca2+]o or pHo). In cell-excised membrane patches, it can be reasonably admitted that the total number of channel proteins per patch remains constant upon changes in pHi, i.e., we may discard the possibility that trafficking processes are involved in this regulation. Nevertheless, the actual number of active channels in the patch membrane may fluctuate during the whole duration of the current recording, either because some of the channels present in the patch spontaneously enter a “sleepy” (inactive) state or because regulatory factors favor an inactivated state (Colquhoun and Hawkes, 1995). We propose that, under acid pHi conditions, a fraction of the channels present in the membrane patch enter into an electrically quiescent state and do not contribute to the pool of electrically active channels over a time scale of tens of seconds (which represents the time scale of our recordings). According to this hypothesis, conformational changes upon increased [Ca2+]o would stabilize the channel in an activated mode, increasing the number of active channels on the membrane patch, whereas H+, in contrast, would stabilize the channel in an inactivated state and increase the number of electrically quiescent channels.
Voltage dependence can also be explained within the same framework, membrane hyperpolarization favoring an inactivated state and decreasing the apparent number of active channels. However, it is clear from our results that Po is a second voltage-dependent component. The modulation of Po with voltage, as illustrated in Fig. 7 B, is modest, with a decrease of ∼25–30% at −80 mV compared with 80 mV at pH 7.4. Po modulation disappears at pH 7.8, suggesting that protons might interfere with common gating, possibly via an intracellular site distinct from the one modulating N′. The effect of pHi on Po is not limited to negative voltages but is also observed at positive voltages when pHi is decreased to 7.4.
Therefore, we suggest that the activity of the native ClC-K2 channel is modulated by two slow processes, i.e., the open probability and the number of active channels. Po modulation would correspond to channel common gating stricto sensu and N′ modulation to the channels entering/leaving an inactivated state of long duration. Regarding the latter, abrupt changes in voltage and pHi interestingly affected channel activity with comparable kinetics (see Figs. 7 B and 8 A), but we cannot rule out that these two factors, and likely pHo and [Ca2+]o, may indeed modulate N′ by separate mechanisms with similar time constants.
ClC-K2 regulation in the context of renal physiology
The native ClC-K2 is present at very high density in the basolateral membranes of the distal nephron (Lourdel et al., 2003; Nissant et al., 2006). Our previous (Lourdel et al., 2003; Nissant et al., 2006) and present results indicate that the number of active (detectable) channels under physiological conditions of calcium and pH is considerably lower than the actual number of channels present in the patch (as evaluated with alkaline pH or elevated calcium). Thus, we may envision the ClC-K2 channel population as a large reservoir of silent channels in the basolateral membranes, which may be mobilized by regulatory factors. Our results show that [Cl−]i may not be viewed as a physiological regulator of ClC-K2, whereas the intracellular and pHo might be key regulators of ClC-K2 under diverse acido-basic conditions, as pHo variations should induce smaller but parallel variations in pHi.
Our modeling study gives some insight into the conditions of ion transport in type B intercalated cells. When the basolateral Cl− conductance is maximal, type B intercalated cells mostly exchange HCO3− for Cl−, fulfilling their primary function of HCO3− excretion, without absorbing Na+. This prediction results from the fact that the Cl− gradient across the apical membrane is not favorable to the uptake of Na+ via NDCBE, whereas the high basolateral Cl−conductance optimizes the recirculation of the Cl− ions entering the cell by means of the Pendrin exchanger. When the Cl− conductance is reduced to 15% or more of its maximal value, the ClC-K2–mediated Cl− flux is decreased but it is now accompanied by a parallel Na+ transcellular flux. In sum, under low luminal NaCl conditions, variations in basolateral Cl− conductance may switch type B intercalated cells from a state where they primarily exchange HCO3− against Cl− to a state where NaCl transport is favored. Thus, we suggest that pH, by controlling ClC-K2 activity, is in a position to decrease Na+ absorption across type B intercalated cells while stimulating Cl−/HCO3− exchange during alkalosis.
Of course, given the involvement of ClC-K2 in renal NaCl absorption, it would be attractive to link Cl− channel modulation to hormones and mediators (Wu et al., 2013; Zaika et al., 2015). Future studies are needed to investigate whether these regulations are also acting on the number of active channels either via phosphorylation/dephosphorylation processes of the channel (Zaika et al., 2015) or via variations in the pHi that may alter the transport status of intercalated cells.
