Bcl11b is essential for group 2 innate lymphoid cell development

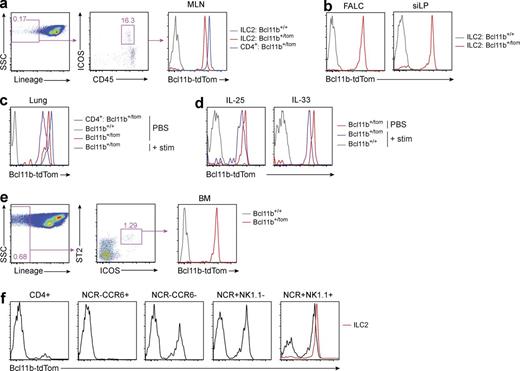

To assess the expression of Bcl11b in ILC2 populations, we used a Bcl11b-tdtomato (Bcl11b-tom) knock-in mouse (Bcl11b^tom/+) in which Bcl11b-tom expression acts as a surrogate for Bcl11b expression (Li et al., 2010b). CD4⁺ (Fig. 1 a) and CD8⁺ T cells (not depicted) from the mesenteric LNs (MLNs) were strongly positive for Bcl11b-tom, whereas B cells and myeloid cells were negative (not depicted). ILC2s (phenotypic analysis and gating strategies in Figs. S1 and S2), isolated from ILC2-associated immunological sites in naive mice, also expressed Bcl11b-tom similar to T cells (Fig. 1, a–c). Bcl11b-tom expression was reduced slightly in ILC2s after in vivo stimulation with IL-25 and IL-33 (Fig. 1, c and d); the reason for this is unclear. Thus, mature ILC2s express high amounts of Bcl11b in the peripheral lymphoid tissues. Bcl11b-tom expression was also detected in ILC2-like cells in the BM, suggesting that it may be present in ILC2 precursors (ILC2ps; Fig. 1 e). Notably, Bcl11b-tom was also expressed heterogeneously in a proportion of non-LTi ILC3s from the small intestine lamina propria (siLP; Fig. 1 f and Fig. S2 a).

Because mature ILC2s arise from ILC2ps in the BM, we sought to identify whether ILC2ps express Bcl11b. We identified BM-derived ILC2ps (ICOS⁺) using mice in which Id2 expression, which marks early NK progenitors (Carotta et al., 2011) and is required for the development of all ILC subsets, is reported by the expression of an IRES green fluorescent protein (Id2^gfp/+; Jackson et al., 2011), in combination with surface markers to exclude NK-like precursors (NKps; CD244). Thus, the lin⁻Id2-gfp⁺ BM cell population was subdivided by ICOS and/or CD244 into four subsets (Fig. S2 b). To assess their lineage commitment, these cells were purified and plated onto OP9 or OP9–Delta-like ligand 1 (DL1) cell monolayers in the presence of ILC2-promoting IL-7 and IL-33 or NK-promoting IL-7 and IL-15. We demarcated ILC2ps (lin⁻Id2-gfp⁺ICOS⁺CD244⁻; Fig. 2, a and c) and NKps (lin⁻Id2-gfp⁺ICOS⁻CD244⁺; Fig. 2, b and c). In some instances, cultures gave rise to additional populations of cells (CD3⁻, CD19⁻, CD11b⁻, CD11c⁻, Gr-1⁻, NK1.1⁻, NKp46⁻) that could not be ascribed to any particular lineage. Subsequent analysis of intercrossed Id2^gfp/+ and Bcl11b^tom/+ mice demonstrated that expression of Bcl11b-tom was almost mutually exclusive in the ILC2p and NKp populations, being expressed only by the ILC2ps, both upon direct isolation from the BM and after culture on OP9-DL1 feeder cells to produce ILC2s (Fig. 2, d and e).

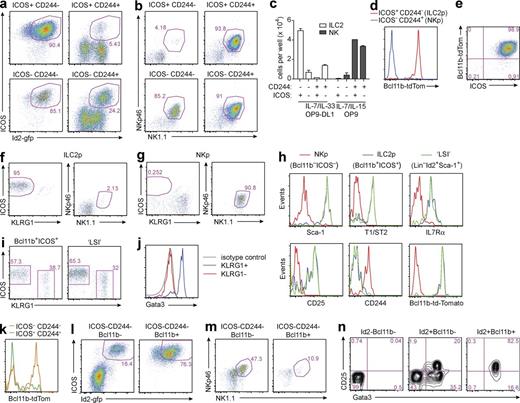

To confirm the progenitor status of the Bcl11b⁺ BM cells, we isolated Id2-gfp⁺Bcl11b⁺ICOS⁺ or Id2-gfp⁺Bcl11b⁻CD244⁺ BM precursor subsets and transferred these into Rag2^−/−γc^−/− recipient mice (Fig. S2, c and d). Only Id2-gfp⁺Bcl11b⁺ precursors gave rise to ILC2s upon adoptive transfer (Fig. 2 f). Transfer of the Id2-gfp⁺Bcl11b⁻ precursors gave rise to NK cells (Fig. 2 g). Comparison of the Id2-gfp⁺Bcl11b⁺ precursors with the previously reported Lin⁻Sca1^hiId2^hi (LSI) precursor (Fig. S2, e and f; Hoyler et al., 2012) indicated that they are very similar (Fig. 2 h) and give rise to phenotypically identical Gata3⁺KLRG1⁺ ILC2s upon adoptive transfer into Rag2^−/−γc^−/− recipients (Fig. 2, i and j). These transfers also generated a population of Gata3⁻ICOS⁺KLRG1⁻ cells, the significance of which is unclear, but that may represent immature ILC2s (Fig. 2, i and j).

Although the majority of ICOS⁺CD244⁺ cells were Bcl11b⁻, ICOS⁻CD244⁻ cells displayed bimodal expression of Bcl11b-tom (Fig. 2 k). Upon culture under ILC2- or NK-promoting conditions, the Bcl11b⁺ fraction gave rise exclusively to ILC2s, whereas the Bcl11b⁻ subset gave rise to mixed progeny (Fig. 2, l and m), suggesting that they may represent a mixed population of uncommitted precursors. Finally, we examined the expression of Gata3 in populations delineated by Id2-gfp and Bcl11b-tom and found that Gata3 is up-regulated in Id2-expressing cells, perhaps before the induction of Bcl11b (Fig. 2 n). These results demonstrate that Bcl11b is expressed by a lineage-restricted ILC2p and that, in combination with Id2, expression of Bcl11b can be used to purify the ILC2ps.

We next sought to determine whether Bcl11b was functionally important for ILC2 development or maintenance. Tamoxifen was used to delete Bcl11b in conditional Bcl11b-deficient (Cre-ERT2; Bcl11b^flox/flox) mice (Li et al., 2010b), and ILC2 frequency was analyzed 2 wk later. Relative to controls, tamoxifen treatment did not alter ILC2 numbers in the MLNs (Fig. 3 a and Fig. S3 a), although we did observe a reduction in the relative frequency of ILC2s (Fig. S3 a), which may reflect as yet not understood changes in multiple cell populations. Bcl11b deletion did not affect the frequency of BM ILC2p (Fig. 3 b) or Gata3 expression (Fig. 3 c). We next examined the effect of Bcl11b depletion in the context of ILC2 stimulation by IL-33. Conditional Bcl11b-deficient (Bcl11b^flox/−) mice bearing an Id2-gfp allele, intercrossed with Rosa26Cre-ERT2 mice (Cre-ERT2; Bcl11b^flox/− referred to hereafter as Bcl11b^flox/−), Bcl11b^flox/− mice, or controls (Cre-ERT2; Bcl11b^+/− referred to hereafter as Bcl11b^+/−) were treated with tamoxifen. After IL-33 stimulation, there were considerably fewer ILC2s in the MLNs of the Bcl11b^flox/− mice as compared with the Bcl11b^+/− controls, which did not reach statistical significance but was consistent between two similar experiments (Fig. 3 d and Fig. S3 b). Tamoxifen administration was accompanied by a fall in the numbers of T cells in the absence of Bcl11b (Fig. 3 e) and a reciprocal increase in NK1.1⁺ cell numbers (Fig. 3 f), as reported previously (Li et al., 2010b). These findings suggest that Bcl11b is not required for the short-term maintenance of ILC2s in tissues. However, they raise the question of whether Bcl11b is required for ILC2 expansion in the tissues or for the continued generation of ILC2ps in the BM.

To address this question and the potential issues of dosing and off-target effects of tamoxifen, we also generated fetal liver (FL) chimeras in which irradiated CD45.2⁺ hosts were reconstituted with CD45.1⁺ BM, in combination with either CD45.2⁺ Bcl11b^+/+Id2^gfp/+ or Bcl11b^−/−Id2^gfp/+ FL. After 6–8 wk, there was an absence of FL donor-derived double-positive thymocytes in mice receiving Bcl11b^−/− FL (Fig. 3 g), but no significant difference in the numbers of FL donor-derived Id2-gfp⁺ NK cells (Fig. 3 g). Strikingly, there was a total absence of mature FL donor-derived Id2-gfp⁺ ILC2s from the Bcl11b^−/− FL in the MLNs, as compared with wild type (Fig. 3 h and Fig. S3 c). Furthermore, Bcl11b^−/−-derived ILC2s could not be induced by treatment with IL-33 (Fig. 3 h and Fig. S3 c) or IL-25 (not depicted). There were also no detectable FL donor-derived Id2-gfp⁺ ILC2ps in the BM (Fig. 3 i and Fig. S3 d). Notably, analysis of ILCs in the siLP and MLN showed that the Bcl11b^−/− donor cells gave rise to a disproportionately large population of NCR⁺ ILC3s as compared with wild type (Fig. 3, j and k; and Fig. S3 e).

Thus, Bcl11b is essential for the development of ILC2ps and consequently mature peripheral ILC2s. The complete absence of ILC2s in these mice is striking because residual ILCs have been observed after deletion of many of the previously reported factors that are important for ILC development. Indeed, even in the absence of RORα a basal level of ILC2s can be detected in the peripheral tissues (Wong et al., 2012). This implies that Bcl11b may act upstream of RORα during ILC2 development, although genetic complementation systems would be required to confirm this relationship.

We noted that although the absence of Bcl11b resulted in the loss of ILC2s, its absence also caused a reciprocal increase in the numbers of ILC3s in the siLP. This suggests that Bcl11b may act cell-intrinsically to repress ILC3 differentiation and that deletion of Bcl11b results in de-repression of the ILC3 program, leading to their expansion, or that the absence of ILC2s results in an expansion of ILC3s through cell-extrinsic factors.

ILC2s play critical roles in immunity to infection with parasitic helminths, such as N. brasiliensis. Consequently, mice deficient in the ILC2-inducing cytokines IL-25 and IL-33 (Neill et al., 2010) or the transcription factor RORα (Wong et al., 2012; Oliphant et al., 2014) have impaired worm clearance. To confirm that the deletion of Bcl11b resulted in the absence of functional ILC2s in vivo, and not for example a loss of specific lineage markers, we determined whether Bcl11b deletion in ILC2s impaired N. brasiliensis clearance. However, because T cells are important for maintaining ILC2s during the later stages of N. brasiliensis clearance (Wong et al., 2012; Oliphant et al., 2014) and the Bcl11b^−/− chimeric mice have impaired T cell responses, we used a mixed chimera approach. We determined whether Bcl11b^+/+ or Bcl11b^−/− FL could complement for the absence of ILC2ps in the BM of ILC2-deficient mice infected with N. brasiliensis. The ILC2-deficient (Rora^sg/floxIl7r^Cre/+) mice delete Rora in the lymphoid lineage, resulting in a loss of ILC2s without perturbing other hematopoietic lineages, thereby ensuring the continued presence of T cells (Oliphant et al., 2014).

Irradiated recipients were reconstituted with combinations of BM obtained from Rora^flox/+ or Rora^sg/flox mice carrying the Il7r-Cre allele (Schlenner et al., 2010) and Bcl11b^+/+Id2^gfp/+- or Bcl11b^−/−Id2^gfp/+-derived FL and infected with N. brasiliensis. Mice receiving the Rora^flox/+Il7r^Cre/+ BM generated ILC2s (Fig. 4 a) and cleared the majority of their worms by day 7 postinfection (p.i.; Fig. 4 b). In contrast, mice receiving Rora^sg/floxIl7r^Cre/+ BM failed to produce ILC2s or clear their worm burden by day 7 (Fig. 4, a and b). Reconstitution with Rora^sg/floxIl7r^Cre/+ BM plus Bcl11b^+/+Id2^gfp/+ FL rescued the ILC2-deficient phenotype caused by the production of ILC2s from the Bcl11b^+/+Id2^gfp/+ FL (Fig. 4 a), resulting in worm clearance similar to the control Rora^flox/+ mice (Fig. 4 b). Strikingly, Bcl11b^−/−Id2^gfp/+-derived FL reconstitution was unable to reverse the ILC2 deficiency (Fig. 4 a) and failed to efficiently clear N. brasiliensis by day 7 p.i. (Fig. 4 b). Thus, deletion of Bcl11b results in a critical loss of functional ILC2s, without which mice are unable to clear worm infection efficiently.

To investigate whether the absence of Bcl11b alters the functional capacity of ILC3s, we used the C. rodentium infection model. C. rodentium is a bacterial pathogen of mice that is closely related to the clinically important human enteropathogenic and enterohemorrhagic E. coli. Infection of wild-type mice with C. rodentium causes modest and transient weight loss and diarrhea, with clearance of infection within 21–28 d. In contrast, mice lacking ILC3s fail to control C. rodentium infection in the gut, as the result of insufficient IL-22 production, and succumb rapidly to infection (Satoh-Takayama et al., 2008; Sonnenberg et al., 2011). Irradiated mice were reconstituted with either Bcl11b^+/+ or Bcl11b^−/− FL before being challenged with C. rodentium. We observed no statistically significant differences in the weights of Bcl11b^+/+ or Bcl11b^−/− FL reconstituted mice 20+ d p.i. (Fig. 4 c), contrasting markedly with the dramatic weight loss in Rag2^−/−γc^−/− mice (Fig. 4 d). Both groups also cleared the majority of bacteria by day 21 p.i. (Fig. 4 e). Notably, the frequency of NCR⁺ ILC3s was elevated in C. rodentium–infected Bcl11b^−/− FL-reconstituted mice as compared with controls (Fig. 4, f–h), whereas ILC2s were absent. Bcl11b deficiency also resulted in the modest expansion of a KLRG1^loNKp46⁺ population, the etiology of which is unclear (Fig. 4 f). These results recapitulate the increase in NCR⁺ ILC3 numbers we observed in naive Bcl11b-deficient mice.

The specific downstream gene targets of Bcl11b in ILC2s remain to be identified, and ChIP-Seq is challenging because of the small numbers of ILC2s available and uncertainty as to the exact sequence of the endogenous Bcl11b-binding site. However, studies of the T cell differentiation pathway suggest that Bcl11b can act as both a repressor and activator of transcription depending on its association with binding partners (Liu et al., 2010) and on its state of phosphorylation or sumoylation (Avram and Califano, 2014).

It has been proposed that Bcl11b lies downstream of Notch signals that regulate its expression during T cell differentiation. We have reported previously that ILC2 development also requires Notch signals (Wong et al., 2012), and it is possible that these signals differentially regulate Bcl11b expression in ILC2s and T cells as compared with NK cells and ILC3s. Indeed, Bcl11b^−/− DN2 thymocytes have been reported to express elevated levels of ILC3 and NK-inducing genes (including Id2, Il2rb, Nfil3, and Plzf), suggesting that these genes may be de-repressed in the absence of Bcl11b (Li et al., 2010a). However, it is not clear that a simple dominant master transcriptional regulator explains these differentiation pathways, and it is likely that the ILC and T cell transcription factor circuitry will share rheostats and resistors that are temporally and spatially regulated.

Collectively, these findings reveal a novel Bcl11b-mediated mechanism for the generation of ILC2s and demonstrate that this transcription factor is essential for ILC2 development and their functional role in helminth immunity. It is also noteworthy that mutations, duplications, and rearrangements in BCL11B are found in human hematological malignancies, including T cell acute lymphoblastic leukemia (T-ALL; Liu et al., 2010; Huang et al., 2012). The identification of a new role for Bcl11b in mouse ILC2 development raises the question of whether BCL11B acts in a similar way in human ILC2s and if the mutations in BCL11B may result in, as yet unidentified, ILC2 leukemia.

C57BL/6J, Id2^gfp/+ (Jackson et al., 2011), Bcl11b^tom/+ (Li et al., 2010b), CreERT2;Bcl11b^flox/− (Li et al., 2010b), IL7Rcre (Schlenner et al., 2010), Rora^flox/− (Oliphant et al., 2014), B6SJL, and Rag2^−/−γc^−/− (Colucci et al., 1999) were all on a C57BL/6 background and bred in a specific pathogen–free facility. In individual experiments, all mice were matched for age, gender, and background strain. All animal experiments undertaken in this study were done so with the approval of the UK Home Office.

Mouse tissue cell suspensions were incubated with purified anti-Fc receptor blocking antibody (anti-CD16/CD32) before addition of the specific antibodies. Cell surface markers were stained using a combination of FITC-, PE-, PE-Cy7–, PerCP-Cy5.5–conjugated, allophycocyanin-conjugated, Alexa Fluor 647–conjugated, eFluor 660–conjugated, eFluor 450–conjugated, Brilliant Violet 421–conjugated, Brilliant Violet 510–conjugated, Brilliant Violet 650–conjugated APC-Cy7–conjugated, and biotin-conjugated monoclonal antibodies. A cell viability marker was included to exclude dead cells from subsequent analysis. In each experiment, the appropriate isotype control monoclonal antibodies and single conjugate controls were also included. Samples were analyzed using an LSRFortessa flow cytometer running FACSDiva acquisition (BD) and analyzed using FlowJo software (version 9.6.1; Tree Star). Cells were sorted using an iCyt Synergy cell sorter (Sony).

Antibodies for flow cytometry analysis included primary antibodies anti-CD4 (GK1.5), anti-CD8a (53-6.7), anti-CD19 (1D3), anti–Gr-1 (RB6-8C5), anti-CD11c (N418), anti-TER119 (TER-119), anti-CD25 (PC61.5), anti-CD44 (1M7), anti-CD45.1 (A20), anti-CD45.2 (104), anti-NK1.1 (PK136), anti-KLRG1 (2F1), fixable viability dye eFluor 780, and unconjugated anti-CD16/32 (93) and were purchased from eBioscience. Streptavidin conjugated to PE, PE-Cy7, or AF647 was purchased from eBioscience. Anti-ICOS (C398.4A), anti-CD3e (145-2C11), anti-CD11b (M1/70), anti–IL-7Rα (SB/199), and anti-FcεRIα (MAR-1) were purchased from BioLegend. Anti-CD5 (53-7.3) was purchased from BD. Anti-T1/ST2 (DJ8) conjugated to biotin was purchased from MD Biosciences. All isotype control antibodies, rat anti–mouse IgG1, IgG2a, IgG2b, and Armenian hamster anti–mouse IgG were purchased from eBioscience.

rmIL-25 (0.5 µg per dose; Centocor) was administered daily for up to 4 d by intraperitoneal injection. rmIL-33 (0.5 µg per dose; BioLegend) was administered daily for 3 d by intraperitoneal injection or for 3 d (0.25 µg per dose) intranasally. Control mice received PBS only. Mice were euthanized 24 h after the final injection and tissues collected for analysis. Tamoxifen (1 mg per dose) was administered intraperitoneally in 100 µl vehicle, containing 90% sunflower oil (Sigma-Aldrich) and 10% ethanol. Conditional Bcl11b-deficient (Bcl11b^flox/−) mice were treated with six doses of tamoxifen and analyzed 3.5 wk later.

Cultures of ILC progenitor populations on OP9 and OP9-DL1 stroma (provided by J.C. Zúñiga-Pflücker, University of Toronto, Toronto, Ontario, Canada) were conducted as described previously (Wong et al., 2012).

Putative ILC progenitor populations were FACS purified and collected into a 1:1 mixture of PBS and C57BL/6 mouse serum. Cells were injected directly into the tail vein of Rag2^−/−γc^−/− recipients (∼700 cells per recipient in a volume of 100 µl). Id2-gfp⁺ progeny were analyzed 3–6 wk after transfer.

Cell suspensions derived from embryonic day (E) 15.5 FLs were frozen in RPMI supplemented with 25% FCS and 10% DMSO and thawed immediately before reconstitution. For mixed chimera experiments, lethally irradiated C57BL/6 (CD45.2⁺) recipients were reconstituted with Bcl11b^+/+ or Bcl11b^−/− FL cells, either alone or as a 1:1 mixture (1–4 × 10⁶ cells) with BM derived from either B6SJL (CD45.1⁺) or IL7Rcre; Rora^flox/− mice.

For N. brasiliensis infection, mice were inoculated subcutaneously with 500 viable third-stage larvae and euthanized 4–7 d p.i. Tissues were collected for analysis, and small intestine worm burdens were enumerated using a dissection microscope (Wild M3Z; Leica). For C. rodentium infection, 100 ml LB broth containing 50 ng/ml nalidixic acid was inoculated with a single colony of C. rodentium (ICC180). Cultures were grown for 16 h at 37°C, with shaking, and then concentrated 10-fold in PBS. Mice were gavaged with 7 × 10⁹ CFU C. rodentium in 100 µl PBS. Weights of mice were recorded over the infection time course, and fecal pellets were collected at the indicated time points to ascertain the bacterial load. Pellets were weighed and resuspended in 100 µl PBS per 0.01 g. Supernatants from homogenized pellets were serially diluted and plated onto LB agar plates supplemented with 50 ng/ml kanamycin. Colonies were enumerated after overnight incubation at 37°C.

Prism (GraphPad Software) was used to calculate the SEM when different numbers of datasets existed in each experimental group. Statistical differences between groups were calculated using Student’s t test, with P < 0.05 considered significant.

Flow cytometry gating strategies are described in Figs. S1–S3.
