Identification of a human splenic marginal zone B cell precursor with NOTCH2-dependent differentiation properties

B cells residing in the splenic MZ in humans are characterized by the surface phenotype CD27⁺IgD^lowIgM^high (Tangye et al., 1998; Zandvoort et al., 2001; Weller et al., 2004). In mice, among different integrated signals, Notch2 signaling plays a key role in the differentiation of splenic transitional T2 cells into MZP that further differentiate into MZB cells (Pillai and Cariappa, 2009). To identify an MZP equivalent in humans, and by analogy with the mouse, we looked for a splenic B cell subset, present among CD27-negative cells, that would acquire an MZ-like phenotype (defined by the de novo expression of CD27) after a NOTCH2–dependent signal. Based on our previous observations that the frequency of immature B cells decline with age in the human spleen (Weill et al., 2009), we focused on spleen samples from young children between 4 and 8 yr of age, for which MZP may likely be present in a higher proportion. Transitional B cells in humans have been initially identified based on the high expression of CD10, CD24, and CD38 relative to mature B cell subsets (Sims et al., 2005; Cuss et al., 2006). Refined subsets of transitional B cells have been further delineated from naive cells using markers such as the ABCB1 transporter (which expression allows the extrusion of the MitoTracker green [MTG] fluorescent dye) or the recently described CD45RB isoform detected by the MEM55 mAb (Palanichamy et al., 2009; Koethe et al., 2011). We thus analyzed CD27-depleted splenic B cells that have been pulsed/chased with MTG and then labeled with anti-IgG, -IgA, -IgE, -CD20, -CD24, -CD38, and -CD27 Abs together with the MEM55 mAb (Fig. 1 A). Based on the staining with MTG and MEM55, four distinct IgG⁻IgA⁻IgE⁻CD27⁻CD20⁺ B cell populations were identified (Fig. 1 B): transitional cells (MTG⁺MEM55⁻), further separated from residual GC B cells by the CD38/CD24 marker, naive B cells (MTG⁻MEM55⁻), and the new MEM55⁺ B cell subset recently described in blood Koethe et al. (2011); surprisingly, and as opposed to their initial description, this latter subset included a clear population expressing the ABCB1 transporter (MTG⁻), previously known to be uniquely expressed by naive B cells (Wirths and Lanzavecchia, 2005). The four subsets were sorted and plated on OP9 stromal cells expressing or not human DLL1 (hDLL1), a NOTCH2 ligand. In some cases, anti-NOTCH1 or -NOTCH2 blocking antibodies were added to the sorted fractions cultured on OP9-hDLL1. After a 3-d culture, the up-regulation of CD27 was used as the main criteria of the differentiation of the initial cell fraction into MZ-like B cells. A fold induction corresponding to the ratios of IgD⁺ cells becoming CD27-positive in the OP9-hDLL1 (or OP9-hDLL1 + anti-Notch2) versus OP9 condition was plotted for each experiment. As shown (Fig. 1 C and Table S1), most naive B cells cultivated with either OP9-hDDL1 or OP9 cells alone retained their original CD27⁻ phenotype. The proportion of transitional B cells that acquired expression of CD27 in the OP9-hDLL1 culture (a mean of 9.5%) remained low in comparison to the one observed for MTG⁻MEM55⁺ and MTG⁺MEM55⁺ cells. Indeed, the proportion of cells that strongly up-regulated CD27 in the OP9-hDLL1 culture reached a mean of 22 ± 8% and 43 ± 7% for MTG⁻MEM55⁺ and MTG⁺MEM55⁺ cells, respectively (Fig. 1 C and Table S1). However, the fold induction was higher for MTG⁻MEM55⁺ cells than for MTG⁺MEM55⁺ cells, for which the proportion of induced CD27⁺ cells without a DLL1 signal was already quite high (30 ± 9.5%). For both subsets, the induction was inhibited by an anti-Notch2 blocking antibody added into the OP9-hDLL1 cell culture, whereas an anti-Notch1 antibody tested on MTG⁻MEM55⁺ cells had no effect (Fig. 1 C and Table S1). However, when comparing the fold induction values, the inhibition was statistically significant only for MTG⁻MEM55⁺ cells (Fig. 1 D). In conclusion, based on their ability to acquire an MZ-like surface phenotype under a NOTCH2/DLL1 signal, both MTG⁻MEM55⁺ and MTG⁺MEM55⁺ cells can be considered as putative MZPs. However, the higher proportion of MTG⁺MEM55⁺ cells having up-regulated CD27 in the absence of hDLL1 suggests that this subset may have already received a signal in vivo that would allow them to be at least partly independent from the NOTCH2 signal provided in vitro. This suggests also that MTG⁺MEM55⁺ might be at a more advanced differentiation stage toward MZB cells.

Other activation procedures have been reported which can induce CD27 expression on naive B cells. Two of them were tested on MTG⁻MEM55⁺ B cells: CD40L plus IL21, and SAC plus IL2. Both conditions were able to induce a large CD27⁺ fraction (55 and 75%, respectively). However, these CD27⁺ cells appear to be large, blastic B cells in which expression of PRDM1 (encoding BLIMP1) was also induced (unpublished data). This is in marked contrast with B cells in OP9-DLL1 cultures, which did not undergo major changes in cell morphology and for which PRDM1 expression remained at background levels (unpublished data), thus indicating that CD27 expression was acquired outside a plasma cell differentiation pathway in these specific culture conditions.

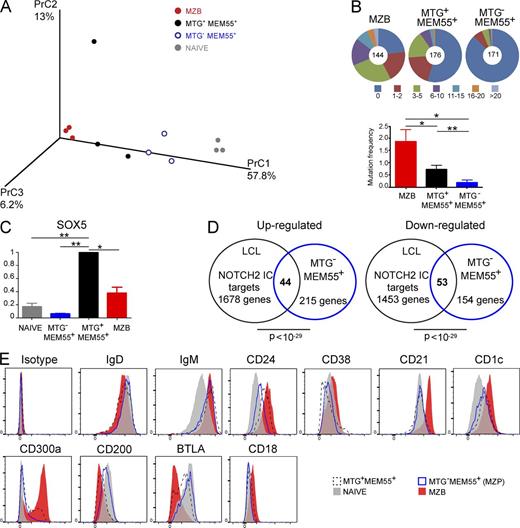

To further characterize MTG⁻MEM55⁺ and MTG⁺MEM55⁺ cells, the gene expression profiles of these two populations together with those of naive and MZB cells were determined by microarray analysis. The transcription profile of MZB and naive B cells differed for 1,855 probes, considering a twofold change and a p-value <0.05. According to the same criteria, the MTG⁻MEM55⁺ subset differed by 249 and 990 probes from naive and MZB cells, respectively, whereas the corresponding values for the MTG⁺MEM55⁺ subset were 750 probes compared with naive and 462 compared with MZB. To further determine the relationships between these four subsets, a principal component analysis was performed using the 1,855 probes that were differentially expressed between naive and MZB cells (Fig. 2 A). Unlike naive and MZB cells that appeared as rather homogeneous groups, MTG⁻MEM55⁺ and MTG⁺MEM55⁺ cells in particular were less tightly clustered. Nevertheless, both subsets displayed an intermediate gene profile between MZB and naive B cells, whereas MTG⁻MEM55⁺ cells were closer to naive cells and were thus the most distant subset from MZB cells in terms of transcriptional program. This suggests that MTG⁻MEM55⁺ cells represent an earlier differentiation stage than MTG⁺MEM55⁺ cells.

We next analyzed the frequency of somatic mutations on Ig genes of splenic MZB, MTG⁺MEM55⁺, and MTG⁻MEM55⁺ cells isolated from five different children (aged 4–6 yr; Fig. 2 B and Fig. S1). As expected, MZB cells from all the donors were already diversified with a mean mutation frequency of 1.74% and with 77% of the sequences being mutated. Interestingly, in both MTG⁺MEM55⁺ and MTG⁻MEM55⁺ cells, we could find mutated sequences, but both the range and the frequency of mutations were much lower (0.65 and 0.18%, respectively). Most of the sequences (88%) were unmutated in MTG⁻MEM55⁺ cells (except for one donor who also showed a much higher load of Ig mutations in its MZB compartment; Fig. S1), whereas the proportion of germline sequences was only 55% in the MTG⁺MEM55⁺ cell fraction. At the phenotypic level, MTG⁺MEM55⁺ B cells were similar to their MTG⁻ counterpart, apart from a few differences which make them closer to MZB (e.g., CD24 and CD200; Fig. 2 E). At the transcriptional level, the most striking difference, which discriminates them from all other splenic subsets, is the expression of SOX5, previously reported in FCRL4⁺CD27⁻ tissue memory B cells (Fig. 2 C; Ehrhardt et al., 2008). They also expressed CD27 at a low level, 10-fold over naive B cells (unpublished data), which might contribute to the higher CD27 induction observed in OP9 control cultures. Altogether, given its greater dependency to a NOTCH2 signal to differentiate into MZ-like B cells, its gene profile, and its almost nonmutated Ig status, the MTG⁻MEM55⁺ cell fraction appears as the earliest MZP characterized. As a consequence, MTG⁻MEM55⁺ will be referred to as MZP thereafter.

To gain further insights into a NOTCH2 signature that may be already present in MZP cells, we took advantage of a genome-wide expression analysis performed on an EBV-transformed human lymphoblastoid B cell line induced to express an activated NOTCH2 receptor (NOTCH2-IC; Kohlhof et al., 2009). Through data mining, a list of 1,678 and 1,453 genes that were, respectively, up- or down-regulated after 3 d of induction of the NOTCH2-IC was established (fold change ≥ 1.5). We then established a list of 369 genes that were differentially expressed between naive and MZP cells, with a similar fold change (≥1.5; P < 0.05). Both lists of genes were then compared, and genes in common are represented in the Venn diagrams shown in Fig. 2 D. Among the genes that distinguish MZP from naive cells, we already found a clear Notch2 signature because 44 out of the 215 up-regulated genes and 53 out the 154 down-regulated genes were found in the listed genes that were, respectively, up- or down-regulated after activation of the Notch2 pathway. This signature nevertheless reflects a preliminary stage of induction because it lacks major NOTCH2 downstream effectors activated in the MZB subset like DTX1 or HES4. It thus appears that MZP might have already received in vivo some activating signals of the NOTCH2 pathway upon their splenic localization. Interestingly, a Notch2 signature involving 88 genes (57 up-regulated and 31 down-regulated) was also observed for the genes differentially expressed in the MTG⁺MEM55⁺ subset compared with naive B cells, supporting the proposition that they may also have experienced NOTCH2-dependent activation in vivo (unpublished data).

To better characterize the phenotype of MZP cells, several cell surface markers discriminating MZB from naive B cells were analyzed by flow cytometry but, except for CD24, CD1c, and IgM, none of the tested markers were differentially expressed between naive and MZP cells (Fig. 2 E). When compared with splenic naive and MZB cells, MZP displayed an intermediate expression of CD24 and CD1c. Their IgM expression was higher than naive cells (and similar to the one of MZB cells), while they expressed high levels of IgD, like naive B cells. Conversely, the expression of CD21 was lower on MZP and naive B cells as compared with its high expression on MZB cells. Altogether, the phenotype of MZP cells is ABCB1⁺MEM55⁺CD27⁻IgM^highIgD^highCD21⁺CD1c^intCD24^intCd38^int.

A fraction of MZP cells cultured with OP9-hDLL1 cells differentiated into CD27-expressing cells (termed p27). To determine if such cells acquired other MZ-like characteristics and to delineate their relationship with naive and MZB cells, p27 cells obtained after 2 d of culture were sorted and their gene expression profile was determined and compared with those of ex vivo–sorted naive, MZB, and MZP cells. We performed a hierarchical clustering of the four cell fractions (each represented by three independent samples), based on the expression of the 1,855 probes used previously that discriminates MZB from naive cells with a twofold change. We found that p27 cells clustered with MZB cells in one arm of the dendrogram, while naive and MZP B cells clustered in the other arm (Fig. 3 A). Thus, after in vitro differentiation from MZP, p27 cells have acquired a gene expression profile that makes them closer to MZB for the interrogated set of genes. Among this list of 1,855 discriminating probes, we focused on the 50 cell surface markers identified according to GSEA annotation (http://www.broadinstitute.org/gsea/index.jsp). Their expression levels in the various samples are depicted in Fig. 3 B. Interestingly, some surface marker–coding genes associated with the MZB and/or the CD27⁺ profile (CD1c, CR2, TNFRSF13B, and TLR9) were up-regulated in p27 cells, whereas the ABCB1 transporter gene, as well as IL21R and IL4R, were down-regulated. At the cell surface expression level, up-regulation of CD1c, CD21, and TLR10 was observed during in vitro culture on OP9-DLL1 cells (Fig. 3 D). Also of interest was the up-regulation in p27 of Notch target genes: DTX1, highly expressed in MZB, and the recently identified CD300a gene (Kohlhof et al., 2009; Moellering et al., 2009), expressed by mature CD27⁺ B cells in both blood (Silva et al., 2011) and spleen (microarrays deposited in the ArrayExpress database). In our in vitro induction, CD300a up-regulation by MZP was confirmed at the protein level in p27 reaching an intermediate value between MZP and MZB cells (Fig. 3 D), with addition of a NOTCH2-blocking antibody abolishing the CD300a induction (not depicted).

In an attempt to find diagnostic genes that not only discriminate CD27⁻ from CD27⁺ B cells but also MZB from CD27⁺IgG⁺ cells, we compared the gene expression profile of these two populations. To this end, splenic MZB and IgG⁺CD27⁺ B cells, isolated from 10 and 11 spleen samples, respectively (from 4 children between 4 and 8 yr, 3 adults, and 3–4 seniors >75 yr), were analyzed on microarrays. Starting from the genes that were differentially expressed between splenic IgG⁺CD27⁺ and MZB cells (with a fold change ≥2; P < 0.05), we determined the 50 most significant genes (either under- or overexpressed) that achieved the highest fold change (Fig. 4 A). 35 of them were also present among the 50 most differentially expressed genes between IgG⁺CD27⁺ and MZB cells from blood (23 up-regulated and 12 down-regulated in switched cells, unpublished data) and are marked by an asterisk in Fig. 4 A. Among those 35 discriminating genes, we selected 4 genes of particular interest: COCH, TOX, and HOPX, which were >10-fold overexpressed in switched cells, and SOX7 which was 10-fold overexpressed in MZB cells. Similar differences were also observed for these genes between splenic IgA⁺ and MZB cells (unpublished data). TOX and HOPX code for transcription factors that play a major role in various immune subsets, and notably in the transcriptional regulation of exhausted CD8 T cells for TOX and of T_H1 effector memory for HOPX (Albrecht et al., 2010; Doering et al., 2012), whereas cochlin, an extracellular matrix protein coded by the COCH gene, has been recently proposed to be secreted by follicular dendritic cells and to modulate immune responses (Py et al., 2013). SOX7 is a transcription factor known to be an important player in the molecular regulation of the first committed blood precursors (Séguin et al., 2008). It is noteworthy that SOX7 is the most discriminating transcription factor identified to be up-regulated in MZB compared with switched cells both in spleen and blood (Fig. 4 A and not depicted). These four selected genes were further validated by quantitative real-time PCR (qPCR) performed on sorted splenic MZB, naive, and switched IgG⁺CD27⁺ cells (Fig. 4 B). SOX7 was confirmed to be ∼8× more expressed in MZB cells than in switched cells, whereas COCH, TOX, and HOPX were ∼20× more expressed in switched IgG⁺CD27⁺ cells than in MZB cells. Although SOX7, TOX, and COCH had minimal expression in naive B cells, the HOPX expression profile was different; it was expressed at an intermediate level in naive cells, down-regulated in MZB, and up-regulated in switched B cells.

The expression of these four discriminating genes was tested in the p27 fraction and in the ex vivo–sorted MZB, naive, and MZP cells fractions used in the microarray analysis, as well as in IgG⁺CD27⁺ cells from the same donors. SOX7 was already expressed at a low level in MZP cells but its expression increased in p27 cells to a comparable level to the one observed in MZB cells. In contrast, none of the IgG⁺CD27⁺-related diagnostic genes (TOX, COCH, and HOPX) were induced in p27 cells, their relative expression being similar or lower in p27 compared with MZB cells (Fig. 3 C). It is noteworthy that HOPX, whose expression is at an intermediate level in naive cells compared with switched cells, was also already shut down at the MZP stage and remained at a similar expression level during the differentiation from MZP to p27 cells. In conclusion, for the interrogated set of genes that discriminates MZB from naive CD27⁻ cells, in vitro–differentiated p27 cells showed a gene expression profile closer to the one of MZB cells and, most strikingly, acquired or maintained the MZB pattern of expression for the four diagnostic genes that distinguish MZB from other CD27⁺ subsets.

We next wanted to determine the frequency of MZP among CD19⁺ B cells in the spleen as a function of age and therefore analyzed a cohort of donors from various ages (15 children: 4–9 yr old, and 24 adults: 10–78 yr old). We observed a mean frequency of 4.4 ± 0.44% in the spleen of children under 10 yr of age, whereas the mean frequency dropped to 1.7 ± 0.26% in older individuals, this difference being highly significant (Fig. 5 A). MZPs were also found in the blood (25 children: 1–9 yr old, and 10 adults) at a mean frequency of 6.7 ± 0.16% at <10 yr of age. As for spleen, MZPs in blood were present at a lower frequency (a mean of 1.9 ± 0.27%) in older individuals.

In conclusion, MZP cells are more frequent in young individuals but are nevertheless present throughout life, being possibly able to replenish the MZB cell pool. We studied also the frequency of MTG⁺MEM55⁺ cells, which correspond to more mature cells (Fig. 5 B). Their frequency shows minor variation with age in the spleen, staying around 4%. A slight decrease with age was observed in the blood, with a mean frequency of 4.4 ± 0.4 (SEM) at <10 yr of age and 2.6 ± 0.3 in older individuals.

It has been proposed that MZP cells in the mouse encounter the Dll1 ligand on fenestrated venules in the MZ and at its periphery (Tan et al., 2009). To localize DLL1-expressing cells in the human spleen, splenic cryosections from children (aged from 2 to 6 yr) were stained for DLL1, together with IgD and CD27 (which allow the identification of splenic lymphoid structures), and examined by confocal microscopy (Fig. 6). The sections contained generally numerous secondary B cell follicles, one of these full-blown IgD-negative GCs surrounded by an IgD-positive zone shown in Fig. 6 A. Two distinct areas within the IgD⁺ zone are visible, an inner zone of CD27-negative IgD⁺ cells corresponding to the corona (Co) and mostly populated by naive B cells, and an outer zone corresponding to the MZ with CD27⁺ cells that express IgD at lower level. Some CD27^high cells, most probably T cells but also possibly plasma cells and/or memory B cells, are also scattered in the MZ. At one pole of the follicle, a CD27^high zone that did not stain for IgD corresponds to the periarteriolar lymphatic T cell sheath (PALS) that surrounds an arteriole. Although a DLL1 staining is visible on this arteriole, only very few DLL1-expressing cells were seen in the red pulp and none in the corona. In contrast, DLL1⁺ cells that did not stain for IgD or CD27 were clearly present in the MZ of all the children’s spleen samples that were analyzed; however, their numbers were variable from one sample to another (Fig. 6, B and C, showing different DLL1⁺ cell densities). These DLL1⁺ cells were of elongated and irregular shape, suggesting a nonlymphoid nature, and were intermingled with lymphoid cells. Interestingly, some IgD^highCD27⁻ cells scattered in the MZ were in close vicinity with DLL1⁺ cells (Fig. 6 C, i and ii, enlarged insets). However, it was not possible to establish if these cells were bona fide MZP cells rather than transitional B cells, given the absence of a reliable staining allowing the unequivocal identification of such cells on cryosections. In conclusion, the NOTCH2 engagement on immature B cells, including MZP, may take place in the MZ itself via interaction with DLL1⁺ nonlymphoid cells.

In the spleen of mice with B cell–restricted Notch2 deficiency, MZB cells are virtually absent. Furthermore Notch2 haploinsufficiency in the B cell lineage compromises MZB cell differentiation, with the numbers of MZB cells ranging from one sixth to one fourth of those in control mice (Saito et al., 2003). To evaluate the incidence of a NOTCH2 deficiency on the development of MZB cells in humans, we searched for a condition where NOTCH2 mutations have been described. This is the case for the Alagille syndrome (ALGS), a rare (1:70,000) autosomal dominant disorder with variable multisystem organ involvement, which is caused by mutations in one of two genes in the Notch signaling pathway, JAG1 (a Notch ligand) or NOTCH2. The majority of cases (∼94%) are caused by haploinsufficiency of the JAG1 gene, and a small percentage of cases are caused by heterozygous mutations in NOTCH2. We could have access to blood samples from four patients (7, 8, 10, and 32 yr old) who presented an Alagille syndrome with NOTCH2 mutations (Fig. 7 A). Thus, to evaluate whether the development of MZB cells was altered in these four patients, peripheral blood B cell subsets were analyzed by flow cytometry after CD19, IgD, and CD27 staining (Fig. 7, B and C; and Table S2). In healthy controls, the frequency of MZB and switched B cells may vary widely while staying at a similar frequency for each individual, i.e., displaying an MZB to switched cell ratio of one (Fig. 7 D). In the four Alagille patients, the proportion of MZB (IgD⁺CD27⁺) cells was low compared with age-matched controls, but more strikingly, the MZB to switched cells ratio was reduced (2.3-fold on average). The two MTG⁻/MTG⁺MEM55⁺ subsets were analyzed for the adult patient and were within the normal, adult range, whereas the residual MZB subset showed CD1c expression comparable to healthy controls (unpublished data). Three Alagille patients presenting with a JAG1 mutation were also studied: one child (11 yr old) had low overall CD27⁺ B cell numbers, whereas the other two (3 and 4 yr old) had normal IgD⁺CD27⁺ B cell frequencies for their age (Table S2), which indicated that reduction in the MZB subset in Alagille patients is more specifically associated with a deficiency in the Notch2 signaling pathway. Although one cannot exclude that the reduced frequency of MZB cells observed in the NOTCH2 heterozygous patients may come from a compromised survival that would be restricted to this subset, the similar phenotype induced by Notch2 insufficiency in mice and humans strongly argues in favor of a similar NOTCH2-dependent commitment of human MZB cells.

Notch2 interaction with its ligand, Dll1, is required in the mouse to drive MZP into the MZB cell lineage (Saito et al., 2003; Hozumi et al., 2004). Preliminary data based on humanized mouse models have also proposed a Notch2 dependence for the differentiation of IgM⁺IgD⁺CD27⁺ B cells (Scheeren et al., 2008). Accordingly, we searched for an MZP in the spleen from young children, taking as diagnostic criteria its capacity to acquire an MZ phenotype when cultured in presence of OP9 cells expressing human DLL1, a differentiation which, moreover, should be specifically inhibited in presence of anti-NOTCH2 blocking antibodies. This precursor subset was identified using the recently described MEM55 antibody, which marks a glycosylated variant of the CD45RB molecule, harbored by CD27⁺ B cells and an immature B cell subset (Koethe et al., 2011). Surprisingly, these MZPs were further characterized as expressing the ABCB1 transporter reported so far as the unique hallmark of naive B cells (Wirths and Lanzavecchia, 2005) and harbored an IgM^highIgD^highCD27⁻CD24^intCD38^intABCB1⁺MEM55⁺CD21⁺CD1c^int surface phenotype. At the transcriptional level, MZPs were closer to naive than to MZB cells (a difference of 249 gene probes compared with naive vs. 990 with MZB, considering a twofold change and a p-value <0.05) and accordingly carried an unmutated BCR for most of them. Interestingly, comparison with a transformed human B cell line induced to express an activated NOTCH2 receptor (Kohlhof et al., 2009) revealed that MZPs were already partly engaged in the NOTCH2 pathway, most probably through inductive cues that they encountered upon their splenic location.

Upon in vitro induction by DLL1, their transcriptional profile became closer to MZB, with the up-regulation of classical MZB cell markers such as CD1c, DTX1, and CR2 (CD21). Other markers induced, like CD27, CD300A, or TNFSFR13B (TACI) discriminate all CD27⁺ subsets from naive B cells but are not specific for MZB cells. Switched and IgM⁺IgD⁺CD27⁺ cells have indeed been shown to share many transcriptional similarities (Good et al., 2009). However, we performed a transcriptional analysis of 12 spleen samples from various ages (children, adult, and senior) to identify diagnostic genes that would be differentially expressed by these two populations. Four genes were selected that constitute a specific signature of MZB cells, presenting a >10-fold expression difference with switched memory B cells, a difference which was also observed between blood subsets (unpublished data): SOX7, TOX, COCH (Cochlin), and HOPX. SOX7 was found to be highly expressed in blood and splenic MZB cells while being at a low level in IgG⁺ and IgA⁺CD27⁺ B cells, but it was not differentially expressed by mouse MZB cells (our unpublished data). SOX7 is a member of the Sox family of transcription factors, which has been involved in several developmental processes as well as in the maintenance of self-renewal and multipotent capacity in stem cells and progenitor cells (Séguin et al., 2008). Conversely, TOX, COCH, and HOPX were highly expressed in splenic and blood switched B cells, as opposed to their low expression in MZB cells. Among them, only Tox was more highly expressed by mouse memory B cells (ImmGen database). These three genes have recently emerged as new players in the immune system: for Hopx as a lineage-commitment transcription factor (Albrecht et al., 2010), for Tox as a transcription network nodal point (Doering et al., 2012), and for Coch—which had been mainly known for being mutated in a human deafness congenital disease—as an immune response adjuvant secreted by follicular dendritic cells (Py et al., 2013). However, their role in the generation and maintenance of switched memory B cells in humans is unknown at the moment. Remarkably, SOX7, already expressed at a low level in MZP, was induced up to its MZB level during the in vitro induction process (fourfold). This transcription factor may thus come out as a major regulator for this differentiation pathway in humans, although we do not know at this stage which gene expression it controls. Conversely, TOX, HOPX, and COCH remained at a low level during in vitro induction, strongly supporting the proposition that this induction was specifically driving MZP B cells toward the MZB cell lineage and not broadly inducing a CD27-like activated profile.

Interestingly, the immature B cell fraction originally described by Koethe et al. (2011), which did not express the ABCB1 gene, was also inducible in the in vitro induction assay using the up-regulation of CD27 as a read-out. However this induction was already very potent in the absence of DLL1 with the OP9 stroma, and it was not significantly inhibited by the addition of an anti-NOTCH2 blocking antibody. Moreover, >50% of these cells carried somatic mutations on their BCR. This ABCB1⁻MEM55⁺ B cell fraction, which, as opposed to MZP, appears closer at the transcriptomic level to MZB than to naive B cells, could therefore represent a more advanced stage of differentiation toward the MZB lineage. In contrast, this ABCB1⁻MEM55⁺ population differs from all other splenic subsets by its expression of SOX5, another member of the Sox family. SOX5 expression has been reported in tissue-based memory B cells, described as a CD27⁻ subset in tonsils and related to exhausted B cells identified in the blood of HIV-infected patients (Ehrhardt et al., 2008; Moir et al., 2008). SOX5 expression was also reported in anergic B cells, although this later subset is CD27⁺ (Charles et al., 2011). Whether ABCB1⁻MEM55⁺ B cells represent a diverted MZ maturation stage rather than an advanced MZ precursor is obviously an open issue that warrants further study.

Many questions obviously remain concerning MZP B cells. Where, in a linear model of differentiation, should they be placed, since they carry immature and naive B cell markers at the same time? What is their contribution throughout life toward the MZB lineage, assuming that splenic MZB cells should be replaced as they are engaged in immune responses? Consistent with this, although their frequency declines with age, MZPs were still present in the spleen and blood of adults. Moreover, confocal analysis of splenic sections revealed that DLL1 is expressed, as in the mouse, on an intricate network of nonlymphoid cells within the MZ in young children. Interestingly, B cell depletion studies have reported that reemergence of MZB cells may lag behind switched cells, suggesting that precursors, inducing cells, or factors may be more limiting in the adult (Roll et al., 2006).

MZB cell lymphomas are neoplasms of mature B cells, a subset of which are localized in the splenic MZ. Exome sequencing showed that mutations in the NOTCH2 pathway were present in 30% of these tumors with, in many instances, a mutation in the C-terminal PEST domain of NOTCH2 that controls its proteosomal degradation (Kiel et al., 2012; Rossi et al., 2012). Because a constitutive activation of NOTCH2 was associated with a splenic MZB cell malignant phenotype and not with any other type of B cell lymphoma, it was instructive to find out whether NOTCH2 insufficiency would conversely disclose a MZB cell phenotype. The Alagille syndrome is a multisystem autosomal dominant genetic disorder that affects the liver, the heart, and the eyes, along with skeletal abnormalities and facial features (Kamath et al., 2012). Microdeletions of the JAG1 gene that disrupt the NOTCH2 pathway are usually associated with this syndrome, but in rare cases in which JAG1 is not mutated, patients present an inactivating mutation on one of their NOTCH2 allele. Strikingly, and as observed for mouse splenic MZB cells with a heterozygous Notch2 inactivation, analysis of blood B cells from NOTCH2 haploinsufficient Alagille patients showed a reduction of their IgD⁺IgM⁺CD27⁺ cells, while their switched B cells were at a normal level.

The existence of a human blood and splenic MZB cell subset was put into question, notably through the work of Seifert and Küppers (2009), who reported that CD27⁺ blood B cells originated for most of them from a GC precursor cell, which gave rise to both IgM⁺ and switched B cells. Surprisingly, these data were challenged by recent studies involving high throughput sequencing of the different blood B cell subpopulations from several healthy donors, which did not reveal any clonal relationship between blood IgD⁺IgM⁺CD27⁺ and switched cells. In contrast, such relationships could be found between other B cell subsets, like CD27⁺ and CD27⁻ switched or IgM-only cells or, even more rarely, between IgD⁺IgM⁺CD27⁺ and IgM-only B cells (Wu et al., 2010b, 2011). Further studies using high throughput sequencing of paired blood and spleen samples may help to decipher further clonal relationships between B cell subsets and clarify this issue. Altogether, the NOTCH2 dependence observed in Alagille patients for the development of the IgM⁺IgD⁺CD27⁺ MZB cell subset, along with the identification of a candidate splenic MZB cell precursor reported here, brings new evidence in favor of the existence of a separate MZB cell lineage in humans.

This study was conducted in accordance with the Declaration of Helsinki, with informed consent obtained from each patient or the patient’s family. Spleen and blood samples were obtained from children undergoing a splenectomy for nonimmunological disease-related reasons (spherocytosis or drepanocytosis). Leftover blood samples (taken for blood counts) from healthy children undergoing orthopedic surgery were obtained from the Service d’Hématologie Biologique of the Necker Hospital. Adult spleen and blood samples were obtained, respectively, from organ donors with the authorization of the French Agence de la Biomédecine and from the blood bank (Etablissement Français du Sang). Alagille patients with Notch2 heterozygous mutations were diagnosed by the French Reference Center for the molecular diagnosis of Alagille syndrome (A. Guiochon-Mantel). Spleen MNCs and peripheral blood mononuclear cells were obtained, respectively, from mechanically disrupted spleen samples and heparinized blood after a density gradient centrifugation on Ficoll-Paque PLUS (GE Healthcare).

Because available specific anti-ABCB1 mAbs give only poor stainings, the expression of the ABCB1 transporter is usually detected by measuring the extrusion of MTG FM (Wirths and Lanzavecchia, 2005; Palanichamy et al., 2009). Thus, to distinguish ABCB1-positive from -negative cells, cells were diluted at 10⁷ cells/ml in RPMI (Gibco) and pulsed at 37°C under 5% CO₂ with MTG (Molecular Probes) at 20 nM for 30 min. After three washes, cells were chased for 1 h at 37°C under 5% CO₂ and were then stained on ice with additional Abs before flow cytometry analysis. Cells that do not express the ABCB1 transporter fully retain MTG, whereas ABCB1⁺ cells are MTG⁻.

All the immunofluorescence stainings were performed by incubating cells with antibodies (described in Table S2) in PBS with 2% FCS on ice for 15 min. After a final wash, labeled cells were briefly incubated with the Sytox blue Dead Cell stain (Life Technologies), allowing the exclusion of dead cells in all the subsequent flow cytometric data acquisitions and cell sorts which were performed, respectively with a FACSCanto II and FACSAria Cell Sorter (BD). Data were analyzed either with Diva (BD) or FlowJo (Tree Star) software. The distinct cell fractions analyzed in the present work were isolated through purification, staining, and sorting procedures that vary depending on experiments and that are detailed hereafter. Both for the in vitro differentiation assays and microarray analysis shown in Figs. 1, 2, and 3, CD27⁻ cells were first enriched from total spleen MNC by negative selection with the EASYSEP Human naive B cell Enrichment kit (STEMCELL Technologies), which removes unwanted cells with mouse IgG1 antibodies recognizing CD27 and non–B cell markers. Thus, to avoid any possible residual contamination with CD27⁺ B cells, after the pulse/chase step with MTG, the enriched CD27⁻ cells were further incubated with a biotin rat anti–mouse IgG1. After a wash, cells were first incubated with saturating concentrations of 100 µg/ml mouse IgG1 for 15 min on ice before adding a combination of anti-CD24, -CD38, -IgG, -IgA, -IgE, -CD27, -CD20, -CDR45RB (MEM55 clone) antibodies for an additional 15-min incubation time. After a final wash, cells were incubated with a streptavidin conjugate, allowing us to further exclude the remaining rare CD27⁺ cells from the sorting gates. Both for the differentiation assay and microarray analysis, four distinct CD20⁺IgG⁻IgA⁻IgE⁻CD27⁻ fractions were sorted based on their MTG and MEM55 expression: transitional (MTG⁺MEM55⁻) cells, naive (MTG⁻MEM55⁻) cells, MTG⁻MEM55⁺ (also designed as MZP in Fig. 3) cells, and MTG⁺MEM55⁺ cells. CD24/CD38 expression of these different subsets, along with sorting gates, is indicated in Fig. 1.

The cells designed as MZB (Fig. 2 A; and Fig. 3, A–C) and IgG⁺CD27⁺ (Fig. 3 C) were isolated as follows. Total splenic MNC pulse/chased with MTG, labeled with a combination of anti-CD3, -CD14, -CD16, -CD24, -CD38, -IgD, -IgG, -CD27, and -CD20 antibodies, were sorted with gates set on CD3⁻C14⁻CD16⁻ (dump⁻) CD20⁺CD27⁺CD24⁺CD38^low cells that were further divided into IgG⁻IgD⁺ (MZB) or IgG⁺IgD⁻ (IgG⁺CD27⁺) fractions. The p27 fraction (Fig. 3) corresponds to MZP cells having acquired the expression of CD27 after a 2-d culture on OP9-hDLL1 cells and were sorted with gates set on IgD⁺CD20⁺CD27⁺ cells, with OP9-GFP⁺ DLL1⁺ cells excluded. Cells depicted as MZB and IgG⁺CD27⁺ in the transcriptomic analysis shown in Fig. 4 A were isolated as follows from splenic samples of 4 children (from 4 to 6 yr of age), 3 adults, and 3 (or 4) seniors of >75 yr. B cells enriched from splenic MNC with the Dynabeads Untouched Human B Cells kit (Life Technologies) were labeled either with anti-IgD, -IgM, -CD24, -CD38, -CD19, and -CD27 antibodies, or with anti-IgG, -IgA, -CD38, -CD27, and -CD19 antibodies. MZB cells (CD19⁺IgM⁺IgD⁺CD27⁺CD24⁺CD38^low) and CD27⁺IgG⁺ cells (CD19⁺IgG⁺IgA⁻CD24⁺CD38^low) were then sorted. All the fractions that were analyzed on microarrays were purified by two successive rounds of cell sorting to achieve >99% purity.

MZB, naive, and IgG⁺CD27⁺ cells in Fig. 4 B (qPCR) were isolated as follows. Total splenic MNCs were labeled with a combination of anti-CD3, -CD14, -CD16, -CD24, -CD38, -IgD, -IgG, -CD27, and -CD19 antibodies. After gating on dump⁻CD19⁺ cells, IgD⁺CD27⁺CD24⁺CD38^lowIgG⁻ (MZB), IgD⁺CD27⁻CD24⁺CD38^low/+IgG⁻ (naive), and IgG⁺CD27⁺CD24⁺CD38^lowIgD⁻ (IgG⁺CD27⁺) were purified by two consecutive sorts.

For the analysis of somatic mutations (Fig. 2 B), total splenic MNC cells were pulse/chased with MTG, labeled with a combination of anti-CD3, -CD14, -CD16, -IgD, -CD27, -CD19, and MEM55 antibodies, and after gating on dump⁻CD19⁺ cells, cells designed as MZB (IgD⁺CD27⁺), MTG⁺MEM55⁺ (IgD⁺CD27⁻MTG⁺MEM55⁺), and MTG⁻MEM55⁺(IgD⁺CD27⁻MTG⁻MEM55⁺) were sorted.

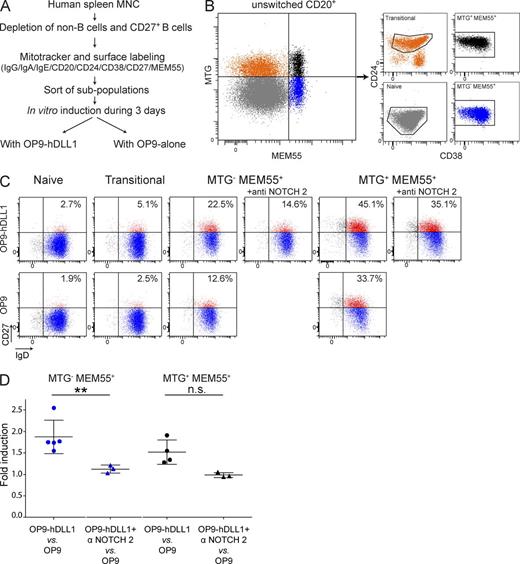

The differentiation potential of transitional, naive, MTG⁻MEM55⁺, and MTG⁺MEM55⁺ subsets (Fig. 1 C) was tested by plating them on mouse OP9 stromal cells engineered to express either the GFP alone (OP9) or GFP and the human Notch ligand Delta-like1 gene (OP9-hDLL1; a gift from E. Six, Institut Imagine, Paris, France; Six et al., 2007). The day before, OP9 and OP9-hDLL1 cells were plated in 48-well plates at 20,000 cells/well in MEMα medium (Invitrogen) containing 20% FCS and 1% Pen-Strep (Invitrogen). On day 0, the different subsets were sorted and collected into MEMα + 20% FCS. Each fraction was put in culture on OP9 or OP9-hDLL1 (∼50,000 cells per well). For MTG⁻MEM55⁺ and MTG⁺MEM55⁺ cells, the effect of a selective blocking of the Notch2 or Notch1 signaling pathway on their differentiation was evaluated by adding an anti-NOTCH2 mAb or anti-NOTCH1 mAb at 5 µg/ml (a gift from C.W. Siebel, Genentech, South San Francisco, CA; Wu et al., 2010a) when plating the cells on OP9-hDLL1 stromal cells. On day 3, cells were removed from culture, washed, labeled with anti-CD20, -IgD, and -CD27 antibodies, and lymphoid CD20⁺GFP⁻ cells were analyzed by flow cytometry for the expression of CD27.

Total RNA was isolated from the different cell fractions using the RNeasy Micro kit (QIAGEN). RNA quality and concentration were assessed using RNA6000 Pico LabChips with a 2100 Bioanalyzer (Agilent Technologies). For the microarray analysis shown in Fig. 3, 8 ng of total RNA (corresponding to ∼6,000–18,000 cells depending on the RNA content of the fractions) was preamplified by Ribo-SPIA (Ribo–single primer isothermal amplification) RNA Amplification using the Ovation Pico WTA Sytem V2 kit (NuGEN Technologies), fragmented, and labeled with biotin using the Encore Biotin Module (NuGEN Technologies), as recommended by the manufacturer. For the microarray analysis shown in Fig. 4 A, 100 ng of total RNA (corresponding to ∼140,000 cells) was amplified with the GeneChip Two-Cycle Target Labeling kit (Affymetrix). Transcript expression levels were assessed with Affymetrix human Genome U133Plus2 arrays according to the manufacturer’s instruction. Fluorescence data were imported into Affymetrix Expression Console and R Bioconductor analysis software. Gene expression levels were calculated using GCRMA and flags were computed using MAS5 within R. To limit potentially biased measurements (background or saturating), all probes whose flags were absent or marginal were flagged as 0, whereas those present were flagged as 1. The group comparisons were done using a Student’s t test. To estimate the false discovery rate, we filtered the resulting p-values at 0.05 and considered data with 1.5- or 2-fold changes between samples. Microarray data are available in the ArrayExpress database (www.ebi.ac.uk/arrayexpress) under accession nos. E-MTAB-2246 and E-MTAB-2244.

Immediately after splenectomy, pieces of splenic tissue were excised and embedded in OCT (Sakura), snap frozen in liquid nitrogen, and stored at −80°C. Cryosections (7–9 µm) were cut, fixed in cold (−20°C) acetone for 15 min, rehydrated in wash buffer (TBS, pH 7.6), and incubated in blocking buffer (0.5% BSA and 10% goat serum in PBS) for 30 min at room temperature (RT). Sections were then incubated for 60 min at RT or 4°C overnight, with the indicated primary antibodies (Table S2) in the blocking buffer solution. Incubations without primary antibodies were used as control. Sections were washed three times and incubated with the secondary antibody as indicated (30 min, RT). Sections were washed and mounted in Fluoromont-G (SouthernBiotech). Images were acquired by confocal microscopy with an SP5 (Leica). Fluorescence of single channels was measured, and control reference was systematically done. Pictures were taken with a 40× objective. Images were analyzed and processed with ImageJ (version 1.46; National Institutes of Health).

Starting from 20,000–40,000 highly purified sorted cells, total genomic DNA was extracted with Micro DNeasy kit (QIAGEN). The J_H4-J_H5 intronic region was amplified with Phusion DNA polymerase (Finnzymes) by the use of a mixture of six FR3 primers (FR3-mix) designed to amplify all V_H gene sequences and a primer binding 5′ to the J_H5 exon, as previously described (Weller et al., 2008). PCR conditions were as follows: 40 cycles of 98°C for 10 s, 60°C for 20 s, and 72°C for 20 s. The resulting J_H4-J_H5 PCR products were gel purified and cloned with Zero Blunt PCR Cloning kit (Invitrogen). Sequences were run in an ABI PRISM 3100 Genetic Analyzer (Applied Biosystems). Mutation frequencies were calculated by comparing the sequences obtained with germline intronic J_H4-J_H5 sequences over 284 bp, starting at the 3′ border of the J_H4 gene segment.

Total RNA was isolated from each sorted cell fraction with the RNeasy Micro kit and reverse transcribed by random priming with the AffinityScript Multiple Temperature cDNA Synthesis kit (Agilent Technologies). qPCR for the human B2M, SOX7, SOX5, TOX, COCH, and HOPX transcripts was performed with specific TaqMan gene expression assays (B2M Hs00984230_m1; TOX Hs01055573_m1; HOPX Hs041888695_m1; COCH Hs00187937_m1; SOX7 Hs00846731_s1; and SOX5 Hs00753050_51; all designed by Applied Biosystems) on a 7500 Fast Real-Time PCR System (Applied Biosystems) with the 9600 Emulation run mode. Normalized values for gene expression were determined using B2M as internal gene reference. PCRs with a threshold cycle (Ct) >36 were considered NS.

Fig. S1 shows mutation distribution in Ig genes of children’s splenic MZB, MTG⁺MEM55⁺, and MTG⁻MEM55⁺ subsets for the five analyzed samples. Table S1 shows the percentages of different CD20⁺IgD⁺ cell subsets becoming CD27⁺ after 3 d in different co-culture conditions. Table S2 shows the percentages of CD27⁺ B cell subsets in Alagille patients and control donors. Table S3 depicts the antibodies and reagents used in flow cytometry and confocal microscopy.

We are grateful to Pr. Jean-Pierre Grunfeld for his contribution, the patients, and their families. We thank Paolo Conti, Francesca Conti, Erika Della Mina, and Remi Fritzen for their contribution. We thank Emmanuelle Six for the gift of GFP- and hDDL1-expressing vectors, and Dr. C.W. Siebel (Genentech) for the gift of anti-NOTCH1 and -NOTCH2 antibodies. We thank Lucie Da Silva for organizing and handling the collection of human spleen samples. We thank for expert training Nicolas Goudin for confocal microscopy and Jérome Mégret for cell sorting (confocal microscopy and cell sorting facilities of Structure Fédérative de Recherche Necker).

The team “Développement du système immunitaire”, INSERM U1151 is supported by the Ligue Nationale contre le Cancer (“Equipe labelisée”), the Fondation Princesse Grace, the INCA for the LYMPH-IMM-MARGE project, and by an ERC advanced investigator grant. M. Descatoire was supported by a fellowship from the Fondation pour la Recherche Médicale for the fourth year of the PhD.

The authors declare no competing financial interests.
