Rheumatoid arthritis is a destructive arthropathy characterized by chronic synovial inflammation that imposes a substantial socioeconomic burden. Under the influence of the proinflammatory milieu, synovial fibroblasts (SFs), the main effector cells in disease pathogenesis, become activated and hyperplastic, releasing proinflammatory factors and tissue-remodeling enzymes. This study shows that activated arthritic SFs from human patients and animal models express significant quantities of autotaxin (ATX; ENPP2), a lysophospholipase D that catalyzes the conversion of lysophosphatidylcholine to lysophosphatidic acid (LPA). ATX expression from SFs was induced by TNF, and LPA induced SF activation and effector functions in synergy with TNF. Conditional genetic ablation of ATX in mesenchymal cells, including SFs, resulted in disease attenuation in animal models of arthritis, establishing the ATX/LPA axis as a novel player in chronic inflammation and the pathogenesis of arthritis and a promising therapeutic target.
Rheumatoid arthritis (RA) pathogenesis is characterized by a hyperplastic synovial membrane caused by synovial cell proliferation and infiltration by inflammatory cells (Müller-Ladner et al., 2005). Synovial fibroblasts (SFs) are among the dominant cell types of the arthritic synovium that under the influence of the inflammatory milieu and/or possible epigenetic changes become activated and hyperplastic, releasing several effector signals including proinflammatory factors and tissue-remodeling enzymes (Karouzakis et al., 2009).
Autotaxin (ATX) is a secreted lysophospholipase D, widely present in biological fluids, catalyzing the conversion of lysophosphatidylcholine (LPC) to lysophosphatidic acid (LPA; Aoki, 2004; van Meeteren and Moolenaar, 2007). LPA evokes growth factor–like responses in almost all cell types, including cell growth, survival, differentiation, and motility (Mills and Moolenaar, 2003). The wide variety of LPA effector functions is attributed to at least five G-protein–coupled LPA receptors (LPARs) with overlapping specificities and widespread distribution (Choi et al., 2008).
Increased ATX expression has been detected in a large variety of cancers (van Meeteren and Moolenaar, 2007); in this study, substantial ATX expression is detected from SFs in arthritic joints of animal models and human patients. Conditional genetic ablation of ATX in SFs (and other mesenchymal cells) is shown to attenuate disease pathogenesis, attributed to diminished LPA signaling to SFs.
RESULTS AND DISCUSSION
Increased, TNF-driven ATX expression from SFs in mouse arthritic joints
Increased ATX messenger RNA (mRNA) expression has been previously detected through differential expression profiling in primary arthritic mouse SFs isolated from an animal model of inflammatory arthritis (Aidinis et al., 2005), confirmed here with quantitative RT-PCR (Q-RT-PCR; not depicted). No ATX mRNA expression was detected in primary immune cells even upon their activation (not depicted), an observation consistent with the expression of other ENPP family members in these cell types (Stefan et al., 2005; van Meeteren and Moolenaar, 2007). Immunostaining of ex vivo cultured primary SFs further confirmed the increased ATX expression in arthritic (hTNF+/−) SFs (Fig. 1 a). Accordingly, ATX was also detected in SF supernatants, where arthritic SFs were found to secrete significantly more ATX than WT SFs (Fig. 1, b and c). The increased ATX expression in arthritic SFs was also confirmed by FACS analysis (not depicted), which further indicated that the vast majority of ATX-expressing cultured cells were fibroblasts (vimentin+) and that both intimal (VCAM+) and subintimal (VCAM−) SFs (Edwards, 2000) express ATX (Fig. 1 d). Moreover, TNF, the major proinflammatory cytokine that drives disease development in this animal model, was shown to induce ATX expression from WT SFs ex vivo, both at the mRNA (Fig. 1 e) and protein level (intracellular or secreted; Fig. 1, f and g, respectively), most likely through an NF-κB–dependent mechanism (Zhao et al., 2008). Previous studies have also suggested modulation of ATX expression from other cytokines (Santos et al., 1996; Kehlen et al., 2001), although more detailed studies are needed.

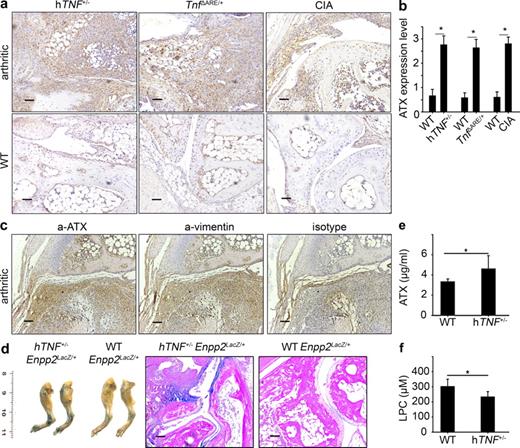

To validate the results in vivo, immunostaining was used to assess ATX expression in the arthritic joints of three animal models of arthritis (Kollias et al., 2011): two inflammatory driven by TNF overexpression, the hTNF+/− transgenic (Keffer et al., 1991) and the TnfΔARE/+ knockin (Kontoyiannis et al., 1999), and one autoimmune, collagen-induced arthritis (CIA; Campbell et al., 2000). In all models, substantial ATX expression was detected in the synovial tissue of inflamed joints compared with the almost complete absence of staining in WT control joints (Fig. 2, a and b). In accordance with the ex vivo results, ATX staining was localized in SFs, as shown with immunostaining for vimentin in sequential joint sections from hTNF+/− mice (Fig. 2 c and Fig. S1, a and d). Constitutive ATX expression was also noted in chondrocytes, in line with its suggested role in mesenchymal development as a Bmp-2 downstream target (Bächner et al., 1998); however, their relative contribution to the synovium ATX levels is negligible in comparison with the activated SFs in the hyperplastic synovial membrane. Anti-TNF treatment (biweekly intraperitoneal injections of 10 mg/kg infliximab) of the inflammatory animal model (hTNF+/−) attenuated ATX expression (Fig. S1, e and f), consistent with the in vitro results, suggesting that ATX induction in arthritic SFs is a downstream event of exacerbated TNF signaling in the synovium.
The increased ATX expression from arthritic SFs was also verified at the transcriptional level by crossing arthritic (hTNF+/−) mice with the heterozygous complete KO mouse for ATX (Enpp2LacZ/+; Fig. 2 d), where the ATX promoter in one allele is driving LacZ expression instead of ATX (Koike et al., 2009). The results, in accordance with ATX immunostaining, indicate constitutive expression of ATX from chondrocytes in healthy tissue, exhibiting no appreciable expression differences upon disease development. On the contrary, low constitutive expression from SFs in healthy tissue was noted and found dramatically increased in the arthritic joint (Fig. 2 d). Increased ATX protein levels were also detected in the plasma of arthritic (hTNF+/−) mice using ELISA assays (Fig. 2 e). Arthritic mice presented with decreased levels of LPC, the substrate of ATX, as measured by liquid chromatography mass spectrometry (LC/MS; Fig. 2 f); however, as other phospholipid enzymes are also involved in LPC metabolism, the decrease in LPC levels cannot be attributed solely to ATX. No differences were detected in LPA levels in both plasma and joint tissues (not depicted), most likely because of the rapid turnover of LPA (Albers et al., 2010) and the possible local delivery to its receptors by cell-bound ATX (Hausmann et al., 2011).
Increased ATX expression from SFs of RA patients

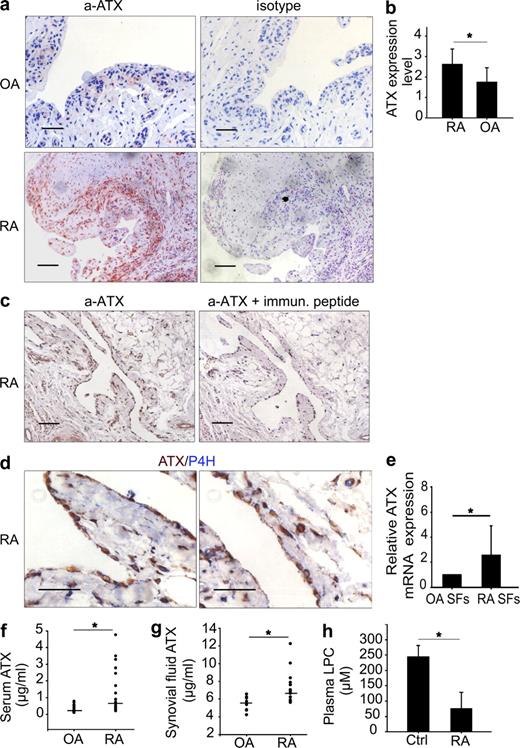

Significant expression of ATX was also detected at the sublining areas and sites of destruction in joints of RA patients (Fig. 3, a–c), localized at SFs, as shown with double labeling with the fibroblast-specific marker collagen prolyl 4-hydroxylase (P4H; Fig. 3 d; Petrow et al., 2000). Moreover, SFs isolated from RA patients were shown to express significantly more ATX mRNA than SFs isolated from osteoarthritis (OA) patients (Fig. 3 e). ATX staining was also observed in T cell follicles of the arthritic synovium (not depicted), in line with the suggested function of ATX as an adhesive substrate for migrating lymphocytes (Kanda et al., 2008).
Increased ATX levels were also detected in the serum and synovial fluid of human RA patients (Fig. 3, f and g, respectively; no significant differences in age and sex distribution among groups). Consistent with results obtained from arthritic mice, decreased levels of LPC were found in the plasma of RA patients, in agreement with a previous study suggesting a role for phospholipid homeostasis in RA (Fig. 3 h; Fuchs et al., 2005). No significant differences in LPA levels were detected (not depicted). However, large cohort studies are required to establish ATX as a possible biomarker for RA and to examine phospholipid homeostasis in detail.
Conditional genetic ablation of ATX in mesenchymal cells attenuates disease development
To dissect the possible role of ATX in disease development, ATX expression was conditionally ablated using a conditional (LoxP) KO mouse for ATX (Enpp2n/n; Fotopoulou et al., 2010) crossed with a transgenic mouse expressing the Cre recombinase under the control of the collagen VI (ColVI) promoter, resulting in 80% recombination efficiency in SFs (Armaka et al., 2008). No apparent phenotype was observed in Enpp2−/−ColVICre+/− mice, which were healthy and fertile, exhibiting no differences in systemic levels of ATX/LPA (not depicted) and normal joint architecture (Fig. 4 c).
Arthritic disease development upon conditional deletion in SFs (and other mesenchymal cells) was first assessed in the inflammatory arthritis model (hTNF+/−). The lack of ATX SF expression in the joints of Enpp2−/−ColVICre+/−hTNF+/− mice resulted in a striking decrease in inflammation and synovial hyperplasia, as indicated by histopathological analysis of the joints (Fig. 4, a and b). PCR analysis of DNA extracted from the corresponding joint sections indicated correct Enpp2 recombination (Fig. S2 a). Ablation efficiency was further evaluated by immunohistochemical staining (Fig. S2 b), and a direct correlation of ATX expression with histopathological score was observed (Fig. S2 c). No decrease of the minimal constitutive ATX expression from articular chondrocytes was observed (not depicted), ruling out a direct involvement of ATX expression from this cell type in disease development.
To examine whether deletion of ATX in cells other than SFs could indirectly affect disease development by possibly modulating systemic plasma ATX levels, it was next investigated whether systemic fluctuations of ATX and LPA plasma levels are able to alter disease development. The arthritic hTNF+/− transgenic mice were mated with homozygous transgenic mice overexpressing ATX in the liver, driven by the human α1-antitrypsin inhibitor (a1t1) promoter (200% of normal plasma ATX and LPA levels; Pamuklar et al., 2009), as well as with the complete heterozygous KO mouse for ATX (50% of normal plasma ATX and LPA levels; Fotopoulou et al., 2010). No differences in the severity of arthritis were observed in this (hTNF+/−) animal model (Fig. S3), highlighting the pathological role of the local, SF-specific ATX expression in disease development.
To confirm the role of ATX in disease development in an inducible, autoimmune model, the effect of SF-specific ATX genetic ablation in the development of CIA (Campbell et al., 2000) was next investigated. As expected for the C57BL/6 genetic background (Campbell et al., 2000), 50% of WT Enpp2+/+ColVICre+/− mice developed disease symptoms, whereas the Enpp2−/−ColVICre+/− littermate mice were found protected from disease development (Fig. S2, d and e). Histopathological analysis of joints (Fig. 4, c and d; and Fig. S2, f–h) revealed a lack of synovial inflammation upon ATX ablation in SFs, thus confirming the significant role of ATX in disease pathogenesis.
ATX stimulates SF activation and effector functions through LPA signaling
To dissect the mechanistic implications of increased ATX expression in synovial inflammation and arthritis pathogenesis, a series of in vitro experiments were performed. Primary mouse SFs were found to express all five major LPARs (not depicted), as has been previously shown for human SFs (Zhao et al., 2008). Addition of LPA, but not LPC (if ATX was not added to convert it to LPA), to primary cultures stimulated the proliferation of WT SFs in a dose-dependent manner (Fig. 5, a–c) but did not affect macrophages that also express all major LPARs (not depicted). On the contrary, LPC was able to stimulate the proliferation of arthritic SFs, most likely because of their increased production of active ATX (Fig. 5 b). LPA stimulation of SFs also resulted in their increased adhesion and migration (Fig. 5, d and e, respectively), accompanied by rearrangements of their actin cytoskeleton (Fig. 5 f), as well as in the production of MMP9 (matrix metalloproteinase 9; Q-RT-PCR; Fig. 5 g), all previously reported to be functional properties of arthritic SFs (Aidinis et al., 2005). In addition, multiplex Luminex bead assays showed that LPA stimulated the secretion of various proinflammatory cytokines from SFs (TNF, IL-6, KC, MIP-1a, and RANTES; Fig. 5 h) but not from bone marrow–derived macrophages, activated or not (not depicted). More importantly, LPA was shown to synergize with TNF (Fig. 5 i), as previously reported for PDGF and EGF in other cell types (Cerutis et al., 1997; Sakai et al., 1999), suggesting that the ATX/LPA axis is important in regulating and/or amplifying growth factor responses. LPA responses were inhibited not only by an inhibitor of G-protein signaling as expected (PTX; Fig. 5 j), but also by inhibitors of ERK (extracellular signal-regulated kinase), p38, JNK, and Rho kinase signaling (PD98059, SB203580, SP600125, and Y27632, respectively; Fig. 5 j). Therefore, LPA stimulates its G-protein–coupled receptors, leading to mitogen-activated protein kinase (GPCR/MAPK)–dependent activation of SFs and their effector functions, consistent with its reported functions in various fibroblasts in different tissues (Nochi et al., 2008).
In conclusion, this study suggests that the proinflammatory milieu during the pathogenesis of RA stimulates local, TNF-driven, SF-specific ATX expression in the synovium, leading to the hydrolysis of circulating LPC and the local production of LPA. In turn, LPA activates SFs and their effector functions and amplifies and/or regulates pathogenetic responses in synergy with TNF. Genetic deletion of ATX from SFs resulted in disease attenuation in animal models of arthritis, thus establishing ATX as a novel player in chronic inflammation and the pathogenesis of arthritis and a promising therapeutic target.
MATERIALS AND METHODS
All mice were bred at the animal facilities of the Alexander Fleming Biomedical Sciences Research Center (BSRC) under specific pathogen–free conditions. Mice were housed at a temperature of 20–22°C, 55 ± 5% humidity, and a 12-h light–dark cycle; water and food were given ad libitum. Mice were bred and maintained in their respective genetic backgrounds for >10 generations. All experiments were approved by the Institutional Animal Ethic Committee of BSRC Fleming (#232), as well as by the Veterinary Service and Fishery Department of the local government agency. The generation and genotyping instructions of Tg197 (hTNF+/−; Keffer et al., 1991), TnfΔARE (Kontoyiannis et al., 1999), ColVI-Cre (Armaka et al., 2008), Enpp2LacZ/n (Koike et al., 2009), Enpp2n/n (Fotopoulou et al., 2010), and Tg(a1t1)ATX+/+ (Pamuklar et al., 2009) mice have been previously described.
Animal models of arthritis.
Both inducible and spontaneous animal models of arthritis were used in this study (Kollias et al., 2011). CIA was induced in C57BL/6 mice as previously described (Campbell et al., 2000). In brief, mice were immunized with chicken collagen type II, followed by a boost immunization at day 21. Disease onset was observed at day 28; all experimental mice were sacrificed at day 60 after immunization. Tg197 (hTNF+/−) is a humanized TNF transgenic mouse with human TNF overexpression resulting in the spontaneous development of chronic, erosive, and symmetrical polyarthritis (Kollias et al., 2011). Disease symptoms were observed 3 wk after birth; all experimental mice were sacrificed 5–6 wk after birth. TnfΔARE is a mouse mutant carrying a deletion of the ARE (AU-rich elements), 3′ untranslated region regulatory element of TNF that results in loss of its posttranscriptional regulation. Deregulated TNF expression leads to the gradual development of spontaneous inflammatory polyarthritis and inflammatory bowel disease (Kontoyiannis et al., 1999).
Human synovial tissues and SFs were obtained at the time of joint replacement surgery at the Schulthess Clinic (Zurich, Switzerland). Sera from patients were obtained from the Schulthess Clinic. All patients, classified according to the 1987 criteria of the American College of Rheumatology, signed an informed consent form where they agreed to the anonymous use of their samples for research purposes after approval of the Kantonale Ethikkommission, Spezialisierte Unterkommission für Spezialfächer (#475). All personal and clinical data of patients are included in Tables S1 and S2.
1-oleoyl-LPA (18:1) and 1-oleoyl-LPC (18:1) were purchased from Avanti Polar Lipids, Inc. ERK inhibitor PD98059, p38 MAPK inhibitor SB202190, and JNK inhibitor SP600125 were obtained from EMD. Fatty acid–free BSA, choline oxidase, peroxidase, TMB (3,3′,5,5′-tetramethylbenzidine) substrate, phalloidin, and DAB (3,3′-diaminobenzidine) were obtained from Sigma-Aldrich. Recombinant ATX and mouse TNF were purchased from R&D Systems. Native ATX refers to the 10× concentrated supernatants of MDA-MB-43S cells (American Type Culture Collection), which are highly enriched in ATX. Fibronectin and Cytofix/Cytoperm solution were obtained from BD. Rabbit anti-ATX polyclonal antibodies (Abs) were purchased from Phoenix Pharmaceuticals and/or Cayman Chemical; rat monoclonal Abs (clone 4F1) against ATX were a gift from J. Aoki (Tohoku University, Aoba-ku, Sendai, Miyagi, Japan). Antivimentin Abs were purchased from Millipore, and collagen P4H Abs were purchased from Acris. Secondary Alexa Fluor 555–conjugated anti–rabbit Ab was obtained from Invitrogen; all secondary horseradish peroxidase (HRP)–conjugated Abs and isotype controls were obtained from and SouthernBiotech.
Histopathology and arthritic score.
Paraffin-embedded mouse joint tissue samples were sectioned and stained with hematoxylin and eosin (H&E) as previously described (Aidinis et al., 2005; Armaka et al., 2008). Arthritic histopathology in mice was assessed (in a blinded fashion from three independent reviewers) using a semiquantitative scoring system as previously described for CIA (0 = no detectable pathology; 1 = mild arthritis, minimal synovitis and cartilage loss; 2 = moderate arthritis, synovitis and bone erosions; and 3 = severe arthritis, synovitis, extensive erosions, and disrupted joint architecture; Campbell et al., 2000). The scoring system for Tg197 (hTNF+/−) is as follows: 0 = no detectable pathology, 1 = synovial membrane hyperplasia, 2 = pannus and fibrous tissue formation and focal bone erosion, 3 =cartilage destruction and bone erosion, and 4 = extensive cartilage destruction and bone erosion.
Paraffin-embedded mouse joint tissue samples (4-µm-thick sections) were deparaffinized, and endogenous peroxidase activity was blocked by incubation in 1% H2O2 for 10 min. Sections were then blocked with 2% BSA for 30 min and incubated overnight at 4°C with an anti-ATX Ab (from Phoenix Pharmaceuticals unless otherwise indicated) or an IgG rabbit isotype control. Washing in PBS-T was followed by incubation with HRP-conjugated anti–rabbit IgG for 30 min at room temperature. Bound peroxidase activity was detected by staining with DAB. Sections were counterstained with hematoxylin, mounted, and photographed under an ECLIPSE E800 microscope (Nikon) using the ACT-I software. Expression levels were quantified by using a three-point scale semiquantitative intensity score: 0 = no staining, 1 = weak expression, 2 = moderate expression, and 3 = strong expression.
Formalin-fixed, paraffin-embedded sections of RA and OA synovial tissue slides were deparaffinized and treated at 80°C for 30 min with citrate buffer, pH 6.0. After washing with H2O, the endogenous peroxidase was blocked with 1% H2O2 for 10 min. The slides were blocked with 2% goat serum for 1 h and incubated overnight at 4°C with a rabbit polyclonal Ab against ATX (Cayman Chemical) or IgG1 rabbit isotype control (Dako). After washing twice in PBS, the slides were incubated with their respective biotinylated secondary Abs for 30 min. The signal was amplified with HRP conjugated with streptavidin Vectastain Elite ABC kit (Vector Laboratories). The slides were then developed with a chromogenic substrate for peroxidase and counterstained with hematoxylin. ATX expression was quantified semiquantitatively, blindly by three different reviewers, on a five-point scale: 0 = no staining; 1 = weak expression, single cells stained; 2 = mild expression, limited areas stained; 3 = moderate expression, weak overall expression; and 4 = strong expression, strong overall staining.
Joints were harvested as a block, and a paramedical patella incision was made on the joint to expose the inside. Harvested joints were fixed in formaldehyde/glutaraldehyde for 1 h at room temperature, washed three times in PBS/2 mM MgCl2, and incubated with 1 mg/ml 5-bromo-a-chloro-3-inodyl-β-d-galactopyranoside (X-gal) in 0.1 M Na phosphate buffer, pH 7.3 (2 mM MgCl2, 0.01% Na deoxycholate, 0.02% NP-40, 5 mM K3Fe(CN)6, and 5 mM K4Fe(CN)6) at 37°C in the dark overnight. Tissues were rinsed three times in PBS/2 mM MgCl2 at room temperature and were then placed in decalcification buffer at 4°C for 6 d. After that, they were washed with PBS and embedded in paraffin. The resulting 4-µm sections were counterstained with eosin and visualized under an ECLIPSE E800 microscope as in the previous section.
Cell isolation and culture.
Primary SFs were isolated by enzymatic treatment of the joints of 6-wk-old mice as previously described (Aidinis et al., 2005). Cells from two to three mice were pooled and cultured in standard conditions: DME supplemented with 10% FBS and 1% penicillin-streptomycin, 37°C, and 5% CO2 (Aidinis et al., 2005); all experiments were performed after two to three passages with 70–80% confluent cells and confirmed with independent isolations. All in vitro experiments were performed after overnight serum starvation (supplemented with 0.2% fatty acid–free BSA). Cells were pretreated with the indicated concentrations of PTX and inhibitors of ERK, p38, JNK, and Rho kinase for 3 h before LPA stimulation. Brefeldin A (GolgiPlug; BD) was added to SF cultures for 4 h according to manufacturer’s instructions to prevent Golgi transport.
Cells were initially stained extracellularly with VCAM-1 (CD106) and subsequently with a secondary (PE) conjugated Ab. For intracellular stainings, cells were fixed and permeabilized with Cytofix/Cytoperm solution, followed by incubation with anti-ATX (1:200; Cayman Chemical) and antivimentin (1:50) Abs for 30 min. Primary Abs were detected after a 30-min incubation with anti–rabbit biotin Abs followed by PE-Cy5-streptavidin or with FITC-conjugated secondary Ab (all diluted 1:500). Analysis was performed using FACSCanto II and Diva software (BD).
SFs were grown in 24-well tissue-culture plates in DME. Preconfluent cell cultures were starved overnight, incubated for 24 h with LPA and the various compounds, and finally exposed to 0.5 µCi/ml [3H]thymidine. Cells were then washed with PBS, detached with 0.05% trypsin, and blotted on FilterMAT fiber paper using a cell harvester (Molecular Devices). The radioactivity of incorporated [3H]thymidine was determined using a liquid scintillation counter (LS 6500; Beckman Coulter). The experiments were performed in triplicate.
This assay was performed on plates coated with human fibronectin (10 µg/ml in PBS) for 2 h at 37°C. In brief, cells were allowed to adhere to the substrate for 4 h at 37°C, and unbound cells were removed by washing twice with PBS. Adhered cells were then stained with 0.2% crystal violet in 10% ethanol for 10 min at room temperature. After washing with water, cells were lysed with 33% acetic acid, and their absorbance was determined at 570 nm using a SpectraMax Plus photometer (Molecular Devices). The experiments were performed in triplicate.
Cell migration assay.
Modified Boyden chambers with 8-µm pores (Corning) were coated at the lower surface with 10 µg/ml human fibronectin for 2 h at 37°C. Cells were harvested with trypsin/EDTA from nonconfluent cultures, washed with PBS, and resuspended to 106 cells per ml. The cell suspension was then added to the upper chamber, and the cells were allowed to migrate at 37°C, 5% CO2, for 4 h. Nonmigratory cells were removed from the upper surface of the membrane, whereas migratory cells in the lower compartment of the chambers were washed with PBS and stained with 0.2% crystal violet in 10% ethanol for 10 min. After extensive washing in H2O, the cells were lysed, and absorbance was measured at 570 nm with a SpectraMax Plus photometer as in the previous section. The experiments were performed in triplicate.
Cells were cultured on glass coverslips, in the presence or absence of Brefeldin A, fixed in 4% paraformaldehyde, and stained with a primary Ab (1:300) against ATX (Cayman Chemical) overnight at 4°C. After incubation with a secondary anti–rabbit Ab (1:1,000) conjugated to Alexa Fluor 555 for 1 h at room temperature, cells were observed and photographed with an ECLIPSE E800 microscope as in Immunohistochemistry. F-actin (Sigma-Aldrich) was visualized with incubation with TRITC-conjugated phalloidin according to the manufacturer’s protocol, after permeabilization with 0.1% Triton X-100 in PBS.
The protein concentration of cell extracts or supernatants was determined with a Protein Assay kit (Bio-Rad Laboratories) using BSA as a standard. Supernatants or cellular extracts from cultured SFs were separated by 8% SDS-PAGE and transferred to Protran nitrocellulose membranes (GE Healthcare) using the Trans-Blot SD Semi-Dry Transfer system (Bio-Rad Laboratories). Primary anti-ATX Ab incubation (monoclonal 4F1, 1:1,000, unless otherwise specified) was performed overnight in 2.5% (wt/vol) nonfat milk at 4°C. The membranes were then washed three times with TBS-Tween 0.05% and incubated with an anti–rat HRP-conjugated secondary Ab (1:1,000) for 1 h at room temperature. Membranes were washed three times with TBS-Tween 0.05%, and Ab–antigen complexes were revealed using luminol as a chemiluminescent reagent.
Plates were coated overnight with standards and diluted samples, blocked with 2% BSA, and then incubated with an anti-ATX Ab (Cayman Chemical). For mouse plasma, dilution was 1:16, for human serum 1:40, and for human synovial fluids 1:120, selected from the linear range of serial dilutions. ATX antigen was detected after incubation with an HRP-labeled secondary Ab and development with TMB substrate. Readings were obtained at 450 nm with a SpectraMax Plus photometer. Cytokine levels in mouse cell culture supernatants were determined using the multiplex LINCOplex assay kit (Millipore), according to the manufacturer’s instructions.
RNA extraction and RT-PCR analysis.
RNA extraction and RT-PCR analysis were performed as previously described (Aidinis et al., 2005). Immune cell RNAs were provided by P. Stamou and D.L. Kontoyiannis (Alexander Fleming Biomedical Sciences Research Center, Athens, Greece). Primer sequences (designated as s, sense; and as, antisense) and product sizes were as follows: Enpp2 (s, 5′-GTGAAATATTCTTAATGCCTCTCTG-3′; as, 5′-GCCTTCCACATACTGTTTAATTCC-3′; 410 bp), b2m (s, 5′-TTCTGGTGCTTGTCTCACTGA-3′; as, 5′-CAGTATGTTCGGCTTCCCATTC-3′; 104 bp), MMP-9 (s, 5′-CAGATGATGGGAGAGAAGCA-3′; as, 5′-CGGCAAGTCTTCAGAGTAGT-3′; 222 bp), LPA1 (s, 5′-GAGGAATCGGGACA-3′; as, 5′-TGAAGGTGGCGCTC-3′; 227 bp), LPA2 (s, 5′-GACCACACTCAGCCTAGTCAAGAC-3′; as, 5′-CAGCATCTCGGCAGGAAT-3′; 200 bp), LPA3 (s, 5′-GCTCCCATGAAGCTAATGAAGACA-3′; as, 5′-TACGAGTAGATGATGGGG-3′; 188 bp), LPA4 (s, 5′-AGTGCCTCCCTGTTTGTCTTC-3′; as, 5′-GCCAGTGGCGATTAAAGTTGTAA-3′; 142 bp), and LPA5 (s, 5′-ACCCTGGAGGTGAAAGTC-3′; as, 5′-GACCACCATATGCAAACG-3′; 176 bp).
Unless otherwise indicated, statistical significance was assessed in pairwise comparisons with control values by using a paired Student’s t test, after confirmation of normal distributions with SigmaPlot 11.0 (Systat Software). Unless otherwise indicated, all values are expressed as means ± SE, and p-values <0.05 were considered significant (*).
Online supplemental material.
Fig. S1 contains various controls supporting an increased ATX expression in arthritic joints, as well as supporting that TNF treatment of the transgenic animal model of arthritis attenuates ATX expression. Fig. S2 contains various controls on the effects of the conditional ATX deletion in modeled disease development. Fig. S3 shows that systemic fluctuations of ATX serum levels do not affect disease development in the hTNF+/− animal model. Tables S1 and S2 contain personal and clinical data of patients used for determination of ATX levels in sera and synovial fluids, respectively.
We would like to thank V. Harokopos, A. Thanassopoulou, and S. Lalos for expert technical assistance, P. Stamou and D.L. Kontoyiannis for the immune cell RNAs, J. Aoki for monoclonal Abs against ATX, and M.N. Manoussakis and H. Moutsopoulos for valuable discussions and continuous support.
This work was supported by the following grants: European Commission LSHG-CT-2005-005203, European Commission HEALTH-F2-2008-223404, Innovative Medicines Initiative Joint Undertaking BTCure#115142, and the Hellenic Ministry for Development GSRT-PENED-136.
The authors have no conflicting financial interests.
