CYRI controls epidermal wound closure and cohesion of invasive border cell cluster in Drosophila

Cell migration has a key role during tissue morphogenesis, tissue repair, wound healing, and cancer spreading (Friedl and Gilmour, 2009; Merino et al., 2020; Schaks et al., 2019; Svitkina, 2018). Cells can either migrate individually or in cohesive groups depending on the cell type and the three-dimensional environment (Yamada and Sixt, 2019). Both, single-cell migration and collective-cell migration require actin polymerization providing the mechanical forces to drive membrane protrusions (Pollard, 2022; SenGupta et al., 2021). The most prominent actin structures mediating the cell protrusion are lamellipodia and filopodia, which are stimulated by Rho-family GTPases, especially Rac1 and Cdc42 (Ridley, 2015). Lamellipodia are an archetypal type of flat membrane protrusions found at the leading edge of diverse cells including crawling immune cells, epithelial cell sheets, and invasive cell clusters (Jacinto et al., 2001; Machesky, 2008; Small et al., 2002). The formation of lamellipodial protrusion is driven by the assembly of branched actin networks, initiated by the branched actin nucleator Arp2/3 complex (Goley and Welch, 2006; Krause and Gautreau, 2014; Pollard and Borisy, 2003). The Arp2/3 complex itself must be activated by the WAVE regulatory complex (WRC) (Bieling and Rottner, 2023; Chen et al., 2010; Schaks et al., 2019). The WRC consists of five subunits: CYFIP/Sra-1, NAP1/Kette, WAVE, Abi, and HSPC300. WAVE is transinhibited by this complex, and this inhibition can be released by Rac binding (Chen et al., 2010). The Rac binding surfaces on the WRC are formed by the CYFIP/Sra-1 subunit which sequesters the C-terminal Arp2/3 activating the WCA domain of WAVE from accessing the Arp2/3 complex (Chen et al., 2010; Ding et al., 2022; Oikawa et al., 2004).

Rac1, WRC, and Arp2/3 form a feedback loop to allow dynamic actin filament reorganization, controlled by many other signaling and actin-binding proteins (Chen et al., 2014a, 2014b; Yang et al., 2022). Such feedback control also includes regulatory proteins such as gadkin and arpin, which directly bind and inhibit Arp2/3 function (Chánez-Paredes et al., 2019; Gautreau et al., 2022). More recently, a new class of conserved Rac effectors related to CYFIP/Sra-1 has been identified as negative regulators of the feedback loop for branched network assembly (Chattaragada et al., 2018; Fort et al., 2018; Shang et al., 2018; Yuki et al., 2019). These CYFIP-related RAC1 interacting proteins (CYRIs) are thought to compete with the WRC for active Rac1, thereby locally suppressing WRC-Arp2/3-dependent branched actin nucleation in lamellipodial protrusions (Fort et al., 2018; Whitelaw et al., 2019; Yuki et al., 2019). In mammals, there are two differentially expressed isoforms with high sequence identity, CYRI-A and CYRI-B, which might have distinct developmental and physiological functions in vivo (Machesky, 2023). Biochemically, both isoforms interact specifically with active Rac1, whereby CYRI-A has a higher affinity than CYRI-B (Le et al., 2021). At the cellular level, CYRI-A and CYRI-B have clear overlapping functions and can compensate for each other in WRC-dependent cell motility and macropinocytosis (Le et al., 2021).

While the function of CYRI proteins in single cells has been studied in more detail, the function of CYRI proteins in healthy tissues and model organisms has not been addressed yet (Machesky, 2023; Whitelaw et al., 2019). Here, we analyzed the single Drosophila gene CG32066 encoding the homolog of mammalian CYRI-A/CYRI-B. Like its mammalian counterparts, Drosophila CYRI preferentially binds activated Rac1 and suppresses lamellipodial protrusions upon overexpression. Flies lacking CYRI function are viable but partially sterile. Loss- and gain-of-function analysis further revealed important functions in lamellipodial protrusions during epidermal wound closure and in invasive, collective border cell migration. Thus, our data highlight the evolutionary conserved role of CYRI proteins in regulating cellular and tissue dynamics.

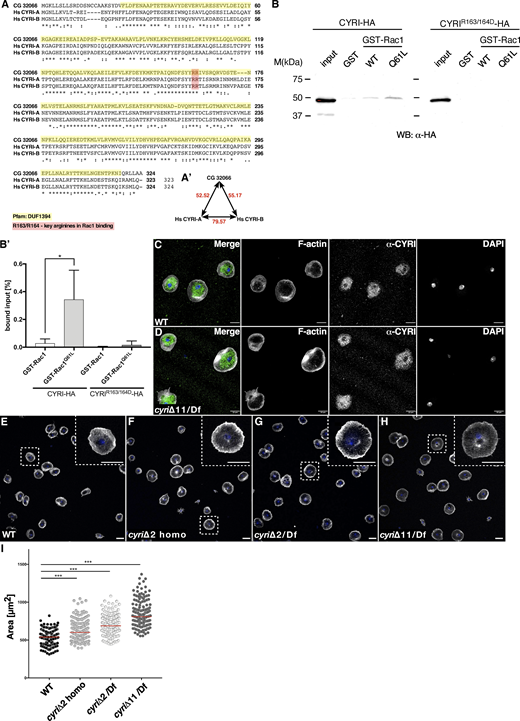

Sequence analysis revealed that the gene CG32066 encodes a member of the CYRI protein family, a new group of Rac1 interactors recently described (Whitelaw et al., 2019). The AlphaFold algorithm (Jumper et al., 2021) predicts a highly similar structure and topology between CG32066 and human CYRI-A and CYRI-B proteins (Fig. 1, A–A″ and Video 1). Drosophila CYRI also contains a domain of unknown function (DUF1394, Fig. S1 A) that has been recently characterized as a Rac-binding module mediated by two highly conserved arginines at positions 163 and 164 (homologous to arginine R160 and R161 in CYRI-A and CYRI-B; Whitelaw et al., 2019; Fig. 1, A and B highlighted in yellow). The Drosophila CG32066 protein exhibits ∼55% identity with its human homolog CYRI-B (Fig. 1 C and Fig. S1 A′).

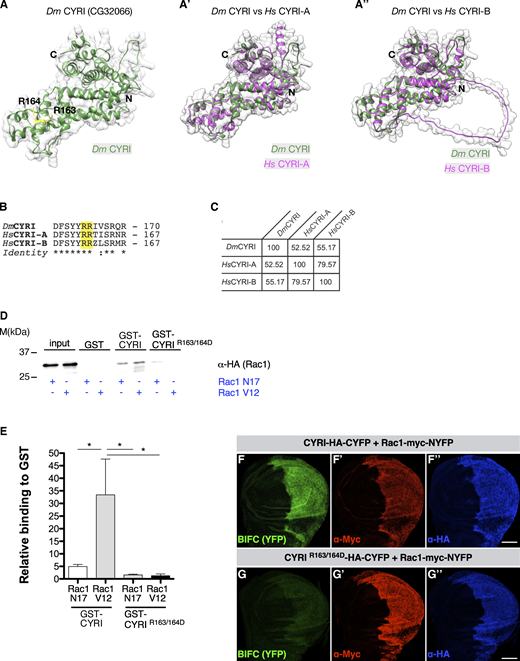

We first tested whether Drosophila CYRI could indeed interact with active Rac1. We performed pull-down experiments using GST-tagged proteins, either wildtype GST-CYRI^WT or mutant GST-CYRI^R163/164D with mutations of key arginines (R163D, R164D; see also Fig. S1 A), incubated with cell lysates expressing HA-tagged dominant-negative Rac1^N17 or constitutively active Rac1^V12 proteins (Fig. 1 D). Recombinant wildtype CYRI protein significantly bound the active Rac1^V12 variant, whereas mutation of key arginines to aspartic acid in CYRI abrogated this interaction (Fig. 1 D; quantification in Fig. 1 E). We also performed similar pull-down experiments using GST-tagged wildtype Rac1 (Rac-WT) and constitutively active Rac, RacQ61L, incubated either with cell lysates expressing HA-tagged wildtype CYRI (HA-CYRI-WT) or the mutant HA-tagged CYRI^R163/164D (Fig. S1 B). CYRI-WT interacted more strongly with RacQ61L compared with Rac-WT as previously shown for mammalian CYRI-B (Fort et al., 2018). Again, mutations of key arginines to aspartic acid in CYRI abrogated this interaction (Fig. S1 B).

We also used the bimolecular fluorescence complementation (BiFC) assay to further evaluate a direct interaction between CYRI and Rac1 in vivo (Gohl et al., 2010). Upon coexpression of an N-terminal Rac1-NYFP and C-terminal CYRI-CYFP fusion under the control of the en-Gal4 driver, strong YFP fluorescence was observed in the posterior compartment of wing discs (Fig. 1 F). Mutation of key arginines in CYRI strongly reduced the BiFC signal in wing imaginal discs (Fig. 1 G). Taken together, these data show that Drosophila CYRI is a conserved Rac1 interacting protein.

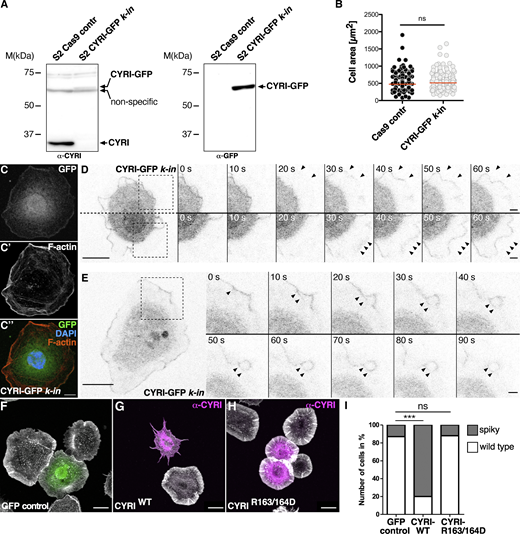

An affinity-purified antibody to endogenous CYRI did not give specific staining by immunofluorescence (Fig. S1, C and D) but detected endogenous protein of about 35 kDa in western blots of lysates from Drosophila S2 cells (Fig. 2 A). To visualize CYRI in living cells, we employed CRISPR-mediated homology-directed repair to insert the GFP coding sequence at the 3′ end of the cyri gene to visualize CYRI localization in living S2 cells. Western blot analysis from this clone-selected stable S2 cell line (termed CYRI-GFP k-in) detected the endogenous CYR-GFP fusion protein at the expected size of 70 kDa, both using an anti-CYRI and an anti-GFP antibody (Fig. 2 A). Adding a GFP tag to endogenous CYRI did not affect S2 cell morphology or cell size as previously reported in cultured mammalian cell culture ectopically expressing GFP-CYRI fusions (Fig. 2 B; [Fort et al., 2018]). Despite the very low endogenous GFP fluorescence, confocal fluorescence microscopy revealed a distinct enrichment of the endogenous CYR-GFP protein at leading pseudopods, both in fixed and in living cultured S2 cells (Fig. 2, C and D; and Video 2). Time-lapse fluorescence microscopy further revealed a localization of endogenous CYRI to macropinocytic cups and macropinocytic structures as previously found for mammalian CYRI-A protein (Fig. 2 E and Video 2; [Le et al., 2021]).

Overexpression of CYRI proteins suppresses lamellipodia protrusions phenocopying wave mutant cell morphology (Fort et al., 2018; Whitelaw et al., 2019; Yuki et al., 2019). To determine the functional activity of Drosophila CYRI on protruding lamellipodia, we performed transient overexpression experiments using cultured Drosophila S2R+ cells. Non-transfected cells or control S2R+ cells expressing GFP showed broad circumferential lamellipodia when spread on Concanavalin A (ConA) (Fig. 2 F; Bogdan et al., 2005). By contrast, overexpression of wildtype CYRI led to a collapse of all lamellipodia-like structures and induced a spiky morphology (Fig. 2 G). Quantitative analysis confirmed that CYRI overexpression phenocopied a loss of wave function (Fig. 2 I; Bogdan et al., 2005). For overexpression of wildtype CYRI (CYRI-WT), about 80% of all transfected cells identified by anti-CYRI staining showed a spiky phenotype. Mutation of key arginines in CYRI^R163/164D abolished this phenotype upon overexpression. The majority of cells expressing CYRI^R163/164D showed a wildtype spread cell morphology and only 15% showed changed morphology similar to control cells transfected with a GFP control construct (Fig. 2 H, quantification in Fig. 2 I). Thus, we conclude that Rac1-binding is needed to competitively inhibit WAVE function in lamellipodia formation.

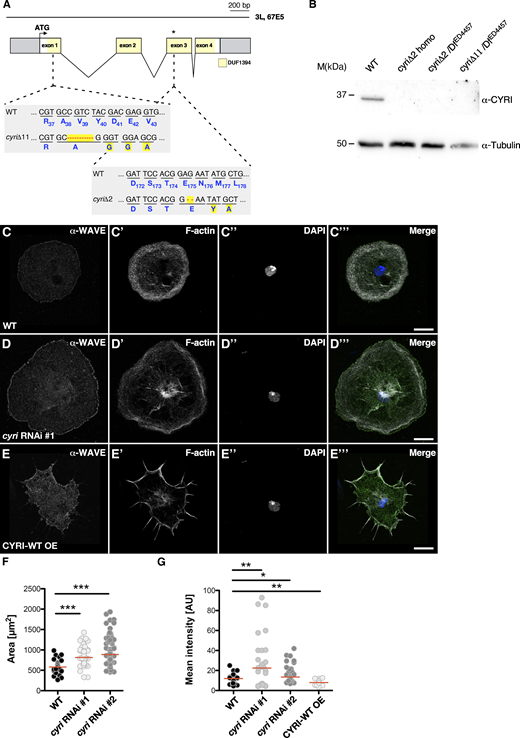

We next analyzed the consequences of loss of cyri function. The Drosophila cyri gene is located on the third chromosome (Fig. 3 A). It consists of four exons encoding a 36.6 kDa protein. We took advantage of CRISPR/Cas9-mediated genome editing to introduce small deletions within the first and third exon of the cyri gene locus (Fig. 3 A). We isolated two frame-shift mutants, cyriΔ2 and cyriΔ11 (Fig. 3 A). The homozygous viable cyriΔ2 mutant contains a small 2-bp deletion in the third exon after codon 174 that produces a frameshift and consequently results in the incorporation of 34 ectopic amino acids followed by a premature stop codon (Fig. 3 A). In comparison, the cyriΔ11 allele carries an 11-bp deletion in the first exon leading to a non-functional peptide. In contrast to cyriΔ2, homozygous cyriΔ11 mutant animals die at the early second instar larval stage. This discrepancy prompted us to test trans-heterozygous flies with the sequence mapped null deficiency Df(3L)ED4457 that removes the complete cyri gene locus. Interestingly, cyriΔ11/Df(3L)ED4457 were viable suggesting that cyriΔ11 also contains off-target mutations associated with lethality. To test protein expression in homozygous and trans-heterozygous cyri mutants, we applied Western blot analysis from wildtype and mutant fly extracts. Western blots showed that the antibody recognized endogenous 36 kDa CYRI protein in wildtype (Fig. 3 B). By contrast, extracts from homozygous and trans-heterozygous cyri mutant flies showed a loss of CYRI protein (Fig. 3 B). Of note, no truncated CYRI protein (∼23 kDa in size) was detectable in cyriΔ2 mutant lysates (Fig. 3 B). Thus, we decided to further characterize both cyri alleles functionally.

In mammals, CYRI null cells exhibit a pancake-like morphology with extensive membrane ruffling and increased cellular spread (Fort et al., 2018; Whitelaw et al., 2019; Yuki et al., 2019). To analyze the effect of Drosophila CYRI on cell spreading, we isolated macrophages from homozygous and trans-heterozygous cyri mutant pupae (Fig. S1, E–H). We found that not only trans-heterozygous cyriΔ11 mutant (termed cyriΔ11/Df) but also cyriΔ2 mutant macrophages spread over a significantly larger area with unusually large and broad lamellipodia compared with wildtype (Fig. S1, E–H, quantification in Fig. S1 I). Compared with cyriΔ2, cyriΔ11/Df mutant macrophages showed the most prominent increased cell spread suggesting that cyriΔ2 is a hypomorphic allele rather than a null allele as cyriΔ11 (compare quantification in Fig. S1 I).

To further test a cell-autonomous function of CYRI in regulating actin-driven cell spreading, we expressed two different cyri RNAi transgenes under the control of macrophage-specific Gal4 driver (hmlP2A-Gal4; Stephenson et al., 2022). Expression of both cyri RNAi transgenes resulted in increased cell spreading (Fig. 3, D and F). Notably, macrophages depleted for CYRI showed an increased immunofluorescent anti-WAVE intensity at the leading edge compared with wildtype control cells (Fig. 3, D and G) whereas overexpression of CYRI induced a spiky morphology that resulted in a marked reduction of endogenous WAVE at lamellipodial tips (Fig. 3 E, quantification in Fig. 3 G). Therefore, like their mammalian counterparts, Drosophila CYRI opposes active WAVE complex recruitment to the plasma membrane.

We next analyzed Drosophila CYRI function in vivo. We first focused on its possible role in epidermal wound closure, a physiological process that highly depends on dynamic actin-based protrusions and migration of epithelial cells (Rothenberg and Fernandez-Gonzalez, 2019; Tsai et al., 2018). We have recently established a single-cell wounding model system using epidermal cells from the dorsal side of the abdomen of early pupal stages (Fig. 4, A and A′; Lehne et al., 2022). To visualize these cells, we expressed a Lifeact-EGFP transgene under the control of the epidermis-specific A58-Gal4 driver (Galko and Krasnow, 2004). Wildtype cells respond to laser-induced cell ablation by the formation of broad lamellipodial protrusions at the wound edge within the first 3 min (Fig. 4 B). Lamellipodia decrease over time and coexist with an increasing number of contractile actin bundles, which contract laterally to pull cells forward and further contribute to wound closure (Fig. 4 B and Video 3). Lamellipodia formation of cells adjacent to the wound edge highly depends on the Rac-WRC-Arp2/3 actin machinery. Supporting this notion, RNAi-mediated knockdown of either WAVE, Arp2, or Arp3 strongly disrupted lamellipodia formation (Fig. 4, C–E and Video 3). Consistently, animals depleted for wave, arp2, and arp3 showed not only strong defects in lamellipodia size within the first minutes upon wounding (Fig. 4 F) but also showed a delay in wound healing within the first 20 min (Fig. 4 F′). Later on, purse-string contraction of an actomyosin ring seems to compensate for initial lamellipodial cell migration defects in wave, arp2, and arp3-depleted epidermis. Wound measurements 60 min after injury revealed no significant difference to wildtype tissue (Fig. 4 F′).

Strikingly, similar wound closure defects were observed in animals overexpressing a wildtype full-length CYRI but not a mutant CYRI^R163/164D transgene deficient for Rac binding (Fig. 5, A and B; quantification in Fig. 5, E and E′). To analyze wound closure in cyri mutant animals, we recombined the A58-Gal4 driver and the UAS-Lifeact-EGFP reporter on the mutant chromosomes. Interestingly, loss of cyri function increased lamellipodia size and promoted wound closure (Fig. 5, C and D; quantification in Fig. 5, E and E′; and Video 4). The strongest positive effect on wound healing was observed in cyriΔ11 mutant epidermis compared with hypomorphic cyriΔ2 (Fig. 5, E and E′). Remarkably, mutant wounds almost completely closed after 1 h, a healing efficiency that was rarely observed in wild type epidermis (Fig. 5 E). Notably, re-expression of a wild type CYRI but not Rac-binding deficient CYRIR163/164D variant rescued the cyri loss of function phenotype resulting in wound closure behavior similar to wild type epidermal cells (Fig. 5 E′ and Video 5). Increased wound-induced lamellipodia formation observed in cyri-depleted cells indeed seems to be due to an increased Rac activity. We established a new GFP-based sensor for active Rac1 and Rac2, termed MBT-GFP. This sensor includes the Cdc42- and Rac-interactive binding (CRIB) domain of the p21-activated kinase mushroom bodies tiny (Mbt) fused to EGFP (Melzig et al., 1998). GST-pull down experiments confirmed its specific binding to GTP-loaded Drosophila Rac1 and Rac2 (Fig. S2, A and B). MBT-GFP also strongly bound Cdc42, but this binding was, however, independent of the nucleotide-binding status of Cdc42 (Fig. S2, A and B). In vivo, the reporter nicely marks increased lamellipodial protrusions at the wound margin of epithelial cells depleted for cyri (Fig. 5, F and G; and Video 6). Quantification confirmed both significantly increased mean and maximum fluorescence intensity upon cyri knockdown (Fig. 5 H).

In addition, we performed similar localization experiments with an Abi-EGFP transgene, which has been shown to resemble WRC localization in vivo (Squarr et al., 2016, JCB). Different from the MBT-CRIB-GFP sensor, Abi-EGFP exclusively marks the tips of protruding lamellipodia formed at the wound margin (Fig. 5 I and Video 7). Compared with wild type, RNAi-mediated suppression of CYRI resulted in a significantly increased maximum intensity of Abi-EGFP localization at lamellipodial tips (Fig. 5 J, quantification in Fig. 5 K and Video 7). Thus, these additional data further support that CYRI acts as a molecular brake on the Rac-WRC-Arp2/3 pathway in wound healing by opposing active WAVE complex recruitment at the wound edge.

To further validate the cell-autonomous function of CYRI in epidermal wound healing, we expressed the two different cyri RNAi transgenes under the control of the epidermis-specific A58-Gal4 driver. Both RNAi fly lines phenocopied cyri loss-of-function and resulted in a significantly increased lamellipodia formation in cells around the wound edge (Fig. S3 A). Loss of CYRI function accelerates wound closure not only in single-cell wounds but also in multicellular epidermal wounds (four to six cell ablation), significantly healing faster in cells lacking CYRI function (Fig. S3, B–D). Interestingly, simultaneous RNAi-mediated suppression of cyri and wave still resulted in lamellipodial protrusion defects similar to wave RNAi depletion alone (Fig. S3 A). Thus, this further suggests that CYRI indeed acts through WAVE in regulating lamellipodial protrusions during wound closure.

While trans-heterozygous cyriΔ11 mutants are viable, we observed reduced female fertility resulting in significantly lesser offspring (Fig. 6 A). Reduced fertility correlated with defects in the formation of the micropyle, the structure through which the sperm enters to fertilize the egg (Montell et al., 1992). Examination of the eggs from cyriΔ11 mutant females revealed that many of them showed a shortened micropyle compared with the wild type (Fig. 6, B and C). Micropyle formation is closely linked to proper border cell migration during egg development (Horne-Badovinac, 2020). Border cells form a small group of 6–10 somatic cells that delaminate from the follicle epithelium and migrate invasively and collectively between the nurse cells toward the border between the oocyte and nurse cells (Montell et al., 2012; Peercy and Starz-Gaiano, 2020). Thus, we suspected the possibility that cyri mutation may impair collective border cell migration and looked more closely into the cellular basis of reduced egg fertility.

Recent studies by the Montell lab support an integrated model of collective border cell migration in which the highest Rac activity is found in the leader cell which steers the cluster, but Rac is also required in the follower cells that coordinate both cluster migration and cluster cohesion (Campanale et al., 2022; Wang et al., 2010). The border cell cluster contains two cell types: a pair of non-motile cells, so-called polar cells, which initiate the cluster delamination; and four to eight outer, motile border cells, which carry the polar cells to the border between the oocyte and nurse cells (Fig. 6 D; Montell et al., 1992). Wild type border cells are specified in stage 8, migrate invasively in between the nurse cells during stage 9, and arrive at the nurse cell-oocyte boundary by stage 10 (Fig. 6, D and E). We indeed observed striking defects in cyriΔ11 mutant stage 9 and 10 egg chambers when we followed the outer migratory border cells stained with an antibody against nuclear Eyes Absent (EYA) (Bai and Montell, 2002). In cyriΔ11 mutant egg chambers, border cells started migration but single border cells often detached from and trailed behind the main cluster to ultimately remain between the nurse cells (Fig. 6, F and G; magnifications in Fig. 6, F1 and G1–G3; quantification in Fig. 6 H). As a consequence, mutant border cell clusters that reached the nurse cell–oocyte boundary often contained less migratory border cells (Fig. 6 G3). The total cell number of the border cell cluster, however, was not changed (Fig. S4 A).

We further validated the cell-autonomous function of CYRI in border cell cohesion by cell-type specific RNAi experiments. RNAi-mediated depletion in outer border cells using the c306-Gal4 driver line also resulted in prominent lagging border cells (Fig. 7 A). Expression of the same two RNAi transgenes under the control of the upd-Gal4 driver (E132-Gal4), which is exclusively expressed in polar cells, did not result in any significant phenotype, suggesting that CYRI function is only needed in migratory outer border cells (Fig. 7 A′). Interestingly, overexpression of wild type CYRI but not Rac-binding deficient CYRI^R163/164D variant under the control of the c306-Gal4 driver did not result in migration defects of border cells clusters (Fig. 7 C; quantification in Fig. 7 A). Both, delayed migration and cohesion defects of border cell cluster were also seen upon RNAi-mediated depletion of WAVE (Fig. 7 D; quantification in Fig. 7 A). Given that Rac activity must be tightly regulated in both, leader and follower cells, increased pools of activated Rac might affect not only migration but also the cohesion of the border cell cluster (Campanale et al., 2022). Supporting this notion, we found that overexpression of a membrane-tethered activated WAVE variant (WAVE^Myr; Stephan et al., 2011) in outer border cells, phenocopied loss of cyri function, thus resulting in a significant reduction of cluster cohesion (Fig. S4, B–D; quantification in Fig. 7 A). Notably, the number of WAVE^Myr expressing egg chambers with prominent lagging border cells was lower compared to cyriΔ11 or cyri RNAi (compare Fig. 7 A), suggesting that increased Rac-dependent WRC activation cannot fully account for cluster cohesion defects in cyri deficient border cell clusters. Double RNAi experiments further indicated no simple epistatic relationship between cyri and wave in border cell cohesion different from wound closure. Instead, we observed a significant decrease of lagging border cells when we depleted both cyri and wave compared with single RNAi depletion (Fig. 7 A). Removal of one copy of wave in cyri mutant background did not significantly reduce the lagging border phenotype (Fig. S4 E). For this reason, we further analyzed whether CYRI might directly affect border cell cluster cohesion.

A central adhesion molecule is E-cadherin which mediates adhesion between border cells and nurse cells (Cai et al., 2014; Niewiadomska et al., 1999). Loss of E-cadherin in either cell type blocks migration and results in elongated clusters with single cells trailing behind (Niewiadomska et al., 1999). In wild type, the highest concentration of E-cadherin is found at the apical interface between border cells and polar cells (apical cap, ring-like structure) and at the contact side between adjacent border cells (BC-BC interface, “arms”; Fig. 8 A′, B, and D; magnification in B‴′, D‴′). At the interface between border cells and nurse cells substantially lower amounts of E-cadherin are detectable. Migrating border cell clusters maintain the apico-basal polarity, and the apical cap/ring structure is oriented approximately orthogonal to the direction of migration (Fig. 8 A″; Felix et al., 2015; Niewiadomska et al., 1999; Pinheiro and Montell, 2004). We found that E-cadherin localization and levels were not changed in cyriΔ11 mutant egg chambers (Fig. 8, C and E; magnification in C‴′, E‴′), suggesting that cluster cohesion defects are not due to changes in E-cadherin-mediated adhesion.

Instead, we observed changes in the localization of βPS-integrin, the second adhesion molecule that contributes more to cluster cohesion than to cell–matrix interactions during border cell migration (Dinkins et al., 2008; Llense and Martín-Blanco, 2008). Expression of βPS-integrin, which marks the basal domain of the cluster, predominantly localizes at the interface between border cells (BC-BC) in wild type (Fig. 8, B and D; magnification in B‴″ and D‴″). Unlike wild type, cyriΔ11 mutant clusters showed a changed localization along the basal-lateral domain (Fig. 8, C and E, magnification in C‴″, E‴″). While E-cadherin was still enriched in the apical domain, less βPS-integrin localized to the basal side and along the lateral interface between cyriΔ11 mutant epithelial cells but showed reduced βPS-integrin membrane localization compared with wild type clusters (Fig. 8 F; see also Video 8). By contrast, overexpression of a wild type CYRI transgene under the control of the c306-Gal4 driver line did not result in significant changes in βPS-integrin localization (Fig. 8 G). Taken together, these data suggest that changed integrin-mediated adhesion between border cells might also contribute to cohesion defects in cyri mutants.

CYRI proteins have been previously identified as a new class of Rac1 interactors that interfere with WRC activation (Fort et al., 2018; Whitelaw et al., 2019; Yuki et al., 2019). At the single cellular level, these studies revealed an important role of CYRI proteins in regulating cell migration, macropinocytosis, and pathogen entry into cells. In this study, we have used Drosophila as a model system to study CYRI function at cellular and organismal levels. Our data confirmed an evolutionary conserved function of CYRI controlling lamellipodia spread and protrusion dynamics by opposing Rac-mediated activation of WRC. CYRI is not only a potent and dynamic regulator of WRC in single macrophages but also in epithelial tissue wound healing. Our data highlight a novel role of CYRI in Rac-WRC-Arp2/3-dependent epidermal wound closure. Laser-induced wounding experiments suggest that CYRI acts as a molecular brake on the Rac-WRC-Arp2/3 pathway to slow down wound healing possibly to enable an efficient inflammatory response and improve proper re-epithelization and scarring. Supporting this notion, loss of CYRI function accelerates wound healing, whereas its overexpression suppresses epidermal re-epithelialization. High-resolution live imaging of wounded mutant tissue showed dramatically increased lamellipodia protrusions that assembled in cells around the wound edge and contributed together with acto-myosin-based contraction to efficient wound closure. This suggests that the WRC-Arp2/3 complexes are hyperactivated by Rac in cyri-deficient epithelial cells.

How could CYRI oppose Rac1-mediated activation of WRC? CYRI might prevent the formation of clusters or dimers of WRC by limiting the amount of available GTP-bound Rac1 (Machesky, 2023). Such hetero- and homo-oligomeric complexes of WRC have been previously observed at integrin junctions in wing epithelia (Gohl et al., 2010). However, we found no evidence for such a possible scenario in gel filtration chromatography experiments (Fig. S4 F). By contrast, endogenous WRC protein complexes from lysates of Drosophila S2 cell overexpressing either wild type CYRI or the Rac-binding deficient CYRI^R163/164D variant were still cofractionated with similar high molecular weight complexes at 500–700 kDa (Fig. S4 F). CYRI might either compete with WRC and/or Rac GTP exchange factor (GEF) proteins to limit the amount of active Rac1 (Machesky, 2023). The conserved Myoblast city (Mbc)-ELMO/CED-12 complex is known to act as a member of Rac GEFs to control Rac1 activity and lamellipodia formation in Drosophila dorsal closure, a morphogenetic movement of two opposing epithelial sheets similar to wound healing (Toret et al., 2018). However, the role of Mbc-Elmo in epidermal wound healing has not yet been addressed. Biochemical studies showed that the WRC requires two active Rac1 molecules simultaneously and CYRI acts by specifically disrupting Rac1–WRC interactions using its A-site-analogous DUF 1394 domain (Ding et al., 2022). Thus, if CYRI removes one of these, it acts as a potent and dynamic regulator of WRC. Given the prominent enrichment of endogenously GFP-tagged Drosophila CYRI at the leading edge of cultured S2 cells CYRI behaves like a “local inhibitor” of WRC, sequestering Rac away from interaction with WRC at the cell membrane as previously suggested (Fort et al., 2018).

CYRI function is not limited to the re-epithelialization dynamics in the epidermis but also in other epithelia during tissue morphogenesis that also require a tightly regulated collective cell behavior. Strikingly, we found that CYRI regulates the cohesion of border cell cluster, a well-established Drosophila model for studying invasive, collective cell migration in the physiological context of fly oogenesis. Collective cell migration requires efficient coordination of cell–cell and cell–matrix interactions. We found that loss of CYRI function results in a reduced cohesion of border cells, a phenotype reminiscent of defects in cell–cell and cell–matrix interactions. E-cadherin expression appears grossly normal in cyri mutant egg chambers, but mutant clusters showed a changed localization of β-integrin along the basal-lateral domain at border cell contacts. As a consequence, single border cells often trailed behind the main cluster to ultimately remain between the nurse cells, reminiscent of defects seen in βPS-integrin knockdown (Dinkins et al., 2008; Llense and Martín-Blanco, 2008). Interestingly, in cultured mammalian cells, depletion of both CYRI-A and CYRI-B resulted in enhanced surface expression of the α5β1 integrin via reduced internalization suggesting a conserved role of CYRI proteins in integrin trafficking (Le et al., 2021).

Defects in border cell cohesion partly explain the reduced fertility observed in cyri mutant females. Overexpression experiments further suggest that CYRI not only controls border cell cohesion but also WAVE-driven cluster motility. Supporting this notion, overexpression of CYRI phenocopies wave knockdown resulting in delayed migration of border cells. These data show that the level of CYRI expression is functionally important and must be tightly regulated in vivo. Expression data in different types of cancer suggest that human CYRI proteins also play an important pathophysiological function in invasive collective cell behavior of epithelial tissues (Nikolaou and Machesky, 2020). Most invasive solid tumors display predominantly collective invasion, in which groups of cells invade the peritumoral stroma while maintaining cell–cell contacts (Friedl et al., 2012; Friedl and Wolf, 2003). A reduction of cohesion of epithelial cells within the tumor or stromal cells is often accompanied by local or distant metastasis, which is also a hallmark of cancer. Interestingly, CYRI-B (FAM49B) has been originally identified as a suppressor of cancer cell proliferation and invasion in pancreatic ductal adenocarcinoma (PDAC; Chattaragada et al., 2018). Scratch-wound and matrigel invasion assays revealed that FAM49B/CYRI-B-silenced PDAC cells and CYRI-A/CYRI-B double knockout A-673 cells displayed enhanced migration compared with control cells (Chattaragada et al., 2018; Le et al., 2021). Since CYRI-B is also highly expressed in the human skin (Uhlén et al., 2015), it will be interesting to determine whether CYRI-B might also play an important role in skin wound healing and repair.

Flies were kept at room temperature in plastic vials, containing Drosophila standard food. For experimental procedures, fly husbandry and crossings were carried out according to standard methods and were kept at 25°C. In UAS-Gal4-based experiments, crossings were kept at 29°C. The following lines were obtained from Bloomington stock center: w[1118] (BL3605), hmlΔ-Gal4 (BL30139), en-Gal4 (BL30564), c306-Gal4 (BL3743), and UAS-Lifeact.GFP (BL57326). The A58-Gal4 driver was a kind gift from M. Leptin (Galko and Krasnow, 2004). Further lines were obtained from the Vienna Drosophila RNAi Center: arp2 RNAi (v29944), arp3 RNAi (v35258), rac1 RNAi (v49246), rac2 RNAi (v50350), cyri RNAi #1 (v107318), cyri RNAi #2 (v44825) and from NIG-FLY: wave RNAi (4636R-1). Additionally, the following transgenic lines were used: UAST-CYRI^WT, UAST-CYRI^R163/164D, UAST-CYRI-HA-CYFP, and UAST-dRac1-myc-NYFP. These lines were generated in accordance with the protocol for the germline-specific φ31-integrase system published by Bischof et al. (2007). The following lines were used for injections: y[1] M{vas-int.Dm}ZH2A w[*]; 579 M{3xP3-RFP.attP’}ZH-86Fb (BL24749) and y[1] M{vas-int.Dm}ZH2A w[*]; M{3xP3-580 RFP.attP’}ZH-68E (BL24485). The cyriΔ2 and cyriΔ11 mutants were generated by CRISPR/Cas9 of the following target sequence: cyriΔ2: 5′-CGG​AGA​ATA​TGC​TGG​TCA​GC-3′ and cyriΔ11: 5′-GGA​GCG​TGC​CGT​CTA​CGA​CG-3′.

Expression of GST-tagged full-length Drosophila CYRI (pGEX 6P1; Addgene) was induced in ArcticExpress (DE3) cells (Agilent Technologies) by 1 mM IPTG for 24 h at 10°C. After the incubation, cells were harvested and lysed by sonication in 1× PBS containing a protease inhibitor cocktail (Roche). The protein-containing solution was purified in accordance with instructions of the used GSTrap FF column and the ÄKTA laboratory-scale affinity chromatography system (GE Healthcare). Guinea pigs were immunized with purified proteins by Pineda Antikörper services (Pineda, Berlin). The rabbit His-CYRI antibody was generated by expression of 6x-His-tagged full-length Drosophila CYRI (pDEST17; Themo Fisher Scientific) in BL21-AI E. coli (Thermo Fisher Scientific). Protein expression was induced by arabinose for 4 h at 37°C. The recombinant protein was purified with Ni-NTA resin and sent for immunization of rabbits to the Pineda Antibody service (Pineda; Berlin). Affinity-purification of antibodies was performed with immobilized GST-CYRI loaded onto HiTrap NHS-activated HP columns and using the ÄKTA purifier system (GE Healthcare) according to the instructions of the manufacturer.

GST-tagged Drosophila CYRI and CYRI^R163/163D (pGEX 6P1; Addgene) were expressed in ArcticExpress (DE3) cells (Agilent Technologies) and purified via sonication in GST lysis buffer (2 mM MgCl₂, 2 mM DTT, 10% (vol/vol) glycerol in 1× PBS). GST-tagged proteins were then immobilized on Glutathione Sepharose 4B (Merck, Cytiva). S2 cells transfected with 3x-HA-tagged dRac1, dRac1^G12V, or dRac1^T17N were harvested 72 h post-transfection. Cells were lysed in TLB buffer (50 mM Tris-HCL pH 7.4, 150 mM NaCl, 1.5 mM MgCl₂, 4 mM EDTA, 10% [vol/vol] glycerol, 1% [vol/vol] Triton X-100, 1 mM DTT) by vortexing. Protein lysates containing wild typic and mutant dRac1 were loaded with either GDP or GTPγS (Sigma-Aldrich) in a 10-min long reaction at 30°C. Once the reaction was stopped by adding 0.1 mM MgCl₂, GDP- or GTPγS-loaded dRac1 was incubated overnight at 4°C with GST-CYRI or GST-CYRI^R163/164D. Following the incubation, beads were washed and prepared for SDS PAGE and western blot analysis.

Expression analysis of the cyriΔ2 and cyriΔ11 mutants was performed with lysates from isolated ovaries. 10 flies were dissected in 1× PBS and ovaries were carefully removed. Protein lysates were created by squashing the ovaries in lysis buffer (10 mM Tris pH 7.4, 100 mM NaCl, 2.5 mM MgCl2, 0.5% Triton X-100 + proteinase inhibitor) with a pestle. 4× SDS sample buffer was added to the supernatant and protein lysates were incubated for 10 min at 95°C.

Protein lysates were separated via SDS PAGE and analyzed by Western blot. The following antibodies were used: primary antibodies—anti-Tubulin (1:2,000; DSHB AA4.3), anti-GST (1:5,000; Merck), anti-His-CYRI (1:250; purified), anti-GST-CYRI (1:250; purified), anti-GFP (1:1,000; ClonTech); secondary antibodies—goat anti-mouse IgG (H+L), HRP (1:5,000; Thermo Fisher Scientific), goat anti-rabbit IgG (H+L), HRP (1:5,000; Thermo Fisher Scientific), goat anti-guinea pig IgG (H+L), HRP (1:5,000; Thermo Fisher Scientific), donkey anti-goat IgG (H+L), and HRP (1:5,000; Thermo Fisher Scientific).

Drosophila S2 cells were cultured in Schneider’s medium as described in Stephan et al. (2008). Transfection of S2 cells was performed as described in Nagel et al. (2017). The following plasmids were used for transfection: pUAST attB CYRI, pUAST attB CYRI^R163/164D, pUAS attB GFP, pTWH dRac1-3x-HA, pTWH dRac1^G12V-3x-HA, and pTWH dRac1^T17N-3x-HA. All plasmids were created using the Gateway cloning system (Thermo Fisher Scientific).

S2R+ cells were lysed in 25 mM Tris-HCl at pH 7.6, 100 mM NaCl, 2 mM MgCl₂, 0.5 mM EGTA, 5% glycerol, and a protease inhibitor mixture (Roche). Lysates were centrifuged 2 × 15 min at 16,000 g to yield the cytoplasmic supernatant. The cytoplasmic supernatant was applied to a Superose 6 10/300 GL column (GE Healthcare). Collected fractions were precipitated with trichloroacetic acid and equal volumes of fractions were separated on standard SDS-PAGE. Proteins were analyzed by Western blots using an affinity-purified anti-WAVE antibody (guinea pig 1:2,000).

GFP-tagging of endogenous CYRI in S2 cells stably expressing Cas9 nuclease (S2-Cas9) was performed as previously described (Böttcher et al., 2014). A DNA sequence encoding a GFP-tag was inserted at the 3′ end of the coding region of the cyri gene locus (targeting sequences: 5′-TTT​GTT​GGC​CGC​ATA​ATA​T-3′), leading to the expression of a C-terminally tagged protein. Briefly, S2-Cas9 cells were transfected with double-stranded linear DNA constructs encoding sgRNA and providing a template for homologous recombination (HR). PCR-based donor constructs were used as a template for homologous recombination (HR) after double-stranded breaks were introduced by the Cas9 nuclease. HR templates were amplified from plasmids containing GFP-tag sequences including a STOP codon and a resistance marker (pMH3, GFP-tag & Blasticidin resistance marker, a kind gift from A. Brehm).

This insert was amplified using primers containing 60 bp sequences homologous to regions directly up- and downstream of the original STOP codon (CYRI::GFP (endogen) antisense: 5′-GAA​ATT​AAC​GTT​AAT​GAA​CTC​TCC​GCC​CAC​ACC​GGC​CGC​GCC​CAC​CGA​TCC​CCT​CCA​ATA​GAA​GTT​CCT​ATT​CTC​TAG​AAA​GTA​TAG​GAA​CTT​CCA​TAT​G-3′ CYRI::GFP (endogen) sense 5′-ACG​ACG​AAG​CAT​TTG​AAT​GGG​GAG​AAC​ACG​CCG​AAG​AAT​ATA​CAG​CGT​TTG​TTG​GCC​GCA​GGA​TCT​TCC​GGA​TGG​CTC​GAG-3′).

To promote double-strand break repair by HR, the protein amount of key enzymes involved in non-homologous end joining (NHEJ) and microhomology-mediated end joining (MMEJ) was lowered by transfecting S2-Cas9 cells with 1 μg/ml dsRNA targeting lig4 (NHEJ) and mus308 (MMEJ) transcripts. After 3 days, cells were transfected with HR and sgRNA templates using FuGENE HD transfection reagent (Promega). 4 days post transfection, cells were transferred to a medium containing 10 μg/ml Blasticidin (Gibco), respectively.

Early pupae (0.5–4 h APF) were opened by gently pulling the epidermis apart with forceps, thereby releasing the hemolymph including macrophages into M3++ medium (Biomol). The cells were then placed on Concavalin A (Sigma-Aldrich) coated coverslips for 1 h at 25°C. Afterwards the macrophages were fixed using 4% PFA (Sigma-Aldrich) and washed with PBS. For antibody staining, the hemocytes were then incubated in 3% BSA (Roth) for 2 h at RT with the primary antibody (affinity-purified guinea pig antiserum, 1:1,000; Hirschhäuser et al., 2021) and for 45 min with the secondary antibody (anti-guinea pig Alexa488, Invitrogen), DAPI (Thermo Fischer Scientific), and Alexa568-coupled Phalloidin (Invitrogen). The coverslips were then mounted on object slides using Mowiol (Roth) and left to harden at 4°C for at least 1 h.

Egg chambers were stained according to established protocol (McDonald and Montell, 2005). In detail, adult female flies were placed on fresh yeast for 24 h at 25°C or 29°C and then dissected in PBS. Ovarioles were isolated in Schneider medium and fixed in 4% PFA for 10 min. Egg chambers were washed and blocked in NP40 block (50 mM Tris pH7.4, 150 mM NaCl, 0.5% NP40, 5 mg/ml BSA) and incubated overnight with primary antibodies: anti-EYA (1:50; DSHB 10H6), anti-Ecad (1:50; DSHB DCAD2), and anti-β-Integrin (1:50; DSHB CF.6G11). Secondary antibodies used were goat anti-mouse Alexa Fluor488 and goat anti-rat Alexa Fluor568 (1:1,000; Invitrogen) and were supplemented with Alexa Fluor568 (1:200; Invitrogen) or Alexa Fluor647-conjugated Phalloidin (1:100; Invitrogen) and DAPI (1:100; Invitrogen). After 2 h of incubation at RT, Fluoromount-G was added and stored for at least 1 h at 4°C before mounting. Each experiment consists of 10 flies from at least three independent crossings.

Protein–protein interaction was investigated in vivo by bimolecular fluorescence complementation (Gohl et al., 2010). pUAST-Rac1-myc-NYFP, pUAST-CYRI-HA-CYFP, and pUAST-CYRI-^R163/164D-HA-CYFP were generated by introducing the corresponding cDNAs into the corresponding pUAST-BiFC vectors (Gohl et al., 2010) via Gateway-cloning (Invitrogen). YFP fragments were expressed under the control of the en-Gal4 driver in the posterior compartment of wing imaginal discs, whereas the anterior compartment served as a negative control. Wing imaginal discs were isolated from third instar larvae in ice-cold PBS and fixed in 4% PFA (Sigma-Aldrich) for 20 min and washed in PBT. After 30 min of incubation in blocking solution (3% BSA in PBT), incubation with primary antibodies was performed for 90 min, followed by three washing steps in PBT (20 min each). Secondary antibodies (anti-HA, 1:100; Invitrogen and anti-c-Myc, 1:10; DSHB 9E10) were added and incubated for 60 min in blocking solution, again followed by three washing steps in PBT (20 min each). Wing discs were finally mounted in mounting medium (Fluoromount-G; SouthernBiotech). Endogenous YFP and immunofluorescence were analyzed in confocal images acquired with the Leica TCS SP8 microscope.

Confocal fluorescence images were acquired with the Leica TCS SP8 with an HC PL APO CS2 63×/1.4 and HC PL APO CS2 40×/1.3 oil objective. For cell spread measurements, macrophages were isolated from wandering third-instar larvae, pre-pupae, or pupae (0.5–4 h APF) and seeded on a glass surface coated with Concanavalin A (0.5 mg/ml; Sigma-Aldrich), and stained with phalloidin and DAPI. Wounding experiments of single and multiple (4–6) epithelial cells in the abdomen of pupae (18–20 h APF) were acquired with the Zeiss CellObserver Z.1. Ablation experiments were done using a 355-nm pulsed UV provided by laser Rapp Optoelectronics. Wound closure was imaged for 60 min after wounding in single-cell ablations and for 75 min if multiple cells were ablated.

For anti-mys intensity measurements in fixed egg chambers, lines were drawn along three membranes between outer border cells (“arms”) and the membrane where polar and border cells connect (apical ring). The average intensity along the arms was divided by the intensity along the apical ring. The ratio was plotted and statistical significance was determined using the Mann–Whitney test.

Experiments were repeated in at least three independent experiments. Statistical analysis was performed with GraphPad Prism software Version 5 and 8. The normal distribution of data sets was tested via the Shapiro–Wilk test. In wound healing and lamellipodia size, normal distribution was confirmed through graphical analysis of QQ-plots. Analysis of hemocyte size and intensity measurements was performed using the t-test for normally distributed data sets of two unpaired groups or using the non-parametric Mann–Whitney U test for data sets that were not normally distributed. Border cell migration defects were analyzed using Fisher’s exact or Chi² tests, depending on the number of observed phenotypes. We usually used one-way analysis of variance (ANOVA) for comparing means in a situation where there are more than two groups, except wound healing experiments were analyzed using two-way ANOVA.

The associated supplemental files contain four figures and eight videos. Fig. S1 is related to Fig. 1, showing that Drosophila CG32066 is the ortholog of human CYRI. Fig. S2 is related to Fig. 5, showing that MBT-GFP sensor specifically binds GTP-loaded Drosophila Rac1 and Rac2. Fig. S3 is related to Fig. 5, showing that MBT-GFP sensor specifically binds GTP-loaded Drosophila Rac1 and Rac2. Fig. S4 is related to Figs. 6 and 7, showing that overexpression of activated WAVE results in border cell cohesion defects. Video 1 is related to Fig. 1, showing a similar predicted 3D structure of the Drosophila CYRI protein and its human orthologues. Video 2 is related Fig. 2, showing that endogenous CYRI localizes at leading pseudopods. Video 3 is related Fig. 4, showing that the WRC-Arp2/3 pathway is required for wound closure. Video 4 is related Fig. 5, showing that loss of CYRI accelerates epidermal wound closure. Video 5 is related Fig. 5, showing cyri mutant wound closure defects, rescued by re-expression of wild type CYRI but not CYRI^R163/164D variant. Video 6 is related Fig. 5, showing increased MBT-GFP intensity in cyri-depleted epidermal cells upon wounding. Video 7 is related Fig. 5, showing increased Abi-GFP intensity in cyri-depleted epidermal cells upon wounding. Video 8 is related Fig. 8, showing a 3D Imaris reconstruction movie of wild type and cyri mutant border cell clusters.

The data are available from the corresponding author upon reasonable request.

We acknowledge the Bloomington Drosophila Stock Center and Vienna Drosophila Resource Center for fly stocks. We thank Alexander Hirschhäuser for performing BIFC experiments and structural modeling. We thank Katja Rust for thoughtful discussions and critical reading of the manuscript and Darius Molitor for general support.

The work was supported by grants to S. Bogdan from the Deutsche Forschungsgemeinschaft (DFG). Open Access funding provided by Philipps-Universität Marburg.

Author contributions: M. Rotte: Formal analysis, Investigation, Methodology, Resources, Validation, Visualization, Writing—review & editing, M.Y. Hohne: Formal analysis, Investigation, Validation, Visualization, Writing—review & editing, D. Klug: Data curation, Formal analysis, Investigation, Validation, Visualization, Writing—review & editing, K. Ramlow: Investigation, Methodology, Validation, C. Zedler: Formal analysis, Investigation, Visualization, F. Lehne: Formal analysis, Investigation, Writing—review & editing, M. Schneider: Data curation, Formal analysis, Investigation, Validation, Visualization, Writing—review & editing, M.C. Bischoff: Investigation, Validation, S. Bogdan: Conceptualization, Data curation, Funding acquisition, Investigation, Methodology, Project administration, Supervision, Validation, Visualization, Writing—original draft, Writing—review & editing.
