Zn²⁺ decoration of microtubules arrests axonal transport and displaces tau, doublecortin, and MAP2C

Free, labile zinc (referred to herein as Zn²⁺) has been suggested to act as an intraneuronal signaling molecule. Increases in cytoplasmic Zn²⁺ concentrations can occur as a result of influx from the extracellular milieu through several channels historically defined as Ca²⁺ channels (Hu et al., 2009). Alternatively, Zn²⁺ can be released from intracellular stores via the transient receptor potential mucolipin 1 (TRPML1) channel (Minckley et al., 2019; Du et al., 2021). Synchronous Zn²⁺ spikes have also been detected to fire along with neuronal excitation (Zhang et al., 2021). Such elevated Zn²⁺ has long-term transcriptional effects in neurons (Sanford et al., 2019; Wang et al., 2004). Bioinformatic studies have suggested that Zn²⁺ can bind 2,800 human proteins (Andreini et al., 2006), and in vitro studies have shown that physiological levels of Zn²⁺ inhibit certain enzymes (Eron et al., 2018; Hogstrand et al., 1999; Bellomo et al., 2014). However, it has yet to be determined whether changes in intraneuronal Zn²⁺ can rapidly elicit downstream effects at timescales comparable to Ca²⁺ signaling events. Moreover, if and how Zn²⁺ might directly affect neurophysiological processes is poorly understood.

Microtubule-based trafficking plays critical roles in neurons, which have axonal projections that can extend up to ∼1 m in humans. The importance of proper axonal transport and microtubule regulation is evident by the clear correlation between several neurodevelopmental and adult onset neurodegenerative diseases and mutations in several components of microtubule network and transport machinery (Morfini et al., 2009; Sleigh et al., 2019; Markus et al., 2020; Lasser et al., 2018; Dubey et al., 2015). These processes are under precise spatiotemporal control for the establishment and maintenance of neuronal function and health. Microtubule-associated proteins (MAPs) are responsible for the stability and regulation of microtubule dynamics and microtubule-based function, including transport. Motor proteins comprise one subfamily of MAPs and include dynein and kinesin which are responsible for retrograde and anterograde trafficking along microtubules, respectively (Maday et al., 2014; Hirokawa et al., 2009). Recent work has established that various MAPs can influence polarized microtubule transport by either inhibiting or promoting motor protein motility along microtubules (Monroy et al., 2020). A subset of these motility- and stability-regulating MAPs are upregulated in neurons and are crucial for neuronal development and function. Together, motor proteins (and their cargo-binding adaptor proteins), MAPs, and the microtubules themselves provide numerous targets for regulation that help the cell to accomplish appropriate transport and microtubule regulation.

In this manuscript, we uncover potent roles for Zn²⁺ in the regulation of microtubule-based processes. Neuron depolarization-induced Zn²⁺ influx arrested axonal transport of lysosomes, mitochondria, and DCVs, which was reversed upon Zn²⁺ chelation. Furthermore, physiological levels of Zn²⁺ directly inhibited motility of kinesin via a cargo-adaptor independent mechanism by interacting with microtubules. To determine the potential Zn²⁺ binding sites on microtubules, we investigated the effects of Zn²⁺ on microtubule-decoration of eight MAPs by confocal imaging. Our results show that increases in cytosolic Zn²⁺ induce fast and reversible dissociation of tau, DCX, and MAP2C from microtubules. We propose that Zn²⁺, via direct interactions with microtubules, acts as a brake for axonal transport and redistributes DCX, MAP2C and tau in neurons.

Both Ca²⁺ and Zn²⁺ have been reported to inhibit mitochondrial motility in neurons (Yi et al., 2004; Wang and Schwarz, 2009; Malaiyandi et al., 2005). This led us to question whether this inhibition is limited to mitochondria, or if it could affect other organelles such as lysosomes. In order to determine the effects of Zn²⁺ on lysosomal trafficking, we used a live-cell time-lapse imaging experiment to monitor the movement of lysosomes along a section of an axon. A kymograph of the axon expressing LAMP1-mcherry was generated, and the active moving of lysosomes was indicated as diagonal lines in the kymograph (Fig. 1 A). The lysosomal speed was calculated by analysis of all lysosomal kymographs using the KymoButler (Jakobs et al., 2019) plug-in for Mathematica (Wolfram Research, Inc.). We increased intracellular Zn²⁺ concentrations in primary hippocampal neurons by triggering depolarization-induced extracellular Zn²⁺ influx (Sensi et al., 2009). Membrane depolarization with 50 mM KCl in the presence of 100 µM ZnCl₂ led to a significant decrease in the motility of both anterograde and retrograde lysosomes (Fig. 1, A–C and Video 1). Following Zn²⁺ influx, the percentage of moving lysosomes was reduced, and the proportions of stationary lysosomes were increased from 58.5 to 89.6% (Fig. 1, D and E). Upon treatment with 100 µM of the Zn²⁺ chelator TPEN (N,N,N′,N′-tetrakis(2-pyridinylmethyl)-1,2-ethanediamine), motility immediately recovered to near-baseline levels. Although both retrograde and anterograde lysosomal motility (speed and proportion) were rescued to baseline levels upon addition of TPEN, anterograde motility was slower to recover. Conversely, neuron depolarization with 50 mM KCl and 2 mM CaCl₂ caused no significant reduction in lysosome motility, and rather, there was an increase in the velocity and proportion of anterograde-moving lysosomes (Fig. 1, F–I and Video 2).

We also observed that Zn²⁺ influx significantly decreased the motility of mitochondria marked by mito-mCherry (Fig. S1, A–E and Video 3), a phenomenon which has been previously reported (Malaiyandi et al., 2005). Upon TPEN addition, we observed a fast rescue of retrograde mitochondrial transport but a slower recovery of anterograde transport. In addition, the recovered motility with TPEN treatment could be completely inhibited again by treating the cells with 100 µM ZnCl₂ and 2.5 µM pyrithione (a Zn²⁺ ionophore), indicating a highly reversible mechanism (Fig. S1, A–H).

Anterograde transport of lysosomes and mitochondria is primarily mediated by kinesin-1 (KIF5A, KIF5B, and KIF5C; Fan and Lai, 2022). In order to test whether the Zn²⁺ inhibition is only specific for kinesin-1-mediated cargoes, we also examined the effects of Zn²⁺ on the kinesin-3 (KIF1A)-mediated motility. Kinesin-3 is the primary motor for the anterograde transport of dense-core vesicles (DCVs), which can be labeled by neuropeptide-Y (NPY; Guedes-Dias et al., 2019) in hippocampal neurons. The axonal movement of DCVs marked by NPY-mCherry was slower than lysosomes (Fig. S1 I), consistent with previous reports (Nassal et al., 2022). Both anterograde and retrograde transports of DCVs were significantly inhibited by large Zn²⁺ influx induced with 20 µM ZnCl₂ and high KCl (Fig. S1, I–K). Addition of TPEN slowly recovered the movement of DCVs, indicating that the inhibition of Zn²⁺ on kinesin-3 mediate transport is also reversible. These results suggest that neuronal Zn²⁺ acts as a reversible brake on the axonal transport of lysosomes, mitochondria, and DCVs, implicating a universal role of Zn²⁺, distinct from Ca²⁺, in regulating microtubule-based trafficking.

We wondered whether Zn²⁺ could arrest microtubule-based trafficking in non-neuronal cell types and found that inhibition of organellar motility could also be seen in HeLa cells upon addition of 20 µM ZnCl₂ and 1.25 μM pyrithione (Fig. S2). As with neurons, organellar motility could be rescued with TPEN (Fig. S2 and Video 4). Copper can act as a competitor for certain Zn²⁺ binding sites on proteins (Foster et al., 2014), so we tested whether copper could induce the same inhibition of motility. Surprisingly, we found no inhibition of lysosomal motility in HeLa cells upon addition of 20 µM CuCl₂ and 2.5 µM pyrithione (Fig. S2 E). We then sought to determine the cytoplasmic concentration of Zn²⁺ that is necessary to inhibit motility. We simultaneously measured organellar motility and cytosolic Zn²⁺ concentrations by expressing either LAMP1-mCherry or mito-mCherry, and the genetically encoded Zn²⁺ sensor, GZnP2 (Fudge et al., 2018) in HeLa cells (Fig. 2 A). GZnP2 was chosen to measure the cytosolic Zn²⁺ concentrations because its binding affinity (K_d = 352 pM for Zn²⁺) is compatible with the cytosolic Zn²⁺ concentration, while all commercially available small molecule Zn²⁺ sensors presented relatively lower binding affinity at nanomolar range and nonspecific subcellular localizations (Pratt et al., 2021). Zn²⁺ was chelated with TPEN to determine the minimum apo-state signal of GZnP2, followed by 100 µM ZnCl₂ to slowly increase cytosolic Zn²⁺. Cells were then treated with 2.5 µM pyrithione to achieve maximal GZnP2 signal (Fig. 2, B and C). Organellar motility was measured and plotted against the corresponding cellular Zn²⁺ concentrations (see Materials and methods), generating dose-response curves for Zn²⁺-dependent inhibition of both lysosomes (Fig. 2, D and H, IC₅₀ = 7.01 ± 2.08 nM) and mitochondria (Fig. 2, E and H, IC₅₀ = 5.50 ± 2.51 nM). To confirm our HeLa cell findings, we simultaneously measured axonal transport of lysosomes and axoplasmic Zn²⁺ concentration in primary hippocampal neurons and observed a strikingly similar threshold of Zn²⁺ inhibition (Fig. 2, F–H and Video 4, IC₅₀ = 7.38 ± 2.80 nM).

Next, we investigated whether Zn²⁺-mediated inhibition is a consequence of direct modulation of motor or cargo-adaptor proteins by employing an inducible cargo trafficking assay. Constitutively active motors are recruited to transport vesicular cargoes in a cargo-adaptor-independent manner in living cells (Kapitein et al., 2010). A green fluorescent protein (mNeonGreen) and rapamycin binding fragment (FRB) are fused to the C-terminus of a constitutively active fragment of the neuron-specific kinesin-1 motor protein (KIF5A(1-560)-mNG-FRB; Hirokawa et al., 2009). Two FK506 binding proteins (2xFKBP) and a red fluorescent protein (mRFP) are fused to the C-terminus of a peroxisomal membrane targeting sequence (PEX3(1-42)-mRFP-2xFKBP). When rapamycin or its analogs (i.e., Zotarolimus) are added to this system, FRB-FKBP heterodimerization is induced, and the motor protein and peroxisome are irreversibly tethered (Fig. 3 A), resulting in peroxisomes being transported from their generally static perinuclear position to the cell periphery (Schimert et al., 2019; Kapitein et al., 2010). With this system, we could directly assess KIF5A motility by measuring peroxisome movement and localization.

COS-7 cells were co-transfected with KIF5A(1-560)-mNG-FRB and PEX3-mRFP-2xFKBP (Schimert et al., 2019). Cytosolic KIF5A(1-560)-mNG-FRB fluorescent signal was visibly recruited to the peroxisomal membranes within seconds of Zotarolimus treatment (Fig. 3 C) and peroxisomes were rapidly dispersed to the periphery (Fig. 3 C and Video 5), measured by the average change in distance of peroxisomes from the geometric center of the cell (Fig. 3 B). Strikingly, when ZnCl₂ (2, 3, or 5 µM) was added along with pyrithione, peroxisome dispersion was dramatically reduced in a dose-dependent manner (Fig. 3, B and C; and Video 5). We quantified the inhibitory effect on peroxisomal distribution after 25 min of Zotarolimus treatment. Radial analysis of fluorescence intensity from the geometric cell center was conducted using a custom image processing macro written for ImageJ, and representative averages of all analyzed cells were generated (Fig. 3, D–F). Zotarolimus treatment led to a significant dispersion of peroxisomes compared with DMSO controls, which was almost entirely inhibited after Zn²⁺ influx (Fig. 3 G). Kinesin was still visibly recruited to peroxisomes in the presence of 5 µM Zn²⁺ (Fig. 3 C), indicating that Zn²⁺ does not interfere with FRB-FKBP heterodimerization.

Using oblique illumination microscopy, we observed that KIF5A(1-560)-mNG-FRB was highly enriched at the cell periphery and exhibited linear morphology, which colocalized with mCherry-α-tubulin signal, confirming that KIF5A interacts with and walks along microtubules toward their plus ends (Fig. 4 A). After 5 min treatment with 20 µM ZnCl₂ and 2.5 µM pyrithione, KIF5A(1-560) signal significantly shifted toward the center of the cell and away from the periphery (Fig. 4 A), quantified by the ratio of edge/center fluorescence intensity (Fig. 4 C). Pyrithione treatment alone had no effects on the distribution of KIF5A(1-560; Fig. 4, B and C). Confocal timelapse imaging also revealed redistribution of KIF5A(1-560), but no changes in the distribution or morphology of mCherry-α-tubulin (Fig. 4 D and Video 6), suggesting that Zn²⁺ influx blocked the movement of kinesin, but did not cause a massive microtubule catastrophe event. Importantly, Zn²⁺ did not cause dissociation of KIF5A from microtubules, as microtubule-localized KIF5A was still observed after Zn²⁺ treatment, most markedly near the center of the cell (Fig. 4 A). Further investigation showed that the microtubule association of KIF5A was unchanged after Zn²⁺ treatment as measured by “tubeness” analysis (Fig. 4, E and F).

The heavy-chain motor domain of human dynein (DHC1) is a significantly larger protein (4,646 amino acids) than kinesin and also requires multiple other components for processivity (Kardon and Vale, 2009). Additionally, fluorescently tagged intermediate chains of this complex (i.e., IC2) must compete with endogenous proteins and result in a highly cytosolic fluorescent signal, and thus microtubule binding is difficult to discern (data not shown). Together, these obstacles make our in situ assays difficult to reproduce for dynein. Therefore, we measured motor protein binding to microtubules in vitro using total internal reflection fluorescence (TIRF) microscopy. We assessed the effect of Zn²⁺ on recombinant protein fragments that encompassed only the microtubule-binding domains (MTBDs) of yeast dynein and kinesin-1. In the case of dynein, this fragment (dyneinMTBD) is only 124 amino acids in length (compared to the full-length molecule, which spans 4,092 amino acids), and excludes all ATP-binding modules. To best ensure this fragment adopted a native fold that retains its microtubule binding activity, we fused dyneinMTBD to seryl tRNA synthetase (SRS) to create SRS-dyneinMTBD, as previously described (Ecklund et al., 2017; Carter et al., 2008; Gibbons et al., 2005; Fig. 4 G). For comparison, we also assessed a similar SRS-kinesinMTBD protein fusion (Fig. 4 G). Incubation with 100 μM ZnCl₂ did not cause a decrease in the motor MTBD fluorescence along coverslip-immobilized microtubules for both SRS-dyneinMTBD and SRS-kinesinMTBD (Fig. 4, H and I), which is in agreement with the in situ observation (Fig. 4, E and F). Therefore, Zn²⁺ directly modulates motor motility, but does not cause the motors to dissociate from microtubules.

Microtubule posttranslational modifications such as acetylation have been suggested to modulate axonal transport. For example, microtubule acetylation was reported to promote kinesin-1 mediated transport (Reed et al., 2006; Adalbert et al., 2020). We then investigated whether Zn²⁺ affects tubulin acetylation by immunostaining with antibody against acetylated α-tubulin and total endogenous β-tubulin. The results showed that there were no observed changes in acetylated α-tubulin along neuronal axons (Fig. S5, B–D), ruling out that tubulin acetylation is involved in the Zn²⁺-mediated inhibition on motor motility.

Our live-cell imaging data clearly demonstrated that Zn²⁺ inhibits motor protein motility. Previous in vitro studies showed that millimolar concentrations of Zn²⁺ assembles purified tubulin into two-dimensional sheets and macrotubes (Wolf et al., 1993) and micromolar Zn²⁺ inhibits the ATPase activity of kinesin (Böhm, 2017), though we observed in situ effects on motility in the nanomolar range. We therefore used accurately buffered Zn²⁺ solutions (from the picomolar to micromolar range) to examine the dose-dependent Zn²⁺ effects on microtubule-stimulated ATPase activity of both kinesin and dynein in vitro. We tested a commercially available human recombinant kinesin heavy chain (KIF5A, #KR01 Cytoskeleton) as well as an artificially dimerized, truncated yeast dynein motor domain fragment, which is sufficient for processive motility (Reck-Peterson et al., 2006) and exhibits high similarity to human dynein.

We tested the microtubule-stimulated ATPase activity of these motors at varying Zn²⁺ concentrations using the EnzChek ATPase assay. Interestingly, we observed that KIF5A ATPase activity increases in response to picomolar levels of Zn²⁺ (peaking around 100 pM), but then is reduced as Zn²⁺ increases into the nanomolar range (Fig. 5 A and Fig. S3 A). Alternatively, dynein activity is relatively stable across all picomolar Zn²⁺ concentrations and exhibits a similar decrease as Zn²⁺ increases into the nanomolar and micromolar range (Fig. 5 B and Fig. S3 B). Baseline ATPase activity (rate of ATPase per motor domain per second, “ATPase·motor⁻¹·sec⁻¹”) for both kinesin (∼2-5 ATPase·motor⁻¹·sec⁻¹) and dynein (∼8-9 ATPase·motor⁻¹·sec⁻¹) is similar to the previously reported values (Fig. S3, A and B; Hancock and Howard, 1999; Huang et al., 2012; Niekamp et al., 2019; Johnson, 1983). Finally, we observed that there was little to no reduction of ATPase activity of either kinesin or dynein in the presence of 500 µM Ca²⁺ (Fig. 5 C).

Given that both kinesin and dynein ATPase activity can be inhibited by Zn²⁺ in vitro, we reasoned that Zn²⁺ might directly inhibit ATP hydrolysis or act on microtubules to inhibit motor protein motility. We then measured cellular ATP hydrolysis (ATP:ADP ratio) levels using the PercevalHR ATP sensor (Tantama et al., 2013) in COS-7 cells. The PercevalHR ratio was reduced when cells were treated with oligomycin that inhibits ATP synthase, confirming that the PercevalHR sensor was sensitive to changes in ATP hydrolysis (Fig. S3 C). Zn²⁺ influx was unable to alter intracellular ATP hydrolysis, (Fig. S3 C), indicating that the inhibition of Zn²⁺ on kinesin and dynein ATPase activity is not due to changes in available ATP in cells. Next, we explored whether Zn²⁺ can interact with microtubules. The small molecule Zn²⁺ sensor FluoZin-3 (K_d = 15 nM) was used to determine whether pre-polymerized canonical microtubules could chelate labile Zn²⁺ out of solution containing the sensor and Zn²⁺. As microtubule concentration increased, FluoZin-3 fluorescence intensity decreased (Fig. 5 D), indicating that microtubules can bind Zn²⁺. Furthermore, we sought to observe whether nanomolar concentrations of Zn²⁺ could influence microtubule polymerization. Strikingly, Zn²⁺ increased the rate and extent of microtubule polymerization in a dose-dependent manner (Fig. 5, E and F). Together, these in vitro assays suggest that Zn²⁺ can directly bind to microtubules in cells and inhibit motor protein activity in the absence of other cellular components.

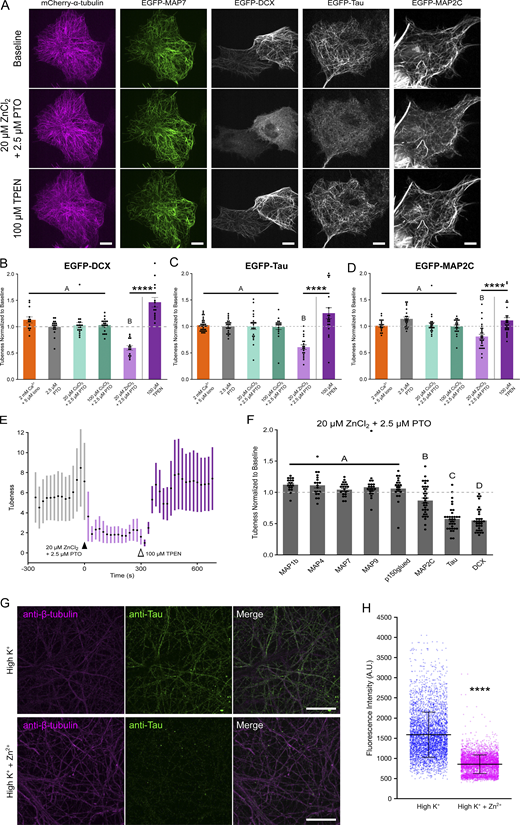

To further understand the mechanisms by which Zn²⁺ inhibits the progression of motor proteins by interacting with microtubules, we tested if the microtubule-association of MAP proteins were affected by Zn²⁺. Recent work has highlighted that a range of MAPs can affect the microtubule-based trafficking of motor proteins (Monroy et al., 2018, 2020). We increased intracellular Zn²⁺ in COS-7 cells with 20 µM ZnCl₂ and 2.5 µM pyrithione and examined the microtubule decoration of eight different MAPs. For the five MAPs we examined, Zn²⁺ had no effects on the microtubule interaction of GFP-MAP1B, mEmerald-MAP4, EGFP-MAP7 (Fig. 6 A), EGFP-MAP9, or EGFP-p150glued as measured by “tubeness” analysis (Fig. 6 F). Strikingly, Zn²⁺ caused dissociation of EGFP-Tau, EGFP-DCX, and EGFP-MAP2C from microtubules within 5 min (Fig. 6, A–D and Video 7), without affecting microtubule morphology (Fig. 6 A and Fig. S4, A–C). In addition, microtubule association of EGFP-tau, EGFP-DCX, and EGFP-MAP2C could be rapidly rescued with Zn²⁺ chelation using 100 µM TPEN (Fig. 6, A–D and Video 7), suggesting a highly reversible mechanism as seen in the motility experiments. No decrease in microtubule association was seen with pyrithione treatment alone, nor with influx of Ca²⁺ (Fig. 6, B–D). In addition, we tested whether copper had similar effects, as tau has been shown to bind copper (Bacchella et al., 2020). Interestingly, 20 µM CuCl₂ and 2.5 µM pyrithione had no effects on EGFP-DCX or EGFP-MAP2C, and EGFP-tau (Fig. 6, B–D). We next examined if endogenous axonal tau was dissociated from microtubules by Zn²⁺. Primary rat hippocampal neurons were treated for 5 min with 50 mM KCl with or without the presence of 100 µM ZnCl₂, and immediately fixed with −20°C methanol to simultaneously permeabilize cells and preserve microtubule morphology (Gyparaki et al., 2021). Immunofluorescence with anti-tau antibodies showed clear decoration along axons in neurons treated with KCl alone, but Zn²⁺ caused a drastic reduction in axonal tau localization (Fig. 6, G and H; and Fig. S5 A).

The reversible regulation by Zn²⁺ on motility and microtubule-association of DCX, tau and MAP2C suggests that the striking effects are not a result of cell damage caused by Zn²⁺ influx. In addition, we showed that our Zn²⁺ influx conditions for COS-7 cells and neurons had no observable changes in nuclear morphology or chromatin compaction by Hoechst staining (Fig. S4, D and E), confirming that cells are viable and healthy through the imaging experiment.

Previous cryo-EM work has provided near-atomic models of microtubules (Manka and Moores, 2018) and their interaction with MAPs, including tau (Kellogg et al., 2018), DCX (Manka and Moores, 2020), kinesin (Shang et al., 2014), and dynein (Lacey et al., 2019). In order to simultaneously visualize where these MAPs bind on the microtubule lattice, we used the Protein-Ligand Interaction Profiler (PLIP; Salentin et al., 2015) to identify the amino acid residues on α- and β-tubulin which directly interacted with each of these MAPs (Fig. 7 A). All these MAPs bind in unique areas along the microtubule surface, with most binding along the “ridge” of the protofilaments. Though these MAPs interacted with microtubules in distinct areas, all four MAPs had some interaction with helix-12 (Uchimura et al., 2010) of α-tubulin. We wondered whether there are overlapping sites among these four MAPs and Zn²⁺ that can account for the Zn²⁺-induced dissociation of tau and DCX and inhibition of motor protein motility. In order to explore this, we performed bioinformatic analysis on the 3D protein structure of microtubules using the MIB Server (Lin et al., 2016), and rendered the 3D model of microtubules to visualize these binding sites (Fig. 7 B). Surprisingly, there were a number of domains on the outer surface of the microtubule with high prediction scores for Zn²⁺ binding on α-tubulin, specifically on helix-12 (Fig. 7, B and C). There was a significant overlap between the predicted Zn²⁺ binding sites and the MAP-interacting residues, as well as residues within 5 Å of these sites, specifically on α-tubulin as compared to β-tubulin (Fig. 7, C and D). We identified a cluster of residues with both high Zn²⁺ binding scores and significant MAP interactions, including H192, E196, E417, E420, E423, and D424. One site involving H192, E420, and D424 is particularly favorable for Zn²⁺ binding to form a tetrahedral geometry within 2–3 Å distance to a Zn²⁺ ion (Fig. 7 Bii). One water molecule or E196, which directly interacts with DCX (Fig. 7 Ai) and is only 5.3 Å from this Zn²⁺ site, may act as the fourth Zn²⁺ coordination site. Tau has been found to sterically hinder motor protein binding to microtubules (Dixit et al., 2008). Given the location of Zn²⁺ binding sites on microtubule surface, Zn²⁺ could compete with MAPs for the same amino acid binding sites, or induce a conformational change in these MAP-binding regions of microtubules. This could cause the dissociation of tau and DCX and blocking of motor protein progression.

Long-distance axonal transport requires coordinated and precise regulation to ensure delivery of appropriate cargo to its requisite destination. Our results reveal that Ca²⁺ does not inhibit lysosomal motility, but Zn²⁺ can inhibit axonal transport of mitochondria, lysosomes, and DCVs (Fig. 1 and Fig. S1). Such inhibition was detected when Zn²⁺ concentration was increased to low nanomolar range (IC₅₀ = 5–10 nM, Fig. 2), which is within the range of previous estimates of the physiological fluctuations in cytosolic Zn²⁺ concentration (Maret, 2017). We further clarify that Zn²⁺-dependent inhibition of organelles is due to a direct block of motor protein progression (Fig. 3). Further, in situ confocal and in vitro TIRF imaging demonstrates that Zn²⁺ does not cause the dissociation of motor proteins from microtubules (Fig. 4). Our in vitro work also suggests that Zn²⁺ ions directly bind to sites along microtubules (Fig. 5, D–F and Fig. 7). We demonstrate that Zn²⁺ is able to reduce the ATPase activity of both kinesin and dynein in vitro (Fig. 5, A and B), but with higher inhibitory concentration than that of in situ (high nanomolar vs. low nanomolar). Such discrepancy suggests that Zn²⁺-mediated inhibition might be due to a conformational change on microtubules, which may require higher Zn²⁺ concentrations in artificially stabilized microtubules used in vitro than the endogenous microtubules in cells. Our results further support the direct microtubule-binding hypothesis as elevated levels of Zn²⁺ can selectively detach tau, DCX, and MAP2C, not the other five MAPs, from microtubules (Fig. 6). We also show that even short-term (5 min) elevations in Zn²⁺ drastically reduce endogenous binding of tau to microtubules in hippocampal neurons (Fig. 6, I and J). Finally, the predicted Zn²⁺ binding sites on microtubules sit at the intersection of published, cryoEM-resolved microtubule binding sites of tau, DCX, dynein, and kinesin (Fig. 7), indicating that Zn²⁺ binding exhibits allosteric effects on the interaction between MAPs and microtubules.

Microtubules not only act as long tracks for motor protein-based transport, but also govern the direction and motility of transport through binding of MAPs or post-translational modifications. Previous studies have demonstrated that differential decoration of microtubules with various MAPs can affect the recruitment and processivity of both kinesin and dynein. Specifically, tau and DCX can mediate greater inhibitions on kinesin-1 motility than on dynein motility, likely due to the steric hinderance of the larger kinesin MTBD as compared to the dynein MTBD (Vershinin et al., 2008; Tan et al., 2019; Chaudhary et al., 2018; Monroy et al., 2018; Monroy et al., 2020). Kinesin-1 motility is robustly inhibited by MAP2C (Monroy et al., 2020), though there is limited direct single-molecule research on the interaction of MAP2C and dynein. Kinesin-1 motility is also inhibited by other MAPs (DCLK1 and MAP9) but is increased by MAP7 (Monroy et al., 2020), while MAP7 does not affect dynein motility (Monroy et al., 2018). Interestingly, our results showed that the inhibitory effects of Zn²⁺ influx were stronger and faster on anterograde transport than retrograde transport (Fig. 1 B and Fig. S1 B), suggesting that Zn²⁺ might also mediate more potent inhibition on kinesin-1 than dynein.

Post-translational modification of microtubules (including acetylation, (poly)glutamylation, (poly)glycylation, and detyrosination) may affect both the binding of MAPs, as well as motor protein function (Janke and Bulinski, 2011; Janke and Magiera, 2020). Microtubule acetylation has been shown to increase axonal transport by directly increasing recruitment of kinesin motors (Reed et al., 2006), and alpha tubulin acetyltransferase 1 (ATAT1) and histone deacetylase 6 (HDAC-6) have been shown to control the acetylation status of microtubules (Even et al., 2019; Zhang et al., 2003). Further, excessive polyglutamylation has been shown to reduce axonal transport (Magiera et al., 2018), and this tubulin modification is controlled in part by TTL family tubulin polyglutamylase complex subunit L1 (TTLL1) and cytosolic carboxypeptidase 1 (CCP1; Bodakuntla et al., 2021; Rogowski et al., 2010). Interestingly, deglutamylases and deacetylases specifically have been long known to be Zn²⁺-dependent metalloproteins (Porter and Christianson, 2019; Rogowski et al., 2010), though the second-to-minute effects of transient Zn²⁺ dynamics on these enzymes in cells had not been explored. Here we showed that increases in cellular Zn²⁺ had no effects on microtubule acetylation (Fig. S5, B–D). The Zn²⁺-mediated effects on axonal transport and MAPs association with microtubules are relatively rapid (within minutes) and highly reversible with TPEN treatment, while the post-translational modifications are only preferred for a subset of microtubules (Montagnac et al., 2013), suggesting that enzyme-mediated covalent modifications might not be involved in the observed regulations by Zn²⁺.

In this work, we demonstrate a conceptual advance in the field by revealing that decoration of microtubules with Zn²⁺ can also regulate organellar motility. This mechanism is distinct from Ca²⁺-mediated regulation, which is mitochondria-specific and cargo adaptor-dependent. The inhibitory effect of Ca²⁺ on mitochondrial motility has been demonstrated in many cell types (neurons, HeLa, and H9c2 myoblasts; Yi et al., 2004), and the underlying molecular mechanisms have been well established. Increased Ca²⁺ signals can be sensed by the cytosolic EF-hand domains of the Miro protein, a transmembrane protein localized on the outer-mitochondrial membrane (Fransson et al., 2006). Ca²⁺ binding to Miro promotes binding to the heavy chain of kinesin, outcompeting kinesin binding to microtubules, and therefore arresting microtubule-based mitochondrial motility (Wang and Schwarz, 2009). In contrast, we demonstrated that Zn²⁺ can non-selectively inhibit organellar motility (of lysosomes, mitochondria, and DCVs), and further identified that Zn²⁺-dependent transport inhibition works via a cargo-independent, but microtubule-dependent, mechanism.

Our data present a stronger argument for a direct effect of Zn²⁺ on microtubules. First, both the in situ inducible peroxisome dispersion assay and in vitro motor protein ATPase assay reveal that Zn²⁺ can directly block motor protein movement in the absence of cargo-motor adaptors, MAPs, and post-translational modification enzymes. Second, the Zn²⁺ effects we observe either on organellar motility or MAP detachment are highly and rapidly reversible, demonstrating a more direct interaction between Zn²⁺ and microtubules. Third, the in vitro binding and polymerization assays reveal that Zn²⁺ can directly bind microtubules. Previous in vitro studies also supported that there are Zn²⁺ binding sites on tubulin (Wolf et al., 1993; Craddock et al., 2012). Our findings that Zn²⁺ only displaces tau, DCX, and MAP2C (but not MAP9 or MAP7) narrow down the Zn²⁺ binding sites on microtubule surface. The H192, E420, and D424 residues on microtubule surface form a Zn²⁺ binding pocket, which overlaps with the binding sites for tau/MAP2 and DCX. Zn²⁺ can compete with tau/MAP2 and DCX for the binding sites on microtubules but may also inhibit motor movement via a similar mechanism as tau/MAP2 by inducing a conformational change in the microtubule. However, it is still possible that Zn²⁺ may have indirect effects on microtubule post-translational modification that could possibly contribute to altered motor movement. Though beyond the scope of the data presented here, this is an enticing avenue for future research.

As neurons rely on the well-coordinated transport of various axonal cargoes with a high degree of spatial and temporal precision, our findings provide an important new role for Zn²⁺ and the consequences of its imbalance in the development and progression of neuronal disease. Neurons have relatively high Zn²⁺ concentration (Sensi et al., 2009), as well as unique Zn²⁺-handling mechanisms, resulting in neuron-specific storage of Zn²⁺ in endolysosomes and synaptic vesicles (Palmiter et al., 1996; Minckley et al., 2019) and unique cytosolic Zn²⁺ buffering (Howells et al., 2010). As compared to other cell types, neurons also have highly dynamic cytosolic Zn²⁺ signals (Minckley et al., 2019; Zhang et al., 2021). Our work reveals a new regulation mechanism of microtubule-based processes and highlights Zn²⁺ as an ionic signal for proper neurodevelopment and neuronal function. Local increases in cytosolic Zn²⁺ can result from influx through VGCCs in the soma or axon terminals (Sensi et al., 2009; Sanford and Palmer, 2020, Zyśk et al., 2018) or NMDA-dependent Zn²⁺ influx at synapses (Nakashima and Dyck, 2009; Sensi et al., 2009). Neurons can also release their lysosomal pools of Zn²⁺ through the lysosomal ion channel, TRPML1 (Minckley et al., 2019). These local Zn²⁺ signals may cause organelles to stop or pause in order to deliver their cargo, such as Shank proteins, to the postsynaptic regions during synaptogenesis and synapse maturation (Grabrucker et al., 2011). Mitochondria are tethered to axonal microtubules by syntaphilin to provide local energy metabolism important for synapse function (Kang et al., 2008), and proper Zn²⁺ homeostasis may be important for maintaining proper mitochondrial distribution and subsequent synaptic energy supply. Additionally, we observed different responses of dynein and kinesin to low concentrations of Zn²⁺, and changes in local Zn²⁺ concentration may potentially favor either anterograde or retrograde trafficking events. This could play an important role in the balance of motor protein “tug-of-war” for cargoes which are decorated with both kinesin and dynein. Long-term changes in Zn²⁺ concentrations may also signal a cell-wide change in motility, wherein motility in the anterograde (i.e., high picomolar to low nanomolar Zn²⁺), retrograde (i.e., low picomolar Zn²⁺), or neither (i.e., >10 nM Zn²⁺) direction is favored. Slight changes in cytosolic Zn²⁺ concentration could result in the perturbation of the fine-tuned regulation of axonal cargo transport between the soma and axonal growth cones or synaptic terminals.

The Zn²⁺-dependent detachment of MAPs occurs within seconds of Zn²⁺ influx and is completely reversible within seconds of Zn²⁺ chelation. This highlights the importance of Zn²⁺ homeostasis on second-to-minute timescales, as changes in Zn²⁺ concentration can acutely modulate microtubule-based processes, including motor protein function and MAP decoration. Local or global elevation of Zn²⁺ may therefore lead to spatiotemporal control of DCX in growing neurites, as well as proper redistribution of tau and MAP2C to axons and dendrites, respectively. All these Zn²⁺-regulated MAPs have established roles in neuronal development and morphological determination of axons and dendrites (Fu et al., 2013; Kosik and Finch, 1987). For Zn²⁺-insensitive MAPs, MAP1B is vital for neuronal migration, guidance, and elongation of neuronal axons during development (Meixner et al., 2000; Yang et al., 2012), while MAP7 has been shown to be crucial for neurite branching (Tymanskyj et al., 2017, 2018). The distinct roles of Zn²⁺-sensitive MAPs (tau, DCX, and MAP2C) and Zn²⁺-insensitive MAPs (MAP1B and MAP7) suggest that Zn²⁺ signals can influence certain neuronal function by selectively regulating a subset of MAPs. Our findings open the door for future research to determine the exact MAP code in neuronal axons that may be favored by various concentrations of Zn²⁺.

It is known that defects in axonal transport can lead to several adult onset neurodegenerative diseases, including Alzheimer’s disease, Huntington’s disease, amyotrophic lateral sclerosis (ALS), spinal muscular atrophy with lower extremity dominance (SMA-LED), and Parkinson’s disease (Morfini et al., 2009). Unsurprisingly, mutations in several components of the transport machinery (e.g., dynein, cargo adaptors, LIS1, kinesin) have been linked to both neurodevelopmental and neurodegenerative diseases (Markus et al., 2020; Sleigh et al., 2019). Neurons are especially susceptible to dysfunctions in transport regulation due to their highly elongated and extensively branched morphology. Thus, in order to understand the mechanisms underlying the establishment and maintenance of neuronal health and develop strategies to prevent or reduce the severity of disease, it is imperative that we decipher the mechanisms that can affect and regulate axonal transport.

Global Zn²⁺ increases had been shown acutely during ischemia (Koh et al., 1996; Granzotto et al., 2020) and chronically in Alzheimer’s disease patients (Deibel et al., 1996; Religa et al., 2006). Our findings suggest that such Zn²⁺ dyshomeostasis may contribute to wide-scale transport defects. Further, this Zn²⁺ dyshomeostasis and the resulting effects on axonal transport may also alter the crucial anterograde delivery of NMNAT2 and STMN2 (axonal survival factors) into axons on vesicular organelles (Shin et al., 2012; Gilley and Coleman, 2010), thus resulting in axonal degeneration. Additionally, our results demonstrate that Zn²⁺ shares many common features with tau, a pathological marker of Alzheimer’s disease, in regulating microtubule-based processes. First, the predicted binding sites of Zn²⁺ on microtubules are adjacent to the binding sites for tau protein. Second, we show that Zn²⁺ can arrest both kinesin and dynein-mediated motility, which is similar to tau which can inhibit the function of kinesin, and to a lesser extent dynein (Chaudhary et al., 2018). Third, we find that Zn²⁺ demonstrates a dose-dependent increase in microtubule polymerization, while previous studies found that tau can also promote microtubule polymerization (Feizabadi et al., 2019). As such, abnormal Zn²⁺ elevation under pathological conditions could disrupt the proper localization of MAPs and importantly promote tau detachment from microtubules, thus increasing the chance for tau aggregates to form in the cytosol. In fact, Zn²⁺ has been shown to directly influence tau aggregation (Moreira et al., 2019; Singh et al., 2020; Huang et al., 2014).

Overall, our work supports existing hypotheses that Zn²⁺ imbalance may be a precursor to Alzheimer’s disease and other tauopathies (Craddock et al., 2012; Craven et al., 2018; Hu et al., 2017), while also revealing a possible mechanism of Zn²⁺ homeostasis for regulation of axonal transport and neuronal MAP function. From a broader perspective, this study corroborates a long-speculated signaling role of intracellular Zn²⁺ with the discovery that Zn²⁺ can directly regulate microtubule-based organellar trafficking, which is essential and required for diverse cellular processes in all eukaryotic cell types throughout the evolutionary spectrum.

Pregnant Sprague Dawley rats were purchased from Charles River (strain: 400). Animal treatment and maintenance were performed by the University of Denver Animal Facility (AAALAC accredited). All experimental procedures using animals were approved by the Institutional Animal Care and Use Committee (IACUC) of the University of Denver.

Expression plasmids were constructed using traditional molecular biological techniques and were all verified by sequencing. To construct LAMP1-mCherry, mCherry was PCR amplified from mCherry-Rab7a-7, LAMP1 was PCR amplified from LAMP1-RFP, and both were ligated into pcDNA3.1+. mCherry-Rab7a-7 was a gift from Michael Davidson (plasmid #55127; Addgene; http://n2t.net/addgene:55127; RRID:Addgene_55127). Lamp1-RFP (Sherer et al., 2003) was a gift from Walther Mothes (plasmid #1817; Addgene; http://n2t.net/addgene:1817; RRID:Addgene_1817). mCh-alpha-tubulin (Friedman et al., 2010) was a gift from Gia Voeltz (plasmid #49149; Addgene; http://n2t.net/addgene:49149; RRID:Addgene_49149). EGFP-DCX (Tanaka et al., 2004) was a gift from Joseph Gleeson (plasmid #32852; Addgene; http://n2t.net/addgene:32852; RRID:Addgene_32852). pRK5-EGFP-tau (Hoover et al., 2010) was a gift from Karen Ashe (plasmid #46904; Addgene; http://n2t.net/addgene:46904; RRID:Addgene_46904). pEGFP-p150Glued (Watson and Stephens, 2006) was a gift from David Stephens (plasmid #36154; Addgene; http://n2t.net/addgene:36154; RRID:Addgene_36154). GFP-MAP1B (Scales et al., 2009) was a gift from Phillip Gordon-Weeks (plasmid #44396; Addgene; http://n2t.net/addgene:44396; RRID:Addgene_44396). pEGFP-Map7-fulllength (Metzger et al., 2012) was a gift from Edgar Gomes (plasmid #46076; Addgene; http://n2t.net/addgene:46076; RRID:Addgene_46076). mEmerald-MAP4-C-10 (Planchon et al., 2011) was a gift from Michael Davidson (plasmid #54152; Addgene; http://n2t.net/addgene:54152; RRID:Addgene_54152). MAP9 in pCR-XL-TOPO (#BC146864) was purchased from Transomic Technologies, and subcloned into pcDNA with an N-terminal EGFP tag. MAP2C in pENTR223-1 (#BC172263) was purchased from Transomic Technologies, and subcloned into pcDNA with an N-terminal EGFP tag. NPY-mCherry was a gift from Wolfhard Almers (plasmid #67156; Addgene; http://n2t.net/addgene:67156; RRID:Addgene_67156). GW1-PercevalHR was a gift from Gary Yellen (plasmid #49082; Addgene; http://n2t.net/addgene:49082; RRID:Addgene_49082).

Primary hippocampal neurons were prepared from rat embryos at embryonic day 18 (E18) in dissection medium containing HBSS, 1 M HEPES buffer (pH 7.3) and 50 µg/ml gentamycin. The hippocampi were minced and treated with 1,000 U/ml papain added to the dissection medium and dissociated by trituration in 1 mg/ml DNase I. Cells were plated on 1 mg/ml poly-L-lysine-coated 10 mm round glass coverslips at a density of 20,000–25,000 cells/coverslip per dish in neuron plating medium (MEM supplemented with glucose and 5% FBS). After checking that cells were adhered, neuron plating medium was replaced with Neurobasal medium (Thermo Fisher Scientific) supplemented with 0.3× GlutaMAX (Thermo Fisher Scientific) and 1× B-27 (Thermo Fisher Scientific). Cultures were maintained at 37°C, 5% CO₂. Neurons were transfected between 5 and 10 d in vitro (DIV), using the Lipofectamine 3000 transfection kit (Thermo Fisher Scientific) in 500 µl Opti-MEM. The reagent-DNA mixture was incubated for a minimum of 25 min at room temperature before direct addition to the neuron imaging dishes. Before adding reagent-DNA, 1 ml media was removed from each imaging dish and syringe filtered with an equal volume of fresh neuron culture media (50:50 media). After incubation at 37°C for 4 h, neurons were washed three times with 1 ml prewarmed neuron culture media. Then, 2 ml of the 50:50 media was added to the neuron imaging dishes and they were incubated at 37°C until imaging.

Live cell imaging of neurons was performed two or more days after transfection. Neurons were washed and imaged in HEPES-Buffered Hanks Balanced Salt Solution (HHBSS) lacking Ca²⁺ and Zn²⁺. For experiments in which Zn²⁺ influx was induced by depolarization, neurons were treated with Ca²⁺-free HHBSS supplemented with 50 mM KCl and 100 µM ZnCl₂ during the acquisition period (20 min in duration). For experiments in which chelation followed depolarization-induced Zn²⁺ influx, neurons were washed three times with Ca²⁺-free HHBSS, then treated with 100 µM TPEN and immediately imaged. For experiments in which Zn²⁺ influx was induced with pyrithione treatment, neurons were washed three times with Ca²⁺-free HHBSS and then treated with 100 µM ZnCl₂ and 2.5–5 µM pyrithione.

All live neuron imaging was performed on an inverted Nikon/Solamere CSUX1 spinning disc confocal microscope equipped with a 40×1.4 NA oil immersion objective, a Hamamatsu ×2 EMCCD camera, and a variable 1.0× or 1.5× OptiVar tube lens. Axonal motility imaging was performed in a LiveCell imaging chamber kept at 37°C, 5% CO₂, and 80% humidity. The microscope was controlled with MicroManager software and image analysis was performed using Fiji (Schindelin et al., 2012; see below for details on image analysis). To image lysosomal and mitochondrial, and Neuropeptide Y motility (via LAMP1-mCherry, mito-mCherry, or NPY-mCherry respectively), fluorescence images were acquired every 0.5–2.5 s, with 50–100 millisecond exposures with a 561 nm laser at 1–5 mW power.

To analyze organellar axon motility, image contrast of each movie was enhanced by first employing a bandpass filter to remove frequencies larger than 7 px and <2 px. Fiji’s built in “Background subtraction” was then run using a five px rolling ball radius. Image stacks were then stabilized (if needed) using the Manual Drift Correction plugin for Fiji. Kymographs were generated using the Kymolyzer plugin (Basu et al., 2020), and background kymograph noise was removed using a custom code (ImageJ Macro Language). These kymographs were then analyzed using the KymoButler (Jakobs et al., 2019) plug-in for Mathematica (Wolfram Research, Inc.). Instantaneous velocities measured by the KymoButler plug-in were extracted using custom code (Wolfram Language) in order to get a more accurate description of motility, as the density of bidirectionally moving lysosomes reduced the accuracy of computer-generated track averages. Axons were manually traced back to their soma to confirm orientation, which was used to classify retrograde or anterograde motility. KymoButler-measured tracks with durations <4 s were also removed entirely from analysis to eliminate the measurement of kymograph noise artifacts. The proportion of anterograde, retrograde, and stationary organelles were calculated as previously reported (Lewis et al., 2016; Farfel-Becker et al., 2019; Celestino et al., 2022; Nassal et al., 2022).

HeLa cells and COS-7 cells (African Green Monkey fibroblast-like cell line) were maintained in high glucose Dulbecco’s Modified Eagle Medium (DMEM) supplemented with 10% FBS. COS-7 cells were grown in 100 U/ml Penicillin G and 100 µg/ml Streptomycin on poly-D-lysine-coated coverslips. All cells were maintained at 37°C and 5% CO₂. HeLa and COS-7 cell transfections were performed with polyethyleneimine (PEI; dissolved to 1 mg/ml in water at pH 7.2, with long-term storage at −20°C and short-term storage at 4°C). For each transfection, 3–6 µl of PEI and 1–1.25 µg of DNA were mixed in 250 µl Opti-MEM, incubated for >25 min at room temperature, then added to one imaging dish with cells (∼40–50% confluent). Imaging dishes were incubated at 37°C until imaged as described above.

Lysosomal or mitochondrial motility was measured using the “Total Motility” plugin (De Vos and Sheetz, 2007) for ImageJ, which calculates the percentage of organellar movements by measuring the area of shifted mitochondria (or lysosomes) out of the total mitochondrial (or lysosomal) area for each acquisition time point in each cell.

For rapalog-induced peroxisome dispersion assays, COS-7 cells were co-transfected with PEX3-mRFP-2xFKBP and either KIF5A(1-560)-mNG-FRB or KIF5C(1-559)-mNG-FRB, and imaged within 24 h as longer transfection resulted in altered localization of the PEX3 construct and cell morphology. Peroxisome dispersion assays were imaged on the Nikon/Solamere CSUX1 spinning disc confocal microscope as described above. For timelapse experiments, cells were imaged for a 5-min baseline, then 1 µM pyrithione and varying Zn²⁺ concentrations (as indicated) for 5 min. Finally, 100 nM Zotarolimus was added to induce heterodimerization, and cells were imaged for 25 min. Images were acquired every 10 s with a 50–200 ms exposure for both 488 and 561 nm laser excitation at 10 and 5 mW power, respectively. Custom code (ImageJ Macro Language) was used to detect PEX3-mRFP maxima and quantify average distance of peroxisomes from the center of the cell.

As a non-dispersed peroxisome control, COS-7 cells were treated with 2 µl DMSO for 5 min (vehicle control for pyrithione), then another 2 µl DMSO for 25 min (vehicle control for Zotarolimus). As a positive control, COS-7 cells were treated with 1 µl PTO for 5 min, 100 nM Zotarolimus for 25 min. Finally, to test the effect of Zn²⁺, COS-7 cells were treated with 10 µM Zn²⁺ and 1 µM PTO for 5 min, 100 nM Zotarolimus for 25 min. After treatment, cells were fixed with 4% paraformaldehyde in 0.1 M PBS with 4% sucrose at 4°C for 10 min. Fixation was quenched with 0.1 M glycine for 5 min, then cells were washed with PBS and imaged. Custom code (ImageJ Macro Language) was used to measure fluorescence intensity of PEX3-mRFP as a function of distance from the geometric cell center.

COS-7 cells were co-transfected with KIF5A(1-560)-mNG-FRB and mCherry-α-tubulin, and imaged within 48 h. Images were taken using a ONI Nanoimager with oblique illumination (55.1° illumination angle), 1–2% 488 nm laser power, 6–8% 561 nm laser power, and 25–100 ms exposure times.

Purification of the artificially dimerized (by glutathione-S-transferase, GST) minimal dynein motor fragment (GST-dynein^MOTOR-HaloTag) was performed as previously described (Marzo et al., 2020). Briefly, yeast cultures were grown in YPA supplemented with 2% glucose (for the intact dynein complex) or 2% galactose (for GST-dynein^MOTOR), harvested, washed with cold water, and then resuspended in a small volume of water. The resuspended cell pellets were drop frozen into liquid nitrogen and then lysed in a coffee grinder. After lysis, 0.25 volume of 4× lysis buffer (1× buffer: 30 mM HEPES, pH 7.2, 50 mM potassium acetate, 2 mM magnesium acetate, 10% glycerol, 0.2 mM EGTA, 1 mM DTT, 0.1 mM Mg-ATP, 0.5 mM Pefabloc SC) was added, and the lysate was clarified at 22,000 × g for 20 min. The supernatant was then incubated with IgG sepharose 6 fast flow resin (GE) for 1 h at 4°C, which was subsequently washed three times in lysis buffer, and twice in TEV buffer (50 mM Tris, pH 8.0, 150 mM potassium acetate, 2 mM magnesium acetate, 1 mM EGTA, 0.005% Triton X-100, 10% glycerol, 1 mM DTT, 0.1 mM Mg-ATP, 0.5 mM Pefabloc SC). The protein was then incubated in TEV buffer supplemented with TEV protease for 1 h at 16°C. Following TEV digest, the solution was collected, and the resulting protein solution was aliquoted, flash frozen in liquid nitrogen, and stored at −80°C.

Purification of the SRS fusion proteins (GFP-SRS-dyneinMTBD and GFP-SRS-kinesinMTBD) were performed essentially as described (Ecklund et al., 2017). Briefly, IPTG-induced E. coli BL21 were harvested, washed with cold water, resuspended in cold lysis buffer (30 mM HEPES, pH 8.0, 50 mM potassium acetate, 2 mM magnesium acetate, 10% glycerol, 10 mM imidazole, 5 mM beta-mercaptoethanol) supplemented with cOmplete EDTA-free protease inhibitor cocktail, and then lysed by sonication (5 × 30 s pulses) with 1 min on ice between each pulse. The clarified lysate was incubated with Ni-NTA agarose (Qiagen) for 1 h at 4°C, washed three times in lysis buffer, and the bound protein was eluted with elution buffer (30 mM HEPES, pH 8.0, 50 mM potassium acetate, 2 mM magnesium acetate, 10% glycerol, 200 mM imidazole, 5 mM beta-mercaptoethanol). Peak fractions were pooled and applied to a Superdex 200 10/300 gel filtration column (GE; using an AKTA fast protein liquid chromatography system, or FPLC) equilibrated in lysis buffer. Peak gel filtration fractions were pooled, concentrated (to ≥ 47 μM), aliquoted, and drop frozen in liquid nitrogen.

Buffers with precisely controlled Zn²⁺ concentrations were prepared according to previous established protocol (Qin et al., 2011) for the in vitro motor ATPase assays. Solutions with Zn²⁺ from picomolar to micromolar concentrations were made by a pH-titration method. As indicated below, different Zn²⁺ chelators (EGTA and HEEDTA) and competing metal ions (Ca²⁺ or Sr²⁺) were used to buffer Zn²⁺ at pH 7.2 (for in vitro motility assays) or pH 6.9 (for in vitro microtubule polymerization assays).

To obtain free Zn²⁺ concentrations in the low picomolar range, we used HEEDTA with no competing metal ions. The stability constant of the Zn²⁺ complex of HEEDTA is: pK1 = 9.81, pK2 = 5.37, logK (ZnL) = 14.6. Two separate 100× stock solutions were made: 0.1 M HEEDTA (Buffer B4), and 0.1 M ZnCl₂ + 0.1 M HEEDTA (Buffer A4). [HEEDTA]_t was set at 1 mM and [Zn²⁺]_t was varied from 0.1 to0.9 mM in 0.1 mM increments by mixing 1× A4 and B4 buffers at different ratios to obtain the free Zn²⁺ concentrations shown in Table 1.

To obtain free Zn²⁺ concentrations in the high picomolar to low nanomolar range, we used EGTA with no competing metal ions. The stability constant of the Zn²⁺ complex of EGTA is pK1 = 9.40, pK2 = 8.78, logK(ZnL) = 12.6. Two separate 100× stock solutions were made: 0.1 M EGTA (Buffer B3), and 0.1 M ZnCl₂ + 0.1 M EGTA (Buffer A3). [EGTA]_t was set at 1 mM and [Zn²⁺]_t was varied from 0.1 to 0.9 mM in 0.1 mM increments by mixing 1× A3 and B3 buffers at different ratios to obtain the free Zn²⁺ concentrations shown in Table2.

To obtain free Zn²⁺ concentrations in the nanomolar to low micromolar range, we used EGTA with Sr²⁺ as a competing metal ion. The stability constant of the Zn²⁺ complex of EGTA is: pK1 = 9.40, pK2 = 8.78, logK(SrL) = 8.50, logK(ZnL) = 12.6. Two separate 100× stock solutions were made: 0.1 M EGTA + 0.2 M SrCl₂ (Buffer B2), and 0.1 M ZnCl₂ + 0.1 M EGTA + 0.2 M SrCl₂ (Buffer A2). [EGTA]_t and [Sr]_t was set at 1 mM, and [Zn²⁺]_t was varied from 0.1 to 0.9 mM in 0.1 mM increments by mixing 1× A2 and B2 buffers at different ratios to obtain the free Zn²⁺ concentrations shown in Table 3.

To obtain free Zn²⁺ concentrations in the micromolar range, we used EGTA with Ca²⁺ as a competing metal ion. The stability constant of Zn²⁺ complex of EGTA is: pK1 = 9.40, pK2 = 8.78, logK[CaL] = 10.86, logK(ZnL) = 12.6. Two separate 100× stock solutions were made: 0.1 M EGTA + 0.2 M CaCl₂ (Buffer B1), and 0.1 M ZnCl₂ + 0.1 M EGTA + 0.2 M CaCl₂ (Buffer A1). [EGTA]_t and [Ca]_t was set at 1 mM, and [Zn²⁺]_t was varied from 0.1 to 0.9 mM in 0.1 mM increments by mixing 1× A1 and B1 buffers at different ratios to obtain the free Zn²⁺ concentrations shown in Table4.

For in vitro motor protein ATPase assays, the EnzChek Phosphate Assay Kit (#E-6646; Thermo Fisher Scientific) was used. Pre-formed, taxol-stabilized microtubules and recombinant human kinesin (KIF5A) were purchased from Cytoskeleton. A minimally processive, artificially dimerized yeast dynein fragment (GST-dynein₃₃₁) was purified as described above. Motor protein assay buffer (MPAB: 30 mM HEPES, pH 7.2, 50 mM potassium acetate, 2 mM magnesium acetate, 10% glycerol) was prepared using Chelex-treated H₂O to remove all metal ion contaminants. 10 µM taxol, 500 µM DTT, 200 µM MESG, 1 U/ml purine nucleoside phosphorylase, 2 mM ATP, 1 µM taxol-stabilized microtubules, and 1× buffered zinc solutions (described above) were added to MPAB, then plated into a 96 well plate. Plates were spun down at 2,250 rpm for 2 min, then incubated at room temperature for 10 min. Plates were read on a Synergy HTX Multi-Mode Microplate Reader (BioTek), collecting absorbance at 360 nm every 10 s. Background phosphate release was measured for 5 min, then either 5 nM GST-dynein₃₃₁ or 10 nM KIF5A was added to each well, and absorbance at 360 nm was read for an additional 10–20 min. A phosphate standard was collected as described in the EnzChek Phosphate Assay Kit.

COS-7 cells were transfected with the ratiometric sensor GW-PercevalHR and imaged 48 h after transfection. Experiments were performed in HHBSS buffer. A 5-min baseline was recorded, followed by a 5-min 100 µM ZnCl₂ and 2.5 µM PTO treatment, 5-min washout, and 15-min 2.5–5 µM oligomycin treatment. Images were acquired at 10 s intervals. PercevalHR was excited at 405 and 488 nm, and emission was measured at 525 nm.

Briefly, flow chambers constructed using slides and plasma cleaned and silanized coverslips, attached with double-sided adhesive tape were coated with either anti-tubulin antibody (8 μg/ml, YL1/2; Accurate Chemical & Scientific Corporation), then blocked with 1% Pluronic F-127 (Thermo Fisher Scientific). Taxol stabilized microtubules assembled from porcine tubulin (Cytoskeleton) were introduced into the chamber. Following a 5–10 min incubation, the chamber was washed with dynein lysis buffer supplemented with 20 μM taxol. Mixtures of dynein or kinesin fragments diluted in motility buffer (30 mM HEPES, pH 7.2, 50 mM potassium acetate, 2 mM magnesium acetate, 10% glycerol, 1 mM DTT) supplemented with 20 μM taxol with or without the 100 μM ZnCl₂ were flowed into the chambers, after which the chambers were immediately imaged. TIRFM images were acquired using a 1.49 NA 100× TIRF objective on a Nikon Ti-E inverted microscope equipped with a Ti-S-E motorized stage, piezo Z-control (Physik Instrumente), and an iXon ×3 DU897 cooled EM-CCD camera (Andor). A 488 nm laser (Coherent) was used along with a multi-pass quad filter cube set (C-TIRF for 405/488/561/638 nm; Chroma) and emission filters mounted in a filter wheel (525/50 nm; Chroma). We imaged label-free microtubules using interference reflection microscopy (IRM) as previously described (Mahamdeh et al., 2018). To compare the relative microtubule-binding capacity of a given protein fragment (e.g., GFP-SRS-dyneinMTBD or GFP-SRS-kinesinMTBD), imaging conditions were kept constant for the minus and plus ZnCl₂ conditions (i.e., laser power and camera exposures). Quantitation of the relative microtubule-binding was performed using ImageJ software (National Institutes of Health). Fluorescence intensities were measured along microtubules (“signal”), and adjacent to microtubules (“background”). Mean corrected pixel intensity was determined by subtracting background from signal, then normalized to the average fluorescence intensities for the 0 Zn²⁺ condition.

For in vitro microtubule polymerization assays, the traditional turbidity assay was used to monitor microtubule polymerization via absorbance at 340 nm with minor modifications. Purified porcine tubulin was purchased from Cytoskeleton and reconstituted to 10 mg/ml in microtubule assay buffer (“MTAB”: 80 mM PIPES, pH 6.9, 2 mM MgCl₂, in Chelex-treated H₂O) supplemented with 1 mM GTP. Microtubule reaction mix (MTAB, 5% glycerol, 2 mM GTP, and 5 mg/ml tubulin) was prepared on ice. 1× buffered Zn²⁺ solutions (described above) were plated into pre-chilled 96 well half-area plates, followed by microtubule reaction mix (50 µl total reaction volume). Plates were kept on ice until they were read on a Synergy HTX Multi-Mode Microplate Reader (BioTek), prewarmed to 37°C, collecting absorbance at 340 nm every 20 s for 60 min.

Pre-polymerized microtubules were purchased from Cytoskeleton. Varying concentrations of microtubules were added to buffer (15 mM PIPES, 5 mM MgCl₂, pH 7.0) supplemented with 10 µM taxol and 500 µM DTT. 1 µM ZnCl₂ (prepared with Chelex-treated H₂O) was then added, and the reaction was incubated for 10 min. 1 µM FluoZin-3 tetrapotassium salt (Thermo Fisher Scientific) was then added to each reaction, plated into a 96-well plate and incubated at room temperature for 10 min. Fluorescence was measured using a Synergy HTX Multi-Mode Microplate Reader (BioTek), collecting fluorescence every 30 s at 525 nm emission using a 488 nm excitation, for 5 min. As an internal control, 250 µM TPEN was added to each well to chelate all Zn²⁺ and plates were measures for 20 min, or until a fluorescent minimum plateau was reached. Data was normalized by subtracting the minimum post-TPEN fluorescence.

COS-7 cells were co-transfected with mCherry-α-tubulin and either KIF5A(1-560)-EGFP, EGFP-DCX, EGFP-tau, EGFP-MAP2C, GFP-MAP1B, EGFP-p150Glued, mEmerald-MAP4, EGFP-MAP7, or EGFP-MAP9 and imaged 24–48 h post-transfection on the Nikon/Solamere CSUX1 spinning disc confocal microscope as described above. Still images of several cells at recorded stage positions were taken before time-lapse imaging. Cells were imaged for a 5-min baseline, then treated with metals and/or ionophores (as indicated) for 5 min. Still images of the same cells at the recorded stage positions were taken after the initial timelapse recording. For cells treated with 20 µM ZnCl₂, Zn²⁺ was subsequently chelated with 100 µM TPEN and cells were imaged for 5 min. Finally, still images of the same cells at the recorded stage positions were taken after the TPEN treatment. Timelapse images were acquired every 10–20 s with a 50–200 ms exposure for both 488 and 561 nm laser excitation at 10 and 5 mW power, respectively.

The “Tubeness” analysis plugin for ImageJ was used to quantify microtubule morphology of MAPs (σ value = 0.1425–0.216, appropriate for the micron/pixel calibration for each image’s magnification. Average tubeness for each cell was recorded at baseline, and each subsequent treatment, with values normalized to the baseline tubeness for each cell.

For depolarization experiments, primary hippocampal neurons (DIV 10–16) were depolarized for 5 min with 50 mM KCl in the presence or absence of 100 µM ZnCl₂ in HHBSS lacking Ca²⁺. Neurons were immediately fixed with ice-cold methanol for 10 min at −20°C to simultaneously permeabilize neurons and fix cells in a manner which would preserve microtubules and MAP interactions on microtubules. Fixed cells were blocked with 3% BSA for 30 min, then immediately immunostained (no PBS wash) with anti-tau polyclonal primary antibody (reactive to human, mouse, rat) raised in rabbit (IgG isotype) at a 1:700 dilution for 1 h at room temperature or overnight at 4°C. Cells were then washed with PBS, and re-blocked with 3% BSA for 15 min. Cells were then incubated with goat anti-Rabbit IgG (H+L) Cross-Adsorbed secondary antibody conjugated to Alexa Fluor 488 (A-11008) at a 1:500 dilution and beta Tubulin loading control monoclonal antibody conjugated to Alexa Fluor 555 (MA5-16308) at a 1:250 dilution for 45 min. Cells were finally washed with PBS then stained with 600 nM DAPI and imaged on the Nikon/Solamere CSUX1 spinning disc confocal microscope as described above. Multichannel images were taken across a 1 mm² area of the neuron culture for each dish and stitched together using the built-in Fiji “Stiching” plugin. Custom code (ImageJ Macro Language) was used to analyze the individual images to segment microtubule-positive areas, primarily axons, and measure average fluorescence intensity of Alexa Fluor 488. COS7-cells used for endogenous tubulin expression control experiments were first washed with Ca²⁺-free HHBSS then treated with either 20 µM ZnCl₂ + 2.5 µM PTO or 2.5 µM PTO alone for 5 min. The cells were then methanol fixed in the same manner, blocked with 3% BSA for 30 min at 4°C, and incubated with beta Tubulin loading control monoclonal antibody conjugated to Alexa Fluor 555 (MA5-16308) at a 1:250 dilution for 1 h at 4°C. Cells were then washed with PBS, DAPI stained, and imaged as described above.

Molecular graphics and analyses were performed with UCSF Chimera (Pettersen et al., 2004), developed by the Resource for Biocomputing, Visualization, and Informatics at the University of California, San Francisco, with support from NIH P41-GM103311.

Previously published cryo-EM microtubule reconstruction models (PDB ID: 6EVY) were used for MAP interaction and Zn²⁺ binding prediction analysis. The only available cryo-EM reconstruction models of microtubule-bound MAPs analyzed were DCX (PDB ID: 6REV), tau (PDB ID: 6CVN), kinesin microtubule binding domain (PDB ID: 3J8X), and cytoplasmic dynein microtubule binding domain (PDB ID: 6RZB). Individually, the microtubule-bound MAPs were analyzed using the Protein-Ligand Interaction Profiler (PLIP; Salentin et al., 2015), where the MAP was specified as the ligand and all inter-chain interactions (hydrophobic interactions, hydrogen bonds, and salt bridges) between the ligand and α-tubulin or β-tubulin were analyzed. Using Chimera, α-tubulin and β-tubulin residues identified by PLIP were colored to correspond with the MAP(s) that interacted with the residue.

Zn²⁺ binding prediction analysis of α-tubulin or β-tubulin was performed using the MIB (Metal Ion-Binding Site Prediction and Docking) Server (Lin et al., 2016). Chain A (α-tubulin) and Chain B (β-tubulin) from the cryo-EM microtubule reconstruction model (PDB ID: 6EVY) were run individually. α-tubulin and β-tubulin residues identified by MIB with a score >0 were colored using the “Render by Attribute” interface.

Hippocampal neurons at DIV 11–13 were first washed with Ca²⁺ free HHBSS, then treated with 50 mM KCl alone or 50 mM KCl + 100 µM ZnCl₂ for 5 min. Cells were then methanol fixed as previously described, then blocked with 3% BSA at 4°C for 30 min. Fixed cells were first incubated with acetyl-alpha Tubulin (Lys40) monoclonal antibody conjugated to Alexa Fluor 488 (6-11 B-1) at a 1:100 dilution for 1 h at room temperature. Cells were then washed with PBS, 5 min each wash, and then incubated with beta Tubulin loading control monoclonal antibody conjugated to Alexa Fluor 555 (MA5-16308) at a 1:250 dilution at room temperature for 45 min. Cells were then washed with PBS, DAPI stained, and imaged as described above. Still images were taken at 10 different positions per dish at 20× and 60× magnification. For images taken at 20× magnification, 6 axons were traced in each still image. The average fluorescence intensity for each axon ROI was measured for both 488 and 561 channels, and data for acetylated-alpha tubulin was normalized to beta-tubulin.

COS-7 cells were transfected with LAMP1-mCherry and imaged 48 h after transfection. Hippocampal neurons were transfected with mito-mCherry on DIV 5-6 and imaged DIV 10-14. On the day of imaging, cells were washed with Ca²⁺-free HHBSS, then incubated with Hoescht stain for 10 min. Cells were washed again with Ca²⁺-free HHBSS before imaging. For COS-7 cells, a 5-min baseline, 5 min 20 µM ZnCl₂ + 2.5 µM PTO treatment, washout, and 100 µM TPEN treatment was recorded. For hippocampal neurons, a 10-min baseline, 20-min 50 mM KCl + 100 µM ZnCl₂ treatment, washout, and 100 µM TPEN treatment was recorded. Representative images are acquired after the indicated treatment.

Imaging data were analyzed with Fiji (ImageJ, National Institutes of Health) and raw data output from Fiji were analyzed using Microsoft Excel in combination with JMP software (JMP, Version 15.2.0. SAS Institute Inc.,), and Mathematica (Wolfram Research, Inc., Version 12.1, Champaign, IL [2020]). Statistical analysis was performed using Excel or JMP software, using the appropriate statistical tests. All unpaired t tests were preceded by an F test to analyze variance equality. t tests were then performed with consideration for the determined variance equality or inequality. Least-squares regression with comparisons across all groups used restricted maximum likelihood estimation (REML) and post-hoc multiple comparisons used Tukey HSD. For parametric tests, data distribution was assumed to be normal but this was not formally tested. All measurements were taken from distinct samples. No region of interest (ROI) was measured repeatedly. When selecting a ROI in the soma for cytosolic sensors that were also present in the nucleus, care was taken to avoid selecting nuclear areas. For time traces of fluorescence intensity, background fluorescence was subtracted from ROIs. For single wavelength sensors, changes in fluorescence intensity (∆F = F−F₀) were normalized to the baseline preceding the 0-s time point (F₀), indicated as ∆F/F₀.

Fig. S1 shows the inhibition effects of Zn²⁺ on mitochondria and dense core vesicles in primary hippocampal neurons. Fig. S2 shows that Zn²⁺ can inhibit lysosomal and mitochondrial motility in HeLa cells. Fig. S3 shows that Zn²⁺ can dose-dependently inhibit kinesin ATPase activity and dynein ATPase activity in vitro without changing intracellular ATP/ADP levels. Fig. S4 shows that Zn²⁺ dissociates DCX from microtubules without affecting endogenous microtubule morphologies and cell health. Fig. S5 shows that Zn²⁺ dissociates endogenous tau from microtubules in neurons without affecting microtubule acetylation. Table S1 shows statistical analysis of ion effects on DCX decoration of microtubules. Table S2 shows statistical analysis of ion effects on Tau decoration of microtubules. Table S3 shows statistical analysis of ion effects on MAP2C decoration of microtubules. Table S4 shows statistical analysis of Zn²⁺ effect on MAP decoration of microtubules.
