Independence of symmetry breaking on Bem1-mediated autocatalytic activation of Cdc42

Actin and microtubule cytoskeletons are key players driving cellular symmetry breaking in diverse morphogenetic systems (Li and Gundersen, 2008). Cytoskeletal polymers, through their inherent structural and biochemical polarity, orchestrate movement and localization of regulatory molecules, which in turn govern cytoskeleton assembly and organization. Such positive feedback loops between structural and regulatory components are features in most models of cell polarization (Wedlich-Soldner et al., 2003; Marco et al., 2007; Seetapun and Odde, 2010; Goehring et al., 2011; Ku et al., 2012; Jose et al., 2013; Slaughter et al., 2013). The budding yeast, however, presents a rather unique case in which cellular symmetry breaking can be accomplished with or without contribution from the cytoskeleton (Ayscough et al., 1997; Irazoqui et al., 2003; Wedlich-Soldner et al., 2004).

Yeast cells naturally bud in a defined pattern, termed bud site selection, guided by sites of previous cell division—bud scars (Casamayor and Snyder, 2002). However, cells are also known to polarize with equal efficiency, albeit in random orientations, when bud scar cues are eliminated or cells lose the ability to recognize them, reflecting a self-organizational mechanism at work. A highly conserved regulator of cellular symmetry breaking and polarized morphogenesis is the small GTPase Cdc42 (Etienne-Manneville, 2004). Localization of Cdc42 from an isotropic distribution around the cortex to a focused cap on one side of the cell is thought to be the key step in symmetry breaking, orchestrating, through Cdc42 effectors, a massive polarized reorganization of cellular components such as the actin cytoskeleton and the secretory machinery, leading to the initiation of polarized growth to generate the bud. The Cdc42 polar cap is dynamically maintained: diffusion of Cdc42 within the membrane and exchange with the fast-diffusing cytosolic pool must be balanced by continuous recycling and retargeting of Cdc42 to the cap region (Wedlich-Soldner et al., 2004; Marco et al., 2007; Slaughter et al., 2009).

Two distinct models have been proposed to explain symmetry breaking in yeast. One model relies on a positive feedback loop between Cdc42-regulated assembly of the actin cytoskeleton and actin cable-mediated transport of exocytic vesicles carrying Cdc42 to the nascent cap (Wedlich-Soldner et al., 2003; Marco et al., 2007). Crucial to this model, recent studies found that membrane microdomains and endocytic corralling serve to maintain Cdc42 concentration in the polar cap (Jose et al., 2013; Slaughter et al., 2013). In normally growing cell populations, however, disruption of actin only renders polarization less efficient (Wedlich-Soldner et al., 2004). An actin-independent model for cell polarization is centered on Cdc24, the lone Cdc42 guanine nucleotide exchange factor (GEF) in yeast required for converting Cdc42 into the active, GTP-bound form. Cdc24 has been proposed to form a complex with Bem1 (Peterson et al., 1994; Zheng et al., 1995; Ito et al., 2001), an adaptor-like protein sharing several protein interaction motifs (PB1, SH3, and PX) with animal cell polarity protein PAR6 and the p67Phox adaptor protein in the NADPH oxidase complex. Bem1 also has the ability to bind Cdc42^GTP (Bose et al., 2001; Yamaguchi et al., 2007), like PAR6 (McCaffrey and Macara, 2009), as well as effectors of Cdc42 such as the p21-activated kinase Cla4 (Bose et al., 2001). The model posits that positive feedback occurs when the adaptor–GEF complex is recruited to an initial small accumulation of Cdc42^GTP through the interaction with Bem1, leading to GEF localization and thus autocatalytic Cdc42 activation at the nascent cap (Butty et al., 2002; Kozubowski et al., 2008). Bem1 was found to be essential for polarization only in the presence of Latrunculin A (LatA), leading to the proposal that Bem1 and actin represent two parallel pathways (Wedlich-Soldner et al., 2004). However, several more recent studies proposed the Bem1-mediated positive feedback loop to be the sole mechanism for symmetry breaking in yeast on the basis of synthetic lethality between BEM1 and RSR1, encoding a Ras-like GTPase required for bud site selection (Kozubowski et al., 2008; Howell et al., 2009). This synthetic lethality was interpreted as to show that Bem1 is required for cell polarization in the absence of bud site selection.

Another unresolved question is how an autocatalytic activation of Cdc42 might lead to polarized localization of Cdc42. Soluble Cdc42 in the cytosol is chaperoned by Rdi1 (Koch et al., 1997; Slaughter et al., 2009; Das et al., 2012). Rdi1, like other Rho GDP dissociation inhibitor proteins, has the ability to extract Cdc42 from the cortex (DerMardirossian and Bokoch, 2005), and this activity is facilitated by modulation of electrostatic interactions of Cdc42 with lipids by the lipid flippase Lem3 (Das et al., 2012). The Rdi1-mediated Cdc42 recycling is required for maintaining the polar cap when actin is inhibited with LatA (Slaughter et al., 2009; Das et al., 2012). Rdi1 may passively facilitate polarization if it is prevented from extracting Cdc42 at the cap through a GEF-dependent mechanism (Kozubowski et al., 2008; Savage et al., 2012), but the rapid, Rdi1-dependent exchange of Cdc42 at the polar cap (Wedlich-Soldner et al., 2004; Slaughter et al., 2009) argues against this idea. In this work, we critically examine the role of Bem1 in symmetry breaking with or without actin and present an alternative model for Cdc42 polarization centered on Rdi1-mediated Cdc42 recycling.

Axial and bipolar budding patterns rely on the trans-membrane markers Axl2 and Rax1–Rax2 complex, respectively (Roemer et al., 1996; Sanders et al., 1999; Kozminski et al., 2003; Fujita et al., 2004; Gao et al., 2007). Transmission of the bud scar signal to Cdc42 requires Rsr1 (Kozminski et al., 2003; Park and Bi, 2007), forming the basis of using rsr1Δ as the genetic background for studying spontaneous symmetry breaking. However, Rsr1 may have a more general role in polarization: Rsr1 physically interacts with both Cdc42 (Kozminski et al., 2003) and Cdc24 (Zheng et al., 1995; Park et al., 1997), as well as Bem1 (Park et al., 1997), and deletion of RSR1 was reported to result in spatially unstable Cdc42 caps (Ozbudak et al., 2005; Howell et al., 2012), particularly in the presence of LatA. Thus, rsr1Δ could compromise both bud site selection and the core mechanism of cellular symmetry breaking.

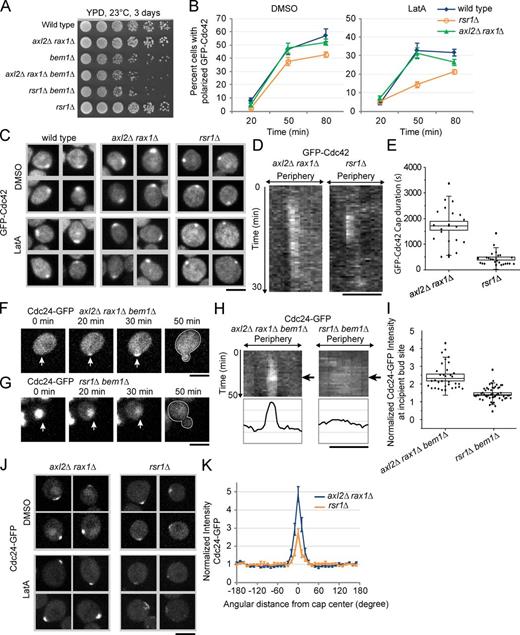

To create a more specific genetic background for studying cellular symmetry breaking, we deleted the bud scar markers Axl2 and Rax1 to remove the structural cues for both axial and bipolar budding, as this leaves the Rsr1 GTPase module intact. We confirmed that axl2Δ rax1Δ cells bud in random orientations (Fig. S1 A). Like rsr1Δ cells, axl2Δ rax1Δ cells grew similarly to the wild type under the standard experimental condition (Fig. 1 A). We next measured the rate of polarization on the population level in the presence or absence of LatA after release from a pheromone-induced G1 arrest. axl2Δ rax1Δ cells polarized at rates similar to wild-type cells in both DMSO and LatA. In contrast, rsr1Δ cells showed slower polarization in the presence of LatA (Fig. 1, B and C; and Fig. S1 B). Time-lapse imaging was then performed to examine polarization of GFP-Cdc42 in single polarizing rsr1Δ or axl2Δ rax1Δ cells in LatA. The single-cell analysis revealed a notable difference in polar cap stability between the different mutants: polar caps in rsr1Δ lasted for 440 ± 60 s (n = 24) and then sometimes reappeared at a different location (Fig. 1, D and E; Fig. S1 C; and Video 1), whereas axl2Δ rax1Δ cells maintained stable polar caps for much longer periods, averaging 1,720 ± 170 s (n = 20; Fig. 1, D and E; Fig. S1 D; and Video 2). This result shows that Rsr1 has a function in symmetry breaking in addition to its role in bud site selection.

Although extensive data were interpreted based on the assumption that Bem1 is required for viability in the rsr1Δ background (Kozubowski et al., 2008; Howell et al., 2009, 2012), both bem1Δ rsr1Δ double and bem1Δ axl2Δ rax1Δ triple mutants are viable and grew similarly to bem1Δ alone in the S288c genetic background (Fig. 1 A and Fig. S1 E), suggesting that Bem1 is nonessential for symmetry breaking. Strikingly, time-lapse imaging revealed that bem1Δ rsr1Δ cells were able to polarize and bud with severely reduced or unobservable Cdc24 localization to the incipient bud site (Fig. 1, G–I; and Video 3). In contrast, bem1Δ axl2Δ rax1Δ cells showed prominent polarization of Cdc24-GFP before bud emergence (Fig. 1, F, H, and I; and Video 4), similar to bem1Δ cells as previously reported (Gulli et al., 2000; Butty et al., 2002). Polar localization of Cdc24-GFP in LatA was also significantly reduced in rsr1Δ cells compared with axl2Δ rax1Δ cells (Fig. 1, J and K). Collectively, these results show that, although Rsr1 and Bem1 together control Cdc24 localization in the polar cap, cells could still polarize and bud without local concentration of the GEF.

All existing models assume that Bem1 functions in symmetry breaking by mediating a positive feedback loop connecting Cdc42 and Cdc24 as outlined in Fig. 2 A. Whereas this assumption was supported by gain-of-function experiments in which, for example, Cdc24 covalently linked to Cla4 could bypass the requirement for Bem1 for viability in rsr1Δ background (Kozubowski et al., 2008), the assumption has not been rigorously tested using loss-of-function approaches under more physiological settings. To this end, we pursued an unbiased investigation into how Bem1 participates in symmetry breaking by systematically disrupting each of the known physical interactions of Bem1 (Fig. 2 B) using specific point mutations validated in previous studies (Fig. 2 C; Butty et al., 2002; van Drogen-Petit et al., 2004; Yamaguchi et al., 2007). We note that all bem1 mutants analyzed in the following experiments were in the axl2Δ rax1Δ background for observing symmetry breaking in the absence of the bud scar cue.

We began by disrupting the binding of Bem1 to Cdc42^GTP, a critical step in the proposed Bem1-dependent feedback loop. This was achieved by replacing BEM1 with a centromeric plasmid expressing bem1 (under the BEM1 promoter) bearing the N253D mutation, which lies in the Cdc42 interaction domain and was previously shown to abolish Bem1 binding to active Cdc42 (Yamaguchi et al., 2007). Surprisingly, polarization of GFP-Cdc42 was unaffected in bem1^N253D cells in the axl2Δ rax1Δ bem1Δ background compared with BEM1 cells in the same background in the absence or presence of LatA (Fig. 2, D and E). Cdc24-GFP localization was reduced in bem1^N253D cells in the axl2Δ rax1Δ bem1Δ background in LatA (Fig. 2, F and G) but remained higher than in rsr1Δ cells (compare Fig. 2 G with Fig. 1 K). If the N253D mutation indeed disrupted the Bem1–Cdc42 interaction, Bem1^N253D-GFP should be unable to polarize to the Cdc42 cap. Indeed Bem1^N253D-GFP polarized poorly (Fig. 2 H), and we quantified the polarization strength of Bem1^N253D-GFP compared with Bem1-GFP, which indicated a significant (P < 10⁻⁶⁴) reduction of polarization of Bem1^N253D-GFP compared with Bem1-GFP (Fig. 2 I). This supports the in vivo disruption of the Cdc42–Bem1 interaction and shows that symmetry breaking does not require localization of Bem1 to the site of Cdc42 accumulation.

We next disrupted the interaction between Bem1 and Cdc24 mediated through heterodimerization between PB1 domains located at the C termini of these proteins (Ito et al., 2001; Butty et al., 2002). Supporting a crucial role for this interaction in symmetry breaking, mutations in Bem1 abolishing PB1 domain binding (bem1^K480E,S547P) resulted in failure of cells to polarize in the presence of LatA, whereas polarization in these mutants was only reduced without LatA, similar to that in bem1Δ (Fig. 3, A and B).

Because Cdc24 was able to localize even in the absence of Bem1 localization (Fig. 2 F), it was unlikely that the failed polarization of PB1 domain mutant cells was caused by a lack of Cdc24 localization. A previous study hypothesized that Cdc24 exists in an autoinhibited form and that binding by Bem1 might help to relieve this inhibition (Shimada et al., 2004). To investigate this possibility, we developed a Förster resonance energy transfer (FRET)–based biosensor (Itoh et al., 2002; Hodgson et al., 2008) for Cdc42 activation that consists of a linked construct of yeast Cdc42 with the Cdc42/Rac-interactive binding (CRIB) domain from Cla4 (Fig. 4 A), which interacts only with the active, GTP-bound form of Cdc42. These are flanked by GFP and mCherry, such that when the CRIB and Cdc42^GTP within the sensor are bound, the GFP and mCherry are brought in close proximity for energy transfer to occur, as illustrated in Fig. 4 A. The polybasic-CAAX box region of Cdc42 was moved C terminally to mCherry to allow proper prenylation and membrane anchorage. Higher FRET efficiency indicates higher net GEF activity toward Cdc42. FRET was measured using the acceptor photobleaching approach as described in the Materials and methods (Fig. 4, A–C; and Fig. S2). Mutations were introduced into the Cdc42 portion of the biosensor, resulting in either a constitutively GTP-bound (Q61L) or GDP-bound (D57Y) state to serve as positive or negative controls, respectively. The positive and the negative controls showed well-separated FRET efficiencies (n > 25 cells for each strain; P < 10⁻⁸), whereas the wild-type biosensor showed a FRET level intermediate between the controls as expected (Fig. 4 D).

We introduced the aforementioned Cdc42 activation biosensor into various mutant strains. Deletion of RSR1 resulted in FRET measurements similar to that in wild-type cells (P = 0.3), whereas deletion of BEM1 resulted in a significant lower FRET efficiency (P < 10⁻³; Fig. 4 D). Interestingly, disruption of the Bem1–Cdc24 interaction through the bem1^K480E,S547P mutation reduced the biosensor FRET by an extent similar to that by bem1Δ (P = 0.8 compared with bem1Δ, and P < 0.01 compared with BEM1; Fig. 4 D). In contrast, GEF activity in bem1^N253D cells was not significantly different from the wild type (P = 0.4; Fig. 4 D). These results show that the Bem1 interaction with Cdc24 is primarily responsible for enhancement of the latter’s GEF activity. Because it was proposed that the PB1 domain of Cdc24 acts as an autoinhibitory domain and that binding by Bem1 may help relieve the autoinhibition (Shimada et al., 2004), deletion of the PB1 domain should result in a constitutively active version of Cdc24. Indeed, Cdc24^ΔPB1 expressed under the CDC24 promoter from a centromeric plasmid boosted biosensor FRET in CDC24 bem1^K480E,S547P cells (P = 0.1 compared with BEM1, and P < 0.01 compared with bem1^K480E,S547P; Fig. 4 D). Importantly, the deregulated GEF (CDC24^ΔPB1) partially rescued cell polarization in bem1^K480E,S547P cells in the presence of LatA (Fig. 3, A and B), supporting the notion that Bem1’s role in cell polarization without actin is mainly mediated through its interaction with Cdc24, which stimulates Cdc24 GEF activity. Cdc24^ΔPB1-GFP localized poorly to caps of mCherry-Cdc42 in LatA-treated cells (Fig. 3, C and D), further suggesting that cells can polarize without GEF localization if the overall cortical GEF level is high.

A second mechanism by which Bem1 has been suggested to modulate Cdc24 activity is mediation of complex formation between Cdc24 and the Cdc42 effector Cla4. Cdc24 is hyperphosphorylated by Cla4 in this complex, which requires direct binding of both Cla4 and Cdc24 by Bem1 (Gulli et al., 2000; Bose et al., 2001; Wai et al., 2009). Expression of a fusion construct of Cdc24^ΔPB1 linked with Cla4 was shown to rescue the synthetic lethality of Δrsr1 Δbem1 in the yeast strain background used in a previous study (Kozubowski et al., 2008), which was interpreted as supporting a sufficiency of complex formation between Cdc24 and Cla4 for symmetry breaking. However, we found that the rescued cells failed to polarize in the presence of LatA (Fig. 5, A and B), suggesting that the fusion construct relies on an actin-dependent mechanism to accomplish the rescue. Because Bem1 and Cla4 interact through the Bem1 SH3 domain and a proline-rich motif in Cla4 (Bender et al., 1996), we tested the disruption of the projected Bem1–Cla4–Cdc24 complex by mutating the invariant tryptophan (bem1^W192K) in the SH3 domain required for binding to proline-rich motifs (Larson and Davidson, 2000). bem1^W192K resulted in a slight but significant (P = 0.05 at 50 min) reduction in the percentage of polarized cells in the presence of LatA compared with the control (Fig. 5, C and D), but biosensor measurements showed GEF activity similar to that in the wild-type polar cap (P = 0.3; Fig. 4 D). Importantly, the localization of Cdc24 was also normal in the bem1^W192K background (Fig. 5, E and F). These results suggest that GEF localization and activity at the polar cap is largely independent of the interaction of Bem1 with its SH3 domain ligands. It is interesting to note that bem1^W192K mutant cells frequently displayed two polar caps in LatA, suggesting that the affected interaction is important for the singularity of the polar axis in the absence of actin, but further investigation of this phenomenon is beyond the scope of this work.

If not through the Bem1 feedback loop, how then does Cdc42 polarize without actin? In addition to the membrane-bound pool, which is targeted by actin, Cdc42 exists in the cytosol in a soluble pool as the Rdi1-bound complex (Koch et al., 1997; Tiedje et al., 2008; Slaughter et al., 2009). Consistent with a new study published recently (Freisinger et al., 2013), rdi1Δ cells fail to polarize Cdc42 in the presence of LatA after release from pheromone G1 arrest (Fig. 6, A and B), suggesting that targeting from the Rdi1-bound cytosolic pool is not only required for maintaining but also for establishing Cdc42 protein polarization when actin is disrupted. The polarization defect in rdi1Δ cells in the presence of LatA was not caused by insufficient GEF activity: biosensor measurements indicated the GEF activity in rdi1Δ cells to be similar to that in the wild type (P = 0.89; Fig. 4 D), and expression of Cdc24^ΔPB1 did not rescue the polarization defect of rdi1Δ cells (Fig. 6, A and B). Furthermore, deletion of RDI1 did not affect growth of rsr1Δ or axl2Δ rax1Δ cells, suggesting that Rdi1 is not required for cellular symmetry breaking when actin is intact. However, deletion of RDI1 exacerbated the slow growth and polarization phenotypes in bem1Δ cells (Fig. 6, A and C). Collectively, the aforementioned results show that targeting of Cdc42 from the cytosolic Rdi1-bound pool is central to Cdc42 polarization in the absence of actin-based vesicular trafficking and that this process is distinct from GEF activation, which does not have to be spatially confined.

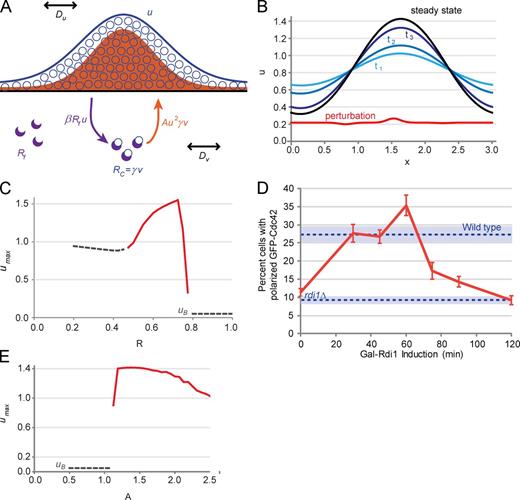

As a theoretical exploration of the polarization mechanism based on findings of this study, we used a minimalistic approach (Goryachev and Pokhilko, 2006; Otsuji et al., 2007; Altschuler et al., 2008; Mori et al., 2011) to discover the conditions that could allow symmetry breaking through Rdi1-mediated Cdc42 targeting from the cytosol but not local activation of the GEF. Main components of the 1D model include Cdc42 on the membrane (local concentration u(x,t)), a fraction (a₁ < 1) of which is in the active GTP-bound form, Cdc42 in cytosol v(x,t), free (cytosolic) Rdi1 R_f(x,t), and the cytosolic Rdi1–Cdc42 complex R_c(x,t). Considering the simplest case in which the activity G that dissociates the Rdi1–Cdc42 complex is proportional to squared density of active Cdc42, G(u) = a₂(a₁u)², i.e., G(u) = Au², in which A = a₂a₁²; the membrane targeting term for Cdc42 then reads Au²R_c (Fig. 7 A). Cdc42 internalization is given by the term βuR_f, in which β is the extraction rate of membrane-bound Cdc42 by free Rdi1. Because cytosolic Cdc42 exists in Rdi1- and vesicle-bound states (Das et al., 2012; Slaughter et al., 2013), we assume R_c = γv, in which 0 < γ < 1. Based on recently published data on the mobile pools of Cdc42 by using fluorescence correlation spectroscopy (Das et al., 2012), γ was estimated to be 0.4. Using the conservation condition for mean concentration of Rdi1 (R) in the cell, we have R_f = R − R_c = R − γv.

The cell is represented as a line segment with a size L. Dynamics of the Cdc42 concentrations are described in the region 0 ≤ x ≤ L: ∂u/∂t = γA(u − u_b)²v − β(u − u_b)(R − γv) + D_u(∂²u/∂x²), and ∂v/∂t = −γA(u − u_b)²v + β(u − u_b)(R − γv) + D_v(∂²v/∂x²), in which u_b denotes a nonzero but small basal uniform concentration of Cdc42 in the membrane (see Supplemental material). The diffusion of Cdc42 in the cytosol is much faster than that in the membrane: D_v >> D_u. The equations are subject to no-flux boundary conditions, and the total amount CL of Cdc42 in the cell is conserved. A linear stability analysis showed that the growth rate of small perturbations to an initial uniform distribution is proportional to the activation level of Cdc42 (see Supplemental material). Simulations of the model showed the perturbations lead to growth of a single peak of Cdc42 to a steady level (Fig. 7 B).

We explored the parameter space for R (cellular Rdi1 level) and A (essentially a parameter describing the activation level of Cdc42 that also impacts Cdc42 targeting) required for symmetry breaking. For a fixed value of A, simulations showed that formation of stable polarity responds nonmonotonically to R, such that polarization occurs when R is in the range of 0.5–0.8 (note R values are normalized to the global concentration of Cdc42, C = 1, and the upper but not lower boundary depends on the value of A; see Discussion). When R is above this range, no polarization occurs as a result of a lack of Cdc42 targeting to membrane, whereas when R is below the range, a high level of Cdc42 uniformly distributes on the membrane (Fig. 7 C). To perform a qualitative experimental test of this prediction, we induced expression of Rdi1 under the GAL1 promoter for varying time periods before release from pheromone arrest into LatA-containing media (Fig. S3 A). Quantifying the percentage of polarized cells at 50 min after the release, it was apparent that cell polarization occurs optimally at the concentration of Rdi1 induced for 60 min with galactose and declines sharply above and more gradually below this expression level (Fig.7 D). Measurement of mean fluorescence intensities of Rdi1-GFP and GFP-Cdc42, each expressed under its endogenous promoter, confirmed that Rdi1 concentration is ∼0.6-fold of that of Cdc42, within the allowable range for symmetry breaking (Fig. S3 B). We also fixed the value of R and varied A and found that symmetry breaking requires a threshold level of Cdc42 activation (Fig. 7 E), which is qualitatively consistent with the experimental findings in Fig. 3 (see Discussion).

The aforementioned results indicate that mechanisms of Cdc42 localization and activation are not obligatorily coupled. In any single location on the cortex, induction of downstream events or feedback circuits that rely on Cdc42 effectors depends on the concentration of Cdc42^GTP, a product of two factors: (1) total Cdc42 protein concentration (controlled by localization on the cortex) and (2) relative abundance of the GTP-bound state of Cdc42 (controlled by GEF/GAP balance) in that location. Modulation of either factor can be envisioned to affect the local Cdc42^GTP level and therefore the capacity for initiating the downstream reactions required for symmetry breaking (Fig. 8). This concept is sufficient to interpret all the experimental observations made in this study. Specifically, our results show that when both the actin-based vesicular trafficking and Rdi1-dependent cytosolic targeting mechanisms are intact, symmetry breaking, although less efficient, occurs even without strong GEF localization or the benefit of Bem1’s GEF boosting ability (Fig. 8 B). Alternatively, optimal GEF activation may compensate for suboptimal protein localization such as in the case of actin disruption with LatA (Fig. 8 C). However, when both activation and protein targeting are inhibited to a certain degree, such as the combination of bem1Δ and actin inhibition, the threshold of Cdc42^GTP concentration could not be achieved to enact the downstream reactions and positive feedback loops for symmetry breaking (Fig. 8 D).

The previous conclusion that Bem1 is essential for symmetry breaking was built on the synthetic lethal interaction between bem1Δ and rsr1Δ and the implicit assumption that rsr1Δ affects only bud site selection but not the core symmetry-breaking mechanism. The results presented here and in previous studies (Ozbudak et al., 2005; Howell et al., 2012) have shown that Rsr1’s function is beyond bud site selection but that bem1Δ or bem1Δ rsr1Δ double mutant cells are capable of polarization as long as actin is intact. Our approach of interaction-specific perturbation by using point mutations has revealed different, as opposed to concerted, functions for the various Bem1-mediated interactions in cell polarization. The mutant analysis shows that the Bem1–Cdc42 interaction is important for localization of Bem1 to the polar cap, but this is neither crucial for Cdc24 localization nor required for symmetry breaking with or without actin. This result also implies that Bem1 can fulfill its main function in symmetry breaking without itself being localized. In contrast, disruption of the Bem1–Cdc24 interaction prevented symmetry breaking only when actin was inhibited. This defect correlates with significantly reduced GEF activity and can be rescued by a Cdc24 construct that enhanced GEF activity but was unable to localize. These results strongly suggest that a key function of Bem1 is to boost the GEF activity of Cdc24 globally or locally.

Bem1 binding was also thought to enhance GEF activity by bridging a complex between Cdc24 with the p21-activated kinase Cla4, thus facilitating Cdc24 hyperphosphorylation. Although mutagenesis of as many as 38 phosphorylated sites on Cdc24 did not result in any observable phenotype (Wai et al., 2009), disruption of Bem1 SH3 domain binding to polyproline motifs via the bem1^W192K mutation resulted in a partial decrease in polarization efficiency in the presence of LatA (Fig. 5 C). However, as the bem1^W192K mutation would also disrupt the interaction with Boi1 and Boi2, which are together required for viability (Bender et al., 1996), the effect of this mutation does not permit simple interpretation. Nevertheless, we speculate that, in addition to GEF activation, Bem1 functions as a bona fide adaptor with multiple weak ligand interactions to enhance the affinity of protein complexes required for robust cell polarization.

Our results show that Rdi1 plays a critical role in actin-independent polarization of Cdc42, consistent with a recent study (Freisinger et al., 2013). As a Rho GDP dissociation inhibitor, Rdi1 is the cytosolic chaperone of prenylated Cdc42 and thus governs the targeting of this pool of Cdc42 to the site of polarization. Our previous work showed that Rdi1 is required for rapid recycling of Cdc42 that helps maintain a dynamic polarized Cdc42 concentration in the presence of significant membrane diffusion (Slaughter et al., 2009; Das et al., 2012). To recycle Cdc42 back to the polar cap, however, the Rdi1–Cdc42 complex must be broken apart, and what catalyzes this reaction remains a key missing link in the cytosolic Cdc42-targeting pathway. We envision that to enable symmetry breaking via this cytosolic targeting pathway, active Cdc42 on the plasma membrane controls the dissociation of the Rdi1–Cdc42 complex in some manner, restricting Cdc42 anchoring to sites of prior Cdc42 accumulation. Modeling of experimentally observed Cdc42 dynamics during steady-state polarity predicted that the window of targeting Cdc42 from the cytosolic complex must overlap with that of actin-based delivery (Slaughter et al., 2009), but the biochemical mechanism underlying this spatial restriction remains unknown.

The Ras-like GTPase Rsr1 has long been known to be essential for bud site selection, but our results, as well as the finding presented in several previous studies (Park et al., 2002; Kozminski et al., 2003; Kang et al., 2010), indicate that its role in polarization is more extensive and central to symmetry breaking than previously thought. Although Rsr1 is not strictly required for polarization, especially when actin is intact, in its absence, the established polar cap exhibits drastically reduced spatial and temporal stability, as shown in this and previous studies (Ozbudak et al., 2005; Howell et al., 2012). Previous studies attributed this instability to GAP-mediated negative feedback, and if so, Rsr1 may locally regulate this negative feedback to enhance the stability of the polar cap. The finding that Bem1 and Rsr1 share a role in Cdc24 localization provides an alternative explanation for the previously reported synthetic lethality of bem1Δ and rsr1Δ: perhaps in some yeast strain background, without GEF localization, bem1Δ rsr1Δ cells are unable to achieve a sufficient level of cortical Cdc42^GTP to initiate the feedback that brings about symmetry breaking.

Models of yeast cell polarity have focused on achieving a stable, nonuniform distribution of Cdc42 on the membrane (Onsum and Rao, 2009). Existing models are mass-conserved reaction-diffusion models (Goryachev and Pokhilko, 2006; Otsuji et al., 2007; Altschuler et al., 2008; Mori et al., 2011). Analysis of these models showed that the polarization is caused by Turing-type instability (Rubinstein et al., 2012), the physical reason for which lies in the significant difference in the Cdc42 diffusion constants in the cytosol and in the membrane, in addition to specific nonlinear dependence of protein recruitment on the local concentration of Cdc42 in the membrane. A major feature of the Turing instability is that a stable state of the two-component system may become unstable in the presence of diffusion. Cdc42 concentrations in the cytosol and on the membrane are considered as “master” variables, whereas concentrations of other proteins are consequences of the master variable dynamics.

One model introduced by Goryachev and Pokhilko (2008), which formed the basis for subsequent studies (Howell et al., 2012; Savage et al., 2012), assumes that polarization occurs via a mechanism of autocatalytic activation of Cdc42 through recruitment of the Bem1–Cdc24 complex. Rdi1 was incorporated into the model as a passive aide in Cdc42 recycling, prevented through a GEF-dependent mechanism from extracting Cdc42 at the cap. The authors considered a complex model consisting of eight reaction-diffusion equations for dynamics of membrane bound and cytoplasmic proteins diffusing in 2D and 3D, respectively (Goryachev and Pokhilko, 2008). Using several simplifying assumptions, they reduced the original model to a 1D version for the master variables only. Both the full and the reduced models produced qualitatively the same results showing the existence of robust clustering of Cdc42 on the membrane. In our approach, we focused on the development of the minimalistic 1D model designed to grasp major features of the actin-independent polarization process.

Our model differs mechanistically from that of Goryachev and Pokhilko (2008) in the lack of reliance on autocatalytic activation of Cdc42 via a proposed Bem1–Cdc42–Cdc24 complex. Rather, symmetry breaking is achieved through autocatalytic Cdc42 protein recruitment from the cytosolic Rdi1–Cdc42 complex. We demonstrate through both model simulation and experimental measurements that symmetry breaking depends on a window of Rdi1 concentration relative to that of Cdc42. In contrast, cells have more permissive requirements on the level of GEF activity, such that although a threshold level is required, higher levels are well tolerated. This explains the main experimental findings that cell polarization can occur with varying degrees of GEF concentration in the polar cap and that bem1 mutations that impair GEF activation are more detrimental to polarization when cells are reliant on the Rdi1-based targeting pathway (i.e., when the actin-based transport pathway is disabled).

In summary, a key insight resulting from the analyses performed in this work is that activation and localization of Cdc42 are achieved via distinct mechanisms that contribute quantitatively and productively to symmetry breaking. Although both aspects of Cdc42 regulation are required, partial deficiency in either may be compensated as a result of the presence of multiple mechanisms achieving the other. This cooperation underscores both the complexity and robustness of the yeast cell polarity system.

We considered a 1D model describing Cdc42 protein dynamics in a yeast cell undergoing symmetry breaking transition from a uniform state to a polarized state. For the actin-independent pathway, we introduce the following components of the model: Cdc42 on the membrane (local concentration u(x,t)) with active fraction a₁ < 1, Cdc42 in cytosol v(x,t), free (cytosolic) Rdi1 R_f(x,t), protein complex Rdi1–Cdc42 R_c(x,t), and a certain activity G(u) leading to breaking up of the complex into free Rdi1 and membrane-anchored Cdc42. We considered the simplest case when this activity is proportional to squared density of active membrane Cdc42, i.e., G(u) = a₂a₁²u² = Au², in which A = a₂a₁².

The membrane targeting term reads G(u)R_c, and the internalization term is βuR_f, in which β is the extraction rate. Assuming that the Rdi1–Cdc42 complex exists as a fraction of total cytosolic Cdc42, we find R_c = γv, in which 0 < γ <1. Given conservation of total amount of Rdi1 (R) in the cell, we also have R_f = R − R_c = R − γv. This means that both R_c(x,t) and R_f(x,t) are dependent on the Cdc42 dynamics.

Spatiotemporal dynamics of Cdc42 is described by the equations in the region 0 ≤ x ≤ L:

in which the diffusion of the Cdc42 cytosolic form is much faster than the membrane one: D_v >> D_u. The cubic nonlinearity is shown to be critical for the Turing-type instability in polarization models (Goryachev and Pokhilko, 2008). The system of Eq. 1 is subject to no-flux boundary conditions. Summing up the equations and integrating over the spatial interval, we obtain the Cdc42 mass conservation condition

in which the constant C is the model parameter representing the mean Cdc42 concentration. The reaction terms used in Eq. 1 lead to a basic uniform solution u = 0 corresponding to absence of Cdc42 on the membrane. To have some nonzero basal level u_b on the membrane, we modify the reaction term in Eq. 1 to arrive at

Being stationary and spatially uniform, the solution {u₀,v₀} is independent of time and spatial variables, so that all derivatives vanish, and this solution should satisfy the equation f(u₀,v₀) = 0. From Eq. 2, it follows that the basic solution satisfies the condition u₀ + v₀ = C, and we find from Eq. 3

As the uniform steady-state concentrations should be nonnegative, we find a necessary condition on the model parameters R > γC, which was shown to be satisfied with experimental measurements and the estimated value of 0.4 for γ.

A previous study (Rubinstein et al., 2012) showed that the maximal linear growth rate σ_m of the perturbation can be approximated by the partial derivative of f with respect to the variable u: σ_m ≈ ∂f/∂u = 2γA(u₀ − u_b)v₀ − β(R − γv₀), computed at the basic solution (Eq. 4). Meanwhile, the basic solution satisfies the relation γA(u₀ − u_b)v₀ = β(R − γv₀), which produces an estimate for the growth rate for membrane Cdc42 in the form σ_m ≈ β(R − γv₀) = γA(u₀ − u_b)v₀.

The last relation shows that the growth rate of membrane Cdc42, which determines the kinetics of polarization establishment, is proportional to the concentration of Rdi1 (R). It also depends on the activation level A, and more precisely, it is determined by the balance between the activation level A and the Rdi1 expression R.

For a fixed value of activation, with increase in R, the internalization term wins over the membrane-targeting term, eventually blocking polarization. On the other hand, for small R < γC, polarization is also not possible. This means that there exists a range of the Rdi1 expression level R for which the polarization is possible, and the upper boundary of this range varies with A. This behavior is illustrated in Fig. 7 C in which the maximal value u_max of the membrane-bound Cdc42 concentration obtained by simulation of Eq. 3 is shown for a fixed value of A and increasing R. The nonpolarized state (with the ratio u_max/u_min < 1.2) is shown by the dashed curve. The parameter values used in this simulation are C = 1, γ = 0.4, β = 0.2, D_v = 0.1, D_u = 0.01, u_b = 0.05, and L = 3. The simulations for each set of the parameters were performed 25 times, and the mean values of u_max were computed.

Site-directed mutagenesis was performed using the site-directed mutagenesis kit (QuikChange II XL; Agilent Technologies), and the final product was sequenced to ensure that there were no secondary mutations introduced. All yeast strains used in this study are described in Table S1. Techniques for yeast cell culture and genetics were essentially as previously described (Burke et al., 2000). Transformation of plasmid DNA into yeast was performed based on the lithium acetate method (Ito et al., 1983). Transformation of DNA fragments was performed by the same method, but after transformation, cells were recovered in nonselective media for at least two cell cycle times before plating on selective media, and genomic integration was confirmed by PCR. The plasmid DLB3170 was a gift from D. Lew (Duke University School of Medicine, Durham, NC).

Cells were arrested at 23°C for 1.5 h using 20 µg/ml α-factor and released into the cell cycle by washing three times in sterile water before resuspending in fresh media with either 50 µM LatA or equivalent DMSO. LatA treatment was confirmed to result in actin polymerization within 15 min (Fig. S1 B). Samples containing Bem1-GFP or Cdc24-GFP were imaged as live cells 50 min after release. Samples were taken at 20, 50, and 80 min after release, fixed in 4% paraformaldehyde for 15 min before washing in PBS, and stored at 4°C for <48 h before imaging. For each time point, >80 cells were scored for polarity. The assay was repeated at least three times for each genotype. For release assays with Rdi1 expression induced under the Gal1 promoter, pGAL1-RDI1 cells were grown overnight in 4% raffinose media, to which 4% galactose was added at the appropriate time point relative to the addition of α-factor such that addition of glucose 30 min before release from α-factor would end the induction.

Imaging was performed at 23°C on a spinning-disk confocal microscope (UltraVIEW; PerkinElmer), including an inverted microscope (Axiovert 200 M; Carl Zeiss), attached to a spinning-disk confocal system (CSU-X1; Yokogawa Corporation of America) and electron multiplying charge-coupled device (EM-CCD) camera (C9100; Hamamatsu Photonics) with Volocity acquisition software (PerkinElmer) or a similar system with MetaMorph acquisition software (Molecular Devices). Single time point images of live or fixed cells were collected as a series of optical sections, with a step size of 0.5 µm. ImageJ software (v. 1.37; National Institutes of Health) was used to process the images. Final images are maximum projections that have been background subtracted and contrast adjusted for clarity. Cdc24-GFP, Bem1-GFP, and mCherry-Cdc42 images were taken with a 100× αPlan Fluar, NA 1.46 objective lens, whereas GFP-Cdc42 and Cdc24-GFP-Cla4 images were taken with a 63× Plan Apochromat, NA 1.4 objective lens.

For live-cell videos of GFP-Cdc42, cells were arrested in G1 via pheromone for 1.5 h and released into LatA-containing synthetic complete (SC) media for 30 min before slide preparation on a 1% agarose and 100 µM LatA pad. Z-stack images were acquired at 30-s time intervals with 0.7 µm between slices. Maximum z projections of each time point were generated, cells showing polar cap formation and disappearance within a single movie were identified, and the maximum intensity of the polar cap was measured and plotted over time. These were smoothed via a rolling mean of six time points and then fitted to Gaussian curves in OriginPro (OriginLab). The duration of the cap is reported as the full width half maximum of the Gaussian fit.

For live videos of Cdc24-GFP, cycling mid–log phase cells were immobilized on 1% agarose in SC media and imaged at 2-min time intervals as z-stack images with 0.7 µm between slices. Cells were aligned before kymograph generation by manually tracking either the polar cap or bud neck after bud emergence. Kymographs were then generated by averaging over a thickness of 3 pixels along the cortex using a custom plugin in ImageJ. This and other plugins can be found at the Stowers Institute ImageJ Plugins website and in a ZIP file provided online in Supplemental material.

Maximum projections of Bem1-GFP fluorescence images from the experiment in Fig. 2 I were background subtracted and processed using the ImageJ Smooth function to remove noise. Unbudded cells were circled, and the maximum and mean pixel intensities were calculated for a total of 520 cells per genotype. The Bem1 polarity was calculated as the maximum pixel intensity divided by the mean intensity per each cell.

Two-channel z-stack images of cells expressing Cdc24-GFP and mCherry-Cdc42 were background subtracted, and maximum projections were generated. A cortex mask of the cell was then generated from the mCherry-Cdc42 channel using a custom macro based on the Li Dark thresholding algorithm in ImageJ (Li and Tam, 1998). The mask was applied to the Cdc24-GFP channel, and the mean intensity of the masked region in 10° increments around the cortex was calculated using a custom plug-in to generate a cortical intensity profile or Cdc24-GFP or similarly with the mCherry channel. This was completed for ≥15 cells, including all visibly polarized cells from each of several images. The profiles were aligned by maximum value, and each was normalized to the mean intensity of the cortex in the 180° region opposite the peak. The normalized curves were averaged. Statistical analysis was performed on peak (0°) values.

Cells were grown to mid–log phase before analysis. Polarized cells were imaged on a spinning-disk confocal microscope (UltraVIEW) including an inverted microscope (Axiovert 200 M), a spinning-disc confocal system (CSU-X1), a charge-coupled device (2 × 2 bin; ORCA-R2; Hamamatsu Photonics), and a PhotoKinesis accessory (PerkinElmer) using Volocity acquisition software with a 100× αPlan Fluar, NA 1.46 objective. Cells were imaged at maximum speed for a total of 42 frames, with 488-nm laser power at 7% and exposure at 100–300 ms depending on biosensor expression level per cell. mCherry throughout the cell was bleached after frame 20, using one iteration of 568-nm laser at 100%. mCherry fluorescence was checked after acquisition to ensure complete bleaching. Controls indicated no significant bleaching of GFP by 568-nm excitation nor cross talk of mCherry fluorescence into the GFP channel. The sensor was expressed within a similar range (measured by fluorescence) in all strains, and cortical fluorescence intensity did not correlate with FRET (Fig. S2). Analysis was performed using ImageJ software. The first two frames after bleaching (frames 21–22) were discarded because of a potential delay of 568-nm laser shut off. The sum of the full time series was then used to create a cortex mask of the cell, using a custom macro based on the Li Dark thresholding algorithm in ImageJ (see Supplemental material; Li and Tam, 1998). The mask was applied to the series, and the mean intensity of the masked region in 10° increments around the cortex was calculated at each time point using a custom plug-in. The mean intensity and the SD intensity of each 10° increment before and after bleach were calculated in RStudio (RStudio, Inc.). The SDs of all 10° increments before and after bleach were averaged, and cells whose mean SD was >10% of its mean cortical fluorescence were discarded. Intensity profiles of remaining cells were then aligned such that polar cap center was located at 0°. FRET efficiency was calculated for each 10° segment in remaining cells as 100 × (postbleach – prebleach)/prebleach. FRET efficiencies for each 10° increment were then averaged over ≥25 cells, as in the plot in Fig. 4 C. The peak FRET efficiency (Fig. 4 D) was determined as the mean of the 30° region containing the 10° increment of highest mean FRET efficiency among aligned profiles, as illustrated by the yellow box in Fig. 4 C.

Statistical differences between two sets of data were analyzed with a two-tailed unpaired Student’s t test.

Fig. S1 shows additional data for characterization of spatial cue independent polarization backgrounds, rsr1Δ and axl2Δ rax1Δ. Fig. S2 shows mean cortical intensity of the Cdc42 biosensor plotted against FRET efficiency for each cell in the analysis. Fig. S3 shows a schematic of the experimental procedure used to generate Fig. 7 D and the relative levels of Rdi1 and Cdc42. Videos 1 and 2 show polar cap dynamics of GFP-Cdc42 in LatA in an rsr1Δ cell and an axl2Δ rax1Δ cell, respectively. Videos 3 and 4 show localization of Cdc24-GFP during budding in rsr1Δ bem1Δ cells and axl2Δ rax1Δ bem1Δ cells, respectively. Table S1 shows yeast strains used in this study. A ZIP file is also provided that contains custom plug-ins and macros written for ImageJ, used to calculate cortical intensity profiles and kymographs.
