Autoinflammatory disease and severe neutropenia due to de novo variant of PSTPIP1 with increased binding to pyrin

While the spectrum of known proline-serine-threonine phosphatase-interacting protein 1 (PSTPIP1)–associated inflammatory diseases (PAIDs) has continued to expand over the last decade, the mechanistic basis of genotype–phenotype correlations remains unclear. The two best characterized PAIDs are pyogenic sterile arthritis, pyogenic gangrenosum, and acne (PAPA) syndrome and PSTPIP1-associated myeloid-related proteinemia inflammatory (PAMI) syndrome. PAPA syndrome is an autosomal dominant autoinflammatory disease that is characterized by sterile arthritis in early childhood and onset of dermatologic manifestations, including sterile ulcers and abscesses, around puberty (1). Compared to PAPA syndrome, patients with PAMI syndrome typically present earlier and with more severe disease. Clinical features include skin inflammation, arthritis, severe systemic inflammation, hepatosplenomegaly, failure to thrive, cytopenias, hyperzincemia, and high levels of the calprotectin subunits MRP8 and MRP14 (1). To date, only two heterozygous PSTPIP1 mutations, E250K and E257K, are known to cause PAMI. Here, we report a patient who presented with features of PAMI syndrome and was found to have a de novo variant leading to amino acid substitution N236K in PSTPIP1.

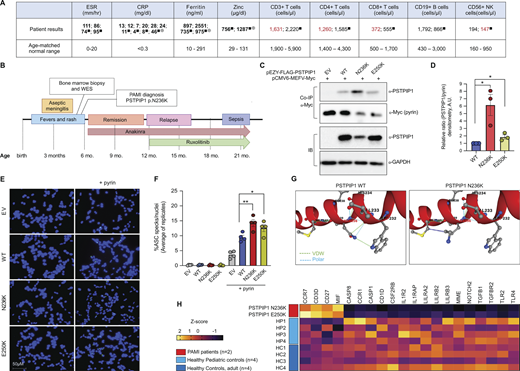

A female infant was born to healthy, non-consanguineous parents at 40 wk gestation after an uncomplicated pregnancy. The patient’s clinical course immediately after birth was unremarkable. Between the ages of 1–6 mo, the patient had multiple episodes of fever and generalized maculopapular rash. Laboratory findings revealed persistently elevated erythrocyte sedimentation rate, C-reactive protein, ferritin, and zinc (Fig. 1 A). She was also noted to have elevated soluble IL-2 receptor (3,513 U/ml, normal range 389–1,940), D-dimer (8.29 mg/L, normal range 0–0.49), CXCL9 (1,657 pg/ml, normal range <121) and IL-18 levels (50,285 pg/ml, normal range 89–540), and persistent neutropenia. Blood cell counts for major leukocyte subsets were slightly low on one occasion but normal on subsequent testing (Fig. 1 A). Antinuclear antibody testing was negative. There was concern for arthritis given significant patient discomfort when her lower extremities were manipulated for diaper care. The patient appropriately met developmental milestones, and neurologic evaluation was normal, including auditive testing. In the setting of her chronic neutropenia and recurrent fever, a bone marrow biopsy was performed and demonstrated areas with trilineage hematopoiesis with a left-shifted myeloid maturation and possible maturational arrest at the metamyelocyte level, small mature-appearing lymphocytes, and normoblastic erythroid precursors without atypia. Myeloid to erythroid ratio was within normal limits. No blast cells or overtly dysplastic hematopoietic cells were noted, nor was there evidence of hemophagocytic lymphohistiocytosis. The patient had no history of skin ulceration, acne, hepatosplenomegaly, or lymphadenopathy. The patient’s early age at presentation, severity of disease, and chronic neutropenia suggested a monogenic autoinflammatory syndrome (Fig. 1 B). Whole-exome sequencing revealed a heterozygous, de novo C > A variant at Chr15:77031245, which affects transcript NM_003978.5 (c.708C > A) and results in the missense variant p.N236K in PSTPIP1. This variant was initially classified as a variant of uncertain significance and was previously reported in a single patient with PAMI syndrome, but no functional studies were reported (2). Treatment with an IL-1 inhibitor anakinra (6 mg/day) initially controlled episodes of fever and rash, though fevers recurred after 5 months of treatment, despite dose escalation to 7.5 mg/day, then 10 mg/day over this period. Her neutropenia was treated with filgrastim with short-term success. At about a year of age, she was evaluated for bone marrow transplantation and began treatment with a Janus kinase (JAK) inhibitor ruxolitinib 2.5 mg twice daily as an initial dose, with an increase to 5 mg twice daily. Her symptoms generally improved while on anakinra and ruxolitinib, although her absolute neutrophil count on filgrastim ranged from 100 to 1,000/μl. At 22 mo of age, the patient presented in severe respiratory distress, likely secondary to metapneumovirus infection, and passed away rapidly despite maximum resuscitative efforts. Written informed consent was obtained for all participants, and samples for this study were collected under an approved protocol (Vanderbilt University Human Research Protections Program and Institutional Review Board).

Like the known PAMI-causal mutations E250K and E257K, the N236K variant is proximal to the coiled-coil domain of PSTPIP1, which binds pyrin (1). Pyrin recruits PSTPIP1 into protein complexes containing the apoptosis-associated speck-like protein (ASC), leading to inflammasome assembly and caspase-1–dependent IL-18 and IL-1β secretion (1). To evaluate the impact of N236K on pyrin inflammasome activity, WT or mutant forms of PSTPIP1 (pEZY-FLAG-PSTPIP1) were ectopically co-expressed with pyrin (pCMV6-MEFV-Myc) in HEK293T cells. Myc-tagged pyrin was used for co-immunoprecipitation, and western blotting was performed for PSTPIP1. Mutant N236K PSTPIP1 showed enhanced pyrin binding relative to WT PSTPIP1, which surpassed that of the E250K mutation (Fig. 1 C). Quantitation of normalized PSTPIP1/pyrin signals by densitometry (ImageJ) is shown for three independent replicates (Fig. 1 D). To assess pyrin inflammasome activation, WT or mutant forms of PSTPIP1 were expressed, with or without pyrin (pCMV6-MEFV-Myc) in HEK293-ASC^YFP cells stably expressing a yellow fluorescent protein (YFP)–tagged ASC protein, which oligomerizes to form “specks” upon inflammasome activation. ASC^YFP specks and DAPI-stained nuclei were visualized on an Olympus BX51 microscope with a 40× objective, and a minimum of six fields were captured per condition. Automated counting of ASC^YFP specks and nuclei (ImageJ) was performed on >100 nuclei per condition in each experiment and results plotted for four replicate experiments. In the absence of pyrin, neither WT nor PAMI-associated versions of PSTPIP1 induced inflammasome activation (Fig. 1, E and F). When co-expressed with pyrin, the N236K and E250K mutant forms of PSTPIP1 induced increased pyrin inflammasome activation relative to WT (Fig. 1, E and F). Collectively, these data suggest that the N236K variant alters PSTPIP1 protein structure, allowing for increased pyrin binding and pyrin inflammasome nucleation. Accordingly, modelling of the structural impact of the N236K variant using PremPS predicted a change in unfolding free energy of 0.74 kcal/mol, indicating a destabilizing variant, and loss of non-covalent interactions with nearby amino acids (Fig. 1 G).

To investigate the mechanisms of immune dysregulation resulting from the N236K variant, we profiled transcriptional changes in whole blood samples from this patient, another PAMI patient with the published E250K variant, healthy pediatric controls (n = 4), and healthy adult controls (n = 4). Blood samples from PAMI patients were collected during periods free of fever or rashes. Blood was collected in PAXgene Blood RNA tubes (#762165; BD), and RNA was extracted (#K0732; Thermo Fisher Scientific). Gene expression was measured using an nCounter Immunology Panel (#XT-CSO-HIM2-12; NanoString). Raw count files were normalized (nSolver Software v4) using the geometric mean of 15 housekeeping genes, per the manufacturer’s protocol. Normalized expression data were exported for further analysis. Two-tailed unpaired T tests were performed to compare gene expression between two groups, and Z-scores were calculated and used for heatmap (GraphPad Prism). PAMI patients’ samples showed elevated expression of several genes involved in T cell receptor (TCR) activation or co-stimulation (CCR7, CD3D, and CD27) and reduced expression of genes important for neutrophil survival, activation, and function (CSF2RB, CCR1, LILRA2, LILRB2, and LILRB3) and T regulatory cell function (TGFB1 and TGFBR2) (Fig. 1 H). Prior work has shown that PSTPIP1 is recruited to the TCR complex and regulates F-actin remodeling following T cell activation (3), but it is not yet known whether this process is perturbed in PAMI. Additional studies are required to better understand how various PSTPIP1-dependent pathways and different cell types culminate in PAMI syndrome pathogenesis.

The N236K variant adds to the growing body of evidence that diverse mutations in PSTPIP1 underlie a spectrum of autoinflammatory phenotypes. This study is limited by lack of data regarding MRP8 and MRP14 levels in this patient, as well as unavailability of viable primary cells to directly test for myeloid production of pro-inflammatory cytokines upon stimulation. Despite an increasing awareness and diagnosis of PAIDs, including PAMI, our mechanistic understanding of pathogenesis is limited, and the clinical heterogeneity of PAIDs may complicate reaching a diagnosis and delay proper treatment. Mouse strains with Pstpip1 knocked out, or specific variants knocked in, do not recapitulate some hallmark phenotypes of PAID, limiting the utility of these mice for modelling PAID pathogenesis (4). In addition to affecting pyrin inflammasome activation, several PAID-causing variants disrupt the interaction of PSTPIP1 with the protein tyrosine phosphatase LYP (encoded by PTPN22) (5), a negative regulator of TCR activation; thus, potential roles for PSTPIP1–LYP interactions in regulating T cell function in PAMI merit further investigation. The severity of PAMI syndrome and the risk of early morbidity necessitate a high index of suspicion and clinician awareness of monogenic autoinflammatory phenotypes and genetic testing. The mainstay of treatment for PAMI syndrome and other related PAIDs include steroids, tumor necrosis factor inhibitors, and IL-1 inhibitors. More recently, JAK inhibitors were reported to control disease activity in patients with classical PAPA syndrome (4). While continued reporting of new cases and associated PAID mutations is necessary to fully understand these complex diseases, there is also a pressing need to explore the molecular mechanisms of disease and potential new therapeutic targets.
