Disruption of a side portal pathway permits closed-state inactivation by BK β subunit N termini

Ca²⁺- and voltage-activated, large-conductance BK-type K⁺ channels undergo a fast inactivation process that arises from N-terminal peptide segments of regulatory β2 (Wallner et al., 1999; Xia et al., 1999) and β3a, β3b, and β3c subunits (Uebele et al., 2000; Xia et al., 2000; Zeng et al., 2007). Although this process qualitatively shares similarities to Shaker fast inactivation (Hoshi et al., 1990; Zagotta et al., 1990), inactivation mediated by BK β subunits exhibits features inconsistent with simple, open-channel block. Cytosolic channel blockers do not compete with β subunit–mediated inactivation (Solaro et al., 1997; Xia et al., 2000), although TEA has been shown to compete with an exogenously applied N-terminal peptide blocker (Wallner et al., 1999). The presence of time-dependent changes in instantaneous IV curves during development of inactivation supports the existence of two categories of the open state (Lingle et al., 2001; Benzinger et al., 2006), one that closes normally and one in rapid equilibrium with inactivated states. Finally, tail current behavior during recovery from inactivation is inconsistent with the predictions of recovery from simple, open-channel block (Solaro et al., 1997; Zeng et al., 2007; Gonzalez-Perez et al., 2012). All three of these features of BK inactivation have been explained by a two-step inactivation process, which in its simplest form is given by C←→O←→O*←→I.

The key point encapsulated in such a scheme is that a rate-limiting transition to a preinactivated open state (O*) precedes a rapid transition to a nonconducting inactivated state. For the β3a N terminus, repeated cycling between I and O* explains the prolonged tail of current following repolarization after channels are inactivated at depolarized potentials. For β3a, this mechanism is of potential physiological significance, distinguishing it from simple channel block (C←→O←→I), since it results in a much larger net current flux (Zeng et al., 2007; Gonzalez-Perez et al., 2012) than would be predicted from simple, open-channel block (Demo and Yellen, 1991; Raman, 2023).

An additional intriguing difference between BK and Shaker inactivation concerns stereospecificity in the channel blocking effects of isolated N-terminal peptides. Shaker inactivation–removed channels are inhibited essentially indistinguishably between D- and L-20 mer N-terminal Shaker peptides (Gonzalez-Perez et al., 2012). In contrast, the 20-mer L-peptide of the BK β3a N terminus recapitulates all the features of the two-step inactivation process, while a D-β3a peptide exhibits features of simple channel block characteristic of Shaker (Gonzalez-Perez et al., 2012). This suggests that BK inactivation involves a stereospecific binding step that precedes inactivation. Yet, a challenge for understanding BK inactivation has been that whereas Shaker-type N-terminal inactivation can be easily conceptualized by the simple block, pore-occlusion model (Hoshi et al., 1990; Zagotta et al., 1990; Choi et al., 1991; Demo and Yellen, 1991; Aldrich, 2001), for BK inactivation, the structural correlates that may underlie the postulated two steps in the inactivation process are lacking. Furthermore, the quite different β2 and β3a tail current behaviors have not been fully explained (Zeng et al., 2007; Gonzalez-Perez et al., 2012).

BK β subunit N termini access their positions of inactivation, presumably within the central cavity, via passage through side portals that connect the membrane-associated pore-gate domain to the cytosolic domain containing the gating rings (Zhang et al., 2006, 2009; Agarwal et al., 2025). Here, current BK structural information (Hite et al., 2017; Tao et al., 2017; Tao and MacKinnon, 2019) is used to probe a potential pathway by which β subunit N termini might reach the BK central cavity. We find that in the available structural model of the unliganded, presumably closed BK channel, there is no obvious pathway that would accommodate movement of N-terminal segments to the central cavity, while in the liganded, open-channel model, a pathway can be identified. The key difference between the two conformations is that a triplet of basic residues, R₃₂₉K₃₃₀K₃₃₁ (RKK), is positioned to hinder β subunit N-terminal passage into the central cavity in the closed state. Previously, the RKK triplet has been implicated in stabilization of the closed BK conformation by interaction between RKK and two acid residues (E321/E324) from an adjacent subunit (Tian et al., 2015), participation in sensitivity to PIP2 (Vaithianathan et al., 2008; Tian et al., 2015), coupling of the cytosolic gating ring to pore-gate domain function (Niu et al., 2004), and coupling of voltage sensor activation to channel opening (Sun and Horrigan, 2022). Here, we utilize macroscopic and single-channel evaluations of RKK (and E321/E324) mutations to test their impact on inactivation mediated by β3a and β2 subunits. The results suggest that each of the RKK triplet mutations differentially stabilizes the lifetime of channels in inactivated states. Furthermore, contrary to the linear formulation presented above, disruption of the RKK triplets also permits direct inactivation from resting closed states. In contrast, mutations of E321/E324 predominantly reduce the stability of the inactivated states. The results support the view that disruption of the RKK motif creates a pathway in closed channels that allows N-terminal inactivation motifs to reach a position of inactivation.

BK channels were expressed in stage IV Xenopus oocytes by cRNA injection of the pore-forming mouse Slo1 (mSlo1) α subunit alone or with hβ2 or D20Am (Gonzalez-Perez et al., 2012). D20Am is a chimeric construct containing N-terminal residues 1–34 from mouse β3a, appended to residues 41–235 of the hβ2 subunit (β3a(1–34):β2(41–235)) (Fig. 2 B). The cRNAs of α and β subunits were injected at 1:4 ratio by volume to ensure molar excess of β subunits. Three constructs of the mSlo1 α subunit were generated in which the triplet of residues, RKK, immediately following the S6 pore-lining helix, were mutated. The construct RKK/3Q corresponds to replacement of RRK with three glutamine residues, RKK/3E corresponds to replacement with glutamate residues, and RKK/3V corresponds to replacement with valine. A second set of mutant constructs focused on two acidic residues near the end of the S6 helix, E321 and E324. Here, we utilized EE/QQ, EE/DD, EE/GG, EE/WW, and EE/KK constructs. All mutants were generated by site-directed mutagenesis. The specific DNA primers were purchased from Integrated DNA Technologies, and Pfu DNA polymerase was applied to perform 18 PCR cycles (96°C, 30’’; 52°C, 30”; 69°C, 18’). After 2 h of DpnI digestion, the reactions were used to transform E. coli DH10B cells electrically (Invitrogen), which were then plated on LB plates containing 70 µg/ml carbenicillin. The resulting single colonies were grown out for plasmid DNA isolations. The intended mutants were identified and verified through Sanger sequencing (Azenta Life Sciences). To synthesize cRNA, the pCap vector templates were linearized with MluI and purified, and cRNAs were synthesized with T7 RNA polymerase (Invitrogen).

The aqueous accessible volumes in hSlo1 structures were evaluated using the program PrinCCes (Czirják, 2015) with a probe of 8 Å diameter. The structural images were prepared using UCSF ChimeraX (Goddard et al., 2018).

All currents were recorded in the inside-out patch configuration using an Axopatch 200B amplifier (Molecular Devices). Currents were low-pass–filtered at 10 kHz and digitized at 100 kHz. During seal formation, an oocyte was bathed in standard frog Ringer (in mM): 115 NaCl, 2.5 KCl, 1.8 CaCl₂, and 10 HEPES, at pH 7.4. Following patch excision, the pipette tip was moved into flowing test solutions of defined Ca²⁺ concentrations. The pipette was filled with extracellular solution containing (in mM) 140 K-methanesulfonate, 20 KOH, 10 HEPES, and 2 MgCl₂, at pH 7.0. The intracellular solutions included (in mM) 140 K-methanesulfonate, 20 KOH, and 10 HEPES adjusted to pH 7.0. For 0 Ca²⁺ solutions, 5 mM EGTA was used with no added Ca²⁺. The 10 μM Ca²⁺ solution was prepared by slowly adding a 1 M Ca-MES stock solution in presence of 0.5 mM HEDTA to obtain the desired [Ca²⁺], while monitoring with a Ca²⁺-sensitive electrode calibrated with commercial Ca²⁺ solutions (WPI). Symmetric K⁺ gradients are preferred for biophysical studies of BK channels, since they largely linearize the BK single-channel conductance.

Because the questions under investigation utilized constructs that resulted in persistent inward current even at very negative potentials, leak subtraction was not employed for macroscopic currents in any of the displayed results and analysis. Since each patch was treated with trypsin to remove inactivation (and the persistent inward current), this provided an indication whether any patch had levels of leak current that would compromise our measurements. When tail current decay properties were measured, we excluded the first 1.5 ms following the nominal time of the voltage step, but extrapolated the fit to the nominal t = 0 to make estimates of the fraction of channels in O*-I states upon repolarization. The steady-state levels of tail current were determined from the baseline level defined by the two (or in some cases one)-exponential fit to the tail current relaxation. The extent to which this differed from the leak current is considered in the Results.

For single-channel patches, currents were sampled at 50 kHz and filtered at 5 kHz. Leak and capacity transients were subtracted by using blank traces in the same recording. For cases of BK channels that were open at the end of the depolarization to +140 mV, only rarely would a fully resolved deactivating BK channel be expected to be observed. BK channel deactivation at −160 mV typically occurs with a time constant of about 100 μs (Horrigan and Aldrich, 2002), which predicts that <5% of all channel closing events will be >300 μs. For the 36 of 860 cases in which WT+D20Am channels were open at the time of repolarization, only 1 or 2 deactivation events longer than 300 μs would be expected.

The trypsin digestion procedure was as described previously (Zhang et al., 2006, 2009). In short, trypsin was applied for timed durations in 0 [Ca²⁺]_in, while the patch was held at −70 mV. Digestion was then monitored following return to a 10 μM [Ca²⁺]_in solution lacking trypsin using currents evoked by test steps to +160 mV after a preconditioning step to −160 mV. Each patch was washed in enzyme-free 0 [Ca²⁺]_in solutions for at least 5 s before and after each test current recording.

Solutions at the pipette tip of excised inside-out patches were changed with an SF-77B fast perfusion stepper system (Warner Instruments) controlled by pCLAMP (Molecular Devices). Experiments were performed at room temperature (∼22–25°C). All chemicals were purchased from Sigma-Aldrich.

Data were analyzed using OriginPro 7.5 (OriginLab Corporation), Clampfit (Molecular Devices), GraphPad Prism 10.4.0 (GraphPad), and programs developed in this laboratory. Error bars in the figures represent standard deviations. Each measurement is averaged from at least four experiments with a number of patches given in figure legends. Specific statistical tests are given when used. For comparisons of single-channel events among constructs, Fisher’s exact test was used for comparing 2 × 2 contingency matrices. To correct for multiple comparisons, a Bonferroni correction was used, such that for any comparison of events in two constructs, the P value reported by the Fisher test was corrected to P times the number of different comparisons.

Peak current resulting from activation of an inactivating channel is expected to be less than the maximum current that would arise from all channels being open simultaneously. The reduction in peak current can arise from a number of factors. First, channels may already occupy inactivated states prior to the depolarizing voltage step. Second, inactivation of some channels may occur during the rising phase of current activation prior to the time of peak current. In this case, the extent to which peak current may underestimate the true maximum current differs depending on whether the inactivation process may be dependent on opening first occurring (coupled model) or that inactivation can occur without channel opening being driven only by depolarization (uncoupled model). For the simplest formulation of coupled and uncoupled models, to evaluate the expected reduction of peak current relative to the measured maximum activatable BK current in a patch only requires measurement of the inactivation time constant and then, following removal of inactivation by trypsin, measurement of the activation time constant and the maximum current amplitude during saturating activation for the population of channels in the patch.

Although the extent to which BK inactivation is coupled or independent of activation has not been addressed unlike the situation for Shaker (Zagotta et al., 1989), here we assume two limiting analytic approximations, beginning with the assumptions that for BK currents, the activation time course can be reasonably well described by a single-exponential function (Horrigan and Aldrich, 2002) and that the stimulation conditions are such that return from O states to C states is minimal. For the first case, we assume that inactivation is uncoupled from activation; i.e., it occurs independent of activation, being driven solely by depolarization. This defines a potential lower limit on peak current amplitude that might result from inactivation occurring during the rising phase, and is described by the following sort of Hodgkin–Huxley activation–inactivation formalism, $[I(t)=(1−e−tτa)(e−tτi)]$⁠, with τ_a and τ_i reflecting activation and inactivation time constants, respectively. For the second approximation, we assume that inactivation can only occur following channel opening; i.e., inactivation is fully coupled to opening, as defined by a linear scheme of C→O→I. In this case, the explicit analytic equation is $[I(t)=ka(ka−ki)(e−kit−e−kat)]$⁠, with k_a and k_i being activation and inactivation rates, respectively. In either case, whether passage through closed states is approximated by a single-exponential time course or might involve multiple transitions, as long as the function reasonably approximates the current rise time, the expected consequences of the two inactivation formalisms are reasonably described.

Simulations utilized IonChannelLab software (v. 1.0.5.3) (Santiago-Castillo et al., 2010). Three primary stimulus protocols were utilized, one to mimic that used in Fig. 3 A for current activation and basic tail currents, a second to mimic that used in Fig. 7 to look at voltage dependence of tail current following inactivation, and then a third identical to the steady-state inactivation protocol used for Fig. 4 D. A population of 1,000 channels was assumed, and currents were simulated at a sampling interval of either 20 or 100 μs per point. We used a simplified channel activation model given by C₁←→C₂←→O←→O*←→I (Scheme 1 in Fig. 2 C). The basic strategy was to determine whether, within the context of a simplified model, could changes in a minimal subset of parameters account for the experimental observations.

The crux of the two-step inactivation model is that the transition from O to O* is the rate-limiting step in the onset of inactivation, while the O*-I equilibrium involves transitions much faster than can be measured with available techniques. BK channel activation was approximated with three states, C₁ ←→ C₂ ←→ O, with rates and voltage dependencies chosen to generate GVs and activation/deactivation kinetics that mimic those for the four BK constructs (WT, RKK3Q, RKK3E, and RKK3V) when in association with D20Am after removal of inactivation by trypsin (D20Am-IR). Based on the experimentally measured onset of inactivation at positive potentials (∼16 ms), the O→O* transition was set at 60/s unless otherwise indicated. The rates that underlie the O*←→I process were taken from previous work based on a β-analysis of the reduced current-level openings produced by the β3a(1–20) peptide on WT BK channels (Gonzalez-Perez et al., 2012). The voltage dependence of the O*←→ I equilibrium was also confirmed to be similar in Fig. 6, D and E, for single channels arising from D20Am expressed with RKK3V. Negative to −100 mV, D20Am+RKK3V channels begin to exhibit marked inward current rectification resulting in a rollover in conductance values in contrast to those for the β3a(1–20) peptide. This rollover arises from the marked inward current rectification at negative voltages for BK channels expressed with β2 or β3 subunits that arise from the extracellular domain of the β subunits (Zeng et al., 2003).

Fig. S1 illustrates the impact of inactivation-removed D20Am on gating of WT and RKK mutant constructs supplemented with a text section discussing Table S1 and Fig. S1. Fig. S2 summarizes slow and fast time constants measured in slow tail currents following repolarization of D20Am-associated RKK mutant constructs. Table S1 reports V₅₀ and z values for fitting of GV curves for WT and RKK mutant constructs by comparing them with published values (Tian et al., 2019).

We begin with an evaluation of BK structural elements that may influence β subunit access to the central cavity, which suggests the importance of a triplet of basic residues (RKK) in the C-linker segment. Then, taking advantage of unique features of inactivation mediated by the β3a N terminus, we systematically analyze macroscopic and single-channel currents to produce multiple lines of support for the idea that disruption of the RKK triplet permits the β3a N terminus to access its binding site within the BK central cavity. The idea that the β3a N terminus can bind to the most resting closed state is further supported by simulation with simple models. The generality of the findings is also extended to inactivation mediated by the β2 N terminus.

To evaluate structural elements that might influence β subunit N-terminal passage into the central cavity (Zhang et al., 2006, 2009), we first determined aqueous volumes in closed and open BK channel structures that might permit peptide chain access. Based on globular dimensions of the N-terminal hydrophobic motif of the BK β2 subunit (Bentrop et al., 2001) that is required for β2-mediated inactivation (Xia et al., 2003), we computed the aqueous volume accessible to a particle 8 Å in diameter in two available hSlo1 cryo-EM structures (Tao and MacKinnon, 2019) using the program PrinCCes (Czirják, 2015). In the Ca²⁺-bound structure (Fig. 1 A), an aqueous accessible volume extends laterally from the central cavity to the outside of the pore-gate domain. In contrast, in the apo structure clear gaps separate the aqueous volume within the central cavity from the aqueous volumes outside the pore-gate domain (Fig. 1 B). Closer inspection shows that the gap in the apo structure results from intrusion of side chains of three consecutive basic residues (RKK) in the N terminus of the BK C-linker (Fig. 1 C). This suggests that in the closed channel, RKK may hinder access of β inactivation segments to the BK central cavity. The potential importance of the RKK residues in influencing state-dependent access of β subunit N termini to the central cavity can also be inferred from examination of recent structures of a β2NT-β4 chimera in association with hSlo1 (Agarwal et al., 2025).

We utilized three mSlo1 mutants: RKK3Q, RKK3E, and RKK3V (Fig. 2 A). To probe inactivation, we coexpressed each Slo1 construct with the D20Am β3a:β2 chimeric construct (see Materials and methods) (Gonzalez-Perez et al., 2012). The D20Am construct offers several advantages. It retains all the relevant functional characteristics of β3a-mediated inactivation, including the prominent features of two-step inactivation (Scheme 1 as in Fig. 2 C). The reason for using the D20Am chimera over a native β3a construct is that it exhibits reduced current rectification properties known to arise from β3 subunit extracellular loops (Zeng et al., 2003). D20Am produces inactivation-dependent slow tail current (Fig. 2 D) that is removed following trypsin removal of inactivation (Fig. 2 E). Furthermore, upon repolarization from an inactivated state, single BK+D20Am channels transition into a prolonged state of noisy and reduced average current amplitude (compared with full openings) (Fig. 2 F). The long-duration D20Am-associated tail openings, with their reduced current amplitude, exhibit the following additional features. Trypsin removal of inactivation also abolishes the slow tail openings (Fig. 2 F). Opening is essentially instantaneous following repolarization. The reduction of current amplitude relative to a normal BK tail opening is reduced as the membrane voltage becomes more negative (Fig. 2 G), approaching the amplitude of normal tail openings at very negative voltages. The largely complete inactivation at positive voltages and essentially instantaneous opening upon repolarization to a reduced conductance level can be explained by rapid transitions between two states, a preinactivated open state (O*) and a very brief nonconducting state (I) in accordance with the two-step inactivation scheme (Fig. 2 C) (Zeng et al., 2007; Gonzalez-Perez et al., 2012). The voltage dependence of the O*←→I equilibrium is such that occupancy in I is strongly favored with depolarization, but O* is favored with hyperpolarization. The idea that D20Am tail currents largely reflect a population of channels defined by the voltage dependence of the O*/I equilibrium underlies some of results and analysis presented below, and new results further bolster the idea that the general framework of the two-step model is a reasonable explanation for D20Am-mediated inactivation. Guided by these considerations, we now present results with mutated RKK constructs.

Each of the three RKK3 mutant constructs we have examined forms functional BK currents, with GV relationships at 0 Ca²⁺ (Table S1) very comparable to those reported previously (Tian et al., 2019). To assess the gating range of the WT and RKK mutant channels when coexpressed with D20Am (Fig. S1), we first measured GV curves for each construct after trypsin removal of inactivation (Fig. 3, A2, B2, C2, and D2 for WT, RKK3Q, RKK3E, and RKK3V, respectively). This provided information regarding the range of voltages at a given [Ca²⁺] over which each construct in association with D20Am would be expected to occupy mainly closed states both during prepulses to −160 mV and following repolarizations to −160 mV. The GVs also defined the range of voltages over which saturating macroscopic current activation occurs at a given Ca²⁺. Based on these GVs, we selected 10 μM Ca²⁺ for most protocols for WT, RKK3Q, and RKK3E when expressed together with D20Am, since at −160 mV, there is little activation. For RKK3V+D20Am, the activation is more negatively shifted (Fig. 3 D), such that we have generally used 0 Ca²⁺ so that prepulses to −160 mV minimize channel openings. These choices were confirmed in single-channel patches in which 10 μM Ca²⁺ rarely opens RRK3Q+D20Am channels at −160 mV after removal of inactivation (Fig. S1 E), while with 0 Ca²⁺, RKK3V+D20Am channels rarely open at −160 mV (Fig. S1 F).

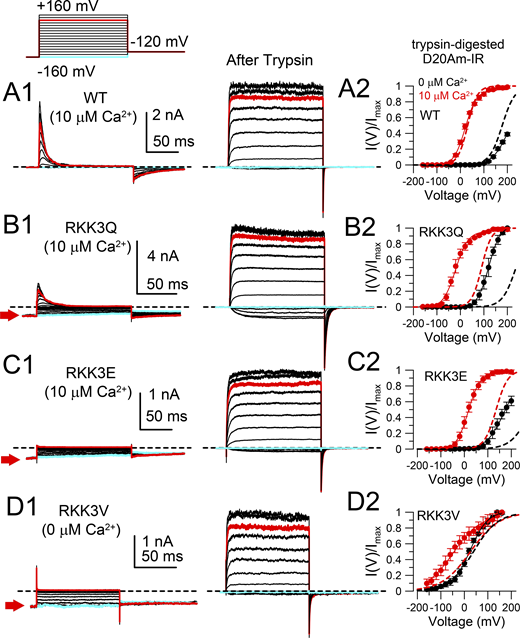

Macroscopic currents from WT (Fig. 3 A) and RKK-mutated (Fig. 3, B–D) BK α subunits coexpressed with D20Am were evoked from inside-out patches by test pulses from −160 to +160 mV following a 200-ms prepulse to −160 mV. After recording the inactivating currents (Fig. 3, A–D, left panels), each patch was treated with trypsin to remove inactivation (Fig. 3, A–D, right panels). This allows definition of the maximum BK conductance in a patch. We note that for the RKK mutant constructs, the peak current estimated by trypsin digestion is likely somewhat underestimated, given that there is some residual fast flickery gating following trypsin digestion as shown below in single-channel records (e.g., Fig. S1, E and F). This likely reflects fast block by residual trypsin-digested N termini that produces a small decrease in apparent maximum conductance.

For WT+D20Am BK current recorded in 10 μM [Ca²⁺]_in, the outward inactivating current evoked by the step to +160 mV peaks at around 85% of the maximal conductance (defined following removal of inactivation by trypsin) before decaying close to the zero current level (Fig. 3 A), indicating that most WT channels open before they inactivate. Repolarization during inactivation results immediately in the signature slow tail current involving the β3a N terminus. After digestion by trypsin, the slow tail is completely eliminated together with inactivation. In contrast, currents arising from RKK3Q coexpression with D20Am exhibit two noticeable differences from the WT inactivating BK current (Fig. 3 B). First, the peak outward current of RKK3Q is reduced to about 35% of the maximum current after trypsin digestion. Second, with the 200-ms prepulses to −160 mV, there is an appreciable amount of inward current at potentials negative to −100 mV (Fig. 3 B, cyan trace: −160 mV). Qualitatively, the reduction of peak outward current might be interpreted to indicate that at least twice as many RKK3Q channels are inactivated at the peak of the outward current in comparison with WT. However, this reduction might occur either from inactivation during the rising phase of current or from inactivation occurring prior to the depolarization. Macroscopic currents for the other two RKK mutants are shown in Fig. 3 C (RKK3E, 10 μM [Ca²⁺]_in) and Fig. 3 D (RKK3V, 0 μM [Ca²⁺]_in). Similar to RKK3Q, both RKK3E and RKK3V when coexpressed with D20Am result in sustained inward current at negative potentials. This inward current is removed by trypsin treatment (Fig. 3, C and D). However, unlike either RKK3Q or WT channels, there is almost no outward current in RKK3E or RKK3V channels expressed with D20Am until after trypsin digestion. Yet, this pronounced suppression of voltage-activated outward current is associated with a measurable inward conductance at −160 mV and other negative potentials.

Simplistically, the reduction in depolarization-activated peak outward current in the RKK3X+D20Am constructs might be interpreted to suggest that there is an increased likelihood that channels already reside in inactivated states at the end of the 200-ms prepulse at −160 mV preceding depolarization. Thus, one interpretation of the reduction of outward current would be that the RKK mutations are favoring inactivation directly from closed states. However, the inward current at −160 mV observed for each of the RKK mutant constructs complicates interpretation of the state occupancies of channels during and at the end of the −160-mV prepulse; i.e., are channels occupying closed states? Below, we now systematically address this question.

For the RKK3Q, RKK3E, and RKK3V mutants when expressed with D20Am, the tail currents arising from repolarization to −160 mV all appear to be more prolonged versions of the WT+D20Am tail current. Based on this idea, in accordance with the two-step inactivation scheme, we suggest that the inward current reflects some fraction of channels undergoing rapid oscillations between O* and I states (O*←→I). If so, depolarization from −160 mV would immediately result in a new O*/I equilibrium favoring occupancy predominantly in I. Thus, any channels occupying the O*-I ensemble at negative potentials not only will contribute an inward current at negative potentials, but also will not be available to contribute to channel activation and inactivation upon depolarization. Yet, the question remains whether any of the reduction in outward current arises from channels that directly inactivate from closed states, rather than channels in the ensemble of O*-I states. Much of the subsequent experiments are designed to evaluate whether the RKK mutations are permitting direct inactivation from closed states.

Differential changes in the rates of inactivation onset and activation in the RKK-mutated channels might contribute to a fraction of RKK-mutated channels entering inactivated states following depolarization, but preceding current peak. To address this possibility, following removal of inactivation by trypsin, we measured activation time constants as a function of membrane potential over the range of +60 to +160 mV (Fig. 4 A, left). Similarly, we measured inactivation time constants at +160 mV prior to trypsin digestion (Fig. 4 A, right). For RKK3E, only a very small transient current was observed; inactivating currents could not be meaningfully measured for RKK3V.

The extent to which channels may inactivate during the rising phase of current activation is influenced by the specific relationship between activation and inactivation. For BK, the extent to which inactivation is coupled or independent of activation has not been addressed unlike the situation for Shaker (Zagotta et al., 1989). Therefore, for this evaluation, here we assume two limiting analytic approximations (see Materials and methods), beginning with the assumption that for BK currents, the activation time course can be reasonably well described by a single-exponential function (Horrigan and Aldrich, 2002). We also assume that at +160 mV, once channels enter the O*-I ensemble, they do not return to O, therefore allowing it to be approximated by O→I. For the first case, we assume that inactivation is “uncoupled” from activation; i.e., inactivation can be initiated by depolarization even without channel opening. This is described by the following Hodgkin–Huxley activation–inactivation formalism: $[I(t)=(1−e−tτa)(e−tτi)]$⁠. For an inactivation process uncoupled from activation, the activation and inactivation time constants lead to estimates of 0.77, 0.71, and 0.34 for the predicted fraction of peak current expected for WT, RKK3Q, and RKK3E (Fig. 4 B, middle panel; Fig. 4 C). For an inactivation process in which inactivation depends on channel first opening (coupled), based on a linear scheme of C→O→I, when return from O to C is minimal as might be expected with strong depolarizations, the explicit analytic equation is $It=kaka−kie−kit−e−kat$⁠. Based on the measured time constants, this predicts peak current (Fig. 4 B) with amplitudes of 0.82, 0.77, and 0.45, for WT, RKK3Q, and RKK3E, respectively. For WT currents, both models make predictions similar to what is observed experimentally, suggesting that there may be little inactivation of WT channels at −160 mV prior to the depolarization (Fig. 4, B and C). However, for RRK3Q and RKK3E, the experimentally observed reduction in peak current is significantly more than the predictions from either the coupled or uncoupled model of inactivation. This suggests that ∼40% and 60% of RKK3Q and RKK3E channels, respectively, may already reside in inactivated states prior to depolarizing pulses. The absence of appreciable outward current for RKK3V+D20Am precludes this kind of calculation, but depolarization from −160 mV for RKK3V+D20Am channels rarely activates normal channel opening. These considerations again suggest that the RKK triplet mutations examined here increase the likelihood that channels at the end of the prepulse to −160 mV reside in states that are unable to transition to normal openings. By standard convention, that would mean the channels are in inactivated states. Whether that solely reflects occupancy in the O*-I ensemble or some other inactivated state is addressed below.

Since our patch recordings typically use a holding potential of 0 mV before initiation of protocols, 200 ms at −160 mV may be insufficient to return channels to resting states. Therefore, we generated steady-state inactivation curves for each construct over a range of voltages down to −200 mV, while increasing the prepulse to 300 ms (Fig. 4 D). For each patch, we normalized the peak of inactivating currents to the maximum available conductance defined after trypsin. Thus, the steady-state inactivation curves potentially define the true fractional availability of a given channel to be activated, with some reduction in the peak current expected from the fraction of channels that inactivate following depolarization, but preceding current peak. For all three constructs, each exhibited a specific limiting fractional availability (h_∞) that was unchanged between −160 and −200 mV at values comparable to the peak fractional activation described above (Fig. 4, B and C). The V₅₀ of steady-state inactivation was left-shifted for RKK3Q relative to WT and RKK3E. For RKK3V, the longer conditioning step to −200 mV failed to unmask any activation of outward current. More negative voltages of longer duration were not well tolerated by the patches. A concern with these considerations is that perhaps the prepulse duration is insufficient to define true fractional availability. Experiments below (Figs. 5 and 9) suggest that at −160 and −200 mV, persistent current is near steady state within about 200 ms.

That RKK3Q, RKK3E, and RRK3V each reach a limiting, but differing, asymptote suggests that each channel reaches a different voltage-independent fraction of channels that are available to open normally and inactivate following depolarization. Some of the reduction in fractional availability is expected to reflect channels in the O*-I ensemble at −160 mV, but we suggest that for RKK3Q and RKK3E, there may also be a fraction of channels that are inactivated from fully resting closed states. These ideas are developed further below.

Typically, steady-state inactivation curves are used to define a voltage of half-availability (V₅₀) and are simply normalized to the peak inactivating current measured during a given set of depolarizations. Here, we have benefit of an independent measure of the total current expected for the population of channels in a patch when inactivation is removed, something that cannot readily be achieved for most other inactivating channels (although see Ayer and Sigworth [1997]). The differences in limiting asymptote therefore provide a direct and essentially model-independent measure of differences in voltage-independent fractional occupancy of channels in activatable versus inactivated states.

To probe the single-channel underpinnings of the persistent inward current, we examined single-channel patches with a stimulation protocol similar to that used in Fig. 3. We designate the initial prepulse to −160 mV as segment S1, the step to +140 mV as S2, and the repolarization to −160 mV as S3 (top of Fig. 5). For WT+D20Am channels (Fig. 5 A), depolarization to +140 mV resulted in openings that then inactivated in 608 of 793 trials and 37 openings that remained open for the duration of the depolarization (n = 5 patches) (Table 1). Repolarization of channels that were inactivated at the end of S2 usually resulted in immediate channel opening to a current-level intermediate between fully open and fully closed as described previously for the O*-I behavior (Zeng et al., 2007; Gonzalez-Perez et al., 2012). Following trypsin removal of inactivation, WT+D20Am-IR channels remained open for the duration of the depolarization; after repolarization, brief tail openings of larger amplitude could occasionally be observed, although at −160 mV, most tail openings are too brief to be resolved (e.g., Fig. 5 E). Ensemble averages of the single-channel events both before and after trypsin (Fig. 5 A, bottom) mirrored the macroscopic behaviors shown above. For RKK3Q+D20Am (Fig. 5 B), depolarization to +140 mV occasionally elicits normal openings followed by inactivation, but at lower likelihood than for WT+D20Am (125 openings in 359 sweeps from 6 patches) (Table 1). However, in contrast to WT+D20Am, the RKK3Q+D20Am tail current openings that occurred immediately upon repolarization were more prolonged, often persisting for the duration of the repolarizing step. Trypsin also removed the prolonged persistent openings, and ensemble averages mirrored the macroscopic currents (Fig. 5 B). For RKK3E+D20Am (Fig. 5 C), very few sweeps revealed channel openings during the depolarization to +140 mV (10 openings in 330 sweeps from 8 patches [Table 1]), while channel openings of reduced amplitude were also immediately observed upon repolarization. Finally, for RKK3V+D30Am (Fig. 5 D), single-channel openings during steps to +140 mV were also rarely seen (12 of 588 sweeps from 8 patches [Table 1]), while repolarization was invariably associated with immediate reopening of reduced amplitude level that persisted for the duration of the repolarization. A characteristic of the single-channel openings for RKK3Q, RKK3E, and RKK3V following trypsin digestion of D20Am was the flickery nature of the openings (e.g., Fig. S1, E and F). As noted above, we suggest that residual digested N termini are able to mediate a rapid flickery block behavior that does not occur with the WT RKK sequence, perhaps reflecting an interaction of the residual N terminus with something affected by mutation of RKK residues.

Examination of WT+D20Am tail openings in the S3 segment (Fig. 5 E, left) both before and after trypsin emphasizes the nature of the reduced current level during the O*-I burst relative to a normal tail opening. The openings for RKK3Q+D20Am (Fig. 5 E, middle left, Fig. 5 F) suggest the amplitudes of the presumed O*-I bursts are similar to those for WT, while the durations of the bursts are longer (Fig. 5 B). The single-channel current level for the RKK3E+D20Am channels was also indistinguishable from WT (Fig. 5 E, middle right, Fig. 5 F); given the brevity of the RKK3E+D20AM-IR tail openings after trypsin, we were unable to identify a fully resolved tail opening in the set of sweeps we recorded. Finally, RKK3V+D20Am single-channel openings following repolarization were also of similar amplitude to those of the other RKK constructs (Fig. 5 E, right; Fig. 5 F). Based on the similarity of amplitudes of tail current opening for each of the four complexes (Fig. 5 F), we suggest that the openings likely reflect the same underlying behavior (reflecting O*-I bursts) defined by interaction of the β3a N terminus within the BK central cavity. The different durations of the tail openings and the presence of persistent current would seem likely to arise from differences in the affinity of interaction of the β3a N terminus within the central cavity, influenced by the specific triplet of residues.

The single-channel records permit an evaluation of the likelihood of observing a given behavior after a voltage step contingent upon channel status just preceding the voltage step. Fig. 6 A illustrates the various types of channel behaviors that can be seen at the end of segment S1 in association with channel status at the beginning of segment S2. At the end of S1, a channel may be either closed (C_S1), open (O_S1), or in an O*-I burst (O*_S1). In S2, we note three types of occurrences: a channel may remain closed for the entirety of S2 (C_S2), or it may open (O_S2) and then either inactivate or remain open for the duration of the depolarization. In regard to evaluation of S2 behavior dependent on S1, we only care that any opening may have occurred during (O_S2). For evaluation of events at beginning of S3, we only care about cases in which a channel is inactivated at the end of S2. From this framework, one can assess the likelihood of particular contingencies, e.g., an O*_S1 event leading either to C_S2 (O*_S1→C_S2) or to O_S2 (O*_S1→O_S2). Similarly, C_S1→O_S2 and C_S1→C_S2 can be assessed. For each of the four channel complexes, Table 1 summarizes event occurrences at the end of segment S1 and during segment S2 (rows 1–7), along with dependencies of S2 behavior on behavior at the end of S1 (rows 8–11). From this information, the fractional occurrence of particular S2 behavior (i.e., channel opening [O_S2] or remaining closed [C_S2]) over the entire data set can be evaluated. Similarly, whether channel status at the end of S1 (O*_S1 or C_S1) impacts on likelihood that a channel opens or remains closed during S2 can be evaluated. Although the conformational state (i.e., closed versus inactivated) of any given closed event can never be known with absolute certainty, we utilize the assumption that a closure persisting for all of S2 most likely represents an inactivated condition at the end of S1. The table includes two columns for results collected with WT+D20Am, one generated with a 150-ms prepulse (column 2) and the other with a 250-ms prepulse (column 3).

We note several features of the single-channel behaviors for particular attention. First, the likelihood of occurrence of O*-I behavior at the end of S1 substantially increases in the order of WT < 3Q < 3E < 3V (row 3 as fraction of row 1). Second, almost uniformly (except for 1 of 60 O*_S1 events in RKK3Q), O* behavior at the end of S1 results in the complete absence of any channel opening during S2 (row 13). Thus, occupancy in O* at the end of S1 by definition reflects an inactivated condition. This single-channel behavior mirrors the impact of persistent inward current in macroscopic current recordings on subsequent depolarization-activated outward current (Figs. 3 and 4). Third, when a channel is nonconducting at the end of S1 (C_S1), two distinct outcomes in S2 are observed, given in C_S2 (row 10) and O_S2 (row 11). Whereas for WT+D20Am, channels are more likely to undergo a C_S1→O_S2 transition, for the three RKK mutants, there is an increasingly large excess of C_S1→C_S2 events. This argues that C_S1 events are of two types, a channel occupying a closed state that is available for activation and a channel in a closed state that is unavailable to be activated, again by definition an inactivated state, but distinct from O*-I. Thus, this is direct evidence for a long-lived inactivated state that can be observed at negative voltages at the end of the S1 prepulse. The likelihood of occurrence of the long-lived inactivated state at the end of S1 increases in the order of WT < RKK3Q < RKK3E with RKK3V being intermediate between 3Q and 3E.

From the events and associations, we also note the following. Row 12 provides the fraction of all trials in which channel opening occurs during S2: 0.81 (150-ms pp), 0.90 (250-ms pp), 0.35, 0.03, and 0.04, respectively, for WT (two-prepulse durations), RKK3Q, RKK3V, and RKK3E. These values match roughly with the fractional peak current amplitude of inactivating macroscopic current normalized to total BK current in patches (Fig. 4, B and C). Row 13 summarizes for each construct the fraction of O*_S1 events that results immediately in inactivation during S2, again highlighting the idea that occupancy in the O*-I ensemble, despite its measurable current, results in immediate inactivation with depolarization. Row 14 gives an estimate of the fraction of sweeps for which channels are in an inactivated state at the end of S1, meaning the sum of O*→C_S2 and C_S1→C_S2 over all sweeps. A failure to open during S2 likely reflects channels that are already inactivated at the end of S1. For WT+D20Am channels, this suggests 10–15% of channels are apparently inactivated at the end of S1 in these trials, which exceeds the fraction we might have been expected based on our evaluation of fractional reduction of peak macroscopic current based on coupled or uncoupled activation models (as in Fig. 4, B and C) where we inferred that very few WT+D20Am channels were likely to be inactivated prior to the depolarizing step. The reasons for this discrepancy are not entirely clear. However, increasing the duration of the prepulse from 150 to 250 ms did reduce the fraction of inactivated channels at the end of the prepulse, so that may be one contributing factor. Another possibility is that our use of trypsin to define the maximal BK conductance in a patch may result in an underestimate of G_max in the macroscopic current, either because of incomplete digestion or because of residual flickery block. Based on the approach used earlier to calculate expectations for model-dependent reductions in peak current (Fig. 4, B and C), it can be calculated that an underestimate of BK G_max in a patch of about 20% might reconcile the single-channel and macroscopic observations. Finally, we note that row 15 provides the fraction of closures at the end of S1 (C_S1) that can be considered an inactivated closed state, as opposed to a resting closed state. The information in rows 14 and 15 makes a strong case that persistent currents alone (O*-I occupancy) are not the only factor contributing to suppression of depolarization-activated outward current in the RKK mutant constructs. Long-lived inactivated states at the end of S1 account for fractions of 0.74 and 0.77 of all C_S2 inactivation events for RKK3Q and RKK3E after a 150-ms prepulse. In contrast, for RKK3V, 0.90 of C_S2 inactivation follows O*_S1 events. Together, these results reveal a longer lived, nonconducting inactivated state, not considered within the context of the Scheme 1 (Fig. 2 C) inactivation model. Additional considerations presented below require that this longer lived inactivated state does not follow O*-I, but likely represents inactivation occurring from closed states.

We next evaluated events (Fig. 6 B) associated with the S2–S3 transition (Table 2). For all three RRK mutant channels, no trials exhibited an opening at the end of S2 (Table 2, row 1), while for WT, there were 36 sweeps in which the channel was open at the end of S2, resulting in either a normal fast deactivating channel tail opening at the beginning of S3 or no resolved opening. For this analysis, we consider trials in which the channel was closed at the end of S2 (C_S2). Three types of behaviors were defined for S3: (1) cases in which channels immediately entered O*-I burst behavior (O*_S3), (2) cases in which a channel initially occupied a resolvable nonconducting closure before entering into O*-I behavior with a delay (dO*_S3), and (3) cases in which no opening was observed during S3 (C_S3).

The dO* closures represent an event not imbedded in the simple two-step inactivation model. The fraction of dO*_S3 events as a function of all tails with immediate or delayed O*-I behavior is summarized in row 6 (Table 2). This fraction varies from 0.033 for RKK3Q to 0.066 for RKK3V, but in general, the frequency of occurrence is similar among constructs (statistics at the bottom of Table 2). This suggests that during inactivation at positive potentials, about 5% of the time, irrespective of the construct, a channel may occupy a fully nonconducting state distinct from O*-I, but which is likely connected to O*-I. However, the frequency of such events at least as inferred by their occurrence at −160 mV suggests that such events will have small effects on macroscopic tail current amplitudes. To estimate the lifetime of such rare events, for the set of 588 trials with RKK3V+D20Am channels, 17 dO* closures at the beginning of S3 had a mean duration of 19.1 + 23.6 ms, while at the beginning of S1 (repolarization from 0 mV), 29 dO* closures that preceded O*-I bursts had a similar mean duration of 35.5 + 36.7 ms (t test, P = 0.114). Given the low frequency of occurrence of this state, such events would reduce the initial peak tail conductance <10% from that arising from all channels being in O*-I, so they are not considered further here.

For D20Am-associated RKK mutant channels, closures at the end of S2 were invariably associated with either O* or dO* at the onset of S3 (Table 2, row 7). This differs from WT+D20Am channels, which fail to open at all during S3 in about 20% of sweeps for which a channel is closed at the end of S2. The high likelihood that inactivated RKK mutant channels immediately enter O*-I bursts upon repolarization suggests that the peak of macroscopic tail current for each of the RKK mutant channels arises almost exclusively from channels occupying the O*-I state (or dO* state) ensemble at any given repolarization potential. This is important in our considerations below. Furthermore, the macroscopic and single-channel observations together argue that the persistent macroscopic inward current for the RKK mutant channels reflects the prolonged fractional occupancy of channels in the O*-I burst behavior typical of the WT+β3a tail current openings. No observation suggests that normal BK openings contribute in any way to such persistent current.

Guided by single-channel results indicative that repolarizations from +140 to −160 mV are predominantly associated with immediate O*-I openings, we now turn to a closer examination of the macroscopic tail currents following repolarization. The magnitude of the inward tail current at negative potentials arising from each of the D20Am+RKK mutant channels represents a surprisingly large fraction of the total BK conductance that can be activated in a given patch defined following trypsin removal of inactivation. Here, we first focus on the persistent RKK3V+D20Am inward current to define the magnitude and voltage dependence of this conductance. An intriguing aspect of the RKK3V+D20Am current (Fig. 7, A and B) is the similarity of the tail current at both 0 and 10 μM Ca²⁺. This suggests that normal Ca²⁺-dependent BK gating transitions (C←→O) are not impacting on the RKK3V+D20Am inward current.

Based on the idea that the RKK3V+D20Am persistent current arises from occupancy of channels almost entirely in the O*-I ensemble, the voltage dependence and amplitude of the persistent conductance should reflect the underlying voltage dependence of the fractional occupancy of a single channel when gating in the O*-I ensemble. Previous work reported the amplitude and voltage dependence of single-channel O*-I bursts resulting from β3a(1–20) peptide inhibition of WT BK channels normalized to the intrinsic single-channel current amplitude (Gonzalez-Perez et al., 2012). From the O*↔I relationship as defined in Scheme 1 (Fig. 2 C) and plotted in Fig. 2 G, if k₄ and k-₄ reflect the entry and exit rates into I, k₋₄/(k₄ + k₋₄) defines the fractional amplitude of the O*-I burst (normalized to a full open-channel current level) as a function of voltage (black dotted line on Fig. 7 C). The similarity of the previously measured single-channel O*-I behavior to the GV for normalized macroscopic RKK3V+D20Am conductance supports the idea that the persistent inward current and its voltage dependence also arise from the O*-I behavior. Furthermore, the voltage dependence of activation of the D20Am+RKK3V persistent current appears intrinsic to the β3a N terminus and does not seem influenced either by the RKK mutations or by any D20Am-induced gating shifts. Qualitatively, the increase in conductance with hyperpolarization is consistent with a reduction in likelihood of blockade by a cytosolic blocking moiety under conditions of pronounced inward current. One difference between the peptide results and the RKK3V+D20Am curves is that the RKK3V+D20Am conductance begins to exhibit a more pronounced rollover at the most negative potentials. As mentioned earlier, this rollover likely reflects the inward current rectification that arises from the extracellular loops of the D20Am construct, which are derived from the BK β2 subunit (Zeng et al., 2003), but would not occur with isolated peptide application to BK channels formed only from α subunits. Overall, these results and analysis provide additional support that the persistent current arises from steady-state occupancy in O*-I states.

To test whether the tethered D20Am N terminus might differ in effects on amplitude of O*-I bursts compared to β3a(1–20) peptide-induced O*-I bursts, we measured amplitudes of RKK3V+D20Am single channels (Fig. 7 D) over potentials from −80 to −300 mV and normalized them to BK single-channel conductance determined from current amplitude at +160 mV following trypsin and assuming voltage independence of the conductance. The low Po of RKK3V+D20AM-IR channels precluded acquisition of enough resolved openings following trypsin digestion to assess RKK3V single-channel amplitudes at negative voltages. The plot of the fractional O*-I amplitudes of RKK3V+D20Am openings (Fig. 7 E) is quite comparable to that of the RKK3V+D20Am persistent conductance, including the expected inward rectification arising from the β2 subunit extracellular loops (Zeng et al., 2003). Thus, the behavior of the O*-I bursts resulting from β3a(1−20) peptide is similar to that of a tethered β3a N terminus, irrespective of whether inhibition arises from a native WT or RKK3V mutant channel.

The unusual nature of the RKK3V+D20Am persistent current prompted us to test its sensitivity to standard inhibitors of BK current. When RKK3V+D20Am currents were activated with the standard activation protocol at 0 Ca²⁺, 200 nM paxilline failed to produce any inhibition (Fig. 8 A1) at voltages from −200 to +140 mV (Fig. 8 B). However, after application of trypsin to digest the D20Am N terminus, paxilline produced essentially complete inhibition (Fig. 8, A2 and C), consistent with the idea that the persistent currents do arise from BK channels. The failure of paxilline to inhibit the intact RKK3V+D20Am currents is not entirely unexpected, but might arise from either of two reasons. First, the occupancy of the RKK3V central cavity by D20Am may maintain the BK conformation in an open state. In earlier work (Zhou and Lingle, 2014), paxilline has been shown to inhibit the closed channel and be unable to reach its likely blocking position in the open state (Zhou et al., 2020). Second, binding of the D20Am N terminus may also sterically prevent paxilline from reaching its site of inhibition. We found that in contrast to paxilline, 20 mM TBA did produce a modest inhibition of RKK3V+D20Am persistent inward current (Fig. 8, D1 and E), while after removal of inactivation, 20 mM TBA produces profound inhibition of the outward BK current (Fig. 8, D and F). The modest TBA inhibition of intact RKK3V+D20Am channels is unlikely to be accounted for solely by the known voltage dependence of block (z = approximately −0.15e [Li and Aldrich, 2004]), but probably arises from a somewhat weaker TBA apparent binding affinity for the O* state compared with the O state. This aligns with previous observations, that showed that TBA speeds up the slow tail current following repolarization, consistent with some inhibition of the O* state (Gonzalez-Perez et al., 2012). Together, these results provide further support for the idea that the D20Am N terminus occupies a position in the BK central cavity that may influence access of standard BK inhibitors to their binding sites.

In order to further tease apart the impact of the RKK mutants on D20Am inactivation, macroscopic tail currents at both 0 and 10 μM Ca²⁺ were elicited by repolarization from +160 mV to voltages from −240 to −80 mV for all four constructs (WT+D20Am [Fig. 9 A], 3Q+D20Am [Fig. 9 B], 3E+D20Am [Fig. 9 C], and 3V+D20Am [Fig. 9 D]). For WT, RKK3Q, and RKK3E, peak tail amplitude was somewhat larger at 10 μM Ca²⁺ than with 0 Ca²⁺, while tail current decay was slowed, consistent with the idea that at higher Ca²⁺, more channels are inactivated at the time of repolarization and that as some channels return to resting states, they may be reactivated and inactivated, thereby slowing the tail current. In contrast, RKK3V tail currents were markedly similar at both 0 and 10 μM Ca²⁺, suggesting that Ca²⁺-dependent gating transitions have little impact on state occupancies during the RKK3V persistent tail currents. For WT, RKK3Q, and RKK3E, tail currents were fit with both single- and double-exponential decay functions, with the two-exponential fit providing the best description of the decay process with time constants and fractional amplitudes summarized in Fig. S2. We note the following features of the tail currents. First, tail current decay becomes faster at more negative voltages for WT, RKK3Q, and RKK3E. Second, based on the extrapolated baseline of the two-exponential fits, there appears to be persistent inward current for both RKK3Q and RKK3E even at voltages from −160 to −240 mV, although in each case, more than half the channels do appear to return to nonconducting states. Third, for RKK3V, the lack of Ca²⁺ dependence of the tail currents and the persistent nature of the currents suggest that RKK3V+D20Am channels may be essentially locked in O*-I gating behavior at least for the repolarization durations we have tested.

A trivial expectation for the D20Am-mediated tail currents is that the time course of the tail currents should match the time course in recovery of channels that become available to be activated with depolarization. We therefore used a paired pulse protocol to check this expectation (Fig. 9, E1, F1, G1, and H). After 200 ms at 0 mV to produce inactivation, the duration of the repolarizing step to −160 mV was varied between 5 and 900 ms followed by a depolarizing test step to +140 mV to monitor the fraction of channels that recovers from inactivation in each case. At the end, trypsin application defined the maximum BK current in the patch allowing the fractional recovery for each construct to be plotted in terms of maximal possible BK current (Fig. 9, E2, F2, and G2). Then, for the trace with the 900-ms repolarization, the slow component of the tail relaxation was measured. The peak and steady-state levels of the fit to the tail currents were then normalized to the time course of outward current recovery for WT (Fig. 9 E2), RKK3Q (Fig. 9 F2), and RKK3E (Fig. 9 G2). Given the limited recovery durations that were measured, any fast component of recovery in outward current would not be resolved. However, for these three constructs, the slow component of tail relaxation matched well with the recovery time course in outward current amplitude. In contrast, RKK3V+D20Am did not show any obvious outward current at +140 mV and only minimal if any relaxation in the tail current at −160 mV (Fig. 9 H). Overall, for WT, RKK3Q, and RKK3E, the time courses of recovery in paired pulse amplitude match well with the time courses of the respective slow component of tail current decay (Fig. 9, E1, F1, and G1). For each of the RKK mutant constructs, recovery from inactivation appears to have reached a near steady-state level at −160 mV within about 200 ms, suggesting that at potentials of −160 mV and more negative, prepulses of 200 ms should be near an equilibrium distribution among states.

Despite the return of WT, 3Q, and 3E channels to closed states that permit activation, inspection of the amplitude of voltage-activated outward current during the paired pulse protocol relative to fractional decay of the tail current reveals an intriguing discrepancy. The decay of peak tail current to steady-state tail current is highlighted with dotted red lines (Fig. 9, E1–G1). The difference between the peak and steady state during the tail current relaxations can be considered to reflect the fraction of channels that has returned to closed states, and therefore might be expected to be available for activation. The dotted blue lines highlight the difference between the channels that were available for activation, as indicated by the peak outward current prior to trypsin compared with the total number of channels following removal of inactivation. For WT channels, the example tail currents suggest almost all channels return to closed states, which is consistent with the voltage-activated outward current being about 80% of the maximal BK conductance, after correction for the 15–20% reduction expected for inactivation occurring during the rising phase and impact of asynchrony in opening (Fig. 4 B). In contrast, for 3Q and 3E, although the tail currents suggest that 64.5% and 71.0% of channels may have returned to rest, the peak outward current after recovery indicates that only about 31.6% and 3% of channels have really returned to closed states. This suggests that some fraction of the channels that return to closed states during the tail currents and are no longer contributing to O*-I persistent current are not available for activation. The implication is that this fraction of channels is closed and inactivated. This implication is congruent with the long-duration inactivated states inferred from analysis of closed states preceding the S1–S2 transition in single-channel records (Fig. 5) and also is consistent with the steady-state inactivation curves (Fig. 4 D).

To address the observation that the fraction of channels that has returned to closed states greatly exceeds the fraction that becomes available for activation, we examined the voltage dependence of the tail current relaxations (as in Fig. 9). As shown for tail currents at −240, −200, and −160 mV for WT (Fig. 10 A), 3Q (Fig. 10 B), 3E (Fig. 10 C), and 3V (Fig. 10 D), we measured peak tail amplitude (I_inst) and fit 1- and 2-exponential functions to tail current decay time course (see Materials and methods for details). The steady-state value from fit of two exponentials to the current decay was used as a measure of the steady-state persistent current (I_ss) (Fig. 10, A–C). For each construct, the peak tail current at each voltage was converted to a fractional conductance based on the maximum current at +160 mV after trypsin (Fig. 10 E). Despite some differences among constructs in average G(V)/G_max (Fig. 10 E), the peak tail current amplitudes after conversion to conductance for all four constructs generally track the (O*+I)/O relationship defined previously from β3a(1–20) peptide effects on average single-channel conductance (Gonzalez-Perez et al., 2012). This again highlights the idea that the tail current peak following repolarization after complete inactivation reflects occupancy of most channels in the patch in the O*-I ensemble. One might expect that the initial peak of the WT and RKK3E tail current would be somewhat less than the others because their faster initial tail current decay (Fig. S2) may result in an underestimate of the apparent peak amplitude. Furthermore, the WT+D20Am tail currents would also be expected to be reduced in amplitude, because of the ∼20% of WT+D20Am single channels that never open following repolarization.

Qualitatively, the steady-state level of tail current at −240, −200, and −160 mV (Fig. 10, A–C) indicates that a large fraction of channels that contribute to peak tail current do return to nonconducting states. For each construct, the ratio of I_ss to I_inst was determined for each patch and plotted over voltages from −60 to −240 mV (Fig. 10 F). At the most negative voltages, this ratio essentially defines the fraction of channels still contributing to persistent current. Plotting 1−I_ss/I_inst (Fig. 10 G) provides an estimate of the fraction of channels that has returned to nonconducting states (fraction of closed channels: f[C]) at the end of the steady-state level of tail current. Expressed this way, essentially all WT+D20Am channels return to closed states over the range of voltages from −120 to −240 mV. In contrast, a fraction of about 0.8 of RKK3Q and RRK3E return to closed states. When applied to RKK3V channels, the average current difference between the beginning of the tail repolarization and that at the end suggests that perhaps 10% of RKK3V channels return to closed states, but this estimate is based on rather uncertain relaxations for RKK3V (Fig. 10 D). The most likely error in this approach of measuring the fraction of channels that has returned to closed states would be uncertainty in the extrapolated steady-state current level from the two-exponential fit. However, visual inspection of current decays and the extrapolated steady-state currents, particularly at potentials of −200 mV and more negative, suggests this potential error is unlikely to account for the differences calculated between available channels and closed channels.

If all channels that return to closed states are then available for activation, one would expect that the voltage dependence of f(C) should be similar to the fractional availability curves determined earlier (Fig. 4 D). For WT+D20Am channels, the steady-state inactivation curve is quite similar to f(C) (Fig. 10 H) if one corrects the f(C) curve to include the 10–20% reduction of peak outward current. At potentials of −100 mV and more positive, the f(C) curves may also be influenced by some fraction of channels that occupy open states (O), so some deviation between the two curves might be expected. For RKK3Q+D20Am channels, the limiting asymptotes at −240 mV for the steady-state fractional availability curves and f(C) differ markedly (Fig. 10 I), supporting the idea that at negative potentials, a large fraction of D20Am-associated channels occupy closed states unavailable for activation, while the difference is even more pronounced for D20Am-associated RKK3E channels (Fig. 10 J). By definition, closed channels that are unavailable for activation must be inactivated states, and under the conditions of these experiments, these represent inactivated states in equilibrium with resting closed states. Comparison of mean values and individual estimates for h_∞ for the set of constructs (Fig. 10 K) supports the idea that although for WT channels, inactivation from closed states is either rare or absent, for RKK3Q and RKK3E, closed-state inactivation is pronounced.

The situation for RKK3V+D20Am seems more complicated to rationalize. The macroscopic protocols suggest that exit from the O*-I ensemble of states for RKK3V channels to nonconducting states is rare, although the set of single-channel patches did identify long-lived closures at the end of the S1 prepulse that was followed by constant closure during S2 in 20% of trials. Based on that, one might have expected that the RKK3V tail current at −160 mV might have exhibited a relaxation of perhaps about 20% from the initial current following repolarization. Although it seems that RKK3V+D20Am channels might be considered locked in O*-I states, perhaps with longer periods at negative potentials such channels might return to closed states.

Overall, this evaluation of f(C) and the comparison with the steady-state inactivation curves (Fig. 4 D) provide additional support for the idea that in addition to some fraction of channels that remain in the O*-I ensemble behavior during the tail currents, there is an appreciable fraction of closed channels that are unavailable for activation, presumably with a β3a N terminus bound within the central cavity in a position of inactivation.

An assessment of the D20Am effects within the context of a full BK channel gating scheme (Horrigan and Aldrich, 2002) is beyond the scope of this work. However, here we ask whether major features of the results can be approximated by simple models, which may provide insight into key mechanistic details of D20Am action.

Beginning with the 5-state two-step inactivation model (Fig. 2 C), we constrained most of the defined rates based on experimental considerations. Scheme 1 (Fig. 2 C) utilizes a 3-state activation scheme (C1←→C2←→O), and the corresponding rates were adjusted such that the model-predicted GV curves and the time constants for activation and deactivation closely match the experimentally measured properties for WT+D20Am-IR currents (Fig. S1). Since the onset of inactivation of WT+D20Am current is about 16 ms, we set the O→O* transition to 60/s. For the O*-I equilibrium, we set initial rates for the transitions in the O*←→I step (k₄ and k₋₄) to be those defined by the earlier evaluation of the single-channel burst amplitude with the β3a(1–20) peptide (Gonzalez-Perez et al., 2012). The voltage dependence of this O*/I equilibrium was shown above to be consistent with the voltage dependence of the amplitude of RKK3V+D20Am single-channel amplitude (Fig. 6, D and E). The estimates of the absolute 0-voltage rates are undoubtedly not well defined, but we chose previously described values (Gonzalez-Perez et al., 2012). We did not attempt to incorporate the inward current rectification behavior produced by the β2 subunit extracellular domain into the simulations. Thus, all rates denoted in Scheme 1 (Fig. 2 C and Table 3) are guided by experimental observations, except for the O*→O transition (k₋₃), i.e., the return from the preinactivated state to the open state, for which we have no direct estimate. As illustrated below, adjustment of this one transition strongly influences the properties of simulated currents and appears likely to be the major contributor to key aspects of the effects of D20Am on WT and RKK mutant channels. For reasons developed below related to the closed channel block, we assigned no voltage dependence to the O←→O* transitions.

With the above rates, we used three protocols identical to those used in our recordings of D20Am-containing BK currents: first, an activation protocol; second, a tail current protocol; and third, a steady-state inactivation protocol (Fig. 11, A and B). In each case, the initial occupancies among the five states at the time of initiation of a given protocol were defined by the steady-state distribution at 0 mV. This results in occupancies preceding any initial negative prepulse defined primarily by equilibration between O* and I. Fig. 11 A (left to right) presents representative examples of experimental WT+D20Am currents for each of the stimulation protocols, while Fig. 11 B (left to right) displays simulated currents. The simulated currents reasonably capture the fractional reduction in peak current, and the slow tail currents that follow inactivation and are removed by trypsin. Although the tail currents at −120 mV in the activation protocols (Fig. 11, A and B, left) are of comparable magnitude between experimental and simulated currents (Fig. 11, A and B, left traces), tail currents examined over a range of deactivation potential protocol (Fig. 11, A and B, middle traces) exhibit larger tail current amplitude for the simulated currents at more negative voltages. This difference in part likely reflects the rectification behavior of the native WT+D20Am channels. The simulated tail currents also fail to capture a faster component of the tail current that is observed in experimental records.

GV curves were generated from the simulated currents of Scheme 1 (Fig. 2 C) and matched well with the average GVs from WT+D20Am-IR currents (Fig. 11 C). Similarly, activation and inactivation time constants from simulated currents were similar to experimental values (Fig. 11 D), although there appears to be modest voltage dependence in the experimental inactivation time constants, whereas we assigned no voltage dependence to the k₃/k₋₃ rates. The simulated and experimentally measured slow components of deactivation were also comparable (Fig. 11 E). The fractional activation of the simulated peak tail conductance tracked that previously determined for β3a(1–20) peptide effects on BK single-channel amplitude as expected based on our assumptions (Table 3), but, as expected, deviated from the fractional conductance of RKK3V+D20Am single-channel openings, which exhibit marked inward current rectification (Fig. 11 F). Finally, the experimentally measured steady-state inactivation curve for WT+D20Am was compared with the simulated SSI curve (Fig. 11 G). In this case, the model does not adequately account for the position of the SSI curves on the voltage axis. This discrepancy is not a function of the duration of the prepulse used for the simulated steady-state inactivation protocol (Fig. 10 H). However, overall, despite some discrepancies between data and model in regard to a faster component of tail current and position of SSI curves, the simple 5-state model does a reasonable job of approximating many features of the experimental currents. Importantly, unique to the two-step inactivation portion of the model, the tail currents exhibit instantaneous reopening on repolarization and a net current flux that greatly exceeds that expected for simple, open-channel block (Armstrong, 1971; Neher and Steinbach, 1978; Demo and Yellen, 1991).

Having defined a set of rates that approximate many of the key features of WT+D20Am currents elicited with the protocols we used, we next considered whether the major impact of the RKK mutations might be explained largely by an effect on one specific rate in Scheme 1 (Fig. 12, top left). The relative amplitudes of the initial tail current and the persistent tail currents suggest that the O*/I equilibrium and rates k₄ and k₋₄ are largely similar for different RKK mutants. Onset of inactivation was not markedly different in cases where it could be measured (3Q, 3E). We therefore asked whether changes in k_-3 (corresponding to the N terminus unbinding, O*→O) might mimic the behavior of the RKK mutant channels. Currents were simulated with k₋₃ values of 100, 70, 30, 10, 2, and 0.5/s (Fig. 12 A, top to bottom). Slowing k_-3 progressively reduced the voltage-activated peak inactivating current, slowed the tail current, and, for the durations of the protocols used, generated persistent inward current (Fig. 12 A), capturing each of the notable features of the D20Am-mediated effects on the D20Am+RKK mutant channels. Manipulations of rates, k₄ and k₋₄, although having effects on the voltage dependence of initial instantaneous tail current, did not on its own impact on the occurrence of reduction of peak outward current, tail current decay, or persistent inward current. Thus, in large measure, these simple simulations suggest that a major effect of the RKK mutations may be to differentially influence the rate of dissociation of the N terminus from its binding site in the BK central cavity.

From the simulated steady-state inactivation currents, fractional availability curves were then generated (Fig. 12 B) based on a 240-ms prepulse duration. This predicts a leftward shift in fractional availability consistent with slowed recovery from inactivation at negative potentials as a function of slower k₋₃. However, when steady-state inactivation curves were determined from simulated currents with a 5,000-ms prepulse (Fig. 12 C), essentially all channels are then able to return to closed states, eventually reaching the same limiting fractional availability. Thus, as argued above, the 5-state model fails to describe steady-state inactivation behavior. With the 5-state scheme, fractional availability curves will always result in the same limiting asymptote, as all channels occupy the most resting closed state, C₁, at sufficiently negative potentials.

Guided by the experimental results, the 5-state scheme was expanded to include closed-state inactivation (Fig. 12 Scheme 2, top right). Here, we only consider expectations for a model in which transitions among C₁*←→C₂*←→ O* are rare, as symbolized by the arrows with dotted lines in Scheme 2 (Fig. 12 D). The impact of inclusion of transitions among C₁*, C₂*, and O* states is addressed in Discussion. Currents were simulated with Scheme 2 (Fig. 12, top right) utilizing exactly the same rates as given in Table 3, while then adjusting rates of entry and exit from C* states. A priori, we have no direct information to guide choices for rates of entry into C₁* or C₂*, so the outcome of these tests can be considered a bit ad hoc. However, from the perspective that the experimental results require that transitions to closed states are occurring, these tests place some constraints on properties of the C₁/C₁* and C₂/C₂* equilibria. A first consideration is that irrespective of exact rates, the ratio, k₋₃^”/(k₋₃^”+k₃”), will define the fraction of channels that will occupy C₁ at the most negative voltages, and are therefore available for activation. Thus, in essence this ratio reflects the limiting h_∞ asymptote of fractional availability curves. Interestingly, if one calculates that ratio based on the O←→O* transitions, for k₋₃/(k₋₃+k₃) one obtains a value of 0.538. This would be the expectation for h_∞ of the fractional availability curve, uncorrected for inactivation during the rising phase of current activation, if the D20Am N terminus bound to closed WT channels with an affinity identical to open WT channels. That number is not too dissimilar to the h_∞ value of 0.4 measured in Fig. 4 D for D20Am+RKK3Q currents. This suggests that for D20Am+RKK3Q, the C₁/C₁* equilibrium is only somewhat different from that of the WT O/O* equilibrium. A second consideration for the 7-state simulations is that the fact a voltage-independent h_∞ asymptote is reached requires that the C₁/C₁* equilibrium must be voltage-independent. Although this does not necessarily demand that N-terminal binding to the open state is also voltage-independent, that is the reason we chose a voltage-independent O/O* rather than assigning modest voltage dependence to those underlying rates.

Based on these considerations, we explored various values for k₃”, k₋₃”, k₃’, and k₋₃’. When rates from C₁*→C₁ and C₂*→C₂ are comparable to those from O*→O, say, 60/s, upon depolarization, this results in an additional slow transition from C₁* and C₂* into the activation pathway. This produces a slowing of entry of an appreciable fraction of channels into O, impacting not only on rise time of outward current, but also on the inactivation time course. This is contrary to observations and suggests that the underlying C←→C* transitions are likely to be much slower than those (O←→O*) when the channels are open. On the other hand, if rates of entry and exit of N termini from closed channels are too slow, this essentially removes an appreciable fraction of channels from ever opening during the protocols we have used. Furthermore, one would then expect appreciable long-lived inactivated states immediately following repolarization, something which is not observed for any of the RKK mutants. Therefore, after exploring various values, to illustrate the impact of inclusion of closed-state inactivation on simulated currents, we chose rates of entry and exit from closed states that were simply 10-fold less than the rates in and out of open states. The resulting simulations for current activation, deactivation, and steady-state inactivation (Fig. 12 D) retain the key features of reduction in outward current, slowing of tail currents, and persistent inward current. However, not surprisingly, they support the idea that differences in rate of unbinding of the N terminus from closed channels underlie the differential h_∞ values for the different RKK mutants, whether observed with 240-ms (Fig. 12 E) or 5,000-ms (Fig. 12 F) prepulses.

These considerations provide additional mechanistic justification for the idea that the RKK mutant BK channels permit binding of the D20Am N terminus in closed channels and help explain how modulation of h_∞ values might occur. However, these simulations are not meant to imply that all the nuances of this inactivation mechanism are now clear. For example, there remain fast components of the tail currents that are not accounted for by the simulations. An attempt to place the inactivation behavior described here within a more realistic BK current activation model might help account for additional kinetic components, but this is beyond the intent of the present evaluations.

BK β2 subunits, like β3a, also produce nearly complete inactivation of BK currents. However, in contrast to the β3a-mediated slow tails during recovery from inactivation, little or no channel openings are observed during recovery from β2-mediated inactivation (Solaro et al., 1997; Xia et al., 1999). Since inactivation in both cases presumably involves a similar access pathway to the central cavity (Zhang et al., 2006, 2009), we therefore tested the impact of mutations of the RKK motif on β2-mediated inactivation.

Sample macroscopic currents (all at 10 μM Ca²⁺) of hβ2-containing WT, RKK3Q, RKK3E, and RKK3V channels before (left panels) and after (right panels) trypsin digestion are shown in Fig. 13, A, C, E, and G along with corresponding GV curves at 0 and 10 μM Ca²⁺ following trypsin removal of β2-mediated inactivation (Fig. 13, B, D, F, and H). For a steady-state inactivation protocol, the peak inactivating current of WT+hβ2 channels evoked by steps to +160 mV reaches ∼0.70 ± 0.07 (n = 5) of that after trypsin digestion. For RKK3Q+β2 channels, the peak of the inactivating current at +160 mV is 0.29 ± 0.07 (n = 5) of that after trypsin treatment (Fig. 13, C and E). For RKK3E+hβ2 (Fig. 13 E) or RKK3V+hβ2 (Fig. 13 G), the peak outward currents before trypsin digestion were 0.05 ± 0.02 (n = 4) and 0.08 ± 0.01 (n = 4) of that after trypsin digestion, respectively. Overall, these results parallel the steady-state inactivation of the D20Am-associated RKK mutant channels and are consistent with the idea that hβ2 subunits in association with RKK-mutated triplets are more likely to occupy inactivated states prior to the depolarizing voltage steps. Most importantly, the steady-state inactivation curves obtained with the RKK mutants with β2 (Fig. 13 J) exhibit limiting fractional availability with no obvious voltage dependence from −160 to −200 mV. As above, this can best be explained if there is an inactivated closed state in voltage-independent equilibrium with resting closed states. One other point regarding the β2-mediated effects is that, unlike D20Am, they are not associated with an increase in inward current at negative potentials. This absence of inward current almost certainly relates to the absence of channel openings during recovery from inactivation observed for Slo1+β2 currents (Xia et al., 1999) in contrast to the prolonged O*-I bursts associated with β3a(D20Am)-mediated inactivation (Zeng et al., 2007; Gonzalez-Perez et al., 2012). Thus, for the native β2 N terminus, if there is a two-step inactivation process, something revealed in the FIW/FIE mutation of β2 (Benzinger et al., 2006), it may be the case that the state following N terminus binding is also nonconducting.

The RKK triplet has been proposed to stabilize closed conformations of the BK channel by interaction with acidic residues, E321 and E324, of adjacent S6 helices (Tian et al., 2019). Hypothesizing that some of the effects of the RKK mutant constructs might arise from disruption of this interaction, we therefore tested whether mutation of the E321/E324 pair might also mimic aspects of the RKK mutations. We expressed D20Am with BK subunits in which the E321/E324 motif was mutated to EE/QQ, EE/DD, EE/GG, EE/WW, and EE/KK. EE/QQ has been previously shown to result in a decrease in single-channel current (Brelidze et al., 2003), while also producing a leftward shift in gating (Tian et al., 2019). Macroscopic currents were generated before and then after removal of inactivation by trypsin (Fig. 14, A1–E1). GV curves were determined at 0 and 10 μM Ca²⁺ for each construct (Fig. 14, A2–E2) expressed alone (dotted lines) and then also for the construct expressed with D20Am but following trypsin digestion (solid symbols and fitted Boltzmann). For each construct+D20Am, time constants of inactivation (Fig. 14 F) and activation following removal of inactivation (Fig. 14 G) were determined. Finally, the maximal current with intact inactivation was normalized to that after removal of inactivation to ascertain whether there is increased likelihood that channels may occupy inactivated states prior to depolarization (Fig. 14 H). For three constructs, EE/QQ, EE/GG, and EE/KK, the peak amplitude of the inactivating currents was >0.9, suggesting that under any gating model, there was likely to be little if any inactivation either prior to the depolarization or during the rising phase of current. Consistent with this, for each of these three constructs, it can be seen that they activate faster than the WT BK channels expressed with D20Am (Fig. 14 G), while inactivation time constants are actually slowed relative to the WT situation (Fig. 14 F). In contrast, for EE/DD and EE/WW, the peak current amplitude relative to maximal current following trypsin is similar to WT (Fig. 14 H) and both constructs exhibit both slowed activation and slowed inactivation. In contrast to the RKK mutations, none of the E321/E324 mutations exhibit any indication of enhanced inactivation at negative potentials prior to depolarizing activation steps. For this set of EE mutations, there is no indication of a persistent inward current except for that expected based on the shift of the GV curve (e.g., Fig. 14 C1 for EE/GG). It can also be seen that the EE mutations abolish the slow tails that are associated with WT D20Am inactivation, in marked distinction to the RKK mutations that enhance the slow tails. This would suggest that the consequences of the RKK mutants cannot be explained simply by disruption of any RKK/EE interaction. The absence of slow tails in the EE mutants may suggest binding affinity of the D20Am N terminus within the central cavity is influenced by the EE motif. We have not yet tested simultaneous changes in the RKK and EE motifs.

The Results in this paper are focused on trying to explain unusual phenomenology that arises from effects of mutations of the BK RKK triplet on inactivation mediated by a β3a subunit N-terminal domain. Because of complexities in the Results, many of the implications of specific results and our attempts to explain them have already been discussed within the Results. Therefore, here we briefly summarize the main observations and the resulting conclusions. This is followed by a discussion of the implications of the results both for understanding the physical basis of BK inactivation and for consideration of closed-state inactivation in other channels.

Compared with WT+D20Am current, the coexpression of RKK mutant BK channels with D20Am reduces the peak inactivating outward current evoked by depolarizations, markedly slows tail currents, and results in appreciable persistent inward current at voltages for which the parent BK construct is largely closed. Both macroscopic and single-channel results indicate that reduction in outward current arises from inactivation occurring at negative prepulses preceding the depolarizations, rather than during the rising phase of current activation. The persistent current at negative potentials arises from channels opening to a reduced conductance for which the fractional amplitude relative to normal openings increases with hyperpolarization, resulting in an apparently anomalous voltage-dependent increase in conductance as membrane potential is made more negative. The reduced conductance openings are consistent with effects of the isolated N-terminal β3a(1–20) L-peptide on single BK channels (Gonzalez-Perez et al., 2012), which has been explained as the result of rapid equilibrium between a preinactivated open state (O*) and an inactivated state (I). The voltage dependence of the O*-I behavior is such that depolarization above 0 mV immediately favors channels in I, explaining why depolarization during the persistent current results in immediate inactivation, while, upon repolarization, the O*-I equilibrium favors instantaneous inward tail current reflecting greater fractional occupancy in O*.

In earlier work, in order to explain the large excess of net current flux during the macroscopic and single-channel β3a tail current behavior over that predicted by recovery from a simple block model (I→O→C), the idea was proposed that β3a-inactivated BK channels recover from inactivation as follows: I←→O*→O→C (Zeng et al., 2007; Gonzalez-Perez et al., 2012). Building from that idea, here we extended the model describing D20Am+WT behavior to include activation transitions (Fig. 2 C). This simple 5-state model was able to reasonably describe the major features of the reduction of outward current, prolongation of tail currents, and persistent tail (Fig. 10). Furthermore, many aspects of the differences in β3a-induced inactivation among WT and RKK mutants including reduction of outward current, tail current prolongation, and persistent inward current could be approximated by varying the O*→O rate (Fig. 11).

However, despite the utility of the linear 5-state model in Scheme 1, several aspects of the results suggest that although the D20Am N terminus is unlikely to reach a position of inactivation in closed WT channels, in the RKK-mutated channels, the D20Am N terminus can gain access to and bind to a position in the closed BK channel, resulting in a closed-state inactivation. The evidence in support of this idea was threefold. First, in steady-state inactivation experiments, D20Am-associated RKK3Q, RKK3E, and RKK3V all had voltage-independent h_∞ asymptotes, which, after normalization to maximal BK conductance in a patch, were less than that for D20Am-associated WT channels. Second, in single-channel experiments, we were able to directly identify a fraction of long-duration closures at the end of the S1 prepulse hyperpolarization, which led to a complete failure to open during the subsequent S2 depolarization. Third, evaluation of the steady-state level of tail currents following repolarization from strong, inactivating depolarizations revealed that a substantial fraction of RKK3Q and RKK3E channels that return to closed states during the tail currents remain unable to open upon depolarization. Together, these results strongly support the conclusion that the β3a N terminus can bind to resting closed states of the RKK mutant BK channels in a position that prevents normal channel opening upon depolarization. We modeled this by inclusion of C₁←→C₁* and C₂←→C₂* equilibria, which we infer is voltage-independent because of the voltage-independent h_∞ asymptote in the fractional availability curves.

Despite the lines of evidence supporting the existence of a long-lived inactivated state at negative potentials, it is interesting that occupancy in C₁* and C₂* states must be substantially reduced by the end of a 150-ms depolarizing inactivation step. This is supported by the fact that the single-channel results show that following repolarization to −160 mV from +140 mV, almost all D20Am-associated channels almost always reside in O*-I at the time of repolarization. However, this apparent absence of channels in C₁* or C₂* at the end of depolarizations is easily explained by the idea that during a depolarization, transitions from C₁*→C₁ and C₂*→C2 are sufficiently rapid that channels are then able to open and transition into O*-I during the 150-ms depolarization prior to repolarization. A testable prediction of this idea is that in single-channel patches, following shorter inactivation steps during which C₁*→C₁ transitions may not yet have occurred, one might expect to see a larger fraction of repolarizations revealing not exhibiting any opening during tail currents, as channels simply transition from C₁* to C₁.

BK inactivation, whether mediated by β3a (Zeng et al., 2007; Gonzalez-Perez et al., 2012), β3b (Xia et al., 2000; Lingle et al., 2001), β3c (Uebele et al., 2000), or β2 (Wallner et al., 1999; Xia et al., 1999) subunits, involves a mobile cytosolic N-terminal peptide segment. For BK channel inactivation, many of the criteria used to argue that an N terminus acts within the central cavity by a simple channel block mechanism are not met, which has left some uncertainty regarding details of the mechanism of inactivation. For example, cytosolic blockers do not slow β subunit–mediated onset of inactivation (Xia et al., 1999, 2000), and tail currents during recovery from inactivation do not follow expectations for simple block behavior (Solaro and Lingle, 1992; Zeng et al., 2007). However, in contrast to simple block predictions, it has been shown that the two-step inactivation model can explain both the absence of prolongation of inactivation onset by cytosolic blockers (Lingle et al., 2001) and the β2- and β3a-mediated tail current behavior (Zeng et al., 2007). Moreover, although inactivation onset mediated by the β3a N terminus is not hindered by TBA or bbTBA, both QA blockers do hasten the time course of deactivation of β3a N-terminus–mediated tail currents (Gonzalez-Perez et al., 2012), which is consistent with binding of either QA compound to the O* state, while hindering formation of the I state. This supported the idea that the I state involves occupancy of the N terminus in a position that can also be hindered by the presence of TBA or bbTBA, which one presumes is near the selectivity filter.

How might the O*-I behavior be explained? We would envisage that for the β3a N terminus, O* represents binding of the N terminus in a position within the central cavity, which still permits ion permeation, but that mobility of that N terminus or some element of the N terminus, perhaps as simple as a single side chain, produces rapid transient occlusion of outward current flux, while inward current flux more strongly favors occupancy in O*. It should be noted that the first 15 residues of the β3a N terminus are entirely uncharged (Fig. 2). Two topics for future consideration are as follows: (1) whether ion occupancy in the permeation pathway may determine or impact on the voltage dependence (z = ∼0.25e) of β3a-mediated inactivation (which largely arises from its first 15 uncharged N-terminal residues) (Gonzalez-Perez et al., 2012); and (2) determination of the dependence of O*-I behavior on specific residues in the β3a N terminus and BK S6.

A significant new point arising from the present work is that at least in the mutant RKK channels, the D20Am N terminus can access a binding site in closed channels. The steady-state inactivation curves, and the observation of a long-duration closed-state at negative potentials preceding depolarizations that fail to result in openings of channels, and then that a fraction of channels that return to closed states in tail currents are unable to be activated all support this idea. Although inactivation from closed states has often been used as a component of kinetic models that may improve the ability of a model to account for relative positions of activation GVs and steady-state availability curves along the voltage axis (Zagotta and Aldrich, 1990; Ayer and Sigworth, 1997), direct evidence for closed-state inactivation can be difficult to obtain. In the present case, three lines of evidence point directly to the existence of a closed, inactivated state in equilibrium with a resting closed state. We suggest that this reflects a voltage-independent C₁←→C₁* equilibrium, reflecting binding of the β3a N terminus within the central cavity, while the RKK-mutated channels are in the most resting closed state. The requirement that this must be voltage-independent, which arises from the voltage independence of the h_∞ asymptotes, is the basis for our use of a voltage-dependent O←→O* equilibrium in simulations.

Functionally, we envision this as follows. In the RKK mutant channels, the D20Am N terminus can enter the central cavity via the disrupted side portal region reaching a binding site that is essentially equivalent to that reached by the N terminus in open channels. We would suggest that whether the channel is occupied by the N terminus in a closed conformation or an open conformation, transition between C*←→O* is hindered by the presence of the N terminus. This suggestion arises, since otherwise repolarization when channels are in the O*-I ensemble would rapidly lead to channels returning to closed states, preventing the occurrence of slow tail currents. Given that there are faster components in the experimentally observed tail currents than are seen in the simple simulations, it may be possible that C*←→O* transitions can occur, albeit at rates much slower than the C←→O transitions. This will require additional evaluation within the context of a more realistic BK gating scheme.

Our results do not clearly support the idea that resting closed-state inactivation can occur with wild-type channels, although we cannot fully exclude that possibility. Potential closed-state inactivation might be considered of two types: (1) inactivation analogous to what we observe for the RKK-mutated BK channels in which the most resting closed state can become occupied by the N terminus or (2) that inactivation of a closed state can only occur in partially activated closed states, in which some preopening conformational change permits the N terminus to reach its binding site. In the present results, it is possible that closed-state inactivation of the second type, i.e., from states leading to activation, may contribute to the leftward shift of WT steady-state inactivation curves relative to the simulated h_∞ curve. This ability of closed-state inactivation to shift h_∞ curves leftward has also been a consideration in early models of Shaker Kv channels (Zagotta and Aldrich, 1990; Ayer and Sigworth, 1997). For BK channels, closed-state inactivation has been previously implicated in results with patches of single β2-mediated inactivation in rat chromaffin cells with prepulses to −40 mV at low Ca²⁺ resulting in inactivation of BK channels without any detectable opening, whereas direct steps from −120 reliably elicited openings at +60 mV (Ding and Lingle, 2002). Perhaps reflecting changes in pore access among closed states, although BK channel inhibition by bbTBA was shown to occur when channels are closed (Wilkens and Aldrich, 2006), subsequent work presented evidence that bbTBA did not block BK channels under conditions that voltage sensors may be completely inactive, but that block could occur prior to channel opening (Tang et al., 2009). Overall, all results point to the idea that in fully resting closed states, WT BK channels have barriers that prevent access of β subunit N termini and bulky cytosolic blockers to positions of occlusion. However, conformational changes that occur that precede opening seem to be permissive for both β subunit–mediated inactivation and blockade by bulky QA compounds.

The generation of steady-state inactivation curves is a standard tool used in the description of inactivating currents. Typically, the SSI curves are normalized to the peak current activated by the strongest depolarization in the protocol from the most negative conditioning potential, such that the h_∞ asymptote is 1.0. In the present work, taking advantage of the ability of trypsin to rapidly remove BK inactivation, SSI curves were normalized to the actual maximal BK conductance in a patch, thereby revealing that the limiting fractional inactivation varied depending on the RKK mutation being studied. Typically, it is not possible or it is simply very difficult to undertake a normalization to absolute conductance. To our knowledge, it has never been attempted for voltage-dependent Na⁺ (Nav) channels, although in a study of the L382I mutation in Shaker channels (Ayer and Sigworth, 1997), removal of inactivation by trypsin was used to argue that there was an inactivation pathway in this mutant that reduced the number of available channels for activation. An implication of the present results is that the ability to define absolute fractional availability for activation via normalization to maximum conductance in a patch or cell can potentially provide insight into how closed-state inactivation might be altered whether by mutations or by physiological regulatory processes.

From the perspective of the two-step inactivation formulation, the equilibrium constant for N-terminal binding within the BK central cavity is given by O*/O. Whereas the rate of O→O* is guided by the macroscopic inactivation time constant, O*→O can only be indirectly inferred via our model-dependent simulations. The values used to approximate WT inactivation behavior led to K_eq = 60/70. In our simulations that approximate the effects of RKK mutations, we assumed that k₃ was unaffected by the mutation, while only k_-3 was altered. The h_∞ values defined for RKK3Q, RKK3E, and RKK3V, following correction for the ∼10–15% of channels that may inactivate prior to peak outward current, were 0.44, 0.10, and ∼0.02, respectively. Interestingly, assuming that the relative rates of entry and unbinding from closed states are similar to those for open-state inactivation, the predicted h_∞ values for our simulations with k₃/k₋₃ ratios of 60/30, 60/10, and 60/2 are 0.33, 0.14, and 0.03, not too dissimilar from the experimental measurements for 3Q, 3E, and 3V. These values would require that the equilibrium constant for closed-state occupancy is remarkably similar to that for open-state occupancy, suggesting the binding site that mediates stereospecific binding of the β3a N terminus is not dramatically altered between open and closed channels. Given that the β3a(1–20) peptide mimics most of the unique functional effects of the tethered β3a N terminus, timed peptide applications to closed or open channels may provide a way to assess directly closed- and open-state affinities.

Interactions between E321/E324 and the RKK triplet were proposed to contribute to stabilization of the channel closed state (Tian et al., 2019). The present results indicate that E321/E324 mutations do not mimic the RKK effects on inactivation, but, rather, EE mutations produce effects qualitatively consistent with a weakened interaction between the β3a inactivation domain and its binding site. Thus, destabilization of the EE/RKK interaction is not the basis for the enhanced stability of β3a- or β2-mediated inactivation. However, both RKK and EE do impact on the stability of the inactivated states, with RKK mutations enhancing occupancy of inactivated states and EE mutations weakening the stability of inactivated states. We suggest that the specific identity of residues in the RKK triplet either directly or indirectly stabilizes binding of the β N termini within the central cavity, most dramatically illustrated by RKK3V which essentially locks channels in O*-I states at least under the duration of protocols used in our experiments. Although it is tempting to also suggest the E321/E324 may also stabilize binding of the β3a N terminus within the central cavity, mutation of the only three basic residues in the first 20 residues of β3a (R16QR17QR18Q) does not prevent the O*-I tail current behavior (Gonzalez-Perez et al., 2012). Although it is natural to try to interpret changes in β3a-mediated inactivation in terms of the residues altered in the RKK or EE mutations, it is important to keep in mind that there is also increasing evidence that the central cavity of BK channels and particularly in the vicinity of the RKK motif is likely decorated with lipids (Kallure et al., 2023, Preprint), which may be altered by the RKK or EE mutations.

One point that occasionally arises in regard to consideration of the β3a tail current phenomenology is whether the O*-I proposal might be approximated just as well by a single open state with marked current rectification. There are several arguments against this possibility. First, the voltage dependence of the O*-I current amplitude relative to the O state amplitude fits very well with a simple two-state blocking process. Other cases for which channels exhibit such marked current rectification often arise because of known blocking particles, such as Mg (Davies et al., 1996) or spermine (Lopatin et al., 1994; Fakler et al., 1995), which are also best approximated by a two-state equilibrium. Second, cytosolic quaternary ammonium blockers of BK channels do not slow the time course of development of β2- or β3-mediated inactivation (Solaro et al., 1997; Xia et al., 2000; Li et al., 2007). A one-step inactivation process, whether it involves or rectifying conductance or not, will be slowed by such blockers (Choi et al., 1991), whereas two-step inactivation in which the O→O* step is rate limiting, but blocker can bind to both states, will not exhibit QA-dependent slowing of inactivation (Lingle et al., 2001). On balance, the idea that binding of the β3a subunit N terminus within the BK central cavity is a process separate from that producing channel occlusion remains the better explanation of the available data. The challenge ahead is to define determinants of β3a binding and those involved in the physical basis of rapid occlusion.

The data are available from the corresponding authors upon reasonable request.
