Gq-coupled plasma membrane receptors activate phospholipase C (PLC), which hydrolyzes membrane phosphatidylinositol 4,5-bisphosphate (PIP2) into the second messengers inositol 1,4,5-trisphosphate (IP3) and diacylglycerol (DAG). This leads to calcium release, protein kinase C (PKC) activation, and sometimes PIP2 depletion. To understand mechanisms governing these diverging signals and to determine which of these signals is responsible for the inhibition of KCNQ2/3 (KV7.2/7.3) potassium channels, we monitored levels of PIP2, IP3, and calcium in single living cells. DAG and PKC are monitored in our companion paper (Falkenburger et al. 2013. J. Gen. Physiol. http://dx.doi.org/10.1085/jgp.201210887). The results extend our previous kinetic model of Gq-coupled receptor signaling to IP3 and calcium. We find that activation of low-abundance endogenous P2Y2 receptors by a saturating concentration of uridine 5′-triphosphate (UTP; 100 µM) leads to calcium release but not to PIP2 depletion. Activation of overexpressed M1 muscarinic receptors by 10 µM Oxo-M leads to a similar calcium release but also depletes PIP2. KCNQ2/3 channels are inhibited by Oxo-M (by 85%), but not by UTP (<1%). These differences can be attributed purely to differences in receptor abundance. Full amplitude calcium responses can be elicited even after PIP2 was partially depleted by overexpressed inducible phosphatidylinositol 5-phosphatases, suggesting that very low amounts of IP3 suffice to elicit a full calcium release. Hence, weak PLC activation can elicit robust calcium signals without net PIP2 depletion or KCNQ2/3 channel inhibition.

INTRODUCTION

This and our companion paper in this issue (Falkenburger et al.) concern quantitative properties of signaling by seven-transmembrane receptors of the plasma membrane coupling to Gq (“GqPCR”), which are examined experimentally and interpreted by kinetic modeling. Originally motivating this work was our long-standing interest in the regulation of the KCNQ2/3 potassium ion channel through activation of GqPCRs. These receptors mediate diverse, important responses of neuronal and nonneuronal cells to stimuli such as light sensation in Drosophila melanogaster photoreceptors, contraction of vascular myocytes in response to adrenaline, behavioral and mood regulation in response to serotonin and dopamine, the effects of cholinergic drugs treating Alzheimer’s disease, and the inhibition of KCNQ2/3 (KV7.2/7.3) potassium channels.

Gq activates PLC, which cleaves the plasma membrane phospholipid phosphatidylinositol 4,5-bisphosphate (PIP2) into the cytosolic messenger inositol 1,4,5-trisphosphate (IP3) and membrane-bound diacylglycerol (DAG). IP3 binding to IP3 receptors (IP3Rs) at the ER triggers the release of calcium into the cytosol. Calcium and DAG activate PKC. In addition, PLC may deplete its substrate, PIP2, which is an activating cofactor for many ion channels and other membrane proteins (Suh and Hille, 2008; Logothetis et al., 2010). We explore all these actions here.

Intriguingly, the consequences of PIP2 hydrolysis—(a) calcium release, (b) PKC activation, (c) net PIP2 depletion, and (d) channel inhibition—do not always occur together. Moreover, most cells harbor several different kinds of receptors coupled to Gq, whose signaling responses sometimes differ. For example, in sympathetic neurons, bradykinin (through B2 receptors) and acetylcholine (through M1 muscarinic receptors [M1Rs]) stimulate production of DAG, but only bradykinin leads to calcium release (Delmas and Brown, 2002), and only acetylcholine leads to observable PIP2 depletion (Zaika et al., 2011). The existence of signaling microdomains and the calcium-induced acceleration of PIP2 synthesis have been identified as factors contributing to this dissociation in sympathetic neurons (Delmas and Brown, 2002; Zaika et al., 2011).

We believe that knowing the quantitative requirements for PKC activation, calcium response, and PIP2 depletion will be valuable for understanding how such signaling specificity can work, how PLC activation can lead to calcium release but not PIP2 depletion, and how the effects of PLC activation through M1R can differ from those of PLC activation through other GqPCRs. Therefore, we performed a quantitative analysis of signaling events downstream of PLC, using fluorescent reporters for PIP2, IP3, and calcium, and in Falkenburger et al. (2013) for DAG and PKC. In that paper, these measurements are then used to extend a kinetic model of PLC signaling that builds on earlier versions (Horowitz et al., 2005; Falkenburger et al., 2010a,b). We show, for instance, that the requirements for calcium release and KCNQ2/3 channel inhibition are quite different: calcium release can be evoked with a far lower density of activated receptors.

MATERIALS AND METHODS

Cell culture and plasmids

tsA-201 cells were cultured in DMEM (Gibco) with 10% serum and 0.2% penicillin/streptomycin and passaged every 5 d. Cells were transiently transfected at ∼75% confluency with Lipofectamine 2000 (10 µl for a 3-cm dish; Invitrogen) and 0.5–1.2 µg DNA per plasmid. Cells were transfected 1 or 2 d before photometry experiments and 2 d before patch-clamp experiments. Cells were plated on polylysine-coated glass chips 12 h before experimentation.

The following plasmids were used: dark (nonfluorescent) and eYFP-labeled mouse M1R (M1R and M1R-YFP; provided by N. Nathanson, University of Washington, Seattle, WA); human purinergic receptor P2Y2 (P2Y2R; The Missouri S&T cDNA Resource Center); EPAC1 (exchange protein directly activated by cAMP) Förster resonance energy transfer (FRET) probe for cAMP (provided by M. Lohse, University of Würzburg, Würzburg, Germany); human KCNQ2 (provided by D. McKinnon, State University of New York, Stony Brook, NY); human KCNQ3 (provided by T. Jentsch, Leibniz-Institut für Molekulare Pharmakologie, Berlin, Germany); eCFP-PH(PLCδ1), eYFP-PH(PLCδ1), and CFP-CAAX(from K-Ras; provided by K. Jalink, The Netherlands Cancer Institute, Amsterdam, Netherlands); the zebrafish voltage-sensitive phosphatase Dr-VSP-IRES-GFP (Dr-VSP; provided by Y. Okamura, Osaka University, Osaka, Japan); “Dark” Dr-VSP (Falkenburger et al., 2010b); and the IP3 reporters IRIS-1 (provided by K. Mikoshiba, Institute of Physical and Chemical Research Brain Science Institute, Wako, Japan) and LIBRA version III (LIBRAvIII; provided by A. Tanimura, Health Sciences University of Hokkaido, Tobetsu, Japan). IRIS-1 is cytosolic, whereas LIBRAvIII is membrane localized by palmitoylation (membrane-targeting sequence of GAP43). Version III of LIBRA has the pH-stable YFP mutant Venus instead of eYFP and derives from rat IP3R type III. The small interfering RNA (siRNA) for P2Y2 was purchased from Santa Cruz Biotechnology, Inc. Membrane-targeted FRB (LDR) and CFP-FKBP-Inp54p were generated by T. Inoue (Johns Hopkins University, Baltimore, MD) and described previously (Suh et al., 2006). Hereafter, we refer to fluorophores simply as “CFP” or “YFP” regardless of whether regular or enhanced fluorescent proteins were used.

Electrophysiology

KCNQ2/3 currents were recorded in whole-cell gigaseal voltage-clamp or perforated-patch configuration using borosilicate glass pipettes with a resistance around 2.2 MΩ. Internal solution was (mM): 175 KCl, 5 MgCl2, 5 HEPES, 0.1 K4BAPTA, 3 Na2ATP, and 0.1 Na3GTP, pH 7.4 (KOH). Recordings used an EPC9 amplifier with Patchmaster 2.35 software (HEKA). Currents were filtered at 2.9 kHz. Sample intervals were 200 µs or slower. Series resistance was compensated by 70% after compensation of fast and slow capacitance. Leak was not subtracted. Holding potential was −60 mV. KCNQ2/3 current was quantified by measuring tail currents. Every 2 s, the membrane was depolarized to −20 mV for 400 ms and repolarized to −60 mV. KCNQ2/3 current activates slowly upon depolarization and deactivates slowly upon repolarization (see Fig. 1 A, bottom right). KCNQ2/3 tail currents were measured by comparing current at 20 and 400 ms after repolarization to −60 mV.

For perforated-patch recordings, amphotericin B was dissolved in DMSO on the day of recording (1 mg/10 µl), sonicated, diluted in internal solution to a working concentration of 300–500 µg/ml, and sonicated again. The tip of the patch pipette was filled with amphotericin B–free Ringer’s solution by capillary action. After <5 min, access resistance was usually low enough to record KCNQ2/3 current.

Perfusion, extracellular buffer, and temperature

Cells were recorded in a 100-µl chamber continuously superfused (1 ml/min) with Ringer’s solution containing (mM): 160 NaCl, 2.5 KCl, 2 CaCl2, 1 MgCl2, 10 HEPES, and 8 glucose, pH 7.4 (NaOH). All drugs were applied in the superfusate. As a measure of exchange time, when 2.5 mM KCl Ringer’s solution was replaced by 30 mM KCl Ringer’s solution (shifting the K+ reversal potential positive of −60 mV), KCNQ2/3 tail currents were inverted with a delay of <1 s and a time constant of 2 s, which is sufficiently fast for the kinetics investigated here. All measurements reported in this paper were done at room temperature, 21–23°C.

Photometric calcium measurements

All optical measurements of calcium and FRET used a monochromatic light source (Polychrome IV; TILL Photonics) for epifluorescence illumination and one or two TILL photodiodes with suitable filters and dichroic mirrors for photometry. Photodiode voltages were acquired by Patchmaster (sampling 200 µs or slower), and after recording from each cell, an area of the coverslip without cells was measured as background. Cytosolic free calcium was measured with the low-affinity indicator Fura-4F (Invitrogen). For measurements without electrophysiology or in perforated-patch configuration, cell-permeable Fura-4F-AM ester was diluted to 2 µM in Ringer’s solution supplemented with 0.2% pluoronic F-68. Cells were loaded for 40 min and then incubated in regular Ringer’s solution for an additional 30 min to allow complete de-esterification of AM esters. For measurements in whole-cell configuration, 0.1 mM of cell-impermeable Fura-4F salt was added to the intracellular solution in the patch pipette. Fura-4F fluorescence was measured by stepping the excitation light to 340 nm for 100 ms and 380 nm for 20 ms every 4 s. (The recording time with 340-nm excitation was longer than for 380-nm excitation to compensate for the poorer signal-to-noise ratio with 340-nm excitation.) Excitation light was reflected by a 415-dclp or a three-color (89006bs; Chroma Technology Corp.) dichroic mirror. Fluorescence was detected using one photodiode with a 535/30-nm emission filter. Background fluorescence was subtracted, and the ratio of emission with 340-nm excitation (F340) to emission with 380-nm excitation (F380) was calculated offline using a custom macro for IGOR Pro 6.0 (WaveMetrics).

The following features were extracted from traces of Fura-4F ratio (F340/F380): baseline, mean ratio of the points preceding agonist application; peak, the maximum ratio reached within 20 s after agonist application; time to half-maximum, the delay between start of agonist application and the first time point where the ratio exceeded 50% of the distance between baseline and peak; duration, the delay between time to half-maximum and the first time point when the ratio fell below 10% of the distance between baseline and peak. (The level of 10% was chosen to include a late “hump” or plateau of the Fura-4F signal in response to GqPCR activation.)

Three methods for obtaining Fura-4F calibration curves were compared: (1) adding Fura-4F salt to solutions with known calcium concentrations and measuring droplets of these solutions, (2) measuring cells into which such solutions had been dialyzed by the whole-cell pipette, and (3) superfusing cells loaded with cell-permeable Fura-4F/AM with such solutions in the presence of 15 µM ionomycin. These calibrations yielded similar results. The calcium concentration corresponding to a given r = F340/F380 is given by: [calcium] = K′ (r − rmin)/(rmax − r), where rmin is F340/F380 with 20 mM EGTA and rmax is F340/F380 with 2 mM calcium. Values of rmin and rmax were dependent on the dichroic mirror used in the microscope. The “triple dichroic” we used to measure FRET (89006bs; Chroma Technology Corp.) reflects short wavelength excitation light slightly less well than a dichroic mirror designed specifically for Fura measurements (DCLP 415). Accordingly, rmin and rmax were 0.017 and 0.245 for the 89006bs, and 0.050 and 0.737 for the DCLP 415. The calcium concentration at which the F340/F380 ratio change is half-maximal was K′ = 30 µM, regardless of the dichroic used. 89006bs was used for experiments as in Fig. 7 C, and DCLP 415 was used in experiments as in Figs. 1 A, 2, 4, and 7 A.

We chose a low-affinity calcium indicator to better discriminate higher levels of cytosolic free calcium. Using such an indicator means that it is difficult to resolve low levels of resting calcium properly. It is for this reason that the figures show fura ratio F340/F380.

Photometric FRET measurements

Epifluorescence photometry measured FRET from CFP to YFP using a three-color dichroic mirror in the microscope, two photodiode detectors, and the excitation wavelength scanned in a ramp as described in Falkenburger et al. (2010b). Unless otherwise noted, sweeps were repeated every 2 s. The raw fluorescence data were corrected for background and for bleedthrough of CFP emission into the YFP recording channel, yielding the corrected fluorescence values CFPC (480/40-nm emission with 440-nm excitation) and YFPC (535/30-nm emission with 440-nm excitation). As before, FRET was expressed as the ratio FRETr = YFPC/CFPC. CFPC, YFPC, and FRETr are in arbitrary, apparatus-dependent units. In two panels as indicated, the points were mildly smoothed with a binomial filter that weighted immediate neighbors by a 0.25/0.5/0.25 algorithm.

For time courses of FRETr responses, we determined the following: baseline, mean FRETr of the points preceding agonist application; amplitude, the difference in FRETr between baseline and maximum or minimum for the response, the delay from agonist application to the onset of the response, and the exponential time constant of the rising and falling phases of the signal (by the fitting procedure of Jensen et al., 2009); and the duration at half-maximum.

Western blot

Cells were harvested in ice-cold PBS, centrifuged, and resuspended in 50 µl of lysis buffer (PBS with 1% Triton X-100, 1:100 EDTA, and protease inhibitor cocktail; Thermo Fisher Scientific). Lysates were incubated for 30 min on ice, triturating regularly. Lysates were cleared by centrifugation (13,000 g for 20 min at 4°C), and the supernatant was transferred to new tubes. 20 µg of protein was separated by SDS-PAGE using standard techniques (Falkenburger et al., 2010a). The primary antibody against human P2Y2 (Santa Cruz Biotechnology, Inc.) was used at 1:500. The secondary antibody (1:30,000; goat anti–rabbit; Kirkegaard & Perry Laboratories, Inc.) was coupled to horseradish peroxidase and visualized by chemiluminescence using a digital imaging system (AlphaImager; AlphaInnotech). Bands were quantified by measuring the mean intensity in each lane with the same-sized region of interest. Results from four independent experiments were averaged for display. Results did not change when intensities for P2Y2 were normalized to amounts of actin as a loading control.

Modeling

To summarize the results and test mechanistic hypotheses, a kinetic model of GqPCR signaling was formulated and solved in the Virtual Cell simulation environment (University of Connecticut Health Center). Results of the model appear in many figures of this paper, but the rationale, design, and parameters of the model itself are described only in our companion paper (Falkenburger et al., 2013).

Statistics

Summarized data include one data point per cell. Numbers, bars, and markers represent mean ± SEM. The notation n = xx refers to the number of cells averaged unless otherwise noted. Comparisons were made by one-way ANOVA and Tukey posthoc tests using GraphPad Prism software.

Online supplemental material

Fig. S1 shows that uridine 5′-triphosphate (UTP) does not inhibit KCNQ2/3 currents in whole-cell configuration. In Fig. S2, endogenous P2Y receptors change calcium but not cAMP. Fig. S3 shows expression patterns of FRET probes/pairs. Fig. S4 is a comparison of the IP3 FRET probes LIBRAvIII versus IRIS-1. Fig. S5 shows modeling related to IP3 and LIBRAvIII. In Fig. S6, time course of PIP2 (PH-domain FRETr) during intermittent voltage-sensitive 5-phosphatase (VSP) activation is shown. Fig. S7 shows calcium rise in response to caffeine and ryanodine. Fig. S8 shows the origin of the plateau in the calcium and Fura-4F responses, and in Fig. S9, the time course of acceleration of PIP2 synthesis is established. Figs. S1–S9 are available at http://www.jgp.org/cgi/content/full/jgp.201210886/DC1.

RESULTS

Activation of endogenous P2Y receptors evokes calcium release but not significant PIP2 depletion

To gain insight into the IP3 branch of signaling elicited by activation of GqPCR and PLC, we monitored levels of PIP2, IP3, and calcium by optical probes and recorded KCNQ2/3 potassium currents in single living tsA-201 cells. The overall design was to compare responses with a purinergic agonist to those with a muscarinic agonist in cells transfected with M1Rs. tsA-201 cells do not express endogenous M1Rs. We previously measured both endogenous and overexpressed levels of components of the M1R signaling cascade (Falkenburger et al., 2010a) and estimated the density of overexpressed M1Rs as being several orders of magnitude higher (500–1,000 per µm2) than typical estimates of endogenous receptors (1 per µm2) such as endogenous purinergic receptors. Henceforward, we refer to transfected M1Rs as “high-density” M1Rs.

First, we measured calcium using Fura-4F. Despite the large expected difference in their receptor densities, we found that the Fura-4F response was similar when we activated endogenous purinergic receptors using a saturating concentration of 100 µM UTP or activated high-density M1Rs using 10 µM oxotremorine-M (Oxo-M; Fig. 1, A and B). In perforated-patch recording with either stimulus, the Fura-4F ratio (F340/F380) rose to values corresponding to ∼1–3 µM of free calcium. On average, the amplitude of the Fura-4F response to UTP was 98% of the Oxo-M response (Fig. 1 C), and the duration of the response (50–10% of maximum) was similar (Fig. 1 D). However, the UTP response did rise more slowly, taking approximately three times as long to reach half-maximal amplitude (Fig. 1 E), suggesting that the activation of Gq and PLC by UTP was less intense. The ambient resting calcium was below the threshold for reliable quantitation by the low-affinity Fura-4F dye.

When we recorded KCNQ2/3 potassium currents in the perforated-patch configuration simultaneously with Fura-4F signals, we were surprised to find that KCNQ2/3 currents were not inhibited by 100 µM UTP although they were inhibited by 10 µM Oxo-M (Fig. 1, A and F). The findings were similar in whole-cell configuration (Fig. S1, A and B), with <1% inhibition by UTP (22 cells) and 84% inhibition by Oxo-M (17 cells). Under the perforated-patch configuration, peak current was gradually growing (spontaneously) in some cells, sometimes leading to apparent “negative” values of inhibition by agonist. We show perforated-patch configuration in Fig. 1 because UTP did not elicit a calcium response in whole-cell configuration (Fig. S1, A and B). The absence of a whole-cell calcium response with UTP could be a consequence of (a) diffusion of IP3 and calcium into the patch pipette, thereby reducing IP3- and calcium-induced calcium release, and/or (b) an inhibitory effect of Mg2+ diffusion into the cell (Volpe et al., 1990).

The contrast between responses of P2Y receptors and M1Rs thus raises a challenging question: How do two receptors produce a full-amplitude calcium signal, whereas only one of them inhibits KCNQ2/3 channels? To address this, we first identified the endogenous subtype of P2Y receptors in tsA-201 cells.

P2Y2R is the major endogenous GqPCR responsible for UTP-activated calcium rises

tsA-201 cells express P2Y receptor subtypes 1, 2, 11, 12, and 14 (Atwood et al., 2011). Of these, only P2Y2R and P2Y11R are directly activated by UTP. Both use Gq as their primary transduction pathway, with P2Y11R also using Gs as a secondary transduction mechanism. We found that UTP does not produce a detectable change in cAMP levels as measured by a FRET sensor based on EPAC (Nikolaev et al., 2004; Fig. S2), suggesting that P2Y2R would more likely be the major endogenous receptor responsible for rises in cytosolic calcium. In the following experiments, we confirmed the expression and functional importance of P2Y2R in tsA-201 cells by (a) Western blot analysis, (b) testing the effects of a P2Y2R antagonist, and (c) P2Y2R “knockdown” by an established siRNA.

Protein lysates from tsA-201 cells probed with a primary antibody against P2Y2R revealed two bands, one at a molecular mass of ∼50 kD and the second at ∼100 kD (Fig. 2 A). We assume that they represent receptor monomers (predicted protein Mr ∼41 kD) and dimers. Lysates from populations of cells transfected with human P2Y2R showed greatly increased P2Y2R expression (both bands) and had to be diluted 100 times to produce bands of similar intensity to endogenous P2Y2R. We conclude that on average, transient overexpression increases P2Y2R by 100-fold. Presumably it is increased even more than the 100-fold mean in some individual well-transfected cells (see Falkenburger et al., 2010a). Transfecting siRNA against P2Y2R decreased the intensity of the endogenous receptor bands by 90% (Fig. 2 A). The siRNA was also effective at reducing the augmented expression of transfected P2Y2R RNA (Fig. 2 A). Likewise, compared with control (Fig. 2 B), the P2Y2R siRNA decreased the peak amplitude of the UTP-evoked calcium rise by 90% in cells expressing only endogenous receptors, and it decreased the peak by 65% in P2Y2-transfected cells (Fig. 2, C–E). 100 µM suramin, a P2Y2R antagonist, reduced the UTP-evoked calcium response by 68% (Fig. 2 F; n = 5). These separate lines of evidence indicate that the endogenous receptor activated by UTP is P2Y2. Hereafter, we refer to endogenous P2Y2Rs as (low-density) “eP2Y2R,” and the combination of overexpressed and endogenous P2Y2Rs as (high-density) “oP2Y2R”.

High-density P2Y2R can evoke PIP2 depletion and KCNQ2/3 current inhibition

To understand the apparent differences between P2Y2R and M1R actions, we next compared their effects on plasma membrane PIP2. The PIP2 levels were monitored as FRET between fluorescently tagged PIP2-binding pleckstrin homology (PH) domains from PLCδ1 (van der Wal et al., 2001). Binding to PIP2 at the plasma membrane brings CFP-PH and YFP-PH close enough together for FRET to occur. When PIP2 is depleted, the PH domains translocate to the cytosol, and as the average distance between them increases, FRET decreases (Fig. 3 A). The first experiments compared high-density M1R with low-density eP2Y2R. Similar to our previous studies (Jensen et al., 2009; Falkenburger et al., 2010a), FRETr from the PH domain reporter of PIP2 fell to ∼50% of the initial value with the application of 10 µM Oxo-M (Fig. 3, B–D), indicating a strong depletion of PIP2. In contrast, FRETr did not decrease significantly upon the application of 100 µM UTP (Fig. 3, B and D). Thus, we observed similar calcium responses to eP2Y2R and M1R activation but saw PIP2 depletion and KCNQ2/3 inhibition only with M1R activation. We infer that the significant calcium rise observed with UTP neither suffices to induce net PIP2 depletion (by, for example, activating PLCδ) nor to inhibit KCNQ2/3 current by itself.

Because of the difference in receptor densities between M1R and eP2Y2R, we hypothesized that a higher density of activated receptors is needed to deplete PIP2 and to inhibit KCNQ2/3 currents than to induce calcium release. To test this hypothesis, we modified receptor density and receptor occupancy independently. First, we increased the total density of P2Y2R by overexpression, which, based on Western blot analysis, increased the density at least 100-fold (Fig. 2 A). In such cells with high-density P2Y2R, 100 µM UTP did reduce PH domain FRETr (Fig. 3, C and D) and inhibit KCNQ2/3 current (Fig. 3, E and F) to a similar extent as Oxo-M acting through high-density M1R. Second, we lowered the concentration of Oxo-M to reduce M1R occupancy. Even a very low concentration of Oxo-M (1 nM) elicited a Fura-4F signal of similar size and duration as 10 µM Oxo-M (Fig. 4, A and B), although the time to half-maximum was longer with low Oxo-M concentrations. Previous work showed no reduction in PH-domain FRETr and no inhibition of KCNQ2/3 with 1 nM Oxo-M (Jensen et al., 2009). Thus, with high-density M1Rs, more agonist is required to inhibit KCNQ2/3 and to deplete PIP2 than to release calcium. In pharmacological terms, the 50% effective concentration for calcium release is much lower than that for KCNQ2/3 inhibition; i.e., the number of spare receptors, the receptor reserve, is large for calcium release and smaller for KCNQ2/3 inhibition and PIP2 depletion.

These findings demonstrate that agonist and receptor requirements can differ between different outputs of Gq-coupled signaling and suggest the hypothesis that the differences we see between P2Y2R and M1R actions might be explained entirely by a difference in receptor density. Our companion paper (Falkenburger et al., 2013) describes a mathematical, kinetic model based on this hypothesis that reproduces most of the features we have seen. Figs. 4 (C and D) and 5 (A and B) in this paper show simulations from that model. With appropriate choices of parameters, an increase in receptor density from 1 to 500 per µm2 converts a response with little depletion of PIP2 or decrease of current, yet still a strong Ca2+ rise and Fura-4F response (Fig. 5, A and B, “UTP”), into a response with the typical full Fura-4F signal, full inhibition of KCNQ current (Fig. 5 A, “Oxo-M”), strong Ca2+ increase, and full depletion of PIP2 (Fig. 5 B, “Oxo-M”). The same calculations show that very low concentrations of agonist still evoke a full-amplitude Fura-4F response and a strong Ca2+ transient when receptor density is high (Fig. 4, C and D).

Receptors stimulate IP3 production

To identify at which stage of the Gq signaling cascade the receptor reserve arises, we measured IP3 production in living tsA-201 cells using two FRET reporters, IRIS-1 (Matsu-ura et al., 2006) and LIBRAvIII (Tanimura et al., 2009). Both consist of CFP and YFP linked by the ligand-binding domain of the rat IP3R type III. They show a reduction in FRET between CFP and YFP upon binding of IP3. IRIS-1 is a cytosolic protein, whereas LIBRAvIII is targeted to the plasma membrane by a palmitoylation sequence from GAP43 (Fig. S3). The reported ligand concentrations for half-maximal FRET change are similar: 550 nM IP3 for IRIS-1 and 490 nM for LIBRAvIII. These probes are insensitive to physiological changes of calcium. In our hands, IRIS-1 signals were difficult to interpret and were not graded with Oxo-M concentration. On average, the IRIS-1 response is an ∼15% FRET decrease with invariant temporal characteristics in response to 1 nM, 100 nM, and 10 µM Oxo-M (Fig. S4, A and B, and not depicted). Further, with 10 µM Oxo-M, the delay before onset, the onset and recovery time constants, and the IRIS-1 response duration were longer than expected from our calcium measurements or from reported biochemical assays of IP3 (Willars et al., 1998), and much longer than those observed with LIBRAvIII. Possible explanations for such unexpected kinetics include reporting of IP3 in cellular regions far from the plasma membrane.

We therefore turned to membrane-localized LIBRAvIII. It responded to 10 µM Oxo-M with a small, reproducible FRETr decrease (Fig. 6 A). The IP3 selectivity was assessed by overexpressing the enzyme IP3 5-phosphatase, which can deplete IP3 as fast as it is made in these cells (Horowitz et al., 2005). Overexpression of this enzyme eliminated the responses of LIBRAvIII (Fig. 6 A), confirming the FRET probe’s selectivity for IP3. We calibrated the probe by dialyzing different concentrations of IP3 into the cell via a patch pipette (Fig. 6 B, circles). Time-dependent FRET changes began in <10 s after breakthrough. No detectable change in FRETr occurred with dialysis of 1 µM IP3, whereas the response nearly saturated with dialysis of 10 µM IP3. Thus, the LIBRAvIII probe has a fairly narrow dynamic range. To understand the dialysis protocol better, the entry of IP3 was simulated by adding to our larger cell model a first-order exchange from the pipette through a rate-limiting orifice. This model reproduced the calibration experiment reasonably well (lines in Fig. 6 B), assuming a dissociation constant of 500 nM for the IP3-LIBRA complex as reported by others (Tanimura et al., 2009). The model indicates that the endogenous steady-state IP3 5-phosphatase activity, which allows a mean lifetime for IP3 of only 12.5 s, severely reduces the cellular IP3 during dialysis. Separate control experiments (not depicted) with fluorescent dyes in the pipette typically showed dialysis of dye into the cytosol with an exponential time constant of 50–70 s. With similar pipette exchange rates for IP3 added to the model and retaining an active endogenous IP3 phosphatase, the steady-state cytosolic IP3 concentration reaches only roughly 20% of that in the pipette, and the time constant of the exponential change is only 20% of that with no cytosolic phosphatase (see Fig. S5 A). In addition LIBRAvIII significantly buffers the IP3 (see Fig. S5 B).

LIBRAvIII responded to GqPCR activation in a dose-dependent manner. No response was detected with 1 nM Oxo-M, whereas with 100 nM or 10 µM Oxo-M the amplitudes were not statistically different, which is consistent with the narrow dynamic range observed during IP3 dialysis. However, the time courses differed (Fig. 6, C and D). Comparing responses to 100 nM versus 10 µM Oxo-M, the delay before onset was longer (18 ± 2 s vs. 9 ± 6 s), the onset slower (τon 7 ± 1 s vs. 3 ± 1 s), and the duration shorter (40 ± 3 s vs. 72 ± 10 s; Fig. 6 D). The slower response and faster recovery are expected from the weaker activation of PLC by 100 nM Oxo-M (Jensen et al., 2009).

What is the range of IP3 changes? When the Oxo-M responses of LIBRAvIII were compared with those in the IP3 calibration experiments, we found that 10 µM Oxo-M elicited responses similar in amplitude and kinetics to dialysis with 10 µM IP3 in the pipette. The IP3-binding curve of LIBRAvIII (Fig. S5 C) shows that LIBRAvIII does not discriminate well between IP3 concentrations above 2 µM. We conclude that peak IP3 is above 2 µM. The resting levels of IP3 are below the level reached with 2 µM IP3 in the pipette (<300 nM in the cell), which evoked a minimal FRETr decrease. Fig. 6 (E and F) shows that the dependence of the LIBRAvIII response amplitude, rise time, and duration on Oxo-M concentration was captured qualitatively in the kinetic model described in our companion paper (Falkenburger et al., 2013). In this model, free IP3 rises to 10 µM in the absence of LIBRAvIII. This limit would result from cleavage of nearly all of the cellular PIP2.

A low threshold for IP3-dependent calcium release

We now turn to Ca2+ release from the ER. To learn the kinetic relation of IP3 production to calcium release, we overlaid normalized experimental Fura-4F and LIBRAvIII responses for 10 µM Oxo-M (Fig. 6, G and H). LIBRAvIII reports a rise in IP3 beginning already at 2 s, whereas the sudden upstroke of the Fura-4F signal occurs only between 4 and 6 s (Fig. 6 G). Hence, LIBRAvIII is a fast reporter of IP3, and IP3 production starts early. However, once initiated, the resulting calcium response rises more rapidly and peaks sooner than the IP3 signal (Fig. 6 G). The Ca2+ rise, in particular its stereotypical amplitude and the concentration-dependent time to half-maximum (Fig. 4 B), is nearly like a regenerative response, rising abruptly with positive feedback when graded IP3 accumulation reaches a certain level. The decay time courses for calcium and IP3 are quite different (Fig. 6 H), reflecting their mechanistically separate clearance mechanisms.

Despite the strong Fura-4F signal produced by 1 nM Oxo-M (Fig. 4 A), the amount of IP3 made at that low agonist concentration is too small to be reported by LIBRAvIII (Fig. 6 C). A minimal production of IP3 suffices to initiate the calcium transient. This conclusion was reinforced by experiments showing little change of calcium responses upon reducing the available PIP2 with coexpressed PIP2 5-phosphatases. Such prior PIP2 depletion ought to reduce the amount of IP3 that can be produced by a given stimulus. First, we used rapamycin-induced dimerization of an FKBP domain with an FRB domain to “activate” the PIP2 5-phosphatase Inp54p. When FKBP-tagged Inp54p is expressed together with plasma membrane–targeted FRB, the addition of rapamycin leads to translocation of the phosphatase to the plasma membrane and strong PIP2 depletion (Suh et al., 2006). However, this manipulation did not reduce the amplitude of subsequent calcium responses to UTP (Fig. 7 A). The model also shows a resistance of the calcium response to 90% depletion of PIP2 (Fig. 7 B). A second approach used a VSP to deplete PIP2 and gave the same result (Fig. 7 C). Depolarization activates VSP reversibly and depletes plasma membrane PIP2 (Murata and Okamura, 2007; Falkenburger et al., 2010b). PIP2 levels were continuously monitored by recording KCNQ2/3 currents. To record KCNQ2/3 currents while keeping PIP2 levels low over tens of seconds in VSP-transfected cells, we stepped cyclically from a holding potential of −60 to +120 mV for 400 ms, every 800 ms, and measured KCNQ2/3 tail currents at −60 mV. On average, the intermittent depolarization to +120 mV was sufficient to reduce KCNQ2/3 current by ∼80%. The time course of PIP2 reduction as reported by PH-domain FRET was saw-toothed with an overall relaxation time constant of 10 s (Fig. S6). Despite this accumulating PIP2 depletion, 10 µM Oxo-M could still evoke a full-amplitude calcium response (Fig. 7 C). Because the KCNQ2/3 current reduction achieved by the intermittent depolarization to +120 mV varied with VSP expression levels, we grouped the recorded cells by the extent of KCNQ2/3 inhibition for quantification (Fig. 7, E and F). Simulations from our kinetic model show that when VSP activity was adjusted to give a 90% reduction in KCNQ2/3 current, 10 µM Oxo-M generated a calcium response of similar amplitude but reduced duration (Fig. 7 D), similar to our experimental data (Fig. 7, E and F). In summary, activation of PLC can generate sufficient IP3 for a calcium response even when PIP2 levels are only a fraction of normal. It should be emphasized that the two 5-phosphatase treatments we used do lower PIP2 considerably but never to zero because PIP2 synthesis continues.

Ongoing PIP2 synthesis is required for continual IP3 production

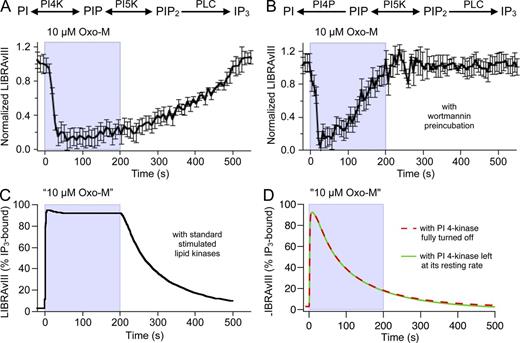

Is there significant synthesis of PIP2 during agonist application? Throughout a 200-s application of 10 µM Oxo-M, IP3 remained elevated, with some possible sag after an initial peak (Fig. 8 A). Given that (a) the lifetime of IP3 is short (Fig. 6) and (b) PIP2 is depleted by 90% during 10 µM Oxo-M (Horowitz et al., 2005), this continued production of IP3 implies that new precursor PIP2 is being formed as PLC is breaking it down. The rate-limiting step in PIP2 synthesis is the PI 4-kinase activity; the PIP 5-kinase activity that makes PIP2 from PI(4)P is 20 times faster (Falkenburger et al., 2010b). The slow step is probably accelerated during agonist application (Xu et al., 2003; Falkenburger et al., 2010b). To determine the importance of de novo PIP2 synthesis during Oxo-M stimulation, we inhibited the PI 4-kinase using 30 µM wortmannin. After wortmannin, the initial amplitude of the LIBRAvIII FRETr response to Oxo-M was normal, but then it relaxed back to baseline while Oxo-M was still present (Fig. 8 B): IP3 production had stopped. Fig. 8 (C and D) shows that a model with accelerated PIP2 synthesis during Oxo-M application can explain maintained IP3 elevation throughout Oxo-M application, and that continued IP3 production fades if PI 4-kinase is not accelerated or is turned off fully.

DISCUSSION

To provide a more complete description of signaling by two different Gq-coupled receptors, we have performed quantitative kinetic measurements of PIP2, IP3, calcium, and KCNQ2/3 channel current in response to agonist application. Our measurements in tsA-201 cells show that (a) endogenous P2Y2Rs activate the PLC pathway and signal to KCNQ channels much less effectively than M1Rs expressed at high density; (b) experimentally, these differences are largely removed when P2Y2Rs are expressed at high density; (c) very little IP3 needs to be generated to induce a robust calcium release; (d) less receptor stimulation is needed to elicit a Ca2+ elevation than to deplete PIP2 or to inhibit KCNQ channels; and (e) accelerated PIP2 synthesis probably boosts IP3 production during long receptor activation. These measurements further guided and are explained by an expanded kinetic model detailed in our companion paper (Falkenburger et al., 2013).

Differences between P2Y2Rs and M1Rs

We first revisit the contrasting actions of endogenous P2Y2Rs and high-density M1Rs. A saturating concentration of UTP acting on eP2Y2Rs leads to calcium release without inhibition of KCNQ2/3 channels, whereas a saturating concentration of Oxo-M acting on high-density M1Rs does both. Nevertheless, we conclude that there is no qualitative difference between P2Y2R and M1R actions. Our measurements show that endogenous P2Y2Rs are at least 100-fold less abundant than overexpressed P2Y2Rs, and our modeling shows that a 100–500-fold difference in receptor density between endogenous P2Y2Rs and overexpressed M1Rs is sufficient to explain all observations. In support, decreasing the number of activated M1Rs by using an extremely low concentration of agonist (1 nM Oxo-M) mimics the responses to endogenous P2Y2R activation by a saturating concentration of UTP. Conversely, increasing the number of P2Y2Rs by overexpression makes the effects of UTP mimic those of Oxo-M. The density of endogenous purinergic receptors that we estimate is in a range expected from our previous estimate of endogenous G proteins and a typical ratio of G proteins to receptors (Falkenburger et al., 2010a). We therefore attribute the observed differences between UTP and Oxo-M primarily to a difference in receptor numbers. Such observations illustrate how quantitative differences in the abundance of a signaling component can result in apparent qualitative differences in responses.

Comparison with neurons

In sympathetic neurons, activation of M1Rs leads to PIP2 depletion (Zaika et al., 2011), and activation of B2 receptors leads to calcium release (Delmas and Brown, 2002). Based on the findings described here, the first observation might be explained by a high density of M1Rs and a low density of B2 receptors in these neurons. Of course, receptors can be arranged in more interesting ways than just being high or low density, particularly in differentiated cells with specialized membrane compartments (e.g., spines, cilia, microvilli, or the apical membranes of epithelia). What counts for downstream effects is not the overall density of receptors but the local density “seen” by PLC molecules. Our data in tsA201 cells suggest that we do not need many PLC molecules (10 per µm2) to fully deplete PIP2 with the time course and concentration dependence observed experimentally. The interaction of signaling molecules will be strongly affected by inhomogenous densities resulting from membrane compartmentalization and scaffolding molecules. Nonetheless, we believe that the estimates for affinities and binding kinetics between M1R, Gq, and PLC derived from our previous experiments and modeling (Jensen et al., 2009; Falkenburger et al., 2010a,b) are accurate and similarly apply to sympathetic neurons. Consequently, we have to assume at least 10 µm−2 molecules of PLC to deplete PIP2 in sympathetic neurons and a density of M1R that is high, at least in the vicinity of PLC.

It is not unexpected that low-density B2 receptors can lead to calcium release, but it is hard to explain why M1Rs do not. Others have suggested that B2 receptors are close to IP3Rs and M1Rs are not, and that fast IP3 degradation prevents its diffusion from M1R-activated PLC to IP3Rs (Delmas et al., 2004). Expanding measurements and modeling into these spatial aspects will be an important next step to further understand how signaling specificity of GqPCR works.

Calcium signaling needs only minimal stimulation of PLC

Different signaling end points require different intensities of stimulation of receptors and PLC. For example, M1R agonist binding has a midpoint of 4–10 µM for Oxo-M (Jensen et al., 2009), yet with high-density M1R, closure of KCNQ2/3 channels and FRET interactions between Gαq and PLC and those between M1R and G all have midpoints at 120–330 nM Oxo-M (Jensen et al., 2009). The release of stored calcium by IP3 seems to be engaged by the smallest stimulation of receptors and PLC in our tsA cells: (a) Exposure to 1 nM Oxo-M activates PLC sufficiently to evoke a calcium rise, even though it produces too little IP3 to be detected by the LIBRAvIII IP3 reporter. (b) Calcium is released by activation of endogenous UTP receptors without a measurable net depletion of plasma membrane PIP2. (c) A significant calcium release can be elicited even after depleting much of the normal PIP2 using exogenous PIP2 5-phosphatases, whether by rapamycin-induced protein dimerization or by VSP combined with membrane depolarization. These manipulations reduced PIP2, and probably IP3 production, by up to 90% as judged from KCNQ2/3 current inhibition. In drug discovery with overexpressed GqPCRs, calcium measurements are often used as an assay for receptor activation. Such assays should give extremely sensitive responses. The release takes on a somewhat all-or-none character from regenerative positive feedback and occurs at the very low end of receptor occupancy (see below) rather than being broadly graded with receptor activation.

Several factors conspire to allow a small stimulus to make a strong calcium response and for the calcium response to be less graded as a function of agonist concentration. We use ideas from published experiments corroborated by our modeling (see Falkenburger et al., 2013) as an explanation. As is discussed in our companion paper, there are many observations of the IP3 and calcium dependence of IP3R channel opening. They all agree that both IP3 and calcium show cooperativity, with channel activation following power law dependences (second-fourth power) of their concentrations that steepen the activation curve, as originally described by Bezprozvanny et al. (1991) and reviewed by Foskett et al. (2007). Calcium also activates PLC, thus accelerating IP3 production. In our model, IP3 turns on calcium release with as little as 1% full IP3 production (which can rise as high as ∼12 µM IP3 for the strongest activation). Half-maximal activation of channel opening by 100–300 nM Ca2+ is augmented by local microdomains of calcium rise around active groups of receptors. Finally, in real cells, but not part of our model, ryanodine receptors on the ER can also add to the Ca2+-induced Ca2+ release. There are conflicting reports in the literature concerning ryanodine receptors, but our cells responded robustly with a calcium transient upon application of caffeine (Fig. S7), suggesting that tsA-201 cells do express ryanodine receptors and that a more complete model should include them. Hence, although the time course and duration of calcium signals is somewhat graded with stimulus intensity, the peak amplitude rises fairly abruptly, and the range over which the response amplitude is graded is compressed.

There are many published partial models of the IP3R. The rationale for design and parameters of our model are detailed in our companion paper. We now consider how our model explains calcium transients in terms that are instructive but quite likely would differ in detail had we chosen another model of the IP3R: The calcium response even to short applications of 10 µM Oxo-M is protracted in a late “hump” or plateau (Figs. 2, C and D, and 4 A). During longer Oxo-M applications (200 s), the response could be reduced and shortened by switching from 2 to 0 mM of extracellular calcium (see Fig. 9 in Horowitz et al., 2005), a standard test for store-operated calcium entry (SOCE). Our model does not include SOCE. Nevertheless, it does produce a plateau that prolongs the calcium response (Figs. 5 A and 8, B and C). This plateau results from unanticipated delayed and nonlinear effects of calcium binding to the IP3R. In the model, >99.7% of the IP3Rs become inactivated within the first second as a consequence of rising calcium (Fig. S8 A, 1-h3). Calcium is then gradually cleared through the SERCA pump, and as calcium falls again, a small percentage (0.1%) of receptors recover from inactivation by t = 20 s (while IP3 is still high), producing a second phase of calcium flux in IP3Rs. The resulting calcium plateau represents a dynamic steady state of calcium release and calcium clearance, and its height in our model is determined by the maximum transport capacity of the SERCA pump (vP; Fig. S8 B). The subsequent, final decrease in cytosolic calcium is caused by the fall in occupancy of IP3-binding sites on the IP3R that occurs with declining IP3 levels. The duration of the calcium response is a function of the apparent affinity of the IP3R for IP3 and was determined primarily by the duration of the IP3 elevation and by KIP3 (Fig. S8 C). We conclude that a plateau in the calcium response can result from intrinsic properties of the IP3R and is not necessarily a sign of SOCE.

In pharmacological terms, there are spare receptors, a significant receptor reserve, for calcium signaling. Thus, according to our model, 1 nM Oxo-M would occupy only 0.06% of the overexpressed M1Rs and activate only 0.3% of the endogenous PLC. As a consequence, 0.1% of the PIP2 is hydrolyzed per second. In the absence of LIBRAvIII, cytosolic IP3 would rise to 200 nM after 20 s. This amount is well above the half-activating concentration for IP3R calcium release yet below the 500-nM half-saturation concentration for detection by the lower-affinity LIBRAvIII reporter.

PIP2 synthesis must be accelerated during GqPCR activation

A couple of seconds after agonist addition, LIBRAvIII starts reporting an increase in IP3, and the IP3 elevation lasts throughout a 200-s agonist application despite the major decline of PIP2 concentration and KCNQ currents. The IP3 elevation requires continued PIP2 synthesis, as it is not maintained after wortmannin treatment, which blocks type III PI 4-kinase. Similar persistent IP3 production, sensitive to wortmannin, has been shown in experiments with radiolabeled inositol in SH-SY5Y cells (Nakanishi et al., 1995; Willars et al., 1998). Our standard kinetic model has resting rates for PI 4-kinase and PIP 5-kinase, chosen to match the recovery of PIP2 both after depletion by PLC and after depletion by VSP (Horowitz et al., 2005; Falkenburger et al., 2010b). The 5-kinase is ∼20 times faster than the 4-kinase, making the wortmannin-sensitive PI 4-kinase the rate-limiting enzyme of PIP2 synthesis. In the model, the mean lifetime of an IP3 molecule is only 12.5 s, and we find that the chosen resting rates of PIP2 synthesis are too slow to support the observed persistent IP3 production during agonist application. These observations require that the rate of the PI 4-kinase be elevated temporarily during GqPCR activation as was done in the model of Xu et al. (2003).

We have not studied the biochemical mechanism of kinase acceleration. There are several types of PI 4-kinase that synthesize PI(4)P. Shapiro and colleagues found that the inhibition of calcium currents in superior cervical ganglion cells by GqPCR activation, which is attributed to PIP2 depletion, is facilitated by dominant-negative neuronal calcium sensor 1 (NCS-1) (Gamper et al., 2004; Zaika et al., 2007, 2011). NCS-1 binds calcium and PI 4-kinase IIIβ (Zhao et al., 2001). In PC12 cells, overexpression of NCS-1 increased basal levels of PI(4)P and PI(4,5)P2 and consequently GqPCR-induced IP3 production (Koizumi et al., 2002), suggesting a regulation of constitutive PIP2 synthesis. The inhibition of receptor-induced responses by wortmannin (Nakanishi et al., 1995) suggests a type III PI 4-kinase, and indeed PIK93, a specific inhibitor of PI 4-kinase IIIβ, facilitated inhibition of calcium currents in superior cervical ganglion cells (Zaika et al., 2011). Yet, PIK93 did not affect IP3 production by angiotensin or recovery of PI(4)P and PI(4,5)P2 in HEK293 cells. Instead, PI(4,5)P2 levels were most strongly depressed during angiotensin application in cells expressing siRNA for PI 4-kinase IIIα (Balla et al., 2008). Earlier studies had suggested that neither subtype is localized to the plasma membrane (Balla, 2007), but PI4-kinase IIIα was recently found to be targeted to the plasma membrane by a complex containing several additional proteins (Nakatsu et al., 2012). As an alternative to PI 4-kinase acceleration, PI(4)P supply might be accelerated during GqPCR activation by increased delivery of PI(4)P to the plasma membrane, for instance, by vesicle trafficking or by the sterol transfer protein Osh4p (de Saint-Jean et al., 2011) from the Golgi.

There are also several types of PIP 5-kinases—1α, 1β, and 1γ—that synthesize PI(4,5)P2. All are constitutively inhibited by phosphorylation. They are activated by phosphatidic acid, the product of DAG kinase (Kanaho et al., 2007), activated by the small GTPase RhoA (Oude Weernink et al., 2004), which can be stimulated by GqPCR (Dutt et al., 2002), and activated by dephosphorylation through phosphatases that can be stimulated by calcium elevation (Unoki et al., 2012). Inhibition of Rho facilitated PIP2 depletion during GqPCR activation in superior cervical ganglion cells (Zaika et al., 2011). The PIP 5-kinase subtype involved in GqPCR-induced synthesis appears to depend on the cell type (Tolias et al., 2000; Wang et al., 2004, 2008).

Although we do not know the biochemical mechanism, our model provides constraints for the time course of the acceleration of PIP2 synthesis during GqPCR activation. Assuming a very fast onset of acceleration in the model (red trace in Fig. S9 A) produced a transient increase in PIP2 (red trace in Fig. S9 B), which we did not observe experimentally when recording KCNQ2/3 current. Therefore, onset may rise with a time constant of 1 s or longer after receptor activation (black traces in Fig. S9). However, if it rises very much slower than this, steady state is not reached within 20 s, which also contradicts our experimental findings. Second, if the acceleration of PIP2 synthesis decays too quickly after agonist wash-off, PIP2 levels would continue to drop, which we also did not observe. Therefore, acceleration of PIP2 synthesis may decline with a time constant of 10 s or longer. We tested whether the model would work assuming that resting kinase rates are zero. It did not. We found that PIP2 recovery after Oxo-M application occurs too quickly (green trace in Fig. S9), overshoots, or is insufficient, unless a steady resting value for PI 4-kinase activity is assumed (black trace in Fig. S9). Although we did not include it in the model, the acceleration of PIP2 synthesis might start faster and last longer as the concentration of Oxo-M is raised. Indeed, the model does not fully reproduce the observed difference in response duration between 0.1 and 10 µM Oxo-M for the DAG and IP3 reporters, and the time constants derived for 10 µM Oxo-M produce the mentioned transients for other concentrations (see Fig. S4 B of our companion paper). Because these findings suggest that kinase acceleration tracks GqPCR activation fairly closely, calcium with its transient and more autonomous time course is perhaps not as likely to underlie the acceleration of PIP2 synthesis as, for example, G protein α or βγ subunits.

At this point, the major unresolved question for the future is how to introduce acceleration of the lipid kinases into the model in a proven mechanistic manner that depends on other components of the model rather than using an empirical ad hoc time course of acceleration. Such a model should include in a natural way any dependence of acceleration on time and on the strength of receptor activation. In addition the complexities of calcium dynamics, clearance, buffering, and SOCE remain to be included.

Conclusion

Our experiments and modeling have shown that apparent qualitative differences in downstream signaling from muscarinic and purinergic GqPCRs can be understood as entirely caused by differences in receptor density. We also find that a very low threshold for IP3-dependent calcium release and the cooperative nature of the release kinetics mean that large, nearly regenerative calcium signals are elicited by quite weak stimulation of GqPCR pathways. Finally, we find that receptor stimulation is accompanied by acceleration of the enzymes of PIP2 synthesis, but we do not know the underlying mechanism. Our companion paper continues the analysis of DAG production and PKC stimulation and gives further details of our model.

Acknowledgments

We thank Drs. Jill B. Jensen, Martin Kruse, and Byung-Chang Suh for advice and assistance with molecular biology and commenting on the manuscript; Dr. T. Kendall Harden for discussion of P2Y2Rs; and Lea M. Miller for technical help.

Our work was supported by National Institutes of Health (NIH) grants R01 NS08174 and R01 GM83913, the Human Frontier Science Program, the Interdisciplinary Centre for Clinical Research within the Faculty of Medicine at RWTH Aachen University, and NIH grant RR025429 (to Sharona E. Gordon). The Virtual Cell is supported by NIH grant P41RR013186 from the National Center for Research Resources.

Edward N. Pugh Jr. served as editor.
