Stage-specific action of Runx1 and GATA3 controls silencing of PU.1 expression in mouse pro–T cells

PU.1, encoded by Spi1, is an E twenty-six (ETS)–family transcription factor with multiple roles in the development and function of myeloid and lymphoid hematopoietic lineages (Carotta et al., 2010; Rothenberg et al., 2019; Singh et al., 1999). Expression levels of Spi1 are highest in macrophages, granulocytes, and dendritic cells and moderate in lymphoid progenitors, reducing expression in B cells and turning off entirely in natural killer and T cells (Yoshida et al., 2019). Through pioneering-like activity and differential cofactor recruitment, PU.1 can control specification of several blood cell types (Heinz et al., 2010; Heinz et al., 2013; Hosokawa et al., 2018b; Ostuni et al., 2013; Rothenberg et al., 2019). Dysregulation of Spi1 expression and translocation of the Spi1 gene can induce malignant transformation in multiple hematopoietic lineages (Rosenbauer et al., 2004; Seki et al., 2017; Vangala et al., 2003). Thus, Spi1 expression must be tightly regulated in a lineage-specific manner. Spi1-deficient hematopoietic stem cells fail to contribute to the T cell lineage in bone marrow (BM) chimera mice (Dakic et al., 2005; Scott et al., 1994), but Spi1 expression must be shut off during T lineage commitment. The mechanism of this repression has remained obscure until now.

T cells develop from multipotent precursors in the thymus, where microenvironmental Notch signaling educates progenitors to become T cells (Hosokawa and Rothenberg, 2021; Radtke et al., 2013; Romero-Wolf et al., 2020). The earliest T progenitors in the thymus lack expression of the mature T cell markers CD4 and CD8 (double negative [DN]). The expression profiles of Kit, CD44, and CD25 in DN thymocytes distinguish developmental stages (Hosokawa et al., 2021; Hosokawa and Rothenberg, 2021; Rothenberg et al., 2008; Yang et al., 2010; Yui and Rothenberg, 2014). The earliest T cell precursors in the thymus, Kit^hi DN1 cells (here “DN1,” Kit^hi+CD44⁺CD25⁻, or ETP), and their DN2a (Kit^hi+CD44⁺CD25⁺) descendants, still have access to non–T cell fates and proliferate to expand the intrathymic progenitor pool (Lu et al., 2005). They lose multipotency in transition from DN2a to DN2b (Kit^int+CD44⁺CD25⁺), becoming committed to the T lineage (Fig. 1 A). Next, TCRβ gene rearrangement at the DN3 (Kit^loCD44^loCD25⁺) stage triggers pre-TCR–dependent progression to DN4 (Kit^loCD44^loCD25⁻) and double-positive (CD4⁺CD8⁺) stages, leading to full TCR expression (Hosokawa and Rothenberg, 2018; Yui and Rothenberg, 2014).

The chromatin landscape and transcriptome profiles change dynamically at the transition from precommitment, DN1 and DN2a, pro–T cells to T lineage–committed, DN2b and DN3, pro–T cells (Hosokawa et al., 2021; Hosokawa and Rothenberg, 2021; Hu et al., 2018). Two transcription factors, PU.1 and Bcl11b, change expression reciprocally in this process. While Bcl11b turns on as cells undergo commitment (Kueh et al., 2016; Zhou et al., 2019), Spi1 is shut off during T lineage commitment, eliminating access to myeloid programs (Hosokawa et al., 2021; Hosokawa and Rothenberg, 2018; Yui and Rothenberg, 2014; Fig. 1 A). Conditional deletion of the Spi1 gene before commitment not only causes faster developmental progression but also reduces cell yield (Champhekar et al., 2015; Hosokawa et al., 2018b). Thus, PU.1 supports the expansion of the uncommitted DN1 and DN2a T progenitor pool (Hosokawa and Rothenberg, 2021). However, inefficient repression or abnormal activation of Spi1 after T lineage commitment can yield malignancy, directly or via its target genes (Boehm et al., 1991; Homminga et al., 2011; Hosokawa and Rothenberg, 2021; Rosenbauer et al., 2006; Seki et al., 2017; Yui and Rothenberg, 2014).

Regulatory mechanisms controlling Spi1 expression kinetics during early T cell development are not fully understood. Multiple reports have suggested roles for Runx1 and GATA3 as mediators of Spi1 repression in mouse pro–T cells. When Runx1 was deleted conditionally by Mx1-Cre activation in mice, early T cell development was significantly blocked at precommitment stages with increased Spi1 expression (Growney et al., 2005; Huang et al., 2008), and Runx1 deletion in pro–T cells developing in vitro also caused Spi1 up-regulation (Hosokawa et al., 2018b). GATA3 overexpression severely repressed Spi1 in fetal pro–T cells (Taghon et al., 2007), while shRNA knockdown of Gata3 caused up-regulation of Spi1 in fetal thymus- or liver-derived pro–T cells (Scripture-Adams et al., 2014). However, Runx1 and Gata3 perturbation in progenitor cells also strongly reduces pro–T cell yields, and their expression increases little during commitment. Thus, how Runx1 and GATA3 cause this stage-specific Spi1 repression has remained uncertain.

Multiple cis-regulatory elements around the Spi1 locus could play roles. The promoter, a major upstream regulatory element (URE), and conserved noncoding element 4 (CE4) and CE5 have all been suspected to play roles in cell type–specific regulation of Spi1 in myeloid, B, and T cells (Hoogenkamp et al., 2007; Li et al., 2001; Okuno et al., 2005; Rosenbauer et al., 2006; Rosenbauer et al., 2004; Zarnegar et al., 2010). The URE, a highly conserved noncoding genomic region 14 kb upstream of the transcriptional start site of Spi1 (−14 kb; Li et al., 2001; Okuno et al., 2005), showed enhancer activity in myeloid and B cells (Rosenbauer et al., 2006; Rosenbauer et al., 2004), while its T lineage role appeared bivalent or repressive (Hoogenkamp et al., 2007; Huang et al., 2008; Montecino-Rodriguez et al., 2018; Zarnegar et al., 2010). URE KO mice showed a partial defect in early T cell development, characterized by increased Spi1 expression in DN1 as well as DN3 stages of adult mice (Rosenbauer et al., 2006). Thus, the bifunctional URE region can damp Spi1 expression in pro–T cells, but whether it explains the switch to repression is less clear. CE4 and CE5, upstream (−9.2 and −10.3 kb) conserved noncoding regions, were identified as T cell–specific silencer and myeloid-specific enhancer elements using reporter assays with cell lines (Zarnegar et al., 2010). However, CE4 element function has not been demonstrated in its native context.

Here, we describe a new regulatory element through which GATA3 and Runx1 appear to work stage specifically to silence Spi1 in T lineage commitment. Using pro–T cell differentiation cultures with acute, stage-specific perturbations, we verify roles and structural requirements of GATA3 and Runx1 for Spi1 repression. Highly stage-specific binding of Runx1 and GATA3 in pro–T cells during commitment identifies a Spi1 intronic site that is functionally important for the magnitude and maintenance of Spi1 repression in a pro–T cell line and primary pro–T cells, with greater impact than CE4 or other candidate repression elements. Taken together, this evidence identifies a direct mechanism through which Runx1 and GATA3 mediate the stage-specific repression of Spi1.

Gata3 turns on soon after precursors enter the thymus, reaching a plateau in late DN2a stage (Yoshida et al., 2019; Zhou et al., 2019; Fig. 1 A). Pro–T cells express Runx1 more highly than other hematopoietic cell types (Yoshida et al., 2019), and both Runx1 mRNA and protein are highest across commitment (Shin et al., 2021; Zhou et al., 2019). In DN pro–T cells, shortly before Spi1 expression decreases, expression of Gata3 and Runx1 mRNA increases slightly (Yoshida et al., 2019; Zhang et al., 2012).

To determine whether GATA3 protein levels could be rate limiting for PU.1 silencing in early pro–T cells, we conducted intracellular staining for GATA3 and PU.1. We used thymocytes from Bcl11b-YFP reporter mice (Kueh et al., 2016) to monitor Bcl11b up-regulation, marking T lineage commitment in late DN2a stage (Fig. 1 A), and compared DN1 (Kit^hi+CD25⁻), DN2a (Kit^hi+CD25⁺), and DN2b (Kit^int+CD25⁺) stages among the DN, Lin⁻CD44⁺Kit⁺ thymocytes (Fig. S1 A). The results (Fig. 1, B and C) confirmed that GATA3 levels were very low in the DN1 stage, slightly up-regulated in the DN2a Bcl11b⁻ (YFP⁻) stage, and further increased in the DN2a Bcl11b⁺ (YFP⁺) and DN2b stages. PU.1 was highly expressed in the DN1 and DN2a Bcl11b⁻ stages but then shifted lower in DN2a cells as they began to express Bcl11b (Fig. 1, B and C) and had clearly dropped by DN2b stage (cf. Ungerbäck et al., 2018; Yui et al., 2010). Given the high protein stability of PU.1 (Kueh et al., 2013), the slight reduction seen in Bcl11b⁺ DN2a cells is consistent with the onset of repression. In separate work (Shin et al., 2021), we found that Runx1 protein also detectably increased from the DN1 to DN2a/b stages. Thus, GATA3 and Runx1 protein levels beyond a certain threshold could influence the timing of PU.1 repression.

To verify whether Runx1 and/or GATA3 levels control Spi1 expression in pro–T cells, we tested whether their overexpression in DN1 and DN2a pro–T cells could accelerate the natural silencing of Spi1. Runx and GATA3 perturbations are demonstrably toxic in vitro, leaving some uncertainty as to whether gene-expression changes seen in previous studies reflected direct gene regulation or population selection (Guo et al., 2008; Huang et al., 2008; Scripture-Adams et al., 2014; Taghon et al., 2007; Telfer et al., 2004). We used BM progenitor cells from Bcl2 transgenic (Tg) mice to maximize viable recovery, culturing them on OP9 Delta-like 1 (DLL1; a Notch ligand) stroma to initiate T cell development in vitro (see Materials and methods). On day 3 of culture, when most of the cells were still in precommitment stages (DN1 and DN2a), they were infected with retroviral vectors expressing Runx1 and/or Gata3 with GFP or human nerve growth factor receptor (hNGFR) markers, respectively. We sorted Lin⁻CD45⁺CD44⁺GFP⁺hNGFR⁺ precommitment cells for analysis at 3 d postinfection (dpi; day 6 of culture overall; Fig. 2, A and B; and Fig. S1 B; protocol A). Introduction of Gata3 into these precommitment cells, which still had high Spi1 expression, profoundly repressed Spi1, while Runx1 transduction had a moderate but consistent effect. The combination of Runx1 and Gata3 introduction further intensified repression of Spi1 (Fig. 2 C). In contrast, while Spi1 down-regulation coincided most closely with the timing of Bcl11b-YFP activation during development, overexpression of Bcl11b did not repress Spi1 expression (Fig. S1 C). This supports previous indications that Bcl11b does not itself regulate Spi1 in mouse pro–T cells (Hosokawa et al., 2018a; Longabaugh et al., 2017).

Antisense transcripts from intron 3 of the Spi1 locus reportedly act as negative modulators of Spi1 expression (Ebralidze et al., 2008). Runx1 and GATA3 might reduce Spi1 expression by stimulating expression of these antisense transcripts. However, precommitment cells with and without overexpression of Runx1 and/or Gata3 had comparable ratios of sense and antisense transcripts of exon3 of the Spi1 gene (Fig. S1 D). Therefore, Spi1 repression by Runx1 and GATA3 does not appear to be mediated by up-regulation of antisense transcripts of Spi1 locus.

To test whether GATA3 might repress Spi1 directly or whether it worked by inducing other repressors, we tested GATA3 mutants that can differentially affect function, localization, and organization of GATA3 complexes in type 2 T helper and type 2 innate lymphoid cells (Furusawa et al., 2013; Hosokawa et al., 2015; Hosokawa et al., 2016; Hosokawa et al., 2013a; Hosokawa et al., 2013b; Yamagata et al., 2000). Phosphorylation of GATA3 at S308, T315, and S316 inhibits its repressive action by dissociating histone deacetylase 2 (HDAC2) from the GATA3–nucleosome remodeling and deacetylase (NuRD) complex (Hosokawa et al., 2016; Hosokawa et al., 2013b) and can be mimicked by a triple phospho-mimetic mutant (GATA3 3D). Transcriptional activity of GATA3, in contrast, associates with methylation of R261 (Hosokawa et al., 2015). Here, whereas phospho-deficient (GATA3 3A), methylation-mimicking (GATA3 R261F) and methylation-deficient (GATA3 R261K) mutants (Hosokawa et al., 2015; Hosokawa et al., 2016) all repressed Spi1 similarly to GATA3 WT in precommitment, primary pro–T cells, the GATA3 3D mutant caused only minimal Spi1 repression (Fig. 2 D). This suggests that unphosphorylated GATA3 itself is directly involved in the repression mechanism.

Intact Runx1 was also needed to maintain repression, at least in the Scid.adh.2c2 line, a postcommitment pro–T cell that normally does not express Spi1 (Dionne et al., 2005; Hosokawa et al., 2018b). A strongly DNA-binding, truncated form of Runx (Runx1DN) lacking transactivation and repression domains competitively blocks both repression (Telfer et al., 2004) and activation (Hosokawa et al., 2018b) by endogenous Runx factors. Overexpression of full-length Runx1 in Scid.adh.2c2 cells did not alter the fully silent state of Spi1. However, introduction of the Runx1DN mutant caused endogenous Spi1 to become activated, disrupting the established silent state (Fig. 2 E). Thus, the ability of Runx1 to recruit other protein partners via non-DNA-binding domains is crucial for maintenance of Spi1 repression.

To identify the functional components of GATA3 complexes that control PU.1 repression in pro–T stages, we transduced Scid.adh.2c2 cells with Myc- and Flag-tagged GATA3 and recovered GATA3 complexes by two-step affinity purification followed by SDS-PAGE and silver staining (Fig. S1 E). Analysis by liquid chromatography and tandem mass spectrometry identified more than 150 molecules annotated as being involved in transcription or chromatin remodeling (Fig. S1 F and Table S1, sheet 1). While multiple subunits for the NuRD and BRG1-assocated factor (BAF) complexes were repeatedly detected, Runx1 had one of the highest signals in our mass spectrometry analyses, consistently in four separate samples (Table S1, sheet 2). The association between GATA3 and Runx1 was validated by coimmunoprecipitation with immunoblotting. Notably, even the GATA3 3D mutant (Fig. 2 D) was fully able to interact with Runx1, similarly to GATA3 WT and 3A mutant (Fig. S1 G), indicating that altered GATA3 activity itself caused by the 3D mutation accounted for its loss of repressive activity for Spi1.

To confirm the role of natural levels of Runx1 and GATA3 expression in Spi1 repression, we performed acute, stage-specific Runx1 and Gata3 disruption in primary cells after T lineage commitment using bicistronic retroviral vectors carrying sgRunx1 or sgGATA3 with CFP or hNGFR markers, respectively. These constructs induced acute, specific losses of the targeted proteins as detected by immunoblotting when transduced into Cas9-expressing Scid.adh.2c2 cells (Fig. S2 A). To test their impact in primary cells, BM progenitor cells from Cas9;Bcl2 Tg mice were co-cultured on OP9-DLL1 for 10 d, until nearly all cells had undergone commitment, and then they were transduced with the single guide RNA (sgRNA) against Runx1 and/or Gata3, using control sgRNA transductions for comparison (Fig. 3, A and B; protocol B). 4-dpi, doubly transduced, postcommitment Lin⁻CD45⁺CD44^loCD25⁺CFP⁺hNGFR⁺ cells were sorted (Fig. S2 B), followed by RT quantitative PCR (RT-qPCR) analysis for Spi1 mRNA (Fig. 3 C). Expression of Spi1, which is normally low in these committed cells, was substantially up-regulated by Runx1 or Gata3 KO, and combined loss of Runx1 and Gata3 up-regulated Spi1 even more (Fig. 3 C). Earlier Runx1 and Gata3 deletion, around the time of T lineage commitment, had a similar effect. The deletion was initiated at day 4 (before T lineage commitment) and harvested on day 8 overall (Fig. 3 D; protocol C), in transition from DN2a to DN2b/DN3 (Fig. S2 C). Again, mRNA levels of Spi1 were clearly higher in Runx1 and/or Gata3 KO cells than in controls. This up-regulation was specific for Spi1, because Bcl11b, a positive target of GATA3 and Runx1 (Kueh et al., 2016), showed the opposite pattern (Fig. 3 E). Thus, normal endogenous Runx1 and GATA3 are important for both establishing and maintaining repression of Spi1 in the T cell lineage commitment transition.

Multiple cis-regulatory elements have been described around the Spi1 locus, especially evolutionarily conserved open chromatin regions, that reportedly control levels of Spi1 expression in various hematopoietic cell types, as discussed in the Introduction. In an unbiased search for genomic sites that could mediate active imposition of repression during commitment, we examined Runx1 and GATA3 binding around Spi1 by chromatin immunoprecipitation (ChIP) and deep sequencing (ChIP-seq). We compared their occupancy patterns before (DN1) and after (DN2b/3) T lineage commitment (Hosokawa et al., 2018b; Fig. 4 A) and compared these with sites changing chromatin accessibility (Yoshida et al., 2019) and looping interactions (Hu et al., 2018) around Spi1 in pre- and postcommitment pro–T cells (Fig. S3, A and B). Despite the strong impact of endogenous GATA3 on Spi1, conventional ChIP-seq conditions using formaldehyde (FA) crosslinking showed little, if any, GATA3 binding near this locus (Fig. S3 A). However, using a di(N-succinimidyl) glutarate (DSG) cross-linker that stabilizes Runx1-containing complexes (Hosokawa et al., 2020; Hosokawa et al., 2018b), GATA3 recruitment was clear (Fig. 4 A; see Materials and methods). Runx1 and GATA3 were found at URE, CE4 (Huang et al., 2008; Zarnegar et al., 2010), and the transcriptional start site of the neighboring Slc39a13 gene. However, none of these peaks appeared after commitment (Fig. 4 A, blue rectangles). A site at −17.8 kb previously reported to mediate repression by GATA1 in erythroid cells (Chou et al., 2009) showed slight binding, but only in DN1 cells, not DN2b/3 cells.

Notably, however, we saw a small but reproducible peak of Runx1 and GATA3 association at +3.7 kb within intron 2 of Spi1, and these signals were highly DN2b/3-stage specific (Fig. 4 A, magenta rectangle). Runx1 and GATA3 were also detected here in Scid.adh.2c2 cells (Fig. S3 C). Despite the modest signals, this site was the only one in the gene-to-gene interval containing Spi1 (Slc39a13-Mybpc3) that showed DN2b/DN3-specific occupancy by Runx1 or GATA3. The sequence of this region included multiple Runx motifs and a GATA motif (see below). Runx1, at least, appeared to bind to this site independently of GATA3, as shown by acute knockouts and ChIP-qPCR assays (Fig. S4 A).

Interestingly, this site would not have been identified by assay of transposase-accessible chromatin (ATAC) accessibility or conservation. The URE and CE4 regions are ATAC accessible in DN1 stage and gradually close during pro–T progression, and a neighboring intron 2 site (at +5.0 kb) appears constitutively open. But the +3.7-kb site of the Spi1 locus appears “closed” both before and after commitment (Yoshida et al., 2019; Fig. 4 B, magenta rectangle). This region also falls within a long interspersed nuclear element (LINE element; Fig. 4 C, magenta rectangle). Still, this site was close to the intron 2 anchor for a chromatin looping interaction that appears newly during commitment (Fig. S3 B, dark blue star).

To test whether the DN2b/3-specific Runx1 and GATA3 binding site at +3.7 kb of the Spi1 locus could actually mediate Runx1- and GATA3-dependent silencer activity, we designed sgRNAs to disrupt the DN2b/3-specific Runx1 and GATA3 occupancy region and tested their impact first in the Scid.adh.2c2 pro–T cell line. Scid.adh.2c2 cells expressing Cas9-GFP were retrovirally transduced in parallel with pairs of sgRNAs flanking each of four different Runx1 and GATA3 binding regions around the Spi1 locus. Besides the +3.7-kb region, we targeted the URE, CE4, and the neighboring Slc39a13 promoter (Slc39a13 pro.). Cas9⁺ doubly transduced (GFP⁺ CFP⁺ hNGFR⁺) cells were cloned by single-cell sorting (Fig. 5 A), and we identified clones with complete loss of the targeted genomic regions by genomic qPCR analysis (Fig. 5 B). Deletion of 567 bp of the +3.7-kb site (sgInt.2) induced markedly up-regulated Spi1 expression in Scid.adh.2c2 cells (Fig. 5 C). In contrast, expression levels of Spi1 were comparable among cells transduced with sgControl (sgRNA against luciferase), sgSlc39a13 promoter, and sgURE, whereas disruption of CE4 (sgCE4) led to only a slight increase in Spi1 expression (Fig. 5 C). Therefore, in this DN3-like cell line, the DN2b/3-specific Runx1 and GATA3 binding site at +3.7 kb of the Spi1 locus was required to maintain repression of Spi1.

Because GATA3 binding to the +3.7-kb element seemed weak, we examined the wider Spi1 locus neighborhood for any additional sites where GATA3 binding increased from DN1 to DN2b/3. Of special interest were potential downstream anchor sites for the commitment-associated looping noted above (Fig. S3 B). Indeed, elements at +145 kb and +211 kb showed higher GATA3 binding signals in DN2b/3 stages than DN1 (Fig. S4 B), and another strong GATA3 peak near the potential loop anchor was seen at +167 kb. All three showed Runx1 and GATA3 co-occupancy in postcommitment cells with various degrees of stage specificity. In direct tests, disruption of the +145-kb genomic region induced weak but reproducible derepression of Spi1 in Scid.adh.2c2 clones (Fig. S4, C and D), similar to CE4 disruption, whereas disruption of the +167-kb and +211-kb elements had no effect. Therefore, Runx1 and GATA3 may be involved in establishment of stage-specific repressive chromatin looping architectures around the Spi1 locus, including the +3.7-kb, +145-kb, and CE4 elements.

In primary pro–T cells, clones could not be grown out and selected for deletion of the complete element, but a Cas9-mediated point mutation strategy could be highly effective to test the role of the +3.7-kb element. There are three Runx motifs and one GATA motif around the center of the +3.7-kb element (Figs. 6 A and S5 A). Thus, we induced direct mutations in these Runx and GATA motifs at the +3.7-kb element in primary Cas9;Bcl2 Tg pro–T cells. Cells were cultured and transduced according to protocol B using sgRNAs targeting each motif (Fig. 6 A, red arrowheads) and analyzing the postcommitment, multiply transduced cells at day 14 overall (Fig. S5 B). Disruption of individual motifs had significant but minor effects on Spi1 expression. In contrast, transduction of the mixture of sgRNAs against all four motifs induced prominent derepression of Spi1 (Fig. 6 B), albeit not to full precommitment expression levels. PU.1 protein levels in individual cells were up-regulated throughout the population when all four motifs were disrupted (Fig. 6 C), while the cells introduced with the sgRNA mixture had individually undergone different combinations of point mutations or small deletions (Fig. S5 C).

Next, we tested whether the activity mediated by the +3.7-kb element is generally damping or stage specific. We disrupted all four Runx and GATA motifs early in the culture and then compared effects on Spi1 levels expressed in precommitment stages (6 d) and later in postcommitment stages (12 d; Fig. 6 D; protocol D). Disruption with the four sgRNAs did not affect progression of DN stages, defined by CD44 and CD25 expression, and Spi1 showed some developmental down-regulation in commitment in both experimental samples and controls (Fig. S5, D and E). However, the high expression of Spi1 at 6 dpi (mostly DN2a/2b) was very similar in control and experimental samples, whereas by postcommitment stages at 12 dpi (DN2b/3, day 14 of overall culture), the four sgRNAs substantially alleviated Spi1 repression compared with controls (Fig. 6 E). Thus, the intronic site of postcommitment stage-specific Runx1 and GATA3 binding was needed to strengthen or maintain repression of Spi1 expression, stage specifically, after commitment.

Finally, to determine whether the +3.7-kb site was required to mediate repressive action of Runx1 or GATA3 on Spi1, we disrupted the four motifs in precommitment pro–T cells and then transduced the cells with Runx1 or Gata3 (Fig. 7 A; protocol E). Runx1- and GATA3-mediated repression of Spi1 expression was significantly weakened in the cells transduced with the mixed sg4 motifs compared with controls (Fig. 7 B). Although introduction of Gata3 was still able to cause some repression of Spi1, the attenuation of this effect via a single intronic element was notable considering not only the intact +145-kb and CE4 elements but also the multiple potent gene network impacts of Runx1 and GATA3 on other regulators in the cells (Scripture-Adams et al., 2014; Shin et al., 2021; Fig. 7 B). Taken together, postcommitment stage-specific binding of Runx1 and GATA3 to the +3.7-kb element of the Spi1 locus may play a substantial role in timing of Spi1 repression during early T cell development.

PU.1 has an indispensable role for the earliest T lineage precursors in the thymus (Champhekar et al., 2015; Dakic et al., 2005), but its expression must be shut off during T lineage commitment, at the transition from DN2a to DN2b, and both the mechanism and coordination of this timing have needed explanation. Despite evidence that Runx1 and GATA3 play roles in the repression of Spi1 in pro–T cells, possibly via the URE and other cis-regulatory elements around the Spi1 locus (Huang et al., 2008; Rosenbauer et al., 2006; Scripture-Adams et al., 2014; Zarnegar et al., 2010), both Runx1 and GATA3 are expressed for many cell divisions before Spi1 is silenced. Similarly, the chromatin accessibility and transcription factor binding dynamics at these previously reported genomic elements have failed to explain how Spi1 expression is repressed specifically during pro–T cell lineage commitment. This problem motivated our search for new Runx1–GATA3–Spi1 interactions that could mediate this stage-specific functional change. Here, we exploited CRISPR-Cas9–mediated acute, stage-specific deletions of Runx1, Gata3, and/or potential cis-regulatory elements in an in vitro T cell development culture system. We confirmed that precommitment overexpression of Runx1 and GATA3 markedly accelerated Spi1 repression, whereas stage-specific deletion of Runx1 and Gata3 derepressed or significantly weakened repression of Spi1. Using stage-specific Runx1 and GATA3 binding as a search criterion, we identified a novel element in the second intron of Spi1, not described before, which was shown to mediate stage-specific silencer activity dependent on the integrity of Runx1 and GATA3 binding sites. While GATA3 and Runx1 binding to the previously described CE4 element (Zarnegar et al., 2010) and a far downstream element at +145 kb may also contribute, their effects were weaker in a cell line model. Disruption of the +3.7-kb element alone was sufficient to give Spi1 at least 50% protection from the repressive effects of overexpressed GATA3 or Runx1. Thus, the repression of Spi1 by Runx1 and GATA3 is controlled at least in part via their stage-specific binding to this Spi1 intronic site.

The striking feature of Runx1 and GATA3 action in repression of Spi1 has been the stage-specific functional response occurring with seemingly little change in levels of the two candidate repressive factors. However, both Runx factors and GATA3 have been noted for the shifting of their genomic binding site choices from one stage to another in pro–T cells (Hosokawa et al., 2021; Hosokawa et al., 2018b; Shin et al., 2021; Zhang et al., 2012). Runx1 protein expression levels increase little between precommitment DN2a and postcommitment DN2b stages (Shin et al., 2021), and recent data show that Runx3 actually collaborates with Runx1 to repress Spi1 during commitment, with their combined activities virtually constant before and after Spi1 repression begins (Shin et al., 2021). However, both factors show the same stage-specific increased binding to the +3.7-kb site during commitment (Shin et al., 2021). GATA3 protein levels do increase slightly during commitment, in a way well coordinated with the change in expression of PU.1, but seemingly by less than threefold. Thus, despite little absolute change in total Runx and GATA3, their repression of Spi1 correlates with their occupancy of the +3.7-kb site, possibly connected with a new chromatin loop anchored in intron 2. Recruitment could depend on additional partners not yet defined.

Deletion of Runx1 and Gata3 before T lineage commitment had stronger effects on progression of pro–T cell development and Spi1 repression than deletion of the intronic stage-specific Runx1 and GATA3 target site. This could reflect additional repressive inputs from more distal regulatory sites, such as the +145-kb site near the distal end of a new commitment-associated loop, three to five genes away from the Spi1 locus (Fig. S3 B; and Fig. S4, B–D). Repressive activity of GATA3 could also be unmasked if it undergoes signal-dependent dephosphorylation during commitment (Fig. 2 D). Alternatively, as Runx1 and GATA3 are critical regulators of multiple other genes, their levels could also influence Spi1 expression via indirect mechanisms (Fig. 7 B). In principle, they could repress activators of Spi1 such as Cebpa (Laiosa et al., 2006; Wang et al., 2006; Yeamans et al., 2007) and Lmo2 (Cleveland et al., 2013). However, Cebpa is expressed at very low levels in T lineage progenitors, and Lmo2 is turned off before the DN2a stage, well before Spi1 levels start going down (Hosokawa and Rothenberg, 2021; Yui and Rothenberg, 2014; Zhou et al., 2019). Thus, these indirect mechanisms may contribute to, but not fully explain, the stage specificity.

Mutation of the potential repression element enabled Spi1 to begin expression in a nonexpressing pro–T cell line, under conditions where deletions of other elements suspected to mediate repression had much less effect. Most notably, Cas9 targeting of the three Runx and one GATA motifs in the +3.7-kb element also enabled primary pro–T cells to sustain readily measurable Spi1 expression in a developmental stage where controls had virtually extinguished it. Thus, the integrity of this element was important for full developmental stage-specific repression. However, it was atypical of elements normally sought through genomic methods. The binding of Runx1 and GATA3, though reproducible under the conditions used, was very weak. This could reflect the ATAC-inaccessible chromatin state at this site both before and after commitment. While the potential silencer region was not conserved among mammals, this region was perfectly overlapped by a LINE element. LINE elements are known to acquire roles in species-specific gene expression via activation and repression of proximal genes (Robbez-Masson and Rowe, 2015). Furthermore, a recent report on 3D structure of the human SPI1 locus in monocytes suggest interactions of the promoter with the intron 2 region of SPI1 as well as with the URE (Schuetzmann et al., 2018). Hence, stage-specific repression of human SPI1 could be regulated in part via similar or independent human-specific elements, even though the SPI1 locus overall has multiple conserved cis-regulatory elements.

In summary, we identified a potential stage-specific silencer region for Spi1, which appears to be controlled by Runx1 and GATA3, in early T cell development. Acute deletion of Runx1 and Gata3 by CRISPR-Cas9 revealed stage-specific roles of Runx1 and GATA3 in Spi1 repression in pro–T cell stages. A postcommitment stage-specific Runx1 and GATA3 occupancy site at the Spi1 locus was elucidated by comparative ChIP-seq analysis using precommitment and postcommitment pro–T cells, in the same T lineage pathway but with a few days difference on the trajectory. Acute deletion evidence then supported a strong role for this site in physiological Spi1 repression. Thus, the developmentally based strategy used in this study could be useful to identify other functionally important cis-regulatory elements, whether or not they were in open chromatin or phylogenetically conserved.

C57BL/6 (referred to as B6), B6.Cg-Tg(BCL2)25Wehi/J (Bcl2-Tg; Strasser et al., 1991), and B6.Gt(ROSA)26^{Sortm1.1(CAG-cas9*,-EGFP)Fezh}/J (Cas9; Platt et al., 2014) mice were purchased from The Jackson Laboratory. Bcl11b-YFP (backcrossed to C57BL/6 mice 10 times) mice were described previously (Ng et al., 2018). All animals were bred and maintained in the California Institute of Technology Laboratory Animal Facility under specific pathogen–free conditions, and the protocol supporting animal breeding for this work was reviewed and approved by the Institute Animal Care and Use Committee of the California Institute of Technology.

For in vitro differentiation of pro–T cells, BM hematopoietic progenitors were used for input to OP9-DLL1 co-cultures (Schmitt and Zúñiga-Pflücker, 2002). In the conditions used, most cells underwent commitment around days 6–7 of culture. Vectors carrying genes for gain of function assays or CRISPR guide RNAs for knockout assays were introduced at different time points, depending on whether the cells were to be targeted before, after, or during commitment. Cells for gain-of-function experiments were harvested 3 d after transduction, and cells for loss-of-function experiments were harvested 4 d after transduction in most cases. The Bcl2 transgene (Tg) was present in the input cells for all these manipulations because it enhances viable recovery of cells under regulatory perturbations, allowing the RNA and protein expression to be measured in a more representative fraction of the responding cells, without altering early T cell development of controls (Yui et al., 2010).

BM was removed from the femurs and tibiae of 2–3-mo-old mice. Suspensions of BM cells were prepared and stained for lineage-specific, mature-cell markers (Lin) using the biotin-conjugated lineage antibodies CD11b (eBioscience; 13–0112-86), CD11c (13–0114-85), Gr-1 (13–5931-86), TER-119 (13–5921-85), NK1.1 (13–5941-85), CD19 (13–0193-85), and CD3ε (13–0031-082). They were then incubated with streptavidin-coated magnetic beads (Miltenyi Biotec) and passed through a magnetic column (Miltenyi Biotec) to remove the Lin⁺ cells. Then, the resulting enriched hematopoietic progenitors were cultured on OP9-DLL1 monolayers using OP9 medium (α-MEM, 20% FBS, 50 µM β-mercaptoethanol, and penicillin-streptomycin-glutamine) supplemented with 10 ng/ml IL-7 (Pepro Tech) and 10 ng/ml Flt3L (Pepro Tech). On day 7, cultured cells were disaggregated, filtered through 40-µm nylon mesh, and recultured on new OP9 monolayers with medium containing 5 ng/ml IL-7 and 5 ng/ml Flt3L. In cultures that were continued for longer times, cells were passaged onto fresh OP9-DLL1 monolayers at day 10 and maintained up to day 14 in 1 ng/ml each of IL-7 and Flt3L.

While the developmental trajectory of the cells in these cultures is extremely reproducible between experiments and experimenters, the exact degrees of progression of the cells along the pathway at a given time point often vary slightly from experiment to experiment. For precise measurements of fold change, to establish biological reproducibility with minimum confounding effects of timing on the expression of highly dynamic genes, biological replicate cell samples were prepared separately from three independent animals, purified separately, vector transduced separately, and cultured separately, but in parallel over the same absolute time course. Additional supporting information was obtained in independent experiments.

Scid.adh.2c2 cells (Dionne et al., 2005) were cultured in RPMI1640 with 10% FBS (Sigma-Aldrich), sodium pyruvate (Gibco), nonessential amino acids (Gibco), penicillin-streptomycin-glutamine (Gibco), and 50 µM β-mercaptoethanol (Sigma-Aldrich).

Gain-of-function experiments were performed before commitment using protocol A (Fig. 2 A). BM progenitor cells from Bcl2-Tg animals were used to seed in vitro differentiation cultures as above. At day 3, the cells were transduced with retroviral vectors encoding reporters (GFP and hNGFR) and the indicated cDNAs (details of vector construction below) and then returned to OP9-DLL1 culture for harvest on day 6 overall. A modification of this protocol was used for gain of function of Runx1 and GATA3 coupled with disruption of the +3.7-kb site motifs as detailed in Fig. 7 A (protocol E). Conditions for Cas9-mediated disruption are described in the next section. The methods used to generate the virus supernatant and for infection were described previously (Hosokawa et al., 2018a). For RT-qPCR analysis, retrovirus-infected Lin⁻CD45⁺CD44⁺GFP⁺hNGFR⁺ (precommitment) cells were sorted on a BD FACSAria.

Acute deletions of Gata3 or Runx1 or their presumptive target sites in primary cells were performed using protocols B, C (Fig. 3, A and D), D, or E (Figs. 6 D and 7 A) to induce deletion in postcommitment, mid-commitment, or precommitment stages, respectively. To generate input cells, Cas9 mice were first bred to Bcl2-Tg mice to generate heterozygotes for both transgenes. BM cells from these Cas9;Bcl2-Tg animals were then used to seed in vitro differentiation cultures as above. At day 10 (for postcommitment effects, protocol B), day 4 (for mid-commitment effects, protocol C), or day 2 (for precommitment effects, protocol D), the cells were transduced with retroviral vectors encoding reporters (GFP, CFP and hNGFR) and the indicated cDNAs or guide RNAs (sgRNAs) as detailed below, and then returned to OP9-DLL1 culture for harvest 4 d later, at day 14 overall (protocol B), day 8 overall (protocol C), or day 6 overall (half of the cultures in protocol D). The other half of the cultures treated early, via protocol D, were continued to day 12 overall to monitor postcommitment effects of precommitment deletion. The methods used to generate the virus supernatant and for infection were as described previously (Hosokawa et al., 2018a). For RT-qPCR analysis, retrovirus-infected Lin⁻ CD45⁺ CD44⁺ GFP⁺ hNGFR⁺ (precommitment) or Lin⁻ CD45⁺ CD44^lo CFP⁺ hNGFR⁺ (postcommitment) cells were sorted on a BD FACSAria.

A DN3-like cell line, Scid.adh.2c2, previously transduced to express Cas9-GFP, was infected with sgRNA-hNGFR and/or sgRNA-CFP vectors (Hosokawa et al., 2018b). 3 d after sgRNA transduction, sgRNA-introduced GFP⁺CFP⁺hNGFR⁺ Scid.adh.2c2 cells were sorted, followed by immunoblotting, or subjected to single-cell sorting. Cytoplasmic and nuclear extracts, used to the detection of tubulinα, and Runx1 and GATA3, respectively, were prepared using NE-PER nuclear and cytoplasmic extraction reagents (Pierce). Lysates were run on 10% polyacrylamide gel, followed by immunoblotting. The antibodies used for the immunoblot analysis were anti-tubulinα (Sigma-Aldrich; T6199), anti-Runx1 (Abcam), anti-Myc (MBL; My3), and anti-GATA3 (Santa Cruz Biotechnology; HG3-31) mAbs.

cDNAs for GATA3 WT and mutants were inserted into a multicloning site of the pMxs-IRES-hNGFR, as previously reported (Hosokawa et al., 2015; Hosokawa et al., 2016).

GATA3 residues S308, T315 and S316, which are important for histone deacetylase 2 association in their nonphosphorylated state, are near the C-terminal zinc finger (Hosokawa et al., 2016; Hosokawa et al., 2013b). GATA3 R261, where arginine methylation increases transcriptional activation potency, is near the N-terminal zinc finger.

cDNA for full-length Runx1 from the distal promoter and Runx1DN (Runx1 d190) were inserted into a multicloning site of the MSCV-IRES-GFP (Telfer et al., 2004). For CRISPR targeting, the sgRNA-expression vector (E42-dTet; Hosokawa et al., 2018b) was used as described previously. For double-KO experiments, versions of E42-dTet with truncated NGFR reporter were made as well the original vector with a CFP reporter (here, mTurquoise2) so that doubly transduced cells could be sorted unambiguously. For site disruption experiments, vectors for sgRNA against Runx motifs were made with an hNGFR reporter, whereas vectors for sgRNA against the GATA motif were made with a CFP reporter. 19- or 20-mer sgRNAs were designed using the CHOPCHOP (https://chopchop.cbu.uib.no; Labun et al., 2016) or Benchling (https://benchling.com) web tool and inserted into the empty sgRNA-expression vector by PCR-based insertion. Three sgRNA-expression vectors were generated for one gene, and pooled retroviral plasmids were used to make retroviral supernatant. The following sgRNA sequences were used in this study: control (Luciferase), 5′-GGC​ATT​TCG​CAG​CCT​ACC​G-3′; GATA3 #1, 5′-GAG​ATC​CGT​GCA​GCA​GAG​G-3′; GATA3 #2, 5′-GTT​CCA​GGG​CGA​GGC​GGT​G-3′; GATA3 #3, 5′-TGG​CCG​GCC​GCC​AGA​GAA​G-3′; Runx1 #1, 5′-GCT​CGT​GCT​GGC​ATC​TAC​G-3′; Runx1 #2, 5′-AGC​CCC​GGC​AAG​ATG​AGC​G-3′; Runx1 #3, 5′-AGC​GGC​GAC​CGC​AGC​ATG​G-3′; Slc39a13 pro. #1, 5′-GCA​GAT​GCA​GCG​CTC​CGG​G-3′; Slc39a13 pro. #2, 5′-AGG​GTT​ACA​GTC​CTG​GAG​A-3′; URE #1, 5′-CAA​ATG​GCC​CGA​GGT​CCG​A-3′; URE #2, 5′-TAC​GAT​CTA​GAC​AGT​GGG​T-3′; CE4 #1, 5′-TAG​AGC​TGA​GCC​TAA​GTT​C-3′; CE4 #2, 5′-CTG​AGG​AAG​ACT​TCC​AGG​T-3′; Spi1 intron2 #1, 5′-CCT​GTA​ATC​CTC​TCT​CGG​G-3′; Spi1 intron2 #2, 5′-CAC​GTG​GAC​CAG​AGG​TCA​C-3′; +145 kb #1, 5′-GGT​GTA​AGA​AGC​AGA​GTC​TG-3′; +145 kb #2, 5′-TTT​GTT​CAC​ACT​GGA​AAC​TG-3′; +167 kb #1, 5′-GCC​TAC​AGC​CAG​TGG​TCG​AG-3′; +167 #2, 5′-GGT​ACG​GGT​CCT​GAC​GCC​GG-3′; +211 #1, 5′-AGA​AAG​ATT​CCA​ATT​CAA​CA-3′; +211 #2, 5′-TCT​ACT​AGG​TCT​TAC​CAA​CT-3′; Runx motif 1, 5′-GAT​GAA​CTC​AGT​GTG​GTT​T-3′; Runx motif 2, 5′-CTC​GAC​CTG​CCC​TTA​AAT​G-3′; Runx motif 3, 5′-AAA​CTA​ATC​TTT​TCT​CTG​T-3′; and GATA motif, 5′-CTC​TGT​GGG​TGC​TTA​TCA​C-3′.

Scid.adh.2c2 cells were infected with either mock control (pMxs-IRES-GFP) or Myc-Flag-GATA3–containing retrovirus. 3 dpi, Myc-Flag–tagged GATA3-infected GFP⁺ cells were solubilized with the following protease inhibitor–containing immunoprecipitation buffer: 50 mM Tris-HCl (pH 7.5), 150 mM NaCl, 10% glycerol, 0.1% Tween, 1 mM EDTA, 10 mM NaF, 1 mM DTT, and a protease inhibitor cocktail (Roche Applied Science) and lysed on ice for 30 min with gentle shaking and sonicated on a Misonix S-4000 sonicator (Qsonica) for three cycles, amplitude 20 for 30 s, followed by a 30-s rest. The insoluble materials were removed by centrifugation, and immunoprecipitation with anti-Flag M2 agarose (Sigma-Aldrich) was performed overnight at 4°C. Immune complexes were eluted from the agarose by 3xFlag peptide (Sigma-Aldrich), and the eluted GATA3 complexes were subjected to a second immunoprecipitation with anti-Myc gel (MBL). Immune complexes were eluted from the gel with Myc peptide (MBL) and separated by SDS-PAGE. The bands were excised from the gel and subjected to a mass spectrometric analysis to identify corresponding proteins. The gel pieces were washed twice with 100 mM bicarbonate in acetonitrile, and the proteins were digested with trypsin. After adding 0.1% formic acid to the supernatant, the peptides were analyzed by liquid chromatography-tandem mass spectrometry with an Advance ultra-high-performance liquid chromatograph (Bruker) and an Orbitrap Velos Pro mass spectrometer (Thermo Fisher Scientific). The resulting tandem mass spectrometry dataset was analyzed using the Mascot software program (Matrix Science). Mascot score is the probability that the observed match is a random event (Mascot score >100 means the absolute probability <1e-10).

Thymocytes were isolated from 4–6-wk-old Bcl11b-YFP reporter mice. Lin⁺ cells were depleted by staining with biotinylated antibodies against CD8α (eBioscience; 13–0081-86), TCRγδ (13–5711-85), TCRβ (13–5961-85), TER-119, NK1.1, Dx5 (13–5971-82), CD11c, and CD11b, then incubating cells with streptavidin magnetic beads, followed by passing them through an LS magnetic column (Miltenyi Biotec) in accordance with the manufacturer’s instructions. Purified DN cells were stained with c-Kit APCe780 (eBioscience; 17–1171-82), CD25 PE (12–0251-28), CD44 e450 (48–0441-82), and streptavidin PerCPCy5.5 (45–4317-80) and then subjected to intracellular staining for GATA3 AF647 (BD PharMingen; 560068) or PU.1 AF647 (Cell Signaling; 2240) using the BrdU Flow Kit (BD PharMingen).

For staining of sgRNA-introduced BM cells, surface antibodies against CD45 PECy7 (eBioscience; 25–0451-82), c-Kit APC, CD25 APC-e780 (47–0251-82), human-NGFR PE (12–9400-42), and a biotin-conjugated lineage cocktail (CD8α, CD11b, CD11c, Gr-1, TER-119, NK1.1, CD19, TCRβ, and TCRγδ) with streptavidin PerCPCy5.5 were used for staining.

Prior to cell surface staining, cells were treated with 2.4G2 cell supernatant. All of the cells were analyzed using flow cytometers, MacsQuant 10 (Miltenyi Biotec), LSRFortessa (BD PharMingen), or FACSAria (BD PharMingen) with FlowJo software (Tree Star).

ChIP experiments and library preparation were performed as previously described (Hosokawa et al., 2018b; Ungerbäck et al., 2018). Briefly, 5–10 × 10⁶ cells were fixed with 1 mg/ml DSG (Thermo Fisher Scientific) in PBS for 30 min at room temperature followed by an additional 10 min with addition of formaldehyde up to 1%. These conditions were previously found to give efficient detection of Runx1 binding with strong enrichment for Runx target motifs (Hosokawa et al., 2020; Hosokawa et al., 2018b). 5 μg anti-GATA3 mAbs (a mixture of 2.5 µg sc-268 [Santa Cruz Biotechnology] and 2.5 µg MAB26051 [R&D Systems]) or anti-Runx1 mAb (Abcam; ab23980) was prebound to Dynabeads anti-Mouse or anti-Rabbit Ig (Invitrogen) and then added to the diluted chromatin complexes. Precipitated chromatin fragments were cleaned up using Zymo ChIP DNA Clean & Concentrator and used as input for qPCR and/or ChIP-seq.

Note that GATA3 shows highly conditional genomic binding patterns at different stages within the T cell lineage, suggesting influence from factors other than its binding affinities for different genomic sequences (Wei et al., 2011; Zhang et al., 2012). For comparison in Fig. S3 A, a separate pair of DN2b/DN3 samples was also prepared for GATA3 ChIP-seq using fixation with 1% formaldehyde only for 10 min, as described previously (Ungerbäck et al., 2018). The patterns of GATA3 occupancy detected depended on the fixation used. GATA3 associations with many enhancer-like sites near suspected positive target genes were consistent, but GATA3 association with closed regions, promoters, and repeat sequence elements appeared systematically different between the two fixation conditions (compare with Fig. S3 A), with characteristics summarized in Fig. S5 F. Briefly, DSG+FA showed higher association with promoters and ATAC-open sites, whereas FA alone showed higher enrichment for strong GATA binding motifs but a substantially higher proportion of binding to repeat sequences. Thus, different fixation conditions could selectively stabilize interactions with different binding-modulatory chromatin contexts. Admixtures of functional sites with different “background” sequences are expected to alter relative enrichment, a key consideration for global statistical comparisons. However, in this study, the goal was maximal absolute recovery of candidates for functionally important sites within the Spi1 genomic neighborhood to maximize the chance for relevant repression sites to be detected.

For qPCR analysis, 7900HT Fast Real-time PCR System, QuantStudio3 (Applied Biosystems) or StepOnePlus systems (Applied Biosystems) were used with SYBR GreenER qPCR SuperMix (Invitrogen). The data are shown as the mean values (percent input). Primers are listed below. For deep-sequencing analysis, ChIP-seq libraries were constructed using NEBNext ChIP-Seq Library Preparation Kit (E6240, NEB) and sequenced on Illumina HiSeq2500 in single read mode with the read length of 50 nt. All analyses are based on results from two biologically separate replicates. ChIP-seq data were analyzed as described previously (Hosokawa et al., 2018b; Ungerbäck et al., 2018). BigWigs were generated from the aligned SAM or BED-file formats using Samtools (Li et al., 2009), Bedtools (Quinlan and Hall, 2010) and the UCSC genomeCoverageBed and bedGraphToBigWig and normalized to 1 million reads. For visualization of ChIP-seq tracks, bamToBed and genomeCoverageBed were used with the “-split” setting enabled. BigWig files were up-loaded to the UCSC genome browser (http://genome.ucsc.edu; Speir et al., 2016). Runx1 ChIP-seq data in DN1 and DN2b/3 cells and Runx1 and GATA3 ChIP-seq data in Scid.adh.2c2 cells used in this study were previously published (GEO accession numbers GSE103953 and GSE93755; Hosokawa et al., 2018b): Slc39a13 pro. forward (FW), 5′-CCT​TCT​GAG​GAT​GCA​GTT​CC-3′; Slc39a13 pro. reverse (RV), 5′-CTG​CTG​ACT​CAG​AGA​GCC​ATA​G-3′; URE FW, 5′-GGG​CGC​TTC​CTG​TTT​TCT-3′; URE RV, 5′-CTG​GGC​AGG​GTC​AGA​GTG-3′; CE4 FW, 5′-TTT​GAG​GTG​CAG​GAG​ACT​GA-3′; CE4 RV, 5′-TGA​ATC​TTA​CTG​AAC​CCC​GTC​T-3′; intron 2 FW, 5′-CTC​GAC​CTG​CCC​TTA​AAT​GT-3′; and intron 2 RV, 5′-CCA​GTG​ATA​AGC​ACC​CAC​AG-3′.

Total RNA was isolated from samples of 2 × 10⁵ cultured cells using a RNeasy Micro Kit (Qiagen). Reverse transcription was performed using the Superscript III kit (Invitrogen). Genomic DNA was isolated from 5 × 10⁵ cultured cells using a NucleoSpin Tissue kit (Macherey-Nagel). For qPCR, the 7900HT Fast Real-time PCR System, QuantStudio3 (Applied Biosystems), or StepOnePlus system (Applied Biosystems) were used with SYBR GreenER qPCR SuperMix (Invitrogen). The data are shown as the relative expression normalized to Actb (for cDNA) or Gapdh promoter (genomic DNA) signals. The following primers were used in this study: PU.1 FW, 5′-TTC​TGC​ACG​GGG​AGA​CAG-3′; PU.1 RV, 5′-GTC​CAC​CCA​CCA​GAT​GCT-3′; GATA3 FW, 5′-TAT​CCT​CCG​ACC​CAC​CAC-3′; GATA3 RV, 5′-AAG​GGG​CTG​AGG​TTC​CAG-3′; Runx1 FW, 5′-CTC​CGT​GCT​ACC​CAC​TCA​CT-3′; Runx1 RV, 5′-ATG​ACG​GTG​ACC​AGA​GTG​C-3′; Actb FW, TAC​AGC​CCG​GGG​AGC​AT-3′; Actb RV, 5′-ACA​CCC​GCC​ACC​AGT​TC-3′; Bcl11b FW, 5′-TGG​ATG​CCA​GTG​TGA​GTT​GT-3′; Bcl11b RV, 5′-GCT​GCT​TGC​ATG​TTG​TGC-3′; Slc39a13 pro. FW, 5′-CCT​TCT​GAG​GAT​GCA​GTT​CC-3′; Slc39a13 pro. RV, 5′-CTG​CTG​ACT​CAG​AGA​GCC​ATA​G-3′; URE FW, 5′-GGG​CGC​TTC​CTG​TTT​TCT-3′; URE RV, CTG​GGC​AGG​GTC​AGA​GTG-3′; CE4 FW, 5′-TTT​GAG​GTG​CAG​GAG​ACT​GA-3′; 5′-CE4 RV, TGA​ATC​TTA​CTG​AAC​CCC​GTC​T-3′; intron 2 FW, 5′-CTC​GAC​CTG​CCC​TTA​AAT​GT-3′; intron 2 RV, 5′-CCA​GTG​ATA​AGC​ACC​CAC​AG-3′; +145 kb FW, 5′-GGC​ACC​TTT​AAC​CCA​GAG​TTC-3′; +145 kb RV, 5′-AAT​GAA​TGA​CAT​CAG​GCT​ACC​A-3′; +167 kb FW, 5′-GAA​GTT​TGG​GCC​AGT​CCA​C-3′; +167 kb RV, 5′-TCT​GGG​CCA​ATG​AAC​GTC-3′; +211 kb FW, 5′-CTG​TAA​ACA​GGA​AAC​ACT​CAG​CTC-3′; +211 kb RV, 5′-GTG​GAT​GGC​TTG​CAG​TAG​G-3′; Ddb2 FW, 5′-TTG​GCA​TCA​AGG​ACA​AAC​CT-3′; Ddb2 RV, 5′-AAA​CTG​GTT​GGT​ATT​GAG​ATG​GTT-3′; Pacsin3 FW, 5′-GAA​GGC​AGA​CAG​CTC​CAT​GT-3′; and Pacsin3 RV, 5′-GGG​TCT​GCT​CAT​ACT​GGG​TTT-3′.

The statistical significance of differences between datasets was determined by two-sided Student’s t test using Excel. Statistical details of experiments can be found in the figure legends. In all figures, error bars indicate SD.

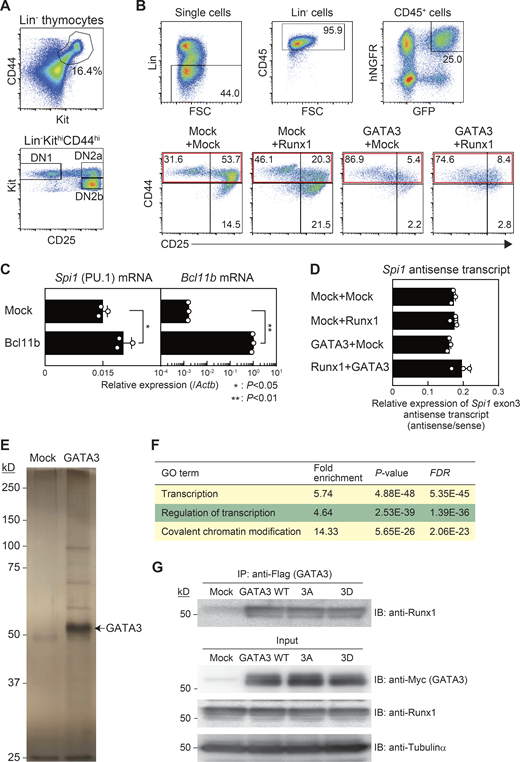

Fig. S1 shows gating strategies for DN subsets in thymocytes and in vitro–differentiated pro–T cells, Spi1 expression levels in Bcl11b introduced pro–T cells, the ratio of sense and antisense Spi1 transcripts, proteomics data for GATA3-interacting molecules, and interactions between Runx1 and GATA3 mutants. Fig. S2 shows evidence for successful Runx1 and GATA3 disruption by Cas9 and gating strategies for DN subsets from in vitro–differentiated pro–T cells. Fig. S3 shows a comparison of GATA3 binding sites in different fixation conditions, a comparison of chromatin looping before and after T lineage commitment around the Spi1 locus, and a comparison of Runx1 and GATA3 binding patterns in phase 1, phase 2, and a DN3-like cell line. Fig. S4 shows a comparison of Runx1 and GATA3 binding patterns in GATA3- or Runx1-deficient pro–T cells around the Spi1 locus, Runx1 and GATA3 binding patterns around the postcommitment stage-specific distal chromatin looping sites, and Spi1 expression levels in +145, +167, or +211 kb element–disrupted DN3-like cell lines. Fig. S5 shows representative consensus motifs for Runx1 and GATA3, gating strategies for DN subsets in BM-derived pro–T cells with motif disruptions, validation of mutations in sg4 motifs mix-transduced pro–T cells, Spi1 expression levels in the cis-regulatory element disrupted cells, and a table comparing GATA3 occupancy site characteristics under different fixation conditions. Table S1 lists GATA3-interacting molecules in a pro–T cell-like cell line, Scid.adh.2c2.

The GEO accession number for all new deep-sequencing data reported in this paper is GSE159960.
