Functional screen identifies regulators of murine hematopoietic stem cell repopulation

The following public databases of HSC gene expression were interrogated to prioritize 51 gene candidates for study: Hematopoietic Fingerprints, the Immunological Genome Project, and StemSite (Chambers et al., 2007; Heng and Painter, 2008; McKinney-Freeman et al., 2012). Gene candidates were prioritized if their expression was enriched in adult HSC relative to downstream progeny or earlier stages of HSC ontogeny. Quantitative RT-PCR (qRT-PCR) was used to interrogate the expression of each prioritized gene candidate in cells isolated from murine BM (Fig. 1, A and B). We found that 44/51 GOI were expressed in lineage⁻ BM hematopoietic cells, the majority of which were highly enriched for expression in Lineage⁻Sca-1⁺c-Kit⁺ (LSK) cells relative to downstream progeny (Fig. 1 B).

To interrogate a role for GOI in HSC engraftment, we used shRNAs to disrupt their expression in LSK cells before transplantation into lethally irradiated mice. At least four miR-30–embedded shRNAs were designed to target each of the 44 GOI whose expression was validated in HSPCs. shRNAs were cloned into a lentiviral vector downstream of an MSCV promoter and upstream of a phosphoglycerate kinase promoter driving the fluorescent reporter mCherry (Fig. 1 A). Each shRNA was transduced into LSK cells and tested for gene knockdown by qRT-PCR. Mean transduction for these experiments was 76.7 ± 7% (Fig. 1 C). At least two shRNA were identified that affected >75% transcript knockdown in LSK cells for 41/44 GOI (Fig. 1 D and Table S2). Thus, these genes were further screened.

We next conducted pilot studies to assess the feasibility of using highly purified HSCs (LSK CD150⁺CD48⁻ cells) in our screen. CD45.2⁺ HSCs were transduced with control shRNAs and transplanted with an equal number of mock-transduced CD45.1⁺ HSCs into CD45.1⁺/CD45.2⁺ recipients. These experiments suffered from high signal/noise incompatible with a robust screen (unpublished data). We determined that this high signal/noise resulted primarily from the technical difficulty of evenly distributing small cell numbers among mice in a cohort. Thus, we chose to use the more abundant LSK cell population for our screen. Although LSK cells are a mixture of HSPCs, by >16 wk after transplants, we can readily assess the effect of gene knockdown on stable HSC repopulation. Indeed, pilot studies also revealed that HSCs consistently transduce with a slightly higher frequency than LSK cells (Fig. 1 E). Thus, HSCs are robustly transduced in our system.

CD45.2⁺ Test LSK cells were transduced with individual shRNAs and then transplanted into ablated CD45.1⁺/CD45.2⁺ mice with an equal number of CD45.1⁺ mock-transduced Competitor LSK cells (Fig. 2 A). Cells were transplanted within 24 h of their isolation and transduction; i.e., there was no extended ex vivo culture period as in previous functional screens of primary HSPCs (Ali et al., 2009; Deneault et al., 2009; Hope et al., 2010). For each transplant, an aliquot of transduced cells was maintained in liquid culture and analyzed after 3–4 d for transduction efficiency. Mean transduction for these experiments was 67.6 ± 8.5% (Fig. 2 B). Recipient peripheral blood (PB) was analyzed for Test versus Competitor contribution for >16 wk after transplant. A total of 781 mice were transplanted.

Knockdown of 18 genes resulted in a loss of HSPC repopulating potential relative to control with two independent shRNAs in our initial screen (Arhgef5, Cadps2, Col4a2, Crispld1, Emcn, Foxa3, Glis2, Gng11, Gpr56, Myct1, Nbea, P2ry14, Rbpms, Sox4, Stat4, Trp53bp1, Trpc6, and Zbtb20; Fig. 2 C). Repopulation loss was apparent 4 wk after transplant and persisted for >16 wk for all GOI except Stat4 (Fig. 2 C), where the loss of repopulation was most dramatic >16 wk after transplant. Knockdown of most of these genes did not affect the short-term (i.e., 14 d) maintenance of hematopoietic cells ex vivo (unpublished data). In contrast, knockdown of 20 GOI did not affect in vivo repopulating potential (Fig. 2 D). To confirm stable gene knockdown in our system, mice transplanted with LSK cells transduced with Grb10 shRNAs, a non-hit, were examined (Fig. 2, E–G). Both Grb10 shRNAs effected >95% transcript loss in LSK cells (Fig. 2 F). qRT-PCR analysis of CD45.2⁺ LSK cells isolated from mice transplanted 30 wk prior with either control or Grb10 shRNA–treated cells revealed persistent gene knockdown in these cells (Fig. 2 G).

Knockdown of six GOI yielded a repopulating loss with only 1/2 shRNAs tested (Eya2, Fstl1, Gucy1a3, Msrb2, Rbp1, and Myct1; Fig. 2, C and D). In each case, except Myct1 (discussed in the next section), this loss of repopulation was attributable to nonspecific toxicity of the effecting shRNA (e.g., a third Gucy1a3 shRNA did not affect repopulation; Fig. 3 F).

The 18 hits identified in our screen were retested to confirm their role as regulators of LSK cell in vivo repopulating activity. Here, to improve resolution, only vector⁺ Test LSK cells (mCherry⁺CD45.2⁺) were transplanted into ablated mice (Fig. 3 A). Cells were sorted and transplanted 44 h after transduction, along with an equal number of CD45.1⁺ mock-transduced and mock-sorted Competitor LSK cells. A series of pilot studies revealed that a minimum of 40 h was required after transduction to visualize and isolate vector⁺ LSK cells by flow cytometry (Fig. 3 B). Here, we also retested five genes that scored as non-hits (Fstl1, Gucy1a3, Rbp1, Smarca2, and Zfp521; Fig. 2 D). Smarca2 and Zfp521 were retested because transduction efficiency was low in our initial screen for these genes or their shRNAs did not yield a complete gene knockdown, resulting in a possible false negative (Fig. 3, C and D). Fstl1, Gucy1a3, and Rbp1 were non-hits whose two shRNAs yielded disparate outcomes in our initial screen, necessitating a more thorough analysis. A total of 527 mice were transplanted in these experiments.

15 loss-of-function hits retested were confirmed as requirements for optimal HSPC repopulation (Fig. 3 E). Repopulation loss was more dramatic in these experiments relative to our initial screen, likely because of greater resolution resulting from transplantation of only vector⁺ cells. Three genes that initially scored as non-hits were scored as hits when retested: Fstl1, Smarca2, and Zfp521. As mentioned, the transduction efficiencies for Smarca2 and Zfp521 were low in our initial screen (Fig. 3 C), likely resulting in a false negative in those experiments. As both transduction and gene knockdown for Fstl1 were high in our initial screen (Fig. 2 B and not depicted), it appears that transplantation of only vector⁺ cells is necessary to clearly resolve a repopulating loss with both Fstl1 shRNAs. Alternatively, the prolonged culture in these experiments might exact additional stress on the cells, resulting in a loss of in vivo repopulation not apparent in our original screen. Six initial hits did not affect repopulating potential when retested: Col4a2, Gng11, Rbpms, Trp53bp1, Trpc6, and Zbtb20 (Fig. 3 F). As only one Zbtb20 shRNA was tested in our initial screen, two additional Zbtb20 shRNAs were tested in our confirmation experiments (Fig. 3 F). Only the original Zbtb20 shRNA mediated a loss of repopulation, suggesting that this shRNA likely had off-target effects. Once again, Stat4 was the only hit that displayed a significant increase in repopulating loss between 4 and >16 wk after transplant (Fig. 3 E), suggesting that Stat4 regulates the long-term repopulating potential of HSCs, rather than their early engraftment. The distribution of T, B, or myeloid cells in the mCherry⁺CD45.2⁺ compartment of recipients was only significantly perturbed in recipients of Cadps2 and Foxa3 shRNA–treated cells (Fig. 3 G). Loss of Cadps2 resulted in a significant expansion of B cells and a concomitant loss of T cells, suggesting that lymphoid progenitor function might be perturbed. Loss of Foxa3 perturbed the myeloid compartment (Fig. 3 G).

In sum, via our two-pronged screening approach, we rigorously identified 15 genes required for LSK cell in vivo repopulating activity: Arhgef5, Cadps2, Crispld1, Emcn, Foxa3, Fstl1, Glis2, Gpr56, Myct1, Nbea, P2ry14, Smarca2, Sox4, Stat4, and Zfp521 (Fig. 3 E). These GOI regulate a diverse array of cellular processes, including epigenetics, adhesion and migration, vesicle trafficking and cell surface receptor turnover, and the extracellular matrix.

Loss of Gprasp2 appeared to favor LSK cell in vivo repopulating activity in our study. Here, mCherry⁺CD45.2⁺ was positively selectedover time in the PB of 17/20 recipients of Gprasp2 shRNA–transduced LSK cells compared with only 2/9 recipients of control cells (Fig. 4 A). Similarly, loss of Armcx1 also appeared to enhance HSPC repopulation (Fig. 4 Bi). As only mCherry⁺ cells were transplanted in these experiments, it was not possible to monitor for mCherry selection. However, although not statistically significant, 7/11 recipients of Armcx1 shRNA–transduced Test HSPCs showed moderately enhanced chimerism >16 wk after transplant relative to controls (Fig. 4 B, i). To rigorously assess whether loss of Armcx1 or Gprasp2 enhanced LSK cell in vivo repopulating activity, mCherry⁺CD45.2⁺ Test LSK cells (transduced with either gene-specific or control shRNAs) were transplanted 1:4 with CD45.1⁺ mock-transduced and mock-sorted Competitor LSK cells, thus putting the Test cells at a significant repopulating disadvantage relative to Competitor. Here, loss of Armcx1 and Gprasp2 enhanced the repopulating potential of Test LSK cells in the majority of transplanted mice (Fig. 4 B, ii). This result was true for multiple independent shRNAs tested for each gene. Loss of Armcx1 and Gprasp2 did not appear to perturb any specific hematopoietic PB lineages (Fig. 4 C). Loss of the gene Leprel2 also appeared to enhance repopulation in both our initial screen and after retesting (P = 0.02; Fig. 4 B, i; and not depicted). However, when Leprel2 was reexamined in a 1:4 Test versus Competitor transplant, enhanced repopulation was no longer apparent (Fig. 4 B, ii).

In summary, loss of Gprasp2 and Armcx1 enhanced LSK cell repopulating activity, suggesting that these genes may negatively impact HSPC engraftment. Interestingly, Gprasp2 and Armcx1 belong to the same family of G-protein coupled receptor associated sorting proteins (GASP), strongly implicating this gene family in the negative regulation of HSPC repopulating potential (Abu-Helo and Simonin, 2010).

To illuminate the cellular mechanisms of gene knockdown on HSPCs, LSK cells transduced with control or gene-specific shRNAs were assayed for CFU potential, cell cycle, and apoptosis (Fig. 5,AandB; and Fig. S1). We also examined CD45.2⁺ chimerism in the BM of recipients of gene-deficient CD45.2⁺ LSK cells >16 wk after transplant (Fig. 5 C).

LSK cells lacking Nbea and Glis2 displayed an increase in CFU-GEMM potential (P = 0.046 and 0.07, respectively; Fig. 5 A). This correlated with a loss of CD45.2⁺ chimerism downstream of HSCs or multipotent progenitors (MPPs) in recipients of LSK cells deficient in these genes (Fig. 5 C). These data suggest a block in differentiation at the HSC or MPP stage, resulting in an accumulation of CFU-GEMM. Glis2-deficient LSK cells also displayed elevated apoptosis ex vivo (P = 0.08; Fig. 5 B), suggesting that this block in differentiation exists in concert with reduced progenitor survival downstream of HSCs and MPPs.

Knockdown of Stat4, Zfp521, and Foxa3 also resulted in an enhanced loss of CD45.2⁺ chimerism downstream of HSCs in transplanted mice (Fig. 5 C ). Knockdown of Zfp521 in LSK cells ex vivo resulted in a slight expansion of CFU-G/M/GM at the expense of CFU-GEMM (P = 0.08) and an ∼50% loss of apoptotic cells, although CFU-G/M/GM expansion and loss of apoptosis did not score as statistically significant here (Fig. 5, A and B). These data suggest that CFU-GEMM lacking Zfp521 differentiate rapidly to committed progenitors that display enhanced survival ex vivo, but fail to establish robust chimerism in vivo.

Arhgef5 and Emcn knockdown caused a significant loss in total CFU from LSK cells (P = 0.027; P = 0.035, respectively), whereas Fstl1 knockdown resulted in a dramatic, but only marginally significant, loss in CFU (P = 0.096; Fig. 5 A). This correlated with a loss of CD45.2⁺ chimerism across all BM compartments in recipients of LSK cells deficient in these genes, except for Fstl1, for whom BM chimerism was not determined (Fig. 5 C). As Emcn-deficient LSK cells did not display significant perturbations in cell cycle or apoptosis ex vivo, loss of in vivo repopulating activity may result from perturbed niche interactions after transplant effecting survival, differentiation, or proliferation. However, Arhgef5-deficient LSK cells displayed about a 40% expansion of cells in G₁ ex vivo, relative to control (P = 0.089), which was commensurate with a modest reduction of cells in both G₀ and G₂–S–M (P > 0.05 for both). Thus, perturbations in cell cycle progression may contribute to the repopulating defect of Arhgef5-deficient LSK cells. In addition to a dramatic loss in total CFU, Fstl1-deficient cells displayed a rapid loss of the LSK cell surface phenotype during culture (P = 0.079), suggesting accelerated differentiation commensurate with a loss of stem and progenitor cell potential. Knockdown of Cadps2 in CD45.2⁺ LSK cells also resulted in a loss of CD45.2⁺ chimerism across all BM compartments after transplant (Fig. 5 C). This correlated with perturbations in the frequency of select CFU: a marginally significant, albeit modest, loss of CFU-E (P = 0.057) and a marginally significant increase in CFU-G/M/GM (P = 0.06) was apparent after knockdown of this gene (Fig. 5 A).

In contrast, recipients of Armcx1 and Gprasp2 shRNA–treated cells displayed enhanced CD45.2⁺ chimerism in all HSPC compartments, correlating with enhanced PB chimerism (Fig. 4 B and Fig. 5 C). LSK cells treated with Gprasp2 shRNAs displayed significantly enhanced survival ex vivo and a twofold expansion of cells in G₀, commensurate with a loss of cells in G₂–S–M (P = 0.002). Thus, enhanced survival and a slow-growing phenotype may contribute to enhanced in vivo repopulation here, as observed in Runx1 mutants whose HSCs also display a repopulating advantage (Cai et al., 2015). In contrast, knockdown of Armcx1 in LSK cells ex vivo had no significant effect on CFU formation, cell cycle, or apoptosis (Fig. 5, A and B), suggesting that enhanced repopulation after knockdown of Armcx1 may result from specific in vivo interactions.

Our screen identified Foxa3 as a putative novel regulator of LSK cell in vivo repopulating activity (Fig. 2 C and Fig. 3 E). As Foxa genes have never been implicated in hematopoiesis, we decided to explore Foxa3’s putative role in HSCs further by examining Foxa3^−/− mice. Although Foxa3 is selectively expressed by HSCs in BM (Fig. 6 A), Foxa3^−/− mice display normal PB counts and BM HSPC frequencies (Fig. 6, B and C). Foxa3^−/− HSCs generated fewer CFU than Foxa3^+/+ HSCs, suggesting a loss of functional HSCs, which could result from fewer absolute numbers of functional HSCs or a failure of HSC activation in culture (Fig. 6 D). Interestingly, Foxa3^−/− LSK cells showed no loss of CFU potential relative to Foxa3^+/+ LSK cells (unpublished data). As LSK cells are a mix of HSCs and progenitors, these data suggest that progenitors downstream of Foxa3^−/− HSCs retain CFU potential.

CD45.2⁺ Foxa3^−/− or Foxa3^+/+ whole BM (WBM) was transplanted with an equal amount of CD45.1⁺ WBM into ablated CD45.1⁺/CD45.2⁺ recipients (Fig. 6, E and F). A significant loss in CD45.2⁺ PB reconstitution was apparent in Foxa3^−/− recipients relative to Foxa3^+/+ recipients 20 wk after transplant (Fig. 6 F). There was no obvious skewing in the reconstitution of specific PB lineages in Foxa3^−/− recipients (unpublished data). Although Foxa3^−/− cells contributed less than Foxa3^+/+ cells to recipient LSK, HSC, and MPP compartments (Fig. 6 G), Foxa3^−/− chimerism in downstream progenitor compartments was unperturbed (unpublished data). When CD45.2⁺ WBM from primary recipients was transplanted into secondary recipients, Foxa3^−/− WBM displayed an even more pronounced repopulating defect than in primary transplants (Fig. 6, E and F), suggesting that Foxa3^−/− HSCs do not self-renew efficiently. Finally, Foxa3^−/− WBM contained significantly fewer repopulating HSCs, relative to control, when transplanted at limiting dilutions (Fig. 6 H and Table S3; P = 0.0046).

In sum, Foxa3^−/− HSCs are defective in CFU potential, primary and secondary in vivo repopulation, and the ability to efficiently contribute to the most primitive HSPC WBM compartments (HSC and MPP). These data suggest that Foxa3^−/− BM contains fewer repopulating cells than Foxa3^+/+ marrow and that self-renewal may be compromised in Foxa3^−/− HSCs.

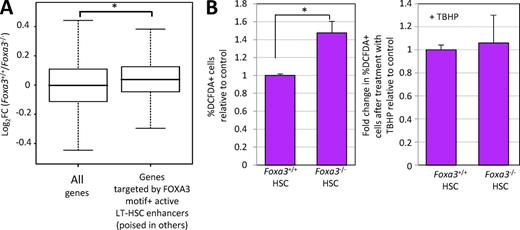

To begin to understand how Foxa3 regulates HSC function, we asked whether the FOXA3 binding motif is significantly enriched in active and/or poised enhancers in long-term HSCs (LT-HSCs) and progeny (Lara-Astiaso et al., 2014). We found the FOXA3-binding motif enriched in enhancers active in LT-HSCs but poised in downstream populations (Table S4), suggesting that Foxa3 likely functions at the level of the LT-HSCs, which agrees with our finding that Foxa3 is most highly expressed in HSCs (Fig. 6 A). These enhancers were not enriched for any other known transcription factor binding motifs, suggesting that Foxa3 either acts alone at these sites or cooperates with regulators whose motifs have not yet been defined (unpublished data). We next used IM-PET (Integrated Method for Predicting Enhancer Targets) to identify the promoters likely targeted by these FOXA3-binding motif⁺ enhancers (Table S5; He et al., 2014). The resulting gene set was expressed higher than the rest of the genes in our microarray data (Foxa3^+/+ HSC versus Foxa3^−/− HSC), confirming regulation of these genes by Foxa3 in LT-HSCs (Fig. 7 A and Table S6). Gene Ontology (GO) enrichment analysis (Ashburner et al., 2000) of this gene set yielded terms including cell cycle (mitotic cell cycle and DNA replication), metabolism (nucleic acid biosynthesis and peptidyl-asparagine modification), and stress (ER overload response, response to ER stress, ER-nuclear signaling pathway) as putative regulated processes (Table S7). Ingenuity Pathway analysis yielded multiple pathways that matched our gene set because of a common signature that included: Myc, Fos, Stat5a, PIK3CA, Nras, Grb2, PIK3CG, SOS1, and Stat3 (Table S8). These are molecules commonly found downstream of growth and cytokine receptors that interface with survival, cell cycle, and metabolic signaling. Unfolded Protein Response and Endoplasmic Reticulum Stress Pathways also matched to our dataset. Top Predicted Regulators included Myc, TP53, and TGFβ (Table S8). Finally, GSEA analysis also returned categories indicative of perturbed stress, signaling, and metabolic pathways (e.g., apoptosis by doxyrubicin, up in CML, biopolymer metabolic process; Table S9). Cumulatively, these analyses implicate Foxa3 in the regulation of HSC metabolic and proliferative stress. To explore this further, CD45.2⁺ HSCs (i.e., LSK CD150⁺CD48⁻ cells) were isolated from recipients of CD45.2⁺ Foxa3^+/+ or Foxa3^−/− WBM >8 mo after transplant and examined by staining with 2′,7′-dichlorofluorescin diacetate (DCFDA) for reactive oxygen species (ROS). Foxa3^−/− HSCs displayed a 50% increase in ROS relative to Foxa3^+/+ HSCs (P = 0.006; Fig. 7 B). Despite the increase in basal ROS levels, Foxa3^−/− HSCs were able to recover from induced ROS similar to control HSCs (Fig. 7 B). These data confirm bioinformatics predictions that Foxa3^−/− HSCs are subject to elevated metabolic stress. Further work will be required to determine exactly how Foxa3 contributes to the control of ROS levels in HSCs.

In sum, Foxa3 is dispensable to the hematopoietic compartment during homeostasis (Fig. 6, B and C), yet critical for optimal HSC function after transplant (Fig. 6 F). Under these conditions, activation of pathways regulating proliferation and metabolism is key. Indeed, the Foxa3^−/− repopulating phenotype is most dramatic when greater pressure to repopulate is placed on individual cells (e.g., in limiting dilution transplants and serial transplantation; Fig. 6 H) and Foxa3^−/− HSCs display a significant increase in ROS, which is known to compromise HSC self-renewal, maintenance, and repopulating potential (Ito et al., 2006; Jang and Sharkis, 2007; Tothova et al., 2007; Taniguchi Ishikawa et al., 2012).

Here, we report a transplant-based screen for novel regulators of HSPC engraftment. By minimizing the ex vivo culture of HSPCs before transplant (24–44 h), we focused our study on identifying regulators of HSPC repopulation. Our approach used multiple independent shRNAs targeting prioritized gene candidates. Each shRNA was functionally validated to mediate robust gene knockdown in primary LSK cells (Fig. 1 D). To ensure high resolution of hits from non-hits, we verified robust cell transduction for each experiment in our functional screen (Fig. 2 B). Further, each putative hit was validated by retesting, thereby minimizing the likelihood of false positives caused by off-target effects or viral integration. More than 1,300 mice were transplanted to complete this study. These variables combined to yield a hit rate of 41.5% (17/41 genes tested), illustrating the robustness of our approach and the fidelity of the publically available bioinformatics resources from which our gene candidates were drawn (Chambers et al., 2007; Heng and Painter, 2008; McKinney-Freeman et al., 2012).

We identified 17 new functional regulators of LSK cell in vivo repopulating activity: 15 are required for optimal repopulation (Arhgef5, Cadps2, Crispld1, Emcn, Foxa3, Fstl1, Glis2, Gpr56, Myct1, Nbea, P2ry14, Smarca2, Sox4, Stat4, and Zfp521) and 2 are negative regulators (Armcx1 and Gprasp2). 12 of these genes have never been implicated in HSPC biology, although 5 (e.g., P2ry14, Smarca2, Sox4, and Gpr56) have recently been shown to play an important role in leukemia or HSCs (Zhang et al., 2013; Buscarlet et al., 2014; Cho et al., 2014; Solaimani Kartalaei et al., 2015). These studies confirm that our screen has identified genes relevant to HSC function. Prior screens of mouse and human HSPCs involved extensive culture (12–17 d) before transplant or followed the preservation of a stem cell phenotype or colony formation during culture (5 d to 10 wk; Ali et al., 2009; Deneault et al., 2009; Boitano et al., 2010; Hope et al., 2010), thus biasing their read-out for genes involved in self-renewal or stem cell maintenance, two processes critical to HSC function and culture. By minimizing LSK cell culture before transplant, we reasoned that our screen would identify genes regulating not only self-renewal, which can enhance HSPC repopulation, but also distinct cellular processes critical to the long-term reconstitution of an ablated hematopoietic system that may not have been as readily discernable in these prior studies (e.g., niche lodgement and retention, survival under stress, activation, and differentiation).

Prior studies also often focused on specific molecular processes (e.g. nuclear factors, polarity and asymmetric division, and histone methylation). Our screen was unbiased in that our two criteria were (1) confirmation by qRT-PCR of high expression in LSK cells and (2) identification of effective shRNAs. This approach discovered hits involved in distinct cellular and molecular processes, some currently understudied in HSPCs. For example, multiple likely regulators of vesicular trafficking and cell surface receptor turnover were identified as regulators of LSK cell repopulating activity (Nbea, Cadsps2, Armcx1, and Gprasp2; Cisternas et al., 2003; Abu-Helo and Simonin, 2010; Moser et al., 2010; Niesmann et al., 2011; Fig. 3). These genes may regulate stable HSPC–niche interactions or the transduction of key survival signals during hematopoietic stress. Indeed, changes in CFU activity, cell cycle, and apoptosis in LSK cells maintained ex vivo after knockdown of Nbea, Cadps2, or Gprasp2 (Fig. 5), suggest regulation of intrinsic pathways controlling differentiation, survival, and/or proliferation by these genes.

Arhgef5, a Rho guanine nucleotide exchange factor, has been implicated in podosome formation (Kuroiwa et al., 2011). Podosomes are important for cell adhesion and migration. Knockdown of Arhgef5 in LSK cells maintained ex vivo resulted in an accumulation of cells in G₁, as well as a loss of total CFU formation (Fig. 5 A and B). Gpr56, previously implicated in neuronal migration, was recently shown to participate in HSC development and adhesion. Gpr56^−/− HSCs also display a repopulating defect, as seen in our study after gene knockdown (Saito et al., 2013; Singer et al., 2013; Rao et al., 2015; Solaimani Kartalaei et al., 2015). We also identified secreted molecules (Fstl1 and Crispld1). Fstl1 is a TGFβ and BMP antagonist, whereas Crispld1 is likely a protease that targets the extracellular matrix (Gibbs et al., 2008; Geng et al., 2011). Knockdown of Fstl1 in LSK cells led to fewer CFUs and loss of the LSK cell surface phenotype, suggesting an intrinsic loss of HSPC potential (Fig. 5). These genes suggest that, to facilitate stable engraftment and in vivo repopulation, HSPCs may autonomously condition their niche and culture by countering inhibitory signaling pathways (e.g., TGFβ) and remodeling the extracellular matrix (Arhgef5 and Crispld1).

Although Myct1 has never been implicated in HSPC function, it is a c-Myc target that modulates HSC–niche interactions via N-cadherin (Wilson et al., 2004). There are currently no primary articles on Zfp521, a Krueppel-type C2H2 zinc finger gene family member and possible transcriptional repressor, given it contains a KRAB domain (Urrutia, 2003). Knockdown of this gene in LSK cells perturbed CFU formation, appeared to enhance survival ex vivo, and led to a dramatic loss of chimerism downstream of the HSC compartment in the BM of transplanted mice, suggesting that Zfp521 regulates the differentiation and survival of HSPCs (Fig. 5). Although several of our hits are known to be expressed by HSPCs or have been implicated in leukemogenesis, here we show them to be regulators of HSPC repopulation (Emcn, Glis2, Sox4, and Smarca2; Matsubara et al., 2005; Gruber et al., 2012; Masetti et al., 2013; Zhang et al., 2013; Buscarlet et al., 2014; Ma et al., 2014). Finally, our hit, the purinergic receptor P2ry14, was very recently shown to be an essential regulator of stress hematopoiesis and HSC repopulation, further validating our screen (Cho et al., 2014). Globally, the results of our screen support a model in which active cross talk between the BM niche and HSPCs is essential for stable hematopoietic repopulation after transplant. Thus, exogenous treatment of HSCs with Fstl1 and Crispld1 may promote their stable engraftment. Indeed, it was recently reported that Fstl1, which is also expressed in cardiac epicardium, promotes the regeneration of cardiomyocytes both in vivo and ex vivo (Wei et al., 2015). This remains to be tested in HSPCs. Each hit identified here is a window into the processes that regulate the in vivo repopulating activity of HSPCs and warrant further investigation.

Although homing is critical to HSPC engraftment, our screen was not technically designed to identify homing regulators: in our system, maximum gene knockdown occurs 48–72 h after transduction (Holmfeldt et al., 2013). Transduced Test cells are transplanted 24–44 h after transduction, before full gene knockdown. Thus, further work is required to determine whether any of the hits identified here regulate HSC homing.

We identified Foxa3 as a novel regulator of HSPC repopulation (Fig. 2 C and Fig. 3 E). Foxa genes have never before been implicated in HSPC biology. We found that Foxa3 is highly expressed by HSCs (Fig. 6 A) and, although Foxa3^−/− mice display normal hematopoiesis (Fig. 6, B and C), Foxa3^−/− HSCs are deficient in CFUs and primary and secondary in vivo repopulation (Fig. 6, D–F). Other genes are also known to be dispensable for homeostasis but are absolutely required for HSC function under pathophysiological conditions, such as hematopoietic stress (e.g., p21, β-catenin, FoxOs, Gadd45a, and Gab2; Cheng et al., 2000; Zhang et al., 2007; Zhao et al., 2007; Chen et al., 2014). Indeed, P2ry14, also identified here, is not required for steady-state hematopoiesis but is essential for HSC function after stress and injury (Cho et al., 2014). Thus, mechanisms that preserve the hematopoietic compartment during stress (e.g., after transplantation) are often not required for homeostasis, and Foxa3 appears to be a newly discovered regulator of these processes. Indeed, genes targeted by active LT-HSC enhancers containing FOXA3-binding motifs were enriched for pathways controlling cell cycle, metabolism, and stress, and Foxa3^−/− HSCs display a significant increase in ROS content (Fig. 7 B and Tables S4 and S7–S9). Increased ROS levels are known to compromise HSC self-renewal, quiescence, and repopulating potential (Ito et al., 2006; Jang and Sharkis, 2007; Tothova et al., 2007; Taniguchi Ishikawa et al., 2012). Foxa3^−/− HSC’s failure to efficiently repopulate ablated mice was most pronounced when limiting cell numbers were transplanted and after serial transplantation (Fig. 6 H). These are both scenarios in which the pressure on individual repopulating cells to expand and differentiate is extreme. In contrast, during homeostasis, when the pressure on individual cells to maintain steady-state hematopoiesis is low, Foxa3 is dispensable. Thus, in the absence of Foxa3, HSPCs fail to respond efficiently to hematologic stress.

HSPC in vivo repopulating activity is complex, requiring the orchestration of many molecular and cellular processes. This is evident by the disparate putative functions of the molecules identified in our screen. There is a burgeoning interest in better understanding the regulation of stable HSPC engraftment, as manipulating this process represents a promising strategy for improving the efficiency of HSCT. Our study represents a valuable resource that will catalyze investigation into novel cellular mechanisms that may control this process. The better we understand the full scope of the cellular mechanisms that regulate stable HSPC engraftment, the better equipped we will be to develop novel therapies to improve HSCT outcomes.

C57BL/6J and C57BL/6.SJL-PtprcaPep3b/BoyJ mice were acquired from The Jackson Laboratory and housed in a pathogen-free facility. All animal experiments were performed according to procedures approved by the St. Jude Children’s Research Hospital Institutional Animal Care and Use Committee. C57BL/6 Foxa3^−/− mice were a gift from the laboratory of K. Kaestner (University of Pennsylvania, Philadelphia, PA).

PCRs were performed using GoTaq DNA Polymerase (Promega) and performed as indicated by the manufacturer. PCR conditions: 95°C, 2 min; (95°C, 30 min; 60°C, 30 min; 72°C, 30 min) × 35; 72°C, 10 min. Primers: Foxa3 F2 (5′-ACATGACCTTGAACCCACTC-3′), Foxa3 R1 (5′-TAGTACGGGAAGAGGTCCAT-3′), Foxa3 LacZ3 (5′-AATGTGAGCGAGTAACAACC-3′). WT PCR, Foxa3 F2⁺ Foxa3 R1; WT band, 349 bp. KO PCR, Foxa3 F2⁺ Foxa2 LacZ3; Knock-out band, 648 bp. qRT-PCR total RNA isolated from 70,000 LSK cells (RNeasy Micro kit; QIAGEN) was reversed transcribed into cDNA (High Capacity cDNA Reverse Transcriptional kit with RNase Inhibitor; Invitrogen). qRT-PCR was performed using Fast SYBR Green Master Mix (Applied Biosystems) on an ABI StepOnePlus thermal cycler (Applied Biosystems) according to the manufacturer’s instructions. PCR program: 95°C for 20 min; (95°C for 1 min and 60°C for 20 min) × 40; (Melt curve) 95°C for 15 min; 60°C for 15 min; and 95°C for 15 min. Tbp expression levels were used to compensate for differences in cDNA input. ΔΔCt method was applied to calculate changes in gene expression. Primers were used at 0.4 µM. Primer sequences are listed in Table S1.

shRNAs were designed as previously described (Table S2; Fellmann et al., 2011; Holmfeldt et al., 2013). Gene knockdown efficiency in LSK cells was quantified by qRT-PCR and normalized to transduction frequency (Table S2).

Vesicular stomatitis virus glycoprotein–pseudotyped lentivirus was prepared as previously described via a four plasmid system (Transfer vector-, Gag/Pol-, Rev/Tat-, and vesicular stomatitis virus glycoprotein envelope plasmid) by co-transfection of 293T cells using TransIT 293 (Mirus; Holmfeldt et al., 2013). Viral supernatant was collected 48 h later, cleared, and stored at −80°C. Viral preparations were titered on 293T cells.

LSK cells were isolated from 6–10-wk-old murine BM and transduced with lentivirus as previously described (Holmfeldt et al., 2013). In brief, nontissue culture 96-well plates were coated with Retronectin (TaKaRA Bio) according to the manufacturer’s instructions. Lentiviral particles corresponding to a multiplicity of infection (MOI) of 25 were spin loaded onto the plates for 1 h at 1,000 g at room temperature. Wells were washed with PBS, followed by the addition of 15,000 freshly isolated LSK cells resuspended in 200 µl serum-free expansion medium (STEMCELL Technologies) with 10 ng/ml recombinant murine (RM) stem cell factor (SCF), 20 ng/ml RM thrombopoietin (Tpo), 20 ng/ml RM insulin-like growth factor 2 (IGF-2; PeproTech), 10 ng/ml recombinant human (RH) fibroblast growth factor 1 (FGF-1; R&D Systems), and 5 µg/ml protamine sulfate (Sigma-Aldrich). Cells were incubated overnight at 37°C. To collect cells for transplantation the next morning, media was slowly removed and cells were washed and resuspended in PBS + 1.5% FCS.

To compare the transduction efficiency of LSK cells versus LSK CD150⁺CD48⁻ cells, these cells were isolated in parallel as previously described (Holmfeldt et al., 2013). 2,500 cells were transduced on graded concentrations of indicated viruses in retronectin-coated 96-well plates as described above. Transduction frequencies were analyzed 4 d after transduction using flow cytometry. To assess any nonspecific effect of shRNAs on the viability of primitive hematopoietic cells, LSK cells transduced with lentivirus were cultured for 2 wk in serum-free expansion medium (STEMCELL Technologies) with 10 ng/ml RM-SCF, 20 ng/ml RM thrombopoietin (Tpo), 20 ng/ml RM IGF-2 (PeproTech), 10 ng/ml RH-FGF-1 (R&D Systems), and 10 μg/ml heparin (Sigma-Aldrich). The persistence of mCherry⁺ cells was monitored using an LSR Fortessa (BD) and FlowJo version 9.4.11 (Tree Star).

Recipients were treated with 11 Gy of ionizing radiation in split doses of 5.5 Gy. For the functional screen, 5,000 CD45.2⁺ Test LSK cells were injected 24 h after transduction with 5,000 mock-transduced CD45.1⁺ Competitor LSK cells into recipients by tail vein. For retesting of hits, 5,000 CD45.2⁺ Test mCherry⁺/LSK cells were isolated by FACS 44 h after transduction and injected with 5,000 mock-transduced and mock-sorted CD45.1⁺ Competitor LSK cells by tail vein. For 1:4 Test versus Competitor transplants, 2,000 CD45.2⁺ Test mCherry⁺/LSK cells were isolated by FACS 44 h after transduction and transplanted with 8,000 mock-transduced and mock-sorted CD45.1⁺ competitor LSK cells.

For investigating Foxa3, 4 × 10⁵ CD45.2⁺ Foxa3^+/+ or Foxa3^−/− WBM cells were injected with 4 × 10⁵ CD45.1⁺ WBM cells into lethally irradiated CD45.1⁺/CD45.2⁺ recipients by tail vein. For secondary transplants, 4 × 10⁵ CD45.2⁺ WBM cells sorted from primary recipients of Foxa3^+/+ or Foxa3^−/− WBM cells were transplanted with 4 × 10⁵ CD45.1⁺ WBM WT competitor cells into lethally irradiated CD45.1⁺/CD45.2⁺ recipients. For limiting dilution transplants, 15,000, 30,000, 50,000, 100,000, or 200,000 CD45.2⁺ Foxa3^+/+ or Foxa3^−/− WBM cells were injected with 2 × 10⁵ CD45.1⁺ WBM cells into lethally irradiated CD45.1⁺/CD45.2⁺ recipients by tail vein in two independent experiments. Engraftment was defined as >1% CD45.2 chimerism in the T cell, B cell, and myeloid lineages of recipient PB 10–16 wk after transplant. l-Calc (STEMCELL Technologies) was used to analyze the results of the limiting dilution transplants.

All antibodies used in this study for the analysis of WBM and PB cell populations by flow cytometry are as previously described (Holmfeldt et al., 2013).

PB was collected from the retro-orbital plexus in heparinized capillary tubes and lysed in red blood cell lysis buffer (Sigma-Aldrich). Cells were stained with the following antibodies: CD45.1-FITC, CD45.2-APC, (B220, Gr1, Cd11b)-PerCPCy5.5, and (B220, CD4, CD8)-PECy7 (BD), followed by flow cytometry analysis using an LSR Fortessa and data analysis using FlowJo version 9.4.11.

For analysis of CFU potential of LSK cells after knockdown of screen hits, LSK cells were transduced overnight with control or gene-specific shRNAs, and then cultured at 15,000 cells/well in non-tissue culture–treated 96-well plates for 5–6 d in serum-free expansion medium (STEMCELL Technologies) with 10 ng/ml RM SCF, 20 ng/ml RM Tpo, 20 ng/ml RM IGF-2 (PeproTech), 10 ng/ml RH FGF-1 (R&D Systems), and 10 µg/ml heparin (Sigma-Aldrich). 500 mCherry⁺ LSK cells were then isolated by FACS and plated in M3434 methylcellulose (STEMCELL Technologies). For CFU analysis of Foxa3^+/+ or Foxa3^−/− HSCs, 150 HSCs (LSK CD150⁺CD48⁻) were isolated by FACS from WBM, and then plated in M3434. Colonies were analyzed 10 d after plating.

LSK cells were transduced overnight with control or gene-specific shRNAs and then cultured at 15,000 cells/well in nontissue culture treated 96-well plates for 5–6 d in serum-free expansion medium (STEMCELL Technologies) with 10 ng/ml RM SCF, 20 ng/ml RM Tpo, 20 ng/ml RM IGF-2 (PeproTech), 10 ng/ml RH FGF-1 (R&D Systems), and 10 µg/ml heparin (Sigma-Aldrich). mCherry⁺ LSK cells were then collected by FACS and stained with the following antibodies: (B220, CD3, CD4, CD8, CD19, Gr-1, and Ter119)-PerCP, Sca-1-PerCP-Cy5.5, and c-Kit-APC-780. Cells were then fixed using the Cytofix/Cytoperm kit (BD), followed by staining for Ki67-FITC (Clone SolA15; eBioscience) and DAPI. Cells were analyzed via an LSR Fortessa and FlowJo version 9.4.11.

LSK cells were transduced overnight with control or gene-specific shRNAs and then cultured at 15,000 cells/well in non-tissue culture–treated 96-well plates for 5–6 d in serum-free expansion medium (STEMCELL Technologies) with 10 ng/ml RM SCF, 20 ng/ml RM Tpo, 20 ng/ml RM IGF-2 (PeproTech), 10 ng/ml RH FGF-1 (R&D Systems), and 10 µg/ml heparin (Sigma-Aldrich). Cells were collected 5–6 d after plating and stained with the following antibodies: (B220, CD3, CD4, CD8, CD19, Gr-1, and Ter119)-PerCP, Sca-1-PerCP-Cy5.5, and c-Kit-APC-780. After staining for surface antigens, cells were labeled with Annexin V-FITC (BD) and DAPI, and then analyzed using an LSR Fortessa and FlowJo version 9.4.11.

PB was harvested from the retro-orbital plexus in heparinized capillary tubes and analyzed on a Forcyte instrument (Oxford Scientific).

Tibias, femurs, and pelvic bones were removed from mice and BM isolated by crushing. BM was then lysed in red blood cell lysis buffer (Sigma-Aldrich). Donor-derived HSCs (LSK CD150⁺CD48⁻), MPPs (LSK Flt3L⁺), common myeloid progenitors (CMPs; Lineage⁻c-Kit⁺Sca-1⁻FcR^lowCD34⁺), common lymphoid progenitors (CLPs; Lineage⁻c-Kit^LowSca-1^LowIL7R⁺), granulocyte-myeloid progenitors (GMPs; Lineage⁻c-Kit⁺Sca-1⁻FcR^highCD34⁺), and megakaryocyte-erythroid progenitors (MEPs; Lineage⁻c-Kit⁺Sca-1⁻FcR⁻CD34⁻) were visualized in transplant recipients by staining with the following antibodies: HSC ([B220, CD3, CD4, CD8, CD19, Gr-1, Ter119]-PerCP, Sca-1-PerCP-Cy5.5, c-Kit-APC-780, CD150-PE-Cy7, CD48-Alexa Fluor 700, CD45.1-FITC, and CD45.2-v500); CMP/GMP/MEP ([B220, CD3, CD4, CD8, CD19, Gr-1, Ter119]-PerCP, Sca-1-PerCP-Cy5.5, c-Kit-APC-780, FcR II/III-Alexa Fluor 700, CD34-FITC, CD45.1-APC, and CD45.2-v500); and CLP/MPP (B220, CD3, CD4, CD8, CD19, Gr-1, Ter119)-PerCP, Sca-1-PerCP-Cy5.5, c-Kit-APC-780, IL-7R-PE-Cy7, Flt3-APC, CD45.1-FITC, and CD45.2-v500. HSPCs were visualized in Foxa3^−/− and Foxa3^+/+ mice as described above with the exclusion of CD45.1 and CD45.2. Cells were then analyzed using an LSR Fortessa and data analysis was done using FlowJo version 9.4.11. DAPI (Sigma-Aldrich) was used for dead cell exclusion.

Active and poised enhancers in LT-HSC, ST-HSC, MPP, and GMP were obtained from the enhancer compendium generated by Lara-Astiaso et al. (2014). These enhancers were identified based on their histone modification signatures. For FOXA3 motif analysis, we downloaded the position weight matrix of FOXA3 motif from the Cis-BP database (Weirauch et al., 2014). We used FIMO to scan the enhancer sequences for the occurrence of FOXA3 binding motifs with a p-value threshold of 10⁻⁵ (Grant et al., 2011). To predict the target genes of FOXA3 binding motif⁺ enhancers, we used the integrated method for predicting enhancer targets (IM-PET) software (He et al., 2014), which predicts enhancer-promoter interactions by integrating transcriptomic, epigenomic, and genomic sequence information. Histone modification and RNA-Seq data acquired by IM-PET were from (Cabezas-Wallscheid et al., 2014; Lara-Astiaso et al., 2014). The predicted targets of FOXA3-binding motif⁺ enhancers in LT-HSCs were extracted for GSEA analysis.

Total RNA was isolated from 10,000 Foxa3^+/+ or Foxa3^−/− HSCs using the RNeasy Micro kit (QIAGEN). RNA was amplified by the NuGEN Ovation Pico WTA V2 system and labeled using the NuGEN Encore Biotin Module (NuGen). Labeled targets were hybridized on the HT MG-430 PM plate array and processed using the GeneTitan system (Affymetrix). Array data were quantile normalized and robust multi-array average summarized in Genomics Suite 6.6 (Partek). The complete dataset is deposited in the Gene Expression Omnibus (GSE63830.).

Foxa3^+/+ and Foxa3^−/− WBM was isolated, magnetically enriched for c-Kit⁺ cells, and then stained with Sca-1-PerCP-Cy5.5, c-Kit-APC-780, CD150-PE-Cy7, and CD48-Alexa Fluor 700. Cells were then treated with vehicle or 500 µM tert-butyl Hydrogen Peroxide (TBHP). 3 h after treatment, cells were stained with 5 µM DCFDA for 30 min on ice and then analyzed via an LSR Fortessa and FlowJo version 9.4.11. The peak excitation wavelength for oxidized DCF was 488 nm and emission was 525 nm.

Statistical significance for comparisons between two groups was assessed using two sample t tests or exact Wilcoxon Mann-Whitney tests, depending on the normality test based on the Shapiro-Wilk test. Measurements for each gene were normalized to their respective control and a one sample t test was performed to assess if the mean of the normalized measurements is equal to one. All these analyses were performed in SAS version 9.3. For limiting dilution analysis (LDA), parameters were estimated using a generalized linear model with a complementary log-log link. χ² (Pearson and Deviance) were used to assess the goodness-of-fit to the LDA model. Differences in the frequency of HSCs between Foxa3^+/+ and Foxa3^−/− mice were assessed by relying on the asymptotic normality of the maximum likelihood estimation. LDA were performed using l-Calc (STEMCELL Technologies). All the reported p-values are two-sided and considered statistically significant if P < 0.05, although P < 0.1 is also noted in some instances as marginally significant.

Fig. S1 presents gating flow cytometry gating strategies for the ex vivo analysis of cell cycle, cell surface phenotype, and apoptosis. Table S1 presents qRT-PCR primer sequences. Table S2 presents a summary of genes tested in functional screen and corresponding shRNA sequences. Table S3 presents Foxa3^−/− and Foxa3^+/+ WBM predicted repopulating cell frequency, along with their 95% confidence interval based on limiting dilution transplant. Table S4 presents FOXA3 binding motif enrichment in enhancers active in LT-HSCs and poised in other HSPC compartments (Lara-Astiaso et al., 2014). Table S5 presents predicted gene targets of Foxa3 motif⁺ active LT-HSC enhancers. Table S6 presents microarray results of Foxa3^−/− HSCs versus Foxa3^+/+ HSCs. Table S7 presents GO analysis results. Table S8 presents Ingenuity pathway analysis. Table S9 presents GSEA analysis results.
