Membrane-associated RING-CH1 (MARCH1) is an E3 ubiquitin ligase that mediates ubiquitination of MHCII in dendritic cells (DCs). MARCH1-mediated MHCII ubiquitination in DCs is known to regulate MHCII surface expression, thereby controlling DC-mediated T cell activation in vitro. However, its role at steady state or in vivo is not clearly understood. Here, we show that MARCH1 deficiency resulted in a substantial reduction in the number of thymus-derived regulatory T cells (T reg cells) in mice. A specific ablation of MHCII ubiquitination also significantly reduced the number of thymic T reg cells. Indeed, DCs deficient in MARCH1 or MHCII ubiquitination both failed to generate antigen-specific T reg cells in vivo and in vitro, although both exhibited an increased capacity for antigen presentation in parallel with the increased surface MHCII. Thus, MARCH1-mediated MHCII ubiquitination in DCs is required for proper production of naturally occurring T reg cells, suggesting a role in balancing immunogenic and regulatory T cell development.

Membrane-associated RING-CH1 (MARCH1) is an E3 ubiquitin ligase that mediates ubiquitination of MHCII and CD86 in DCs (Matsuki et al., 2007; Baravalle et al., 2011). This ubiquitination induces MHCII and CD86 endocytosis, lysosomal transport, and degradation (Shin et al., 2006; van Niel et al., 2006; Baravalle et al., 2011). The functional role of MARCH1 has been studied mainly in the context of DC maturation and T cell activation or regulation in vitro. When DCs are exposed to maturation stimuli, MARCH1 is rapidly down-regulated (De Gassart et al., 2008; Walseng et al., 2010). This down-regulation leads to an increase in MHCII and CD86 on the DC surface, which enhances the ability of the cell to stimulate antigen-specific T cells (Baravalle et al., 2011). In contrast, when DCs are exposed to the immune suppressive cytokine IL-10, MARCH1 is up-regulated (Tze et al., 2011; Baravalle et al., 2011). This up-regulation results in a reduction of MHCII and CD86 surface levels, and diminishes the DC’s ability to activate T cells (Baravalle et al., 2011). These studies suggest that MARCH1 plays a regulatory role in T cell activation during immune responses. However, the role of MARCH1 at steady state or in vivo is not well understood although a recent study has suggested that MARCH1 might be involved in splenic DC homeostasis (Ohmura-Hoshino et al., 2009).

At steady state, MHCII plays an important role in CD4 T cell development in the thymus (Laufer et al., 1996). Furthermore, MHCII critically impacts the development of natural regulatory T cells (T reg cells), a unique CD4 T cell subset equipped with potent immune suppressive capacity (Hsieh et al., 2012). Co-stimulatory molecules, including CD86, also mediate T reg cell and NKT cell development (Salomon et al., 2000; Williams et al., 2008). Thus, given the function of MARCH1 in controlling MHCII and CD86 expression, together with the role of MHCII and CD86 in T cell development, we hypothesized that MARCH1 might be an important regulator of T cell development in the thymus. To test this hypothesis, we examined MARCH1 expression in the thymus and further examined whether its expression plays an important role in the development of specific T cell subsets.

RESULTS AND DISCUSSION

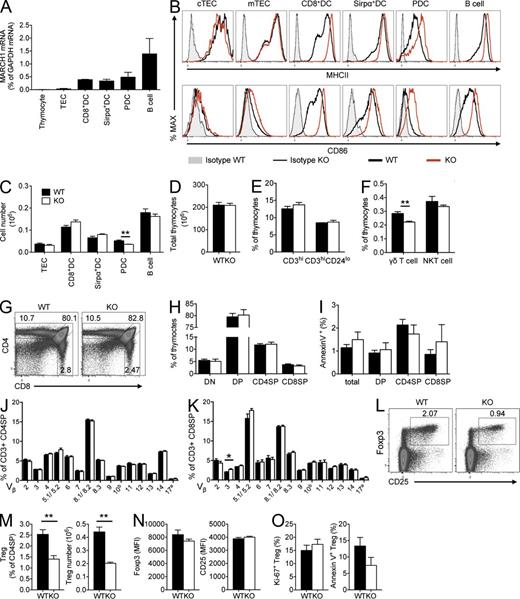

To determine MARCH1 expression in thymic APCs, we isolated thymic epithelial cells (TECs), conventional DCs (cDCs; CD8+ DCs and Sirpα+ DCs), plasmacytoid DCs (PDCs), and B cells using FACS (Fig. S1), and determined MARCH1 mRNA levels by quantitative RT-PCR. For comparison, we analyzed thymocytes, which have been shown to lack MARCH1 (Matsuki et al., 2007). We found that thymocytes and TECs hardly expressed MARCH1, whereas cDCs, PDCs, and B cells expressed relatively high levels (Fig. 1 A). Thus, MARCH1 is specifically expressed by hematopoietic APCs in the thymus.

Next, we asked if MARCH1 plays a regulatory role in the surface expression of MHCII and CD86 in thymic hematopoietic APCs. Surface levels of MHCII and CD86 were determined by flow cytometry in WT and MARCH1 KO mice. We found that MHCII and CD86 were both markedly increased in all hematopoietic APCs in MARCH1 KO mice but not in TECs (Fig. 1 B). In contrast, no changes were observed in the surface expression of other co-stimulatory molecules such as CD80 and CD40 (unpublished data). Thus, MARCH1 appears to play a regulatory role in the surface expression of MHCII and CD86 in hematopoietic thymic APCs. Interestingly, we found that the number of PDCs was slightly reduced in MARCH1 KO mouse thymus, but the number of TECs, cDCs, and B cells did not change (Fig. 1 C).

To determine the role of MARCH1 in T cell development, we determined thymocyte number, maturation status, and composition in WT and MARCH1 KO mice. No significant differences were observed in total thymocyte numbers, or in the percentage of mature thymocytes as measured by CD3 and CD24 expression (Fig. 1, D and E). The percentage of γδT cells was slightly reduced in MARCH1 KO mice, but that of natural killer T (NKT) cells did not change (Fig. 1 F). No differences were observed in the expression levels of CD4 and CD8, the percentages of CD4CD8 (DN), CD4+CD8+ (DP), CD4+CD8 (CD4 SP), and CD4CD8+ (CD8 SP) subsets, or in the percentages of Annexin V+ apoptotic cells (Fig. 1, G–I). We also examined the TCR repertoire of CD4 SP and CD8 SP subsets using a panel of TCRVβ-specific antibodies, but no differences were detected except that Vβ3+ CD8 SP cells were slightly more abundant in MARCH1 KO mice (Fig. 1, J and K). However, when we examined T reg cells, we found an ∼50% reduction both in frequency (as a percentage of CD4 SP thymocytes) and absolute number in MARCH1 KO mice, although levels of Foxp3 and CD25 expression were unchanged (Fig. 1, L–N). No significant difference was observed in the percentages of either Ki-67+ or Annexin V+ T reg cells (Fig. 1 O), suggesting T reg cell reduction in MARCH1 KO mice was caused by neither reduced T reg cell proliferation nor increased apoptosis. Notably, T reg cell frequency in the lymph node was also significantly reduced in MARCH1 KO mice (unpublished data). These findings demonstrate that MARCH1 deficiency results in a reduction in T reg cell number, but this reduction is not associated with a defect in T reg cell proliferation or survival, implicating the role of MARCH1 in T reg cell development.

To determine if hematopoietic or nonhematopoietic cells were responsible for the T reg cell reduction in MARCH1 KO mice, four groups of chimeric mice were generated by injecting lethally irradiated WT and MARCH1 KO mice with BM isolated from either WT or MARCH1 KO mice. We found that MARCH1 KO mice that received MARCH1-deficient BM exhibited ∼50% reduction in T reg cells compared with WT mice that received MARCH1-sufficient BM (Fig. 2, A and B). Importantly, WT mice that received MARCH1-deficient BM also had ∼50% reduction in T reg cells compared with WT mice that received MARCH1-sufficient BM (Fig. 2, A and B). However, MARCH1 KO mice that received MARCH1-sufficient BM had the same number of T reg cells as compared with the control chimeric mice (Fig. 2, A and B). These findings indicate that T reg cell reduction in MARCH1 KO mice was caused by MARCH1 deficiency in hematopoietic cells.

Next, we examined whether the role of MARCH1 in T reg cell development is mediated by cell-intrinsic or extrinsic mechanisms. For this study, we generated a large cohort of mixed chimeric mice by injecting lethally irradiated WT mice with different ratios of BM mixtures isolated from WT and MARCH1 KO mice, and examined T reg cell numbers by flow cytometry. We found that T reg cell abundance, both as a frequency and absolute number, was inversely related to the percentage of MARCH1 KO BM-derived cells (Fig. 2, C and D). This finding indicates that MARCH1 contributes to T reg cell development via a cell-intrinsic mechanism.

We also examined whether MARCH1 expression in thymocytes or T reg cells contributes to T reg cell development. To address this, we determined the frequency of T reg cell derived from WT and MARCH1 KO in 1:1 mixed BM chimeric mice. We found that the mice had T reg cells derived from WT and MARCH1 KO at similar frequencies, indicating that MARCH1 expression in thymocytes or T reg cells does not contribute to T reg cell development. Thus, the role of MARCH1 in T reg cell development involves a T reg cell–extrinsic mechanism.

To verify the role of MARCH1 in T reg cell development, we used two mouse models in which T reg cells are generated by a specific antigen and the generation can be quantitatively determined. The first was the OT-II/Rip-mOVA mouse model. The Rip-mOVA mice express membrane-bound OVA under the control of the rat insulin promoter, which results in medullary TEC (mTEC) expression of OVA owing to the ability of these cells to promiscuously express tissue-restricted antigens (Kurts et al., 1996). When we crossed these mice to OT-II mice that express a TCR specific for OVA peptide (323–339) loaded onto IAb MHCII molecule, we found that T reg cell numbers greatly increased (Fig. 3, A [top] and B [black bars]), whereas CD4 SP cell numbers dramatically decreased compared with those found in OT-II mice (Fig. 3 C, black bars). To verify that generated T reg cells were specific for OVA, we stained thymocytes with the anti-Vα2 antibody, which recognizes the transgenic TCR of OT-II mice. Over 95% of newly generated T reg cells were strongly labeled by this antibody (unpublished data), indicating that the generated T reg cells are specific for OVA. We also observed increased T reg cell numbers when we crossed Rip-mOVA mice to OT-II; MARCH1 KO mice, but to a much lesser degree than that observed in MARCH1-sufficient OT-II mice (Fig. 3, A [bottom] and B [blue bars]). CD4 SP cells were largely deleted, although slightly less efficiently than in MARCH1-sufficient OT-II mice (Fig. 3 C, blue bars). This finding suggests that MARCH1 plays a significant role in T reg cell development against mTEC-driven antigens.

The second mouse model was the OT-II/OVA injection model. Previous studies have shown that when OVA was i.v. injected into OT-II mice, the OVA was specifically taken up and presented by Sirpα+ DCs in the thymus, and the presentation resulted in the development of T reg cells and the deletion of CD4 SP thymocytes (Baba et al., 2009, 2012). Consistent with these findings, we found that OVA injected i.v. was specifically taken up by Sirpα+ DCs in the thymus (Fig. 3 D). OVA uptake efficiency was not different between DCs of WT and MARCH1 KO mice (Fig. 3 E). To determine the role of MARCH1 in T reg cell development in this model, we injected increasing doses of OVA into OT-II and OT-II; MARCH1 KO mice. When thymocytes were analyzed 3 d later, we found that T reg cell numbers had increased in OT-II mice but not in OT-II; MARCH1 KO mice (Fig. 3, F and G). In contrast to T reg cells, the number of CD4 SP thymocytes were reduced both in OT-II and OT-II; MARCH1 KO mice although to a slightly lesser degree in OT-II; MARCH1 KO mice (Fig. 3 H). These findings suggest that MARCH1 is not critical for the deletion of blood-borne, antigen-specific CD4 SP thymocytes but is essential for the development of T reg cells.

To identify the specific mechanism by which MARCH1 contributes to T reg cell development, we examined the role of MARCH1-mediated MHCII ubiquitination. For this study, we generated MHCII (K > R) knock-in (KI) mice in which the MHCII cytoplasmic lysine (K) was replaced by arginine (R), and thus could not be modified by ubiquitination (Fig. 4, A and B). Similarly to what was observed in MARCH1 KO mice, an increase in MHCII surface levels was observed in hematopoietic APCs of MHCII (K > R) KI mice, most markedly in DCs (Fig. 4 C, top). No increase was observed in co-stimulatory molecules, including CD86, CD80, and CD40 (Fig. 4 C, bottom; and not depicted). Remarkably, we found that this mouse strain also exhibited a reduction (∼30%) in both the frequency and number of T reg cells (Fig. 4 E), whereas no significant changes were observed in thymocyte numbers or composition (Fig. 4 D and not depicted). We also examined the development of antigen-specific T reg cells in these mice by using the OT-II/OVA-injection model. OVA uptake efficiency was similar between DCs of WT and MHCII (K > R) KI mice (Fig. 4 F). However, T reg cell generation was completely abolished in OT-II; MHCII (K > R) KI mice, whereas CD4 SP thymocyte deletion was largely intact (Fig. 4, G and H). These findings suggest that MARCH1 contributes to T reg cell development in part by mediating MHCII ubiquitination and indicate that MHCII ubiquitination alone plays a significant role in T reg cell development.

Having found that defective MHCII ubiquitination leads to a marked increase in MHCII surface levels in hematopoietic APCs, we examined whether it results in an increase in peptide-loaded MHCII (pMHCII) surface levels. We first determined pMHCII loaded with endogenous antigens. For this study, two F1 hybrid mice were generated by crossing a WT or a MHCII (K > R) KI mouse, both of which are on the C57BL/6 background, with WT BALB/c mice that express I-E MHCII molecules. The surface level of I-Eα(52–68)–IAb complexes was determined by flow cytometry using the specific antibody, YAe (Rudensky et al., 1991). We found that cDCs of the (KI x BALB/c) F1 mice expressed I-Eα(52–68)–IAb complexes at higher levels than cDCs of the (WT x BALB/c) F1 mice, whereas no or only a modest increase was observed in the TEC, PDC, or B cell compartments (Fig. 5 A). We also generated (MARCH1 KO × BALB/c) F1 mice and performed similar experiments and analyses. cDCs of these mice also expressed higher levels of I-Eα(52–68)–IAb complexes than cDCs of the (WT x BALB/c) F1 mice (Fig. 5 B). Next, we examined pMHCII loaded with exogenous antigens. Thymic cDCs were isolated from WT, MHCII (K > R) KI, and MARCH1 KO mice, incubated with the I-Eα recombinant protein, and the surface expression of I-Eα(52–68)–IAb complexes was determined by flow cytometry. We found that thymic DCs from MHCII (K > R) KI and MARCH1 KO mice expressed I-Eα(52–68)–I-Ab at higher levels than those from WT mice (Fig. 5 C). These findings indicate that thymic DCs of MHCII (K > R) KI and MARCH1 KO mice present higher levels of endogenous and exogenous antigens.

Next, we examined the ability of DCs from WT, MHCII (K > R) KI, and MARCH1 KO mice to induce T reg cells and to delete thymocytes in vitro. We treated thymic cDCs from WT, MHCII (K > R) KI, and MARCH1 KO mice with OVA and cultured them with immature CD4 SP thymocytes isolated from Thy1.1; Foxp3-EGFP; OT-II mice. T reg cell generation and thymocyte deletion were determined 24 h later. We found that thymic cDCs from MHCII (K > R) KI and MARCH1 KO mice generated T reg cells at significantly reduced levels compared with WT DCs (Fig. 5 D, left graph, and Fig. S1 B), but induced thymocyte death as efficiently as WT DCs (Fig. 5 D, right graph). To confirm that the defect in T reg cell generation of thymic cDCs of MHCII (K > R) KI and MARCH1 KO mice was attributable to a DC-intrinsic defect, we performed the same experiment using DCs derived from BM (BMDCs) of these mice. Similarly to what was found with thymic cDCs, BMDCs from MHCII (K > R) KI and MARCH1 KO mice generated T reg cells less efficiently than BMDCs derived from WT mice (Fig. 5 E, left graph, and Fig. S1 C), but induced thymocyte death with a similar efficiency (Fig. 5 E, right graph). Collectively, these findings indicate that the ability of DCs to differentiate immature thymocytes into T reg cell is dependent on MARCH1-mediated MHCII ubiquitination.

In this study, we have found that MARCH1 is specifically expressed by hematopoietic APCs in the thymus and that MARCH1 plays an important role in T reg cell development, in part by mediating MHCII ubiquitination in DCs. This study provides a significantly improved understanding of the functional role of MARCH1 and MHCII ubiquitination, the contribution of DCs to thymic T reg cell development, and the underlying mechanism.

Many previous studies have implicated DCs in the development of thymic T reg cells (Proietto et al., 2008; Atibalentja et al., 2009, 2011; Baba et al., 2012). Our study reinforces this role by demonstrating that the mechanism involves MARCH1-mediated MHCII ubiquitination. One supporting evidence is that the development of T reg cells against i.v.-injected OVA, which was taken up only by DCs, was completely abolished in mice deficient in MARCH1 or MHCII ubiquitination. The other evidence is that the ability of DCs to differentiate immature thymocytes into T reg cells in vitro was markedly reduced in the absence of MARCH1 or MHCII ubiquitination. Interestingly, we found that MARCH1 was not expressed in TECs, yet the development of T reg cells against mTEC-driven antigen was dependent on MARCH1. Previous studies have shown that antigens expressed by mTECs are transferred to and presented by DCs and that these DCs mediate central tolerance against the antigens (Gallegos and Bevan, 2004; Millet et al., 2008; Koble and Kyewski, 2009). Our finding suggests that the development of T reg cells against mTEC-driven antigens is also mediated by DCs and that MARCH1-mediated MHCII ubiquitination plays an important role in this process.

MHCII ubiquitination promotes T reg cell development via a mechanism distinct from avidity control. Previous studies have proposed that avidity is a critical determinant for thymocyte fate decision; thymocytes that interact with APCs with strong avidity are deleted, whereas those interacting with intermediate avidity differentiate into T reg cells (Wirnsberger et al., 2011; Hsieh et al., 2012). In accordance with this view, a recent study has shown that miRNA mediated suppression of MHCII expression in mTEC resulted in an increase in T reg cell development and a decrease in CD4 SP thymocyte deletion (Hinterberger et al., 2010). However, the avidity model does not explain the results of our study. First, we did not find any evidence that CD4 SP thymocyte deletion was enhanced in MARCH1 KO or MHCII (K > R) KI mice, although these mice expressed higher levels of MHCII. Specifically, no changes were observed in the number, apoptotic rate, or repertoire of CD4 SP thymocytes in these mice. Second, despite increased MHCII expression and antigen presentation, DCs deficient in MARCH1 or MHCII ubiquitination were not any better at deleting CD4 SP thymocytes in vitro or in vivo. Third, the T reg cell–generating defect of MHCII ubiquitination-deficient DCs was not relieved by reducing antigen presentation by reducing antigen doses. Collectively, these findings suggest that it is not the avidity control but rather some feature uniquely accompanied by MHCII ubiquitination that positively acts for T reg cell development. One possible mechanism is that ubiquitination-mediated MHCII endocytosis may generate distinct MHCII surface dynamics in DCs, which may provide thymocytes with a discrete TCR signaling that acts for T reg cell differentiation. Alternatively, ubiquitinated MHCII may serve as a signaling molecule in DCs, and this signaling may condition DCs for T reg cell generation.

In conclusion, we have shown that MARCH1-mediated MHCII ubiquitination plays an important and specific role in DC-mediated T reg cell development. By using this distinct mechanism, DCs may generate a unique cohort of T reg cells that perhaps play unique roles in immune tolerance.

MATERIALS AND METHODS

Mice.

C57BL/6, B6.SJL-PtprcaPepcb/BoyJ, BALB/c, B6.PL-Thy1a/CyJ, and OT-II mice were purchased from The Jackson Laboratory. MARCH1 KO (Matsuki et al., 2007), Rip-mOVA (Kurts et al., 1996), and Foxp3-EGFP KI mice (Haribhai et al., 2007) were previously described. All mice were maintained in the University of California San Francisco (UCSF) mouse facility and analyzed at the age of 4-8 wk except BM chimeric mice. All experiments were performed according to protocols approved by the UCSF Institutional Animal Ethics Committee.

Generation of MHCII (K > R) KI mice.

The construct for targeting the C57BL/6 H2-Ab1 locus in ES cells was made using a combination of recombineering, DNA synthesis and standard molecular cloning techniques. First, a mouse BAC (RP23-444j20) containing the H2-Ab1 gene was modified using the galK method (Warming et al., 2005) to replace the sequence 5′-CACAGGAGTCAGAAA-3′ within exon 4 with 5′-CACAGATCTCAAAGG-3′, thus changing Lysine 253 into an Arginine and introducing a diagnostic BglII site. Second, a 5,320-bp fragment (assembly NCBI37/mm9, chr17:34,401,196-34,406,515) from the modified BAC was retrieved into plasmid pBlight-TK (Warming et al., 2006). Next, a loxP-Pgk-em7-Neo-loxP cassette was inserted in intron 3 between position chr17: 34,404,665 and 34,404,666. The final vector was confirmed by DNA sequencing. The H2-Ab1 knock-in vector was linearized with NotI and C57BL/6 C2 ES cells were targeted using standard methods (G418-positive and ganciclovir-negative selection). Positive clones were identified using PCR and TaqMan analysis, and confirmed by sequencing of the modified locus. Correctly targeted ES cells were then transfected with a Cre expression vector to remove the selection marker, and subsequently injected into blastocysts using standard techniques. Germline transmission was obtained after crossing resulting chimeras with C57BL/6 females.

Quantitation of thymocytes and enrichment of thymic APCs.

Each mouse thymus was harvested, and a single-cell suspension was prepared as previously described (Williams et al., 2009). Cell numbers were determined by using the Z2 analyzer (Beckman Coulter). To enrich thymic APCs, thymic digests were filtered through a 70-µm filter cap strainer (Falcon; BD), resuspended in 4 ml of high-density (1.115 g/ml) Percoll solution, and subsequently layered with 2 ml of low-density (1.065 g/ml) Percoll solution, followed by 2 ml of PBS. This Percoll gradient was centrifuged at 2,700 rpm for 30 min at 4°C to enrich APCs between the PBS and low-density Percoll layers. For in vitro Eα presentation assay, thymic DCs were isolated using CD11c-magnetic beads (Miltenyi Biotec).

Antibodies and reagents.

The following antibodies were purchased from BioLegend, eBioscience, or BD and used for flow cytometry: PE/Cy7-CD11c, Pacific blue-IA/IE class II, Pacific blue-Rat IgG2, PE-Sirpα, Pacific blue-mPDCA1, Alexa Fluor 647-mPDCA1, Ly51-FITC, PE-CD86, PE-Rat IgG2a, Alexa Fluor 700-CD86, PE/Cy5-CD4, Alexa Fluor 700-CD4, FITC-CD8α, Alexa Fluor 700-CD8α, APC/Cy7-CD8α, PE/Cy7-CD11c, PerCP/Cy5.5-CD80, CD11b-FITC, Alexa Fluor 700-CD45, Pacific blue-CD45.1, Alexa Fluor 647-CD45.2, PE-CD3ε, Alexa Fluor 647-γδTCR, PE/Cy7-CD3ε, PE/Cy7-CD24, APC-CD25, Vα2-FITC, APC-Epcam, PE-Foxp3, FITC-YAe, PE/Cy7-Ki-67, Alexa Fluor 700-CD19, PerCP/Cy5.5-Thy1.1, and the TCR Vβ screening panel. PE-empty CD1d tetramer and PE-PBS57-loaded CD1d tetramer were provided by National Institutes of Health tetramer core facility. Pacific blue-Annexin V (BioLegend) and Fixable Viability Dye eFluor780 (eBioscience) were also used for flow cytometry.

Flow cytometry and cell sorting.

For surface staining, cells were incubated on ice for 30 min with fluorophore-conjugated antibodies in MACS buffer (Miltenyi Biotec) containing propidium iodide solution (BioLegend) and CD16/32 Fc block antibody (UCSF CCF). Intracellular Foxp3 was stained using Foxp3/Transcription Factor Staining Buffer Set (eBioscience). All samples were analyzed and sorted by the FACS LSRII system (BD) and BD FACS Aria3 Cell Sorter (BD), respectively.

Quantitative RT-PCR.

Total RNAs were isolated by TRIzol (Invitrogen) extraction. The first-strand cDNA were generated using SuperScript III system (Invitrogen) and using Oligo(dT) as primers. Quantitative PCR was performed on an Eppendorf realplex system using SYBR Green reagents (5 Prime) and primers specific for MARCH1 and GAPDH.

BM chimeric mice.

For the WT/MARCH1 KO BM chimera experiment, WT or MARCH1 KO BM cells were isolated from femurs and/or tibiae, and subjected to RBC lysis. Lethally irradiated recipient mice of WT or MARCH1 KO genotype were i.v. injected with 1 × 106 BM cells. For the mixed BM chimera experiment, BM cells were isolated from CD45.1+ BoyJ mice and CD45.2+ MARCH1 KO mice, mixed at 1:0, 9:1, 1:1, or 0:1, and injected into lethally irradiated WT mice expressing both CD45.1 and CD45.2. Mice were examined 8 wk later.

In vitro thymocyte T reg cell differentiation and deletion assay.

CD4+CD8CD24+TCRVα2+EGFP thymocytes (5 × 104) isolated from Thy1.1; Foxp3-EGFP KI; OT-II mice were co-cultured with CD11c+mPDCA1 thymic cDCs (1 × 104) or CD11c+CD11b+BMDCs (1 × 104) incubated with increasing amounts of OVA. After 24-h culture, Thy1.1+MHCII total thymocyte numbers and the percentage of CD25+EGFP+ cells among Thy1.1+MHCII cells was determined by flow cytometry.

Statistical analyses.

Unpaired two-tailed Student’s t test was performed to assess the significance, unless stated otherwise.

Online supplemental material.

Fig. S1 shows flow cytometry gating strategy.

Acknowledgments

We thank S. Warming for helping with figures, Q. Tang and R. Medzhitov for mice and reagents.

This work was supported by funding from the Cancer Research Institute (J.-S. Shin) and the University of California San Francisco Sandler Asthma Basic Research Center.

The authors have no conflicting financial interests.

References

References
Atibalentja
D.F.
,
Byersdorfer
C.A.
,
Unanue
E.R.
.
2009
.
Thymus-blood protein interactions are highly effective in negative selection and regulatory T cell induction
.
J. Immunol.
183
:
7909
7918
.
Atibalentja
D.F.
,
Murphy
K.M.
,
Unanue
E.R.
.
2011
.
Functional redundancy between thymic CD8α+ and Sirpα+ conventional dendritic cells in presentation of blood-derived lysozyme by MHC class II proteins
.
J. Immunol.
186
:
1421
1431
.
Baba
T.
,
Nakamoto
Y.
,
Mukaida
N.
.
2009
.
Crucial contribution of thymic Sirp alpha+ conventional dendritic cells to central tolerance against blood-borne antigens in a CCR2-dependent manner
.
J. Immunol.
183
:
3053
3063
.
Baba
T.
,
Badr
Mel.S.
,
Tomaru
U.
,
Ishizu
A.
,
Mukaida
N.
.
2012
.
Novel process of intrathymic tumor-immune tolerance through CCR2-mediated recruitment of Sirpα+ dendritic cells: a murine model
.
PLoS ONE.
7
:
e41154
.
Baravalle
G.
,
Park
H.
,
McSweeney
M.
,
Ohmura-Hoshino
M.
,
Matsuki
Y.
,
Ishido
S.
,
Shin
J.S.
.
2011
.
Ubiquitination of CD86 is a key mechanism in regulating antigen presentation by dendritic cells
.
J. Immunol.
187
:
2966
2973
.
De Gassart
A.
,
Camosseto
V.
,
Thibodeau
J.
,
Ceppi
M.
,
Catalan
N.
,
Pierre
P.
,
Gatti
E.
.
2008
.
MHC class II stabilization at the surface of human dendritic cells is the result of maturation-dependent MARCH I down-regulation
.
Proc. Natl. Acad. Sci. USA.
105
:
3491
3496
.
Gallegos
A.M.
,
Bevan
M.J.
.
2004
.
Central tolerance to tissue-specific antigens mediated by direct and indirect antigen presentation
.
J. Exp. Med.
200
:
1039
1049
.
Haribhai
D.
,
Lin
W.
,
Relland
L.M.
,
Truong
N.
,
Williams
C.B.
,
Chatila
T.A.
.
2007
.
Regulatory T cells dynamically control the primary immune response to foreign antigen
.
J. Immunol.
178
:
2961
2972
.
Hinterberger
M.
,
Aichinger
M.
,
Prazeres da Costa
O.
,
Voehringer
D.
,
Hoffmann
R.
,
Klein
L.
.
2010
.
Autonomous role of medullary thymic epithelial cells in central CD4(+) T cell tolerance
.
Nat. Immunol.
11
:
512
519
.
Hsieh
C.S.
,
Lee
H.M.
,
Lio
C.W.
.
2012
.
Selection of regulatory T cells in the thymus
.
Nat. Rev. Immunol.
12
:
157
167
.
Koble
C.
,
Kyewski
B.
.
2009
.
The thymic medulla: a unique microenvironment for intercellular self-antigen transfer
.
J. Exp. Med.
206
:
1505
1513
.
Kurts
C.
,
Heath
W.R.
,
Carbone
F.R.
,
Allison
J.
,
Miller
J.F.
,
Kosaka
H.
.
1996
.
Constitutive class I-restricted exogenous presentation of self antigens in vivo
.
J. Exp. Med.
184
:
923
930
.
Laufer
T.M.
,
DeKoning
J.
,
Markowitz
J.S.
,
Lo
D.
,
Glimcher
L.H.
.
1996
.
Unopposed positive selection and autoreactivity in mice expressing class II MHC only on thymic cortex
.
Nature.
383
:
81
85
.
Matsuki
Y.
,
Ohmura-Hoshino
M.
,
Goto
E.
,
Aoki
M.
,
Mito-Yoshida
M.
,
Uematsu
M.
,
Hasegawa
T.
,
Koseki
H.
,
Ohara
O.
,
Nakayama
M.
et al
.
2007
.
Novel regulation of MHC class II function in B cells
.
EMBO J.
26
:
846
854
.
Millet
V.
,
Naquet
P.
,
Guinamard
R.R.
.
2008
.
Intercellular MHC transfer between thymic epithelial and dendritic cells
.
Eur. J. Immunol.
38
:
1257
1263
.
Ohmura-Hoshino
M.
,
Matsuki
Y.
,
Mito-Yoshida
M.
,
Goto
E.
,
Aoki-Kawasumi
M.
,
Nakayama
M.
,
Ohara
O.
,
Ishido
S.
.
2009
.
Cutting edge: requirement of MARCH-I-mediated MHC II ubiquitination for the maintenance of conventional dendritic cells
.
J. Immunol.
183
:
6893
6897
.
Proietto
A.I.
,
van Dommelen
S.
,
Zhou
P.
,
Rizzitelli
A.
,
D’Amico
A.
,
Steptoe
R.J.
,
Naik
S.H.
,
Lahoud
M.H.
,
Liu
Y.
,
Zheng
P.
et al
.
2008
.
Dendritic cells in the thymus contribute to T-regulatory cell induction
.
Proc. Natl. Acad. Sci. USA.
105
:
19869
19874
.
Rudensky
AYu
,
Preston-Hurlburt
P.
,
Hong
S.C.
,
Barlow
A.
,
Janeway
C.A.
Jr
.
1991
.
Sequence analysis of peptides bound to MHC class II molecules
.
Nature.
353
:
622
627
.
Salomon
B.
,
Lenschow
D.J.
,
Rhee
L.
,
Ashourian
N.
,
Singh
B.
,
Sharpe
A.
,
Bluestone
J.A.
.
2000
.
B7/CD28 costimulation is essential for the homeostasis of the CD4+CD25+ immunoregulatory T cells that control autoimmune diabetes
.
Immunity.
12
:
431
440
.
Shin
J.S.
,
Ebersold
M.
,
Pypaert
M.
,
Delamarre
L.
,
Hartley
A.
,
Mellman
I.
.
2006
.
Surface expression of MHC class II in dendritic cells is controlled by regulated ubiquitination
.
Nature.
444
:
115
118
.
Tze
L.E.
,
Horikawa
K.
,
Domaschenz
H.
,
Howard
D.R.
,
Roots
C.M.
,
Rigby
R.J.
,
Way
D.A.
,
Ohmura-Hoshino
M.
,
Ishido
S.
,
Andoniou
C.E.
et al
.
2011
.
CD83 increases MHC II and CD86 on dendritic cells by opposing IL-10-driven MARCH1-mediated ubiquitination and degradation
.
J. Exp. Med.
208
:
149
165
.
van Niel
G.
,
Wubbolts
R.
,
Ten Broeke
T.
,
Buschow
S.I.
,
Ossendorp
F.A.
,
Melief
C.J.
,
Raposo
G.
,
van Balkom
B.W.
,
Stoorvogel
W.
.
2006
.
Dendritic cells regulate exposure of MHC class II at their plasma membrane by oligoubiquitination
.
Immunity.
25
:
885
894
.
Walseng
E.
,
Furuta
K.
,
Goldszmid
R.S.
,
Weih
K.A.
,
Sher
A.
,
Roche
P.A.
.
2010
.
Dendritic cell activation prevents MHC class II ubiquitination and promotes MHC class II survival regardless of the activation stimulus
.
J. Biol. Chem.
285
:
41749
41754
.
Warming
S.
,
Costantino
N.
,
Court
D.L.
,
Jenkins
N.A.
,
Copeland
N.G.
.
2005
.
Simple and highly efficient BAC recombineering using galK selection
.
Nucleic Acids Res.
33
:
e36
.
Warming
S.
,
Rachel
R.A.
,
Jenkins
N.A.
,
Copeland
N.G.
.
2006
.
Zfp423 is required for normal cerebellar development
.
Mol. Cell. Biol.
26
:
6913
6922
.
Williams
J.A.
,
Lumsden
J.M.
,
Yu
X.
,
Feigenbaum
L.
,
Zhang
J.
,
Steinberg
S.M.
,
Hodes
R.J.
.
2008
.
Regulation of thymic NKT cell development by the B7-CD28 costimulatory pathway
.
J. Immunol.
181
:
907
917
.
Williams
K.M.
,
Mella
H.
,
Lucas
P.J.
,
Williams
J.A.
,
Telford
W.
,
Gress
R.E.
.
2009
.
Single cell analysis of complex thymus stromal cell populations: rapid thymic epithelia preparation characterizes radiation injury
.
Clin. Transl. Sci.
2
:
279
285
.
Wirnsberger
G.
,
Hinterberger
M.
,
Klein
L.
.
2011
.
Regulatory T-cell differentiation versus clonal deletion of autoreactive thymocytes
.
Immunol. Cell Biol.
89
:
45
53
.

    Abbreviations used:

  • cDC

    conventional DC

  •
  • MARCH1

    membrane-associated RING-CH1

  •
  • mTEC

    medullary TEC

  •
  • PDC

    plasmacytoid DC

  •
  • TEC

    thymic epithelial cell

  •
  • T reg cell

    regulatory T cell

Author notes

J. Oh and N. Wu contributed equally to this paper.

This article is distributed under the terms of an Attribution–Noncommercial–Share Alike–No Mirror Sites license for the first six months after the publication date (see http://www.rupress.org/terms). After six months it is available under a Creative Commons License (Attribution–Noncommercial–Share Alike 3.0 Unported license, as described at http://creativecommons.org/licenses/by-nc-sa/3.0/).

Supplementary data
