Decoration of T-independent antigen with ligands for CD22 and Siglec-G can suppress immunity and induce B cell tolerance in vivo

Because our goal was to design copolymers of siglec ligands and a TI-2 antigen that would recruit siglecs to the hapten-specific BCR, we characterized highly multivalent sialylated glycans linked to PA for their ability to compete with cis ligands and bind to CD22 and Siglec-G on native B cells. We and others previously showed that synthetic trans ligands of CD22 (NeuGcα2-6Gal) compete poorly with endogenous cis ligands unless they were displayed on highly multivalent polymers and included hydrophobic substituents at the 9 position that increase affinity (Razi and Varki, 1998; Collins et al., 2002; Collins et al., 2006a). Therefore, we evaluated binding of highly multivalent PA conjugates (1,000 kD) carrying sialosides (n ≈ 400) and biotin tags to facilitate their detection. Each was analyzed for its binding to B cells from wild-type, CD22-deficient, Siglec-G–deficient, and CD22/Siglec-G double-deficient mice (Fig. 1). The PA–sialosides with NeuAcα2-6Galβ1-4GlcNAc–containing glycans showed no binding to mouse B cells, consistent with the known preference of mouse CD22 for NeuGcα2-6Galβ1-4GlcNAc (NeuGc; Fig. 1, A and D; Crocker et al., 2007). The conjugate containing the preferred native ligand of CD22, NeuGc, was bound well by wild-type cells (Fig. 1 B). Surprisingly, however, binding to this glycan by both CD22^−/− and Siglecg^−/− single-deficient B cells was also significantly reduced, whereas CD22^−/−;Siglecg^−/− double-deficient B cells completely failed to bind, indicating that both siglecs contribute to binding (Fig. 1 B). Thus, the glycan previously described as the natural ligand for CD22 (Pezzutto et al., 1987; Collins et al., 2002; Blixt et al., 2003; Crocker et al., 2007) is also a ligand of Siglec-G, and both siglecs are required for optimal binding of this ligand. Similarly, the PA–9-biphenylacetyl-NeuGcα2-6Galβ1-4GlcNAc (PA–bNeuGc) conjugate, previously shown to have high affinity for mouse CD22 (Collins et al., 2006a), was bound strongly by B cells, and whereas binding to CD22 was dominant, both CD22 and Siglec-G contributed to the association (Fig. 1 C). B cells from CD22^−/−;Siglecg^−/− mice exhibited residual binding to PA–bNeuGc (∼6%), suggesting that an additional receptor might also recognize this ligand. Importantly, binding to wild-type B cells of sialoside with NeuGc in α2-3 linkage to Galβ1-4GlcNAc was also observed (Fig. 1 E). However, in this case binding was exclusively caused by Siglec-G, for there was little change in binding to CD22^−/− B cells. We conclude that Siglec-G and CD22 have distinct and overlapping specificities, and together bind native sialosides containing both the NeuGcα2-6 and NeuGcα2-3 linkages to Galβ1-4GlcNAc found as terminal sequences on glycans of most, if not all, mouse cells.

To see if incorporating siglec ligands into TI-2 antigen affects B cell in vivo responses, PA was conjugated with nitrophenol (NP) hapten and one of two glycans found to be ligands of CD22 and Siglec-G. We selected the natural sialoside NeuGc and the high affinity siglec ligand bNeuGc to ensure that adequate competition with cis ligands would be achieved. As an immunogenic control, a corresponding conjugate (NP–PA) was prepared with a glycan lacking sialic acid (Galβ1-4GlcNAc). The resulting polymers contained ∼200 NP haptens and 400 glycan moieties (Fig. 2 A).

Because haptens appropriately displayed on high molecular weight PA should behave as TI-2 antigens (Dintzis et al., 1976), we anticipated that NP–PA would elicit an anti-NP antibody response, whereas the response to NP–PA–NeuGc and NP–PA–bNeuGc might be blunted by recruitment of siglecs to the BCR binding the antigen. As anticipated, robust IgM and IgG3 responses against NP were detected in mice immunized with NP–PA (Fig. 2, B and C). In contrast, NP–PA–bNeuGc failed to induce a significant anti-NP response (Fig. 2 B) and NP–PA–NeuGc elicited a significantly reduced response (Fig. 2 C). The results indicated that presentation of siglec ligands reduced or prevented the antibody response to the antigen, and the extent of the reduction correlated with their affinity to CD22 and Siglec-G.

As shown in Fig. 1, both Siglec-G and CD22 combine for optimal binding of the native ligand (NeuGc) incorporated into the NP–PA–NeuGc construct. To assess the roles of these siglecs in the altered response, we compared NP antibody responses to NP–PA–NeuGc and NP–PA in CD22^−/−, Siglecg^−/−, and wild-type mice (Fig. 3). NP–PA–NeuGc elicited a significantly reduced response compared with NP–PA in wild-type mice. CD22^−/− mice also responded poorly to sialylated compound, though the response to unsialylated conjugate was slightly lower than in wild-type mice (Fig. 3, A and B), consistent with previous studies (Otipoby et al., 1996; Nitschke et al., 1997). In contrast, the presence of sialylated glycans completely failed to reduce the response in Siglecg^−/− mice (Fig. 3 C). Thus, consistent with the binding data (Fig. 1 B), Siglec-G rather than CD22 is predominately responsible for the reduced response to natively sialylated conjugate under the conditions of immunization used in this study.

We considered three possibilities for the effects of antigen sialylation on B cell response: (1) it dampened the response, (2) it dampened the response and actively induced tolerance, and (3) it rendered antigen invisible. The robust immunogenicity of NP–PA–NeuGc in the absence of Siglec-G recognition showed that the poor response elicited to this compound in wild-type and CD22^−/− mice was not caused by hapten inaccessibility, arguing against the third possibility. To further investigate the possibility of tolerance induction, a series of experiments was performed whereby mice previously injected with sialylated NP conjugates were subsequently challenged with immunogenic NP–PA.

Because NeuGc-carrying NP conjugates appeared to suppress anti-NP responses less efficiently than those with bNeuGc, we first generated additional conjugates with similar amounts of native siglec ligand but less NP, and tested them in C57BL/6 mice for their ability to elicit anti-NP responses and to modulate a secondary challenge with NP₂₀₀–PA. Optimal results were obtained with NP₆₅–PA–NeuGc₄₀₀. Remarkably, the sialylated antigen not only elicited significantly lower primary IgM and IgG3 responses than the corresponding immunogenic NP₆₅–PA control but also led to reduced responses upon subsequent immunization with unsialylated NP₂₀₀–PA antigen (Fig. 4 A). The results demonstrated the ability of natively sialylated TI-2 antigen to suppress antibody responses and to promote tolerance, provided that the BCR signal did not outweigh siglec-mediated inhibition.

Even more striking biological effects were seen in mice injected with the conjugate containing the higher affinity siglec ligand NP–PA–bNeuGc and then subsequently challenged with NP–PA. Remarkably, a single dose of NP–PA–bNeuGc rendered mice tolerant to NP–PA for at least 1 mo, as indicated by the near absence of anti-NP responses after two challenges with the unsialylated antigen 14 and 31 d later (Fig. 4 B). Control experiments showed that PA–bNeuGc lacking NP had no negative effect on the subsequent NP response to NP–PA and that tolerance induction by NP–PA–bNeuGc took about 2 wk to be fully established (Fig. S1, A and B). Furthermore, conjugates carrying identical amounts of Galβ1-4GlcNAc (nonsiglec binding) and decreasing amounts of NP did not induce tolerance to NP but instead simply showed decreasing potency in eliciting an initial anti-NP response (Fig. S2), thus ruling out the trivial possibility that glycan modifications hinder recognition of NP because of steric interactions. These results further supported the notion that antigen sialylation did not prevent its recognition by B cells but led to a distinct biological response. We conclude that attachment of high affinity siglec ligands to TI-2 antigen promoted antigen-specific tolerance rather than immunity, whereas a lower affinity ligand significantly blunted but did not always completely prevent the antibody response.

To test the robustness of the tolerance, we asked if nonspecific activators of inflammation could prevent tolerance induction by sialylated antigen. Accordingly, mice were challenged with NP–PA–bNeuGc mixed with Ribi, an adjuvant containing TLR4 ligand and other proinflammatory signals. This treatment was only able to rescue IgM and IgG3 responses to 10–20% of the response to NP–PA given with Ribi (Fig. 5 A), though it also rescued subsequent responses to rechallenge with NP–PA 18 d later (Fig. 5 B). Thus, although inflammatory signals provided by adjuvant overrode tolerance, siglec ligands could still significantly suppress their amplification of the TI-2 response.

Analysis of the siglec dependence revealed that both CD22 and Siglec-G were required for optimal induction of tolerance by NP–PA–bNeuGc. Even though neither CD22^−/− nor Siglecg^−/− mice made an anti-NP response to initial treatment with NP–PA–bNeuGc, both strains generated a strong IgM response upon subsequent immunization with NP–PA (Fig. 4, C and D, top). However, in both mutants subsequent IgG3 responses to NP–PA were still notably deficient. Overall, these data indicated that tolerance induced by sialylated antigen was impaired in CD22^−/− and Siglecg^−/− mice, and therefore was partly dependent on both CD22 and Siglec-G. A preliminary experiment immunizing CD22^−/−;Siglecg^−/− mice gave similar results to the single mutants (Fig. S3), suggesting that there may be another siglec on B cells compensating for their function (see Discussion).

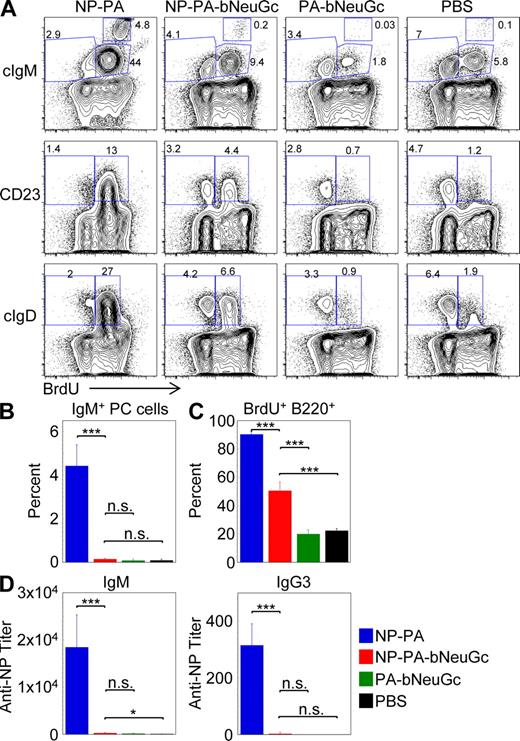

To follow cellular aspects of anti-NP B cell responses in vivo, splenic NP-specific B cells were isolated from quasimonoclonal (QM) anti-NP BCR-transgenic mice (Cascalho et al., 1996), transferred to Rag1^−/− hosts, and challenged with conjugates given i.p., and recipient splenocytes were analyzed 7 d later. Mice were administered BrdU throughout to label cells that proliferated during this period. Significant differences in proliferation were seen in response to NP–PA compared with NP–PA–bNeuGc (P = 8.5 × 10⁻⁶; Fig. 6 A, left two columns). In recipients immunized with NP–PA, 90% of B220⁺ cells were BrdU labeled during the 7-d period, whereas proliferation was lower in response to NP–PA–bNeuGc (50%), PA–bNeuGc (20%), or saline (22%; Fig. 6 C). Similar results were obtained when QM B cells were transferred along with nontransgenic B cells or transferred into unirradiated, RAG-sufficient hosts (Fig. S4 and not depicted). A large fraction of the BrdU⁺ cells in recipients challenged with NP–PA appeared to be follicular phenotype B cells, as they expressed CD23 and IgD. Importantly, the generation of NP-specific plasma cells and serum antibody was robust in NP–PA–immunized mice but extremely poor in other treatment groups (Fig. 6, B and D). The increased proliferative response to NP–PA–bNeuGc, compared with PA–bNeuGc or saline challenge, was attributable to NP recognition but was not correlated with an antibody response. We conclude that tolerance induction to sialylated antigen is associated with suboptimal B cell proliferation without plasma cell differentiation and likely death of abortively activated cells.

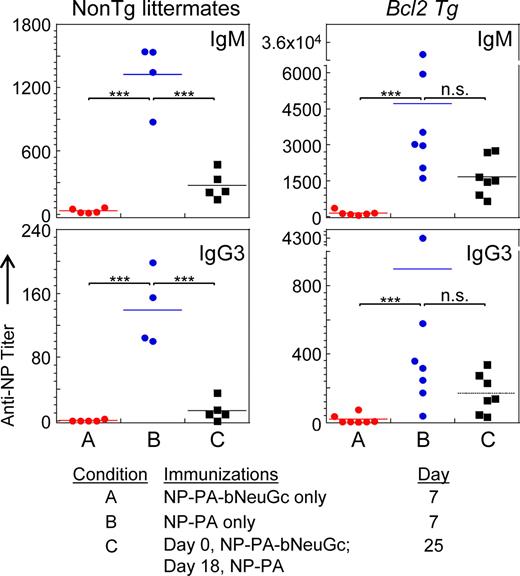

To assess the possibility that NP–PA–bNeuGc promoted tolerance through an apoptotic mechanism, we challenged mice carrying the Eμ-Bcl2-22 transgene (Bcl2 Tg; Strasser et al., 1991), which have enforced Bcl2 expression in B cells and are known to have impaired peripheral B cell tolerance (Lang et al., 1997). NP–PA–bNeuGc challenge failed to prevent Bcl2 Tg mice from making a subsequent response to NP–PA, whereas similarly treated wild-type mice were tolerized (Fig. 7, condition C). These data suggest that NP–PA–bNeuGc challenge led to apoptosis of NP-reactive B cells in wild-type mice but not in Bcl2 Tg mice. It is noteworthy that enforced expression of Bcl2 did not permit B cells to respond by antibody production to NP–PA–bNeuGc (condition A), whereas it rescued a subsequent response to NP–PA. These data show that NP-specific B cells protected from apoptosis neither responded to nor were tolerized by sialylated conjugate, indicating that B cell tolerance involved both apoptotic and nonapoptotic mechanisms.

To further probe the effects of antigen sialylation on B cell responses, NP–PA, NP–PA–bNeuGc, and PA–bNeuGc were compared for their abilities to bind and to activate NP-specific B cells. Both NP and bNeuGc made important independent contributions to overall binding, which was enhanced with conjugates carrying both ligands (Fig. 8 A). In response to NP–PA challenge in vitro, NP-reactive splenic B cells mobilized Ca²⁺ (Fig. 8 B) and proliferated (Fig. 8 C), whereas they responded poorly to NP–PA–bNeuGc (Fig. 8, B and C). PA–bNeuGc had no effect on B cell proliferation in vitro (unpublished data). Thus, despite improving binding to B cells, sialylated antigen suppressed NP-specific B cell responsiveness in vitro.

Tyrosine phosphorylation analysis of NP-specific B cells stimulated with tolerogenic compared with immunogenic NP conjugates revealed that sialylation altered both overall and CD22-specific phosphorylation (Fig. 8, D–G). NP–PA stimulated robust tyrosine phosphorylation of many substrates (Fig. 8 D, lane 2), whereas NP–PA–bNeuGc triggered a comparatively reduced overall tyrosine phosphorylation (lane 4), with the notable exception of CD22, which was more strongly phosphorylated (Fig. 8 E, lane 4 vs. 2). Control conjugate without NP failed to induce phosphorylation, except perhaps in CD22 (lanes 6 and 7), but as shown in Fig. S1, this had no effect on subsequent responses to NP. CD22 immunoprecipitates revealed, as expected, that upon activation with conjugate a fraction of SHP-1 was bound (Fig. 8 E, lanes 2 and 4). However, the relative levels of associated SHP-1 were similar in both NP–PA– and NP–PA–bNeuGc–stimulated cells and were also significant in PA–bNeuGc–stimulated cells, despite the differences in overall tyrosine phosphorylation. Phosphorylation of Y531 on CD19 is known to recruit PI3K activity leading to Akt activation and attendant S473 phosphorylation (Tuveson et al., 1993; Otero et al., 2001; Wang et al., 2002). At 5 min after NP–PA stimulation, CD19 (Y531) and Akt (S473) phosphorylation were elevated (Fig. 8, F and G, lane 2), whereas in NP–PA–bNeuGc–challenged cells no increased phosphorylation was seen (lane 4). This indicated that the most striking effect of BCR/Siglec coligation was suppression of CD19 phosphorylation and downstream PI3K/Akt activation rather than SHP-1 recruitment alone. Thus, sialylated antigen induced more CD22 phosphorylation, suppressed early activation signals, and directly suppressed antigen-specific B cell proliferation in vitro.

With their high molecular weights and multimeric arrays of identical epitopes, most host cell surfaces and fragments thereof are potential TI-2 antigens, but rather than inducing a response, host cell-surface antigens are strongly tolerogenic for mature B cells (Russell et al., 1991; Murakami et al., 1992). An important difference from immunogenic TI-2 antigens may be that host tissues are sialylated and can engage siglecs. Indeed, sialic acids have been estimated to be present on cell surfaces at concentrations of >10 mM (Collins et al., 2004). In an in vitro model of B cell reactivity to cell-surface antigen, Lanoue et al. (2002) demonstrated that expression of CD22 ligands on cells could suppress induction of B cell co-stimulatory molecules through a CD22-dependent pathway, presumed to result from redistribution of CD22 to the site of cell contact by trans ligands on the antigen-presenting cell (Collins et al., 2004). We find that when TI-2 antigens are sialylated it renders them tolerogenic or nonimmunogenic in vivo, and present genetic evidence that both CD22 and Siglec-G contribute to both suppression of immune responses and tolerance induction. Previous studies have shown that coengagement of CD22 and the BCR can suppress early B cell signal transduction and blunt activation (Lanoue et al., 2002; Tedder et al., 2005; Courtney et al., 2009), but experiments designed to directly assess B cell tolerance in the presence and absence of CD22 or its downstream signaling components failed to reveal a defect in tolerance induction (Cyster and Goodnow, 1995; Cornall et al., 1998; Ferry et al., 2005). The primary difference in our studies is the analysis of responses to TI-2 antigens conjugated to siglec ligands to introduce missing self. To our knowledge, the present studies are the first to clearly demonstrate that siglecs facilitate B cell tolerance, as opposed to simply blunting antigen recognition, and suggest a general paradigm for the role of B cell siglecs in regulating BCR response to antigens in the context of distinguishing self from nonself.

In this study we have focused on siglecs and sialic acid–containing glycans as self-markers. Although CD22 is highly specific for α2-6 sialosides (Crocker et al., 2007), it is notable that Siglec-G recognizes both α2-3– and α2-6–linked sialosides (Fig. 1). Thus, the specificities of these two siglecs are complementary and together cover the most common sequences found on cell-surface glycans, providing a broad basis for self-recognition with two siglecs. Although siglecs are a rapidly evolving family (Crocker et al., 2007), CD22 expression is conserved in mammals, and human B cells express Siglec-10, an orthologue of Siglec-G, as well as Siglec-5 (Crocker et al., 2007; Yamanaka et al., 2009). The specificity of these three siglecs combined cover all the major sialoside sequences expressed on human cells (Crocker et al., 2007). Thus, although the ligands recognized by the specific human and mouse B cell siglecs have evolved, the ligand specificities cover the major sialoside sequences expressed as self-markers on cells.

Although tolerance in the present study was induced by the native ligand with NeuGc, it is most efficiently induced using antigen conjugates carrying bNeuGc, which binds to both CD22 and Siglec-G with higher affinity. We attribute this to more efficient competition with cis ligands and recruitment of siglecs to the site of antigen engagement with the BCR. As evident in the studies with B cells from the QM mice, the polymer containing both antigen and siglec ligands binds to B cells better than polymers containing either one alone, demonstrating synergy in binding. In this regard, Courtney et al. (2009) recently reported that a mouse 2,4-dinitrophenol–specific B cell line suppressed early triggering responses to 2,4-dinitrophenol when displayed on a polymer backbone with NeuAcα2-6Galβ1-4Glc, despite the fact that this glycan has low affinity for mouse CD22 (<10% that of the preferred NeuGc ligand; Fig. 1 A; Blixt et al., 2003; Collins et al., 2006a). Thus, siglec ligands can produce graded responses of B cells depending on the affinity and degree of recruitment of siglec to the site of antigen engagement. Our finding that copolymers of antigens with high affinity siglec ligands both reduce an immune response and facilitate induction of tolerance suggests possible uses in clinical settings in which induction of antigen-specific B cell tolerance might be beneficial. Further studies are required to define the optimal parameters of conjugates for efficacy in therapeutic tolerance induction.

The polymeric presentation of antigen and siglec ligands in this study is intended to mimic their simultaneous presentation in a more biological context, such as a cell surface. Given the multivalency required for TI-2 responses, the observations made in this study might be highly relevant to B cell tolerance and response to high molecular weight self-antigens in addition to cell surfaces. Siglec ligands may be especially important in restraining these responses because of their ubiquity and association with secreted and cell-surface proteins. Cell surfaces should be particularly tolerogenic owing to the high number of self-moieties able to engage inhibitory receptors on B cells, such as siglecs, PirB, CD72, FcγRIIb, BTLA, PD-1, and CD31, which recognize, respectively, sialic acids, MHC I, CD100, IgG-Fc, HVEM, PD-L1/2, and heparin (Long, 2008). If tissues defend themselves through expression of self-markers, then cell type–specific heterogeneity or defects in that expression are predicted to contribute to tissue-specific autoimmune disease.

In the present study, ligands carrying bNeuGc moieties were not only nonimmunogenic in all contexts analyzed but usually promoted long-lived tolerance, preventing B cell responses to rechallenge with immunogenic conjugate. Mice deficient in CD22, Siglec-G, or both failed to respond. Tolerance developed slowly over several days and was associated with B cell proliferation, a block in plasma cell differentiation, and lack of CD93 expression (unpublished data), features that distinguish tolerized B cells from conventional anergic cells (Adams et al., 1990; Merrell et al., 2006). The time required for tolerance induction might in part be a function of a slow rate of antigen trafficking from the site of injection, but we noted splenic responses to peritoneal injection by 7 d. Tolerance induction by NP–PA–bNeuGc was inhibitable by Bcl2 expression in B cells, which did not permit direct response to the ligand but instead simply rescued the ability to respond to rechallenge by unsialylated compound. Thus, the mode of tolerance observed is complex, regulated both by differentiative arrest preventing plasma cell formation and apoptosis. It is unlikely that the impaired tolerance induction observed in the Bcl2 Tg mice could be explained by their elevated total NP-specific B cell numbers, because tolerance was readily inducible in mice receiving QM B cells, which had an NP-specific precursor frequency many orders of magnitude over that of non-BCR–transgenic mice. The significant delay and antigen-specific B cell proliferation associated with tolerance induction might serve to prevent premature elimination of foreign antigen-specific B cells, permitting their rescue by antigen-linked second signals, such as TLR ligands or T cell help, should they become available late in the response. Perhaps more importantly, unsialylated TI-2 antigens promote rapid antibody responses that can precede the development of second signals or even occur in their absence. In the context of a microbial infection, such responses would provide early adaptive immunity to repetitive ligands when second signals are still inadequate.

Though they failed to respond directly to NP–PA–bNeuGc, mice lacking CD22, Siglec-G, or both showed impaired tolerance induction, as revealed by rechallenge with NP–PA. In these mutants, IgG3 responses failed to recover but IgM responses were restored, indicating that interaction with these siglecs contributed to the tolerance induction in vivo. Why was only IgM and not IgG3 antibody restored by knockout of CD22 or Siglec-G? We presume that there is preferential rescue in the knockouts of those B cell clones with lower average affinity for NP, which might score well in the IgM assay but not in the IgG3 assay, or might fail to switch owing to this lower affinity. Because NP–PA–bNeuGc was not itself immunogenic even in CD22^−/−;Siglecg^−/− mice, presumably its bNeuGc moiety interacts with other molecules besides CD22 and Siglec-G to effect tolerance and to suppress direct anti-NP responses. One possible candidate receptor is Siglec-E, which is expressed in marginal zone B cells (Zhang et al., 2004) and might be responsible for the residual binding of PA–bNeuGc to CD22^−/−;Siglecg^−/− B cells.

Although we cannot exclude that immunogenic conjugates somehow activate accessory cells in promoting TI-2 antibody responses, we believe that our data show that sialylated conjugates work directly on B cells for the following reasons. Had the effect not been direct, but instead through antigen-nonspecific accessory cells, treatment of mice with sialylated conjugate lacking hapten would have reduced subsequent responses to the haptenated conjugate (Fig. S1 A). Moreover, direct signaling and proliferation effects were seen in cultures of purified B cells. Finally, given its structure, it is difficult to imagine that a B cell could effectively contact NP–PA–bNeuGc conjugate without coengaging siglecs.

We suspect that there are deep evolutionary origins to the siglec receptor function we have investigated. Siglecs have been suggested to play a role in self-recognition in the context of myeloid cell recognition, where they negatively regulate phagocytosis and activation (Varki and Angata, 2006; Carlin et al., 2009b; Chen et al., 2009). Siglec-G was recently proposed to play a role in regulating the innate immune responses of dendritic cells to liver injury through the recognition of the carbohydrate-rich molecule CD24 (Chen et al., 2009). Moreover, Siglec 7 is expressed on NK cells, where it appears to carry out classical inhibitory functions (Nicoll et al., 2003). These observations, combined with ours in this study, support the notion that missing self–recognition is a common ancestral mechanism of self-/nonself-discrimination in leukocytes.

A feature predicted to be common to missing self–signaling is the potential of cis ligands to dampen recognition by inhibitory receptors of self-markers in trans. Indeed, in NK cells, B cells, and likely many other leukocytes, loss of expression of putative self-markers, such as MHC I and sialic acids, leads to hyperreactivity as a consequence of a lack of tonic inhibitory signaling (for review see Held and Mariuzza, 2008). The ability to more efficiently overcome competition with cis ligands probably explains the greater effectiveness, compared with natively sialylated compounds, of bNeuGc-containing conjugates in suppressing antibody responses and in the induction of tolerance.

Our results have implications for host defense and microbial evasion. T-independent antibody responses can be rapid and elicit antibodies with complement-fixing ability important in resistance to bacteria (Martin et al., 2001; Alugupalli et al., 2004). The ability to produce sialic acid–containing glycosylations is a specialization of pathogenic microbes that has been explained as a means to evade complement-mediated destruction through recruitment of the complement inhibitor factor H (Tomlinson et al., 1994; Ngampasutadol et al., 2008) or to evade recognition by myeloid cells (Varki and Angata, 2006). Our results suggest an additional possibility, namely to dampen the TI-2 antibody response to microbial surface antigens. Selection against these microbial countermeasures likely explains the rapid coevolution of siglec ligands and their receptors.

Our studies help to explain an uncomfortable exception to the two-signal model with respect to B cell tolerance. For antigens with many epitopes, like TI-2 antigens, the model does not hold unless they are associated with ligands for inhibitory receptors. Nor are our results consistent with the notion that antigen organization alone regulates the TI-2 response (Dintzis et al., 1976; Bachmann et al., 1993). Rather, we see immune recognition of mature B cells in the context of an evolutionarily ancient leukocyte recognition system in which self-markers engaging inhibitory receptors prevent self-reactivity, and in their absence a cell-autonomous, but perhaps self-limited, response is possible.

bNeuGc was prepared as previously described (Collins et al., 2006a). NeuGc and other glycans (Galβ1-4GlcNAcβ–O-ethylazide, NeuAcα2-6Galβ1-4GlcNAcβ–O-ethylazide, and NeuGcα2-3Galβ1-4GlcNAcβ–O-ethylazide) were prepared as previously described (Blixt et al., 2003). Three PA–sialoside conjugates containing 20 mol% sialoside and 2.5% biotin (PA–NeuGc, PA–NeuGcα2-3Galβ1-4GlcNAcβ, and PA–NeuAcα2-3Galβ1-4GlcNAcβ) were provided by the Consortium for Functional Glycomics (http://www.functionalglycomics.org). Other PA conjugates were prepared as previously described (Bovin et al., 1993) by reducing the corresponding sialoside-azides to the respective sialoside-amines and coupling to PA (1,000 kD), resulting in a conjugate with 20 mol% sialoside and 2.5 mol% biotin. Similarly, NP–PA and NP–PA–sialoside immunogen PA conjugates (1,000 kD) were prepared with 10 mol% NP (NP-hexyl-amine) with 10 mol% NP and 20 mol% of the corresponding ethyl-amines of either Galβ1-4GlcNAc, the bNeuGc trisaccharide, or the NeuGc trisaccharide.

C57BL/6J mice were obtained from either the Jackson Laboratory or the Scripps Research Institute in-house breeding program. CD22^−/− (provided by E. Clark [University of Washington, Seattle, WA] and L. Nitschke [University of Erlangen, Erlangen, Germany]; Otipoby et al., 1996), Siglecg^−/− (provided by Y. Liu, University of Michigan, Ann Arbor, MI; Ding et al., 2007), QM (provided by M. Cascalho, University of Michigan, Ann Arbor, MI; Cascalho et al., 1996), Bcl2 Tg (provided by A. Strasser and A. Harris, Walter and Eliza Hall Institute of Medical Research, Parkville, Australia; Strasser et al., 1991), Rag1^−/−, and B6Ly5a (B6.SJL-Ptprc^a Pep3^b/BoyJ; The Jackson Laboratory) mice have been previously described. All genetically modified mice were on a C57BL/6J background. CD22^−/−;Siglecg^−/− mice were obtained by crossing the CD22^−/− and Siglecg^−/− mice and PCR screening for recombination of the two null alleles. All mice used in this study were between 6–16 wk of age and housed in a specific pathogen-free facility. Animal protocols were approved by the Institutional Care and Use Committee of the Scripps Research Institute. Unless otherwise stated, all immunizations were administered i.p. at 20 µg of TI-2 antigen in 200 µl PBS per mouse. Ribi, sold as the Sigma Adjuvant System (Sigma-Aldrich), was used according to the manufacturer’s protocol, with each mouse receiving 20 µg of the respective TI-2 antigen in 200 µl of reconstituted adjuvant.

Maxisorp plates (Thermo Fisher Scientific) were coated with 10 µg/ml NP_4-7-BSA in PBS (Biosearch Technologies), blocked with 1% BSA in Tris-buffered saline (TBS) containing 0.1% Tween 20 (ELISA buffer), and incubated with sera serially diluted in ELISA buffer. For detection, biotinylated rat anti–mouse IgM (clone M41) and IgG3 (BD) antibodies were used at 0.25 µg/ml, followed by streptavidin–horseradish peroxidase (HRP; BD), diluted in ELISA buffer. Signals were developed using 1-Step Ultra-TMB substrate (Thermo Fisher Scientific), stopped with 2 M H₂SO₄, and recorded at 450 nm using a microplate reader (VersaMax; MDS Analytical Technologies). In all experiments, standard curves were generated using pooled day 8 sera collected from 16 C57BL/6 mice immunized i.p. with 50 µg/mouse NP₄₁-AECM-Ficoll (Biosearch Technologies). Subsequent anti-NP titer calculations were normalized using these standard curves.

QM B cells purified by CD4/CD43 negative selection (Miltenyi Biotec) were seeded in 96-well plates at 2 × 10⁵ cells/well in DMEM containing 10% FBS, 55 µM β-mercaptoethanol, l-glutamine, and penicillin-streptomycin. Cells were stimulated with threefold serial dilutions of the respective TI-2 antigen, starting at 100 ng/ml in a total volume of 200 µl/well. Approximately 24 h later, 1 µCi ³[H]thymidine (GE Healthcare) was added into each well. Cells were harvested for scintillation counts 15 h later. All treatments were done in triplicate.

To quantify in vivo proliferative responses of NP-specific B cells to TI-2 antigens, B cells were purified from QM mouse spleens by CD4/CD43 negative selection (Miltenyi Biotec) and injected i.v. into nonirradiated Rag1^−/− hosts (10⁷ cells/mouse). 2 h later, all mice received (i.p.) 40 µg of the respective TI-2 antigen plus 1 mg BrdU in PBS and were placed on drinking water containing 1 mg/ml BrdU for 7 d. In a second experiment, QM B cells purified by CD4/CD43 negative selection (Miltenyi Biotec) were first resuspended at 1–2 × 10⁷ cells/ml in 0.1% BSA in PBS, labeled with 1 µl of 5 mM CFSE per milliliter of cell suspension for 10 min at 37°C, washed two times with DMEM containing 10% FBS, and injected i.v. into B6Ly5a mice at 10⁷ cells/mouse. As before, all mouse recipients subsequently received (i.p.) 40 µg of the respective TI-2 antigen or PBS alone 2 h later. On day 7, total spleen cells were harvested, and fates of QM cells marked by the Ly5b allele were analyzed by flow cytometry.

Cell-surface marker stains for FACS analyses were performed using standard protocol. All of the following antibodies were used at 1:200 dilution in FACS buffer (HBSS containing 1% BSA, 2 mM EDTA, and 0.1% NaN₃), with 2 × 10⁶ cells/stain: FITC anti-IgM^a (BD), PE anti-IgD (eBioscience), PE-Cy7 anti-CD23 (eBioscience), Alexa Fluor 647 anti-IgM (clone M41), Pacific blue anti-CD21 (BioLegend), allophycocyanin-Cy7 anti-B220 (BD), and PerCP-Cy5.5–conjugated antibodies used in dump channel (CD4, CD8, F4/80, and Gr-1; BioLegend). To quantitate TI-2 antigen binding to QM cells, 10⁶ spleen cells were incubated with 1 µg of the biotinylated PA antigen in a total volume of 200 µl of FACS buffer on ice for 30 min. After a wash with 2 ml of FACS buffer at 4°C, cells were stained on ice with cocktail containing 0.25 µg streptavidin-PE (eBioscience) along with (1:200 dilution each) Alexa Fluor 647 anti-B220, PerCP-Cy5.5 anti-CD4, and PerCP-Cy5.5 anti-CD8 (all from BioLegend) in a final volume of 200 µl. Similarly, binding of primary C57BL/6 spleen cells to PA probes containing various siglec ligands was assessed as described but by using 0.125 µg of probe per 10⁶ cells with 2 h of incubation on ice. To measure intracellular Ca²⁺ responses to TI-2 antigens, 8 × 10⁶ QM spleen cells were preincubated with 500 µl Fluo-4 reagent (Invitrogen), 5 µg Fc Block (clone 2.4G2), and 1 µg each of PerCP-Cy5.5–labeled CD4 and CD8 (BioLegend). Aliquots of 10⁶ cells were stimulated with 50 µg/ml of TI-2 antigen at room temperature. Ca²⁺ signals were recorded for 200 s, gating on CD4/CD8 double-negative cells. Flow cytometric analysis of BrdU incorporation was performed using the FITC BrdU Flow Kit (BD) according to the manufacturer’s instructions. All flow cytometric data were acquired on a FACSCalibur or LSR II (BD) and were analyzed using the FlowJo program (Tree Star, Inc.).

B cells were purified from QM mouse spleens by CD4/CD43 negative selection (Miltenyi Biotec). Aliquots of 10⁷ cells in 1 ml HBSS buffer, prewarmed to 37°C in a water bath, were stimulated with 25 µg of the respective TI-2 antigen for 5 or 30 min. Pelleted cells were lysed in 100 µl of lysis buffer consisting of TBS containing 1% NP-40, Complete EDTA-Free Protease Inhibitor Cocktail (Roche), 5 mM EDTA, 10 mM NaF, and 1 mM Na₃VO₄. For straight Western blotting analyses, 10 µl of each lysate after removing insoluble debris by centrifugation was run in 4–12% NuPAGE gels (Invitrogen). For CD22 immunoprecipitation, each lysate of 10⁷ cells/ml was precleared with 30 µl of streptavidin agarose resin (Thermo Fisher Scientific) for 1 h at 4°C, and was then incubated with 5 µg of biotinylated Cy34.1 antibody (BD) overnight at 4°C. On the next day, 30 µl of the streptavidin agarose resin was added into each lysate, washed three times with lysis buffer, and incubated at 70°C for 10 min in 2× NuPAGE loading buffer containing 100 mM dithiothreitol before SDS-PAGE. 0.2-µm nitrocellulose membranes (Bio-Rad Laboratories) were used for all Western blotting analyses. Antiphosphotyrosine (4G10) and anti-GAPDH (6C5) antibodies, used at 1:1,000 and 1:10,000, respectively, diluted in TBS/T containing 5% milk, were purchased from Millipore. Polyclonal antibodies against SHP-1, phospho-CD19 (Tyr531), phospho-Akt (Ser473), and total Akt were purchased from Cell Signaling Technology and used according to the manufacturer’s recommendations. Goat anti–mouse CD22 was used at 1:100 dilution in 5% milk in TBS/T (M-20; Santa Cruz Biotechnology, Inc.). All HRP-conjugated secondary polyclonal antibodies, purchased from Jackson ImmunoResearch Laboratories, Inc., were used at 1:30,000 diluted in 5% milk in TBS/T. Signals were developed using the SuperSignal West Pico Chemiluminescent Substrate (Thermo Fisher Scientific). To strip blots for reprobing, membranes were incubated in TBS buffer, adjusted to pH 2.3, at 65°C with gentle agitation for 15–20 min.

Fig. S1 shows antigen specificity and time course of tolerance induction. Fig. S2 shows the effects of altering NP hapten density on responses to unsialylated compounds. Fig. S3 shows an analysis of CD22^−/−;Siglecg^−/− mice for tolerance induction by NP–PA–bNeuGc and responses to NP–PA. Fig. S4 shows an analysis of QM B cell proliferation in vivo using the CFSE dilution technique. Fig. S5 shows an alternative display of the data shown in Fig. 7.
