A role for Vps13-mediated lipid transfer at the ER–endosome contact site in ESCRT-mediated sorting

Intracellular organelles in eukaryotic cells are essential for compartmentalizing various biochemical and cell signaling reactions. Cells utilize specific vesicle-mediated trafficking systems to populate these organelles with unique sets of protein constituents that carry out these reactions. The ESCRTs (ESCRT-0, -I, -II, -III, and Vps4 AAA-ATPase) sort cell-surface receptors and membrane proteins into vesicles that invaginate and bud into the lumen of the late endosome (forming multivesicular bodies, MVBs) (Henne et al., 2011). These MVBs then fuse with the lysosome (the vacuole in yeast) delivering the membrane protein–containing vesicle into the lumen of the lysosome, where they are degraded. In addition to MVB formation, the ESCRTs mediate other critical cellular processes, including the budding of enveloped viruses, such as HIV, cytokinesis, plasma membrane repair, extracellular vesicle formation, and nuclear envelope reformation (Lee et al., 2007; Rusten et al., 2007; Carlton et al., 2008; Hurley, 2015). ESCRT dysfunction has been implicated in numerous diseases, including cancer, neurodegeneration, Huntington’s disease, and Parkinson’s disease (Saksena and Emr, 2009).

Vps13 belongs to a family of lipid transfer proteins that function at various membrane contact sites (Ugur et al., 2020; Dziurdzik and Conibear, 2021; Melia and Reinisch, 2022; Neuman et al., 2022). These large proteins (>3,000 AA) have been proposed to bridge membranes to form a direct channel for non-selective lipid transport between two different organelles. The human genome encodes four VPS13 homologs (VPS13A-D), each of which localizes to distinct membrane contact sites. For instance, VPS13A localizes to the ER–mitochondria contact site (Kumar et al., 2018; Yeshaw et al., 2019; Muñoz-Braceras et al., 2019), whereas VPS13C localizes to the ER–endosome contact site (Kumar et al., 2018). Mutations in VPS13 homologs have been associated with a variety of neurological disorders, including chorea acanthocytosis (VPS13A) (Rampoldi et al., 2001), Cohen syndrome (VPS13B) (Kolehmainen et al., 2003), Parkinson’s disease (VPS13C) (Lesage et al., 2016), and ataxia (VPS13D) (Seong et al., 2018; Gauthier et al., 2018). Yeast has a single Vps13 that localizes to multiple organelles and membrane contact sites (Dziurdzik and Conibear, 2021). Upon sporulation, Vps13 localizes to the ER–prospore membrane contact site to support spore membrane expansion (Park and Neiman, 2012; Nakamura et al., 2021). Under glucose limitation, it is enriched at the nucleus–vacuole junction (NVJ) (Bean et al., 2018; Lang et al., 2015; Park et al., 2016). It also localizes at the ER–peroxisome and ER–autophagosome contact sites that function in peroxisome and autophagosome biogenesis, respectively (Yuan et al., 2022; Dabrowski et al., 2023). During cell proliferation, Vps13 primarily localizes to the endosome (Bean et al., 2018; Park et al., 2016; Rzepnikowska et al., 2017). However, the precise function of Vps13 at the endosome remains unclear. Here, we provide evidence that Vps13 forms a lipid transfer channel at the ER–endosome contact site, which is critical for ESCRT-mediated sorting.

During endosome maturation, the number of intraluminal vesicles (ILVs) increases. Each endosome contains 60–70 vesicles in yeast. Although the endosomal limiting membrane is consumed to form ILVs, the endosome does not shrink. Vesicle-mediated transport is thought to provide lipids to support MVB biogenesis, but it has not been experimentally tested. To characterize its molecular details, we re-examined the original data from the vacuolar protein sorting (vps) mutants, which were isolated because of their defects in the sorting of carboxypeptidase Y (CPY), a soluble vacuolar hydrolase (Robinson et al., 1988). All ESCRT mutants among the original vps collection (i.e., vps4, did4, vps24, vps27, vps20, vps22, vps25, vps28, snf7, vps23, and bro1) exhibited mild sorting defects (Fig. S1 A). Notably, vps13 mutants also exhibited a defect similar to that of the ESCRT mutants. Based on this phenotypic similarity, we hypothesized that Vps13 may function in the ESCRT pathway.

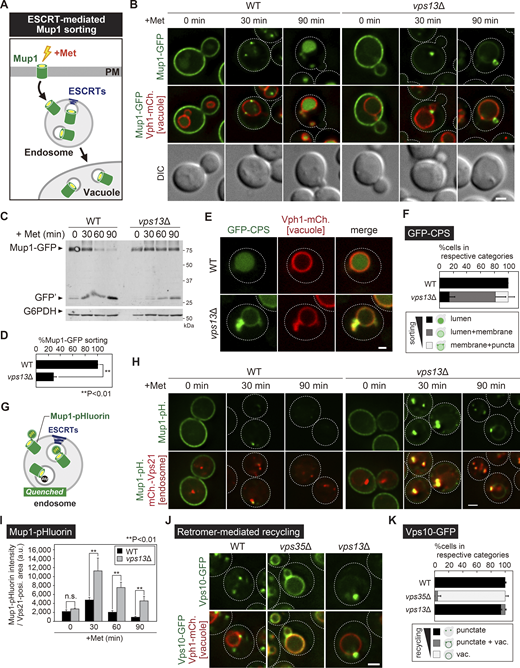

To test this, we examined the sorting of Mup1, a methionine permease localized to the plasma membrane (PM) (Menant et al., 2006). Upon methionine stimulation, Mup1 is endocytosed and sorted into ILVs at the endosome by ESCRTs (Fig. 1 A). Then, it is delivered to the vacuole lumen. To evaluate Mup1 sorting, we expressed a GFP-fused Mup1 in yeast cells. In WT cells, Mup1–GFP localized to the PM, but after methionine stimulation, it was sorted into the vacuole lumen (Fig. 1 B). In contrast, Mup1–GFP was barely sorted in vps13Δ cells. It accumulated at punctate structures and the vacuole membrane. The vacuolar delivery of Mup1–GFP results in vacuolar protease-resistant GFP fragments that can be detected by immunoblotting. After 90 min of methionine stimulation, Mup1–GFP was fully processed and GFP fragments were observed in WT cells, whereas the majority of Mup1–GFP remained as a stable hybrid protein in vps13Δ cells (Fig. 1, C and D), suggesting that Vps13 is required for Mup1 sorting. Note that a small portion of processed GFP (28%) was observed, indicating that Mup1–GFP was still partially sorted even in vps13Δ cells. We also examined the sorting of carboxypeptidase S (CPS), another cargo of the ESCRT pathway that is delivered from the Golgi and sorted into ILVs (Fig. 1, E and F). Like Mup1–GFP, GFP–CPS was poorly sorted, leading to its accumulation at punctate structures and the vacuole membrane in vps13Δ cells. To further investigate if cargoes were sorted into ILVs in vps13Δ cells, we fused a pH-sensitive GFP, pHluorin, to Mup1 (Miesenböck et al., 1998). When Mup1–pHluorin is internalized into the ILV, the pHluorin fluorescence is quenched, which allows us to evaluate the status of cargo sorting at the endosome (Fig. 1 G). After 30 min of stimulation, Mup1–pHluorin was endocytosed to the endosome (Fig. 1, H and I). At 90 min of stimulation, the pHluorin fluorescence was largely quenched, confirming the sorting of Mup1-pHluorin into ILVs in WT cells. In contrast, in vps13Δ cells, even after 90 min stimulation, the pHluorin signal was still observed at the endosome, suggesting that Mup1–pHluorin sorting into ILVs was impaired in vps13Δ cells. These observations indicate that Vps13 is required for efficient ESCRT-mediated sorting.

In vps13Δ cells, both Mup1–GFP and GFP–CPS accumulated at endosomes (Fig. 1, B and E). Since defects in ESCRT activity result in impaired endosome–vacuole fusion (Russell et al., 2012), we examined endosome–vacuole fusion. For this purpose, we monitored the transport of Pep4, a vacuolar hydrolase that is delivered from the Golgi to the vacuole through the endosome (Fig. S1 B). In WT cells, Pep4-GFP was observed in the vacuole lumen, whereas its sorting was severely compromised in vps45Δ cells, which have a defect in vesicle fusion with the endosome (Fig. S1, C and D). In ESCRT-deficient vps4Δ cells, Pep4-GFP accumulated at punctate structures, reflecting an impairment in endosome–vacuole fusion. In vps13Δ cells, we observed vacuole lumen localization, but also several punctate structures outside of the vacuole. The sorting of Pep4 to the vacuole can be monitored by the appearance of the mature form of Pep4 (mPep4) (Fig. S1 E). Indeed, in vps45Δ cells, mPep4 was barely detectable, leading to the accumulation of the precursor form of Pep4 (prPep4). In vps13Δ cells, although mPep4 was observed, prPep4 accumulated. These results suggest that vacuole transport of Pep4 was partially impaired in vps13Δ cells. We also examined the vacuole delivery of Vph1 (Fig. S1 B). Vph1 is a vacuole membrane protein, which functions as a subunit of the vacuolar ATPase. Like Pep4, Vph1 is also delivered to the vacuole through the endosome. In WT cells, Vph1-mCherry colocalized with another vacuole membrane protein, Pho8, directly delivered from the Golgi to the vacuole via the AP-3 pathway (Fig. S1, F and G). In contrast, in vps45Δ and vps4Δ cells, Vph1-mCherry accumulated at punctate structures, whereas GFP–Pho8 was delivered to the vacuole. In vps13Δ cells, Vph1-mCherry not only showed a partial vacuole localization but also several punctate structures. These results suggest that endosome–vacuole fusion is partially impaired in vps13Δ cells.

To ask whether Vps13 is specifically required for ESCRT-mediated sorting, we examined its role in endosomal recycling. Vps10 is a transmembrane protein receptor for CPY. After delivery to the endosome, Vps10 is recycled back to the Golgi by the retromer coat complex, which enables Vps10 to carry out another round of CPY sorting at the Golgi (Fig. S1 B; Marcusson et al., 1994; Seaman et al., 1997; Seaman et al., 1998). Vps10–GFP localized to punctate structures, which were previously reported to be Golgi or endosomes (Fig. 1, J and K; Marcusson et al., 1994). In vps35Δ cells, retromer-mediated endosome-to-Golgi retrograde trafficking is impaired, resulting in the accumulation of Vps10-GFP at the vacuole membrane. In vps13Δ cells, Vps10-GFP was still localized to the punctate structures (Fig. 1, J and K and Fig. S1 H). We also examined the localization of another retromer cargo, Kex2 (Voos and Stevens, 1998), and its recycling was also not impaired in vps13Δ cells (Fig. S1, I and J). These observations suggest that Vps13 is not required for retromer-mediated recycling.

Vps13 is a lipid transfer protein that localizes to various membrane contact sites. It has a characteristic hydrophobic cavity, which is critical for the lipid transfer reaction (Fig. 2, A–C). To define the role of Vps13 in ESCRT-mediated sorting, we examined its localization. Consistent with previous reports (Bean et al., 2018; Park et al., 2016; Rzepnikowska et al., 2017), endogenously expressed Vps13–GFP formed punctate structures, which colocalized with mCherry–Vps21 (Rab5 homolog), confirming its endosomal localization (Fig. S2, A and B). Approximately 10% of Vps13–GFP punctate structures did not colocalize with mCherry–Vps21, presumably because Vps13 also localized to another organelle (i.e., mitochondria, vacuole) as previously reported (Dziurdzik and Conibear, 2021). Vps13 consists of the Extended Chorein, VAB, APT, ATG2_C, and PH domains (Fig. 2 A; Melia and Reinisch, 2022). Since the VAB domain is critical for organelle targeting (Bean et al., 2018), we truncated the C-terminal region including the VAB domain. This mutant (Δ1852–3144) lost endosomal localization (Fig. S2, C and D), indicating that the C-terminal region of Vps13 is required for association with the endosome.

Atg2 is also a bridge-like lipid transfer protein that localizes to the ER-autophagosome contact where it provides phospholipids to support autophagosome formation (Osawa et al., 2019; Valverde et al., 2019). The N-terminal 46 residues of Atg2 are sufficient for association with ER membranes, and this region can be replaced by the N-terminal 39 residues of Vps13 (Kotani et al., 2018). Therefore, we fused GFP to the N-terminal region of Vps13 (Vps13^1–39-GFP) and examined its localization. Consistent with previous work (Nakamura et al., 2021), Vps13^1–39-GFP colocalized with the DsRed-HDEL labeled ER (Fig. S2, E and F), suggesting that the N-terminal region of Vps13 is sufficient for association with the ER membrane.

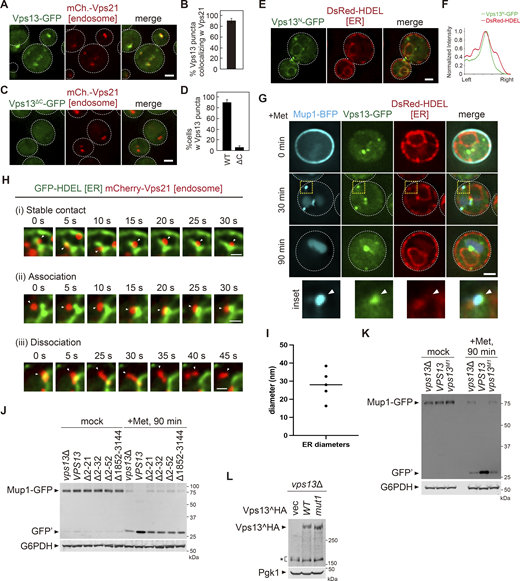

In humans, VPS13C, a paralog of yeast Vps13, has been shown to localize at ER–endosome contact sites (Kumar et al., 2018). Since the N- and C-terminal regions of yeast Vps13 are required for its association with ER and endosomal membranes, we examined whether yeast Vps13 also localizes to ER–endosome contact sites. For this purpose, we generated yeast cells expressing Vps13–GFP, DsRed–HDEL (ER), and Mup1–BFP. After 30 min of methionine stimulation, Mup1–BFP was endocytosed to the endosome (Fig. S2 G). These Mup1–BFP labeled endosomes were frequently observed in close proximity to the ER, which corresponds to ER–endosome contact sites (Fig. 2, D and E; and Fig. S2 G). Notably, Vps13–GFP was enriched at these ER–endosome contact sites (Fig. 2, D, F, and G; and Fig. S2 G). We further analyzed the ER–endosome contact by live-cell imaging and realized that some endosomes dynamically associate and dissociate from the ER membrane (Fig. S2 H). Therefore, we analyzed Vps13–GFP localization in ESCRT mutants, which exhibit a defect in MVB biogenesis. In ESCRT-defective vps4Δ cells, the endosomes were swollen and often observed in close proximity to the ER (Fig. 2, D and E). Vps13–GFP was highly enriched at ER–endosome contact sites in this mutant (Fig. 2, D and F). Electron tomography and three-dimensional modeling of vps4Δ cells revealed that the ER membrane was close to the characteristic flattened endosomal structures (known as class E compartments) (Fig. 2 H and Video 1). These membranes contacting the endosome were designated ER by the observation of its bound ribosomes, dimensions, and staining by high-pressure freezing and electron tomography (Fig. S2 I). Notably, ribosomes were excluded from these associated membranes, which was also observed in other contact sites such as the ER–mitochondria contacts (Friedman et al., 2011; Murley et al., 2013). Collectively, these results indicate that Vps13 is localized at ER–endosome contact sites.

To ask if ER–endosome contact site localization is required for ESCRT-mediated sorting, we constructed several Vps13 truncation mutants and examined Mup1 sorting. When we truncated the C-terminal region of Vps13 (Δ1852–3144), which is required for its endosomal localization, Mup1 sorting was impaired (Fig. 2 I; and Fig. S2 J). Similarly, cells lacking the N-terminal region (Δ2-21, Δ2-32, Δ2-52), required for association with the ER membrane, also exhibited defects in Mup1 sorting. These results suggest that Vps13's association with both the ER and endosome membranes is crucial for the ESCRT pathway.

Vps13 is proposed to bridge two different organelle membranes at a contact site for lipid transport. Consistent with this model, mutations in hydrophobic residues at the Extended Chorein-N domain, responsible for lipid transport, impair sporulation (Fig. 2 C; Li et al., 2020). We examined Mup1 sorting in this lipid transfer mutant (mut1). It exhibited a severe defect comparable with vps13Δ cells (Fig. 2, J and K; and Fig. S2, K and L), suggesting that the lipid transfer activity of Vps13 is required for ESCRT-mediated sorting.

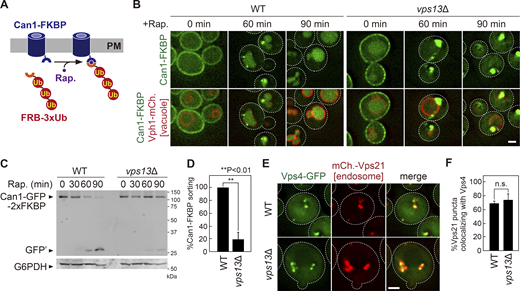

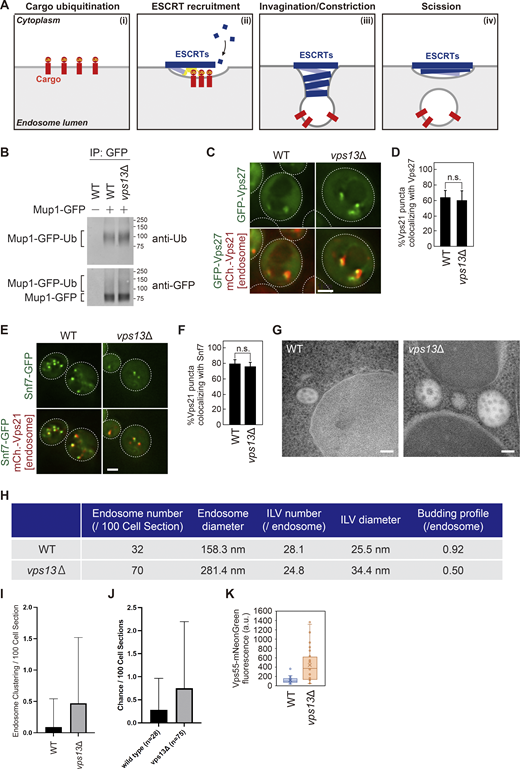

During ESCRT-mediated sorting, transmembrane cargoes are ubiquitinated and then recognized by ESCRT-0 (Fig. S3 A; Henne et al., 2011). Subsequently, downstream ESCRTs (ESCRT-I, ESCRT-II, ESCRT-III, and Vps4 AAAase) are recruited to the endosomal surface. ESCRT-III forms a unique spiral structure that induces membrane invagination and constriction. Finally, Vps4 catalyzes membrane scission. We sought to determine whether Vps13 is required at a specific stage of ESCRT-mediated sorting.

We first examined the ubiquitination status of ESCRT cargoes in vps13Δ cells. We immunoprecipitated Mup1–GFP from methionine-stimulated cells, and we were able to detect ubiquitinated forms of Mup1–GFP even in vps13Δ cells (Fig. S3 B). To further investigate the requirement of Vps13 in cargo ubiquitination, we used a rapamycin-dependent degradation system (Fig. 3 A; and Zhu et al., 2017). In this system, FKBP-fused cargo proteins and three ubiquitin-conjugated FRBs (FRB-3xUb) are coexpressed. Upon rapamycin treatment, FKBP forms a complex with FRB, which allows ubiquitin recruitment to cargoes. By doing this, it can induce ESCRT-mediated sorting in a ubiquitin ligase-independent manner. After a 90-minute treatment with rapamycin, Can1-FKBP was efficiently sorted into the vacuole lumen in WT cells, whereas it was poorly sorted in vps13Δ cells (Fig. 3, B–D). These results indicate that Vps13 is not required for cargo ubiquitination. We next examined whether ESCRTs are properly localized to the endosome in vps13Δ cells. GFP–Vps27 (ESCRT-0), Snf7–GFP (ESCRT-III), and Vps4–GFP were colocalized with the endosome marker mCherry–Vps21, even in vps13Δ cells (Fig. 3, E and F; and Fig. S3, C–F), suggesting that Vps13 function may be downstream of ESCRT recruitment. These results suggest that Vps13 is required for ESCRT-mediated sorting, but not essential for cargo ubiquitination and ESCRT recruitment.

To investigate ILV formation in vps13Δ cells, we employed electron tomography and three-dimensional modeling (Fig. 4 A; and Videos 2, 3, and 4). Consistent with the partial Mup1 sorting (Fig. 1 C), the vps13Δ cells displayed spherical endosomal structures containing ILVs (MVBs). Strikingly, these cells exhibited an increased number of MVBs, and these MVBs frequently clustered together (Fig. 4, B and C; and Fig. S3, G–J). Consistent with this observation, fluorescence microscopy also revealed that Vps55-GFP labeled endosomes form clusters in vps13Δ cells (Fig. 4 D and Fig. S3 K). The size of endosomes in vps13Δ cells was 1.78-fold larger than that of WT cells (Fig. 4 E and Fig. S3 H), while the number of ILVs per endosome was similar (Fig. 4 F and Fig. S3 H). Notably, the size of ILVs in vps13Δ cells was 1.34-fold larger and exhibited greater heterogeneity, contrasting with the smaller and more uniform ILVs observed in WT cells (Fig. 4 G and Fig. S3 H). Intriguingly, several ILVs in vps13Δ cells exceeded 90 nm in size, which was rarely observed in WT cells. Furthermore, we analyzed the inward budding profile (BP) and found that vps13Δ exhibited a lower BP frequency compared with WT cells, although the ILV size is larger (Fig. 4 H and Fig. S3 H). These observations suggest that Vps13 is required for proper ESCRT function at the endosome.

Although BP frequency was lower in vps13Δ cells, the number of ILVs per endosome was similar to WT cells, probably because vps13Δ cells have a partial defect in endosome–vacuole fusion. Indeed, the ypt7Δ cells, which have a defect in endosome–vacuole fusion, exhibited an increased number of MVBs, and the MVB size was larger than that of WT cells (Russell et al., 2012). Hence, we evaluated ILV formation efficiency by monitoring the sorting of NBD-PC (Bilodeau et al., 2002). NBD-PC is delivered to endosomes and specifically incorporated into ILVs through the ESCRT pathway (Fig. 4 I). Subsequently, NBD-PC is delivered into the vacuole lumen (Fig. 4, J and K). In contrast, it was barely delivered to the vacuole lumen and accumulated to the vacuole membrane in vps13Δ cells as well as in the Vps13 lipid transfer mutants (vps13^mut1), suggesting that the consumption of ILV membrane was slower in vps13Δ cells. Collectively, these observations indicate that Vps13 is required for efficient ILV formation.

During MVB formation, the endosome does not shrink, although its limiting membrane is consumed to form ILV. How lipids are supplied to support MVB formation remains an open question. In this study, we found that Vps13 is required for ESCRT-mediated sorting at the endosome. Mutational analysis revealed that Vps13-mediated lipid transfer at the ER–endosome contact site is required for the ESCRT pathway. Cell biological and electron tomography analysis revealed that MVB sorting was impaired in vps13Δ cells. Based on these observations, we propose that the limiting membrane of the endosome is consumed during MVB formation, and Vps13 may play a critical role in providing lipids to the endosome that permit continuous ESCRT-mediated sorting (Fig. 5). Strikingly, Atg2, another Vps13-like lipid transfer protein, delivers phospholipids from the ER to the autophagosome to support its expansion (Osawa et al., 2019; Valverde et al., 2019). A similar mechanism may exist in MVB biogenesis.

In this study, we propose that lipids supplied by Vps13 are crucial for ESCRT-mediated sorting, but their precise physiological significance remains unclear. Interestingly, electron tomography and three-dimensional analysis revealed that vps13Δ cells exhibited a decrease in ILV budding profiles, an increase in ILV size, and a more heterogeneous size distribution. Maintaining appropriate lipid composition might, therefore, impact the efficiency of ILV formation in addition to being important for ILV cargo sorting by the ESCRT machinery.

Our study sheds light on the critical role of Vps13 in the ESCRT pathway. Human cells possess 10 VPS13-like proteins, including VPS13A/B/C/D, ATG2A/B, Hobbit, Tweek, SHIP164, and UHRF1BP1, all of which function as bridge-like lipid transfer proteins (Toulmay et al., 2022; Levine, 2022). These proteins not only localize to the ER–endosome contact site but also to various other sites, including those between the ER and PM, lysosomes, and autophagosomes. Interestingly, ESCRTs function on diverse membranes, such as the nuclear membrane, PM, lysosomal membrane, and autophagosome. The bridge-like lipid transfer proteins might contribute to ESCRT-mediated membrane remodeling on diverse organelle membranes. Further studies are required to address this fascinating question and to unravel the precise role of these bridge-like lipid transfer proteins in cellular membrane dynamics.

Saccharomyces cerevisiae strains used in this study are listed in Table S1. Standard protocols were used for yeast manipulation (Kaiser et al., 1994). Cells were cultured at 26°C to mid-log phase in YNB medium (0.17% [wt/vol] yeast nitrogen base w/o amino acids and ammonium sulfate, 0.5% [wt/vol] ammonium sulfate, and 2% [wt/vol] glucose) supplemented with the appropriate nutrients.

Plasmids used in this study are listed in Table S2.

For immunoblotting, mouse monoclonal anti-GFP (B-2; Sc-9996; Santa Cruz), rabbit polyclonal anti-G6PDH (SAB2100871; Sigma-Aldrich), anti-ubiquitin (P4D1; #3936; Cell Signaling), anti-Pep4 (Klionsky et al., 1988), anti-HA (12CA5; Roche), and anti-Pgk1 (459250; Invitrogen) were used at dilution factors of 1:5,000, 1:10,000, 1:1,000, 1:5,000, 1:5,000, and, 1:10,000, respectively.

For structure prediction of the full-length of S. cerevisiae Vps13, we first modeled two segments of Vps13 (1–1,860 and 1,351–3,144 a.a.) by AlphaFold v2.0 and v2.1.1 (Jumper et al., 2021), respectively. Then, using the overlapping region (1,351–1,860 a.a.), we aligned them to generate a full-length structure.

For Mup1 sorting, Cells expressing Mup1–GFP were grown in YNB (-Methionine) media to mid-log phase at 26°C and then treated with 20 µg/ml methionine to stimulate Mup1 sorting. For Can1-FKBP sorting, rapamycin-insensitive mutant cells (tor1-1, fpr1Δ) expressing Can1-GFP-2xFKBP (Can1-FKBP) and FRB-3xUb were grown to the mid-log phase at 26°C and treated with 200 ng/ml Rapamycin to stimulate its sorting. For the staining with NBD-PC (1-myristoyl-2-{6-[(7-nitro-2-1,3-benzoxadiazol-4-yl)amino]hexanoyl}-sn-glycero-3-phosphocholine; 14:0-06:0 NBD PC, Cat#: 810122P; Avanti Polar Lipids), cells expressing Vph1–mCherry were incubated with 1 mM NBD-PC at 26°C for 30 min. Before imaging, cells were washed with YNB medium three times.

Haploid yeast cells were high-pressure frozen and freeze-substituted as previously described (Nickerson et al., 2006; Tseng et al., 2021). Liquid cultures were harvested at the mid-logarithmic phase, vacuum-filtered on 0.45-μm millipore paper, loaded into 0.5-mm aluminum hats, and high-pressure frozen with a Wohlwend HPF (Wohlwend). Cells were freeze-substituted in an Automated Freeze-Substitution machine (AFS) at −90°C in an en bloc preparation of 0.1% uranyl acetate and 0.25% glutaraldehyde in anhydrous acetone. Samples were then washed in pure anhydrous acetone, embedded in Lowicryl HM20 resin (Polysciences), UV polymerized at −60°C warming slowly over 4 d to room temperature. These methods preserve membrane and protein structure and provide consistent en bloc staining (Giddings, 2003, Staehelin communications).

A Leica UC6 Ultra-Microtome was used to cut and place serial sections on Formvar-coated rhodium-plated copper slot grids (Electron Microscopy Sciences). 80-nm thin serial sections were cut for transmission electron microscopy (TEM), and 200-nm thick serial sections were cut for dual-axis tomography. Thin sections were imaged with a FEI Tecnai T12 Spirit electron microscope equipped with a 120-kV LaB6 filament and AMT (2 k ×  2 k) CCD. TEM of hundreds of cells per strain was used to quality control freezing, embedding, and staining as done previously (Wilson et al., 2021). Thick sections were labeled with fiduciary 15-nm colloidal gold (British Biocell International) on both sides and tilt imaged with a Tecnai 30 (f-30, 300 kV; FEI-Company) with dual-tilt series images collected from +60° to −60° with 1.5° increments using a Gatan US4000 4 k × 4 k charge-coupled device camera (Abingdon). The tilt series were imaged primarily at 20,000 times magnification and repeated with a 90° rotation to create a dual-axis tomogram with a 3-nm resolution and a 0.4306-nm pixel (Mastronarde, 1997).

Tomograms were built and modeled using the IMOD software package (Kremer et al., 1996, University of Colorado Boulder) using an iMac (Apple). MVB membrane models from dual-axis electron tomograms were manually assigned from the inner leaflet every 5 nm and calculated using IMODmesh. Budding profiles (BPs) were designated by their negative curvature since the majority of endosome-limiting membrane curvature is positive or spherical in shape. BP models are drawn from the 0° rim at the outer leaflet, measured, and sorted by surface area using only BPs that have >750 nm² or approximately half of the mean ILV surface (Wemmer et al., 2011). ILVs are spherical and measured using sphere-fitting models from the vesicle’s outer leaflet (the inner leaflet of the MVB limiting membrane), and ILV diameters were measured using these sphere models. To determine MVB number and MVB clustering, 100 random cell profiles of WT and vps13Δ cells were quantified by thin-section electron microscopy. Videos were made using IMOD and QuickTime Pro (Apple). Data were analyzed and graphed using Prism 9 (GraphPad).

Fluorescence microscopy was performed using a CSU-X spinning-disk confocal microscopy system (Intelligent Imaging Innovations) or a DeltaVision Elite system (GE Healthcare Life system).

A CSU-X spinning-disk confocal microscopy system is equipped with a DMI 6000B microscope (Leica), 100×/1.45 numerical aperture objective, and a QuantEM electron-multiplying charge-coupled device (CCD) camera (Photometrics). Imaging of yeast cells was done at room temperature in YNB medium using GFP and mCherry channels with different exposure times according to each protein’s fluorescence intensity. Images were analyzed and processed with SlideBook 6.0 software (Intelligent Imaging Innovations).

A DeltaVision Elite system is equipped with an Olympus IX-71 inverted microscope, DV Elite complementary metal-oxide semiconductor camera, a 100×/1.4 NA oil objective, and a DV Light SSI 7 Color illumination system with Live Cell Speed Option with DV Elite filter sets. Imaging was done at room temperature in a YNB medium using GFP, mCherry, and DAPI (for BFP) channels with different exposure times according to each protein’s fluorescence intensity. Image acquisition and deconvolution (conservative setting; seven cycles) were performed using DeltaVision software softWoRx 6.5.2 (Applied Precision).

To analyze the ubiquitination status of Mup1, cells expressing Mup1–GFP were treated with 20 µg/ml methionine for 15 min and washed twice with 400 mM NEM. Cells were lysed in Urea cracking buffer (50 mM Tris-HCl [pH 8.0], 1% SDS, 8 M Urea, 20 mM NEM, 1× protease inhibitor cocktail [Roche]) and lysed by beating with 0.5 mm YZB zirconia beads (Yasui Kikai) for 1 min. High salt IP buffer with 20 mM NEM and 0.2% Triton X-100 was added to the lysate, and the samples were rotated at 4°C for 10 min. The solubilized lysates were cleared at 500 × g for 5 min at 4°C, and the resultant supernatants were subjected to high-speed centrifugation at 17,400 × g for 10 min. The cleared supernatants were incubated with pre-equilibrated GFP-TRAP_A beads (Chromo Tek) and rotated at 4°C for 1 h. After the beads were washed with SDS wash buffer (50 mM Tris-HCl [pH 8.0], 250 mM NaCl, 1% SDS, 4 M Urea, 5% Glycerol), the bound proteins were eluted by incubating the beads in SDS-PAGE sample buffer at room temperature for 5 min.

Cell lysates were prepared as follows: cells were grown to mid-log phase at 26°C. Aliquots of cells were mixed with trichloroacetic acid at a final concentration of 15%, and the mixtures were incubated for 30 min at 4°C. After centrifugation at 17,400 × g for 10 min at 4°C, the cells were washed once with 100% acetone and then were lysed in Urea clacking buffer (50 mM Tris-HCl [pH 7.5], 8 M urea, 2% [wt/vol] SDS, and 1 mM EDTA) by beating with 0.5 mm YZB zirconia beads (Yasui Kikai) for 5 min. Then, 2× sample buffer (150 mM Tris-HCl [pH 6.8], 7 M urea, 10% [wt/vol] SDS, 24% [wt/vol] glycerol, and bromophenol blue) was added to the lysate, and the samples were vortexed for 5 min. After centrifugation at 10,000 × g for 1 min at room temperature, supernatants were analyzed by SDS-PAGE and immunoblotting using anti-GFP, anti-G6PDH, anti-Pep4, and anti-Pgk1. For quantification of processed GFP from Mup1–GFP and Can1-FKBP, intensity of the band of processed GFP (GFP’) at 90 min stimulation was measured. Processed GFP in WT was set to 100%. The data and error bars were obtained from three individual experiments.

The GFP-CPS localization was classified into three categories: (i) vacuole lumen, (ii) vacuole lumen and vacuole membrane, and (iii) vacuole membrane and punctate structure localization. Vps10-GFP and Kex2-GFP localization was classified into three categories: (i) punctate structures, (ii) punctate structure and vacuole membrane, and (iii) vacuole membrane localization. The Pep4-GFP localization was classified into three categories: (i) vacuole lumen, (ii) punctate structures and vacuole lumen, and (iii) punctate structure localization. The Vph1-mCherry localization was classified into three categories: (i) vacuole membrane, (ii) punctate structure and vacuole membrane, and (iii) punctate structure localization. For each experiment, at least 30 cells were classified. The data and error bars were obtained from three independent experiments.

Cells having Vps13–GFP punctate structure were quantified. For each experiment, at least 30 cells were classified. The data and error bars were obtained from three independent experiments.

GFP-Vps27, Snf7-GFP, and Vps4-GFP puncta colocalizing with mCherry–Vps21 (endosome) was quantified. For each experiment, at least 50 puncta were classified. The data and error bars were obtained from three independent experiments.

Mup1-BFP puncta colocalizing with Vps13–GFP (Vps13 positive puncta) and colocalizing with both Vps13–GFP and DsRed–HDEL were quantified. For each experiment, at least 50 puncta were classified. The data and error bars were obtained from three independent experiments.

The Mup1-pHluorin fluorescence colocalizing with mCherry–Vps21 (served as an endosome marker) was quantified. For each experiment, at least 50 puncta were classified. The data and error bars were obtained from three independent experiments.

The NBD-PC fluorescence colocalizing with Vph1–Cherry (served as a vacuole membrane marker) was quantified. For each experiment, at least 30 cells were classified. The data and error bars were obtained from three independent experiments.

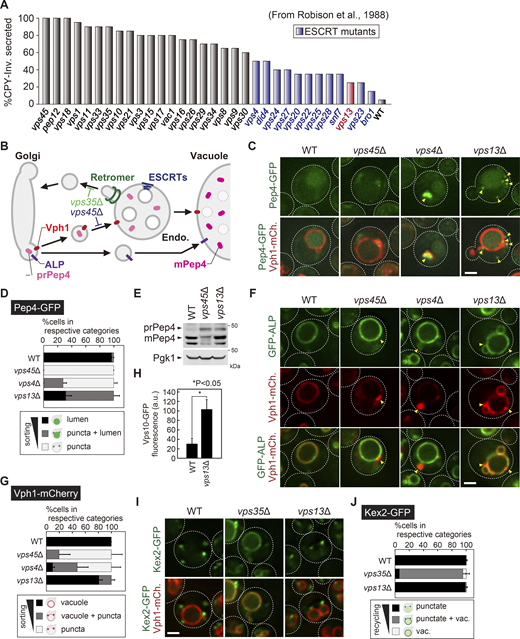

Fig. S1 shows the localization of endosomal cargoes in vps13Δ cells. Fig. S2 shows Vps13 localization at the ER–endosome contact site. Fig. S3 shows an analysis of ESCRT-mediated sorting in vps13Δ cells. Video 1 shows a tomogram of ER–endosome contact sites in vps4Δ cells. Video 2 shows the tomogram of an endosome in WT cells. Video 3 shows the tomogram of an endosome in vps13Δ cells. Video 4 shows the tomogram of endosomes in vps13Δ cells. Table S1 shows yeast strains used in this study. Table S2 shows the plasmids used in this study.

Data are available with the article and its supplementary material. Original data, strains, and plasmids generated in this study are available from the corresponding author upon request.
