Cell type–specific use of the same DNA blueprint generates diverse cell types. Such diversity must also be executed via differential deployment of the same subcellular machinery. However, our understanding of the size, distribution, and dynamics of subcellular machinery in native tissues and their connection to cellular diversity remains limited. We generate and characterize an inducible tricolor reporter mouse, dubbed “Kaleidoscope,” for simultaneous imaging of lysosomes, mitochondria, and microtubules in any cell type and at a single-cell resolution. The expected subcellular compartments are labeled in culture and in tissues with no impact on cellular and organismal viability. Quantitative and live imaging of the tricolor reporter captures cell type–specific organelle features and kinetics in the lung, as well as their changes after Sendai virus infection. Yap/Taz mutant lung epithelial cells undergo accelerated lamellar body maturation, a subcellular manifestation of their molecular defects. A comprehensive toolbox of reporters for all subcellular structures is expected to transform our understanding of cell biology in tissues.

Nearly all cells in our body have the same DNA and subcellular machinery, with few exceptions due to specialization such as somatic mutations for adaptive immunity and denucleation of red blood cells. Selective use of the same DNA blueprint underlies our ∼200 cell types and must be executed via cell type–specific use of the subcellular machinery, such as the T-tubules of muscles, microvilli of absorbent gut cells, synaptic junctions of neurons, and lysosomal related organelles of melanocytes. Besides such causation, a cell type is associated with and can be defined by not only expressed genes but also cellular features, as exemplified in Ramon y Cajal’s neuronal classification by cell morphology (Garcia-Lopez et al., 2010). Moreover, the myriad DNA-coded macromolecules, as well as their cofactors, substrates, and products, are confined to organelles, transported via the vesicular system along the cytoskeleton, and connected through cell–cell and cell–matrix adhesions.

Despite this analogy and interplay between molecular and cellular features, the former has enjoyed robust understanding and tools, leading to a conceptual framework where the combinatorial action of transcription factors drives cell type–specific epigenomic changes and consequently gene expression. In contrast, studies of cellular features are typically limited to cultured cells due to technical feasibility. However, as genes have distinct functions across cell types, subcellular machinery may also function differently in culture versus in tissues, particularly between large thin cells on 2D stiff plastics and those embedded in 3D cellular and matrix environments. Although classic transmission electron microscopy can pinpoint many subcellular structures, it is challenging to assign them to specific cell types, track them over time, and construct a 3D view of the entire cell.

The necessity to study cellular features in tissues and the difficulty in doing so are accentuated in the gas-exchanging lung alveoli, where a multitude of cell types interdigitate within thin tissues bordering millions of air pockets. For example, individual alveolar type 1 (AT1) cells and Cap2 endothelial cells (also known as Car4 cells or aCaps) span several hundred microns and multiple alveoli, whereas mesenchymal cells are as diverse in morphology and location (Gillich et al., 2020; Narvaez Del Pilar et al., 2022; Niethamer et al., 2020; Vila Ellis et al., 2020; Yang et al., 2016). Furthermore, their cellular processes are often too thin and intertwined to attribute subcellular staining signals to their cellular source. Inspired by the sparse cell labeling strategy achieved originally via Golgi staining and nowadays by genetic recombination (Badea et al., 2003), we have visualized the diverse morphology of each cell type in the alveolar epithelial, endothelial, and mesenchymal lineages using a Cre-dependent cell membrane or cytosolic reporter (Narvaez Del Pilar et al., 2022; Vila Ellis et al., 2020; Yang et al., 2016). Expanding this pipeline of cell biology analysis, our current study has generated a reporter mouse to fluorescently label subcellular structures including lysosomes, mitochondria, and microtubules. Unlike existing reporters that are limited to neurons or individual structures (Abe et al., 2011; Barrasso et al., 2018; Gautier et al., 2021; Lusk et al., 2022; Valm et al., 2017; Weissman and Pan, 2015), our reporter enables tricolor labeling within a single cell of any type for which a Cre driver is available. Applying this reporter across organs and cell lineages using live imaging in a viral injury model and in conjunction with genetic mutations, we have shown in native tissues cell type–specific distributions of lysosomes and mitochondria, lysosomal fusion and fission, organelle changes upon viral infection, and lamellar body biogenesis and its defects in Yap/Taz mutant alveolar type 2 (AT2) cells.

Concatenated fluorescent fusion proteins label three subcellular structures when transiently expressed

Recognizing the use of ROSA reporters in not only lineage tracing but also visualizing cell morphology (ROSAmTmG and ROSAtdT) and purifying ribosomes (ROSAL10GFP) or nuclei (ROSASun1GFP; Liu et al., 2014; Madisen et al., 2010; Mo et al., 2015; Muzumdar et al., 2007), we sought to systematically label subcellular structures, leveraging myriad fluorescent fusion proteins verified in cultured cells, to fill the gap in our knowledge of cell biology in the native tissues. To achieve comparable expression among multiple fusion proteins, we concatenated them with 2A self-cleaving sequences, instead of IRES (Jang et al., 1988; Liu et al., 2017; Mizuguchi et al., 2000; Pelletier and Sonenberg, 1988), and positioned the largest and thus potentially less robust (tag)BFP-Lamp1 in the preferred first position before a mitochondrial localization signal (MLS)-linked mKate2 (a tagRFP variant) and an EGFP-tagged α-Tubulin (Fig. 1 A and Fig. S1 A). We named this trifusion protein construct “Kaleidoscope” given its ability of multicolor labeling of structures inside a cell. We placed the Kaleidoscope construct under the control of a strong ubiquitous CAG promoter used in other ROSA reporters, separated by a Cre-dependent transcriptional stop cassette.

To test the Kaleidoscope construct, we transiently co-transfected the reporter construct and pCAG-Cre into a HEK293T human cell line (Dubridge et al., 1987). Native fluorescence from BFP-Lamp1 exhibited a few perinuclear globules, MLS-mKate2, a vesicular network, and EGFP-α-Tubulin, a reticular pattern excluding the cell nucleus and BFP-Lamp1 globules—distributions consistent with lysosomes, mitochondria, and microtubules, respectively (Fig. 1 B). A similar pattern was observed in a mouse lung epithelial cell line MLE15 (Wikenheiser et al., 1993; Fig. S1 B). To further examine the construct in tissues, we removed the trasncriptional stop cassette in vitro with a Cre recombinase and electroporated it into embryonic mouse lungs and, after 24 h culture, observed individual epithelial cells bridging the basement membrane and apical lumen and fluorescing from the three fusion proteins with expected distinct distributions (Fig. 1 C).

A tricolor reporter mouse labels lysosomes, mitochondria, and microtubules across organs

After validating the Kaleidoscope fusion proteins via transient expression in cultured cell lines and lungs, we knocked the construct into the ROSA locus via CRISPR-stimulated homologous recombination via standard pronuclear injection (Fig. S1 C). To examine the fusion proteins across organs, we activated the resulting ROSAKaleidoscope allele with a near ubiquitous Cre driver, CMV-Cre (Schwenk et al., 1995). As cell spreading on a 2D culture surface facilitates resolution of subcellular structures, we grew primary cells from dissociated postnatal day 7 (P7) lungs in conditions that most likely favor fibroblasts (Fuentes-Mateos et al., 2023) and compared the Kaleidoscope fusion proteins with established markers of lysosomes (LAMP2), mitochondria (TOMM20), and microtubules (β-Tubulin), with each pair showing remarkable overlaps (Fig. 2 A and Fig. S1 D). The EGFP-α-Tubulin was not as filamentous as β-Tubulin despite the common use of this fusion protein (Rizzo et al., 2009), possibly due to extra fusion proteins unincorporated into the microtubule polymers. This was further examined later in the context of cell division. Western blots of whole lungs, in comparison with HEK293T cells transfected with individual fusion proteins, showed consistent patterns except for a lung-specific band possibly due to differential glycosylation of LAMP1 in tissues (Fig. S1 E).

The CMV-Cre; ROSAKaleidoscope mice loaded with multiple fusion proteins were healthy and fertile, and showed typical multi-nucleation in the liver, striation in the skeletal muscles, and a regular array of hair cells in the inner ear (Fig. 2 B). Lysosomes were consistently perinuclear but differed in size characteristic for each cell type including, from the largest to the smallest, hepatocytes, outer hair cells, and skeletal muscle cells (Fig. 2 B; and Fig. S2, A and B). Interestingly, microtubules were aligned perpendicular to skeletal muscle fibers, likely to organize actomyosin bundles, whereas lysosomes and mitochondria showed a longitudinal pattern in the remaining space (Fig. 2 B and Fig. S2 A). Unlike organs dominated by a major cell type, ubiquitous labeling in the lung was uninformative, as its alveolar region has dozens of cell types with intertwined cellular processes (Fig. 2 B)—a major rationale to build this genetic reporter for sparse, cell type–specific labeling, as illustrated below. Nevertheless, the airway epithelium was relatively simple and labeled cells were readily recognizable as ciliated cells with apical microtubule clusters and club cells with apical domes (Fig. S2, C and D). Comparing across organs, cell types, and ages, we noticed tissue autofluorescence from elastin fibers in the adult lung obscured the Kaleidoscope EGFP fusion protein, requiring amplification with a GFP antibody. Relatedly, mKate2 was readily detected in the Cy3 channel, sparing the Cy5 channel for antibody or nuclei staining.

Visualization of microtubule dynamics through cell cycle phases

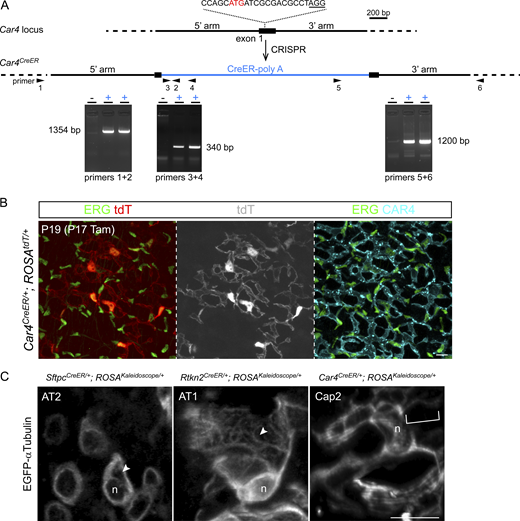

To further validate the microtubule labeling that was less discrete than the two organelle labelings, we reasoned that mitotic spindle assembly during mitosis would be an informative test case. Reassuringly, in cultured primary lung cells from our reporter mice, the filamentous microtubule network of interphase cells organized into the classic metaphase starbursts in an elevated, rounded cell body (Fig. 3 A). To track microtubule dynamics in tissues, we used SftpcCreER (Chapman et al., 2011) to activate the Kaleidoscope reporter in neonatal alveolar type 2 (AT2) cells with ongoing developmental proliferation. We identified microtubule labeling patterns consistent with textbook examples of interphase, prophase, metaphase, anaphase, and telophase, where EGFP-α-Tubulin cycled through configurations of a diffuse network, paired foci, paired starbursts, and a bridging bundle (Fig. 3 B). Interestingly, while the labeled mitochondria reticulum was largely evenly split between the two separating daughter cells, a single dominant lysosome sometimes formed during mitosis, suggesting delayed assembly or synthesis of new lysosomes that was nevertheless compatible with cell division (Fig. 3 B).

Sizes and distributions of lysosomes, mitochondria, and microtubules in AT2, AT1, and Cap2 cells

Unlike the small, conventionally shaped AT2 cells, alveolar type 1 (AT1) cells and Cap2 endothelial cells span several hundred microns and contribute to multiple alveoli and capillary segments, respectively (Vila Ellis et al., 2020; Yang et al., 2016). More challengingly, both large cells have thin cytoplasm at or below the resolution of optical microscopy and juxtaposed with cytoplasm from other cells, precluding attempts to assign a standard subcellular staining to a given cell type. Accordingly, we used Rtkn2CreER (Little et al., 2021) and newly generated Car4CreER (Fig. S3, A and B) to activate the Kaleidoscope reporter in sporadic AT1 and Cap2 cells, respectively, with a limiting dose of tamoxifen—a sparse labeling strategy deployed to distinguish adjacent cells of the same type.

This revealed for the first time the complete distributions of lysosomes and mitochondria in AT1 and Cap2 cells in the native tissue (Fig. 4). Quantitative imaging showed that AT2 cells had one or two lysosome globules, likely corresponding to lamellar body clusters (verified below with LAMP3 immunostaining) and a rich mitochondrial network, which were both localized to the perinuclear region and respectively occupied around 5% and 15% of the cell volume defined by EGFP-α-Tubulin. AT1 cells had close to 50 lysosomal and 100 mitochondrial objects that were smaller or more fragmented and occupied a smaller fraction of the cell volume than those of AT2 cells. Both organelles were distributed throughout the expansive cytoplasm, forming mitochondrial and lysosomal outposts presumably to support active cellular metabolism distant from the nucleus (Fig. 4 A and Video 1). Cap2 cells had fewer but still abundant lysosomes and mitochondria that tended to accumulate near the nucleus as well as along the microtubule fibers, but infrequently at the cell extremities (Fig. 4 A and Video 2). The cuboidal AT2 cells were filled with a dense microtubule network, whereas AT1 cells had a mesh of filamentous microtubules, potentially providing mechanical support for their expansive and thin cytoplasm (Fig. 4 A). By comparison, Cap2 cells had multiple long microtubule fibers, possibly due to their complex autocellular and intercellular junctions in the 3D capillary tubes (Fig. 4 A). The differences in the microtubule density among cell types were reminiscent of those among a cotton ball (AT2 cells), a sieve (AT1 cells), and a fishnet (Cap2 cells; Fig. S3 C).

Live imaging of lysosome movement, fusion, and fission in embryonic lung epithelial progenitors

Expected as a major advantage of fluorescent fusion proteins, the multicolor Kaleidoscope reporter in fresh tissues was sufficiently stable for simultaneous live-imaging of lysosomes, mitochondria, and microtubules, and even brighter than fixed tissues (Fig. 5; Videos 3, 4, 5, and 6). Specifically, we activated the reporter with Sox9CreER in sparse lung epithelial progenitors surrounded by multiple layers of mesenchymal cells and explant-cultured such labeled embryonic lungs. Over several hours, lysosomes and mitochondria mostly jittered but occasionally dashed across several microns, with a combined speed averaging 0.16 and 0.14 µm/min, respectively (Fig. 5 A; Videos 4 and 5). Moreover, the lysosomal puncta fused and fissioned, processes challenging to distinguish from restructuring for the mitochondrial network (Fig. 5 A). EGFP-α-Tubulin was too diffuse under the current imaging condition to identify individual microtubule fibers, but reliably outlined cell nucleus, shape, and location (Video 6).

Organelle changes in AT1 cells after Sendai virus infection

After characterizing subcellular structures and dynamics in normal tissues, we applied the Kaleidoscope reporter to a Sendai virus injury model, which features AT2-less regions, where AT2 cells are depleted as a result of infection and AT1 cells temporarily seal the epithelial barrier before being displaced by invading airway basal-like cells (Hernandez et al., 2022). AT1 cells in infected lungs, regardless of the absence of AT2 cell neighbors, tended to have fewer but larger lysosomes, possibly due to widespread inflammation, whereas their mitochondria were minimally affected (Fig. 6 A and Fig. S4). The exact cause and functional significance of such cellular changes need further investigation including intravital imaging. Adjacent to or away from AT2-less regions, AT2 cells contribute to in situ repair or de novo growth, respectively (Hernandez et al., 2022). The resulting AT2-originated AT1 cells were readily distinguishable from adjacent AT2 cells with their numerous dispersed lysosomes and mitochondria, predicting as drastic a change in subcellular structures as in gene expression during AT2-to-AT1 differentiation and further supporting cell type–specific organelle features (Fig. 6 B and Video 7).

Yap/Taz mutant lung epithelial cells accelerate lamellar body biogenesis

To further explore the notions that molecular events must be executed by subcellular machinery and that, in the same way that single-cell genomic tools capture molecular states, the Kaleidoscope reporter captures subcellular states, we applied our reporter to a cellular analysis of the Yap/Taz mutant lung epithelial progenitors, which was shown via molecular analysis to undergo accelerated AT2 cell differentiation (Little et al., 2021). During normal AT2 cell differentiation, an AT2 cell-specific marker LAMP3 existed in two pools: multiple small puncta in progenitors and developing AT2 cells and one to two large globules in mature AT2 cells, with the second pool overlapping with the Kaleidoscope BFP-Lamp1 and gradually increasing in size (Fig. 7). Since BFP-Lamp1 lysosomes were present in SOX9+ progenitors with scattered LAMP3 and LAMP3-negative airway cells (Fig. 7, A and B; and Fig. S5, A and B), LAMP3 was likely produced as small puncta that subsequently merged with lysosomes to form lamellar body clusters, consistent with them being lysosomal related organelles (Mahanty and Setty, 2021; Marks et al., 2013). In the Yap/Taz mutant, both pools of LAMP3, distinguished by an overlap with BFP-Lamp1, were larger in size than those at the same and even later developmental stages (Fig. 7 C). This enlargement in both vesicular and clustered LAMP3 could result from the overproduction of LAMP3 and related proteins due to transcriptional misregulation (Little et al., 2021), overwhelming subcellular machinery for lamellar body production, storage, and secretion. This lysosomal phenotype was consistent with the exaggerated AT2 cell differentiation predicted from molecular profiling (Little et al., 2021); by comparison, mutant cell mitochondria were not visibly different and mutant cell perimeters fell between AT1 and AT2 cells, possibly due to stretching to compensate for blockage of AT1 cell differentiation and expansion (Fig. S5 C). These diverse cellular phenotypes, akin to differential and unaffected gene expression, highlighted the rich information herein and its use in defining biology.

This study represents an initial step to unravel cell type–specific use of the subcellular machinery in tissues. We generate a Cre-dependent, tricolor fluorescent reporter mouse that simultaneously labels lysosomes, mitochondria, and microtubules across diverse cell types and with single-cell resolution. Applying this tool to the lung with entangled cellular processes of dozens of cell types, we document lysosomal and mitochondrial distributions in the convoluted AT1 and Cap2 cells and upon viral infection, track organelle dynamics in embryonic epithelial progenitors, and reveal accelerated lamellar body biogenesis in a Yap/Taz mutant.

Our study is motivated by the unmet need to extend the extensive knowledge of cell biology in cultured cells to that in native tissues. Such extension is necessary for the same reason that genes often function distinctly across cell types and in ways not recapitulated in culture. Notably, without native matrix, cellular, and geometric environments, cultured cells cannot mimic the full extent of cellular specialization needed for physiology, including endothelial cells in blood-filled vessels, folded ultrathin AT1 cells integrated with neighboring alveolar cells, and their aberrant versions from cumulative developmental deviation due to genetic mutations. Such cellular specialization is reflected not only in cell morphology but also in organelle usages such as mitochondrial subpopulations in skeletal muscle cells and lysosomal-related organelles, such as melanosomes and Weibel-Palade bodies (Marks et al., 2013; Willingham et al., 2021). Using the tricolor reporter, we show that AT2 cell lamellar bodies, a type of lysosomal-related organelles, form via gradual coalescence of LAMP3 vesicles with lysosomes and this process is accelerated upon Yap/Taz deletion (Fig. 7).

By establishing the feasibility of multicolor imaging of tissue cell biology, our study paves the way for systematic single-cell subcellular analysis, akin to single-cell genomics. First, leveraging fluorescent fusion proteins validated in cultured cells and other safe genomic loci such as Hprt, H11, Tigre, and Col1a1, the next generation of Kaleidoscope mice would allow spectral imaging of all known subcellular structures including actin, intermediate filaments, Golgi, ER, endosomes, cell junctions, and matrix adhesions. The resulting kaleidoscopic cell type–specific features represent a modern version of Golgi staining for cell morphology to classify neurons. Second, super-resolution imaging can be used to resolve microtubule dynamics as well as individual mitochondria and lysosomes versus their clusters and, more broadly, to map organelle interactomes in tissues such as mitophage (Valm et al., 2017). Third, besides transcriptional regulators such as YAP/TAZ (Fig. 7), these subcellular reporters would enable real-time mechanistic studies of direct regulators of cytoskeleton assembly and anchorage; vesicle budding, transport, and fusion; as well as cell junction establishment and remodeling. Their Cre-dependent design will provide definitive evidence for intercellular transfer of organelles such as mitochondria (Griessinger et al., 2017). Last, therapeutic drugs targeting cell biology such as the microtubule stabilizer Taxol can be evaluated for side effects on all cell types in tissues.

Cloning

The ROSA targeting vector Ai9 was a gift from Hongkui Zeng at the Allen Institute (Seattle, WA; #22799; http://n2t.net/addgene:22799; RRID; Addgene_22799; Addgene plasmid). To facilitate cloning and CRISPR targeting, Ai9 was shortened to 13.7 kb by replacing the majority of the ROSA right arm and the diphtheria toxin and neomycin cassettes between XmaI and XhoI (R0146, R0180; New England Biolabs) with a 1.2 kb ROSA right arm using primers in Table 1 via high-fidelity PCR (M0530; New England Biolabs). EGFP-Tubulin-6 was a gift from Michael Davidson at the Florida State University (Tallahassee, FL; #56450; http://n2t.net/addgene:56450; RRID: Addgene_56450; Addgene plasmid). mTagBFP-Lysosomes-20 was a gift from Michael Davidson at the Florida State University (#55263; http://n2t.net/addgene:55263; RRID: Addgene_55263; Addgene plasmid). The MLS-mKate2 plasmid was a generous gift from Dr. Anthony Barrasso and Dr. Ross Poche at Baylor College of Medicine (Barrasso et al., 2018). The polycistronic cloning vector PTE2A-PGEMT (Liu et al., 2017) was a generous gift from Dr. Li Qian at University of North Carolina. Fluorescent fusion protein sequences were amplified via high-fidelity PCR with custom primers to add cloning adapters (Table 1). The PCR fragments were digested to ligate into the PTE2A-PGEMT vector sequentially as in Fig. S1. The resulting PGEMT-BFP-Lamp1-P2A-MLS-mKate2-T2A-EGFP-Tubulin plasmid was sequence verified and digested with MluI (R0198; New England Biolabs) to replace the tdTomato sequence in Ai9short. The resulting ROSA-Kaleidoscope plasmid was also treated with a Cre recombinase (M0298; NEB) for 30 min at 37°C to remove the transcriptional stop cassette to test the fusion proteins in culture.

Mice

The following mouse lines were used: Rtkn2CreER (Little et al., 2021), SftpcCreER (Chapman et al., 2011), Sox9CreER (Soeda et al., 2010), CMV-Cre (Schwenk et al., 1995), YapCKO (Reginensi et al., 2013), and TazCKO (Reginensi et al., 2013). The ROSAKaleidoscope and Car4CreER alleles were generated using CRISPR targeting via standard pronuclear injection (Behringer et al, 2014). Specifically, 400 nM gRNA (Synthego), 200 nM Cas9 protein (E120020-250 µg; Sigma-Aldrich), and 500 nM circular donor plasmid were mixed in the injection buffer (10 mM Tris pH 7.5, 0.1 mM EDTA). For ROSAKaleidoscope, the gRNA targeted 5′-ACT​CCA​GTC​TTT​CTA​GAA​GAT​GG-3′ with the last three nucleotides being the protospacer adjacent motif (PAM; not included in gRNA). Genotyping primers are in Table 2. For Car4CreER, the 5′ homology arm in the donor plasmid was PCR-amplified between 5′-CCT​AGA​AAC​TCC​CCA​GGG​ATG​C-3′ and 5′-TGG​AGG​CTT​TAT​AGC​AGA​GCC​ACG-3′, and the 3′ homology arm was PCR-amplified between 5′-GTG​GCT​TCA​TTG​GTG​ATT​GAC​CCT-3′ and 5′-CTT​TAA​CAT​TAT​ATT​AGT​TGC​T-3′. The gRNA targeted 5′-CCA​GCATGATC​GCG​ACG​CCT​AGG-3′ with the last three nucleotides being the PAM (not included in gRNA) and a potential cryptic start codon in the 5′ UTR underlined and replaced by that of CreER used in Sox9CreER (Soeda et al., 2010). ROSAKaleidoscope, Rtkn2CreER, and Car4CreER mice lines have been deposited at Jackson Laboratories (stock numbers 038639, 038640, and 038602, respectively).

For embryonic experiments, pregnancies were designated as embryonic day (E) 0.5 on the day of plug. Tamoxifen (T5649; Sigma-Aldrich) dissolved in corn oil (C8267; Sigma-Aldrich) was administered via intraperitoneal injection to pregnant mothers at doses and ages in figure legends to induce Cre recombination. Experiments were conducted in both male and female mice and investigators were aware of genotypes at the time of experiments. The mice were housed under conditions of 22°C, 45% humidity, and 12–12 h light–dark cycle. All animal experiments were approved by the Institutional Animal Care and Use at MD Anderson Cancer Center. Every effort was made to process samples in the same tubes as experimental and biological replicates to reduce variation between experiments.

Cell line culture

HEK293T cells (ATCC CRL-3216) were grown in DMEM (D8418; Sigma-Aldrich) with 10% fetal bovine serum (FBS, 89510; VWR) and 1% PenStrep (15140; Gibco) on No.1 coverslips (48366-067; VWR) in six-well plates (10062-892; VWR). After cotransfection using Lipofectamine 3000 (L3000-008; Thermo Fisher Scientific) of ROSA-Kaleidoscope and pCAG-Cre (a gift from Connie Cepko at Harvard Medical School, Boston, MA; #13775; http://n2t.net/addgene:13775; RRID:Addgene_13775; Addgene plasmid), HEK293T cells were grown for 24–48 h, fixed in 2% paraformaldehyde (PFA; P6148; Sigma-Aldrich), and immunostained or immediately imaged on an Olympus FV1000 confocal. MLE15 cells (a gift from Dr. Jeffrey A. Whitsett [Wikenheiser et al., 1993]) were grown in RPMI-1640 media (11875119; Thermo Fisher Scientific) with 10% FBS, 1% PenStrep on No.1 coverslips in six-well plates. Cells were transfected with Cre-recombined ROSA-Kaleidoscope using TransIT-2020 (MIR5404; Mirus Bio). For Western blots, HEK293T cells were grown in 10-cm plates (25-202; GenClone) and transfected using lipofectamine 3000 with Cre-recombined ROSA-Kaleidoscope, BFP-Lamp1 (#55263; Addgene), MLS-mKate2, or EGFP-α-Tubulin (#56450; Addgene) and grown for 24 h. Cell lysis buffer (FNN0021; Invitrogen) was added to plates and centrifuged at 500 rpm for 3 min, followed by Pierce BCA analysis (#23227; Thermo Fisher Scientific) on the supernatant.

Primary cell culture

P7 CMV-Cre; ROSAKaleidoscope/+ lungs were removed after perfusion with phosphate-buffered saline (PBS), freed of any surrounding tissue and trachea, and minced with forceps into ∼1-cm3 pieces. Tissue fragments were incubated in 1.35 ml PBS plus 150 µl 20 mg/ml Collagenase Type I (Worthington CLS-1 dissolved in PBS) and 15 µl 20 mg/ml DNase I (Worthington D dissolved in PBS) at 37°C for 40 min, with manual mixing halfway and at the end of incubation. Following digestion, tissue was washed with 10% FBS in Leibovitz media (21083-027; Gibco) and spun down. The supernatant was removed, and cells were incubated in red blood cell lysis buffer (15 mM NH4Cl, 12 mM NaHCO3, 0.1 μM EDTA, pH8.0) for 3 min before washing as before. Cells were then resuspended in prewarmed RPMI-1640 with 10% FBS and 1% PenStrep and plated on No. 1 cover slips in six-well culture plates. Media was changed daily for 3 d to remove dead cells. On day 4, cells were fixed in 2% PFA for 2 h, washed with PBS, mounted with Aquapolymount (18606; Polysciences), and imaged.

Embryonic lung explant culture

Time-mated females were harvested at E14.5 and lungs with trachea and glottis were removed from embryos. The Cre-recombined ROSA-Kaleidoscope plasmid and Fast Green FCF dye (MKCD1540; Sigma-Aldrich) were mouth-pipetted through the glottis until embryonic lumens were visibly filled. Lungs were electroporated in BioRad Xcell electroporation cuvettes (165-2088; BioRad) at 35 V for three rounds of 25 ms with 1-s intervals. Lungs were then placed on Nuclepore Track-Etch Membrane filters (10417101; Whatman) and floated on RPMI-1640 media with 10% FBS 1% PenStrep for 24 h before fixation in 0.5% PFA for 4 h. After PBS wash, lungs were embedded in optimal cutting temperature compound (OCT; 4583; Tissue-Tek), cryosectioned, and imaged on Deltavision Deconvolution scope with 60× oil objective (Plan-Apo NA 1.42) running SoftWoRx.

Live imaging

Time-mated females were injected with 250 µg tamoxifen 2 d prior to sacrifice at E12.5 or E13.5. Embryos were screened for fluorescence and positive lungs were mounted on coverslip-bottom plates (P35G-1.5-10-C; Mattek) in a minimal amount of Leibovitz media. Lungs were imaged on a spinning disc confocal (3i Intelligent Imaging Innovations) using a 40× air objective at intervals indicated in figure legends at 37°C with 5% CO2 and humidified air. Following image acquisition, time-lapse videos were deconvolved using 3i software AutoQuant 3D Blind Deconvolution and converted to tiff files for import to Imaris software.

Section immunofluorescence and confocal imaging

Postnatal and adult lungs were inflation harvested as described with minor modifications (Yang et al., 2016). Briefly, mice were sacrificed via intraperitoneal injection of avertin (T48402; Sigma-Aldrich) and perfused through the right ventricle with PBS. The trachea was cannulated and the lung inflated with 0.5% PFA in PBS at 25 cm H2O pressure, submersion fixed in 0.5% PFA at room temperature (RT) for 3–6 h, and washed in PBS at 4°C overnight on a rocker. Section immunostaining was performed following published protocols with minor modifications (Alanis et al., 2014; Chang et al., 2013). Fixed lung lobes were cryoprotected in 20% sucrose in PBS containing 10% OCT at 4°C overnight and then embedded in OCT and frozen at −80°C. Sections were cut at 30 µm thickness and blocked in 5% normal donkey serum (017-000-121; Jackson Immuno Research) in PBS with 0.3% Triton X-100 (PBST) before incubation with primary antibodies diluted in PBST in a humidified chamber at 4°C overnight. Sections were washed with PBS in a coplin jar for 30 min at RT and then incubated with donkey secondary antibodies (Table 4) diluted in PBST at RT for 1 h. After another 30 min wash with PBS, sections were mounted with Aquapolymount and imaged in ∼20 µm z-stacks on a confocal microscope (FV1000V; Olympus) using a 60× oil objective (UPlanSApo NA 1.35) running Fluoview software at room temperature. Liver, inner ear, and muscle tissues were removed following right ventricle perfusion and fixed in 0.5% PFA for 3–6 h at RT and then cryoprotected and sectioned as above. See Tables 3 and 4 for a list of antibodies.

Whole mount immunostaining

This was performed following published protocols with minor modifications (Yang et al., 2016). In brief, ∼3-mm wide strips from the edge of the left lobes of postnatal or adult lungs or whole lobes of embryonic lungs were blocked with 5% normal donkey serum in PBST for 2–4 h at RT and then incubated with primary antibodies diluted in PBST overnight at 4°C on a rocker. The strips were then washed with PBS + 1% Triton X-100 + 1% Tween-20 (PBSTT) on a rocker at RT three times over 4 h. Secondary antibodies diluted in PBST were incubated on a rocker overnight at 4°C. On the third day, the strips were washed as above before fixation with 2% PFA in PBS for at least 2 h on an RT rocker. Finally, the strips were mounted on slides using Aquapolymount with the flattest side facing the coverslip. Z-stack images of 20–40 μm thick at 1 µm step size were taken from the top of the tissue to obtain an en face view.

Western blot

CMV-Cre; ROSAKaleidoscope/+ postnatal lungs were removed after PBS perfusion and flash frozen. Tissue was placed in cell lysis buffer (FNN0021; Invitrogen) and protease inhibitor cocktail (78442; Thermo Fisher Scientific) and mechanically agitated twice for 45 s with chrome steel beads (11079113c; BioSpec Products). Following 10 min incubation on ice, samples were centrifuged at 13,000 rpm for 15 min and supernatant retained. Pierce BCA analysis was performed to determine protein content (23227; Thermo Fisher Scientific). 40 µg protein was run on a variable percentage acrylamide gel (4561094; BioRad) for 1 h at 115 V before transferring to protein membrane (IPV00010; Millipore) at 50 V for 2 h. Membranes were blocked in 5% bovine serum albumin (BSA, A3059; Sigma-Aldrich) in tris-buffered saline (A3059; Sigma-Aldrich) with 0.1% Tween-20 (TBST pH 7.4) at 4°C for 1 h with constant agitation before incubation with primary antibodies (Table 3) overnight at 4°C with constant agitation. Three to five short washes in TBST were performed before incubation in 2% BSA in TBST with relevant secondary antibodies (Table 4). Chemiluminescence was imaged on BioRad ChemiDoc gel imager with ∼800 µl Immobilon Crescendo Western HRP substrate (WBLUR0100; Millipore). Blots were treated with Restore Western Blot Stripping Buffer (21059; Thermo Fisher Scientific) for 30 min at RT with agitation before blocking and staining as before, up to two additional times.

Sendai virus infection

Viral infection was performed as described (Hernandez et al., 2022). Briefly, isoflurane-anesthetized mice were suspended by the upper incisors and treated with a non-lethal dose (∼2.1 × 107 plaque-forming units) Sendai Virus (ATCC #VR-105; RRID:SCR_001672CSCSSCS) in 40 µl PBS or PBS only via oropharyngeal instillation. Lungs were inflation harvested at 14 d post infection, fixed, cryoprotected, and sectioned as described above.

Image analysis

Imaris 9.9 (Bitplane) was used for image analysis. Surface objects were created using DAPI (BFP-Lamp1), 488 (EGFP-aTubulin), 555 (mito-mKate2), and 647 (immunostaining) channels. Imaris generated statistics for volume, distance, size, and speed measurements. Identical surface creation parameters were used between images and experiments. Manual editing for aberrant surfaces was performed prior to statistical analysis. To calculate nuclear distance, spots were manually placed in 5–10 cells per image before using surfaces to calculate distance. Pixel-level Pearson correlation coefficient was calculated using the cytofluorogram function in the ImageJ plugin JACoP (Just Another Colocalization Plugin; Bolte and Cordelières, 2006).

Online supplemental material

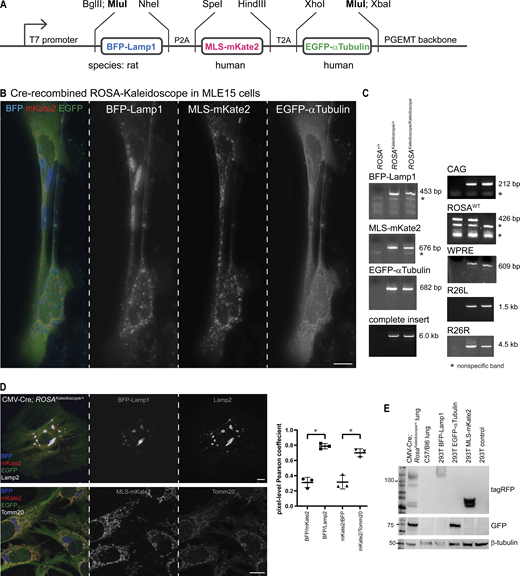

Fig. S1 provides additional details on the design and validation of the Kaleidoscope reporter. Fig. S2 provides additional characterization of the Kaleidoscope reporter in organs. Fig. S3 describes the generation of Car4CreER mice and provides high-magnification views of microtubules in lung cells. Fig. S4 provides additional examples of labeled AT1 cells upon Sendai virus infection. Fig. S5 provides further characterization of labeled epithelial cells in the Yap/Taz mutant. Video 1 provides a 3D view of labeled AT1 cells, as in Fig. 4 A. Video 2 provides a 3D view of labeled Cap2 cells, as in Fig. 4 A. Video 3 is a live-imaging movie of Sox9CreER-labeled epithelial cells in explanted embryonic lungs, as in Fig. 5 A, showing all three fusion proteins. Video 4 is a live imaging movie of Sox9CreER-labeled epithelial cells in explanted embryonic lungs, as in Fig. 5 A, showing BFP-Lamp1. Video 5 is a live-imaging movie of Sox9CreER-labeled epithelial cells in explanted embryonic lungs, as in Fig. 5 A, showing MLS-mKate2. Video 6 is a live-imaging movie of Sox9CreER-labeled epithelial cells in explanted embryonic lungs, as in Fig. 5 A, showing EGFP-α-Tubulin. Video 7 provides a 3D view of SftpcCreER-lineage-labeled AT1 and AT2 cells, as in Fig. 6 B.

The data underlying Figs. 4, 5, 6, S1, and S5 are available from the corresponding author upon request.

We thank the University of Texas MD Anderson Genetically Engineered Mouse Facility for generating the ROSAKaleidoscope and Car4CreER mice, with the support of the Cancer Center Support Grant (CA #16672). We thank Dr. Adriana Paulucci-Holthauzen at the Microscopy Laboratory of the University of Texas MD Anderson Center for guidance on microscopy acquisition and image processing, with the support of the National Institutes of Health (NIH) instrumentation grant (S10OD024976). We thank Drs. Hongkui Zeng, Michael Davidson Anthony Barrasso, Ross Poche, and Li Qian for sharing plasmids. We thank Dr. Harold Chapman for providing the SftpcCreER mice.

This work was supported by the University of Texas MD Anderson Cancer Center Retention Fund and NIH R01HL130129 and R01HL153511 (J. Chen).

Author contributions: V. Hutchison and J. Chen designed research; V. Hutchison, A. Lynch, and A.M. Guttierez-Gamez performed research and analyzed data; J. Chen generated the Car4CreER mice; V. Hutchison and J. Chen wrote the paper; all authors read and approved the paper.
