PERK prevents rhodopsin degradation during retinitis pigmentosa by inhibiting IRE1-induced autophagy

Defects in protein folding are a common cellular event, typically resulting from genetic mutations, translational errors, or a range of cellular stresses. Thus, maintaining an intact proteasome and cellular function requires continuous removal of misfolded proteins (Kurtishi et al., 2019). Eukaryotic cells are equipped with a number of physiological mechanisms to ensure proteins are correctly folded and to degrade misfolded proteins, but a prolonged imbalance between the generation of misfolded proteins and quality control mechanisms can disrupt cellular function. This underlies many diseases, including neurodegenerative disorders (Klaips et al., 2018). In eukaryotic cells, the ER is an intracellular organelle central to the synthesis of secretory and membrane proteins (Sano and Reed, 2013). When cells experience stress (e.g., oxidative stress or aging), the accumulation of misfolded proteins results in a loss of proteostasis. These misfolded proteins accumulate in the ER resulting in the activation of the unfolded protein response (UPR). The UPR is a cellular homeostatic mechanism that reduces ER stress by promoting the degradation of misfolded proteins and slowing the synthesis of new proteins (Hetz et al., 2020; Walter and Ron, 2011).

The UPR is controlled by three ER-resident transmembrane proteins, inositol-requiring enzyme 1 (IRE1), activating transcription factor 6 (ATF6), and protein kinase RNA-like ER kinase (PERK; Walter and Ron, 2011). Upon ER stress, PERK oligomerizes, leading to phosphorylation of eukaryotic initiation factor 2α (eIF2α). Phosphorylated eIF2α binds and inhibits the guanine nucleotide exchange factor, eIF2B, thereby attenuating eIF2-mediated protein synthesis (Adomavicius et al., 2019; Kenner et al., 2019). In contrast with the global repression of translation, eIF2α phosphorylation also activates the stress-responsive transcription factors, ATF4 and Xrp1, through selectively enhanced translation (Brown et al., 2021; Harding et al., 1999; Harding et al., 2003). Xrp1 is a newly discovered transcription factor induced downstream of PERK in Drosophila (Brown et al., 2021). In addition, UPR signaling activates the IRE1 nuclease, which targets and splices mRNA encoding the transcription factor X-box-binding protein 1 (XBP1), thereby activating it. Activated XBP1 then upregulates genes involved in ER protein folding, as well as genes promoting the degradation of misfolded proteins (Calfon et al., 2002; Cox et al., 1993; Haze et al., 1999; Yoshida et al., 2001). Transcriptional targets of XBP1 and ATF6 overlap significantly; the latter undergoes stress-induced intramembrane proteolytic processing and translocates to the nucleus (Mori et al., 1993; Shoulders et al., 2013). The three UPR pathways, in particular the IRE1 and PERK branches, have different activating states, and unequal or contradictory effects on cellular pathophysiology, depending on the disease and physiological context (Chang et al., 2018; Lin et al., 2007; Zhu et al., 2019). Consistent with their different activating states, the inhibition of translation by PERK attenuates IRE1 activation following a prolonged UPR state. However, the mechanisms by which one UPR branch affects another and the physiological significance of this regulation are not understood (Chang et al., 2018; Lin et al., 2007).

Autosomal dominant retinitis pigmentosa (adRP), the most common form of retinal degeneration, is most often caused by dominant mutations in the rhodopsin gene (Rho). Resulting mutant G protein-coupled receptors (GPCR) are misfolded and accumulate in the ER (Athanasiou et al., 2018; Hartong et al., 2006; Mendes et al., 2005). The substitution of proline 23 by histidine (RHO^P23H), the most common adRP-associated mutation, results in rhodopsin improper folding, retention in the ER, activation of the UPR, and ultimately photoreceptor degeneration (Dryja et al., 1990; Lin et al., 2007). Interestingly, this mutated opsin exerts a dominant negative effect on wild-type RHO, as co-expression of wild-type RHO and RHO^P23H results in: (1) mislocalized wild-type RHO, (2) formation of inclusions that contain wild-type RHO, and (3) enhanced proteasome-mediated degradation of wild-type RHO (Mendes and Cheetham, 2008; Rajan and Kopito, 2005; Saliba et al., 2002). In a Rho^P23H knock-in mouse model, levels of wild-type RHO are decreased, and heterozygous animals exhibit retinal degeneration in the rod outer segment (Sakami et al., 2011). Similarly, Drosophila carrying a heterozygous mutation in the major rhodopsin, Rh1 (ninaE^G69D), which is encoded by the ninaE locus, exhibits low levels of both mutated and wild-type Rh1 (Colley et al., 1995). Compounds that reduce the dominant-negative effects of the RHO^P23H opsin alleviate cell death, suggesting that the interruption of opsin homeostasis by dominant RHO is involved in adRP pathology (Mendes and Cheetham, 2008). Although it is clear that misfolded rhodopsin dominant negatively affects the wild-type protein, the mechanisms and physiological role have not been identified.

IRE1 and ATF6 can both upregulate the expression of chaperones involved in RHO folding, as well as ER-associated degradation (ERAD) components that specifically remove and degrade misfolded proteins via the ubiquitin–proteasome system (UPS), thereby leading to the degradation of misfolded RHO while sparing the wild-type version (Chiang et al., 2015; Chiang et al., 2012b; Lin et al., 2007; Ryoo et al., 2007; Shoulders et al., 2013). In addition to ERAD, the autophagy pathway, which is a second cellular quality control mechanism for clearing damaged proteins, is actively involved in regulating turnover of ER proteins and the ER itself (Khaminets et al., 2015). Induction of autophagy is observed in Rho^P23H mice, leading to proteasome insufficiency and increased retinal degeneration (Qiu et al., 2019; Yao et al., 2018). It has been suggested that the levels of autophagy increase as a result of the loss of Atf6 (Lee et al., 2021). Recently in a Drosophila model of Parkinson’s disease, overexpression of IRE1 was shown to induce autophagy and triggers neuronal cell death in an XBP1-independent manner (Yan et al., 2019). By contrast to the selective reduction of mutant opsin through ATF6 or IRE1 signaling, the PERK pathway shows no such specificity, reducing both wild-type and mutant RHO protein levels. This suggests that PERK is involved in the non-selectively removal of ER proteins (Chiang et al., 2012a). It remains unclear how the UPR induces autophagy, and whether the selective autophagy of ER is responsible for maintaining cellular protein homeostasis.

In the present study, we established an in vivo model in Drosophila to study the dominant effects of misfolded rhodopsin on the wild-type protein. In this model, we changed proline 37 to histidine (Rh1^P37H is equivalent to mammalian RHO^P23H) and tagged this mutant opsin with GFP. We also tagged wild-type Rh1 with RFP and co-expressed these proteins in photoreceptor cells (Galy et al., 2005; Griciuc et al., 2010). Using this newly developed system, we conducted a forward genetic screen to identify genes that enhance the dominant effects of Rh1^P37H. We found that the PERK pathway played a key role in maintaining levels of wild-type Rh1 and in sustaining photoreceptor cell function and integrity in Rh1^P37H-expressing cells. This effect was independent of ATF4. In animals lacking the PERK pathway, IRE1/XBP1 signaling was over-activated, leading to massive autophagy and degradation of wild-type rhodopsin. Finally, in a fly model of adRP, induction of PERK signaling prevented the induction of autophagy and thus suppressed retinal degeneration.

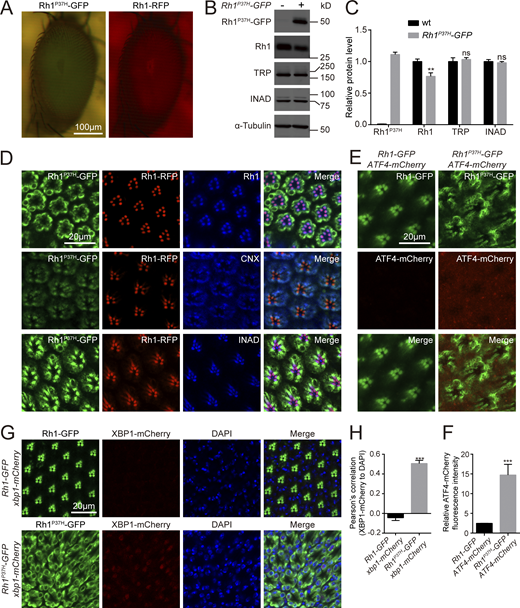

To study the genetic interactions between misfolded and wild-type versions of rhodopsin in vivo, we modified the previously established Drosophila model of adRP by co-expressing GFP-tagged Rh1^P37H and RFP-tagged wild-type Rh1 using the endogenous ninaE promotor (ninaE, neither inactivation nor afterpotential E; Fig. 1 A; Galy et al., 2005; Griciuc et al., 2010; O’Tousa et al., 1985; Zuker et al., 1985). Consistent with previous reports, Rh1^P37H-GFP accumulated exclusively in the ER, co-localizing with the ER marker CNX (calnexin). By contrast, wild-type Rh1-RFP localized to the rhabdomeres with endogenous Rh1 and INAD (Fig. 1 D; Galy et al., 2005). Moreover, Rh1^P37H-GFP induced ER stress, as both ATF4-mCherry and XBP1-mCherry (two independent reporters of ER stress) were expressed and activated in Rh1^P37H-GFP retinas, but not in retinas expressing wild-type Rh1-GFP (Kang and Ryoo, 2009; Xu et al., 2020; Fig. 1, E–H). Importantly, expression of misfolded Rh1^P37H-GFP resulted in less wild-type Rh1 but did not affect levels of endogenous TRP and INAD. This indicates that disease-causing rhodopsin mutations mildly impaired rhodopsin homeostasis (Fig. 1, B and C).

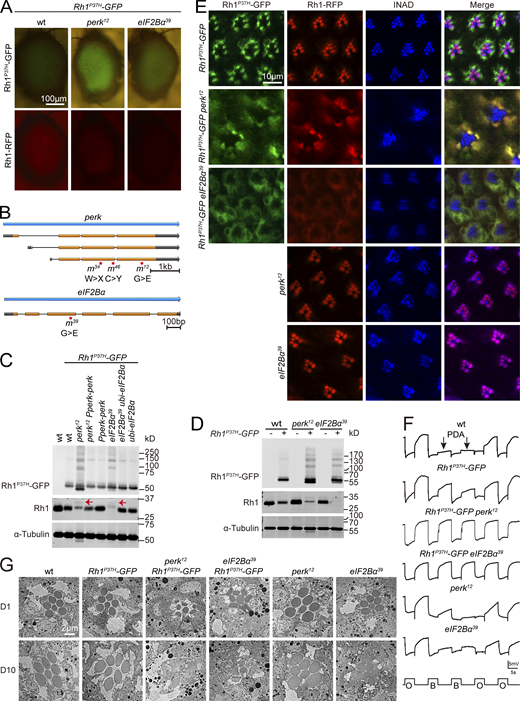

Combining this Rh1^P37H-GFP/Rh1-RFP reporters with the “ey-flp/hid” system, which generates flies in which EMS-induced mutations are homozygous in the eye but heterozygous in the rest of the animal, we performed EMS mutagenesis and screened chromosomes 2 and 3 (including 2L, 2R, 3L, and 3R) for mutants in which Rh1^P37H-GFP further disrupted the homeostasis of wild-type Rh1 (Fig. S1 A; Xiong et al., 2020; Zhao et al., 2018). For each chromosome arm we screened ∼100,000 flies, isolating 4 alleles in which RFP but not GFP fluorescence was reduced. These four alleles belonged to two complementation groups, both located on the right arm of chromosome 3 (3R). Using deficiency mapping and genomic DNA sequencing, we found that one complementation group localized to the perk locus (perk¹², perk³⁴, perk⁴⁶), and the other localized to the eIF2Bα gene (eIF2Bα³⁹; Fig. 2, A and B). These four alleles contain single-nucleotide changes within the coding region causing missense mutations in PERK and eIF2Bα proteins (Fig. S1, B–E). Flies heterozygous for any of these perk or eIF2Bα alleles did not exhibit a phenotype, regardless of whether they express Rh1^P37H-GFP or not, suggesting that these are loss of function mutations. We confirmed via Western blotting that levels of endogenous wild-type Rh1 were greatly reduced in perk¹² and eIF2Bα³⁹ mutant animals, whereas Rh1^P37H-GFP accumulated (Fig. 2 C and Fig. S1 F). Importantly, the lower MW Rh1^P37H-GFP bands in perk¹² and eIF2Bα³⁹ mutant extracts are non-glycosylated versions of the protein, suggesting that ER function was impaired. Moreover, expression of wild-type PERK or eIF2Bα in perk¹² or eIF2Bα³⁹ mutants, respectively, restored levels of endogenous Rh1 and reduced levels of Rh1^P37H-GFP to control levels (Fig. 2 C and Fig. S1 F).

During biosynthesis, Rh1 is transiently glycosylated in the ER. This modification is gradually removed as Rh1 is transported from the ER to the rhabdomere (Rosenbaum et al., 2014). A band of Rh1 with an increased molecular weight (MW) was observed in Rh1^P37H-GFP perk¹² and Rh1^P37H-GFP eIF2Bα³⁹ mutant flies, indicating a defective maturation process for wild-type rhodopsin (Fig. 2 C). We then examined the localization of wild-type Rh1 and Rh1^P37H-GFP in perk¹² and eIF2Bα³⁹ mutants. In these mutant retinas, both wild-type Rh1-RFP and endogenous Rh1 colocalized with Rh1^P37H-GFP in the ER, whereas INAD still localized to the rhabdomeres. This indicates that trafficking of wild-type Rh1 was disrupted by perk and eIF2Bα mutations with misfolded Rh1^P37H expression (Fig. 2 E and Fig. S1 G). We next asked if mutations in perk and eIF2Bα affected the biosynthesis and trafficking of rhodopsin. We found that Rh1 levels and localization were normal in both perk¹² and eIF2Bα³⁹ mutant photoreceptor cells (without Rh1^P37H expression; Fig. 2, D and E). These results indicate that PERK and eIF2Bα help maintain the homeostasis of wild-type rhodopsin when misfolded form is present.

Since Rh1 is essential for photoreceptor function, we asked whether phototransduction was disrupted in perk and eIF2Bα mutants. ERG (electroretinogram) recordings measure the summed light responses of all retinal cells. In flies with normal levels of functional rhodopsin, a prolonged depolarization afterpotential (PDA) is induced upon exposure to blue light (Fig. 2 F; Wang and Montell, 2007). Flies expressing Rh1^P37H exhibited a normal PDA, consistent with a slight reduction in wild-type Rh1 levels. However, no PDAs were detected in perk¹² and eIF2Bα³⁹ mutants expressing Rh1^P37H, consistent with the large reduction in wild-type Rh1 levels (Fig. 2 F). In contrast, perk¹² and eIF2Bα³⁹ mutants that lacked Rh1^P37H expression exhibited normal PDAs when exposed to blue light (Fig. 2 F). As disruptions in rhodopsin homeostasis are associated with the progression of retinal degeneration in adRP diseases, we next asked if disrupting PERK and eIF2Bα aggravates the severity of retinal degeneration in the Rh1^P37H-GFP model. We used TEM to first assess young (1-d-old) and aged (10-d-old) wild-type, Rh1^P37H-GFP, perk¹², and eIF2Bα³⁹ flies. For each age and genotype, seven intact rhabdomeres were consistently detected in each ommatidia (Fig. 2 G). In the Rh1^P37H-GFP background, young perk¹² and eIF2Bα³⁹ mutants exhibited normal retinal morphology with all 7 rhabdomeres, although the rhabdomeres were smaller. However, aged flies of these genotypes (perk¹² or eIF2Bα³⁹ mutations in the Rh1^P37H-GFP background) exhibited severe retinal degeneration with prominent vacuoles and loss of rhabdomeres (Fig. 2 G). Therefore, we conclude that PERK and eIF2Bα are required for photoreceptor survival in the context of Rh1^P37H-induced ER stress.

Misfolded rhodopsin causes ER stress and activates three UPR pathways, namely, the PERK, IRE1, and ATF6 pathways (Harding et al., 2000b; Liu et al., 2000; Shamu and Walter, 1996; Shen et al., 2002). Once activated, PERK phosphorylates eIF2α and promotes its inhibitory binding to the nucleotide exchange factor eIF2B to regulate translation initiation. Therefore, mutations in either the perk or eIF2Bα genes would impair the PERK/eIF2α branch of the UPR response. Since our screen did not identify genes involved in the IRE1 or ATF6 pathways, we hypothesized that the PERK/eIF2α axis is the major UPR branch involved in maintaining rhodopsin homeostasis under ER stress. To test this hypothesis, we first generated a null allele of atf6 (atf6¹) using the CRISPR/CAS9 technique (Fig. S2, C and D). Resulting mutants were viable. A loss of function mutation for the ire1 gene (ire1^f02170) was already available (Coelho et al., 2013). Unlike we saw for the perk mutant, levels of Rh1^P37H and endogenous Rh1 were unaffected in homozygous ire1^f02170 or atf6¹ mutants compared with Rh1^P37H-GFP flies (Fig. S2, E–H).

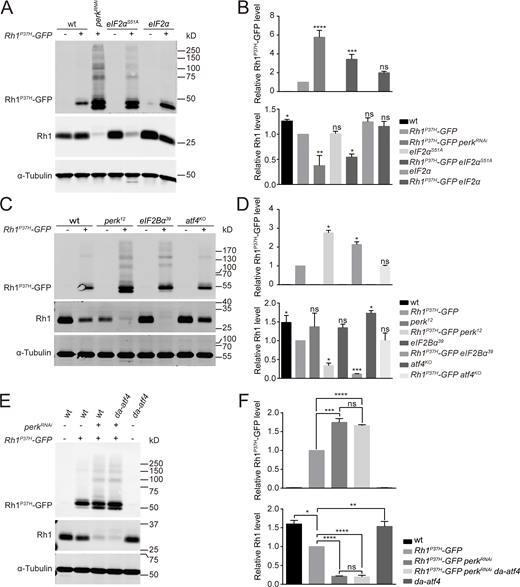

To further demonstrate that the PERK/eIF2α pathway is the major UPR axis regulating rhodopsin homeostasis in the Rh1^P37H model, we expressed eIF2α^S51A to abolish PERK-dependent eIF2α phosphorylation. Consistent with data from the perk¹² and eIF2Bα³⁹ mutants, expression of eIF2α^S51A led to the accumulation of Rh1^P37H-GFP and reduction of endogenous Rh1 (Fig. 3, A and B). Phosphorylated eIF2α inhibits the translation of most proteins, but selectively activates translation of the transcription factor ATF4 (Fawcett et al., 1999; Harding et al., 2000a). As we have previously shown, ATF4 expression is induced in the Rh1^P37H model (Fig. 1, E and F). We then tested whether induction of ATF4 is involved in the regulation of rhodopsin homeostasis. We first generated a null allele of atf4 (atf4^KO) by deleting a 462 base pair fragment using CRISPR/CAS9 (Fig. S2, A and B). However, knocking out atf4 did not result in the accumulation of Rh1^P37H-GFP or reduced levels of endogenous Rh1 (Fig. 3, C and D). Moreover, continuous expression of ATF4 without its translational regulation sequence under a ubiquitously expressed da (daughterless) promotor failed to rescue the accumulation of Rh1^P37H-GFP and reduction of Rh1 caused by loss of perk (Fig. 3, E and F). These data demonstrated that the PERK/eIF2 pathway regulates homeostasis of rhodopsin under chronic ER stress independent of ATF4.

To identify factors that act downstream of PERK/eIF2α to help maintain rhodopsin homeostasis, we performed an RNA-seq analysis to identify genes that are up- or down-regulated in perk mutants. As with the perk¹² mutant, knocking down perk by RNAi reduced endogenous Rh1 levels and increased levels of Rh1^P37H-GFP, although to a lesser extent (Fig. 4 E). By contrast, expressing perk^RNAi in a wild-type Rh1 background did not affect Rh1 homeostasis. We therefore compared the transcriptomes of Rh1^P37H-GFPperk^RNAi and Rh1^P37H-GFP flies (Fig. 4 A). Most genes that were strongly upregulated by expression of perk^RNAi were targets of the IRE1/XBP1 pathway (Hollien and Weissman, 2006). To confirm this, we used RNA-seq to identify genes up-regulated by spliced XBP1. We generated ninaE-xbp1-RE flies in which the RE form of xbp1 (the version of xbp1 that has been spliced by IRE1) is expressed in photoreceptor cells using the ninaE promotor. Importantly, most genes that were upregulated in perk mutant retinas were also induced by ninaE-xbp1-RE (Fig. S3, A and B). To further validate the RNA-seq results, we used RT-qPCR to confirm that the major IRE1/XBP1-induced genes (including Hsc70-3, CaBP1, BI-1, Gp93, Ero1L, and Sec22) were upregulated in the Rh1^P37H-GFP perk^RNAi retina. Importantly, upregulation of these genes was completely reversed by knocking down ire1 using ire1^RNAi, further suggesting that the IRE1/XBP1 axis is activated when the PERK/eIF2α pathway is blocked during ER stress (Fig. 4 B). Since total xbp1 mRNA levels were unaffected by perk^RNAi (Fig. 4 C), we next asked whether the splicing of xbp1 mRNA by IRE1 was induced upon loss of perk. We used qPCR to quantify the spliced (sxbp1) and unspliced (uxbp1) forms of xbp1. The ratio of sxbp1/uxbp1 was slightly increased in Rh1^P37H-GFP flies, reflecting the mild induction of ER stress. By contrast, the sxbp1/uxbp1 ratio dramatically increased in Rh1^P37H-GFP perk^RNAi flies. This increase was totally abolished by ire1^RNAi, further confirming that IRE1 is strongly activated when PERK is blocked during Rh1^P37H-induced ER stress (Fig. 4 D).

PERK/eIF2α signaling generally inhibits translation, but it preferentially induces the translation of ATF4 during the UPR response. Given that the PERK/eIF2α pathway regulates rhodopsin homeostasis independent of ATF4, we speculated that PERK may negatively regulate IRE1 activity by inhibiting translation. To test this hypothesis, we re-inhibited translation in Rh1^P37H-GFP perk^RNAi flies by knocking down the eukaryotic translation initiation factors eIF3b and eIF4G. We found that the sxbp1/uxbp1 ratio decreased to wild-type levels (Fig. 4 D).

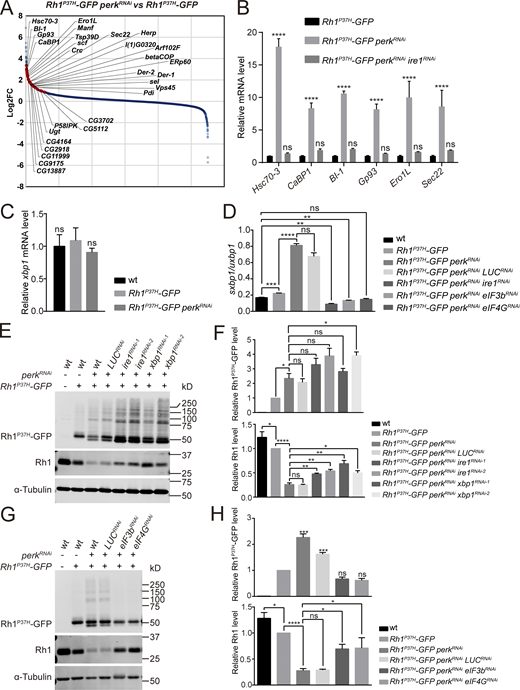

Since IRE1 is strongly activated in perk mutants upon ER stress, we next examined whether inhibition of the IRE1/XBP1 pathway contributes to rhodopsin homeostasis. We first knocked down ire1 or xbp1 in the background of Rh1^P37H-GFP perk^RNAi and found that the levels of endogenous Rh1 were increased compared with control. However, the increase of Rh1^P37H-GFP in perk^RNAi mutants was not alleviated, and even slightly aggravated by knocking down ire1 or xbp1 (Fig. 4, E and F). These data indicate that accumulation of mutant Rh1 and reduction of wild-type proteins are independent events regulated by different signaling pathways; the latter is mediated by IRE1/XBP1. Supporting this point, as seen when ire1 or xbp1 were knocked down, expressing eIF3b^RNAi or eIF4G^RNAi in the background of Rh1^P37H-GFP perk^RNAi restored levels of wild-type Rh1 (Fig. 4, G and H). In contrast to ire1 and xbp1 knock down, when knocking down  eIF3b or eIF4G, levels of Rh1^P37H-GFP in Rh1^P37H-GFP perk^RNAi flies was also reduced to wild-type levels, supporting the hypothesis that reductions in translation efficiency by PERK activation is the major event involved in rhodopsin homeostasis (Fig. 4, G and H). As knocking down ire1 or xbp1 specifically prevented the loss of wild-type rhodopsin, we were able to examine if the loss of wild-type rhodopsin contributed to the retinal degeneration seen in Rh1^P37H-GFP perk^RNAi flies. 5-d-old Rh1^P37H-GFP perk^RNAi flies exhibited phenotypes associated with severe retinal degeneration, including reduced ERG responses and loss of rhabdomeres (Fig. S3, C–E). Expression of xbp1^RNAi ameliorated ERG responses and suppressed the loss of photoreceptor cells in Rh1^P37H-GFP perk^RNAi flies (Fig. S3, C–E). Considering that knocking down ire1 or xbp1 in the background of Rh1^P37H-GFP perk^RNAi only alleviated reduction of wild-type Rh1 without affecting Rh1^P37H-GFP, loss of wild-type rhodopsin may be involved in the pathogenesis of this dominant rhodopsin disorder.

Downregulation of wild-type Rh1 by the IRE1/XBP1 signaling pathway leads to the loss of rhodopsin homeostasis in Rh1^P37H expressing cells. To investigate the mechanisms of this process, we used Tandem Mass Tag (TMT)–LC MS/MS to compare individual protein levels between Rh1^P37H-GFP perk^RNAi and Rh1^P37H-GFP retinas. We identified 14 proteins that were greatly upregulated (P value <0.01) when perk was knocked down (Fig. 5 A). We then screened these 14 candidate genes by knocking them down in photoreceptor cells of Rh1^P37H-GFP perk^RNAi flies. Only one gene, ref(2)P/p62, blocked the reduction of Rh1 when knocked down (Fig. 6, E and F). The ref(2)P/p62 gene encodes an evolutionary conserved autophagy adaptor in Drosophila, indicating that autophagy is modulated in this context. We first verified that the Ref(2)P/P62 protein was upregulated in Rh1^P37H-GFP perk^RNAi mutant retina by Western blotting and immunostaining. Importantly, this increase in Ref(2)P/P62 proteins was abolished by expressing ire1^RNAi or xbp1^RNAi (Fig. 5, B–D). Moreover, ref(2)P/p62 mRNA levels were also elevated in Rh1^P37H-GFP perk^RNAi flies; this could also be reversed by ire1^RNAi (Fig. 5 E). These data indicated that the autophagy pathway may be induced by blocking the PERK pathway in Rh1^P37H expressing photoreceptor cells. Consistent with this hypothesis, mRNA levels of several autophagy genes including atg1, atg2, atg3, atg8a, atg9, and atg18a, were also increased by perk^RNAi in the context of Rh1^P37H-induced ER stress. Knocking down ire1 suppressed these inductions (Fig. 5 F). We further measured levels of hrd1 and sordd1 mRNA, which encode two ER-associated ubiquitin ligases, and found that IRE1/XBP1 signaling also induced the expression of hrd1 but not sordd1 (Fig. 5 G).

To further confirm that autophagy is induced by loss of perk in Rh1^P37H-expressing photoreceptor cells, we labeled retinas for the autophagy marker, Atg8a, and Ref(2)P/P62. Both proteins accumulated in photoreceptor cells expressing both Rh1^P37H-GFP and perk^RNAi, but not in cells expressing Rh1^P37H-GFP alone (Fig. 6, A and C). Since autophagy is induced by the mutation of perk through IRE1 in Rh1^P37H expressing photoreceptors, it is possible that wild-type Rh1, but not mutant Rh1^P37H, is degraded by autophagy. Supporting this, endogenous Rh1 was detected in cytosolic puncta that colocalized with Ref(2)P/P62 and Atg8a in Rh1^P37H-GFP perk^RNAi flies. By contrast, Rh1^P37H-GFP was not detected in Ref(2)P/P62- and Atg8a-positive puncta (Fig. 6, A–D). In TEM images we also observed the presence of autophagosome structures in Rh1^P37H-GFP perk¹² photoreceptor cells, but not in Rh1^P37H-GFP photoreceptor cells (Fig. S4 A). Knocking down ref(2)P/p62 and autophagy-associated genes including atg1, atg9, and atg18 largely increase wild-type Rh1 levels in Rh1^P37H-GFP perk^RNAi flies. As was seen when we blocked the IRE1/XBP1 signaling pathway, disrupting autophagy did not affect Rh1^P37H-GFP levels (Fig. 6, E–H). Moreover, knocking down ref(2)P/p62 reduced the number of Atg8a-positive puncta without affecting the aggregation of wild-type Rh1. This suggests that this selective autophagy occurs downstream of rhodopsin misfolding and/or ubiquitination (Fig. 6 C).

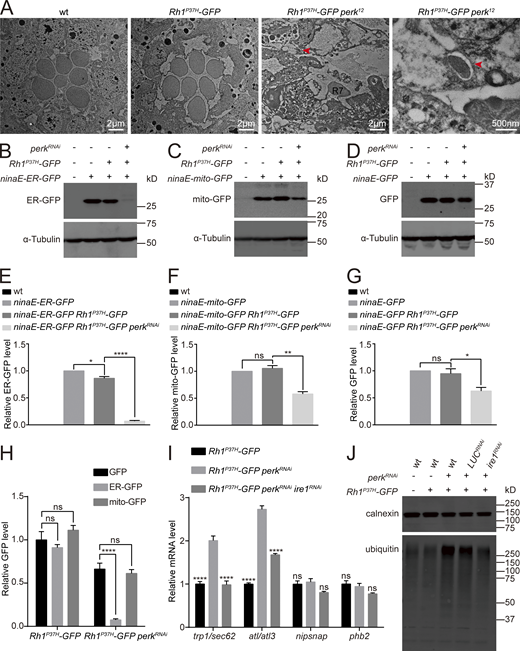

Since autophagy is a general degradation system involved in the turnover of proteins in multiple cellular components, we asked if the autophagy observed in Rh1^P37H-GFP perk¹² photoreceptor cells is selective for components of the ER. We drove expression of GFP reporters specific for different subcellular compartment (ER, mitochondria, and cytosol) via the ninaE promoter in Rh1^P37H-GFP perk^RNAi flies. Levels of ER-GFP were dramatically reduced in Rh1^P37H-GFP perk^RNAi flies, whereas reporters specific for mitochondria (mito-GFP) or cytosolic GFP were only slightly reduced. This may reflect the unhealthy state of photoreceptor cells under chronic ER stress (Fig. S4, B–H). In addition to Ref(2)P/P62, two homologs of ER-phagy receptors functioning in mammalian cells, trp1/sec62 (Fumagalli et al., 2016) and atl/atl3 (Chen et al., 2019), were also induced in Rh1^P37H-GFP perk^RNAi flies. This also could be reversed by knocking down ire1 (Fig. S4 I). In contrast, the expression of two fly homologs of mammalian mitophagy receptors, nipsnap (Princely Abudu et al., 2019) and phb2 (Wei et al., 2017), were not affected (Fig. S4 I). These data suggest that selective autophagy of ER is induced when the PERK pathway is blocked, and that this autophagy is responsible for reducing wild-type Rh1 in Rh1^P37H-GFP perk^RNAi flies.

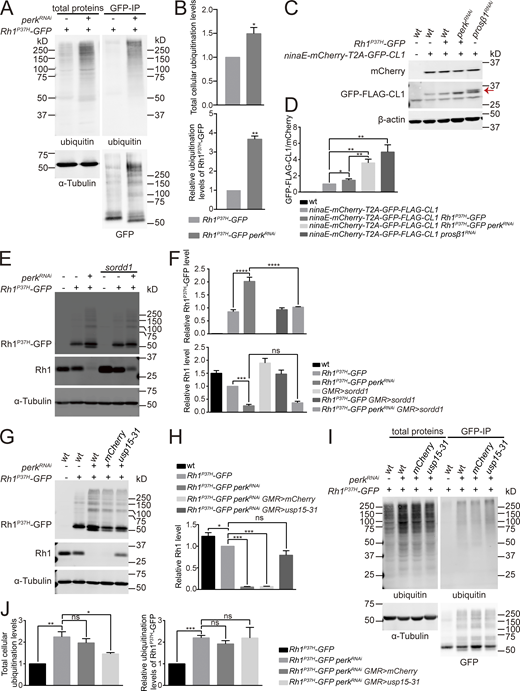

Misfolded membrane proteins are recognized by ER chaperons and removed from the ER via a ubiquitin-proteasome system (UPS)-mediated degradation process called ER-associated degradation (ERAD; Meusser et al., 2005; Vembar and Brodsky, 2008). Therefore, the accumulation of mutant Rh1^P37H protein may result from an impairment of the ubiquitin/proteasome degradation system. We first tested if the ubiquitination machinery was disrupted in Rh1^P37H-GFP perk^RNAi photoreceptor cells. However, both total cellular ubiquitinated proteins and ubiquitinated Rh1^P37H-GFP accumulated in Rh1^P37H-GFP perk^RNAi flies compared with Rh1^P37H-GFP controls (Fig. 7, A and B). These data indicate that proteasome activity in Rh1^P37H-GFP perk^RNAi photoreceptor cells may be reduced. To test this hypothesis, we used a proteasome activity reporter, GFP-Flag-Cl1, which contains a short degron fragment (CL1) that is degraded by the ubiquitin-proteasome system (Gilon et al., 1998; Nonaka and Hasegawa, 2009). GFP-Flag-Cl1 was linked to mCherry (as an internal control) via a self-cleaving peptide T2A. The reporter was then expressed in photoreceptor cells via the ninaE promoter. Compared with wild-type flies, GFP-Flag-CL1 levels were slightly increased in Rh1^P37H-GFP flies. Levels of GFP-Flag-CL1 were dramatically elevated when the proteasomal subunit prosβ1 was knocked down (Fig. 7, C and D). Importantly, as seen with blocking the proteasomal subunit, perk mutation largely stabilized GFP-FLAG-CL1 in Rh1^P37H-GFP flies (Fig. 7, C and D). These data suggest that the UPS system is impaired when PERK is blocked during ER stress. Moreover, expression of the E3 ligase SORDD1 (Xu et al., 2020) in Rh1^P37H-GFP perk^RNAi photoreceptor cells prevented the accumulated Rh1^P37H-GFP (Fig. 7, E and F) but did not affect wild-type Rh1 levels. This is consistent with SORDD1 only being involved in the degradation of misfolded rhodopsin (Xu et al., 2020).

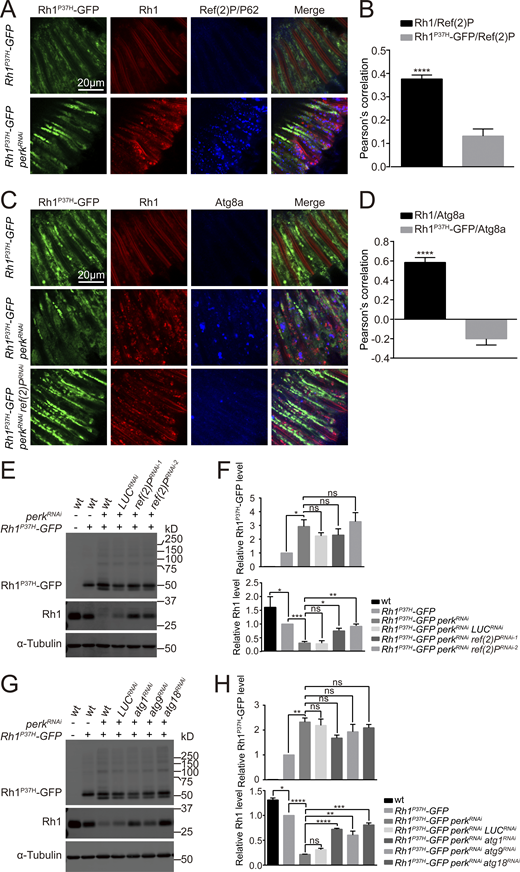

The Ref(2)P/P62 protein is an adaptor that binds ubiquitinated proteins and autophagy components, thereby serving as a linker between the autophagy machinery and its targets. Considering the fact that total ubiquitination levels increased in Rh1^P37H-GFP perk^RNAi flies, we reasoned that the accumulation of ubiquitinated ER proteins initiated the ER-phagic degradation of wild-type Rh1. Consistent with induction of the ERAD ubiquitin ligase, Hrd1, ubiquitinated membrane proteins accumulated in Rh1^P37H-GFP perk^RNAi flies. This could be reversed by knocking down ire1 (Fig. S4 J). To further test this hypothesis, we overexpressed the general cytosolic deubiquitinase, USP15-31, in Rh1^P37H-GFP perk^RNAi flies and found that USP15-31 restored levels of wild-type Rh1 in Rh1^P37H-GFP perk^RNAi flies without affecting the levels of Rh1^P37H-GFP (Fig. 7, G and H). Further, total cellular ubiquitination levels were largely decreased in Rh1^P37H-GFP perk^RNAi flies when USP15-31 was overexpressed, whereas ubiquitination levels of Rh1^P37H-GFP were unaffected (Fig. 7, I and J). These data provided further evidence that Rh1 degradation is regulated by Ref(2)P/P62-mediated selective autophagy, which is different from UPS-mediated degradation of Rh1^P37H-GFP.

Since inhibiting PERK induced ER-phagic degradation of wild-type Rh1, and increased the cytotoxicity of misfolded Rh1^P37H, it is possible that induction of PERK could suppress autophagy and alleviate retinal degeneration associated with mutations in rhodopsin. To test this hypothesis, we used a classic adRP model in which the ninaE^G69D mutation leads to age-dependent degeneration of photoreceptor cells (Colley et al., 1995; Kurada and O'Tousa, 1995). We first examined if autophagy is induced by the ninaE^G69D mutation. Consistent with previous results using Rh1^P37H, the sxbp1/uxbp1 ratio was increased in ninaE^G69D flies, indicating activation of the UPR (Fig. 8 and Fig. 9 A). ninaE^G69D photoreceptor cells also exhibited large increases in ref(2)P/p62 mRNA levels, as well as Ref(2)P/P62- and Atg8-positive puncta, compared with wild-type controls (Fig. 9, B–D and Fig. S5 J). Moreover, ER-GFP but not mito-GFP or cytosolic GFP colocalized with Ref(2)P/P62 in ninaE^G69D flies (Fig. S5, A–D), and levels of ER-GFP but not mito-GFP protein were significantly reduced in ninaE^G69D flies (Fig. S5, E–H). To test the role of Ref(2)P/P62 in inducing autophagy in ninaE^G69D photoreceptor cells, we used the CRISPR-CAS9 system to generate a ref(2)P/p62 mutant fly (Fig. S5 I). The ref(2)P^m mutation itself did not affect autophagy in photoreceptor cells. However, loss of Ref(2)P/P62 in ninaE^G69D photoreceptor cells largely abolished the formation of Atg8a puncta (Fig. S5 J). These data indicate that the selective autophagy of ER is induced in the ninaE^G69D model of adRP and is involved in general degradation of the ER compartment. Importantly, overexpressing PERK in photoreceptor cells under control of the endogenous trp (transient receptor potential) promoter greatly reduced levels of Ref(2)P/P62 in aged ninaE^G69D photoreceptor cells, compared to wild-type controls (Fig. 9, C and D). ninaE^G69D flies exhibited phenotypes consisted with severe retinal degeneration including reduced ERG responses, and loss of rhabdomeres and photoreceptor cells ∼30 d after eclosion (Fig. 9, E–H). Expression of PERK in photoreceptor cells completely restored ERG responses and prevented the loss of photoreceptor cells in 30-d-old ninaE^G69D flies (Fig. 9, E–H). In contrast, overexpression of ATF4 did not affect the loss of ERG and photoreceptor cells in the ninaE^G69D mutants (Fig. 9, E–H). Consistent with our previous results, these data demonstrate that PERK suppresses adRP independent of ATF4.

In conclusion, we found that PERK is important for maintaining rhodopsin homeostasis during prolonged ER stress. In photoreceptor cells expressing misfolded Rh1^P37H, the continuous activation of PERK attenuates IRE1/XBP1 signaling, which is adapted to this chronic ER stress, in an eIF2α-dependent manner. However, when PERK is blocked, global translation is no longer inhibited by phosphorylated eIF2α. This increases the burden on the proteasome and reduces degradation of Rh1^P37H by ERAD. By contrast, in the absence of the PERK pathway, IRE1/XBP1 signaling remains activated, inducing multiple autophagy-related genes including ref(2)P/p62. Together with the accumulation of ubiquitinated proteins due to proteasome overload, the upregulation of these autophagy-related genes induces the selective autophagy of ER. This promotes the degradation of wild-type rhodopsin that has accumulated in the ER, ultimately triggering photoreceptor cell death (Fig. 8).

The three branches of the UPR (IRE1, PERK, and ATF6) are simultaneously induced in response to cellular stress. However, in the context of chronic ER stress, the three UPR pathways are differentially affected. This is particularly true for the IRE1 and PERK branches, which may be due to interactions between these two signaling pathways. During development of plasma cells, IRE1 is robustly activated, whereas activation of PERK is suppressed by Ufbp1 (Ufm1-binding protein; Zhu et al., 2019). Under prolonged ER stress, the activities of IRE1 and ATF6 are attenuated, whereas PERK signaling persists (Lin et al., 2007). In cultured cells, translational attenuation by PERK facilitates IRE1 during the early adaptive phase of the UPR (Moore and Hollien, 2015), but during the prolonged UPR stage, IRE1 activity is attenuated by PERK/eIF2α-dependent and ATF4-independent translational inhibition to turn off IRE1 activity (Chang et al., 2018). In chronic ER stress induced by Rh1^P37H, blocking PERK signaling activates xbp1 splicing and thus the transcription function of XBP1. Consistent with results seen with pharmacologically induced ER stress, this IRE1/XBP1 re-activation is mediated by loss of translational inhibition in perk mutants, as slowing translation by expressing short-hairpin RNAs against eIF3b and eIF4G suppressed XBP1 over-activation by loss of perk. This suggests the mechanisms of prolonged ER-stress adaptation through attenuation of IRE1 by PERK are conserved across species. However, in contrast to cultured cells, where pharmacological ER stress attenuates IRE1 through PERK to trigger apoptosis, in photoreceptor cells in vivo ER-stress adaptation through attenuation of IRE1 is cytoprotective. In Rh1^P37H-expressing photoreceptor cells, severe cell death was induced by mutations of both perk and eIF2Bα, whereas the cells survived upon Rh1^P37H expression alone. Further, IRE1-mediated xbp1 splicing was boosted, and wild-type rhodopsin was largely degraded by blocking of PERK in Rh1^P37H-expressing cells. Knocking down ire1 or xbp1 completely rescued this rhodopsin loss. Therefore, our present study suggests that the downregulation of IRE1 by PERK is cytoprotective during chronic ER stress.

In both yeast and neuroblastoma cells, induction of ER stress activates autophagy in an IRE1-dependent manner (Ogata et al., 2006; Yorimitsu et al., 2006). In Drosophila neurons, ectopic overexpression of IRE1 was sufficient to induce autophagy and triggered neuron death (Yan et al., 2019). As a cellular quality control mechanism for clearance of proteins and organelles, loss or over-activated of autophagy can trigger neuronal cell death under certain pathological conditions (Hara et al., 2006; Komatsu et al., 2006; Wang et al., 2009). Besides clearing misfolded proteins, autophagy can degrade normal folded proteins or undamaged organelles derived from imbalanced proteostasis; this ultimately disrupts cellular function (Berry and Baehrecke, 2007; Doherty and Baehrecke, 2018). A previous study found that autophagy flux is elevated in Rho^P23H/+ mice, and inhibiting autophagy reduces retinal degeneration caused by protein misfolding (Yao et al., 2018). However, how autophagy is induced in this adRP model remains unclear, and the molecular mechanisms linking autophagy and Rho^P23H-induce photoreceptor cell degeneration remains a mystery. In our study, we first observed in the retinas of Rh1^P37H-GFP perk^RNAi: (1) dramatic accumulations of the autophagic substrate Ref (2)P/P62 and the autophagy marker LC3/ATG8, (2) transcriptional activation of multiple autophagy-related genes, and (3) a large increase in autophagy flux. Further evidence showed that downregulation of IRE1/XBP1 signaling reversed the induction of autophagy in Rh1^P37H-GFP perk^RNAi photoreceptor cells. Finally, in the fly adRP model ninaE^G69D, accumulation of Ref(2)P/P62- and Atg8-positive puncta was associated with xbp1 splicing. Studies in both Drosophila and mammalian cells have demonstrated that induction of PERK/eIF2α induces autophagy (B'Chir et al., 2013; Nagy et al., 2013), indicating that PERK/eIF2α signaling could regulate autophagy through different signaling pathways. We conclude that the uncontrolled activation of IRE1/XBP1 signaling could induce autophagy under prolonged ER stress.

Degradation of misfolded ER proteins via ERAD, which involves the ubiquitin–proteasome system, is a major mechanism for maintaining proper proteostasis of the ER (Walter and Ron, 2011). Maintaining proteostasis of ER proteins may also require the second degradative system of the cell, the autophagy-lysosome pathway through selective ER autophagy, ER-phagy (Khaminets et al., 2015). Since ER-phagy was originally described, it has been shown that several ER-phagy receptors interact with the autophagy-related protein LC3/ATG8 to recruit the autophagosome and promote the selective clearance of excessive membrane portions of the ER (An et al., 2019; Fumagalli et al., 2016; Grumati et al., 2017; Khaminets et al., 2015). However, discovery of these ER-phagy receptors did not reveal whether ER-phagy is directly involved in the clearance of misfolded proteins (in parallel or complementary to ERAD), thereby playing a role in the UPR. In our present study, we present evidence that ER-phagy is induced by prolonged ER stress through imbalanced UPR activation, and that ER-phagy is involved in the selective clearance of ER proteins. As a scaffold protein, the autophagic adapter Ref(2)P/P62 delivers ubiquitinated proteins for selective autophagic degradation by: (1) interacting with LC3/ATG8 through its LIR region, and (2) interacting with ubiquitinated proteins through its ubiquitin-associated (UBA) domain (Moscat and Diaz-Meco, 2012; Nezis et al., 2008). In prolonged ER stress (both Rh1^P37H-GFP perk^RNAi and ninaE^G69D photoreceptor neurons), membrane proteins including rhodopsin get stuck and ubiquitinated in ER. Thus Ref(2)P/P62 and LC3/ATG8 proteins also accumulate, and wild-type rhodopsin and ER-GFP can be detected within Ref(2)P/P62 puncta. By contrast, the mitochondrial reporter mito-GFP did not associate with these puncta. In both Rh1^P37H-GFP perk^RNAi and ninaE^G69D photoreceptor cells, levels of ER-GFP and wild-type rhodopsin were dramatic reduced, whereas proteins in other cellular compartments (mito-GFP and cytosolic GFP) were less affected. When we knocked down ref(2)P/p62 or autophagy-relative genes, this UPR induced autophagy was disrupted and degradation of wild-type rhodopsin was prevented. Our results suggested that tuning down selective autophagy may protect against retinal degeneration. Interestingly, it has recently been reported that disrupting the interaction between Ref(2)P/P62 and Atg8a increases the tolerance to oxidative stress and reduces levels of aging-associated mitochondrial superoxide in Drosophila (Bhattacharjee et al., 2022).

Despite being caused by different insults, misfolded membrane proteins accumulated in the ER and were removed through ERAD via ubiquitination. The accumulation of misfolded proteins could exert a dominant negative effect on wild-type ER proteins, as illustrated by the dominant mutations in opsin genes (Colley et al., 1995; Mendes and Cheetham, 2008; Rajan and Kopito, 2005; Saliba et al., 2002). By conducting a genome-wide loss of function screen, PERK and eIF2Bα were found to play a key role in maintaining levels of wild-type rhodopsin in heterozygous Rh1^P37H mutants. Further, disruption of the selective autophagy through inactivation of Ref(2)P/P62 prevented the dominant effects of Rh1^P37H , and maintained normal levels of wild-type Rh1. Although it has been reported that misfolded CFTR (Cystic Fibrosis Transmembrane Conductance Regulator), and gonadotropin-releasing hormone receptor (GnRHR), are resistant to ERAD and cleared by an ER-associated autophagy (He et al., 2021; Houck et al., 2014), ER-associated autophagy had little effect on the clearance of mutant rhodopsin. Elevated ER-phagy was associated with the accumulation of Rh1^P37H, and interruption of autophagy had no effect on Rh1^P37H accumulation. This is consistent with results seen in mice that inhibiting autophagy reduced the cytotoxicity of misfolded Rho^P23H (Yao et al., 2018). Studies in both Drosophila and mice have demonstrated that increasing ERAD by either induction of E3 ligases or proteasome activity reduced mutated rhodopsin and is cytoprotective (Kang and Ryoo, 2009; Lobanova et al., 2018; Xu et al., 2020). Indeed, blocking PERK signaling resulted in the accumulation of ubiquitinated proteins, preventing the proteasome from degrading its normal target such as GFP-Flag-Cl1. This increased burden on the proteasomal degradation machinery has been implicated in the pathology of multiple inherited retinal degeneration diseases (Lobanova et al., 2013). Specific ubiquitination of Rh1^P37H by the E3 ligase SORDD1 dramatically decreased the accumulation of misfolded Rh1^P37H in Rh1^P37H-GFP perk^RNAi photoreceptor cells, but still reduced wild-type Rh1. On the contrary, blocking ER-phagy restored wild-type Rh1 but did not affect Rh1^P37H, supporting the notion that Rh1^P37H and wild-type Rh1 are cleared by different degradation machineries. Moreover, expressing the deubiquitinase USP15-31, which largely alleviated levels of cytosolic ubiquitination but did not affect ubiquitination of Rh1^P37H, prevented the ER-phagic degradation of wild-type Rh1 but not the accumulation of Rh1^P37H. The accumulation of ubiquitinated proteins upon proteasome overload in prolonged ER stress, along with upregulation of Ref(2)P/P62, promoted the selective autophagy of general ER proteins including wild-type rhodopsin, whereas unfolded Rh1^P37H was not a substrate of this selective autophagy. Rh1^P37H may be segregated into a distinct ER substructure. The observation that only wild-type Rh1 but not Rh1^P37H was detected in Ref(2)P/P62 puncta further supports this.

Impaired processing of ubiquitinated proteins has been reported in several mouse models of retinal degeneration (Lobanova et al., 2018; Lobanova et al., 2013), as we found in Rh1^P37H-GFP perk^RNAi photoreceptor cells. Moreover, photoreceptor degeneration in Rho^P23H/+ mice can be delayed by increasing photoreceptor proteasomal activity through overexpression of the 11S proteasome cap subunit, PA28α or activation of mTORC1 (Lobanova et al., 2018; Wang et al., 2022). Ubiquitin ligases and the upstream ERAD proteins were upregulated through IRE1/XBP1 signaling, which could induce proteasomal overload. This global impairment of proteasomal function precedes photoreceptor cell death (Chiang et al., 2015). As a result of insufficiency of the UPS system, autophagy is elevated to complement proteasome-dependent degradation. The continuously activating IRE1/XBP1 signaling upregulated multiple autophagy-related genes in Rh1^P37H-GFP perk^RNAi photoreceptor cells, while in combination with loss of translational inhibition through PERK/eIF2α deficiency, ubiquitinated proteins accumulated. These signals ultimately led to the induction of ubiquitination/P62-mediated selective autophagy. However, the autophagy could not substitute for the UPS system, as Rh1^P37H was resistant to autophagy, whereas ER proteins and wild-type Rh1 were found in autophagosomes. This ER-phagy degradation of wild-type Rh1 accelerated the retinal degeneration induced by Rh1^P37H. In the fly ninaE^G69D model of adRP, prolonged activation of IRE1/XBP1 signaling was associated with autophagy induction, degradation of normal ER proteins, dysfunction in phototransduction, and retinal degeneration, whereas overexpression of PERK largely suppressed these phenotypes. Supporting this point, xbp1 deficiency protects against neurodegeneration in transgenic mouse models of Huntington disease (HD) and amyotrophic lateral sclerosis (ALS), likely through the enhancement of autophagy (Hetz et al., 2009; Vidal et al., 2012).

Under ER stress, PERK is activated by oligomerization and autophosphorylation, which enables the phosphorylation of eIF2α, reducing global translational efficiency by blocking 80S ribosome assembly (Harding et al., 1999; Shi et al., 1998). In addition to eIF2α, activated PERK also phosphorylates and activates other targets such as Nrf2 and FOXO, regulating cellular metabolic adaptation and survival in the context of ER stress (Cullinan et al., 2003; Zhang et al., 2013). When ER stress was induced by misfolded rhodopsin Rh1^P37H, PERK-eIF2α signaling is key for maintaining rhodopsin homeostasis. Rhodopsin homeostasis was disrupted by mutations in eIF2Bα, which regulates eIF2α, as well as in perk mutants under mild ER-stress. Expressing the dominant negative form of eIF2α mimicked the phenotype of perk mutant in terms of both accumulation of Rh1^37H and reduction of wild-type Rh1. Moreover, inhibiting global translation by knocking down eIF3b and eIF4G abolished the effects of perk deficiency on both mutant and wild-type Rh1. Besides reducing global protein biosynthesis, PERK-mediated phosphorylation of eIF2α increases the translation of ATF4 by bypassing upstream open reading frames (uORFs; Harding et al., 2000a). As a transcription factor that activates UPR target genes associated with protein folding and apoptosis, ATF4 plays an essential role in PERK-mediated UPR (Costa-Mattioli and Walter, 2020). However, ATF4 plays a minor role in maintaining homeostasis of rhodopsin through PERK signaling. First, unlike mutations in perk or eIF2Bα, animals with complete loss of atf4 exhibited little changes in both mutant and wild-type rhodopsin. Second, mimicking the increased translation of ATF4 by activation of ATF4 through deletion of uORF did not suppress perk mutation-induced accumulation of Rh1^37H and reduction of wild-type Rh1. Finally, expression of ATF4 had no effect on the severity of retinal degeneration in the ninaE^G69D model, while over-expression of PERK strongly suppressed this retinal degeneration. Besides ATF4, several factors are translationally induced by eIF2α in parallel to ATF4 in both mammalian cells and flies (Andreev et al., 2015; Baird et al., 2014; Brown et al., 2021; Zhou et al., 2008). The fact that translational inhibition by interfering with eIF3b and eIF4G could mimic rhodopsin level phenotypes strongly argues against the possibility that eIF2α-dependent translational induction is required in this PERK signaling.

Protein misfolding and activation of the UPR is emerging as a common mechanism in neurodegeneration diseases. Studies inhibiting the PERK branch of UPR have shown that PERK inhibitors protect against neuronal cell death in models of Alzheimer’s disease (AD), Parkinson’s disease (PD), and amyotrophic lateral sclerosis (ALS; Celardo et al., 2016; Kim et al., 2013; Moreno et al., 2013). A protective role of PERK in Charcot-Marie-Tooth (CMT) disease has also been demonstrated, as genetic and pharmacological inactivation of Gadd34 (damage-inducible protein 34) antagonizes PERK activity toward eIF2α and improves motor, neurophysiological, and morphologic deficits in mouse models (Scapin et al., 2020). In mouse models of adRP (heterozygous Rho^P23H), PERK protects against degeneration of photoreceptor cells (Athanasiou et al., 2017; Chiang et al., 2012a). Consistent with this, loss-of-function perk mutations dramatically accelerate retinal degeneration in fly ninaE^G69D models (Vasudevan et al., 2020). In contrast, limited ATF4 expression protects photoreceptor cells from Rho^P23H-induced retinal degeneration, while conflicting evidence suggests that loss of ATF4 accelerates retinal degeneration in Drosophila ninaE^G69Dmodels (Bhootada et al., 2016; Vasudevan et al., 2022). Supporting the protective role of PERK but not ATF4 in adRPs, loss of function of PERK led to severe retinal degeneration in Rh1^P37H-expressing cells, whereas a null ATF4 allele did not. Importantly, overexpression of PERK strongly suppressed retinal degeneration in ninaE^G69D flies, whereas ATF4 had no effect. In accordance with the deteriorating role of autophagy, the degenerating ninaE^G69D flies exhibit increases in autophagy (in particular ER-phagy) and activation of PERK prevents autophagy, suggesting that reduced autophagy flux is part of the protective mechanism of PERK (Qiu et al., 2019; Yao et al., 2018). Our findings indicate that prolonging PERK activities represent a valid therapeutic target in ER stress-related neuropathies such as adRP.

The following fly lines were obtained from the Bloomington Stock Center: P{UAS-LUC.VALIUM10}attP2 (LUC^RNAi), P{TRiP.HMS03003}attP40 (ire1^RNAi-1), P{TRiP.HMC05163}attP40 (ire1^RNAi-2), P{TRiP.HMS03015}attP2 (xbp1^RNAi-1), P{TRiP.JF02012}attP2 (xbp1^RNAi-2), w¹¹¹⁸;PBac{w[+mC] = WH}ire1[f02170]/TM6B,Tb (ire1^f02170), P{TRiP.HMJ02063}attP40 (perk^RNAi). The following fly lines were obtained from the Tsinghua Fly Center: P{TRiP. HMS00668} attP2 (eIF3b^RNAi), P{TRiP. HMS00762} attP2 (eIF4G^RNAi), P{TRiP. HMS02750} attP40 (atg1^RNAi), P{TRiP. JF02891} attP2 (atg9^RNAi), P{TRiP. HMS01193} attP2 (atg18^RNAi), P{TRiP. HMS00551} attP2 (ref(2)P/p62^RNAi-1), P{TRiP. HMS00938} attP2 (ref(2)P/p62^RNAi-2), P{TRiP.HMS00139} attP2 (prosβ1^RNAi). The knock-down efficiency of RNAi lines was verified by qPCR. The following flies were maintained in the laboratory of T. Wang: ATF4-mCherry, ey-flp; FRT82B GMR-hid CL/TM3, ninaE-GFP, trp-GFP, GMR-Gal4, ninaE-xbp1-RE. All flies were maintained under 12 h light/12 h dark cycles at 25°C unless mentioned.

The cDNA sequences of Rh1, perk, eIF2Bα, atf4, and eIF2α were amplified from RH01460, LD41715, HL01112, RH01327, and GH06180 of the DGRC gold cDNA collections, respectively (Drosophila Genomics Resource Center). The Rh1 cDNA was subcloned into the pninaE-attB vector with a C-terminal RFP-tag. Rh1^P37H was mutated from the ninaE cDNA and subcloned into the pninaE-attB vector with a C-terminal GFP-tag. The perk cDNA was controlled by its own promotor and subcloned into the Pperk-attB vector. The eIF2Bα cDNA was subcloned into a ubi-attB vector. The atf4 cDNA was subcloned into a da-attB vector. The eIF2α cDNA and eIF2Α^S51A mutated from eIF2α cDNA were subcloned into a pUAST-attB vector. The mCherry-T2A-GFP-FLAG-Cl1 sequence was subcloned into the pninaE-attB vector. The constructs were injected into M (vas-int.Dm) ZH-2A;M(3xP3-RFP.attP)ZH-86Fb or M (vas-int.Dm) ZH-2A;M (3xP3-RFP.attP) ZH-51C embryos, and transformants were identified based on eye color. The 3XP3-RFP markers were eliminated by crossing to a Cre-expressing line. To generate the xbp1-mCherry reporter flies, the EGFP of P{UAS-Xbp1.EGFP.HG} (Ryoo et al., 2007) was replaced by mCherry.

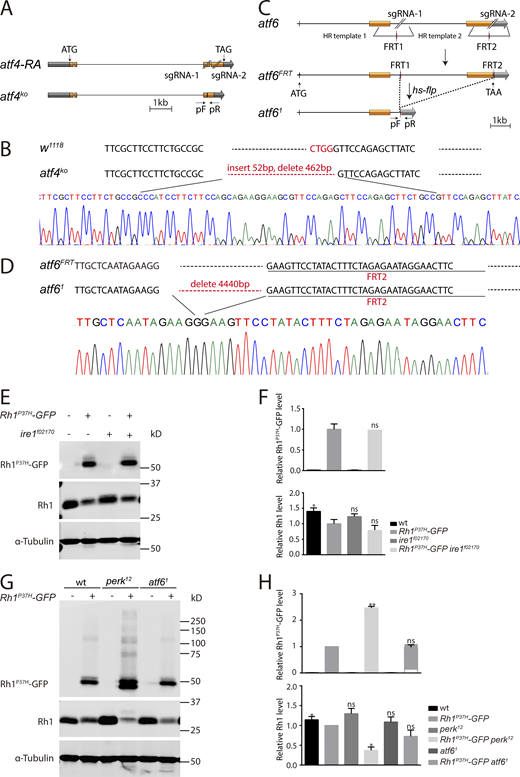

The atf4^KO mutation was generated using the Cas9/sgRNA system (Fig. S4 A; Xu, 2015). Briefly, a pair of guide RNAs targeting the atf4 locus were designed (sgRNA1: 5′-CTG​ATT​ACC​AGC​TCA​ATG​AT-3′, sgRNA2: 5′-ACG​AGG​ACT​GGG​TTC​CAG​AG-3′) and cloned into the U6b-sgRNA-short vector. Plasmids were injected into the embryos of nos-Cas9 flies, and deletions were identified by PCR using the following primers: forward primer 5′-AAA​TTG​TTT​GGC​CTC​TTT​GAT​G-3′ and reverse primer 5′-TTT​TCC​TGA​TCT​TTC​GAT​CCT​C-3′.

The atf6¹ mutation was generated through a combination of sgRNA targeting and Flp/FRT recombination as shown in Fig S4 C. Briefly, a pair of guide RNAs targeting the atf6 locus were designed (sgRNA1: 5′-AAT​AGA​AGG​CTC​GTG​TCG​GT-3′, sgRNA2: 5′-TCT​TGT​TGT​ACA​GTA​TTG​AC-3′) and cloned into the U6b-sgRNA-short vector. A pair of homology arm (800 bp upstream and 800 bp downstream of each sgRNA site) sequences were cloned into the 5′ and 3′ ends of a FRT sequence (5′-GAA​GTT​CCT​ATA​CTT​TCT​AGA​GAA​TAG​GAA​CTT​C-3′). The two pairs of sgDNA and FRT constructs were injected into the embryos of nos-Cas9 flies, and the flies with both FRT sites replaced were identified by PCR using the following primers: FRT-up: 5′-CAA​TAG​AAG​GGA​AGT​TCC​TAT​A-3′; FRT-down: 5′-CTG​TCA​CAT​ACC​TGA​AGT​TCC​T-3′.

The atf6^FRT knock-in flies, were cross with hs-flp lines to delete the DNA fragments between the two FRT sites. The following PCR primers were used to verify the atf6¹ flies: ATF6-FRT del-F: 5′-CGC​TAA​CCT​CAA​TAC​GAA​ATG​G-3′; ATF6-FRT del-R: 5′-TTC​ATA​CGG​ACA​GAC​GGA​CAT​A-3′.

The ref(2)P^m mutation was generated using a single guide DNA (sgDNA: 5′-ACT​GAG​TCA​AGA​CTC​CGG​CA-3′). The plasmid was injected into nos-Cas9 embryos. A mutant allele in which 4 nucleotides were deleted was identified by PCR and DNA sequencing using the following primers: 5′-f-GAG​CCC​TCA​GTG​ATT​CAC​CT-3′ and 5′-r-CTGGATTGACCCTGCTCTTCT-3′. All mutant flies generated were backcrossed to wild-type flies (w¹¹¹⁸) before preforming experiment.

The second chromosome of FRT40A;Rh1^P37H-GFP or FRT42D;Rh1^P37H-GFP flies and the third chromosome of FRT2A Rh1^P37H-GFP or FTR82B Rh1^P37H-GFP flies were isogenized, and young male flies were fed 25 mM EMS (Sigma-Aldrich) in 2% sucrose for 8 h, followed by mating to ey-flp Rh1-RFP;FRT40A GMR-hid CL/Cyo, ey-flp Rh1-RFP;FRT42D GMR-hid CL/Cyo, ey-flp Rh1-RFP;FRT2A GMR-hid CL/TM3 and ey-flp Rh1-RFP;FRT82B GMR-hid CL/TM3 flies, respectively. Approximately 100,000 F1 progeny for each chromosomal arm were examined for fluorescence of GFP-tagged Rh1^P37H and RFP-tagged wild-type Rh1 (Fig S2A).

Flies were anaesthetized by CO₂, and fluorescence images were taken with a Leica M165 FC Fluorescent Stereo Microscope.

Approximately 200 fly heads were lysed with 10 mM Tris-HCl lysis buffer (10 mM Tris/Cl pH 7.5; 150 mM NaCl; 0.5 mM EDTA; 0.5% NP-40, 0.09% Na-Azide with 1× proteinase inhibitor cocktail [Roche] and 1 mM PMSF) for 30 min, and centrifuged at 20,000 g. The supernatant was used for subsequent immunoprecipitation with anti-GFP beads (Chromotek). Beads were washed in ice-cold dilution buffer (10 mM Tris/Cl pH 7.5; 150 mM NaCl; 0.5 mM EDTA, 0.018% Na-Azide with 1× proteinase inhibitor cocktail and 1 mM PMSF) three times and boiled (45°C, 700 rpm, 30 min) in SDS loading buffer for standard Western blot assays.

For Western blot assays, dissected adult fly heads were homogenized with a pellet pestle (Thermo Fisher Scientific) in SDS loading buffer for SDS-PAGE. The blots were probed with primary antibodies against Rh1 (mouse, 1:2,000; Developmental Studies Hybridoma Bank), INAD (rat, 1:2,000; Wang et al., 2008), mouse anti-β-actin (1:2,000; Santa Cruz), mouse anti-ubiquitin (1:1,000; Santa Cruz), rabbit anti-GFP (1:3,000; easybio), tubulin (mouse, 1:2,000; Developmental Studies Hybridoma Bank), RFP (rabbit, 1:2,000; Biovision), TRP (rabbit, 1:2,000; Wang et al., 2008), Flag (mouse, 1:2,000; Sigma-Aldrich), Ref(2)P/P62 (rabbit, 1:2,000; Abmart), followed by incubation with IRDye 680 goat anti-mouse IgG (1:10,000; LI-COR Biosciences), IRDye 800 goat anti-rabbit IgG (1:10,000, LI-COR Biosciences), or IRDye 680 goat anti-rat IgG (1:10,000; LI-COR Biosciences). Signals were detected using an Odyssey infrared imaging system (LI-COR Biosciences).

Fly heads were cut and fixed in 4% freshly made paraformaldehyde (Sigma-Aldrich) in phosphate buffer for 2 h on ice, then the retinas were dissected for immunostaining. Samples were incubated with primary antibodies including mouse anti-Rh1 (1:200; Developmental Studies Hybridoma Bank), rat anti–INAD (1:200; Wang et al., 2008), rat anti–RFP antibody (1:200; Chromotek), rabbit anti-Ref(2)P/P62 (1:200; Abmart), rabbit anti-calnexin (1:200; Zhao and Wang, 2020), rabbit anti-Atg8a (1:200; Abcam) at 4 °C overnight, followed by incubation with Alexa Fluor 488–conjugated, Alexa Fluor 568–conjugated, Alexa Fluor 647–conjugated secondary antibodies (1:500; Invitrogen), and 20 nM DAPI (Invitrogen) or phalloidin (Invitrogen) for 1 h at room temperature. Fluorescence images were acquired at room temperature using a LSM800 confocal laser scanning microscope (Zeiss) with a 63×/1.4-NA oil-immersion lens or a 40×/0.95-NA dry lens and Zeiss Application Suite ZEN software (Zeiss Microsystems).

ERG recordings were performed as described (Wang et al., 2008). Briefly, two glass microelectrodes filled with Ringer’s solution were placed on small drops of electrode cream (Parker Laboratories) on the compound eye and the thorax of a fly. For PDA recordings, flies were dark adapted for 2 min. White-eyed flies were then exposed to 5 s of orange light, followed by two rounds of 5 s of blue light, and two rounds of 5 s of orange light. The time between two stimulations was 5 s. For the summed light responses of photoreceptor cells, flies were dark adapted for 2 min and then white-eyed flies were exposed to a 1-s pulse of ∼2,000 lux orange light (source light was filtered using an FSR-OG550 filter, Newport). ERG signals were amplified with a Warner electrometer IE-210 and recorded with a MacLab/4 s analog-to-digital converter and the clampelx 10.2 program (Warner Instruments). All recordings were carried out at room temperature.

TEM was performed with standard methods as described (Xu and Wang, 2016). Briefly, fly heads were cut and fixed in 4% paraformaldehyde and 2.5% glutaraldehyde at 4°C overnight followed by incubation in 1% osmium tetroxide for 1–2 h at 4°C. Then the samples were dehydrated using a series of ethanol dilutions (10, 25, 35, 40, 55, 70, 85, 95, and 100% ethanol) and embedded in LR White resin (Polysciences, Inc.). Thin sections (80 nm) were stained with uranyl acetate and lead citrate (Sigma-Aldrich) and examined using a JEOL JEM-1400 transmission electron microscope (JEOL Ltd.) at room temperature. The images were acquired using a Gatan CCD (4 k × 3.7 k pixels).

Fly eyes were dissected, and RNA was extracted using TRIzol Reagent (Invitrogen). Total RNA was reverse-transcribed using EasyScript All-in-One First-Strand cDNA Synthesis SuperMix for qPCR (TransGen). qRT-PCR was performed using iTaq Universal SYBR Green Supermix (BIO-RAD) on a CFX96 real time PCR detection system (Bio-Rad). The average threshold cycle value (CT) was calculated from at least three replicates per sample. Expression of genes were standardized relative to rp49. Relative expression values were determined by the ΔΔ CT method. Primers used as below.

• rp49-F: 5′-AGC​ATA​CAG​GCC​CAA​GAT​CG-3′, rp49-R: 5′-TGT​TGT​CGA​TAC​CCT​TGG​GC-3′

• Hsc70-3-F: 5′-GGT​AAC​CGC​ATC​ACT​CCC​TC-3′, Hsc70-3-R: 5′-GTG​GTC​AAC​TGA​TTC​TTG​GCG-3′

• BI-1-F: 5′-GCC​ACT​CTA​GTC​CTG​GTC​TTG-3′, BI-1-R: 5′-GCC​GGA​GCA​GAA​TCC​GAA​G-3′

• Gp93-F: 5′-ATC​CGC​CTA​TTG​GCT​CTG​TC-3′, Gp93-R: 5′-CCG​AGT​CCA​TGA​TGT​GCA​AC-3′

• CaBP1-F: 5′-GAG​GTG​CTG​AAA​GAC​GAC​G-3′, CaBP1-R: 5′-CGA​CTC​CCT​TCA​ATG​CCT​TGG-3′

• Ero1L-F: 5′-CTT​CTT​CCG​CTT​CTA​CAA​GGT​G-3′, Ero1L-R: 5′-CTT​GAT​GCC​CTG​GGG​AAT​CG-3′

• Sec22-F: 5′-GGA​CGC​AGC​ATA​CTG​GAC​TAC-3′, Sec22-R: 5′-GTC​CGG​TCT​CGA​TAC​TGC​ATC-3′

  • atg1-F: 5′-CGT​CAG​CCT​GGT​CAT​GGA​GTA-3′, atg1-R: 5′-TAA​CGG​TAT​CCT​CGC​TGA​G-3′

• atg2-F: 5′-ATG​CGC​TGA​TGA​CCA​ACG​A-3′, atg2-R: 5′-CCG​ACG​ACC​ACA​TGG​ACT​C-3′

• atg3-F: 5′-TCA​ATG​TGG​CCG​AAT​ATC​TGA​C-3′, atg3-R: 5′-AGG​TAG​GGT​TTT​GTC​TTG​GTC​T-3′

• atg8a-F: 5′-GGT​CAG​TTC​TAC​TTC​CTC​ATT​CG-3′, atg8a-R: 5′-GAT​GTT​CCT​GGT​ACA​GGG​AGC-3′

• atg9-F: 5′-TCT​AGC​CCA​CAT​ATC​AAC​TAC​CG-3′, atg9-R: 5′-CTT​TTG​CGT​CTT​GTG​TTT​TGG​AT-3′

• atg18a-F: 5′-ACC​ACA​CGA​AAA​GCG​ACG​AG-3′, atg18a-R: 5′-5′-GCT​CTG​CTT​CTT​AAA​GTG​GCA​C-3′

• perk-F: 5′-TAC​TAG​GTC​CAG​TGG​TGC-3′, perk-R: 5′-GCT​TGT​CCA​GGT​GGG​AAG​CTA-3′

• ire1-F: 5′-ACT​TCG​CGG​GCC​ATC​TAT​CTA-3′, ire1-R: 5′-GCA​CTC​ACA​GCA​TTG​TAG​TCG​TA-3′

• eIF3B-F: 5′-GGA​TGC​GAA​CGA​CAG​TGA​TTA-3′, eIF3B-R: 5′-GGG​ATA​TTG​TCC​ACT​ACC​ACC​A-3′

• prosβ1-F: 5′-GGT​CAT​TGG​AGC​CGA​TTC​G-3′, prosβ1-R: 5′-GCA​GTA​CAC​TTT​GTC​CGT​GAT-3′

• xbp1-F: 5′-CCG​AAC​TGA​AGC​AGC​AAC​AGC-3′, xbp1-R: 5′-CAG​AGG​GTC​AGC​TTT​GGA​TGC-3′

• xbp1-splicing-F: 5′-CCG​AAC​TGA​AGC​AGC​AAC​AGC-3′,

• xbp1-splicing-R: 5′-ATA​CCC​TGC​GGC​AGA​TCC​AA-3′

• ref(2)P/p62-F: 5′-AAT​CGA​GCT​GTA​TCT​TTT​CCA​GG-3′,

• ref(2)P/p62-R: 5′-AAC​GTG​CAT​ATT​GCT​CTC​GCA-3′

• eIF4G-F: 5′-TAT​AAC​CCA​CGG​CAA​CAA​ACA​T-3′,

• eIF4G-R: 5′-TGC​TGA​AGA​GTT​GGG​ACA​TAT​TG-3′.

RNA sequencing (RNA-seq) assays were performed to analyze the transcriptome of fly retinas. Briefly, 20 retinas were dissected from 1-d-old flies. Total RNA was purified using Trizol reagent. RNA integrity was checked using a 2,100 Bioanalyzer (Agilent Technologies) with a minimum RNA integrity number of 8. The mRNA was enriched using oligo magnetic beads (Invitrogen) and fragmented to ∼150–250 bp. cDNAs were synthesized using random hexamer primers and purified using a MinElute PCR purification kit (Qiagen). The 42-cycle single-end sequencing was performed using an Illumina Genome Analyzer IIx. CASAVA pipeline v1.8 was then used for sequence extraction and filtering. RNA-seq reads were mapped to the fly genome using Tophat (v2.0.8b) software and the Ensembl genome annotation dataset (Drosophila_melanogaster.BDGP5.71.gtf). Gene expression level fragments per kilobase of exon per million fragments mapped (FPKM) was estimated using Cufflinks (v2.1.1) software.

40 retina pairs for each genotype (1-d-old) were dissected in cold phosphate buffer. Two samples were generated for each genotype. Protein extraction was performed as described using 50 μl lysis buffer (10% SDS with 100 mM TEAB) for 30 mins on ice and centrifuged at 16,000 g to collect supernatant (Xiong et al., 2020). About 50 μg protein for each sample was collected and digested with trypsin (Promega Corporation) in an enzyme/protein ratio of 1:50 (w/w) overnight at 37°C. The resulting peptide samples were labeled using the TMT 10plex Isobaric Label Reagent Set label kit (Thermo). The mixed peptides were fractionated using a reversed phase C18 column (3 M, Bracknell), and 8 fractions of peptide were eluted with acetonitrile step gradients (7.5, 10, 12.5, 15, 17.5, 20, 22.5, and 50%, pH 10). Finally, the eight fractions were dried in a vacuum centrifuge and stored at −80°C until LCMS/MS analysis.

Approximately 2 μg of each pH fractionated peptide sample were separated on an in-house packed 75-μm ID × 50 cm capillary column with 2.5 μm Venusil C18 beads (Agela Technologies) using an EASY-nLC 1,000 system (Thermo Fisher Scientific) with flow rate at 200 nl/min. Raw data was collected on Q Exactive mass spectrometer (Thermo Fisher Scientific) using Thermo Xcalibur (2.0) software. All raw LC−MS/MS data were submitted to Proteome Discoverer (2.2 version, Thermo Science) for TMT quantitation and database analysis using SequestHT. Data were searched against the Fruit fly Swiss-Prot database (UP000000803, 21,922 sequences) in combination with a common contaminants database (247 entries).

Statistical results were generated by GraphPad Prism 6 and statistical significance was assessed through Ordinary one/two-way ANOVA, Sidak’s multiple comparisons test, and Student’s t test analyses. All error bars represent standard error of the mean. ImageJ was used to quantify the fluorescence intensity of Western blot and immunostaining images. A graphical normality test was performed to determine whether all data used for statistical analysis were normally distributed. Briefly, a histogram of the dataset was created, and all data fall in a normally distributed population.

Fig. S1 shows that a genetic screen reveals that perk and eIF2Bα are involved in Rh1 homeostasis in a model of adRP. Fig. S2 shows the levels of Rh1^P37H and endogenous Rh1 are unaffected by mutations in ire1 and atf6. Fig. S3 shows the overlap of upregulated genes in Rh1^P37H-GFP perk^RNAi and ninaE-xbp1-RE retinas. Fig. S4 shows that the ER proteins are degraded through autophagy in Rh1^P37H-GFP perk^RNAi photoreceptor cells. Fig. S5 shows that the ER-phagy is induced in the ninaE^G69D model of adRP. Data S1 shows the gene expression profiling of retina of the Rh1^P37H-GFPperk^RNAi and Rh1^P37H-GFP flies related to Fig. 4 A. Data S2 shows the gene expression profiling of retina dissected from the ninaE-GFP and ninaE-xbp1-RE flies related to Fig. S3 A. Data S3 shows comparison of retinal protein levels of Rh1^P37H-GFP perk^RNAi with Rh1^P37H-GFP flies related to Fig. 5 A.

All data are available in the main text or the supplementary materials.

We thank the Bloomington Stock Center, the Drosophila Genomic Resource Center, the Tsinghua Fly Center, and the Developmental Studies Hybridoma Bank for stocks and reagents. We thank Y. Wang and X. Liu for assistance with fly injections. We are tremendously thankful for support provided by the Sequencing Center, the Electron Microscopy Center, the Imaging Facility, and the Proteomics Facility at the National Institute of Biological Sciences. We thank Dr. Lin Yang from the Institute of Genetics and Developmental Biology for assistance with TEM. We thank Dr. D. O’Keefe for editing the manuscript.

This work was supported by grants from the National Natural Science Foundation of China (81870693 and 81670891) awarded to T. Wang.

Author contributions: Methodology: T. Wang, N. Zhao. Investigation: N. Zhao. Visualization: N. Zhao, N. Li. Supervision: TW. Writing—original draft: T. Wang, N. Zhao. Writing—review & editing: T. Wang, N. Zhao.
