The step-by-step process of chromosome segregation defines the stages of the cell cycle. In eukaryotes, signals controlling these steps converge upon the kinetochore, a multiprotein assembly that connects spindle microtubules to chromosomal centromeres. Kinetochores control and adapt to major chromosomal transactions, including replication of centromeric DNA, biorientation of sister centromeres on the metaphase spindle, and transit of sister chromatids into daughter cells during anaphase. Although the mechanisms that ensure tight microtubule coupling at anaphase are at least partly understood, kinetochore adaptations that support other cell cycle transitions are not. We report here a mechanism that enables regulated control of kinetochore sumoylation. A conserved surface of the Ctf3/CENP-I kinetochore protein provides a binding site for Ulp2, the nuclear enzyme that removes SUMO chains from modified substrates. Ctf3 mutations that disable Ulp2 recruitment cause elevated inner kinetochore sumoylation and defective chromosome segregation. The location of the site within the assembled kinetochore suggests coordination between sumoylation and other cell cycle–regulated processes.
The cellular challenge of accomplishing error-free chromosome segregation is a central problem in biology. Success is essential for the health and longevity of all multicellular organisms. Environmental variability ensures that no two cell divisions are identical, and cells modulate the activities of chromosome segregation machines accordingly. One classic example of such regulation is the mitotic checkpoint, which encompasses a collection of kinases and associated scaffold proteins that prevent progression to anaphase until all pairs of sister centromeres are properly aligned on the mitotic spindle (London and Biggins, 2014). In addition to phosphorylation cascades, cells use the small ubiquitin-like modifier (SUMO) protein to ensure high-fidelity chromosome segregation (Fukagawa et al., 2001; Li and Hochstrasser, 2000; Meluh and Koshland, 1995). One important mechanism involves regulated sumoylation of distinct sets of kinetochore substrates (de Albuquerque et al., 2016; Montpetit et al., 2006; Mukhopadhyay et al., 2010). Mechanisms that target SUMO pathway components to these kinetochore subsets have not been fully described. Doing so is a prerequisite for understanding their regulation in response to environmental and cell cycle cues.
Yeast kinetochores, which are thought to be simplified versions of larger vertebrate kinetochores, contain two functional domains (Biggins, 2013) that can be further subdivided into biochemically defined multiprotein complexes (Cheeseman et al., 2002; De Wulf et al., 2003; Hinshaw and Harrison, 2018; McKinley and Cheeseman, 2016; Musacchio and Desai, 2017). Outer kinetochore proteins contact microtubules and are the principal substrates and organizers of the mitotic checkpoint. Inner kinetochore proteins, most of which assemble into the Ctf19 complex (Ctf19c in yeast, constitutive centromere associated network or CCAN in vertebrates), contact centromeric DNA and regulate chromosomal functions. Structural studies of inner kinetochore proteins imply regulated chromatin recognition and show how key activities are coordinated (Hinshaw and Harrison, 2019; Yan et al., 2019; Hinshaw and Harrison, 2020; Kixmoeller et al., 2020).
SUMO pathway components were identified due to their ability, when overexpressed, to rescue the viability of lethal kinetochore mutants (Meluh and Koshland, 1995). One such factor, Ulp2 (homologous to human SENP6), cleaves SUMO chains from substrate proteins (Li and Hochstrasser, 2000). Ulp2 activity coordinates multiple chromosomal functions, and its localization and substrate recognition are the main points of regulation (Kroetz and Hochstrasser, 2009). Differential targeting depends on short peptide motifs embedded within N- and C-terminal extensions flanking a central catalytic domain. In particular, Ulp2 residues 781–873 contact Csm1, a component of the monopolin complex (de Albuquerque et al., 2018; Liang et al., 2017), and Ulp2 residues 896–937 (previously CCR for conserved C-terminal region and renamed here KIM for kinetochore interaction motif) contact the inner kinetochore Ctf3 complex (Ctf3c, CENP-H/I/K in vertebrates; Suhandynata et al., 2019). A SUMO-interacting motif (SIM) comprising Ulp2 residues 725–728 boosts Ctf3c- and Csm1-dependent Ulp2 activity at kinetochores and the nucleolus, respectively (de Albuquerque et al., 2018; Suhandynata et al., 2019). SIM dependence implies homeostatic regulation; excessive substrate sumoylation enhances Ulp2 recruitment, and cleavage of the chains by Ulp2 itself releases the enzyme from its substrates.
Sumoylated inner kinetochore proteins accumulate in cells expressing Ulp2 kinetochore interaction mutants (Ulp2–SIM-3A–KIM-3A; Suhandynata et al., 2019). These cells, like ulp2Δ cells, frequently missegregate chromosomes (Ryu et al., 2016; Suhandynata et al., 2019). Likewise, human SENP6 cleaves SUMO from inner kinetochore proteins (Fu et al., 2019; Liebelt et al., 2019; Mitra et al., 2020; Mukhopadhyay et al., 2010; Wagner et al., 2019), and SENP6 depletion destabilizes kinetochores, causing severe chromosome segregation defects (Liebelt et al., 2019; Mitra et al., 2020; Mukhopadhyay et al., 2010). These findings suggest a conserved mechanism that counteracts inner kinetochore sumoylation and maintains kinetochore integrity. Identification of a kinetochore receptor for Ulp2 supports this viewpoint (Suhandynata et al., 2019), but both the receptor (the Ctf3c) and Ulp2 itself have multiple functions. A definitive account of the contribution of kinetochore-directed Ulp2 activity to accurate chromosome segregation and related studies of cell cycle–regulated Ulp2 activity in this process thus require a finer description of Ulp2 recruitment.
We present here an analysis of the kinetochore-targeting function of Ulp2. A structure of the Ctf3c bound to the Ulp2-KIM shows that Ulp2 contacts a conserved surface of the Ctf3 protein. Mutation of the Ctf3 surface causes elevated inner kinetochore sumoylation. The phenotype is especially pronounced in strains that also carry the ulp2–SIM-3A mutation, and the ultimate consequence of this dysregulation is defective chromosome segregation in the mutant strains. These findings provide a conclusive demonstration of targeted kinetochore desumoylation by Ulp2 and suggest mechanisms that might regulate this activity during the cell cycle.
The structure of the Ctf3c interacting with Ulp2
To determine how the Ctf3c recruits Ulp2 to the kinetochore, we determined the structure of the Ctf3c–Ulp2 complex by single particle cryo-EM. We first reconstituted the interaction between purified Ulp2-KIM and the Ctf3c (Fig. 1 B). The previously described Ulp2–KIM-3A mutant (Ulp2-V931A,L933A,I934A) did not bind the Ctf3c, nor did the SIM that bolsters the kinetochore recruitment of the enzyme (Ulp2 residues 725–728; Fig. S1 A), demonstrating the specificity of the interaction. A minimal Ulp2 peptide (Ulp2 residues 927–937) bound the Ctf3c in a pulldown assay with an affinity that matched longer Ulp2 fragments (Fig. S1 B). We purified a complex containing this minimal Ulp2 peptide and the Ctf3c (Fig. 1 C) and determined its structure by cryo-EM (Fig. 1 D and Fig. S1 C).
The Ulp2-Ctf3c structure shows the Ulp2-KIM interacting with the C-terminal part of the Ctf3 protein. Density that was not part of the Ctf3c marked the position and contact surface of the Ulp2-KIM peptide but was not sufficiently well defined to permit assignment of individual residue positions. The full Ctf3c comprises two structural modules, defined by N- and C-terminal Ctf3 HEAT repeat arrays that contact parallel coiled-coils belonging to the Mcm16 and Mcm22 proteins (Hinshaw and Harrison, 2020). The Ulp2-KIM contacts the exterior surface of the Ctf3 C-terminal HEAT array near its C-terminus and does not interact with either Mcm16 or Mcm22. In the context of the complete Ctf3c, the Ulp2 interaction surface is exposed to solvent.
Previous cryo-EM structures of the intact Ctf19c enable analysis of the Ulp2-binding site relative to other inner kinetochore proteins (Hinshaw and Harrison, 2019; Yan et al., 2019). The Ulp2-binding surface of the Ctf3c faces solvent in both published Ctf19c structures, consistent with the finding that Ulp2 localizes to centromeres and acts on assembled kinetochores. Cnn1-Wip1, histone fold proteins that bind Ctf3-N and indirectly connect the inner kinetochore to spindle microtubules, are distal to the Ulp2-KIM site and therefore not directly involved in Ulp2 recruitment. The arrangement implies a functional specialization of the Ctf3-N and -C modules whereby Ctf3-N mediates microtubule contact through Cnn1, and Ctf3-C regulates chromatin-associated processes through Ulp2. The Ulp2-KIM binds Ctf3 near the N-terminal extensions of Ctf19 and Mcm21, members of the four-protein COMA complex (Ctf19, Okp1, Mcm21, and Ame1). These flexible peptides are likely sites of post-translational modifications by SUMO ligases, indicating a mechanism for multisite recognition of kinetochore architecture by Ulp2 through both its KIM and SIM peptides (Fig. 1 E). From its anchor point on Ctf3, Ulp2 could, in principle, reach substrates up to 90 nm away—long enough to visit all sumoylated Ctf19c proteins.
Analysis of the Ulp2–Ctf3c interaction: Specificity and affinity
The Ctf3 surface that binds Ulp2 is conserved, suggesting its function in kinetochore regulation may have been retained throughout evolution (Fig. 2 A). To verify the position of the Ulp2-KIM relative to Ctf3, we mutated two conserved basic amino acid residues in Ctf3 to create the Ctf3-2A protein (Ctf3–R594A,K596A). Pulldown assays showed that Ctf3-2A does not support the Ulp2–KIM interaction (Fig. S2 A). The dissociation constant for the Ulp2–KIM–Ctf3c interaction, measured by fluorescence polarization using a minimal Ulp2 peptide, is ∼0.9 µM (Fig. 2 B). The affinity of the same peptide for a Ctf3c containing the Ctf3-2A protein was not measurable. Unlabeled recombinant Ulp2-KIM inhibited the interaction with WT Ctf3c, whereas Ulp2–KIM-3A did not, demonstrating the specificity of the assay.
Clusters of basic and nonpolar amino acid side chains dominate the Ctf3 conserved surface. Basic Ctf3 amino acid side chains likely satisfy the conserved negatively charged KIM aspartates (Ulp2–D928,D930), and nonpolar Ctf3 residues likely provide a docking site for the conserved nonpolar residues mutated in the Ulp2–KIM-3A protein (Fig. 2 D). To test this idea, we performed binding experiments with mutated minimal Ulp2-KIM proteins to probe the Ctf3c interaction (Fig. 2 E). Mutagenesis of conserved Ulp2 aspartate residues (Ulp2-3DA, 1DA-2, and 1DA-3) to alanine produced KIM peptides that did not interact with Ctf3. Mutation of Ulp2-D927 (1DA-1), which is less conserved, had only a modest effect. The Ulp2–KIM-3A peptide and related variants with single conserved hydrophobic KIM residues mutated to alanine (Ulp2–1A-1, 1A-2, and 1A-3) did not bind the Ctf3c. A Ulp2-KIM peptide bearing the N932A mutation (Fig. S2 B) retained Ctf3c binding activity. These findings coincide with conservation among fungal Ulp2-KIM peptides and support the mode of binding indicated by structural studies of the complex.
The ctf3-2A mutation increases kinetochore sumoylation
To determine whether the Ctf3–Ulp2 interaction identified in our structural and biochemical studies dictates Ulp2 kinetochore recruitment in vivo, we introduced the ctf3-2A allele into the chromosomal CTF3 locus. Isolation of Ulp2-KIM–binding proteins from cell extracts confirmed that Ctf3, but not Ctf3-2A, binds Ulp2 (Fig. 3 A). The effect was even more pronounced when the Ulp2–KIM-3A mutant peptide was used as bait, consistent with a mode of interaction that depends on both polar and nonpolar contacts, as described above. To test whether the impaired Ulp2–Ctf3-2A interaction disrupts Ulp2 recruitment to centromeres, we analyzed Ulp2 localization by chromatin immunoprecipitation–quantitative PCR (ChIP-qPCR; Fig. 3 B). Ulp2 is detectable above background at centromeres (CEN3) in WT cells, and this localization is disrupted to similar degrees in ulp2–KIM-3A, ctf3-2A, and double mutant (ulp2–KIM-3A ctf3-2A) cells. Therefore, the conserved surface of Ctf3 is required for Ulp2 recruitment to the centromere.
We next asked whether impaired Ulp2-Ctf3 binding results in elevated sumoylation of inner kinetochore proteins. To do so, we used immobilized, catalytically inactive Ulp1 (dUlp1) to isolate sumoylated cellular proteins and their complexes from cell extract. We observed the appearance of a prominent new species corresponding to sumoylated Ctf3 in the SUMO-enriched material from ctf3-2A cells (Fig. 3 C). Therefore, the inability of Ulp2 to bind kinetochores in ctf3-2A cells prevents its localization to centromeres and results in elevated Ctf3 sumoylation.
In principle, elevated Ctf3 sumoylation in ctf3-2A cells could reflect disrupted Ulp2 activity on soluble Ctf3 that is not incorporated into centromeric kinetochore particles. To test this possibility, we extended the sumoylation analysis to Mcm21, a member of the COMA complex that does not depend on the Ctf3c for its centromeric localization (Measday et al., 2002). Sumoylated Mcm21 was observable in SUMO-enriched WT cell extracts, and the sumoylation levels, especially levels of poly-sumoylated Mcm21, were higher in the ctf3-2A background (Fig. 3 D). The ulp2–SIM-3A, ulp2–KIM-3A, and ulp2–SIM-3A–KIM-3A mutants all produced pronounced Mcm21 hyper-sumoylation in otherwise WT cells. The appearance of sumoylated Mcm21 was elevated further when these Ulp2 mutations were combined with ctf3-2A. Specifically, the ulp2–KIM-3A mutation slightly increased Mcm21 sumoylation, even in ctf3-2A cells (lanes 3 and 7), consistent with the idea that both acidic and hydrophobic Ulp2 residues contribute to Ctf3 binding as described above. The ulp2–SIM-3A mutation enhanced Mcm21 sumoylation in ctf3-2A cells (lanes 2 and 6), in agreement with the notion that maximal Ulp2 recruitment to the inner kinetochore depends on cooperative Ulp2 binding to both Ctf3c and sumoylated kinetochore proteins.
The Ctf3-2A protein is specifically deficient in centromeric Ulp2 recruitment
To determine whether the localization defect in ctf3-2A cells is restricted to Ulp2, we investigated kinetochore assembly. Cells lacking Mcm16, a Ctf3c component required for its assembly and function, display elevated Mcm21 sumoylation (Suhandynata et al., 2019). The phenotype is similar in degree to that seen in ctf3-2A. To verify that the Ctf3-2A protein supports Ctf3c formation and kinetochore recruitment, we imaged cells expressing Mcm22-GFP (Fig. 4 A). WT cells showed Mcm22-GFP localization identical to what we have described for Ctf3-GFP (Hinshaw and Harrison, 2020). The signal in the ctf3-2A cells was indistinguishable from that observed in WT cells, indicating that the Ctf3-2A protein does not disrupt Ctf3c assembly or kinetochore recruitment. To verify this finding, we performed ChIP-qPCR to assess Ctf3 or Ctf3-2A localization (Fig. 4 B). Analysis of two centromeres (CEN3 and CEN7) and a third site on the arm of chromosome VIII (CUP1) showed no statistically discernable defect in Ctf3-2A localization to CEN3 and a very small but statistically significant deficit in Ctf3-2A localization to CEN7.
We also compared overall kinetochore assembly in CTF3 and ctf3-2A backgrounds. To do so, we purified Ctf3 or Ctf3-2A and associated proteins from exponentially growing cultures and subjected the immunopurified material to quantitative mass spectrometry (Fig. 4 C). Consistent with the imaging and ChIP-qPCR experiments described above, there was no difference in the levels of kinetochore proteins recovered from extracts from either background. Therefore, under favorable growth conditions, partially elevated inner kinetochore sumoylation in the ctf3-2A mutant does not cause kinetochore disassembly.
As two further tests of the impact of the ctf3-2A allele on overall kinetochore assembly and its timing, we quantified the kinetochore recruitment of Sgo1-GFP and Scc2-GFP in dividing cells. Sgo1 dissociates from centromeres upon sister kinetochore biorientation in a process that depends on SUMO signaling (Nerusheva et al., 2014; Su et al., 2021). We did not observe a defect in the pattern of Sgo1-GFP localization in the ctf3-2A–expressing cells (Fig. S3 A), indicating that inner kinetochore SUMO regulation is distinct, either in its enzymatic requirements or its timing, from the pathway that regulates Sgo1 localization as cells enter anaphase. Additionally, although the Ctf19c proteins Chl4 and Iml3 are required for pericentromeric Sgo1 localization in meiosis (Kiburz et al., 2005), we did not observe defective Sgo1 localization in mitotic ctf19Δ cells. Scc2 loads cohesin onto chromosomes, and its transient recruitment to kinetochores depends on Ctf3-mediated Dbf4-dependent kinase (DDK) localization in late G1 (Hinshaw et al., 2017). Scc2-GFP localization was unperturbed in ctf3-2A mutant cells (Fig. S3 B). Therefore, elevated kinetochore sumoylation does not impair centromeric cohesin loading or the kinetochore processes required to support this activity, consistent with previous observations in ulp2Δ cells (Bachant et al., 2002).
Defective Ulp2 localization disrupts chromosome segregation
While inner kinetochore assembly appeared normal in unstressed ctf3-2A mutant cells (described above), it remained possible that Ulp2 safeguards kinetochore assembly under stressful conditions, analogous to the essential activity of its human homologue, SENP6. Indeed, genetic complementation experiments showed that Ulp2 mutations found to be important for Ctf3 interaction in biochemical experiments described above (Fig. 2) produced a mild viability defect when combined with the ulp2–SIM-3A mutation (Fig. S4 A). Furthermore, although the effects are modest, the ctf3-2A mutation sensitizes cells to hydroxyurea and benomyl (Fig. S4 B). This is pronounced for ctf3-2A ulp2–SIM-3A double mutant cells, in which both mechanisms that support Ulp2 kinetochore recruitment have been disabled. Therefore, maximal cellular fitness requires efficient desumoylation of inner kinetochore proteins by Ulp2, and this is especially true when cells are exposed to chemical stressors that perturb normal cell cycle progression.
Impaired fitness of strains deficient in Ulp2 kinetochore targeting could be a consequence of chromosome segregation errors (Ryu et al., 2016; Suhandynata et al., 2019). To test this idea, we measured chromosome segregation using a mating type faker assay and found that ctf3-2A cells missegregate chromosome III more frequently than WT cells (Fig. 5 A). The effect was similar in the three single mutant strains (ctf3-2A, ulp2–SIM-3A, and ulp2–KIM-3A), and it was more severe in a strain carrying all three mutations (ctf3-2A ulp2–SIM-3A–KIM-3A). The ulp2–SIM-3A–KIM-3A mutant strain produced the most pronounced defect and was also the most variable. ulp2 mutant strains have reduced fitness and rapidly become aneuploid (Ryu et al., 2016). Spontaneous corrective mutations enable return to euploidy, which partially restores fitness (Ryu et al., 2018). Though the ulp2 point mutants studied here are less disruptive than ulp2Δ, related rapid cycles of genomic instability might contribute to the observed variability.
Meiotic chromosome segregation is especially sensitive to defective kinetochore regulation. We tested spore viability in homozygous WT, ctf3-2A, ulp2–SIM-3A, ulp2–KIM-3A, ulp2–SIM-3A ctf3-2A, and ulp2–SIM-3A–KIM-3A mutant cells (Fig. 5 B). All mutations increased the frequency of inviable spores. Cells carrying the ulp2–SIM-3A mutation had a pronounced defect, consistent with SIM-dependent homeostatic control of both kinetochore and nucleolar sumoylation (de Albuquerque et al., 2018). The mild but observable sporulation defect seen in ctf3-2A mutant cells and the more pronounced defect in the ulp2–KIM-3A ctf3-2A double mutant cells indicates a role for regulated kinetochore desumoylation in normal meiotic chromosome segregation.
Ulp2 regulates multiple nuclear processes. Interactions between subnuclear structures and the enzyme itself determine specificity and timing (Liang et al., 2017; Srikumar et al., 2013; Suhandynata et al., 2019). Efficient kinetochore recruitment depends on two conserved elements in the noncatalytic C-terminal tail of Ulp2 (Suhandynata et al., 2019). One of these peptides binds SUMO chains, and the other binds the Ctf3c. We have identified the surface of the Ctf3 protein responsible for the latter interaction by solving the cryo-EM structure of the complex. The Ctf3 surface is conserved, indicating the interaction may be ancient, and mutations at the surface perturb the Ctf3c–Ulp2 interaction both in reconstituted biochemical systems and in cells.
The Ctf3–Ulp2 interaction requires both electrostatic and nonpolar contacts. The former depends on conserved Ulp2-KIM aspartate side chains, while the latter depends on conserved hydrophobic Ulp2-KIM side chains. Pulldown experiments indicated that both Ulp2 elements interact with Ctf3 (Fig. 2 E), and analysis of Mcm21 sumoylation confirmed that both interactions support Ctf19c-directed Ulp2 activity (Fig. 3 D). These contacts are distinct from those that mediate SIM-SUMO contacts, despite the fact that the Ulp2-KIM and -SIM peptides have similar primary sequences. Indeed, the Ulp2-KIM has no detectable SUMO-binding activity (de Albuquerque et al., 2018), and the Ulp2-SIM does not bind the Ctf3c. Conventional SIM peptides interact with SUMO-1 by β sheet extension (Namanja et al., 2012). The Ctf3c site we have identified precludes this mode of interaction. Thus, the Ulp2-KIM and Ulp2-SIM are mechanistically and structurally distinct recruitment motifs that, together, enable fine-tuning of Ulp2 kinetochore activity in response to cellular and environmental perturbations.
Ulp2 activity at the inner kinetochore varies during the cell cycle (Suhandynata et al., 2019). Ulp2 recruitment, as we have shown here and previously, depends on distinct KIM-Ctf3c and SIM-SUMO interactions. Only the KIM–Ctf3 interaction is specific to the inner kinetochore. The two-site mechanism implies homeostatic regulation: SUMO chain cleavage disfavors Ulp2 recruitment. Steady-state inner kinetochore sumoylation is therefore set by a competition between Ulp2 and fluctuating activities of nuclear SUMO ligase complexes. Kinetochore kinases might also contribute to observed cell cycle–dependent changes in Ulp2 activity (Suhandynata et al., 2019). The extended regions of Ctf19 and Mcm21, which are located near the Ctf3 conserved surface in the assembled Ctf19c, are both phosphorylated and are therefore good candidate mediators of this regulation (Albuquerque et al., 2008; Hinshaw et al., 2017). Ulp2 itself is also phosphorylated at sites near the C-terminal SIM and KIM peptides described here (Baldwin et al., 2009). The precise functions of most of these modifications have not been described, and their cell cycle–dependent activities are promising topics for further study.
SUMO modification regulates interlocking nuclear processes, and alleles that separate these overlapping functions can be important tools. In addition to influencing chromosome segregation by targeting inner kinetochore proteins, Ulp2 regulates essential nuclear processes, including DNA replication, nucleolar gene silencing, and recovery after DNA damage-induced arrest (de Albuquerque et al., 2016; Liang et al., 2017; Schwartz et al., 2007; Wei and Zhao, 2016). Its known substrates in these processes include the mini-chromosome maintenance (MCM) complex, the nucleolar RENT complex, the DNA topoisomerase Top2, and the DDK subunit Dbf4 (Bachant et al., 2002; de Albuquerque et al., 2016; Liang et al., 2017; Psakhye et al., 2019; Wei and Zhao, 2016). The structure we have described enables precise manipulation of Ulp2 activity at the inner kinetochore without perturbation of these related functions.
We have used the new CTF3 alleles to investigate the influence of sumoylation on kinetochore assembly and chromosome segregation. In particular, unperturbed Scc2 localization indicates that ctf3-2A cells maintain DDK recruitment to the kinetochore in late G1/early S phase. Likewise, distinct recruitment mechanisms probably control Ulp2 activity in the pathways enumerated above. Independent regulation enables variable tuning of Ulp2 activity appropriate for each context and provides an evolutionary explanation for extended N- and C-terminal regulatory segments that flank a conserved enzymatic core. Compromised viability upon benomyl exposure in cells lacking both Ulp2–kinetochore interactions (KIM-Ctf3 and SIM-SUMO) suggests a mitotic defect. The same cells are much more sensitive to hydroxyurea treatment, indicating that the mitotic defect could have originated during the previous S phase (Fig. S3 B). The Ulp2–SIM-SUMO interaction is likely sufficient to prevent a severe viability defect in this relatively crude stress test in cells lacking the Ulp2–KIM-Ctf3 interaction.
Both Ulp2 (SMT4) and SUMO itself (SMT3) were originally identified as high copy genetic suppressors of a temperature-sensitive MIF2 allele, an essential component of the inner kinetochore (Meluh and Koshland, 1995). The human Ulp2 homologue, SENP6, removes SUMO modifications from CENP-I and other inner kinetochore proteins (Fu et al., 2019; Liebelt et al., 2019; Mitra et al., 2020; Wagner et al., 2019), and this activity is required for kinetochore integrity (Mukhopadhyay et al., 2010). Identification of a conserved kinetochore site that mediates Ulp2 recruitment in yeast and directs its activity to a specific subset of inner kinetochore substrates provides a possible explanation for these findings. A similar pathway might function in multicellular organisms to ensure kinetochore maintenance during extended periods of cellular quiescence or arrested growth.
Materials and methods
Antibodies used in this study
Antibodies used in this study are presented in Table 1.
Yeast strain construction and growth conditions
Yeast strains were generated by standard methods (Table S2) and grown in rich medium with additives or dropout medium (synthetic complete [SC]; Sunrise Science Products) at 30°C unless otherwise indicated. Mutant strains were generated by lithium acetate–mediated integration of PCR products (Longtine et al., 1998). Mutations were verified by Sanger sequencing (new alleles) or PCR genotyping (deletion strains). Standard molecular biology techniques were used to generate plasmids (Table S3), and details for their construction are available upon request.
Recombinant protein production
Recombinant Ctf3c samples and GST-tagged Ulp2 fragments were expressed in Escherichia coli Rosetta 2(DE3)pLysS cells (Millipore) grown to an OD of ∼0.8 at 37°C before shifting the temperature to 18°C and induction of protein expression with 0.4 mM IPTG. After ∼16 h, cells were harvested, resuspended in buffer D800 (20 mM Hepes, pH 7.5, 10 mM imidazole, pH 8.0, 800 mM NaCl, 2 mM β-mercaptoethanol, and 10% glycerol) with protease inhibitors (2 µg/ml each aprotinin, leupeptin, and pepstatin; 1 mM each PMSF and benzamidine) and frozen at −80°C. After thawing and lysis by sonication, bacterial cell lysates were clarified by centrifugation for 30 min at 43,550 relative centrifugal force.
For Ctf3c purifications, the His6-tagged protein was purified from the supernatant by Co2+-affinity. The Co2+ eluate was immediately injected onto a 5-ml cation exchange column (HiTrap SP HP; GE) and eluted with a linear gradient from 100–800 mM NaCl in cell lysis buffer. N-terminal His6 tags were removed from all Ctf3c samples by incubation with tobacco etch virus (TEV) protease at room temperature for 3 h immediately after ion exchange chromatography. Cleaved tags and TEV were removed by Ni2+ chromatography before further purification on a Superdex 200 column (10/300 GL; GE) equilibrated in GF200 buffer (20 mM Tris-HCl, pH 8.5, 200 mM NaCl, and 1 mM Tris(2-carboxyethyl)phosphine). Purified Ctf3c was concentrated by ultrafiltration and frozen in GF200 buffer supplemented with 5% glycerol by volume. Samples were stored at −80°C until use.
Plasmids used for Ctf3c expression contain a single mRNA encoding the three subunits, each controlled by translation start and stop sequences. Ctf3 mutations were created by two-step overlapping PCR amplification of the polycistronic insert before reinsertion into the original destination vector by ligation-independent cloning.
Recombinant Cnn1-Wip1 protein sample used for cryo-EM was the same as used previously (Hinshaw and Harrison, 2020). Recombinant baculoviruses for Cnn1 and His6-Wip1 were used to coinfect a 1-liter culture of Trichoplusia ni (Hi5) cells at a density of ∼106 cells/ml. Cells were harvested ∼72 h after infection by centrifugation (20 min at 1,135 relative centrifugal force), resuspended in buffer B100 (D800 with 100 mM NaCl) with protease inhibitors, and stored at −80°C until use. For purification, the NaCl concentration was adjusted to 800 mM, and the soluble cell lysate was achieved according to the procedure for E. coli cells described above. The Cnn1-Wip1 complex was purified as for the Ctf3c, except anion exchange (5 ml HiTrap Q HP; GE) was used instead of cation exchange. The anion exchange eluate was concentrated by ultrafiltration without prior TEV protease treatment and further purified on a Superdex 200 column as for the Ctf3c. Purified Cnn1-Wip1 was concentrated by ultrafiltration, frozen in GF200 buffer supplemented with 5% glycerol by volume, and kept at −80°C until use.
His6-GST fusion proteins were purified by metal affinity chromatography as for Ctf3c samples except that protease inhibitors (0.5 µg/ml each aprotinin, leupeptin, and pepstatin) were included in the metal chromatography elution buffer. The resulting eluate was concentrated by ultrafiltration and applied to a Superdex 200 column (10/300 GL; GE) equilibrated in GF100 buffer (20 mM Tris-HCl, pH 8.5; 100 mM NaCl; and 1 mM DTT). Peak fractions were pooled, concentrated by ultrafiltration, and stored at −80°C in GF100 buffer supplemented with 5% glycerol by volume until use.
GST pulldown assay
The indicated proteins were mixed and incubated on ice for 1 h in a total volume of 20 µl GST pulldown buffer (20 mM Tris, pH 8.5, 150 mM NaCl, 1 mM Tris(2-carboxyethyl)phosphine, and 0.05% NP-40 substitute). After incubation on ice, 10 µl glutathione-sepharose beads was added, and the samples were mixed end-over-end for 1 h at 4°C. Beads were washed four times with pulldown buffer, and the bound material was eluted by boiling with SDS-PAGE buffer.
Cryo-EM sample preparation
Purified Ctf3c (120 pmol) was incubated with an equimolar amount of Cnn1-Wip1 and a threefold molar excess of the FITC-Ulp2-KIM peptide (FITC-AHA-DDSDVNLIGSS; Tufts University Core Facility). After incubation on ice for 1 h, the mixture was subjected to gel filtration on a Superdex 200 column (S200 increase 5/150 GL; GE) equilibrated with GF150 supplemented with 0.05% sodium azide (wt:vol). Absorbance at 488 nm confirmed the presence of the FITC-Ulp2 peptide. Equivalent gel filtration experiments using a biotin-labeled Ulp2-KIM peptide coupled with analysis of the eluted material by dot blot using streptavidin-HRP further confirmed the retention of the peptide during gel filtration. For all gel filtration experiments, 50-µl fractions were collected manually and analyzed by SDS-PAGE.
Protein concentration after gel filtration was measured by absorbance at 280 nm, and a fraction containing ∼0.5 µg/ml protein was selected for analysis by cryo-EM. 3.5 µl of the eluate was applied to a cryo-EM grid (C-flat 2/1, glow discharged for 30 s at 15 mA). The grid was plunged into liquid ethane after blotting from both sides for 4 s using a Cryoplunge 3 instrument (Gatan). Vitrified samples were screened for ice thickness and sample distribution using an F20 electron microscope (FEI) operating at 200 kV.
Cryo-EM data collection and structure determination
Grids were mounted and imaged on a Krios G3i (Gatan) instrument operating at 300 kV controlled by SerialEM (Mastronarde, 2005). The sample was illuminated with a 1-µm beam in nanoprobe mode with a precamera energy filter (Gatan) slit width of 20 eV. Movies were collected on a K3 detector (Gatan) in counting mode with a pixel size of 0.825 µm. 48 frames were collected per 2.4-s movie, with a total dose of 52 electrons/Å2 divided equally among the frames. The defocus range was set between −1.2 and −3.0 µm. Using image shift and real-time coma-correction by beam tilt as implemented in SerialEM, either nine or four holes were visited at each stage position, and five movies were taken per hole, giving a total of 45 or 20 movies per stage movement.
Initial image processing steps were performed using an in-line pipeline that uses the RELION 3.0 job scheduling function (Zivanov et al., 2018). Movies were aligned using Motioncor2, and CTF parameters were estimated using CTFFIND4 (Rohou and Grigorieff, 2015; Zheng et al., 2017). All subsequent steps were performed in RELION 3.1. Initial particle coordinates were determined using two-dimensional class averages showing the Ctf3c–Cnn1–Wip1 complex as references. Extracted and binned particles were subjected to multiple rounds of two-dimensional classification to select a subset showing features corresponding to the Ctf3c. Whereas we previously included only two-dimensional class averages showing the Ctf3-N module (Hinshaw and Harrison, 2020), which contains Cnn1-Wip1, we did not apply this strict filter for the reconstructions presented here. In the course of selecting two-dimensional class averages suitable for further analysis, we noticed the frequent appearance of a bright punctate signal coincident with the C-terminal end of Ctf3. Because we observed a similar signal corresponding to the location of the extended Cnn1-N peptide in initial class averages that contain this module, we presume this signal corresponds to a peptide contacting the air-water interface. The position of the signal matches the projected position of the Ulp2-KIM peptide. Exclusion of class averages in which this punctate signal was dominant and therefore interfered with intensity normalization and particle alignment was essential for the eventual determination of high-quality three-dimensional density maps.
Particles contributing to favorable two-dimensional class averages were subjected to three-dimensional classification using an initial model derived from the known structure of the Ctf3c lacking the Ctf3 N-terminal module, Cnn1, and Wip1 (Hinshaw et al., 2019). The resulting particles were then subjected to iterative rounds of three-dimensional refinement, CTF and optical parameter fitting, and alignment-free classifications. The Ulp2-KIM peptide appeared as additional density not observed in the published high-resolution Ctf3c-Cnn1-Wip1 structure. The extra density is adjacent to the C-terminal end of Ctf3. We used iterative rounds of signal subtraction and alignment-free classification to select particles contributing meaningfully to this extra density.
The resulting density map is nearly identical to those reported previously for the corresponding part of the Ctf3c. Additional density near the Ctf3 C-terminus is attributable to the Ulp2-KIM. We truncated the Ctf3c model, determined at higher resolution, and subjected the modified coordinates to a single round of refinement against the unsharpened final density map (Phenix v1.17.1 Real Space Refine; Afonine et al., 2018). The starting and final models are highly concordant (root mean square difference 0.955 Å), indicating Ulp2-KIM binding does not induce a conformational change in the Ctf3c. Although the density for the Ulp2-KIM was visible throughout refinement and particle selection, it does not permit unambiguous placement of Ulp2-KIM amino acid side chains. We therefore opted to omit an explicit Ulp2-KIM model from our coordinates and figures.
Fluorescence polarization assay
The indicated purified Ctf3c samples were mixed with the FITC-Ulp2-KIM peptide (Ulp2-927-937). The peptide was reconstituted in gel filtration buffer with 150 mM NaCl (GF150 buffer) and stored protected from light at −20°C until use. The final peptide concentration used for binding assays was 40 nM. Binding reactions were prepared in a black 384-well plate in GF150 buffer and incubated at room temperature in the dark for 15 min before reading in an M5e Spectramax Plus plate reader (Molecular Devices) in fluorescence polarization mode (excitation 485 nm, emission 590 nm, three readings per well) at room temperature. Three independent reactions were prepared for each measurement, and averages are shown. The experiments shown were performed at least twice with equivalent results. Recombinant GST-Ulp2-927-937 proteins used for competition experiments were added at a final concentration of 5 µM to the binding reactions at the indicated Ctf3c concentrations. A single specific binding event was modeled after linear correction of all measurements for polarization signal in the absence of Ctf3c.
Sequence and conservation analysis
Sequence alignments were constructed using MAFFT and displayed with JalView (Katoh et al., 2019; Waterhouse et al., 2009). Inputs for Ctf3 multiple sequence alignments were adapted from van Hooff et al. (2017). Conservation was mapped to the Ctf3 protein structure using the ConSurf server (Ashkenazy et al., 2016). The Ulp2-KIM sequence logo was generated using the WebLogo 2.8.2 server (Crooks et al., 2004).
Pulldown analysis of kinetochore sumoylation
The dUlp1 affinity method (Suhandynata et al., 2019) was used to analyze sumoylation of Mcm21 and Ctf3 in various mutant strains. Briefly, each yeast strain was grown in 100 ml yeast extract peptone dextrose (YPD) medium to an OD600 of 0.8 and harvested. Cell pellets were washed with PBS (1.06 mM KH2PO4, 5.6 mM K2HPO4, and 154 mM NaCl, pH 7.4), supplemented with protease inhibitors (2 mM phenylmethylsulfonyl fluoride; 200 µM benzamidine; 0.5 µg/ml leupeptin; and 1 µg/ml pepstatin A), 20 mM N-Ethylmaleimide, and 20 mM Iodoacetamide. Cells were then broken via glass bead beating, and the clarified cell extracts were collected following centrifugation at 14,000 rpm for 30 min. To purify total sumoylated proteins, each clarified cell extract (0.8 ml at a protein concentration of ∼12 mg/ml) was incubated with 20 µl dUlp1 resin for 2 h at 4°C with gentle rotation. The dUlp1 resin was then washed six times with 1 ml PBS containing 0.2% NP-40. Bound proteins were eluted by boiling in 25 µl of 2×LDS sample buffer (NuPAGE LDS Sample Buffer; Invitrogen). Anti–Protein A (Sigma; P3775) Western blot was performed to detect sumoylated Mcm21 or Ctf3 species in the purified material, which show slower electrophoretic mobility due to their increased molecular weight relative to the corresponding un-sumoylated proteins in the input samples. Quantification in Fig. 3 D was done using ImageJ using an identical area of interest, drawn to surround all slow-migrating Mcm21 species, for each lane. Mean gray values relative to WT are shown.
Purification of Ctf3-associated proteins and quantitative mass spectrometry analysis
Quantitative mass spectrometry was used to compare Ctf3-associated proteins purified from WT and ctf3-2A mutant. Briefly, cells expressing WT Ctf3-TAF were grown in 1 liter of heavy Lys/Arg containing synthetic media, while the ctf3-2A–TAF mutant was grown in synthetic media containing light Lys/Arg till OD600 ∼0.5, and then these cells were harvested and handled separately. Cells were broken via glass beads beating in the PBS with 0.2% NP-40 supplemented with protease inhibitors, and the clarified cell extract was collected following centrifugation as described above. Equal amounts of cell extracts (∼100 mg total proteins each) were used to purify Ctf3-associated proteins as follows. First, each clarified cell extract was incubated with 150 µl of human IgG Sepharose beads (Cytiva; 17096901) at 4°C for 3 h. The beads were washed four times with 1 ml lysis buffer and then incubated with 3 µg TEV protease for overnight at 4°C. The next day, the TEV-eluted samples were collected and incubated with 20 µl of Anti-Flag agarose beads (Sigma; A2220) for 2 h at 4°C. The beads were washed four times by ice-cold lysis buffer, and bound proteins were eluted with 0.1 M Glycine-HCl (pH ∼1–2). The eluted materials from both Ctf3 purifications were neutralized and combined as one. To the combined sample, 10 mM DTT was added to reduce disulfide bonds in proteins, which were then alkylated with 30 mM iodoacetamide. To digest the proteins, 1 µg trypsin (Promega) was added to the sample for overnight incubation at 37°C. The digested peptides were then processed for analysis using a Thermo Fisher Scientific Orbitrap Fusion LUMOS Tribrid mass spectrometer. Methods used for mass spectrometry analysis are described elsewhere (Suhandynata et al., 2019). To quantify Ctf3-associated kinetochore proteins, several additional data-filtering criteria were applied, including (1) a cutoff score for peptide identification probability was set to at 0.9; (2) parental ion mass accuracy was <10 ppm; and (3) the spectral intensity was >1,000. In case of redundant identification of a peptide, the peptide with the most intense signal was kept for quantification. Each protein was quantified with ≥ 3 unique peptides, and the sum of the abundances of these peptides was taken to determine the protein abundance ratio between Ctf3-WT and ctf3-2A. SD was calculated using the abundance ratios of the top three most abundant and unique peptides of each protein. A complete list of Ctf3-associated proteins and their abundance changes are presented in Table S4.
Previous studies have reported identification of Cnn1-Wip1 peptides in similar immunoprecipitation–mass spectrometry experiments (Pekgöz Altunkaya et al., 2016; Schleiffer et al., 2012). A combination of factors likely accounts for their absence from our data: (i) Cnn1 and Wip1 are small histone fold proteins with a high density of tryptic cleavage sites and, for Cnn1, multiple post-translational modifications; (ii) the immunoprecipitation experiments described here were performed with a high degree of biochemical stringency and used a different tagged bait protein than was used previously (Pekgöz Altunkaya et al., 2016); and (iii) our peptide identification threshold was very stringent (see above).
Fluorescence microscopy and analysis
For fluorescence microscopy experiments, the indicated strains were grown overnight in SC medium supplemented with 20 µg/ml additional adenine. Before imaging, saturated cultures were diluted 1:100 and grown for ∼6 h before immobilization on concanavalin A–coated coverslips, which were subsequently mounted in a Toaki Hit stage-top incubator set to 30°C at the specimen level with high humidity. Images were collected on a Nikon Ti2 inverted microscope equipped with an Olympus PlanApo 60×/1.42 NA oil immersion objective, the Perfect Focus System, and a Hamamatsu Flash4.0 V2+ sCMOS camera controlled with NIS Elements software (Nikon). Optical paths were GFP—SpectraX Cyan (illumination), Lumencor 470/24 (excitation), and Semrock FF03 525/50 (emission); mCherry—SpectraX GreenYellow (illumination), Lumencor 525/25 (excitation), and Semrock FF02 641/75 (emission). Nine z-heights (0.4-µm spacing) were taken per stage position. Image stacks were taken at 5-min intervals for at least 2 h for each imaging session.
Maximum z-projection images were created using NIS Elements software (Nikon). Mean intensity within a 6-pixel circle centered on the kinetochore focus was normalized by subtracting a paired measurement from a nearby nuclear position at each time point and for each analyzed cell. For Fig. 4 A and Fig. S3 A, 12 cells were analyzed for each genotype. Individual intensity profiles for dividing cells were aligned according to the onset of anaphase, and average intensity values were plotted using GraphPad Prism v8.4.1 software (GraphPad). All measurements and display items were created using Fiji (Schindelin et al., 2012). For display items, brightness and contrast were adjusted equally for all images corresponding to the same GFP fusion protein, and panels were assembled in Adobe Photoshop software. For Scc2 imaging, 30 cells were scored for the presence of an Scc2-GFP focus for each genotype for each of three independent imaging sessions.
To evaluate localization of Ulp2 and Ctf3 to the centromere, ChIP was performed (Meluh and Koshland, 1997; Suhandynata et al., 2019). Briefly, yeast cultures (150 ml, enough for three immunoprecipitation experiments) were grown to an OD600 of 0.8 and cross-linked for 15 min with 1% formaldehyde at room temperature. Whole-cell lysates were prepared in 0.8 ml of ChIP lysis buffer (50 mM Hepes, pH 7.6, 140 mM NaCl, 1 mM EDTA, 1% Triton, and 0.1% sodium deoxycholate) by glass beads beating and sonicated to shear the genomic DNA to an average size of 300–500 bp. Immunoprecipitation was performed using 50 µl Dynabeads Protein G (Thermo Fisher Scientific) and 3 µl anti-Flag antibody M2 (Sigma; F3165). The beads were washed once with 1 ml lysis buffer, twice with 1 ml washing buffer (100 mM Tris-Cl, pH 8.0; 250 mM LiCl, 0.5% NP-40, 0.5% deoxycholate; and 1 mM EDTA) and once with 1 ml TE buffer (10 mM Tris-Cl, pH 8.0, and 1 mM EDTA). The input and immunoprecipitated DNA were reverse cross-linked at 60° for 12 h and then purified using a QIAquick PCR Purification kit (QIAGEN). The input DNA was diluted 1:100, and immuno-purified DNA was diluted 1:10. qPCR was done using SYBR Green 2× master mix (KAPA Biosystems) on a Roche LightCycler 480 system. Three independent immunoprecipitation experiments were performed. qPCR primer sequences used in this study were CEN3: 5′-ATCAGCGCCAAACAATATGGAAAA-3′/5′-GAGCAAAACTTCCACCAGTAAACG-3′; CEN7: 5′-TGAGCTTTTTAAGAGCTTCG-3′/5′-CATTTTTCTGTAATTTCCGT-3′; and CUP1: 5′-AACTTCCAAAATGAAGGTCA-3′/5′-GCATGACTTCTTGGTTTCTT-3′.
Cell growth and meiotic spore viability assays
For the spot assay, cells were grown in YPD to OD600 ∼1 and then diluted to an OD600 of 0.2. 10-fold serial dilutions were made using a sterile 96-well plate with sterile water. 5 µl of each dilution was then spotted on either YPD plates or hydroxyurea plates (YPD supplemented with the indicated concentrations of hydroxyurea). For the plasmid shuffling experiment (Fig. S4 A), cells were grown in SC-Leu media handled as described above. 5 µl of each fivefold dilution was spotted on either SC-Leu or 5-fluoroorotic acid (5-FOA) plates (SC supplemented with 0.1% 5-FOA). Plates were incubated at 30°C for 2 or 3 d. Plate images were taken using a Bio-Rad ChemiDoc MP imaging system. Tetrad dissections of diploids containing ulp2 or ctf3-2A homozygous mutants were performed using a dissecting microscope (Singer). Spore viability was calculated based on the ratio between the numbers of observed spores and the total expected spores given 100% viability.
Mitotic chromosome loss assay
Chromosome III loss rate was measured using a quantitative mating assay (Vaezzadeh et al., 2010). As outlined in Fig. S4 C, MATα ARG2 LEU2 ura3 experimental haploids were mated to a tester strain (HZY601: MATα arg2 URA3) by mixing ∼1 × 107 log-phase cells of each strain on a filter membrane (0.8 µm MCE Membrane Filter; MF-Millipore) on top of a YPD plate for 5 h at 30°C. Cells were resuspended in 1 ml of sterile distilled H2O and collected. Successfully mated diploid cells were selected by plating 10–100% of the cell resuspension onto SC-Arg-Ura plates, such that the number of colonies was between 100 and 200. The colonies were then replica plated onto SC-Arg-Ura-Leu plates to identify chromosome loss events. Chromosome loss rate was determined by dividing the number of Arg+ Ura+ Leu− cells by the number of experimental cells used. The 95% confidence interval of the average chromosome loss rate for each strain was calculated using at least 16 isolates. Chromosome III loss rates for WT CTF3 strains (WT, ulp2–SIM-3A, ulp2–KIM-3A, and ulp2–SIM-3A–KIM-3A) were reported previously (Suhandynata et al., 2019). These measurements were repeated to ensure comparable assay performance (at least three biological replicates for each previously published strain), and both sets of measurements were included in Fig. 5 A.
Online supplemental material

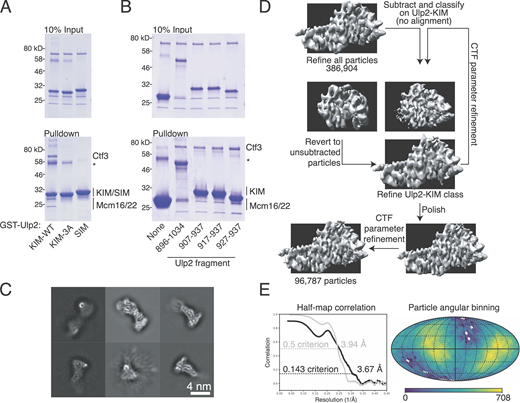

Fig. S1 describes identification of a minimal Ulp2 fragment and subsequent cryo-EM structure determination. Fig. S2 shows the Ctf3 features required for Ulp2 interaction. Fig. S3 shows Scc2-GFP and Sgo1-GFP imaging data. Fig. S4 details the phenotypic consequences of disrupting Ctf3-Ulp2 interaction. Table S1 describes cryo-EM data processing and structure determination. Table S2 and Table S3 list the yeast strains and plasmids used in this study, respectively. Table S4 lists Ctf3-associated proteins and their abundance changes determined by mass spectrometry.
The accession numbers for the cryo-EM structure are 23216 (map) and 7L7Q (model) and have been deposited in the Electron Microscopy Data Bank and Protein Data Bank, respectively.
We thank the staff at the Harvard Cryo-Electron Microscopy Center for Structural Biology for help with high-resolution cryo-EM data collection, particularly Richard Walsh and Sarah Sterling. We thank Shaun Rawson for real-time movie processing. We thank SBGrid for computational support. We thank Jennifer Waters and the staff at the Nikon Imaging Center at Harvard Medical School for light microscopy support.
This work was supported by National Institutes of Health GM116897 and OD023498, and the University of California Cancer Research Coordinating Committee faculty seed grant to H. Zhou. S.M. Hinshaw is a Howard Hughes Medical Institute fellow of the Helen Hay Whitney Foundation. S.C. Harrison is an Investigator of the Howard Hughes Medical Institute.
The authors declare no competing financial interests.
Author contributions: Y. Quan: investigation, data curation, methodology; S.M. Hinshaw: investigation, data curation, methodology, writing – original draft; P.-C. Wang: investigation; S.C. Harrison: validation, supervision; H. Zhou: investigation, methodology, supervision. All authors contributed to reviewing and editing the manuscript.
Y. Quan and S.M. Hinshaw contributed equally to this paper.
