In addition to being critical for apoptosis, components of the apoptotic pathway, such as caspases, are involved in other physiological processes in many types of cells, including neurons. However, very little is known about their role in dynamic, nonphysically destructive processes, such as axonal arborization and synaptogenesis. We show that caspases were locally active in vivo at the branch points of young, dynamic retinal ganglion cell axonal arbors but not in the cell body or in stable mature arbors. Caspase activation, dependent on Caspase-3, Caspase-9, and p38 mitogen-activated protein kinase (MAPK), rapidly increased at branch points corresponding with branch tip addition. Time-lapse imaging revealed that knockdown of Caspase-3 and Caspase-9 led to more stable arbors and presynaptic sites. Genetic analysis showed that Caspase-3, Caspase-9, and p38 MAPK interacted with Slit1a-Robo2 signaling, suggesting that localized activation of caspases lie downstream of a ligand receptor system, acting as key promoters of axonal branch tip and synaptic dynamics to restrict arbor growth in vivo in the central nervous system.
Introduction
The formation of functional synaptic connections is critical for the normal operation of the nervous system. In the central nervous system (CNS), synapse formation depends on the regulated elaboration of the arbors (consisting of branches) of pre- and postsynaptic cell axons and dendrites, processes that can occur concurrently (Waites et al., 2005; Meyer and Smith, 2006; Ruthazer et al., 2006; Jin and Garner, 2008; Gibson and Ma, 2011). The processes of arborization and synaptogenesis are crucial in defining neuronal morphology and synaptic connectivity (Lin and Koleske, 2010). Abnormalities in arbor structure can lead to changes in behavior (Smear et al., 2007) and neurodevelopmental disorders (Wong, 2008). Arbor and synaptic structure are often affected early in the progression of neurodegenerative conditions (Wishart et al., 2006; Saxena and Caroni, 2007), illustrating the fundamental importance of the regulation of these processes in the nervous system.
The vertebrate retinotectal projection has become a powerful model system for the study of axon pathfinding, arborization, and synaptogenesis (Dingwell et al., 2000; Hutson et al., 2004; Cohen-Cory, 2007; Poulain et al., 2010). The growth cones at the tips of retinal ganglion cell (RGC) axons navigate along a stereotypical pathway from the retina to their target, the optic tectum in the midbrain. Upon reaching the tectum growth cones change their morphology with the production of branches to develop an arbor, accompanied by the formation of synapses, both of which are highly dynamic processes (Harris et al., 1987; Meyer and Smith, 2006; Ruthazer et al., 2006; Campbell et al., 2007). A variety of ligand receptor systems have been identified taking part in these processes, including brain-derived neurotrophic factor (Cohen-Cory and Fraser, 1995; Alsina et al., 2001), Netrin-1 (Manitt et al., 2009), Sema3A (Semaphorin 3A; Campbell et al., 2001), and Slit1a-Robo2 (Roundabout 2) signaling (Campbell et al., 2007). However, unlike the intensive investigation of the intracellular signaling pathways acting downstream of ligand receptor systems operating in growth cone guidance (O’Donnell et al., 2009; Bashaw and Klein, 2010), our understanding of the intracellular signaling pathways regulating arborization and synaptogenesis remains much more limited.
Neurons are compartmentalized into a cell body, an axon, and dendrites. Somaless Xenopus laevis axonal growth cones are able to undergo chemotropic responses in vitro (Campbell and Holt, 2001; Ming et al., 2002) and to navigate to and arborize in the optic tectum in vivo (Harris et al., 1987), suggesting a role for local signaling pathways. Indeed, the structural compartmentalization of neurons allows the partitioning of cellular signaling pathways, such as those regulating protein synthesis and degradation to axons and/or dendrites (Steward and Schuman, 2003; Cajigas et al., 2010; Bingol and Sheng, 2011; Jung et al., 2011). This could allow very precise local control of neuronal morphology and remodeling critical for the correct development and function of neurons. Caspases are an example of a protease system, originally identified for their critical roles in apoptosis and cytokine processing (Creagh and Martin, 2001; Ulukaya et al., 2011). More recently, localized nonapoptotic roles for caspases have been identified (Kuranaga and Miura, 2007; D’Amelio et al., 2012; Hyman and Yuan, 2012). For example, in neurons, caspases may be active and act in axons or dendrites, mediating the chemotropic responses of Xenopus retinal growth cones (Campbell and Holt, 2003), dendritic pruning during metamorphosis in Drosophila melanogaster (Kuo et al., 2006; Williams et al., 2006), mammalian long-term depression (Li et al., 2010; Jiao and Li, 2011), and songbird learning (Huesmann and Clayton, 2006). However, the role of the apoptotic pathway and the principles underlying its regulation in local nonapoptotic roles in neurons in vivo, such as during the processes of axonal arborization and synaptogenesis, remain largely unknown.
To address these issues, we imaged caspase activity in the CNS in vivo, in the intact living zebrafish embryo. We show that caspase activity is very local, at the branch points of young dynamic RGC axonal arbors, in a Caspase-3–, Caspase-9–, and p38 MAPK–dependent manner, but not in RGC cell bodies. Time-lapse imaging revealed that caspase activity undergoes rapid activation at branch points during branch tip formation. In contrast, older, more stable arbors have reduced levels of caspase activation. Furthermore, a reduction of Caspase-3, Caspase-9, and p38 MAPK function leads to more stable arbors and interactions with Slit1a-Robo2 signaling to restrict arbor growth and synaptogenesis. Our findings suggest that local caspase activation is a key promoter of axon remodeling in vivo in the vertebrate CNS.
Results
Local caspase activation at branch points of young RGC arbors
To investigate whether caspases play nonapoptotic roles in the processes of arborization and synaptogenesis, we performed mRNA in situ hybridization at 80 h postfertilization (hpf) with zebrafish casp-3a (caspase-3a) and casp-9 (caspase-9), key effector and initiator caspases of the intrinsic apoptotic pathway, and casp-8 (caspase-8), an activator of Caspase-3 in the extrinsic apoptotic pathway, respectively (Ulukaya et al., 2011). casp-3a and casp-9 are strongly expressed in the RGC layer of the retina and throughout the tectum (Fig. S1, A–D), whereas casp-8 showed a similar though much weaker expression pattern (Fig. S1, E and F). Next, we used the caspase activity reporter, SCAT3 (sensor for activated caspases based on fluorescence resonance energy transfer [FRET] 3; Takemoto et al., 2003, 2007) to reveal the temporal and spatial pattern of caspase enzymatic activity in the retinotectal system in vivo. SCAT3 consists of ECFP and Venus separated by a peptide linker region containing a DEVD (Asp-Glu-Val-Asp) consensus Caspase-3 cleavage site. The DEVD cleavage site specificity is conserved for zebrafish Caspase-3 (Yabu et al., 2001). Because the peptide linker region of SCAT3 is cleaved by caspase activity, its activity is reported as a decrease in the Venus/ECFP ratio, representing a decrease in FRET (Takemoto et al., 2003). SCAT3 or control constructs lacking the cleavage site were transiently expressed in RGCs and tectal cells (Materials and methods; Campbell et al., 2007; Sato et al., 2007). SCAT3-expressing 80-hpf RGC axonal arbors showed a significant decrease in the Venus/ECFP over the whole arbor and at branch points compared with surrounding regions (regions of interest) defined in the legend to Fig. 1, relative to arbors expressing the control construct (Fig. 1, A–H and quantified in S–U).
To demonstrate that the decrease in Venus/ECFP ratio observed for SCAT3-expressing arbors primarily reflected Caspase-3 activity, we used antisense morpholino (MO) oligonucleotides to partially knockdown Caspase-3 function. A previously published MO against zebrafish casp-3a (casp-3aMO1; Yamashita et al., 2008) blocked the decrease in the SCAT3 Venus/ECFP ratio over the whole arbor and at branch points compared with surrounding regions, whereas a five–base pair mismatch control MO (controlMO [coMO]) did not (Fig. 1, I–L and quantified in S–U). Additionally, knockdown of casp-8 (casp-8MO1; Sidi et al., 2008), whose activity may partially cleave SCAT3 in vitro (Takemoto et al., 2003), did not (Fig. 1, T and U). Because it has not previously been reported that SCAT3 is an effective reporter of Caspase-3 activity in the zebrafish, we performed additional control experiments (Fig. S2).
To further confirm apoptotic pathway activation of SCAT3, we knocked down casp-9, a key initiator caspase, which proteolytically cleaves and activates executioner caspases, such as Caspase-3 (Ulukaya et al., 2011), and whose activity may partially cleave SCAT3 in vitro (Takemoto et al., 2003). Compared with coMO morphant arbors, knockdown of Caspase-9 function with two different MOs (translation-blocking casp-9MO1 and splice-blocking [SB] casp-9SBMO1; Sidi et al., 2008) blocked the decrease in Venus/ECFP ratio (Fig. 1, M and N and quantified in S–U), indicating that SCAT3 reports caspase activation. Caspase activation was also blocked by knockdown of p38 MAPK, expressed in zebrafish RGCs (Krens et al., 2006), and which we have shown previously to be upstream of Caspase-3 activation in retinal growth cones (Fig. 1, O and P and quantified in T and U; Campbell and Holt, 2003; Hsu et al., 2011 [p38mapkMO1]). As there is a low amount of apoptotic cell death in zebrafish RGCs at 80 hpf (Biehlmaier et al., 2001), we next tested that the lack of apoptosis observed is caused by lack of caspase activation in RGC cell bodies. SCAT3- or control-expressing 80-hpf RGC cell bodies did not show caspase activation (Fig. 1, Q and R and quantified in V). We were also unable to detect significant caspase activation in the dendrites of 80-hpf and 100-hpf tectal cells (Fig. S3).
Caspase activity rapidly increases upon branch tip formation
Caspase activation at branch points in 80-hpf RGC arbors correlates with a period during which they are highly dynamic (Stuermer, 1988; Meyer and Smith, 2006; Campbell et al., 2007). Older (100 hpf) arbors that we have previously shown to be more stable (Stuermer, 1988; Campbell et al., 2007) had a high Venus/ECFP ratio, i.e., low caspase activation (Fig. 2, A–D and quantified in E–H). To establish whether caspase activation is dynamically regulated, we visualized branch point additions and retractions directly over time in the same arbors, via time-lapse imaging of 80-hpf and 100-hpf arbors expressing SCAT3 every 5 min for ∼2 h. For 80-hpf arbors, we observed branch tip additions and measured the Venus/ECFP ratio for the region of the arbor that would become a branch point in the next 5 min and a neighboring region of the same arbor that would not, i.e., dynamic versus nondynamic areas of the same arbor (Fig. 3 A, region of interest defined in the legend and imaging scheme). We found that a region of an arbor that became a branch point in 5 min underwent a significant increase in caspase activation during the 5-min interval between time points compared with a neighboring region of an arbor that did not become a branch point (Fig. 3, B–E and quantified in F and G; and Video 1). Imaging of stable branch points and neighboring regions of 100-hpf arbors, which do not have a branch point, nor will they develop one during the 5-min imaging interval (Fig. 3 H), did not show significant caspase activation (Fig. 3, I–L and quantified in M and N; and Video 2). Thus, caspase activity rapidly increases (within 5 min) at branch points, immediately before or during branch tip formation, whereas a reduction of caspase activation directly correlates with increased branch tip stability. We were unable to detect significant caspase activation at branch points where branch tips had undergone recent retractions (i.e., within 5 min; Fig. S4). However, we were able to detect a significant decrease in caspase activation between regions of an arbor that underwent recent branch point retractions compared with those that had undergone recent branch tip additions (Fig. S4 H).
Caspase-3, Caspase-9, and p38 MAPK promote RGC axonal arbor and presynaptic dynamics in vivo
Our in vivo imaging studies using SCAT3 indicate that caspase activation is more active before and/or during branch tip formation, suggesting that it may promote arbor dynamics. We performed time-lapse imaging every 15 min for 5 h of 80-hpf arbors expressing the presynaptic marker YFP-Rab3 (Campbell et al., 2007), taking advantage of our observations that casp-3aMO1, casp-9MO1, and p38mapkMO1 were able to reduce caspase activation (Fig. 1, G–J and quantified in M–O), that there is no increase in apoptosis from the administration of the MOs, and that the RGC axons of the morphants project normally to the optic tectum (Fig. S5). casp-3aMO1, casp-9MO1, and p38mapkMO1 morphant arbors showed a reduction in dynamic branch tips accompanied by an increase in stable branch tips, decreased branch tip additions, and retractions to approximately one third of those of wild-type (WT) or coMO arbors (Fig. 4, A–L; and Videos 3, 4, 5, 6, and 7). This was accompanied by an approximate doubling in total branch tip lifetimes, a significant decrease in short-lived branch tips (with a lifetime of ≤15 min), and an increase in the proportion of branch tips present throughout the whole imaging period (Fig. 4, M and Q; and Videos 3, 4, 5, 6, and 7). Similar effects were observed for presynaptic puncta gain, loss, total puncta lifetimes, the proportion of short-lived puncta, and the proportion of puncta present during the entire imaging period (Fig. 4, N–P and R; and Videos 3, 4, 5, 6, and 7). Our findings indicate that Caspase-3, Caspase-9, and p38 MAPK are key promoters of RGC axon arbor dynamics.

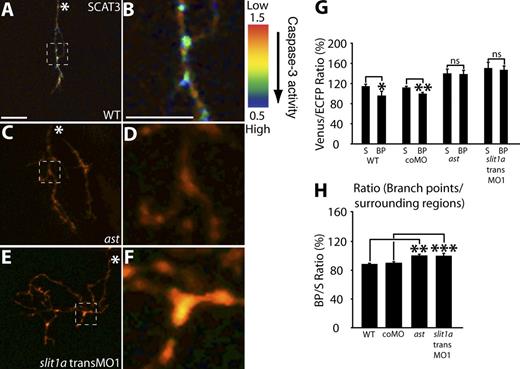

Caspase-3, Caspase-9, and p38 MAPK interact with Slit1a-Robo2 signaling to restrict arbor growth
The knockdown of Caspase-3 and Caspase-9 function leads to more stable branch tips and presynaptic sites, which is very similar to loss of Slit1a-Robo2 signaling on RGC arbor dynamics (Campbell et al., 2007). This observation in combination with the observations that Robo2 acts cell autonomously in RGCs (Campbell et al., 2007) and that the apoptotic pathway is locally activated in RGC arbors leads to a possible model in which Caspase-3 and Caspase-9 might be part of the mechanism downstream of Slit1a-Robo2 signaling, promoting arbor dynamics and restricting growth. To examine this, we expressed SCAT3 and observed caspase activity in 80-hpf astray (ast)/robo2 mutant, slit1a translation-blocking (trans) MO1 (slit1a transMO1), and morphant arbors at a dose known to increase arbor size and complexity (Campbell et al., 2007). Compared with age-matched WT or control morphant arbors, we were unable to detect an increase in caspase activation at branch points relative to surrounding regions (Fig. 5, A–F and quantified in G and H), proposing that a reduction of Slit1a or Robo2 function leads to the earlier down-regulation of caspase activation in RGC arbors and that caspase activation may act in the Slit1a-Robo2 signaling pathway.
As a functional test of the aforementioned model, we examined gene–dosage effect interactions between ast/robo2, slit1a, casp-3a, and casp-9. We observed 80-hpf YFP-Rab3–expressing RGC arbors from WT, ast, ast/+, robo2, or slit1a morphant embryos injected with either nothing, coMO, casp-3aMO1, or casp-9MO1. Loss of one copy of Robo2 in ast/+ or knockdown of robo2, slit1a, casp-3a, or casp-9 led to arbors that were indistinguishable to WT or coMO arbors by all our quantitative parameters (ast/+, robo2SBMO, slit1a transMO1 [low dose], casp-3aMO1, and casp-9MO1 compared with WT and coMO; Fig. 6, A–G and quantified in M–R). However, combining the reduction of Robo2 or Slit1a function with either knockdown of casp-3a or casp-9 led to significant increases in branch tip number, arbor area, total arbor length, arbor order, and presynaptic puncta number, which were similar in size and complexity to ast mutant arbors (ast/+; casp-3aMO1, robo2SBMO; casp-9MO1, slit1a transMO1 [low dose]; casp-3aMO1, slit1a transMO1 [low dose]; casp-9MO1, and ast compared with control conditions; Fig. 6, H–L and quantified in M–R; Campbell et al., 2007). Combining the knockdown of p38mapk with the knockdown of slit1a or robo2 also led to an increase in arbor size, complexity, and presynaptic puncta number (Fig. 7, A–F and quantified in G–L). These observations implicate the apoptotic pathway and p38 MAPK as negative regulators of arbor growth via an interaction with Slit1a-Robo2 signaling.
To test for a genetic interaction between slit1a, robo2, and casp-3a in the regulation of branch tip dynamics, we performed time-lapse imaging for 5 h of 80-hpf YFP-Rab3–expressing RGC arbors using combinations of doses of MOs (low dose), which on their own did not affect arbor dynamics (Fig. 8, A–F and K–M; and Videos 8 and 9). Combining robo2SBMO or slit1a transMO1 with casp-3aMO1 led to a reduction in dynamic and an increase in stable branch tips (Fig. 8, G–J; and Video 10). Significant decreases in branch tip additions and retractions were observed (Fig. 8, K and L), which were accompanied by a significant increase in mean branch tip lifetimes and the proportion of stable branch tips during the 5-h imaging period (Fig. 8, M and N). Furthermore, presynaptic puncta gain and loss were significantly reduced, accompanied by an increase in puncta lifetimes (Fig. 8, O–R). Collectively, these experiments imply a close genetic interaction between Slit1a-Robo2 signaling and the apoptotic pathway in the restriction of arbor, presynaptic growth, and in the promotion of arbor dynamics.
Discussion
A role for the apoptotic pathway in promoting axonal arbor dynamics
We have used a combination of in vivo imaging and genetics and found that the apoptotic pathway promotes axonal arborization and presynaptic dynamics in vivo, which are based on remodeling in terms of branch tip addition and retraction, rather than being physically destructive or degenerative. We identify novel roles for the apoptotic pathway in a local nonapoptotic context, a recently identified cellular phenomenon that is poorly understood. Arbor dynamics occur in response to attractive and repulsive cues enabling pre- and postsynaptic sites to find appropriate partners with which to form stable synapses (Jin and Garner, 2008). The promotion of axonal arbor and presynaptic puncta dynamics indicates that the apoptotic pathway in RGC axonal arbors promotes characteristics of young arbors, rather than maturation as in olfactory neurons (Ohsawa et al., 2010).
Time course of caspase activation
Our study is the first to examine caspase activation in a nonapoptotic role in vivo in the intact living organism. We found that caspase activation occurs rapidly within a 5-min period coinciding with RGC branch point addition in vivo. This is consistent with our earlier in vitro data in which chemotropic cues were able to induce pro–Caspase-3 cleavage and enzymatic activation in 5 min (Campbell and Holt, 2003) and in which cleaved Caspase-3 was detectable after 10 min during the induction of long-term depression (Li et al., 2010). Because SCAT3 can be partially cleaved in vitro by Caspases-8 and -9 (Takemoto et al., 2003), a small proportion of the decrease in FRET observed in RGCs may not be caused by Caspase-3 activation. As the FRET ratio in casp-3a morphant RGC arbors is indistinguishable to WT arbors expressing the control uncleavable construct and knockdown of casp-8 does not affect the FRET ratio (Fig. 1), this possibility is less likely. As SCAT3 is cleaved upon caspase activation and the axonal cytoskeleton may restrict the diffusion of cytoplasmic proteins (Kulkarni et al., 2007), we were unable to fully assess the time course for the activation. Restriction of the diffusion of proteins, such as caspases, in axons could be a mechanism for maintaining their activation locally.
Relationship between caspase activation and upstream regulators
Localization of caspase activity away from the cell body may represent an underlying principle of nonlethal apoptotic pathway activation in neurons, complementing those of lower sublethal and transient caspase activation (Jiao and Li, 2011). The upstream pathways regulating local caspase activation in neurons are largely unknown. We show here that the caspase activation reported by SCAT3 is dependent on Caspase-3, Caspase-9, and p38 MAPK. Because the effect of knockdown of Caspase-3, Caspase-9, and p38 MAPK function on RGC dynamics is similar to the decrease in branch tip and presynaptic puncta dynamics observed in the loss of Slit1a-Robo2 signaling (Campbell et al., 2007), we tested for and identified an interaction between Slit1a-Robo2 signaling, p38 MAPK, and caspase activation and function. In our previous findings that Robo2 acts cell autonomously in RGCs, slit1a is strongly expressed in the tectum (Campbell et al., 2007), and here, the fact that caspase activation occurs at the branch points of RGCs suggests a potential model in which Slit1a-induced Robo2 signaling in RGCs via p38 MAPK leads to local apoptotic pathway activation, possibly via localized retention of Slit protein by the extracellular matrix of the tectum (Xiao et al., 2011). The promotion of arbor dynamics and restraining of arbor growth is consistent with preventing the premature maturation of RGC arbors. Other attractive candidates for ligand receptor systems upstream of caspase activation include known activators, such as l-α-lysophosphatidic acid (Steiner et al., 2000; Campbell and Holt, 2003), Sema3A (Shirvan et al., 1999), and Netrin-1 (Campbell and Holt, 2003). Netrin-1 is particularly interesting because it is able to stimulate Caspase-3 activation in vitro (Campbell and Holt, 2003) and promote RGC arbor dynamics in vivo (Manitt et al., 2009), though the relationship between the two remains unexplored.
Knockdown of casp-9 leading to increased arbor stability is consistent with a role for the intrinsic apoptotic pathway (Ulukaya et al., 2011). This finding is in contrast to our earlier in vitro study (Campbell and Holt, 2003) in which we were unable to identify a role for Caspase-9 in chemotropic turning. A potential reason could be a result of the choice of guidance cues used (Netrin-1 and lysophosphatidic acid; Campbell and Holt, 2003), compared with the interactions of multiple ligand receptor pathways, which could operate in vivo to regulate local caspase activation. The role of other components of the intrinsic pathway, such as mitochondria, present in axons undergoing extensive dynamics (Zinsmaier et al., 2009), remains to be determined. A small proportion of SCAT3 cleavage may be caused by Caspase-9 activity (discussed in the first paragraph of the Discussion), and it remains possible that Caspase-9 also functions independently of Caspase-3. Additionally, Caspases-6 and -8 are present in axons (Carson et al., 2005; Nikolaev et al., 2009), and they may be potentially involved in arbor remodeling independently of Caspases-3 and -9. Furthermore, because very little is known about the presence, localization, and function of the broader caspase family in axons, it remains an open question whether other members may function in arbor remodeling.
Possible links to the cytoskeleton and axonal degeneration
Axonal branch tip and presynaptic puncta dynamics are ultimately regulated by the underlying cytoskeleton (Jin and Garner, 2008; Gallo, 2011). Caspase activity regulates cytoskeletal dynamics during apoptotic (Ndozangue-Touriguine et al., 2008) and nonapoptotic processes (Kuranaga et al., 2006; Oshima et al., 2006) and cleaves numerous substrates (Fischer et al., 2003; Timmer and Salvesen, 2007; Crawford and Wells, 2011). Substrates important for axonal arbor remodeling may include actin, actin-binding proteins, and those in signal transduction pathways regulating cytoskeletal dynamics, for example, gelsolin, an actin-severing and -capping protein (Kothakota et al., 1997). Interestingly, cultured hippocampal neurons from gelsolin knockout mice show decreased filopodial dynamics (Lu et al., 1997), reminiscent of the effect of loss of Caspase-3 function on arbor dynamics.
Local apoptotic pathway activation via caspases plays roles in the destructive processes of developmental pruning and axonal degeneration (Kuo et al., 2006; Williams et al., 2006; Nikolaev et al., 2009; Schoenmann et al., 2010; Simon et al., 2012). Our findings that the apoptotic pathway promotes axonal arbor branch tip dynamics may indicate that an optimum amount of or localization of caspase activity is necessary for these nondestructive remodeling processes to occur. Because changes in synaptic function, arbor structure, and axonal degeneration occur early during neurodegenerative conditions, such as Alzheimer’s and Parkinson’s diseases (Wishart et al., 2006; Saxena and Caroni, 2007; D’Amelio et al., 2011, 2012), identifying the mechanisms of local apoptotic pathway activation in axons may be relevant to understanding these disorders. We propose that the apoptotic pathway is critical for the local remodeling of axonal arbors and presynaptic sites regulating arbor size and shape in the vertebrate CNS.
Materials and methods
Zebrafish embryos
All protocols were reviewed and approved by the Animal Care and Use Committees of the RIKEN Brain Science Institute. WT embryos were obtained by natural matings, raised at 28.5°C, and staged by age and morphology (Kimmel et al., 1995). WT embryos were obtained from RIKEN WT, tupfel longfin (TL), and AB strains. TL’s were provided by the Zebrafish International Resource Center (which is supported by grant P40 RR012546 from the National Institutes of Health–National Center for Research Resources) and by H. Baier and K. Slanchez of the Max Planck Institute for Neurobiology, Martinsried, Germany. astti272z (ast)/robo2 mutant embryos were obtained by crosses of homozygous mutants, provided by C.-B. Chien and M.-Y. Law (University of Utah, Salt Lake City, UT), and astti272z/+ was generated by crossing to RIKEN WT or TL strains.
In situ hybridization
In situ hybridization was performed as described using digoxigenin-labeled antisense probes (Schulte-Merker et al., 1992; Lee et al., 2001) of casp-3a (a gift from M. Yamashita, National Research Institute of Fisheries Science, Yokohama, Japan; Yabu et al., 2001), casp-8 (GenBank accession no. BC081583; clone ID 2351947 obtained from Thermo Fisher Scientific; Eimon et al., 2006), and casp-9 (GenBank accession no. BC085434; obtained from the zebrafish gene collection, clone ID 7226798; Thermo Fisher Scientific) on 80-hpf embryos. Embryos were fixed in 4% PFA for 2 h at RT or overnight at 4°C followed by a graded methanol series to 100% methanol overnight at −20°C. Embryos were rehydrated via a graded methanol series and washed 3× for 5 min in PBST (PBS and Tween) followed by treatment with 0.1% collagenase for 50 min at RT. Embryos were then washed 3× for 5 min in PBST at RT followed by after fixation in 4% PFA for 20 min and washed for 3× for 5 min in PBST before incubation for 60 min at RT with 2.5 µl/ml acetic anhydride in 0.1 M triethanolamine. Embryos were washed for 2× for 10 min in PBST. Embryos were prehybridized for ∼2 h at 65°C followed by hybridization with probe at 1:50 or 1:100 dilutions overnight at 65°C. Incubation with 10 µg/ml RNaseA for 30 min at 65°C and two further 2× SSCT (SSC and Tween) washes. Reuse of sense and antisense probes helped to improve the signal to noise ratios. After probe hybridization and removal, embryos were washed 2× in 50% formamide and 2× SSCT for 30 min at 65°C followed by 2× for 30 min each in 2× and 0.2× SSCT. Embryos were incubated 1–5 h with 2% blocking reagent (Roche) in maleic acid buffer before being incubated overnight at RT with a 1:5,000 dilution of antidigoxigenin alkaline phosphatase Fab fragments (Roche) in 2% blocking reagent. Unbound Fab fragments were removed with washes for 25 min in 2% blocking reagent and 3× for 25 min in maleic acid buffer followed by incubation in BM purple (Roche) for colorimetric staining. The color reaction was stopped by 3 × 5–min PBST washes followed by fixation in 4% PFA for 2 h at RT and transfer to 100% methanol as described earlier in this paragraph. After rehydration in PBST, clearing of the embryos was performed through a graded glycerol series to 70% glycerol and stored at 4°C before imaging. Whole-mount in situ hybridized embryos were embedded in agarose in PBS, fixed in 4% PFA, sectioned at 60 µm on a vibratome (DSK Microslicer DTK-3000W; Ted Pella), coverslipped in 80% glycerol, imaged, and photographed using a microscope (Axioplan 2; Carl Zeiss) with a 40× Achroplan, NA 0.65 or 20× Achroplan, NA 0.5, a camera (AxioCam HRc; Carl Zeiss), and Axiovision (Carl Zeiss) or MetaMorph (Molecular Devices) software.
DNA constructs and MO antisense oligonucleotides
Constructs used in this study were as follows: isl2b (islet2b):GAL4VP16 (originally named islet3:GAL4VP16; Campbell et al., 2007), the zebrafish islet3 gene was renamed isl2b (Pittman et al., 2008), UAS:SCAT3 and UAS:SCAT3DEVG (control; gifts from M. Miura and Y. Yamaguchi, The University of Tokyo, Bunkyo, Tokyo, Japan; Takemoto et al., 2003, 2007), and UAS:YFP-Rab3 (Campbell et al., 2007). The following MO antisense oligonucleotides were obtained from Gene Tools: casp-3aMO1, 5′-TTGCGTCCACACACAGTCTCCGTTCAT-3′, which has been shown to be effective in zebrafish (Yamashita et al., 2008); casp-9MO1, 5′-GAATCTGTCTGTGTTTCTGCTCCAT-3′; casp-9SBMO1 (Sidi et al., 2008), 5′-GATGGAAAAACACACTTACGGACTG-3′; control (coMO; five–base pair mismatch for casp-3aMO1; lower cases letters represent the base changes), 5′-TTcCGTaCACAgAGTCTCCcTTgAT-3′; slit1a transMO1, 5′-GACAACATCCTCCTCTCGCAGGCAT-3′ (Barresi et al., 2005; Campbell et al., 2007); robo2SBMO, 5′-TAAAAAGTAGCGCAACTCACCATCC-3′ (Wyatt et al., 2010); casp-8MO1, 5′-ACAGGGTTTTAACTCACAGTAGATC-3′ (Sidi et al., 2008); and p38mapkMO1, 5′-AGTGGGTCTTTCTTTCTGCGACATG-3′ (Hsu et al., 2011). robo2SBMO and slit1a transMO1 were injected at 2- or 1-ng/nl doses, respectively, which did not affect overall arbor growth on their own, except for the slit1a transMO1 experiments described in Fig. 5 (E–H) in which 2 ng MO was injected, which increases arbor size and complexity (Campbell et al., 2007). For the epistasis experiments examining arbor dynamics in Fig. 8, combinations of doses of MOs were used that on their own did not affect arbor dynamics (slit1a transMO1 [low dose, 1 ng], robo2SBMO [low dose, 2 ng], and casp-3aMO1 [low dose, 0.5 ng]). MOs were diluted (combined with DNA constructs) and injected to a final volume of ∼1 nl, being one fifth the size of the yolk, into one- to four-cell stage embryos. MOs against the target genes are effective in zebrafish, and because high doses of casp-3aMO1, casp-8MO1, casp-9MO1, casp-9SBMO1, slit1a transMO1, robo2SBMO, and p38mapkMO1 can generate morphological phenotypes, the doses were chosen to avoid these and represent a partial loss of function (Campbell et al., 2007; Sidi et al., 2008; Yamashita et al., 2008; Wyatt et al., 2010; Hsu et al., 2011).
Labeling of RGCs and tectal cells
Single RGCs or tectal cells were labeled by mosaic expression after coinjection into one to four cell embryos of the plasmids isl2b:GAL4VP16 and UAS:SCAT3, UAS:SCAT3DEVG (control), or UAS:YFP-Rab3. Embryos were screened at ∼76 hpf for one or a few RGC axonal arbors in the caudomedial region of the optic tectum. This area is relatively flat, in the center of the tectum and where RGC arbors are close to the surface of the brain, avoiding the likelihood of being obscured by the autofluorescence of the skin (Hutson et al., 2004; Campbell et al., 2007). Arbors that overlapped with or were in close proximity to other arbors, making it difficult to distinguish individual arbors, were eliminated from our analyses. RGC cell bodies for imaging were located in the central retina. Tectal cell bodies for imaging were located in the periventricular region of the optic tectum, close to the surface of the brain. Because SCAT3 or control construct expression level varied and to minimize any effects as a result of arbor morphology or movement on the FRET ratio between RGC arbors, we examined a broad population (19–28) of arbors per condition and observed consistent differences in the Venus/ECFP ratio between SCAT3 and control constructs. The effect of expression levels on the Venus/ECFP ratio appeared minimal. WT- and SCAT3-expressing RGC arbors were indistinguishable in arbor size and branch tip dynamics from those expressing YFP-Rab3. Arbor parameters were as follows: branch tip number, WT YFP-Rab3 4.2 ± 0.67 compared with SCAT3 4.086 ± 0.39 (P > 0.1); arbor area, WT YFP-Rab3 150.60 ± 39.70 µm2 compared with SCAT3 157.73 ± 7.45 µm2 (P > 0.1); and total arbor length, WT YFP-Rab3 46.64 ± 10.08 µm compared with SCAT3 45.26 ± 1.90 µm (P > 0.1). Arbor dynamics were as follows: branch tip additions, WT YFP-Rab3 737.19 ± 65.2% compared with SCAT3 793.5 ± 96.14% (P > 0.1); branch tip retractions, WT YFP-Rab3 752.57 ± 131% compared with SCAT3 778.74 ± 131.79% (P > 0.1); and mean total branch tip lifetimes, WT YFP-Rab3 55.86 ± 5.3 min compared with SCAT3 54.95 ± 4.01% (P > 0.1).
SCAT3 reporter imaging of RGCs and tectal cells and image analysis
Imaging of RGCs or tectal cells expressing SCAT3 or control constructs was performed using a confocal microscope (FV1000D [Olympus] or LSM 780 [Carl Zeiss]). Embryos were restrained by anaesthetization in 0.004% tricaine and mounted dorsal side down in 1.5% low melting point agarose (NuSieve; Lonza) in a Lab-Tek two-chambered #1.0 borosilicate coverglass system (Thermo Fisher Scientific). Imaging was performed using 440- or 458-nm laser excitation with 60× U Plan S Apochromat, NA 1.2 water, 60× U Plan S Apochromat, NA 1.3 silicone oil, or 63× C-Apochromat, NA 1.2 water objectives. Emission was detected at 460–500 nm (ECFP) and 515–615 nm (Venus). 10–30 1- or 2-µm z stacks were collected (512 × 512 pixels). Care was taken to avoid pixel saturation. For time-lapse imaging with SCAT3, z stacks were collected every 5 min for ∼2 h at ∼26°C. The viability of the embryos was confirmed with a beating heart and blood flow after the imaging period. Only samples with minimum movement (where movement was not observed on images during confocal laser scanning) were analyzed, and individual time points were treated independently with their own internal reference of, for example, background fluorescence as described in the next paragraph. Stacks were aligned to eliminate x-y drift using the StackReg plugin in ImageJ (National Institutes of Health).
Images were analyzed as maximum intensity z projections of the ECFP and Venus channels using ImageJ software. A stack of the Venus and ECFP z projections was created to precisely align the images. Venus/ECFP ratios over the whole RGC arbor or tectal cell body were determined using the polygon selection tool at a zoom of 200% to trace around all the branch tips and intermodal regions of the arbor to the branch point closest to the parent axon or cell body on the Venus channel followed by calculating the mean fluorescence intensity per unit area for both the Venus and ECFP channels. Mean background fluorescence intensity from identical regions of each channel was subtracted from the mean fluorescence intensity measurements, the ratio calculated and expressed as a percentage of Venus/ECFP. Background-subtracted Venus/ECFP ratios at branch points and surrounding regions were calculated as earlier in this paragraph except using the polygon selection tool to trace around branch points and three surrounding regions on the same arbor, adjacent to the branch point as described in Fig. 1 (B–D and F–H). The mean Venus/ECFP ratio of the three surrounding regions is depicted in the graphs (Figs. 1 T, 2 F, and 5 G). Representative intensity modulated display (IMD) images were generated using the ratio images function in MetaMorph software. Measurement of arbor parameters on the YFP and IMD ratio images was very similar, showing that the whole of the arbor is visible in the ratio images (Fig. S2, A–D). Images presented in Figs. 1, 2, 3, 5, 6, 7, S3, S4, and S5 and Videos 1, 2, 3, 4, 5, 6, 7, 8, 9, and 10 were median filtered (radius of 1 pixel) to reduce noise, and input levels were set to 100 or 150 to increase brightness for displaying. Time indicators were added to the Videos 1, 2, 3, 4, 5, 6, 7, 8, 9, and 10 using the Time Stamper function, and arrowheads in Video 1 were added with the Arrow Maker Tool plugin in ImageJ.
Branch tip and presynaptic puncta time-lapse imaging and image analysis
Imaging of arbors expressing YFP-Rab3 was performed using an upright (LSM 510 META; Carl Zeiss), inverted (LSM 780), or an upright confocal microscope (FV1000D) as described previously (Campbell et al., 2007). YFP-Rab3 was excited with 515- or 514-nm laser lines, and emission was detected with a 530–600-nm band pass filter or a BA535–564-nm barrier filter. 10–35 2.0-µm z stacks (512 × 512 pixels) were collected every 15 min for 5 h, incubated at 26°C with a 63× N-Achroplan, NA 0.9 long working distance water immersion objective on the LSM 510 META, a 63× C-Apochromat, NA 1.2 objective on the LSM 780, or a 60× LUMPFL, NA 0.9 long working distance water immersion objective on the FV1000D. Care was taken to avoid pixel saturation. The viability of the embryos was verified after imaging via confirmation of a beating heart and blood flow. Time-lapse images were processed using the group z projector plugin for ImageJ, and individual images were saved as an 8-bit TIFF stack. Because YFP-Rab3 is trafficked to both synaptic and nonsynaptic membrane compartments, it is possible to use it to view both presynaptic sites and axonal arbor morphology. Branch tip tracking was performed on unthresholded images. The numbers and lifetimes of YFP-Rab3–expressing presynaptic sites were quantified using thresholding in ImageJ software. A YFP-Rab3 punctum was defined as an area of ≥2 pixels whose intensity was ≥5× that of a nonpunctate region of the same arbor and saved as an 8-bit TIFF stack (Campbell et al., 2007). The fluorescence intensity of each arbor was normalized to a nonpunctate region of the same arbor, i.e., the parent axon. Tracking of branch tips and presynaptic puncta through different time points was performed manually using the ObjectJ for ImageJ plugin written by N. Vischer (University of Amsterdam, Amsterdam, Netherlands; source code can be found in Supplemental material). Total branch tip and presynaptic puncta lifetimes were defined as a branch tip or presynaptic punctum being present in one or more time-lapse imaging frames, calculated by summing up the number of frames that either was present for, and multiplied by 15 (the duration between frames) to generate the lifetime in minutes.
Quantification of arbor parameters
Maximum intensity projections of YFP-Rab3–expressing arbors were quantified as in Campbell et al. (2007): The number of branch tips >4 µm are counted. The total arbor length is the sum of all branch tip lengths and internodal distances. The arbor area is defined by a convex polygon joining all branch tips. The order of an arbor is the mean number of branch points counted between a branch tip and the first branch point of the arbor. For puncta number, images were thresholded as in the preceding paragraph and counted using the analyze particle function with a pixel size of >2 in ImageJ software.
Caspase-3 activation of SCAT3
Tectal cell bodies of 76–80-hpf zebrafish larvae expressing SCAT3 or control construct (control) in one or a few tectal cells were imaged on an inverted FV1000D confocal microscope as described in the section SCAT3 reporter imaging of RGCs and tectal cells and image analysis. After imaging, embryos were remounted (dorsal up) in 1.5% low melting point agarose (NuSieve) on a glass microscope slide. The Caspase-3 activator PAC-1 (procaspase-activating compound 1; Tocris Bioscience; Putt et al., 2006) was dissolved in DMSO followed by embryo medium to a final concentration of 40 µm and pressure injected into the tectal ventricle, an approach previously shown to be able to target reagents to tectal cells (Leu and Schmidt, 2008). Embryos were placed individually in 500 µl embryo medium in a 24-well plate and incubated at RT for 3 h, sufficient time for PAC-1 to induce a high proportion of TUNEL-positive apoptotic cells in the retina and tectum (described in the next section). Embryos were subsequently remounted for an inverted confocal microscope (FV1000D), and imaging and analysis were performed as described earlier in this paragraph.
TUNEL labeling
TUNEL labeling was performed using the In Situ Cell Death Detection kit, polymerized horse radish peroxidase (Roche). 80-hpf embryos were fixed in 4% PFA and permeabilized with 100% methanol at −20°C followed by 0.1% collagenase at RT and PBST washes. Samples were incubated in TUNEL reaction mixture for 60 min at 37°C in the dark. After PBST washes, samples were incubated with antifluorescein–polymerized horse radish peroxidase (Roche) at a dilution of 1:1,000 overnight, washed in PBST, and stained with 0.5 mg/ml 3,3-diaminobenzidine with 0.0003% H2O2 in PBST.
Embryos were mounted in 70% glycerol and placed in a glass plate and imaged using a stereo dissecting microscope (SZX16; Olympus) with a super depth of focus Plan Apochromat 1× parfocal objective zoom 5 and a camera (DP50-CU; Olympus) at 1,392 × 1,040 pixels with Studio Lite software (Olympus). Preincubation with 20 µm of the Bcl-2 (B cell lymphoma 2) inhibitor HA14-1 (Sigma-Aldrich) for 1 h was used as a positive control for TUNEL labeling.
Acceptor photobleaching of SCAT3
To test for the presence of FRET between the ECFP and Venus moieties of SCAT3 and the uncleavable control construct (control), 80-hpf RGC arbors and tectal cell bodies were imaged before and after partial photobleaching by exposure to 100% laser power of a 514-nm laser line from a multiargon line laser (Melles Griot) for 5 min. Reimaging of the Venus/ECFP ratios of the same cells was performed as described in the section SCAT3 reporter imaging of RGCs and tectal cells and image analysis.
Imaging RGC pathfinding to the optic tectum
For lateral views, embryos with YFP-Rab3–labeled RGC axons were processed for anti-GFP immunohistochemistry. Approximately 80-hpf embryos were fixed and permeabilized as described for in situ hybridization. After the collagenase PBST washes, embryos were blocked in 10% fetal calf serum for 1 h at RT followed by incubation overnight at 4°C with a chicken primary anti-GFP polyclonal antibody (Aves Labs, Inc.) at a dilution of 1:3,000. The primary antibody was washed off with 4 × 30–min washes in PBST at RT followed by incubation for 4 h with an anti–chicken Alexa Fluor 488–conjugated secondary antibody (Molecular Probes and Invitrogen), diluted 1:500. After 4 × 30–min PBST washes, embryos were mounted in 1.5% low melting point agarose for an upright confocal microscope (510 META). Images were captured as a z series (step sizes of 2 µm) of 513 × 512–pixel scans using a long working distance 20×, NA 0.5 N-Achroplan water immersion objective and a digital zoom of 0.8.
Statistical analyses
Statistical analyses were performed using Prism version 4 software (GraphPad Software). As it can be difficult to determine accurately whether datasets follow a normal Gaussian distribution or not, we applied nonparametric statistical analyses, which are usually more stringent, using the Mann–Whitney U test, allowing for whether standard deviations of the conditions being compared were significantly different when comparing two conditions. When comparing three or more conditions, the Kruskal–Wallace test with a post hoc Dunn’s multiple comparison test was used. P < 0.05 was considered statistically significant. All results are presented as mean values ± SEM.
Online supplemental material
Fig. S1 shows caspases are expressed in RGCs and the tectum. Fig. S2 shows that SCAT3 reports Caspase-3 activation. Fig. S3 shows caspase activation is undetectable in tectal dendrites. Fig. S4 shows caspase activation remains lower after branch tip retraction. Fig. S5 shows that in caspase morphants, RGC axons follow normal paths to the optic tectum. Video 1 shows the dynamics of caspase activity in young RGC arbors. Video 2 shows the dynamics of caspase activation in older arbors. Video 3 shows that WT arbors are highly dynamic. Video 4 shows that coMO arbors are highly dynamic. Video 5 shows that casp-3a knockdown leads to more stable arbors. Video 6 shows that casp-9 knockdown leads to more stable arbors. Video 7 shows that p38mapk knockdown leads to more stable arbors. Video 8 shows that low dose MO against casp-3a does not affect arbor dynamics. Video 9 shows that low dose MO against slit1a does not affect arbor dynamics. Video 10 shows that a combination of low dose casp-3aMO1 and low dose slit1a transMO1 leads to more stable arbors. A source code for ObjectJ plugin for ImageJ is also provided in a ZIP file (containing source code objectj_-o.96d.jar, branch macro branches-2.txt, branches object file Branches-2.ojj, and a demo file demo-1.tiff).
Acknowledgments
We dedicate this manuscript to the memory of Professor Chi-Bin Chien, a mentor, friend, and person of such enthusiasm and spirit to his family and the scientific community.
We are very grateful to Masayuki Miura and Yoshifumi Yamaguchi for their generous gifts of the SCAT3 and control constructs, Tetsuya Kitaguchi for advice on methods of data analyses, Michiaki Yamashita for zebrafish casp-3a cDNA, Mikako Takahoko for technical assistance with in situ hybridization and sectioning, the RIKEN Brain Science Institute zebrafish facility staff for fish care, Norbert Vischer for ObjectJ for ImageJ and for writing a custom macro for tracking analysis, Mei-Yee Law for ast/robo2 mutant fish, Herwig Baier and Krasimir Slanchez for TL fish, and Adam Guy, Fumi Kubo, Alexandra Terashima, and Charles Yokoyama for critical reading of the manuscript. FRET imaging and IMD ratio analysis of images were performed at the RIKEN Brain Science Institute–Olympus Collaboration Center and at the Max Planck Institute for Brain Research. We are very grateful to Erin Schuman, Thomas Misgeld, and Leanne Godinho for their support and in whose laboratories some of the experiments were conducted.
The Zebrafish International Resource Center (Eugene, OR) is supported by grant P40 RR012546 from the National Institutes of Health–National Center for Research Resources. This work was supported by a Japan Society for the Promotion of Science Postdoctoral Fellowship (D.S. Campbell), the RIKEN Foreign Postdoctoral Researcher program (D.S. Campbell), the Takeda Science Foundation (D.S. Campbell), Grants in Aid from the Japanese Society for the Promotion of Science (D.S. Campbell and H. Okamoto), the Research Resources Center of the RIKEN Brain Science Institute for fish care, and intramural funding from the RIKEN Brain Science Institute (H. Okamoto).
