Cellular protein homeostasis profoundly depends on the disposal of terminally damaged polypeptides. To demonstrate the operation and elucidate the molecular basis of quality control of conformationally impaired plasma membrane (PM) proteins, we constructed CD4 chimeras containing the wild type or a temperature-sensitive bacteriophage λ domain in their cytoplasmic region. Using proteomic, biochemical, and genetic approaches, we showed that thermal unfolding of the λ domain at the PM provoked the recruitment of Hsp40/Hsc70/Hsp90 chaperones and the E2–E3 complex. Mixed-chain polyubiquitination, monitored by bioluminescence resonance energy transfer and immunoblotting, is responsible for the nonnative chimera–accelerated internalization, impaired recycling, and endosomal sorting complex required for transport–dependent lysosomal degradation. A similar paradigm prevails for mutant dopamine D4.4 and vasopressin V2 receptor removal from the PM. These results outline a peripheral proteostatic mechanism in higher eukaryotes and its potential contribution to the pathogenesis of a subset of conformational diseases.
Proteostatic mechanisms are fundamental in preventing the accumulation of misfolded, aggregation-prone, and potentially cytotoxic polypeptides that are generated by mutations, transcriptional and translational errors, or cellular stresses (Sherman and Goldberg, 2001; Arvan et al., 2002; Ellgaard and Helenius, 2003; Powers et al., 2009). This is achieved in part by protein quality control (QC) mechanisms that assist folding as well as eliminate terminally misfolded polypeptides (Ellgaard and Helenius, 2001; Powers et al., 2009). Molecular chaperones, in conjunction with cochaperones, shield exposed hydrophobic residues to suppress aggregation and promote folding of membrane proteins in the ER lumen and cytoplasm (Young et al., 2004). In addition, chaperone machines are involved in triage decision by recruiting chaperone-dependent ubiquitination machinery to irreversibly misfolded polypeptides. Pioneering works have uncovered that this process culminates in the ER-associated degradation of nonnative membrane proteins mediated by the ubiquitin (Ub) proteasome system (UPS) after the retrotranslocation of client proteins into the cytoplasm (Brodsky and McCracken, 1999; Cyr et al., 2002; Hampton, 2002; Ellgaard and Helenius, 2003; Hirsch et al., 2009).
Ubiquitination, a covalent posttranslational modification, is mediated by the coordinated function of the E1 Ub-activating enzymes and the combination of several E2 Ub-conjugating and hundreds of E3 Ub-ligating enzymes that confer substrate specificity. Ubiquitination catalyzes the attachment of either mono-, multiple mono–, or poly-Ub chains to client proteins (Hicke, 2001; Piper and Luzio, 2007). Poly-Ub chains are linked to one of the seven Lys residues on the acceptor Ub, endowing distinct structural characteristics that are recognized by Ub-binding adaptors (Dunn and Hicke, 2001; Katzmann et al., 2001; Pickart, 2001; Dikic et al., 2009; Mittal and McMahon, 2009). Proteasome-dependent degradation of misfolded polypeptides is primarily mediated by K48- and K11-linked Ub chains (Xu et al., 2009). The signal-dependent down-regulation and lysosomal-associated degradation of native plasma membrane (PM) receptors, however, are preferentially catalyzed by K63-linked Ub chains (Duncan et al., 2006; Barriere et al., 2007; Varghese et al., 2008; Boname et al., 2010).
Integral membrane proteins with limited conformational defects may escape the ER and are either retrieved from the Golgi compartment back to the ER or targeted for vacuolar/lysosomal proteolysis (Cole et al., 1998; Tsigelny et al., 2005; Wang and Ng, 2010). The latter process can be initiated from the Golgi compartment or from the PM (Wolins et al., 1997; Reggiori and Pelham, 2002; Ehrlich et al., 2009). Although rapid elimination of mutant PM proteins is attributed to conformational defects, the underlying structural perturbations remain poorly defined (Ljunggren et al., 1990; Li et al., 1999; Zaliauskiene et al., 2000; Benharouga et al., 2001; Gong and Chang, 2001; Sharma et al., 2001; Wilson et al., 2001; Fayadat and Kopito, 2003; Schaheen et al., 2009). Ubiquitination of a subset of membrane proteins (Pma-1, bile salt export pump [BSEP], cystic fibrosis transmembrane conductance regulator [CFTR], and Na/H exchanger [NHE6]) was proposed to play a determinant role in their rapid turnover at the PM (Gong and Chang, 2001; Sharma et al., 2004; Hayashi and Sugiyama, 2009; Roxrud et al., 2009). These observations, along with the discovery of the endosomal sorting complex required for transport (ESCRT)–dependent lysosomal degradation of ubiquitinated native cargo molecules (Katzmann et al., 2001; Raiborg and Stenmark, 2009), led to the proposition that the peripheral QC system can recognize, ubiquitinate, and eliminate nonnative polypeptides from the PM or endosomes in both yeast and mammalian cells (Arvan et al., 2002; Sharma et al., 2004). The molecular machinery of peripheral QC systems, however, remains unknown.
To assess the molecular consequences of unfolding at the PM, we designed a chimeric membrane protein with a temperature-sensitive folding defect. Unfolding induced the chaperone- and E2–E3-dependent polyubiquitination, internalization, and ESCRT-dependent lysosomal destruction of the chimera from the PM. Similar cellular and biochemical processes are involved in the mutant vasopressin V2 receptor (V2R) and dopamine D4.4 receptor (DRD4) disposal from the PM, uncovering the potential contribution of the peripheral QC to the pathogenesis of conformational diseases. A preliminary study of this work has been published in abstract form (Apaja, P., and G. Lukacs. 2009. Membrane protein quality control in post-Golgi compartments. Experimental Biology. Abstr. 668.3).
PM model protein with a thermosensitive conformational defect
We designed a monotopic transmembrane model protein to study the cellular and biochemical consequences of misfolding at the PM. The C-terminally truncated CD4 incorporating a flexible cytoplasmic linker was used as a reporter molecule (CD4tl; Fig. 1 A) because it lacks a specific sorting signal and is constitutively targeted to the PM (Barriere et al., 2006). The N-terminal DNA-binding domain of the wild type (wt) or L57C mutant bacteriophage λ repressor was fused to the truncated CD4 (CD4tl-λ and CD4tl-λC, respectively; Fig. 1 A). The melting temperature (Tm) of the recombinant wt λ domain was ∼54°C. The Tm of the mutant containing the L57C substitution (λC) was decreased to ∼32°C (Parsell and Sauer, 1989). The two-state unfolding profile and the reduced Tm enabled us to shift the conformational equilibrium of the CD4tl-λC cytosolic domain from the largely native state at 26°C to a predominantly nonnative state at 37°C.
The CD4tl as well as CD4tl-λ and CD4tl-λC were detected with the expected apparent molecular masses (∼55 and ∼75 kD, respectively) by immunoblotting with anti-CD4 antibody (Ab) in transiently transfected COS7 and stable Flp-In tetracycline-inducible HEK293 cells at 26°C (Fig. 1 B and Fig. S1 A). Attachment of the λ to the CD4tl decreased, whereas the fusion of the λC almost completely eliminated the expression of the respective chimera at 37°C (Fig. 1 B, top, lanes 2–4), suggesting that the mutant processing differs from the wt at the restrictive temperature. Indeed, the CD4tl-λC was predominantly confined to the ER at 37°C in COS7 and HEK293 cells as visualized by coimmunostaining and laser confocal fluorescence microscopy using calreticulin and calnexin as specific ER markers (Fig. 1 C and not depicted). The cell surface density of the CD4tl-λC was only ∼30% of the CD4tl when measured by the immunoperoxidase assay with anti-CD4 primary and HRP-conjugated secondary Ab (Fig. 1 D and Fig. S1 B). Rescuing the λC conformational defect at 26°C increased the CD4tl-λC cellular and PM expression (Fig. 1, B–D; and Fig. S1 B).
The temperature-rescued CD4tl-λC, but not the CD4tl-λ or the CD4tl expression, was eliminated upon inhibiting translation with cycloheximide (CHX) for 1.5 h at 37°C (Fig. 1 B, bottom, lanes 6–8). The CHX-induced disposal of CD4tl-λC was delayed by inhibitors of the proteasome (lactacystine) and lysosomal proteolysis (concanamycin, bafilomycin A, NH4Cl, and chloroquine), suggesting that the unfolded chimera is disposed by ER-associated and lysosomal degradation at 37°C (Fig. 1 E).
Unfolding of the λC accelerates endocytosis and impedes recycling of the CD4tl-λC
To assess the cellular consequence of the conformational destabilization of the λC domain, the CD4tl-λC turnover was monitored by the immunoperoxidase assay. After thermal unfolding at 37°C for 1 h, the rescued CD4tl-λC was eliminated three times faster than its wt counterpart from the PM (Fig. 1 F). Consistently, CD4tl-λC that constitutively reached the PM at 37°C exhibited a three- to fourfold accelerated turnover in HEK293 and COS7 cells (Fig. S1, C and D). In contrast, only ∼40% of the CD4tl-λC was eliminated after 5-h chase at 26°C, whereas the turnover of CD4tl and CD4tl-λ was negligible (Fig. 1 G).
Changes in internalization, recycling, and lysosomal delivery kinetics may account for the rapid disposal of CD4tl-λC from the PM at 37°C. Tethering the λ or the λC domain accelerated the internalization rate of the CD4tl (2% per minute) by ∼50% and ∼290%, respectively (Fig. 1 H and Fig. S1 E). The internalization of the CD4tl-λC, measured by anti-CD4 Ab uptake at 37°C (see Materials and methods), was attenuated by rescuing the λC conformational defect at 26°C (Fig. 1 H).
Recycling of unfolded CD4tl-λC was inhibited when compared with that of the CD4tl and CD4tl-λ (Fig. 1 I). However, rescuing the CD4tl-λC folding defect at 26°C partially restored the chimera recycling at 37°C (Fig. 1 I) as determined by using a modified biotin-neutravidin sandwich technique as described in Materials and methods. These results suggest that conformation-dependent cargo sorting occurs at endosomes.
CD4tl-λC unfolding provokes ubiquitination at the PM
To assess whether Ub conjugation serves as a signal for the chimera down-regulation from the PM, the chimeras were selectively isolated using cell surface immunoprecipitation (IP [cs-IP]). Anti-CD4 Ab was bound to intact cells at 4°C. Immunocomplexes were isolated using a two-step denaturing precipitation protocol as described in Materials and methods. Precipitates were probed with the P4D1 anti-Ub Ab recognizing K63-, K48-, and K11-linked poly-Ub chains, but not the mono-Ub. Densitometry revealed that the ubiquitination of the unfolded CD4tl-λC was 8.9 ± 1.6 (means ± SEM; n = 4) times more augmented at 37°C than at 26°C when normalized for protein expression (Fig. 2 A, lanes 3 and 4). Both CD4tl and CD4tl-λ displayed marginal ubiquitination (Fig. 2 A). Isolation of ubiquitinated CD4tl-λC from intracellular compartments was ruled out because the dissociation of anti-CD4 Ab was negligible during the course of the precipitation (Fig. S2, A and B).
To provide direct evidence for unfolding-provoked ubiquitination at the PM and in early endosomes, we implemented a bioluminescence resonance energy transfer (BRET2) assay based on principles that allowed the detection of the β-arrestin-2-Rluc ubiquitination in real time (Perroy et al., 2004). We rationalized that conjugation of GFP2-Ub to unfolded CD4tl-λC containing the Renilla luciferase II (CD4tl-RlucII-λC) would enhance the BRET2 efficiency (Fig. 2 B). To confine the native chimera to the PM, CD4tl-RlucII-λC were rescued at 26°C and chased in the presence of CHX for 5 h. Indirect immunostaining verified that the chimera was predominantly localized to the PM (Fig. 2 C). Thermal unfolding accelerated the endocytosis rate of rescued CD4tl-λC and CD4tl-RlucII-λC proportional to the incubation time at 40°C (Fig. 2 D). The progressively increasing BRET2 signal between the CD4tl-RlucII-λC and the GFP2-Ub during thermal unfolding suggests that ubiquitination of the chimera accounts for its accelerated internalization (Fig. 2 E). Neither the positive control exchange protein directly activated by cAMP (EPAC; Ponsioen et al., 2004), the constitutively polyubiquitinated CD4tl-Ub (Barriere et al., 2006), nor the GFP-UbAA (UbAA) exhibited temperature-dependent BRET2 (Fig. 2, E and F). GFP-UbAA lacks the terminal Gly residues of Ub that are essential for Ub conjugation (Coulon et al., 2008).
Endpoint measurements revealed a threefold increase in the BRET2 efficiency after unfolding the CD4tl-RlucII-λC, taking into consideration the nonspecific BRET2 signal in the presence of GFP2 (Fig. 2 F, fifth bar). Similar results were obtained using coelenterazine 400a or ViviRen as substrates (Fig. S2 C). BRET2 efficiency was reduced to background if GFP2-Ub or the CD4tl-RlucII-λC was substituted with GFP2-UbAA or CD4tl-RlucII, respectively (Fig. 2 F). These observations jointly suggest that thermal unfolding provokes the chimera ubiquitination at the PM and in early endosomes.
The activity of the cellular ubiquitination machinery is indispensable for the CD4tl-λC rapid disposal from the PM. The mutant chimera was stabilized in ts20, but not in E36, cells expressing a temperature-sensitive and wt E1 Ub-activating enzyme, respectively (Ciechanover et al., 1991). Down-regulation of the E1 enzyme at 40°C delayed the PM turnover of CD4tl-λC in ts20 cells and reduced the CD4tl-λC internalization rate to the CD4tl level (Fig. S2, D–F) but did not interfere with CD4-LAMP1 and transferrin (Tf) receptor (Tf-R) endocytosis signaled by linear endocytic motifs (Barriere et al., 2006). These results suggest a causal relationship between ubiquitination and the PM down-regulation of unfolded CD4tl-λC at 37°C.
Identification of the ubiquitination machinery of unfolded CD4tl-λC at the cell surface
The molecular machinery responsible for the CD4tl-λC ubiquitination at the PM was identified by mass spectrometry (MS). Unfolded CD4tl-λC protein complexes were isolated by cs-IP and trypsin digested, and peptide profiles were determined by liquid chromatography (LC)–MS/MS and database searches (Cloutier et al., 2009). C-terminal Hsp70-interacting protein (CHIP), a cytosolic QC Ub ligase, and molecular chaperones (Hsc70/Hsp70/Hsp90) were preferentially isolated in the CD4tl-λC complex when compared with that of the CD4tl (Fig. S3, B and C).
cs-IP confirmed that both endogenous and heterologously expressed myc-CHIP associates with the unfolded chimera (Fig. 3, A and B, lane 3). CHIP was unable to bind to the nativelike CD4tl-λC (26°C; Fig. 3, A and B, lane 4), CD4tl (Fig. 3, A [lanes 5 and 6] and B [lane 10]), or CD4tl-λ (Fig. 3, A [lanes 1 and 2] and B [lane 9]), indicating that the complex formation is conformation sensitive at the PM.
To probe the mechanism of CHIP association with unfolded CD4tl-λC, we used three CHIP variants in concert with cs-IP. Preventing chaperone binding to the CHIP N-terminal tetratricopeptide (TPR) domain by the K30A mutation (K30A-CHIP), inhibiting the E2 binding and the Ub ligase activity by the H260Q substitution, or deleting the U-box domain (CHIP-ΔU-box) significantly attenuated CHIP-myc interaction with the PM-resident CD4tl-λC at 37°C (Fig. 3 B, lanes 5–8). These results suggest that chaperone-dependent CHIP recruitment is, at least in part, responsible for the recognition and ubiquitination of the chimera (Connell et al., 2001; Rosser et al., 2007). This inference was confirmed by demonstrating the selective association of Hsp90/Hsp40/Hsc70/Hsp70 with unfolded CD4tl-λC, but not with CD4tl-λ and CD4tl at the PM (Fig. 3 C).
CHIP-dependent polyubiquitination down-regulates the unfolded CD4tl-λC from the PM

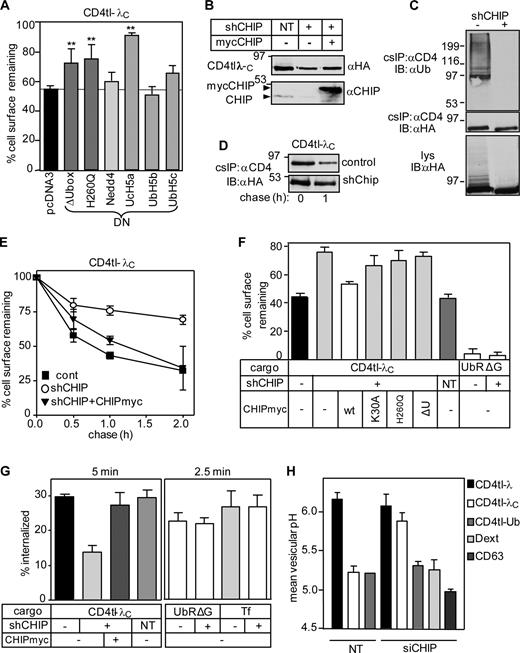

The function of CHIP in the peripheral fate of misfolded CD4tl-λC was examined next. Overexpression of the catalytically inactive H260Q-CHIP, ΔU-box CHIP, or UbcH5a delayed the CD4tl-λC disposal from the PM but had a marginal effect on the CD4tl-λ (Fig. 4 A and Fig. S3 D). In contrast, dominant-negative Nedd-4, AIP4, Casitas B-lineage lymphoma (Cbl)–b, UbcH5b, and UbcH5c had negligible effects on the chimera turnover (Fig. 4 A and not depicted).
As a second approach, CHIP was ablated by stably expressing a CHIP-specific short hairpin RNA (shRNA; shCHIP) in HEK293 cells. CHIP depletion (Fig. 4 B) resulted in attenuated ubiquitination and turnover of the CD4tl-λC at the PM (Fig. 4, C–E). Similar results were obtained with siRNA-mediated CHIP depletion, strongly suggesting that the CHIP activity accounts for the unfolded chimera turnover (Fig. S3, E–G). Notably, CHIP-myc overexpression destabilized CD4tl-λC in shCHIP cells at the PM (Fig. 4, E–G). The stability and internalization rates of tetrameric CD4Tcc-UbAllRΔG and the Tf-R signaled by tetrameric mono-Ub (Barriere et al., 2006) and Ub-independent endocytic motifs, respectively, were unaltered, ruling out nonspecific effects of CHIP ablation (Fig. 4, F and G).
Remarkably, the rapid PM turnover of the CD4tl-λC could not be restored by overexpressing K30A, H260Q, or ΔU-box CHIP-myc in shCHIP-expressing cells (Fig. 4, E and F; and see Fig. 3 B for CHIP expression), substantiating the notion that chaperone binding and ligase activity of CHIP are required for the chimera down-regulation from the PM.
Poly-Ub–chain configuration of unfolded CD4tl-λC and EGFP-λC
The high molecular mass smear of CD4tl-λC isolated by cs-IP and visualized by the P4D1 anti-Ub Ab suggested that the unfolded chimera is polyubiquitinated in post-Golgi compartments (Fig. 2 A and Fig. 5 A). Because the P4D1 Ab recognizes K63-, K11-, and K48-linked Ub chains, the chain configuration was probed by K48 (Apu2.07) and K63 (Apu3.A8) linkage–specific anti-Ub Abs (Newton et al., 2008). Purified K48-, K63-, and K11-linked oligo-Ub’s were used as standards (Fig. 5 A and Fig. S2, G and H). The native and unfolded chimera was isolated by cs-IP from the PM (Fig. 5 A, lanes 1, 3, and 4) using Ab capture at 4°C or at 37°C for 1.5 h (Fig. 5 A, lane 2). The latter protocol isolated PM and endosomal resident chimeras. Because K48 and K68 anti-Ub Abs do not recognize mono-Ub (Fig. 5 A, lanes 7 [left] and 8 [right]), a significant fraction of the λC was polyubiquitinated. The unfolded CD4tl-λC had a higher content of K63- than K48-linked Ub chains based on the chain specificities of the Abs (Fig. 5 A, lanes 2 and 3). The formation of other Ub-chain configurations, however, cannot be ruled out (Fig. S2, G and H).
Although all seven Ub-chain configurations can be synthesized by CHIP in vitro (Xu et al., 2006), CHIP activity is primarily responsible for the UPS-dependent degradation of K48- and K11-linked polyubiquitinated proteins at the ER and in the cytoplasm (Kim et al., 2007; Kundrat and Regan, 2010). Therefore, we asked whether the degradation pathway and the Ub-chain configuration were altered by attaching the λC domain to the soluble cytoplasmic EGFP (EGFP-λC; Fig. 1 A).
The temperature-sensitive expression, stability defect, and polyubiquitination as well as proteasome-dependent degradation of the EGFP-λC were documented (Fig. 5 B and Fig. S4, A–E). As expected, CHIP-dependent polyubiquitination is largely responsible for the proteasome-dependent disposal of the unfolded EGFP-λC because (a) both endogenous CHIP and CHIP-myc are coprecipitated with EGFP-λC, but not with EGFP-λ or EGFP (Fig. 5 C); and (b) CHIP depletion prevented both ubiquitination as well as the rapid degradation of the EGFP-λC (Fig. S4 F and Fig. 5 D). The EGFP-λC was enriched in K48-linked Ub chains relative to the CD4tl-λC, though K63-linked chains were also detected (Fig. 5 A, lanes 3 and 5). Likewise, the ER-retained CD4tl-λC contained predominantly K48-linked Ub chains (unpublished data). Thus, CHIP-mediated polyubiquitination of unfolded λC can lead to either proteasome- or lysosome-dependent degradation as a function of the chimera subcellular localization.
Multivesicular body (MVB)/lysosomal targeting of unfolded CD4tl-λC is ESCRT dependent
The recycling defect suggested that the chimera is subjected to conformation-dependent postendocytic sorting. This was assessed first by indirect immunostaining. Internalized chimeras were labeled by anti-CD4 Ab capture for 20 min and chased for 1 h at 37°C. The CD4tl predominantly, whereas the CD4tl-λ partially, colocalized with Tf- and EEA1-positive early endosomes and were precluded from dextran- and LAMP2-labeled MVB/lysosomes (Fig. 6 A and not depicted). In contrast, unfolded CD4tl-λC was largely delivered into MVB/lysosomes and precluded from early endosomes (Fig. 6 A).
The lysosomal targeting of unfolded CD4tl-λC was confirmed by measuring the luminal pH of chimera-containing vesicles using fluorescence ratio image analysis (FRIA). FRIA has been used to determine the endocytic sorting of various receptors and channels (Barriere et al., 2006, 2007; Kumar et al., 2007; Barriere and Lukacs, 2008; Duarri et al., 2008; Varghese et al., 2008; Glozman et al., 2009). The chimera was labeled with anti-CD4 Ab and secondary FITC-conjugated Fab as a pH sensor in live cells and chased for 0–2 h. Considering that early and late endosomes have a luminal pH of ∼6.0–6.5 and 5.5–6.0, respectively, whereas the lysosomal pH is <5.5 (Mukherjee et al., 1997), localization of the chimera could be established based on the vesicular pH. The luminal pH of FITC-Tf–labeled endosomes as well as CD4tl-Ub and dextran-loaded lysosomes were used as references (Fig. 6 B; Barriere and Lukacs, 2008). Representative pH distribution patterns of CD4tl-λ– and CD4tl-λC–containing vesicles are shown in Fig. 6 B with a mean pH of 6.2 ± 0.19 and 5.2 ± 0.13, respectively. Thus, CD4tl-λC is efficiently targeted to MVB/lysosomes, whereas CD4tl-λ recycles back to the PM at 37°C, confirming the localization and recycling results (Fig. 1 I and Fig. 6 A). Rescuing the folding defect at 26°C led to a substantial delay in the CD4tl-λC lysosomal delivery at 37°C (Fig. 6, B and D).
ESCRT-0 (Hrs [hepatocyte growth factor–regulated tyrosine kinase substrate] and Stam1 [signal-transducing adaptor molecule]) and ESCRT-I (TSG101 [tumor susceptibility gene 101]) components are essential Ub-binding adaptors for ubiquitinated native cargo delivery into MVB/lysosomes (Katzmann et al., 2001). Down-regulation of Hrs, Stam1, and TSG101 by si/shRNA (Fig. 6 E) delayed the unfolded CD4tl-λC degradation and removal from the PM (Fig. 6 F and Fig. S3 A) and induced early endosomal retention in a compartment with a luminal pH of 6.0–6.5 (Fig. 6 G). As a consequence, the chimera post-Golgi stability was increased, and lysosomal delivery was impeded in the presence of Hrs and TSG101 siRNA (Fig. 6, F and G). The lysosomal delivery of CD63, CD4tl-Ub, and dextran as well as the Tf-R recycling were preserved in siRNA-treated cells (Fig. 6 G). Thus, Hrs, Stam1, and TSG101 have critical roles in the proteolytic disposal of nonnative chimeras from the cell surface. Accordingly, CHIP activity was indispensable for the lysosomal sorting of unfolded CD4tl-λC, but not dextran or CD63 (Fig. 4 H). Likewise, the Ub-dependent lysosomal targeting of the CD4tl-Ub chimera was unaltered, ruling out the possibility that CHIP knockdown interferes with the function of the Ub-dependent endosomal sorting machinery nonspecifically (Fig. 4 H).
Proteolytic QC of mutant G protein–coupled receptors (GPCRs) at the PM
To test whether the peripheral QC system is involved in the degradation of other conformationally defective PM proteins, we selected the DRD4 and the V2R. The DRD4-M345T mutation is implicated in attention deficit hyperactivity disorder, and the V2R-W164S variant causes nephrogenic diabetes insipidus (Rosenthal et al., 1992; van den Ouweland et al., 1992; Swanson et al., 2000). These mutations are localized in the predicted transmembrane and cytosolic segments (Fig. S5 A) and impair the biosynthetic processing of the respective GPCR (Oksche et al., 1996; Van Craenenbroeck et al., 2005). Both DRD4-M345T–Flag and V2R-W164S–myc displayed temperature-sensitive cellular and cell surface expression defects relative to their wt counterparts in HEK293 cells as determined by immunoblotting and cell surface Ab binding using the extracellular Flag and myc tag of the DRD4 and V2R variants, respectively (Fig. 7 A). The V2R-R137H harbors a minor conformation defect and was expressed near the wt level (Fig. 7 A; Barak et al., 2001).
Remarkably, DRD4-M345T and V2R-W164S that constitutively escaped the ER QC exhibited a four- to ninefold faster turnover rate relative to their wt counterparts at the PM (Fig. 7 B). Both accelerated internalization and preferential MVB/lysosomal targeting account for the reduced PM residence of mutant GPCRs (Fig. 7, C–E). Several observations suggest that chaperone- and CHIP-dependent ubiquitination are responsible, at least in part, for the PM down-regulation of mutant GPCRs. (a) The DRD4-M345T exhibited increased ubiquitination and CHIP binding compared with wt DRD4 as measured by denaturating and native cs-IP, respectively (Fig. 8 A and Fig. S5 B). (b) Inactivation of the E1 enzyme stabilized the mutants at the PM and impeded internalization in ts20 cells (Fig. S5, C and D). (c) Although internalized wt GPCRs were recycled, DRD4-M345T and V2R-W164S were delivered into late endosomes/lysosomes in 1 h based on FRIA (Fig. 7, D and E; and Fig. S5 E). Ablation of Hrs and Stam1 by shRNA compromised the lysosomal delivery of mutant GPCRs as indicated by their retention in the early endosomes of HeLa cells (Fig. 7 E). (d) The reduced PM stability is unlikely linked to ligand-induced activation of GPCRs and prolonged β-arrestin-2 binding (Martin et al., 2003) because serum depletion failed to suppress the turnover and internalization rate (not depicted), and inhibiting ubiquitination by shCHIP (Fig. 8 B) was sufficient to attenuate internalization and stabilize the DRD4-M345T and V2R-W164S at the PM and in post-Golgi compartments (Fig. 8, C and D; and Fig. S5, F and G). Only the wt, but neither the catalytically inactive nor the TPR mutant, CHIP-myc overexpression restored the rapid internalization and PM turnover of the DRD4-M345T and V2R-W164S (Fig. 8 D). These results highlight the general role of chaperone-dependent CHIP activity in membrane protein QC at the PM.
Using a temperature-sensitive model protein and mutant GPCRs associated with conformational diseases, this work represents one of the first attempts to define some of the molecular constituents of the peripheral membrane protein QC that likely plays a fundamental role in the homeostasis of PM protein composition in mammalian cells.
Nonnative PM proteins are subjected to chaperone- and ubiquitination-dependent disposal
To establish a link between the conformational defect and ubiquitination susceptibility of a PM protein, we constructed a CD4 chimera containing the wt or a temperature-sensitive bacteriophage λ domain (Parsell and Sauer, 1989). Controlled thermal unfolding of the CD4tl-λC enabled us to isolate the ubiquitination machinery and compare the consequences of the chimera unfolding with that of mutant GPCRs at the cellular and biochemical levels.
In addition to the temperature-sensitive biosynthetic processing defect, we showed that the reduced PM residence time, accelerated internalization, and impaired recycling of unfolded CD4tl-λC are also hallmarks of mutant V2R and DRD4 membrane trafficking. cs-IP of CD4 chimeras in concert with LC-MS/MS identified Hsp40/Hsc70/Hsp90 and CHIP as major components of the peripheral QC machinery. The unfolded CD4tl-λC and the DRD4-M345T ubiquitination by the chaperone–CHIP complex likely represents a functionally relevant QC mechanism of nonnative PM proteins, an inference supported by several observations. (a) Ablating the E1 Ub-activating enzyme or CHIP inhibited both ubiquitination and the rapid turnover of the chimera and DRD4-M345T at the PM. Although cs-IP of the V2R was not feasible, depletion of the E1 and CHIP also stabilized the V2R-W164S. (b) A similar effect was observed by overexpressing the dominant-negative CHIP and UbH5a. (c) Preventing the Hsc70/Hsp90 association with the TPR domain of the K30A-CHIP compromised the ability of CHIP to destabilize the chimera and mutant GPCRs in CHIP knockdown cells. (d) The unfolded rescued ΔF508CFTR is also eliminated by a chaperone- and CHIP-dependent mechanism from the PM (Okiyoneda et al., 2010).
Although we cannot rule out that nonnative PM proteins are directly recognized by CHIP at post-Golgi compartments (Rosser et al., 2007), the results are consistent with the notion that Hsp40/Hsc70 is recruited to exposed hydrophobic patches of nonnative cytosolic regions followed by CHIP–UbcH5 binding. A similar sequence of events was documented for the mutant CFTR ubiquitination at the ER (Meacham et al., 2001). We envision that mutations in the predicted transmembrane segments of V2R and DRD4 as well as in monotopic membrane proteins (Fayadat and Kopito, 2003) provoke structural rearrangements that lead to the cytosolic ubiquitination of client proteins.
CHIP activity has been recognized as an essential component of the ER and cytosolic QC mechanisms (Murata et al., 2001; Cyr et al., 2002; McDonough and Patterson, 2003). Our results highlight the role of CHIP as a QC E3 ligase in the degradation of conformationally defective PM proteins that either have escaped the ER or are generated by environmental stress in situ. Down-regulation of the ErbB2 tyrosine kinase receptor from the PM may follow an overlapping mechanism with the difference that inhibition of Hsp90 activity is indispensable for the receptor disposal (Xu et al., 2001; Barr et al., 2008). It is assumed that geldanamycin-induced Hsp90 inhibition provokes partial unfolding of the ErbB2 kinase domain followed by the sequential recruitment of Hsc70/Hsp70 and Cullin5 or CHIP (Xu et al., 2002; Zhou et al., 2003; Jung et al., 2007; Ehrlich et al., 2009). Subsequent ubiquitination accounts for internalization, proteasome-dependent processing, and lysosomal targeting of the receptor (Lerdrup et al., 2006).
Although CHIP ablation prevented CD4 chimera and DRD4 ubiquitination and restored some of their metabolic and PM stability, the turnover of the mutants remained faster than their wt counterpart. This could be attributed to residual CHIP activity and/or up-regulation of alternative cellular proteostatic mechanisms in analogy to the redundant role of Doa10, Ubr1, and San1 in the UPS-dependent degradation of misfolded cytosolic proteins in the yeast cytoplasm (Lewis and Pelham, 2009; Heck et al., 2010). Likewise, cytosolic substrate recognition could be accomplished by a chaperone-dependent function of Parkin, Mdm2, and Cullin5 Ub ligases, implying that multiple QC E3 enzymes are probably involved in misfolded PM protein degradation in mammalian cells (Nagata et al., 1999; Imai et al., 2002; Ehrlich et al., 2009). In addition, autophagocytosis of endocytic vesicles enriched in ubiquitinated cargoes (Filimonenko et al., 2007; Lee et al., 2007; Raiborg and Stenmark, 2009), proteasome-dependent processing of misfolded polypeptides (Ciechanover et al., 1980; Waxman et al., 1987), and/or recruitment of arrestin domain–containing adaptors, the mammalian orthologues of arrestin-related adaptor proteins (ARTs), in concert with their cognate E3 ligase can be envisioned as auxiliary mechanisms of the peripheral protein QC in eukaryotes (Lin et al., 2008; Nikko et al., 2008).
Although direct comparison of the peripheral QC efficiency between mammalian and yeast cells is presently not possible, several studies suggest that proteostatic mechanisms in post-Golgi compartments are not restricted to higher eukaryotes. The conformationally impaired Pma-1 (H-ATPase) and general amino acid permease Gap1 are rapidly cleared from the cell surface via ubiquitination-dependent vacuolar degradation in yeast (Gong and Chang, 2001; Pizzirusso and Chang, 2004; Liu and Chang, 2006; Lauwers et al., 2007). In contrast, stabilization of the temperature-sensitive Ura3 or λ-L57A cytosolic domains was observed upon tethering them to the PM as compared with their rapid degradation at ERs (Lewis and Pelham, 2009). Ubiquitination was also indispensable for the vacuolar degradation of various transporters during stress-induced remodeling of the yeast PM, a process mediated by ART1–9 and Rsp5 recruitment (Lin et al., 2008; Nikko et al., 2008; Nikko and Pelham, 2009). Though phosphorylation of certain transporters serves as a recognition signal for ART binding (Nikko and Pelham, 2009), the appealing hypothesis that ARTs can recognize stress-induced nonspecific conformational changes remains to be demonstrated.
Cell surface polyubiquitination as a sorting signal for a nonnative PM protein
Accumulating evidence suggests that most Ub-chain configurations, including K48-, K11-, and K63-linked Ub chain, are involved in the proteasome-mediated degradation of client proteins (Xu et al., 2009). Conversely, besides the K63-linked chain, the contribution of K11-, K29-, and K48-linked Ub chains has been recognized in the internalization of PM proteins (Chastagner et al., 2006; Varghese et al., 2008; Boname et al., 2010). The K63-linked Ub chain was more abundant in the unfolded CD4tl-λC at the PM, whereas the ER-entrapped chimera and the EGFP-λC contained preferentially K48-linked Ub chains. Although we cannot rule out additional differences in the Ub-chain configuration between the soluble and membrane-bound λC, our results are consistent with the emerging model that both K48- and K63-linked Ub chains can participate in both proteasome- and lysosomal-dependent protein degradation with variable efficiency (Xu et al., 2009; Boname et al., 2010). The escape mechanism of nonnative PM proteins from extensive proteasome-dependent processing remains to be elucidated. Forked Ub-chain synthesis by the CHIP–UbcH5 complex (Kim et al., 2007) as well as complex formation with Ub-binding sorting adaptors may represent some of the protective mechanisms against premature proteolysis.
Consistent with the diverse configurations of Ub chains on PM proteins, the selectivity of Ub-binding adaptors in the internalization and endosomal sorting machinery appears to be limited (Shields et al., 2009; Ren and Hurley, 2010). Both epsin1 and eps15 clathrin adaptors recognize the K63-linked and K48-linked poly-Ub chain, though the K63 chain with higher avidity (Barriere et al., 2006; Hawryluk et al., 2006). Likewise, the heterodimeric ESCRT-0 complex has only a threefold higher affinity to K63- than to the K48-linked poly-Ub chain (Ren and Hurley, 2010). This modest Ub-chain selectivity, together with reconfiguration of Ub chains by deubiquitinating enzymes, likely ensures efficient lysosomal degradation of cargoes with various Ub-chain topologies.
The possible role of peripheral QC machinery as genetic modifiers in the loss-of-function phenotype associated with mutant PM proteins
Although the peripheral QC of the mutant V2R and DRD4 phenotypically is reminiscent of the ligand-induced desensitization of wt GPCRs, the molecular machinery accounting for ubiquitination is distinct. Instead of CHIP, ligand-induced down-regulation of GPCR is mediated by cellular Cbl (Jacob et al., 2005), Mdm2 (Shenoy et al., 2001), Nedd4 (Shenoy et al., 2008), and/or related E3 ligases, including AIP4 (Marchese et al., 2003). These E3 enzymes are recruited by posttranslational modification or by exposing a linear peptide-binding site for the E3 enzyme on either the GPCRs or their cognate adaptor β-arrestin-2 (Shenoy et al., 2001).
Among mutant membrane proteins that are subjected to rapid clearance from the PM, ubiquitination of CFTR, BSEP, and NHE6 has been established (Plass et al., 2004; Sharma et al., 2004; Roxrud et al., 2009). The phenotype of certain mutant BSEPs and CFTRs associated with progressive familial intrahepatic cholestasis type 2 disease and cystic fibrosis, respectively, suggests that metabolic destabilization correlates with their ubiquitination at the PM (Sharma et al., 2004; Hayashi and Sugiyama, 2009). The severity of cholestasis and cystic fibrosis is inversely proportional to the PM density of the BSEP and CFTR, respectively (Benharouga et al., 2001; Lam et al., 2007). In light of the limited fidelity of the ER QC (Wang and Ng, 2010) and delayed unfolding of mutant polypeptides, it is tempting to speculate that the peripheral QC may exacerbate the phenotype of conformational diseases by prematurely disposing partially functional mutants from post-Golgi compartments. Indeed, selected mutants of CFTR, MLC1 (megalencephalopathy leukodistrophy with subcortical cyst 1), V2R, and BSEP could escape the ER QC and be targeted for endolysosomal degradation from the PM in primary cells and heterologous expression systems (Morello et al., 2000; Sharma et al., 2004; Robben et al., 2005; Duarri et al., 2008; Hayashi and Sugiyama, 2009).
In summary, we have provided evidence for the role of chaperone–CHIP and ESCRT in the recognition, ubiquitination, and lysosomal degradation of a conformationally impaired model protein and two mutant GPCRs from the cell surface. Thus, the peripheral protein QC system complements the function of established protein surveillance mechanisms of the ER, cytoplasm, nucleus, and mitochondria by preserving proteostasis at the PM and in endocytic organelles in higher eukaryotes.
