Epithelial-to-mesenchymal transition (EMT) and its reversal (MET) are crucial cell plasticity programs that act during development and tumor metastasis. We have previously shown that the splicing factor and proto-oncogene SF2/ASF impacts EMT/MET through production of a constitutively active splice variant of the Ron proto-oncogene. Using an in vitro model, we now show that SF2/ASF is also regulated during EMT/MET by alternative splicing associated with the nonsense-mediated mRNA decay pathway (AS-NMD). Overexpression and small interfering RNA experiments implicate the splicing regulator Sam68 in AS-NMD of SF2/ASF transcripts and in the choice between EMT/MET programs. Moreover, Sam68 modulation of SF2/ASF splicing appears to be controlled by epithelial cell–derived soluble factors that act through the ERK1/2 signaling pathway to regulate Sam68 phosphorylation. Collectively, our results reveal a hierarchy of splicing factors that integrate splicing decisions into EMT/MET programs in response to extracellular stimuli.
Alternative splicing (AS) is a key molecular mechanism in regulating gene expression and proteomic diversity. Recently, it has been shown that ∼95% of human genes undergo at least one AS event (Pan et al., 2008; Wang et al., 2008). Thus, AS is expected to play crucial roles in important biological events such as development, cell differentiation, organogenesis, and the response to environmental cues. Inclusion or exclusion of exons and alternative choices of 5′ or 3′ splice sites can give rise to different mRNAs from a single gene, which will be then translated into proteins with distinct functional activity or cellular localization. In addition, AS can affect the RNA stability by inclusion of premature translation termination codons (PTCs) that activate the nonsense-mediated mRNA decay (NMD) pathway (Isken and Maquat, 2008). In mammals, a termination codon is recognized as premature when located >50–55 nt upstream of the exon–exon junction marked by the exon junction complex (EJC). EJCs downstream of PTCs are no longer removed during the “pioneer” round of translation, and recruit essential NMD factors, including Upf1/Rent1, that in turn promote mRNA degradation (Isken and Maquat, 2008). Initially, NMD was considered only a mechanism for disposing of aberrant mRNAs arising from nonsense codon–containing alleles. It is now evident that NMD is involved in quantitative posttranscriptional regulation of gene expression through specific AS events (AS-activated NMD [AS-NMD], also termed regulated unproductive splicing and translation; Hillman et al., 2004). Recently, AS-NMD has been shown to regulate expression of specific gene families. Alternative “poison” exons containing premature in-frame stop codons, or introns in the 3′ untranslated region (UTR), are particularly frequent in mammalian genes for splicing regulators, such as SR factors and heterogeneous nuclear RNP (hnRNP) proteins (Lareau et al., 2007; Ni et al., 2007) and for many core spliceosomal proteins (Saltzman et al., 2008). Most of these proteins can regulate their own mRNA level by modulating AS-NMD in a feedback mechanism designed to maintain the protein homeostatic level (Saltzman et al., 2008). Interestingly, in several genes for SR factors and hnRNPs, AS-NMD cassettes overlap highly conserved or ultraconserved elements (UCEs; Lareau et al., 2007; Ni et al., 2007) longer than 200 bp, with 100% identity among rat, mouse, and human genomes. However, the role of UCEs in AS-NMD and their contribution to diseases, including cancer, is still hypothetical.
Epithelial-to-mesenchymal transition (EMT) is an important cell reorganization event that is crucially connected to developmental programs and occurs several times during embryogenesis in vertebrates. In adults, EMT is confined to a few physiological processes such as tissue regeneration and wound healing (Thiery and Sleeman, 2006). Notably, this program occurs during the progression of epithelial tumors and confers migratory and invasive properties to cancer cells (Thiery and Sleeman, 2006; Polyak and Weinberg, 2009). EMT describes a complex series of events during which epithelial cells lose many of their distinguishing features to acquire typical mesenchymal traits. Epithelial cells are rich in adherens junctions that are required for the formation of continuous cell layers. During EMT, epithelial cells acquire fibroblast-like morphology with a rearrangement of cytoskeletal architecture, reduced intercellular adhesion, and increased ability to invade nearby body districts (Thiery and Sleeman, 2006; Polyak and Weinberg, 2009). A variety of oncogenic pathways, activated by peptide growth factors, Src, Ras, ETS, integrin, Wnt/β-catenin, and Notch signaling, induce EMT (Thiery, 2003). A crucial event during EMT is the down-regulation of E-cadherin, a component of adherens junctions, which acts as a de facto tumor suppressor, inhibiting invasion and metastasis, and is frequently repressed or degraded during transformation. Down-regulation of E-cadherin is accompanied by increased expression of N-cadherin and vimentin by nuclear accumulation of β-catenin, and increased production of transcription factors, such as Snail and Slug, that inhibit E-cadherin production (Polyak and Weinberg, 2009). Phenotypic markers of EMT include an increased capacity of cell migration and three-dimensional invasion, as well as resistance to anoikis/apoptosis. Intriguingly, EMT is a transient process that occurs in a subset of cells at the invasive front of the metastasizing primary carcinomas and is reversed during the establishment of metastasis (Brabletz et al., 2001; Thiery and Sleeman, 2006). These cell morphology changes appear to be driven by several signals in the tumor microenvironment (Polyak and Weinberg, 2009). We have previously shown that EMT may be triggered by splicing factor and proto-oncogene SF2/ASF through the AS of the Ron proto-oncogene (Ghigna et al., 2005; Karni et al., 2007), which encodes the tyrosine kinase receptor for the macrophage-stimulating protein involved in control of cell scattering and motility (Trusolino and Comoglio, 2002). SF2/ASF overexpression promotes skipping of Ron exon 11 and results in the production of ΔRon, a constitutively active isoform that confers an invasive phenotype to the cells (Ghigna et al., 2005). In this paper, we have exploited an in vitro model to further investigate the impact of AS programs on EMT. EMT can be recapitulated in vitro by growing colon adenocarcinoma cells at different densities: at low density, sparse cells mimic the situation occurring at the invasive front of the tumor and display a mesenchymal-like phenotype, whereas at high density, the same cells switch to an epithelial-like phenotype (Brabletz et al., 2001). We have found that the level of splicing factor SF2/ASF is controlled during in vitro EMT through AS-NMD. This event is regulated by diffusible factors expressed by epithelial cells through the ERK1/2 pathway and the Sam68 splicing regulator.
AS of the Ron gene and expression level of SF2/ASF are regulated during in vitro EMT
Morphological and molecular hallmarks of EMT can be recapitulated in vitro by growing colon adenocarcinoma SW480 cells at different densities: high-density (H) cells are similar to the central part of the tumor and display an epithelial-like phenotype, whereas low-density (L) cells resemble the invasive front of the tumor and have a mesenchymal-like phenotype (Brabletz et al., 2001). As shown in Fig. 1 A, L cells are poorly stained by an antibody against the epithelial marker E-cadherin and display nuclear accumulation of β-catenin. Accordingly, expression of the E-cadherin gene is drastically higher in H cells than in L cells (Fig. 1 B). On the contrary, expression of vimentin and Slug genes, two typical markers of mesenchymal cells, increases during EMT and is higher in L cells (Fig. 1 B). We decided to study the splicing profile of Ron transcripts in this in vitro model of EMT. As shown in Fig. 1 C, cell density affects the splicing profile of Ron exon 11, and the ΔRon mRNA is the prevailing splicing isoform in sparse mesenchymal-like L cells, which is consistent with the ability of this splicing isoform to induce EMT. We have previously shown that the production of the ΔRon isoform correlates with the level of the splicing factor SF2/ASF (Ghigna et al., 2005). In agreement with this, the switch in the splicing profile of the Ron gene transcripts driven by cell density is paralleled by a higher level (4.5-fold) of SF2/ASF in L cells compared with that in H cells (Fig. 1 C).
Expression of SF2/ASF during EMT is regulated through AS-NMD
Recently, it has been found that AS-NMD regulates the expression of all SR splicing factors and several other RNA-binding proteins (Lareau et al., 2007; Ni et al., 2007; Saltzman et al., 2008). In particular, the 3′ UTR of the SF2/ASF gene contains an intron (3′ UTR-intron) that is normally retained in the mature transcript (full-length [FL] transcript). Splicing of this intron produces an RNA molecule (NMD+ transcript) in which the natural stop codon is recognized as a PTC and the mRNA is degraded by the NMD pathway (Fig. 1 D; Lareau et al., 2007). We asked whether this mechanism could be responsible for the lower level of SF2/ASF in H cells. RT-PCR analysis shows that splicing of the 3′ UTR-intron occurs in SW480 cells and is regulated during EMT: L cells express mainly the FL isoform, whereas the NMD+ transcript is predominant in H cells (Fig. 1 E). As predicted by the AS-NMD model, this splicing switch is accompanied by a lower level (about threefold as estimated by real-time quantitative RT-PCR [qRT-PCR] of SF2/ASF mRNAs in H cells (Fig. 1 F). NMD occurs during the pioneer round of translation, and NMD substrates are stabilized by the translation inhibitor cycloheximide (CHX; Isken and Maquat, 2008). To verify the involvement of the NMD pathway in the regulation of SF2/ASF mRNA levels, we treated SW480 cells with CHX. As shown in Fig. 2 B (left), CHX changes the ratio between the two splicing products in L cells and specifically increases the level of NMD+ transcripts. A similar effect of CHX is also detectable in H cells using the primer set D-B (Fig. 2 A), which specifically amplifies the NMD+ splicing product (Fig. 2 B, middle). Accordingly, qRT-PCR (Fig. 2 B, right) demonstrates that the total level of SF2/ASF transcripts in H cells increases when cells are treated with CHX.
To rule out that this result could be due to pleiotropic effects of CHX rather than stabilization of NMD+ transcripts, we specifically targeted the NMD pathway by siRNA-mediated knockdown of the key NMD player Upf1 (Isken and Maquat, 2008). Similarly to CHX, down-regulation of Upf1 changes the ratio between the two splicing products (Fig. 2 C) in L cells and augments the level of the NMD+ form in both L and H cells (Fig. 2 D). Consistent with this, down-regulation of Upf1 in H cells also increases the SF2/ASF protein level. Altogether, these results support the conclusion that AS-NMD plays a role in controlling the level of splicing factor SF2/ASF during in vitro EMT. Notably, this event is not limited to our in vitro cell system, and FL and NMD+ SF2/ASF splicing isoforms occur in normal human tissues as well (Fig. S2 A). The FL/NMD+ ratio varies in different tissues, which suggests that AS-NMD of SF2/ASF transcripts could play a physiological role in maintaining the homeostatic SF2/ASF level in different district of the organism. In this regard, it is worth noticing that the FL/NMD+ ratio is altered in a fraction of colon tumor specimens compared with normal control tissues (Fig. S2 B). An intriguing possibility, which deserves further investigation, is that this deregulation may have a role in the higher level of the oncogenic SF2/ASF protein described by Karni et al. (2007).
Soluble factors secreted by epithelial cells control AS-NMD of SF2/ASF transcripts and induce the mesenchymal-to-epithelial transition (MET)
Growth factors control the interaction and communication between epithelial and mesenchymal cells during development (Shannon and Hyatt, 2004). Recently, it has been reported that soluble factors secreted by tumor mammary mesenchymal cells regulate the AS profile of the fibronectin gene in normal mammary epithelial cells (Blaustein et al., 2004). Thus, we asked whether factors secreted by mesenchymal L cells or epithelial H cells could control splicing in the 3′ UTR of the SF2/ASF transcripts.
To reproduce the epithelial–mesenchymal interaction and assess its influence on AS, we performed co-culture experiments with tissue culture inserts that allow the interchange of soluble factors without cell–cell contacts. Interestingly, co-culture with H cells, plated on top of the insert, is sufficient to increase the level of the NMD+ transcripts in L cells in the lower chamber (Fig. 3 A), whereas co-culture with L cells had no effect on H cells (not depicted). It is plausible that this unidirectionality reflects the stoichiometry of factors expressed by L and H cells in co-culture experiments.
To further investigate this aspect, we grew H cells in the presence of conditioned medium from L cells and vice versa. In accord with the co-culture experiment, conditioned medium from L cells did not change the AS profile in the 3′ UTR of SF2/ASF mRNA (unpublished data), whereas conditioned medium from H cells (High-CM) shifts the splicing profile of SF2/ASF transcripts in L cells toward the production of the NMD+ form (Fig. 3 B), with a concomitant reduction of SF2/ASF mRNA (twofold) and protein (2.3-fold) levels and, as a consequence, of ΔRon transcripts (Fig. 3 C). More importantly, High-CM affected molecular markers that distinguish mesenchymal from epithelial cells, leading to the increased expression of E-cadherin and the concomitant reduction in the Slug and vimentin mRNA levels (Fig. 3 D). Moreover, a partial cytoplasmic accumulation of β-catenin was visible (Fig. 3 D, right). Collectively, these observations suggest that soluble factors released in the medium by high-density epithelial-like SW480 cells act dominantly in activating MET in L cells.
Soluble factors act through the ERK1/2 pathway to regulate AS-NMD of SF2/ASF transcripts and production of the ΔRon mRNA
Several secreted growth factors exert their action by activating the ERK1/2 pathway (Dhillon et al., 2007), which stimulates most forms of epithelial invasive motility that occur during cell scattering, wound healing, EMT, malignant invasion, and metastasis (Thiery and Sleeman, 2006). However, the mechanisms by which ERK1/2 controls motile and invasive capacities of epithelial cells are not well understood. We decided to investigate the involvement of the ERK1/2 pathway in the regulation of SF2/ASF splicing during EMT. As shown in Fig. 4 A, phosphorylation of ERK1/2 kinase is higher in L cells compared with H cells, whereas the phosphorylation status of the stress kinase p38, which identifies another pathway activated by growth factors, is not affected by cell density. Moreover, treatment of L cells with conditioned medium from H cells, as in Fig. 3, is accompanied by a decreased ERK1/2 phosphorylation (Fig. 4 B). Collectively these observations suggest an involvement of ERK1/2 in the regulation of AS-NMD of SF2/ASF transcripts. To directly verify this possibility, we specifically inhibited the ERK1/2 activity in L cells with the small molecule U0126 (Fig. 4 C). As shown in Fig. 4 D, U0126 changes the splicing profile of SF2/ASF mRNA in L cells and favors the production of the NMD+ isoform typical of epithelial H cells. As a result, the SF2/ASF protein level decreases and the splicing profile of Ron transcripts switches to the epithelial program with reduction of the ΔRon splicing product (Fig. 4 D). Importantly, inhibition of ERK1/2 in L cells activates the epithelial expression program characterized by increased expression of E-cadherin and down-regulation of vimentin mRNAs (Fig. 4 D). Altogether, our results implicate the ERK1/2 signaling cascade in the choice between the epithelial and mesenchymal status of SW480 cells. Inhibition of this pathway by soluble factors expressed by epithelial H cells or with the ERK1/2 inhibitor U0126 uncouples the occurrence of MET from cell density, and regulates AS-NMD of SF2/ASF transcripts and ΔRon mRNA production.
Sam68 interacts with the 3′ UTR of the SF2/ASF transcript
To understand the molecular mechanism regulating AS-NMD of SF2/ASF transcripts, we analyzed the SF2/ASF 3′ UTR sequence. This region contains two UCEs that overlap the exon junctions (Fig. 5 A). Two putative binding sites (AAAAUU) for the splicing regulator Sam68 (Matter et al., 2002) are located near the UCEs (A and B in Fig. 5 A). Sam68, the 68-kD Src-associated protein in mitosis, is a member of the STAR (signal transduction activator of RNA) family of RNA-binding proteins proposed to link signaling cascades to RNA metabolism (Lukong and Richard, 2003). Notably, Sam68 is a substrate of ERK1/2 kinase and controls splicing of exon v5 of the CD44 gene after Ras activation (Matter et al., 2002). In agreement with the activation of the ERK1/2 pathway, we found that Sam68 is hyperphosphorylated in L cells (Fig. 5 B), and its phosphorylation level is reduced upon treatment with the extracellular signal–regulated kinase (ERK) inhibitor U0126 (Fig. 5 C).
As a first step to understanding whether Sam68 may control AS in the 3′ UTR of SF2/ASF transcripts, we performed in vitro pull-down assays using riboprobes spanning the Sam68 putative binding sites (Fig. 5 A). As shown in Fig. 5 D, Sam68 binds to both riboprobes, and binding is abrogated by mutating the Sam68 recognition sequence to AACACU. To determine if Sam68 binds to the SF2/ASF 3′ UTR in vivo, we performed RNA immunoprecipitation with an antibody that recognizes both the phosphorylated and unphosphorylated forms of Sam68. As shown in Fig. 5 E, Sam68 binds in vivo to the endogenous SF2/ASF transcript but not to GAPDH mRNA.
Sam68 controls AS-NMD of SF2/ASF transcripts and mesenchymal-to-epithelial cell transition

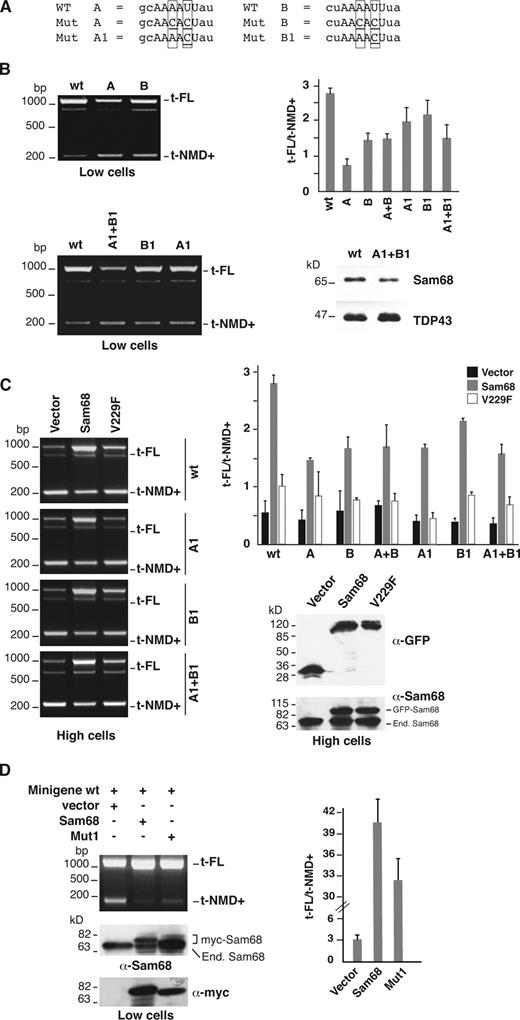

Based on the result in the previous paragraph, we hypothesized a role of Sam68 in controlling AS-NMD of SF2/ASF transcripts. To verify this possibility, we analyzed the in vivo splicing of minigene transcripts containing either the wild-type (WT) SF2/ASF 3′ UTR or mutated versions in which one or both Sam68 binding sites were substituted with AACACU (Mut A, Mut B, and Mut A+B). Similarly to endogenous SF2/ASF transcripts, RNAs encoded by the WT minigene mainly show 3′ UTR-intron retention in L-cells (t-FL in Fig. 6 B). Mutation of one Sam68 binding site reduces intron retention (t-NMD+); this is more evident in the case of Mut A, which points to a role of these sequence elements in the splicing decision. Unexpectedly, however, when both sites are contemporarily mutated (Mut A+B), the effect is lower than that observed with Mut A (Fig. S3 and the histogram in Fig. 6 B), as if Mut A+B is responding to some other splicing regulatory mechanism. In an attempt to circumvent this problem, we generated another set of mutants (Mut A1, Mut B1, and Mut A1+B1 in Fig. 6 A) in which a single nucleotide was substituted in the Sam68 consensus sequence (AAAACU). Although less marked than previous mutants, Mut A1 and Mut B1 also show a shift toward the production of t-NMD+ RNAs in L cells. Remarkably, the mutation of both sites (Mut A1+B1) gives the maximal effect on splicing (Fig. 6 B) and reduces the interaction with Sam68 in a pull-down assay (Fig. 6 B). We then tested all these minigenes in H cells. Similarly to the endogenous SF2/ASF RNA, WT minigene transcripts mainly undergo 3′ UTR-intron removal with the production of t-NMD+ molecules (Fig. 6 C). As expected from the fact that Sam68 sites are affected, the same preferential expression of t-NMD+ RNAs is observed with all mutants, even though some differences are visible (Fig. S4 and the histogram in Fig. 6 C).
To directly assess the effect of Sam68 on the splicing of the 3′ UTR-intron, the various Mut constructs were cotransfected in H cells with plasmids directing the expression of Sam68 or of the Sam68 V229F mutant, which is impaired in RNA binding (Paronetto et al., 2007). As shown in Fig. 6 C, overexpression of Sam68 inhibits splicing of the 3′ UTR-intron, with the production of t-FL molecules, and gives rise to a profile similar to that observed in L-cells. This result clearly involves Sam68 in the regulatory circuit that controls splicing decision in the 3′ UTR region of SF2/ASF transcripts. However, Sam68 also promotes intron retention, although to a lower extent, in transcripts encoded by mutated minigenes. It is plausible that this behavior actually reflects the interaction of Sam68 with sequence elements in the 3′ UTR-intron related to the consensus binding site. Consistent with this hypothesis, the mutation of both sites decreases, but does not abrogate, the interaction with Sam68 in the pull-down assay (Fig. 6 B). The necessity of a direct protein–RNA interaction is also supported by the behavior of the V229F mutant (Fig. 6 C), which displays a strongly reduced ability to stimulate 3′ UTR-intron retention. The residual activity may reflect the interaction with some other, still unidentified, proteins that bind to the minigene transcript. This possibility has been recently advanced to explain the ability of the V229F mutant to stimulate splicing of the RTL4-T transcripts (Liu et al., 2009).
Because the level of Sam68 does not appreciably change during EMT (unpublished data), we asked whether phosphorylation of this factor by ERK1/2 may be critically linked to the switch in the splicing profile of SF2/ASF transcripts. To verify this hypothesis, we cotransfected L cells with the WT SF2/ASF 3′ UTR minigene and with plasmids directing the expression of either Sam68 WT or Sam68 in which the eight ERK phosphorylation sites were mutated to alanine (Mut 1; Matter et al., 2002). As shown in Fig. 6 D, mutation of the ERK1/2 phosphorylation sites reduced the ability of Sam68 to modulate the splicing profile of WT minigene transcripts.
Altogether, these results suggest that differential splicing of minigene transcripts during EMT is controlled by the interaction of Sam68 with the two binding sites in the 3′ UTR-intron and is modulated by protein phosphorylation.
To investigate the effect of Sam68 on the splicing profile of the endogenous SF2/ASF transcripts, we generated a clone of SW480 cells stably overexpressing Myc-tagged Sam68 (cl. Sam68). As shown in Fig. 7 A, a twofold increase in Sam68 expression is sufficient to augment the ratio of FL to NMD+ mRNAs, leading to a higher level of SF2/ASF total mRNA. This is accompanied by an increased level of SF2/ASF protein and by a switch in the splicing profile of Ron gene transcripts (Fig. 7 B). Strikingly, cl. Sam68 cells are unable to undergo MET. Indeed they do not acquire the typical epithelial morphology of SW480 cells and display elongated and spindle-shaped morphology typical of mesenchymal cells even at high density. Moreover, they fail to up-regulate E-cadherin and show constitutive expression of Slug and vimentin (Fig. 7 C). To confirm the involvement of Sam68 in AS-NMD of SF2/ASF transcripts, we used siRNA to down-regulate endogenous Sam68 expression in L cells, which display high levels of FL mRNA. As shown in Fig. 7 D, down-regulation of Sam68 results in a shift of the splicing profile toward the NMD+ isoform and in an overall reduction of SF2/ASF transcription levels. Accordingly, we observed a switch in the splicing pattern of Ron transcripts, increased expression of E-cadherin, and reduced transcription of Slug (Fig. 7 E). On the basis of these observations, we suggest that the level and/or activity of the splicing regulator Sam68 contributes to determine the choice between the epithelial and mesenchymal status. Notably, a higher level of Sam68 mRNA is observed in a fraction of colon tumors (Fig. S2).
In this manuscript, we have investigated the relevance of AS to the EMT or its reversal MET. Both EMT and MET are reversible processes that result from the activation of gene expression programs crucial for normal development. However, they are pathologically exploited during the progression of well-differentiated epithelial tumors (Polyak and Weinberg, 2009). EMT-like cell dedifferentiation takes place at the invasive front of carcinomas, favoring detachment, migration, and dissemination of cancer cells. Redifferentiation with regain of epithelial features in a MET-like process occurs at the final metastatic site (Thiery and Sleeman, 2006). Our analysis indicates that cell growth conditions and external cues act through the ERK1/2 signaling pathway to modulate the activity and expression levels of two splicing regulators, Sam68 and SF2/ASF, critically involved in EMT/MET programs in SW480 cells.
AS, NMD pathway, and expression of the SF2/ASF proto-oncogene
A recent work on splicing factor SF2/ASF has shown that multiple posttranscriptional and translational mechanisms operate to fine-tune the level of this protein (Sun et al., 2010). AS-NMD is one of the mechanisms that control the expression of a large number of pre-mRNA processing factors, many of which directly modulate AS-NMD of their own transcript, thus maintaining, through a sort of feedback mechanism, their homeostatic level (Isken and Maquat, 2008). Splicing regulators may also modulate AS-NMD in transcripts of other RNA-binding proteins. This is the case of two pairs of closely related hnRNP proteins—polypyrimidine tract-binding protein (PTB)/neural PTB (nPTB) and hnRNP L/hnRNP LL—that control their relative abundance during cell differentiation through AS-NMD (Spellman et al., 2007; Rossbach et al., 2009). We have identified another example of regulated AS-NMD in which the level and/or phosphorylation status of Sam68 affects the level of SF2/ASF by regulating unproductive splicing in the 3′ UTR of SF2/ASF transcripts. As observed for PTB/nPTB and hnRNPL/hnRNPLL pairs, regulation of the SF2/ASF protein level by Sam68 is involved in cell differentiation programs, namely the EMT–MET transitions. The identification of a regulative circuit in which a splicing regulator, Sam68, controls the level of an unrelated one, SF2/ASF, opens a new layer of complexity in splicing regulation. In particular, it unveils a hierarchy of actions between splicing factors in which Sam68 links the signaling pathway to downstream effectors such as SF2/ASF. Thus far, we know only one target of this circuit, i.e., the Ron proto-oncogene that, through AS, produces the ΔRon isoform able to trigger EMT. However, it is likely that other transcripts for proteins involved in the EMT program are also controlled.
We found that Sam68, an ERK1/2 target, binds to A/U-rich motifs near the UCEs that flank the 3′ UTR-intron. Interestingly, the association between UCEs and Sam68 binding sites in the SF2/ASF gene is evolutionarily conserved (Fig. S1). In particular, the distance between binding site B (Fig. 5) and the downstream UCE is identical (117 bp) in the rat and human genes, and the B site is the only one conserved in mice (Fig. S1). This suggests a relevant function of this element in the AS of SF2/ASF transcripts that, as indicated by EST analysis, occurs in mice and rats as well.
Connection between the ERK1/2 signaling pathway and splicing control
The mechanisms used by oncogenes or tumor suppressors to regulate malignant transformation are becoming progressively better understood. Recently, the emphasis on crucial events during tumor progression is changing, as many molecular and epigenetic changes seem to cooperate in altering tumor cell behavior. Despite of its prevalence and importance (Ghigna et al., 2008), very little is known about the role of AS in tumorigenesis.
A remarkable finding of our analysis is that morphological and molecular markers of mesenchymal cells and AS-NMD of SF2/ASF transcripts are controlled by soluble factors present in the epithelial cell–conditioned media. We have shown that these factors repress the activity of the extracellular signal–regulated kinase ERK1/2 and Sam68 phosphorylation, thus leading to a switch in the splicing profile of the SF2/ASF transcript. Interestingly, the role of the ERK1/2 pathway seems to be specific, as we did not detect alteration of the signaling pathway identified by p38 kinase, another cascade regulated by extracellular cues.
The ERK1/2 pathway mediates the response to growth signals and controls cell proliferation and survival, cell adhesion, angiogenesis, and cancer metastasis (Fang and Richardson, 2005). This signaling cascade includes several proto-oncogenes and is deregulated in approximately one third of all human cancers (Dhillon et al., 2007). Interestingly, ERK1/2 activation is associated to induction of EMT (Thiery and Sleeman, 2006). Among the hundreds of ERK1/2 substrates, very few direct effectors have been identified with respect to induction of EMT. Even though the molecular details remain poorly understood, it has been suggested that ERK1/2 operates through regulation of transcription (Fang and Richardson, 2005; Thiery and Sleeman, 2006). Notably, during epidermal differentiation, ERK1/2 activation induces higher levels of transcripts for RNA splicing proteins (Gazel et al., 2008). Our data suggest that, at least for SF2/ASF, the increment in mRNA levels may reflect inhibition of unproductive splicing, raising the possibility that posttranscriptional regulation of RNA stability by AS-NMD might account for part of these changes in mRNA levels. Altogether, our results therefore suggest that ERK1/2 may contribute to tumor metastasis by modulating AS events critically linked to EMT.
It is commonly accepted that tumor cells accumulate widespread chromosomal changes and somatic mutations that predispose to EMT and metastasis. Although the highly aberrant genomes of tumor cells are consistent with this idea, our data support an alternative model in which a subset of the tumor metastasizes as a consequence of its unique responsiveness to diverse microenvironmental cues. An unresolved issue is whether diffusible factors in the tumor microenvironment are also involved in MET induction. It has been suggested that, in the absence of signals that actively promote EMT, mesenchymal tumor cells could revert to the epithelial state once they reached the final metastatic location as a consequence of a transcriptional default mechanism (Polyak and Weinberg, 2009). Interestingly, our data indicate that, at least in the case of SW480 cells, factors secreted by epithelial cells act dominantly to activate MET. It is, therefore, plausible that cancer cells may undergo MET in response to signals coming from surrounding epithelial cells.
Although MET is induced in mesenchymal-like SW480 cells by factors present in the conditioned medium of epithelial-like H-cells, we failed to observe the opposite phenomenon, i.e., induction of mesenchymal markers in epithelial-like H cells in response to factors expressed by mesenchymal-like L cells (unpublished data). This could be simply due to the fact that relevant growth factors expressed by L cells are too diluted to trigger EMT in H cells. An alternative explanation takes into account the fact that SW480 cells express a constitutively active Ras (K-RasV12) mutant that activates ERK1/2 (Dhillon et al., 2007) and expression of mesenchymal markers. Indeed, pharmacological inhibition of ERK1/2 activity in L cells induces MET. Interestingly, the transition of mesenchymal SW480 cells to an epithelial-like state (MET) is accompanied by inactivation of the ERK1/2 pathway (Fig. 4). Thus, in line with recent findings (Gibbons et al., 2009) and despite having numerous somatic genetic mutations, SW480 cells retain a marked plasticity and may undergo reversible EMT. Different possible molecular mechanisms by which H cells bypass constitutive K-RasV12 can be proposed, and their relevance will be investigated in the future. Interestingly, some of them involve the expression of specific microRNAs or AS events in kinases acting downstream of Ras.
The splicing regulator Sam68 is a master controller of AS in response to ERK1/2 activation
Sam68 is a member of the STAR family of RNA-binding proteins that links extracellular signals to RNA metabolism (Lukong and Richard, 2003). The molecular mechanism through which Sam68 regulates AS decisions in response to signaling cascades is poorly understood. Previously, it has been shown that phosphorylation of Sam68 by ERK1/2 stimulates inclusion of the CD44 exon v5 (Matter et al., 2002), an exon frequently included during tumor progression, and the production of the oncogenic cyclin D1b variant in the human CCND1 gene (Paronetto et al., 2010). Moreover, Sam68 modulates AS of human BCL-X (Paronetto et al., 2007) and murine Sgce (Chawla et al., 2009) gene transcripts. Here, we have added the SF2/ASF proto-oncogene to the list of Sam68 substrates. Our data indicate that, in addition to being a direct target of signaling pathways, Sam68 may transduce the signal to a downstream splicing regulator, SF2/ASF, by controlling its mRNA and protein levels through AS-NMD. Moreover, similarly to ERK1/2, Sam68 impact on EMT/MET programs and its overexpression prevents cell density–driven MET in SW480. Because of the relevance of EMT/MET in the formation of metastases, it is tempting to propose a role for Sam68 in cancer progression. In accord with this hypothesis, tyrosine phosphorylation of Sam68 is elevated in human breast and prostate tumor tissues and cell lines (Paronetto et al., 2004; Babic et al.,2004; Lukong et al., 2005). Moreover, the expression levels of Sam68 are higher in human prostate cancer tissues (Busà et al., 2007; Rajan et al., 2008), and Sam68 supports prostate cancer cell proliferation and resistance to chemotherapeutic agents (Busà et al., 2007). Further indications of a role in cell transformation come from studies in mutant mice in which Sam68 haplo-insufficiency delays the onset of induced breast tumors and decreases the number of metastasis in vivo (Richard et al., 2008). Collectively, these data suggest that the Sam68 expression level and phosphorylation status play a role in tumorigenesis and point to Sam68 as a proto-oncogene. As indicated by our analysis, Sam68 could contribute to the malignant transformation of epithelial cancers by up-regulating the expression of the proto-oncogene SF2/ASF and inducing a posttranscriptionally regulated EMT.
Materials and methods
Cell culture, transfection, treatments, and immunofluorescence
Human colon carcinoma-derived SW480 cells (American Type Culture Collection, No. CCL-228) were grown in RPMI media supplemented with 10% FBS, 2 mM l-glutamine, and 25 mM Hepes. To obtain high-density (H) and low-density (L) conditions, SW480 cells were plated at 8,000 and 500 cells/mm2, respectively. For the transient transfection, we used Lipofectamine 2000 (Invitrogen) as recommended by the provider. After 24 h from transfection, H or L cells were plated into 35-mm tissue culture wells and analyzed after an additional 24 h. SW480 cells, stably transfected with the cDNA of mouse Myc-tagged Sam68 or with the empty vector pcDNA3.1 (Invitrogen), were selected in 800 µg/ml G418.
Immunofluorescence was performed on cells fixed in 3% paraformaldehyde and stained with antibodies to β-catenin (Millipore) or E-cadherin (BD) followed by indirect immunofluorescence using TRITC-conjugated anti–mouse antibody (Jackson ImmunoResearch Laboratories, Inc.). Nuclei were stained with 0.1 µg/ml DAPI (Sigma-Aldrich). Slides were then mounted with MOWIOL reagent (EMD) and analyzed by using an optical microscope (IX71; Olympus) equipped with a 60× NA1.25 oil immersion objective lens (Olympus; Fig. 1 A). Immunofluorescence images were acquired at room temperature with a digital camera (CoolSNAP; Photometrics) and processed using the MetaMorph software (version 6.0/6.1; MDS Analytical Technologies). Analysis in Fig. 3 D was performed with a digital scanning confocal microscope apparatus (TCS-SP2; Leica) equipped with a 63× NA 1.32 oil immersion objective. We used the 543-nm laser line for the TRITC fluorescence (detected at λ > 570 nm). Images were exported to Photoshop (Adobe). No manipulations were performed other than adjustments in brightness and contrast.
The cell co-culture experiment was performed with tissue culture inserts bearing a 0.4-µm pore size polyethylene terephthalate membrane (Corning). H or L cells were plated into 12-mm tissue culture wells. After 24 h, cell monolayers were rinsed, and an insert, containing L or H cells cultured on top of the porous filter, was placed inside each well. Cells in the bottom well were analyzed after 24 h of co-culture.
Conditioned medium (CM) was obtained by plating H or L SW480 cells into 35-mm tissue culture dishes in RPMI with 3% FBS. CM was collected 24 h later and centrifuged to discard cell debris.
H cells were treated with 10 µg/ml cycloheximide (Sigma-Aldrich) for 6 h before analysis. L cells were treated with 40 µM U0126 (Sigma-Aldrich) and analyzed after 24 h. As a control, L cells were treated with DMSO.
Normal human tissues and cancer specimens
RNAs prepared from pathologically confirmed primary nonfamilial colon adenocarcinomas and neighboring normal colon tissues have been described previously (Ghigna et al., 2005). 3 µg of total RNA from normal human tissues (Clontech) and from colon tumors was analyzed with RT-PCR.
To generate the plasmid containing the WT 3′ UTR region of SF2/ASF transcripts, this sequence was PCR amplified with primers ASF-A and -B (Table S1) by using cDNA from L cells. The amplification band was then cloned into the EcoRV site of pcDNA3.1(+) (Invitrogen) and then sequenced. The mutated minigenes Mut A, Mut B, Mut A+B, Mut A1, Mut B1, and Mut A1+B1, all in pcDNA3.1(+), were generated by PCR-mediated mutagenesis and sequenced. The GFP-tagged Sam68 expression plasmids were provided by D. Elliott (Institute of Human Genetics, Newcastle University, Centre for Life, Newcastle upon Tyne, England, UK), whereas Myc-tagged Sam68-mut1 was provided by H. Köning (Forschungszentrum Karlsruhe GmbH, Institut für Toxikologie und Genetik, Karlsruhe, Germany).
3 µg of DNase-treated total RNA was retro-transcribed with d(T)18 and Superscript II RT (Invitrogen). An aliquot (1/20th) was then PCR amplified. For analysis of AS-NMD of SF2/ASF RNA, we used primers ASF-A or ASF-D in combination with ASF-B, whereas to detect total SF2/ASF transcripts, we used ASF_cost_for and ASF_cost_rev (Table S1). Total RNA from SW480 cells, transfected with SF2/ASF 3′ UTR minigenes, were RT-PCR analyzed with the primers ASF-A and BGHrev (Ghigna et al., 2005), the latter of which anneals to the vector sequence. Primers used to amplify Ron, E-cadherin, and GAPDH transcripts have been described previously (Ghigna et al., 2005). For other EMT markers, we used VimEX6 with VimEX6-7 and SlugEx2 with SlugEx2-3. All primers are listed in Table S1.
An aliquot (1/20th) of the RT reaction was used in a quantitative PCR with the QuantiTec SYBR Green PCR kit (QIAGEN). PCR was performed on LightCycler 480 (Roche). The level of GAPDH or HP0 transcripts was used to normalize the mRNA levels of SF2/ASF and Sam68, and the EMT markers E-cadherin, Slug, and vimentin (primers listed in Table S2). The expression of each gene was measured in triplicate in at least three independent experiments.
Western blot analysis
Cells were lysed in Laemmli buffer and analyzed in a Western blot by standard procedures (Rossi et al., 1999). The following primary antibodies were used: anti-SF2/ASF mAb96 (Invitrogen), anti-ERK1/2 (EMD), anti–phospho-ERK1/2 (EMD), anti–phospho-p38 (EMD), anti-p38 (EMD), anti–α-tubulin (Sigma-Aldrich), anti-Upf1/RENT1 (Bethyl Laboratories, Inc.), anti-Myc (Roche), and anti-GFP (Roche). Immunostained bands were detected by the chemiluminescent method (Thermo Fisher Scientific).
After being washed once with PBS, 2.3 × 107 H cells (corresponding to 3 wells of a 6-well tissue culture plate) and L cells (corresponding to 6 × 100-mm tissue culture dishes) were lysed in 1.5 ml of radio-immunoprecipitation assay (RIPA) buffer supplemented with protease inhibitors (complete tablet; Roche) and phosphatase inhibitors (PhosSTOP tablet; Roche). The lysate was sonicated twice at 50 W for 20 s and centrifuged at 12,000 rpm for 10 min at 4°C to remove cell debris. Cell lysates were precleared by incubating for 2 h at 4°C with 40 µl of A/G plus–agarose beads (Santa Cruz Biotechnology, Inc.). 10 µl of anti-Sam68 (C-20; Santa Cruz Biotechnology, Inc.) or anti-IgG (Santa Cruz Biotechnology, Inc.) antibodies were conjugated with 40 µl of A/G plus–agarose beads (Santa Cruz Biotechnology, Inc.) in RIPA buffer for 1 h at 4°C. Precleared lysates were divided in half and incubated overnight at 4°C with anti-Sam68 or with anti-IgG beads. After centrifugation, the beads were washed three times with RIPA buffer and incubated for 10 min at 95°C with 24 µl of SDS-PAGE protein sample buffer. All the immunoprecipitated materials were then analyzed by Western blotting with anti-Sam68 antibody C1-7 (Santa Cruz Biotechnology, Inc.) in parallel with a fraction corresponding to 1/10 of the total lysate (input). Western blots were analyzed with an antibody directed against Phospho-Thr-Pro (Cell Signaling Technology).
In vitro RNA transcription and pull-down assay
100-mer RNA probes containing the first or the second Sam68 binding site in the SF2/ASF 3′ UTR region or the entire 3′ UTR-intron (695 mer) were transcribed according to established protocols (Buratti et al., 2004), using as templates the minigenes SF2/ASF 3′ UTR WT, Mut A+B, and Mut A1+B1 and the following set of oligos: T7bsA with bsA, T7bsB with bsB, and T7bsA with bsB (Table S1). Sense and antisense oligos carried a T7 polymerase promoter sequence and a consensus binding motif for TDP-43, respectively. For in vitro pull-down assays, 500 pmol of the target RNA was placed in a 400-µl reaction mixture containing 100 mM NaOAC, pH 5.0, and 5 mM sodium m-periodate (Sigma-Aldrich); incubated for 1 h in the dark at RT; ethanol precipitated; and resuspended in 100 µl of 0.1 M NaOAC, pH 5.0. 300 µl of adipic acid dihydrazide agarose bead 50% slurry (Sigma) was added, and the mixture was equilibrated in 100 mM NaOAC, pH 5.0, then incubated for 12 h at 4°C on a rotator. The RNA beads were then pelleted, washed three times with 1 ml of 2 M NaCl, and equilibrated in washing buffer (5 mM Hepes, pH 7.9, 1 mM MgCl2, and 0.8 mM magnesium acetate). They were then incubated on a rotator with a protein mixture containing approximately 1 mg of HeLa cell nuclear extract for 30 min at RT in 1 ml final volume. The beads were then pelleted by centrifugation at 3,000 rpm for 3 min and washed four times with 1.5 ml of washing buffer before the addition of SDS sample buffer and loading on a 10% SDS-PAGE gel. The materials were analyzed by Western blotting with anti-Sam68 antibody C1-7 (Santa Cruz Biotechnology, Inc.) and with a rabbit polyclonal antibody directed against TDP-43 (made in the F.E. Baralle laboratory according to standard immunization procedures).
Ribonucleoprotein immunoprecipitation (RIP)
RNA immunoprecipitation was performed as described in Niranjanakumari et al. (2002). In brief, 1.8 × 107 L cells (corresponding to 2 × 150-mm tissue culture dishes) were fixed in 1% formaldehyde for 10 min at RT, and then the cross-link reaction was quenched by adding glycine for 5 min (0.25 M final). Cells were washed with PBS, scraped, collected by centrifugation, and resuspended in 10 ml of PBS. 1 ml was saved as input. The remaining cells were pelleted and then lysed in 1.5 ml of RIPA buffer, sonicated and then centrifuged to remove cell debris. Cell lysates were precleared by incubating for 2 h at 4°C with 40 µl of A/G plus–agarose beads (Santa Cruz Biotechnology, Inc.). 4 µg of anti-Sam 68 (C-20; Santa Cruz Biotechnology, Inc.) or anti-IgG (Santa Cruz Biotechnology, Inc.) was conjugated with 40 µl of A/G plus–agarose beads (Santa Cruz Biotechnology, Inc.) for 1 h at 4°C. Precleared lysates were divided in half and incubated overnight at 4°C with anti-Sam68 beads or with anti-IgG beads. The beads were washed three times with RIPA buffer and the cross-linking was reversed by incubating the beads in 40 µl of PBS at 70°C for 45 min. RNA was extracted with TRIzol (Invitrogen) according to manufacturer’s instructions, and DNase-treated RNA was used in reverse transcriptase with random hexamers and Superscript II RT (Invitrogen). Quantitative PCR was performed with ASFbsB-for and ASFbsB-rev primers (Table S2).
RNA interference was performed as described previously (Elbashir et al., 2001). For Upf1, SW480 cells were transfected at 50% confluence with Upf1 oligo (5′-TTCCACTGCTAAAACTGAA-3′) using Oligofectamine (Invitrogen). After 24 h, cells were seeded at high density into 35-mm tissue culture wells and assayed after an additional 24 h. For Sam68, 5 × 105 SW480 cells were transfected three times at 24 h intervals with Sam68-1 oligo (Cheng and Sharp, 2006) and assayed 24 h after the third transfection. As a control in all experiments, cells were transfected with GL2-luciferase oligo (Elbashir et al., 2001).
Online supplemental material
Fig. S1 shows the association between UCEs and Sam68 binding sites in mouse, rat, and human SF2/ASF genes. Fig. S2 shows the analysis of SF2/ASF AS-NMD and Sam68 expression in normal human tissues and colon cancer. Fig. S3 shows the effect of mutations in Sam68 binding sites on SF2/ASF AS-NMD. Fig. S4 shows the effect of Sam68 overexpression in H cells on the splicing profile of transcripts encoded by SF2/ASF minigenes. Tables S1 and S2 show the sequences of the oligonucleotides used for the PCR and qPCR reactions, respectively.
