Phosphoinositide 3-kinase (PI3K) p110 isoforms are membrane lipid kinases classically involved in signal transduction. Lipopolysaccharide (LPS)-activated macrophages constitutively and abundantly secrete proinflammatory cytokines including tumor necrosis factor-α (TNF). Loss of function of the p110δ isoform of PI3K using inhibitors, RNA-mediated knockdown, or genetic inactivation in mice abolishes TNF trafficking and secretion, trapping TNF in tubular carriers at the trans-Golgi network (TGN). Kinase-active p110δ localizes to the Golgi complex in LPS-activated macrophages, and TNF is loaded into p230-labeled tubules, which cannot undergo fission when p110δ is inactivated. Similar blocks in fission of these tubules and in TNF secretion result from inhibition of the guanosine triphosphatase dynamin 2. These findings demonstrate a new function for p110δ as part of the membrane fission machinery required at the TGN for the selective trafficking and secretion of cytokines in macrophages.
The constitutive trafficking and secretion of newly synthesized proteins in mammalian cells is a complex, multistep pathway that is regulated by many protein and lipid families (Mellman and Warren, 2000). Key steps in this pathway include the formation of pleiomorphic, membrane-bound carriers for the transport of newly synthesized cargo through the cell (Bard and Malhotra, 2006). The ability to track fluorescently tagged cargo by live-cell imaging has revealed much about the behavior of these carriers, but many aspects of protein transport in secretory pathways remain ill defined (Hirschberg et al., 1998; Polishchuk et al., 2000; Keller et al., 2001; De Matteis and Luini, 2008).
The abundant, constitutive secretion of proinflammatory cytokines in macrophages represents a biologically and clinically important secretory pathway. Some features of this pathway are paradigmatic for eukaryotic cell function, whereas others have emerged as elegant adaptations for macrophage-specific functions in innate immunity (Murray et al., 2005a; Stow et al., 2006). Activation of macrophages by lipopolysaccharide (LPS) or other toll-like receptor (TLR) ligands initiates the synthesis, trafficking, and secretion of proinflammatory cytokines (Gordon, 2007; Stow et al., 2009). TNF is one of the major early response inflammatory cytokines released by macrophages. Although TNF is an essential proponent of inflammation and immunity, its overabundant secretion from activated macrophages in chronic inflammatory diseases is highly detrimental in a clinical context (Beutler, 1999). Therefore, it is imperative to fully define and understand the regulators of TNF trafficking and secretion.
Newly synthesized transmembrane precursors of TNF are transported from the TGN to recycling endosomes from where TNF can be rapidly deployed to phagocytic cups or filopodia at the cell surface for cleavage and release (Murray et al., 2005a; Stow et al., 2009). LPS up-regulates the expression of specific membrane fusion proteins (Pagan et al., 2003; Murray et al., 2005b; Stow et al., 2006) and increases the budding of TGN-derived membrane carriers to facilitate TNF trafficking and secretion (Lock et al., 2005; Lieu et al., 2008). Thus, in macrophages, key features of constitutive secretion are tightly linked to cell activation, presumably through cell signaling pathways. How signaling and membrane trafficking are coordinated during macrophage activation is unclear, and thus, we sought to identify additional regulators involved in stimulus-coupled cytokine release.
Phosphoinositide 3-kinases (PI3Ks) are ubiquitous modulators of cellular membrane lipids for signaling and trafficking events. Members of the three mammalian PI3K classes (I–III), which differ in their molecular structures and substrate specificities, generate 3′-phosphorylated phosphoinositides on the cytoplasmic leaflet of membrane bilayers for diverse roles in signal transduction, cytoskeletal dynamics, and membrane trafficking (for reviews see Martin, 1998; Vanhaesebroeck et al., 2001; Di Paolo and De Camilli, 2006). The classical signal-transducing class I PI3Ks are heterodimers comprising four catalytic isoforms (p110α, p110β, p110δ, or p110γ) complexed to their membrane-targeting adaptors. These represent the only class of PI3Ks that can metabolize phosphatidylinositol-4,5-bisphosphate (PtdIns(4,5)P2) to yield phosphatidylinositol-3,4,5-bisphosphate (PtdIns(3,4,5)P3) in vivo, often in response to cell activation. PtdIns(3,4,5)P3 plays a major role in delineating docking sites for a variety of protein effectors possessing the pleckstrin homology domains, including serine/threonine kinases, tyrosine kinases, nucleotide exchange factors, and GTPases, which control a diversity of cellular functions, exquisitely under PI3K regulation (Vanhaesebroeck and Waterfield, 1999; Deane and Fruman, 2004). Class I PI3Ks have not previously been implicated in regulation of constitutive secretion (Lindmo and Stenmark, 2006).
In this study, our experiments led us to examine a role for PI3K in TNF secretion in macrophages. Our findings show a new and unexpected function for one member of the class I PI3K subfamily in intracellular trafficking at the level of the TGN.
The p110δ isoform of PI3K regulates constitutive secretion of TNF
As one approach to identifying molecular regulators of intracellular TNF trafficking, a screen of pharmacologic agents was performed in LPS-activated mouse macrophages. Results showed that treatment with either of the pan-PI3K inhibitors, wortmannin or LY294002, altered TNF secretion. In an earlier study, wortmannin added before LPS was found to increase the amount of TNF secreted from peritoneal macrophages (Park et al., 1997). Inhibitors in our experiments were added with LPS to modify subsequent trafficking, and under these conditions, wortmannin and LY294002 strikingly suppressed TNF secretion over a 6-h time course in RAW264.7 cells (Fig. 1 A). Titrated into culture supernatants, LY294002 reduced TNF secretion in a concentration-dependent manner, optimally at >25 µM (by ∼60−80%) over the time course (Fig. S1 A). The more potent wortmannin maximally reduced TNF secretion by up to 70% at low nanomolar concentrations (<250 nM) over 6 h, which is consistent with its relatively short half-life (Fig. S1 B; Vanhaesebroeck and Waterfield, 1999). At these concentrations, both drugs are known to inhibit most subtypes of PI3K, particularly the class I kinases (Fruman et al., 1998). Secondary testing using specific inhibitors to the different class I catalytic isoforms was performed (Fig. 1 B). LPS-stimulated TNF secretion was significantly reduced (by 60%) by 5 µM IC87114, at which concentration this inhibitor is highly selective for p110δ (Sadhu et al., 2003). The p110β-selective inhibitor TGX221 also affected TNF secretion at the highest concentration tested (500 nM), which can also inactivate p110δ (Jackson et al., 2005). In contrast, other p110 inhibitors had only marginal effects on TNF secretion. These results provided initial evidence that PI3K, specifically its p110δ isoform, is active in modulating the constitutive secretion of TNF.
The trafficking of TNF to the cell surface in LPS-activated macrophages can be assayed by sequential immunostaining of plasma membrane and intracellular pools of TNF (Pagan et al., 2003). LPS-activated macrophages incubated with a TNF-converting enzyme (TACE) inhibitor to block proteolytic release of TNF can be fixed and stained without permeabilization to detect surface-retained TNF (Fig. 1 C); subsequent permeabilization then allows for labeling of intracellular TNF, typically at the perinuclear Golgi complex (Fig. 1 C; Shurety et al., 2000). LY294002 treatment resulted in dramatically reduced surface staining of TNF, but TNF was still present inside the cells, detected as strong perinuclear Golgi staining (Fig. 1 C). To quantitate the effects of p110δ inhibition on the cell surface delivery of TNF, macrophages treated for 2 h with 5 µM IC87114 or pan-PI3K inhibitors (15 nM wortmannin or 25 µM LY294002) were subjected to similar staining procedures for flow cytometric analysis. All inhibitors caused a >60% reduction in staining intensity of surface TNF, relative to control cells, whereas staining of intracellular TNF was not significantly affected (Fig. 1 D and Fig. S2 A). Collectively, these data show that pan-PI3K or p110δ-selective pharmacologic inhibition blocks the surface delivery and secretion of TNF, without affecting its de novo synthesis. Moreover, inactivation of p110δ alone was as efficacious in blocking TNF surface delivery as pan-PI3K inhibition, suggesting that p110δ is the sole or predominant PI3K isoform active in this trafficking pathway.
TNF trafficking is blocked by siRNA-mediated knockdown of p110δ and by its genetic inactivation in mice
To directly test the requirement for p110δ in transporting TNF to the cell surface, small interfering (si) RNA knockdown was used to silence p110δ expression in RAW264.7 macrophages. Three siRNAs were designed to target p110δ, and one (siRNA3) effectively reduced the levels of endogenous p110δ in total cell lysates by ∼90% (Fig. 2 A) and diminished immunostaining of p110δ in cells (Fig. 2 B). Immunostaining revealed a somewhat unexpected perinuclear concentration of p110δ staining in the Golgi region that correspondingly disappeared with the knockdown. In response to LPS, the amount of TNF secreted was shown to correlate inversely with the level of p110δ knockdown (Fig. 2 C). In siRNA3-treated cells, staining of TNF at the cell surface was abolished (Fig. 2 B), and the level of secreted TNF in these cultures was decreased by >60% compared to controls or to cells transfected with siRNAs targeting other p110 isoforms (Fig. 2 C and not depicted). A rescue experiment was performed to rule out the possibility of siRNA off-target effects (Fig. 2 D and Fig. S3). Cells depleted of p110δ with siRNA3 were retransfected with an siRNA-resistant, wild-type (WT) plasmid (p110δ-WT). In cells now stained for exogenous p110δ, TNF staining was restored at the cell surface (Fig. 2 D and Fig. S3 A), indicating full rescue of TNF surface delivery. However, this rescue was not observed in cells transfected instead with an siRNA-resistant, kinase-dead plasmid (p110δ-kd; Fig. S3 B) nor by overexpression of a different PI3K (PI3KC2α; Fig. S3 C). These data thus provide evidence that the expression and kinase activity of p110δ is essential and nonredundant for effective cell surface delivery and secretion of TNF.
The in vivo function of p110δ can be studied in p110δ knockout mice (Clayton et al., 2002; Jou et al., 2002) and in mice lacking active p110δ, owing to a germline-inactivating knockin mutation (D910A) engineered in the p110δ kinase domain (Okkenhaug et al., 2002). Unlike the other class I PI3Ks, p110δ is predominantly and most highly expressed in leukocytes (Vanhaesebroeck et al., 1997; Okkenhaug and Vanhaesebroeck, 2003). Accordingly, homozygous mice with knockout or kinase-inactive mutant p110δ are viable but have a variety of immune cell signaling and functional defects (Vanhaesebroeck et al., 2005). The knockin transgenic strategy used to generate the p110δD910A/D910A mice provides an opportunity to investigate loss of p110δ kinase function without interfering with the molecular balance of other p110 isoforms and their associated adaptor subunits (Okkenhaug et al., 2002; Ali et al., 2004).
Therefore, we isolated bone marrow–derived macrophages (BMMs) from p110δD910A/D910A mice and WT littermates to study cytokine trafficking and secretion. Unstimulated WT and p110δD910A/D910A BMMs showed negligible TNF production or secretion (Fig. 3, A and C), as expected. In response to LPS stimulation, TNF secretion was detected in supernatants of both WT and p110δD910A/D910A BMMs by 2 h, and its secretion was maintained at high levels from 4–10 h only in WT cultures (Fig. 3 A). In contrast, TNF secretion from p110δD910A/D910A BMMs was severely reduced by 70–80% throughout the time course. This closely recapitulated the effects of IC87114 on LPS-stimulated secretion of TNF from RAW264.7 macrophages (Fig. 1 B). We also tested the ability of p110δD910A/D910A BMMs to effectively secrete cytokines other than TNF. Interleukin-6 (IL-6) is another proinflammatory cytokine whose biosynthetic trafficking pathway partially overlaps with that of TNF in RAW264.7 cells (Manderson et al., 2007). Upon LPS activation, both WT and p110δD910A/D910A BMMs produce IL-6, which was secreted alongside TNF (Fig. 3 B). Activated p110δD910A/D910A BMMs secreted IL-6 at levels similar to WT cells, which is consistent with only a modest impact of p110δ inactivation on secretion of this cytokine. Therefore, loss of p110δ activity selectively inhibits the trafficking and secretion of TNF but not IL-6 in BMMs. Although IL-6 secretion is not regulated by p110δ, it could nevertheless be reduced in RAW264.7 cells treated with LY294002 or wortmannin (Fig. S1, C and D, respectively), suggesting that other PI3K isoforms might be involved.
To confirm whether the observed reduction in TNF secretion from p110δD910A/D910A BMMs reflects a block in intracellular trafficking, cells were activated in the presence of the TACE inhibitor and stained for TNF for flow cytometric analysis. p110δD910A/D910A BMMs exhibited >80% lower surface TNF staining intensity than WT cells (Fig. 3 C and Fig. S2 B) despite similar levels of intracellular TNF. When individual BMMs were visualized by confocal microscopy, surface TNF staining on p110δD910A/D910A cells was minimal or absent, whereas intracellular TNF staining was still conspicuous (Fig. 3 D) and colocalized with GM130 at the Golgi complex (Fig. 3 E). Thus, these findings clearly show that p110δD910A/D910A BMMs still produce TNF but are defective in secreting it. This confirms in primary cells that inactivation of p110δ does not affect the synthesis of TNF, nor its accumulation in the Golgi complex, but that subsequent delivery to the cell surface for secretion is impaired.
LPS-inducible Golgi localization of p110δ
We next examined the localization and possible site of action for p110δ in macrophages. The p110 subunits of PI3K in various cell types are typically present in the cytoplasm or associated with plasma- and endomembranes at sites of their activation. Immunostaining of p110δ in LPS-activated RAW264.7 macrophages produced diffuse cytoplasmic staining and also concentrated p110δ labeling over the perinuclear Golgi complex that was costained for GM130 (Fig. 4 A). Staining with available antibodies to other isoforms produced only diffuse cytoplasmic staining, as shown for p110γ (Fig. 4 A). This reveals a novel localization for p110δ.
A biochemical approach was then used to assess and characterize the association of p110δ with Golgi membranes. Stacked Golgi membranes fractionated from homogenates of LPS-activated RAW264.7 cells contain TNF precursors as cargo; moreover, this TNF cargo can be recovered in a subset of carriers budded from the Golgi membranes after incubation in vitro with GTP-γS (Murray et al., 2005b; Manderson et al., 2007). In this study, a similar preparation was performed, and blotting revealed that p110δ was recovered mainly in the cytosol. p110δ was not detected as a resident protein on newly isolated or remnant Golgi membranes after budding; however, p110δ was recruited to membranes of budded carriers (Fig. 4 B). This carrier fraction also contained TNF as cargo. The adaptor protein γ-adaptin, which is also recruited from cytosol to carrier membranes, was blotted as a control to demonstrate carrier budding. These results confirm the transient association of p110δ with Golgi-derived membranes and further posit carrier membranes as a possible site of action for p110δ.
To further demonstrate an in situ recruitment of p110δ to Golgi membranes in response to acute LPS activation, we performed immunostaining of p110δ on perforated RAW264.7 macrophages from which the cytosol was depleted, leaving behind attached organelles (Wylie et al., 1999). The retention of nuclei and perinuclear Golgi complexes in cell remnants is shown by DAPI and GM130 labeling, respectively (Fig. 4 C). In unstimulated cells, some immunostained p110δ remained associated with Golgi after cell disruption. LPS activation of cells before disruption revealed markedly stronger staining of p110δ on the Golgi as early as 30 min and at 2 h as shown (Fig. 4 C, Fig. S4, and Video 1), which is consistent with recruitment of the kinase to these membranes. Strikingly, the timing of this LPS-inducible recruitment of p110δ correlates with the trafficking of a Golgi pool of newly synthesized TNF (Shurety et al., 2000) and with up-regulation of other known machinery needed for this trafficking (Murray et al., 2005a).
TNF accumulates in Golgi-derived tubular carriers after PI3K inactivation
Newly synthesized TNF transported out of the Golgi complex moves to recycling endosomes before its final delivery to the cell surface (Murray et al., 2005a; Braun et al., 2007; Manderson et al., 2007). Our results to this point suggested that p110δ may be acting at the Golgi before the delivery of TNF to recycling endosomes. To further substantiate the requirement of PI3K activity in Golgi export of TNF to recycling endosomes, cells that had accumulated intracellular TNF during PI3K inhibition were colabeled with either transferrin receptor (TfnR) as a recycling endosomal marker or with GM130. In control cells, TNF and TfnR staining overlapped in some peripheral recycling endosomes (Fig. 5 A). However, after PI3K inhibition, little or no TNF was observed in these TfnR-labeled structures, whereas TNF was still broadly colocalized with GM130 at the Golgi complex. This confirms that PI3K inhibition blocks transport of TNF before it is delivered to recycling endosomes, precisely at its point of exit from the TGN. Upon close examination of fixed macrophages treated with LY294002 (Fig. 5, A and B) or IC87114 (not depicted), we noted the de novo appearance of multiple TNF-stained tubules emanating from Golgi complexes. These tubules were reminiscent of tubular extensions of the TGN seen in live cells (Polishchuk et al., 2000; De Matteis and Luini, 2008), and they specifically resembled the TNF-carrying tubular carriers we have previously reported (Lock et al., 2005; Lieu et al., 2008). Immunostaining confirmed the presence of TNF in these tubules and appropriately, the Golgi-resident protein GM130 was detected in the source Golgi complex but not in the tubules themselves (Fig. 5, B and C). Such tubular carriers are typically highly dynamic and therefore seen most readily in live cells (Lock et al., 2005). Their appearance in fixed macrophages after PI3K inhibition suggested enhanced activity or stability. Counting confirmed a marked >85% increase in TNF-stained, Golgi-associated tubules after incubation with pan-PI3K inhibitors (Fig. 5 D).
Proteins in the GRIP-golgin subfamily bind to and delineate distinct subdomains of the TGN and tubular carriers arising therefrom (Munro and Nichols, 1999; Gleeson et al., 2004). The tubules responsible for transporting TNF as cargo are specifically demarked by the GRIP-golgin p230 (also known as golgin-245 or t–golgin-1) and can be labeled by expression of the YFP-tagged, membrane-binding GRIP domain of p230 (YFP-p230GRIP; Gleeson et al., 2004; Lock et al., 2005). Cotransfection of this YFP-p230GRIP and TNF-mCherry in activated RAW264.7 macrophages treated with LY294002 revealed tubules bearing both p230 and TNF labels (Fig. 5 E), indicating that the tubules seen under PI3K inhibition are bona fide TGN-derived tubular carriers for TNF.
Inactivation of p110δ blocks fission of TGN tubular carriers in live macrophages

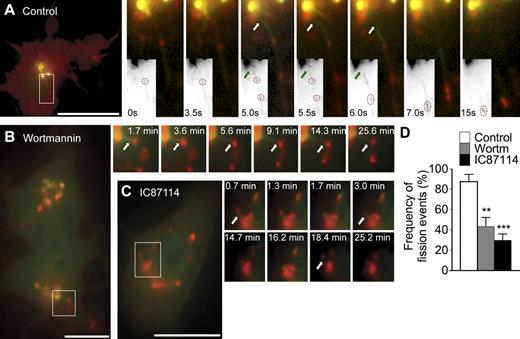

Our findings increasingly pointed to a novel role for p110δ at the level of TGN-derived exocytic tubular carriers. TGN carrier formation was then examined by high resolution, real-time imaging in live, activated RAW264.7 macrophages coexpressing YFP-p230GRIP and TNF-mCherry. YFP-p230GRIP tubules loaded with boluses of TNF-mCherry cargo were recorded emerging from the Golgi complex, often extending (up to ∼7 µm) and rapidly (within 5.5 s) undergoing fission to release one or more boluses of TNF-mCherry (Fig. 6 A and Video 2).
When macrophages were activated in the presence of wortmannin (Fig. 6 B and Video 3) or IC87114 (Fig. 6 C and Video 4), YFP-p230GRIP tubules loaded with TNF-mCherry cargo were also observed, confirming patent cargo loading and formation of tubular carriers. However, inhibitor treatment resulted in tubules that remained remarkably inactive after forming and did not release TNF-mCherry, even over prolonged periods of recorded time (≥30 min). These tubules were able to extend (to ∼5–8 µm) and retract normally during observation periods, showing that their movement by itself was unaffected, but they remained atypically attached to the TGN, denoting fission as the likely defective step. Quantification confirmed that the frequency of fission events in live cells was over twofold lower in cells treated with wortmannin (87.59 ± 7.01% vs. 43.06 ± 9.08%; Fig. 6 D) or LY294002 (not depicted) and at least threefold lower (87.59 ± 7.01% vs. 29.50 ± 6.30%) in cells treated with IC87114 (Fig. 6 D) compared with controls. Thus, in live macrophages, inactivation of p110δ results in newly synthesized TNF that is still correctly loaded into p230 tubular carriers but cannot exit the TGN because of an apparent block in tubule fission.
The kinase activity of p110δ on Golgi membranes would produce its product PtdIns(3,4,5)P3 at the same site. Accordingly, using a PtdIns(3,4,5)P3-specific antibody, we were able to detect some PtdIns(3,4,5)P3 upon LPS activation that colocalized with newly synthesized TNF at the Golgi (Fig. 7 A), and moreover, this staining disappeared from the membranes and from attached tubules containing TNF (Fig. 7 B, arrow) after treatment with IC87114. Thus, these data point to a pool of LPS-recruited active p110δ at the Golgi, congruent with the need to export newly synthesized TNF.
To further define how tubular fission is disrupted by inactivation of p110δ, we turned to other proteins known to induce membrane fission of Golgi-derived carriers. Such molecules include dynamin 2 (Dyn2), a large GTPase implicated in fission of TGN tubules transporting biosynthetic cargo (Jones et al., 1998; Cao et al., 2000; Kreitzer et al., 2000). Dyn2 also reportedly colocalizes with p230 at the TGN (Yang et al., 2001). When Dyn2 was overexpressed in activated macrophages, it broadly colocalized with YFP-p230GRIP on the TGN in addition to giving finely punctate, cytoplasmic immunostaining (Fig. 7 C). Treatment with IC87114 to inactivate p110δ dramatically diminished Dyn2 staining at the TGN in most cells (Fig. 7 C). Image analysis of TGN to cytoplasmic pixel intensities confirmed this loss of Dyn2 at the TGN (Fig. 7 D). This result confirms the dynamic recruitment of Dyn2 to TGN membranes seen previously in other cells (Cao et al., 2000; Kreitzer et al., 2000) and newly implicates PI3Kδ in Dyn2 recruitment. We also tested the functional consequence of blocking Dyn2 in preliminary experiments using the dynamin GTPase inhibitor dynasore (Macia et al., 2006). Dynasore treatment effectively abrogated LPS-stimulated TNF secretion comparable to the reduction observed from p110δD910A/D910A BMMs, producing only a small additive effect when used on these cells (Fig. S5 A). When dynasore was added to live RAW264.7 macrophages coexpressing YFP-p230GRIP and TNF-mCherry, dually labeled tubules were formed at the TGN but could not undergo fission (Fig. S5, B and C; and Video 5). Inhibition of Dyn2 thus appears to mimic the effect of inhibiting p110δ on p230/TNF tubule fission. These results now implicate Dyn2 as a necessary fission component for TNF trafficking in macrophages and a likely downstream effector of PI3Kδ.
The formation and fission of membrane tubules arising from the TGN as cargo carriers involves a complex array of proteins, many of them signaling proteins, such as the Gα and βγ subunits (Stow and Heimann, 1998; Jamora et al., 1999), PKD (Liljedahl et al., 2001; Hausser et al., 2005; Bard and Malhotra, 2006), and specific phospholipases (Chen et al., 1997; de Figueiredo et al., 1999; De Matteis and Luini, 2008; Yang et al., 2008). We now show in macrophages that an additional signaling protein from the PI3K family, PI3Kδ, is also part of this machinery. Our findings emerge from multiple approaches, including the use of pan-PI3K and isoform-specific pharmacologic inhibitors, as well as siRNA-mediated knockdown of the p110δ subunit in a macrophage cell line. These experiments consistently showed a marked, albeit incomplete, block in TNF secretion through selective retention of the cytokine within cells at the level of the Golgi complex. Genetic inactivation of p110δ in kinase-inactive mutant mice elaborated an even more profound block in the secretion of TNF from their BMMs. Our findings further demonstrate a novel location of kinase-active p110δ on Golgi membranes in activated macrophages. Live cell imaging provided the final mechanistic insights into the role of p110δ on these membranes in facilitating fission of TGN tubules carrying TNF. Collectively, these experiments reveal a new site of action and function for PI3Kδ as a component of membrane fission machinery at the TGN.
Although the activities of PI3Ks are conventionally confined to signal transduction at the plasma membrane or in endocytic processes, prior studies have anticipated some PI3K involvement in exocytic carrier functions. Early biochemical in vitro studies using isolated Golgi membranes reported a Vps34-like PI3K activity associated with constitutive carrier budding on the TGN (Jones et al., 1993; Jones and Howell, 1997). Another study has also proposed a PI3K association with a human TGN protein, TGN46 (Hickinson et al., 1997). More recently, a wortmannin-insensitive class II PI3K, PI3KC2α, has been localized to TGN-derived clathrin-coated vesicles (Domin et al., 2000; Gaidarov et al., 2001) in addition to its known association with neurosecretory granules (Meunier et al., 2005). Interference with this kinase was shown to inhibit both clathrin-mediated endocytosis and TGN to lysosomal transport (Gaidarov et al., 2001). In this study, PI3KC2α could not rescue the TNF secretory defect induced upon knockdown of PI3Kδ (Fig. S3 C). So, it is plausible that different PI3K enzymes may in fact locate to the TGN, possibly to distinct subdomains, to selectively regulate transport out of the TGN. In this study, the identification of p110δ in regulating TGN export of TNF selectively in p230 tubules (Lock et al., 2005; Lieu et al., 2008) further suggests this level of TGN suborganization. Whether p110δ has an exclusive influence on p230 tubules remains to be determined. The soluble cytokine cargo IL-6, which can be loaded into multiple types of tubules to exit the TGN (Manderson et al., 2007), is only minimally affected in its secretion from p110δ-inactivated macrophages, yet its secretion is considerably down-regulated by pan-PI3K inhibitors (Fig. S1). Thus, p110δ is likely to have selective control over p230-mediated TGN export, whereas other PI3K isoforms may regulate the carriers for trafficking of other cytokines.
When p110δ is inactivated by pan and specific inhibitors and in fixed or live cells (Figs. 5 and 6), p230 tubules extend from the TGN preloaded with TNF as cargo, but they do not detach. This effectively traps TNF in tethered carriers and ultimately blocks secretion of this cytokine. All aspects of this trafficking phenotype are closely mimicked in our experiments by inhibiting the membrane fission GTPase Dyn2. These results first support the conclusion that p110δ functions at the level of tubular fission, and second, they newly implicate Dyn2 itself as part of the specific fission machinery for TNF/p230 tubules. Similar extension of cargo-loaded tubules that cannot detach result from mutation, inhibition, and/or knockdown of Dyn2 (Cao et al., 2000; Kreitzer et al., 2000; Jaiswal et al., 2009), PKD1-3, and Gβγ proteins (Liljedahl et al., 2001; Bard and Malhotra, 2006), and these deficits in tubule detachment have been reported as prima facie evidence to identify these molecules and others as part of the membrane fission machinery. Different TGN tubules appear to have disparate fission-inducing pathways in which distinct signaling proteins are positioned as upstream regulators or direct effectors of fission. PKD, for example, is a known regulator of PI4KIIIβ (Hausser et al., 2005) and thus of PtdIns(4)P- and PtdIns(4,5)P2-mediated recruitment of fission factors (Godi et al., 1999, 2004); however, phospholipase D appears to play a more direct role in membrane fission of BARS-induced tubules (Yang et al., 2005, 2008). Along these lines, p110δ could act as an upstream regulator of Dyn2 either in its recruitment and/or activation via an LPS-dependent pool of PtdIns(3,4,5)P3. Our localization data (Fig. 7 C) suggest that p110δ kinase activity is required for the TGN recruitment of Dyn2. Future extensive studies are now warranted to fully characterize this step in assembling this membrane fission machinery.
In macrophages, p110δ functions as a key part of an LPS-induced machinery that simultaneously up-regulates the specific carriers and molecules needed to transport the wave of newly synthesized cytokines destined for secretion. It has recently emerged that specific steps in constitutive trafficking pathways can be modulated by signaling to accommodate cargo volume changes (Pulvirenti et al., 2008). We now show that the involvement of p110δ, which also signals downstream of TLRs (Okkenhaug and Vanhaesebroeck, 2003), serves to directly link LPS cell activation with membrane trafficking capacity. Indeed, fine tuning of trafficking at the level of the TGN carriers and at the subsequent recycling endosome and cell surface help to ensure that macrophages elicit the temporally controlled sequence of pro- and antiinflammatory cytokines so critical for orchestrating an inflammatory response.
p110δ is mainly expressed in leukocytes, as demonstrated by the varying effects of p110δ inactivation on B lymphocytes, T lymphocytes, natural killer cells, and mast cells in the p110δD910A/D910A mice. Anomalies in cytokine release have been documented in several of these cell types. Mast cells derived from p110δD910A/D910A mice have reduced degranulation and secretion of TNF and IL-6, protecting them from anaphylactic allergic reactions (Ali et al., 2004). B lymphocytes from these mice have reduced TLR-mediated IL-6 and IL-10 secretion (Dil and Marshall, 2009). Most of these experiments concluded that p110δ inactivation and loss of signaling disrupts cytokine synthesis. Not so in natural killer cells from p110δ knockout mice (Kim et al., 2007), where it was noted that intracellular levels of cytokines were sustained even though there was reduced secretion. Our findings now show squarely that TLR signaling successfully initiates the synthesis of TNF and IL-6 in p110δD910A/D910A BMMs. The defect as pinpointed in RAW cells, in BMMs, and by live imaging is at the level of trafficking and TGN exit. In showing that p110δ functions selectively in the fission of some TGN tubular carriers, we can now explain why the secretion of only some cytokines is abrogated in different immune cell types from p110δD910A/D910A and p110δ knockout mice. It will now be important to catalog which cytokines are transported by different TGN tubules in various cell types. Our findings highlight the potential of p110δ inhibition as a means for selective abrogation of cytokine secretion in the treatment of chronic inflammatory diseases.
Materials and methods
Antibodies, plasmids, and inhibitors
Rabbit polyclonal (Merck) and rat monoclonal (Auspep) antibodies recognizing mouse TNF (Murray et al., 2005a) and monoclonal antibodies specific for GM130 (BD), Dyn2 (BD), and TfnR (Invitrogen) were used. A rabbit polyclonal antibody raised against a 20–amino acid C-terminal peptide of p110δ was sourced from Abcam (Vanhaesebroeck et al., 1997). Rabbit antibodies against the other p110 isoforms (p110α, p110β, and p110γ) were obtained from Cell Signaling Technology. A mouse monoclonal antibody specific for PtdIns(3,4,5)P3 was obtained from Echelon (Papakonstanti et al., 2007). Secondary antibodies used were R-phycoerythrin (PE)-conjugated monoclonal antibody to mouse TNF (BD; Murray et al., 2005a) and Cy3- or Alexa Fluor 488–conjugated anti–mouse, –rabbit, or –rat IgGs (all obtained from Jackson ImmunoResearch Laboratories, Inc.). cDNA plasmids used for live cell imaging encoding full-length TNF N-terminally tagged with mCherry (TNF-mCherry) or the GRIP domain of p230 C-terminally tagged with YFP (YFP-p230GRIP) have all been previously described (Lock et al., 2005; Manderson et al., 2007; Lieu et al., 2008). Plasmids encoding untagged, full-length human WT p110δ or kinase-dead p110δ (R894P) have been described previously (Vanhaesebroeck et al., 1997). PI3KC2α-GFP was provided by J. Domin (Imperial College, London, England, UK). A plasmid encoding untagged, full-length WT Dyn2 was provided by M.A. McNiven (Mayo Clinic, Rochester, MN).
TAPI was purchased from EMD. Wortmannin and LY294002 were obtained from Sigma-Aldrich and Cell Signaling Technology, respectively. Small molecule p110-selective inhibitors YM024 (p110α), TGX-221 (p110β), and AS252424 (p110γ) were provided by S. Jackson (Australian Centre for Blood Diseases, Monash University, Melbourne, Victoria, Australia), and IC87114 (p110δ) was supplied by Symansis. Dynasore was obtained from Sigma-Aldrich. All inhibitors were reconstituted in DMSO (Sigma-Aldrich) with final concentration of DMSO in assays at 0.1% maximum.
Cell culture, activation, and transfection
The mouse RAW264.7 macrophage cell line was cultured in RPMI1640 (BioWhittaker; supplemented with 10% heat-inactivated Serum Supreme [Cambrex] and 1% l-glutamine [Invitrogen]) in humidified 5% CO2/95% air atmosphere at 37°C as previously described (Shurety et al., 2000). For experiments, cells were activated by addition of 100 ng/ml LPS (from Salmonella minnesota Re595; Sigma-Aldrich), and in some experiments, TNF cleavage was blocked with 10 µM TAPI. For transient expression of cDNAs or siRNAs, cells at ∼30–50% confluence were transfected using Lipofectamine 2000 (Invitrogen) according to the manufacturer’s instructions and as previously described (Manderson et al., 2007). Cells were typically used for experiments 2–6 h after transfection of cDNAs.
To silence mouse p110δ, cells were transfected with three different specific siRNAs (Pik3cd Stealth; numbered 1–3; Invitrogen), cultured for 24 h, retransfected under the same conditions, and cultured for another 24 h before LPS activation (2 h) in the absence or presence of TAPI. Because siRNA3 reproducibly gave the strongest knockdown (Fig. 2), it was used in all subsequent si/rescue experiments. Human p110δ (WT or kinase dead) plasmids are siRNA3 resistant based on a different targeted sequence, and these were separately transfected into p110δ-si–depleted cultures for 6 h.
Preparation of mouse BMMs
BMMs were derived by ex vivo differentiation of bone marrow progenitors extracted from femurs of at least 6- to 8-wk-old mice in accordance with the Australian animal ethics guidelines. BMMs were prepared from both p110δD910A/D910A kinase-dead mutant mice (Okkenhaug et al., 2002), and WT littermates inbred on the C57BL/6 genetic background were kept under pathogen-free conditions. Bone marrow cells were pooled from equal numbers of age-matched mice in each experiment and cultured for 7 d in growth medium supplemented with CSF-1 (10,000 U/ml; provided by Novartis) before use, as previously described (Hume and Gordon, 1983).
Assaying cytokine secretion
To determine the levels of secreted TNF or IL-6, macrophages (RAW, 2 × 105/ml; BMM, 5 × 105/ml) were stimulated with LPS, and commercial ELISA kits (BD OptEIA; BD) or the Cytometric Bead Array system (BD) was used to quantify cytokine concentrations in samples according to the manufacturer’s instructions. For assaying TNF secretion in the presence of wortmannin, LY294002, p110-selective inhibitors, or dynasore (each drug at the concentrations indicated in Figs. 1–7), DMSO (0.1% final) was added with LPS into the supernatant.
Fluorescence microscopy, live cell imaging, and flow cytometry
Immunofluorescence staining was performed as previously described (Pagan et al., 2003) on coverslip-adherent macrophages fixed for 1 h at room temperature in 4% paraformaldehyde. For some experiments (Fig. 4 C and Fig. S4), adherent macrophages were briefly air dried, and their exposed membranes ripped off by gentle application (30 s) and removal of partially damp filter paper (Millipore; Wylie et al., 1999). Remnant cytoskeletons, basal membranes, and organelles left adhering to the coverslip were used for immunostaining. Washes were performed in PBS with or without BSA for blocking. Where required, cells were permeabilized in 0.1% Triton X-100 for 5 min (or 0.5% saponin for 10 min; Fig. 7, A and B). Fixed cells were sequentially incubated with appropriate primary and secondary antibodies and, in some cases, with Alexa Fluor 633 phalloidin (Invitrogen) and DAPI (Invitrogen). Coverslips were mounted in 50% glycerol containing DABCO (1,4-dazabiccyclo-2,2,2-octaine; Sigma-Aldrich) or ProLong gold reagent (Invitrogen). Epifluorescence still images were taken with a 12-Mp differential contrast camera (DP71; Olympus) on an upright microscope (BX-51; Olympus) fitted for a 60× NA 1.35 or 100× NA 1.4 oil objective using the associated DPController software (version 2.1; Olympus). Confocal images were acquired on an inverted microscope (LSM510 META; Carl Zeiss, Inc.) with a 63× or 100× NA 1.4 oil objective and an inverted microscope (LSM710; Carl Zeiss, Inc.) with a 63× NA 1.4 or 100× NA 1.46 oil objective using the associated META (LSM510) or ZEN (LSM510/710) software. For z series, images were sequentially captured with 0.4–0.7-µm step intervals, analyzed, and reconstructed in 3D using LSM, ZEN, and Volocity software (version 3.7; PerkinElmer). All images saved or exported in TIFF files after acquisition were analyzed using ImageJ (version 1.41; National Institutes of Health) and Photoshop (version 9–12; Adobe).
For live cell experiments, RAW macrophages were cultured on glass-bottom 35-mm dishes (MatTek). Real-time epifluorescence imaging was performed on a 100× NA 1.4 microscope (IX81; Olympus) with a 12-bit 1,376 × 1,032–pixel high resolution camera with cells bathed in CO2-independent medium (Invitrogen; Lock et al., 2005; Murray et al., 2005a; Manderson et al., 2007) containing LPS and a PI3K inhibitor or dynasore and kept at 37°C inside the microscope incubator. Time-resolved image acquisition was controlled using the associated CelR software (version 2.5; Olympus). Frame capture rates were 0.5 s–0.1 min, with total acquisition periods of 15 s–40 min. Individual channels were captured sequentially, with typical capture rates of 0.1–1 s for YFP and 0.08–0.4 s for mCherry. Videos 1–5 were analyzed, cropped (if required), constructed using CelR, ImageJ, and Volocity, and exported as QuickTime videos (Apple) with playback speeds of 3 frames/s.
For flow cytometry, cultured cells were harvested, pelleted, and resuspended sequentially in PBS, 2% paraformaldehyde (30 min), BSA buffers, and PE-conjugated rabbit anti-TNF antibody (1 h) to detect cell surface TNF. To subsequently detect intracellular TNF, cells were pelleted and resuspended in 0.1% Triton X-100 (5 min) followed by rat anti-TNF antibody (1 h) and Alexa Fluor 488 goat anti–rat IgG (30 min) with in-between blocking washes. All steps were performed at 4°C. Cells were finally subjected to flow cytometric analysis on an LSR II (BD) using the associated acquisition software (FACSDiva; BD). Data were analyzed using WinMDI software (version 2.8; J. Trotter, The Scripps Research Institute, La Jolla, CA). Cells were gated on forward scatter/side scatter characteristics and on unstained and nonspecific isotype antibody controls. Levels of TNF fluorescence in each channel were assessed on the basis of mean fluorescence intensity in arbitrary units. All isotype-matched antibodies were purchased from BD.
Preparation of cell lysates, SDS-PAGE separation, and Western blotting
Cells were washed with PBS, harvested, and lysed in 10 mM Tris, pH 7.4, containing 1 mM EDTA, 0.5% Triton X-100, and Complete protease inhibitors (Roche) by passaging through a series of successively smaller needles. Lysates were centrifuged for 10 min at 17,000 g, and supernatants were assayed for protein content (Bradford assay; Bio-Rad Laboratories) before SDS-PAGE protein separation and analysis by Western blotting as described previously (Shurety et al., 2000). A stacked Golgi membrane fraction and subsequent Golgi-derived budded carriers were prepared from RAW264.7 macrophages stimulated with LPS for 2 h by a previously described method (Heimann et al., 1999; Wylie et al., 2003). In brief, postnuclear supernatants of homogenized macrophages were separated by ultracentrifugation on a discontinuous sucrose gradient to produce a stacked Golgi fraction. Both cytosol and Golgi stacks were sampled for Western blotting. The Golgi membranes were incubated in HKM buffer (20 mM KCl, 2.5 mM Mg acetate, and 25 mM Hepes-KOH, pH 7.4) in the presence of 0.1 mM GTP-γS and cytosol for 30 min at 37°C to allow budding of carriers. Golgi membranes were recovered by centrifugation at 17,500 g for 10 min at 4°C. Budded carriers were recovered from the supernatant by discontinuous sucrose gradient centrifugation as described previously (Heimann et al., 1999). Samples of cytosol, budded carriers, and remnant Golgi were analyzed by Western blotting.
Statistical analysis and significance
Statistical analysis was performed by two-tailed Student’s t test using Prism software (version 5; GraphPad Software, Inc.). P < 0.05 was considered significant.
Online supplemental material
Fig. S1 shows the effects of pan-PI3K inhibitors on LPS-stimulated cytokine secretion from RAW264.7 macrophages. Fig. S2 shows representative density plots from flow cytometric analysis of surface and intracellular TNF levels in RAW264.7 and BMMs. Fig. S3 shows rescue of p110δ expression and TNF trafficking in siRNA–knocked down RAW264.7 macrophages. Fig. S4 shows 3D profiles of p110δ localization at the Golgi membranes. Fig. S5 shows the effects of inhibiting GTPase Dyn2 on TNF secretion and tubular fission. Video 1 shows a 3D reconstruction demonstrating in situ association of p110δ with Golgi membranes. Video 2 shows a typically dynamic p230/TNF tubule undergoing fission at the TGN in a representative activated macrophage. Video 3 shows a p230/TNF tubule that has formed at the TGN but cannot undergo fission in representative activated macrophages treated with wortmannin. Video 4 shows a p230/TNF tubule that has formed at the TGN but cannot undergo fission in a representative activated macrophage treated with IC87114. Video 5 shows p230/TNF tubules that formed at the TGN but cannot undergo fission in a representative activated macrophage treated with dynasore.
