Clathrin-mediated endocytosis of surface receptors and their bound ligands (i.e., cargo) is highly regulated, including by the cargo itself. One of the possible sources of the observed heterogeneous dynamics of clathrin-coated pits (CCPs) might be the different cargo content. Consistent with this, we show that CCP size and dynamic behavior varies with low density lipoprotein receptor (LDLR) expression levels in a manner dependent on the LDLR-specific adaptors, Dab2 and ARH. In Dab2-mCherry–expressing cells, varying LDLR expression leads to a progressive increase in CCP size and to the appearance of nonterminal endocytic events. In LDLR and ARH-mCherry–expressing cells in addition to an increase in CCP size, turnover of abortive CCPs increases, and the rate of CCP maturation decreases. Altogether, our results underscore the highly dynamic and cargo-responsive nature of CCP assembly and suggest that the observed heterogeneity is, in part, related to compositional differences (e.g., cargo and adaptors) between CCPs.
Clathrin-mediated endocytosis (CME) requires the coordination of multiple molecular events for the assembly and maturation of clathrin-coated pits (CCPs), including incorporation of transmembrane receptors (hereafter referred to as cargo) through selective adaptor proteins. Recently, based on lifetime decomposition, we identified three CCP subpopulations, termed early abortive, late abortive, and productive CCPs (Loerke et al., 2009). Our data suggested that aberrant structures not suited for completion abort, whereas productive CCPs are stabilized and complete their maturation to form endocytic clathrin-coated vesicles (CCVs). Thus, the overall rate of CME measured biochemically depends on four variables: the (i) density/number of productive CCPs, (ii) efficiency of CCP maturation, (iii) rate of CCP maturation, and (iv) cargo/CCP, which in turn depends on CCP size and/or the packaging efficiency of cargo molecules. Our data also suggested the existence of an endocytic restriction/checkpoint mechanism that receives input through endocytic accessory proteins, monitoring among other factors coat assembly, membrane curvature, and cargo selection (Loerke et al., 2009; Mettlen et al., 2009). The incorporation of certain cargo/adaptor protein complexes (i.e., transferrin receptor/AP2) into CCPs increases the efficiency of CCP maturation without affecting CCP density or CCP maturation rate (Loerke et al., 2009; Mettlen et al., 2009). Whether other cargo, using other adaptor proteins, have the same effect, is yet unknown.
Transferrin (Tfn) and low density lipoprotein (LDL) receptors (TfnRs and LDLRs, respectively) are concentrated in CCPs and constitutively endocytosed even in the absence of their nutrient ligands (Hanover et al., 1985; Brodsky, 1988). The clustering of these cargos depends on sorting signals found in their cytoplasmic tail (Trowbridge et al., 1993; Kirchhausen et al., 1997). Whereas the YXXΦ sorting signal in the TfnR (Jing et al., 1990) is recognized by the tetrameric adaptor protein AP2, recruitment of the LDLR relies on an FXNPXY motif (Davis et al., 1986) recognized by the adaptors Dab2 and ARH. Interestingly, although LDLR uptake in cultured hepatocytes and lymphocytes is dependent on ARH (Mishra et al., 2002b; Jones et al., 2003), its uptake in ARH-null fibroblasts is unaffected (Garcia et al., 2001; Arca et al., 2002). In these cells, Dab2 mediates LDLR internalization, suggesting that these adaptors are partially redundant (Maurer and Cooper, 2006).
Dab2 and ARH both contain N-terminal PTB domains that bind to FXNPXY sorting signals and phosphatidylinositol-4,5-bisphospate. Dab2, but not ARH, contains multiple NPF motifs that mediate binding of Eps15 homology (EH) domain–containing proteins; whereas a PDZ-interacting motif is present in ARH, but not Dab2. Additional recognition motifs in these adaptors mediate binding to both clathrin and AP2 (Mishra et al., 2002a,b). Although Dab2 interacts with AP2 selectively through the α-adaptin subunit (Morris and Cooper, 2001), it appears to sort cargo into CCPs independently of AP2 (Garuti et al., 2005; Keyel et al., 2006; Maurer and Cooper, 2006). ARH binds selectively to the β-adaptin subunit of AP2 (Mishra et al., 2005; Edeling et al., 2006; Keyel et al., 2008) and its function is AP2 dependent (Maurer and Cooper, 2006). Although the general endocytic functions of ARH and Dab2 have been well established, the relationship between these adaptors and AP2 complexes remains unclear, and there are conflicting reports as to whether LDLR and TfnR are internalized via the same or distinct CCPs (Keyel et al., 2006; Lakadamyali et al., 2006).
Here, we have used BSC1 cells expressing variable levels of a CD8/LDLR chimera along with wild-type (wt) and mutant forms of its adaptors, Dab2 and ARH. Combining total internal reflection fluorescence microscopy (TIR-FM), electron microscopy (EM), and biochemical assays, we have studied the effects of this cargo and its adaptors on the size and dynamic behavior of CCPs and the rate and efficiency of CCP maturation.
To study the effect of LDLR and its specific adaptors on clathrin-mediated endocytosis we used epithelial BSC1 cells because (i) they are well suited for TIR-FM due to their morphology and adherence to the substratum, (ii) they can be readily infected with adenovirus for regulated protein expression, (iii) they contain low levels of endogenous LDLRs, Dab2 and ARH (Keyel et al., 2006; unpublished data) facilitating analysis of exogenously expressed wild-type and mutant forms of these proteins, and (iv) CCP dynamics in these cells are well characterized (Ehrlich et al., 2004; Loerke et al., 2009; Mettlen et al., 2009). We first examined Dab2, which mediates LDLR uptake independently of AP2.
Relative amounts of Dab2 and CD8/LDLR control CCP size
Stable Dab2 expression strongly inhibits proliferation of cultured cell lines (He et al., 2003; unpublished data); therefore, we transiently transfected BSC1 cells with mCherry-tagged Dab2 (Dab2-mCherry). Under these conditions, Dab2-mCherry colocalized with enhanced GFP (EGFP)–tagged clathrin light chain a (LCa-EGFP; Fig. 1, A–C) and EGFP-tagged σ2 subunit of AP2 (σ2-EGFP; Fig. S2 A) in CCPs at the cell surface. This expected localization of Dab2-mCherry suggests that the fluorescent tag did not interfere with its function.
CCPs in Dab2-mCherry–expressing cells were comparable in intensity to those in neighboring cells not expressing Dab2 (Fig. 1 B, inset). Negative-stained EM analysis of CCPs on the exposed ventral surface of cells (Fig. 1 D) revealed small flat and curved lattices, typically <200 nm in diameter (Table I). These results differ from observations made upon Dab2 overexpression in Cos7 and HeLa cells (Chetrit et al., 2009), leading us to hypothesize that these differences might reflect the low endogenous levels of LDLRs (or other Dab2-specific cargo) expressed in BSC1 cells relative to other cell lines (Keyel et al., 2006). To test this hypothesis, we generated recombinant adenoviruses encoding a CD8/LDLR chimera driven by a tetracycline (tet)-repressible promoter. The CD8/LDLR chimera comprises the extracellular and transmembrane domains of CD8 and the intracellular LDLR tail bearing a FXNPXY motif (Motley et al., 2003). In infected BSC1 cells, the expression levels of this chimera can be tightly controlled by tet (Fig. S1, A and B) and its endocytosis readily measured using commercially available anti-CD8 antibodies as ligand.
As predicted, at the low levels of CD8/LDLR expression induced in the presence of 25 ng/ml tet (Fig. S1), CCPs increased in intensity (Fig. 1, E–G), suggesting an increase in CCP size and/or clustering of CCPs. EM analysis of the ventral surface of cells revealed the appearance of larger flat lattices (Fig. 1 H), up to 500 nm in diameter (Table I), and clusters of CCPs (Fig. 1, F and H; see also Fig. 3 Ba) that were not detected under control conditions. Strikingly, at the high levels of overexpression achieved upon complete removal of tet, Dab2 was strongly recruited to the plasma membrane and induced the formation of giant clathrin-coated structures (GCCSs). These were selectively located on the ventral surface, irregular in shape, and reached several micrometers in diameter (Fig. 1, I–L, Fig. S2 B, and Video 1). EM revealed these to be flat lattices (Table I) and not clusters of CCPs. GCCS formation was dependent on Dab2 expression, as they were not detected in cells overexpressing CD8/LDLR alone (Fig. S2, E and F; see also Fig. 4, C and D). When TfnRs were overexpressed, even in the presence of Dab2 (Fig. S2 C), we did not detect an effect on CCP size or the appearance of GCCSs by immunofluorescence. Indeed, in our studies, CCPs detected by EM on the dorsal surface of BSC1 cells overexpressing TfnR alone were smaller than in control cells (Table I). These findings differ from an earlier study in which the assembly of flat clathrin lattices was induced by overexpression of human TfnR in chicken fibroblasts (Miller et al., 1991), which may reflect species or cell type differences. Together, these results demonstrate a continuum in the size of CCPs dependent on the expression levels of Dab2 and cargo: both Dab2 and CD8/LDLR overexpression are required for the formation of GCCSs.
Increased membrane recruitment of Dab2 is sufficient to induce GCCSs
To test whether direct cargo binding by Dab2 is required for formation of GCCSs, we expressed myristoylated Dab2 in BSC1 cells. Even in the absence of exogenously expressed cargo, the strong membrane recruitment of this protein alone was sufficient to induce GCCSs (Fig. 2 Aa), although CD8/LDLR expression further increased their size (Fig. 2 Ab). Under these conditions, formation of GCCSs was no longer restricted to the ventral plasma membrane (not depicted).
Dab2 exists as two isoforms: Dab2-p96 and the internal splice variant, Dab2-p67 (Xu et al., 1995). Dab2-p96 binds to both clathrin and AP2, and localizes to CCPs, whereas Dab2-p67 lacks the main AP2- and clathrin-binding motifs and does not localize to CCPs. To probe the structural requirements for the formation of Dab2-dependent GCCSs, we expressed mCherry-labeled Dab2-p67 in BSC1 cells and confirmed that under control conditions (Fig. 2 B) and upon overexpression of the TfnR (Fig. S2 D), Dab2-p67 exhibited a mainly diffuse, probably cytosolic labeling with only minor/no recruitment to CCPs. Unexpectedly, in cells overexpressing CD8/LDLR, Dab2-p67 induced the formation of GCCSs and colocalized with clathrin heavy chain (CHC; Fig. 2 C). These observations suggest that in the presence of low levels of cargo, clathrin and/or AP2 binding by Dab2 are required for its recruitment to CCPs. However, at higher cargo concentrations, other binding interactions, perhaps involving the remaining NPF motifs on Dab2-p67, are sufficient to stabilize Dab2 at the membrane, leading to the formation of larger CCPs and ultimately GCCSs.
Dab2 and CD8/LDLR expression can induce clathrin-coated structures (CCSs) that mimic nonterminal endocytic events
To probe the endocytic activity of CCSs in the presence of Dab2 and increasing amounts of CD8/LDLRs, we next observed BSC1 cells by time-lapse TIR-FM. In the absence of CD8/LDLR, Dab2-mCherry and LCa-EGFP displayed typical dynamic behaviors, assembling as CCPs and departing together as CCVs (Fig. 3 A, Video 2). However, we were also able to detect a small fraction of “nonterminal” events (Fig. 3 A, arrowhead at 140 s), which were originally defined by Merrifield et al. (2005) as sites at which multiple rounds of CCV formation were observed to occur from an apparently single CCP. Nonterminal events are frequently observed in HeLa cells (Merrifield et al., 2005; Loerke et al., 2009), but rarely detected in control BSC1 cells (Ehrlich et al., 2004; Loerke et al., 2009). Our ability to detect nonterminal endocytic events in BSC1 cells expressing Dab2 suggests the existence of some larger-than-normal CCPs or unresolvable clusters of CCPs, even in the presence of endogenous cargo levels.
The larger CCPs present in BSC1 cells expressing Dab2-mCherry and low levels of CD8/LDLR (Fig. 1, E–H) were highly dynamic and often appeared as clusters of smaller CCSs. Indeed, clusters of CCPs were frequently observed by EM (Fig. 3 Ba). Multiple rounds of vesicle budding (Fig. 3 Bb and Video 3) could be detected from these CCP clusters, which would appear as nonterminal events for closely adjacent CCPs. With increasing amounts of CD8/LDLR, the size of these clusters increased (not depicted), and although Dab2-mCherry was homogeneously distributed throughout these structures, LCa-EGFP and CHC were less uniform (Fig. 1 J and Fig. 3 C). This uneven distribution was even more pronounced for AP2, which appeared as mobile clusters within enlarged CCSs (Fig. S2 B and Video 4). Finally, GCCSs induced by overexpression of CD8/LDLR and Dab2 also displayed a dynamic morphology (Fig. 3 C, splitting and merging events within these structures are indicated by arrows and arrowheads, respectively; see also Video 5). Dab2 and clathrin exchanged actively in these structures (Fig. 3 D), albeit with different kinetics (Fig. 3 E; Chetrit et al., 2009). However, despite this dynamic behavior, CCVs were observed to pinch off from the edges of these GCCSs only on rare occasions, indicating that they are not endocytically active (Videos 4 and 5). Together, these data further support a continuum of effects of cargo and Dab2 on CCP size and dynamic behavior.
CCP localization of ARH is cargo dependent
In contrast to Dab2, exogenous expression of ARH did not inhibit cell proliferation, and thus we could generate BSC1 cells stably expressing mCherry-tagged ARH (ARH-mCherry). To our surprise, unlike the identically labeled Dab2, the vast majority of ARH-mCherry was found in the nucleus of BSC1 cells (Fig. 3, A and B). Only a weak ARH signal was detectable in CCPs, colocalizing with CHC (not depicted) and α-adaptin (Fig. 4 B, insets upon overexposure).
Upon CD8/LDLR expression, ARH exited the nucleus and was recruited to the plasma membrane, where it colocalized with clathrin (Fig. 4 C), and α-adaptin (Fig. 4 D) in diffraction-limited CCPs. Unlike Dab2, the combined presence of ARH and CD8/LDLR did not induce formation of GCCSs. EM analysis showed that the CCPs present in these cells consisted of flat and curved lattices, which remained below the diffraction limit (up to 500-nm and 165-nm diameter, respectively; Fig. S4 D, Table I). When we coexpressed CD8/LDLR, Dab2-mCherry, and ARH-EGFP in BSC1 cells, both adaptors were recruited to the plasma membrane, where they colocalized (Fig. 4 E). However, in the presence of ARH, Dab2 and CD8/LDLR overexpression failed to generate GCCSs, although CCSs remained larger (and/or more clustered) when compared with control conditions (compare Fig. 4 E with Fig. 1, I–K and Fig. 4, C and D). Together, these results indicate that (i) Dab2 and ARH bind to the same cargo, (ii) both adaptors are recruited into the same CCSs, (iii) the size of CCPs can be controlled by the ratio of Dab2/ARH; and (iv) despite their partial functional redundancies and structural similarities, Dab2 and ARH exhibit fundamentally different, albeit cargo-dependent, interactions with CCPs.
We also noted that stable ARH expression altered cell morphology such that the cells displayed a very broad and regular leading edge (Fig. 4 A, Fig. S3 A). These shape changes were accompanied by alterations in the actin cytoskeleton (Fig. S3, A and B), which were reversed upon CD8/LDLR expression, as ARH redistributed to CCPs (Fig. S3 C). Together, these observations indicate that ARH interacts with and controls actin dynamics by an as yet unknown mechanism.
AP2 binding is required for CCP recruitment of ARH, whereas its nuclear export is passive and AP2 independent
We next examined the structural requirements for the cargo-dependent redistribution of ARH from the nucleus. The mutant mCherry-tagged ARH-F259A, which is unable to bind AP2 (Mishra et al., 2005), was also localized to the nucleus in stably transformed BSC1 cells not expressing CD8/LDLR (Fig. 5 A). Upon overexpression of CD8/LDLR, ARH-F259A exited the nucleus, but was not recruited into CCPs (Fig. 5 B). Thus, although cargo overexpression is sufficient to trigger nuclear exit, AP2 interactions are required to stabilize ARH in CCPs. Consistent with this, ARH-containing CCPs almost always colocalized with AP2 (Fig. 4 D), even though we could readily detect clathrin-labeled CCPs that did not contain AP2 (Fig. S2 E, circles). We next tested the role of ARH's PTB domain in nuclear exit. The PTB domain mutants ARH-S117Y and ARH-F165A show no or reduced affinity for LDLRs, respectively, and fail to rescue LDL-plasma concentrations in ARH−/− mice (Garuti et al., 2005). When transiently transfected into BSC1 cells both the ARH-S117Y-mCherry and ARH-F165A-mCherry mutants exhibited attenuated nuclear exit/CCP recruitment upon CD8/LDLR expression (unpublished data). The double mutant ARH-S117Y;F165A-mCherry was localized to the nucleus and failed to exit upon CD8/LDLR expression (Fig. 5 C), indicating a role for PTB binding interactions in the nuclear shuttling of ARH.
Proteins or protein complexes with a molecular weight larger than ∼40 kD are actively transported through nuclear pore complexes by importins. These transporters recognize nuclear localization signals (NLSs) found in target proteins (Stewart, 2007). ARH lacks a recognizable NLS, suggesting that an additional factor might be involved in its nuclear shuttling. To investigate whether nuclear export of ARH was an active process, we treated cells with leptomycin B (LmB), a potent inhibitor of nuclear exit. LmB prevented adenoviral-mediated CD8/LDLR expression (Fig. S3, D and E), and hence indirectly inhibited ARH export (Fig. S3 Fa). However, if we first expressed CD8/LDLR for 2–7 h and then added LmB, ARH redistributed from the nucleus to CCPs (Fig. S3 Fb,c). Together, these results show that nuclear exit of ARH is passive and suggest the existence of a second PTB domain binding partner required for nuclear import of ARH. In this scenario, overexpression of the CD8/LDLR chimera might displace this factor and enable recruitment of ARH to the plasma membrane. Other endocytic adaptors, including epsin and β-arrestin (Pilecka et al., 2007) are known to shuttle to the nucleus, and Dab2 has been shown to modulate LDLR expression (Eden et al., 2007). Therefore, although beyond the scope of this study, it will be worthwhile in future studies to explore the mechanisms governing ARH nuclear shuttling and the possible nuclear function of ARH.
ARH stabilized AP2 at the plasma membrane
Consistent with results from others (Mishra et al., 2005; Keyel et al., 2006, 2008; Maurer and Cooper, 2006), our data suggest that ARH recruitment to CCPs was dependent on AP2 interaction. Interestingly, we found that ARH expression induced strong membrane recruitment of AP2 even in the absence of CD8/LDLR overexpression (Fig. 5 D, µ2 signal), indicating that a small amount of membranous ARH (Fig. 4 B, insets) is sufficient to increase CCP recruitment of AP2. Upon CD8/LDLR overexpression, the cytosolic pool of µ2 was further depleted (Fig. 5 D) and as expected, the ARH-F259A mutant failed to increase AP2 membrane recruitment (Fig. 5 D). All other cell clones showed only slightly reduced or unchanged cytosolic pools of µ2 upon CD8/LDLR overexpression, and the distribution of CHC between cytosol and the membrane fraction (i.e., ratio of 4:1) was unaffected (Fig. 5 D). Consistent with this, CD8/LDLR overexpression alone does not significantly alter overall CCP density (Fig. S4 A). Together, these results demonstrate a strong CD8/LDLR-dependent membrane recruitment of both ARH and AP2 that, because CCP density does not change, results in a cargo-dependent increase of the adaptor protein content per CCP.
ARH partially rescues saturated CME in an AP2-dependent manner
Previously, it has been reported that constitutive CME is saturable (Warren et al., 1997, 1998; Loerke et al., 2009). We confirmed this property in BSC1 cells by biochemically measuring CD8/LDLR endocytosis. Although total levels of internalized CD8/LDLR increase upon overexpression, a significant decrease in efficiency of endocytosis is apparent when cargo uptake is normalized to the total number of surface-expressed receptors. With increasing expression levels of CD8/LDLR, the efficiency of CME decreased (Fig. 6 A). To test whether this saturation reflected decreased efficiency of adaptor-mediated cargo clustering, we compared CD8/LDLR uptake in control cells with cells expressing one of various fluorescently tagged clathrin-coat components (i.e., LCa-EGFP, σ2-EGFP, ARH-wt-mCherry, or ARH-F259A-mCherry). As expected, neither LCa-EGFP nor σ2-EGFP expression increased uptake efficiency of CD8/LDLR chimeras (Fig. 6, B and C). However, the endocytic efficiency of CD8/LDLR uptake under high (0 ng/ml tet) expression levels was increased in cells expressing an additional pool of ARH (Fig. 6, B and C; open symbols/bars). To establish the specificity of this effect, we showed that TfnR uptake, which was also saturated upon its overexpression, was not rescued by ARH (Fig. S1 C). The partial rescue of saturated CD8/LDLR uptake in cells expressing wt ARH-mCherry coincided with an ∼48% decrease in the amount of extracellularly exposed CD8/LDLRs (unpublished data). This was expected because the amount of CD8/LDLRs at the membrane reflects the balance between endocytosis and recycling (the latter was unaffected by CD8/LDLR expression; unpublished data). Although endocytosis of CD8/LDLRs was more efficient with increased amounts of ARH, the rescue was incomplete, indicating the existence of other rate-limiting components during uptake of high CD8/LDLR loads.
As predicted by our previous findings, the endocytic efficiency of CD8/LDLR uptake in BSC1 cells was directly linked to the capability of ARH to bind AP2. Analysis of mutant ARH proteins defective in AP2 binding (Mishra et al., 2005) showed that expression of ARH-252A255, which has reduced ability to bind AP2, only slightly increased the efficiency of CD8/LDLR uptake, whereas expression of ARH-F259A, which is unable to bind AP2, had no effect (Fig. 6 C). Finally, depletion of AP2 through siRNA-mediated knockdown of µ2 by 80% (unpublished data) ablated the ability of ARH-mCherry expression to restore the efficiency of CD8/LDLR endocytosis at high levels of expression (Fig. 6 C). Altogether, these data clearly establish the requirement of AP2 for ARH-mediated LDLR uptake, which mirrors the requirements for ARH targeting to CCPs. Furthermore, these results demonstrate that saturated CME can be partially accounted for by a limited amount of adaptor proteins.
Cargo overexpression prolongs the lifetime of productive CCPs
To better understand the role of the LDLR/ARH cargo-adaptor complex in regulating early stages in CME, we recorded time-lapse movies of LCa-EGFP–labeled CCPs in the presence or absence of CD8/LDLRs and/or ARH by TIR-FM and applied automated analysis of CCP trajectories as described previously (Jaqaman et al., 2008; Loerke et al., 2009). We were unable to follow CD8/LDLR clustering directly because overexpression of this chimera led to a strong decrease of the signal-to-noise ratio at the plasma membrane (Fig. S1 B), impeding automated tracking of cargo-laden CCPs.
As previously shown in control cells (Mettlen et al., 2009), productive CCPs, which ultimately lead to vesicle formation, contribute 50.7 ± 2.0% (mean ± jackknifed cell-to-cell error; Thomson and Chave, 1991) to the total number of CCPs found at the plasma membrane (Fig. 7 A), with early and late abortive CCPs representing 30.7 ± 1.3% and 17.0 ± 1.3%, respectively. The remaining persistent CCPs (1.7 ± 0.4%; Fig. S4 B) failed to turn over for the duration of the 10-min movies. The calculated mean lifetimes were 5.7 ± 0.3 s, 19.1 ± 1.7 s, and 62.8 ± 3.1 s for early abortive, late abortive, and productive CCPs, respectively (Fig. 7 B).
Surprisingly, in cells overexpressing CD8/LDLRs in either the absence or presence of an additional pool of ARH, the relative contribution of productive CCPs decreased to 41.3 ± 2.1% and 44.5 ± 2.2%, respectively (Fig. 7 A). This decrease in CCP maturation efficiencies was in contrast to our previously reported results upon TfnR overexpression (Loerke et al., 2009). To test whether this observation was due to an increased absolute number of abortive structures, and/or a decreased absolute number of productive CCPs, we measured the initiation density of CCPs (i.e., their rate of appearance per unit of cell surface). The average initiation rate of LCa-EGFP–labeled CCPs with lifetimes of 35–135 s (i.e., productive CCPs) was unaffected by CD8/LDLR and/or ARH expression (control: 0.088 ± 0.026 pits/min/µm2; +CD8/LDLR: 0.089 ± 0.028 pits/min/µm2; +CD8/LDLR +ARH: 0.089 ± 0.025 pits/min/µm2; Fig. S4 C), whereas the initiation density of short-lived structures with lifetimes of 3–30 s (i.e., abortive CCPs; Fig. 7 B) increased (control: 0.29 ± 0.071 pits/min/µm2; +CD8/LDLR: 0.41 ± 0.093 pits/min/µm2; and +CD8/LDLR +ARH: 0.30 ± 0.066 pits/min/µm2). Together, these data indicate that CD8/LDLR overexpression stimulates initiation of CCPs, but does not affect the total number of productive CCPs. Thus, the reduced overall CCP maturation efficiency reflects an increased presence of abortive events.
Consistent with the decreased efficiencies of CME observed biochemically, the average lifetime of productive CCPs, which reflects the rate of maturation, increased significantly from 62.8 ± 3.1 s to 75.5 ± 5.0 s upon CD8/LDLR overexpression (Fig. 7 B). An additional pool of ARH did not alter the lifetimes of productive CCPs (76.3 ± 5.2 s), despite increasing the efficiency of CD8/LDLR endocytosis (Fig. 6 B). These data suggest that ARH expression enhances CD8/LDLR uptake by increasing packaging, i.e., the number of CD8/LDLRs per CCP and/or the size of CCPs, rather than by enhancing either the efficiency or rate of CCP maturation. In contrast to the effects on productive CCPs, the average lifetime of late abortive structures was decreased from 19.1 ± 1.7 s under control conditions to 17.2 ± 1.2 s in the presence of CD8/LDLRs and further decreased to 15.5 ± 0.8 s upon expression of ARH (Fig. 7 B). Thus, CD8/LDLR overexpression together with its adaptor ARH lead to increased rates of initiation and turnover of abortive species. These effects suggest that additional factors, required to stabilize productive CCPs, become limiting during saturated CME.

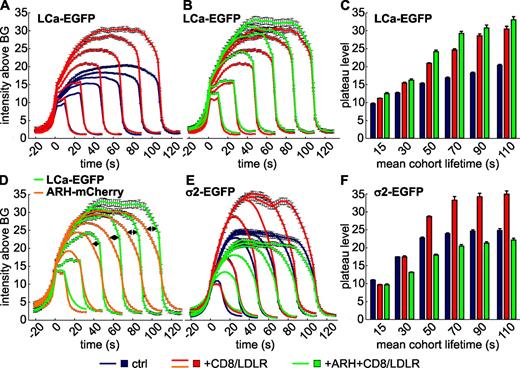

CD8/LDLRs increase the amount of coat components per CCP
To further test the possibility that CD8/LDLR overexpression alters the size and/or packaging efficiency of CCPs, we extracted LCa-EGFP intensity profiles of CCP cohorts with a given lifetime range. These profiles are a general indicator of CCP growth and an indirect size measurement for structures under the light-diffraction limit (Saffarian and Kirchhausen, 2008).
Under control conditions (Fig. 8 A, blue lines), intensity profiles of LCa-EGFP–labeled CCPs were asymmetrically shaped, with the exception of the 10–20-s cohort, containing mainly abortive structures. We detected four phases of CCP maturation: (i) an initial phase of rapid growth, lasting ∼30 s, during which CCPs of all lifetime cohorts acquired LCa-EGFP molecules (triskelia) with similar kinetics, (ii) an intensity plateau, (iii) a phase of slow intensity decline, and (iv) the rapid disappearance of the fluorescent signal. The maximum fluorescent intensities of LCa-EGFP at the plateau phase increased with lifetimes (Fig. 8 C, blue bars). CD8/LDLR overexpression strongly increased the intensities of all CCP cohorts (Fig. 8 A, red lines; Fig. 8 C, red bars) through an increased growth rate during the now slightly prolonged initial phase. The increase in growth corresponds to increased lifetimes of productive CCPs observed upon CD8/LDLR overexpression. Introduction of an additional pool of ARH (Fig. 8 B, green lines) further increased the intensities of LCa-EGFP signals, especially of those pits with lifetimes of 40–100 s (Fig. 8 C, green bars), consistent with CCP size measured by EM (Table I, Fig. S4 D). Together, these data establish that CD8/LDLR overexpression increases the size of CCPs, and ARH enhances this effect and increases the packaging efficiency of CD8/LDLR into these enlarged CCPs.
In cells expressing CD8/LDLR, ARH-mCherry displayed nearly identical accumulation kinetics during the first 30–40 s at CCPs as compared with LCa-EGFP (Fig. 8 D, orange lines vs. green lines, respectively). However, ARH accumulation seemed to reach its maximum in CCPs with lifetimes >80 s, whereas clathrin intensities were higher in longer-lived cohorts. Thus, CCPs that take longer to pinch off have a higher ratio of clathrin:ARH than shorter-lived CCPs. In addition, although the relative intensities of these two markers could not be directly compared, an earlier decrease of the ARH-mCherry signals compared with LCa-EGFP signals (Fig. 8 D, arrows) led to a more symmetrical shape of the ARH-mCherry profiles. A similar dissociation/redistribution has been suggested for AP2 (Rappoport et al., 2005; Saffarian and Kirchhausen, 2008) and was further supported by our analysis of CCP cohorts labeled by σ2-EGFP. Like LCa-EGFP and ARH-mCherry, AP2 rapidly accumulated in CCPs (Fig. 8 E, blue lines). However, unlike clathrin, but as for ARH-mCherry, these σ2-EGFP intensities began to decrease before LCa-EGFP. The apparently earlier disappearance of adaptors relative to clathrin indicates either their dissociation from CCPs before clathrin and/or a nonuniform redistribution of both ARH and AP2 in the clathrin lattice, resulting in their differential illumination within the TIRF field.
CD8/LDLR overexpression also increased signal intensities of all σ2-EGFP–labeled CCP cohorts (Fig. 8, E and F; red lines and bars, respectively) and prolonged the growth phase to ∼50 s. Expression of an additional pool of ARH in the presence of CD8/LDLR reduced the amount of σ2-EGFP per CCP (Fig. 8, E and F; green lines and bars, respectively). Together, these data indicate that despite the dependence of ARH on AP2, these adaptors nonetheless also compete for incorporation into CCPs and that the relative amounts of ARH and AP2 define the size (i.e., the intensities) of diffraction-limited CCPs.
We have used a combination of immunofluorescence, biochemistry, electron microscopy, live-cell imaging by TIR-FM, and automated analysis of CCP trajectories to characterize how cargo- and adaptor-specific mechanisms regulate CME. Previously, we showed that overexpression of TfnR, a constitutively internalized, AP2-dependent cargo, increased the efficiency of CCP maturation by increasing the contribution of productive CCPs at the expense of abortive species without affecting the rate of CCP maturation, i.e., the lifetimes of productive CCPs (Loerke et al., 2009). In contrast, we show here that overexpression of another constitutively internalized cargo, the LDLR, increases the rate of initiation and turnover of abortive CCPs, slows the rate of CCP maturation, and increases the size of CCPs through membrane recruitment of its specific adaptors, Dab2 and ARH. Together, these data strongly suggest that the observed heterogeneity in the dynamic behavior of CCPs (Merrifield et al., 2005; Rappoport et al., 2005; Yarar et al., 2005) could reflect differences in their content of cargo and adaptor molecules.
Dab2 and ARH are differentially recruited to CCPs, yet compete for occupancy
In agreement with previous studies (Morris and Cooper, 2001; Keyel et al., 2006; Maurer and Cooper, 2006; Chetrit et al., 2009), we observed colocalization of exogenously expressed mCherry-labeled Dab2 with clathrin-coat components in control cells. Under the same experimental conditions, ARH displayed a fundamentally distinct intracellular distribution: it was predominantly nuclear with only a barely detectable recruitment to CCPs. ARH can interact directly with both clathrin (He et al., 2002) and AP2 complexes (Mishra et al., 2005); hence, the absence of ARH from CCPs under control conditions suggests that ARH recruitment is highly regulated and involves a yet-unidentified factor/mechanism. This hypothesis is strongly supported by the observation that (i) ARH translocated from the nucleus into the cytosol upon CD8/LDLR expression, and (ii) this nucleo-cytoplasmic shuttling did not depend on AP2 binding and/or CCP recruitment, but on a functional PTB domain.
Dab2 and ARH compete with each other and with AP2 for binding sites within the same CCPs as evidenced by (i) the strong colocalization of these various adaptors in CCPs, (ii) the competition of ARH and Dab2 for cargo binding, thereby disrupting Dab2 scaffolding of GCCSs, and (iii) the displacement of AP2 by ARH from cargo-laden CCPs. Overexpression of a specific receptor and its adaptors alters the relative adaptor composition of CCPs and hence their dynamic behavior. There has been some controversy as to whether TfnR and LDLR can be co-internalized in a single CCP (Keyel et al., 2006; Lakadamyali et al., 2006). Our data are consistent with the ability of CCPs to take up multiple distinct receptors. However, we speculate that cargo-specific mechanisms (e.g., ligand-induced receptor clustering) could, under steady-state conditions, alter the relative proportions of specific receptors and their adaptors to specifically affect the properties of individual CCPs. Such effects have been observed for G protein–coupled signaling receptors (Puthenveedu and von Zastrow, 2006).
ARH is AP2 dependent and limiting during CD8/LDLR uptake
Although biochemical measurements establish that CD8/LDLR endocytosis is saturable, resulting in a markedly decreased efficiency of CME, the effect of CD8/LDLR overexpression on CCP dynamics was relatively small. This apparent discrepancy reflects the fact that biochemical assays for ligand uptake measure CME indirectly and the efficiency of CME depends on cargo loading/concentration into CCPs. At very high levels of expression, most of the CD8/LDLRs are diffusely distributed on the plasma membrane and not captured in CCPs. In contrast, the TIRF-based assays measure CCP dynamics and CCV formation directly. That these kinetics were less affected by CD8/LDLR overexpression argues that reduced CME efficiency under these conditions reflects saturation of adaptor-dependent recruitment of cargo into CCPs.
Previous studies have reported a strong inhibition of fluorescent DiI-LDL internalization after transient expression of ARH-GFP in HeLa cells (Mishra et al., 2005). Here, we have taken care to select stable transformants expressing low levels of ARH-mCherry and show biochemically that ARH is able to increase the efficiency of LDLR uptake at saturation. This activity was dependent on its abilities to bind LDLR through its PTB domain and to interact with AP2. Increased efficiency of LDLR uptake upon ARH expression was not achieved through an increased CCP density, an increased percentage of productive CCPs, or an increased rate of their maturation. Instead, it occurred through an increased efficiency of LDLR sorting/packaging into CCPs. Our live-cell and electron microscopy experiments demonstrated that this is accomplished, in part, by a prolonged growth phase and increased size of individual CCPs.
CD8/LDLRs and their adaptors increase the size and dynamic behavior of productive CCPs
In contrast to TfnR overexpression, which did not affect AP2 distribution (Loerke et al., 2009), overexpression of CD8/LDLR increased the recruitment of both Dab2 and ARH to the plasma membrane. This recruitment of adaptor proteins had differential effects on CCP size and their dynamic behaviors.
In cells expressing Dab2-mCherry, the size of CCPs increased with increasing levels of CD8/LDLR expression. At endogenous levels of cargo, we observed an increase in the number of nonterminal endocytic events, suggesting that under these conditions, larger CCPs assemble so that a residual clathrin patch remains after CCV budding. The number of nonterminal events increased upon mild overexpression of cargo, and clusters of dynamic CCPs were observed. The presence or absence of a variable fraction of nonterminal events in different cell types could be explained by variable amounts of cargo and/or Dab2 at the plasma membrane. This idea is further supported by the observation that nonterminal events are more frequent in HeLa cells (Ehrlich et al., 2004; Merrifield et al., 2005; Loerke et al., 2009), which express relatively high levels of Dab2 and cargo (Maurer and Cooper, 2006; unpublished data). At very high levels of CD8/LDLR overexpression, Dab2 induced the formation of large, flat, and endocytically inactive clathrin lattices on the ventral cell surface. Similar GCCSs have been observed in other cell types upon Dab-2 overexpression, associated with integrins, another Dab2-specific cargo molecule (Chetrit et al., 2009). Hence, GCCS formation is likely dependent on levels of expression of Dab2 and endogenous cargo. We speculate that the cargo-dependent recruitment of Dab2 contributes to a more extended adaptor scaffold at the plasma membrane, thereby guiding—presumably through its NPF motifs—recruitment of additional endocytic accessory proteins that affect the extent of clathrin polymerization and the dynamic behavior of CCPs.
When CD8/LDLR and ARH were coexpressed, CCPs also grew in size, as detected by increased clathrin intensities and electron microscopy, yet they remained under the light-diffraction limit. Thus, we observed a cargo and adaptor expression-dependent continuum in regulating the size of CCPs, such that TfnR overexpression < control cells = Dab2 alone < CD8/LDLR overexpression alone < low CD8/LDLR + Dab2 < high CD8/LDLR + ARH ≪ high CD8/LDLR + Dab2. The fact that both Dab2 and ARH increased the size of CCPs relative to CCPs in which AP2 is the predominant adaptor (i.e., under conditions of TfnR overexpression) might reflect the need to accommodate the very large ligands bound by LDLR and LRP (Jones et al., 2003) (i.e., LDL particles, d∼22 nm and α2-macroglobulin, d∼18.5 nm; Krimbou et al., 1998), respectively. Additional studies are required to determine the molecular mechanisms controlling the extent of clathrin polymerization.
Adaptor content and the endocytosis checkpoint
We previously identified an endocytic restriction/checkpoint and provided evidence that progression beyond the checkpoint (i.e., CCP maturation efficiency) was enhanced by TfnR overexpression in a manner dependent on AP2 adaptors (Loerke et al., 2009). Subsequently, we identified a subset of endocytic accessory factors, including membrane curvature and coat-sensing proteins, whose siRNA knockdown altered the rate and extent of turnover of abortive CCPs (Mettlen et al., 2009). These data suggested that factors recruited to AP2 complexes through interactions with their appendage domains might provide input into the endocytic checkpoint.
Although much work remains to test this checkpoint hypothesis and its implications and mechanisms, the results reported here provide some new insight as to how the checkpoint might respond to cargo content and adaptor assembly. For example, in contrast to the effects of TfnR overexpression, increased LDLR/ARH levels led to a slight increase in the initiation, turnover rate, and number of abortive CCPs. Under these conditions, ARH partially displaces AP2 from CCPs, which could account for the destabilization of nascent CCPs. Dab2, unlike ARH, is recruited to CCPs and can function independently of AP2. Thus, the Dab2-dependent formation of nonfunctional, flat GCCSs under conditions of high cargo concentrations could reflect an imbalance of protein–protein interactions, possibly involving the disproportionate recruitment, through the multiple NPF motifs found in Dab2, of EH domain–containing proteins (e.g., Eps15, Eps15R, and intersectin) that bind directly or indirectly to clathrin. This could potentially bypass the requirement for a threshold amount of AP2 and its associated partners, and hence disrupt signaling to the endocytic restriction/checkpoint. This hypothesis is supported by the observations that in the presence of CD8/LDLR: (i) Dab2-p67, which is unable to bind clathrin and AP2 but contains NPF motifs, was able to induce the formation of GCCSs; (ii) ARH, which is lacking NPF motifs, did not induce formation of flat lattices; (iii) a mix of ARH and Dab2 led to the breakdown of GCCSs; and (iv) AP2 complexes are nonuniformly distributed in GCCSs.
Altogether, our results underscore the highly dynamic and cargo-responsive nature of clathrin coats and illustrate the complexity of CCP maturation. Together with our previous results (Loerke et al., 2009), we establish that even constitutively internalized cargo and their adaptors can regulate multiple aspects of CCP maturation and that variations in adaptor/cargo content can account, in part, for the dynamic heterogeneity of CCPs.
